Portable Bluetooth Speaker
OontZ Dual Speaker Model
Quick Start Guide
Designed and Engineered By
TheOontZ.com
Lastest version of
Quick Start Guide available
online at www.theoontz.com/support
Table of Contents
Pages
In the Package
Buttons
Lights
Connectors
Play Horizontally or Vertically
Battery Features
Charging the Battery
Turning On and Off
Pair & Connect - Step 1
Pair & Connect - Step 2
-- From Your iPhone, iPad, Smartphone, Tablet and Mobile Devices
-- From Your Apple Mac or Windows
Laptop/Computer
-- From Your Amazon Echo Device
To Play with Non-Bluetooth Audio Source Devices Use the 3.5mm Audio Cable
IPX5 Water Resistance
Wireless Hands Free Personal Speakerphone
OontZ Dual Speaker - Connect Two OontZ Angle 3 Speakers Together
Resetting Your OontZ Angle 3
Troubleshooting & Customer Support
Safety and Precautions
IC Warning Statement
1
2
3
4
5
6
7 - 8
9
10
11
11
12 - 13
14
15
16
17 - 21
22
23
24 - 25
26

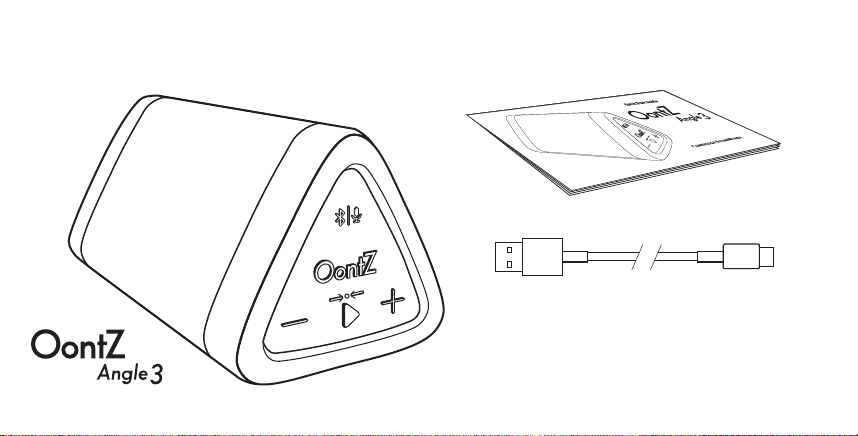

In the Package
Note: The USB Type C Charging Cable is packed below
the cardboard insert at the end of the triangle box.
Slide out the insert to locate the cable.
Quick-Start Guide
Page 1
USB Type C Charging Cable
Portable Bluetooth Speaker
OontZ Wireless Dual Stereo Model
Designed and Engineered By
TheOontZ.com
Track Forward
- Press and Hold
Down for 2 Seconds
Volume Up
- Press and Release to increase
volume one level; repeat until
volume raises to desired level
Volume Down
- Press and Release to decrease
volume one level; repeat until
volume lowers to desired level
Play/Pause Button
Buttons
Power Button
Bluetooth/Speakerphone Button
Page 2
Button (Dual Function)
Button (Dual Function)
- Holding the button down will
result in track back
- Holding the button down will
result in track forward
Track Back
- Press and Hold
Down for 2 Seconds
Press and Release to Pause/Play
Important - Make sure the volume level is set high on your audio source device. The volume on the OontZ Angle 3 and your audio
source device both need to be set to the highest level for the loudest volume. The volume controls on your audio source device
and the speaker work independently of each other.
Important - The track back feature is application-dependent. Some apps may not support track back, track forward, or play/pause
Lights
Page 3
Lit Red when charging:
- Slowly flashing Red
battery is charging
- Solid Red
battery is fully charged
Lit White/Orange when the
speaker is the second speaker
connected in OontZ Dual
Speaker
- With a second OontZ Angle 3
speaker (sold separately) you can
wirelessly connect both speakers
together to play with OontZ Dual
Speaker.
- For OontZ Dual Speaker
instructions please see page 18.
Lit Blue when speaker is on:
- Flashing Blue
speaker is in pairing mode
- Solid Blue
speaker is connected
- Blue Light will turn to Solid Blue
when a 3.5mm audio cable is
plugged into the AUX IN Jack
Connectors
AUX IN Jack
USB Type C
Charging Connector
Built-in Mic for
Speakerphone
Page 4
Rubber Flap
- covers connectors
- pull gently from the bottom to access
connectors, it is a snug fit to provide
water resistance
Note: The rubber flap needs
to be closed to keep the
speaker water resistant
Play Horizontally or Vertically
Page 5
– Has its own grille
– Faces bass away from Dual
Precision Stereo Drivers
– Rich bass does not interfere
with Mids and Highs
Passive Bass Radiator
Dual Precision Stereo Drivers
Play Vertically
Controls on top
Play Horizontally
Controls on side
Battery Features
Music Play Time
Up to 14 hours on a full charge, at 2/3 volume.
Louder volumes will reduce the battery play time.
Page 6
- The rechargeable battery comes with a partial
charge and the speaker is ready to play.
- For maximum playtime, fully charge the battery.
- You can play while charging.
Low Charge Remaining
- When the battery charge has less than 15%
remaining the Red Light will begin flashing rapidly.
- The volume will decrease to preserve the
remaining battery charge.
*Exception: when connected to certain devices, including the Amazon
Echo Dot or Amazon Echo, the Power Saving Feature is disabled and
the speaker will remain on until you turn the power off.
Power Saving Feature
- When playing from battery power the OontZ Angle 3 will turn off after
15 minutes of not playing audio to conserve the battery charge. *
- When plugged into a charging source the OontZ Angle 3 will remain on
until you turn the power off.
- You can continue to keep the speaker plugged into a charging source
even when it is fully charged.
Charging the Battery
Page 7
- Insert the small end of the USB
Type C Charging Cable into the USB
Type C Charging Connector as
shown.
- Insert the larger end of the USB
Type C Charging cable into a USB
wall charger for a Smartphone or
iPhone, or a USB port on your
laptop/computer to charge the
battery (see illustrations on page 8).
Charging Time:
- Up to 5 hours to fully charge
a low battery.
Lit Red when charging:
- Slowly flashing Red
battery is charging
- Solid Red
battery is fully charged
*
Only use a USB wall charger that is UL listed. A USB wall charger will have the logo printed on it.
Charging the Battery (continued)
Page 8
Insert the larger end of the USB Type C Charging Cable into a USB wall charger for a Smartphone or iPhone (USB wall
charger* that is 5V 3.0A maximum), or a USB port on your laptop/computer to charge the OontZ Angle 3 battery.
Turning On and Off
Red Light turns on
- will turn off after 3 seconds if playing from battery power
Press and Release the Power Button
Turn ON
Page 9
Blue Light turns on
Blue Light will turn off
- Flashing Blue
The speaker is turned on and is in pairing mode
- Solid Blue
The speaker is turned on and has connected to an
audio source device and is ready to play
Turn OFF
Press and Hold Down the Power Button for 2 Seconds
Turn ON your OontZ Angle 3
Flashing Blue Light
- The OontZ Angle 3 is ready to pair and connect.
Solid Blue Light
- The OontZ Angle 3 has automatically reconnected to the last device it was connected to
and is ready to play.
- The OontZ Angle 3 will automatically try to connect to the last device it was connected to each
time it is turned on and that device is within range.*
The OontZ Angle 3 can be connected to one device at a time.
- To pair and connect to a different device, you need to first disconnect the currently paired device.
- To disconnect the current device, press and hold down the Bluetooth button for 3 seconds.
- The Blue Light will begin flashing and the OontZ Angle 3 is ready to pair and connect to your device.
Pair & Connect -- Step 1
Page 10
- Make sure your OontZ Angle 3 battery has a sufficient charge, it is not able to connect when the charge is too low.
- Your device needs to be within 100 unobstructed feet of the OontZ Angle 3 to pair and connect. If there is an
issue when connecting please move your device closer to the speaker, then pair and connect.
*Exception: certain devices may not automatically reconnect.
Amazon Echo devices will not automatically reconnect. You will need to say "Alexa, connect my speaker"
Page 11
Pair & Connect with Your Device -- Step 2 --
- Go to Settings > Bluetooth, check Bluetooth is on
- Select 'OontZ Angle 3 DS xxx' when it appears under DEVICES (xxx: 3 characters which are unique to your speaker)
- Your device will connect in a few seconds
- The Blue Light will turn solid blue and there will be a quiet chime
- You can now play your audio wirelessly to your OontZ Angle 3
Note: Your Smartphone or Tablet instructions may vary
-- With Your iPhone, iPad, iPod, Smartphone, Tablet & Mobile Devices
-- With Your Apple Mac or Windows Laptop/Computer
For the pairing and connecting guide for your Apple Mac or Windows laptop/computer, please visit: TheOontZ.com/pairing.
Important - The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest
volume, set the volume on your device to maximum and raise the volume on the speaker to maximum.
Pair & Connect -- Step 2 --
-- From Your Amazon Echo device
Page 12
- Open the Alexa app
- Press 'Devices' by pressing the 'Devices' button in the bottom right corner
- Press 'Echo & Alexa'
- Select your Amazon Echo device under list of devices displayed by pressing it
- Press 'Bluetooth Devices'
- Press 'Pair A New Device'
- Select the 'OontZ Angle 3 DS xxx' (xxx: 3 characters unique to your speaker) when it appears
- The OontZ Angle 3 will make a 'ding' sound when connected
To connect the next time, turn on the OontZ Angle 3 and say "Alexa, connect my speaker" or "Alexa, pair"
To pair and connect the first time with an Amazon Echo device use the Alexa app on your device.
Important Note: When the OontZ Angle 3 is playing from battery power and connected to the Amazon Echo device, the
speaker will remain on and it will not automatically turn off after 15 minutes of not playing audio.
This will use up the battery charge.
We recommend to:
1) Keep the OontZ Angle 3 plugged into a USB wall charger.
It can remain on and available to play from the Amazon Echo device.
- Or -
2) Turn off the OontZ Angle 3 when you are done listening.
- Either turn off the speaker by pressing and holding down the power button for 2 seconds,
- or say "Alexa, disconnect my speaker" and the OontZ Angle 3 will automatically turn off after 15 minutes.
- When you want to connect and play to the speaker again turn on the OontZ Angle 3 and say "Alexa, connect my speaker"
or "Alexa, pair".
Page 13
Pair & Connect -- Step 2 --
-- From Your Amazon Echo device (continued)
For assistance with the Alexa app, contact Amazon's Customer Service.
Open the Alexa app and select Help & Feedback > Email Customer Service
- Plug one end of a 3.5mm audio cable into the AUX IN Jack on the
back of your speaker.
- Plug the other end of the 3.5mm audio cable into the headphone
jack on your laptop/computer or non-Bluetooth audio device.
- Make sure both ends of the cable are fully inserted
- You are now ready to play.
- Make sure your OontZ Angle 3 battery has a sufficient charge
Page 14
Turn ON your OontZ Angle 3
To Play with Non-Bluetooth Audio Source Devices
Use a 3.5mm Audio Cable
Important: The Bluetooth on the OontZ Angle 3 is disabled when a 3.5mm audio cable is connected to the speaker.
You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth device.
- Note: When the rubber flap is open to allow a 3.5mm audio cable to be connected, the speaker is not water resistant.
The rubber flap needs to be closed to keep the speaker water resistant.
- Note: The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest
volume, set the volume on your device to maximum and raise the volume on the speaker to maximum.
No more worries about the rain
or getting splashed
Listen to music in the shower
Perfect for taking to the beach
or by the pool
The rubber flap needs to be
closed to keep the speaker
water resistant and dustproof
IPX5 rating - The OontZ Angle 3 can resist gentle water spray & splash but cannot be partially or fully submerged or left in a wet environment
for an extended period of time, any of which could cause unrepairable damage to the speaker.
Safety Precaution: When the OontZ Angle 3 speaker is plugged in to a charging source with the USB Type C
Charging Cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock.

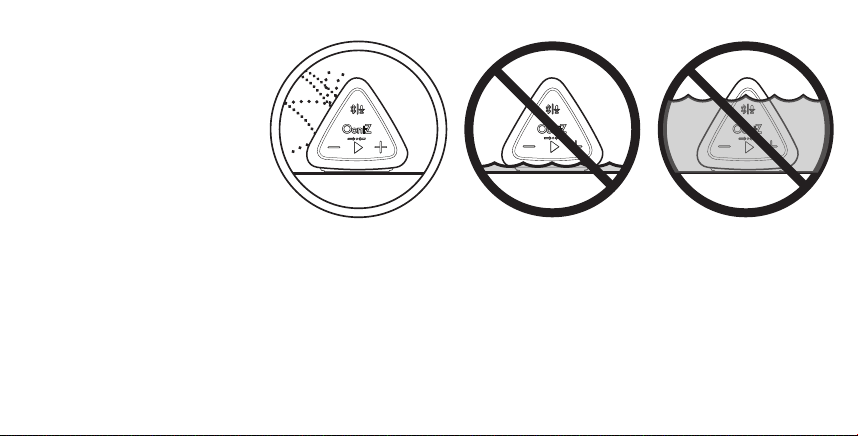

IPX5 Water Resistance
DO NOT allow speaker
to sit in water
DO NOT allow speaker
to submerge fully or
partially in water
Gentle Water Spray or
Splash is okay
Page 15
When charging or using a 3.5mm audio cable, please keep the speaker away from water as it can be damaged by water entering the connectors.
Wireless Hands Free Personal Speakerphone
- The Wireless Hands Free Personal Speakerphone feature works over
Bluetooth with Smartphones and iPhones only
- This feature is not supported when connected to PCs, laptops, Apple Mac
or other types of devices.
To answer an Incoming Call / To End a Call
- Press and Release the Bluetooth Button
To Reject an Incoming Call
- Press and Hold Down the Bluetooth Button for 3 Seconds.
- Please keep the speaker close in front of you so you may be
heard clearly by the listener.
- You can use your Smartphone or iPhone to switch between using
Hands Free Speakerphone and your phone.
Page 16
Page 17
Play your music wirelessly through both speakers up to 66 feet apart
*
*Placing the speakers on the ground or having walls or obstructions between the
speakers will significantly reduce the distance apart the two speakers can play together
OontZ Dual Speaker -
Connect two OontZ Angle 3 Speakers Together
Left Channel - Right Channel
for stereo separation
Left Channel
Right Channel
Bluetooth
for playing music
Bluetooth
for playing music
Dual Mode
In separate areas
Dual Dual
Page 18
– Turn on both OontZ Angle 3 speakers.
– Pair and Connect one of the speakers with your device. When connected the Blue Light will be lit Solid Blue.
This speaker will serve as the Play Control Speaker.
– The second speaker must not be connected to any device, its Blue Light needs to be flashing. If the second speaker has a solid Blue
Light it is connected to a device and you need to disconnect it by pressing and holding down the Bluetooth Button for 3 seconds
until the Blue Light begins flashing.
- On the Play Control Speaker (speaker with solid Blue Light) press and hold down the Play/Pause button for 3 seconds until the
Play Control Speaker says “Dual Pairing”.
- After a few seconds the Play Control Speaker will say “Left Channel” and the second speaker will say “Right Channel”. The Play Control
Speaker speaker light will remain solid Blue and the second speaker light will be solid White. The OontZ Angle 3 speakers will be
connected together for Left Channel - Right Channel and you are ready to play.
Connecting two OontZ Angle 3 speakers together for Left Channel - Right Channel
– Use the buttons on the Play Control Speaker for play/pause, track back, track forward, answer and end
phone calls. These controls are disabled on the second speaker when paired together.
– Use the Play Control Speaker for connecting to different audio devices via Bluetooth or AUX IN. The
Bluetooth and AUX IN are disabled on the second speaker when paired together.
– Speakerphone call audio will only play through the Play Control Speaker
Play Control Speaker
Second Speaker
Two OontZ Angle 3 Speakers connected for Left Channel - Right Channel
Lit Blue
Lit White
Page 19
Page 20
Changing to Dual Mode from Left Channel - Right Channel
Changing back to Left Channel - Right Channel from Dual Mode
–
To change back to Left Channel - Right Channel, quickly press the Bluetooth button twice on the Play Control Speaker. The
second speaker light will turn from solid Orange to solid White.
–
The
Play Control Speaker will say “Left Channel” and the second speaker will say “Right Channel” and you are ready to play.
Use Dual Mode when placing the two speakers in different areas, and the same music to both speakers.
– To set both speakers for Dual Mode they must first be connected together for Left Channel - Right Channel (see page 18).
– With the speakers connected together for Left Channel - Right Channel, you can change the speakers to Dual Mode.
–
To change to Dual Mode, quickly press the Bluetooth button twice on the Play Control Speaker. The second speaker light will
turn from solid White to solid Orange.
–
Both speakers will say “Dual Mode” and you are ready to play.
Page 21
Turning the speakers off
– Turning the Play Control Speaker off will turn both speakers off.
– Turning the second speaker off first will only turn that speaker off and the Play Control Speaker will play as a single speaker.
Turning the speakers back on
– Turn both speakers on and they will automatically try to connect to each other again.
– Turn one of the speakers on and a device can connect with it, and play as a single speaker.
Disconnecting the two speakers from each other
– Both speakers need to be turned on.
– On the Play Control Speaker press and hold down the Play/Pause button for 3 seconds. The White Light on the second
speaker will turn off and the speakers will be disconnected from each other.
Not Recommended to play the audio from a video in OontZ Dual Speaker
– It is not recommended to play the audio from a video with two OontZ Angle 3 speakers connected in OontZ Dual Speaker. Playing
the audio from a video or TV in OontZ Dual Speaker will have a delay in the audio playback from a video and will cause the audio
and video to play out of sync with each other.
OontZ Dual Speaker - Important Notes
Step 1: Remove the USB Type C Charging Cable
and 3.5mm Audio Cable, if connected.
Step 2: Press and hold down the Power button
and button together for 1 second, then release.
Step 3: The speaker has now been reset and
you can turn it on.
Resetting Your OontZ Angle 3
Page 22
Page 23
For issues with your OontZ Angle 3, please view our troubleshooting tips at:
TheOontZ.com/troubleshooting
and select the OontZ Angle 3 Dual Speaker
If you have any issues with your OontZ Angle 3, our Customer Support Team wants to assist you.
Please contact us at:
TheOontZ.com/support
and fill in our customer support form.
Customer Support
Troubleshooting
Page 24
Safety and Precautions
When the OontZ Angle 3 speaker is plugged in to a charging source with the USB Type C Charging Cable, never use the
speaker in the shower, bath, or near water, to prevent risk of electric shock.
Read and follow all instructions – All operating and use instructions should be followed.
Protect the USB Type C Charging Cable from being pinched, particularly at the connectors.
Unplug the USB Type C Charging Cable during lightning storms or when unused for long periods of time.
Do not place speaker near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Refer all servicing to qualified personnel. Servicing is required when the speaker has been damaged in any way.
Do not make alterations to this speaker.
The battery in the speaker is not replaceable. Do not attempt to change it.
Use this speaker only with an agency approved power supply which meets local regulatory requirements (e.g., UL, CSA,
VDE, CCC) in accordance with the manufacturer’s specifications.
Do not place near naked flame sources, such as lighted candles, on or near the speaker.
Do not expose this speaker to excessive heat (e.g. from storage in direct sunlight, fire or the like)
If the battery leaks, do not allow the liquid to come in contact with the skin or eyes. If contact is made, seek medical
advice.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Page 25
Safety and Precautions (continued)
Apple, iPhone, iPad, iPod, and Mac are registered trademarks of Apple Inc.
Amazon, Alexa, Amazon Echo and Amazon Echo Dot are registered trademarks of Amazon.com, Inc.
Windows is a registered trademark of Microsoft Corporation
Bluetooth is a registered trademark of Bluetooth SIG, Inc
UL is a registered trademark of UL.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Page 26
IC WARNING STATEMENT
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two
conditions.
1) This device may not cause interference; and
2) This device must accept any interference, including interference that may cause undesired operation of the
device.
DECLARATION D’AVERTISSIMENT IC
Cet appareil est conforme aux RSS exempts de license. Le fonctionnement est soumis aux deux conditions
suivantes:
1) Cet appareil ne doit pas causer d’interferences ; et
2) Cet appareil doit accepter toute interference, y compris les interferences susceptibles de provoquer un
fonctionnement indesireable de l’appareil.
OontZ Angle 3 Carry Case
Available at TheOontZ.com
• Lightweight neoprene rubber with
reinforced zipper
• Includes a durable aluminum carabiner for
easily attaching to backpacks, luggage,
laptop bags, coolers, camera bags, purses,
belts, and other clippable items
OontZ Angle 3 BudZ
• Superior Sound and Deep Bass
• Waterproof and Sweatproof
• Ultra-Comfortable and Secure Fit
• Noise Cancellation of Background
Noise
• Listen All Day with Playtime up to 8
hours
OontZ True Wireless BudZ
• Amazing Sound and Rich Bass
• Ultra Small, Comfortable and Secure Fit
• Sweatproof, Weaterproof, Splashproof
• Quick and Easy Connection
• Noise Cancellation of Background Noise
• Playtime up to 3 Hours with 9 Extra Hours
from Small Compact Charging Case
User Manual V4.1
