Kid's Kitchen Playset
TP10024
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US office: Fontana UK office: Ipswich AU office: Truganina
Before You Start
Warning for Assembly
Assembled only by adults

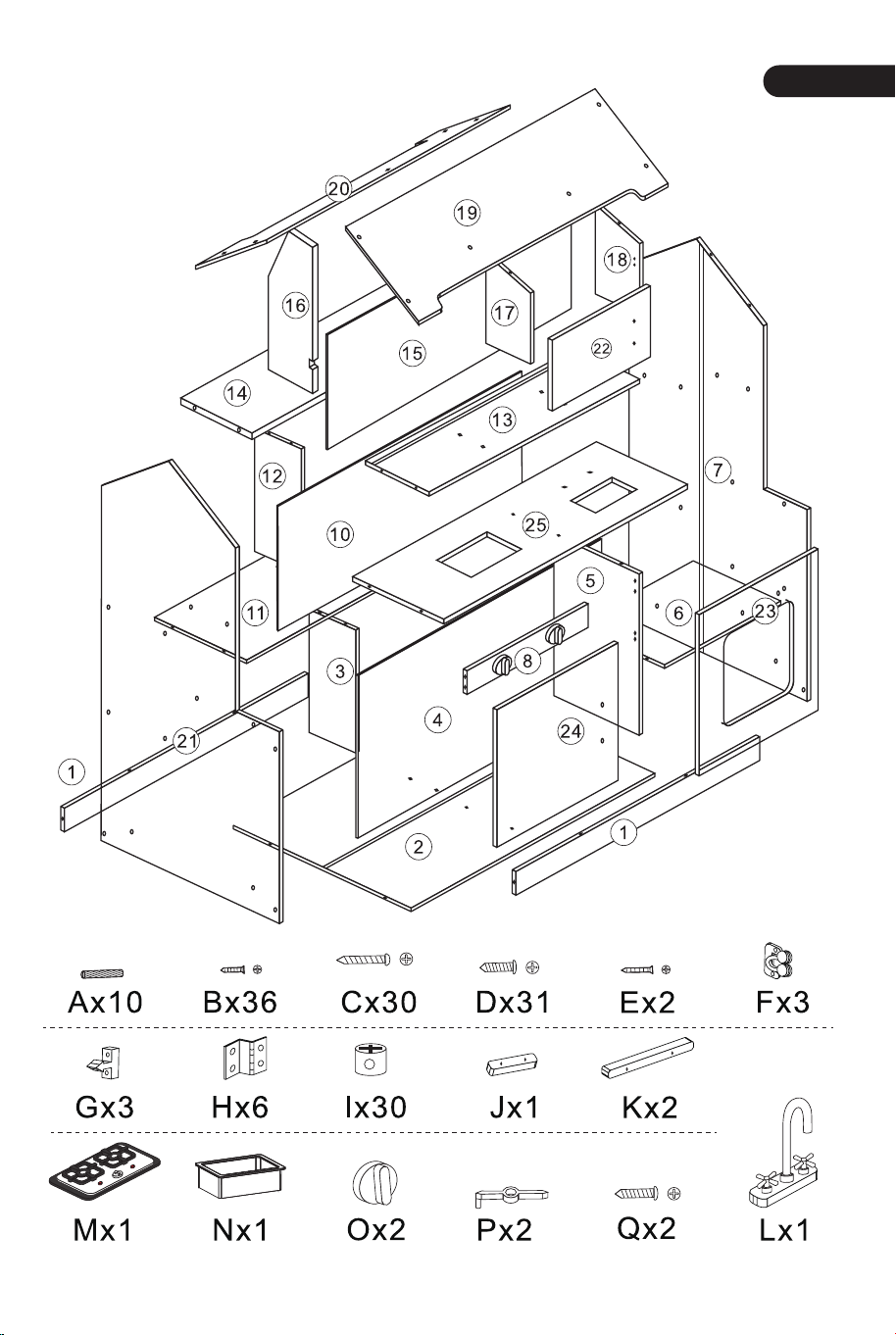

Remove all Packaging, separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near the area in
which they will be placed in use, to avoid moving the product unnecessarily once
assembled.
Ensure a secure surface during installation, and place the product always on a flat,
steady and stable surface.
General Security Warning
Caution: The Product is not suitable for the children under 3 years
Danger: Keep all small parts and packaging materials for this product away from babies
and children, otherwise they may pose a choking hazard.
Danger: Lack of attachment may cause a risk of tipping.
WARNING:
CHOKING HAZARD-Small parts.
Not for children under 3 years.
0-3
Please read all instructions carefully and keep it for future reference.
02 03
EN
Before You Start
Warning for Assembly
Assembled only by adults
Remove all Packaging, separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near the area in
which they will be placed in use, to avoid moving the product unnecessarily once
assembled.
Ensure a secure surface during installation, and place the product always on a flat,
steady and stable surface.
General Security Warning
Caution: The Product is not suitable for the children under 3 years
Danger: Keep all small parts and packaging materials for this product away from babies
and children, otherwise they may pose a choking hazard.
Danger: Lack of attachment may cause a risk of tipping.
WARNING:
CHOKING HAZARD-Small parts.
Not for children under 3 years.
0-3
Please read all instructions carefully and keep it for future reference.
02 03
EN

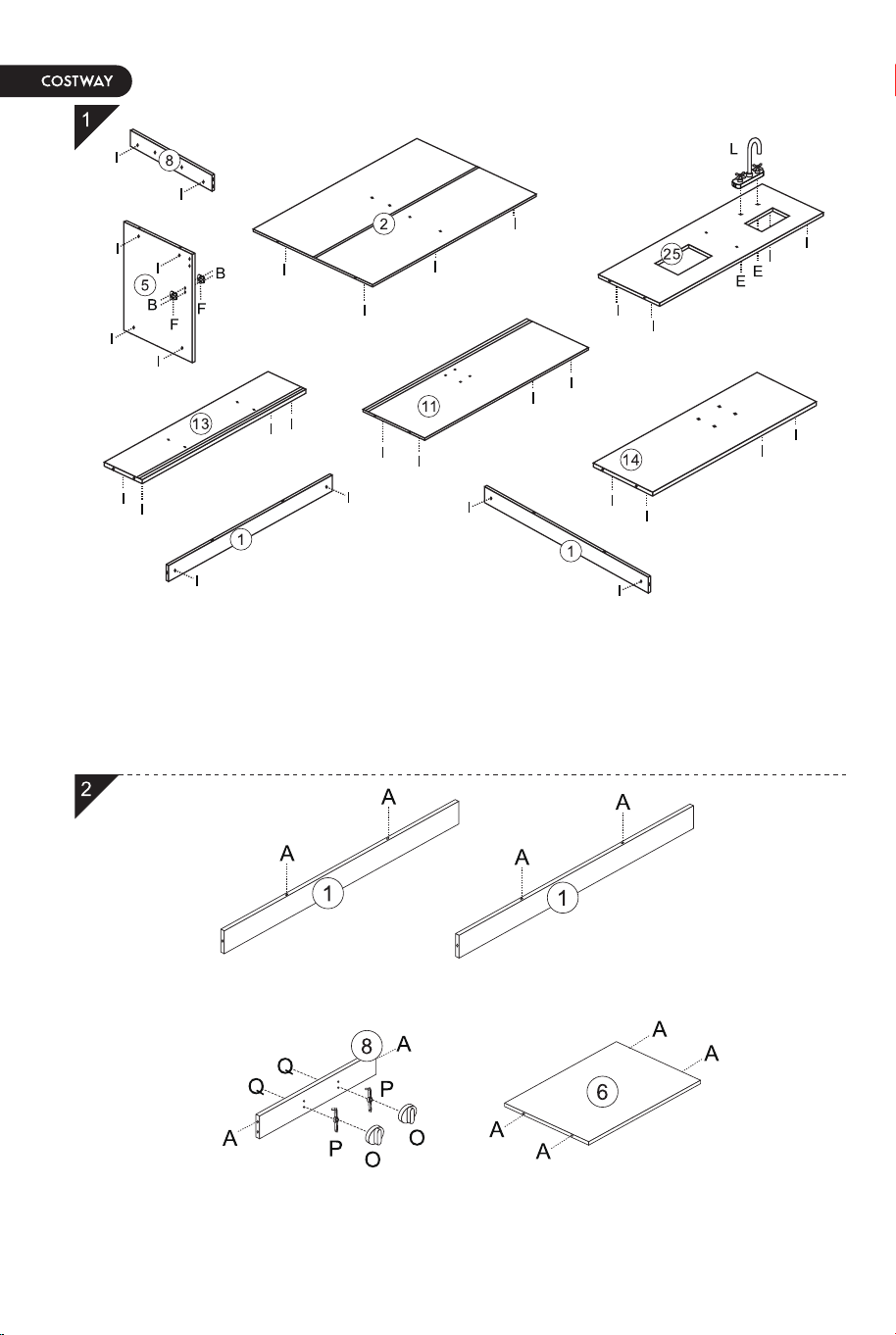

STEP 1: Insert nuts I to No.1,2, 5, 8, 11, 13, 14 and No.25.
Assemble parts F to No.5 with screws B. Assemble part L to No.25
with screws E.
STEP 2: Assemble parts O and P to No.8 with screws Q. Insert
wooden plugs A to No.1, 6 and No.8.

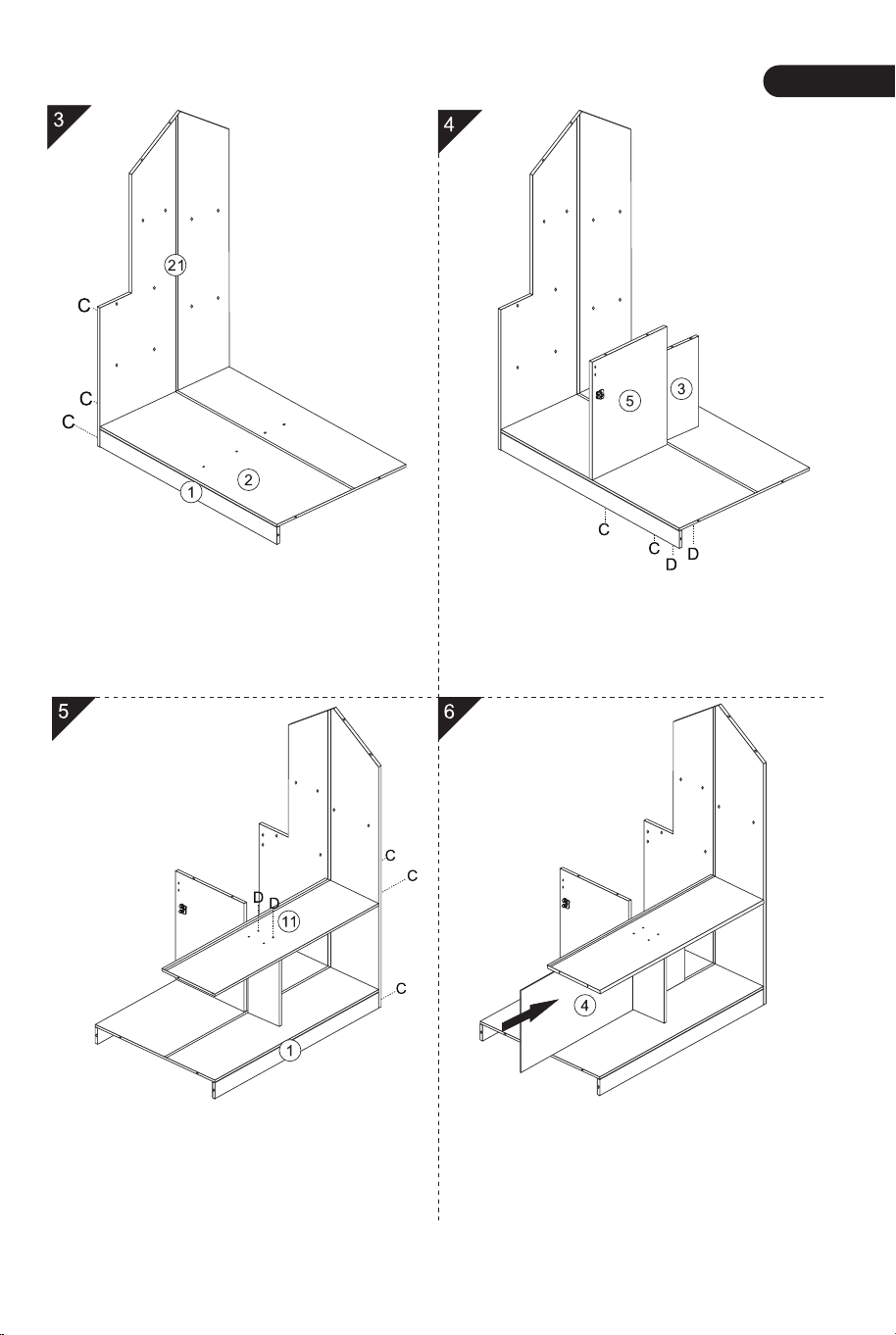

STEP 3: Assemble No.1 and No.2
to No.21 with screws C.
STEP 4: Assemble No.5 to No.2
with screws C, then assemble
No.3 to No.2 with screws D.
STEP 5: Assemble No.11 to No.3
with screws D, also assemble
No.11 and No.1 to No.21 with
screws C.
STEP 6: Insert No.4 to No.2,
No.11 and No.21.
04 05
EN
STEP 1: Insert nuts I to No.1,2, 5, 8, 11, 13, 14 and No.25.
Assemble parts F to No.5 with screws B. Assemble part L to No.25
with screws E.
STEP 2: Assemble parts O and P to No.8 with screws Q. Insert
wooden plugs A to No.1, 6 and No.8.
STEP 3: Assemble No.1 and No.2
to No.21 with screws C.
STEP 4: Assemble No.5 to No.2
with screws C, then assemble
No.3 to No.2 with screws D.
STEP 5: Assemble No.11 to No.3
with screws D, also assemble
No.11 and No.1 to No.21 with
screws C.
STEP 6: Insert No.4 to No.2,
No.11 and No.21.
04 05
EN

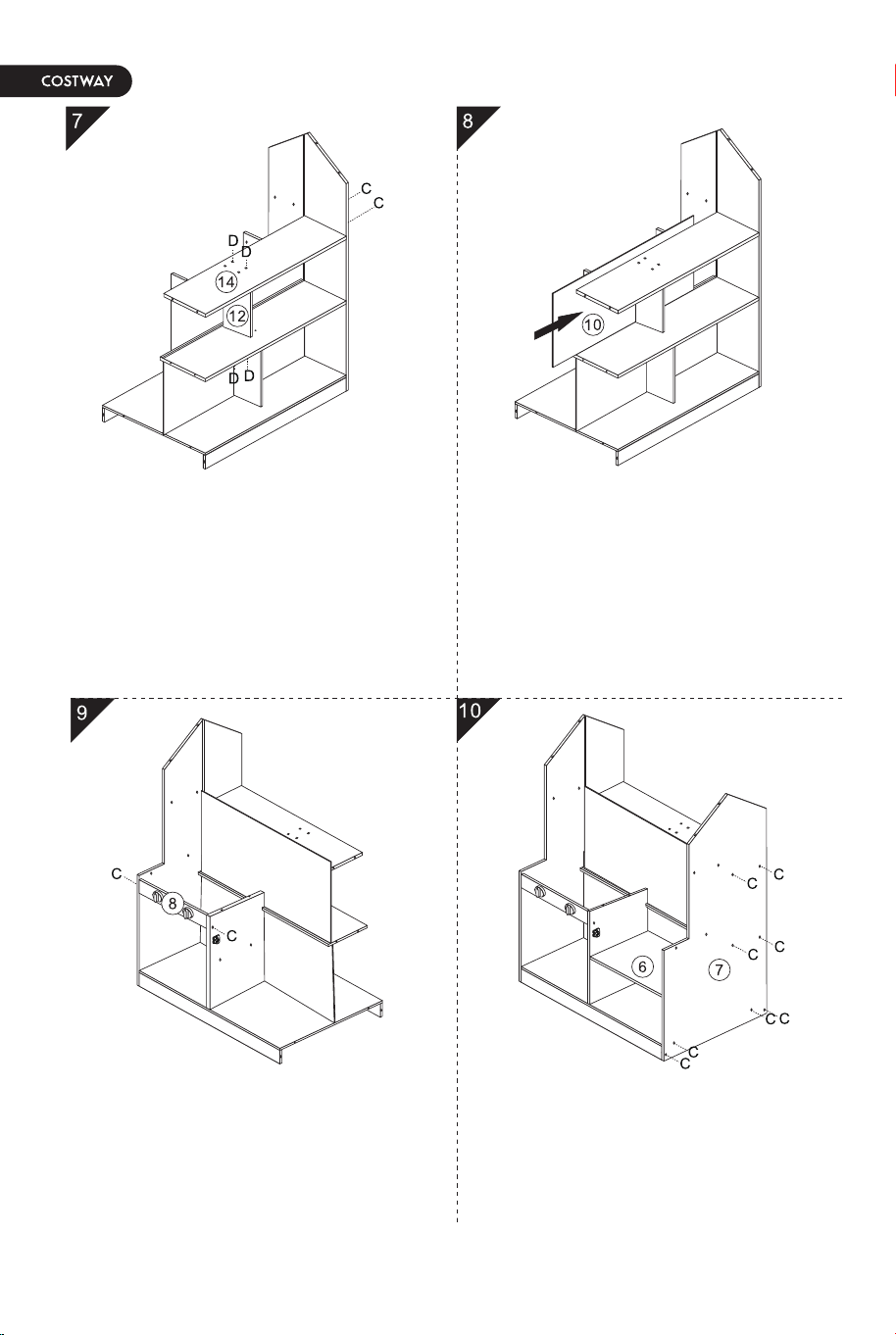

STEP 7: Assemble No.12 to No.11
with screws D, then assemble
No.14 to No.12 with screws D, to
No.21 with screws C.
STEP 8: Insert No.10 to No.11,14
and No.21.
STEP 9: Assemble No.8 to No.5
and No.21 with screws C.
STEP 10: Insert No.6 to No.5,
then assemble No.7 to No.1,2,11
and No.14 with screws C.

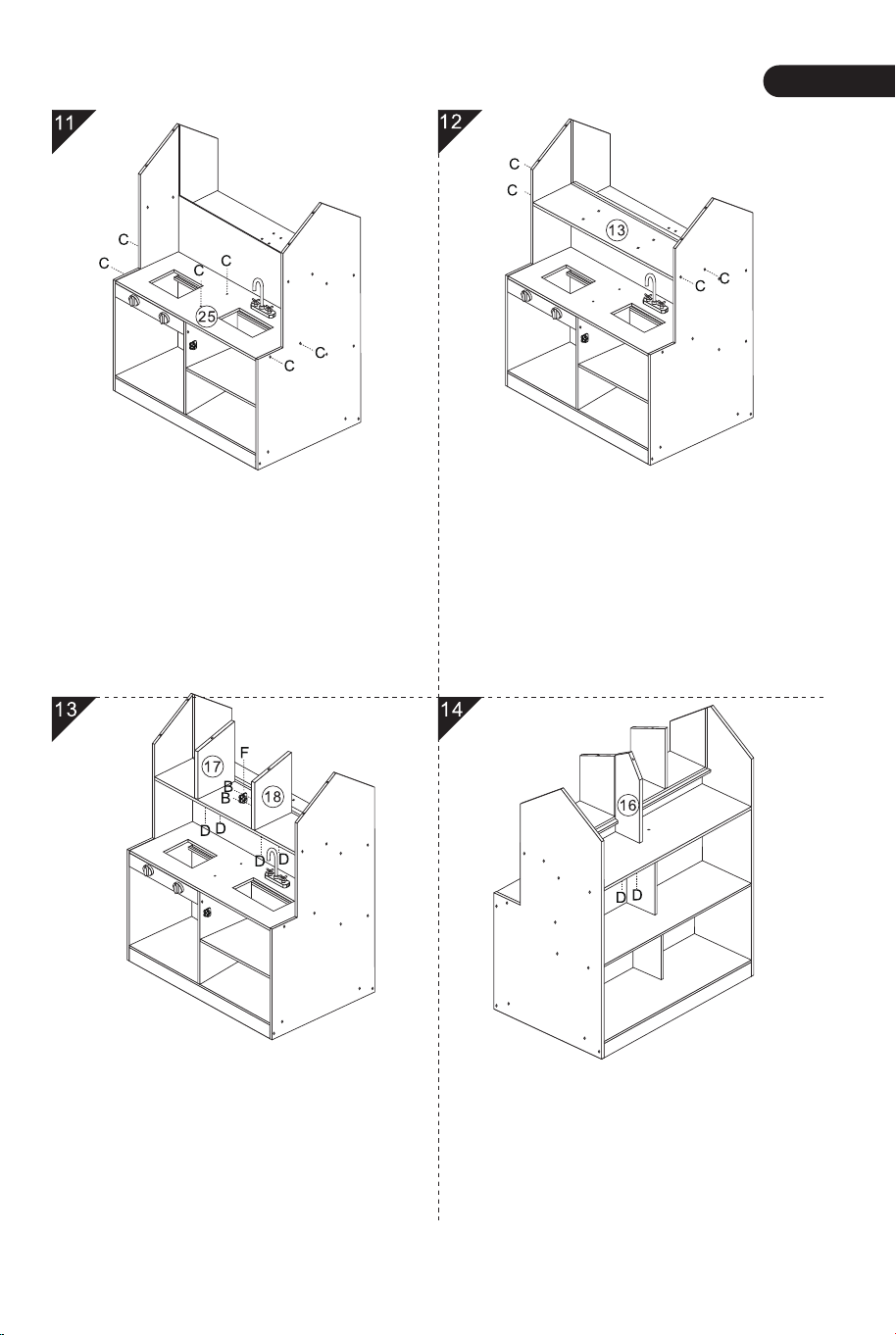

STEP 11: Assemble No.25 to
No.5,7 and No.21 with screws C.
STEP 12: Assemble No.13 to No.7
and No.21 with screws C.
STEP 13: Assemble part F to
No.18 with screws B, then attach
No.18 and No.17 to No.13 with
screws D.
STEP 14: Insert No.16 to No.13
and assemble to No.14 with
screws D.
06 07
EN
STEP 7: Assemble No.12 to No.11
with screws D, then assemble
No.14 to No.12 with screws D, to
No.21 with screws C.
STEP 8: Insert No.10 to No.11,14
and No.21.
STEP 9: Assemble No.8 to No.5
and No.21 with screws C.
STEP 10: Insert No.6 to No.5,
then assemble No.7 to No.1,2,11
and No.14 with screws C.
STEP 11: Assemble No.25 to
No.5,7 and No.21 with screws C.
STEP 12: Assemble No.13 to No.7
and No.21 with screws C.
STEP 13: Assemble part F to
No.18 with screws B, then attach
No.18 and No.17 to No.13 with
screws D.
STEP 14: Insert No.16 to No.13
and assemble to No.14 with
screws D.
06 07
EN

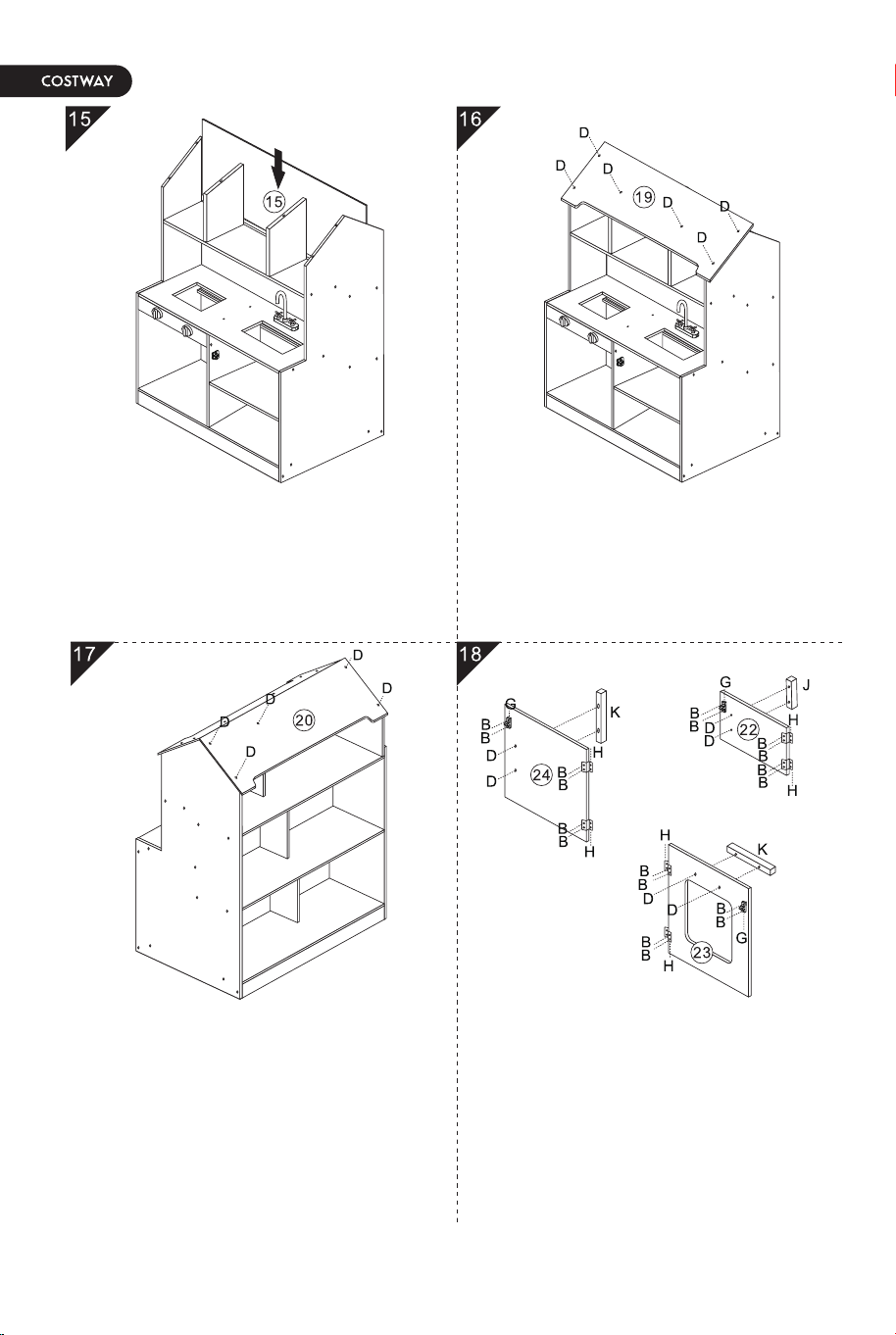

STEP 15: Insert No.15 to No.13,
No.7 and No.21.
STEP 16: Assemble No.19 to
No.17,18 and NO.7,21 with
screws D.
STEP 17: Assemble No.20 to
No.16 and NO.7,21 with screws
D.
STEP 18: Assemble part J to
No.22 with screws D, also parts G
and parts H to No.22 with screws
B.
Assemble parts K to No.23,24
with screws D, also parts G and
parts H to No.23,24 with screws
B.

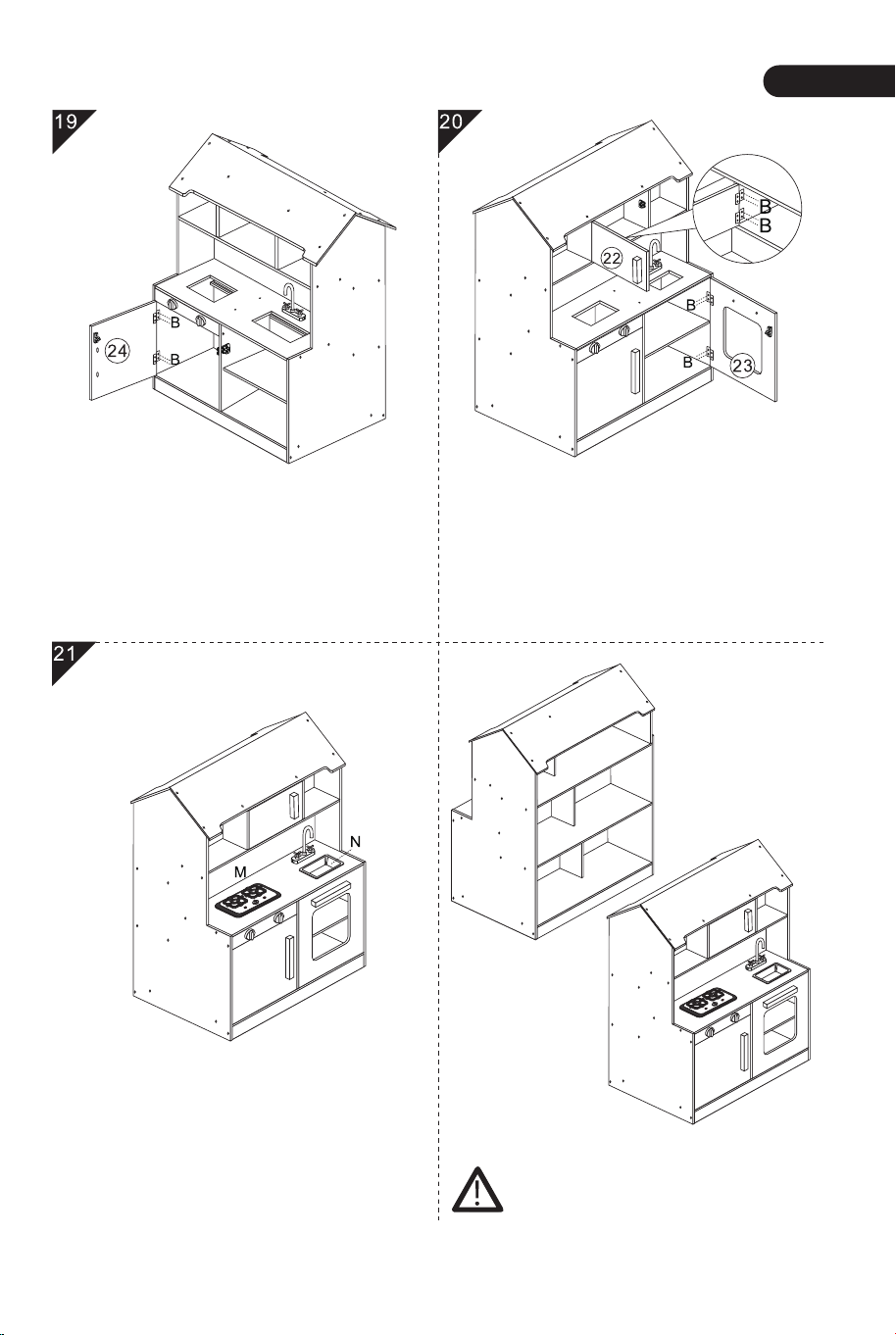

STEP 19: Assemble No.24 to
No.21 with screws B.
STEP 20: Assemble No.22 to
No.17 and No.23 to No.7 with
screws B.
STEP 21: Put Parts M and N up to
No.25.
WARNING: Must be
assembled by an adult.
08 09
EN
STEP 15: Insert No.15 to No.13,
No.7 and No.21.
STEP 16: Assemble No.19 to
No.17,18 and NO.7,21 with
screws D.
STEP 17: Assemble No.20 to
No.16 and NO.7,21 with screws
D.
STEP 18: Assemble part J to
No.22 with screws D, also parts G
and parts H to No.22 with screws
B.
Assemble parts K to No.23,24
with screws D, also parts G and
parts H to No.23,24 with screws
B.
STEP 19: Assemble No.24 to
No.21 with screws B.
STEP 20: Assemble No.22 to
No.17 and No.23 to No.7 with
screws B.
STEP 21: Put Parts M and N up to
No.25.
WARNING: Must be
assembled by an adult.
08 09
EN
