UNI-SWC.5
Universal Steering Wheel
Control Interface
APPLICATION
FEATURES
• 900+ Vehicle Applications*
• Compatible with 900+ Vehicle Applications
• Works with Vehicles on Analogue, CAN-Bus, iBus, Class II and Matrix Platforms
• Retains Factory Steering Wheel Control Functions including Phone Buttons
• Allows Time/Date Change from Steering Wheel (select models only)
• Supports Voice Assistant (select models only)
• Analogue Learning System
• Button Remapping Feature
• Supports ACC, Illumination, Speed Pulse, Park Brake & Reverse Gear
(where vehicle data allows)
• Updateable via USB (contact supplier for more information)
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
Note: Application data is subject to change at any time
DISCLAIMER
UNI-SWC-5_IG_en-GB_v1
i
ii iii

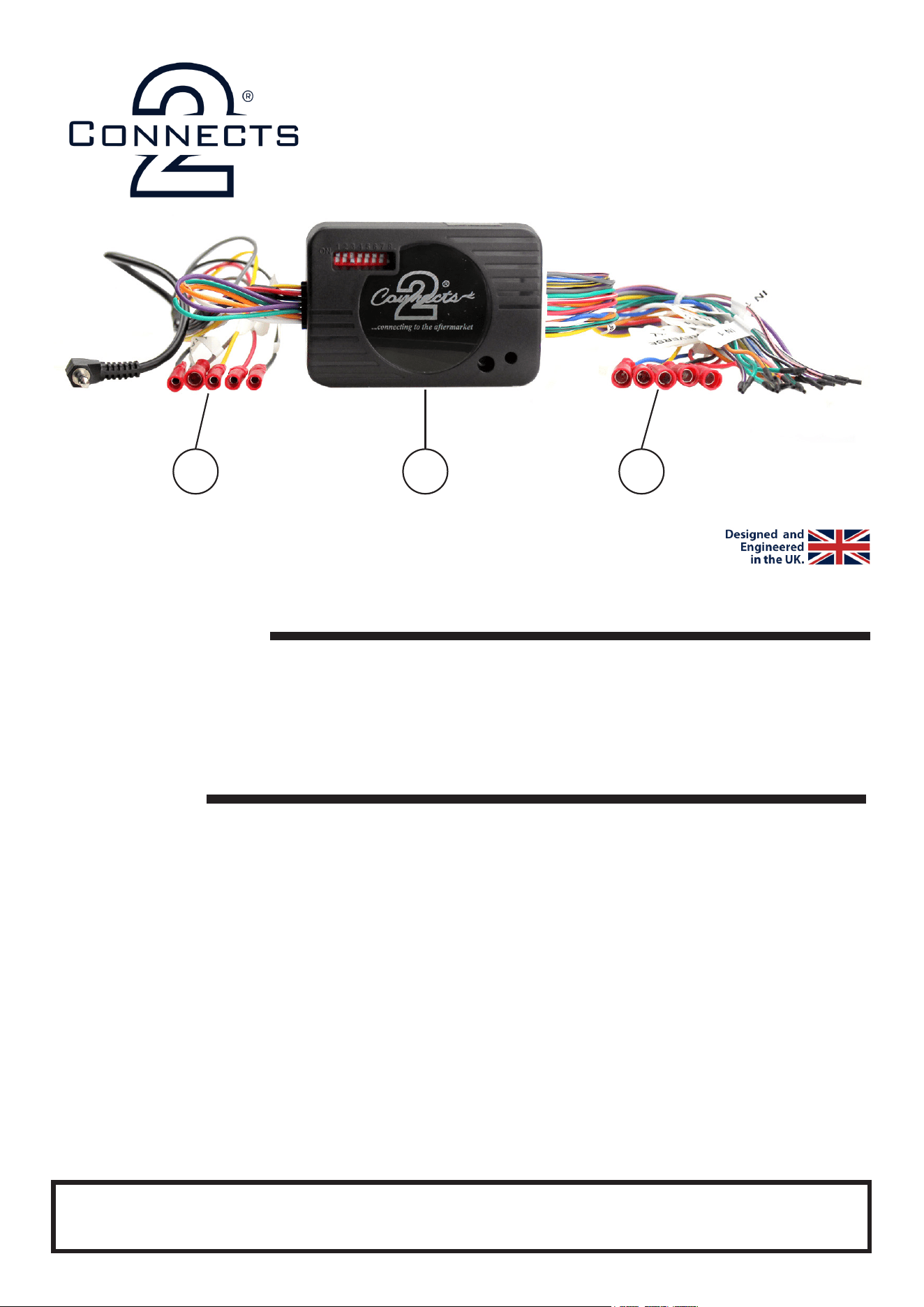

i. UNI-SWC.5 Interface
ii. Head Unit Connection (Patch) Lead
iii. UNI-SWC.5 Wiring Harness
*Please note: application data is constantly being improved and amended as we expand the product's capabilities.
Please visit www.connects2.com for the most up to date information and data regarding this interface.
2
UNI-SWC-5_IG_en-GB_v1
CONTENTS
I. ABOUT 3
II. PRIOR TO INSTALLATION 3
a. CONNECTION DIAGRAM 3
b. PREPARING THE PATCH LEAD 4
c. SETTING THE DIPSWITCHES 4
d. REMAPPING FUNCTIONS 4
III. INSTALLATION 5
a. STEP GUIDE 5
b. PROGRAMMING THE INTERFACE 6
c. ANALOGUE LEARNING HEAD UNITS 7
VI. REMAPPING SOFTWARE 8
VII. APPLICATION 9
a. PRELIMINARY 9
b. APPLICATION GUIDE 10
c. ACCESSING SETTINGS MENUS 26
d. DIAGRAM CHART 28
3
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
II. PRIOR TO INSTALLATION
I. ABOUT
a. Connection Diagram

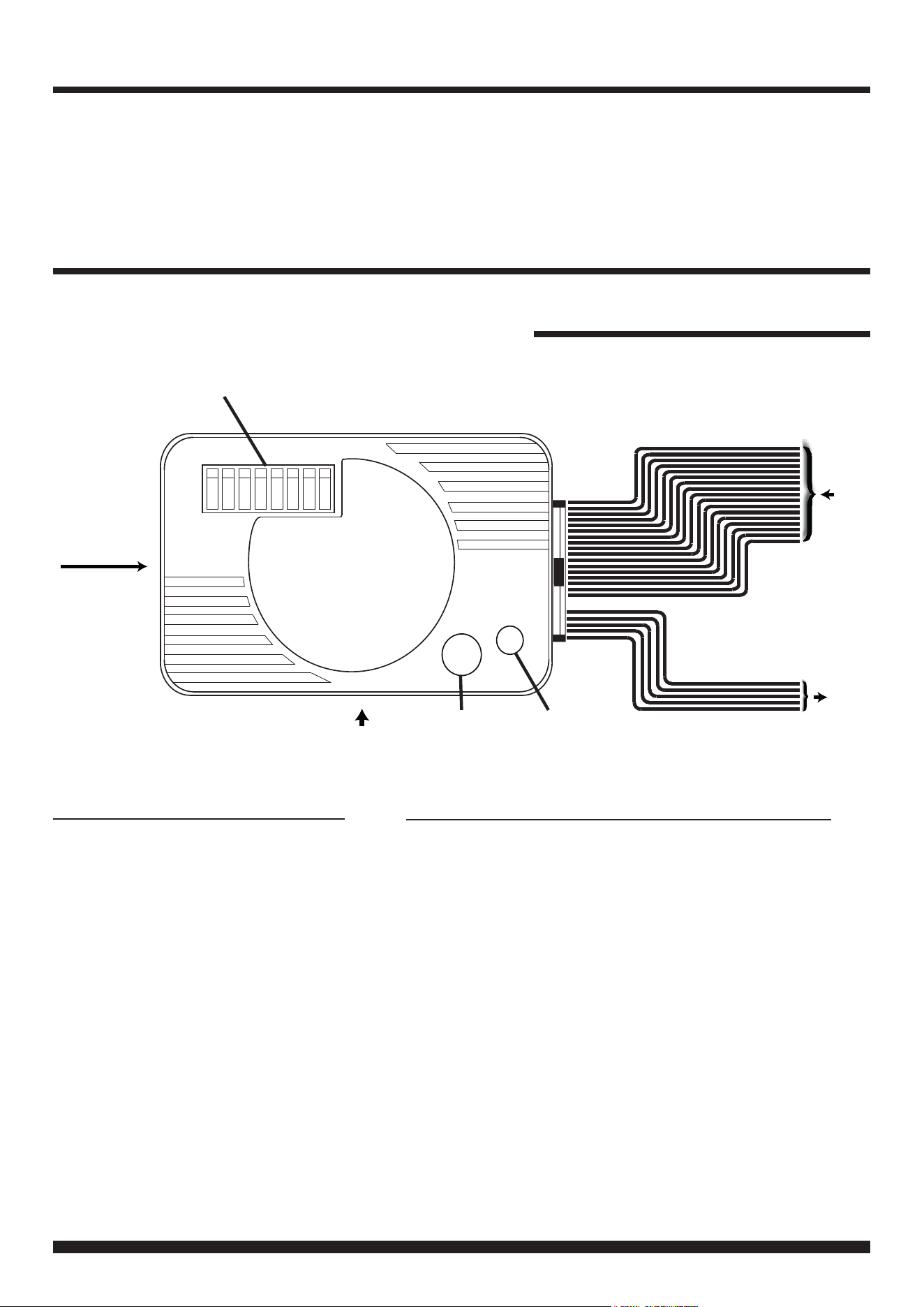

Connect
Patch Lead
Connect Wiring Harness
[5 Outputs / 17 Inputs]
OUT
IN
OUT
Red/White Acc. 12V
Orange Illumination
Purple/White Reverse Gear
Lt. Green Park Brake
Lt. Pink Speed Pulse
IN
Green/Black IN1
Blue IN2
White IN3
Orange/Black IN4
Red IN5
Green IN6
White/Black IN7
Grey IN8
Black/White IN9
Yellow/Black IN10
Purple IN11
Blue/White IN12
Green/White IN13
Grey/Black IN14
Pink/Black IN15
Black Ground
Yellow Batt 12V
Connect Micro USB
for Update
(See "Button Remapping")
Dipswitches
LED
Function
Button
The UNI-SWC.5 interface is a universal steering wheel control solution designed to retain the steering
wheel control functionality of a vehicle when the factory stereo is upgraded to an aftermarket model. The
interface is compatible with over 900 vehicle applications across a variety of platforms and allows for the
remapping of button functionality through a bespoke PC application.
4
UNI-SWC-5_IG_en-GB_v1

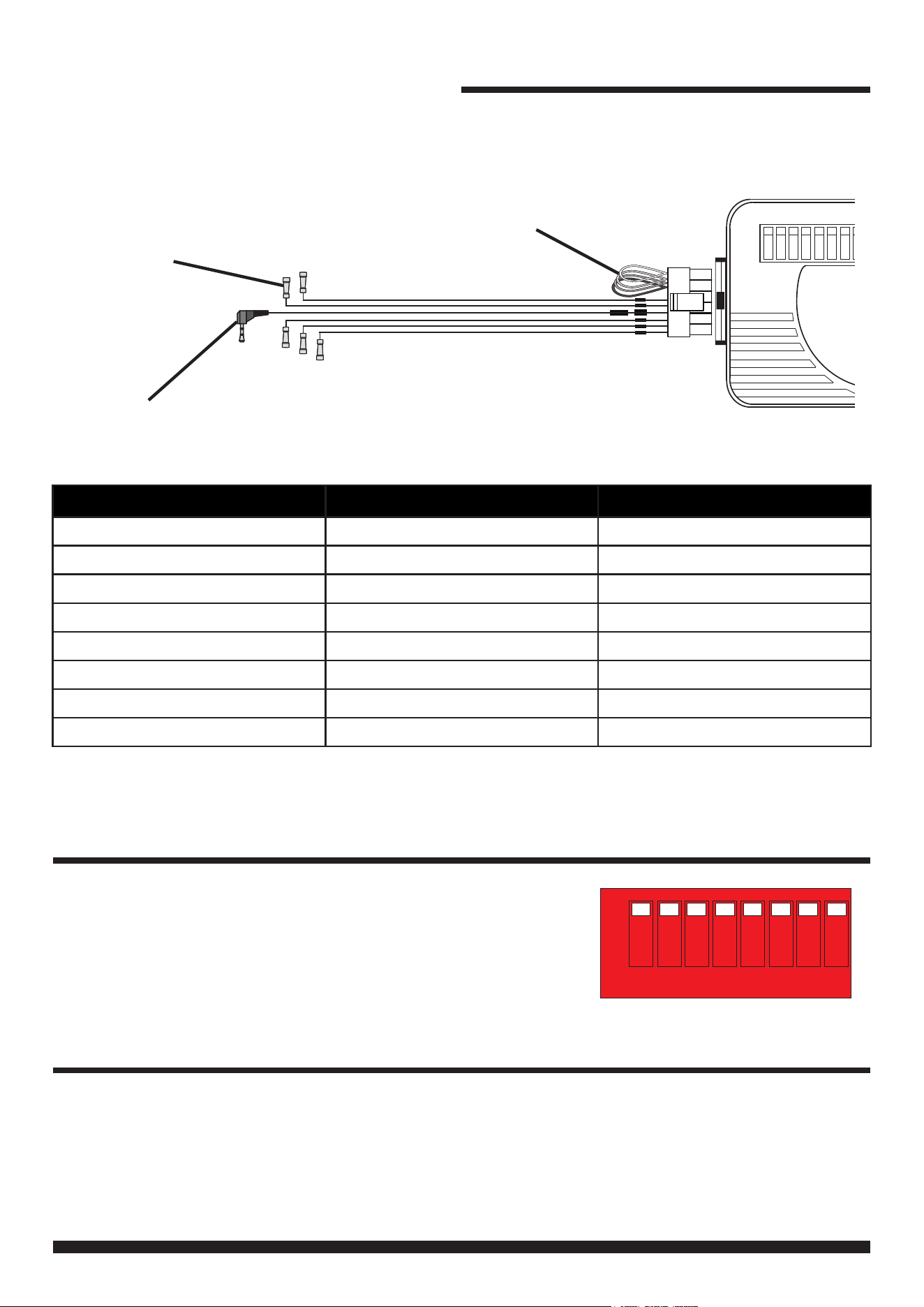

b. Preparing the Patch Lead
The UNI-SWC.5 comes complete with a universal head unit connection/patch lead to provide compatibility
with nearly every brand of aftermarket stereo on the market. Follow the instructions and table below to
prepare the patch lead for installation based on the brand/type of stereo being installed into the vehicle.
Outputs (x5)
Black Ground
Brown STALK A
Grey STALK B
Red STALK C
Yellow STALK D
3.5mm Jack
Wiring Loops (Cut loop/s ref. below table)
(Violet/Green/Orange/White)
Stereo Brand Loop Conguration Stereo Connection
Alpine Cut Green Loop 3.5mm Jack
Clarion Cut Violet Loop 3.5mm Jack
JVC Cut Green & Violet Loop 3.5mm Jack or Stalk A
Kenwood Cut Orange & Green Loop Stalk A
Panasonic Cut Orange Loop Stalk A
Pioneer Cut White Loop 3.5mm Jack
Sony No Cut Required 3.5mm Jack
Analogue Learning Units* No Cut Required Stalk C / Stalk D / Ground
iii. Setting the Dipswitches
1 2
3 4
5 6
7 8
ON
OFF

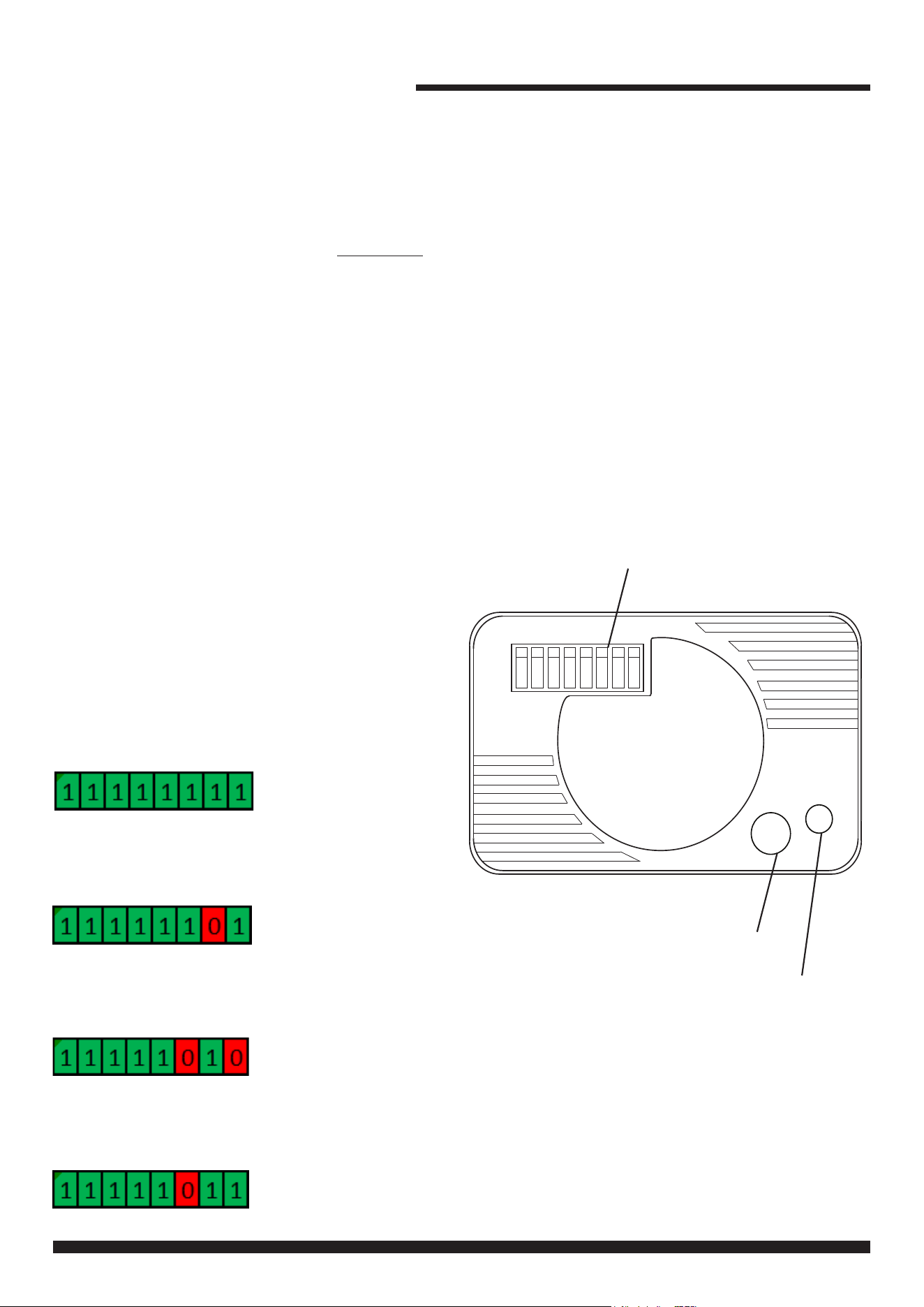

The UNI-SWC.5 interface has 8 individual dipswitches. Please set
the dipswitches according to the information in the ‘Application
Guide’ section (Pages 10 - 26) of this instruction manual.
iv. Remapping Functions
The UNI-SWC.5 can be programmed to congure any vehicle function to any button, on either a long or
short press. To begin button remapping, plug the interface into a computer via the Micro USB port and load
up the SWC conguration software. If this step is skipped, a default conguration will be used.
Please see Pg. 8 for more information on how to remap button functionality.
*If an analogue learning stereo is being installed in the vehicle, please refer to Pg. 7.for more information
5
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
III. INSTALLATION
Remove and disconnect the original head unit. Please see the vehicle owners' manual for more
information.
Connect the Patch Lead to the UNI-SWC.5 Interface
Connect the patch lead to the aftermarket stereo, based on the brand/type of stereo being
installed. (See 'Stereo Connection' column in table on Pg. 4).
IMPORTANT: STEP 3 MUST BE COMPLETED BEFORE CONNECTING POWER TO THE INTERFACE.
FAILURE TO DO SO MAY RESULT IN A LACK OF FUNCTIONALITY AND THE NEED TO REINSTALL
THE PRODUCT.
Find the desired vehicle application in the ‘Application Guide’ section of this manual. The row will
contain information about how to correctly set up and wire the interface.
Locate the relevant diagram number in the table. This diagram number refers the ‘Diagram Chart’
section at the back of this manual. Refer to the diagram referenced to nd the locations of the
wiring within the connector.

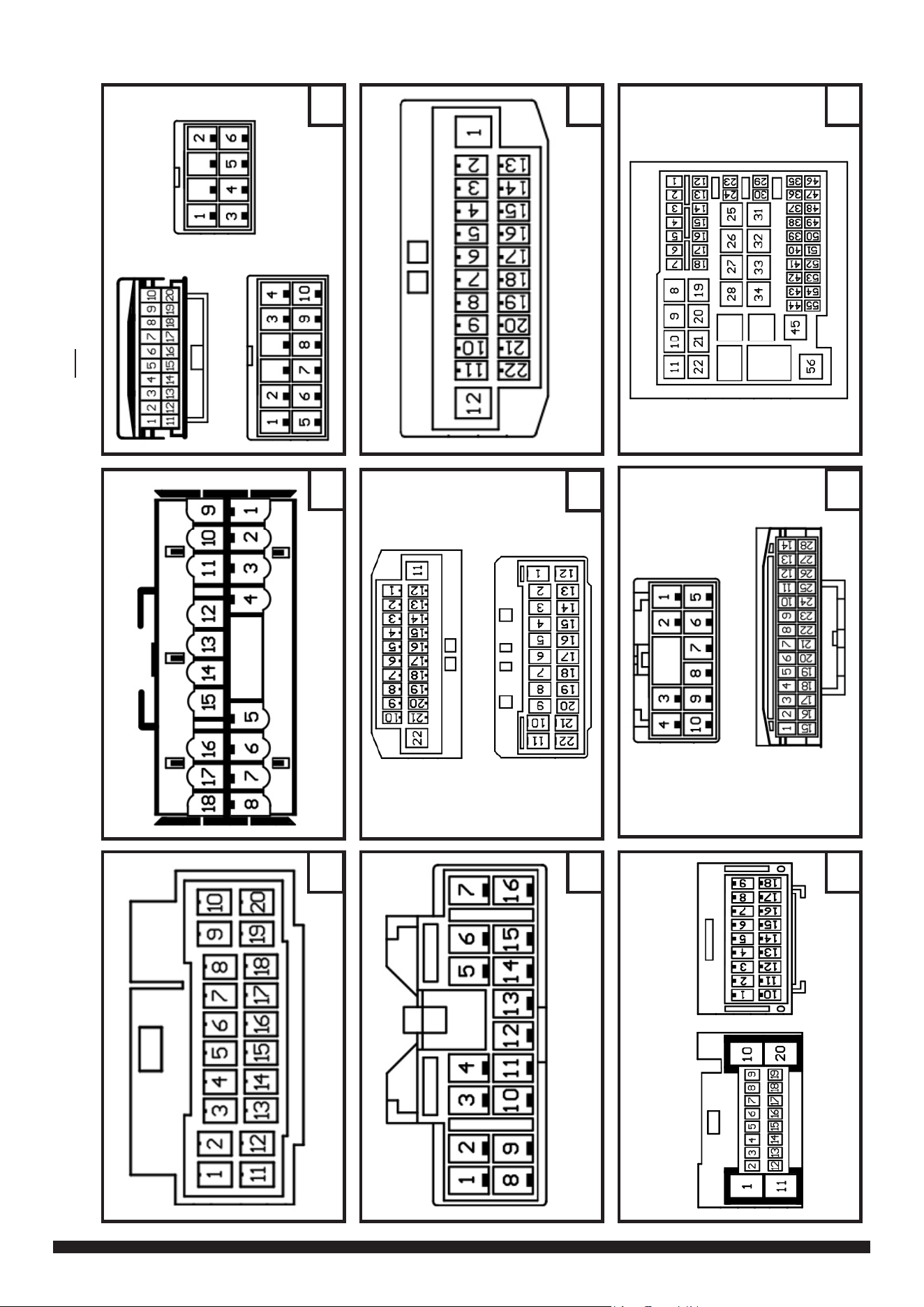

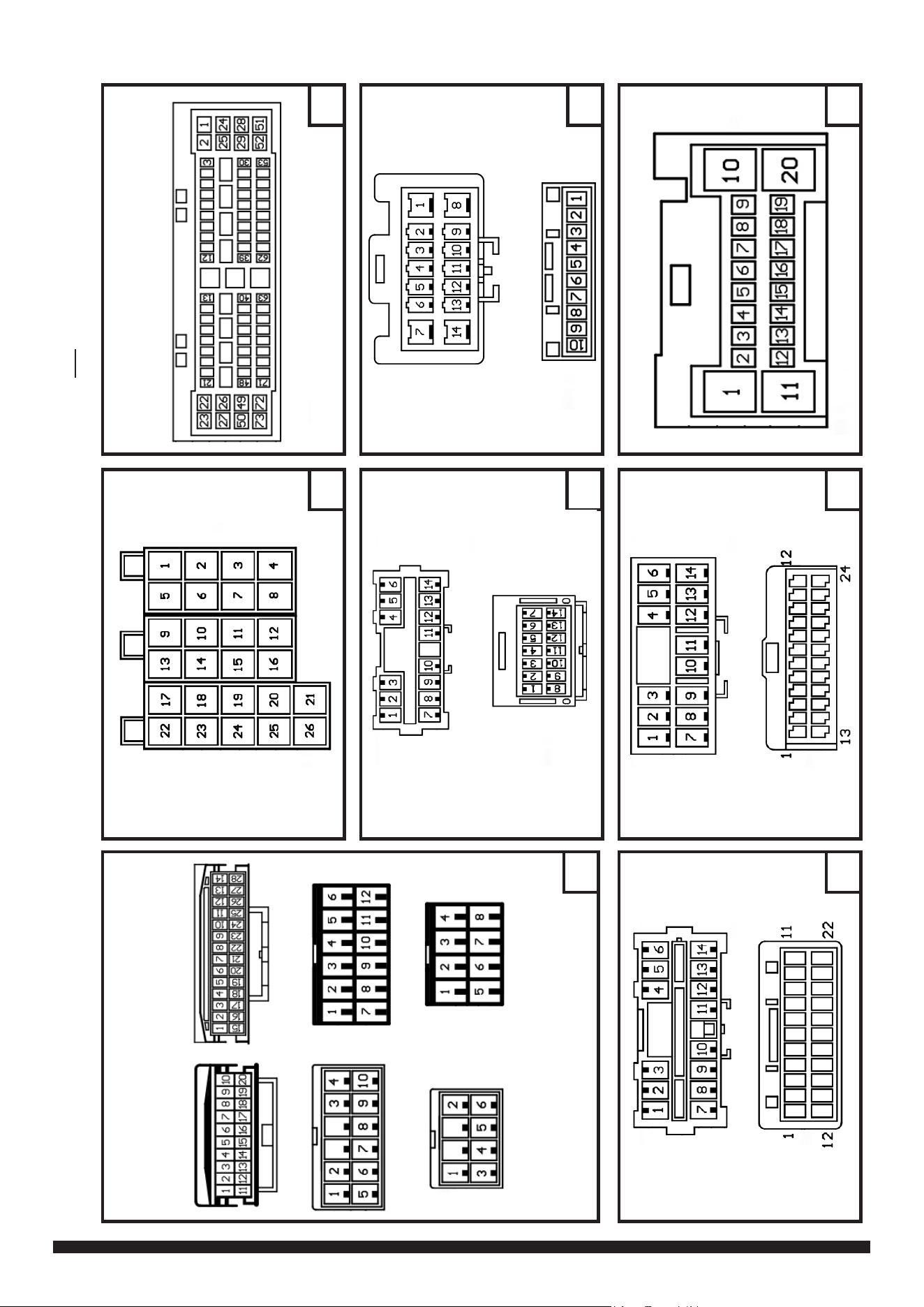

Note: All connector diagrams are shown from the terminal side, not the wiring side. Please take this
into consideration when wiring this product.
Connect the UNI-SWC.5 Wiring Harness to the UNI-SWC.5 Interface
Install the interface into the vehicle, connecting Permanent 12V and Ground to suitable locations
and then wiring it using the information found in the Application Guide and Diagram Chart
sections of this instruction manual. IN5 must also be connected to a suitable switched 12V feed
in the vehicle where indicated by the Application Guide table.
Test interface for correct operation and reinstall the head unit.
Note: Car manufacturers can change wiring specications without notice. Please ensure that the correct wires
are located before commencing installation
Note: Prior to installation, ensure all required steps from the previous section have been completed, including
preparing the patch lead, setting the interface dipswitches and remapping the button conguration (if desired).
1
2
3
!!
4
5
6
7
Note: Some vehicles on Analogue, Class II, and GM 11 platforms include steering wheel control functions that
must be learned by the interface. Please refer to Pg. 6 for programming instructions prior to installation
Vehicle model not supported??
8
a. Step Guide
6
UNI-SWC-5_IG_en-GB_v1
b. Programming the Interface
Set-Up
Please note that if the vehicle is also included in the 'Application Guide' section of this manual, the wiring
in the table there must be connected in addition to the wiring below.
1. Connect the Ground wire (Black) from the UNI-SWC.5 Wiring Harness to the vehicle ground
2. Connect the IN5 wire from the UNI-SWC.5 Wiring Harness to the vehicle (if required)
Note: Some applications do not require IN5 to be connected. Please see 'Application Guide' section for
information on whether to connect this wire, and if so, where to connect it in the vehicle.
3. Connect BATT 12V wire (Yellow) from the UNI-SWC.5 Wiring Harness to the 12V battery supply from the
vehicle
4. Connect the relevant wiring to the vehicle depending on the vehicle platform (see 'Platform Guide' below)
5. Set Dipswitches depending on the vehicle platform (See 'Platform Guide' below)
6. The LED on the front of the interface will slowly glow green
7. Press and hold the Function Button for 5 seconds
8. The LED will ash red and then green
The interface is now ready to be programmed
LED
FUNCTION
BUTTON
When installing the UNI-SWC.5 into a currently unsupported Analogue, Class II or GM 11 vehicle, the
interface must rst 'learn' the buttons on the vehicle steering wheel.
Please follow the below steps to correctly congure the interface for use with the vehicle:
Platform Guide
For Full Analogue Learning Vehicles
Set Dipswitches 1 - 8 to 'On'
Connect IN6 and IN7 from the UNI-SWC.5
Wiring Harness to the vehicle
For Class II Analogue Vehicles
Set Dipswitches 1,2,3,4,5,6,8 to 'On', 7 to 'Off'
Connect IN10 from the UNI-SWC.5 Wiring Harness to the vehicle
For GM 11 BIT (w/out RAP) Analogue Vehicles
Set Dipswitches 1,2,3,4,5,7 to 'On', 6 and 8 to 'Off'
Connect IN10 from the UNI-SWC.5 Wiring Harness to the vehicle
For GM 11 BIT (with RAP) Analogue Vehicles
Set Dipswitches 1,2,3,4,5,7,8 to 'On', 6 to 'Off'
Connect IN10 from the UNI-SWC.5 Wiring Harness to the vehicle
DIPSWITCHES
7
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
Programming
1. Start to program the buttons in the following order:
KEY_VOL_UP,
KEY_VOL_DOWN,
KEY_TRACK_UP,
KEY_TRACK_DOWN,
KEY_SOURCE,
KEY_MUTE,
KEY_DISK_UP,
KEY_DISK_DOWN,
KEY_PICKUP,
KEY_HANGUP,
KEY_PHONE, // Single Phone Button = Short Press - Pick Up / Long Press - Hang Up
KEY_VOICE_RECOGNITION
2. Once a button value is seen, the LED will ash red, then move on to the next button by ashing green
3. If a key/button function is missing from the vehicle, press the Function Button to skip a key
4. Once complete, the LED will ash red twice and return to slowly glowing green
5. To restart the learning process from the beginning at any point, press and hold the Function Button for 5
seconds
Once the interface has been successfully connected to the vehicle, analogue learning head units will
require the user to assign functions to the vehicle's buttons.
Analogue Learning Process
1. Once connected to the vehicle, the interface LED will slowly glow green.
2. Press the Function Button 10 times quickly*. The LED will now quickly ash red.
3. Program all buttons using the head unit's SWC learning menu and the vehicle's steering wheel control
buttons.
4. When nished, press the Function Button 10 times quickly. The LED will return to a slow green glow.
*Note: By pressing the Function Button 10 times quickly, the interface is being put into a mode which allows it
to stretch the outputs of the steering wheel control buttons. This allows the head unit to more effectively learn
functions of buttons with a fast output time (ie. a scroll wheel). Although it is recommended that all buttons be
programmed with this mode active to give the head unit a longer time to learn each output, Step 2 can be by-
passed if desired, or activated only for learning specic buttons.
c. Analogue Learning Head Units
8
UNI-SWC-5_IG_en-GB_v1
VI. REMAPPING SOFTWARE
The UNI-SWC.5 can be programmed to congure any vehicle function to any button, on either a long or
short press. To begin button remapping, plug the interface into a computer via the Micro USB port and load
up the SWC conguration program (visit www.connects2.com/home/news_downloads for more information).
Set-Up

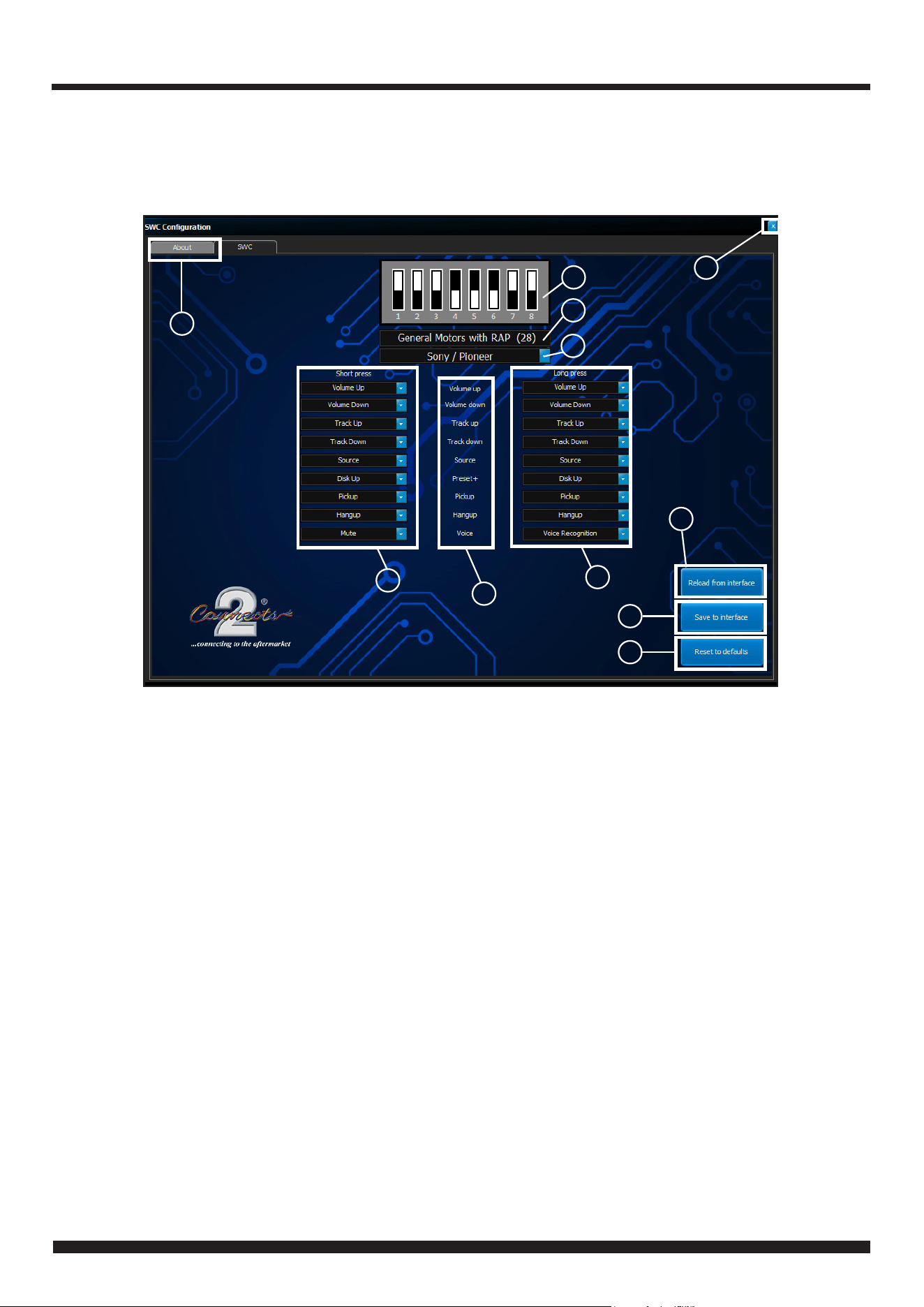

Upon connecting the interface, the software will
correctly read its dipswitch settings (a) and display
the vehicle's software platform (b).
Select the brand/type of aftermarket stereo from
the drop-down list (c) and the central column will
display all buttons available to program (d).
Remapping Buttons
Functions can be assigned as desired to each but-
ton by clicking on the drop-down arrows next to the
menus in the left (e) and right (f) columns. The
short press functionality of the button is dictated
by the selection in the left column (e) and the long
press functionality of the button is dictated by the
selection in the right column (f).
For e.g.: In the above example, the vehicle's Voice
button will function as Mute on a short press, and
Voice Recognition on a long press.
a
b
d
e
f
g
c
l
j
Note: To reset the drop-down bars in the right and
left colums to their default functions, press 'Reset to
defaults' (i)
Saving Button Functions
To save the button conguration, press 'Save to
interface' (h).
Reloading Default Conguration
To reload the conguration from the interface and
overwrite any changes that have been made, press
'Reload from Interface' (g)
More Information and Exiting Software
To access more information about the software,
press the 'About' tab (j).
To return to the congurator screen, press the
'SWC' tab.
Close the congurator window by pressing the 'X'
icon (l)
h
i
9
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
VII. VEHICLE APPLICATION
Before locating your vehicle in the application tables, please familiarise yourself with the following
items and their meanings:
1* - 7* Menu Column The vehicle menu can be accessed via the steering wheel controls and
requires additional detail to explain functionality.
Please consult the 'Accessing Settings Menu' pages of this manual
(Pages 27-28).
S12V* IN5 Connect to Switched 12V feed
** Any Column This vehicle has analogue steering wheel controls and must be
programmed according to the specic instructions in this manual.
Please consult the 'Programming the Interface' pages of this manual
(Pages 6-7).
Tick/Cross Any Column The vehicle supports/does not support the function described.
TC Any Column 'To Chassis'. Connect the input to a suitable point on the vehicle
chassis
*PM Ford Vehicles The IN7 wire must be connected to the vehicle's phone module.
Please see the vehicle owners manual for more information on how to
locate the module.
iBus* BMW Vehicles A 4k7 resistor will need to be connected between the Batt 12V wire
and the IN4 (iBus) wire

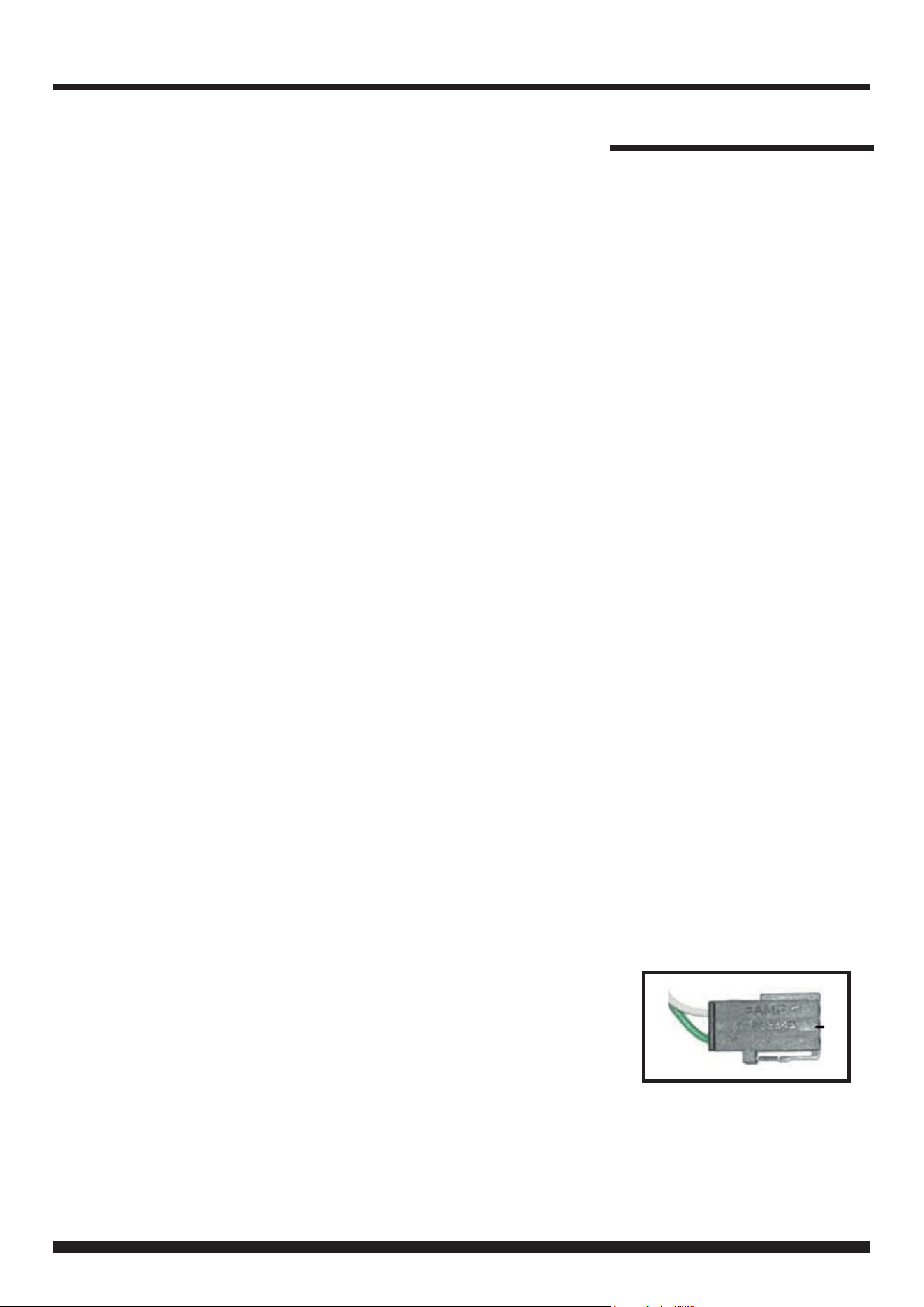

2PIN* Saab Vehicles The wire must be connected to the green wire in the 2 pin connector
located under the steering wheel column (please note: the wire may
need to be extended)
Note: For Pontiac Solstice Vehicles
The Red/White Accessory OUT wire (ACC 12V) must be connected to the pin in car connector B, location 14
(Ref. Diagram 8).
Key Column Notes
a. Preliminary
10
UNI-SWC-5_IG_en-GB_v1
b. Application Guide
Note: Refer to Page 9 for further information on symbols used in these tables and how they relate to installation of the interface
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
147 2000 2007
Analogue 01111010 1 20 33 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
147 2007 2010
CAN/Analogue01110110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
147 2007 2010
CAN 01101110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
156 2000 2007
Analogue 01111010 1 20 33 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
159 2005 2011
CAN 01101110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
4C 2013 >
CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Brera 2005 2010
CAN 01101110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Giulietta 2010 2014
CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Giulietta 2014 >
CAN 11111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Giulietta 2014 >
CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
GT 2004 2008
Analogue 01111010 1 20 33 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
GT 2008 2010
CAN/Analogue01110110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Mito 2008 2014
CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Mito 2014 >
CAN 11111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Mito 2014 >
CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A1 2010 >
CAN 11011110 5 N/A N/A N/A 23 17 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A2 1999 2005
IR 00001011 1 N/A N/A N/A 2 N/A 20 N/A N/A N/A N/A N/A N/A
A3 2003 2005
Analogue 11011110 1 32 27 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
A3 2003 2013
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A3 1996 2003
IR 00001011 1 N/A N/A N/A 2 N/A 20 N/A N/A N/A N/A N/A N/A
A3 2005 2012
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A3 2005 2012
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A4 2001 2008
Analogue 11011110 1 32 27 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
A4 2001 2008
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A4 1994 2001
IR 00001011 1 N/A N/A N/A 2 N/A 20 N/A N/A N/A N/A N/A N/A
A4 2000 2013
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A4 2001 2013
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A6 2004 2011
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A6 1994 2004
IR 00001011 1 N/A N/A N/A 2 N/A 20 N/A N/A N/A N/A N/A N/A
A6 2004 2011
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A6 2004 2011
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A8 1994 2002 IR 00001011 1 N/A N/A N/A 2 N/A 20 N/A N/A N/A N/A N/A N/A
TT 2003 2006
Analogue 11011110 1 32 27 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
TT 2006 2014
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
TT 1999 2006
IR 00001011 1 N/A N/A N/A 2 N/A 20 N/A N/A N/A N/A N/A N/A
TT 2006 2014
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
TT 2006 2014
CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
1‐Series 2004 2013
CAN 11010110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
3‐Series 1998 2005
iBus* 10110110 6 N/A N/A N/A N/A N/A S12V* N/A 14 N/A N/A N/A N/A N/A N/A
3‐
Series 2006 2013
CAN 11010110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
5‐Series 1996 2000
iBus* 10110110 6 N/A N/A N/A N/A N/A S12V* N/A 14 N/A N/A N/A N/A N/A N/A
5‐Series 2004 2010
CAN 11010110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
6‐Series 2003 2010
CAN 11010110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
6‐Series 2003 2010
CAN 11010110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
6‐Series 2003 2010
CAN 11010110 7 N/A N/A N/A 19 20 N/A N/A N/A N/A N/A N/A N/A N/A N/A
7‐Series 1994 2001
iBus* 10110110 6 N/A N/A N/A N/A N/A S12V* N/A 14 N/A N/A N/A N/A N/A N/A
7‐Series 2001 2008
CAN 11010110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Mini 2001 2006
iBus* 10110110 2 N/A N/A N/A N/A N/A S12V* N/A 9 N/A N/A N/A N/A N/A N/A
Mini 2001 2006
iBus* 10110110 6 N/A N/A N/A N/A N/A S12V* N/A 14 N/A N/A N/A N/A N/A N/A
Mini 2006 2013
CAN 11010110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Mini 2001 2006
iBus* 10110110 2 N/A N/A N/A 16 N/A 9 N/A N/A N/A N/A N/A N/A
Mini 2006 2013
CAN 11010110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Mini 2001 2006
iBus* 10110110 2 N/A N/A N/A N/A N/A S12V* N/A 9 N/A N/A N/A N/A N/A N/A
Mini 2006 2013
CAN 11010110 7 N/A N/A N/A 19 20 N/A N/A N/A N/A N/A N/A N/A N/A N/A
X3 2004 2010
iBus* 10110110 2 N/A N/A N/A N/A N/A S12V* N/A 9 N/A N/A N/A N/A N/A N/A
X3 2004 2010
iBus* 10110110 2 N/A N/A N/A N/A N/A S12V* N/A 9 N/A N/A N/A N/A N/A N/A
X3 2004 2010
iBus* 10110110 2 N/A N/A N/A 16 N/A 9 N/A N/A N/A N/A N/A N/A
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
BMW
I
I
N
N
8
8
I
I
N
N
4
4
Together
Together
Together
Together
Audi
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
AlfaRomeo
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
Together
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
Together
Together
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
Together
Together
Together
Together
Together
Together
Together
11
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
X3 2004 2010
iBus* 10110110 2 N/A N/A N/A 16 N/A 9 N/A N/A N/A N/A N/A N/A
X5 2000 2006
iBus* 10110110 2 N/A N/A N/A N/A N/A S12V* N/A 9 N/A N/A N/A N/A N/A N/A
X5 2000 2001
iBus* 10110110 6 N/A N/A N/A N/A N/A S12V* N/A 14 N/A N/A N/A N/A N/A N/A
X6 2000 2006
iBus* 10110110 2 N/A N/A N/A 16 N/A 9 N/A N/A N/A N/A N/A N/A
Z4 2002 2008
iBus* 10110110 2 N/A N/A N/A N/A N/A S12V* N/A 9 N/A N/A N/A N/A N/A N/A
Z4 2009 >
CAN 11010110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Z5 2002 2008
iBus* 10110110 2 N/A N/A N/A N/A N/A S12V* N/A 9 N/A N/A N/A N/A N/A N/A
Z5 2009 >
CAN 11010110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Z6 2002 2008
iBus* 10110110 2 N/A N/A N/A 16 N/A 9 N/A N/A N/A N/A N/A N/A
Z6 2009 >
CAN 11010110 7 N/A N/A N/A 19 20 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Allure 2005 2012
ClassII 11100011 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Enclave 2008 2016
CAN(SW) 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Enclave 2008 2012 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Lacrosse 2005 2013 ClassII 11101001 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Lucerne 2006 2010 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C 22 N/A N/A N/A N/A N/A N/A N/A
Rainer 2004 2007 ClassII 11101001 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Regal 2011 2013 CAN(SW) 00000011 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Regal 1994 2004 ClassII 11100011 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Rendezvous 2002 2007 ClassII 11101001 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Terraza 2005 2007 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Verano 2013 2013 CAN(SW) 00000011 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
CTS 2003 2014 Analogue 00111011 1 27 31 N/A 1 N/A N/A N/A N/A N/A N/A N/A 21
DTS 2006 2011 ClassII 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Escalade 2003 2006 ClassII 11101001 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
SRX 2004 2009 CAN 00010101 8 N/A N/A N/A A13 A14 N/A N/A N/A N/A N/A N/A N/A N/A N/A
STS 2005 2011 CAN(SW) 11101001 ? N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
XLR 2004 2009 CAN(SW) 11100011 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Astra 1998 2011 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Astra 1998 2011 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Avalanche 2002 2006 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Avalanche 2007 2013 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Aveo 2002 2011 Analogue 00110110 8 N/A B12 A12 N/A N/A B16 N/A N/A N/A N/A N/A N/A N/A N/A
Aveo 2011 > CAN(SW) 00000011 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Blazer
S‐10 2003 2005 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Camaro 2010 2015 CAN(SW) 00000111 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Captiva 2006 2011 Analogue 00110110 8 N/A B12 A12 N/A N/A B16 N/A N/A N/A N/A N/A N/A N/A N/A
Captiva 2011 > CAN(SW) 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Cavalier 2000 2005 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Celta 2002 2010 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Celta 2002 2010 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Cobalt 2005 2010 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C 22 N/A N/A N/A N/A N/A N/A N/A
Colorado 2012 2014 Analogue 11001010 13 5 N/A 13 N/A N/A 4 N/A N/A N/A N/A N/A N/A N/A N/A
Colorado 2012 2014 Analogue 11001010 13 5 N/A 13 N/A N/A 4 N/A N/A N/A N/A N/A N/A N/A N/A
Colorado 2004 2012 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
CorsaClassic 2002 2010 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
CorsaClassic 2002 2010 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Corvette 2007 2013 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Cruze 2009 2015 CAN(SW) 00000111 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Cruze 2011 2014 CAN
(SW) 00000111 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Equinox 2009 2016 CAN(SW) 00000011 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Equinox 2007 2009 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A 13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Equinox 2007 2013 CAN(SW) 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
ExpressVan 2003 2007 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
HHR 2006 2011 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Impala 2000 2005 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Impala 2006 2013 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Malibu 2001 2003 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Malibu 2004 2012 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
MonteCarlo 2000 2005 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
BMWChevrolet
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
BuickCadillac
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
12
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
MonteCarlo 2006 2007 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
S‐10 2012 > Analogue 11001010 13 5 N/A 13 N/A N/A 4 N/A N/A N/A N/A N/A N/A N/A N/A
SilveradoPickup 2003 2006 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
SilveradoPickup 2007 2013 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
SilveradoPickup 2007 2013 CAN(SW) 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Sonic 2013 > Analogue 00110110 9 19 N/A 5 16 N/A N/A N/A N/A N/A N/A N/A N/A
Spark 2010 2015 Analogue 00110110 11 16 N/A 13 N/A N/A 4 N/A N/A N/A N/A N/A N/A N/A N/A
Suburban 2007 2013 CAN(SW) 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Suburban 2003 2006 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Suburban 2007 2014 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Suburban 2006 2014 CAN(SW) 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Tahoe 2007 2013 CAN(SW) 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Tahoe 2003 2006 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Tahoe 2007 2013 CAN(SW) 11101001 8
N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Tahoe 2007 2014 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Tracker < 2009 Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Trailblazer 2002 2009 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Traverse 2008 > CAN(SW) 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Traverse 2009 2012 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A 13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Traverse 2009 2014 CAN(SW) 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
Trax 2015 2017 CAN(SW) 00000111 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Uplander 2005 2008 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Urban 1998 2011 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Urban 1998 2011 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Vectra 2005 2011 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Vectra 2005 > Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Venture 2002 2005 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Viva 1998 2011 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Viva 1998 2011 Analogue 00101110 3 1 N/A 7 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
300/300C 2005 2014 CAN 00010101 14 N/A N/A N/A A21 A10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
300M 1999 2004 CAN 00010101 14
N/A N/A N/A A21 A10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Aspen 2007 2008 CAN 11001101 14 N/A N/A N/A B6 B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Concorde 2002 2004 CAN 11001101 14 N/A N/A N/A B6 B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Delta 2011 2014 CAN 01101110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Pacifica 2004 2008 CAN 11001101 14 N/A N/A N/A B6 B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Sebring 2002 2010 CAN 11001101 14 N/A N/A N/A B6 B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
TownandCountry 2002 2008 CAN 11001101 14 N/A N/A N/A B6 B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
TownandCountry ? ? CAN 11001101 14 N/A N/A N/A B6 B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Voyager 2001 2013 CAN 11001101 14 N/A N/A N/A B6 B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Berlingo 2008 > 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C1 2014 > Analogue 11101010 17 B20 B19 B21 A2 N/A N/A N/A N/A N/A N/A N/A N/A
C10 2005 2014 CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C2 2005 2009 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C3 2005 2016 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C3 2005 2009 CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C3Picasso 2009 > 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C4 2004 2010 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C4 2005 2016 CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C4 2005 2009 CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C4Aircross 2014 > Analogue 01101010 16 A9 N/A TC A10 N/A N/A N/A N/A N/A N/A N/A N/A
C4Aircross 2014 > Analogue 01101010 16 A9 N/A TC A10 N/A N/A N/A N/A N/A N/A N/A N/A
C4Picasso 2006 > 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C5 2005 2008 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C5 2004 2010 CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C5 2005 2016 CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C6 2005 2008 CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C6 2004 2010 CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C7 2005 2008 CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C8 2005 2014 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
ChevroletCitro ën
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Chrysler
Together
Together
Together
Together
Together
Together
Together
Together
13
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
C9 2005 2014 CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C‐Crosser 2007 2013 Analogue 01101010 16 A9 N/A TC A10 N/A N/A N/A N/A N/A N/A N/A N/A
Dispatch 2007 > CAN 01110110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Dispatch 2016 > CAN 11110101 18 N/A N/A N/A 55 44 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Dispatch 2016 > CAN 11110101 18 N/A N/A N/A 55 44 N/A N/A N/A N/A N/A N/A N/A N/A N/A
DS3 2009 > 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
DS3 2009 > CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Evasion 1996 2002 CAN/Analogue01110110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Jumper 2006 > CAN/Analogue01110110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Jumper 2014 > CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Nemo 2007 > CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Relay 2006 > CAN/Analogue01110110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Spacetourer 2016 > CAN 11110101 18 N/A N/A N/A 55 44 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Spacetourer 2016 > CAN 11110101 18 N/A N/A N/A 55 44 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Synergie 1996 2002 CAN/Analogue01110110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Daewoo
Winstorm 2008 2011
Analogue 00110110 8 B12 N/A A12 B16 N/A N/A N/A N/A N/A N/A N/A N/A
CF 2017 >
CAN 01010011 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
XF 2017 > CAN 01010011 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Avenger 2007 2014 CAN 00010101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Caliber 2007 2012 CAN 00010101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Caravan 1999 2007 CAN 00010101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Challenger 2009 2014 CAN 00010101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Charger 2006 2010 CAN 00010101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Dakota 2008 2010 CAN 00010101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Dart 2013 > CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Durango 2004 2012 CAN 00010101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
GrandCaravan 2002 2016 CAN 11001101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Magnum 2005 2008 CAN 00010101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Nitro 2007 2010 CAN 00010101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
RAMPickup 2006 2012 CAN 00010101 14 N/A N/A N/A A21/B6 A10/B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
RAMPromaster 2014 > CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
500 2007 > CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
500 2013 > CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
500L 2012 > CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Bravo 2007 2014 CAN 01101110 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Croma 2005 2011 Analogue 01111010 1 20 33 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
Doblo 2009 2015 CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Ducato 2012 > Analogue 01111010 1 20 33 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
Ducato 2014 > Analogue 01111000 1 20 33 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
Ducato 2006 > CAN/Analogue01110110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Ducato 2008 2012 CAN 01100110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Ducato 2015 > CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Ducato 2015 > CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Fiorino 2007 > CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Idea 2006 2012 CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Multipla 2004 > Analogue 01000010 1 17 30 24 2 N/A N/A N/A N/A N/A N/A N/A N/A
Panda 2004 2012 Analogue 01000010 1 17 30 24 2 N/A N/A N/A N/A N/A N/A N/A N/A
Panda 2007 > CAN/Analogue01100110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Punto 1999 2005 Analogue 01111010 1 20 33 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
Punto 2005 > CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Qubo 2008 > CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Ritmo 2007 2014 CAN 01101110 3 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Sedici 2006 2014 Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Stilo 2001 2008 CAN 01101110 3 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Uno 2015 > CAN 00111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
B‐Max 2012 > CAN/Analogue00100110 19 A7
cut N/A A9/A11 A4 A5 S 12V* N/A N/A N/A N/A N/A N/A N/A N/A
C‐Max 2003 2010 CAN/Analogue01011110 2 22 N/A 24 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Citro ënFord DAFDodgeFiat
Together
Together
Together
Together
Together
Together
Together
Together
Together
14
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
C‐Max 2010 > CAN/Analogue00100110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Ecosport 2013 > CAN/Analogue00100110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Edge 2007 2010 CAN/Analogue00011001 35 A18 *PM A19 B15 B 16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Escape 2013 > Analogue 00100110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Escape 2008 2012 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Everest 2016 > CAN 00011111 34 N/A N/A N/A A14 A15 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Expedition 2007 2014 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Explorer 2006 2010 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
ExplorerSportTrac 2007 2010 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
F‐150 2004 2008 Analogue 00100110 28 18 N/A 19 B6 N/A N/A N/A N/A N/A N/A N/A N/A
F250 2005 2016 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
F350 2005 2016 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
F450 2005 2016 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
F550 2005 2016 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Fiesta 2005 2008 CAN/Analogue01011110 2 22 N/A 24 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
FIesta 2012 > CAN/Analogue00100110 19 A7cut N/A A9/A11 A 4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Fiesta 2002 2005 Analogue 01100010 28 18 N/A 19 2 N/A N/A N/A N/A N/A N/A N/A N/A
Fiesta 2013 > CAN/Analogue01011110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Fiesta(SAModels) 2003 2008 Analogue 01100010 3 1 N/A 4 8 N/A N/A N/A N/A N/A N/A N/A N/A
FiveHundred 2005 2007 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Flex 2008 2011 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Focus 2011 > Analogue 00100110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Focus 2015 > CAN 00011101 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Focus 2004 2011 Analogue 01100010 2 22 N/A 24 16 N/A N/A N/A N/A N/A N/A N/A N/A
Focus 1998 2004 Analogue 01100010 24 C5 N/A C6 B6 N/A N/A N/A N/A N/A N/A N/A N/A
Freestyle 2005 2007 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Fusio n 2005 2012 Analogue 01100010 2 22 N/A 24 16 N/A N/A N/A N/A N/A N/A N/A N/A
Fusio n 2002 2005 Analogue 01100010 28 18 N/A 19 2 N/A N/A N/A N/A N/A N/A N/A N/A
Fusion(SAModels) 2002 > Analogue 01100010 3 1 N/A 4 8 N/A N/A N/A N/A N/A N/A N/A N/A
Galaxy 2000 > Analogue 01100010 24 C5 N/A C6 B6 N/A N/A N/A N/A N/A N/A N/A N/A
KA 2009 2017 CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Kuga 2008 2012 CAN/Analogue01011110 2 22 N/A 24 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Kuga 2012 > CAN/Analogue00100110 19 A7cut N/A A9/A11 A4 A5 S 12V* N/A N/A N/A N/A N/A N/A N/A N/A
Kuga 2008 2012 CAN/Analogue01011110
19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Mondeo 2004 2014 Analogue 01100010 2 22 N/A 24 16 N/A N/A N/A N/A N/A N/A N/A N/A
Mondeo 2000 2004 Analogue 01100010 24 C5 N/A C6 B6 N/A N/A N/A N/A N/A N/A N/A N/A
Mondeo 2004 2014 CAN/Analogue01011110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Mustang 2005 2014 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Puma 1997 2002 Analogue 01100010 24 C5 N/A C6 B6 N/A N/A N/A N/A N/A N/A N/A N/A
Ranger 2012 > CAN/Analogue00100110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Ranger 2013 > CAN/Analogue00011101 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Ranger 2016 > CAN/Analogue00011111 34 N/A N/A N/A A14 A15 N/A N/A N/A N/A N/A N/A N/A N/A N/A
S‐Max 2006 2014 CAN/Analogue01011110 2 22 N/A 24 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
S‐Max 2011 2016 CAN/Analogue01011110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Taurus 2008 2012 CAN/Analogue00100110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Taurus 2008 2013 CAN/Analogue00011001 35 A18 *PM A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Transit 2006 2013 CAN/Analogue01011110 2 22 N/A 24 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Transit 2006 2013 Analogue 01100010 2 22 N/A 24 16 N/A N/A N/A N/A N/A N/A N/A N/A
Transit < 2006 Analogue 01100010 24 C5 N/A C6 B6 N/A N/A N/A N/A N/A N/A N/A N/A
Transit 2013 > CAN/Analogue01011110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Transit
Connect 2013 > CAN/Analogue00100110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
TransitConnect 2004 2013 CAN/Analogue01100010 2 22 N/A 24 16 N/A N/A N/A N/A N/A N/A N/A N/A
TransitCustom 2012 2016 CAN/Analogue00100110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Acadia 2007 2014 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Canyon 2004 2012 ClassII 11101001 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Envoy 2002 2009 ClassII 11101001 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Savana 2003 2007 ClassII 11101001 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Savana 2008 2015 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Sierra 2003 2006 ClassII 11101001 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Together
Together
FordGMC
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
15
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
Sierra 2007 2013 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C 22 N/A N/A N/A N/A N/A N/A N/A
Sonoma 2002 2004 ClassII 11101001 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Yukon 2003 2006 ClassII 11101001 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Yukon 2007 2014 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
H6 2012 > Analogue 10000010 3 6 1 5 2 N/A N/A N/A N/A N/A N/A N/A N/A
Steed 2011 > Analogue 10100110 3 1 N/A 5 2 N/A N/A N/A N/A N/A N/A N/A N/A
Wingle 2011 > Analogue 10100110 3 1 N/A 5 2 N/A N/A N/A N/A N/A N/A N/A N/A
HarleyDavidson
StreetGlide(FLHX‐FLHT) 2015 > CAN 01101100 36 N/A N/A N/A 12 24 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Barina 2000 2005 Analogue 00101110 3 1 N/A 7 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Barina 2000 2005 Analogue 00101110 3 1 N/A 7 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Captiva 2008 2014 Analogue 00110110 8 B 12 N/A A12 B16 N/A N/A N/A N/A N/A N/A N/A N/A
Accord 2008 2017 Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Accord 1998 2015 Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Amaze 2012 > Analogue 11101110 37 B4 N/A B5 A13 N/A N/A N/A N/A N/A N/A N/A N/A
Ballade 2011 > Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Brio 2012 > Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
City 2008 2013 Analogue 11101110 37 B4 N/A B5 A13 N/A N/A N/A N/A N/A N/A N/A N/A
City 2014 > Analogue 11101110 38 A21 B9 A8 B23 N/A N/A N/A N/A N/A N/A N/A N/A
CIty 2016 > Analogue 11101110 38 A21 A22 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Civic 2005 2012 Analogue 11101110 37 B4 N/A B5 A13 N/A N/A N/A N/A N/A N/A N/A N/A
Civic 2012 2015 CAN 10100010 38 N/A N/A N/A B13 B3 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Civic 2001 2005 Analogue 10101100 10 8 N/A 7 9 N/A N/A N/A N/A N/A N/A N/A N/A
CivicSedan 2016 > CAN/Analogue00001001 39 7 18 19 2 14 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Crosstour 2010 2016 Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
CR‐V 2009 2012 Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
CR
‐V 2005 2009 Analogue 11101110 37 B4 N/A B5 A13 N/A N/A N/A N/A N/A N/A N/A N/A
CR‐V 2005 2007 Analogue 10101100 10 8 N/A 7 9 N/A N/A N/A N/A N/A N/A N/A N/A
CR‐V 2017 > CAN/Analogue00001001 39 7 18 19 2 14 N/A N/A N/A N/A N/A N/A N/A N/A N/A
CR‐Z 2011 2015 Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Element 2006 2011 Analogue 11101110 10 8 N/A 17 9 N/A N/A N/A N/A N/A N/A N/A N/A
Fit 2007 2014 Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Fit 2014 > Analogue 11101110 38 A21 B9 A8 B23 N/A N/A N/A N/A N/A N/A N/A N/A
FIt 2016 > Analogue 11101110 38 A21 A22 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
HR‐V 2014 > Analogue 11101110 38 A21 B9 A8 B23 N/A N/A N/A N/A N/A N/A N/A N/A
HR‐V 2016 > Analogue 11101110 38 A21 A22 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Insight 2010 2013 Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Jazz 2008 2014 Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Jazz 2005 > Analogue 11101110 10 8 N/A 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Odyssey 1999 2015 Analogue 11101110 38 B7 N/A B6 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Pilot 2016 > Analogue 11101110 38 A21 A22 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Pilot 2003 2015 Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Ridgeline 2016 > Analogue 11101110 38 A21 A22 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
Ridgeline 2006 2014 Analogue 11101110 38 A21 B12 A8 A23 N/A N/A N/A N/A N/A N/A N/A N/A
S2000 2001 2004 Analogue 10101100 10 8 N/A 7 9 N/A N/A N/A N/A N/A N/A N/A N/A
S2001 2005 2009 Analogue 11101110 37 B4 N/A B5 A13 N/A N/A N/A N/A N/A N/A N/A N/A
H2 2003 2007
ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
H2 2008 2009 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
H3 2006 2009
ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Accent 2010 2013 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Azera 2011 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
Elantra 2011 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
GenesisCoupe 2010 2013 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Hummer GreatWallHoldenHonda GMCHyundai
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
16
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
i10 2009 2013 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
i10 2014 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
i20 2009 > Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
i30 2007 2009 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
i30 2009 2012 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
i30 2012 2016 Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
i40 2011 > Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
i40 2011 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
i45 2009 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
i800 2007 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
ix20 2010 > Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
ix35 2010 > Analogue 00001010 40 A19 N/A A20 A2 N/A N/A N/A N/A N/A N/A N/A N/A
ix35 2010 > Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
ix35 2010 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
ix45 2013 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
ix55 2009 2010 Analogue 00001010 44 6 N/A 18 11 N/A N/A N/A N/A N/A N/A N/A N/A
SantaFe 2010 2013 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
SantaFe 2013 2018 Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
SantaFe 2006 2010 Analogue 00001010 44 6 N/A 18 11 N/A N/A N/A N/A N/A N/A N/A N/A
Sonata 2008 2010 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Sonata 2009 2018 Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
Sorento 2008 2009 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Tucson 2010 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
Tucson 2010 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
Veloster 2012 2016 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Veracruz 2009 2012 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Ascender 2003 2008 Analogue 11001010 13 5 N/A 13 4 N/A N/A N/A N/A N/A N/A N/A N/A
D‐Max 2012 > Analogue 11001010 13 5 N/A 13 4 N/A N/A N/A N/A N/A N/A N/A N/A
MU‐X 2014 > Analogue 11001010 13 5 N/A 13 4 N/A N/A N/A N/A N/A N/A N/A N/A
Daily 2016 > CAN 01111111 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Daily(NoSecurity) 2014 > CAN 00111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Daily(NoSecurity) 2014 > CAN 00111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Daily(Security1055) 2014 > CAN 01111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Daily(Security1055) 2014 > CAN 01111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Daily
(Security2024) 2014 > CAN 10111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Daily(Security2024) 2014 > CAN 10111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Daily(Security3Both) 2014 > CAN 11111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Daily(Security3Both) 2014 > CAN 11111100 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
SType 1999 2002 Analogue 01100010 24 C5 N/A C6 B6 N/A N/A N/A N/A N/A N/A N/A N/A
XType 2002 2008 Analogue 01100010 24 C5 N/A C6 B6 N/A N/A N/A N/A N/A N/A N/A N/A
XType 2001 2009 Analogue 10000110 25 13 N/A TC 9 N/A N/A N/A N/A N/A N/A N/A N/A
XJ8 1998 2003 Analogue 01001010 41 2 N/A TC 11 N/A N/A N/A N/A N/A N/A N/A N/A
CherokeeSport(NoSec.) 2014 > CAN 00111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
CherokeeSport(Sec.1) 2014 > CAN 01111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
CherokeeSport(Sec.2) 2014 > CAN 10111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
CherokeeSport(Sec.3) 2014 > CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Commander 2006 2010 CAN 00010101 14 N/A N/A N/A A21 A10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Compass 2007 2017 CAN 11001101 14 N/A N/A N/A B6 B 7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
GrandCherokee 2005 2013 CAN 00010101 14 N/A N/A N/A A21 A10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Liberty 2008 2012 CAN 00010101 14 N/A N/A N/A A21 A10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Patriot 2007 2014 CAN 11001101 14 N/A N/A N/A B6 B7 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Reneg ade(NoSec.) 2015 > CAN 00111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Reneg ade(Sec.1) 2015 > CAN 01111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Reneg ade(Sec.2) 2015 > CAN 10111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Reneg ade(Sec.3) 2015 > CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Wrangler 2007 2016 CAN 00010101 14 N/A N/A N/A A21 A10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Amanti 2004 2009 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Borrego 2009 2011 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Cadenza 2014 2014 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Together
Together
Together
Together
Isuzu HyundaiIvecoJaguarJeepKia
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
17
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
Carens 2006 2010 Analogue 00001010 44 6 N/A 18 11 N/A N/A N/A N/A N/A N/A N/A N/A
Carnival 2015 > CAN 11110111 22 N/A N/A N/A A1 A13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Cee'd 2009 2018 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Cee'd 2007 2009 Analogue 00001010 1 N/A N/A 26 2 N/A N/A 19 19 N/A N/A N/A N/A
Cee'd 2009 2012 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Cee'd 2016 > Analogue 00001010 48 N/A 12 39 S12V* N/A N/A N/A 12 N/A N/A N/A N/A
Forte 2016 > Analogue 00001010 48 12 N/A 39 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Forte 2010 2014 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Optima 2014 2016 Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
Optima 2016 2018 Analogue 00001010 48 12 N/A 39 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Picanto 2011 2016 Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
Picanto 2016 2018 Analogue 00001010 48 12 N/A 39 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
ProCee'd 2007 2009 Analogue 00001010 1 19 N/A 26 2 N/A N/A N/A N/A N/A N/A N/A N/A
ProCee'd 2016 > Analogue 00001010 48 12 N/A 39 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Rio 2016 > Analogue 00001010 48 12 N/A 39 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Rio 2011 > Analogue 00001010 42 D5/B4 N/A B17/D4 C2 N/A N/A N/A D5/B4 N/A N/A N/A N/A
Rondo 2007 2012 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Sedo na 2015 > CAN 11110111 22 N/A N/A N/A A1 A13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Sedona 2009 2016 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Sorento 2009 2011
Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Sorento 2009 2011 Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Sorento 2015 > CAN 11110111 22 N/A N/A N/A A1 A13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Soul 2009 2011 Analogue 00001010 1 N/A N/A 20 2 N/A N/A 19 19 N/A N/A N/A N/A
Soul 2012 2016 Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
Soul 2012 > Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Soul 2016 2018 Analogue 00001010 48 N/A 12 39 S12V* N/A N/A N/A 12 N/A N/A N/A N/A
Sporta ge 2010 > Analogue 00001010 40 A19 N/A A20 A2 N/A N/A N/A N/A N/A N/A N/A N/A
Sporta ge 2010 > Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Sporta ge 2010 > Analogue 00001010 22 A4 N/A A17 A11 N/A N/A N/A N/A N/A N/A N/A N/A
Sporta ge 2007 2010 Analogue 00001010 44 6 N/A 18 11 N/A N/A N/A N/A N/A N/A N/A N/A
Sporta ge 2016 > CAN 11110111 22 N/A N/A N/A A1 A13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Sporta ge 2016 > Analogue 00001010 48 12 N/A 39 S12V * N/A N/A N/A N/A N/A N/A N/A N/A
Sporta ge 2010 > Analogue 00001010 42 D5/B4 N/A B17/D4 C2 N/A N/A N/A D5/B4 N/A N/A N/A N/A
Venga 2010 > Analogue 00001010 1 19 N/A 20 2 N/A N/A N/A N/A N/A N/A N/A N/A
Lancia
Delta 2009 > CAN 01101110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Discovery 2001 2004 Analogue 00000110 6 16 N/A 10 17 N/A N/A N/A N/A N/A N/A N/A N/A
Discovery 2001 2004 Analogue 00000110 3 1 N/A TC 8 N/A N/A N/A N/A N/A N/A N/A N/A
Discovery 2005 2014 CAN/Analogue00010010 25 13 N/A 10 2 1 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Freelander 2001 2003 Analogue 00000110 6 16 N/A 10 17 N/A N/A N/A N/A N/A N/A N/A N/A
Freelander 2006 2014 CAN/Analogue00010010 25 13 N/A 10 2 1 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Freelander 2003 2006 CAN/Analogue00010001 28 18 N/A 19 2 N/A N/A N/A N/A N/A N/A N/A N/A
Freelander11Bit 2006 2014 CAN/Analogue00010001 50 B4 N/A B5 B9 B8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Freelander29Bit 2006 2014 CAN/Analogue00010010 50 B4 N/A B5 B9 B8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
RangeRoverSport 2005 2013 CAN/Analogue00010010 25 13 N/A 10 2 1 N/A N/A N/A N/A N/A N/A N/A N/A N/A
RangeRoverVogue 2004 2006 iBus 10110110 2 N/A N/A N/A N/A N/A 9 N/A N/A N/A N/A N/A N/A
RangeRoverVogue 2006 2012 CAN 00010011 25 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
CT200h 2011 > Analogue 11101010 46 B21 B22 B23 D5 N/A N/A N/A N/A N/A N/A N/A N/A
ESSeries 2005 2009 Analogue 11101010 46 B21 B22 B23 D5 N/A N/A N/A N/A N/A N/A N/A N/A
GSSeries 2003 2009 CAN/Analogue00010010 25 13 N/A 10 2 1 N/A N/A N/A N/A N/A N/A N/A N/A N/A
GXSeries 2003 2009 Analogue 11101010 46 B21 B22 B23 D5 N/A N/A N/A N/A N/A N/A N/A N/A
ISSeries 2006 2010 Analogue 11101010 46 B21 B22 B23 D5 N/A N/A N/A N/A N/A N/A N/A N/A
RXSeries 2004 2010 Analogue 11101010 46 B21 B22 B23 D5 N/A N/A N/A N/A N/A N/A N/A N/A
620 2009 > Analogue 10101010 1 5 1 TC 2 N/A N/A N/A N/A N/A N/A N/A N/A
720 2012 > Analogue 10101010 1 5 1 TC 2 N/A N/A N/A N/A N/A N/A N/A N/A
MKX 2007 2010 CAN/Analogue00011001 35 A18 A18 A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
MKZ 2007 2010 CAN/Analogue00011001 35 A18 A18 A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Navigator 2007 2014 CAN/Analogue00011001 35 A18 A18 A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Zephyr 2006 > CAN/Analogue00011001 35 A18 A18 A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Together
Together
LexusLifanLincoln LandRover Kia
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
18
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
Mahindra
Scorpio 2006 >
Analogue 10101110 1 1 N/A 6 7 N/A N/A N/A N/A N/A N/A N/A N/A
2 2007 > Analogue 01010010 26 12 N/A 13 22 N/A N/A N/A N/A N/A N/A N/A N/A
3 2009 2013 CAN/Analogue01011010 26 12 N/A 13 20 21 N/A N/A N/A N/A N/A N/A N/A N/A N/A
3 2004 2008 Analogue 01010010 26 12 N/A 13 22 N/A N/A N/A N/A N/A N/A N/A N/A
3 2004 2008 Analogue 01010010 26 12 N/A 13 22 N/A N/A N/A N/A N/A N/A N/A N/A
5 2010 > CAN/Analogue01011010 26 12 N/A 13 20 21 N/A N/A N/A N/A N/A N/A N/A N/A N/A
6 2007 2009 2* CAN/Analogue01000110 26 12 N/A 13 20 21 N/A N/A N/A N/A N/A N/A N/A N/A N/A
6 2010 2013 CAN/Analogue01011010 26 12 N/A 13 20 21 N/A N/A N/A N/A N/A N/A N/A N/A N/A
BT‐50 2012 > CAN/Analogue00100110 19 A7cut N/A A9/A11 A4 A5 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
BT‐50 2017 > Analogue 01000011 55 19 N/A 20 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
CX5 2013 2015 3* CAN/Analogue01001010 26 12 N/A 13 20 21 N/A N/A N/A N/A N/A N/A N/A N/A N/A
CX‐7 2008 2012 CAN/Analogue01001010 26 12 N/A 13 20 21 N/A N/A N/A N/A N/A N/A N/A N/A N/A
CX‐9 2007 2015 CAN/Analogue01001010 26 12 N/A 13 20 21 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Miata(MX5) 2006 2014 Analogue 01010010 26 12 N/A 13 22 N/A N/A N/A N/A N/A N/A N/A N/A
MPVVan 2002 2006 Analogue 01010010 26 12 N/A 13 22 N/A N/A N/A N/A N/A N/A N/A N/A
RX8 2004 2011 Analogue 01010010 26 12 N/A 13 22 N/A N/A N/A N/A N/A N/A N/A N/A
Tribute 2008 2010 Analogue 01010010 26 12 N/A 13 22 N/A N/A N/A N/A N/A N/A N/A N/A
A‐
Class 2004 2012 CAN 10111110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
A‐Class 2013 > CAN 00101011 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
BClass 2011 > CAN 00101011 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
B‐Class 2005 2011 CAN 10111110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
B‐Class 2005 2011 CAN 10111110 3 N/A N/A N/A 3 8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
B‐Class 2005 2011 CAN 10111110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C‐Class 2004 2007 CAN 10111110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C‐Class 2007 2012 CAN 00101011 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C‐Class 2001 2004 CAN 01010101 47 N/A N/A N/A 22 17 N/A N/A N/A N/A N/A N/A N/A N/A N/A
C‐Class 2000 2004 CAN 10111110 3 N/A N/A N/A 3 8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Citan 2012 > Matrix 00101001 32 A2 A4 N/A C2 N/A N/A A3 N/A A 8 A1 A7 N/A
CLA 2013 > CAN 00101011 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
CLK 2001 2004 CAN 01010101 47 N/A N/A N/A 22 17 N/A N/A N/A N/A N/A N/A N/A N/A N/A
E‐Class 2002 2009 CAN 10111110 2 N/A N/A N/A 17 18 N/A N/A N/A N/A N/A N/A N/A N/A N/A
E‐Class 2009 2012 CAN 00101011 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
E‐Class 2002 2009
CAN 10111110 2 N/A N/A N/A 17 18 N/A N/A N/A N/A N/A N/A N/A N/A N/A
GL 2007 2008 CAN 10111110 2 N/A N/A N/A 9 11 N/A N/A N/A N/A N/A N/A N/A N/A N/A
GLA 2013 > CAN 00101011 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
ML 2005 2011 CAN 10111110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
ML 2005 2011 CAN 10111110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
R‐Class 2006 2013 CAN 10111110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
S500 2000 2000 CAN 10111110 2 N/A N/A N/A 17 18 N/A N/A N/A N/A N/A N/A N/A N/A N/A
S‐Class 2001 2008 CAN 10111110 2 N/A N/A N/A 17 18 N/A N/A N/A N/A N/A N/A N/A N/A N/A
SLK 2004 2011 CAN 10111110 2 N/A N/A N/A 17 18 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Sprinter 2006 > CAN 10111110 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Sprinter 2006 > CAN 10111110 3 N/A N/A N/A 3 8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Viano 2004 2015 CAN 10111110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Vito 2015 > CAN 00110100 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Vito 2004 2015 CAN 10111110 3 N/A N/A N/A 3 8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Vito 2015 > CAN 00101011 3 N/A N/A N/A 3 8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Vito 2004 2015 CAN 10111110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Mariner 2008 2010 CAN/Analogue00011001 35 A18 A18 A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Milan 2006 2010 CAN/Analogue00011001 35 A18 A18 A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Montego 2005 2007 CAN/Analogue00011001 35 A18 A18 A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Mountaineer 2006 2010 CAN/Analogue00011001 35
A18 A18 A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Sable 2008 2009 CAN/Analogue00011001 35 A18 A18 A19 B15 B16 N/A N/A N/A N/A N/A N/A N/A N/A N/A
ZR 2001 2005 Analogue 01000111 6 16 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
ZS 2001 2005 Analogue 01000111 6 16 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
ZT 2001 2005 Analogue 01000111 6 16 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
ZT‐T 2001 2005 Analogue 01000111 6 16 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
MazdaMercedes‐BenzMercuryMG
19
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
ASX 2010 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
ASX 2010 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
ASX 2010 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Attrage 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Attrage 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Attrage 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Colt 2009 2012 Analogue 01101010 49 N/A N/A B3 A11 N/A N/A N/A B10 N/A N/A N/A N/A
L200 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
L200 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
L200 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
L200 2012 > Analogue 01101010 51 N/A N/A B12 A11 N/A N/A B1 N/A N/A N/A N/A N/A
L200 2010 2012 Analogue 01101010 49 N/A N/A B10 A11 N/A N/A B3 N/A N/A N/A N/A N/A
Lancer 2007 2010 Analogue 01101010 16 A9 N/A TC A10 N/A N/A N/A N/A N/A N/A N/A N/A
Lancer 2010 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Lancer 2007 2010 Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Mirage 2013 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Mirage 2013 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Outlander 2007 2010 Analogue 01101010 16 A9 N/A TC A10 N/A N/A N/A N/A N/A N/A N/A N/A
Outlander 2010 2013 Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Outlander 2007 2013 Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Outlander 2013 2018
CAN/Analogue10010010 53 9 N/A 11 8 18 N/A N/A N/A N/A N/A N/A N/A N/A N/A
OutlanderSport 2010 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Pajero 2013 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Pajero 2013 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Pajero 2013 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Pajero 2013 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
RVR 2010 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
RVR 2010 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
RVR 2010 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Shogun 2013 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Shogun 2013 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Shogun 2013 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Shogun 2013 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
SpaceStar 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
SpaceStar 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
SpaceStar 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Triton 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Triton 2015 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
Triton 2015 > Analogue 01101010 16
N/A N/A TC A10 N/A N/A A9 N/A N/A N/A N/A N/A
350Z 2003 > Analogue 01110010 60 C4 C14 C12 B1 N/A N/A N/A N/A N/A N/A N/A N/A
350Z 2003 2010 Analogue 01110010 60 C4 C13 C11 B1 N/A N/A N/A N/A N/A N/A N/A N/A
370Z 2009 2016 Analogue 10110010 29 A5 A14 A15 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Almera 2000 2006 Analogue 11101100 61 A7 A8 A6 B5 N/A N/A N/A N/A N/A N/A N/A N/A
Altima 2014 2018 4* CAN 00101111 45 N/A N/A N/A A8 A9 N/A N/A B10 N/A N/A N/A N/A N/A N/A
Altima 1998 2016 Analogue 10110010 29 A5 A14 A15 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Armada 2004 2012 Analogue 10110010 29 A5 A14 A15 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Cube 2009 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Cube 2009 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Evalia 2013 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Evalia 2013 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Frontier 2009 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Frontier 2009 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Juke 2010 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Juke 2010 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
March 2010 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
March 2010 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Maxima 2015 > 5* CAN 00110000 27 N/A N/A N/A A21 A1 N/A N/A B10 N/A N/A N/A N/A N/A N/A
Maxima 2001 2013 Analogue 10110010 29 A5 A14 A15 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Micra 2007 2010 Analogue 00010110 20
8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
MitsubishiNissan
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
20
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
Micra 2010 2018 Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Micra 2002 2007 Analogue 00010110 1 20 33 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
Murano 2014 > 5* CAN 00110000 45 N/A N/A N/A A11 A12 N/A N/A B10 N/A N/A N/A N/A N/A N/A
Murano 2003 2014 Analogue 10110010 29 A5 A14 A15 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Navara 2010 > Analogue 00010110 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Navara 2009 2016 Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Navara 2015 > CAN 00101111 45 N/A N/A N/A A8 A9 N/A N/A B10 N/A N/A N/A N/A N/A N/A
Navara 2006 2009 Analogue 01110010 60 C4 C14 C12 B1 N/A N/A N/A N/A N/A N/A N/A N/A
Note 2012 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Note 2009 2012 Analogue 11110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
NV200 2013 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
NV200 2013 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
NV400 2014 > Matrix 00101001 21 B4 B6 N/A A14 N/A N/A B5 N/A B2 B3 B1 N/A
Pathfinde r 2010 2013 Analogue 00010110 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Pathfinder 2013 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Pathfinder 2013 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Primastar 2011 2014 CAN 00001110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Primastar 2005 2010 ? CAN 00000001 33 N/A N/A N/A B6 B2 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Primera 2001 2007 Analogue 11101100 61 A7 A8 A6 B5 N/A N/A N/A N/A N/A N/A N/A N/A
Pulsar 2015 > 4* CAN 00101111 54 N/A N/A N/A A2 A1 N/A N/A B10 N/A N/A N/A N/A N/A N/A
Pulse 2011 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Pulse 2011 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Qashqa i 2007 2013 Analogue 00010110 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Qashqai 2014 > 4* CAN 00101111 45 N/A N/A N/A A20 A21 N/A N/A B10 N/A N/A N/A N/A N/A N/A
Qashqai 2014 > 4* CAN 00101111 54 N/A N/A N/A A2 A1 N/A N/A B10 N/A N/A N/A N/A N/A N/A
Quest 2010 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Quest 2010 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Rogue 2007 2013 Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Skyline 2001 2007 Analogue 00010110 59 C4 C13 C 11 B1 N/A N/A N/A N/A N/A N/A N/A N/A
Sunny 2012 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Sunny 2012 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Terrano 2001 2006 Analogue 11101100 61 A7 A8 A6 B5 N/A N/A N/A N/A N/A N/A N/A N/A
Tiida 2007 2014 Analogue 11110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Titan 2009 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Titan 2009 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Versa 2008 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Versa 2008 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
Xterra 2009 2016 Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Xterra 2009 > Analogue 10110010 21 A17 A8 A7 A18 N/A N/A N/A N/A N/A N/A N/A N/A
X‐Trail 2009 2014
Analogue 00010110 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
X‐Trail 2014 > 4* CAN 00101111 54 N/A N/A N/A A2 A1 N/A N/A B10 N/A N/A N/A N/A N/A N/A
X‐Trail 2001 2008 Analogue 11101100 61 A7 A8 A6 B5 N/A N/A N/A N/A N/A N/A N/A N/A
Alero 2002 2004 ClassII 11100011 8 N/A N/A N/A N/A E1,E2 N/A N/A N/A N/A N/A N/A N/A
Bravada 2002 2004 ClassII 11100011 8 N/A N/A N/A N/A E1,E2 N/A N/A N/A N/A N/A N/A N/A
Silhouette 2000 2001 ClassII 11100011 8 N/A N/A N/A N/A E1,E2 N/A N/A N/A N/A N/A N/A N/A
108 2014 > Analogue 11101010 17 B20 B19 B21 A2 N/A N/A N/A N/A N/A N/A N/A N/A
206 1998 2002 Analogue 01000010 1 17 30 24 2 N/A N/A N/A N/A N/A N/A N/A N/A
206 2009 > Analogue 00101101 2 35 34 38 12 N/A N/A 37BL 12 N/A N/A N/A N/A
207 2006 2012 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
208 2012 > 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
306 1998 2002 Analogue 01000010 1 17 30 24 2 N/A N/A N/A N/A N/A N/A N/A N/A
307 2005 2008 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
308 2007 > 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
407 2004 2010 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
607 2005 2012 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
806 1996 2002 Analogue 01000010 1 17 30 24 2 N/A N/A N/A N/A N/A N/A N/A N/A
807 2005 2014 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
3008 2009 > 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Together
Together
Together
Together
Together
Together
Together
Together
Together
Oldsmobile NissanPeugeot
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
21
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
4007 2007 2013 Analogue 01101010 16 A9 N/A TC A10 N/A N/A N/A N/A N/A N/A N/A N/A
4007 2007 > Analogue 01101010 16 A9 N/A TC A10 N/A N/A N/A N/A N/A N/A N/A N/A
4008 2014 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A N/A N/A N/A N/A N/A N/A
4008 2014 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A N/A N/A N/A N/A N/A N/A
4008 2014 > Analogue 01101010 16 N/A N/A TC A10 N/A N/A N/A N/A N/A N/A N/A N/A
5008 2009 2013 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
207(OpenDashOnly) 2006 2012 CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
3008(OpenDashOnly) 2009 > CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
307(OpenDashOnly) 2005 2008 CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
308(OpenDashOnly) 2007 > CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
407(OpenDashOnly) 2004 2010 CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
607(OpenDashOnly) 2005 2012 CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
807(OpenDash
Only) 2005 2014 CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Bipper 2008 > CAN 01111110 1 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Boxer 2006 2008 CAN/Analogue01110110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Boxer 2008 2014 CAN/Analogue01100110 1 20 33 27 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Boxer 2014 > CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Boxer 2015 > CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Expert 2016 > CAN 11110101 18 N/A N/A N/A 55 44 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Expert 2016 > CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Partner 2008 > 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
RCZ 2010 > 1* CAN 01001110 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Aztek 2001 2005 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
G55 2007 2009 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
GrandAM 2001 2005 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
GS6 2005 2009 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Montana 2001 206 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Solstice
(SeePg.9)
2008 > GM11BITRAP11111011 8 N/A N/A N/A N/A A9,A10 N/A N/A N/A N/A N/A N/A A11
Sunfire 2004 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
911 ? ? CAN 00111111 1 N/A N/A N/A 30 17 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Boxster 2004 2008 CAN 00111111 1 N/A N/A N/A 30 17 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Cayenne 2002 2007 CAN 11011110 1 N/A N/A N/A 30 17 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Cayenne < 2010 CAN 01000001 2 N/A N/A N/A 11 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Cayman 2005 2009 CAN 00111111 1 N/A N/A N/A 30 17 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Proton
GEN‐2 2004 2012
Analogue 11100110 1 20 33 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
Promaster 2014 2014
CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
PromasterCity 2015 2015
CAN 11111100 4 N/A N/A N/A 2 12 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Clio 2000 2005 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B 1 B3 N/A
Clio 2000 2005 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B 1 B3 N/A
Clio 2009 2013 6* CAN 00001110 2 N/A N/A N/A 13 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Clio 2009 2013 6* CAN 00001110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Clio 2005 2009 CAN 00000001 33 N/A N/A N/A B6 B2 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Fluence 2010 > 6* CAN 00001110 2 N/A N/A N/A 13 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Fluence 2010 > 6* CAN 00001110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Kangoo 2000 2005 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Kangoo 2000 2005 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Laguna 2000 2005 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Laguna 2008 > 6* CAN 00001110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Laguna 2005 2007 CAN 00000001 33 N/A N/A N/A B6 B2 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Master 2013 > Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B 1 B3 N/A
Master 2015 > Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B 1 B3 N/A
Megane 2000 2005 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Megane 2000 2005 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Megane 2008 2012
6* CAN 00001110 2 N/A N/A N/A 13 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Megane 2008 2012 6* CAN 00001110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Megane 2005 2008 CAN 00000001 33 N/A N/A N/A B6 B2 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Modus 2004 2012 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Together
Together
Together
Together
Together
PorscheRAM Pontiac PeugeotRenault
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
22
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
Modus 2004 2012 CAN 00000001 33 N/A N/A N/A B6 B2 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Scala 2011 > Analogue 10110010 20 8 17 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Scenic 2000 2005 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Scenic 2009 > 6* CAN 00001110 2 N/A N/A N/A 13 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Scenic 2009 > 6* CAN 00001110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Scenic 2005 2009 CAN 00000001 33 N/A N/A N/A B6 B2 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Trafic 2000 2005 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Trafic 2010 2013 6* CAN 00001110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Trafic 2006 2010 CAN 00000001 33 N/A N/A N/A B6 B2 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Twingo 2000 2007 Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Twingo 2007 2009 CAN 00000001 33 N/A N/A N/A B6 B 2 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Wind 2010 2013 6* CAN 00001110 2 N/A N/A N/A 13 9 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Wind 2010 2013 6* CAN 00001110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
25 2000 2005 Analogue 01000111 6 16 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
25 2000 2005 Analogue 00000110 1 20 N/A 27 2 N/A N/A N/A N/A N/A N/A N/A N/A
45 2000 2005 Analogue 01000111 6 16 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
45 2000 2005 Analogue 00000110 1 20 N/A 27 2 N/A N/A N/A N/A N/A N/A N/A N/A
75 2000 2005 Analogue 01000111 6 16 N/A N/A S12V* N/A N/A N/A N/A N/A N/A N/A N/A
75 2000 2005 Analogue 00000110 1 20 N/A 27 2 N/A N/A N/A N/A N/A N/A N/A N/A
9‐3 2008 2014 Class
II 00000000 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
9‐3 1998 2002 Analogue 00110111 3 2PIN* N/A N/A 2 N/A N/A N/A N/A N/A N/A N/A N/A
9‐5 2008 2010 ClassII 00000000 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
9‐5 1998 2005 Analogue 00110111 3 2PIN* N/A N/A 2 N/A N/A N/A N/A N/A N/A N/A N/A
Aura 2007 2007 ClassII 11100011 8 N/A N/A N/A N/A C1,C2 N/A N/A N/A N/A N/A N/A N/A
Aura 2007 2009 CA N(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Outlook 2007 2009 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Sky 2007 2009 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C 22 N/A N/A N/A N/A N/A N/A N/A
Vue 2006 2007 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Vue 2006 2009 Analogue 11101001 8 N/A N/A N/A N/A A13 N/A N/A N/A N/A N/A N/A N/A
XL7 2007 2009 CAN(SW) 11101001 8 N/A N/A N/A N/A A9,A13,C21,C22 N/A N/A N/A N/A N/A N/A N/A
Scania
RSeries 2004 2015
CAN 10001100 3 N/A N/A N/A 5 1 N/A N/A N/A N/A N/A N/A N/A N/A N/A
iQ 2012 2013 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
tC 2006 2015 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
xA 2006 2006 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
xB 2006 2012 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
xD 2008 2013 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Alhambra 2015 > CAN(FT) 11011010 5 N/A N/A N/A 22 28 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Altea 2004 2015 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Exeo 2009 2013 CAN 11011110 1 N/A N/A N/A 30 17 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Exeo 2009 2013 CAN 11011110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Ibiza 2008 2016 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Leon 2005 2012 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Toledo 2005 > CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Fabia 2013 > CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Fabia 2007 2014 CAN 11001110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Octavia 2008 2013 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Octavia 2004 2008 CAN 11001110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Rapid 2012 2015 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Roomster 2008 2015 CAN 11001110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Superb 2008 2013 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Yeti 2009 2014 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Actyon 2006 > Analogue 00011010 11 16 N/A 14 4 N/A N/A N/A N/A N/A N/A N/A N/A
Actyon 2012 > Analogue 00011010 11 N/A N/A 13 4 N/A N/A N/A 16 N/A N/A N/A N/A
Korando 2010 > Analogue 00011010 11 N/A N/A 13 4 N/A N/A N/A 16 N/A N/A N/A N/A
Korando 2010 > Analogue 00011010 11 N/A N/A 13 4 N/A N/A N/A 16 N/A N/A N/A N/A
KorandoSport 2012 > Analogue 00011010 11 16 N/A 15 4 N/A N/A N/A N/A N/A N/A N/A N/A
KorandoSport 2012 > Analogue 00011010 11 N/A N/A 13 4 N/A N/A N/A 16 N/A N/A N/A N/A
Kyron 2006 2010 Analogue 00011010 11 16 N/A 16 4 N/A N/A N/A N/A N/A N/A N/A N/A
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
RoverSkoda SaabSaturnScionSeat RenaultSsangYong
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
23
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
Rexton 2007 2012 Analogue 00011010 11 16 N/A 17 4 N/A N/A N/A N/A N/A N/A N/A N/A
Rexton 2007 > Analogue 00011010 11 N/A N/A 13 4 N/A N/A N/A 16 N/A N/A N/A N/A
RextonII 2005 2008 Analogue 00011010 11 N/A N/A 13 4 N/A N/A N/A 16 N/A N/A N/A N/A
RextonW 2013 > Analogue 00011010 11 N/A N/A 13 4 N/A N/A N/A 16 N/A N/A N/A N/A
Rodius 2013 2015 Analogue 00011010 11 16 N/A 18 4 N/A N/A N/A N/A N/A N/A N/A N/A
Rodius 2015 2018 Analogue 00011010 11 N/A N/A 13 4 N/A N/A N/A 16 N/A N/A N/A N/A
RodiusTurismo 2013 > Analogue 00011010 11 N/A N/A 13 4 N/A N/A N/A 16 N/A N/A N/A N/A
Stavic 2013 > Analogue 00011010 11 N/A N/A 13 4 N/A N/A N/A 16 N/A N/A N/A N/A
Tivoli 2015 > Analogue 10011100 22 A17 N/A A4 A11 N/A N/A N/A N/A N/A N/A N/A N/A
Tivoli 2015 > Analogue 10011100 22 B9 N/A B18 A11 N/A N/A N/A N/A N/A N/A N/A N/A
Forester 2007 2011 Analogue 10001110 20 17 N/A 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Forester 2012 > Analogue 10001010 20 17 8 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Forester 2004 2007 Analogue 10001110 56 B2 N/A B6 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Impreza 2012 2015 Analogue 10001010 20 17 8 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Impreza 2007 2011 Analogue 10001110 52 B3 N/A B15 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Impreza 2017 > Analogue 00100101 57 A21 A22 A20 C2 N/A N/A N/A N/A N/A N/A N/A N/A
Legacy 2008 2010 Analogue 10001110 20 17 N/A 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
Outback 2014 > Analogue 01111101 43 A21 A22 A23 B5 N/A N/A N/A N/A N/A N/A N/A N/A
Outback 2012 > Analogue 10001010 20 17 8 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
XV 2015 > Analogue 01111101 43 A21 A22 A23 B5 N/A N/A N/A N/A N/A N/A N/A N/A
XV 2012 2015 Analogue 10001010 20 17 8 7 18 N/A N/A N/A N/A N/A N/A N/A N/A
XVCrosstrek 2013 ? Analogue 10010110 57 A21 A22 A20 C2 N/A N/A N/A N/A N/A N/A N/A N/A
Aerio 2005 2007 Analogue 10010110 10 19 8 20 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Dzire 2008 2010 Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Ertiga 2012 2015 Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Forenza 2004 2008 Analogue 10010110 11 16 N/A 13 N/A N/A 4 N/A N/A N/A N/A N/A N/A N/A N/A
GrandNomade < 2009 Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Grand‐Vitara 2005 2012 Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Ignis 2017 > Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Kizashi 2010 2012 Analogue 10010110 10 19 8 20 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Reno 2005 2008 Analogue 10010110 11 16 N/A 13 N/A N/A 4 N/A N/A N/A N/A N/A N/A N/A N/A
Ritz 2009 > Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Splash 2008 > Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Swift 2005 2011 Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Swift 2011 > Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Swift 2017 > Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
SX4 2006 2014 Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
SX4S‐Cross 2013 >
Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Verona 2004 2007 Analogue 10010110 11 16 N/A 13 N/A N/A 4 N/A N/A N/A N/A N/A N/A N/A N/A
Vitara 2015 > Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Indigo 2006 > Analogue 01010110 1 20 N/A 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
Manza 2012 > Analogue 01010110 1 20 N/A 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
Vista 2012 > Analogue 01010110 1 20 N/A 27 8 N/A N/A N/A N/A N/A N/A N/A N/A
4Runner 2002 > Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
4Runner 2002 > Analogue 11101010 58 A5/B5 A15/B15 A20/B20 A11/B11 N/A N/A N/A N/A N/A N/A N/A N/A
Avalon 2005 2013 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Avanza 2003 > Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Avanza 2003 > Analogue 11101010 46 A7/A8 B21/B22 A6/B23 C3/D5 N/A N/A N/A N/A N/A N/A N/A N/A
Avanza 2003 > Analogue 11101010 58 A5/B5 A15/B15 A20/B20 A11/B11 N/A N/A N/A N/A N/A N/A N/A N/A
Avensi s 2001 > Analogue 11101010 46 A7/A8 B21/B22 A6/B23 C3/D5 N/A N/A N/A N/A N/A N/A N/A N/A
Avensi s 2001 > Analogue 11101010 58 A5/B5 A15/B 15 A20/B20 A11/B11 N/A N/A N/A N/A N/A N/A N/A N/A
Aygo 2014 > Analogue 11101010 17 B20 B19 B21 A2 N/A N/A N/A N/A N/A N/A N/A N/A
Camry 2005 2015 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Camry 2017 > Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Corolla 2001 > Analogue 11101010 46 A7/A8 B21/B22 A6/B23 C3/D5 N/A N/A N/A N/A N/A N/A N/A N/A
Corolla 2001 > Analogue 11101010 58 A5/B5 A15/B15 A20/B20 A11/B11 N/A N/A N/A N/A N/A N/A N/A N/A
Estima 2006 > Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
FJ
Cruiser 2007 2014 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Fortuner 2005 > Analogue 11101010 46 A7/A8 B21/B22 A6/B23 C3/D5 N/A N/A N/A N/A N/A N/A N/A N/A
Together
Together
Together
SuzukiTata Subaru SsangYongToyota
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
24
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
8
8
I
I
N
N
4
4
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
Fortuner 2005 > Analogue 11101010 58 A5/B5 A15/B15 A20/B20 A11/B11 N/A N/A N/A N/A N/A N/A N/A N/A
Highlander 2004 2014 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Hilux 2012 > Analogue 11101010 43 A21 A22 A23 B5 N/A N/A N/A N/A N/A N/A N/A N/A
Innova 2006 > Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Landcruiser 2007 > Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Matrix 2003 > Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Matrix 2003 > Analogue 11101010 46 A7/A8 B21/B22 A6/B23 C3/D5 N/A N/A N/A N/A N/A N/A N/A N/A
Matrix 2003 > Analogue 11101010 58 A5/B5 A15/B15 A20/B20 A11/B11 N/A N/A N/A N/A N/A N/A N/A N/A
Prado 2007 > Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Previa 2006 > Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Prius 2001 2017 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Proace 2016 > CAN 11110101 18 N/A N/A N/A 55 44 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Proace 2016 > CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Proace 2016 > CAN 11110101 2 N/A N/A N/A 10 13 N/A N/A N/A N/A N/A N/A N/A N/A N/A
ProaceVersa 2016 > CAN 11110101 18 N/A N/A N/A 55 44 N/A N/A N/A N/A N/A N/A N/A N/A N/A
RAV4 2001 > Analogue 11101010 46 A7/A8 B21/B22 A6/B23 C3/D5 N/A N/A N/A N/A N/A N/A N/A N/A
RAV4 2001 > Analogue 11101010 58 A5/B5 A15/B15 A20/B20 A11/B11 N/A N/A N/A N/A N/A N/A N/A N/A
Rush 2006 > Analogue 11101010 46 A7/A8 B21/B22 A6/B23 C3/D5 N/A N/A N/A N/A N/A N/A N/A N/A
Rush 2006 > Analogue 11101010 58 A5/B5 A15/B15 A20/B20 A11/B11 N/A N/A N/A N/A N/A N/A N/A N/A
Sequoia 2003 2013 Analogue 11101010 12
A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Sienna 2004 2015 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
VersoS 2010 2012 Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Vios 2006 > Analogue 11101010 12 A8 A7 A6 B3 N/A N/A N/A N/A N/A N/A N/A N/A
Yaris 2001 > Analogue 11101010 46 A7/A8 B21/B22 A6/B23 C3/D5 N/A N/A N/A N/A N/A N/A N/A N/A
Yaris 2001 > Analogue 11101010 58 A5/B5 A15/B15 A20/B20 A11/B11 N/A N/A N/A N/A N/A N/A N/A N/A
Valtra
Tractor 2017 > CAN 01010111 3 N/A N/A N/A 5 6 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Vivaro 2012 > Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B 6 N/A B5 B1 B3 N/A
Agila 2009 2015 Analogue 10010110 10 19 8 20 9 N/A N/A N/A N/A N/A N/A N/A N/A
Antara 2006 2010 7* CAN 00111110 2 N/A N/A N/A 9 10 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Antara 2010 > CAN 11010100 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Astra 1998 2004 Analogue 11010000 3 1 N/A 4 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Astra 2004 2010 7* CAN 00111110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Astra 2010 > CAN(SW) 00000011 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Corsa 2000 2004 Analogue 11010000 3 1 N/A 4 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Corsa 2004 2009 7* CAN 00111110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Corsa 2009 > 7* CAN 00111110 2 N/A N/A N/A 9 10 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Insignia 2008 2013 CAN(SW) 00000011 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Meriva 2003 2005 Analogue 11010000 3 1 N/A 4 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Meriva 2005 2010 7* CAN 00111110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Meriva 2010 > CAN(SW) 00000101 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Mokka 2012 > CAN(SW) 00000011 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
Movano 2013 > Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Omega 2000 2003 Analogue 11010000 3 1 N/A 4 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Signum 2005 2008
7* CAN 00111110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Tigra 2004 2009 7* CAN 00111110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Vectra 1998 2004 Analogue 11010000 3 1 N/A 4 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Vectra 2004 2008 7* CAN 00111110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Vivaro 2002 2006 Analogue 11010000 3 1 N/A 4 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Vivaro 2011 2013 6* CAN 00001110 1 N/A N/A N/A 17 30 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Vivaro 2015 > Matrix 00101001 33 B4 B2 N/A A8 N/A N/A B6 N/A B5 B1 B3 N/A
Zafira 1999 2005 Analogue 11010000 3 1 N/A 4 S12V* N/A N/A N/A N/A N/A N/A N/A N/A
Zafira 2005 2014 7* CAN 00111110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Zafira 2012 > CAN(SW) 00000011 9 N/A N/A N/A N/A 28 N/A N/A N/A N/A N/A N/A N/A
S60 2000 2004 CAN 01111001 30 N/A N/A N/A A12 A11 N/A N/A N/A N/A N/A N/A N/A N/A N/A
V70 2000 2004 CAN 01111001 30 N/A N/A N/A A12 A11 N/A N/A N/A N/A N/A N/A N/A N/A N/A
XC90 2004 2014 CAN 01111011 31 N/A N/A N/A A6/B6 A 8/B8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
XC90 2005 2009 CAN 01111011 31 N/A N/A N/A A6/B6 A 8/B8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
Together
VauxhallVolvo
Together
Together
Together
Together
Together
Together
Toyota
25
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
I
I
N
N
5
5
D
D
i
i
a
a
g
g
r
r
a
a
m
m
N
N
o
o
.
.
I
I
N
N
8
8
I
I
N
N
4
4
P
P
l
l
a
a
t
t
f
f
o
o
r
r
m
m
M
M
a
a
n
n
.
.
M
M
o
o
d
d
e
e
l
l
Y
Y
e
e
a
a
r
r
F
F
r
r
o
o
m
m
Y
Y
e
e
a
a
r
r
T
T
o
o
P
P
h
h
o
o
n
n
e
e
B
B
u
u
t
t
t
t
o
o
n
n
S
S
u
u
p
p
p
p
o
o
r
r
t
t
V
V
o
o
i
i
c
c
e
e
A
A
s
s
s
s
i
i
s
s
t
t
a
a
n
n
t
t
S
S
u
u
p
p
p
p
o
o
r
r
t
t
D
D
i
i
p
p
s
s
w
w
i
i
t
t
c
c
h
h
S
S
e
e
t
t
t
t
i
i
n
n
g
g
(
(
0
0
‐
‐
O
O
f
f
f
f
/
/
1
1
‐
‐
O
O
n
n
)
)
M
M
e
e
n
n
u
u
I
I
N
N
6
6
I
I
N
N
7
7
A
A
n
n
a
a
.
.
G
G
N
N
D
D
I
I
N
N
2
2
I
I
N
N
3
3
I
I
N
N
1
1
I
I
N
N
1
1
0
0
I
I
N
N
1
1
5
5
I
I
N
N
1
1
4
4
I
I
N
N
1
1
3
3
I
I
N
N
9
9
Amarok 2010 > CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Amarok 2010 > CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Beetle 2015 > CAN(FT) 11011010 5 N/A N/A N/A 22 28 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Caddy 2015 > CA N(FT) 11011010 5 N/A N/A N/A 22 28 N/A N/A N/A N/A N/A N/A N/A N/A N/A
CC 2009 2013 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Crafter 2006 > CAN 10111110 3 N/A N/A N/A 3 8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Crafter 2006 > CAN 10111110 3 N/A N/A N/A 3 8 N/A N/A N/A N/A N/A N/A N/A N/A N/A
EOS 2006 2015 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Fusc a 2005 2011 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Fusc a 2005 > CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Gol 2012 > CAN(HS) 00100010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Gol 2012 > CAN(HS) 00100010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Gol 2005 2012 IR 00001011 1 N/A N/A N/A 2 N/A 20 N/A N/A N/A N/A N/A N/A
Golf6 2003 2013 CAN(FT) 11000110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Jetta 2005 2015 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Jetta 2005 2015 CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Jetta 1999 2015 LIN 00001101 1 N/A N/A N/A 2 N/A 20 N/A N/A N/A N/A N/A N/A
Jetta 2015 > CAN(FT) 11011010 5 N/A N/A N/A 22 28 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Magotan 2005 2011 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Magotan 2005 > CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Multivan 2003 2009 CAN(FT) 11000110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Passat 2005 2015 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Passat 2005 2015 CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Passat 2005 2015 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Polo 2005 2014 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Polo 2005 2014 CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
R32 2007 2008 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Rabbit 2006 2008 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Sagitar 2005 2011 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Sagitar 2005 > CAN(HS) 11011010
2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Scirocco 2008 2015 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Scirocco 2008 2015 CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Scirocco 2008 2015 CAN(FT) 11011010 5 N/A N/A N/A 22 28 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Sharan 2015 > CAN(FT) 11011010 5 N/A N/A N/A 22 28 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Suran 2009 > CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Suran 2009 > CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
T‐6 2015 > CAN(FT) 11011010 5 N/A N/A N/A 22 28 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Tiguan 2007 2015 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Tiguan 2008 2011 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Tiguan 2007 2015 CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Tiguan 2015 > CAN(FT) 11011010 5 N/A N/A N/A 22 28 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Touareg 2004 2010 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Touareg 2003 2010 CAN(FT) 11000110 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Touran 2003 2015 CAN(FT) 11011010 2
N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Touran 2003 2015 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Transporter 2003 2015 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Transporter 2003 2015 CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Vento 2005 2011 CAN(FT) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Vento 2005 > CAN(HS) 11011010 2 N/A N/A N/A 9 10 N/A N/A N/A N/A N/A N/A N/A N/A N/A
Volkswagen
Together
Together
26
UNI-SWC-5_IG_en-GB_v1
c. Accessing Settings Menus
For Select Vehicles Only
Cong. 1 (1*)
Cong. 2 (2*)
Cong. 3 (3*)
To Adjust Clock
• Press & hold 'SET' button for 2 seconds
• Press 'Up' to change the hour
• Press 'Down' to change the minute
• Press and hold 'SET' button to exit or wait for 10 seconds
To Navigate Trip Computer
• Press the 'Right Arrow' button repeatedly until the clock in the vehicle display is highlighted
• Use the 'Up' and 'Down' buttons to navigate the trip computer
To Reset Trip Computer
• Navigate to the trip computer setting you wish to reset
• Press and hold 'SET' until the reading clears. The display should now show: '_ _ _'
To Adjust Fader
• Press and hold 'MODE' button for 2 seconds
• The vehicle screen will now display 'SETTINGS'
• Press the 'Track -' button until the display shows 'FADER ADJUST'
• Press the 'MODE' button to select
• Adjust the fader with 'Track +' and 'Track -' buttons
• Press 'MODE' button to exit or wait for 10 seconds
To Adjust Clock
• Press and hold 'MODE' button for 2 seconds
• The vehicle screen will now display 'SETTINGS'
• Press 'MODE' button to select. The screen will now display 'INFO/CLOCK'
• Press and hold 'Track -' to enter time adjust mode
• Press 'Track +' to adjust the time digit
• Press 'Track -' to move onto the next time digit
• Press 'MODE' button to exit or wait for 10 seconds
To Enter Menu Mode
• Press and hold 'Mute' button for 2 seconds (Citroen vehicles) or press 'Track +' and 'Track -'
buttons in unison (Peugeot vehicles)
To Navigate Through Settings
• Use 'Track +' and 'Track -' to navigate through settings and select a menu with 'Volume +'
(Citroen/Peugeot vehicles).
• If the above step doesn't work, hold the 'Source' button (Peugeot vehicles) or 'Mute' button
(Citroen vehicles) for 3 seconds. After 3 seconds, the display will return to radio mode.
• Now the scroll wheel can be used to adjust the selected menu item
NB: Once power has been removed from the interface, it will default back to its original settings
27
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
Cong. 4 (4*)
Cong. 5 (5*)
Cong. 6 (6*)
Cong. 7 (7*)
To Enter Menu
Hold 'Hang Up'
To Change Minutes
Press 'Track +'
To Change Minutes
Press 'Track -'
To Adjust Trip Computer
• Press and hold 'MODE' button for 2 seconds
• The vehicle screen will now display 'SETTINGS'
• Press 'MODE' button to select. The screen will now diplay 'INFO/CLOCK'
• Press 'Track +' to access trip information
• Press 'Track +' repeatedly to scroll through trip information options
• Press 'Track -' to return to clock display
• Press 'MODE' button to exit or wait for 10 seconds
To Adjust Clock
• Press and hold 'ENTER' button for 8 seconds
• Use 'Track -' to adjust hours
• Use 'Track +' to adjust minutes
• Press 'ENTER' button to set the time or press and hold 'ENTER' button to exit the menu without saving
changes
To Adjust Clock
• Press and hold 'Source' button on the steering wheel until the time displayed on the dashboard ashes
'00:00' for 1 second. This signies that clock setting mode has been entered.
• Use 'Volume +' to adjust hours and 'Volume -' to adjust minutes
• Once the correct time has been set, wait for 5 seconds and the display will ash 00:00 for 1 second to
signify that clock setting mode has been exited.
To Access System Settings
• Press and hold 'Source' button for 2 seconds
• Use 'Volume +' and 'Volume -' to scroll through settings (ie. Lang, IGN Logic, Clock Sync)
• Press 'Track +' and 'Track -' to change settings
• Press 'Source' to exit
28
UNI-SWC-5_IG_en-GB_v1

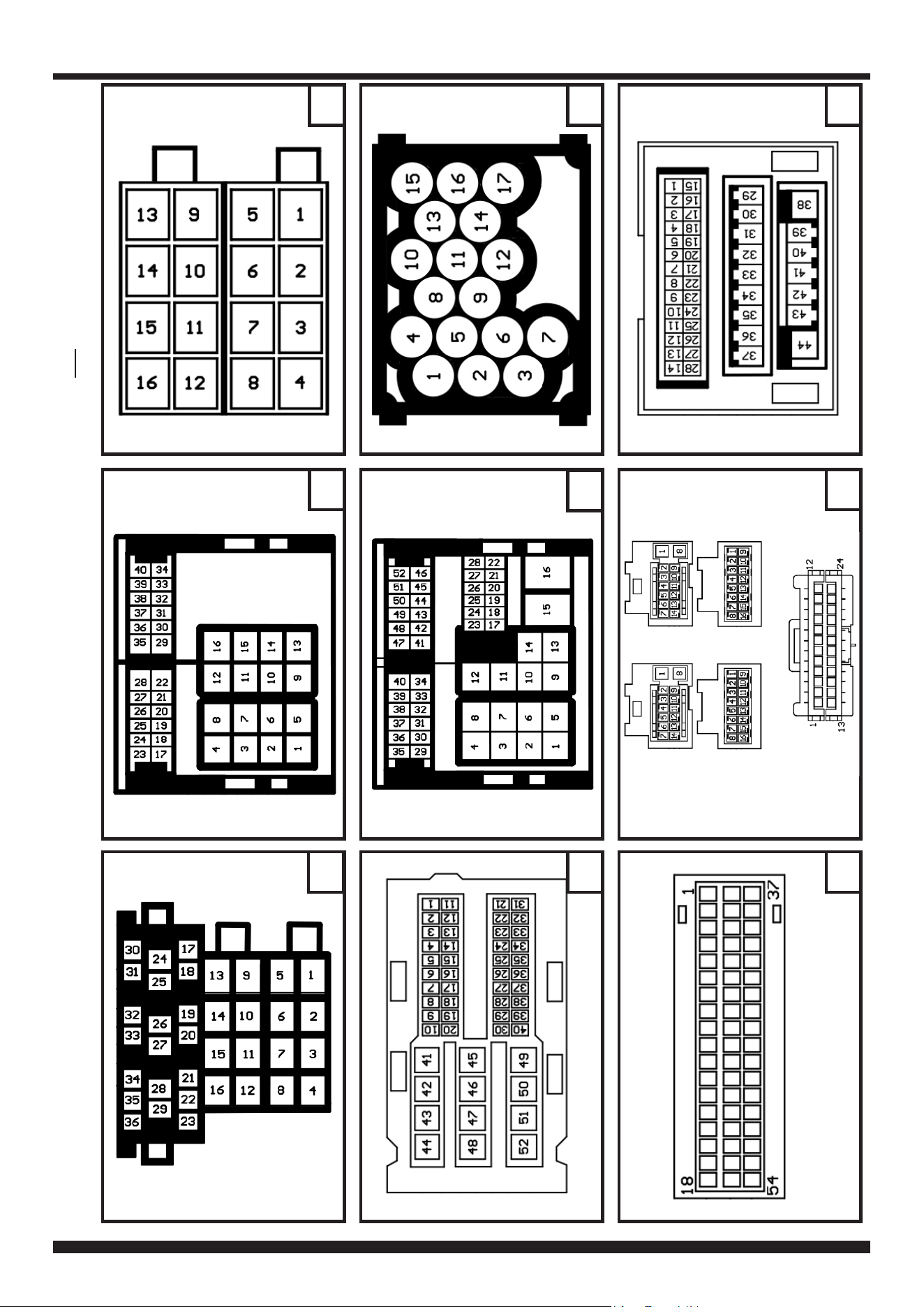

Important: Please note, connectors are shown from the terminal side and not the wire side
32
1
7 8
654
A
B
C
D
E
9
d. Diagram Chart
29
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
Important: Please note, connectors are shown from the terminal side and not the wire side
1211
16 18
10
A
B
C
13
14
A
B
15
A
B
17
A
B
30
UNI-SWC-5_IG_en-GB_v1

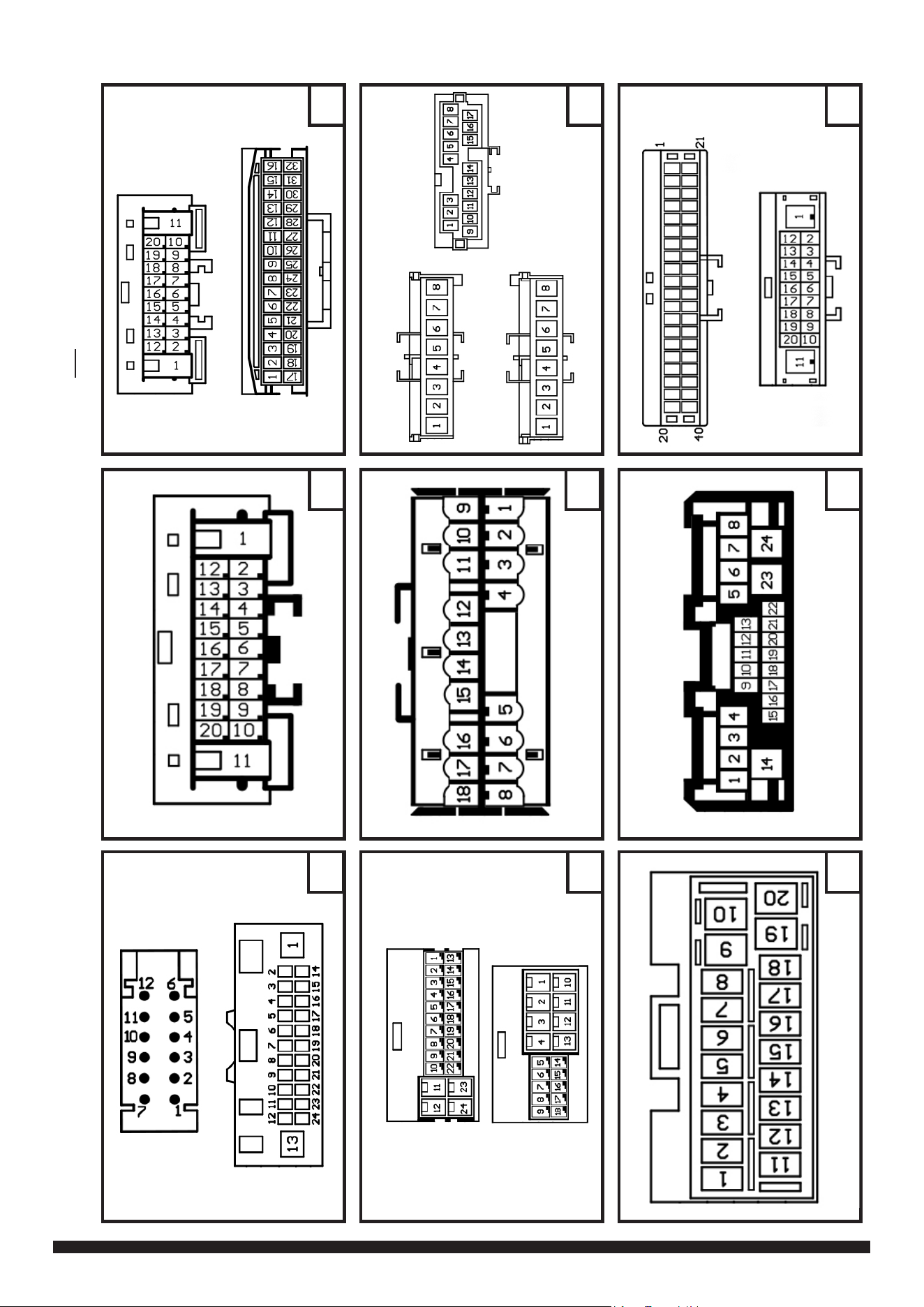

Important: Please note, connectors are shown from the terminal side and not the wire side
19
22
26
24
23
A
B
20 21
25
A
B
A
B
C
A
B
27
A
B
31
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1

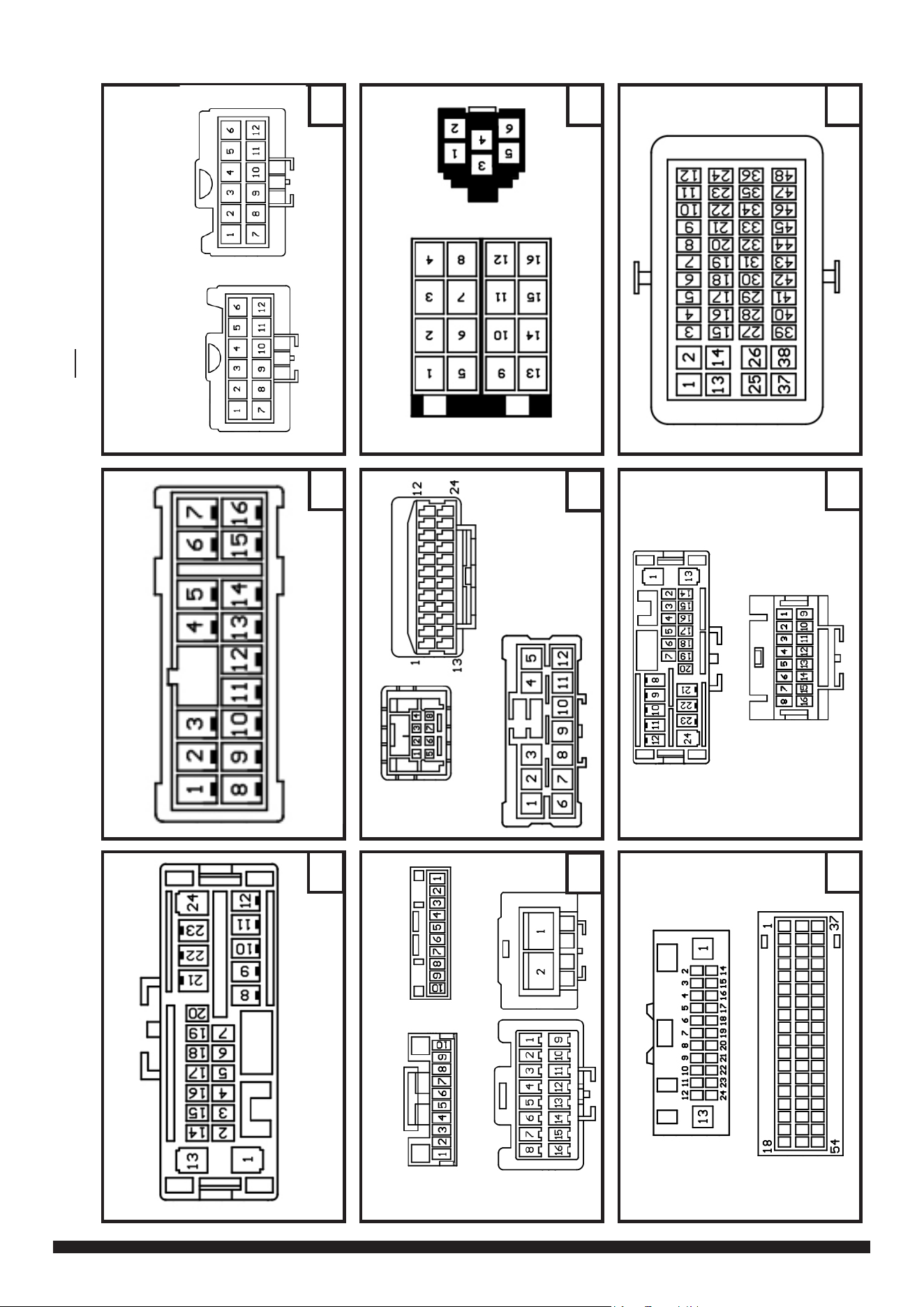

Important: Please note, connectors are shown from the terminal side and not the wire side
30
34 35
32
28
29
A (Green)
B (Grey)
A B
D
A
B
C
33
A B
31
C
A
B
A
B
36
32
UNI-SWC-5_IG_en-GB_v1

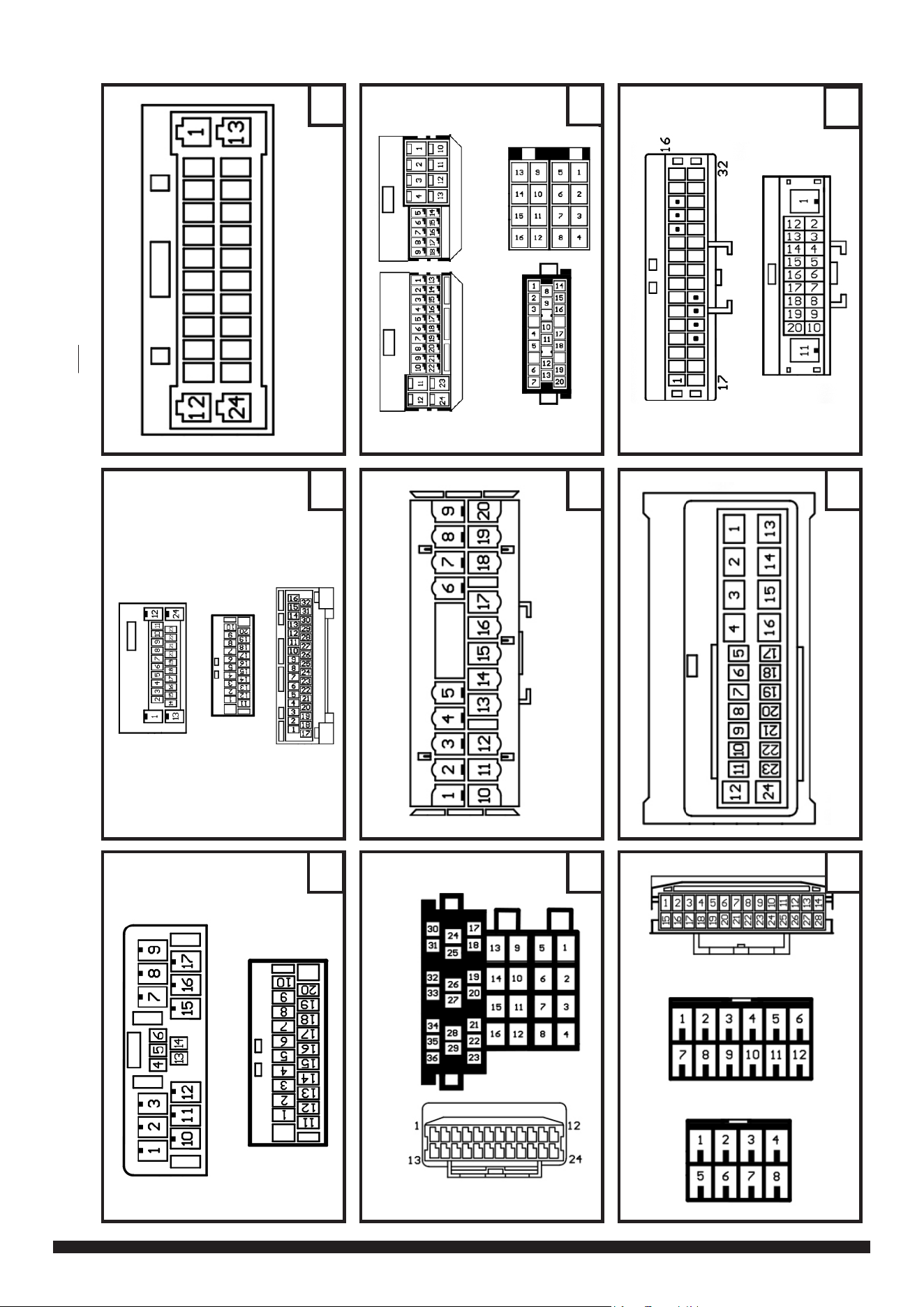

Important: Please note, connectors are shown from the terminal side and not the wire side
38
4241
37
39
40
44
45
A
B
A
B
C
A
B
C B
A
43
B
A
C
D
A
B
33
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1
Important: Please note, connectors are shown from the terminal side and not the wire side
47
46
51 52
50
49
48
53
BA
D
C
F
E
A
B
A
B
A
B
A
B
34
UNI-SWC-5_IG_en-GB_v1
Important: Please note, connectors are shown from the terminal side and not the wire side
57
60
55
A B
5654
58 61
59
A
B
A
B
A C
D
B
A
B
C
A
CE
F
D
B
A
B
C
D
35
Need help? Visit support.connects2.com/tickets/technical
UNI-SWC-5_IG_en-GB_v1

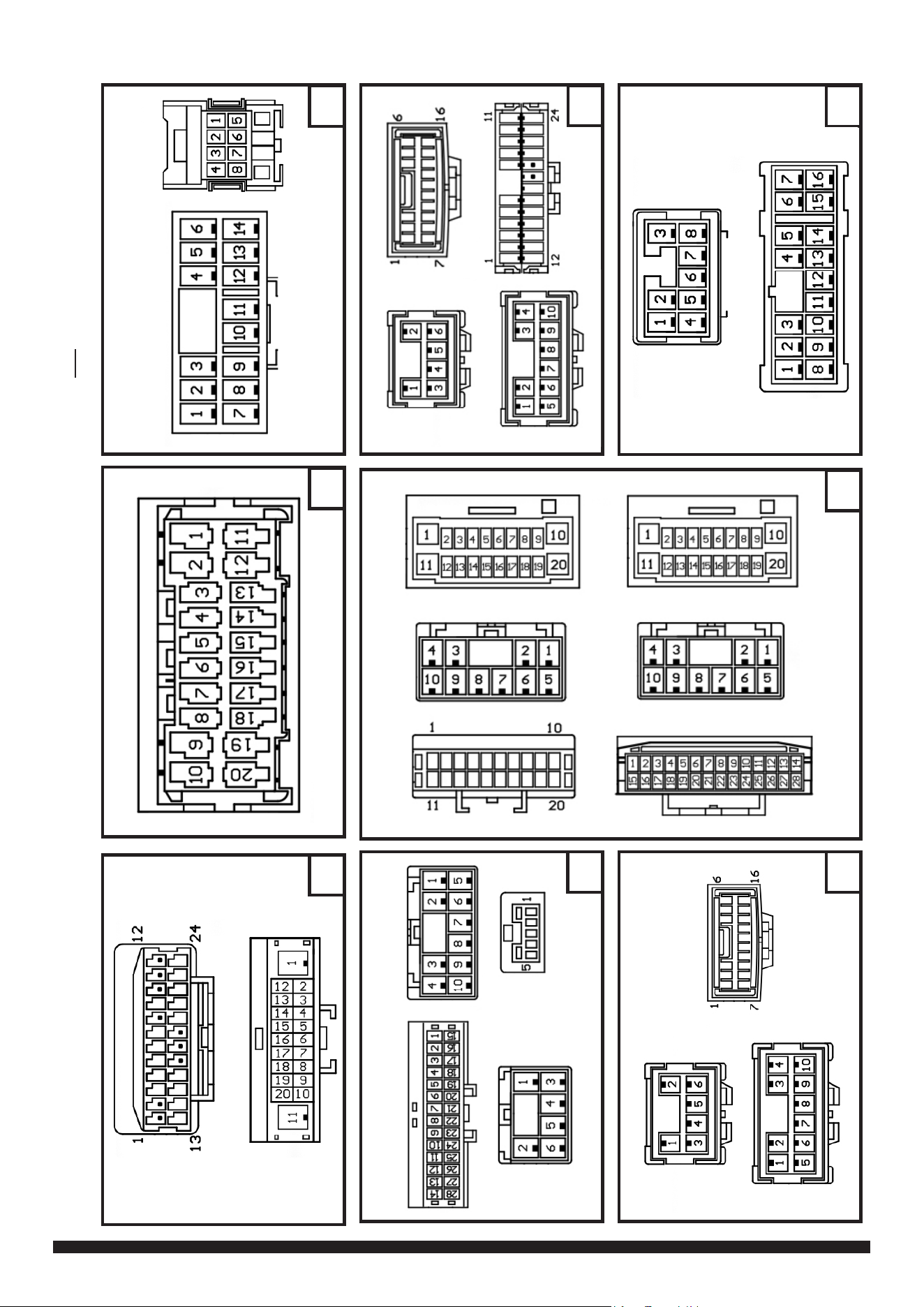

Important: Please note, connectors are shown from the terminal side and not the wire side
57
60
55
A B
5654
58 61
59
A
B
A
B
A C
D
B
A
B
C
A
CE
F
D
B
A
B
C
D
36
UNI-SWC-5_IG_en-GB_v1
NOTES
