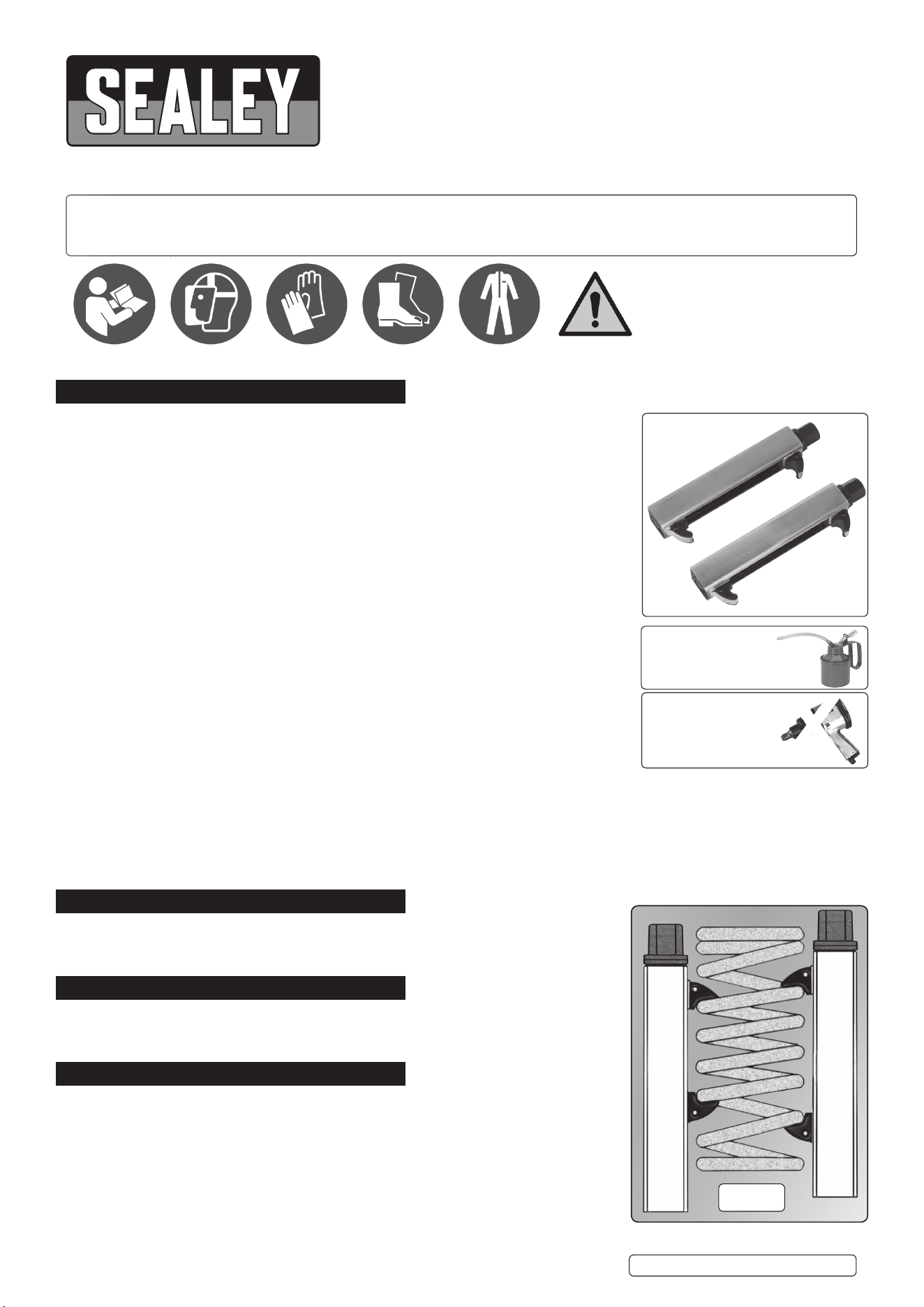

MOTORCYCLE COIL SPRING COMPRESSOR
MODEL NO: VS1824.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations
are adhered to when using this equipment.
9 Familiarise yourself with the applications, limitations and potential hazards of this spring
compressor.
9 Maintain the spring compressor in good condition. Replace or repair damaged parts. Use
genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Wear approved safety eye protection (standard spectacles are not adequate).
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9 Remove ill fitting clothes. Remove ties, watches, rings and other loose jewellery. Contain or tie
back long hair.
9 Wear appropriate protective clothing.
9 Keep children and unauthorised persons away from the working area.
9 Ensure jaws are correctly engaged on spring before commencing compression.
▲ DANGER! Stop compressing the spring before it becomes coil bound.
8 DO NOT leave compressed spring unattended.
8 DO NOT operate spring compressor if parts are damaged or missing as this may cause failure
and/or personal injury.
8 DO NOT use the spring compressor for a task it was not designed to perform.
8 DO NOT allow untrained persons to use the spring compressor.
8 DO NOT operate spring compressor if you are tired, or under the influence of alcohol, drugs or
intoxicating medication.
9 When not in use clean and store the spring compressor in a safe, dry, childproof location.
WARNING: The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but
must be applied by the operator.
▲ DANGER! DO NOT compress the spring to an extent where the coil windings touch.
▲ DANGER! DO NOT compress the spring to an extent where the jaws touch.
9 Ensure the jaws and the body of the compressor are correctly aligned at all times during spring compression.
2. INTRODUCTION
Essential for the safe assembly and disassembly of suspension units. Suitable for most
types of classic and modern motorcycle coil springs. Supplied with four spare plastic
spring protectors. Use with ratchet wrench.
3. SPECIFICATION
Drive: .....................................................................................................3/8”Sq & 17mm Hex
Maximum Jaw Opening: .............................................................................................105mm
Maximum Rated Capacity: .............................................................................. 800kg per pair
4. OPERATION
▲ DANGER! DO NOT compress the spring to an extent where the coil windings touch.
▲ DANGER! DO NOT compress the spring to an extent where the jaws touch.
9 Ensure the jaws and the body of the compressor are correctly aligned at all times during
spring compression.
4.1. Remove shock absorber from motorcycle according to procedures recommended in the
manufacturer’s manual.
4.1.1. Place the VS1824 body into position engaging the jaws on the spring as far apart as
possible as shown in g.1.
X
ALWAYS KEEP FORCE SCREWS
WELL LUBRICATED.
DO NOT USE AIR TOOLS
g.1
VS1824.V2 Issue 1 (3) 17/10/23
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear a face
shield
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing
Warning
VS1824.V2 Issue 1 (3) 17/10/23
Original Language Version
© Jack Sealey Limited
g.2
g.3
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts
without prior notice.
IMPORTANT: No Liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.

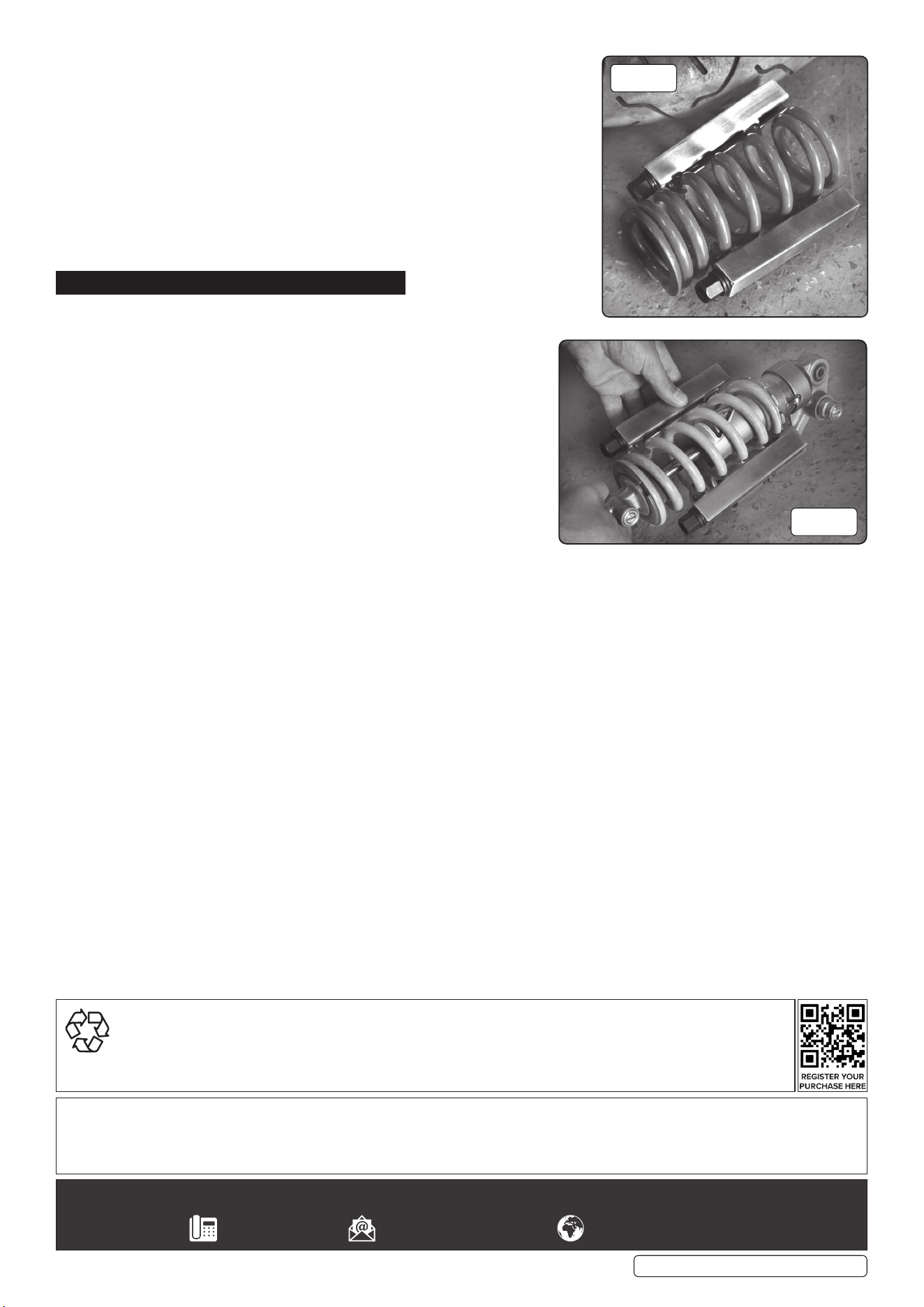

4.1.2. Ensure that the jaws are correctly aligned, making sure the two arms are
parallel to each other.
4.1.3. Tighten compressors by turning the two 17mm hex adjuster bolts clockwise
using a suitable ratchet wrench. The coil will need to be compressed equally
on each side - alternate between each arm so as not to unbalance the spring.
Compress the spring without allowing it to become coil bound.
4.1.4. When spring is compressed enough to rotate on the strut remove top plate
from strut, then withdraw the spring.
CAUTION: To remove the spring from the compressors turn the two 17mm
hex adjuster bolts anti-clockwise, alternate between each arm so as not
to unbalance the spring. DO NOT attempt to remove the spring from the
compressors until all tension has been removed.
4.1.5. Reverse above procedure to replace spring.
5. MAINTENANCE
5.1. Before each use check the spring compressor to ensure it is not damaged or
worn. If suspect DO NOT use the unit, but contact your local Sealey Stockist
who will be able to advise you regarding repair kits and spare parts.
5.2. Keep the spring compressor’s force screws lubricated.
5.3. Keep the spring compressor clean, and when not in use store in a safe, dry,
childproof location.
