ASSEMBLY INSTRUCTIONS
Before assembling your bed, please read through these
RICHMOND BED WITH MATCHING FOOTBOARD
Page 1 of 2
FRONT VIEW
TAPER INSIDE AND
HOLES TO THE FRONT.
Step 1
Step 2
Attach the legs (2) and (3) to headboard panel (1), and
pillow stop (4) using JCB (A) and barrel nut (B).
Tighten with the Allen wrench (C).
1
1
5
5
2
3
4
A
B
B
B
A
A
A
Instructions apply for bed sizes
QUEEN > KING
PARTS LIST HARDWARE
JCB M6 X 110mm (4 3/8”) - 4 pcs
Spare - 1 pc
A
B
C
Allen wrench - 1pc
Spare - 1pc
ATTENTION! If you receive a damaged or defective item,
please contact Atlantic Furniture at [email protected] or 1-800-955-3726
Barrel nut - 4 pcs
Spare - 1 pc
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
READY
ASSEMBLE
TO
Congratulations!
Your richmond headboard is now assembled.
instructions carefully and familiarize yourself with the different parts.
To ensure lasting safety, we recommend that you periodically check
that all screws are tight and all parts are secure.
HEADBOARD PANEL 1 PC
1
2
3
4
5
6
7
1 PC
1 PC
1 PC
2 PCS
8 PCS
1 PC
LEFT LEG
RIGHT LEG
PILLOW STOP
PACKING STICK
WOOD DOWELS
(Factory Installed)
FOOTBOARD
PO :
Remove packing stick (5) from headboard panel (1) and .DISCARD
B
6
BACK VIEW
A
B
Page 2 of 2
01
02
03
04
HARDWARE
HEADBOARD
FOOTBOARD
SIDE RAILS
BOX 1
BOX 2
04
04
04
02
03

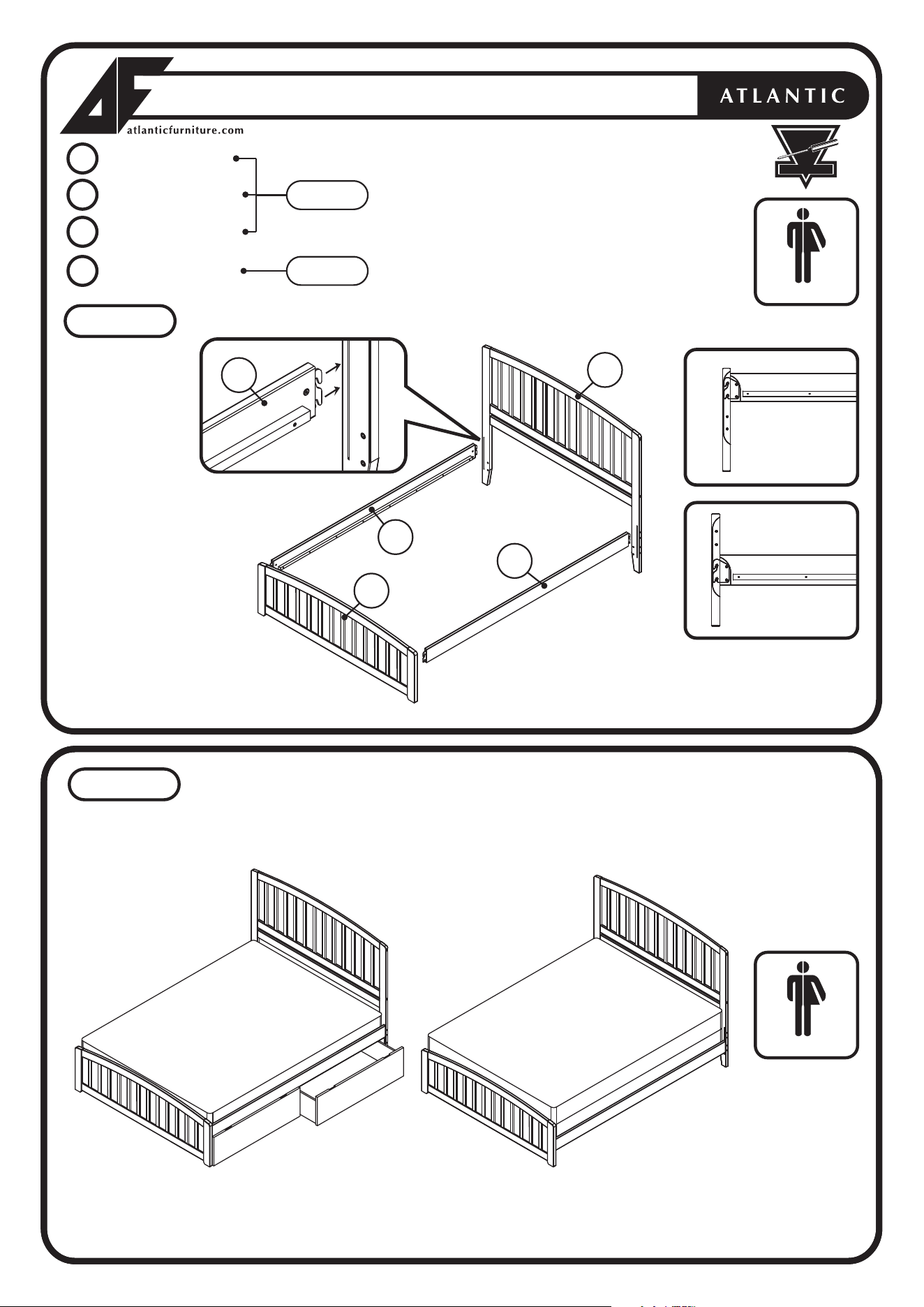

Attach the side rails (04) to the headboard (02) and footboard (03) using the bed hook as shown below.
Step 1
Use the upper set of pins when
using mattress only, storage drawers
or Trundle bed. Use the lower set of
pins if using foundation and mattress.
READY
ASSEMBLE
TO
RICHMOND BED WITH MATCHING FOOTBOARD
Adult assembly
Adult assembly
Step 2
UPPER
LOWER
PLATFORM BED - TALL HEIGHT TRADITIONAL BED - LOW HEIGHT
Lastly, lay slat kit or foundation support board onto the bed. For assembly, follow the assembly
instructions included with support system.
