ASSEMBLY INSTRUCTIONS
QUEEN
Wood screw 1” - 18 pcs
Spare - 1 pc
B
A
D
C
E
F
I
JCB M6 X 25mm - 10 pcs
Wood dowel - 10 pcs
Spare - 1 pc
Spare - 1 pc
Wood screw 5/8” - 12 pcs
Spare - 1 pc
Metal pull - 6 pcs
Metal pull screw 25mm - 8 pcs
Allen wrench - 1 pc
Spare - 1 pc
Spare - 1 pc
PO :
NANTUCKET MURPHY BED
WITH CHARGING STATION
Before assembling your Murphy bed, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
please contact Atlantic Furniture at [email protected] or 1-800-955-3726
Adult assembly
Phillips screwdriver
Customer supplied
HARDWARE
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
H
Washer - 24pcs
Spare - 1 pc
Adjust quantity as needed.
G
Metal pull screw 40mm - 4 pcs
Spare - 1 pc
02
01
03
04
05
06
07
08
TOP PANEL
HARDWARE
LEFT SIDE PANEL
RIGHT SIDE PANEL
DOOR
BACK PANEL
DRAWER BASE
FOLDING MATTRESS
01
02
03
03
05
07
08
07
04
04
06
Page 2 of 7
1 BOX
1 BOX
1 BOX
A
A
A
A
Wooden dowel
A
PARTS LIST
NANTUCKET MURPHY BED
WITH CHARGING STATION

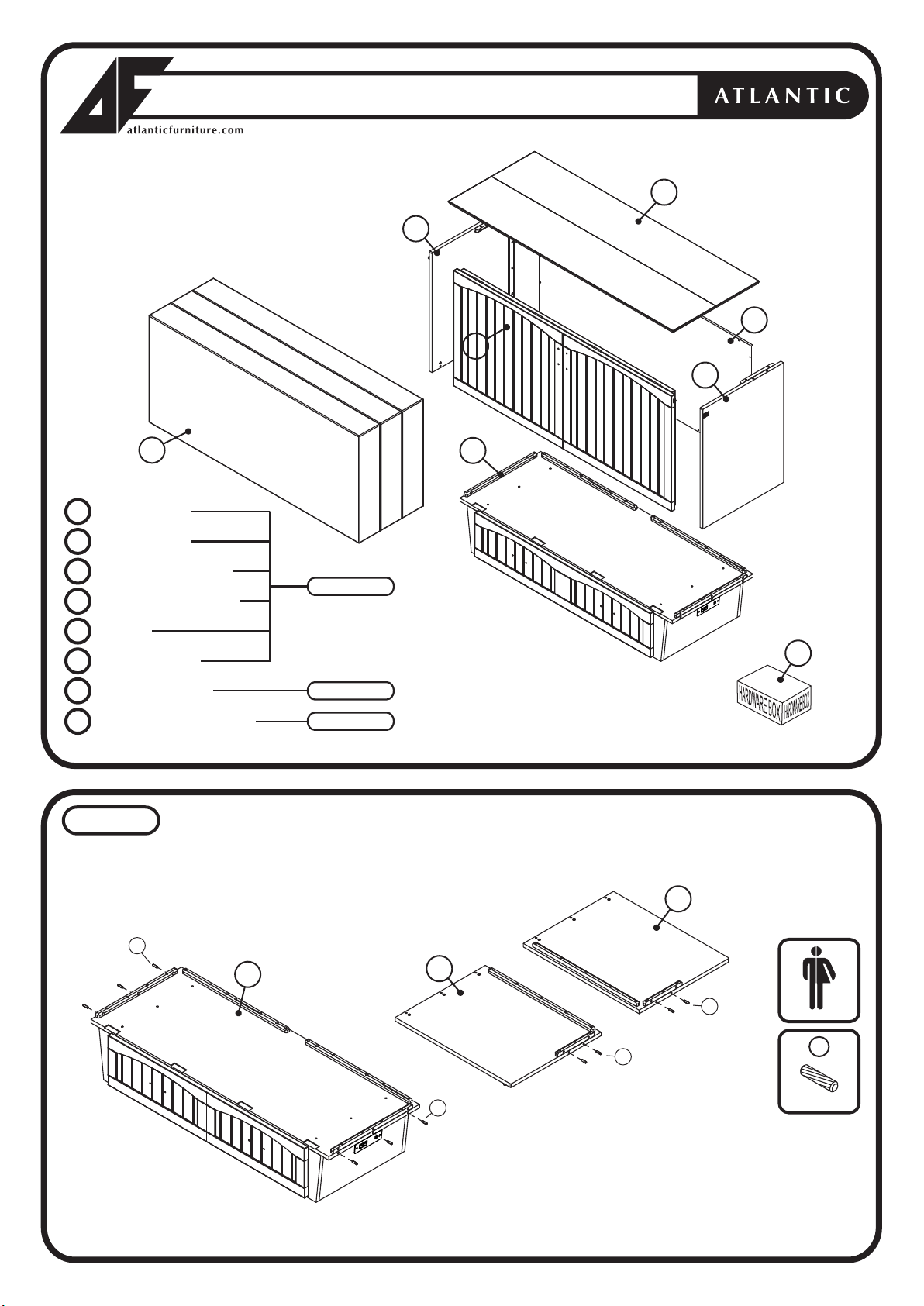

STEP 1
Insert all wooden dowels (A) into the locator holes on (03)(04) and (07) as shown below.
Adult assembly
Adult assembly
Page 3 of 7
07
03
02
04
B
B
B
B
B
B
B
B
B
B
JCB M6 X 25mm
Allen wrench
B
I
JCB M6 X 25mm
Allen wrench
B
I
Adult assembly
STEP 2
Attach left and right side panels (03) and (04) to the drawer base (07) as shown below.
Using JCB (B) tighten with Allen wrench (I)
NANTUCKET MURPHY BED
WITH CHARGING STATION
STEP 3
Attach top panel (02) to the side panels as shown below. Using JCB (B), tighten with
Allen wrench (I).
Page 4 of 7
Back view
Back view
05
F
G
G
G
H
H
G
G
G
F
H
H
H
H
F
F
F
E
E
E
E
E
F
STEP 4
Install metal pull (E) to the locator holes on (05) as shown below. Using metal
pull screw (F) and washers (H) tighten with Phillips screwdriver (customer supplied).
Metal pull
Metal pull screw
E
F
Phillips screwdriver
Customer supplied
Adult assembly
Washer
Adjust quantity
as needed
H
NANTUCKET MURPHY BED
WITH CHARGING STATION
Pull out drawer base as shown below. Install metal pull (E) Using metal pull screw (G),
and washers (H). Tighten with Phillips screwdriver (customer supplied).
STEP 5
Washer
Adjust quantity
as needed
H
Phillips screwdriver
Customer supplied
Metal pull
Metal pull screw
E
G
Adult assembly
Page 5 of 7
C
C
C
C
1
2

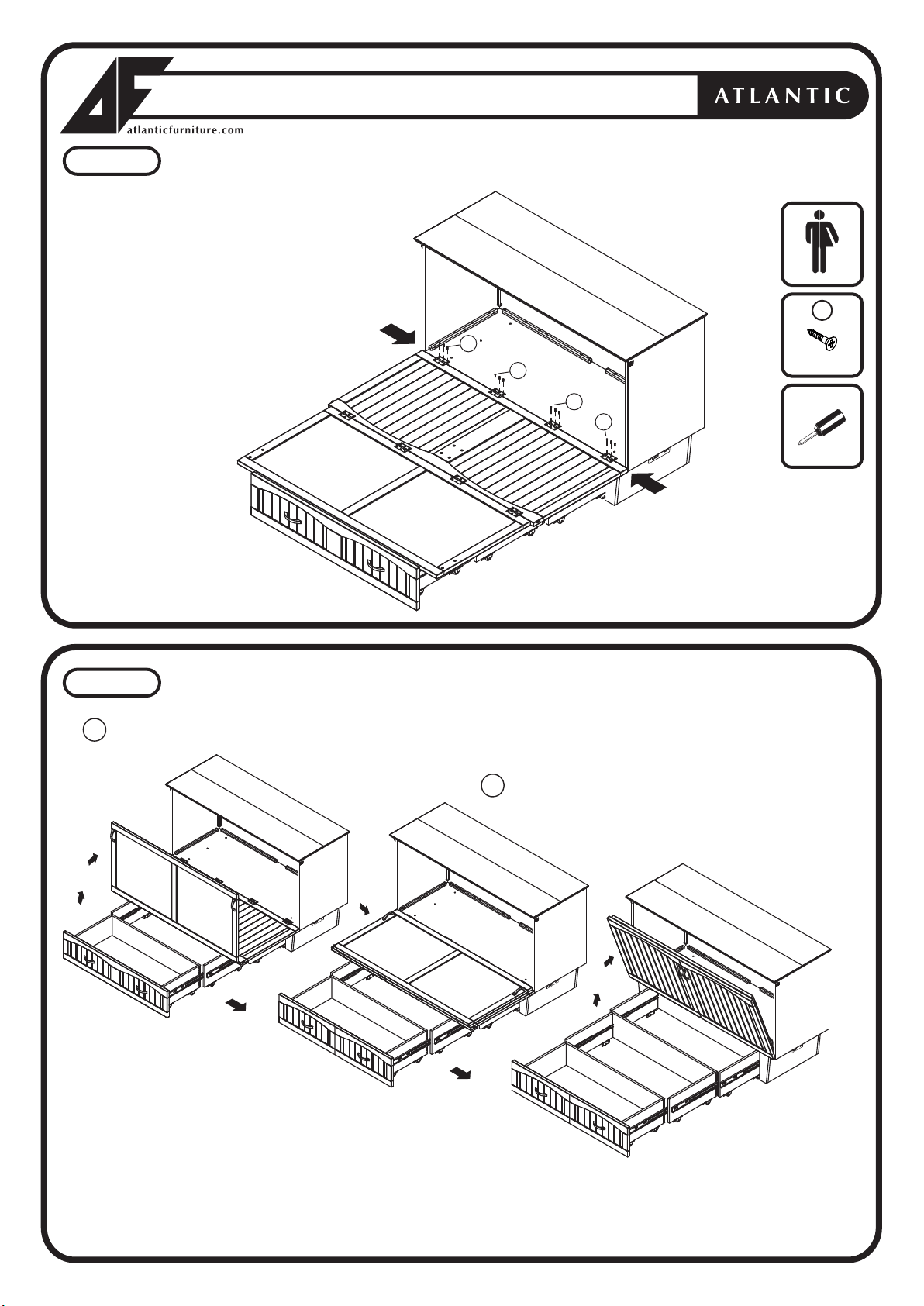

Lay the door down flat as shown below. Attach door hinge to drawer base using wood
screw (C) and tighten with Phillips screwdriver (customer supplied ).
Note: Be sure to align door with
side panels in this step.
Wood screw 5/8”
C
Phillips screwdriver
Customer supplied
STEP 6
NANTUCKET MURPHY BED
Adult assembly
WITH CHARGING STATION

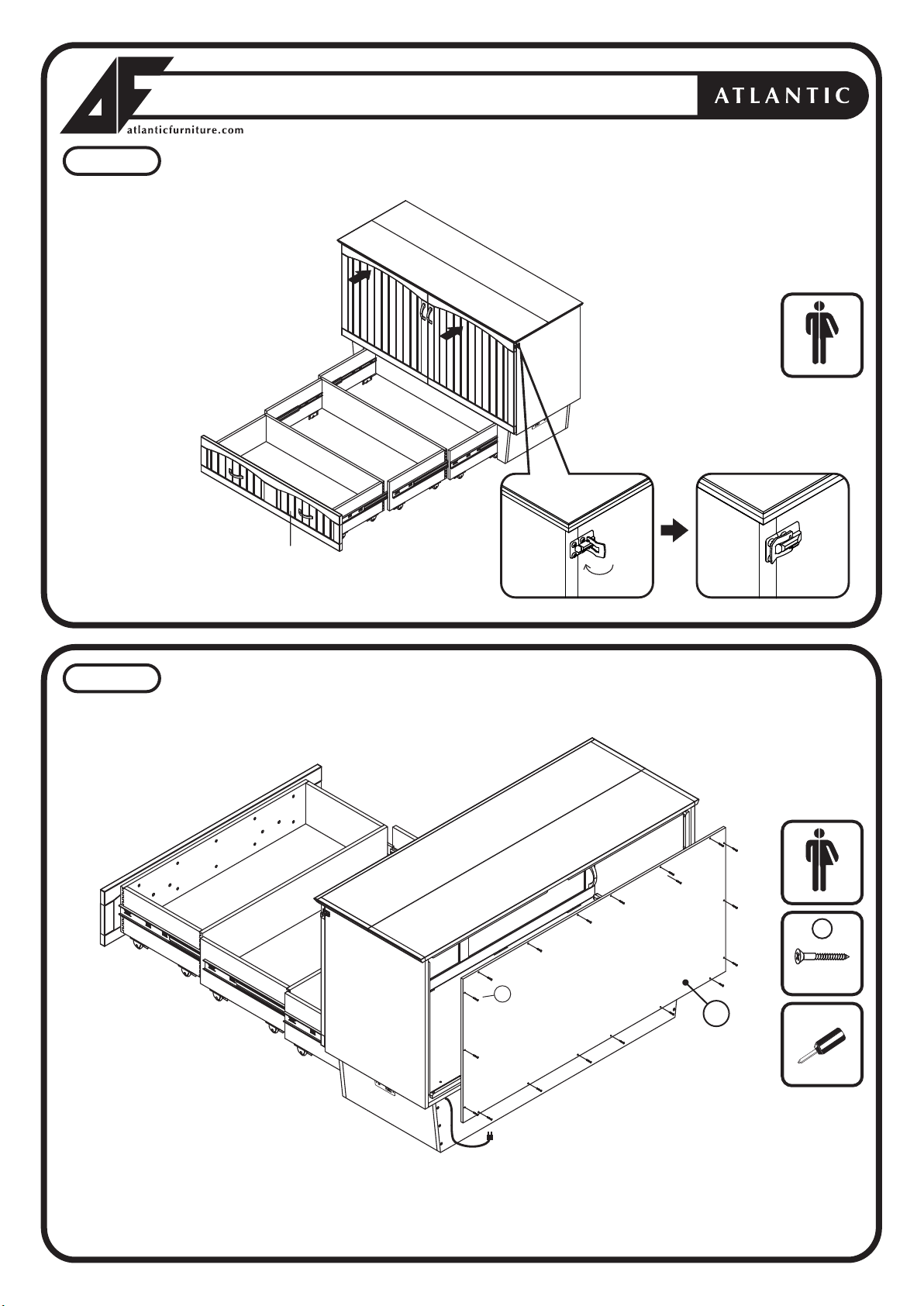

STEP 7
Lift the door and fold as shown below.
Lift the door and latch to side panel as
shown below.
Page 6 of 7
06
D
STEP 8
Push the door closed and latch both sides as shown below.
Lock
NANTUCKET MURPHY BED
Adult assembly
WITH CHARGING STATION
STEP 9
Attach back panel (06) to cabinet assembly as shown below. Using
wood screws (D), tighten with Phillips screwdriver (customer supplied ).
Wood screw
D
Phillips screwdriver
Customer supplied
Adult assembly
Page 7 of 7
Congratulations!
08
08

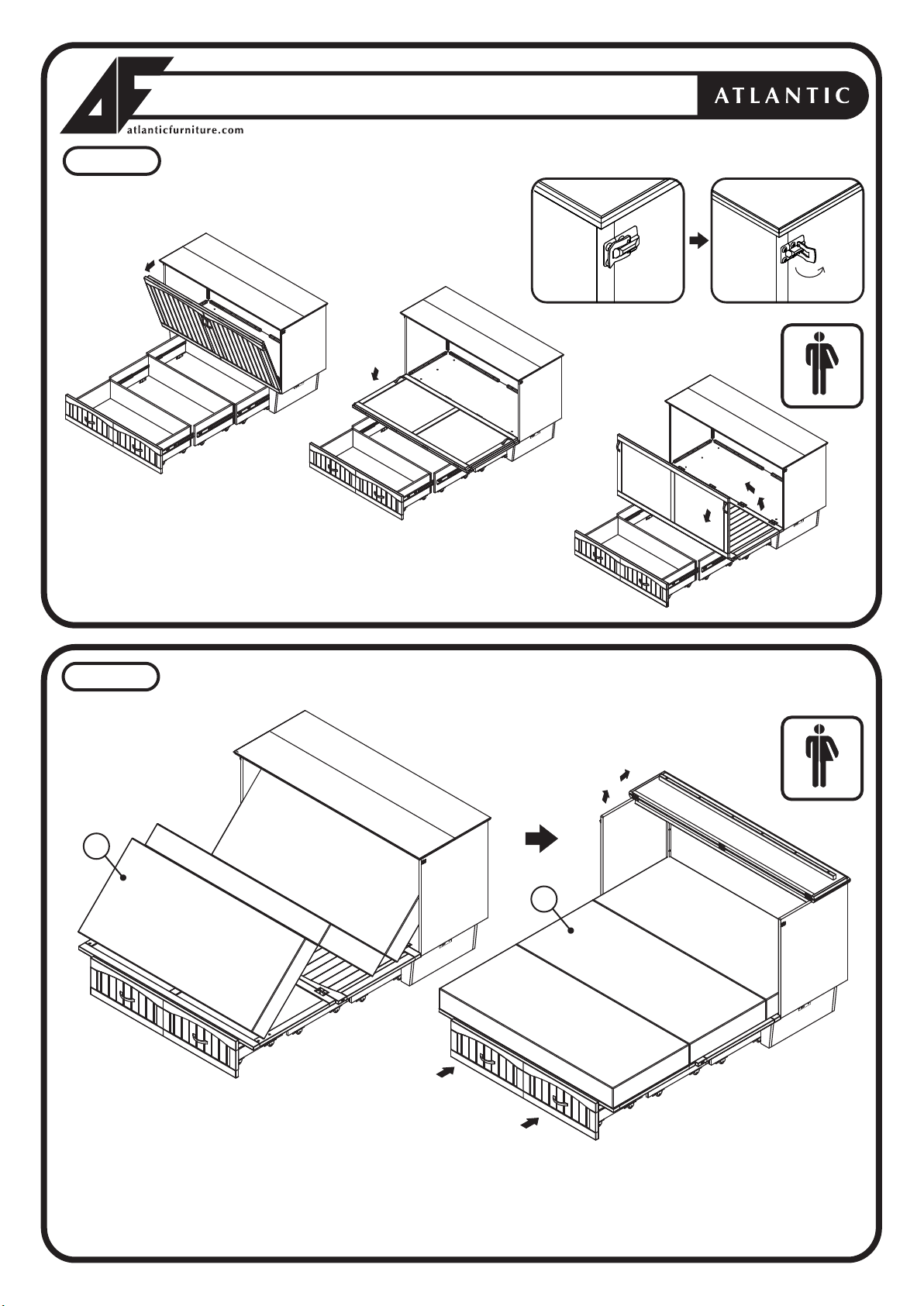

STEP 10
Pull the drawer out fully. Unlatch the door and open, folding down as shown.
Open
NANTUCKET MURPHY BED
Adult assembly
Adult assembly
WITH CHARGING STATION
STEP 11
Install folding mattress (08) to the bed. Open top panel and push drawer base in as
shown below.
Your Murphy bed is now ready for use.
We recommend that you recheck that all screws are tight,
and that all parts are secure before use to ensure lasting Safety.
