EU Conformity Statement
This product and - if applicable - the supplied accessories too are
marked with "CE" and comply therefore with the applicable
harmonized European standards listed under the EMC Directive
2014/30/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
http://www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that
cannot be disposed of as unsorted municipal waste in the European
Union. See the product documentation for specific battery
information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see:
http://www.recyclethis.info.
Wireless Bridge (Client) User Manual
iv
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
Wireless Bridge (Client) User Manual
v
Preface
Applicable Models
This manual is applicable to iVMS-4200 client of the switch.
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Danger
Indicates a hazardous situation which, if not avoided, will or could
result in death or serious injury.
Caution
Indicates a potentially hazardous situation which, if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Note
Provides additional information to emphasize or supplement
important points of the main text.
Safety Instruction
Danger
● This is a class A product and may cause radio interference in which case the user may be
required to take adequate measures.
●
No naked flame sources, such as lighted candles, should be placed on the equipment.
●
The serial port of the equipment is used for debugging only.
●
Install the equipment according to the instructions in this manual.
●
To prevent injury, this equipment must be securely attached to the floor/wall in accordance
with the installation instructions.
●
Keep vertical downward when moving or using the equipment.
Wireless Bridge (Client) User Manual
vi
Caution
●
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
●
The socket-outlet shall be installed near the equipment and shall be easily accessible.
●
Do not connect several devices to one power adapter as adapter overload may cause
overheating or a fire hazard.
● Please make sure that the plug is firmly connected to the power socket.
Wireless Bridge (Client) User Manual
vii
Contents
Chapter 1 Introduction ............................................................................................................... 1
Chapter 2 Device Management................................................................................................... 2
2.1 Activate the Device ............................................................................................................... 2
2.2 Add the Device ...................................................................................................................... 3

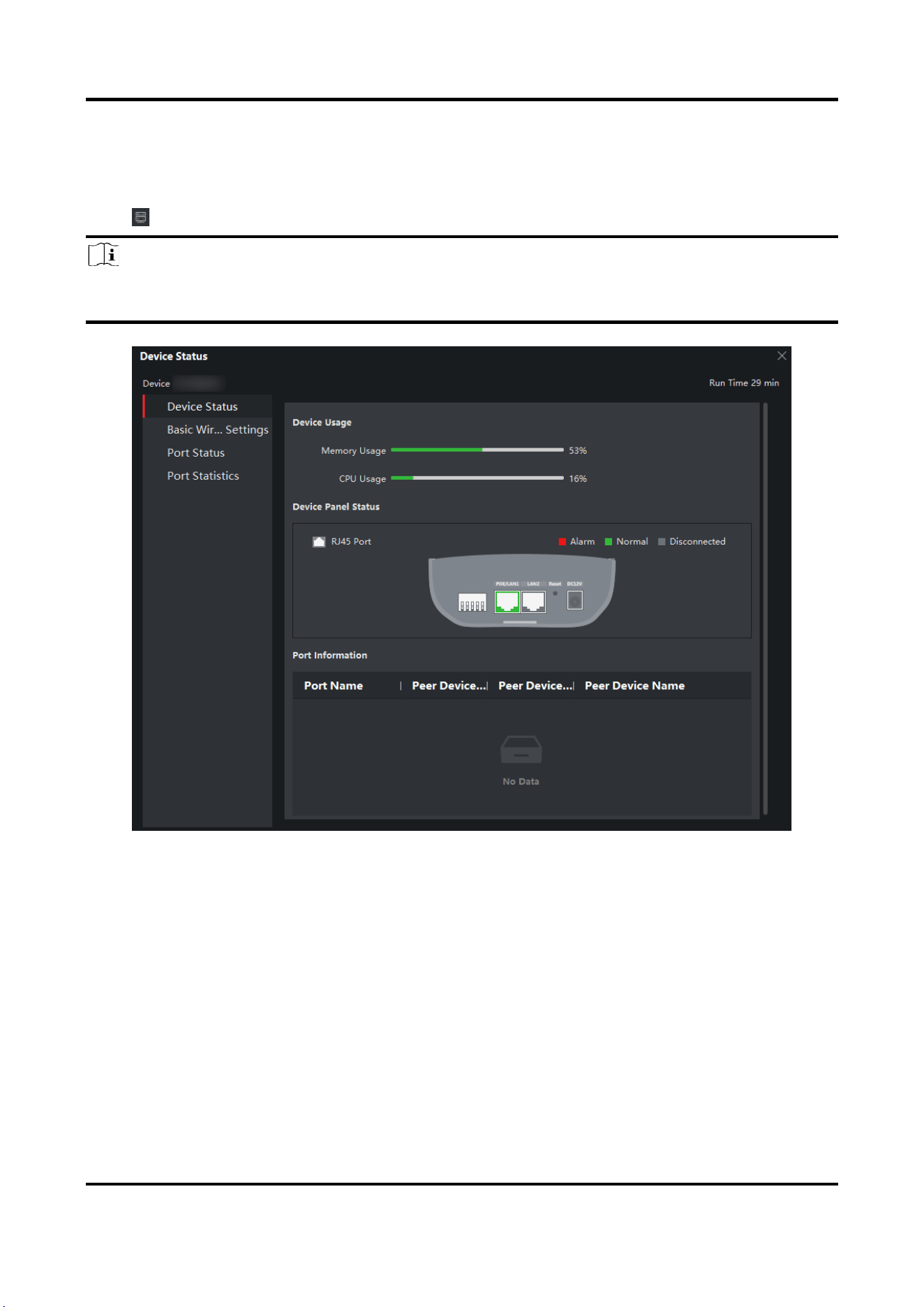

Chapter 3 Device Status.............................................................................................................. 5

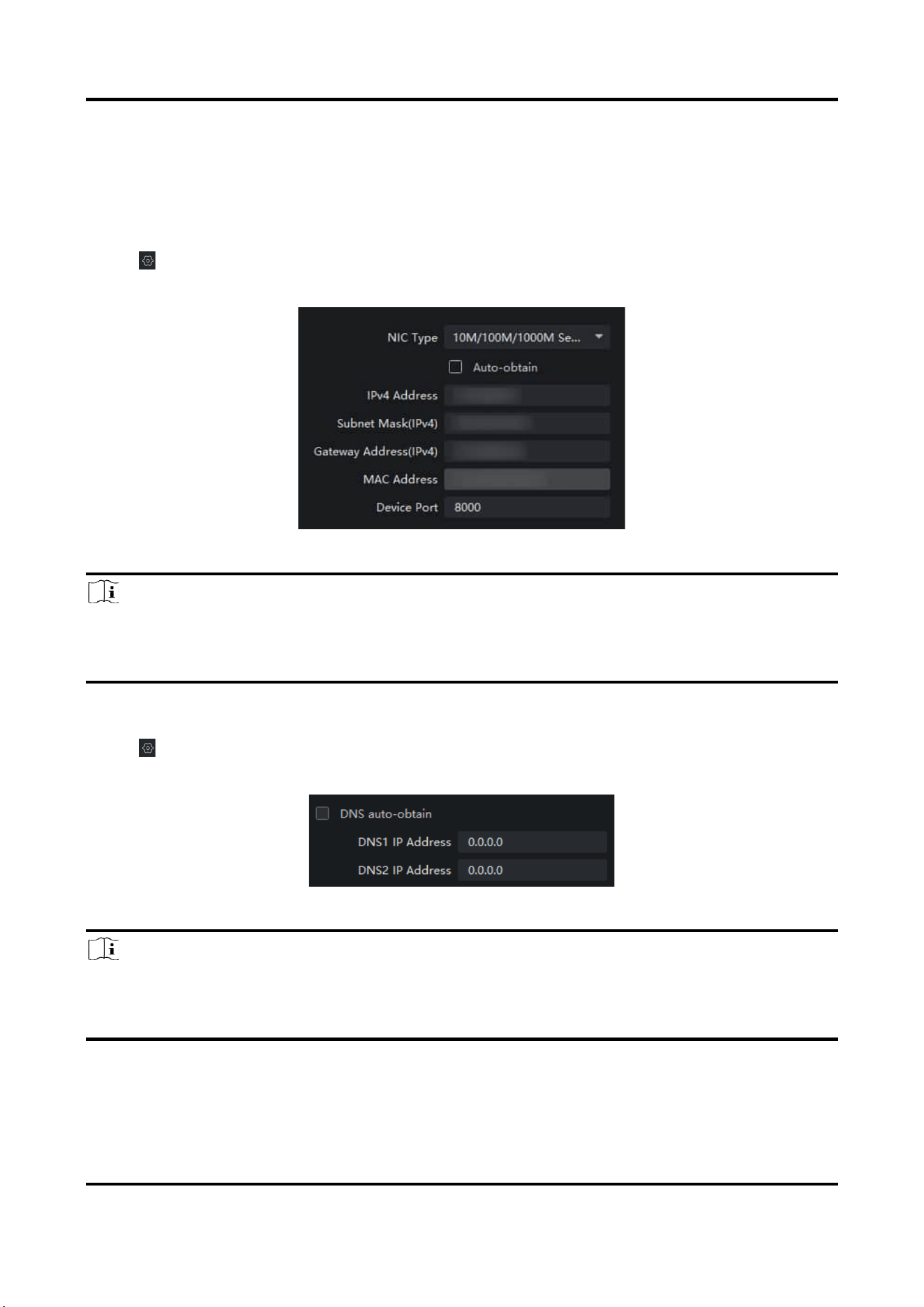

Chapter 4 Network Configuration ............................................................................................... 7
Chapter 5 Wireless Network Configuration ................................................................................. 8
Chapter 6 System Configuration ............................................................................................... 10
6.1 Device Information .............................................................................................................. 10

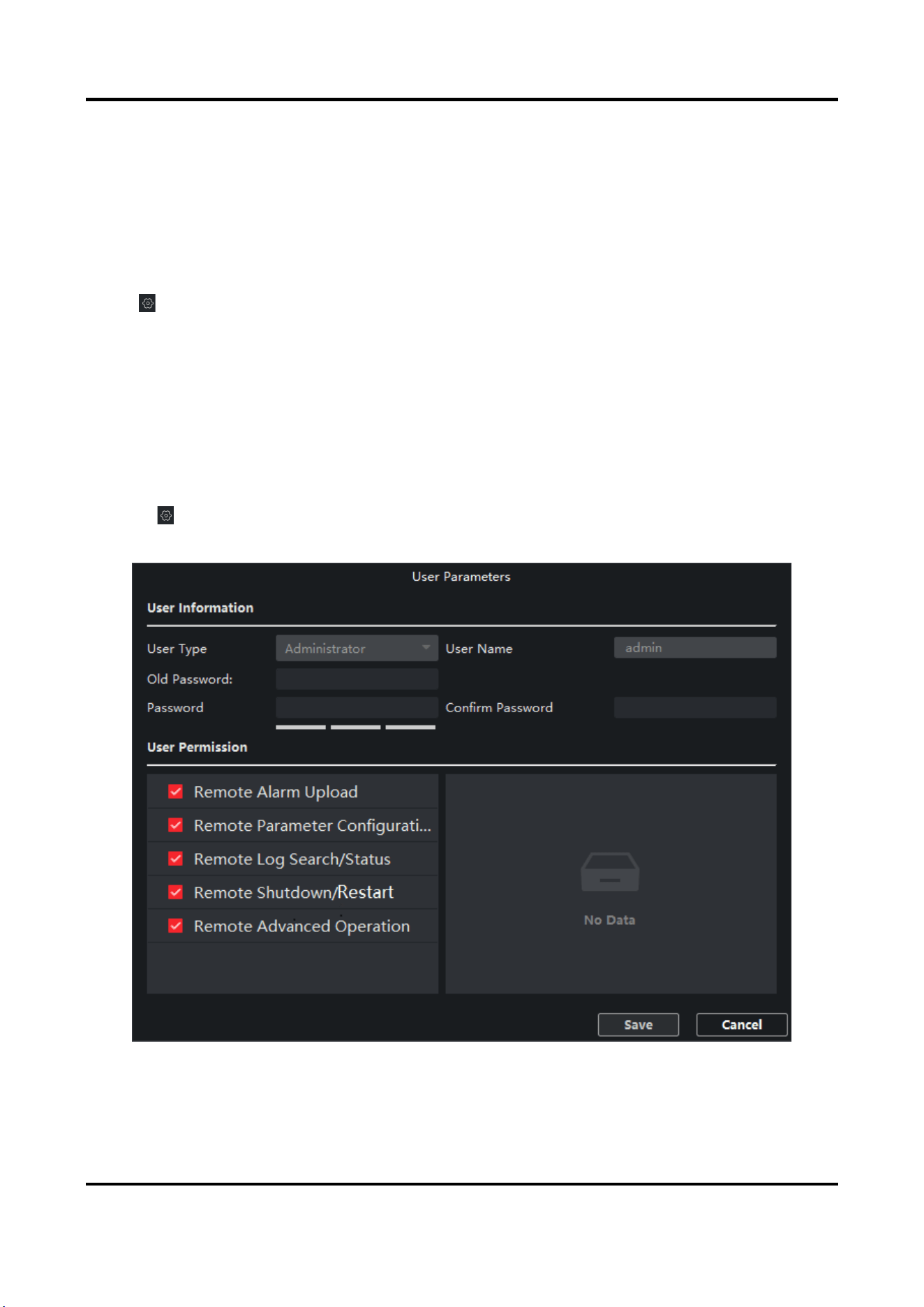

6.2 User Management ............................................................................................................... 10
6.3 Device Maintenance ............................................................................................................ 11
6.4 Log Management ................................................................................................................. 11
6.5 Security Configuration ......................................................................................................... 12
Chapter 7 FAQ .......................................................................................................................... 13
7.1 Why the device cannot start up? ......................................................................................... 13
7.2 Why devices pairing failed? ................................................................................................. 13
7.3 Why the wireless connection rate is relatively low? ........................................................... 13
7.4 Why the signal intensity is too low? .................................................................................... 13
7.5 Why the throughput is inadequate even with high signal quality? ..................................... 14
7.6 Why there are excessive packet loss and time delay when PC Pings the device IP address?
............................................................................................................................................ 14
Appendix A Communication Matrix .......................................................................................... 15
Wireless Bridge (Client) User Manual
1
Chapter 1 Introduction
You can manage and configure the device through iVMS-4200, including device management,
network configuration, system configuration, etc.
Note
The wireless bridges vary with different models. The actual device prevails.
Wireless Bridge (Client) User Manual
2
Chapter 2 Device Management
The device can be configured and managed through iVMS-4200 software, mainly including
network parameter configuration, wireless configuration, system maintenance, and so on.
Note
● This chapter will briefly introduce the device management through iVMS-4200 software. For
other functions, please refer to User Manual of iVMS-4200 Software.
● All pictures in this manual are for illustration only, and the specific interface is subject to the
actual device.
2.1 Activate the Device
For the inactive devices, you are required to create a password to activate them before they can
be added to the software and work properly.
Before You Start
Make sure the device to be activated is connected to the network and is in the same network
segment with the PC running the client.
Steps
Note
This function should be supported by the device.
1. Run iVMS-4200 software.
2. Go to Device Management → Device.
3. Click Online Device to show the online devices.
The searched online devices are displayed in the list.
4. Check the device status (shown on Security Level column) and select an inactive device.

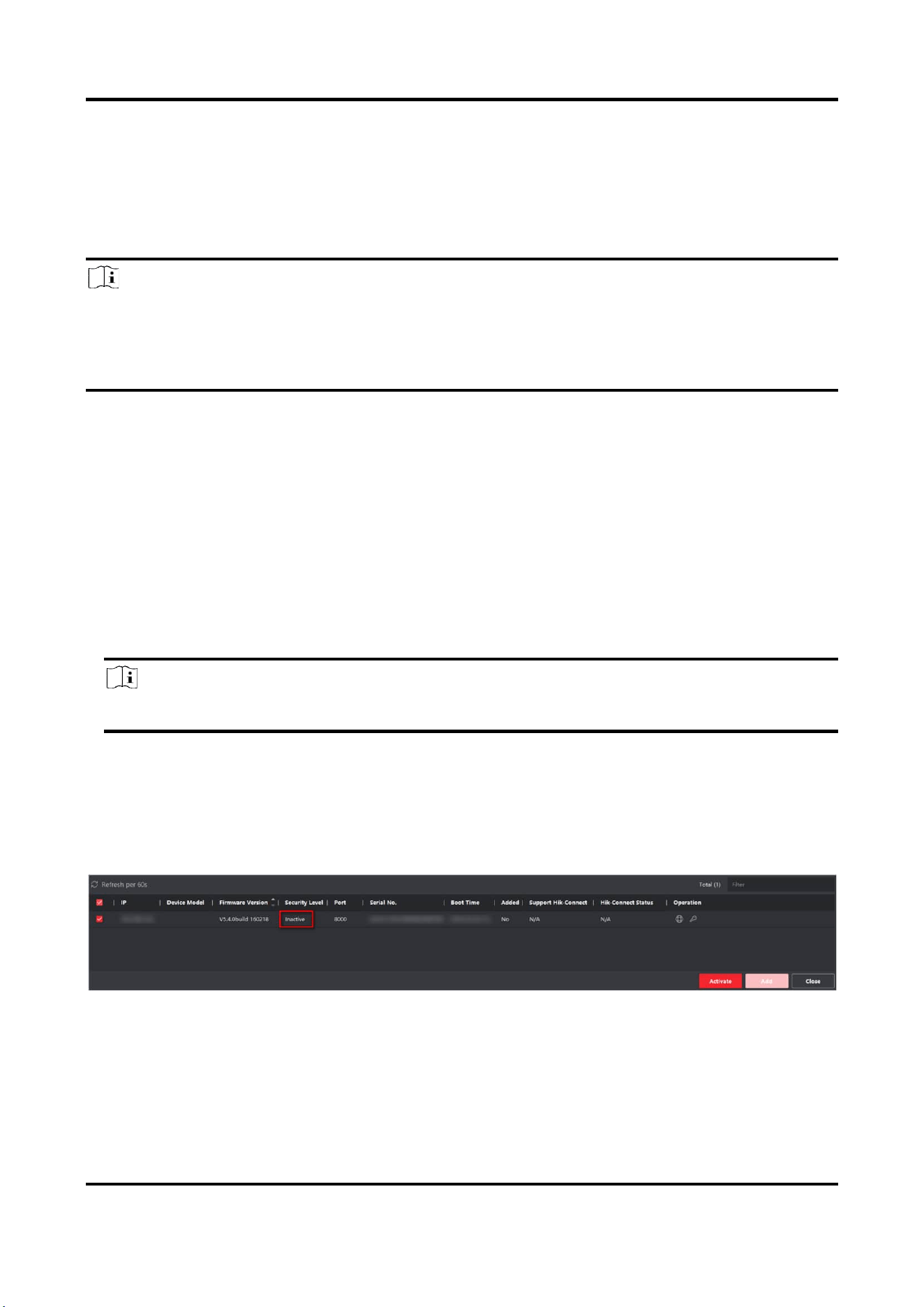

Figure 2-1 Online Inactive Device
5. Click Activate.
6. Create a password in the password field, and confirm the password.
Wireless Bridge (Client) User Manual
3
Caution
The password strength of the device can be automatically checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case letters, lower case letters, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can better protect your product.
Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
7. Click OK to activate the device.
2.2 Add the Device
The client provides various device adding modes including IP/domain, IP segment, cloud P2P, ISUP
protocol, and HiDDNS. The client also supports importing multiple devices in a batch when there
are large amount of devices to be added. The section only introduces one mode, namely, adding a
detected online device.
Steps
1. Go to Device Management → Device.
2. Click Online Device to show the online devices.
The searched online devices are displayed in the list.
3. Select an online device, and click Add.
Note
For the inactive device, you need to create the password for it before you can add the device
properly. For detailed steps, see 2.1 Activate the Device.
5. Enter the required information.
Name
Enter a descriptive name for the device.
IP Address
Enter the device's IP address. The IP address of the device is obtained automatically in this
adding mode.
Port
You can customize the port No. The port No. of the device is obtained automatically in this
adding mode.
User Name
By default, the user name is admin.
Wireless Bridge (Client) User Manual
4
Password
Enter the device password set for activation.
Caution
The password strength of the device can be automatically checked. We highly
recommend you change the password of your own choosing (using a minimum of 8
characters, including at least three kinds of following categories: upper case letters,
lower case letters, numbers, and special characters) in order to increase the security of
your product. And we recommend you change your password regularly, especially in the
high security system, changing the password monthly or weekly can better protect your
product.
Proper configuration of all passwords and other security settings is the responsibility of
the installer and/or end-user.
6. Check Synchronize Time to synchronize the device time with the PC running the client after
adding the device to the client.
7. Click Add.
Note
If the country/region code of the device is not configured, you need to select a country/region
code after adding the device.
8. Optional: Click
to edit the information of the device.
Wireless Bridge (Client) User Manual
5
Chapter 3 Device Status
Click to view the device status, basic wireless settings, port status, and port statistics.
Note
All pictures in this manual are for illustration only, and the specific interface is subject to the actual
device.
Figure 3-1 Device Status
Device Status
View the device usage, device panel status and port information.
Basic Wireless Settings
View the channel width, channel frequency, working scene, transmit power, etc.
Port Status
View the bitrate, duplex, and flow control of ports.
Port Statistics
View the number of bytes sent or received, the number of packets sent or received, sending or
receiving rate, and peak value of sending or receiving rate.
Wireless Bridge (Client) User Manual
6
Note
Drag the sliding bar on the bottom to view all data.
Wireless Bridge (Client) User Manual
7
Chapter 4 Network Configuration
Basic Settings
Go to → Network → General to configure NIC type, IPv4 address, subnet mask, gateway
address, MAC address, and device port.
Figure 5-1 Network Configuration
Note
After the IPv4 address is reset, the device IP may not be in the same network segment as the
computer IP of the client, so it cannot be configured and managed. It is recommended to use the
SADP tool to plan the IP address of the device when the device is activated for the first time.
Advanced Settings
Go to → Network → Advanced Settings to configure DNS IP address.
DNS server address of your own computer or public address on the internet are both available.
Figure 5-2 Advanced Settings
Note
● DNS auto-obtain is available only when you check Auto-obtain in Network → General.
● It is recommended to configure both DNS1 and DNS2 address to prevent that one of the
addresses is invalid.
Wireless Bridge (Client) User Manual
8
Chapter 5 Wireless Network Configuration
Go to → Wireless Configuration → General to configure wireless network parameters as
needed.
Figure 5-1 Wireless Network Configuration
Table 5-1 Parameter Description
Parameter
Description
Enable DIP Switch
Enable/Disable the pairing code and scene switching function through the DIP
switch.
This function is enabled by default.
Note
● If the numbers of DIP group is not enough, you can disable this function and set
SSID accordingly.
● Enabling or disabling DIP switch makes the wireless connection disconnected.
Please operate carefully.
Wireless Bridge (Client) User Manual
9
Parameter
Description
Dial Group No.
1 to 16 indicate different numbers of groups. This information is only displayed
when DIP switch is enabled.
Working Scene
● DIP switch enabled: The web displays the selected working scene of the device.
If AP is selected on the device, the web displays AP in Working Scene.
If CPE is selected on the device, the web displays CPE in Working Scene.
● DIP switch disabled: You can set Working Scene as desired through the web.
Select AP to set AP as Working Scene.
Select CPE to set CPE as Working Scene.
SSID
● By default, the SSID is determined by the dial group number, and the CPE pairs
with the AP according to SSID.
● If DIP switch is disabled, you can set SSID as desired.
● It is recommended to hide the SSID of APs for security.
Country/Region Code
Set when activating the device. It is unchangeable after selected, unless you restore
all the settings to default settings.
Wireless Mode
Default value: 802.11ac. It is not configurable.
Channel Width
● For APs: Three channel widths available: 20 MHz, 40 MHz, and 80 MHz. The
specific value depends on the country/region code.
● For CPEs: The channel width is automatically changed according to the AP. It is
not configurable.
Channel
● For APs: Auto is set by default. You can set a desired one.
● For CPEs: Auto is set by default. It is not configurable.
Security Mode
● WPA2-PSK is set by default, and the encryption method is AES.
● If Not-Encrypted is selected, there is no need to set PSK Secret Key.
PSK Secret Key
The pairing password for CPEs and APs. If WPA2-PSK is set as Security Mode, you
should configure PSK Secret Key.
Wireless Bridge (Client) User Manual
10
Chapter 6 System Configuration
6.1 Device Information
Go to → System → Device Information to view the device information, including device name,
device model, serial No., and program version.
6.2 User Management
The device only supports one admin user. Users cannot be added or deleted. You can only edit the
passwords, IP addresses and permissions of the user.
Steps
1. Go to → System → User.
2. Click Edit or double-click the user to edit the password, IP address or permission of the user.
Figure 7-1 User Parameters
Wireless Bridge (Client) User Manual
11
Note
8 to 16 characters is allowed for the password, including at least 2 of the following types: digits,
lower-case letters, upper-case letters, and special characters. The password strength of the
device can be automatically checked. We highly recommend you change your password
regularly in order to increase the security of your product.
3. Optional: Click the user name at the upper-right corner on the client for more user operations.
6.3 Device Maintenance
You can restart the device, restore the defaults, and upgrade your device.
Steps
1. Go to → System → System Maintenance.
2. Select function button to realize different functions.
● Reboot: Click Reboot to remotely restart the device.
● Restore Default Settings: Except network configuration and user parameters, all of the other
parameters are restored to the default settings.
● Restore All: All parameters are restored to the default settings. After restoration, the device
needs to be activated again.
● Import Configuration File: Select the configuration file, and enter the password for file
export. After import, the devices will be restarted automatically.
● Export Configuration File: Set and confirm the password for file export, and click OK. Select a
storage path, and click Save.
● Upgrade: Click to select the upgrade file, and click Upgrade. The upgrading progress is
shown below.
Note
If upgrading failed or the device cannot function, please contact our technical support
professionals.
6.4 Log Management
System operation logs can be searched and exported for backup.
Steps
1. Click System Log on the left area.
2. Set search conditions.
Time
Set the start time and end time for the logs to be searched.
Wireless Bridge (Client) User Manual
12
User Name
Select the user to be searched.
Log Type
Operation Log and System Log can be selected. Minor type is different under different major
type. If you select the search mode as by time, the major type cannot be set.
3. Click Search.
4. Click Back Up Logs, and select a backup path.
5. Click Backup.
6.5 Security Configuration
If the IP is locked because you enter a wrong password, the admin user can log in to the client at
the PC (the IP is not locked) and enter the Security interface to unlock the locked IP.
Steps
Note
If you need to unlock it immediately, you can contact the admin user.
1. Select → System → Security.
2. Unlock the desired IPs.
● Click unlock icon to unlock a single IP.
● Click Unlock All to unlock all of the IPs.
Note
● If the admin user is locked, you need to change the IP to log in admin again and unlock the
locked IP.
● Up to 5 trials of password are allowed for ordinary users, and 7 for the admin user.
Wireless Bridge (Client) User Manual
13
Chapter 7 FAQ
7.1 Why the device cannot start up?
Reason
1. The network cable length connecting the wireless bridge to the PoE module exceeds 60 m.
2. The network cable cannot meet the standard of Category 5e.
3. The registered jack of the network cable is not firmly connected, or the connection order is improper.
Solution
1. Use a network cable shorter than 60 m.
2. Use a network cable with Category 5e or higher standard.
3. Remake the registered jack.
7.2 Why devices pairing failed?
Reason
The devices pairing status depends on the distance, direction, and DIP switch setting.
Solution
You can check as follows:
1. Check distance and direction: Ensure the AP and CPE are directly faced to each other, and the distance
between them is within the limit.
2. DIP switch enabled: Ensure the pairing codes of the AP and CPE are consistent.
3. DIP switch disabled: Ensure the SSID name and PSK password are correct.
7.3 Why the wireless connection rate is relatively low?
Reason
The wireless system makes connection with its maximum working rate, and the actual rate depends on the
distance and environment.
Solution
You can check as follows to ensure the highest connection rate:
1. Device position: Adjust the device position and direction.
2. Wireless channel or frequency: Change to another signal channel or frequency to reduce interference.
3. Wireless interference: Adjust, shield, or disable the device causing interference.
7.4 Why the signal intensity is too low?
Reason
1. There is a large-sized obstruction between the CPE and the AP.
2. The CPE is not directly faced to the AP.
Wireless Bridge (Client) User Manual
14
Solution
1. Remove the obstruction or bypass it.
2. Adjust the angle of the CPE and the AP.
7.5 Why the throughput is inadequate even with high signal
quality?
Reason
1. Excessive interference or multipath interference.
2. Wired device error.
Solution
1. Remove the interference or change the device frequency.
Method of changing frequency: Reboot the AP of wireless bridge to allow auto search of available signal
channel.
2. Change a network cable or use another PC.
7.6 Why there are excessive packet loss and time delay when PC
Pings the device IP address?
Reason
1. The registered jack of the network cable is not firmly connected.
2. The IP address of multiple devices conflict.
Solution
Port isolation should be conducted for APs connected to the same switch.
1. Remake the registered jack.
2. Modify the IP addresses of different devices.
Wireless Bridge (Client) User Manual
15
Appendix A Communication Matrix
Please scan the QR code below to view the communication matrix document.
Figure A-1 Communication Matrix
UD25099B
