30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should
always be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this Microwave Oven.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• Close supervision is required when using this appliance
near children.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children unless they are older than 8 and
supervised.
• Keep the appliance and its cord out of reach of children
less than 8 years.
3
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• DO NOT touch hot surfaces. The outer surfaces are
liable to get hot during use. Always use the handles
and knobs.
• DO NOT immerse the appliance or its cord in water or any
other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
to the mains supply.
• Always use this appliance on a solid, level, non-flammable
surface.
• DO NOT use this appliance outdoors.
• DO NOT use this Microwave Oven with a programmer,
timer, separate remote-control system or any other
device that switches the appliance on automatically.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• Repairs to electrical appliances should only be performed
by qualified personnel. Improper repairs may place user at
serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to ensure no damage is evident. Should there
be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by suitable qualified personnel in order to avoid a hazard.
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• DO NOT run the mains cable under carpets, rugs, etc.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
• This appliance is intended for household use only and
4
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
• Ensure appliance is situated in an open area, do not allow
it to come in contact with Cupboards, Curtains, wall
coverings, clothing or other flammable materials.
• Unplug after each use. Grasp the plug, not the cord.
• CAUTION Do not overcook food.
• Metallic containers for food and beverages are not
allowed during microwave cooking.
• When heating food in plastic containers or paper
containers, keep an eye on the oven due to the possibility
of ignition.
• The contents of feeding bottles and baby food jars shall be
stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
• This appliance shall not be cleaned with a steam cleaner.
• The microwave oven is intended to be used free-standing.
• DO NOT place this microwave into a cabinet.
• CAUTION Remove wire twists from paper and plastic bags
before placing in the oven.
• DO NOT heat oil or fat for deep frying in the oven as the
temperature of the fat can’t be controlled.
• After use wipe the waveguide cover with a damp cloth,
followed by a dry cloth to remove any food splashes and
grease. Built up grease may overheat and smoke or ignite.
• If materials inside the oven smoke or ignite, keep the door
closed, turn oven off and disconnect the power supply in
order to stifle any flames.
• WARNING! Liquids and other foods must not be
5
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
heated in sealed containers since they are liable to
explode; Baby bottles fitted with a screw cap or teat are
considered sealed containers.
• Liquids should be heated in a wide mouthed container and
left for a short period after the heating cycle to avoid
possible hazards such as delayed eruptive boiling of the
liquid. Therefore, care must be taken when handling the
container.
• Potatoes, sausage and other skinned foods should be
pierced before heating.
• Eggs in their shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.
• Only use utensils suitable for use in a microwave oven.
• DO NOT store food or other items in the oven.
• DO NOT operate the oven without any food or liquid
inside, this may damage the oven.
• WARNING! If the door or door seals are damaged or if
the oven has malfunctioned, the oven must not be
operated until it has been repaired by a competent
person. It is hazardous for anybody other than a suitably
qualified person to carry out any service or repair that
involves the removal of a cover which gives protection
against exposure to microwave energy.
• This microwave oven is intended for the heating of food
and beverages. The drying of clothes, heating of warming
pads slippers, sponges and cloths may lead to risk of
injury, ignition and fire.
• The oven should be cleaned regularly and any food
deposit removed.
• Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation.
6
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

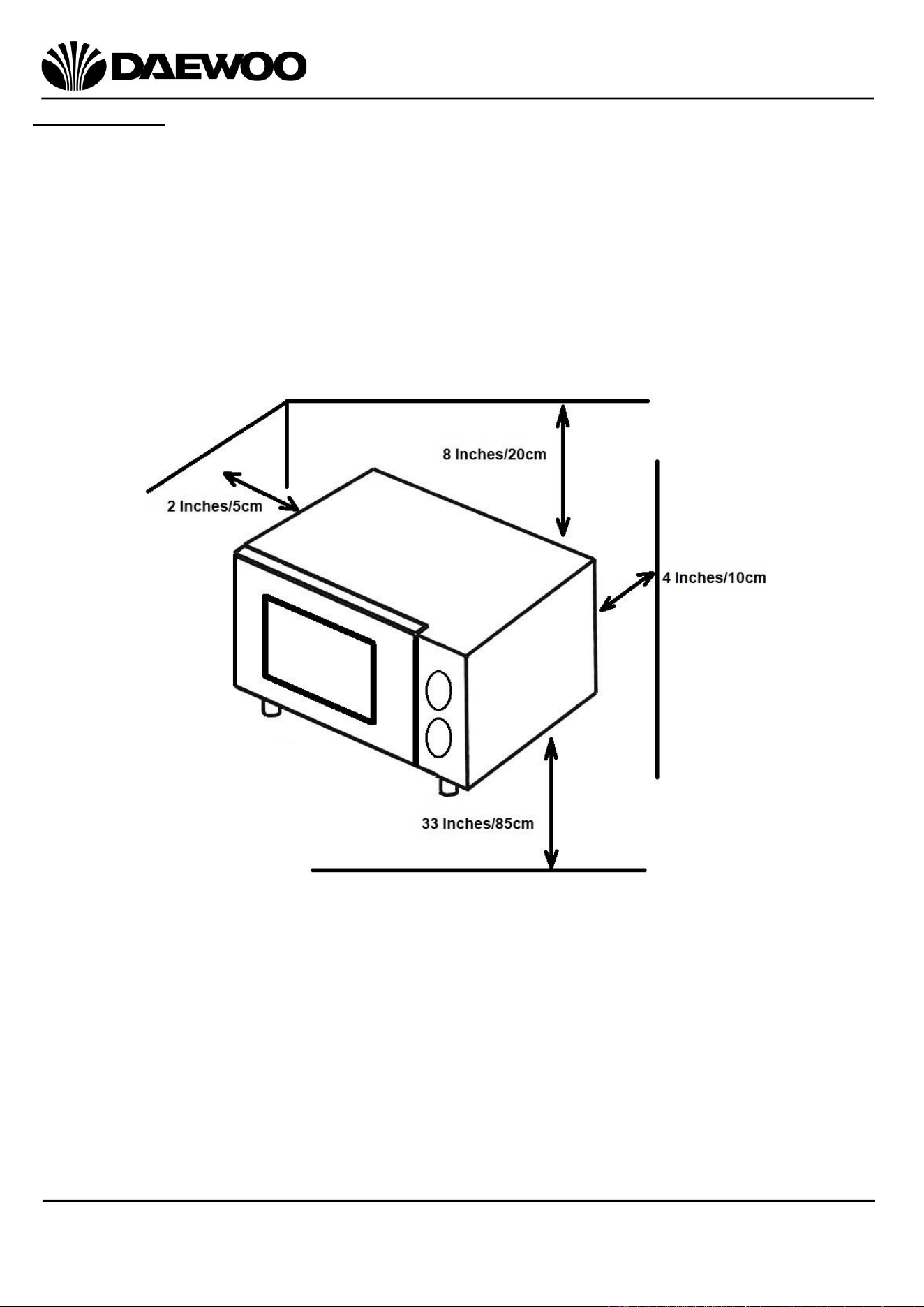

Installation
• Select a level surface no less than 85cm (33 inches) from the floor, that
provides enough space for the outlet vents.
• A minimum clearance of 5cm (2 inches) is required between the oven
and any adjacent wall, with a minimum clearance of 10cm (4 inches)
between the rear of the microwave and the wall.
• Leave a minimum clearance of 20cm (8 inches) above the oven.
7
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the use of
this product.
This symbol indicates that the supply uses an alternating current
mains supply.
This symbol indicates that the surface gets hot and care must be
taken.
WARNING!
This designates a hazard with moderate risk, which may
result in severe injury if not adhered to.
8
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1. Door Viewing Mirror window 6. Waveguide Cover
2. Door catches & Locking System 7. Control Panel
3. Turntable 8. Grill Heating Element
4. Motor Spindle 9. Grill & Convection cooking Tray
5. Turntable Support Ring
Description of Parts
The door must be fully closed in order for the Microwave to operate. The
door operates a safety interlock mechanism which prevents the unit from
operating whilst the door is open.
WARNING! The waveguide cover (6) should never be removed.
1
2
3
4
5
6
7
8
2
9
2
9
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Display
Displays time, power, mode indicators.
Power Level
Press to set microwave cooking power level.
Use to set the mute function.
Clock/Weight
Press to set the clock time.
Press to set food weight or servings.
Grill/Micro + Grill
Press to set the grill cooking program.
Press to set microwave and grill combination.
Convection
Press to use the convection cooking program.
Micro + Convection
Press to set the microwave and convection combination
cooking program.
Stop/Cancel
Press once to temporarily stop cooking or press twice
cancel cooking altogether.
Menu/Time (dial)
Rotate the control to set the time
Rotate the control to select auto cooking menu.
Start/Quick Start
Press the control to start cooking programs.
Press the control a number of times to set cooking time
and cook immediately at full power level.
Description of Parts – Control Panel
The door of the microwave oven must be fully closed in
order for it to operate, this is due to a safety interlock between the locking
mechanism and the control panel.
Place the turntable ring in first, fit the turntable onto the rotating turntable
support and make sure it is geared in properly
Never remove the waveguide cover
Make sure the turntable support is correctly located
10
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
About Your Microwave Oven
• After plugging in your microwave, the oven will beep once and the Display
Screen will show “1:00” and .
• If the microwave is not operated for about 20 seconds the oven will return to
standby.
• During cooking, if the STOP/CANCEL button is pressed once, the program will
be paused, press the START/QUICK START button to resume cooking.
Press the STOP/CANCEL button twice and the program will be cancelled.
• Once cooking has finished, the Display will show ‘End’ and a beep will sound every
two minutes until the user presses any button or the door is opened.
• The electronic control system of this microwave oven has a cooling feature. Any
cooking mode which has a cooking time above 2 minutes, or after opening the door
or stopping cooking, the internal fan will run for about 3 minutes automatically to
cool the oven to prolong the life of the unit.
Setting the Clock
The clock can be set in either 12 or 24 hour mode.
1. In standby mode, press the Clock/Weight button to select 24 or 12-hour clock
mode.
2. Rotate the Menu/Time control to set the hour.
3. Press the Clock/Weight button once to confirm the hour.
4. Rotate the Menu/Time control to set the minutes.
5. Press the Clock/Weight button to confirm the minutes.
NOTE: During cooking, you can check the current clock time by pressing the
CLOCK/WEIGHT button.
If the microwave is unplugged from the mains supply, the clock will have to be
reset.
Using Your Microwave Oven
1. Place the Microwave Oven on a solid level, heat resistant surface, ensure that
the ventilation outlets are not obstructed.
2. Before first use, open the door and place the Turntable Support Ring (5) in the
base of the oven as shown in the diagram above.
3. Place the glass Turntable (3) onto the Motor Spindle (4).
Rotate the Turntable a little until the notches in the turntable drop onto the
Motor Spindle (4).
Express Cooking
Use this feature to program the oven to microwave food at 100% power
conveniently. In standby mode, press the START/QUICK START button repeatedly
to set cooking time (each press to increase 30 seconds, and up to 10 minutes). The
oven starts working automatically at full power.
11
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Microwave Cooking
Place the food onto a suitable microwavable plate or container and place the
container or plate onto the Turntable (3). DO NOT use the Grill & Convection
cooking Tray (9).
1. In standby mode, press the POWER LEVEL button repeatedly to set the power
level.
2. Rotate the MENU/TIME control to set the cooking time. The longest time is 95
minutes.
3. Press the START/QUICK START button to start.
No. Power Level button presses
Power Level
Display
Once
100%
(P100)
Twice
90%
(P-90)
3 times
80%
(P-80)
4 times
70%
(P-70)
5 times
60%
(P-60)
6 times
50%
(P-50)
7 times
40%
(P-40)
8 times
30%
(P-30)
9 times
20%
(P-20)
10 times
10%
(P-10)
11 times
0%
(P-00)
NOTE: During cooking, you can check the power level by pressing the POWER LEVEL
button. If you wish to cook at full power level, rotate the MENU/TIME control
clockwise to set cooking time, then press the START/QUICK START button to
start.
Grill Only Cooking
Place the food to be cooked onto the Grill & Convection cooking Tray (9) and
place the Tray onto the Turntable (3). DO NOT use the tray if cooking using
microwaves.
Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs,
sausages and pieces of chicken. It is also suitable for hot sandwiches and au gratin
dishes.
1. In standby mode, press the GRILL/MICRO+GRILL button once.
2. Rotate the MENU/TIME control to set the cooking time. The longest time is 95
minutes.
3. Press the START/QUICK START button to start.
12
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Microwave & Grill Cooking
Place the food onto a suitable microwavable plate or container and place the
container or plate onto the Turntable (3). DO NOT use the Grill & Convection
cooking Tray (9).
There are two combinations for microwave and grill cooking:
Combination 1: 30% of time for microwave cooking, 70% for grill cooking. Useful for
cooking fish, potatoes or au gratin.
Combination 2: 55% of time for microwave cooking, 45% for grill cooking. Useful for
puddings, omelettes, baked potatoes and poultry.
1. In standby mode, press GRILL/MICRO+GRILL button twice or three times to select
"Co-1" or " Co-2".
2. Rotate the MENU/TIME control to set cooking time. The longest time is 95
minutes.
3. Press the START/QUICK START button to start.
NOTE: During cooking, you can check the combination power by pressing the
GRILL/MICRO+GRILL button.
Convection Cooking
Place the food to be cooked onto the Grill & Convection cooking Tray (9) and
then place the Tray onto the Turntable (3). DO NOT use the tray if cooking using
microwaves.
• During convection cooking, hot air is circulated throughout the oven cavity to
brown and make food crisp quickly and evenly.
• This oven can be programmed for ten different cooking temperatures:
(200℃→190℃→180℃→170℃→160℃→150℃→140℃→130℃→120℃→110℃).
To preheat and cook with convection:
Your oven can be programmed to combine preheating and convection cooking:
1. In standby mode, press the CONVECTION button repeatedly to set convection
temperature.
2. Press the START/QUICK START button once to confirm. Beeps will sound when
the designated temperature is reached.
3. Open the door or press the STOP/CANCEL button once, and then place container
of food at the center of the turntable.
4. Rotate the MENU/TIME dial to set the cooking time. The longest time is 9 hours
and 30 minutes.
5. Press the START/QUICK START button to start.
NOTE: The longest preheat time is 30 minutes and the preheat time cannot be set.
When the oven reaches preheat temperature, the oven will sound a beep every 5
seconds. The program will end automatically if there is not any operation in 30
minutes.
13
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
To cook with convection:
1. In standby mode, press the CONVECTION button repeatedly to set temperature.
2. Rotate the MENU/TIME control to set the cooking time. The longest time is 9
hours and 30 minutes.
3. Press the START/QUICK START button to confirm.
NOTE: During cooking, you can check the current temperature by pressing the
CONVECTION button.
Microwave & Convection Cooking
• This oven has four pre-programmed settings that make it easy to cook with both
convection heat and microwaves.
• Press the MICRO+CONVECTION button repeatedly to indicate convection
temperature (200⁰C→170⁰C→140⁰C→110⁰C).
Place the food onto a suitable microwavable plate or container and place the
container or plate onto the Turntable (3). DO NOT use the Grill & Convection
cooking Tray (9)
1. In standby mode, press the MICRO+CONVECTION button repeatedly to set
temperature.
2. Rotate the MENU/TIME control to set cooking time. The longest time is 9 hours
and 30 minutes.
3. Press the START/QUICK START button to start.
NOTE: During cooking, you can check the combination power by pressing the
MICRO+CONVECTION button.
Defrosting
The defrosting function is the gentle thawing of uncooked food. Flat foodstuff
thaws better than bulky food. Distribute the food across the Turntable (3) as
evenly as possible.
1. In standby mode, rotate the MENU/TIME control anti-clockwise to select code
"A-9".
2. Press the CLOCK/WEIGHT button once.
3. Rotate the MENU/TIME control to set defrosting time. The longest time is 95
minutes.
4. Press the START/QUICK START button to start.
NOTE: During defrosting, the system will pause and sound to remind you to turn
food over, after that, press the START/QUICK START button to resume.
14
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Defrosting Tips
Microwaves penetrate approximately 4cm into most foods, to maximise the
defrosting effect the following is advised:
• For thick and chunky foods, turn the food regularly during defrosting in order
to obtain uniform thawing.
• If food is over 2kg, it is advised to turn it a minimum of two times.
• DO NOT refreeze food once defrosted.
• Ensure that food is thoroughly defrosted before cooking.
Multistage Cooking
Your microwave oven can be programmed to cook food in up to 3 automatic
cooking sequences.
For example, if you wish to set the following cooking program:
Microwave cooking
Grill cooking
1. Set the microwave cooking program, do not press the START/QUICK START
button.
2. Set the grill cooking program.
3. Press the START/QUICK START button to start cooking.
NOTE: Defrost can only be set in the first stage. Express cooking and auto cook
menus cannot be set in the multistage cooking program.
Mute function
To set the mute function: In the standby mode, press and hold the Power Level
button for 3 seconds, a beep will sound and the oven will enter mute mode.
If any buttons are now pressed, no beep sound will be heard. This function does
not affect the operation of the microwave.
To cancel the mute function. Press the Power Level button for 3 seconds, a beep
will sound. The mute function is now deactivated.
Child Lock
This function is used to lock the Control Panel, once the child lock is set all the
buttons on the control panel will be disabled. This lock is to prevent unsupervised
operation by children.
To set the child lock: In standby, if the microwave oven is not in use for over one
minute, the microwave will automatically enter into child lock mode and the
indicator light will turn on. In the lock state, all buttons are disabled.
To cancel the child proof lock: In child lock mode, open or close the oven door
once will cancel the function and the indicator light will turn off.
15
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Protection
OVERHEATING PROTECTION - When the system enters into super high
temperature protection status, the digital display shows “E01” and continues to
beep. After troubleshooting, press the STOP/CANCEL button once, the system
comes back to normal standby mode.
LOW TEMPERATURE PROTECTION - When the system enters into low
temperature protection status, the digital display shows “E02” and continues to
beep. After pressing the STOP/CANCEL button, the system comes back to normal
standby mode.
SENSOR MALFUNCTION PROTECTION - The system enters into protection mode
when the system sensor fails. The display shows “E03” and continues to beep.
After pressing the STOP/CANCEL button, the system comes back to normal
standby mode.
Auto Cook
This auto function has eight preset cooking programs. You do not need to set
either cooking times or power levels. The following table shows details of the
preset programs:
1. In standby mode, rotate the MENU/TIME control anti-clockwise once, and then
rotate the MENU/TIME control clockwise to select a food code.
2. Press the CLOCK/WEIGHT button repeatedly to set food weight or servings.
3. Press the START/QUICK START button to start.
Code
Food Type
Weight
Notes
A-1
Baked Potato
230g/serving
1 – 3 servings
1. For Chicken, during cooking,
the system will pause and
sound to remind you to turn
food over, then press the
START/QUICK START button
to resume cooking.
2. The result of auto cooking
depends on factors such as
voltage fluctuation, the shape
and size of food, your personal
preference as to the doneness
of certain foods and even how
well you happen to place food
in the oven. If you find the
result at any rate not quite
satisfactory, please adjust the
cooking time accordingly.
A-2
Coffee
200ml/serving
1 – 3 servings
A-3
Popcorn
99g
A-4
Auto Reheat
200g – 800g
A-5
Spaghetti
100g, 200g, 300g
A-6
Pizza
150g, 300g, 450g
A-7
Chicken
800g – 1400g
A-8
Cake
475g
16
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cooking Tips
• Place thicker pieces towards outside of food container, the thinner pieces
towards the centre and spread evenly. Do not overlap if possible.
• Start cooking with a shorter time setting, evaluate it after the time finishes and
extend the cooking time if needed. Over cooking can result in smoke and burnt
food.
• Food such as chicken, burgers or steak should be turned once during cooking.
• Depending on the food type, if applicable stir from the outside inwards to the
centre of the dish once or twice during cooking.
• Make sure meat is cooked thoroughly there should be no signs of pink in the
meat or in the meat juices.
Cooking Utensils Guidelines
• Only use utensils that are suitable for use in microwave ovens. Metallic containers
for food and beverages are not to be used during microwave cooking.
• Dishes with a metallic trim should not be used.
• Do not use recycled paper products when microwave cooking, as they may
contain small metal fragments which may cause sparks and/or fires.
• Round /oval dishes rather than square/oblong ones are recommended, as food in
corners tends to overcook.
The list below is a general guide to help you select the correct utensils.
Material
Microwave
Grill
Convection
Combination*
Heat–Resistant Glass
Yes
Yes
Yes
Yes
Heat–Resistant Plastic
Yes
No
No
No
Heat–Resistant Ceramics
Yes
Yes
Yes
Yes
Plastic film
Yes
No
No
No
Metal containers
No
Yes
Yes
No
Grill rack
No
Yes
Yes
No
Bamboo, wood, paper
No
No
No
No
* Combination: applicable for both "microwave+grill" and "microwave+convection"
cooking.
17
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Materials You cannot use in a Microwave
Utensil
Remarks
Aluminium tray
May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal
trimmed utensils
Metal shields the food from microwave energy. Metal trim may
cause arcing.
Metal twist ties
May cause arcing and could cause a fire in the oven.
Paper bags
May cause a fire in the oven
Plastic foam
Expanded polystyrene may melt or contaminate the liquid inside
when exposed to high temperature.
Wood
Wood will dry out when used in the microwave oven and may
split or crack.
Troubleshooting
Problem
Possible Cause
Oven will not start
Plug not secure in power socket, or not switched
on.
Door is open.
Wrong operation is set.
Arcing or Sparking
Incorrect materials in microwave oven are used.
The oven is operated when empty.
Spilled food remains in the cavity.
Unevenly cooked food
Food is not defrosted completely.
Power setting for cooking time is incorrect.
Food is not turned or stirred.
Overcooked food
Power setting for cooking time is incorrect.
Undercooked food
Turntable not rotating due to food trapped in the
roller rest and cavity bottom.
Food is not defrosted completely.
Oven ventilation ports are restricted.
Power setting for cooking time is incorrect.
Incomplete de-frosting
Power setting for cooking time is incorrect.
Food is not turned or stirred.
Noise comes from the turntable
Food residue exists between the turntable roller
rest and cavity bottom.
Oven light does not glow
The light bulb has burned out.
START/QUICK START button has not been
pressed.
“E01”error: Overheat protection
The fan did not work.
The oven has been operated for a long time
whilst empty.
Press the STOP/CANCEL button.
“E02”error: Low temperature
protection
The temperature sensor is not installed properly.
No Grill/Convection function.
Press the STOP/CANCEL button.
“E03”error: Sensor malfunction
protection
The system sensor is Short Circuited.
Press the STOP/CANCEL button.
18
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cleaning and Maintenance
Remove the plug from the wall socket before cleaning.
DO NOT immerse the appliance in water or any other liquids whilst cleaning.
• Wipe the exterior with clean soft damp cloth and dry thoroughly.
• Using a clean soft damp cloth, wipe clean the interior of the door and door
seals, interior cavity to remove any spills or spatter and dry thoroughly.
• Do not remove the waveguide cover. Wipe clean the wave guide cover making
sure it is free from food residue, this is located on the cavity wall on the right
hand side.
• Wash the glass turntable, the turntable ring support in warm soapy water and
dry thoroughly.
Some foods, for example fish can leave an odour which may linger, to refresh the
cavity follow one of the 3 methods below:
Method 1 - Distilled Vinegar
1. Add 1 cup of water and 1/2 cup of distilled vinegar to a microwave proof bowl
or plastic container and place in the centre of the oven.
2. Heat on high for 2 minutes 30 seconds or until the solution boils or gives off
steam.
3. Leave to cool for 15 minutes before opening the door.
4. Open the door, remove the bowl and glass turntable, then wipe the microwave
with a clean damp cloth.
5. Wipe the glass turntable before replacing.
Method 2 - Lemon
1. Cut a lemon in two and squeeze the lemon into a microwave proof bowl or
plastic container, add 1 cup of water and place in the centre of the oven.
2. Heat on high for 2 minutes 30 seconds or until the solution boils or gives off
steam.
3. Leave to cool for 15 minutes before opening the door.
4. Open the door, remove the bowl and glass turntable, then wipe the microwave
with a clean, damp cloth.
5. Wipe the glass turntable before replacing.
Method 3 - Bicarbonate of soda
1. Add 1 cup of water and 2 tbsp bicarbonate soda to a microwave proof bowl or
plastic container and place in the centre of the oven.
2. Heat on high for 2 minutes 30 seconds or until the solution boils or gives off
steam.
3. Leave to cool for 15 minutes before opening the door.
4. Open the door, remove the bowl and glass turntable, then wipe the microwave
with a clean, damp cloth.
5. Wipe the glass turntable before replacing.
19
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Servicing
Servicing and repairs should only be carried out by qualified service personnel.
WARNING!
Some components still retain a high voltage charge even when the microwave
oven is disconnected from the mains supply, never remove Covers or Guards.
Covers and Guards should only be removed by qualified personnel.
If any part of the oven or cord becomes damaged stop using it immediately and
seek advice from qualified service personnel.
Other Information
Microwave oven interfering with TV reception.
Radio and TV reception maybe interfered with when microwave oven is
operation. It is similar to the interference of small electrical appliances such as
food mixers, vacuum cleaners and electric fans. This
is normal.
Oven light dim.
In low power microwave cooking, oven light may become dim. This is normal.
Steam accumulating on door, hot air out of vents.
In cooking, steam may come out of food. Most will come out from vents but
some may condense on cool places such as the oven door. This is normal.
Oven started accidentally with no food in.
Although starting the oven with no food in it should be avoided, it does no
damage to the oven provided it is only operated empty for a very short time. It is
advised that a glass or microwave safe container of water is always left in the
oven to absorb any heat should the oven be turned on accidentally.
Non-Wireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse needed replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse cover
missing. If in doubt, consult a qualified electrician. If you need to remove the
plug-DISCONNECT FROM THE MAINS- and then cut it off the mains lead and
immediately dispose of it safely. Never attempt to reuse the plug or insert it into
a socket outlet as there is a danger of electric shock.
20
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Technical Specification
Model Number
SDA2094
Rated Voltage
230-240V AC 50Hz
Microwave Power Consumption
1400W
Microwave Power (Output)
900W
Convection Power Input
2200W
Grill Power Input
1250W
Microwave frequency
2450MHz
Protection Class
I (This Appliance Must Be Earthed)
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
21
30L Microwave with Grill & Convection
Model No. SDA2094
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of
purchase or receipt. If any defect should occur due to faulty workmanship or material, your
faulty product should be returned to the place of purchase, replacement or refund is at the discretion
of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the requirements
contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and covers
the main body and housing). If you do not register your product within 28 days of the original
purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28 days
of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo® is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
