25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should
always be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this Microwave Oven.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• Close supervision is required when using this appliance
near children.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children unless they are older than 8 and
supervised.
• Keep the appliance and its cord out of reach of children
less than 8 years.
3
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• DO NOT touch hot surfaces. The outer surfaces are
liable to get hot during use. Always use the handles
and knobs.
• DO NOT immerse the appliance or its cord in water or any
other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
to the mains supply.
• Always use this appliance on a solid, level, non-flammable
surface.
• DO NOT use this appliance outdoors.
• DO NOT use this Microwave Oven with a programmer,
timer, separate remote-control system or any other
device that switches the appliance on automatically.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• Repairs to electrical appliances should only be performed
by qualified personnel. Improper repairs may place user at
serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to ensure no damage is evident. Should there
be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by suitable qualified personnel in order to avoid a hazard.
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• DO NOT run the mains cable under carpets, rugs, etc.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
• This appliance is intended for household use only and
4
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
• Ensure appliance is situated in an open area, do not allow
it to come in contact with Cupboards, Curtains, wall
coverings, clothing or other flammable materials.
• Unplug after each use. Grasp the plug, not the cord.
• CAUTION Do not overcook food.
• Metallic containers for food and beverages are not
allowed during microwave cooking.
• When heating food in plastic containers or paper
containers, keep an eye on the oven due to the possibility
of ignition.
• The contents of feeding bottles and baby food jars shall be
stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
• This appliance shall not be cleaned with a steam cleaner.
• The microwave oven is intended to be used free-standing.
• DO NOT place this microwave into a cabinet.
• CAUTION Remove wire twists from paper and plastic bags
before placing in the oven.
• DO NOT heat oil or fat for deep frying in the oven as the
temperature of the fat can’t be controlled.
• After use wipe the waveguide cover with a damp cloth,
followed by a dry cloth to remove any food splashes and
grease. Built up grease may overheat and smoke or ignite.
• If materials inside the oven smoke or ignite, keep the door
closed, turn oven off and disconnect the power supply in
order to stifle any flames.
• WARNING! Liquids and other foods must not be
5
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
heated in sealed containers since they are liable to
explode; Baby bottles fitted with a screw cap or teat are
considered sealed containers.
• Liquids should be heated in a wide mouthed container and
left for a short period after the heating cycle to avoid
possible hazards such as delayed eruptive boiling of the
liquid. Therefore, care must be taken when handling the
container.
• Potatoes, sausage and other skinned foods should be
pierced before heating.
• Eggs in their shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.
• Only use utensils suitable for use in a microwave oven.
• DO NOT store food or other items in the oven.
• DO NOT operate the oven without any food or liquid
inside, this may damage the oven.
• WARNING! If the door or door seals are damaged or if
the oven has malfunctioned, the oven must not be
operated until it has been repaired by a competent
person. It is hazardous for anybody other than a suitably
qualified person to carry out any service or repair that
involves the removal of a cover which gives protection
against exposure to microwave energy.
• This microwave oven is intended for the heating of food
and beverages. The drying of clothes, heating of warming
pads slippers, sponges and cloths may lead to risk of
injury, ignition and fire.
• The oven should be cleaned regularly and any food
deposit removed.
• Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation.
6
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

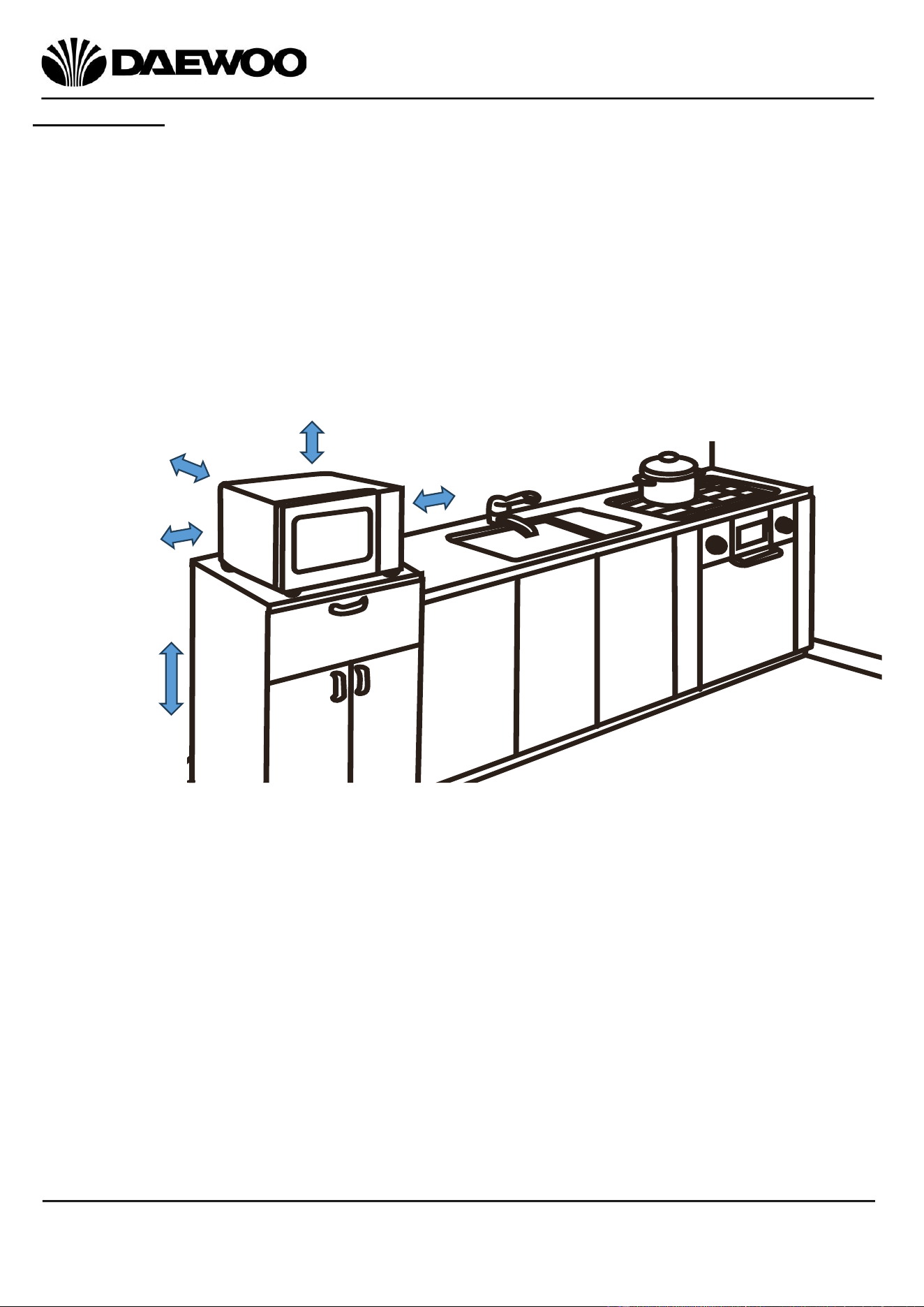

Installation
• Select a level surface no less than 85cm (33 inches) from the floor, that
provides enough space for the outlet vents.
• A minimum clearance of 5cm (2 inches) is required between the oven
and any adjacent wall, with a minimum clearance of 10cm (4 inches)
between the rear of the microwave and the wall.
• Leave a minimum clearance of 20cm (8 inches) above the oven.
Minimum
5cm (2 inches)
Minimum
85cm (33 inches)
Minimum
20cm (8 inches)
Minimum
5cm (2 inches)
Minimum
10cm (4 inches)
7
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the use of
this product.
This symbol indicates that the supply uses an alternating current
mains supply.
This symbol indicates that the surface gets hot and care must be
taken.
WARNING!
This designates a hazard with moderate risk, which may
result in severe injury if not adhered to.
8
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1. Door Viewing window 6. Waveguide Cover
2. Door Catches 7. Control Panel
3. Turntable 8. Door Handle
4. Motor Spindle 9. Baking Plate
5. Turntable Support Ring 10. Grill
Description of Parts
The door must be fully closed in order for the Microwave to operate.
The door operates a safety interlock mechanism which prevents the
unit from operating whilst the door is open.
WARNING! The waveguide cover (6) should never be removed.
1
3
4
5
6
7
2
8
9
10
9
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
DISPLAY
Displays cooking time, power level, action
indicators and clock
Power Level
Press to select one of 5 power levels
Grill
Press to set grill cooking time
Convection
Press to set convection cooking temperature
Microwave+Grill
Press to set a microwave and grill combination
Microwave Convection
Press to set a microwave and convection
combination
Menu/Time
Turn to set cooking time/Select from the Auto
Menu
Press to start cooking or set express cooking
Timer
Press to set the clock time
Clock/Weight
Press to set the clock/weight
STOP/CANCEL
Press to stop or cancel the setting
Press once to pause cooking, twice to cancel
The door of the microwave oven must be fully closed in order for it to operate, this is due
to a safety interlock between the locking mechanism and the control panel.
Place the turntable ring in first, fit the turntable onto the rotating turntable support and
make sure it is geared in properly.
Never remove the waveguide cover. Make sure the turntable support is correctly located.
Description of Parts – Control Panel (7)
10
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Using Your Microwave Oven
1. Place the Microwave Oven on a solid level, heat resistant surface, ensure that
the ventilation outlets are not obstructed.
2. Before first use, open the door and place the Turntable Support Ring (5) in the
base of the oven as shown in the diagram above.
3. Place the glass Turntable (3) onto the Motor Spindle (4).
Rotate the Turntable a little until the notches in the turntable drop onto the
Motor Spindle (4).
Setting the Clock
The clock can be set to 12 or 24-hour mode by pressing Clock/Weight button
in standby mode.
Press once for 12hr, twice for 24hr.
1. In standby mode, press the Clock/Weight button to select 12 or 24-hour clock
mode.
2. Rotate the Menu/Time control to set the hour.
3. Press the Clock/Weight button once to confirm the hour.
4. Rotate the Menu/Time control to set the minutes.
5. Press the Clock/Weight button to confirm the minutes.
During cooking, you can check the current clock time by pressing the
Clock/Weight button.
If the microwave is unplugged from the mains supply, the clock will have to be
reset.
Microwave Cooking
Place the food onto a suitable microwavable plate or container and place onto
the Turntable (3).
1. In standby mode, press the Power Level button repeatedly to set the power level.
2. Rotate the Menu/Time control to set the cooking time. The time range can be set
between 10 seconds and 95 minutes.
3. Press the Menu/Time control to start cooking.
No. of Power button presses
Power Level
Display
Once
100%
P100
Twice
80%
P80
3 times
60%
P60
4 times
40%
P40
5 times
20%
P20
When cooking has finished, the oven will display End and beep every 2
minutes until the oven door is opened, or any button is pressed.
11
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Express Cooking
Use this feature to program the oven to microwave food at 100% power
conveniently. In standby mode, press the Menu/Time control repeatedly to set
cooking time (each press to increase 30 seconds, and up to 10 minutes). The oven
starts working automatically at full power.
Auto Defrost
The microwave oven can be set to defrost by weight, maximum defrosting time is
95 minutes.
1. Place the food onto a suitable microwavable plate or container and place the
onto the Turntable (3).
2. Rotate the Menu/Time control anti-clockwise to choose A-9.
3. Press Clock/Weight button to select the weight between 100g and 1800g.
4. Press the Menu/Time control to start defrosting.
During defrosting, the microwave will pause and sound to remind you to turn
food over, after that, press the Menu/Time control to resume cooking.
Defrosting Tips
Microwaves penetrate approximately 4cm into most foods, to maximise the
defrosting effect the following is advised:
• For thick and chunky foods, turn the food regularly during defrosting in order
to obtain uniform thawing.
• If food is over 2kg, it is advised to turn it a minimum of two times.
• DO NOT refreeze food once defrosted.
• Ensure that food is thoroughly defrosted before cooking.
MULTI STAGE COOKING
Your microwave oven can be programmed to cook food in up to 3 automatic
cooking sequences.
For example, if you wish to set the following cooking program:
100% Power Microwave for 20mins, then Grill for 10mins
1. Press Power Level button once and P100 is shown on the Display.
2. Rotate the Menu/Time control to set 20 minutes, the Display will show 20:00.
Do not press Menu/Time control.
3. Press Grill button, the Display will show 0:00.
4. Rotate the Menu/Time control to set 10 minutes, the Display will show 10:00.
5. Press Menu/Time control to start cooking.
Auto function, defrost and Express Cooking cannot be set in the MULTI STAGE
COOKING function.
12
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Auto Cook menu
This auto function has eight pre-set cooking programs. You do not need to set
either cooking times or power levels. The following table shows details of the
pre-set programs:
1. In standby mode, rotate the Menu/Time control anti-clockwise to select a pre-
set program.
2. Press the Clock/Weight button to select weight or portion size.
3. Press the Menu/Time control to start cooking.
Auto
Cooking
Food Type
Weight
Time
Power
A-01
Baked Potato
1 portion / 230g
2 portions / 460g
5:00
8:00
P100
A-02
Coffee
1 cup / 200ml
2 cups / 400ml
3 cups / 600ml
1:30
2:40
3:50
P100
A-03
Popcorn
99g
2:20
P100
A-04
Reheat
200g
300g
400g
500g
600g
700g
800g
1:30
2:00
2:30
3:00
3:30
4:00
4:30
P100
A-05
Spaghetti
100g
200g
300g
20:00
25:00
30:00
P80
A-06
Pizza
150g
300g
450g
14:00
15:00
16:00
Convection
170°C
A-07
Grilled Chicken
800 g
1000 g
1200 g
1400 g
27:00
30:00
33:00
36:00
Microwave+
Convection
200°C
A-08
Cake
475g
50:00
Microwave+
Convection
200°C
A-09
Auto Defrost
The result of auto cooking depends on factors such as the shape and size of
food. If you find the result at any rate not quite satisfactory, please adjust the
cooking time a little bit accordingly.
13
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
For coffee and potato, parameters on display are not weight but number of
servings.
For popcorn and cake, there is only one weight choice.
Convection cooking
The convection cooking enables you to cook food in the same way as in a
traditional oven. The microwave mode is not used. You can set the temperature, as
required, in a range varying from 110⁰C to 200⁰C. The maximum cooking time is 9
hours 30 minutes. It is recommended that you should pre-heat the oven to the
appropriate temperature before placing the food in the oven.
Note: Always use oven gloves when touching the containers in the oven, as they
will be very hot. You can get better cooking or browning, if you use a grill stand
supplied. Check that the turntable is in position. Open the door and place food on
the grill stand and set the grill stand on the turntable.
To cook with convection without preheating
1. Press the Convection button once and the display will show 200°C.
2. Press Convection again to select the cooking temperature.
3. Rotate the Menu/Time control to select the cooking time.
4. Press the Menu/Time control to start cooking.
To preheat and cook with convection
1. Press the Convection button once and the display will show 200°C.
2. Press Convection button again to select the cooking temperature.
3. Press the Menu/Time control to start preheating. When the oven reaches the
programmed temperature, a beep sound will be heard every 5 seconds.
4. Press the Stop/Cancel button or open the door to pause cooking and place the
food into the oven.
5. Rotate the Menu/Time control to select the cooking time.
6. Press the Menu/Time control to start cooking.
Microwave and convection cooking
This function is to combine cooking by using both microwave energy and
convection heating. No preheating is required as the microwave energy is
immediately available. The maximum cooking time is 9hours and 30 minutes. You
can press Microwave+Convection button during the during to check the cooking
temperature.
14
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Number of
presses
Display
Microwave
cooking time
Convection
cooking time
Cycle (seconds)
Once
200C
30%
70%
33
Twice
170C
45%
55%
33
3 times
140C
58%
42%
33
4 times
110C
73%
33%
33
1. Press the Microwave+Convection button to select the cooking temperature.
The longest cooking time is 95 minutes.
2. Rotate the Menu/Time control to select the cooking time.
3. Press the Menu/Time control to start cooking.
Note: When the cooking is finished, the oven will display End and beep every 2
minutes until the oven door is opened or the Stop/Cancel button is pressed.
Always use oven gloves when touching the containers in the oven, as they will be
very hot.
Micro and grill cooking
You can also combine microwave cooking with the grill function, to cook quickly
and brown at the same time. Always use microwave-safe and Oven-proof
cookware. Glass or ceramic dishes are ideal as they allow the microwaves to
penetrate the food evenly, always use gloves when touching the cookware in the
oven, as they will be very hot. The longest cooking time you can set is 95 minutes.
Open the door. Place the food on the grill stand supplied or one best suited to
the type of food to be cooked. Place the grill stand on the turntable. Close the
door.
Number of
presses
Display
Microwave
cooking
time
Grill cooking
time
Cycle (seconds)
Once
CO-1
30%
70%
33
Twice
CO-2
55%
45%
33
1. Press the Microwave+Grill button twice or three times to choose the desired
combination setting.
2. Rotate the Menu/Time control to select the cooking time.
3. Press the Menu/Time control to start cooking.
Note: When the cooking is finished, the oven will display End and beep every 2
minutes until the oven door is opened or the Stop/Cancel button is pressed.
Always use oven gloves when touching the containers in the oven, as they will be
very hot.
15
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Grill cooking
This function allows food to be cooked and grilled for the browning at the same
time without microwave, grill cooking is particularly useful for thin slices of meat,
steaks, chops, kebabs, sausages, or a piece of chicken. It is also suitable for hot
sandwiches and au gratin dishes.
The longest cooking time you can set is 95 minutes. Open the door. Place the food
on the grill stand supplied. Place the grill stand on the turntable. Close the door.
1. Press the Grill button once.
2. Rotate the Menu/Time control clockwise to select the cooking time.
3. Press the Menu/Time control to start cooking.
Note: When the cooking is finished, the oven will display End and beep every 2
minutes until the oven door is opened or the Stop/Cancel button is pressed.
Always use oven gloves when touching the containers in the oven, as they will be
very hot.
Child Lock
This function will automatically set if there is no operation for more than one
minute. The display will show the lock symbol, and all buttons will be disabled.
To cancel the child lock, open and close the door.
Timer
Your microwave can be used as a kitchen timer. The timer can be set for up to 95
minutes. In either cooking or standby mode
1. Press the Timer button once.
2. Rotate the Menu/Time control to select the time to be counted down.
3. Press the Menu/Time control to start the count down.
Cooling feature
The electronic controlling system of the microwave oven has the feature of
cooling. As for any cooking mode which cooking time is over 2 minutes, open the
oven door and the cooking program will pause, the oven fan will continue to
work for approximately 3 minutes to cool the oven fan prolong the life of the
oven.
Button protection
During operation, if at any time any button is pressed continuously for 60
seconds, the cooking program will stop immediately, the display will show FAIL
and a beep will be heard. All buttons will be disabled. To correct this, release the
button and press Stop/Cancel button.
16
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cooking Tips
• Place thicker pieces towards outside of food container, the thinner pieces
towards the centre and spread evenly. Do not overlap if possible.
• Start cooking with a shorter time setting, evaluate it after the time finishes and
extend the cooking time if needed. Over cooking can result in smoke and burnt
food.
• Food such as chicken, burgers or steak should be turned once during cooking.
• Depending on the food type, if applicable stir from the outside inwards to the
centre of the dish once or twice during cooking.
• Make sure meat is cooked thoroughly there should be no signs of pink in the
meat or in the meat juices.
Cooking Utensils Guidelines
• Only use utensils that are suitable for use in microwave ovens. Metallic containers
for food and beverages shall never be used during microwave cooking.
• Do not use recycled paper products when microwave cooking, as they may
contain small metal fragments which may cause sparks and/or fires.
• Round /oval dishes rather than square/oblong ones are recommended, as food in
corners tends to overcook.
Material
Microwave
Grill
Convection
Combination*
Heat–Resistant Glass
Yes
Yes
Yes
Yes
Heat–Resistant Plastic
Yes
No
No
No
Heat–Resistant Ceramics
Yes
Yes
Yes
Yes
Plastic film
Yes
No
No
No
Metal containers
No
Yes
Yes
No
Grill rack
No
Yes
Yes
No
Bamboo, wood, paper
No
No
No
No
*Combination: applicable for both "microwave+grill" and
"microwave+convection" cooking.
Technical Specification
Model Number
SDA2093
Rated Voltage
230-240V~ 50Hz
Microwave Power Input
1400W
Microwave Power Output
900W
Convection Input
1950W
Grill Input
1950W
Microwave frequency
2450MHz
Protection Class
I (This Appliance Must Be Earthed)
17
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Troubleshooting
Problem
Possible Cause
Oven will not start
Plug not secure in power socket, or not switched on.
Door is opened.
Wrong operation is set.
Arcing or Sparking
Incorrect materials in microwave oven are used.
The oven is operated when empty.
Spilled food remains in the cavity.
Unevenly cooked
food
Food is not defrosted completely.
Power setting for cooking time is incorrect.
Food is not turned or stirred.
Overcooked food
Power setting for cooking time is incorrect.
Undercooked food
Turntable not rotating due to food trapped in the
roller rest and cavity bottom.
Food is not defrosted completely.
Oven ventilation ports are restricted.
Power setting for cooking time is incorrect.
Incomplete de-
frosting
Power setting for cooking time is incorrect.
Food is not turned or stirred.
Noise comes from
the turntable
Food residue exists between the turntable roller rest
and cavity bottom.
Oven light does not
glow
The light bulb has burned out.
Menu/Time button has not been pressed.
E01 error: Over
Weight/time
protection
The fan did not work.
The oven is operated for a long time whilst empty.
E02 error: Low
temperature
protection
The lead of temperature sensor did not install
properly.
No function of Grill/Convection
E03 error: Sensor
malfunction
protection
The system sensor is Short Circuited.
18
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cleaning and Maintenance
Remove the plug from the wall socket before cleaning.
DO NOT immerse the appliance in water or any other liquids whilst cleaning.
• Wipe the exterior with clean soft damp cloth and dry thoroughly.
• Using a clean soft damp cloth, wipe clean the interior of the door and door
seals, interior cavity to remove any spills or spatter and dry thoroughly.
• Do not remove the waveguide cover. Wipe to clean the wave guide cover
making sure it is free from food residue, this is located on the cavity wall on the
right hand side.
• Wash the glass turntable, the turntable ring support in warm soapy water and
dry thoroughly.
Some foods, for example fish can leave an odour which may linger, to refresh the
cavity follow one of the 3 methods below:
Method 1 - Distilled Vinegar
1. Add 1 cup of water and 1/2 cup of distilled vinegar to a microwave proof bowl
or plastic container and place in the centre of the oven.
2. Heat on high for 2 minutes 30 seconds or until the solution boils or gives off
steam.
3. Leave to cool for 15 minutes before opening the door.
4. Open the door, remove the bowl and glass turntable, then wipe the microwave
with a clean damp cloth.
5. Wipe the glass turntable before replacing.
Method 2 - Lemon
1. Cut a lemon in two and squeeze the lemon into a microwave proof bowl or
plastic container, add 1 cup of water and place in the centre of the oven.
2. Heat on high for 2 minutes 30 seconds or until the solution boils or gives off
steam.
3. Leave to cool for 15 minutes before opening the door.
4. Open the door, remove the bowl and glass turntable, then wipe the microwave
with a clean, damp cloth.
5. Wipe the glass turntable before replacing.
Method 3 - Bicarbonate of soda
1. Add 1 cup of water and 2 tbsp bicarbonate soda to a microwave proof bowl or
plastic container and place in the centre of the oven.
2. Heat on high for 2 minutes 30 seconds or until the solution boils or gives off
steam.
3. Leave to cool for 15 minutes before opening the door.
4. Open the door, remove the bowl and glass turntable, then wipe the microwave
with a clean, damp cloth.
5. Wipe the glass turntable before replacing.
19
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Servicing
Servicing and repairs should only be carried out by qualified service personnel.
WARNING!
Some components still retain a high voltage charge even when the microwave
oven is disconnected from the mains supply, never remove Covers or Guards.
Covers and Guards should only be removed by qualified personnel.
If any part of the oven or cord becomes damaged stop using it immediately and
seek advice from qualified service personnel.
Other Information
Microwave oven interfering with TV reception.
Radio and TV reception maybe interfered with when microwave oven is
operation. It is similar to the interference of small electrical appliances such as
food mixers, vacuum cleaners and electric fans. This
is normal.
Oven light dim.
In low power microwave cooking, oven light may become dim. This is normal.
Steam accumulating on door, hot air out of vents.
In cooking, steam may come out of food. Most will come out from vents but
some may condense on cool places such as the oven door. This is normal.
Oven started accidentally with no food in.
Although starting the oven with no food in it should be avoided, it does no
damage to the oven provided it is only operated empty for a very short time. It is
advised that a glass or microwave safe container of water is always left in the
oven to absorb any heat should the oven be turned on accidentally.
Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse needed replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse cover
missing. If in doubt, consult a qualified electrician. If you need to remove the
plug-DISCONNECT FROM THE MAINS- and then cut it off the mains lead and
immediately dispose of it safely. Never attempt to reuse the plug or insert it into
a socket outlet as there is a danger of electric shock.
20
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
21
25L Microwave with Grill and Convection
Model No. SDA2093
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of
purchase or receipt. If any defect should occur due to faulty workmanship or material, your
faulty product should be returned to the place of purchase, replacement or refund is at the discretion
of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the requirements
contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and covers
the main body and housing). If you do not register your product within 28 days of the original
purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28 days
of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
