772/773 English Instruction Sheet
Page 1
®
772/773
Milliamp Process Clamp Meter
Instruction Sheet
Introduction
The hand-held, battery-operated Fluke 772 and 773 Milliamp Process
Clamp Meters (the Meter) can be used in troubleshooting transmitters,
valves, PLC and DCS I/O. Unlike conventional clamp meters, the Meter
features a remote jaw that is connected to the main body via extension
cable.
Features
• In-circuit measurement of 0-24 mA dc and up to 99.9 mA dc using a
remotely connected clamp via extension cable

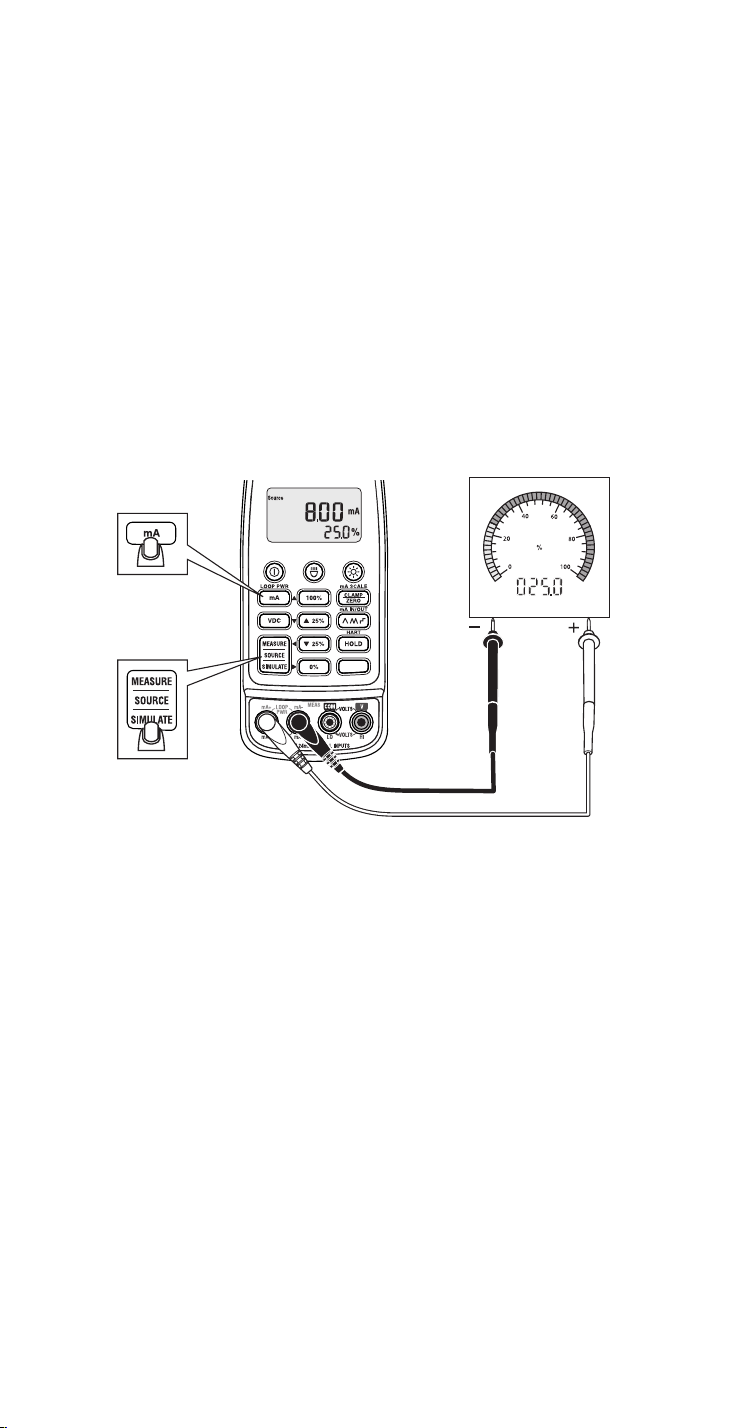

• 0-24 mA dc sourcing and simulating
• 0-10 V dc sourcing (773)
• Loop power supply 24 V dc output

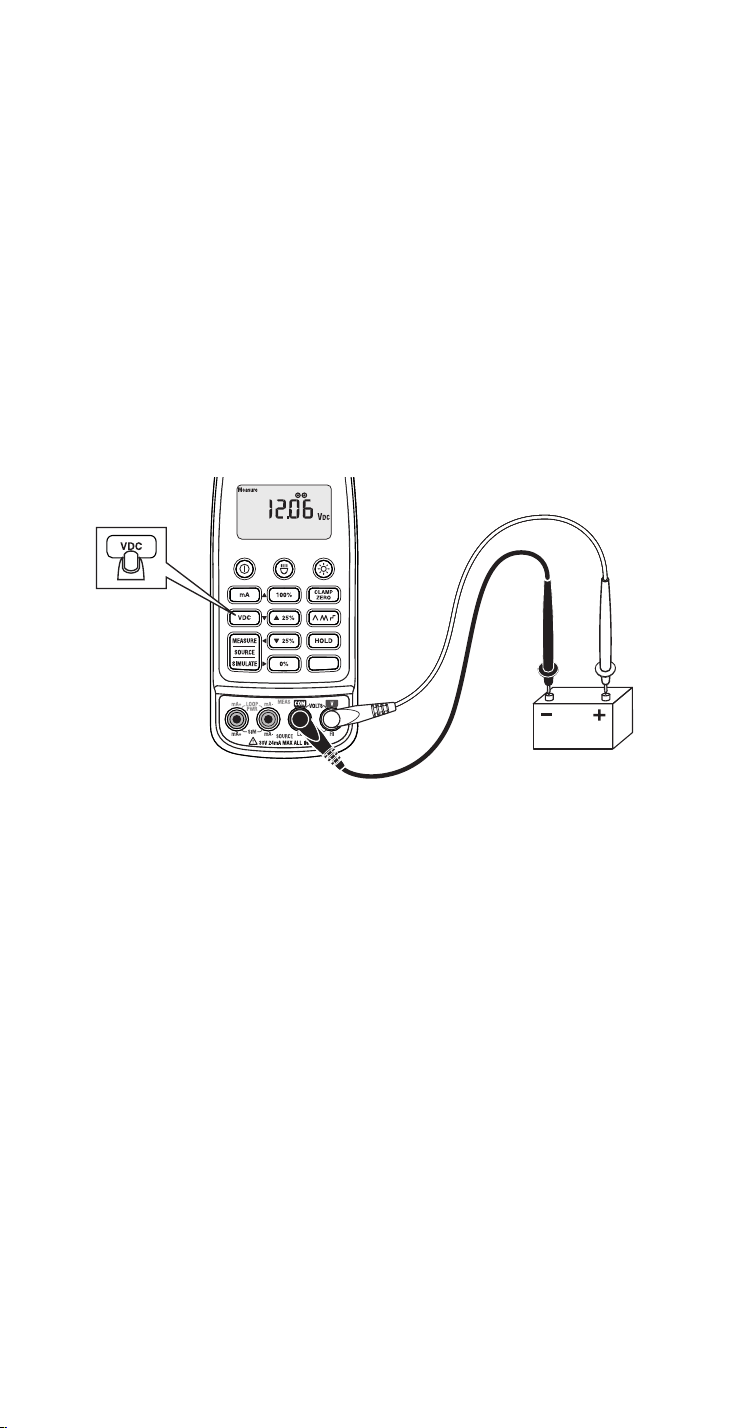

• 0-30 V dc measurement (773)
• Scaled mA output (773)

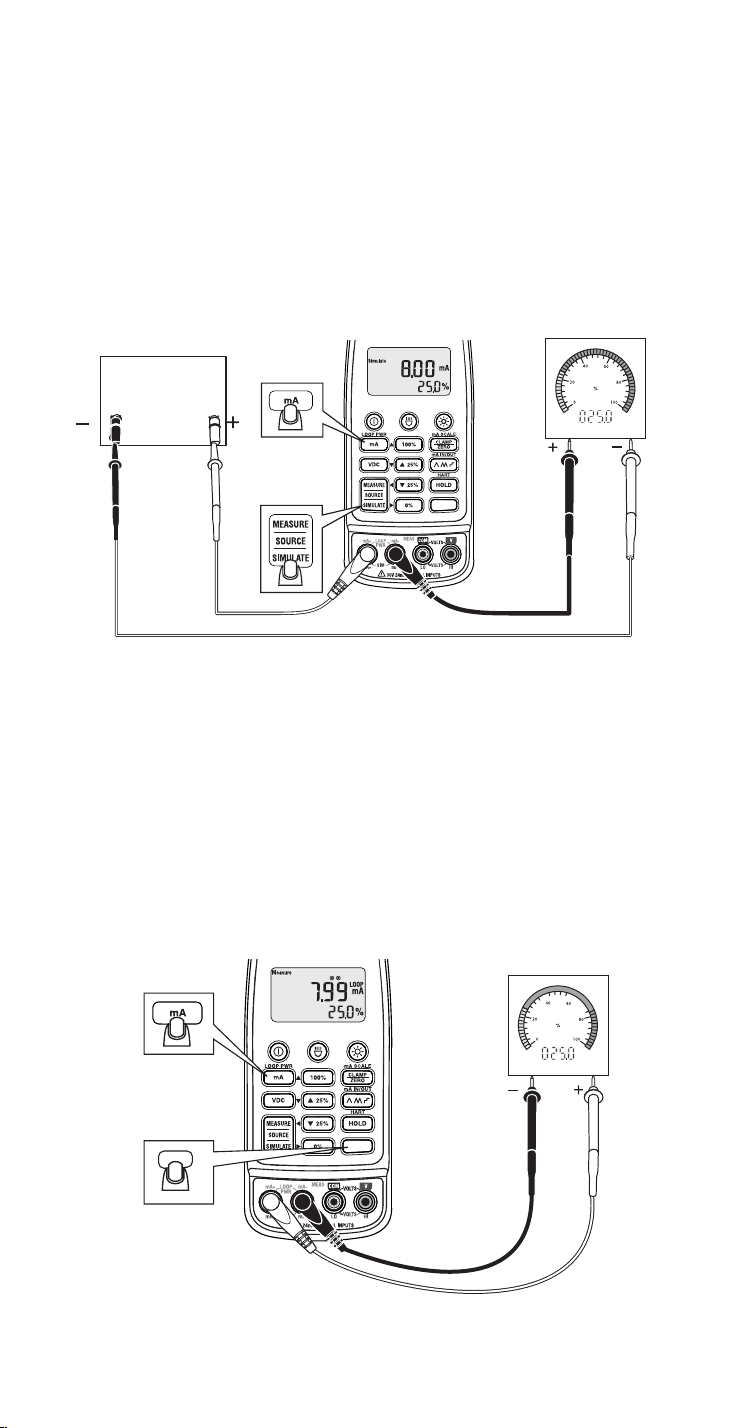

• Simultaneous mA measurement via detachable clamp and mA
sourcing (773)
• 250 Ω HART resistor for mA source
• Electronic zero
• Percentage span (0-100 %)
• Hold
• Auto power off (battery saver)
• Display backlight
• Measurement spotlight LED
PN 3351049
February 2009
© 2009 Fluke Corporation. All rights reserved.
All product names are trademarks of their respective companies. Specifications are subject to
change without notice. Printed in China.
