1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
WARNING!
Always use caution when working around fuel systems. The fuel in the fuel rail may be pressurised even if the engine
is not running.
IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer’s service instructions, or a
proprietary manual, to establish the current procedure and data, also any warnings or cautions particular to the vehicle.
8 DO NOT use the set if any parts are missing or damaged.
8 DO NOT use this tool for any purpose other than that for which it is designed.
9 Switch off the vehicle’s ignition and disconnect the battery before commencing work under the bonnet.
8 DO NOT lay tools on the vehicle’s battery. This may short the terminals together, causing harm to yourself, the tools, or the battery.
9 Operate in a well ventilated area. DO NOT inhale fuel vapours.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9 Keep children and other unauthorised persons away from the working area.
9 Keep yourself, tools, and test equipment away from hot engine parts.
9 Always keep a fire extinguisher that is suitable for fuel/electrical/chemical fires close by.
8 DO NOT smoke or have open ames near vehicle.
9 Cover fuel line fittings when connecting or disconnecting fuel lines to guard against high pressure leaks. Avoid contact with fuel.
9 Clean up all fuel spills immediately and dispose of all waste according to local regulations.
9 Maintain the tool components in good and clean condition for best and safest performance.
9 When work on the vehicle is finished, ensure all connections on the vehicle are restored, and that there are no tools left in the engine bay.
9 Replace tools in the carrying case and store in a safe, dry, childproof location.
2. INTRODUCTION
Suitable for Ford EcoBlue 2.0L engines.Designed for the extraction of seized injectors. This method of extraction will damage the injector
beyond repair and will require replacement. Equivalent to OEM 303-1690, 303-1690-01.

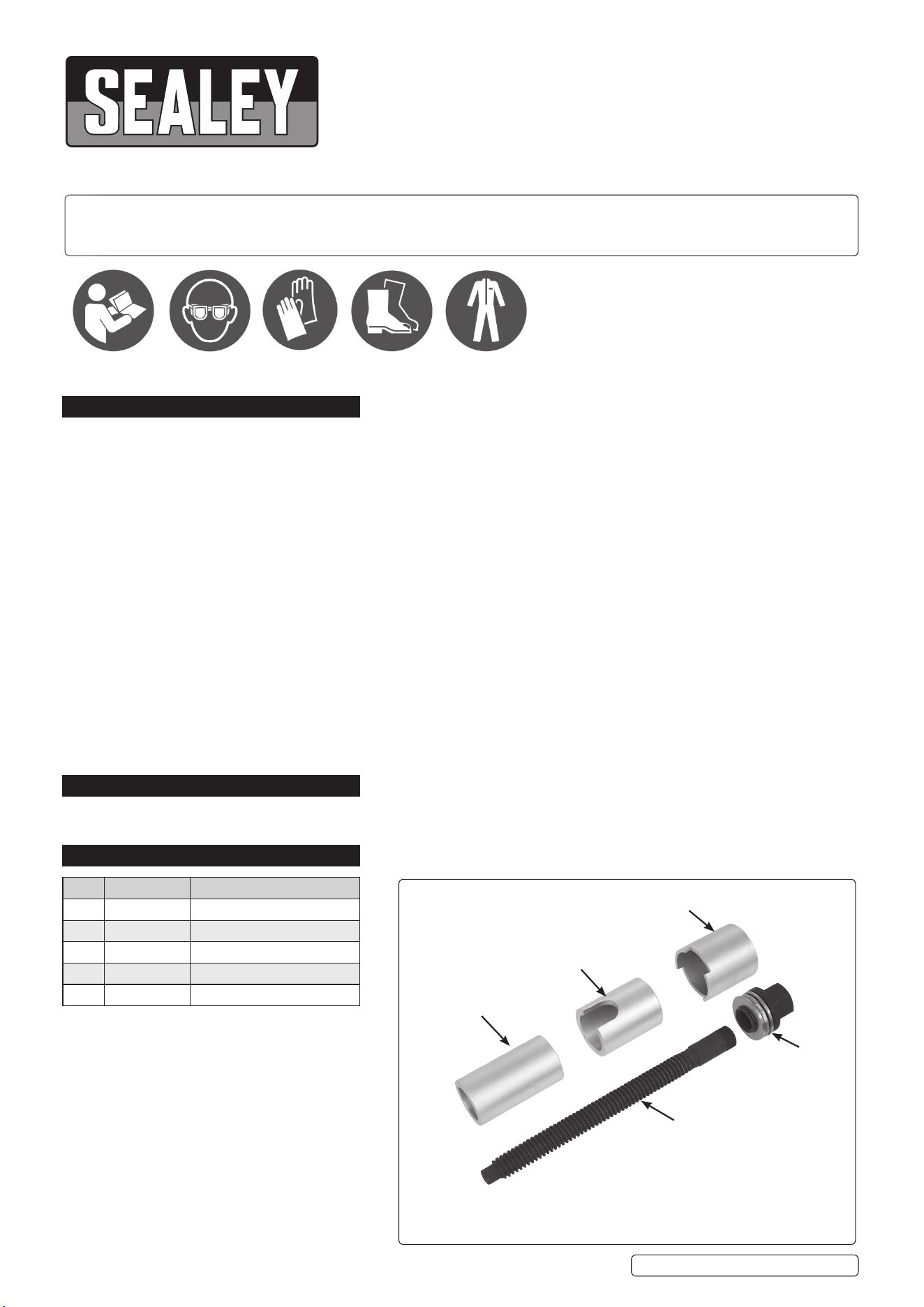

3. CONTENTS
Item Part No. Description
1. VS2077-01 Pulling Spindle
2. VS2077-02 Support Sleeve (A)
3. VS2077-03 Removal Socket
4. VS2077-04 Support Sleeve (B)
5 VS2077-05 Shoulder Nut c/w Bearing
DIESEL INJECTOR PULLER - FORD ECOBLUE
2.0L
MODEL NO: VS2077
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
VSE2077 Issue 2 03/11/2023
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
1
2
3
4
5
Wear protective
Gloves
Wear Safety
Footwear
Wear protective
Clothing
4. APPLICATIONS
5. OPERATION
NOTE: Ensure you have read, understood and applied the directions in the Safety section
5.1. Disconnect fuel and electrical connections to the injector.
5.2. Place Removal Socket (g. 1.3) and using a suitable ratchet drive unscrew and withdraw the upper section of the injector.
5.3. Place the Pulling Spindle carefully into the remaining injector unit and screw it in until fully engaged with the injector.
5.4. Place the relevant Support Sleeve (g.1.4, g.1.2) over the spindle and slide it carefully down onto the cylinder head.
5.5. Screw the Shoulder Nut (g.1.5) down to the Support Sleeve and using a suitable spanner tighten the Shoulder Nut down in order to
withdraw the remainder of the injector unit.
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
