1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
WARNING!
Always use caution when working around fuel systems. The fuel in the fuel rail may be pressurised even if the engine
is not running.
IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer’s service instructions, or a
proprietary manual, to establish the current procedure and data, also any warnings or cautions particular to the vehicle.
8 DO NOT use the set if any parts are missing or damaged.
8 DO NOT use this tool for any purpose other than that for which it is designed.
9 Switch off the vehicle’s ignition and disconnect the battery before commencing work under the bonnet.
9 You must follow the vehicle’s service manual cautions when working around the air bag system. If the cautions are not followed the air
bag may deploy unexpectedly even after the ignition is turned ‘OFF’, resulting in personal injury.
8 DO NOT lay tools on the vehicle’s battery. This may short the terminals together, causing harm to yourself, the tools, or the battery.
9 Operate in a well ventilated area. DO NOT inhale fuel vapours.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9 Keep children and other unauthorised persons away from the working area.
9 Keep yourself, tools, and test equipment away from hot engine parts.
9 Always keep a fire extinguisher that is suitable for fuel/electrical/chemical fires close by.
8 DO NOT smoke or have open ames near vehicle.
9 Cover fuel line fittings when connecting or disconnecting fuel lines to guard against high pressure leaks. Avoid contact with fuel.
9 Clean up all fuel spills immediately and dispose of all waste according to local regulations.
9 Maintain the tool components in good and clean condition for best and safest performance.
9 When work on the vehicle is finished, ensure all connections on the vehicle are restored, and that there are no tools left in the engine bay.
9 Replace tools in the carrying case and store in a safe, dry, childproof location.
2. INTRODUCTION
Suitable for 2.7TDi V6 and 3.6TDi V8 common rail diesel engines. Applicable to 276DT and 368DT engine codes used in Jaguar and Land
Rover vehicles.

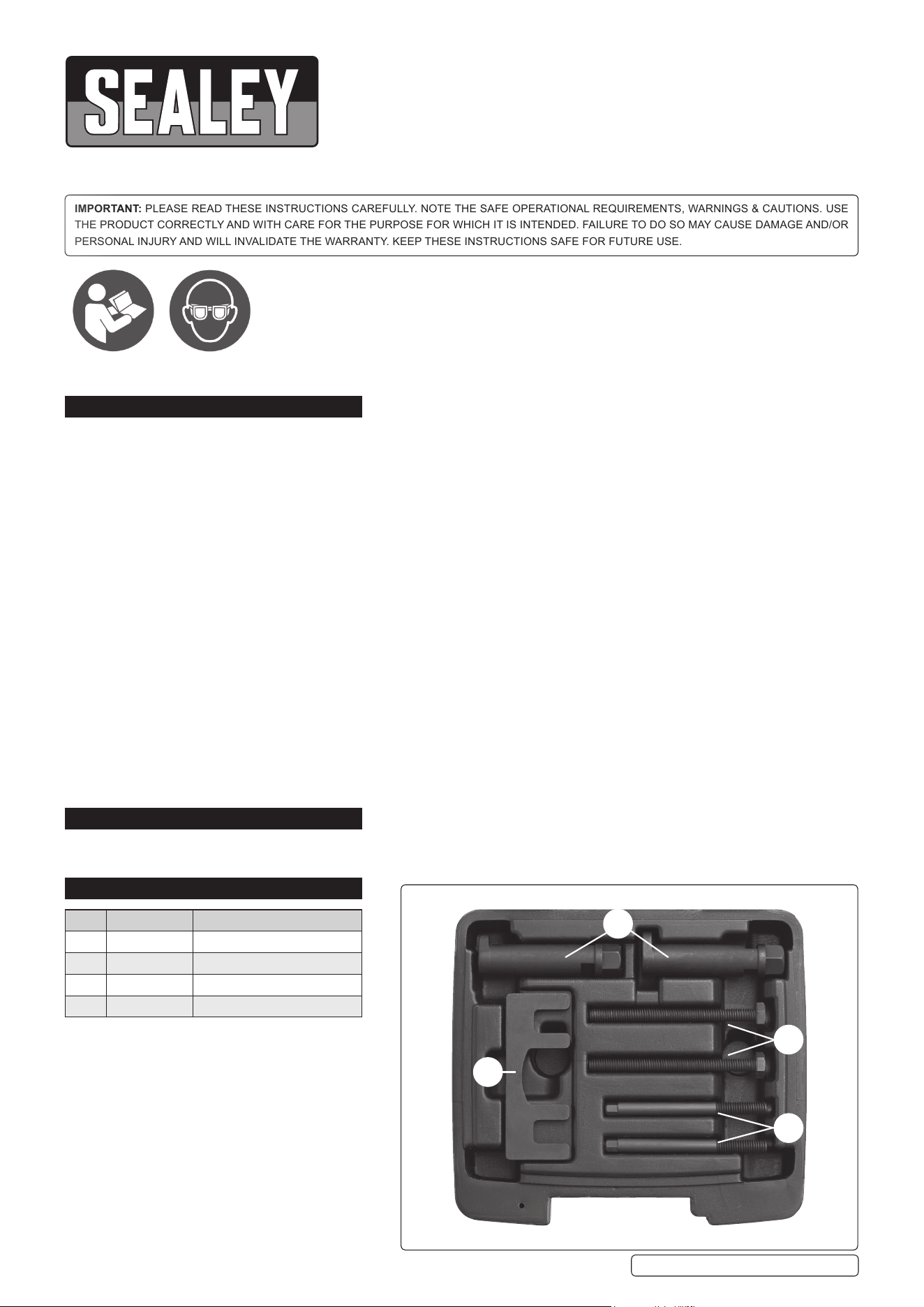

3. CONTENTS
Item Part No. Description
1. VSE5217.01 Extractor Plate
2. VSE5217.02 Extractor Legs (x2)
3. VSE5217.03 Set Screws (x2)
4. VSE5217.04 Extractor Base Screws (x2)
DIESEL INJECTOR PULLER -
JAGUAR, LAND ROVER
MODEL NO: VSE5217
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
VSE5217 | Issue 2 08/08/2019
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
1
2
3
4
4. APPLICATIONS
Vehicle Description Vehicle Model Engine Type Engine Code Year
Land Rover Discovery 3 2.7D TDV6 276DT (04-09)
Land Rover Discovery 4 2.7D TDV6 276DT (09-13)
Range Rover Sport 2.7D TDV6 276DT (05-09)
Jaguar S-Type 2.7D 276DT (04-08)
Jaguar XF 2.7D 276DT (08-09)
Jaguar XJ6 2.7D TDVi 276DT (05-10)
Range Rover L322 3.6D 368DT (06-11)
Range Rover Sport 3.6D 368DT (06-11)
5. OPERATION
5.1. Remove the injector pipes and securing bolts.
5.2. Fit the two extractor base screws (item 4) in place of injector securing bolts.
5.3. Assemble items (1, 2 and 3), slide over the extractor base screws ensuring (item 1) is securely located in the slots in the injector.
5.4. Tighten the set screws (item 3) evenly while counter holding the extractor legs to remove the injector.
VSE5217 | Issue 2 08/08/2019
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
