DIESEL INJECTOR PULLER - FORD ECOBLUE
2.0L
MODEL NO: VS2078.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop
practice regulations are adhered to when using tools.
WARNING!
Always use caution when working around fuel systems.
The fuel in the fuel rail may be pressurised even if the engine is not running. These instructions are provided as a guide only. Always
refer to the vehicle manufacturer’s service instructions, or a proprietary manual, to establish the current procedure and data, also any
warnings or cautions particular to the vehicle.
8 DO NOT use the set if any parts are missing or damaged.
8 DO NOT use this tool for any purpose other than that for which it is designed.
9 Switch off vehicle’s ignition and disconnect the battery before commencing work under the bonnet.
9 You must follow the vehicle’s service manual cautions when working around the air bag system. If the cautions are not followed the air
bag may deploy unexpectedly even after the ignition is turned ‘OFF’, resulting in personal injury.
8 DO NOT lay tools on the vehicle’s battery. This may short the terminals together, causing harm to yourself, the tools, or the battery.
9 Operate in a well ventilated area. DO NOT inhale fuel vapours.
9 Wear approved eye protection.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9 Keep children and other unauthorised persons away from the working area.
9 Keep yourself, tools, and test equipment away from hot engine parts.
9 Always keep a fire extinguisher that is suitable for fuel/electrical/chemical fires close by.
8 DO NOT smoke or have open ames near vehicle.
9 Always relieve fuel pressure before disconnecting fuel lines from injectors.
9 Use a cloth to cover fuel line fittings when connecting or disconnecting fuel lines. Avoid contact with fuel.
9 Clean up all fuel spills immediately and dispose of all used cloths properly.
9 Maintain the tool components in good and clean condition for best and safest performance.
9 When work on the vehicle is finished, ensure all connections on vehicle are restored, and that there are no tools left in the engine bay.
9 Replace tools in the carrying case and store in a safe, dry, childproof location.
2. INTRODUCTION
Suitable for Ford EcoBlue 2.0L engines. Easily extracts Ford EcoBlue diesel injectors in one piece so they can be refitted. Set includes
force screw, (with bearing), force screw spacer, injector clamp, injector clamp bolt, flare nut, support bridge and bridge legs with nuts
(x2). Equivalent to OEM 303-1706.

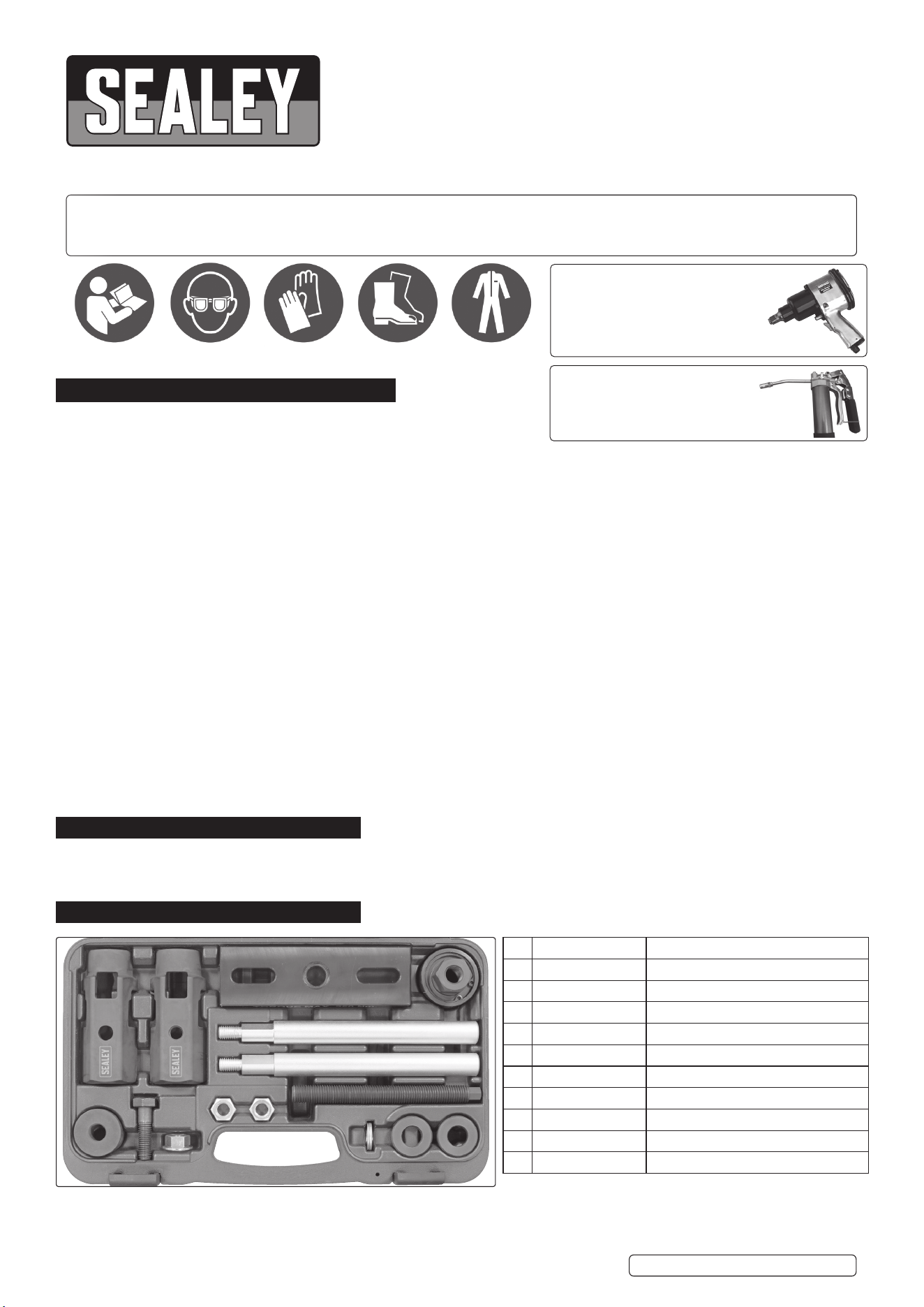

3. CONTENTS
VS2078.V2 Issue 2 16/08/2024
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
1 VS2078-01 Bridge
2 VS2078-02 Bridge Leg
3 VS2078-03 Injector Clamp (Upper)
4 VS2078-04 Injector Clamp (Lower)
5 VS2078-05 Force Screw Spacer
6 VS2078-06 Force Screw c/w Bearing Nut
7 VS2078-V2-07 Injector Clamp Bolt M12 (1.75 x 55)
8 VS2078-08 Spacer Washer
9 SN10.S Steel Nut M10 Zinc
10 FWM10.S Flat Washer M10 Zinc
11 VS2078-V2-11 Flare Nut
1
2
3 4
5 7
9
6
10
6
8
11
2
DO NOT USE AIR TOOLS
TO OPERATE FORCE SCREW
ALWAYS KEEP FORCE SCREW
WELL LUBRICATED. MOLYBDENUM
COPPER BASED RECOMMENDED
Wear safety
footware
Wear protective
clothing
4. APPLICATIONS
Ranger 2.0L EcoBlue Bi-Turbo Diesel: (04/2011).
Galaxy 2.0L EcoBlue Bi-Turbo Diesel: (01/2015-).
S-MAX 2.0L EcoBlue Bi-Turbo Diesel: (01/2015-).
Edge 2.0L EcoBlue Bi-Turbo Diesel: (08/2015-).
Ranger 2.0L EcoBlue Bi-Turbo Diesel: (02/2023-).
Transit 2.0L EcoBlue Diesel: AWD, RWD : (08/2013-).
Transit 2.0L EcoBlue Diesel: AWD, RWD : (10/2018).
Transit 2.0L EcoBlue Diesel: FWD : (08/2013-).
Transit 2.0L EcoBlue Diesel : FWD : (10/2018-).
Ranger 2.0L EcoBlue Diesel: (04/2011-).
Transit Custom 2.0L EcoBlue Diesel: (04/2012-).
Transit 2.0L EcoBlue Diesel: (08/2013-).
Mondeo 2.0L EcoBlue Diesel: (10/2014-).
Galaxy 2.0L EcoBlue Diesel: (01/2015-).
S-MAX 2.0L EcoBlue Diesel: (01/2015-).
Edge 2.0L EcoBlue Diesel: (08/2015-).
Focus 2.0L EcoBlue Diesel: (01/2018-).
Transit 2.0L EcoBlue Diesel: (10/2018-).
Kuga 2.0L EcoBlue Diesel: (07/2019-).
Ranger 2.0L EcoBlue Diesel: (02/2023-).
Ranger 2.0L EcoBlue Diesel/2.0L EcoBlue Bi-Turbo Diesel:
(02/2023-).
5. OPERATION

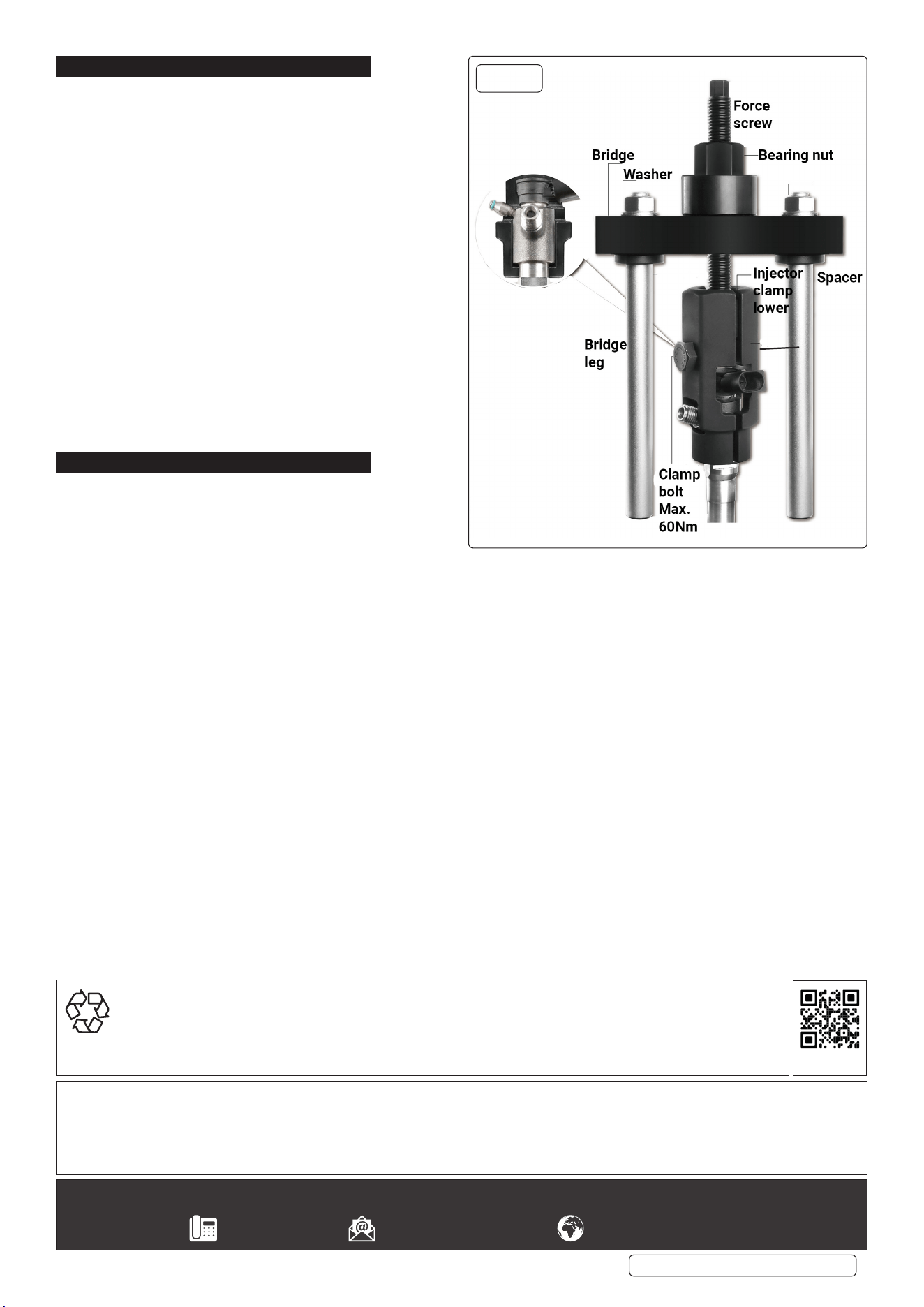

5.1. Assemble tool as per g.1, lubricate force screw.
Note: Injector clamp bolt max. torque is 60Nm.
5.2. Place 27mm pass through socket tted to torque wrench,
onto bearing nut.
5.3. Hold force screw with 11mm spanner.
5.4. Wind bearing nut to extract injector.
Note: Maximum torque applied to bearing nut is 250Nm.
5.5. Ensure injector bore is clean and free of debris before retting.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product. Please note that other versions of this product are available. If you require
documentation for alternative versions, please email or call our technical team on technical@sealey.co.uk or 01284 757505.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Original Language Version
© Jack Sealey Limited
VS2078.V2 Issue 2 16/08/2024
g.1
Flare Nut
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
