USERMANUAL

AXISP7216VideoEncoder

AboutthisDocument

Thismanualisintendedforadministratorsandusersofthe

AXISP7216VideoEncoder,andisapplicabletormware5.4and

later.Itincludesinstructionsforusingandmanagingtheproducton

yournetwork.Previousexperienceofnetworkingwillbeofusewhen

usingthisproduct.SomeknowledgeofUNIXorLinux-basedsystems

mayalsobebenecial,fordevelopingshellscriptsandapplications.

LaterversionsofthisdocumentwillbepostedtotheAxiswebsite,

asrequired.Seealsotheproduct’sonlinehelp,availableviathe

web-basedinterface.

LegalConsiderations

Videoandaudiosurveillancecanberegulatedbylawsthatvaryfrom

countrytocountry.Checkthelawsinyourlocalregionbeforeusing

thisproductforsurveillancepurposes.

Thisproductincludesone(1)H.264decoderlicenseandone(1)AAC

decoderlicense.Topurchasefurtherlicenses,contactyourreseller.

Liability

Everycarehasbeentakeninthepreparationofthisdocument.Please

informyourlocalAxisofceofanyinaccuraciesoromissions.Axis

CommunicationsABcannotbeheldresponsibleforanytechnicalor

typographicalerrorsandreservestherighttomakechangestothe

productandmanualswithoutpriornotice.AxisCommunicationsAB

makesnowarrantyofanykindwithregardtothematerialcontained

withinthisdocument,including,butnotlimitedto,theimplied

warrantiesofmerchantabilityandtnessforaparticularpurpose.Axis

CommunicationsABshallnotbeliablenorresponsibleforincidentalor

consequentialdamagesinconnectionwiththefurnishing,performance

oruseofthismaterial.Thisproductisonlytobeusedforitsintended

purpose.

IntellectualPropertyRights

AxisABhasintellectualpropertyrightsrelatingtotechnologyembodied

intheproductdescribedinthisdocument.Inparticular,andwithout

limitation,theseintellectualpropertyrightsmayincludeoneormore

ofthepatentslistedatwww.axis.com/patent.htmandoneormore

additionalpatentsorpendingpatentapplicationsintheUSandother

countries.

Thisproductcontainslicensedthird-partysoftware.Seethemenuitem

“About”intheproduct’suserinterfaceformoreinformation.

ThisproductcontainssourcecodecopyrightAppleComputer,

Inc.,underthetermsofApplePublicSourceLicense2.0(see

www.opensource.apple.com/apsl).Thesourcecodeisavailablefrom

https://developer.apple.com/bonjour/

EquipmentModications

Thisequipmentmustbeinstalledandusedinstrictaccordancewiththe

instructionsgivenintheuserdocumentation.Thisequipmentcontains

nouser-serviceablecomponents.Unauthorizedequipmentchangesor

modicationswillinvalidateallapplicableregulatorycertications

andapprovals.

TrademarkAcknowledgments

AXISCOMMUNICATIONS,AXIS,ETRAX,ARTPECandVAPIXare

registeredtrademarksortrademarkapplicationsofAxisABinvarious

jurisdictions.Allothercompanynamesandproductsaretrademarksor

registeredtrademarksoftheirrespectivecompanies.

Apple,Boa,Apache,Bonjour,Ethernet,InternetExplorer,Linux,

Microsoft,Mozilla,Real,SMPTE,QuickTime,UNIX,Windows,Windows

VistaandWWWareregisteredtrademarksoftherespectiveholders.

JavaandallJava-basedtrademarksandlogosaretrademarksor

registeredtrademarksofOracleand/oritsafliates.UPnP

isa

certicationmarkoftheUPnP

ImplementersCorporation.

SD,SDHCandSDXCaretrademarksorregisteredtrademarksofSD-3C,

LLCintheUnitedStates,othercountriesorboth.Also,miniSD,microSD,

miniSDHC,microSDHC,microSDXCarealltrademarksorregistered

trademarksofSD-3C,LLCintheUnitedStates,othercountriesorboth.

RegulatoryInformation

Europe

ThisproductcomplieswiththeapplicableCEmarkingdirectives

andharmonizedstandards:

•ElectromagneticCompatibility(EMC)Directive2004/108/EC.See

ElectromagneticCompatibility(EMC),onpage2.

•LowVoltage(LVD)Directive2006/95/EC.SeeSafety,onpage2.

•RestrictionsofHazardousSubstances(RoHS)Directive2011/65/EU.

SeeDisposalandRecycling,onpage2.

Acopyoftheoriginaldeclarationofconformitymaybeobtainedfrom

AxisCommunicationsAB.SeeContactInformation,onpage3.

ElectromagneticCompatibility(EMC)

Thisequipmenthasbeendesignedandtestedtofulllapplicable

standardsfor:

•Radiofrequencyemissionwheninstalledaccordingtothe

instructionsandusedinitsintendedenvironment.

•Immunitytoelectricalandelectromagneticphenomenawhen

installedaccordingtotheinstructionsandusedinitsintended

environment.

USA

Thisequipmenthasbeentestedusingashieldednetworkcable(STP)

andfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesigned

toprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,usesandcanradiate

radiofrequencyenergyand,ifnotinstalledandusedinaccordance

withtheinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterference

willnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,which

canbedeterminedbyturningtheequipmentoffandon,theuseris

encouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfrom

thattowhichthereceiverisconnected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Canada

ThisClassBdigitalapparatuscomplieswithCanadianICES-003.

CetappareilnumériquedelaclasseBestconfomeàlanorme

NMB-003duCanada.

Europe

ThisdigitalequipmentfulllstherequirementsforRFemission

accordingtotheClassBlimitofEN55022.

Thisproductfulllstherequirementsforimmunityaccording

toEN61000-6-1residential,commercialandlight-industrial

environments.

Thisproductfulllstherequirementsforimmunityaccordingto

EN61000-6-2industrialenvironments.

Australia/NewZealand

ThisdigitalequipmentfulllstherequirementsforRFemission

accordingtotheClassBlimitofAS/NZSCISPR22.

Japan

この装置は、クラスB情報技術装置です。この装置は、家庭

環境で使用することを目的としていますが、この装置がラジ

オやテレビジョン受信機に近接して使用されると、受信障

害を引き起こすことがあります。取扱説明書に従って正し

い取り扱いをして下さい。

Korea

이기기는가정용(B급)전자파적합기기로서주로가정에

서사용하는것을목적으로하며,모든지역에서사용

할수있습니다.

Safety

ThisproductcomplieswithIEC/EN/UL60950-1,SafetyofInformation

TechnologyEquipment.

Thepowersupplyusedwiththisproductshallfullltherequirements

forSafetyExtraLowVoltage(SELV)andLimitedPowerSource(LPS)

accordingtoIEC/EN/UL60950-1.

DisposalandRecycling

Whenthisproducthasreachedtheendofitsusefullife,disposeof

itaccordingtolocalrawsandregulations.Forinformationabout

yournearestdesignatedcollectionpoint,contactyourlocalauthority

responsibleforwastedisposal.Inaccordancewithlocallegislation,

penaltiesmaybeapplicableforincorrectdisposalofthiswaste.

Europe

Thissymbolmeansthattheproductshallnotbedisposedof

togetherwithhouseholdorcommercialwaste.Directive2012/19/EU

onwasteelectricalandelectronicequipment(WEEE)isapplicablein

theEuropeanUnionmemberstates.Topreventpotentialharmto

humanhealthandtheenvironment,theproductmustbedisposed

ofinanapprovedandenvironmentallysaferecyclingprocess.For

informationaboutyournearestdesignatedcollectionpoint,contact

yourlocalauthorityresponsibleforwastedisposal.Businessesshould

contacttheproductsupplierforinformationabouthowtodispose

ofthisproductcorrectly.

ThisproductcomplieswiththerequirementsofDirective2011/65/EU

ontherestrictionoftheuseofcertainhazardoussubstancesin

electricalandelectronicequipment(RoHS).

China

Thisproductcomplieswiththerequirementsofthelegislative

actAdministrationontheControlofPollutionCausedbyElectronic

InformationProducts(ACPEIP).

ContactInformation

AxisCommunicationsAB

Emdalavägen14

22369Lund

Sweden

Tel:+46462721800

Fax:+4646136130

www.axis.com

Support

Shouldyourequireanytechnicalassistance,pleasecontactyourAxis

reseller.Ifyourquestionscannotbeansweredimmediately,your

resellerwillforwardyourqueriesthroughtheappropriatechannelsto

ensurearapidresponse.IfyouareconnectedtotheInternet,youcan:

•downloaduserdocumentationandsoftwareupdates

•ndanswerstoresolvedproblemsintheFAQdatabase.Search

byproduct,category,orphrase

•reportproblemstoAxissupportstaffbyloggingintoyourprivate

supportarea

•chatwithAxissupportstaff(selectedcountriesonly)

•visitAxisSupportatwww.axis.com/techsup/

LearnMore!

VisitAxislearningcenterwww.axis.com/academy/forusefultrainings,

webinars,tutorialsandguides.

AXISP7216VideoEncoder

TableofContents

HardwareOverview..........................................6

..............................................................6

ConnectorsandButtons..........................................6

LEDIndicators..................................................8

AccessingtheProduct.......................................9

AccessfromaBrowser...........................................9

AccessfromtheInternet..........................................10

SettheRootPassword...........................................10

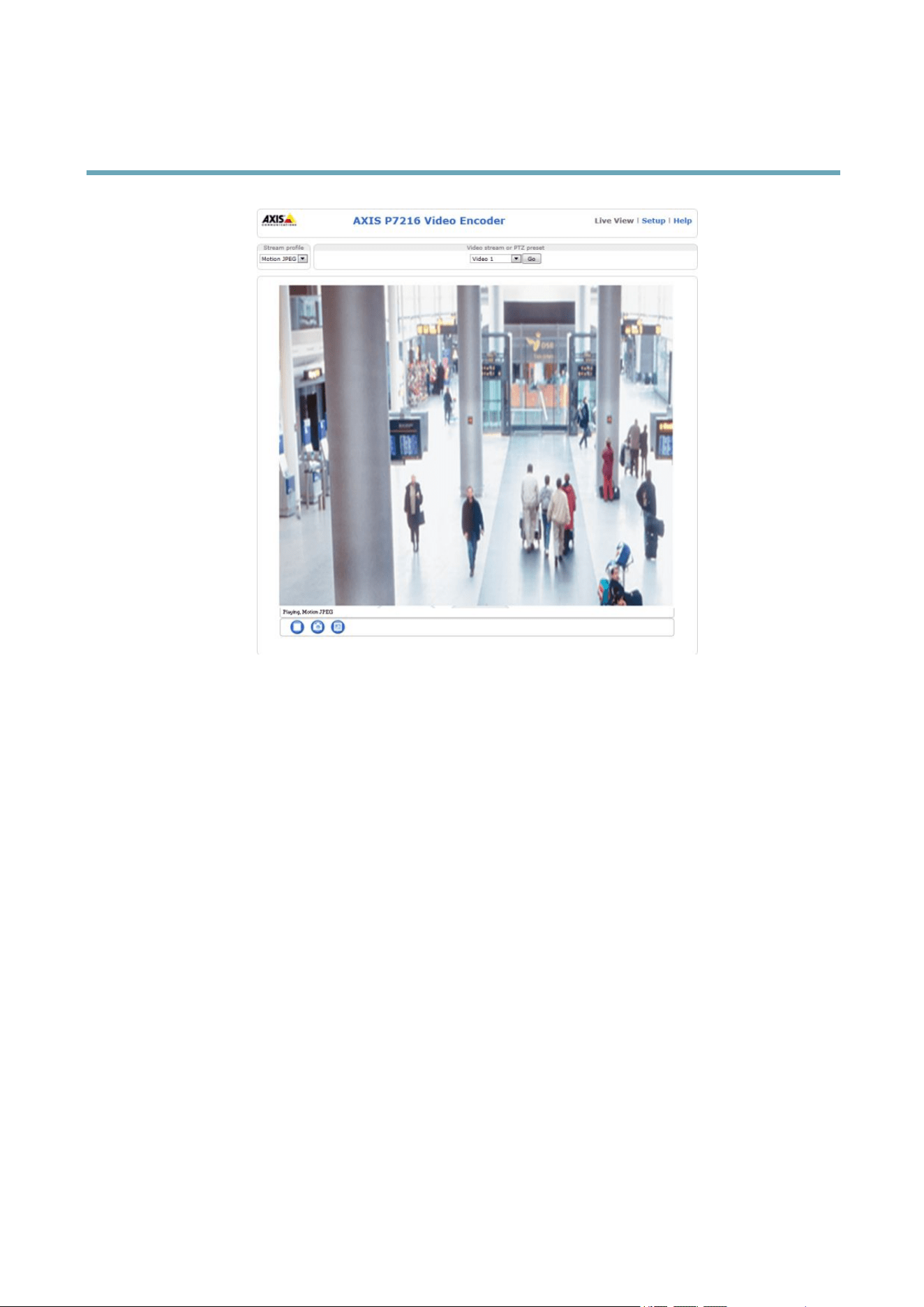

TheLiveViewPage..............................................11

MediaStreams.............................................14

HowtoStreamH.264............................................14

MJPEG........................................................14

AXISMediaControl(AMC)........................................14

AlternativeMethodsofAccessingtheVideoStream....................15

AccessingAudioStreams.........................................16

SettingUptheProduct......................................17

BasicSetup....................................................17

VideoandAudio............................................18

VideoStream...................................................18

Quadstream...................................................19

StreamProles.................................................19

CameraSettings................................................20

Overlay........................................................20

PrivacyMask...................................................22

AudioSettings..................................................22

AudioClips....................................................23

LiveViewCong............................................24

PTZ(PanTiltZoom).........................................27

PresetPositions.................................................27

GuardTour.....................................................27

InstallingaPTZdriver............................................28

Advanced......................................................28

ControlQueue..................................................29

Detectors..................................................30

CameraTampering..............................................30

MotionDetection...............................................30

AudioDetection................................................32

Events....................................................33

SettingUpanActionRule........................................34

Recipients.....................................................35

Schedules......................................................36

Recurrences....................................................36

Recordings.................................................37

RecordingList..................................................37

ContinuousRecording............................................37

Languages.................................................38

SystemOptions.............................................39

Security.......................................................39

Date&Time....................................................41

Network.......................................................42

Storage.......................................................47

Ports&Devices.................................................48

Maintenance...................................................48

Support.......................................................49

Advanced......................................................50

ResettoFactoryDefaultSettings...................................50

Troubleshooting............................................51

CheckingtheFirmware...........................................51

UpgradingtheFirmware..........................................51

Symptoms,PossibleCausesandRemedialActions.....................52

TechnicalSpecications......................................56

AXISP7216VideoEncoder

TableofContents

Connectors....................................................58

PerformanceConsiderations.......................................60

AXISP7216VideoEncoder

HardwareOverview

VideoinputconnectorBNCx16

NetworkLEDRJ45

NetworkLEDSFP

NetworkLEDauxiliary

PowerLED

StatusLED1–4

Audiooutconnector

Audioinconnector2

Audioinconnector1

5 6 7

Powerconnector

NetworkconnectorSFP

NetworkconnectorRJ45

AuxiliaryconnectorRJ45(maintenance)

Cardslot(microSD)x4

I/Oterminalconnectorx4

RS-485/422connectorx4

Controlbuttonx4

Protectiveearth

ConnectorsandButtons

Fortechnicalspecications,seepage56.

BNCConnector

Eachvideoinputisterminatedusingacoax/BNCconnector.Connecta75Ohmcoaxialvideocable;therecommendedmaximum

lengthis250m(800ft).

Note

75Ohmvideoterminationcanbeenabled/disabledforthevideoinputthroughtheproduct'swebpageatVideo&Audio>

CameraSettings>Videotermination.Thisterminationisenabledonfactorydefault.Incaseswheretheproductistobe

connectedinparallelwithotherequipment,foroptimumvideoquality,itisrecommendedthatterminationbeenabledfor

onlythelastdeviceinthevideosignalchain.

NetworkConnector

RJ45Ethernetconnector.

AXISP7216VideoEncoder

HardwareOverview

TheunitcanonlyuseoneNetworkinterface,eitheranSFPmoduleorRJ45connector.SFPmodulehashigherprioritythanthe

RJ45connector.

NOTICE NOTICE

NOTICE

Theproductshallbeconnectedusingashieldednetworkcable(STP).Allcablesconnectingtheproducttothenetworkswitch

shallbeshielded(STP)andintendedfortheirspecicuse.Makesurethatthenetworkswitchisproperlygrounded.For

informationaboutregulatoryrequirements,seeRegulatoryInformation,onpage2.

AuxiliaryConnector

ThevideoencoderisequippedwithanadditionalRJ45networkconnector.Thepurposewiththisconnectoristosimplifymaintenance

workonthevideoencoderthatrequiresconnectiontoacomputer.

Note

Theauxiliaryconnectorshouldonlybeconnectedduringmaintenancework.

I/OConnector

Useinapplicationsfore.g.motiondetection,eventtriggering,timelapserecordingandalarmnotications.Inadditiontoan

auxiliarypowerandaGNDpin,theI/Oterminalconnectorprovidestheinterfaceto:

•Digitaloutput–ForconnectingexternaldevicessuchasrelaysandLEDs.Connecteddevicescanbeactivatedbythe

VAPIX®ApplicationProgrammingInterface,outputbuttonsontheLiveViewpageorbyanActionRule.Theoutputwill

showasactive(shownunderSystemOptions>Ports&Devices)ifthealarmdeviceisactivated.

•Digitalinput–Analarminputforconnectingdevicesthatcantogglebetweenanopenandclosedcircuit,forexample:

PIRs,door/windowcontacts,glassbreakdetectors,etc.Whenasignalisreceivedthestatechangesandtheinputbecomes

active(shownunderSystemOptions>Ports&Devices).

PowerConnector

2-pinterminalblockforpowerinput.UseaSafetyExtraLowVoltage(SELV)compliantlimitedpowersource(LPS)witheitherarated

outputpowerlimitedto≤100Woraratedoutputcurrentlimitedto≤5A.

AudioConnector

TheAxisproducthasthefollowingaudioconnectors:

•Audioin(pink)–3.5mminputforamonomicrophone,oraline-inmonosignal(leftchannelisusedfromastereosignal).

•Audioout(green)–3.5mmoutputforaudio(linelevel)thatcanbeconnectedtoapublicaddress(PA)systemoran

activespeakerwithabuilt-inamplier.Astereoconnectormustbeusedforaudioout.

RS485/RS422Connector

TwoterminalblocksforRS485/RS422serialinterfaceusedtocontrolauxiliaryequipmentsuchasPTZdevices.

SDCardSlot

AmicroSDcard(notincluded)canbeusedforlocalrecordingwithremovablestorage.Formoreinformation,seeTechnical

Specications,onpage56.

NOTICE NOTICE

NOTICE

Topreventcorruptionofrecordings,theSDcardshouldbeunmountedbeforeremoval.Tounmount,gotoSetup>System

Options>Storage>SDCardandclickUnmount.

ControlButton

Thecontrolbuttonisusedfor:

AXISP7216VideoEncoder

HardwareOverview

•Resettingtheproducttofactorydefaultsettings.Seepage50.

•ConnectingtoanAXISVideoHostingSystemservice.Seepage43.Toconnect,pressandholdthebuttonforabout1

seconduntiltheStatusLEDashesgreen.

•ConnectingtoAXISInternetDynamicDNSService.Seepage43.Toconnect,pressandholdthebuttonforabout3seconds.

LEDIndicators

LED

Color

Indication

Green

Steadyforconnectiontoa1GBit/snetwork.Flashesfornetworkactivity.

Amber

Steadyforconnectiontoa10/100MBit/snetwork.Flashesfornetworkactivity.

Network

UnlitNonetworkconnection.

GreenSteadygreenfornormaloperation.

Amber

Steadyduringstartupandwhenrestoringsettings.

Status

Red

Slowashforfailedupgrade.

Green

Normaloperation.

Power

Amber

Flashesgreen/amberduringrmwareupgrade.

Note

•TheStatusLEDcanbeconguredtobeunlitduringnormaloperation.Tocongure,gotoSetup>SystemOptions>Ports

&Devices>LED.Seetheonlinehelpformoreinformation.

•TheStatusLEDcanbeconguredtoashwhileaneventisactive.

AXISP7216VideoEncoder

AccessingtheProduct

ToinstalltheAxisproduct,refertotheInstallationGuidesuppliedwiththeproduct.

Theproductcanbeusedwithmostoperatingsystemsandbrowsers.TherecommendedbrowsersareInternetExplorerwithWindows,

SafariwithMacintoshandFirefoxwithotheroperatingsystems.SeeTechnicalSpecications,onpage56.

ToviewstreamingvideoinInternetExplorer,allowinstallationofAXISMediaControl(AMC)whenprompted.

Note

•QuickTime

isalsosupportedforviewingH.264streamsandforaudio.

•Ifyourcomputerrestrictstheuseofadditionalsoftwarecomponents,theproductcanbeconguredtouseaJavaapplet

forviewingMotionJPEG.

AccessfromaBrowser

1.Startabrowser(InternetExplorer,Firefox,Safari).

2.EntertheIPaddressorhostnameoftheAxisproductinthebrowser’sLocation/Addresseld.Toaccesstheproductfroma

Macintoshcomputer(MacOSX),clickontheBonjourtabandselecttheproductfromthedrop-downlist.

IfyoudonotknowtheIPaddress,useAXISIPUtilitytolocatetheproductonthenetwork.Forinformationabouthowto

discoverandassignanIPaddress,seetheInstallationandManagementSoftwareCDorthedocumentAssignanIPAddress

andAccesstheVideoStreamonAxisSupportwebatwww.axis.com/techsup

3.Enteryourusernameandpassword.Ifthisisthersttimetheproductisaccessed,therootpasswordmustrstbe

congured.Forinstructions,seeSettheRootPassword,onpage10.

4.Theproduct’sLiveViewpageopensinyourbrowser.

Note

ThecontrolsandlayoutoftheLiveViewpagemayhavebeencustomizedtomeetspecicinstallationrequirementsand

userpreferences.Consequently,someoftheexamplesandfunctionsfeaturedheremaydifferfromthosedisplayedin

yourownLiveViewpage.

AXISP7216VideoEncoder

AccessingtheProduct

AccessfromtheInternet

Onceconnected,theAxisproductisaccessibleonyourlocalnetwork(LAN).ToaccesstheproductfromtheInternetyoumust

congureyournetworkroutertoallowincomingdatatrafctotheproduct.Todothis,enabletheNAT-traversalfeature,which

willattempttoautomaticallyconguretheroutertoallowaccesstotheproduct.ThisisenabledfromSetup>SystemOptions>

Network>TCP/IPAdvanced.

Formoreinformation,seeNATtraversal(portmapping)forIPv4,onpage44.SeealsoAXISInternetDynamicDNSService

atwww.axiscam.net

ForTechnicalnotesonthisandothertopics,visittheAxisSupportwebatwww.axis.com/techsup

SettheRootPassword

ToaccesstheAxisproduct,youmustsetthepasswordforthedefaultadministratoruserroot.ThisisdoneintheCongureRoot

Passworddialog,whichopenswhentheproductisaccessedforthersttime.

Topreventnetworkeavesdropping,therootpasswordcanbesetviaanencryptedHTTPSconnection,whichrequiresanHTTPS

certicate.HTTPS(HypertextTransferProtocoloverSSL)isaprotocolusedtoencrypttrafcbetweenwebbrowsersandservers.The

HTTPScerticateensuresencryptedexchangeofinformation.SeeHTTPS,onpage39.

Thedefaultadministratorusernamerootispermanentandcannotbedeleted.Ifthepasswordforrootislost,theproductmustbe

resettothefactorydefaultsettings.SeeResettoFactoryDefaultSettings,onpage50.

TosetthepasswordviaastandardHTTPconnection,enteritdirectlyinthedialog.

TosetthepasswordviaanencryptedHTTPSconnection,followthesesteps:

1.ClickUseHTTPS.

AXISP7216VideoEncoder

AccessingtheProduct

Atemporarycerticate(validforoneyear)iscreated,enablingencryptionofalltrafctoandfromtheproduct,andthe

passwordcannowbesetsecurely.

2.Enterapasswordandthenre-enterittoconrmthespelling.

3.ClickOK.Thepasswordhasnowbeencongured.

TheLiveViewPage

ThecontrolsandlayoutoftheLiveViewpagemayhavebeencustomizedtomeetspecicinstallationrequirementsanduser

preferences.Consequently,someoftheexamplesandfunctionsfeaturedheremaydifferfromthosedisplayedinyourownLiveView

page.Thefollowingprovidesanoverviewofeachavailablecontrol.

ControlsontheLiveViewPage

SelectastreamprolefortheLiveViewpagefromtheStreamProledrop-downlist.Forinformationabouthow

tocongurestreamproles,seepage19.

ClickPulsetoactivatetheproduct’soutputportforadenedperiodoftime.Forinformationabouthowtoenable

andcongureoutputbuttons,seepage25.

ClicktheActive/Inactivebuttonstomanuallyactivateandinactivetheproduct’soutputport.Forinformation

abouthowtoenableandcongureoutputbuttons,seepage25.

TheManualTriggerbuttonisusedtotriggeranactionrulefromtheLiveViewpage.Forinformationabouthowto

congureandenablethebutton,seeManualTrigger,onpage11.

ClickSnapshottosaveasnapshotofthevideoimage.Right-clickthevideoimagetosaveitinJPEGformatonyour

computer.ThisbuttonisprimarilyintendedforusewhentheAXISMediaControlviewertoolbarisnotavailable.

EnablethisbuttonfromLiveViewCong>ActionButtons.

TheAudioclipdrop-downlistallowsyoutoplayanaudioclipfromtheLiveViewpage.Selecttheaudio

clipandclickthePlaybutton.

ManualTrigger

TheManualTriggerisusedtotriggeranactionrulefromtheLiveViewpage.Themanualtriggercanforexamplebeusedto

validateactionsduringproductinstallationandconguration.

Tocongurethemanualtrigger:

1.GotoSetup>Events.

2.ClickAddtoaddanewactionrule.

3.FromtheTriggerdrop-downlist,selectInputSignal.

4.Fromtheseconddrop-downlist,selectManualTrigger.

5.Selectthedesiredactionandconguretheothersettingsasrequired.

Formoreinformationaboutactionrules,seeEvents,onpage33.

ToshowthemanualtriggerbuttonsintheLiveViewpage:

AXISP7216VideoEncoder

AccessingtheProduct

1.GotoSetup>LiveViewLayout.

2.UnderActionButtons,selectShowmanualtriggerbutton.

AXISMediaControlviewertoolbar

TheAXISMediaControlviewertoolbarisavailableinInternetExploreronly.SeeAXISMediaControl(AMC),onpage14formore

information.Thetoolbardisplaysthefollowingbuttons:

ThePlaybuttonconnectstotheAxisproductandstartsplayingamediastream.

TheStopbuttonstopsthemediastream.

TheSnapshotbuttontakesasnapshotofthevideoimage.Thelocationwheretheimageissavedcanbespecied

intheAMCControlPanel.

ClicktheViewFullScreenbuttonandthevideoimagewilllltheentirescreen.PressESC(Escape)onthecomputer

keyboardtocancelfullscreenview.

TheRecordbuttonisusedtorecordthecurrentvideostream.Thelocationwheretherecordingissavedcanbespeciedin

theAMCControlPanel.EnablethisbuttonfromLiveViewCong>ViewerSettings.

AMCAudioControls

AMCaudiobuttonscontrolthespeakersandmicrophoneconnectedtotheclientcomputer.Thebuttonsareonlyvisiblewhen

audioisenabled.

Speakerbutton—Clicktoturnthespeakersonoroff.

Microphonebutton–Clicktomuteorunmutethemicrophone.InSimplex-speakeronlymode,theMicrophoneandTalk

buttonsmustbothbeactivetosendaudiototheAxisproduct.Clickeitherbuttontostopaudiotransmission.

Usetheslidertocontrolthevolumeofthespeakersandthemicrophone.

Half-duplexmode

TheTalk/Listenbuttonisusedtoswitchbetweensendingandreceivingaudio.Thebuttoncanbecongured

fromtheAudiotabintheAMCControlpanel:

•Push-To-Talkmode:Clickandholdthebuttontotalk/send.Releasethebuttontolisten.

•Togglemode:Clickoncetoswitchbetweentalkingandlistening.

Simplex–speakeronlymode

Tosendaudio,theTalkandMicrophonebuttonsmustbothbeactive.Clickeitherbuttontostopaudio

transmission.

PTZControls

TheLiveViewpagealsodisplaysPan/Tilt/Zoom(PTZ)controls.Theadministratorcanenable/disablecontrolsforspeciedusersunder

SystemOptions>Security>Users.

WiththePTZControlQueueenabledthetimeeachuserisincontrolofthePTZsettingsislimited.Clickthebuttonstorequestor

releasecontrolofthePTZcontrols.ThePTZControlQueueissetupunderPTZ>ControlQueue.

AXISP7216VideoEncoder

AccessingtheProduct

ClicktheEmulatejoystickmodebuttonandclickintheimagetomovethecameraviewinthedirectionofthe

mousepointer.

ClicktheCentermodebuttonandclickintheimagetocenterthecameraviewonthatposition.Thecentermode

buttoncouldalsobeusedtozoominonaspecicarea.Clickintheimageanddragtodrawarectanglesurrounding

theareatobemagnied.Tozoomout,rotatethemousewheel.

ClicktheCtrlpanelbuttontoopenthePTZcontrolpanelwhichprovidesadditionalPTZcontrols.

User-denedbuttonscanalsoappearintheControlpanel.SeeControls,onpage28.

SelectthevideochanneloraPTZpresetpositiontosteerthecameraviewtothesavedposition.See

PresetPositions,onpage27.

PanandTiltbars–Usethearrowstopanandtiltthecameraview,orclickonapositiononthebartosteerthe

cameraviewtothatposition.

Zoombar–Usethearrowstozoominandout,orclickonapositiononthebartozoomtothatposition.

Focusbar–Clickonapositiononthefocusbartosetthefocusposition.Thiswilldisabletheproduct’sautofocus.To

re-enable,usethePTZcontrolpanelwhichisopenedbyclickingtheCtrlpanelbutton(seeabove).

ThePTZcontrolscanbedisabledunderPTZ>Advanced>Controls,seeControls,onpage28.

AXISP7216VideoEncoder

MediaStreams

TheAxisproductprovidesseveralaudioandvideostreamformats.Yourrequirementsandthepropertiesofyournetworkwill

determinethetypeyouuse.

TheLiveViewpageintheproductprovidesaccesstoH.264andMotionJPEGvideostreams,audiostreamsandtothelistofavailable

streamproles.Otherapplicationsandclientscanaccessvideoandaudiostreamsdirectly,withoutgoingviatheLiveViewpage.

HowtoStreamH.264

ThevideocompressionstandardH.264makesgooduseofbandwidth,andcanprovidehighqualityvideostreamsatlessthan1Mbit/s.

Decidingwhichcombinationofprotocolsandmethodstousedependsonyourviewingrequirements,andonthepropertiesof

yournetwork.TheavailableoptionsinAXISMediaControlare:

UnicastRTP

Thisunicastmethod(RTPoverUDP)isused

forliveunicastvideo,especiallywhenitis

importanttoalwayshaveanup-to-datevideo

stream,evenifsomeimagesaredropped.

RTPoverRTSP

Thisunicastmethod(RTPtunneledoverRTSP)

isusefulasitisrelativelysimpletocongure

rewallstoallowRTSPtrafc.

RTPoverRTSPoverHTTP

Thisunicastmethodcanbeusedtotraverse

rewalls.Firewallsarecommonlyconguredto

allowtheHTTPprotocol,thusallowingRTPto

betunneled.

Unicastingisusedforvideo-on-demand

transmissionsothatthereisnovideotrafc

onthenetworkuntilaclientconnectsand

requeststhestream.

Notethatthereareamaximumof20

simultaneousunicastconnections.

MulticastRTP

Thismethod(RTPoverUDP)shouldbeusedforlivemulticastvideo.Thevideostreamisalways

up-to-date,evenifsomeimagesaredropped.

Multicastingprovidesthemostefcientusageofbandwidthwhentherearelargenumbersof

clientsviewingsimultaneously.Amulticastcannothowever,passanetworkrouterunlessthe

routerisconguredtoallowthis.ItisnotpossibletomulticastovertheInternet,forexample.

Notealsothatallmulticastviewerscountasoneunicastviewerinthemaximumtotalof20

simultaneousconnections.

AXISMediaControlnegotiateswiththeAxisproducttodeterminethetransportprotocoltouse.Theorderofpriority,listedinthe

AMCControlPanel,canbechangedandtheoptionsdisabled,tosuitspecicrequirements.

Note

H.264islicensedtechnology.TheAxisproductincludesoneH.264viewingclientlicense.Installingadditionalunlicensed

copiesoftheclientisprohibited.Topurchaseadditionallicenses,contactyourAxisreseller.

MJPEG

ThisformatusesstandardJPEGstillimagesforthevideostream.Theseimagesarethendisplayedandupdatedataratesufcient

tocreateastreamthatshowsconstantlyupdatedmotion.

TheMotionJPEGstreamusesconsiderableamountsofbandwidth,butprovidesexcellentimagequalityandaccesstoeveryimage

containedinthestream.TherecommendedmethodofaccessingMotionJPEGlivevideofromtheAxisproductistousetheAXIS

MediaControlinInternetExplorerinWindows.

AXISMediaControl(AMC)

AXISMediaControl(AMC)inInternetExplorerinWindowsistherecommendedmethodofaccessinglivevideofromtheAxisproduct.

AXISP7216VideoEncoder

MediaStreams

TheAMCControlPanelcanbeusedtocongurevariousvideoandaudiosettings.PleaseseetheAXISMediaControlUser’s

Manualformoreinformation.

TheAMCControlPanelisautomaticallyinstalledonrstuse,afterwhichitcanbecongured.OpentheAMCControlPanelfrom:

•WindowsControlPanel(fromtheStartmenu)

•Alternatively,right-clickthevideoimageinInternetExplorerandclickSettings.

AlternativeMethodsofAccessingtheVideoStream

YoucanalsoaccessvideoandimagesfromtheAxisproductinthefollowingways:

•MotionJPEGserverpush(ifsupportedbytheclient,Firefox,forexample).ThisoptionmaintainsanopenHTTPconnection

tothebrowserandsendsdataasandwhenrequired,foraslongasrequired.

•StillJPEGimagesinabrowser.Enterthepathhttp://<ip>/axis-cgi/jpg/image.cgi

•WindowsMediaPlayer.ThisrequiresAXISMediaControlandtheH.264decodertobeinstalled.Thefollowingpaths

canbeused:

-UnicastviaRTP:axrtpu://<ip>/axis-media/media.amp

-UnicastviaRTSP:axrtsp://<ip>/axis-media/media.amp

-UnicastviaRTSP,tunneledviaHTTP:axrtsphttp://<ip>/axis-media/media.amp

-Multicast:axrtpm://<ip>/axis-media/media.amp

•QuickTime

.Thefollowingpathscanbeused:

-rtsp://<ip>/axis-media/media.amp

-rtsp://<ip>/axis-media/media.3gp

AXISP7216VideoEncoder

MediaStreams

Note

•<ip>=IPaddess

•TheAxisproductsupportsQuickTime6.5.1andlater.

•QuickTimeaddslatencytothevideostream.

•ItmaybepossibletouseotherplayerstoviewtheH.264streamusingthepathsabove,althoughAxisdoesnotguarantee

this.

AccessingAudioStreams

TheLiveViewpageprovidesaccesstoaudiothroughAXISMediaControl;inadditionaudiocanbeaccessedinthefollowingways:

•VAPIX®ApplicationProgrammingInterface(API)Formoreinformation,visitwww.axis.com/developer

•WindowsMediaPlayersupportssimplexaudio.Thefollowingpathscanbeused:

-UnicastviaRTP:axrtpu://<ip>/axis-media/media.amp

-UnicastviaRTSP:axrtsp://<ip>/axis-media/media.amp

-UnicastviaRTSP,tunneledviaHTTP:axrtsphttp://<ip>/axis-media/media.amp

-Multicast:axrtpm://<ip>/axis-media/media.amp

•QuickTime

supportsG.711andAACaudioencoding.Thefollowingpathscanbeused:

-rtsp://<ip>/axis-media/media.amp

-rtsp://<ip>/axis-media/media.3gp

•TheJavaappletsupportssimplexaudiowithG.711encoding.

AXISP7216VideoEncoder

SettingUptheProduct

TheAxisproductcanbeconguredbyuserswithadministratororoperatorrights.Toopentheproduct’sSetuppages,clickSetupin

thetopright-handcorneroftheLiveViewpage.

•Administratorshaveunrestrictedaccesstoallsettings.

•OperatorshaveaccesstoallsettingsexceptSystemOptions

Seealsotheonlinehelp

BasicSetup

BasicSetupprovidesshortcutstothesettingsthatshouldbemadebeforeusingtheAxisproduct:

1.Users.Seepage39.

2.TCP/IP.Seepage42.

3.Date&Time.Seepage41.

4.VideoStream.Seepage18.

5.AudioSettings.Seepage22.

TheBasicSetupmenucanbedisabledfromSystemOptions>Security>Users.

AXISP7216VideoEncoder

VideoandAudio

Thevideoandaudiosettingscanbeusedtooptimizevideoandaudioquality.Youcancongurethefollowing:

•Videostreamsettings.Seepage18.

•Streamproles.Seepage19.

•Camerasettings.Seepage20.

•Overlayimage.Seepage20.

•Privacymask.Seepage22.

•Audiosettings.Seepage22.

•Audioclips.Seepage23.

VideoStream

YoucandenethefollowingvideostreamsettingsfromVideo&Audio>VideoStream:

•Image.Seepage18.

•Audio.Seepage22.

•H.264.Seepage19.

•MJPEG.Seepage19.

Note

Videostreamcanbeconguredforeachchannelincludingquadstream.


ThedefaultimagesettingscanbeconguredunderVideo&Audio>VideoStream.SelecttheImagetab.

AXISP7216VideoEncoder

VideoandAudio

Thefollowingsettingsareavailable:

•Resolution.Selectthedefaultresolution.

•Compression.Thecompressionlevelaffectstheimagequality,bandwidthandlesizeofsavedimages;thelowerthe

compression,thehighertheimagequalitywithhigherbandwidthrequirementsandlargerlesizes.

•Rotateimage.Ifrequired,theimagecanberotated.

•Maximumframerate.Toavoidbandwidthproblems,theframerateallowedtoeachviewercanbeLimitedtoaxed

amount.Alternatively,theframeratecanbesetasUnlimited,whichmeanstheAxisproductalwaysdeliversthehighest

frameratepossibleunderthecurrentconditions.

•Overlaysettings.SeeOverlay,onpage20.

ClickSavetoapplythenewsettings.

H.264

H.264,alsoknownasMPEG-4Part10/AVC,isavideocompressionstandardthatprovideshighqualityvideostreamsatlowbitrates.

AnH.264videostreamconsistsofdifferenttypesofframessuchasI-framesandP-frames.AnI-frameisacompleteimagewhereas

P-framesonlycontainthedifferencesfrompreviousframes.

TheGOVlengthisthenumberofframesbetweentwoconsecutiveI-frames.IncreasingtheGOVlengthmaysaveconsiderablyon

bandwidthrequirementsinsomecases,butmayalsohaveanadverseaffectonimagequality.

TheAxisproductsupportstwoH.264proles.TheMainproleprovideshighercompressionthantheBaselineprolewiththesame

videoquality,butrequiresmoreprocessingpowertodecode.

ThebitratecanbesetasVariableBitRate(VBR)orConstantBitRate(CBR).VBRadjuststhebitrateaccordingtotheimage

complexity,usingupmorebandwidthforincreasedactivityintheimage,andlessforlowerimageactivity.CBRallowsyoutoseta

xedTargetbitratethatconsumesapredictableamountofbandwidth.Asthebitratewouldusuallyneedtoincreaseforincreased

imageactivity,butinthiscasecannot,framerateandimagequalityareaffectednegatively.Topartlycompensateforthis,itis

possibletoprioritizeeitherframerateorimagequality.Notsettingaprioritymeansthatframerateandimagequalityareequally

affected.Youmustsaveyoursettingsbeforetheycantakeeffect.

Thecurrentbitratecanbesettoappearastextoverlay.Todothis,selecttheIncludetextcheckboxoptionunderOverlay

Settingsandenterthemodier#bintheeld.

MJPEG

Sometimestheimagesizeislargeduetolowlightorcomplexscenery.Adjustingthemaximumframesizehelpstocontrolthe

bandwidthandstorageusedbytheMotionJPEGvideostreaminthesesituations.SettingtheframesizetotheDefaultsetting

providesconsistentlygoodimagequalityattheexpenseofincreasedbandwidthandstorageusageinlowlight.Limitingtheframe

sizeoptimizesbandwidthandstorageusage,butmaygivepoorimagequality.Topreventincreasedbandwidthandstorageusage,

themaximumframesizeshouldbesettoanoptimalvalue.

Quadstream

AQuadviewdisplaysimagesfromallfourchannelsonasinglescreen;wheretheimagesfromeachcameratakeupaquarterof

thedisplayarea.Itispossibletodenesettingsforthevideostreaminquadview.

StreamProles

Astreamproleisasetofpredenedstreamsettingsincludingresolution,compression,framerateandoverlaysettings.Stream

prolescanbeused:

•Whensettinguprecordingusingactionrules.SeeEvents,onpage33.

•Whensettingupcontinuousrecording.SeeContinuousRecording,onpage37.

AXISP7216VideoEncoder

VideoandAudio

•IntheLiveViewpage–selectthestreamprolefromtheStreamproledrop-downlist.

Forquicksetup,useoneofthepredenedstreamproles.Eachpredenedprolehasadescriptivename,indicatingitspurpose.If

required,thepredenedstreamprolescanbemodiedandnewcustomizedstreamprolescanbecreated.

Tocreateanewproleormodifyanexistingprole,gotoSetup>Video&Audio>StreamProles.

ToselectadefaultstreamprolefortheLiveViewpage,gotoSetup>LiveViewCong.

CameraSettings

TheVideo&Audio>CameraSettingspageprovidesaccesstoadvancedimagesettingsfortheAxisproduct.

ImageAppearance

TheimageBrightnesscanbeadjustedintherange0–100,whereahighervalueproducesabrighterimage.

TheContrastchangestherelativedifferencebetweenlightanddark.Itcanbeadjustedusingtheslidebar.

Videoinput

•EnteradescriptivenameforyourvideosourceintheVideosourcenameeld.

•ThevaluesintheOffsetAdjustmentseldsaffectthehorizontalandverticalsynchronizationfortheimage.Thiscan

beusedtoeliminateanyblackbordersurroundingtheimage.Highvalues,bothnegativeandpositivecanputthe

imageoutofsync.

•De-interlacing-isusedtoimprovevideostreamimagequalityfromanalogdevices.Selectanyofthefollowingoptions

fromtheDe-interlacingdrop-downlist.SelectNoneifde-interlacingisnotnecessary;Blendingforimprovedimage

qualitythatisnotasprocessorintensive;AdaptiveInterpolationperformsde-interlacingofthevideostreambyapplying

differentltersontheimage.ThismaygiveabetterresultthanMotionAdaptiveInterpolationinrarecases;Motion

AdaptiveInterpolationperformsde-interlacingofthevideostreambyapplyingdifferentltersdependingonthemotion

indifferentpartsoftheimage.Thiswillinmostcasesresultinthebestimagequality.

•Antialiasingwillminimizedistortionknownasaliasing,whichhappenswhenahigh-resolutionimageisrepresentedat

alowerresolution.

•Foreachvideoinput75Ohmvideoterminationcanbeenabled/disabledviatheproduct'swebpageatVideo&Audio

>VideoInput>Videotermination.Theseterminationsareenabledonfactorydefault.Incaseswheretheproductis

tobeconnectedinparallelwithotherequipment,foroptimumvideoquality,itisrecommendedthatterminationbe

enabledforonlythelastdeviceinthevideosignalchain.

ImageSettings

Noisereduction-SettoOntoenablenoisereduction.Noisereductionmayincreasetheamountofmotionblur.

Overlay

Overlaysareusedtoprovideextrainformation,forexampleforforensicvideoanalysisorduringproductinstallationand

conguration.Overlaysaresuperimposedoverthevideostream.

Anoverlaytextcandisplaythecurrentdateandtime,oratextstring.Whenusingatextstring,modierscanbeusedtodisplay

informationsuchasthecurrentbitrateorthecurrentframerate.Forinformationaboutavailablemodiers,seeFileNaming&

Date/TimeFormatsintheonlinehelp.

Itisalsopossibletodisplaytextwhenanactionruleistriggered,seeUsingOverlayTextinanActionRule.

Toenableoverlays:

1.GotoVideo&Audio>VideoStreamandselecttheImagetab.

AXISP7216VideoEncoder

VideoandAudio

2.Toincludeanoverlayimage,selectIncludeoverlayimageatthecoordinates.Theoverlayimagemustrstbeuploadedto

theAxisproduct,seeOverlayImage.

3.Toincludedateandtime,selectIncludedateandIncludetime.

4.Toincludeatextstring,selectIncludetextandenterthetextintheeld.Modierscanbeused,seeFileNaming&

Date/TimeFormatsintheonlinehelp

5.Denetextoverlaycharacteristicsintherelevantelds.

6.ClickSave.

Tomodifythedateandtimeformat,gotoSystemOptions>Date&Time.SeeDate&Time,onpage41.

Note

Overlayisnotpossibleforquadstream.

OverlayImage

Anoverlayimageisastaticimagesuperimposedoverthevideostream.Theimage,forexamplecompanylogo,isusedtoprovide

extrainformationortomaskapartoftheimage.

Sinceitisstatic,thepositionandsizeofanoverlayimagewillremainthesameregardlessofresolutionandPan/Tilt/Zoom

movements.Tosetupadynamicmask,whichwillalwaysmaskthespeciedpartofmonitoredarea,seePrivacyMask,onpage22

Touseanoverlayimage,theimagemustrstbeuploadedtotheAxisproduct:

1.GotoVideo&Audio>OverlayImage.

2.ClickBrowseandbrowsetothele.

3.ClickUpload.

4.SelecttheimagetousefromtheUseoverlayimagelist.

5.ClickSave.

Todisplaytheoverlayimage:

1.GotoVideo&Audio>VideoStreamandselecttheImagetab.

2.UnderOverlaySettings,selectIncludeoverlayimageatthecoordinatesandentertheXandYcoordinates.

3.ClickSave.

Forinformationaboutsupportedimageformats,seetheonlinehelp

UsingOverlayTextinanActionRule

Actionrules,seepage33,candisplayanoverlaytextwhentheruleistriggered.Thetextcanbeusedtoprovideinformationfor

forensicvideoanalysis,notifysurveillanceoperatorsorvalidatetriggersandactionsduringproductinstallationandconguration.

Todisplayoverlaytextwhenanactionruleistriggered,themodier#Dshouldbeusedasdescribedbelow.Whentheruleis

triggered,#Dwillbereplacedbythetextspeciedintheactionrule.

Startbyenablingoverlaytextinthevideostream:

1.GotoVideo&Audio>VideoStreamandselecttheImagetab.

2.UnderOverlaySettings,selectIncludetext.

3.Enterthemodier#Dand,optionally,additionaltextwhichwillbedisplayedalsowhentheactionruleisnotactive.

AXISP7216VideoEncoder

VideoandAudio

Createtheactionrule:

1.GotoEvents>ActionRules

2.ClickAddtocreateanewrule.

3.SelectaTriggerand,optionally,aScheduleandAdditionalconditions.Seetheonlinehelpfordetails.

4.FromtheActionslist,selectOverlayText

5.EnterthetexttodisplayintheTexteld.Thisisthetextthat#Dwillbereplacedby.

6.SpecifytheDuration.Thetextcanbedisplayedwhiletheruleisactiveorforaxednumberofseconds.

Example

Todisplaythetext“Motiondetected”whenmotionisdetected,enter#DintheIncludetexteldandenter“Motiondetected”in

theTexteldwhensettinguptheactionrule.

PrivacyMask

Aprivacymaskisanareaofsolidcolorthatprohibitsusersfromviewingpartsofthemonitoredarea.Privacymaskscannotbe

bypassedviatheVAPIX®ApplicationProgrammingInterface(API).

ThePrivacyMaskList(Video&Audio>PrivacyMask)showsallthemasksthatarecurrentlyconguredintheAxisproductand

indicatesiftheyareenabled.

Youcanaddanewmask,re-sizethemaskwiththemouse,chooseacolorforthemask,andgivethemaskaname.

Formoreinformation,seetheonlinehelp

Important

Addingmanyprivacymasksmayaffecttheproduct’sperformance.

Note

Privacymaskisnotavailableforthequadstream.However,privacymasksconguredoneachchannelwillbedisplayed

inthequad.

AudioSettings

TheaudiofunctionalityforeachvideostreamisenabledunderVideo&Audio>VideoStream>Audio.

AudioModes

TheAxisproductsupportsthefollowingaudiomodes:

Fullduplex-Simultaneoustwo-wayaudioallowingtheAxisproducttotransmitandreceiveaudioatthesametime.Thereisno

echocancellation;iffeedbackloopsappear,trymovingthemicrophoneorthespeaker.

Half-duplex-AudiocanbetransmittedtoandfromtheAxisproductbutonlyinonedirectionatatime.Totransmitaudiousingthe

LiveViewpage,usetheTalkandListenbuttons,seeAMCAudioControls,onpage12.

Simplex—speakeronly-AudioistransmittedfromaclienttotheAxisproductandcanbeplayedbyaspeakerconnected

totheproduct.TotransmitaudiousingtheLiveViewpage,theTalkandMicrophonebuttonsmustbothbeactive,seeAMC

AudioControls,onpage12.

Simplex—microphoneonly-AudiocapturedbytheproductmicrophoneistransmittedfromtheAxisproducttooneormoreclients.

Tosettheaudiomode,gotoVideo&Audio>AudioSettingsandselectthedesiredmodefromtheAudiomodedrop-downlist.

AXISP7216VideoEncoder

VideoandAudio

AudioInput

AnexternalmicrophoneoralinesourcecanbeconnectedtotheAudio-inconnector.ConguretheaudioinputsettingsunderVideo

&Audio>AudioSettings.

SelectMicrophonetouseanexternalmicrophoneorLinetouseaLineindevice,e.g.anaudiomixerformultiplemicrophones

oramicrophonewithabuilt-inamplier,asaudiosource.

UsetheInputgaintocontrolthevolume(dBFullScale)oftheaudioinput.Ifthesoundistoolow,chooseahigherdB,toamplify

thesound.Ifthesoundistoohigh,choosealowerdB.TheLevelbargivesavisualrepresentationoftheaudiosignallevelindB

relativetothefull-scaleinputlevel.

•Green—thesignalisatagoodlevel.

•Yellow—thesignalisbecomingdistorted.

•Red—thesignalisdistorted.

UsetheEncodingoptiontoselectdigitalaudioencodingformat.

•AACrequiresalicenseforbothencodinganddecoding.AACistheleastcomplicatedandmostwidelyusedcodec.If

achievingthebestpossibleaudioqualityisapriority,AACistherecommendedcodectouse.AnAAClicenseisincluded

intheAxisproduct.

•G711isanunlicensedstandardcodecthatisusefulwhenintegratingaudiointoaVoIPsystem

•G726isanunlicensedspeechcodecthatismostcommonlyusedwithinthesecurityindustry.

TheSampleratedenesthenumberoftimespersecondthesoundissampled.Ahighersampleratewillprovidebetteraudio

quality,butalsorequiresagreaterbandwidth.

SettherequiredBitratedependingontheselectedencoding.Ahigherbitratewillgivebetteraudioquality.Alowerbitrate

mayhavelatencyordelay,butwillrequirelessbandwidth.

Formoreinformationaboutthesesettings,pleaseseetheonlinehelp

AudioOutput

AnexternalspeakercanbeconnectedtotheAudio-outconnector(abuilt-inamplierisrequiredforthis).Theoutputcanbe

connectedtoanotheramplierwithspeakers.Astereoconnectormustbeusedfortheaudioout.

ConguretheaudiooutputsettingsunderVideo&Audio>AudioSettings.

Outputgain-Controlthevolume(dBFullScale)ofthelineaudiooutput.Ifthesoundistoolow,chooseahigherdB.Ifthe

soundistoohigh,choosealowerdB.

AudioClips

AnaudioclipisasoundlethatcanbeplayedwheneventsoccurordirectlyfromtheLiveViewpage.Theaudioclipmustrstbe

uploadedtotheAxisproductorrecordedbyamicrophoneconnectedtotheproduct.

Toadd,download,modifyorremoveaudioclips,gotoVideo&Audio>AudioClips.Formoreinformationseetheonlinehelp

ToconguretheAxisproducttoplayaudioclipswhenaneventoccurs,anactionrulemustbesetup.Formoreinformation,see

Events,onpage33.

Note

Audioclipscannotbeusediftheproduct’saudiofunctionalityisenabled.TheaudiofunctionalityisenabledontheAudio

tabunderVideo&Audio>VideoStream.

AXISP7216VideoEncoder

LiveViewCong

YoucancustomizetheLiveViewpageandalterittosuityourrequirements.Itispossibletodenethefollowingfeaturesof

theLiveViewpage.

•StreamProle.Seepage19.

•DefaultViewerforBrowser.Seepage24.

•ViewerSettings.Seepage25.

•ActionButtons.ThesearethebuttonsdescribedinControlsontheLiveViewPage,onpage11.

•UserDenedLinks.Seepage25.

•OutputButtons.Seepage25.

DefaultViewerforBrowsers

FromLiveViewCong>DefaultViewerselectthedefaultmethodforviewingvideoimagesinyourbrowser.Theproductattempts

toshowthevideoimagesintheselectedvideoformatandviewer.Ifthisisnotpossible,theproductoverridesthesettingsand

selectsthebestavailablecombination.

AXISP7216VideoEncoder

LiveViewCong

BrowserViewerDescription

AMC

RecommendedviewerinInternetExplorer(H.264/MotionJPEG).

QuickTime

H.264.

Javaapplet

AslowerimagingalternativetoAMC(MotionJPEG).Requiresoneofthe

followinginstalledontheclient:

•JVM(J2SE)1.4.2orhigher.

•JRE(J2SE)5.0orhigher.

WindowsInternetExplorer

StillimageDisplaysstillimagesonly.ClicktheRefreshbuttoninyourbrowsertoviewa

newimage.

ServerPush

Recommendedviewerforotherbrowsers(MotionJPEG).

QuickTime

H.264.

Javaapplet

AslowerimagingalternativetoServerPush(MotionJPEGonly).

Otherbrowsers

StillimageDisplaysstillimagesonly.ClicktheRefreshbuttoninyourbrowsertoviewa

newimage.

Formoreinformation,pleaseseetheonlinehelp.

ViewerSettings

Tocongureoptionsfortheviewer,gotoLiveViewCong>ViewerSettings.

•SelectShowviewertoolbartodisplaytheAXISMediaControl(AMC)ortheQuickTimeviewertoolbarunderthevideo

imageinyourbrowser.

•H.264decoderinstallation.TheadministratorcandisableinstallationoftheH.264decoderincludedwithAXISMedia

Control.Thisisusedtopreventinstallationofunlicensedcopies.Furtherdecoderlicensescanbepurchasedfromyour

Axisreseller.

•SelectShowcrosshairinPTZjoystickmodetoenableacrossthatwillindicatethecenteroftheimageinPTZjoystick

mode.

•SelectUsePTZjoystickmodeasdefaulttoenablejoystickmode.Themodecanbechangedtemporarilyfromthe

PTZcontrolpanel.

•SelectEnablerecordingbuttontoenablerecordingfromtheLiveViewpage.Thisbuttonisavailablewhenusingthe

AMCviewer.TherecordingsaresavedtothelocationspeciedintheAMCControlPanel.SeeAXISMediaControl

(AMC),onpage14.

UserDenedLinks

Todisplayuser-denedlinksintheLiveViewpage,selecttheShowcustomlinkoption,givethelinkanameandthenentertheURL

tolinkto.Whendeningaweblinkdonotremovethe'http://'fromtheURLaddress.Customlinkscanbeusedtorunscriptsor

activateexternaldevicesconnectedtotheproduct,ortheycanlinktoawebpage.Customlinksdenedascgilinkswillrunthe

scriptinthebackground,inahiddenframe.Deningthelinkasaweblinkwillopenthelinkinanewwindow.

OutputButtons

ExternalI/OdevicesconnectedtotheAxisproduct’soutputportscanbecontrolleddirectlyfromtheLiveViewpage.

TodisplayoutputbuttonsintheLiveViewpage:

1.GotoSetup>LiveViewCong.

2.UnderOutputButtons,selectthetypeofcontroltouse:

AXISP7216VideoEncoder

LiveViewCong

-Pulseactivatestheoutputforadenedperiodoftime.Thepulsetimecanbesetfrom1/100secondto60

seconds.

-Active/Inactivedisplaystwobuttons,oneoreachaction.

Toconguretheactiveandinactivestates,gotoSystemOptions>Ports&Devices>I/OPortsandsettheport’sNormalstate.

FormoreinformationaboutI/Oports,seeI/OPorts,onpage48.

AXISP7216VideoEncoder

PTZ(PanTiltZoom)

ThePTZmenuisavailableifaPTZdriverhasbeenuploaded.SeeInstallingaPTZdriver,onpage28.

PresetPositions

Apresetpositionisapredenedviewthatcanbeusedtoquicklysteerthecameratoaspeciclocation.Presetpositionscan

beaccessedinseveralways:

•ByselectingthepresetfromthePresetpositionsdrop-downlistintheLiveViewPage.

•Whensettingupactionrules.Seepage33.

•WhensettingupGuardTour.Seepage27.

Toaddapresetposition:

1.GotoPTZ>PresetPositions.

2.Usethepan,tiltandzoomcontrolstosteerthecameraviewtothedesiredposition.

3.EnteradescriptivenameintheCurrentpositioneld.

4.Ifrequired,selectUsecurrentpositionasHome.

TheHomepositionisreadilyaccessiblebyclickingtheHomebuttonontheLiveViewpageandinthePresetPositionssetupwindow.

Tosetacustomizedhomeposition,selectUsecurrentpositionasHomewhenaddingapresetposition.Theuser-denedhome

positionwillhave(H)added,forexample,Entrance(H).ThedefaultHomeposition,called“Home”,willstillbeavailable.

TheproductcanbeconguredtoreturntotheHomepositionwhenthePTZfunctionalityhasbeeninactiveforaspeciedlength

oftime.EnterthelengthoftimeintheReturntohomewheninactiveeldandclickSave.Setthetimetozerotopreventthe

productfromautomaticallyreturningtotheHomeposition.

Toincludethepresetpositionnameintheoverlaytext,gotoVideo&Audio,selectIncludeoverlaytextandenterthemodier#Pin

theeld.Formoreinformationaboutmodiers,seeFileNaming&Date/TimeFormatsintheonlinehelp

GuardTour

Aguardtourdisplaysthevideostreamfromdifferentpresetpositions,one-by-one,inapredeterminedorderoratrandomandfor

congurabletimeperiods.Theenabledguardtourwillkeeprunningaftertheuserhasloggedofforclosedthebrowser.

AXISP7216VideoEncoder

PTZ(PanTiltZoom)

Toaddaguardtour:

1.GotoPTZ>GuardTourandclickAdd.

2.Enteradescriptivename.

3.Specifythepauselengthbetweenruns.

4.SelectanavailablepresetpositionandclickApply.

5.SpecifytheMoveSpeed.

6.SpecifytheViewTimeinsecondsorminutes.

7.SpecifytheViewOrderorselecttheRandomvieworderoption.

8.ClickSave.

Tomodifyorremoveguardtours,gotoPTZ>GuardTour,selecttheguardtourintheGuardTourListandclickModify/Remove.

Formoreinformationseetheonlinehelp

InstallingaPTZdriver

ThisAxisproductsupportsseveralPTZdevices.Pleaseseewww.axis.comforacompletelistofsupporteddevices,andtoobtainthe

correctdriver.ToinstallaPTZdeviceyouneedtoinstallthePTZdriver.

ToinstallthePTZdrivergotoPTZ>DriverSelection.Browsetondthedriver(e.g.driver.ptz)andUpload.Ifthedriverwas

successfullyuploaded,itappearsintheSelectdrivertousedrop-downlist.Fromthisdrop-downlist,selectthedrivertoinstall

orremove,andclickSave.

SelectActivatePTZtoenablePTZ.TheaddressoftheconnecteddeviceappearsagainstDeviceID.ChoosetheDevicetypefromthe

drop-downlist.Tondwhichdevicetypetouse,consultthedocumentationsuppliedbythePTZdriver.

TocompletetheinstallationgotoSystemOptions>Ports&Devices>COMPort(seeCOMPort)andverifythesettings.

Advanced

DeviceSettings

TheDeviceSettingswindowdisplaysdriverspecicsettings.Theappearanceofthiswindowcanvarydependingonthedriver

installed.Optionsthatcanbeconguredinclude:

•DriverSpecicSettingsfromVideoSource

•MechanicalLimitsforMovingVideoSource

•LightControlVideoSource

•ExtendedDriverSpecicSettingsforVideoSource

FordownloadandinstallationinformationaboutPTZdriversforyourAxisproductpleasevisitwww.axis.com/techsup/

Controls

PanelShortcutCommandButtonscanbeconguredtoprovidedirectaccesstocommandsissuedviatheVAPIX®Application

ProgrammingInterface.ThebuttonswillbedisplayedinthePTZcontrolpanel,whichisavailableintheLiveViewpagethrough

theCtrlpanelbutton,seepage12.

AXISP7216VideoEncoder

PTZ(PanTiltZoom)

OSDMenu

IfthePTZunitsupportsaninternalcongurationmenu,thiscanbeaccessedusingtheOn-ScreenDisplay(OSD).Congurethe

analogcamerabyopeningandnavigatingthroughitsinternalmenuinthisdisplay.

ControlQueue

TheadministratorcansetupaqueueforPTZcontrollersfromPTZ>ControlQueue.Oncesetup,thePTZControlQueuebuttons

appearintheLiveViewpageofferingoneviewerexclusivecontrolforalimitedperiodoftime.Otheruserswillbeplacedinqueue.

Auserwhobelongstoagroup(seeUsers,onpage39)withahigherPTZprioritycangobeforeotherusersinthequeueand

takecontroloftheproduct.Theorderofpriorityisasfollows:

1.Administrator—AnadministratortakesoverPTZcontrolregardlessofwhoisrstinqueue.Theadministratorwillbe

removedfromthequeue60secondsafterthelastPTZcontrolcommand.

2.Event—TheAxisproductcanbeconguredtogotoapresetpositionwhentriggeredbyanalarm(seeEvents,onpage33).

Theeventwillimmediatelybeplacedrstinthequeueexceptwhenanadministratorisincontrol.

3.Operator—Sameasadministratorbutwithlowerpriority

4.GuardTour—Aguardtour(seepage27)hasPTZcontrolforanindeniteperiodoftime.Itmaybeoverriddenbyan

operator,eventoradministrator.Theguardtourwillresumewhenhigherprioritygroupsleavethequeue.

5.Viewer—Multipleviewersmustwaitfortheirturn.Theviewerhas60secondsPTZcontrolbeforecontrolispassed

ontothenextviewerinqueue.

Note

•TheadministratorcanenableanddisablePTZcontrolsforselectedusers.

•Toidentifydifferentusersintheviewergroup,cookiesmustbeenabledontheclient.

AXISP7216VideoEncoder

Detectors

CameraTampering

CameraTamperingcangenerateanalarmwheneverthecameraisrepositioned,orwhenthelensiscovered,sprayedorseverely

defocused.Tosendanalarm,forexampleanemail,anactionrulemustbesetup.

Toconguretampering:

1.GotoDetectors>CameraTampering.

2.SettheMinimumduration,thatis,thetimethatmustelapsebeforeanalarmisgenerated.Thiscanhelpprevent

falsealarmsforknownconditionsthataffecttheimage.

3.SelectAlarmfordarkimagesifanalarmshouldbegeneratediflightsaredimmedorturnedoff,orifthelensissprayed,

covered,orrenderedseverelyoutoffocus.

4.ClickSave.

Toconguretheproducttosendanalarmwhentamperingoccurs:

1.GotoEvents>ActionRules.

2.ClickAddtosetupanewactionrule.

3.EnteraNamefortheactionrule.

4.UnderCondition,selectDetectorsfromtheTriggerlist.

5.SelectTamperingfromthelistofdetectors.

6.Selectthevideochannel.

7.Optionally,selectascheduleandsetadditionalconditions.

8.Selecttheaction.Tosendanemail,selectSendNoticationandselectaRecipientfromthelistofdenedrecipients.

Note

TheWhiletheruleisactiveoptionunderDurationcannotbeusedwithcameratampering,sincecameratamperingdoesnot

haveadurationandonceithasbeentriggereditwillnotautomaticallyreturntoitsuntriggeredstate.

Formoreinformationonactionsrules,seeEvents,onpage33.

MotionDetection

Motiondetectionisusedtogenerateanalarmwhenevermovementstartsorstopsinthecameraview.

Motiondetectionisconguredbydeningupto10IncludeandExcludewindows:

•Includewindows—deneareaswheremotionshouldbedetected

•Excludewindows—deneareaswithinanIncludewindowthatshouldbeignored(areasoutsideIncludewindows

areautomaticallyignored).

Forinstructions,seeSetUpMotionDetectionWindows,onpage31.

Tocontrolthenumberofmotiondetectionalarms,theparametersObjectSize,HistoryandSensitivitycanbeadjusted.See

MotionDetectionParameters,onpage31.

Oncemotiondetectionwindowsarecongured,theAxisproductcanbeconguredtoperformactionswhenmotionisdetected.

Possibleactionsincludeuploadingimagesandstartrecording.Formoreinformation,seeSettingUpanActionRule,onpage34.

AXISP7216VideoEncoder

Detectors

Note

•Usingthemotiondetectionfeaturemaydecreasetheproduct’soverallperformance.

•ThepositionoftheMotionDetectionWindowisrelativetotheorientationoftheCamera.Changingtheorientationofthe

camerawillalsochangethepositionoftheMotionDetectionWindow.

SetUpMotionDetectionWindows

TosetupamotiondetectionIncludeWindow,followtheseinstructions:

1.GotoDetectors>MotionDetection.

2.SelecttheCongureIncludedWindowsoptionandclickNew.Selectthenewwindowinthelistofwindowsand

enteradescriptivename.

3.Adjustthesize(dragthebottomright-handcorner)andtheposition(clickonthetextatthetopanddragtothedesired

position)ofthewindow.

4.AdjusttheObjectSize,HistoryandSensitivityprolesliders(seeMotionDetectionParametersfordetails).Anydetected

motionwithinanactivewindowisindicatedbyredpeaksintheActivitywindow.

5.ClickSave.

Toexcludepartsoftheincludewindow,selecttheCongureExcludedWindowsandpositiontheexcludewindowwithinthe

includewindow.

Todeleteanincludeorexcludewindow,selectthewindowinthelistofwindowsandclickDel.

MotionDetectionParameters

Theparameterscontrollingmotiondetectionaredescribedinthetablebelow:

Parameter

ObjectSize

History

Sensitivity

Description

Objectsizerelativetowindow

size.

Objectmemorylength.

Differenceinluminance

betweenbackgroundand

object.

Highlevel(100%)

Onlyverylargeobjectstrigger

motiondetection.

Anobjectthatappearsin

thewindowtriggersmotion

detectionforalongtime

beforeitisconsideredas

non-moving.

Ordinarycoloredobjectson

ordinarybackgroundstrigger

motiondetection.

AXISP7216VideoEncoder

Detectors

Mediumlevel(50%)

Alargedifferenceinluminance

isrequiredtotriggermotion

detection.

Lowlevel(0%)

Evenverysmallobjectstrigger

motiondetection.

Anobjectthatappearsin

thewindowtriggersmotion

detectiononlyforaveryshort

timebeforeitisconsideredas

non-moving.

Onlyverybrightobjectson

adarkbackgroundtrigger

motiondetection.

Recommendedvalues

5–15%60–90%75–95%

Defaultvalues

15%90%90%

Note

•Totriggeronsmallobjectsormovements,useseveralsmallmotiondetectionwindowsratherthanonelargewindow

andselectalowobjectsize.

•Toavoidtriggeringonsmallobjects,selectahighobjectsize.

•Whilemonitoringanareawheremovingobjectsarenotexpected,selectahighhistorylevel.Thiswillcausemotion

detectiontotriggeraslongastheobjectispresentinthewindow.

•Toonlydetectashinglight,selectalowsensitivity.Inothercaseshighsensitivityisrecommended.

AudioDetection

TheAxisproductcanbeconguredtogenerateanalarmwhenaudiorisesaboveorfallsbelowthethresholdvalue.Thethreshold

valuecanbesetintherange0–100where0isthemostsensitiveand100theleastsensitive.

1.GotoDetectors>AudioDetection.

2.SettheaudioalarmlevelandclickSave.

3.GotoEvents>ActionRulesandsetupanactionrule,seeSettingUpanActionRule,onpage34.

DetectedaudioisindicatedbycoloredpeaksintheActivityindicator.Aneventistriggeredwhendetectedaudiorisesaboveorfalls

belowthethresholdvalue,whichisrepresentedbythebar.

AXISP7216VideoEncoder

Events

TheAxisproductcanbeconguredtoperformactionswhendifferenteventsoccur,forexample,startarecordingwhenmotionis

detected.ThesetofconditionsthatdeneshowandwhentheactionistriggerediscalledanActionRule.

Availableactionruletriggersandconditionsinclude:

•Detectors

-AudioDetection–Triggertherulewhenaudioisdetected.SeeAudioDetection,onpage32.

-LiveStreamAccessed–Triggertherulewhenanystreamisaccessedandduringedgestorageplayback.

Thiscanforexamplebeusedtosendnotications.

-MotionDetection–Triggertherulewhenmotionisdetected.SeeMotionDetection,onpage30.

-Tampering–Triggertherulewhentamperingisdetected.SeeCameraTampering,onpage30.

•Hardware

-VideoSignal–Triggertheruleifvideosignalislost.

-Network–Triggertheruleifnetworkconnectionislostorrestored.Thiscanforexamplebeusedtostart

recordingtotheSDcard.

-Temperature–Triggertheruleifthetemperaturefallsoutsideorinsidetheoperatingrangeoftheproduct.This

canforexamplebeusedtosendmaintenancenotications.

•InputSignal

-DigitalInputPort–TriggertherulewhenanI/Oportreceivesasignalfromaconnecteddevice.SeeI/OPorts,

onpage48.

-ManualTrigger–TriggertheruleusingtheManualTriggerbuttonintheLiveViewpage.SeeControlson

theLiveViewPage,onpage11.Thiscanforexamplebeusedtovalidateactionsduringproductinstallation

andconguration.

-VirtualInputs–canbeusedbyaVMS(VideoManagementSystem)totriggeractions.Virtualinputscan,for

example,beconnectedtobuttonsintheVMSuserinterface.

•PTZ

-Error–TriggertheruleifthePTZfunctionalityisnotworkingcorrectly.Thiscanforexamplebeusedto

sendmaintenancenotications.

-Moving–TriggertherulewhenthecameraviewmovesduetoaPTZoperation.Thiscanforexamplebeused

asanadditionalconditiontopreventanactionruletriggeredbymotiondetectiontorecordvideowhilethe

cameraviewmovesduetoaPTZoperation.

-PresetReached–Triggertherulewhenthecamerastopsatapresetposition.Thiscanbeforexamplebeused

withtheSendImagesactiontouploadimagesfromthepresetposition.

-Ready–TriggertherulewhenthePTZfunctionalityisreadytobeused.Thiscanforexamplebeusedtosteer

thecameratoaspecicpresetpositionwhentheproductisstarted.

•Storage

-Disruption–Triggertheruleifstorageproblemsaredetected,forexampleifthestoragedeviceisunavailable,

removed,full,lockedorifotherreadorwriteproblemsoccur.Thiscanforexamplebeusedtosendmaintenance

notications.

•System

AXISP7216VideoEncoder

Events

-SystemReady–Triggertherulewhentheproducthasbeenstartedandallservicesarerunning.Thiscanfor

examplebeusedtosendanoticationwhentheproductrestarts.

•Time

-Recurrence–Triggertheruleperiodically.SeeRecurrences,onpage36.Thiscanforexamplebeusedtoupload

animageevery5minutes.

-UseSchedule–Triggertheruleaccordingtotheselectedschedule.SeeSchedules,onpage36.

Availableactionsinclude:

•OutputPort–ActivateanI/Oporttocontrolanexternaldevice.

•OverlayText–Displayanoverlaytext.SeeUsingOverlayTextinanActionRule,onpage21.

•PlayAudioClip–SeeAudioClips,onpage23.

•PTZControl

-PresetPosition–Gotoapresetposition.

-GuardTour–Startaguardtour.SeeGuardTour,onpage27.

•RecordVideo–Recordvideotoaselectedstorage.

•SendImages–Sendimagestoarecipient.

•SendNotications–Sendanoticationmessagetoarecipient.

•SendVideoClip–Sendavideocliptoarecipient.

•StatusLED–FlashtheLEDindicator.Thiscanforexamplebeusedtovalidatetriggerssuchasmotiondetectionduring

productinstallationandconguration.

SettingUpanActionRule

Anactionruledenestheconditionsthatmustbemetfortheproducttoperformanaction,forexamplerecordvideoorsendan

emailnotication.Ifmultipleconditionsaredened,allofthemmustbemettotriggertheaction.

Thefollowingexampledescribeshowtosetupanactionruletorecordvideotoanetworkshareifthereismovementinthe

camera’seldofview.

Setupmotiondetectionandaddanetworkshare:

1.GotoDetectors>MotionDetectionandcongureamotiondetectionwindow.Seepage31

2.GotoSystemOptions>Storageandsetupthenetworkshare.Seepage47.

Setuptheactionrule:

1.GotoEvents>ActionRulesandclickAdd.

2.SelectEnableruleandenteradescriptivenamefortherule.

3.SelectDetectorsfromtheTriggerdrop-downlist.

4.SelectMotionDetectionfromthedrop-downlist.Selectthemotiondetectionwindowtouse.

5.Optionally,selectaScheduleandAdditionalconditions.Seebelow.

6.UnderActions,selectRecordVideofromtheTypedrop-downlist.

7.SelectaStreamproleandconguretheDurationsettingsasdescribedbelow.

AXISP7216VideoEncoder

Events

8.SelectNetworkSharefromtheStoragedrop-downlist.

Toaddadditionalcriteria,selecttheAdditionalconditionsoptionandaddadditionaltriggers.Topreventanactionfrombeing

triggeredrepeatedly,aWaitatleasttimecanbeset.Enterthetimeinhours,minutesandseconds,duringwhichthetrigger

shouldbeignoredbeforetheactionrulecanbeactivatedagain.

TherecordingDurationofsomeactionscanbesettoincludetimeimmediatelybeforeandaftertheevent.SelectPre-triggertime

and/orPost-triggertimeandenterthenumberofseconds.WhenWhiletheruleisactiveisenabledandtheactionistriggered

againduringthepost-triggertime,therecordingtimewillbeextendedwithanotherpost-triggertimeperiod.

Formoreinformation,seetheonlinehelp

FallbackAction

Afallbackactionisstartediftheprimaryactioncannotbestarted,forexampleifconnectiontoarecipientcannotbeestablished.

Fallbackactionsaretypicallyusedtosendemailnoticationsonfailedactionsortouploadimagestoasecondaryrecipient.

Recipients

Recipientsreceivemedialesandnoticationmessages.Thefollowingrecipientsareavailable:

RecipientUsewithaction

SendImages

SendNotication

SendVideoClip

FTP

SendImages

SendVideoClip

HTTP

SendImages

SendNotication

SendVideoClip

NetworkShare

SendImages

SendVideoClip

TCPSendNotication

1.Someemailprovidershavesecurityltersthatpreventusersfromreceivingorviewinglargeamountofattachments,fromreceivingscheduled

emailsandsimilar.Checktheemailprovider’ssecuritypolicytoavoiddeliveryproblemsandlockedemailaccounts.

2.Anetworksharecanalsobeusedasastoragedeviceforrecordedvideo.GoSystemOptions>Storagetocongureanetworksharebefore

settingupacontinuousrecordingoranactionruletorecordvideo.SeeStorage,onpage47formoreinformationaboutstoragedevices.

Toaddarecipient:

1.GotoEvents>RecipientsandclickAdd.

2.Enteradescriptivename.

3.SelectarecipientType.

4.Entertheinformationneededfortherecipienttype.

5.ClickTesttotesttheconnectiontotherecipient.

6.ClickOK.

AXISP7216VideoEncoder

Events

SettingUpanEmailRecipient

Emailrecipientscanbeconguredbyselectingoneofthelistedemailproviders,orbyspecifyingtheSMTPserver,portand

authenticationusedby,forexample,acorporateemailserver.

Note

Someemailprovidershavesecurityltersthatpreventusersfromreceivingorviewinglargeamountofattachments,from

receivingscheduledemailsandsimilar.Checktheemailprovider’ssecuritypolicytoavoiddeliveryproblemsandlocked

emailaccounts.

Tosetupanemailrecipientusingoneofthelistedproviders:

1.GotoEvents>RecipientsandclickAdd.

2.EnteraNameandselectEmailfromtheTypelist.

3.EntertheemailaddressestosendemailstointheToeld.Usecommastoseparatemultipleaddresses.

4.SelecttheemailproviderfromtheProviderlist.

5.EntertheuserIDandpasswordfortheemailaccount.

6.ClickTesttosendatestemail.

Tosetupanemailrecipientusingforexampleacorporateemailserver,followtheinstructionsabovebutselectUserdenedas

Provider.EntertheemailaddresstoappearassenderintheFromeld.SelectAdvancedsettingsandspecifytheSMTPserver

address,portandauthenticationmethod.Optionally,selectUseencryptiontosendemailsoveranencryptedconnection.Theserver

certicatecanbevalidatedusingthecerticatesavailableintheAxisproduct.Forinformationonhowtouploadcerticates,

seeCerticates,onpage40.

Schedules

Schedulescanbeusedasactionruletriggersorasadditionalconditions,forexampletorecordvideoifmotionisdetectedoutside

ofcehours.Useoneofthepredenedschedulesorcreateanewscheduleasdescribedbelow.

Tocreateanewschedule:

1.GotoEvents>SchedulesandclickAdd.

2.Enteradescriptivenameandtheinformationneededforadaily,weekly,monthlyoryearlyschedule.

3.ClickOK.

Tousethescheduleinanactionrule,selecttheschedulefromtheScheduledrop-downlistintheActionRuleSetuppage.

Recurrences

Recurrencesareusedtotriggeractionrulesrepeatedly,forexampleevery5minutesoreveryhour.

Tosetuparecurrence:

1.GotoEvents>RecurrencesandclickAdd.

2.Enteradescriptivenameandrecurrencepattern.

3.ClickOK.

Tousetherecurrenceinanactionrule,rstselectTimefromtheTriggerdrop-downlistintheActionRuleSetuppageandthen

selecttherecurrencefromtheseconddrop-downlist.

Tomodifyorremoverecurrences,selecttherecurrenceintheRecurrencesListandclickModifyorRemove.

AXISP7216VideoEncoder

Recordings

TheAxisproductcanbeconguredtorecordvideocontinuouslyoraccordingtoanactionrule:

•Tostartacontinuousrecording,seepage37.

•Tosetupactionrules,seepage34.

•Toaccessrecordings,seeRecordingList,onpage37.

•Tocongurecameracontrolledstorage,seeStorage,onpage47.

RecordingList

RecordedvideosarelistedontheRecordings>Listpage.Thelistshowseachrecording’sstartdateandtime,durationandthe

eventthattriggeredtherecording.

Toplayordownloadarecording,followthesesteps:

1.GotoRecordings>List.

2.Usetheltertonarrowthelistofrecordings.EnterthedesiredltercriteriaandclickFilter.Someltersmaytake

alongtimetocomplete.

3.Selecttherecording.

4.ClickPlaytoplaytherecording,orclickDownloadtodownloadtherecording.

Multiplerecordingscanbedownloadedatthesametime.SelecttherecordingsandclickDownload.Thedownloadedleisaziple

containingaminimumofthreeles,ofwhichtheMatroska(mkv)lesaretheactualrecordings.Therecordingsaretime-stamped

withthedateandtimetheyweredownloaded(thatis,notthedatetherecordingsweremade).

Note

ToplayrecordingsinWindowsMediaPlayer,AXISMatroskaFileSplittermustbeinstalled.AXISMatroskaFileSplitter

canbedownloadedfromwww.axis.com/techsup/software

Fordetailedrecordingandvideoinformation,selectarecordingandclickProperties.

Toremovearecording,selecttherecordingandclickRemove.

ContinuousRecording

TheAxisproductcanbeconguredtocontinuouslysavevideotoastoragedevice.SeeStorage,onpage47formoreinformation

aboutstoragedevices.Topreventthediskfrombecomingfull,itisrecommendedtocongurethedisktoautomaticallyremoveold

recordings.Ifanewstreamproleisselectedwhilearecordingisongoing,therecordingwillbestoppedandsavedintherecording

listandanewrecordingwiththenewstreamprolewillstart.Allpreviouscontinuousrecordingswillremainintherecordinglist

untiltheyareremovedmanuallyorthroughautomaticremovalofoldrecordings.

Tostartacontinuousrecording,followthesesteps:

1.GotoRecordings>Continuous.

2.SelectEnabled.

3.SelecttypeofstoragedevicefromtheDisklist.

4.SelectaStreamproletouseforcontinuousrecordings.

5.ClickSavetosaveandstarttherecording.

AXISP7216VideoEncoder

Languages

MultiplelanguagescanbeinstalledintheAxisproduct.Allwebpagesincludingtheonlinehelpwillbedisplayedintheselected

language.Toswitchlanguages,gotoSetup>Languagesandrstuploadthenewlanguagele.Browseandlocatetheleandclick

theUploadLanguagebutton.SelectthenewlanguagefromthelistandclickSave.

Note

•Resettingtheproducttofactorydefaultsettingswilleraseanyuploadedlanguageleandresettheproductlanguageto

English.

•ClickingtheRestorebuttonontheMaintenancepagewillnotaffectthelanguage.

•Armwareupgradewillnotaffectthelanguageused.Howeverifyouhaveuploadedanewlanguagetotheproductand

laterupgradethermware,itmayhappenthatthetranslationnolongermatchestheproduct'swebpages.Inthiscase,

uploadanupdatedlanguagele.

•Alanguagealreadyinstalledintheproductwillbereplacedwhenacurrentoralaterversionofthelanguageleisuploaded.

AXISP7216VideoEncoder

SystemOptions

Security

Users

UseraccesscontrolisenabledbydefaultandcanbeconguredunderSystemOptions>Security>Users.Anadministratorcan

setupotherusersbygivingthemusernamesandpasswords.Itisalsopossibletoallowanonymousviewerlogin,whichmeans

thatanybodymayaccesstheLiveViewpage.

Theuserlistdisplaysauthorizedusersandusergroups(accesslevels):

Viewer-AccesstotheLiveViewpage

Operator-AccesstotheLiveViewpageandtoallsettingsexceptSystemOptions

Administrator-Unrestrictedaccesstoallsettings;canadd,modifyandremoveotherusers.

UnderHTTP/RTSPPasswordSettings,selectthetypeofpasswordtoallow.Youmayneedtoallowunencryptedpasswordsifthere

areviewingclientsthatdonotsupportencryption,orifyouupgradedthermwareandexistingclientssupportencryptionbutneed

tologinagainandbeconguredtousethisfunctionality.

UnderUserSettings,selecttheEnableanonymousviewerloginoptiontoallowanonymoususersaccesstotheLiveViewpage.

SelecttheEnableanonymousPTZcontrollogintoallowanonymoususersaccesstothePTZcontrols.

DeselecttheEnableBasicSetupoptiontohidetheBasicSetupmenu.BasicSetupprovidesquickaccesstosettingsthatshouldbe

madebeforeusingtheAxisproduct.

ONVIF

ONVIF(OpenNetworkVideoInterfaceForum)isaglobalinterfacestandardthatmakesiteasierforendusers,integrators,consultants,

andmanufacturerstotakeadvantageofthepossibilitiesofferedbynetworkvideotechnology.ONVIFenablesinteroperablitybetween

differentvendorproducts,increasedexibility,reducedcostandfuture-proofsystems.

BycreatingauseryouautomaticallyenableONVIFcommunication.UsetheusernameandpasswordwithallONVIFcommunication

withtheproduct.Formoreinformationseewww.onvif.org

IPAddressFilter

IPaddresslteringisenabledontheSystemOptions>Security>IPAddressFilterpage.Onceenabled,thelistedIPaddressare

allowedordeniedaccesstotheAxisproduct.SelectAlloworDenyfromthelistandclickApplytoenableIPaddressltering.

Theadministratorcanaddupto256IPaddressentriestothelist(asingleentrycancontainmultipleIPaddresses).

HTTPS

HTTPS(HyperTextTransferProtocoloverSecureSocketLayer,orHTTPoverSSL)isawebprotocolprovidingencryptedbrowsing.

HTTPScanalsobeusedbyusersandclientstoverifythatthecorrectdeviceisbeingaccessed.Thesecuritylevelprovidedby

HTTPSisconsideredadequateformostcommercialexchanges.

TheAxisproductcanbeconguredtorequireHTTPSwhenusersfromdifferentusergroups(administrator,operator,viewer)connect.

TouseHTTPS,anHTTPScerticatemustrstbeinstalled.GotoSystemOptions>Security>Certicatestoinstallandmanage

certicates.SeeCerticates,onpage40.

ToenableHTTPSontheAxisproduct:

1.GotoSystemOptions>Security>HTTPS

AXISP7216VideoEncoder

SystemOptions

2.SelectanHTTPScerticatefromthelistofinstalledcerticates.

3.Optionally,clickCiphersandselecttheencryptionalgorithmstouseforSSL.

4.SettheHTTPSConnectionPolicyforthedifferentusergroups.

5.ClickSavetoenablethesettings.

ToaccesstheAxisproductviathedesiredprotocol,enterhttps://orhttp://intheaddresseldinabrowser.

TheHTTPSportcanbechangedontheSystemOptions>Network>TCP/IP>Advancedpage.

IEEE802.1X

IEEE802.1Xisastandardforport-basedNetworkAdmissionControlprovidingsecureauthenticationofwiredandwirelessnetwork

devices.IEEE802.1XisbasedonEAP(ExtensibleAuthenticationProtocol).

ToaccessanetworkprotectedbyIEEE802.1X,devicesmustbeauthenticated.Theauthenticationisperformedbyanauthentication

server,typicallyaRADIUSserver,examplesofwhichareFreeRADIUSandMicrosoftInternetAuthenticationService.

InAxisimplementation,theAxisproductandtheauthenticationserveridentifythemselveswithdigitalcerticatesusingEAP-TLS

(ExtensibleAuthenticationProtocol-TransportLayerSecurity).ThecerticatesareprovidedbyaCerticationAuthority(CA).

Youneed:

•aCAcerticatetoauthenticatetheauthenticationserver.

•aCA-signedclientcerticatetoauthenticatetheAxisproduct.

Tocreateandinstallcerticates,gotoSystemOptions>Security>Certicates.SeeCerticates,onpage40.ManyCAcerticates

arepreinstalled.

ToallowtheproducttoaccessanetworkprotectedbyIEEE802.1X:

1.GotoSystemOptions>Security>IEEE802.1X.

2.SelectaCACerticateandaClientCerticatefromthelistsofinstalledcerticates.

3.UnderSettings,selecttheEAPOLversionandprovidetheEAPidentityassociatedwiththeclientcerticate.

4.ChecktheboxtoenableIEEE802.1XandclickSave.

Note

Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbesynchronizedwithanNTP

server.SeeDate&Time,onpage41.

Certicates

Certicatesareusedtoauthenticatedevicesonanetwork.Typicalapplicationsincludeencryptedwebbrowsing(HTTPS),network

protectionviaIEEE802.1Xandsecureuploadofimagesandnoticationmessagesforexampleviaemail.Twotypesofcerticates

canbeusedwiththeAxisproduct:

Server/Clientcerticates-ToauthenticatetheAxisproduct.

CAcerticates-Toauthenticatepeercerticates,forexamplethecerticateofanauthenticationserverincasetheAxisproductis

connectedtoanIEEE802.1Xprotectednetwork.

Note

Installedcerticates,exceptpreinstalledCAcerticates,willbedeletediftheproductisresettofactorydefault.Preinstalled

CAcerticatesthathavebeendeletedwillbereinstalled.

AServer/Clientcerticatecanbeself-signedorissuedbyaCerticateAuthority(CA).Aself-signedcerticateofferslimited

protectionandcanbeusedbeforeaCA-issuedcerticatehasbeenobtained.

AXISP7216VideoEncoder

SystemOptions

Toinstallaself-signedcerticate:

1.GotoSetup>SystemOptions>Security>Certicates.

2.ClickCreateself-signedcerticateandprovidetherequestedinformation.

TocreateandinstallaCA-signedcerticate:

1.Createaself-signedcerticateasdescribedabove.

2.GotoSetup>SystemOptions>Security>Certicates.

3.ClickCreatecerticatesigningrequestandprovidetherequestedinformation.

4.CopythePEM-formattedrequestandsendtotheCAofyourchoice.

5.Whenthesignedcerticateisreturned,clickInstallcerticateanduploadthecerticate.

Server/ClientcerticatescanbeinstalledasCerticatefromsigningrequestorasCerticateandprivatekey.SelectCerticate

andprivatekeyiftheprivatekeyistobeuploadasaseparateleorifthecerticateisinPKCS#12format.

TheAxisproductisshippedwithseveralpreinstalledCAcerticates.Ifrequired,additionalCAcerticatescanbeinstalled:

1.GotoSetup>SystemOptions>Security>Certicates.

2.ClickInstallcerticateanduploadthecerticate.

AudioSupport

SelectEnableaudiosupporttoallowclientstoretrieveaudiostreamsfromtheAxisproduct.Forinformationonhowtocongure

audiosettings,seeAudioSettings,onpage22.

Note

DeselectingthisoptionwilldisableaudiogloballyintheAxisproduct,forconguredeventsandproleswithaudioaswell.

Date&Time

TheAxisproduct’sdateandtimesettingsareconguredunderSystemOptions>Date&Time.

CurrentServerTimedisplaysthecurrentdateandtime(24hclock).Thetimecanbedisplayedin12hclockinthetextoverlay(see

below).

Tochangethedateandtimesettings,selectthepreferredTimemodeunderNewServerTime:

•Synchronizewithcomputertime–Setsdateandtimeaccordingtothecomputer’sclock.Withthisoption,dateand

timearesetonceandwillnotbeupdatedautomatically.

•SynchronizewithNTPServer–ObtainsdateandtimefromanNTPserver.Withthisoption,dateandtimesettingsare

updatedcontinuously.ForinformationonNTPsettings,seeNTPConguration,onpage44.

IfusingahostnamefortheNTPserver,aDNSservermustbecongured.SeeDNSConguration,onpage43.

•Setmanually–Allowsyoutomanuallysetdateandtime.

IfusinganNTPserver,selectyourTimezonefromthedrop-downlist.Ifrequired,checkAutomaticallyadjustfordaylightsaving

timechanges.

TheDate&TimeFormatUsedinImagesisthedateandtimeformatdisplayedasatextoverlayinthevideostream.Usethe

predenedformatsorseeFileNaming&Date/TimeFormatsintheonlinehelp

forinformationonhowtocreatecustomdateand

timeformats.Toincludedateandtimeintheoverlaytext,gotoVideo&AudioandselectIncludedateandIncludetime.

AXISP7216VideoEncoder

SystemOptions

Network

BasicTCP/IPSettings

TheAxisproductsupportsIPversion4andIPversion6.Bothversionscanbeenabledsimultaneously,andatleastoneversion

mustalwaysbeenabled.

IPv4AddressConguration

Bydefault,theAxisproductissettouseIPv4(IPversion4)andtoobtaintheIPaddressautomaticallyviaDHCP.TheIPv4settingsare

conguredunderSystemOptions>Network>TCP/IP>Basic.

DHCP(DynamicHostCongurationProtocol)allowsnetworkadministratorstocentrallymanageandautomatetheassignmentof

IPaddresses.DHCPshouldonlybeenabledifusingdynamicIPaddressnotication,oriftheDHCPcanupdateaDNSserver.Itis

thenpossibletoaccesstheAxisproductbyname(hostname).

IfDHCPisenabledandtheproductcannotbeaccessed,runAXISIPUtilitytosearchthenetworkforconnectedAxisproducts,orreset

theproducttothefactorydefaultsettings(seepage50)andthenperformtheinstallationagain.

TouseastaticIPaddress,checkUsethefollowingIPaddressandspecifytheIPaddress,subnetmaskanddefaultrouter.

IPv6AddressConguration

IfIPv6(IPversion6)isenabled,theAxisproductwillreceiveanIPaddressaccordingtothecongurationinthenetworkrouter.

ToenableIPv6,gotoSystemOptions>Network>TCP/IP>Basic.OthersettingsforIPv6shouldbeconguredinthenetworkrouter.

ARP/Ping

Theproduct’sIPaddresscanbeassignedusingARPandPing.Forinstructions,seeAssignIPAddressUsingARP/Ping,onpage42.

TheARP/Pingserviceisenabledbydefaultbutisautomaticallydisabledtwominutesaftertheproductisstarted,orassoonasanIP

addressisassigned.Tore-assignIPaddressusingARP/Ping,theproductmustberestartedtoenableARP/Pingforanadditional

twominutes.

Todisabletheservice,gotoSystemOptions>Network>TCP/IP>BasicandcleartheoptionEnableARP/PingsettingofIPaddress.

Pingingtheproductisstillpossiblewhentheserviceisdisabled.

AssignIPAddressUsingARP/Ping

Theproduct'sIPaddresscanbeassignedusingARP/Ping.Thecommandmustbeissuedwithin2minutesofconnectingpower.

1.AcquireafreestaticIPaddressonthesamenetworksegmentasthecomputer.

2.Locatetheserialnumber(S/N)ontheproductlabel.

3.Openacommandpromptandenterthefollowingcommands:

Linux/Unixsyntax

arp-s<IPaddress><serialnumber>temp

ping-l408<IPaddress>

Linux/Unixexample

arp-s192.168.0.12500:40:8c:18:10:00temp

ping-l408192.168.0.125

Windowssyntax(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s<IPaddress><serialnumber>

AXISP7216VideoEncoder

SystemOptions

ping-l408-t<IPaddress>

Windowsexample(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s192.168.0.12500-40-8c-18-10-00

ping-l408-t192.168.0.125

4.Checkthatthenetworkcableisconnectedandthenrestarttheproductbydisconnectingandreconnectingpower.

5.ClosethecommandpromptwhentheproductrespondswithReplyfrom192.168.0.125:...orsimilar.

6.Openabrowserandtypehttp://<IPaddress>intheLocation/Addresseld.

ForothermethodsofassigningtheIPaddress,seetheInstallationandManagementSoftwareCDorthedocumentAssignanIP

AddressandAccesstheVideoStreamonAxisSupportwebatwww.axis.com/techsup

Note

•ToopenacommandpromptinWindows,opentheStartmenuandtypecmdintheRun/Searcheld.

•TousetheARPcommandinWindows7/WindowsVista,right-clickthecommandprompticonandselectRunas

administrator.

•ToopenacommandpromptinMacOSX,opentheTerminalutilityfromApplication>Utilities.

AXISVideoHostingSystem(AVHS)

AVHSusedinconjunctionwithanAVHSservice,provideseasyandsecureInternetaccesstoliveandrecordedvideoaccessiblefrom

anylocation.FormoreinformationandhelptondalocalAVHSServiceProvidergotowww.axis.com/hosting

TheAVHSsettingsareconguredunderSystemOptions>Network>TCPIP>Basic.ThepossibilitytoconnecttoanAVHSservice

isenabledbydefault.Todisable,cleartheEnableAVHSbox.

One-clickenabled-Presstheproduct’scontrolbutton(seeHardwareOverview,onpage6)toconnecttoanAVHSserviceoverthe

Internet.Onceregistered,AlwayswillbeenabledandtheAxisproductstaysconnectedtotheAVHSservice.Iftheproductisnot

registeredwithin24hoursfromwhenthebuttonispressed,theproductwilldisconnectfromtheAVHSservice.

Always-TheAxisproductwillconstantlyattempttoconnecttotheAVHSserviceovertheInternet.Onceregisteredtheproductwill

stayconnectedtotheservice.Thisoptioncanbeusedwhentheproductisalreadyinstalledanditisnotconvenienttousethe

one-clickinstallation.

AXISInternetDynamicDNSService

AXISInternetDynamicDNSServiceassignsahostnameforeasyaccesstotheproduct.Formoreinformation,seewww.axiscam.net

ToregistertheAxisproductwithAXISInternetDynamicDNSService,gotoSystemOptions>Network>TCP/IP>Basic.Under

Services,clicktheAXISInternetDynamicDNSServiceSettingsbutton(requiresaccesstotheInternet).Thedomainnamecurrently

registeredatAXISInternetDynamicDNSservicefortheproductcanatanytimeberemoved.

AdvancedTCP/IPSettings

DNSConguration

DNS(DomainNameService)providesthetranslationofhostnamestoIPaddresses.TheDNSsettingsareconguredunderSystem

Options>Network>TCP/IP>Advanced.

SelectObtainDNSserveraddressviaDHCPtousetheDNSsettingsprovidedbytheDHCPserver.

Tomakemanualsettings,selectUsethefollowingDNSserveraddressandspecifythefollowing:

Domainname-Enterthedomain(s)tosearchforthehostnameusedbytheAxisproduct.Multipledomainscanbeseparatedby

semicolons.Thehostnameisalwaystherstpartofafullyqualieddomainname,forexample,myserveristhehostnameinthe

fullyqualieddomainnamemyserver.mycompany.comwheremycompany.comisthedomainname.

AXISP7216VideoEncoder

SystemOptions

Primary/SecondaryDNSserver-EntertheIPaddressesoftheprimaryandsecondaryDNSservers.ThesecondaryDNSserveris

optionalandwillbeusediftheprimaryisunavailable.

NTPConguration

NTP(NetworkTimeProtocol)isusedtosynchronizetheclocktimesofdevicesinanetwork.TheNTPsettingsareconguredunder

SystemOptions>Network>TCP/IP>Advanced.

SelectObtainNTPserveraddressviaDHCPtousetheNTPsettingsprovidedbytheDHCPserver.

Tomakemanualsettings,selectUsethefollowingNTPserveraddressandenterthehostnameorIPaddressoftheNTPserver.

HostNameConguration

TheAxisproductcanbeaccessedusingahostnameinsteadofanIPaddress.ThehostnameisusuallythesameastheassignedDNS

name.ThehostnameisconguredunderSystemOptions>Network>TCP/IP>Advanced.

SelectObtainhostnameviaIPv4DHCPtousehostnameprovidedbytheDHCPserverrunningonIPv4.

SelectUsethehostnametosetthehostnamemanually.

SelectEnabledynamicDNSupdatestodynamicallyupdatelocalDNSserverswhenevertheAxisproduct’sIPaddresschanges.

Formoreinformation,seetheonlinehelp

Link-LocalIPv4Address

Link-LocalAddressisenabledbydefaultandassignstheAxisproductanadditionalIPaddresswhichcanbeusedtoaccess

theproductfromotherhostsonthesamesegmentonthelocalnetwork.TheproductcanhaveaLink-LocalIPandastatic

orDHCP-suppliedIPaddressatthesametime.

ThisfunctioncanbedisabledunderSystemOptions>Network>TCP/IP>Advanced.

HTTP

TheHTTPportusedbytheAxisproductcanbechangedunderSystemOptions>Network>TCP/IP>Advanced.Inadditiontothe

defaultsetting,whichis80,anyportintherange1024–65535canbeused.

HTTPS

TheHTTPSportusedbytheAxisproductcanbechangedunderSystemOptions>Network>TCP/IP>Advanced.Inadditionto

thedefaultsetting,whichis443,anyportintherange1024–65535canbeused.

ToenableHTTPS,gotoSystemOptions>Security>HTTPS.Formoreinformation,seeHTTPS,onpage39.

NATtraversal(portmapping)forIPv4

Anetworkrouterallowsdevicesonaprivatenetwork(LAN)toshareasingleconnectiontotheInternet.Thisisdonebyforwarding

networktrafcfromtheprivatenetworktothe“outside”,thatis,theInternet.Securityontheprivatenetwork(LAN)isincreased

sincemostroutersarepre-conguredtostopattemptstoaccesstheprivatenetwork(LAN)fromthepublicnetwork(Internet).

UseNATtraversalwhentheAxisproductislocatedonanintranet(LAN)andyouwishtomakeitavailablefromtheother

(WAN)sideofaNATrouter.WithNATtraversalproperlycongured,allHTTPtrafctoanexternalHTTPportintheNATrouter

isforwardedtotheproduct.

NATtraversalisconguredunderSystemOptions>Network>TCP/IP>Advanced.

Note

•ForNATtraversaltowork,thismustbesupportedbytherouter.TheroutermustalsosupportUPnP

•Therouterhasmanydifferentnames:“NATrouter”,“Networkrouter”,“InternetGateway”,”Broadbandrouter”,“Broadband

sharingdevice”or“Homerewall”buttheessentialpurposeofthedeviceisthesame.

AXISP7216VideoEncoder

SystemOptions

Enable/Disable-Whenenabled,theAxisproductattemptstocongureportmappinginaNATrouteronyournetwork,usingUPnP

NotethatUPnP

mustbeenabledintheproduct(seeSystemOptions>Network>UPnP).

UsemanuallyselectedNATrouter-SelectthisoptiontomanuallyselectaNATrouterandentertheIPaddressfortherouterin

theeld.Ifnorouterisspecied,theproductautomaticallysearchesforNATroutersonyournetwork.Ifmorethanonerouteris

found,thedefaultrouterisselected.

AlternativeHTTPport-SelectthisoptiontomanuallydeneanexternalHTTPport.Entertheportnumberintheeld.Ifnoportis

enteredhere,aportnumberisautomaticallyselectedwhenNATtraversalisenabled.

Note

•AnalternativeHTTPportcanbeusedorbeactiveevenifNATtraversalisdisabled.ThisisusefulifyourNATrouterdoesnot

supportUPnPandyouneedtomanuallycongureportforwardingintheNATrouter.

•Ifyouattempttomanuallyenteraportthatisalreadyinuse,anotheravailableportisautomaticallyselected.

•Whentheportisselectedautomaticallyitisdisplayedinthiseld.Tochangethis,enteranewportnumberandclickSave.

FTP

TheFTPserverrunningintheAxisproductenablesuploadofnewrmware,userapplications,etc.TheFTPservercanbedisabled

underSystemOptions>Network>TCP/IP>Advanced.

Note

ThisFTPserverhasnothingtodowiththeproduct’sabilitytotransferimagesviaFTPtootherlocationsandservers.

RTSP

TheRTSPserverrunningintheAxisproductallowsaconnectingclienttostartanH.264stream.TheRTSPportnumbercanbe

changedunderSystemOptions>Network>TCP/IP>Advanced.Thedefaultportis554.

Note

H.264videostreamswillnotbeavailableiftheRTSPserverisdisabled.

SOCKS

SOCKSisanetworkingproxyprotocol.TheAxisproductcanbeconguredtouseaSOCKSservertoreachnetworksontheother

sideofarewallorproxyserver.ThisfunctionalityisusefuliftheAxisproductislocatedonalocalnetworkbehindarewall,and

notications,uploads,alarms,etcneedtobesenttoadestinationoutsidethelocalnetwork(forexampletheInternet).

SOCKSisconguredunderSystemOptions>Network>SOCKS.Formoreinformation,seetheonlinehelp

QoS(QualityofService)

QoS(QualityofService)guaranteesacertainlevelofaspeciedresourcetoselectedtrafconanetwork.AQoS-awarenetwork

prioritizesnetworktrafcandprovidesagreaternetworkreliabilitybycontrollingtheamountofbandwidthanapplicationmayuse.

TheQoSsettingsareconguredunderSystemOptions>Network>QoS.UsingDSCP(DifferentiatedServicesCodepoint)values,the

Axisproductcanmarkthefollowingtypesoftrafc:livevideo,liveaudio,event/alarmtrafcandmanagementtrafc.

Note

LiveaudioDSCPwillbeequaltolivevideoDSCPifH.264overRTSPisused.

SMTP(email)

TosendemailmessagesfromtheAxisproductviaSMTP(SimpleMailTransferProtocol),anSMTPmailservermustbesetup.This

isdoneunderSystemOptions>Network>SMTP(email).

AXISP7216VideoEncoder

SystemOptions

EnterthehostnamesorIPaddressesandportnumbersfortheprimaryandsecondarymailserversintheeldsprovided.AFrom

emailaddressisalsorequired.Ifthemailserverrequiresauthentication,checkUseauthenticationtologintothisserverandenter

thenecessaryinformation.

SNMP

TheSimpleNetworkManagementProtocol(SNMP)allowsremotemanagementofnetworkdevices.AnSNMPcommunityisthe

groupofdevicesandmanagementstationrunningSNMP.Communitynamesareusedtoidentifygroups.

TheAxisproductcanbeconguredtosupportSNMPontheSystemOptions>Network>SNMPpage.

Dependingonthelevelofsecurityrequired,selecttheversiononSNMPtouse.

SNMPv1/v2providesthelowestlevelofsecurity.Thecommunitynamecanbespeciedasapasswordforreadorread/write

accesstoallsupportedSNMPdevices.ThedefaultpasswordfortheReadcommunityispublicandthedefaultpasswordforthe

Writecommunityiswrite.

Note

IfHTTPSisenabled,SNMPv1andSNMPv2cshouldbedisabled.

TrapsforSNMPv1/v2areusedbytheAxisproducttosendmessagestoamanagementsystemonimportanteventsandstatus

changes.CheckEnabletrapsandentertheIPaddresswherethetrapmessageshouldbesentandtheTrapcommunitythat

shouldreceivethemessage.

Thefollowingtrapsareavailable:

•Coldstart

•Warmstart

•Linkup

•Authenticationfailed

SNMPv3providesencryptionandsecurepasswords.TousetrapswithSNMPv3,anSNMPv3managementapplicationisrequired.

TouseSNMPv3,HTTPSmustbeenabled,seeHTTPS,onpage39.ToenableSNMPv3,checktheboxandprovidetheinitialuser

password.

Note

Theinitialpasswordcanonlybesetonce.Ifthepasswordislost,theAxisproductmustberesettofactorydefault,see

ResettoFactoryDefaultSettings,onpage50.

UPnP

TheAxisproductincludessupportforUPnP

.UPnP

isenabledbydefaultandtheproductisautomaticallydetectedbyoperating

systemsandclientsthatsupportthisprotocol.

UPnP

canbedisabledunderSystemOptions>Network>UPnP

RTP/H.264

TheRTPportrangeandmulticastsettingsareconguredunderSystemOptions>Network>RTP.

TheRTPportrangedenestherangeofportsfromwhichthevideo/audioportsareautomaticallyselected.Formulticaststreams,

onlycertainIPaddressesandportnumbersshouldbeused.

SelectAlwaysMulticastVideoand/orAlwaysMulticastAudiotostartmulticaststreamingwithoutopeninganRTSPsession.

AXISP7216VideoEncoder

SystemOptions

Bonjour

TheAxisproductincludessupportforBonjour.Bonjourisenabledbydefaultandtheproductisautomaticallydetectedbyoperating

systemsandclientsthatsupportthisprotocol.

BonjourcanbedisabledunderSystemOptions>Network>Bonjour.

Storage

SDCard

TheAxisproductsupportsSDcardswithupto64GBofstorage.Forbestrecordingperformance,useanSDHCorSDXCcard

withspeedclass10.

NOTICE NOTICE

NOTICE

Topreventcorruptionofrecordings,theSDcardshouldalwaysbeunmountedbeforeitisejected.

TheAxisproductsupportsSDcardswiththefollowinglesystems:

•ext4—recommendedduetoitsresilienceagainstdatalossifthecardisejectedorifthereisabruptpowerloss.Toaccess

datastoredonthecardfromtheWindowsoperatingsystem,athird-partyext4driverorapplicationisrequired.

•vFAT—mostSDcardsarepre-formattedwithvFATwhenpurchased.

Ifrequired,theSDcardcanbemanuallyformattedtothedesiredlesystem.ToformattheSDcard:

1.InserttheSDcardintheSDcardslot.

2.GotoSystemOptions>StorageandclickSDCard.

3.ClickFormatandselectthedesiredlesystem.

Note

Duringformattinganypreviousdatastoredonthediskwillbelost.

Mountingisdoneautomaticallywhenthecardisinsertedorwhentheproductisstarted.Amanualmountisonlyrequiredifthe

cardhasbeenunmountedandnotejectedandre-inserted.

TounmounttheSDcard:

1.GotoSystemOptions>StorageandclickSDCard.

2.ClickUnmount.

3.Thecardcannowberemoved.

TheSDcardismanagedontheSystemOptions>Storagepage.ClickSDCardtoopenStorageManagement.

Ifthecard’sstatusshowsasfailed,clickCheckdisktoseeiftheproblemcanbefoundandthentryRepair.Thisoptionisonly

availableforSDcardswithext4.ForSDcardswithvFAT,useacardreaderorcomputertotroubleshootthecard.

Toavoidllingthecard,itisrecommendedtoremoverecordingscontinuously.UnderRecordingSettings,selectRemoverecordings

olderthanandselectthenumberofdaysorweeks.

Tostopwritingtothecardandprotectrecordingsfrombeingremoved,selectLockunderRecordingSettings.

NetworkShare

NetworkshareallowsyoutoaddnetworkstoragesuchasaNAS(NetworkAttachedStorage)oranyserverthatusesCIFS(Common

InternetFileSystem)andusethemforstorageofrecordings.

AXISP7216VideoEncoder

SystemOptions

Toaddanetworkshare:

1.GotoSystemOptions>Storage.

2.ClickNetworkShare.

3.EntertheIPaddress,DNSorBonjournametothehostserverintheHosteld.

4.EnterthenameoftheshareintheShareeld.Subfolderscannotbeused.

5.Ifrequired,selectThesharerequiresloginandentertheusernameandpassword.

6.ClickConnect.

ToclearallrecordingsanddatafromtheAxisproduct’sfolderonthedesignatedshare,clickClearunderStorageTools.

Toavoidllingtheshare,itisrecommendedtoremoverecordingscontinuously.UnderRecordingSettings,selectRemoverecordings

olderthanandselectthenumberofdaysorweeks.

Tostopwritingtotheshareandprotectrecordingsfrombeingremoved,selectLockunderRecordingSettings.

Ports&Devices

I/OPorts

TheAxisproductprovidesfourcongurableinputandoutputportsforconnectionofexternaldevices.Forinformationabout

howtoconnectexternaldevices,seeConnectors,onpage58.

TheI/OportsareconguredunderSystemOptions>Ports&Devices>I/OPorts.Selecttheportdirection(InputorOutput).The

portscanbegivendescriptivenamesandtheirNormalstatescanbeconguredasOpencircuitorGroundedcircuit.

Note

TherearefourI/Oportsforeachgroupofvideoinputconnectors.

COMPort

TheAxisproducthasoneRS-485/RS-422serialport.Theportsupportsthefollowingmodes:

•GenericHTTPallowstheAxisproducttoreceivedataandsendcommandsviaHTTP.

•PanTiltZoomisusedtocontrolaPTZdevice.ThePTZdevicerequiresadriver.SeeInstallingaPTZdriverformore

information.Driverscanbedownloadedfromwww.axis.com

•GenericTCP/IPallowstheAxisproducttoreceivedataandsendcommandsviaTCP/IP.Daisychainserver-AllowsDaisy

chainclientstocommunicatewiththeAxisproduct.

SelectthedesiredPortTypefromthedrop-downlist.FormoreinformationonSerialPortSettingsandDaisyChainPortSettings

seetheonlinehelp

PortStatus

ThelistontheSystemOptions>Ports&Devices>PortStatuspageshowsthestatusoftheproduct’sinputandoutputports.

Maintenance

TheAxisproductprovidesseveralmaintenancefunctions.TheseareavailableunderSystemOptions>Maintenance.

ClickRestarttoperformacorrectrestartiftheAxisproductisnotbehavingasexpected.Thiswillnotaffectanyofthecurrent

settings.

AXISP7216VideoEncoder

SystemOptions

ClickRestoretoresetmostsettingstothefactorydefaultvalues.Thefollowingsettingsarenotaffected:

•thebootprotocol(DHCPorstatic)

•thestaticIPaddress

•thedefaultrouter

•thesubnetmask

•thesystemtime

•theIEEE802.1Xsettings

ClickDefaulttoresetallsettings,includingtheIPaddress,tothefactorydefaultvalues.Thisbuttonshouldbeusedwithcaution.The

Axisproductcanalsoberesettofactorydefaultusingthecontrolbutton,seeResettoFactoryDefaultSettings,onpage50.

Forinformationaboutrmwareupgrade,seeUpgradingtheFirmware,onpage51.

Support

SupportOverview

TheSystemOptions>Support>SupportOverviewpageprovidesinformationontroubleshootingandcontactinformation,

shouldyourequiretechnicalassistance.

SeealsoTroubleshooting,onpage51.

SystemOverview

TogetanoverviewoftheAxisproduct’sstatusandsettings,gotoSystemOptions>Support>SystemOverview.Informationthat

canbefoundhereincludesrmwareversion,IPaddress,networkandsecuritysettings,eventsettings,imagesettingsandrecentlog

items.ManyofthecaptionsarelinkstotheproperSetuppage.

Logs&Reports

TheSystemOptions>Support>Logs&Reportspagegenerateslogsandreportsusefulforsystemanalysisandtroubleshooting.If

contactingAxisSupport,pleaseprovideavalidServerReportwithyourquery.

SystemLog-Providesinformationaboutsystemevents.

AccessLog-Listsallfailedattemptstoaccesstheproduct.TheAccessLogcanalsobeconguredtolistallconnectionstothe

product(seebelow).

ServerReport-Providesinformationabouttheproductstatusinapop-upwindow.TheAccessLogisautomaticallyincluded

intheServerReport.

Youcanviewordownloadtheserverreport.Downloadingtheserverreportcreatesa.ziplethatcontainsacompleteserverreport

textleinUTF–8format.SelecttheIncludesnapshotwithdefaultimagesettingsoptiontoincludeasnapshotoftheproduct’s

LiveViewthatalsoshowsthesettingsspeciedunderVideoStream>Image>ImageAppearance.Theserverreport.zipleshould

alwaysbeincludedwhencontactingsupport.

ParameterList-Showstheproduct'sparametersandtheircurrentsettings.Thismayproveusefulwhentroubleshootingor

whencontactingAxisSupport.

ConnectionList-Listsallclientsthatarecurrentlyaccessingmediastreams.

CrashReport-Generatesanarchivewithdebugginginformation.Thereporttakesseveralminutestogenerate.

TheloglevelsfortheSystemLogandtheAccessLogaresetunderSystemOptions>Support>Logs&Reports>Conguration.

TheAccessLogcanbeconguredtolistallconnectionstotheproduct(selectCritical,Warnings&Info).

AXISP7216VideoEncoder

SystemOptions

Advanced

Scripting

Scriptingallowsexperienceduserstocustomizeandusetheirownscripts.

NOTICE NOTICE

NOTICE

ImproperusemaycauseunexpectedbehaviorandlossofcontactwiththeAxisproduct.

Axisstronglyrecommendsthatyoudonotusethisfunctionunlessyouunderstandtheconsequences.AxisSupportdoesnotprovide

assistanceforproblemswithcustomizedscripts.

ToopentheScriptEditor,gotoSystemOptions>Advanced>Scripting.Ifascriptcausesproblems,resettheproducttoits

factorydefaultsettings,seepage50.

Formoreinformation,seewww.axis.com/developer

FileUpload

Files,forexamplewebpagesandimages,canbeuploadedtotheAxisproductandusedascustomsettings.Touploadale,go

toSystemOptions>Advanced>FileUpload.

Uploadedlesareaccessedthroughhttp://<ipaddress>/local/<user>/<filename>where<user>isthe

selectedusergroup(viewer,operatororadministrator)fortheuploadedle.

PlainCong

PlainCongisforadvanceduserswithexperienceofAxisproductconguration.Mostparameterscanbesetandmodiedfromthis

page.Helpisavailablefromthestandardhelppages.

ToopenPlainCong,gotoSystemOptions>Advanced>PlainCong.AxisSupportdoesnotprovideassistance.

ResettoFactoryDefaultSettings

Important

Resettofactorydefaultshouldbeusedwithcaution.Aresettofactorydefaultwillresetallsettings,includingtheIP

address,tothefactorydefaultvalues.

Note

TheinstallationandmanagementsoftwaretoolsareavailableontheCDsuppliedwiththeproductandfromthesupport

pagesonwww.axis.com/techsup

Toresettheproducttothefactorydefaultsettings:

1.Disconnectpowerfromtheproduct.

2.Pressandholdthecontrolbuttonandreconnectpower.SeeHardwareOverview,onpage6.

3.Keepthecontrolbuttonpressedforabout15–30secondsuntilthestatusLEDindicatorashesamber.

4.Releasethecontrolbutton.TheprocessiscompletewhenthestatusLEDindicatorturnsgreen.Theproducthasbeenreset

tothefactorydefaultsettings.IfnoDHCPserverisavailableonthenetwork,thedefaultIPaddressis192.168.0.90

5.Usingtheinstallationandmanagementsoftwaretools,assignanIPaddress,setthepassword,andaccessthevideostream.

Note

Toresetasinglechanneltotheoriginalfactorydefaultsettings,usethebuttonprovidedinthatunit’swebinterface.

Itisalsopossibletoresetparameterstofactorydefaultviathewebinterface.GotoSetup>SystemOptions>Maintenance.

AXISP7216VideoEncoder

Troubleshooting

CheckingtheFirmware

Firmwareissoftwarethatdeterminesthefunctionalityofnetworkdevices.Oneofyourrstactionswhentroubleshootingaproblem

shouldbetocheckthecurrentrmwareversion.Thelatestversionmaycontainacorrectionthatxesyourparticularproblem.The

currentrmwareversionintheAxisproductisdisplayedinthepageSetup>BasicSetupandinSetup>About.

UpgradingtheFirmware

WhenyouupgradetheAxisproductwiththelatestrmwarefromAxiswebsite,theproductreceivesthelatestfunctionalityavailable.

Alwaysreadtheupgradeinstructionsandreleasenotesavailablewitheachnewrelease,beforeupgradingthermware.

Toupgrade,followtheseinstructions:

1.Savethermwareletoyourcomputer.ThelatestversionofthermwareisavailablefreeofchargefromAxiswebsite

atwww.axis.com/techsup

2.GotoSetup>SystemOptions>Maintenanceintheproduct’swebpages.

3.UnderUpgradeServer,clickBrowseandlocatetheleonyourcomputer.ClickUpgrade.

Afterstartingtheupgradeprocess,alwayswaitatleast5–10minutesbeforerestartingtheproduct,evenifyoususpectthe

upgradehasfailed.

AXISCameraManagementcanbeusedformultipleupgrades.Seewww.axis.comformoreinformation.

Note

•Yourdealerreservestherighttochargeforanyrepairattributabletofaultyupgradebytheuser.

•Preconguredandcustomizedsettingsaresavedwhenthermwareisupgraded(providingthefeaturesareavailableinthe

newrmware)althoughthisisnotguaranteedbyAxisCommunicationsAB.

EmergencyRecoveryProcedure

Ifpowerornetworkconnectionislostduringtheupgrade,theprocessfailsandtheproductbecomesunresponsive.FlashingredStatus

indicatorindicatesafailedupgrade.Torecovertheproduct,followthestepsbelow.Theserialnumberisfoundontheproduct’slabel.

1.InUNIX/Linux,typethefollowingfromthecommandline:

AXISP7216VideoEncoder

Troubleshooting

arp-s<IPaddress><serialnumber>temp

ping-l408<IPaddress>

InWindows,typethefollowingfromacommand/DOSprompt(thismayrequirethatyourunthecommandpromptas

anadministrator):

arp-s<IPaddress><serialnumber>

ping-l408-t<IPaddress>

2.Iftheproductdoesnotreplyin30seconds,restartitandwaitforareply.PressCTRL+CtostopPing.

3.Openabrowserandtypeintheproduct’sIPaddress.Inthepagethatopens,usetheBrowsebuttontoselecttheupgrade

letouse.ThenclickLoadtorestarttheupgradeprocess.

4.Aftertheupgradeiscomplete(1–10minutes),theproductautomaticallyrestartsandshowsasteadygreenonthe

Statusindicator.

5.Reinstalltheproduct,referringtotheInstallationGuide.

Iftheemergencyrecoveryproceduredoesnotgettheproductupandrunningagain,contactAxissupportatwww.axis.com/techsup/

Symptoms,PossibleCausesandRemedialActions

ProblemssettingtheIPaddress

WhenusingARP/Ping

Trytheinstallationagain.TheIPaddressmustbesetwithintwominutesafterpowerhasbeen

appliedtotheproduct.EnsurethePinglengthissetto408.Forinstructions,seeAssignIPAddress

UsingARP/Ping,onpage42.

Theproductislocatedona

differentsubnet

IftheIPaddressintendedfortheproductandtheIPaddressofthecomputerusedtoaccessthe

productarelocatedondifferentsubnets,youwillnotbeabletosettheIPaddress.Contactyour

networkadministratortoobtainanIPaddress.

TheIPaddressisbeingused

byanotherdevice

DisconnecttheAxisproductfromthenetwork.RunthePingcommand(inaCommand/DOS

window,typepingandtheIPaddressoftheproduct):

•Ifyoureceive:Replyfrom<IPaddress>:bytes=32;time=10...

thismeansthattheIPaddressmayalreadybeinusebyanotherdeviceonthenetwork.

ObtainanewIPaddressfromthenetworkadministratorandreinstalltheproduct.

•Ifyoureceive:Requesttimedout,thismeansthattheIPaddressisavailable

forusewiththeAxisproduct.Checkallcablingandreinstalltheproduct.

PossibleIPaddressconict

withanotherdeviceonthe

samesubnet.

ThestaticIPaddressintheAxisproductisusedbeforetheDHCPserversetsadynamicaddress.

ThismeansthatifthesamedefaultstaticIPaddressisalsousedbyanotherdevice,theremay

beproblemsaccessingtheproduct.

Theproductcannotbeaccessedfromabrowser

Cannotlogin

WhenHTTPSisenabled,ensurethatthecorrectprotocol(HTTPorHTTPS)isusedwhenattempting

tologin.Youmayneedtomanuallytypehttporhttpsinthebrowser’saddresseld.

Ifthepasswordfortheuserrootislost,theproductmustberesettothefactorydefaultsettings.

SeeResettoFactoryDefaultSettings,onpage50.

AXISP7216VideoEncoder

Troubleshooting

TheIPaddresshasbeen

changedbyDHCP

IPaddressesobtainedfromaDHCPserveraredynamicandmaychange.IftheIPaddresshas

beenchanged,useAXISIPUtilityorAXISCameraManagementtolocatetheproductonthe

network.Identifytheproductusingitsmodelorserialnumber,orbytheDNSname(ifthename

hasbeencongured).

Ifrequired,astaticIPaddresscanbeassignedmanually.Forinstructions,seetheInstallationand

ManagementSoftwareCDorthedocumentAssignanIPAddressandAccesstheVideoStreamon

AxisSupportwebatwww.axis.com/techsup.

Certicateerrorwhenusing

IEEE802.1X

Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbe

synchronizedwithanNTPserver.SeeDate&Time,onpage41.

Theproductisaccessiblelocallybutnotexternally

RoutercongurationTocongureyourroutertoallowincomingdatatrafctotheAxisproduct,enabletheNAT-traversal

featurewhichwillattempttoautomaticallyconguretheroutertoallowaccesstotheAxis

product,seeNATtraversal(portmapping)forIPv4,onpage44.TheroutermustsupportUPnP

Firewallprotection

ChecktheInternetrewallwithyournetworkadministrator.

Defaultroutersrequired

CheckifyouneedtoconguretheroutersettingsfromSystemOptions>Network>TCP/IP>

Basic.

ProblemswithstreamingH.264

ProblemswithAXISMedia

Control(InternetExplorer

only)

ToenabletheupdatingofvideoimagesinInternetExplorer,setthebrowsertoallowActiveX

controls.Also,makesurethatAXISMediaControlisinstalledonyourcomputer.

NoH.264displayedinthe

client

CheckthattherelevantH.264connectionmethodsandcorrectinterfaceareenabledintheAMC

ControlPanel(streamingtab).SeeAXISMediaControl(AMC),onpage14.

IntheAMCControlPanel,selecttheH.264tabandclickSettodefaultH.264decoder.

CheckthatRTSPisenabledunderSystemOptions>Network>TCP/IP>Advanced.

MulticastH.264only

accessiblebylocalclients

Checkifyourroutersupportsmulticasting,oriftheroutersettingsbetweentheclientandthe

productneedtobecongured.TheTTL(TimeToLive)valuemayneedtobeincreased.

NomulticastH.264

displayedintheclient

CheckwithyournetworkadministratorthatthemulticastaddressesusedbytheAxisproduct

arevalidforyournetwork.

Checkwithyournetworkadministratortoseeifthereisarewallpreventingviewing.

Installationofadditional

ActiveXcomponent

restrictedorprohibited

ConguretheAxisproducttouseaJavaappletforupdatingvideoimagesinyourbrowser.Goto

Setup>LiveViewCongandselectJavaappletunderDefaultviewer.

PoorrenderingofH.264

images

Ensurethatyourgraphicscardisusingthelatestdriver.Thelatestdriverscanusuallybe

downloadedfromthemanufacturer’swebsite.

Colorsaturationisdifferent

inH.264andMotionJPEG

Modifythesettingsforyourgraphicsadapter.Refertotheadapter’sdocumentationformore

information.

AXISP7216VideoEncoder

Troubleshooting

Lowerframeratethan

expected

SeePerformanceConsiderations,onpage60.

Reducethenumberofapplicationsrunningontheclientcomputer.

Limitthenumberofsimultaneousviewers.

Checkwiththenetworkadministratorthatthereisenoughbandwidthavailable.

CheckintheAMCControlPanel(H.264tag)thatvideoprocessingisNOTsettoDecodeonly

keyframes.

Lowertheimageresolution.

Themaximumframespersecondisdependentontheutilityfrequency(60/50Hz)oftheAxis

product.SeeTechnicalSpecications,onpage56.

StatusandNetworkindicatorLEDsareashingredrapidly

Hardwarefailure

ContactyourAxisreseller.

Videoandimageproblems,general

Imageunsatisfactory

CheckthevideostreamandcamerasettingsunderSetup>Video&Audio>VideoStreamand

Setup>Video&Audio>CameraSettings.

MotionDetectiontriggersunexpectedly

Changesinluminance

Motiondetectionisbasedonchangesinluminanceintheimage.Thismeansthatifthereare

suddenchangesinthelighting,motiondetectionmaytriggermistakenly.Lowerthesensitivity

settingtoavoidproblemswithluminance.

Noaudio

Incorrectsetup

Checkthesoundcardinthecomputer.Ensurethatmuteisnotselectedandthatthevolume

settingsarecorrect.

CheckthatEnableaudiosupportisselectedunderSetup>SystemOptions>Security>Audio

Support.

CheckthatthecorrectAudioInputsourceisselectedunderSetup>Video&Audio>Audio

Settings.

Pooraudioquality

Stuttering

Reducethenumberoflistenersandviewers.Decreaseimageresolutionandcompression.

Unsynchronizedaudioand

videousingH.264

Synchronizetheproduct’sdateandtimesettingswithanNTPserver.GotoSetup>System

Options>Date&Time.

Distortedaudio

CheckthatthecorrectAudioInputsourceisselectedunderSetup>Video&Audio>Audio

Settings.

FeedbackloopsFeedbackloopsmightappearinfull-duplexmode.Trymovingthemicrophoneorthespeaker,or

usehalf-duplexmodeinstead.

AXISP7216VideoEncoder

Troubleshooting

Storageanddiskmanagementproblems

Storagedisruption

Astoragedisruptionalarmissentifastoragedeviceisunavailable,removed,full,lockedorifother

readorwriteproblemsoccur.Toidentifythesourceoftheproblem,checktheSystemLogunder

SystemOptions>Support>Logs&Reports.Dependingontheproblem,itmightbenecessaryto

re-mountthestoragedevice.

Forinformationonhowtosetupastoragedisruptionalarm,seeEvents,onpage33.

Videocannotberecorded

CheckthattheSDcardisnotwriteprotected(thatis,readonly).

SDcardcannotbemountedReformattheSDcardandthenclickMount.

AXISP7216VideoEncoder

TechnicalSpecications

Function/group

Item

Specications

Model

AXISP7216(16channels)

VideoEncoder

Pan/Tilt/Zoom

WiderangeofanalogPTZcamerassupported(driversavailablefordownloadat

www.axis.com)

100presets/camera,guardtour,PTZcontrolqueue

SupportsWindowscompatiblejoysticks

Video

compression

H.264(MPEG-4Part10/AVC)BaselineProle(BP)andMainProle(MP)

MotionJPEG

Resolutions

176x120to720x576,

176x120to1536x1152forquadview

FramerateH.264

30/25(NTSC/PAL)fps

15fpsinquadviewinfullresolution

Framerate

MotionJPEG

30/25(NTSC/PAL)fps

15fpsinquadviewinfullresolution

Videostreaming

OneindividuallyconguredH.264andoneMotionJPEGstreamperchannelatfullframe

rate.

Morestreamsifidenticalorlimitedinframerate/resolution.

Controllableframerateandbandwidth,VBR/CBRH.264

Video

Imagesettings

Compression,color,brightness,contrast

Rotation:90°,180°,270°

Aspectratiocorrection

Mirroringofimages

Textandimageoverlay

Privacymask

Enhanceddeinterlacelter

Videotermination

Anti-aliasing

Temporalnoiseltering

Audiostreaming

Two-way,fullandhalfduplex(mic/lineinput1or2/lineoutput).

Audio

compression

In:

AAC-LC8or16kHz8-64kbit/sG.711µ-lawPCM8kHz64kbit/sG.726ADPCM8kHz32

kbit/sor24kbit/s

Out:

G.711µ-lawPCM8kHz64kbit/sµ-lawPCM16kHz128kbit/sG.726ADPCM8kHz32

kbit/sor24kbit/s

Audio

input/output

Externalmicrophoneinputorlineinput,Lineleveloutput

Audiostreaming,record(AU)andplayuploaded(WAV,AU)clips

AU(G.711µ-law8-bit8/16kHzmono),WAV(PCM16-bit8/16kHzmono)

8input,4output

AXISP7216VideoEncoder

TechnicalSpecications

Function/group

Item

Specications

SecurityPasswordprotection,IPaddressltering,HTTPSencryption,IEEE802.1Xnetworkaccess

control,digestauthentication,useraccesslog

ThisproductincludessoftwaredevelopedbytheOpenSSLProjectforuseinthe

OpenSSLToolkit(www.openssl.org),andcryptographicsoftwarewrittenbyEricYoung

([email protected]).

Network

Supported

protocols

IPv4/v6,HTTP,HTTPS*,QoSlayer3DiffServ,FTP,CIFS/SMB,SMTP,Bonjour,UPnP™,

SNMPv1/v2c/v3(MIB-II),DNS,DynDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,RTCP,ICMP,

DHCP,ARP,SOCKS

ThisproductincludessoftwaredevelopedbytheOpenSSLProjectforuseinthe

OpenSSLToolkit(www.openssl.org),andcryptographicsoftwarewrittenbyEricYoung

([email protected]).

Application

Programming

Interface

OpenAPIforsoftwareintegration,includingVAPIX®fromAxisCommunicationsavailable

atwww.axis.comIncludestheONVIFspecicationavailableatwww.onvif.org

SupportforAXISVideoHostingSystem(AVHS)withOne-ClickCameraconnection

IntelligentvideoVideomotiondetection

Activetamperingalarm

Audiodetection

EventsIntelligentvideo

Externalinputs

Edgestorage

Videoloss

AlarmactionsFileuploadviaFTP,HTTP,networkshareandemail

Noticationviaemail,HTTPandTCP

Videoandaudiorecordingtoedgestorage

Pre-andpost-alarmvideobuffering

PTZpreset

Playaudioclip

Externaloutputactivation

Videoaccessfrom

webbrowser

Cameraliveview

Videorecordingtole(ASF)

CustomizableHTMLpages

DirectX9corhigher

WindowsVista,XP,Windows7,andServer2008

Forotheroperatingsystemsandbrowersseewww.axis.com/techsup

DatastreamingEventdata

Built-inaidsin

software

Pixelcounter

System

Integration

Installation,

managementand

maintenance

AXISCameraManagementtoolonCDandweb-basedconguration

Congurationofbackupandrestore

FirmwareupgradesoverHTTPorFTP,rmwareavailableonwww.axis.com

AXISP7216VideoEncoder

TechnicalSpecications

Function/group

Item

Specications

Casing

Metalcasing

Standalone

Rackmount

Wallmount

Processor,

memory

4x512MBRAM

4x128MBFlash

Power

AXISPS-Ppowersupply

Connectors

16xAnalogcompositevideoinputs(BNC)

8x3.5mmaudioinputsockets

4x3.5mmaudiooutputsocket

1x1000BaseTXEthernetonRJ45+spareRJ45forauxiliaryEthernet

1xGbpsSFPslot

4xTerminalblockforupto4congurableexternalinputs/outputs

4xTerminalblockforRS485/RS422serialcommunication(fullduplex)

1xDCinputterminalblock

Edgestorage

4xMicroSD/microSDHC/microSDXCslotssupportingmemorycardswithupto64GB

ofstorage.

Forbestrecordingperformance,useanSDHCorSDXCcardwithspeedclassC10

Supportforrecordingtodedicatednetwork-attachedstorage(NAS)

Operating

conditions

0–50°C(32–122°F)

Humidity20–80%RH(non-condensing)

Approvals

EN55022ClassB,EN61000-3-2,EN61000-3-3,EN55024,EN61000-6-1,EN61000-6-2

FCCPart15SubpartBClassB,ICES-003ClassB,VCCIClassB,C-tickAS/NZSCISPR22,

KCCClassB,KN24,UL/IEC/EN60950-1

Weight

1850g(4.1lb)

General

Included

accessories

Powersupply

Mountingandconnectorkit

InstallationGuide

InstallationandManagementSoftwareCD

Windowsdecoderuserlicenses

Dimensions

(HxWxD)

44,5x440x113mm(1.8"x17.3"x4.5")

Connectors

I/OConnector

6-pincongurableterminalblockfor:

•Auxiliarypower(DCoutput)

•DigitalInput

•DigitalOutput

•0VDC(-)

1 2 3 4 5 6

FunctionPinNotes

Specications

0VDC(-)

DCoutput

Canbeusedtopowerauxiliaryequipment.

Note:Thispincanonlybeusedaspowerout.

3.3VDC

Maxload=250mA

AXISP7216VideoEncoder

TechnicalSpecications

Digitalinput–Connecttopin1toactivate,orleaveoating

(unconnected)todeactivate.

0tomax40VDC Congurable

(InputorOutput)

3–6

Digitaloutput–Connectedtopin1whenactivated,oating

(unconnected)whendeactivated.Ifusedwithaninductive

load,e.g.arelay,adiodemustbeconnectedinparallelwith

theload,forprotectionagainstvoltagetransients.

Maxload=100mA

Maxvoltage=+40VDC

3.3 V max 250 mA

I/Oconguredasinput

I/Oconguredasoutput

PowerConnector

2-pinterminalblockforpowerinput.

UseaSafetyExtraLowVoltage(SELV)

compliantlimitedpowersource(LPS)

witheitheraratedoutputpower

limitedto≤100Woraratedoutput

currentlimitedto≤5A.

DCpowerinput

AudioConnector

3.5mmaudioconnectors

(stereo)

123

AXISP7216VideoEncoder

TechnicalSpecications

AudioInput

AudioOutput

1Tip

2Ring

Lineout(mono)

3SleeveGroundGround

RS-485/422Connector

Two2-pinterminalblocksforRS485/RS422serialinterface.Theserial

portcanbeconguredtosupport:

•Two-wireRS485halfduplex

•Four-wireRS485fullduplex

•Two-wireRS422simplex

•Four-wireRS422fullduplexpointtopointcommunication

RX/TX TX

1 2 3 4

FunctionPinNotes

RS485/RS422RX/TXA

RS485/RS422RX/TXB

(RX)ForfullduplexRS485/RS422

(RX/TX)ForhalfduplexRS485

RS485/RS422TXA

RS485/RS422TXB

(TX)ForfullduplexRS485/RS422

SDCardSlot

SupportsmicroSDcardswithupto64GBofstorage.Forbestrecordingperformance,useamicroSDHCormicroSDXCcardwith

speedclass10.

PerformanceConsiderations

Whensettingsupyoursystem,itisimportanttoconsiderhowvarioussettingsandsituationswillaffectperformance.Somefactors

affecttheamountofbandwidth(thebitrate)required,otherscanaffecttheframerate,andsomeaffectboth.Iftheloadonthe

CPUreachesitsmaximum,thiswillalsoaffecttheframerate.

Thefollowingfactorsareamongthemostimportanttoconsider:

•Highimageresolutionand/orlowercompressionlevelsresultinimagescontainingmoredata.Bandwidthaffected.

•AccessbylargenumbersofMotionJPEGand/orunicastH.264clients.Bandwidthaffected.

•Simultaneousviewingofdifferentstreams(resolution,compression)bydifferentclients.Effectonframerateand

bandwidth.

•AccessingMotionJPEGandH.264videostreamssimultaneously.Framerateandbandwidthaffected.

•Heavyusageofeventsettingsaffecttheproduct’sCPUload.Framerateaffected.

•Heavynetworkutilizationduetopoorinfrastructure.Bandwidthaffected.

•Viewingonpoorlyperformingclientcomputerslowersperceivedperformance.Framerateaffected.

UserManualVer.M2.2

AXISP7216VideoEncoder

Date:November2013

PartNo.54593

Axis 0542-003 ~ EOL P7216 16 Channel Video Encoder 0542-003

Product's Documents

Axis P7216 User Manual

Specifications

Axis 0542-003 ~ EOL Questions and Answers
