TR4
Programmable Universal Trigger Module
Description
Pacific Accessory Corporation
Instructions
Wiring
The TR4 Universal trigger module accepts a voltage as low as low as 0.8V and provide a 1 second delay,
then provides a 12V turn-on lead. This accessory can be used to provide a delayed turn-on signal for
virtually any installation need.

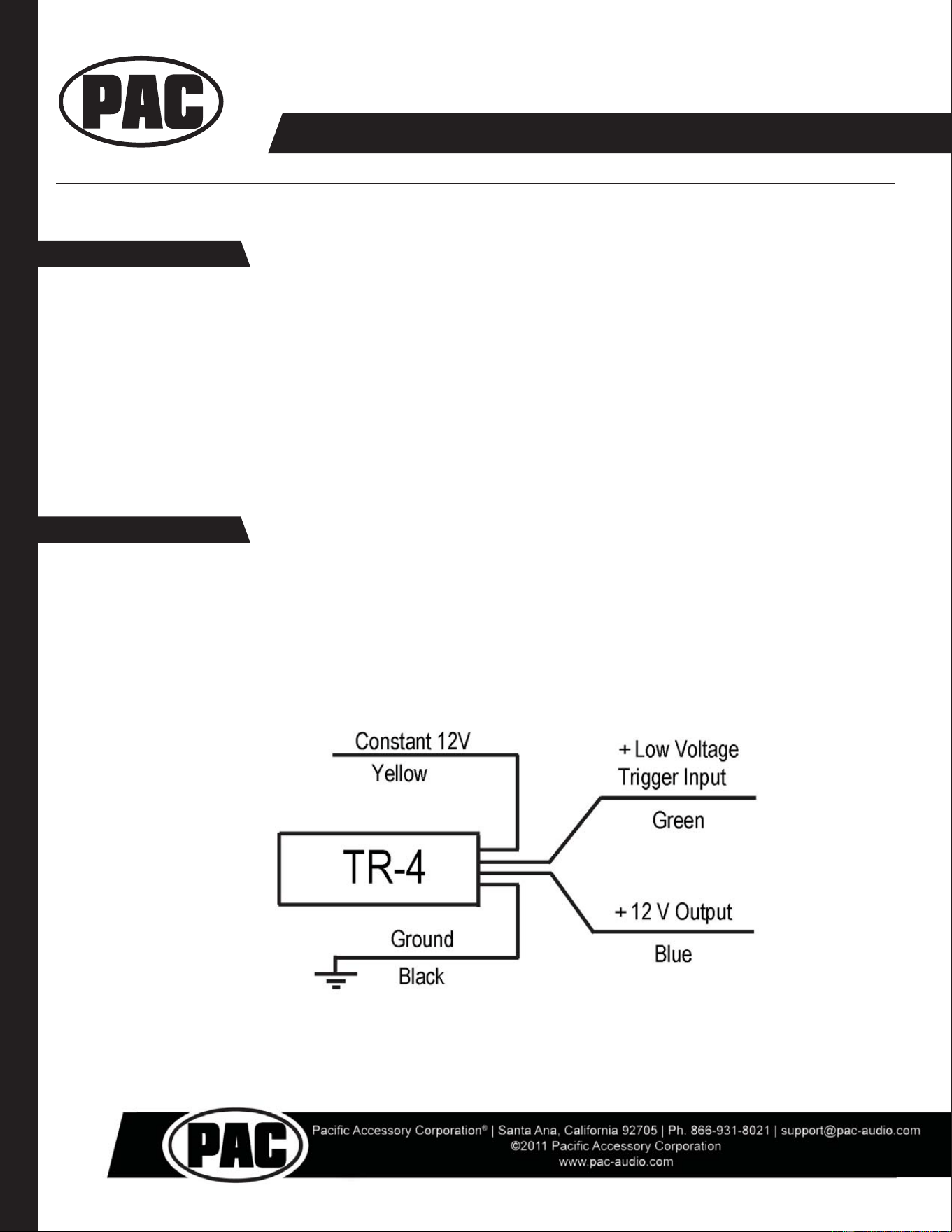

Yellow: Constant + 12V
Black: Chassis ground
Green: Low voltage input (+)
Blue: +12V output
