Owner’s Manual

Drum Trigger Module

Contents

Specifications

page 9

page 66

Features of the

DTX-PRO

page 8

S-1

DTX-PRO Owner’s Manual

For DTX-PRO

This product utilizes batteries or an external power supply (adapter).

DO NOT connect this product to any power supply or adapter other

than one described in the manual, on the name plate, or specifically

recommended by Yamaha.

WARNING: Do not place this product in a position where anyone

could walk on, trip over, or roll anything over power or connecting

cords of any kind. The use of an extension cord is not recommended!

If you must use an extension cord, the minimum wire size for a 25’

cord (or less ) is 18 AWG. NOTE: The smaller the AWG number, the

larger the current handling capacity. For longer extension cords, con-

sult a local electrician.

This product should be used only with the components supplied or; a

cart, rack, or stand that is recommended by Yamaha. If a cart, etc., is

used, please observe all safety markings and instructions that accom-

pany the accessory product.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be correct at

the time of printing. However, Yamaha reserves the right to change or

modify any of the specifications without notice or obligation to update

existing units.

This product, either alone or in combination with an amplifier and

headphones or speaker/s, may be capable of producing sound levels

that could cause permanent hearing loss. DO NOT operate for long

periods of time at a high volume level or at a level that is uncomfort-

able. If you experience any hearing loss or ringing in the ears, you

should consult an audiologist.

IMPORTANT: The louder the sound, the shorter the time period before

damage occurs.

NOTICE:

Service charges incurred due to a lack of knowledge relating to how a

function or effect works (when the unit is operating as designed) are

not covered by the manufacturer’s warranty, and are therefore the

owners responsibility. Please study this manual carefully and consult

your dealer before requesting service.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are both user safe and envi-

ronmentally friendly. We sincerely believe that our products and the

production methods used to produce them, meet these goals. In keep-

ing with both the letter and the spirit of the law, we want you to be

aware of the following:

Battery Notice:

This product MAY contain a small non-rechargeable battery which (if

applicable) is soldered in place. The average life span of this type of

battery is approximately five years. When replacement becomes nec-

essary, contact a qualified service representative to perform the

replacement.

This product may also use “household” type batteries. Some of these

may be rechargeable. Make sure that the battery being charged is a

rechargeable type and that the charger is intended for the battery

being charged.

When installing batteries, never mix old batteries with new ones, and

never mix different types of batteries. Batteries MUST be installed cor-

rectly. Mismatches or incorrect installation may result in overheating

and battery case rupture.

Warning:

Do not attempt to disassemble, or incinerate any battery. Keep all bat-

teries away from children. Dispose of used batteries promptly and as

regulated by the laws in your area. Note: Check with any retailer of

household type batteries in your area for battery disposal information.

Disposal Notice:

Should this product become damaged beyond repair, or for some rea-

son its useful life is considered to be at an end, please observe all

local, state, and federal regulations that relate to the disposal of prod-

ucts that contain lead, batteries, plastics, etc. If your dealer is unable

to assist you, please contact Yamaha directly.

NAME PLATE LOCATION:

The name plate is located on the bottom of the product. The model

number, serial number, power requirements, etc., are located on this

plate. You should record the model number, serial number, and the

date of purchase in the spaces provided below and retain this manual

as a permanent record of your purchase.

Model

Serial No.

Purchase Date

PLEASE KEEP THIS MANUAL

SPECIAL MESSAGE SECTION

92-BP (bottom)

COMPLIANCE INFORMATION STATEMENT (Supplier’s declaration of conformity procedure)

Responsible Party : Yamaha Corporation of America

Address : 6600 Orangethorpe Ave., Buena Park, Calif. 90620

Telephone : 714-522-9011

Type of Equipment : Drum Trigger Module

Model Name : DTX-PRO

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that may cause undesired operation.

* This applies only to products distributed by Yamaha Corporation of America. (FCC SDoC)

(can_b_02)

CAN ICES-3 (B)/NMB-3(B)

S-2

DTX-PRO Owner’s Manual

For AC adapter and DTX-PRO

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions con-

tained in this manual, meets FCC requirements. Modifications not

expressly approved by Yamaha may void your authority, granted by

the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/

or another product use only high quality shielded cables. Cable/s

supplied with this product MUST be used. Follow all installation

instructions. Failure to follow instructions could void your FCC

authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the

requirements listed in FCC Regulations, Part 15 for Class “B” digital

devices. Compliance with these requirements provides a reason-

able level of assurance that your use of this product in a residential

environment will not result in harmful interference with other elec-

tronic devices. This equipment generates/uses radio frequencies

and, if not installed and used according to the instructions found in

the users manual, may cause interference harmful to the operation

of other electronic devices. Compliance with FCC regulations does

not guarantee that interference will not occur in all installations. If

this product is found to be the source of interference, which can be

determined by turning the unit “OFF” and “ON”, please try to elimi-

nate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by

the interference.

Utilize power outlets that are on different branch (circuit breaker or

fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the

antenna. If the antenna lead-in is 300 ohm ribbon lead, change the

lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results,

please contact the local retailer authorized to distribute this type of

product. If you can not locate the appropriate retailer, please contact

Yamaha Corporation of America, Electronic Service Division, 6600

Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by

Yamaha Corporation of America or its subsidiaries.

* This applies only to products distributed by Yamaha Corporation of America. (class B)

FCC INFORMATION (U.S.A.)

S-3

DTX-PRO Owner’s Manual

For AC adaptor

The above warning is located on the bottom of the unit.

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol within

an equilateral triangle is intended to alert the user

to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of suffi-

cient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral trian-

gle is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

product.

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers)

that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided

plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manu-

facturer.

12 Use only with the cart, stand, tri-

pod, bracket, or table specified by

the manufacturer, or sold with the

apparatus. When a cart is used,

use caution when moving the cart/

apparatus combination to avoid

injury from tip-over.

13 Unplug this apparatus during light-

ning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped

(UL60065_03)

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

S-4

DTX-PRO Owner’s Manual

(bottom_en_01)

(weee_eu_en_02)

The model number, serial number, power requirements, etc., may be found on or near the

name plate, which is at the bottom of the unit.

You should note this serial number in the space provided below and retain this manual as a

permanent record of your purchase to aid identification in the event of theft.

Model No.

Serial No.

Information for users on collection and disposal of old equipment:

This symbol on the products, packaging, and/or accompanying documents means that used electrical and

electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection

points, in accordance with your national legislation.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential

negative effects on human health and the environment which could otherwise arise from inappropriate

waste handling.

For more information about collection and recycling of old products, please contact your local municipality,

your waste disposal service or the point of sale where you purchased the items.

For business users in the European Union:

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further

information.

Information on Disposal in other Countries outside the European Union:

This symbol is only valid in the European Union. If you wish to discard these items, please contact your

local authorities or dealer and ask for the correct method of disposal.

DTX-PRO Owner’s Manual

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe and handy place for future reference.

WARNING

• This AC adaptor is designed for use with only Yamaha electronic instruments.

Do not use for any other purpose.

• Indoor use only. Do not use in any wet environments.

CAUTION

• When setting up, make sure that the AC outlet is easily accessible. If some

trouble or malfunction occurs, immediately turn off the power switch of the

instrument and disconnect the AC adaptor from the outlet. When the AC

adaptor is connected to the AC outlet, keep in mind that electricity is flowing at

the minimum level, even if the power switch is turned off. When you are not

using the instrument for a long time, make sure to unplug the power cord from

the wall AC outlet.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting,

damages, fire or other hazards. These precautions include, but are not limited to, the following:

• Do not place the power cord near heat sources such as heaters or radiators.

Also, do not excessively bend or otherwise damage the cord, or place heavy

objects on it.

• Only use the voltage specified as correct for the instrument. The required

voltage is printed on the name plate of the instrument.

• Use the specified adaptor (page 66) only. Using the wrong adaptor can result

in damage to the instrument or overheating.

• Check the electric plug periodically and remove any dirt or dust which may

have accumulated on it.

• This instrument contains no user-serviceable parts. Do not open the

instrument or attempt to disassemble or modify the internal components in

any way. If it should appear to be malfunctioning, discontinue use immediately

and have it inspected by qualified Yamaha service personnel.

• Do not expose the instrument to rain, use it near water or in damp or wet

conditions, or place on it any containers (such as vases, bottles or glasses)

containing liquids which might spill into any openings. If any liquid such as

water seeps into the instrument, turn off the power immediately and unplug the

power cord from the AC outlet. Then have the instrument inspected by

qualified Yamaha service personnel.

• Never insert or remove an electric plug with wet hands.

• Do not put burning items, such as candles, on the unit. A burning item may fall

over and cause a fire.

• When one of the following problems occur, immediately turn off the power

switch and disconnect the electric plug from the outlet. Then have the device

inspected by Yamaha service personnel.

- The power cord or plug becomes frayed or damaged.

- It emits unusual smells or smoke.

- Some object has been dropped into the instrument.

- There is a sudden loss of sound during use of the instrument.

- If any cracks or breakages exist on the instrument.

For the AC adaptor

For DTX-PRO

Power supply/AC adaptor

Do not open

Water warning

Fire warning

If you notice any abnormality

DMI-7 1/2

DTX-PRO Owner’s Manual

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other

property. These precautions include, but are not limited to, the following:

• Do not connect the instrument to an electrical outlet using a multiple-

connector. Doing so can result in lower sound quality, or possibly cause

overheating in the outlet.

• When removing the electric plug from the instrument or an outlet, always hold

the plug itself and not the cord. Pulling by the cord can damage it.

• Remove the electric plug from the outlet when the instrument is not to be used

for extended periods of time, or during electrical storms.

• Assemble the instrument in the proper sequence by following the assembly

instructions in this manual. Also, make sure to tighten the bolts regularly.

Failure to do so might result in damage to the instrument or even injury.

• Do not place the instrument in an unstable position where it might accidentally

fall over.

• Before moving the instrument, remove all connected cables, to prevent

damage to the cables or injury to anyone who might trip over them.

• When setting up the product, make sure that the AC outlet you are using is

easily accessible. If some trouble or malfunction occurs, immediately turn off

the power switch and disconnect the plug from the outlet. Even when the

power switch is turned off, electricity is still flowing to the product at the

minimum level. When you are not using the product for a long time, make sure

to unplug the power cord from the wall AC outlet.

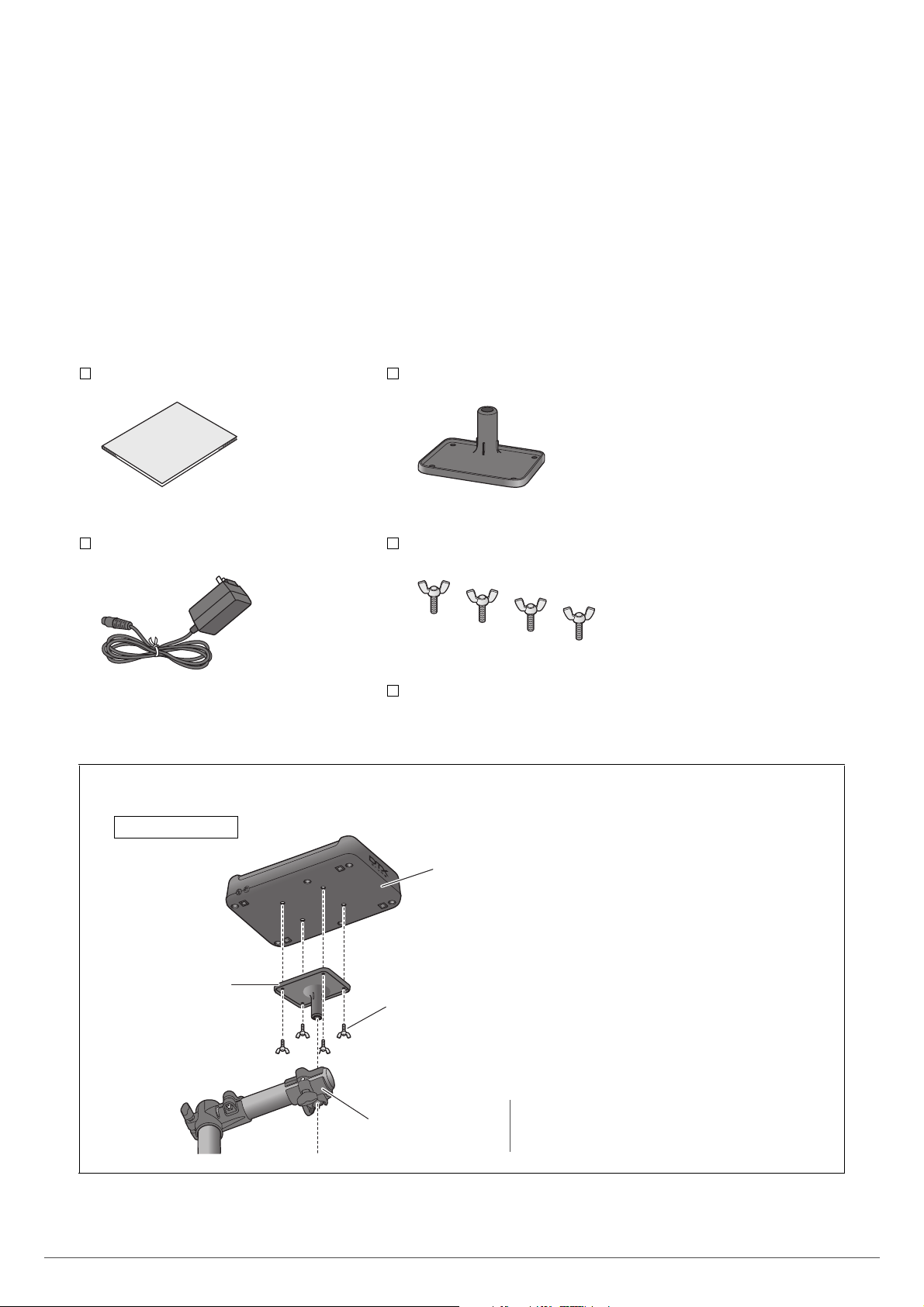

• Use the included module holder if you are installing the DTX-PRO on the drum

hardware. Also, make sure you use the wing bolts included with the module

holder. Failure to do so could cause damage to the internal components or

result in the instrument falling over.

• Take care when setting up cables. If anyone were to trip on a cable, the

instrument could topple over and cause injury.

• Before connecting the instrument to other electronic components, turn off the

power for all components. Before turning the power on or off for all

components, set all volume levels to minimum.

• Be sure to set the volumes of all components at their minimum levels and

gradually raise the volume controls while playing the instrument to set the

desired listening level.

• Do not insert a finger or hand in any gaps on the instrument.

• Never insert or drop paper, metallic, or other objects into the gaps on the

panel. This could cause physical injury to you or others, damage to the

instrument or other property, or operational failure.

• Do not rest your weight on, or place heavy objects on the instrument, and do

not use excessive force on the buttons, switches or connectors.

• Keep small parts out of the reach of infants. Your children may accidentally

swallow them.

• Do not use the instrument/device or headphones for a long period of time at a

high or uncomfortable volume level, since this can cause permanent hearing

loss. If you experience any hearing loss or ringing in the ears, consult a

physician.

Always turn the power off when the instrument is not in use.

Even when the [ ] (Standby/On) switch is in standby status (display is off), electricity is still flowing to the instrument at t

he minimum level.

Whe

n you are not

using the instrument for a long time, make sure you unplug the power cord from the wall AC outlet.

Power supply/AC adaptor

Assembly

Location

Connections

Handling caution

Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

DMI-7 2/2

DTX-PRO Owner’s Manual

NOTICE

To avoid the possibility of malfunction/ damage to the product, damage

to data, or damage to other property, follow the notices below.

 Handling

• Do not use the instrument in the vicinity of a TV, radio, stereo equip-

ment, mobile phone, or other electric devices. Otherwise, the

instrument, TV, or radio may generate noise.

When you use the instrument along with an application on your

smart device such as a smartphone or tablet, we recommend that

you set Wi-Fi to on after setting “Airplane Mode” to on on that device

in order to avoid noise caused by communication.

• Do not expose the instrument to excessive dust or vibrations, or

extreme cold or heat (such as in direct sunlight, near a heater, or in

a car during the day) to prevent the possibility of panel disfiguration,

damage to the internal components or unstable operation.

• Do not place vinyl, plastic or rubber objects on the instrument,

since this might discolor the panel or keyboard.

 Maintenance

• When cleaning the instrument, use a soft and dry/slightly damp

cloth. Do not use paint thinners, solvents, alcohol, cleaning fluids,

or chemical-impregnated wiping cloths.

 Saving data

• System settings (Reference Manual (PDF)) are retained when the

power is turned off. However, the saved data may be lost due to

some failure, an operation mistake, etc. Save your important data

onto USB flash drive/an external device such as a computer (Refer-

ence Manual (PDF)). Before using a USB flash drive, make sure to

refer to page 21.

• Edited Kit/Click, etc. are lost when you turn off the power to the

instrument. This also occurs when the power is turned off by the

Auto Power Off function (page 19). Save the data to the instrument,

or to USB flash drive/an external device such as a computer (Refer-

ence Manual (PDF)). However, the data saved to the instrument

may be lost due to some failure, an operation mistake, etc. Save

your important data onto USB flash drive/an external device such

as a computer (Reference Manual (PDF)). Before using a USB

flash drive, make sure to refer to page 21.

• To protect against data loss through USB flash drive damage, we

recommend that you save your important data onto spare USB

flash drive or an external device such as a computer as backup

data.

Information

 About copyrights

• Copying of the commercially available musical data including but

not limited to MIDI data and/or audio data is strictly prohibited

except for your personal use.

• This product incorporates and bundles contents in which Yamaha

owns copyrights or with respect to which Yamaha has license to

use others’ copyrights. Due to copyright laws and other relevant

laws, you are NOT allowed to distribute media in which these con-

tents are saved or recorded and remain virtually the same or very

similar to those in the product.

* The contents described above include a computer program, Accompani-

ment Style data, MIDI data, WAVE data, voice recording data, a score,

score data, etc.

* You are allowed to distribute medium in which your performance or music

production using these contents is recorded, and the permission of Yamaha

Corporation is not required in such cases.

 About this manual

• The illustrations and LCD screens as shown in this manual are for

instructional purposes only, and may appear somewhat different

from those on your instrument.

• Windows is a registered trademark of Microsoft® Corporation in the

United States and other countries.

• Apple, Mac, Macintosh, iPhone, iPad, iPod touch are trademarks of

Apple Inc., registered in the U.S. and other countries.

• Android is a trademark of Google LLC.

• The company names and product names in this manual are the

trademarks or registered trademarks of their respective companies.

• The names of buttons, terminals, and the like from the DTX-PRO’s

front, rear and top panels are enclosed in [ ] (square brackets).

 Latest Firmware Version

From time to time, Yamaha may update product firmware without

prior notice.

We recommend, therefore, that you check our web site (below) for

the latest version and keep your DTX-PRO firmware up to date.

https://download.yamaha.com/

The content of this Owner’s Manual applies to the newest version of

the firmware as of printing. Details regarding any functions added to

later versions will also be made available via the above web site.

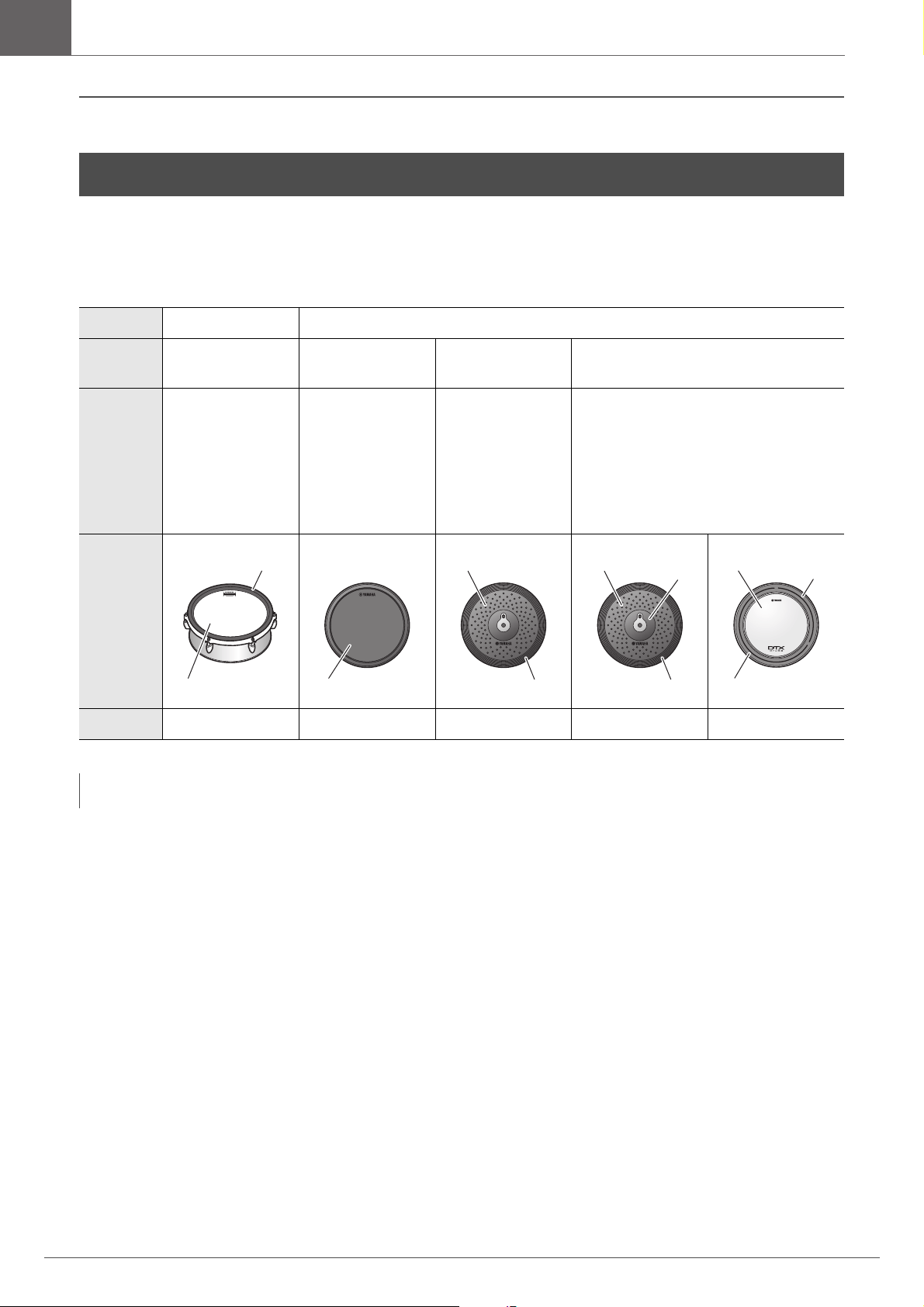

 About the Electronic Drum Pads (Pads)

Within this Owner’s Manual, the optional external pads that may be

connected to the DTX-PRO are referred to by model name. Please

note that these model names were up-to-date as of printing of this

manual.

Details regarding any subsequently released models will be made

available via the following web site.

https://download.yamaha.com/

* Yamaha Corporation reserves the right to modify this URL at any

time without prior notice.

DTX-PRO Owner’s Manual

MEMO

DTX-PRO Owner’s Manual

Welcome

Thank you for purchasing this Yamaha Electronic Drum Module DTX-PRO.

To get the most out of your DTX-PRO, be sure to read this Owner’s Manual carefully.

And after reading through this manual, be sure to store it in a safe place so that you can

refer back to it again as needed.

Included Accessories

Owner’s Manual (this book)

AC adaptor

Module holder

Module holder wing bolts (× 4)

Cubase AI Download Information

How to Attach the Module Holder

Exploded view

DTX-PRO

Module holder wing

bolts

Holder clamp

Module Holder

NOTE

The module holder is compatible with standard

drum hardware (22.2-mm or 7/8-inch diameter).

DTX-PRO Owner’s Manual

About the Manuals

The following manuals are provided for using the DTX-PRO. These manuals are intended for

users of the DTX-PRO.

Owner’s Manual (this book)

Setup Guide

Explains how to attach and setup the DTX-PRO for producing sound.

Basic Guide

Describes the fundamentals needed to operate the DTX-PRO.

Application Guide

Describes parameter settings and other more advanced uses.

Reference

Describes troubleshooting techniques and contains other reference materials.

Reference Manual

The Reference Manual provides a description of all of the functions that can be accessed by pressing the [MENU] but-

ton.

Data List

This provides lists of Kit and Effect names in the DTX-PRO, and MIDI related information.

iPhone/iPad Connection Manual

Smart Device Connection Manual for Android™

Describes how to connect smartphones and tablets.

Printed Manual

Digital Manual (PDF)

The digital format manuals listed above can be obtained from the Yamaha Downloads web page.

To do so, go to the web page using the following URL, enter “DTX-PRO” in the “Model Name”

field, and then click “Search.”

Yamaha Downloads: https://download.yamaha.com/

DTX-PRO Owner’s Manual

Features of the DTX-PRO

 Intuitive operation that you can play your perfect drum sounds

 Includes natural drum sounds with real ambience, played by top studio drum-

mers and recorded in renowned studios, including Real World Studios.

 Includes unique KIT MODIFIERS giving you intuitive control of Ambience, Comp,

and Effects—the core elements of the drum sound creation (page 30).

 Equipped with a high-quality headphone amplifier that delivers high fidelity

reproduction of all drum sounds.

 High-quality tone generator that enables natural expressive control like that of

acoustic drums—with high-definition dynamics, high-performance effects pro-

cessing, position sensing

(*1)

on snare and ride cymbal pads, low latency and 256

polyphony.

 Boost your drumming skills with DTX training menus

 A sophisticated programmable metronome allows you to adjust the volume of

each click beat, change the tone of the click sound, and much more (page 39).

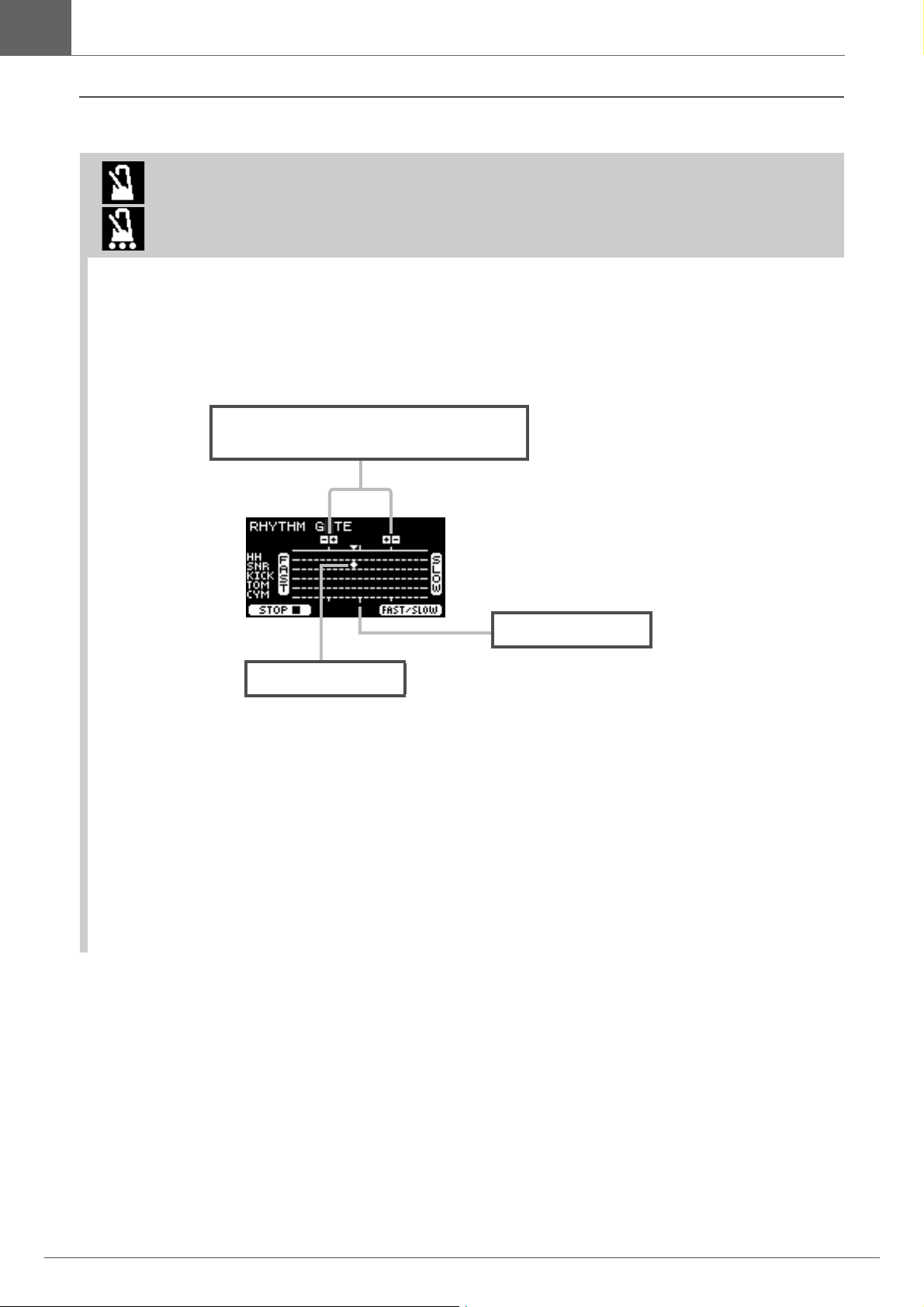

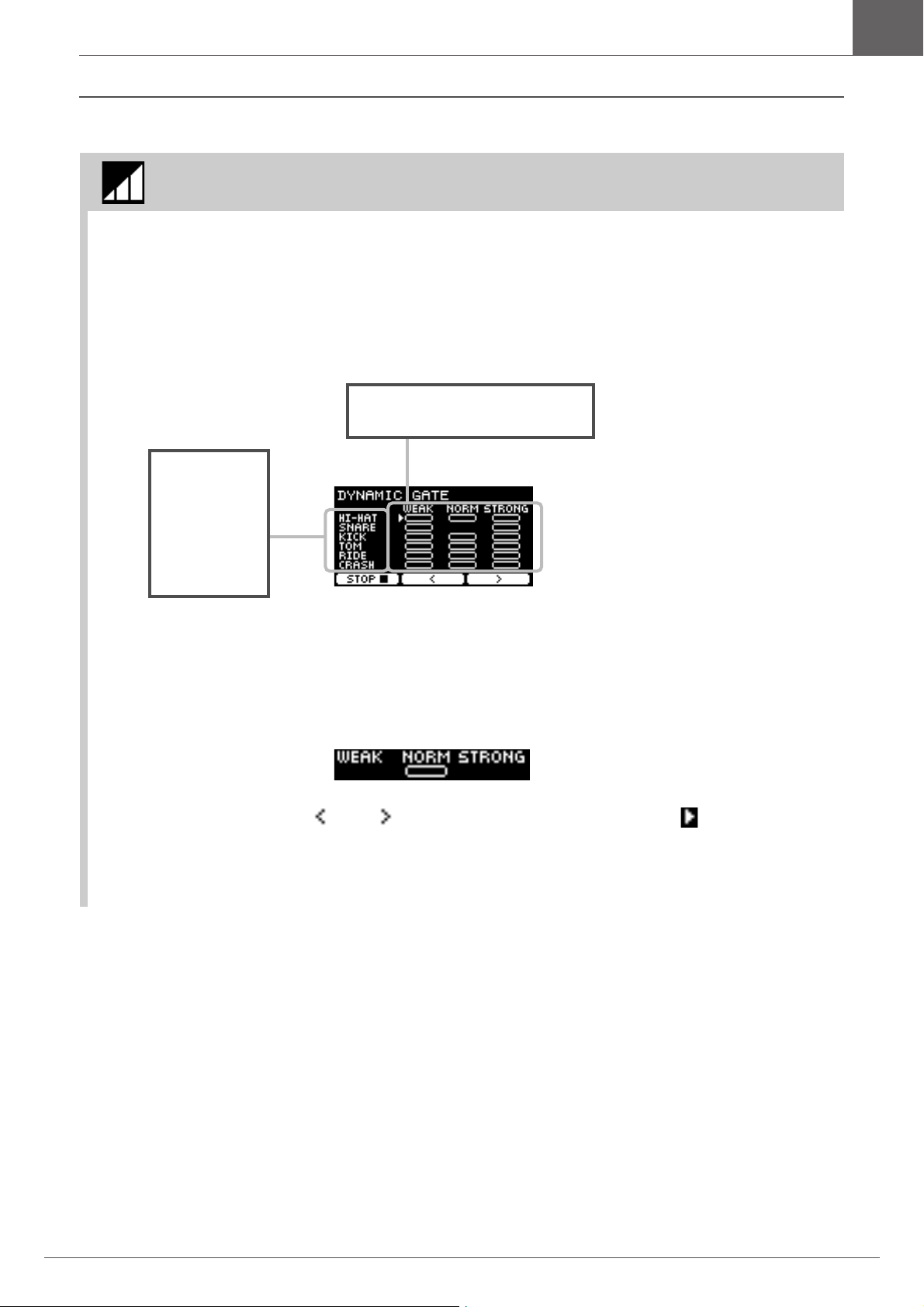

 Enhanced versions of popular DTX training menus, such as Rhythm Gate, that are

sure to take your drumming skills to the next level (page 45).

 Wide variety of training songs and drum phrases supervised by Yamaha drums

master trainers will broaden your range of expression (page 45).

 You can record or playback your songs using the build-in audio recorder or a USB

flash drive (page 42).

 The USB cable connection enables you to create music, make a video

of your performance, and share your video over the Internet

 With iOS or Android apps such as Rec’n’Share, you can play the drums along with

your favorite music or make a video of your performance to upload to social net-

working sites

(*2)

(page 60).

 Digitally connect to smart devices for high sound quality recording and

playback

(*2)

(page 60).

 Includes Steinberg Cubase AI for comprehensive music production tools (page

61).

 Freedom to build your own drum set using separately sold drum pads

 Featuring compatibility with upper model drum pads and providing separate

trigger input jacks for individual drum pads, the DTX-PRO lets you combine vari-

ous drum pads in countless ways to build your perfect drum set. (pages 24 and

57)

*1 For more information on the list of compatible drum pads, refer to the Pad Module Compatibility

Table.

*2 The DTX-PRO is a class compliant USB device. A separate cable is required for connecting to a com-

puter or to a smartphone.

DTX-PRO Owner’s Manual

PRECAUTIONS 2

Welcome 6

Included Accessories 6

About the Manuals 7

Printed Manual.............................................................................. 7

Digital Manual (PDF) .................................................................... 7

Features of the DTX-PRO 8

Panel Controls and Functions 10

Top Panel ................................................................................... 10

Front Panel ................................................................................. 12

Rear Panel.................................................................................. 13

Setup Guide 14

Preparations ............................................................................... 14

Installing the DTX-PRO .............................................................. 14

Turning On or Off........................................................................ 17

Changing the Overall Settings .................................................... 19

Using a USB Flash Drive ............................................................ 21

Basic Guide 23

Structure of the Kit ...................................................................... 23

Playing the Pads......................................................................... 24

Basic Operation of the DTX-PRO ............................................... 29

Changing the Drum Set Sound (Building Your Own Drum Set) . 35

Using the Click (Metronome) ...................................................... 39

Creating Your Own Click (Metronome) Settings......................... 40

Recording Your Performance ..................................................... 42

Practicing with the Training Feature ........................................... 45

Details on Training Types ........................................................... 48

Application Guide 57

Connecting Separately Sold Add-ons and External Devices...... 57

Reference 62

Message List............................................................................... 62

Troubleshooting .......................................................................... 64

Specifications.............................................................................. 66

Index ........................................................................................... 67

Contents

DTX-PRO Owner’s Manual

Panel Controls and Functions

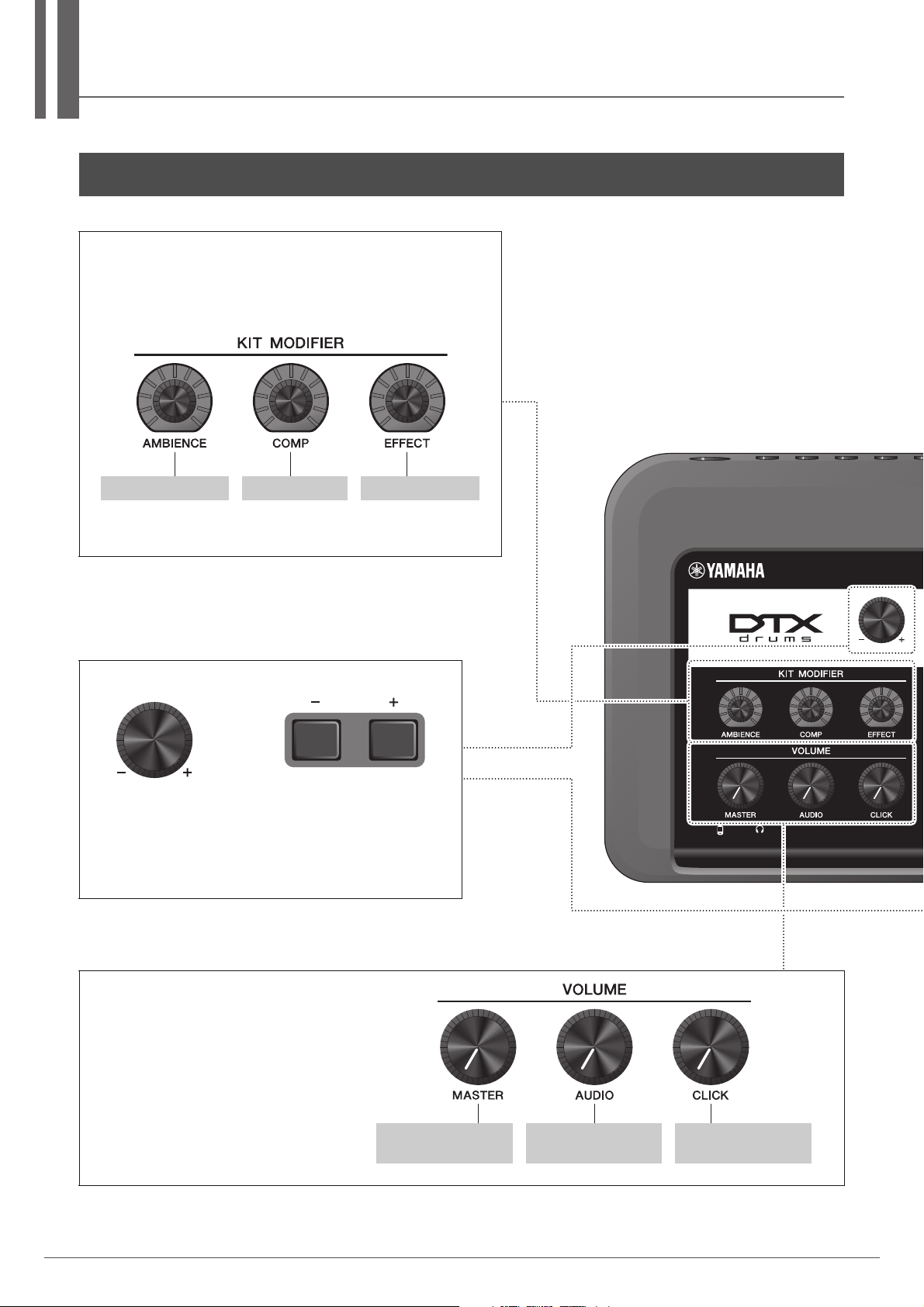

Top Panel

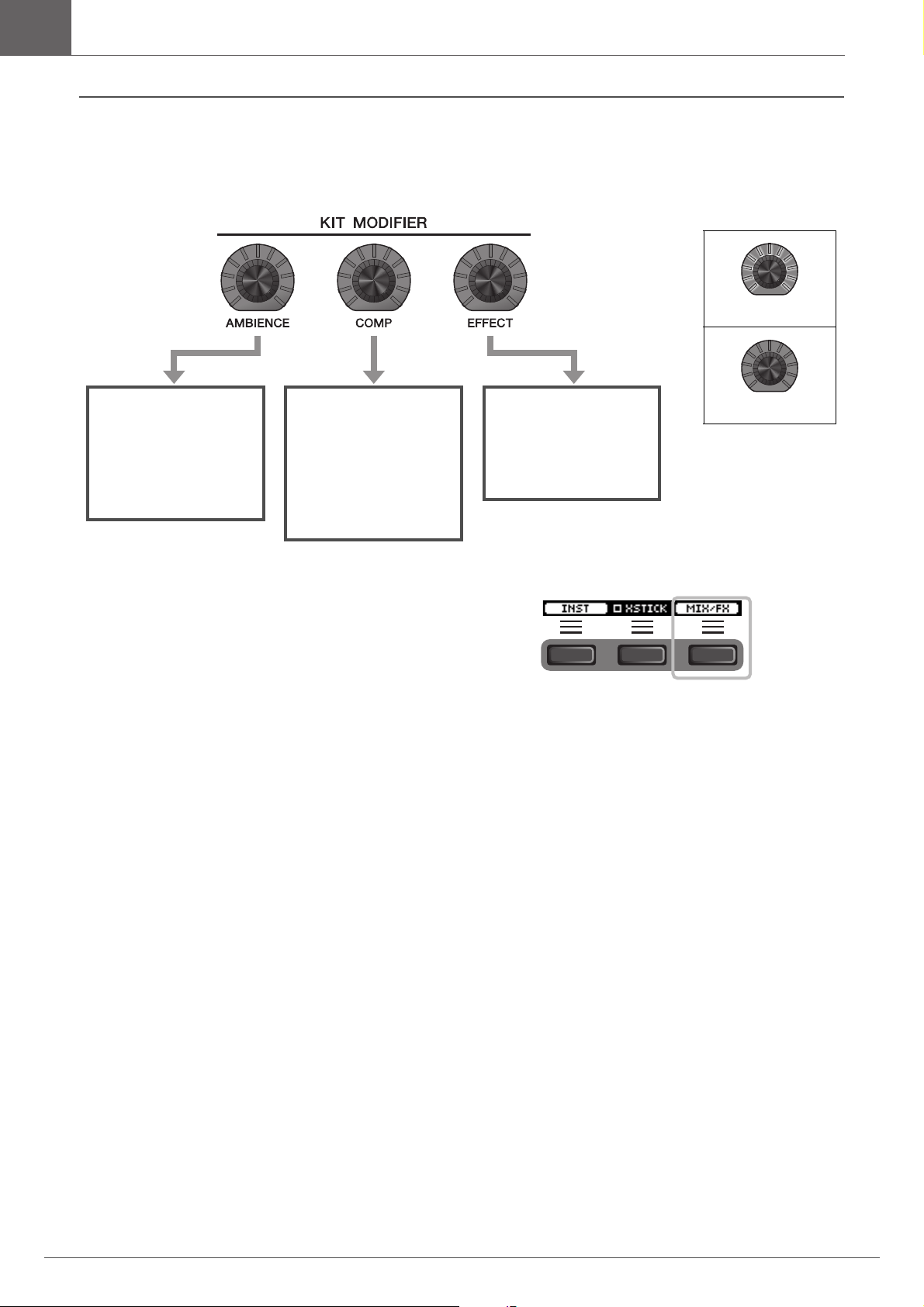

KIT MODIFIER knobs

Adjust the amount of Ambience (the background sounds of the location),

Comp (the punchiness or loudness of the sound), Effect (other effects

assigned to the Kit)

 Structure of the Kit (page 23)



Adjusting (Modifying) the Sound Effects (page 30)

[AMBIENCE] knob [COMP] knob [EFFECT] knob

Increases or decrease the value(s).

The knob is useful for changing multiple values, while the buttons

are useful for changing the value in steps. In this manual, the [–][+]

knob, the [–] button and the [+] button are collectively called the

“[–][+] controllers” for situations where you can use either the knob

or the buttons.

[–][+] knob [–] button [+] button

VOLUME knobs

Adjusts the Master volume (overall sounds),

audio volume (other than your performance

and the click), and Click volume.

[MASTER VOLUME]

knob

[AUDIO VOLUME]

knob

[CLICK VOLUME]

knob

120

DTX-PRO Owner’s Manual

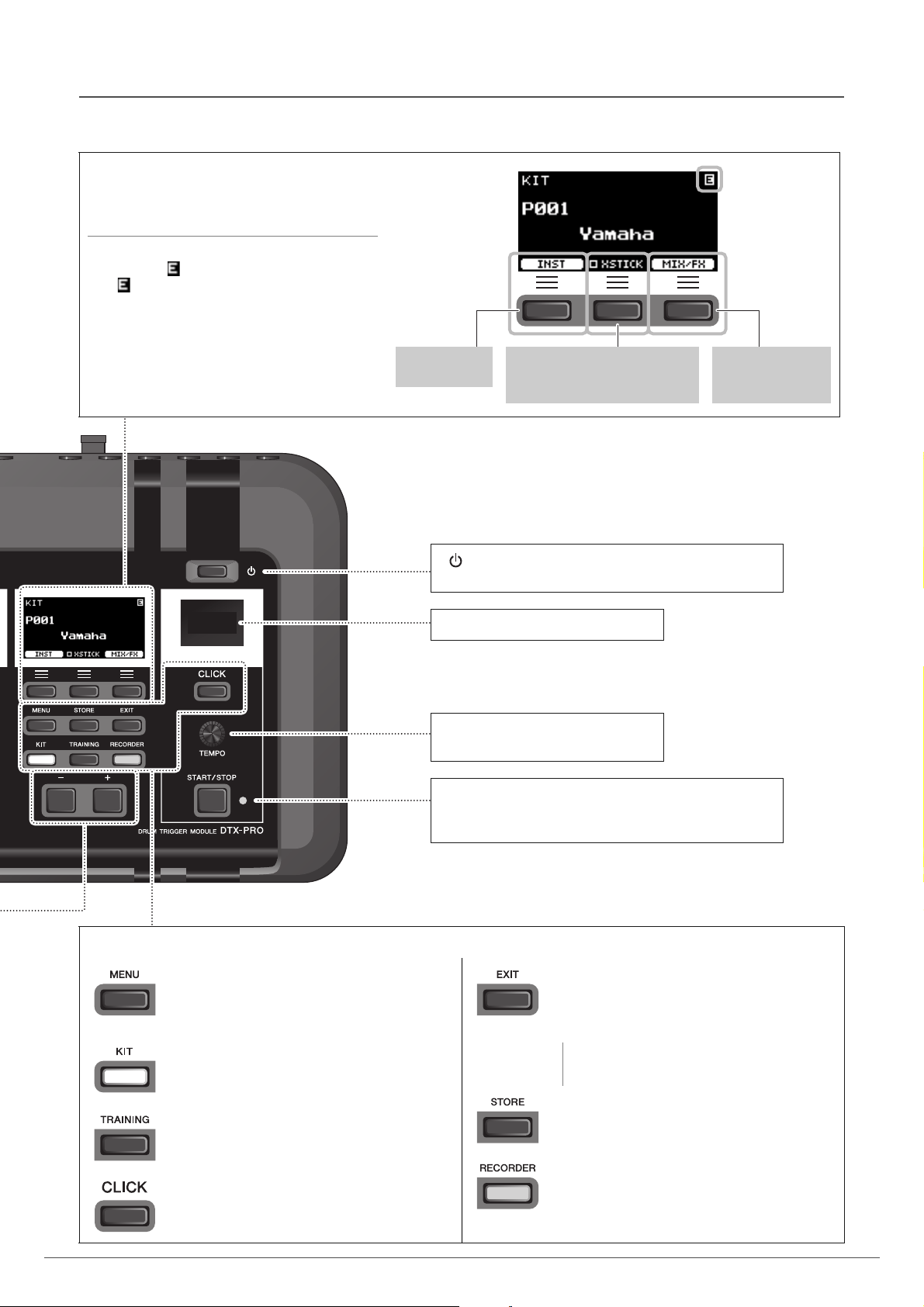

Panel Controls and Functions

Display

Function Buttons 1–3 ([F1], [F2], [F3])

Selects the functions that appear at the bottom of

each screen.

NOTICE

About the “ ” mark:

The mark appears in the upper right of the

screen when the Kit or click settings have been

changed. This is to remind you that the settings

have changed but have not yet been saved (Store).

The mark disappears when you store the settings

(page 37). When you select another screen without

first storing the settings, the changes will be lost.

F1 F2 F3

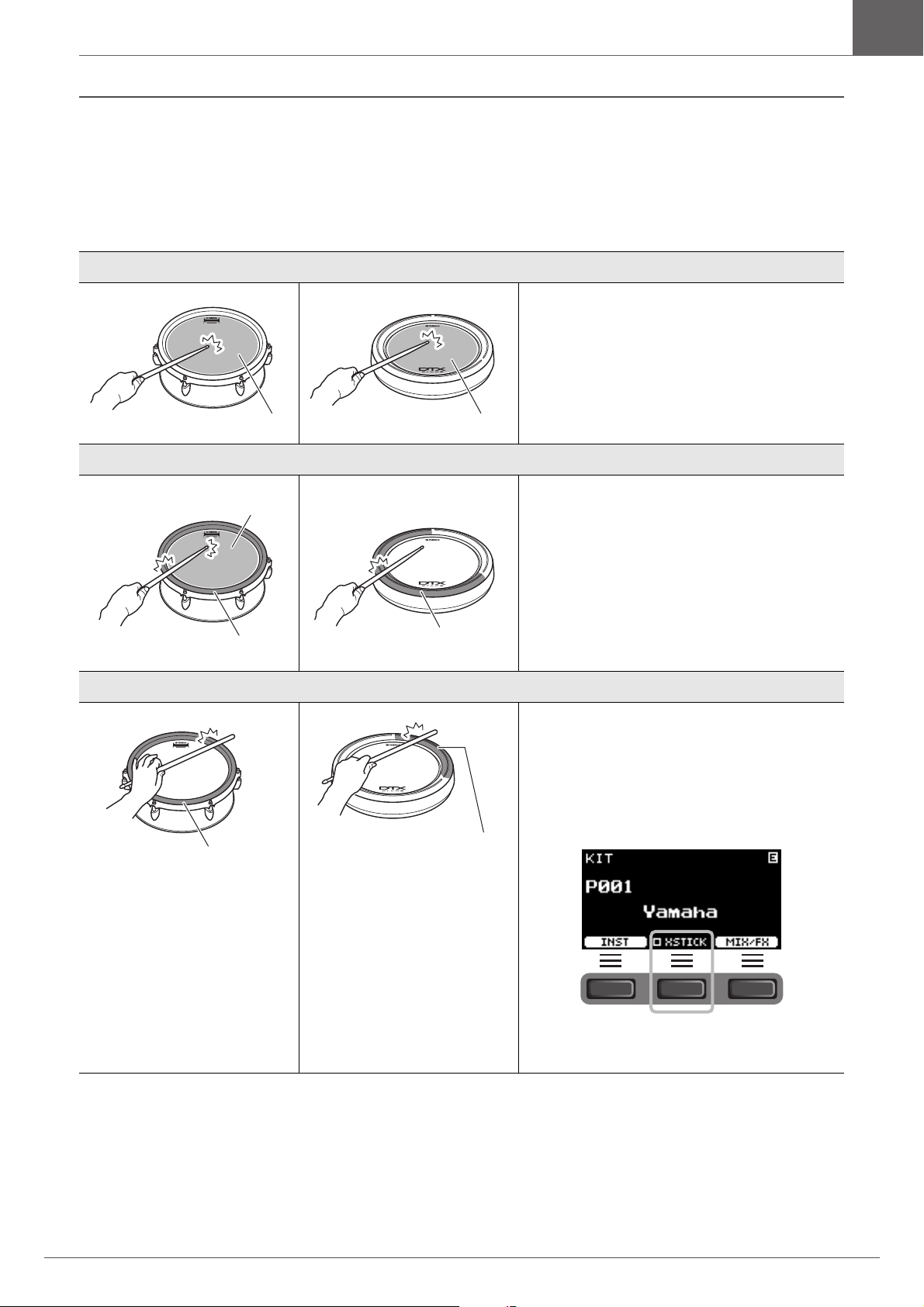

Cross stick setting (page 25)

May not be shown depending on

the pad type

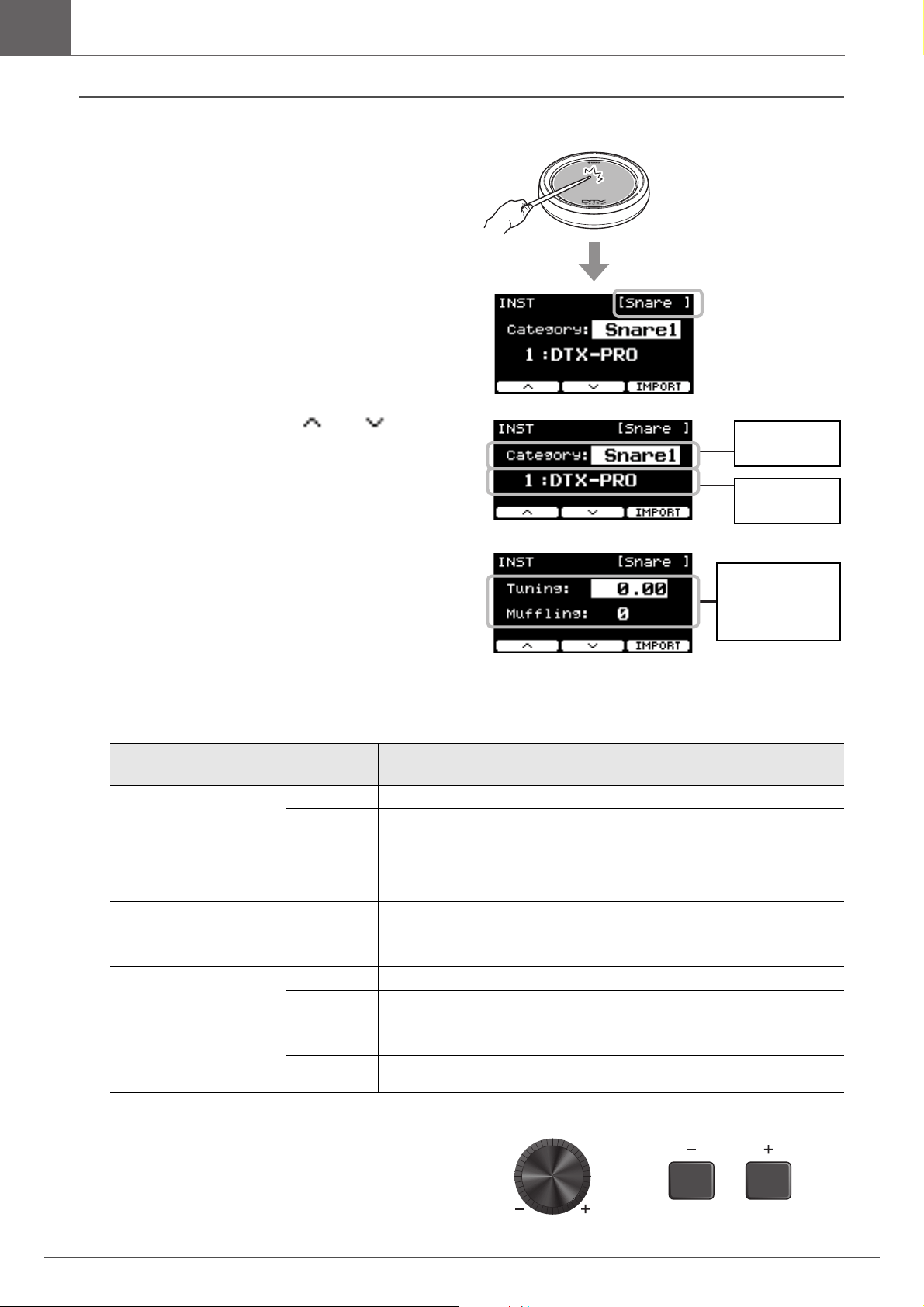

INST screen

(page 35)

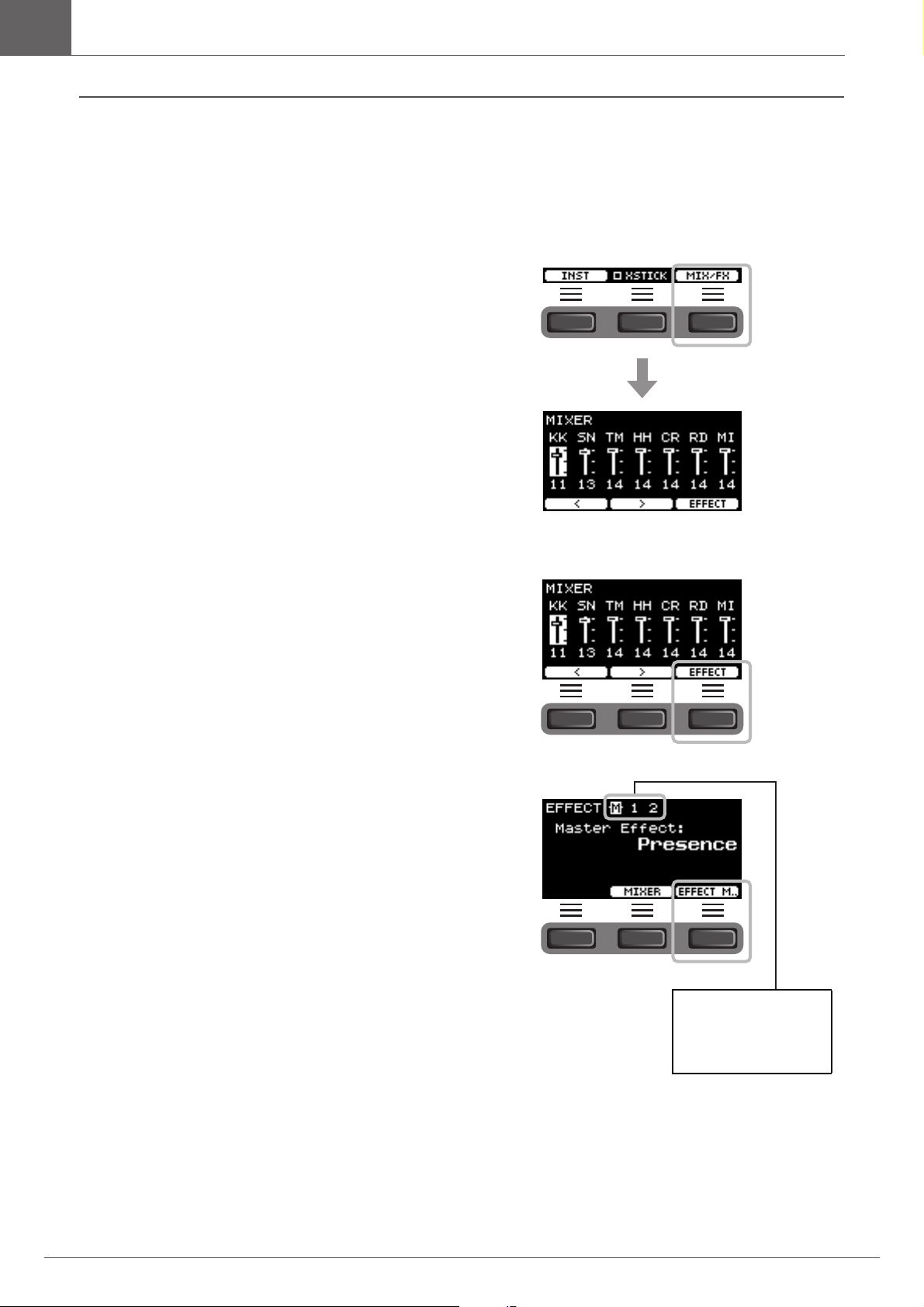

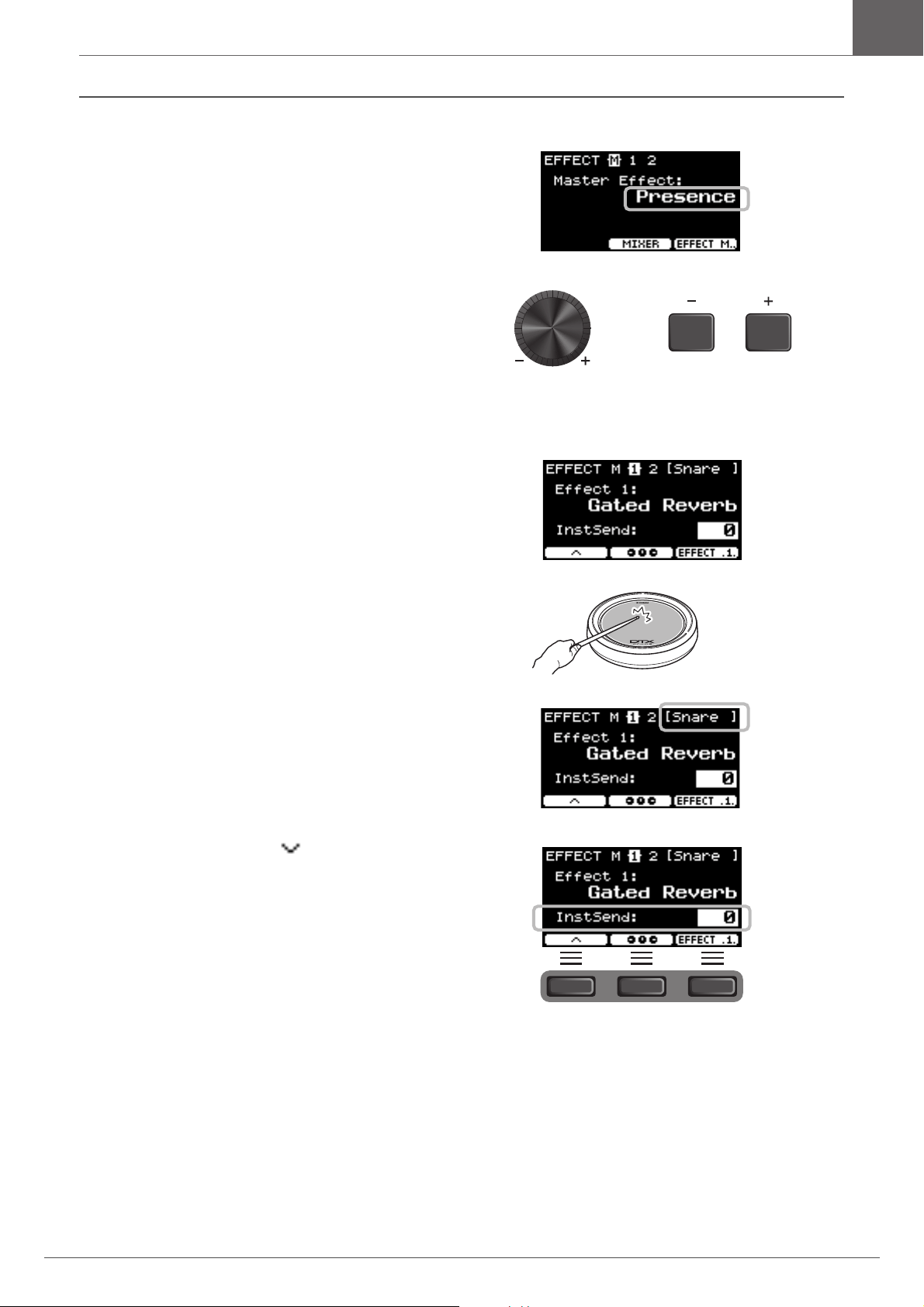

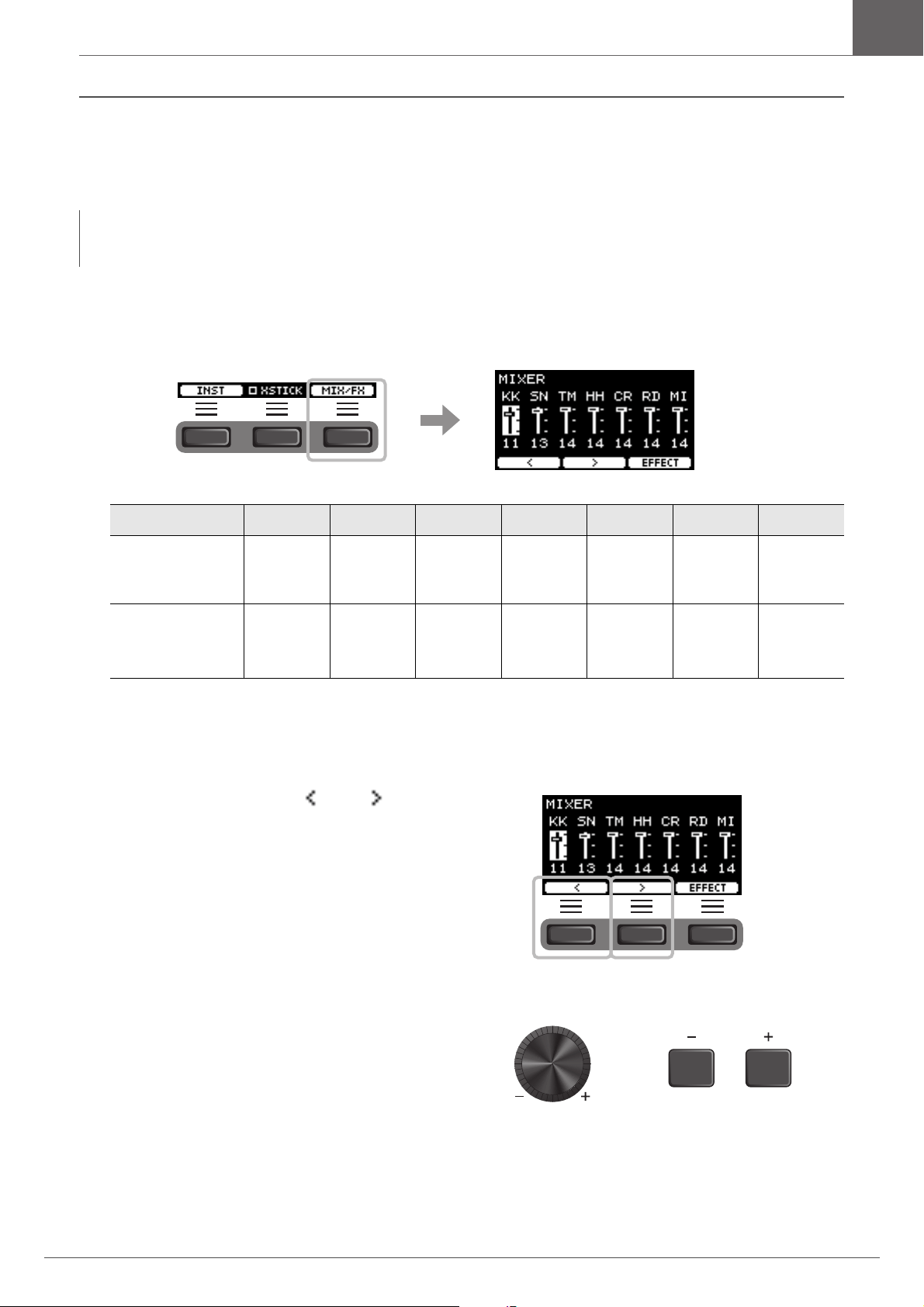

MIXER and

EFFECT screens

(page 31)

How to read

the KIT screen

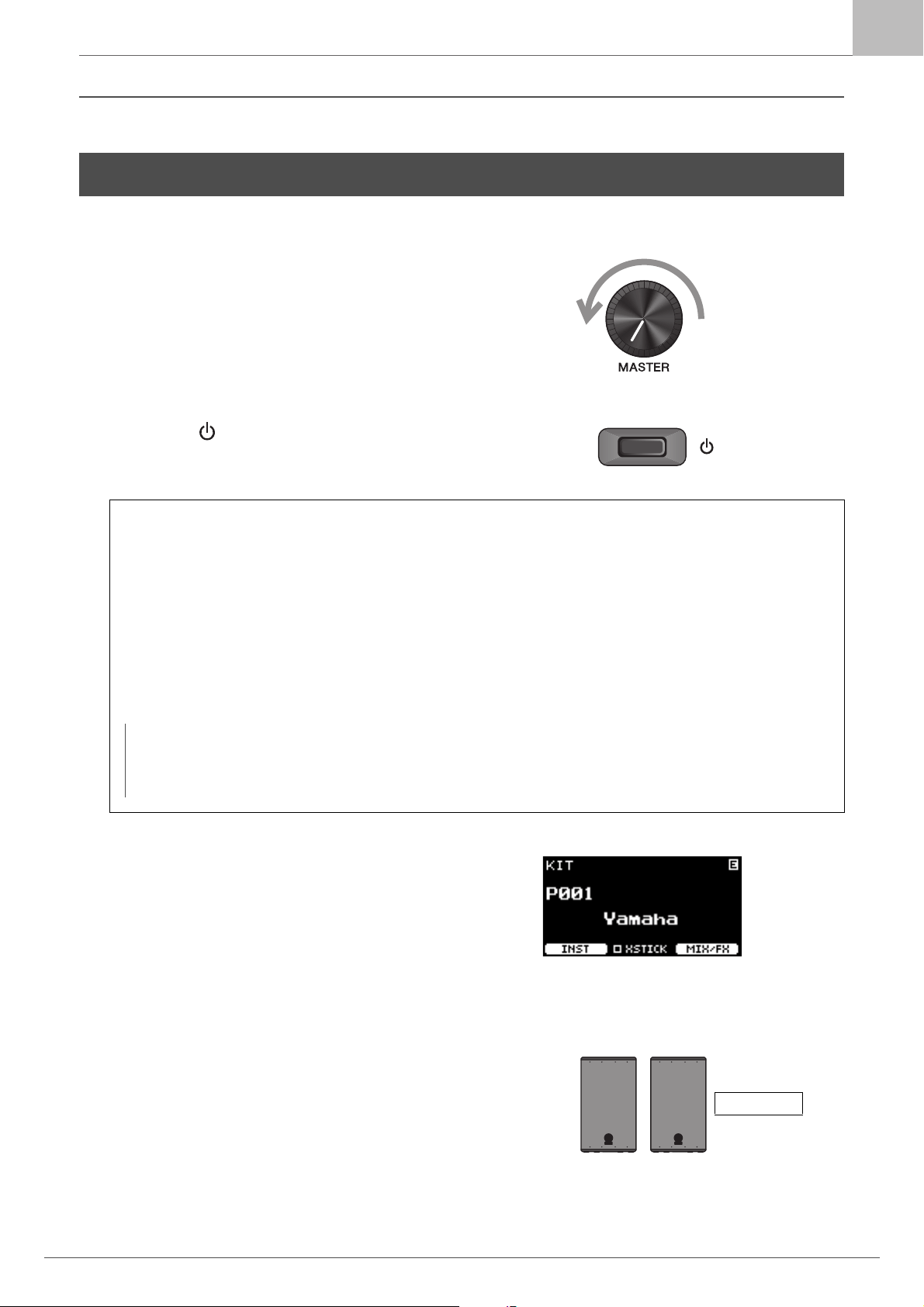

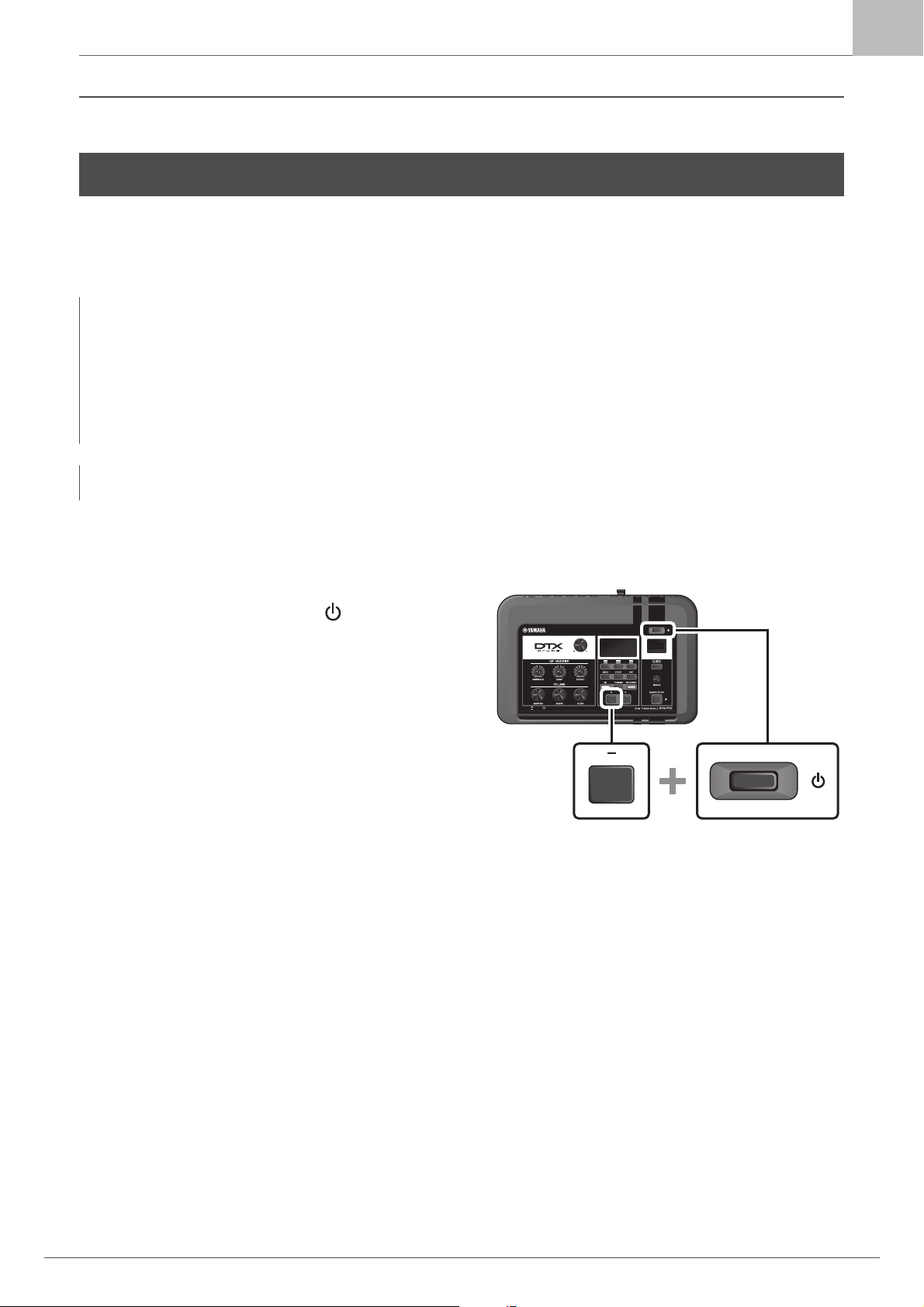

[ ] (Standby/On) switch (page 17)

Switches the power between standby (off) and on.

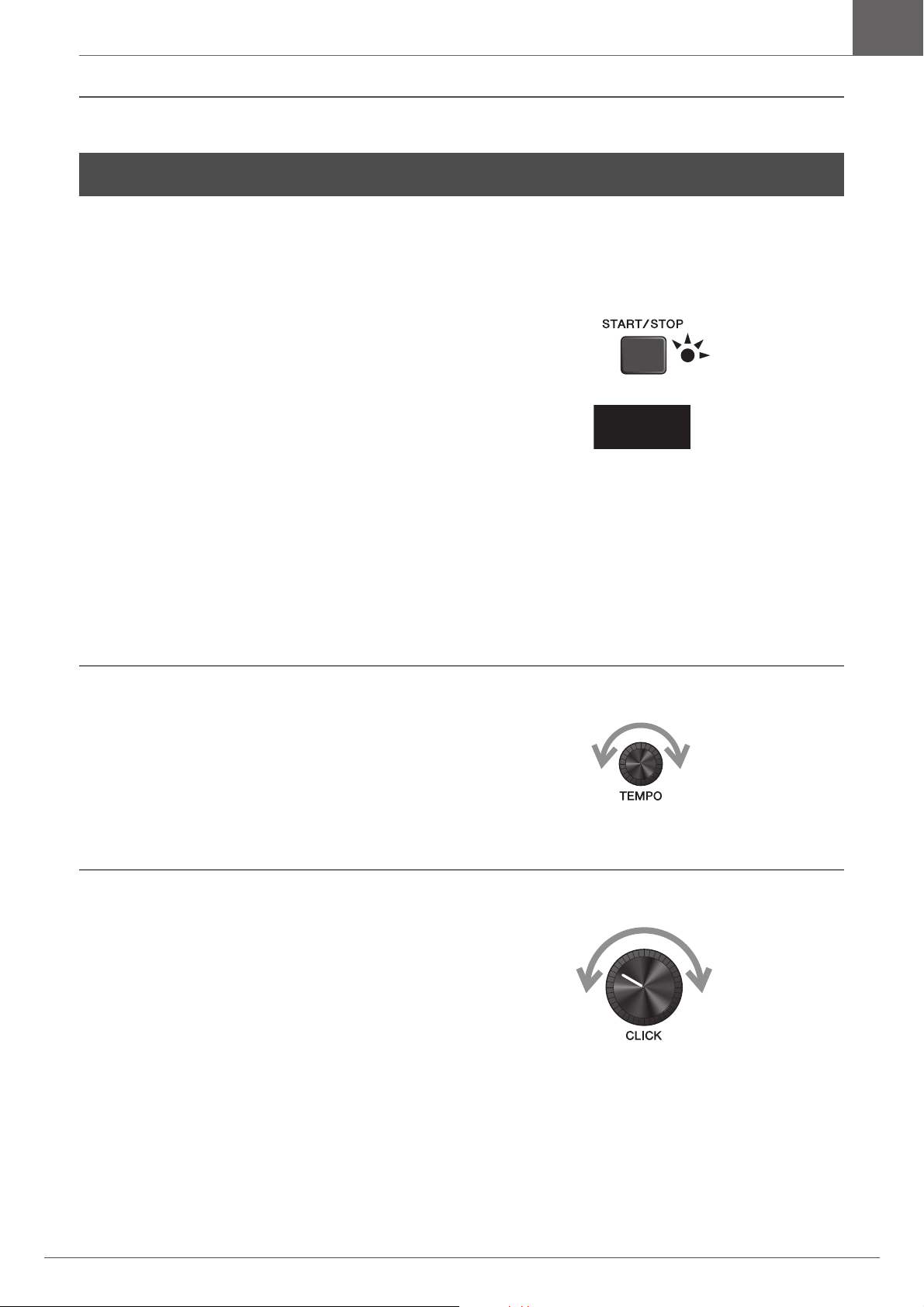

Click Tempo Display

[TEMPO] knob (page 39)

Adjusts the tempo.

[START/STOP] (Click Start / Stop) button

Starts or stops the click (metronome). The indicator flashes

in sync with the click tempo.

Buttons for showing screens

[MENU] button

Accesses the advanced settings screen. For more

detailed information, refer to the Reference Man-

ual (PDF).

[KIT] button

 KIT screen (page 29)

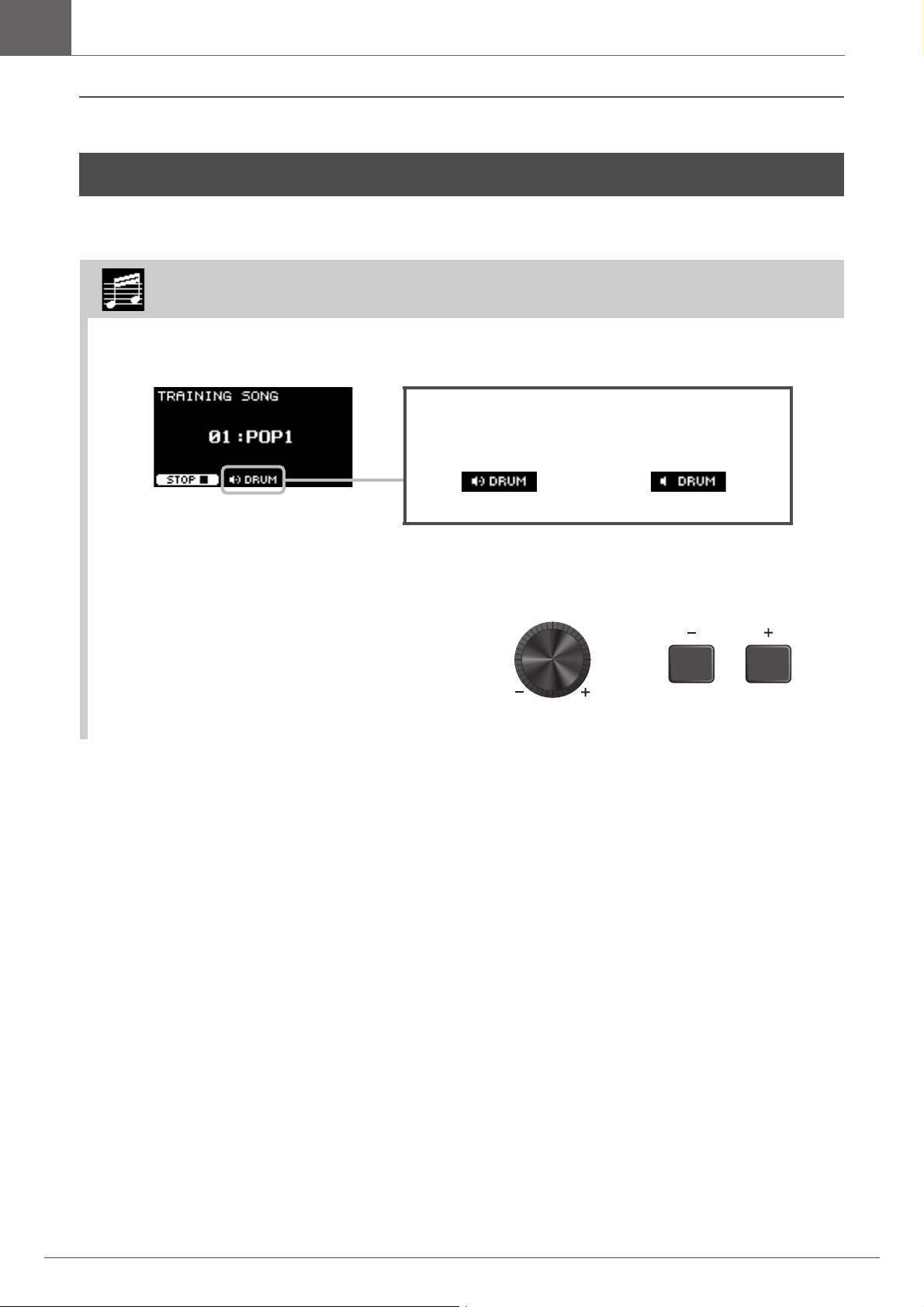

[TRAINING] button

 TRAINING screen (page 48)

[CLICK] button

 CLICK (metronome) screen (page 40)

[EXIT] button

Cancels the action or returns to the screen one

level higher. Press several times to return to the

KIT screen.

NOTE

This button can also be used as a Panic Button to

stop the KIT sounds.

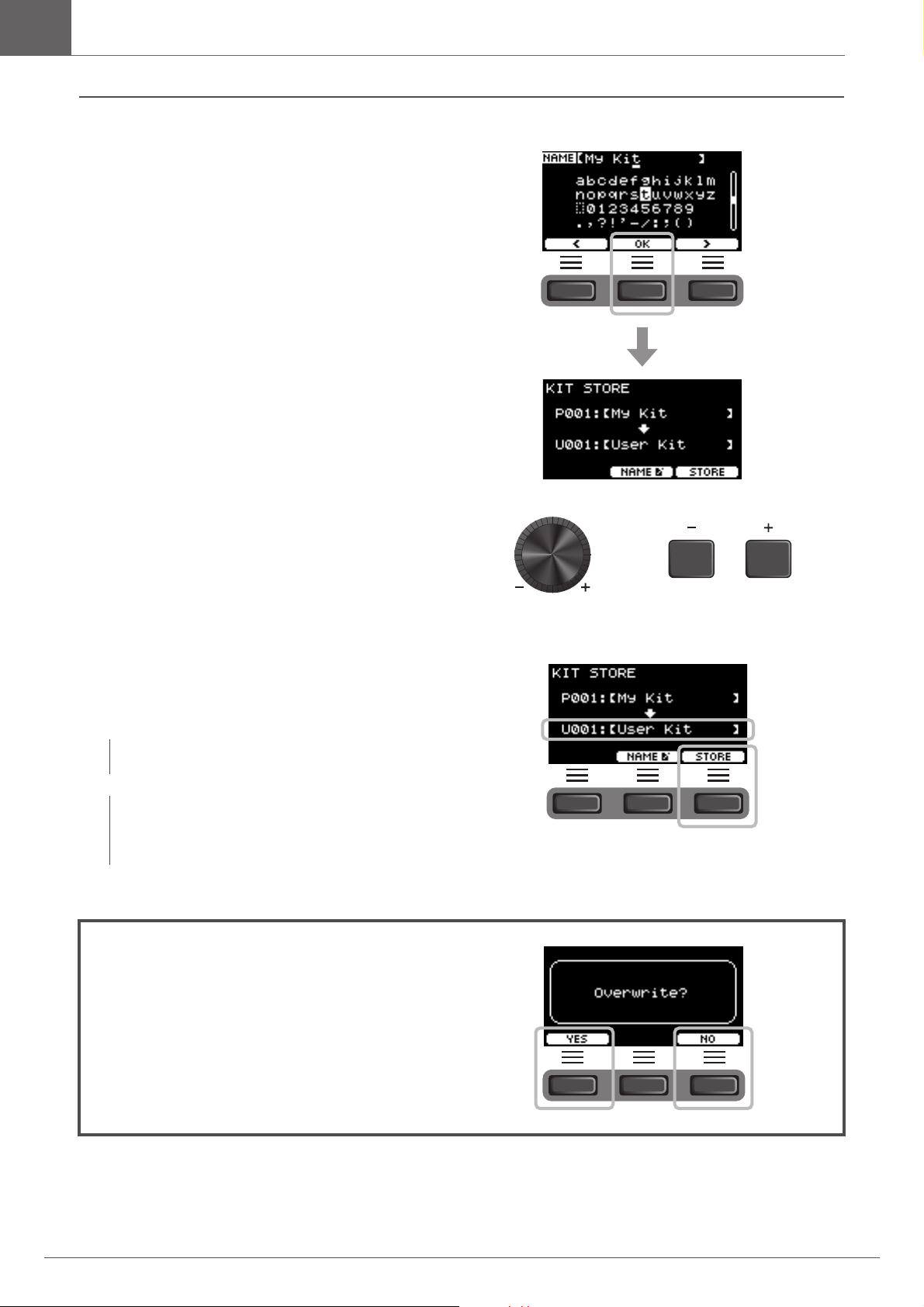

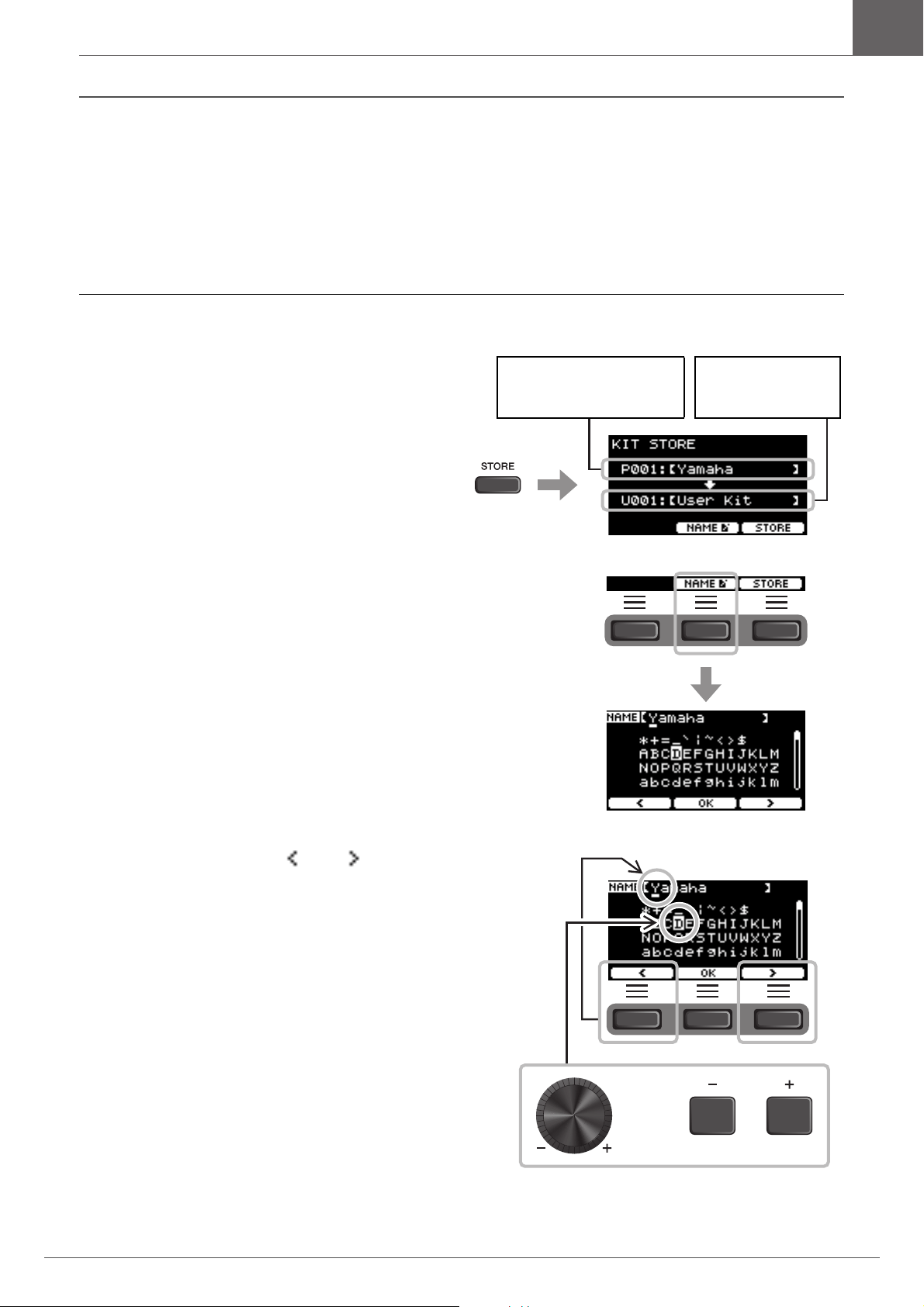

[STORE] button

 STORE screen (page 37)

Stores Kit or Click settings that you have created.

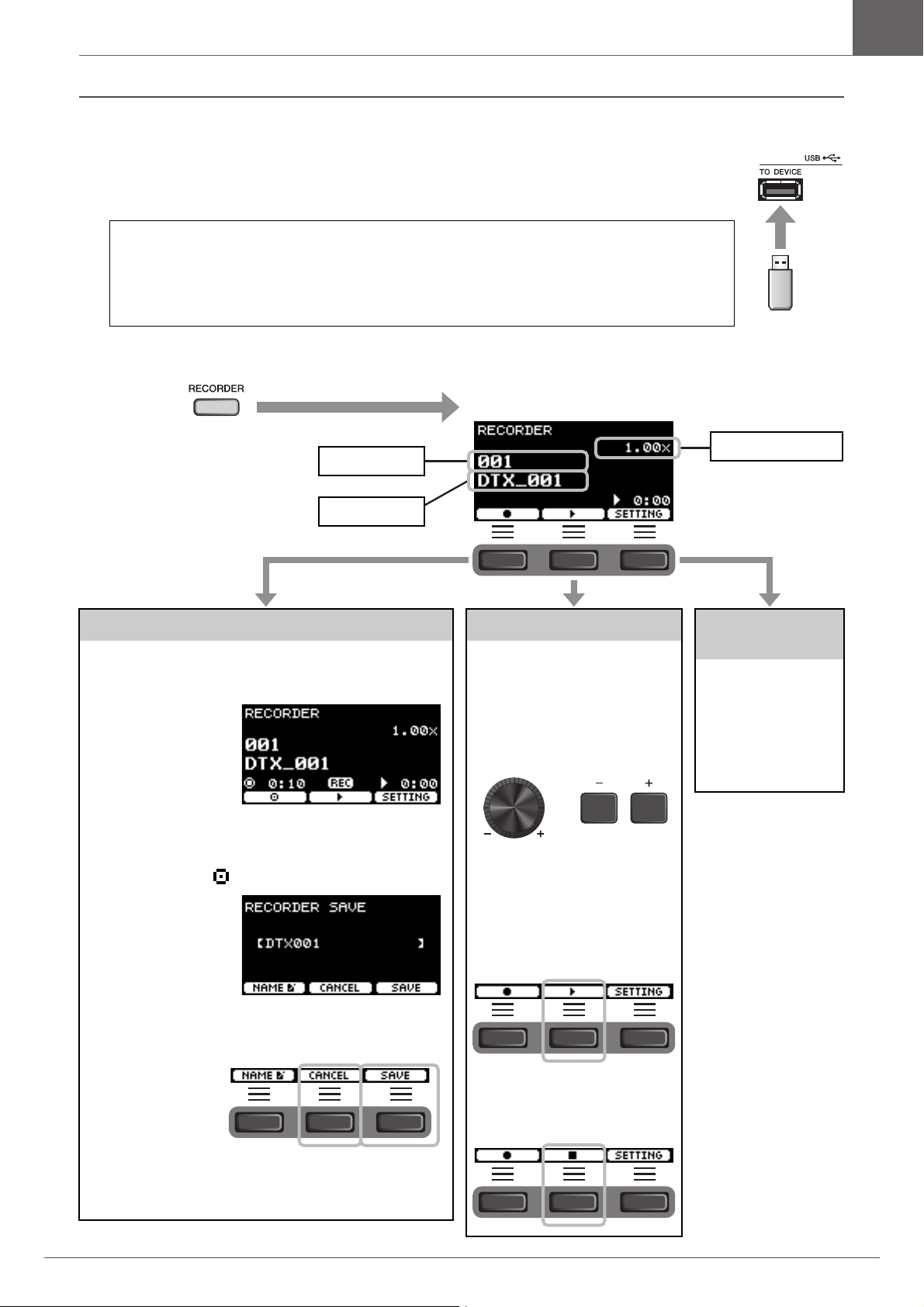

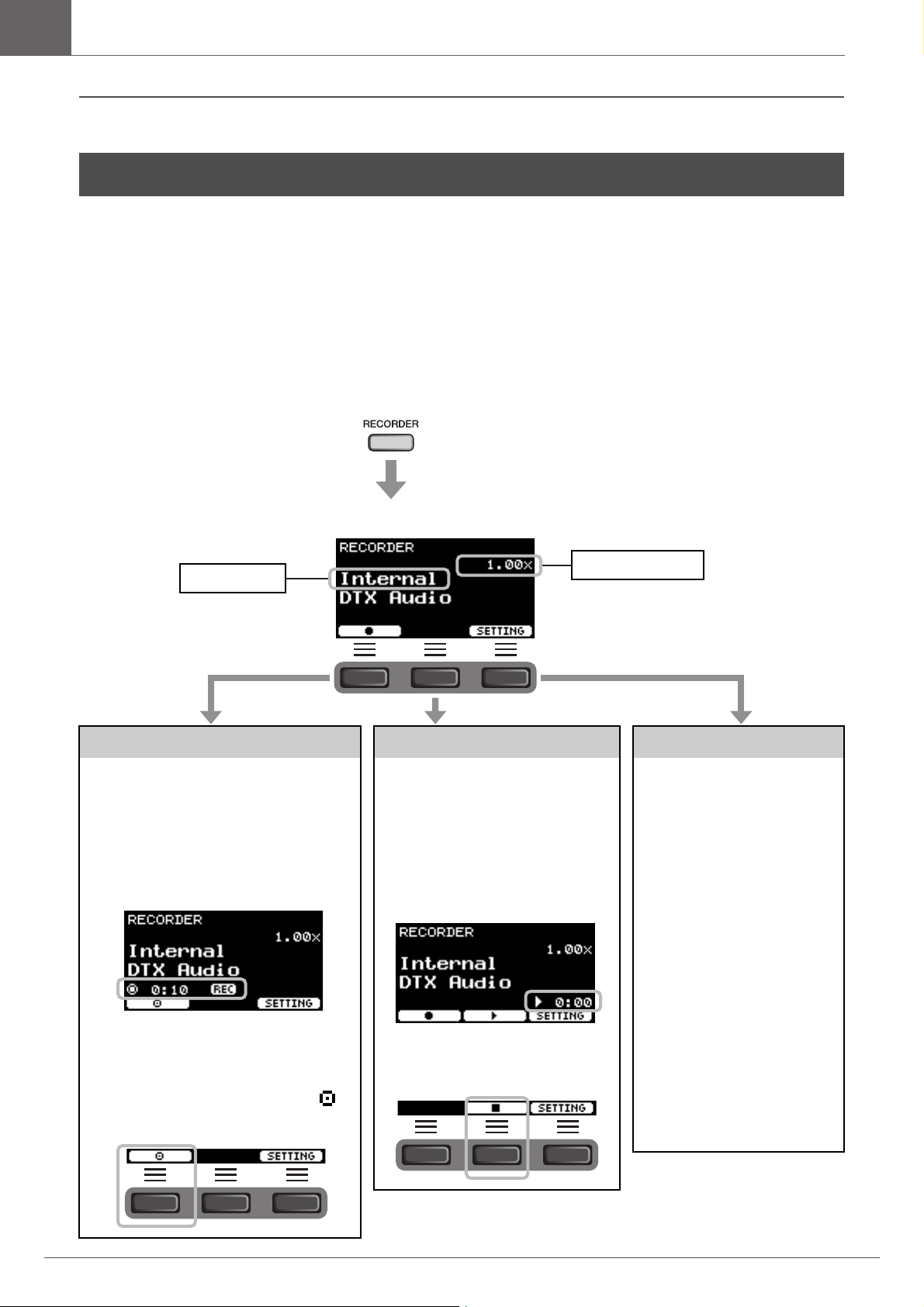

[RECORDER] button

 RECORDER (record and playback) screen

(page 42)

The button flashes while recording.

DTX-PRO Owner’s Manual

Panel Controls and Functions

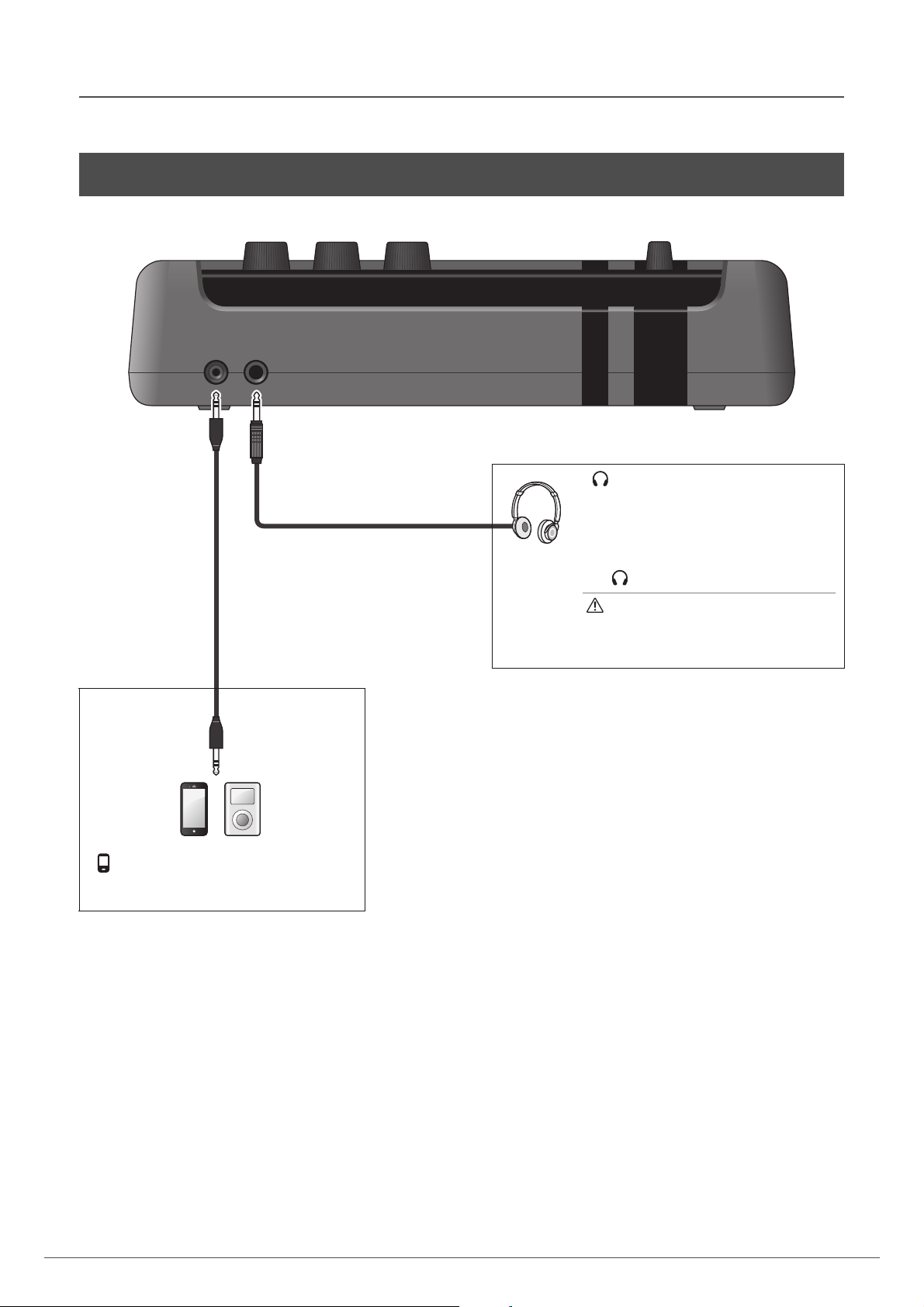

Front Panel

Standard stereo phone plug

(6.3 mm)

Stereo mini plug

(3.5 mm)

[ ] (Headphone) jack (page 16)

For connecting headphones. This output jack

is a standard stereo phone plug (6.3 mm).

Use a 3.5 mm stereo mini to (6.3 mm) stereo

adaptor to connect headphones or ear-

phones with a stereo mini plug (3.5 mm) to

the [ ] jack.

CAUTION

Do not use headphones for a long period of

time at high volume. Doing so can cause

loss of hearing.

[ ] (auxiliary input) jack

Connect to the headphone jack on a smart

phone or portable music player.

DTX-PRO Owner’s Manual

Panel Controls and Functions

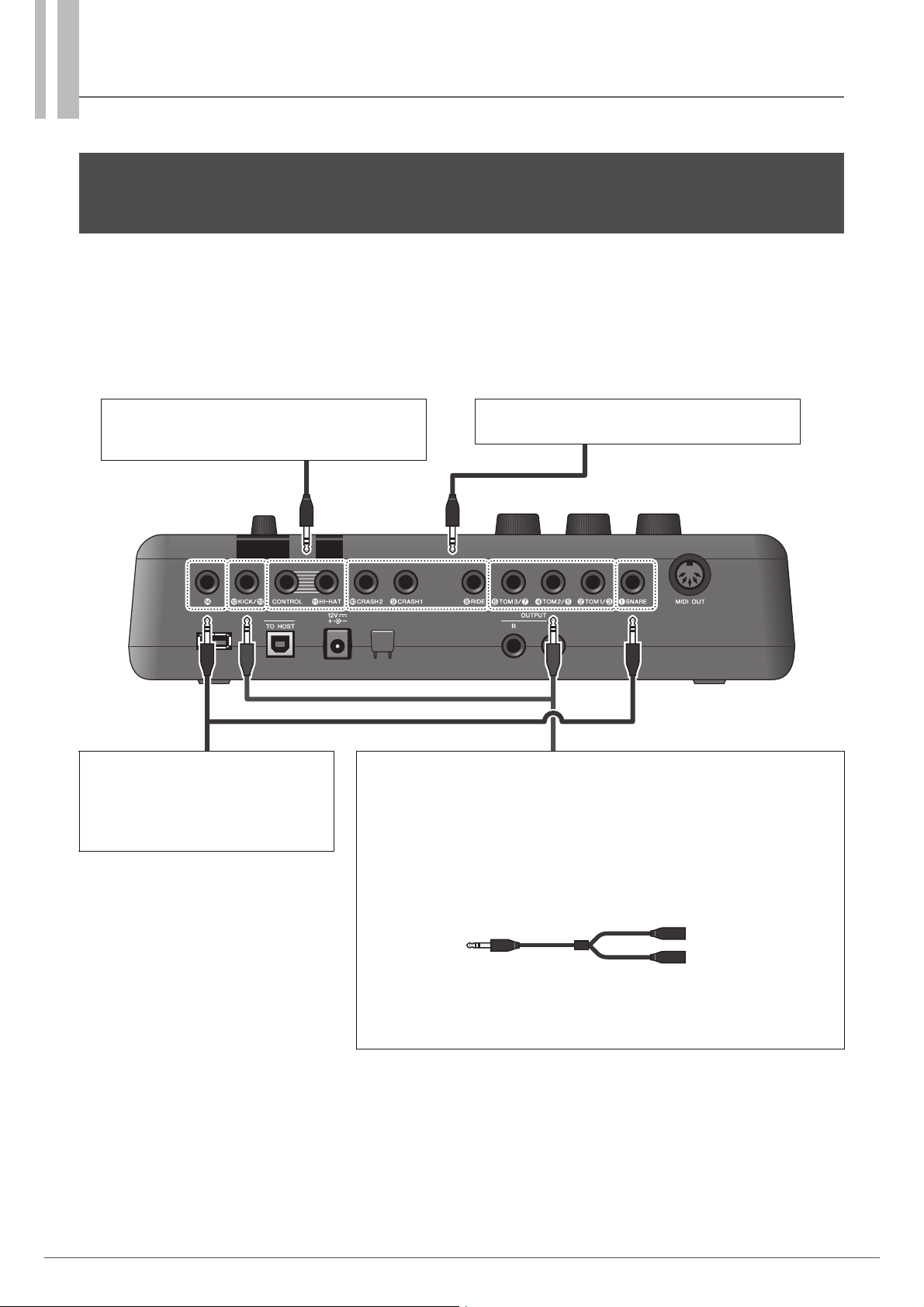

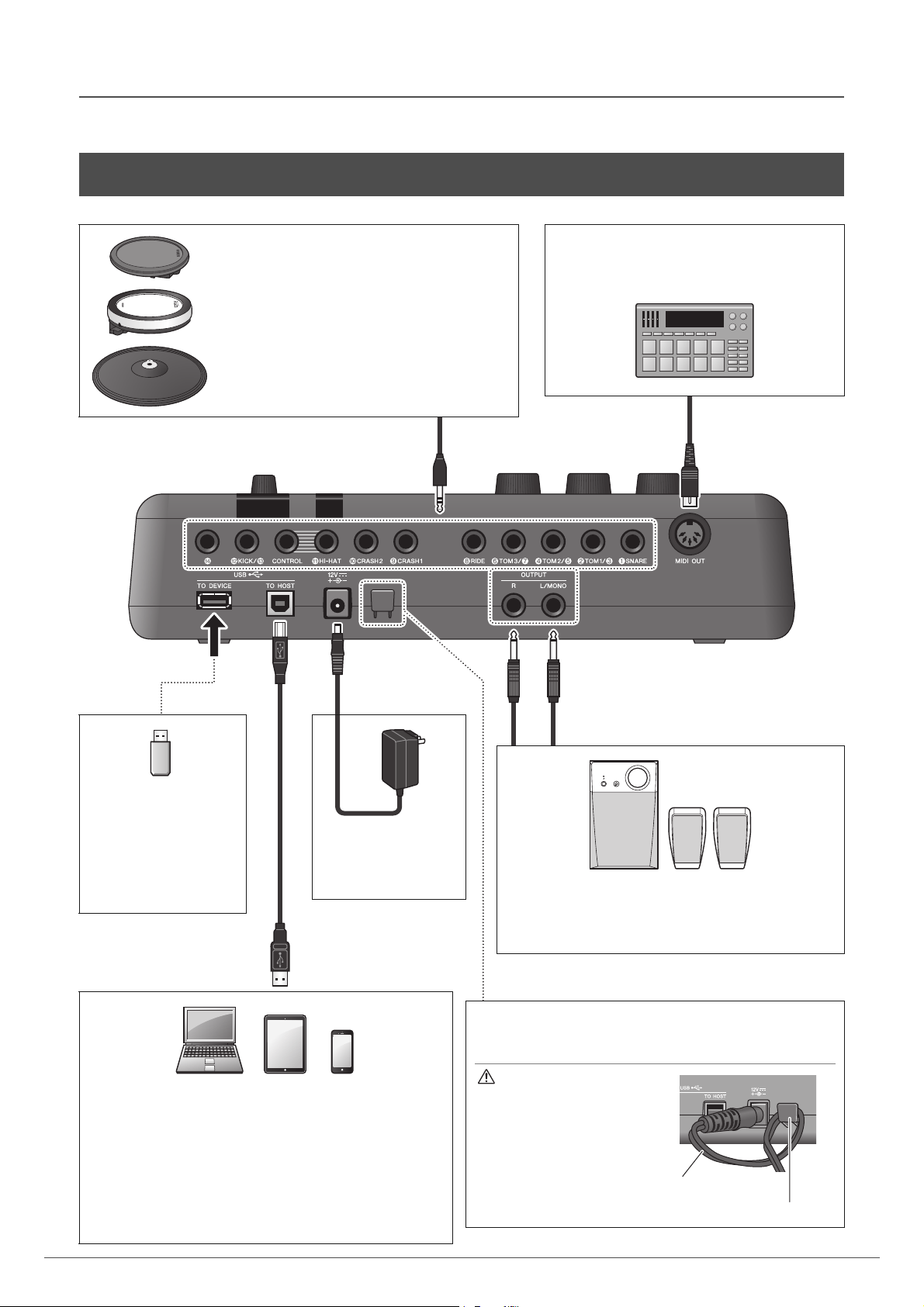

Rear Panel

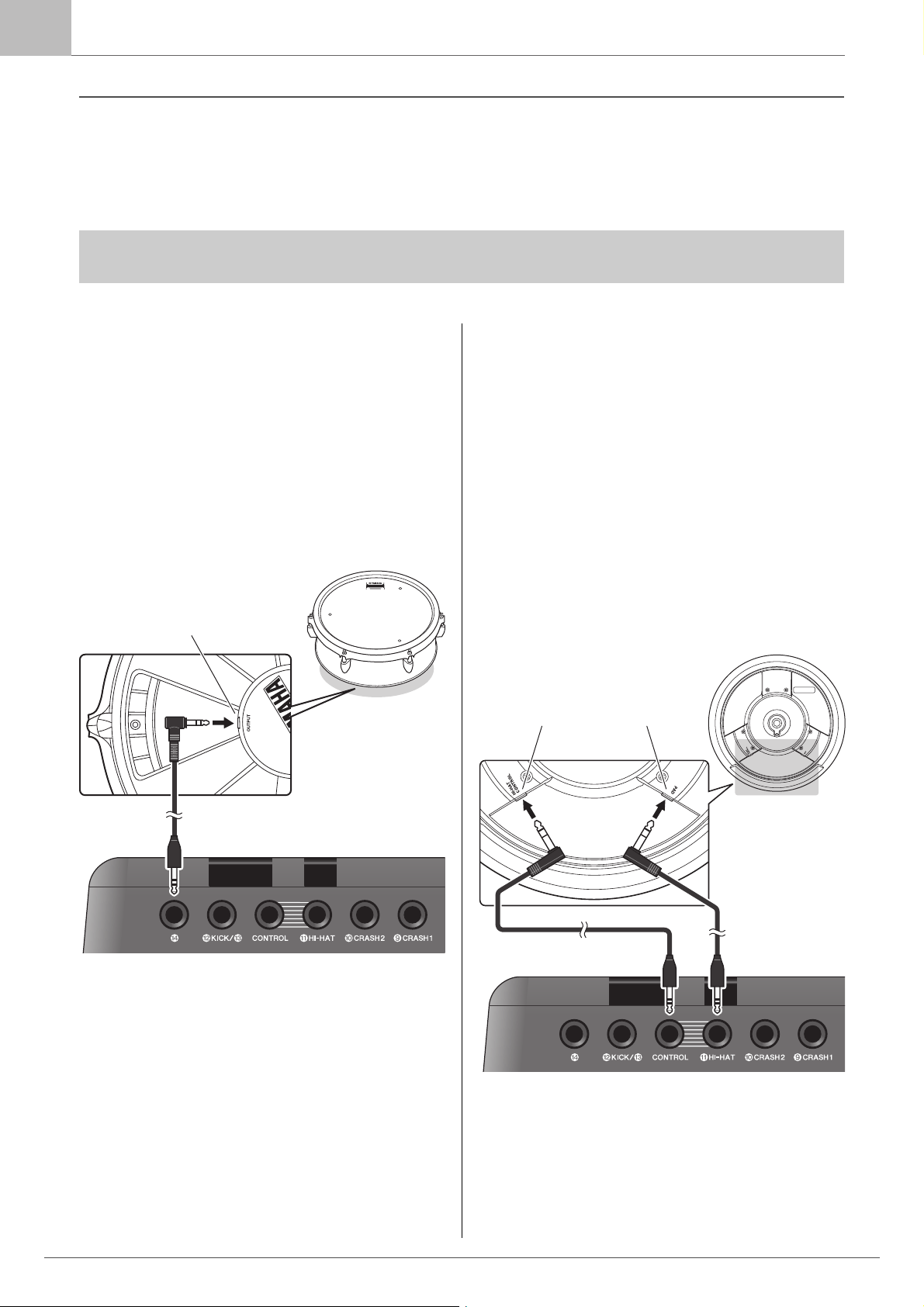

Trigger Input jacks

[!4] jack to [qSNARE] jack

Connects the DTX series pads.

To connect the pads included in your

Drum Kit, refer to the Assembly Manual.

These trigger input jacks also accept

separately sold add-ons. For more infor-

mation, see “About the Trigger Input

Jacks” (page 57).

TP70

XP80

PCY135

[MIDI OUT] connector

Connects a MIDI device to send MIDI messages

from the DTX-PRO.

Standard stereo phone plug (6.3 mm)

Standard phone plug

(6.3mm)

MIDI cable

[USB TO DEVICE]

terminal (page 21)

Connects a USB flash

drive. Cannot be used with

other USB devices.

 “Using a USB Flash

Drive” (page 21)

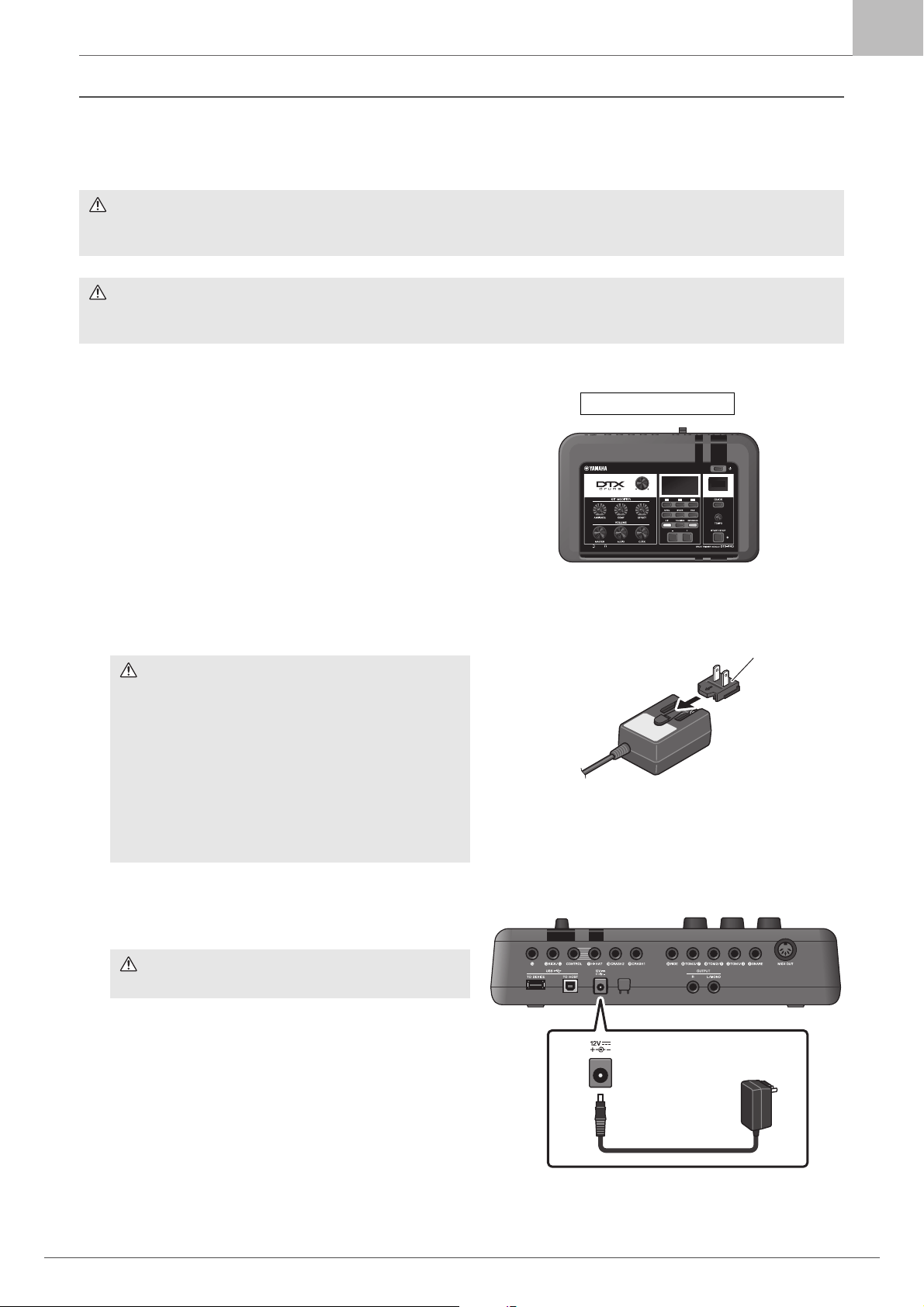

DC IN jack (page 14)

Use the AC adaptor that

came with the DTX-

PRO.

[USB TO HOST] terminal (page 61)

Connect a computer or smart device such as a smart phone or a

tablet to send and receive digital signals (audio and MIDI).

Additional parts are required for connecting a smart device. For

more information, refer to “iPhone/iPad Connection Manual” or

“Smart Device Connection Manual for Android™” (PDF).

Computers  “Connecting a Computer” (page 61)

Reference Manual (PDF)

Smart devices  “Using Smart Devices” (page 60)

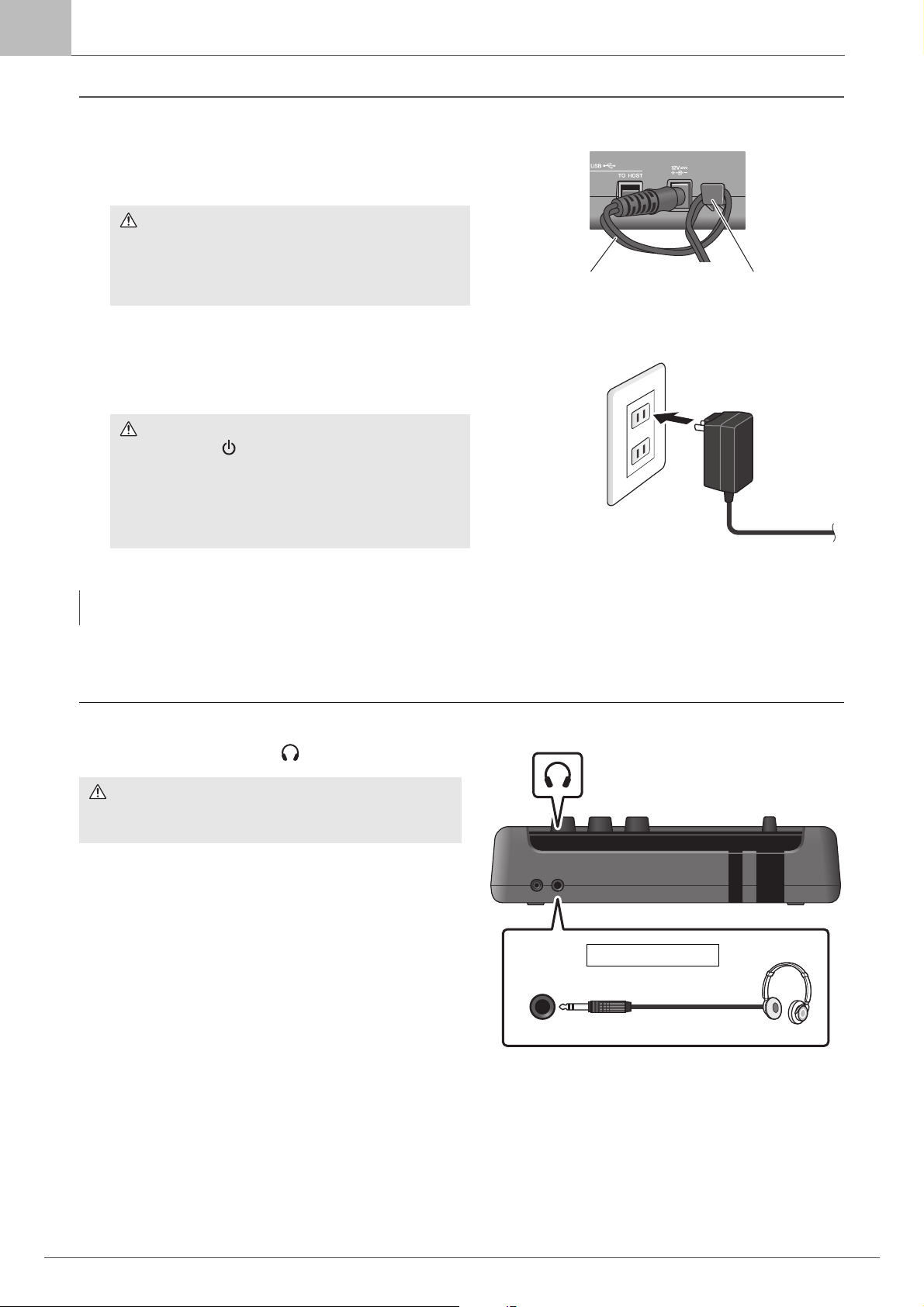

Cord hook

Wrap the AC adaptor cord around this hook to prevent accidental

unplugging during use.

CAUTION

Excessive bending can dam-

age the AC adaptor cord and

create a fire hazard. For this

reason, make sure that the

power cord is not bent at an

extreme angle when wrapped

around the hook.

AC adaptor cord

Cord hook

OUTPUT [R]/[L/MONO] jacks (page 14)

Connect to powered speakers or other such PA system.

These jacks are standard phone type output jacks.

If mono output is required, use only the [L/MONO] jack.

USB cable

DTX-PRO Owner’s Manual

Setup Guide

This provides information on setup and initial settings in preparation for playing.

This completes set up.

First, install the DTX-PRO.

There are three different ways of installation as shown below.

 Attach the DTX-PRO onto the rack of your drum kit. (For more information, refer to the Assembly Manual.)

 User the included module holder (page 6) to attach the standard drum hardware. (See “Integrating Electronic &

Acoustic Drums” on page 59.)

 Place on a flat surface

After installing the DTX-PRO, connect cables to the Pads. For more information on the connections, refer to the specific

Assembly Manual of your drum kit.

Preparations

Workflow

Installing the DTX-PRO

Connecting the AC adaptor

Connecting Headphones

Turning On

Initial Setup (Trigger Setup Wizard)

Installing the DTX-PRO

DTX-PRO Owner’s Manual

Installing the DTX-PRO

Setup Guide

 Connecting the AC adaptor

Make sure that the power is turned off (all

panel lights and the screen backlight are

off).

For removable plug type AC adaptors only:

Make sure that the plug is not disconnected.

Connect the AC adaptor.

WARNING

Only use the specified AC adaptor (page 66). Using a different AC adaptor can cause malfunction, overheating, fire, and

other problems. This may void the warranty so please take careful note.

CAUTION

Locate the DTX-PRO close to an AC outlet. If you notice any abnormalities during operation, turn the power off immedi-

ately and unplug the AC adaptor.

WARNING

• For AC adaptors with a removable plug, only use the

AC adaptor with the plug attached, and keep the

plug. Plugging only the plug into the power outlet

can cause electric shock or fire.

• If the removable plug comes off from the AC adaptor,

avoid touching the metal parts on the plug and slide

the AC adaptor onto the plug until you hear it lock on

to the adaptor with a click. Also, make sure you keep

any foreign objects out of the plug. This can cause

electrical shock, short circuit, or failure.

WARNING

Make sure to use the specified AC adaptor.

No screen backlight

120

Slide in the direction

indicated with the arrow.

Plug

DC IN jack

(page 66)

DTX-PRO Owner’s Manual

Installing the DTX-PRO

Setup Guide

Hook the AC adaptor’s cord around the cord

hook to secure it in place.

Plug the AC adaptor’s AC plug into a domes-

tic power outlet.

 Connecting Headphones

Connect the headphones to the [ ] (headphone) jack.

To adjust the headphone volume, use the [MASTER VOLUME]

knob.

To adjust the headphone EQ, press the [MENU] button and

adjust the PhonesEQ parameter. (MENU/PhonesEQ)

For more information, refer to the Reference Manual (PDF).

CAUTION

Excessive bending can damage the AC adaptor cord

and create a fire hazard. Ensure, therefore, that the

power cord is not bent at an extreme angle when

wrapped around the hook.

CAUTION

Even when the [ ] (Standby/On) switch is in standby

status (power lamp is off/display is off), electricity is

still flowing to the instrument at the minimum level.

When you are not using the DTX-PRO for a long period

of time, make sure that you unplug the AC adaptor

from the wall AC outlet.

NOTE

When disconnecting the AC adaptor, turn the instrument and then carry out this procedure in reverse order.

CAUTION

Do not use headphones at high volume for an extended

period of time. Doing so can cause loss of hearing.

Cord hookAC adaptor cord

Power outlet

AC adaptor

Front panel side

DTX-PRO Owner’s Manual

Turning On or Off

Setup Guide

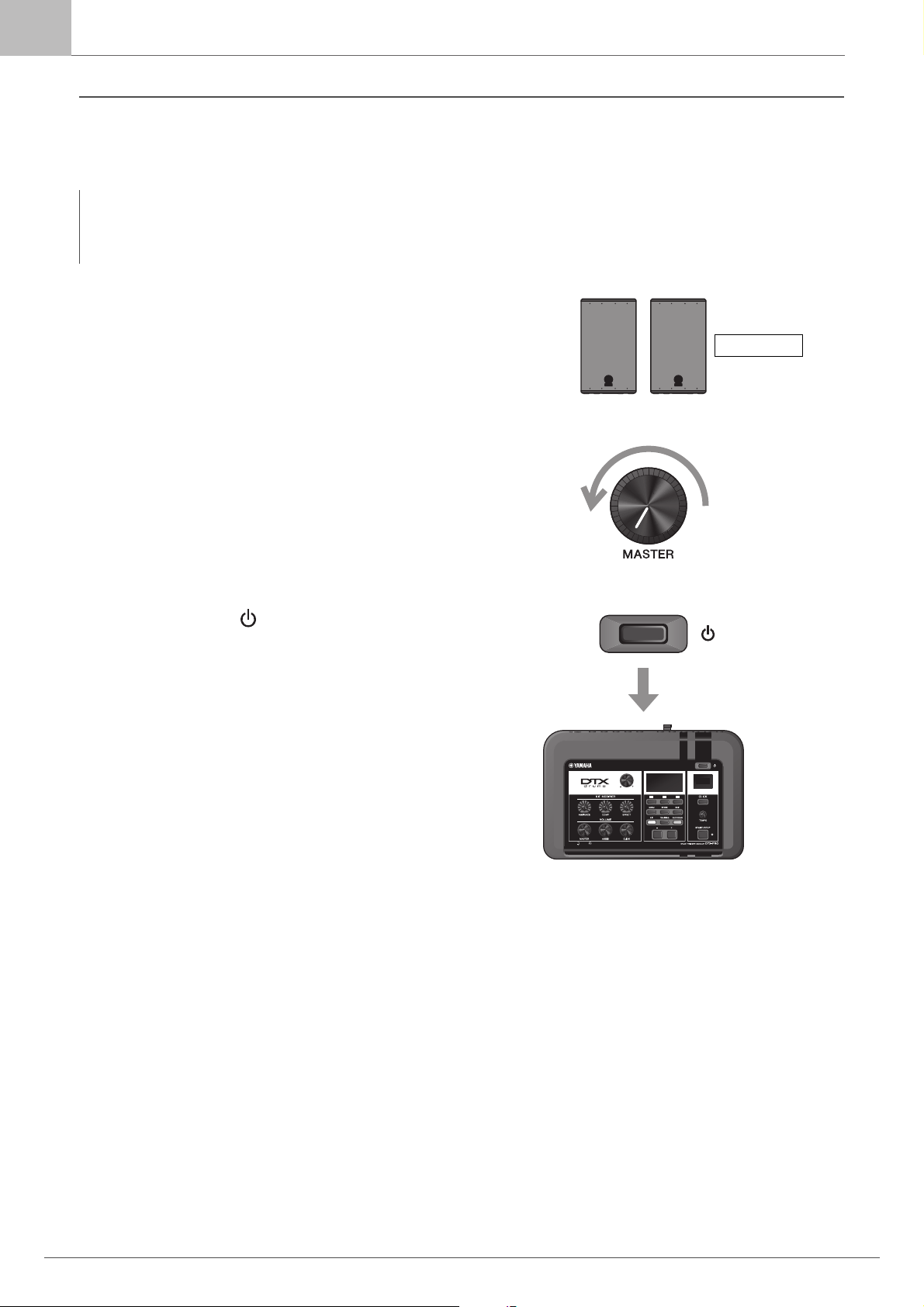

 Turning On

Turn the [MASTER VOLUME] knob fully

counterclockwise to lower the DTX-PRO vol-

ume to its minimum.

Press the [ ] (Standby/On) switch.

If the initial setup is already complete, the KIT screen

appears directly after the startup screen, without showing

the Trigger Setup Wizard.

If you are connected to a PA system:

Turn the external speakers on.

Turning On or Off

Initial Setup (Trigger Setup Wizard)

When you turn on your DTX-PRO for the first time, the Initial Setup page will be displayed. On this page, you

will be required to specify the following. When you specify the model number, the DTX-PRO will automatically

optimize the trigger output levels for all of your pads.

1. Identify your drum kit using the [–][+] controllers and press the button below “OK”

([F3]).

2. When the confirmation screen appears, press the button below “YES” ([F1]).

When the initial setting is complete, the KIT screen appears.

NOTE

• Your drum kit’s model number is indicated on the Assembly Manual for your drum kit.

• You can change the specified drum kit at any time after completing Initial Setup. For more information, refer to the

Reference Manual (PDF). (MENU/Job/Trigger)

* XSTICK: May not be shown depending

on the pad

Power on

DTX-PRO Owner’s Manual

Turning On or Off

Setup Guide

 Turning Off

If you are connected to a PA system:

Turn the external speakers off.

Turn the [MASTER VOLUME] knob fully

counterclockwise to lower the volume to its

minimum.

Hold down the [ ] (Standby/On) switch.

The DTX-PRO is in Standby and the display and lights

are off.

NOTICE

• The DTX-PRO automatically stores settings when the power is turned off, so do not unplug the AC adaptor until the LCD

screen is turned off completely.

• Unsaved Kit data will be lost, so always save (Store) data before turning the power off.

Power off

120

Hold down

All off

DTX-PRO Owner’s Manual

Changing the Overall Settings

Setup Guide

 Auto Power-Off

The Auto Power-Off function automatically turns off the DTX-PRO after a certain period of inactivity. The factory default

is set at 30 minutes.

 Auto Power-Off Quick Cancel

First, make sure that the DTX-PRO is turned off. Then, while

holding down the [–] button, press the [ )] (Standby/On) but-

ton to cancel the Auto Power-Off function. The function will

remain off until you set a new Auto Power-Off time.

Changing the Overall Settings

NOTICE

• Unsaved data is lost when the DTX-PRO is turned off with the Auto Power-Off function. Always store data before turning

the power off.

• In certain modes of operation, the Auto Power-Off function will not turn off the DTX-PRO when the set time has elapsed.

So we recommend that you always turn off the DTX-PRO manually when you are finished using it.

• If you expect the DTX-PRO to be inactive for a certain length of time while connected to external audio equipment or a

PA, we recommend fully lowering the volume on the external equipment. Alternatively, you can disable the Auto Power-

Off function to ensure that the DTX-PRO stays on.

NOTE

To set the Auto Power-Off to a time other than 30 minutes, access the setting from the [MENU] button. (MENU/Utility/General)

120

DTX-PRO Owner’s Manual

Changing the Overall Settings

Setup Guide

 Restoring DTX-PRO Settings to the Factory Defaults (Factory

Reset)

Use the Factory Reset function to restore the DTX-PRO’s settings to their factory defaults, even if you have accidentally

overwritten them.

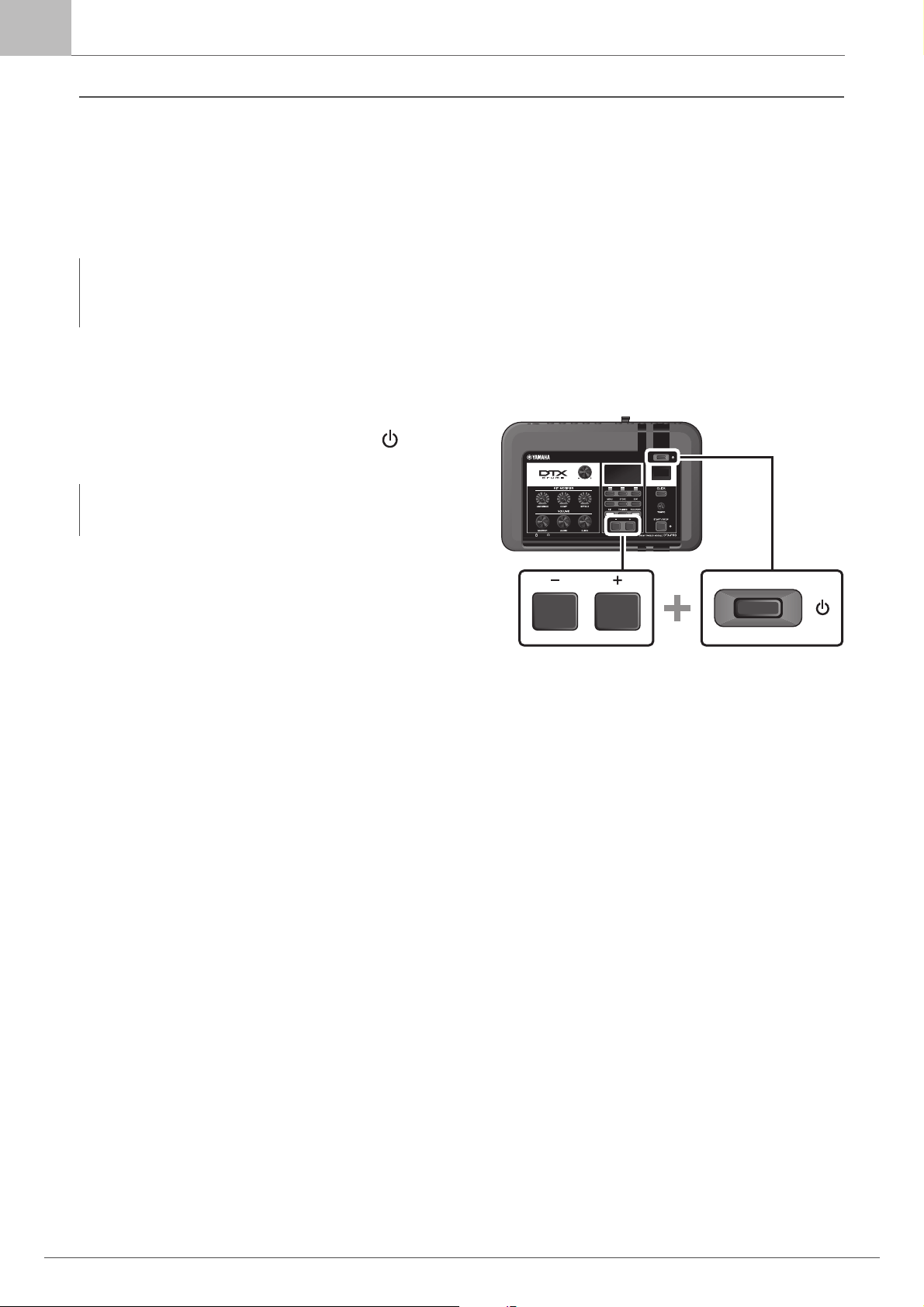

 Performing a Factory Reset

First, make sure that the DTX-PRO is turned off. Then, while

holding down the [–] and [+] buttons, press the [ ] (Standby/

On) button to perform the Factory Reset function.

NOTICE

A factory reset overwrites any settings you have made with the corresponding factory defaults. Save any important user-

defined data to a USB flash drive before carrying out a factory reset. For more information, refer to the Reference Manual

(PDF). (MENU/File)

NOTE

You can also access the factory reset with the [MENU] button.

(MENU/Factory Reset)

120

DTX-PRO Owner’s Manual

Using a USB Flash Drive

Setup Guide

Connect a USB flash drive to the [USB TO DEVICE] terminal on the rear panel of the DTX-PRO and record your perfor-

mance directly to the USB flash drive. Also, you can save DTX-PRO settings to and load settings from a USB flash drive.

 Connecting a USB Flash Drive to the DTX-PRO

Precautions When Using the [USB TO DEVICE] Terminal

When connecting a USB flash drive to the [USB TO DEVICE] terminal, be sure to follow the important precautions below.

 Compatible USB Devices

USB flash drives only

Please check the URL shown below for a list of compatible USB flash drives.

https://download.yamaha.com/

 Connecting a USB Flash Drive

When connecting a USB device to the [USB TO DEVICE] terminal, make sure that the connector on the DTX-PRO is

appropriate and that it is connected in the proper direction.

Although USB devices 2.0 to 3.0 can be used on the DTX-PRO, the amount of time for saving to or loading from the USB

device may differ depending on the type of data or the status of the instrument.

Using a USB Flash Drive

NOTE

For more information about the handling of USB flash drives, refer to the owner’s manual of your USB flash drive.

NOTE

• Other USB devices such as USB hub, mouse, computer keyboard, cannot be used.

• A USB cable cannot be used to connect a USB device to the [USB TO DEVICE] terminal.

NOTICE

The rating of the [USB TO DEVICE] terminal is a maximum of 5 V / 500 mA. Do not connect USB devices having a rating

above this, since this can cause damage to the instrument itself.

NOTICE

• Avoid connecting or disconnecting the USB device during playback/recording and file management operations (such as

Save, Copy, Delete, and Format), or when accessing the USB device. Failure to observe this may result in “freezing” of

the operation of the instrument or corruption of the USB device and the data.

• When connecting then disconnecting the USB device (and vice versa), make sure to wait a few seconds between the

two operations.

DTX-PRO Owner’s Manual

Using a USB Flash Drive

Setup Guide

 Formatting the USB Flash Drive

Some USB flash drives should be formatted with this instrument before they can be used. For information on how to format

the USB flash drive, refer to the Reference Manual (PDF). (MENU/File/Format)

 To Protect Your Data (Write Protection)

To prevent important data from being inadvertently erased, write-protect the USB flash drive. When you are saving data to

the USB flash drive, make sure you disable the write-protect first.

NOTICE

The format operation erases any previously existing data. Make sure that the USB flash drive you are formatting does not

contain any important data.

DTX-PRO Owner’s Manual

Basic Guide

A Kit is a combination of drum set sounds and the sound modifier settings that enhance the sounds, such as Ambience,

Comp (Compression) and Effects. This drum trigger module contains numerous sets of preset kits, and you can change the

drum set sounds by selecting another kit or by changing the sound modifier settings.

Each drum or percussion instrument in the drum set is called an instrument or “Inst,” and you can play the Inst sounds by

striking drum pads.

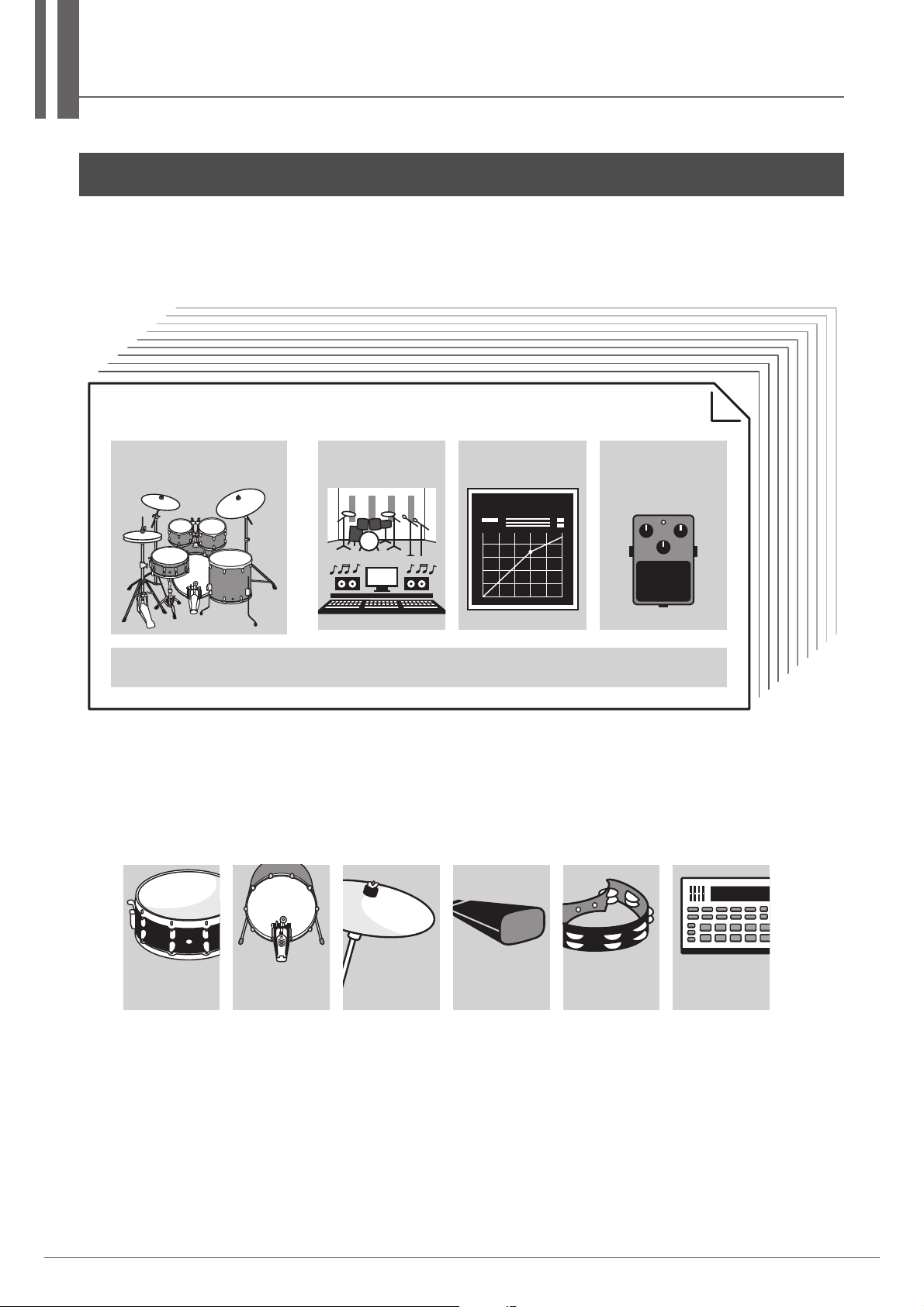

Structure of the Kit

Compressor

EFFECT

Kit

Drum set Ambience Comp Effects

Other settings for the Kit

Snare drum Bass drum CowbellCymbal Tambourine

Other

instruments

Example of the Instruments (Inst):

DTX-PRO Owner’s Manual

Playing the Pads

Basic Guide

To play the Inst sounds, strike the pads connected to the DTX-PRO.

You can play different sounds by striking different sections (or “Zones”) of the pad, depending on the number or zones

available on the pad.

When position sensing is available, you can express a subtle nuance by striking different locations within a Zone.

Playing the Pads

Pad Type Multi Piezo Single Piezo

Number of

Zones

212 3

Produces two differ-

ent sounds (one for

each zone)

Produces the same

sound regardless of

where the pad is

struck.

Also called the

“monaural pads” or

“1-zone pads.”

Produces two differ-

ent sounds (one for

each zone)

Produces three different sounds (one for

each zone).

Also referred to as “3-zone pads.”

Zone

Example XP125SD-X TP70 RHH135 PCY135 XP80

NOTE

For the information on the type of the drum sticks or beaters, refer to the Owner’s Manual for the pad.

Rim

Head

Pad

Bow

Edge

Bow

Cup

Edge

Pad

Rim B

Rim A

DTX-PRO Owner’s Manual

Playing the Pads

Basic Guide

 Snare and Tom

Strike different sections of the pad in the same way you would play an acoustic snare drum or tom.

With the snare pad (the pad with position sensor connected to the qSNARE jack), you can create natural tonal changes

according to the location within the Zone.

Head shots

Strike the main surface of the pad to produce a

conventional head hit sound.

Multi Piezo pad with position sensing:

With certain snare sounds, the sound changes

depending on how far from the rim you strike.

Open rim shorts

Strike the head and the rim at once to produces a

rim shot sound.

Multi piezo pads with position sensing:

You can use normal rim shots or shallow rim

shots. Depending on the distance from the rim,

the rim shot sound changes slightly.

Single piezo 3-zone pads:

Strike the open rim.

Closed rim shots, (cross sticking)

Strike only the rim. Do not touch the head.

Multi piezo pads:

Press the button below “XSTICK” ([F2]) in the

KIT screen to switch between on (for playing the

cross-stick sound) or off (for playing the open rim

shot sound).

Single piezo 3-zone pads:

Strike the closed rim.

Head

Rim

Head

Open rim

Rim

Closed rim

DTX-PRO Owner’s Manual

Playing the Pads

Basic Guide

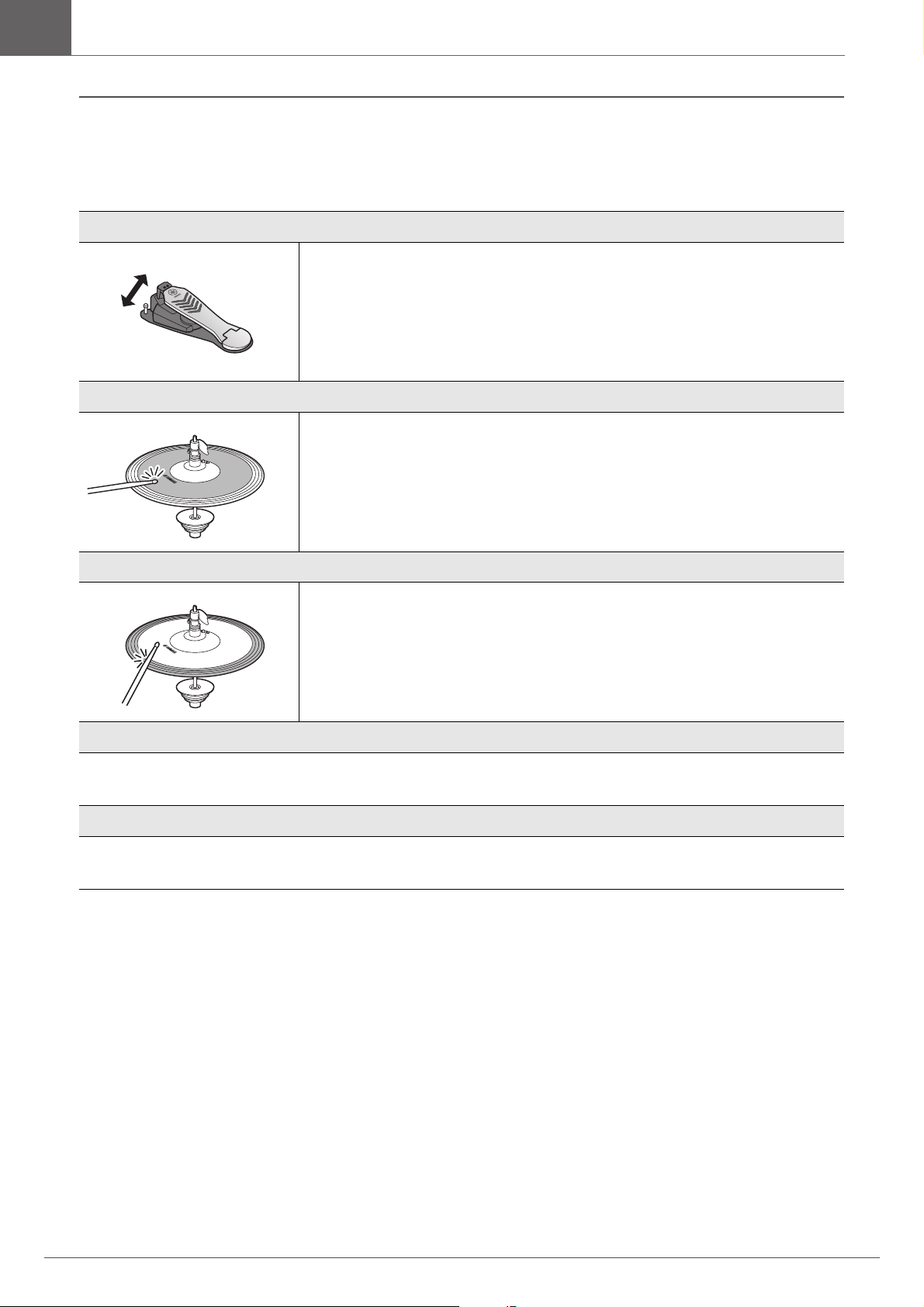

 Hi-hats

Strike different sections of the pad in the same way you would play an acoustic hi-hat cymbal.

*1 With the hi-hat pad included in the DTX6K-X kit, the bow shots and the edge shots play the same sound.

*2 The front side of the pad is indicated by the Yamaha logo.

Open/Close

• You can produce an open hi-hat sound by striking the hi-hat pad with the hi-hat con-

troller’s pedal fully open.

• You can produce a closed hi-hat sound by striking the hi-hat pad with the hi-hat con-

troller’s pedal fully pressed.

• Different hi-hat sound is produced depending on the how much the pedal is opened

or pressed.

Bow shots

Striking the main surface of the hi-hat pad (i.e., the bow section located between the

cup and edge) produces a bow shot sound.

Edge shots

Striking the front side on the outer edge of the hi-hat pad produces an edge shot

sound.

Foot-close sounds

You can press down the hi-hat controller’s pedal to create a foot-close sound without having to strike the hi-hat pad.

Hi-hat splash sounds

Pressing down the hi-hat controller’s pedal and then immediately releasing it produces a hi-hat splash sound.

HH65

DTX-PRO Owner’s Manual

Playing the Pads

Basic Guide

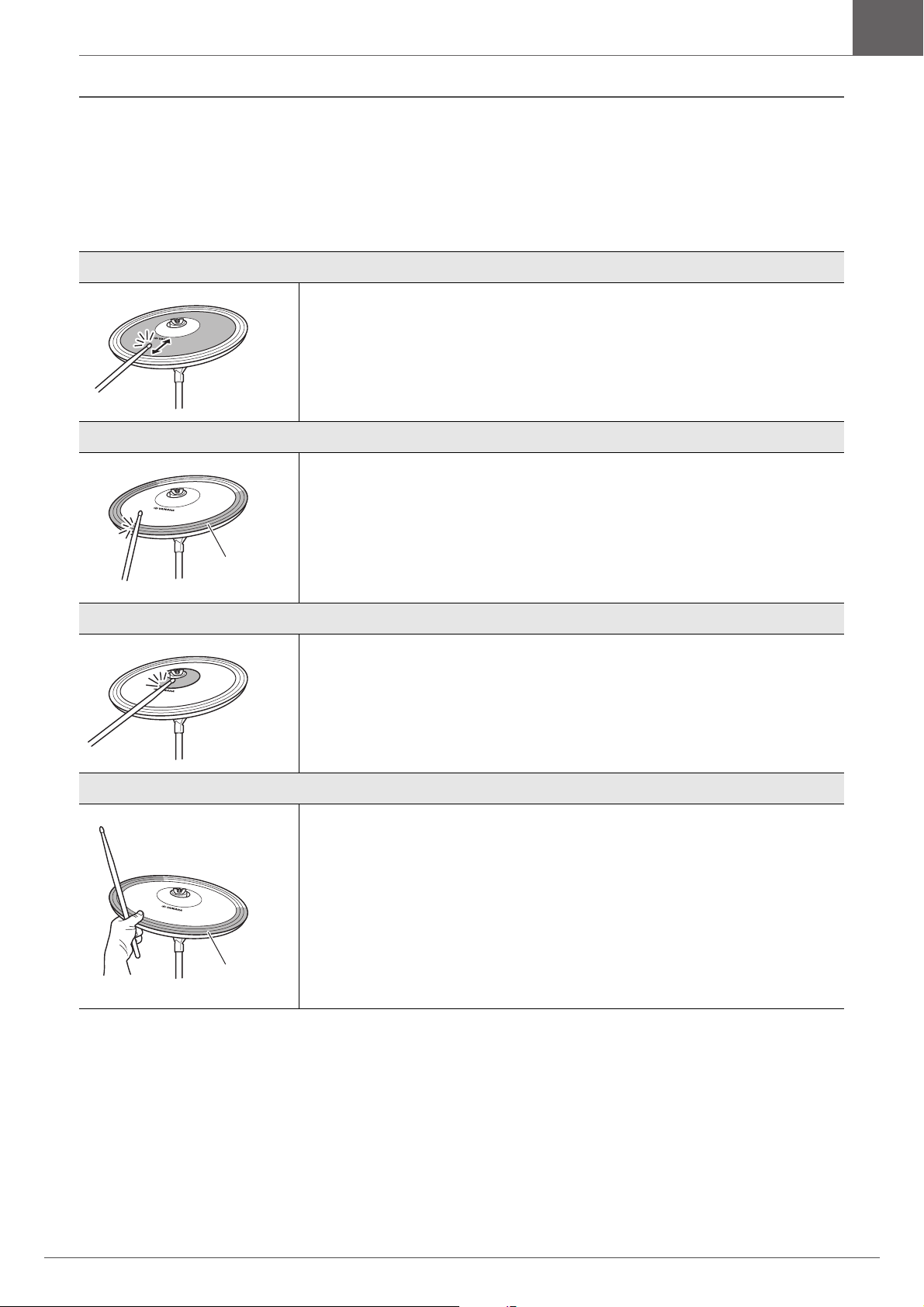

 Cymbals

Strike different sections of the drum pad in the same way you would play an acoustic cymbal. With the ride cymbal (the pad

with position sensor connected to the iRIDE jack), you can create natural tonal changes according to the location within

the Zone.

Bow shots

Striking the main surface of the cymbal pad (i.e., the bow section located between the

cup and edge) produces a bow shot sound.

With the ride cymbal, strike the front side of the bow section near the Yamaha logo, you

can create natural tonal changes according to the location within the Zone.

Edge shots

Striking the front side on the outer edge of the cymbal pad produces an edge shot

sound.

Bell shots

Striking the bell (cup) produces a bell shot sound.

Choking

Grabbing the front side on the outer edge of a cymbal pad immediately after striking it

will mute the sound being produced.

Crash cymbal pad included in the DTX6K-X kit:

Grasp the sensor area to choke sounds.

Front side on

the outer edge

Front side on

the outer edge

DTX-PRO Owner’s Manual

Playing the Pads

Basic Guide

*2 The front side of the pad is indicated by the Yamaha logo.

*3 With the crash cymbal pad included in the DTX6K-X kit, the bow shots, the edge shots and the bell shots play the same sound.

*4 With the crash cymbal pad included in the DTX6K-X kit, grasp the sensor area of the cymbal pad for choking and muting.

Muting

Striking the pad while holding the front side of the outer edge will produce a muted

sound.

Crash cymbal pad included in the DTX6K-X kit:

Grasping the sensor area of the cymbal pad immediately after striking it will mute the

sound being produced.

Front side on the

outer edge

Sensor (bumps)

DTX-PRO Owner’s Manual

Basic Operation of the DTX-PRO

Basic Guide

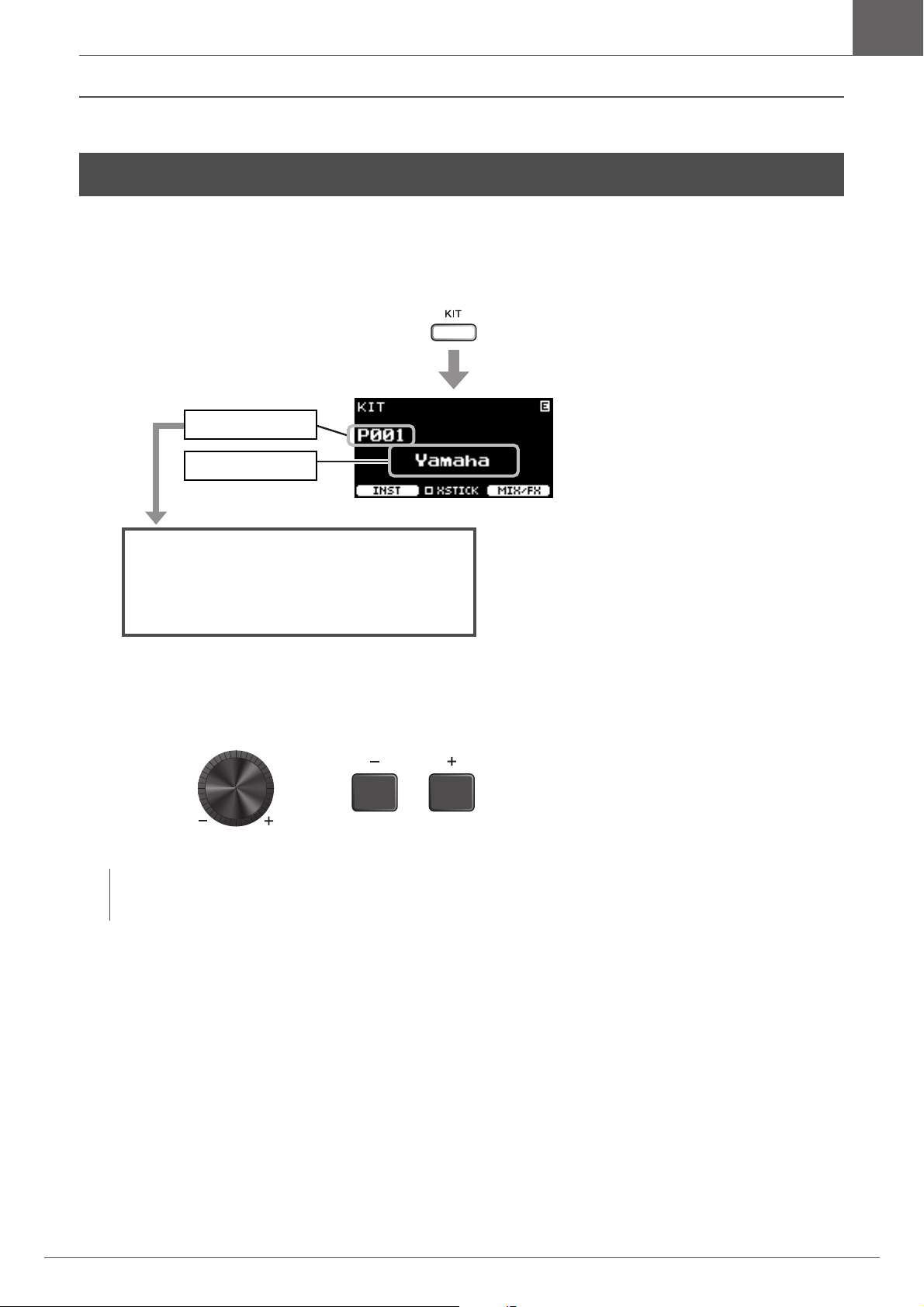

 Selecting a Kit

Press the [KIT] button.

The KIT screen appears.

Use the [–][+] controllers to select a kit.

Basic Operation of the DTX-PRO

NOTE

If you’ve inadvertently selected another Kit before storing the Kit being edited, you can use the recall function to recall the

edited contents. For more information, refer to the Reference Manual (PDF). (MENU/Job/Kit/Recall)

* This screen is shown when multi-piezo pads

are connected.

Kit number

Kit name

P***: Preset Kits (Presets that are already

stored in the DTX-PRO)

U***: User Kits (Kits you have created)

DTX-PRO Owner’s Manual

Basic Operation of the DTX-PRO

Basic Guide

 Adjusting (Modifying) the Sound Effects

The type of the effect controlled with the [EFFECT] knob can

be changed from the button below “MIX/FX” ([F3]).

For more information, see “Changing the Effect Type and Amount of Effect to Apply” (page 32).

[AMBIENCE] knob

Adjusts the amount

of ambience or the

reflective sounds of

the virtual room

[COMP] knob

Adjusts the amount

of compression or

the amount of the

punchiness or loud-

ness of the sound

[EFFECT] knob

Adjusts the amount

of other effects

assigned to the Kit

Maximum: All lit

Minimum: All off

DTX-PRO Owner’s Manual

Basic Operation of the DTX-PRO

Basic Guide

 How to Use the Mixer

Use the mixer to adjust each pad’s level to set the overall volume balance.

Press the button below “MIX/FX” (F3).

The MIXER screen appears.

To adjust the volume of each pad, press the [MENU] button to change the Inst volume settings.

To adjust the volume of each section of the pad (Zone), press the [MENU] button to change the Voice volume settings.

For more information, refer to the Reference Manual (PDF).

Use the buttons below “ ” or ” ” ([F1]or

[F2]) to select the desired pad.

Use the [–] [+] controllers to adjust the vol-

ume.

NOTE

• The mixer setting is retained after switching to another Kit.

• The mixer setting is not saved as a Kit setting.

Shown on screen KK SN TM HH CR RD MI

Pad Kick Snare Tom1

Tom 2

Tom 3

Hi-Hat Crash1

Crash2

Ride Others

Trigger input jack

the pad is con-

nected to

!2KICK qSNARE wTOM1

rTOM2

yTOM3

!1HI-HAT oCRASH1

!0CRASH2

iRIDE e, t, u,

!3, !4

DTX-PRO Owner’s Manual

Basic Operation of the DTX-PRO

Basic Guide

 Changing the Effect Type and Amount of Effect to Apply

You can set a different effect type or change the amount of the effect that you control with the [EFFECT] knob.

Master Effect (effect applied to the overall sound), Effect 1 and Effect 2 (effects whose amounts can be set independently

for each Inst) are available.

Press the button below “MIX/FX” ([F3]).

MIXER screen appears.

Press the button below “EFFECT” ([F3]).

Press the button below “EFFECT M…” ([F3])

to select the effect you wish to set.

Effect Selection

M: Master effect

1: Effect 1

2: Effect 2

DTX-PRO Owner’s Manual

Basic Operation of the DTX-PRO

Basic Guide

Use the [–] [+] controllers to select the effect

type.

For Effect 1 and Effect 2:

Set the amount of effect to apply to each Inst.

q Strike the pad whose instrument effect you wish to

change.

The pad name appears on the upper right corner of the

screen.

w Press the button below “ ” ([F1]) to move the cursor

to “InstSend.”

DTX-PRO Owner’s Manual

Basic Operation of the DTX-PRO

Basic Guide

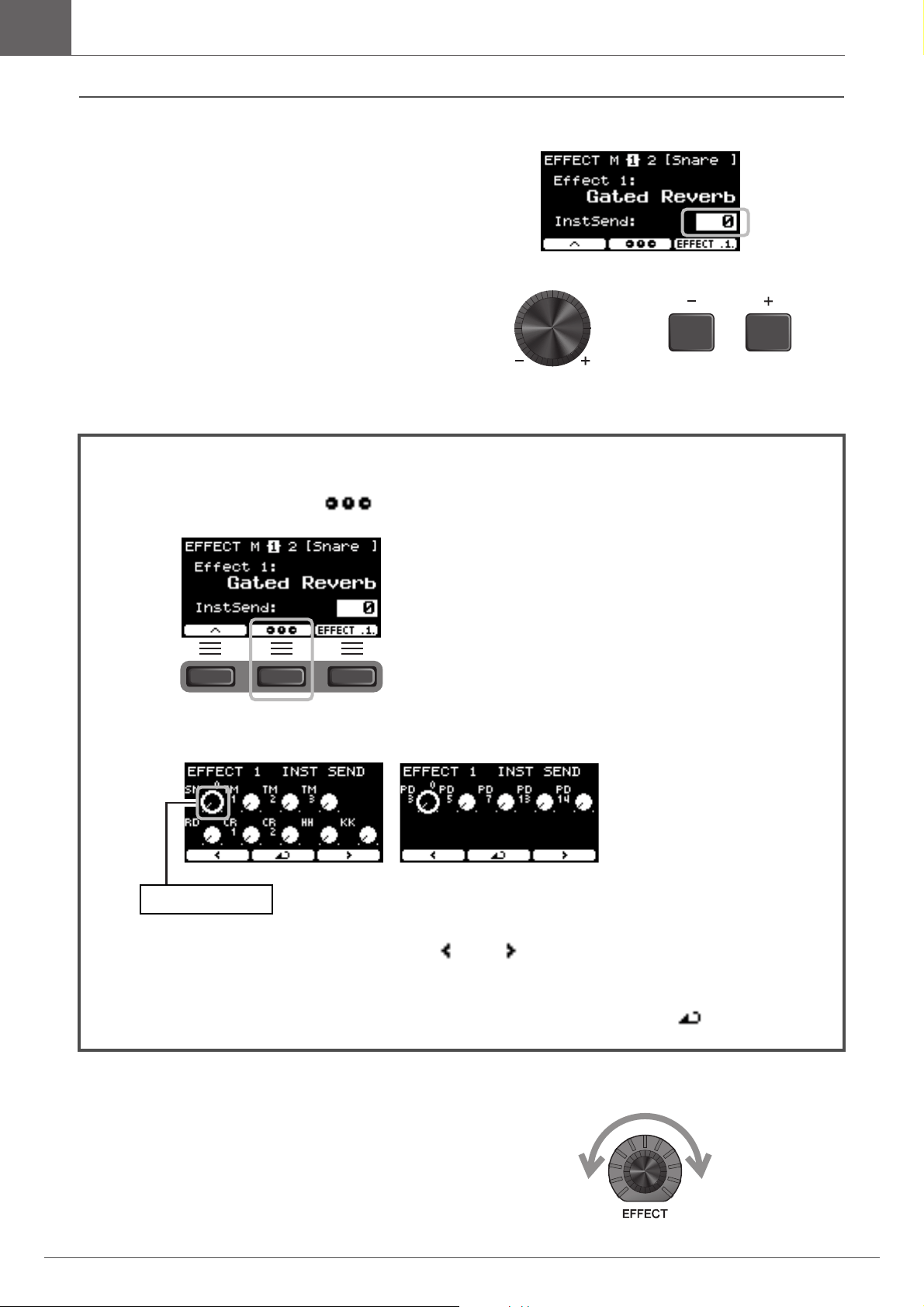

Use the [–] [+] controllers to set the amount of effect

to apply.

Turn the [EFFECT] knob and try striking the

pads to check the amount of effects being

applied to the sound.

To set Effect 1 and Effect 2, you can use the graphic overview for adjusting the setting of each pad.

Press the button below “ ” ([F2]).

Setting screen appears.

Strike a pad or use the buttons below “ ” or ” ” ([F1]or [F3]) to select a pad, and use

the [–] [+] controllers to set the amount of effect to apply.

To return to the Effect 1 or Effect 2 screens, press the button below “ ” ([F2]).

Cursor position

DTX-PRO Owner’s Manual

Changing the Drum Set Sound (Building Your Own Drum Set)

Basic Guide

With the DTX-PRO, you can build your own drum set by changing the drum set sound within the Kit.

By changing the Inst settings, you can customize the drum set sound, in the same way as you would with an acoustic drum

set.

If you want to make more detailed changes to the settings, press the [MENU] button. For more information, refer to the Ref-

erence Manual (PDF). (MENU/Kit Edit/Inst or MENU/Kit Edit/Voice)

Use the button below “INST” ([F1]).

Inst Selection screen appears.

Changing the Drum Set Sound (Building Your Own Drum

Set)

 Replacing Instruments  Changing the Tunings

 Changing the Cymbal Size

 Muffling (muting) the

drum

 Sustain length of the

cymbal

 Hi-hat clutch posi-

tions, etc.

 First page of the screen (Inst Selection screen)  Second page of the screen (Inst Settings screen)

Drum set

KIT screen

DTX-PRO Owner’s Manual

Changing the Drum Set Sound (Building Your Own Drum Set)

Basic Guide

Strike the drum pad for which you wish to

change the settings.

The pad name appears on the upper right corner of the

screen.

Use the buttons below “ ” or “ ” ([F1]

or [F2]) to select the item.

The first page:

The Inst Selection screen appears.

The second page:

The Inst Setting screen appears.

The items shown on the second page or the Inst settings screen depend on the Inst category selected in the first page or

the Inst selection screen.

Use the [–] [+] controllers to change the

parameter value.

Inst Category

Parameter

Value

Adjusting the parameter value to:

Kick1

Kick2

Snare1

Snare2

To m 1

To m 2

Tuning Determines the tuning (pitch).

Muffling Simulates the effect of changing the degree of muffling (or how much the

drum head is muted)

Cymbal1

Cymbal2

Size Simulates the effect of changing the cymbal size.

Sustain Determines the cymbal’s sustain time (i.e., how quickly the sound decays

to silence).

HiHat1

HiHat2

Size Simulates the effect of changing the cymbal size.

Clutch Simulates the effect of changing the hi-hat’s clutch position. The smaller

the setting, the quicker an open hi-hat sound will decay to silence.

Perc (Percussion)

Effect

User

Tuning Determines the tuning (pitch).

Decay Determines how quickly the sound decays to silence.

Inst Category

name

Inst number

and Inst name

Settings (differ-

ent items appear

depending on the

Inst category)

DTX-PRO Owner’s Manual

Changing the Drum Set Sound (Building Your Own Drum Set)

Basic Guide

 Using Imported Sounds (.wav)

You can import audio files (.wav) into the DTX-PRO to use as Inst sounds.

For more information on importing audio files and settings, refer to the Reference Manual (PDF).

For more information on using a USB flash drive, see “Using a USB Flash Drive” (page 21).

 Saving a Customized Kit under a New Name

Press the [STORE] button.

The KIT STORE screen appears.

Press the button below “NAME” ([F2)] to open

the NAME screen.

Use the buttons below “ ” or “ ” ([F1] or [F3])

to select the character position, then use the [–]

[+] controllers to select a letter.

A name of up to 12 characters can be set to the Kit.

Preset Kit number and Preset

Kit name of the Kit you are

editing.

User Kit number and

User Kit name of the

Store Destination.

Character

position

(cursor)

Character

you want to

enter

DTX-PRO Owner’s Manual

Changing the Drum Set Sound (Building Your Own Drum Set)

Basic Guide

After entering all characters, press the button

below “OK” ([F2]) and return to the STORE

screen.

Use the [–] [+] controllers to select a User Kit

Number to store your Kit to.

After confirming the new Kit Number and Kit

Name, press the button below “STORE”

([F3]).

When the Kit operation is complete, the display returns to the Kit screen.

NOTE

You cannot save an edited Kit to a Preset Kit.

NOTICE

When overwriting a Kit, the current Kit settings are

replaced with the new settings. Before overwriting a Kit,

ensure that the Kit contains no irreplaceable settings.

“Overwrite?” appears when the selected Kit Number already

contains a Kit.

If you want to overwrite to save the Kit, press the button below

“YES” ([F1]).

If you do not want to overwrite, press the button below “NO”

([F3]) and return to the previous screen where you can select

another Kit number.

DTX-PRO Owner’s Manual

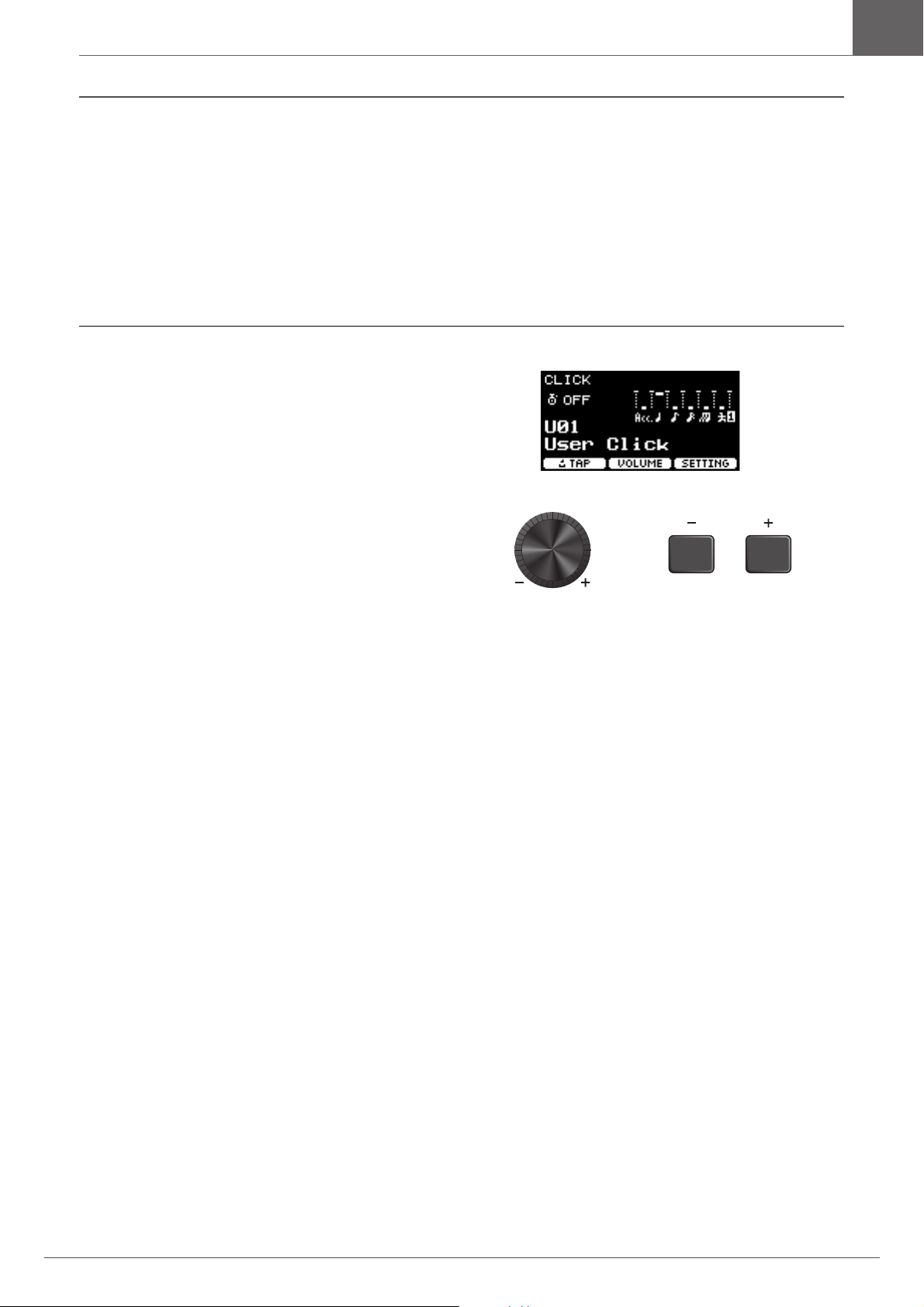

Using the Click (Metronome)

Basic Guide

Practicing your drumming along with the click (metronome) sounds helps you perfect your rhythms.

 Starting and Stopping the Click

Press the [START/STOP] button to start the

Click.

Click sounds are played at the tempo shown in the Click

Tempo display.

The lamp next to the [START/STOP] button flashes in

sync with the tempo while the Click sounds.

To stop the click, press the [START/STOP]

button again.

 Changing the Tempo

Turn the [TEMPO] knob.

 Setting the Click Beat Volume

Turn the [CLICK VOLUME] knob.

Using the Click (Metronome)

120

DTX-PRO Owner’s Manual

Creating Your Own Click (Metronome) Settings

Basic Guide

Set the Click (metronome) tempo, volume, etc.

Press the [CLICK] button.

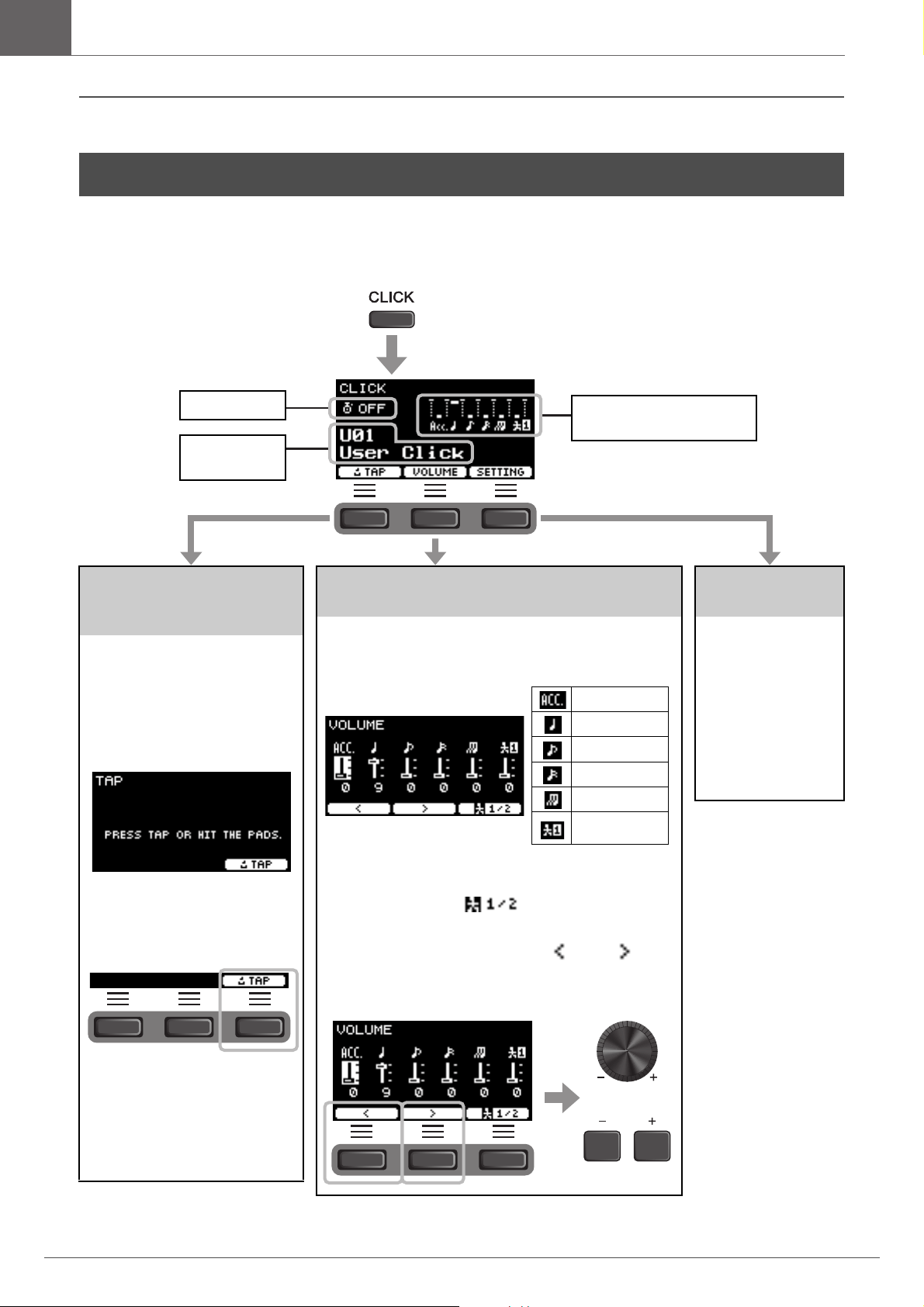

Creating Your Own Click (Metronome) Settings

Setting the Tempo by

Tapping the Button

(Tap Tempo)

Tap the button at the desired tempo

to set the tempo.

Press the button

below “TAP” ([F1]).

The TAP screen appears.

Tap the button below

“TAP” ([F3]) at least

3 times.

The tapped tempo is detected and

appears on the screen.

NOTE

You can also set the tempo by

striking a pad connected to the

Trigger Input jacks.

Changing the Volume of the Individual Click

Timing

Press the button below “VOLUME”

([F2]).

3/8, 6/8, 9/8, 12/8, 15/8 beats only have settings for Acc, dot-

ted quarter, eighth, and sixteenth notes.

Press the button below “ ” ([F3]) to switch between

Human voice1 and Human voice2 to change counts.

Use the buttons below “ ” or ” ”

([F1] or [F2]) to move the cursor and

use [–][+] to change the volume.

The VOLUME screen appears.

Accents

Quarter notes

Eighth notes

Sixteenth notes

Eighth note triplets

Human voice

Changing Other

Settings

Beat, Timer settings,

click sound types, and

other settings can be

changed. Also, you

can use your choice of

a wav file as click

sound. For more infor-

mation, refer to the

Reference Manual

(PDF).

The CLICK

screen appears.

Timer settings

Click number

Click name

Volume settings for individual

click timing

DTX-PRO Owner’s Manual

Creating Your Own Click (Metronome) Settings

Basic Guide

 Saving the Customized Click Setting under a New Name

The Click settings you have customized can be saved in the same way as saving a kit. See “Saving a Customized Kit under

a New Name” (page 37).

 Using Saved Click Settings

While the CLICK screen is shown on the display, use the [–][+]

controllers to select a user click.

DTX-PRO Owner’s Manual

Recording Your Performance

Basic Guide

Use the DTX-PRO to record your performance. When a USB flash drive is connected to the DTX-PRO, audio is recorded to

the USB flash drive.

You can overdub your performance onto an accompaniment song (input via the AUX IN jack) and save your performance

combined with the accompaniment song as a single audio file.

 Recording to the DTX-PRO (when no USB flash drive is connected

to the terminal)

Press the [RECORDER] button.

Recording Your Performance

Recording

Recording time to the DTX-PRO is about 1

minute 30 seconds.

Press the button below “”

([F1]) to start recording.

While recording, the elapsed recording time

(min: sec) appears.

Play the drums.

After you finish playing,

press the button below “ ”

([F1]) to stop recording.

Playing Back

NOTE

This is not displayed when there is no

recorded song.

Press the “>” button

([F2]) to start playback.

While playing back, the elapsed play-

back time (min: sec) appears.

To stop playback, press

the “

” button ([F2]).

Changing other settings

Other settings such as the play-

back speed or the recording

source can be changed. For more

information, refer to the Refer-

ence Manual (PDF).

NOTICE

• When your performance is

already recorded on the

DTX-PRO, recording again

on the DTX-PRO erases the

previous recording.

• Any performance recorded

to the DTX-PRO will be lost

when the power is turned

off. If you wish to save your

recordings, export the

recorded data as audio files.

For more information, refer

to the Reference Manual

(PDF). (MENU/Job/Recorder/

Export Audio)

The [RECORDER] button

flashes while recording.

Destination

Playback speed

The RECORDER screen opens.

DTX-PRO Owner’s Manual

Recording Your Performance

Basic Guide

 Recording to a USB Flash Drive

Connect a USB flash drive to the [USB TO DEVICE] terminal on the rear panel.

Press the [RECORDER] button.

When a USB flash drive is connected

• You can record up to 90 minutes at a time.

• A new file is created every time you record.

• Simultaneous playback and recording to overdub your performance onto the currently playing

song.

Recording

Press the button below “” ([F1]) to

start recording.

While recording, the

elapsed recording time

(min: sec) appears.

Play the drums.

After you finish playing, press the but-

ton below “ ” ([F1]) to stop recording.

The RECORDER SAVE

screen appears.

Press the button below “SAVE” ([F3])

and save the file.

Press the button below

“CANCEL” ([F2]) if

you do not want to save

the file.

NOTE

If you want to change the file name, press the button below

“NAME” ([F1]) and enter a new name. (page 37)

Playing Back

NOTE

This is not displayed when there

is no recorded song.

Use the [–][+] con-

trollers to select a

song for playback.

NOTE

Up to 1,000 songs are recog-

nized.

Press the button

below “>” ([F2]) to

start playback.

Press the button

below “

” ([F2]) to

stop playback.

Changing Other

Settings

Other settings such as

the playback speed or

the recording source

can be changed. For

more information,

refer to the Reference

Manual (PDF).

The [RECORDER]

button flashes

while recording.

Destination

File name

Playback speed

The RECORDER (USB) screen appears.

DTX-PRO Owner’s Manual

Recording Your Performance

Basic Guide

 Overdub Recording Your Performance onto an Accompaniment

Song

You can also overdub your performance onto an accompaniment song that you’ve imported onto a USB flash drive and save

your performance combined with the accompaniment song as a single audio file.

 Preparing an Accompaniment Song (Audio File)

• Importing from a Computer

Save the audio file (.wav file) from the computer to the root directory on a USB flash drive.

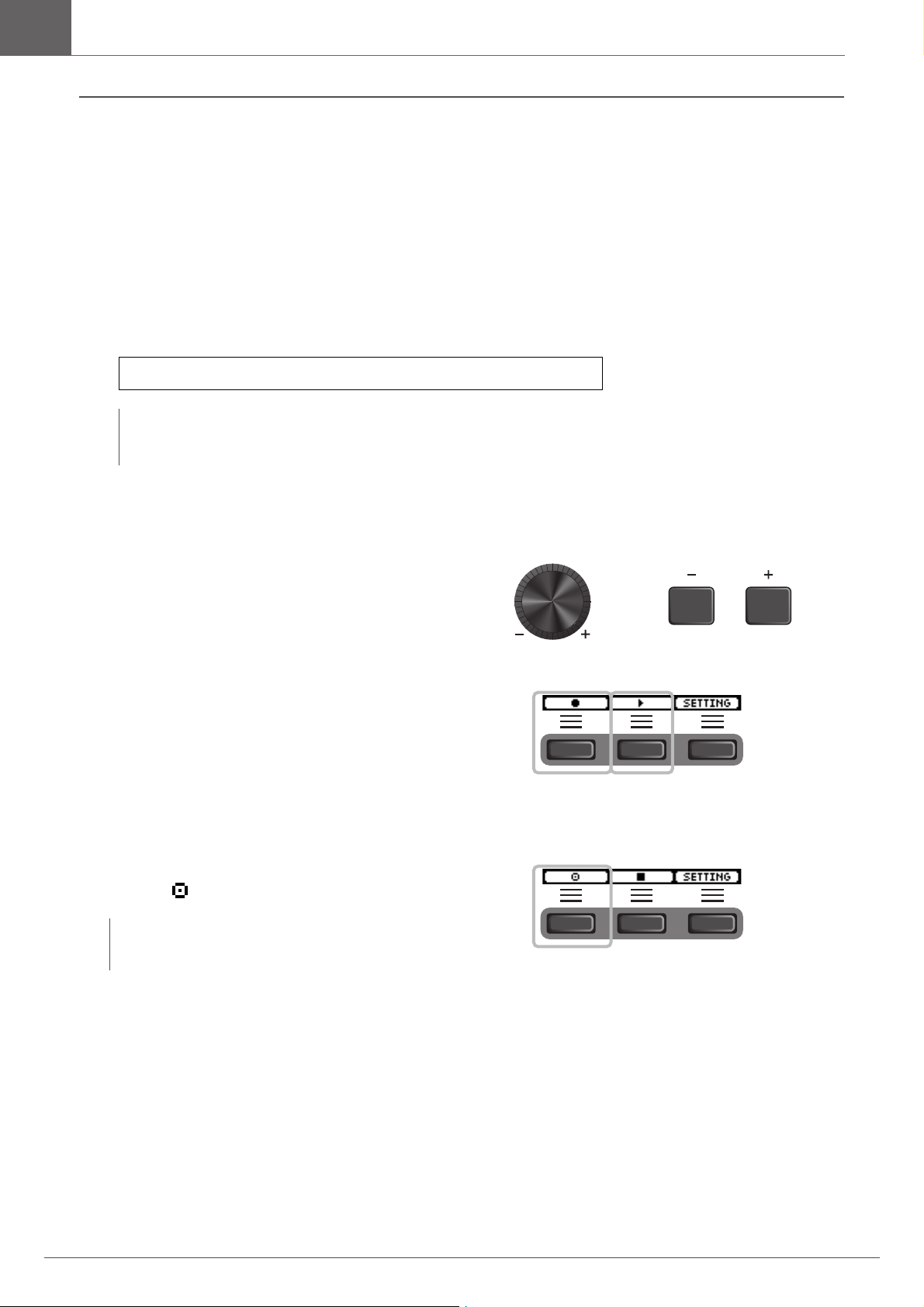

 Recording Yourself Playing Along with the Accompaniment Song

Use the [–] [+] controllers to select the

accompaniment you have prepared.

Press the button below “” ([F1]) and the

button below “>” ([F2]) to start recording

and playback.

Play the drums.

After you finish playing, press the button

below “ ” ([F1]) to stop recording.

Audio file requirements: 16-bit, 44.1 kHz, stereo, wav format

NOTE

• Some of the audio files may not play back even when the above requirements are met.

• The DTX-PRO does not recognize the audio file if it is in a folder.

NOTE

Pressing the button below “” ([F2]) stops accompaniment

playback, but recording continues.

DTX-PRO Owner’s Manual

Practicing with the Training Feature

Basic Guide

Training is a feature you can use for effectively mastering various drumming skills. There are ten training types available on

the DTX-PRO. You can use the internal training songs and click for the practice.

 Training Types

* With SONG PART GATE and SONG SCORE GATE, only training songs 1 to 10 can be used.

Training songs 1 to 10 are the same as the ones included in the DTX402 series. The drum scores (PDF) are available at the following site.

https://download.yamaha.com/

Practicing with the Training Feature

Learning to Play Various Songs

1. TRAINING SONG

Play along with various music categories and phrases.

2. PART MUTE

Practice phrases with one instrument or one part at a time.

3. SONG PART GATE

Learn to play specific parts or sections of the training song independently.

4. SONG SCORE GATE

Check how well you’ve mastered the performance

Learning to Play Rhythms Precisely

5. RHYTHM GATE

Learn to play in perfect time.

6. RHYTHM GATE TRIPLET

Learn to play in perfect time with triplets.

7. D Y N A M I C G AT E

Learn to control the strength of each hit.

8. MEASURE BREAK

Learn to keep strict tempo during rests and fill-ins.

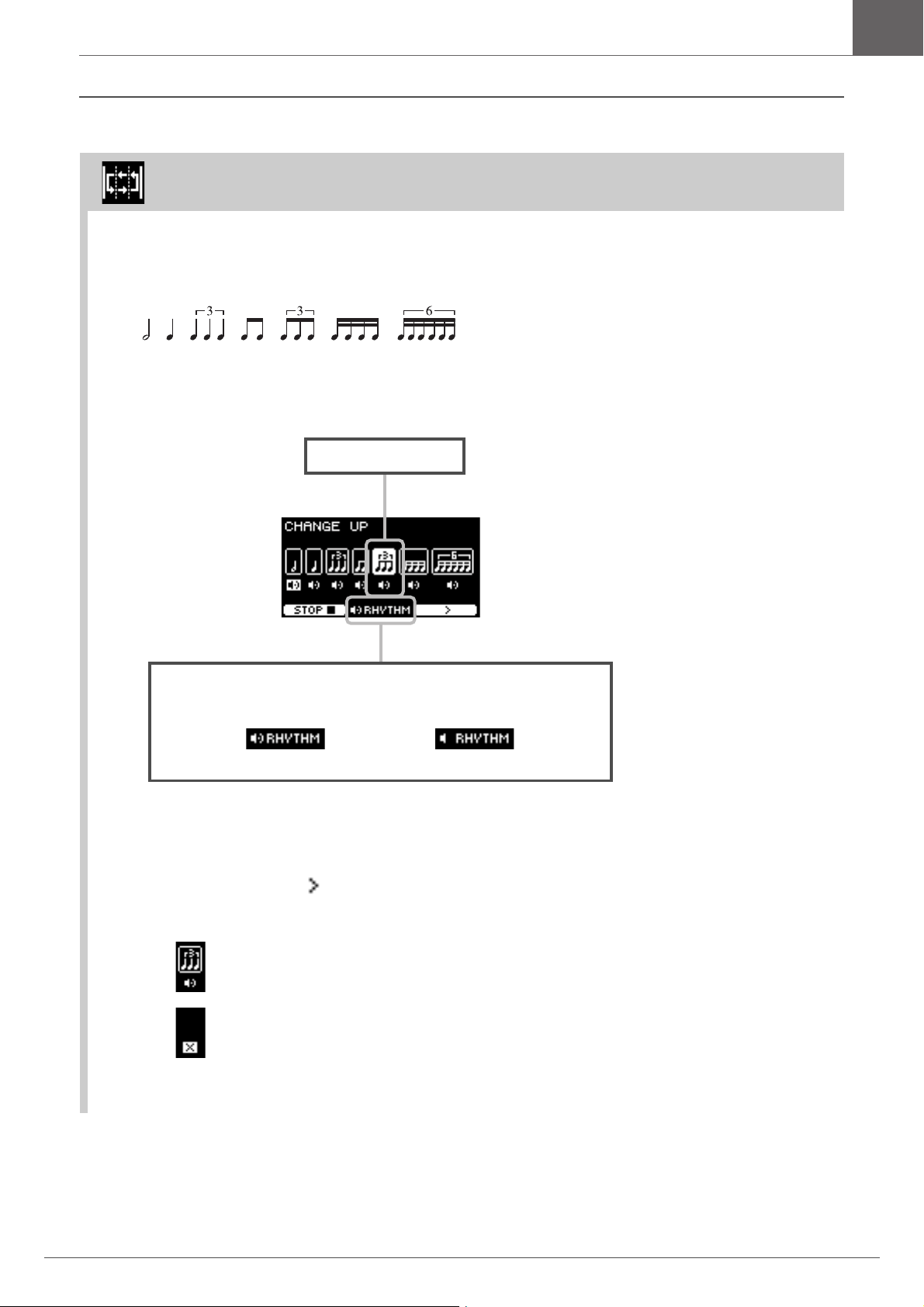

9. CHANGE UP

Learn to play various phrases with rhythm changes in mid-song.

Build up Your Stamina Needed for Drumming

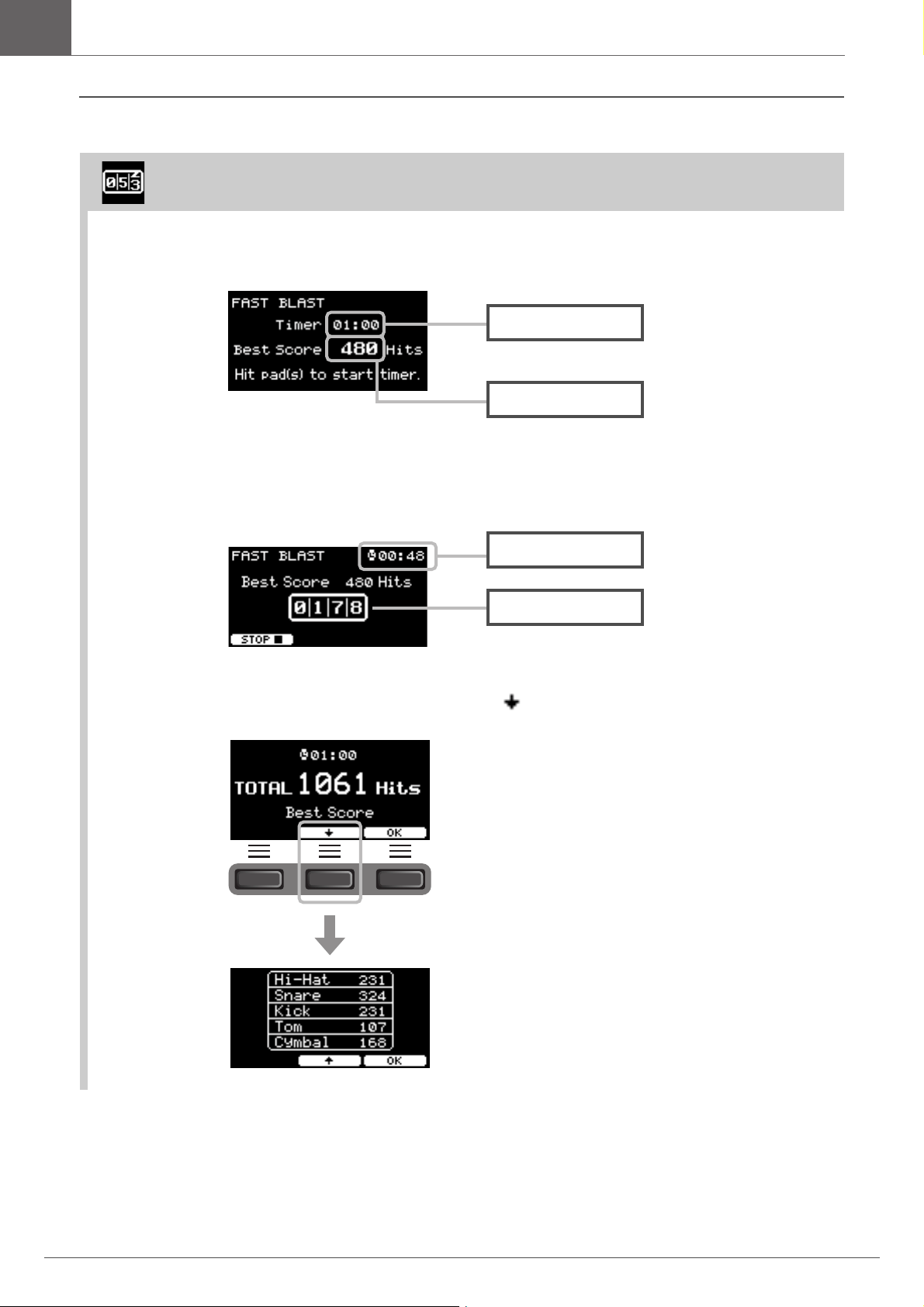

10. FAST BLAST

DTX-PRO Owner’s Manual

Practicing with the Training Feature

Basic Guide

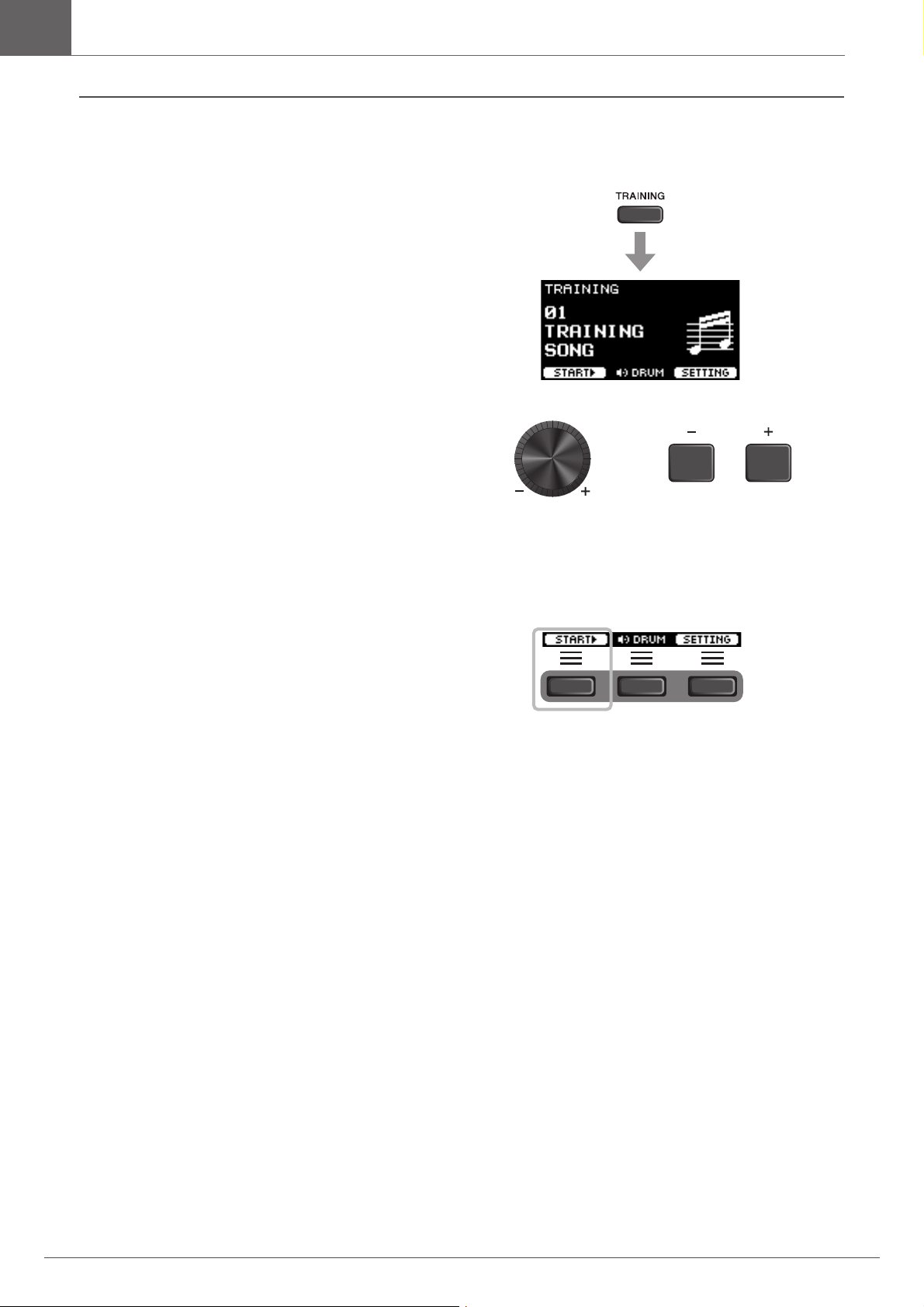

 Starting and Ending Your Training

Press the [TRAINING] button.

The TRAINING screen appears.

Use the [–][+] controllers to select a training

type.

For more information on the training types, see “Training

Types” (page 45).

For other settings, such as training song selection, the

duration of the training (timer setting) or the difficulty

level, press the button below “SETTING” ([F3]). For

more information, refer to the Reference Manual (PDF).

Press the button below “START” ([F1]) or

“STANDBY” ([F1]).

Play the drums.

Strike the pads according to the instruction given for the

selected training type.

For more information on what you can do during training,

see “Details on Training Types” (page 48).

To change the tempo of the training song, turn the

[TEMPO] knob.

To change the volume of the training song, turn the

[AUDIO VOLUME] knob.

DTX-PRO Owner’s Manual

Practicing with the Training Feature

Basic Guide

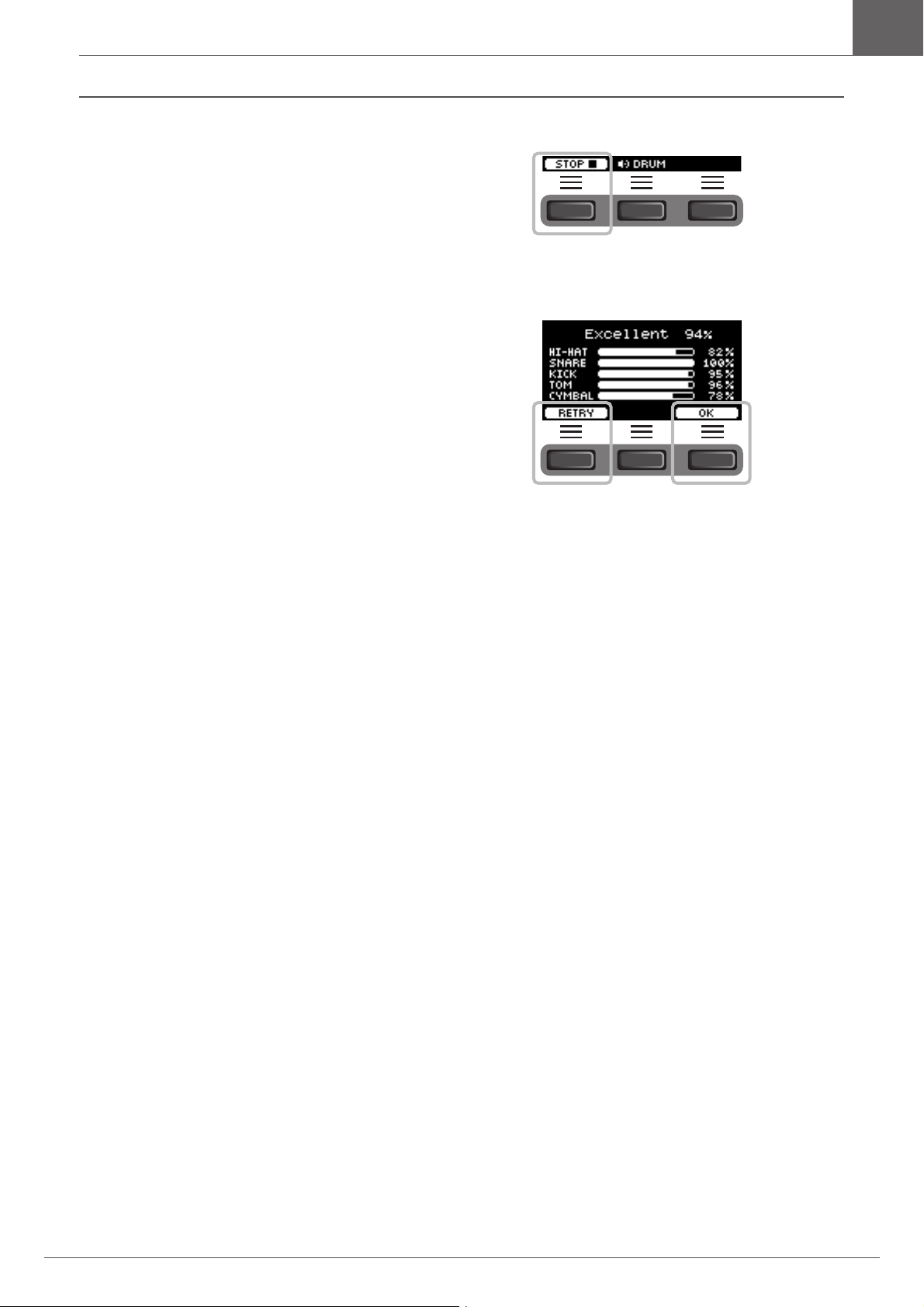

To end the training, press the button below

“STOP” ([F1])

SONG SCORE GATE and FAST BLAST stop automati-

cally.

The results or the grades of your training appears after the

exercise.

To restart the training, press the button below “RETRY”

([F1]), and to end the training, press the button below

“OK” ([F3]).

• Training results are not shown at the end of TRAINING

SONG and PART MUTE.

• With MEASURE BREAK and SONG PART GATE, the

training result appears at the end before the repeat starts.

Training results do not appear at the end of the exercise.

To close the TRAINING screen, press the

[EXIT] button.

An example of the training result

(for 5. RHYTHM GATE):

DTX-PRO Owner’s Manual

Details on Training Types

Basic Guide

The following ten training types are available on the DTX-PRO.

Details on Training Types

1. TRAINING SONG

You can play along various music categories and phrases.

What you can do during training:

Use the [–][+] controllers to select a train-

ing song.

Play the drums along with the training

song.

Drum Mute

Mute the drum part of the training song. Press the button to

turn the setting on or off.

Drum part on Drum part off

DTX-PRO Owner’s Manual

Details on Training Types

Basic Guide

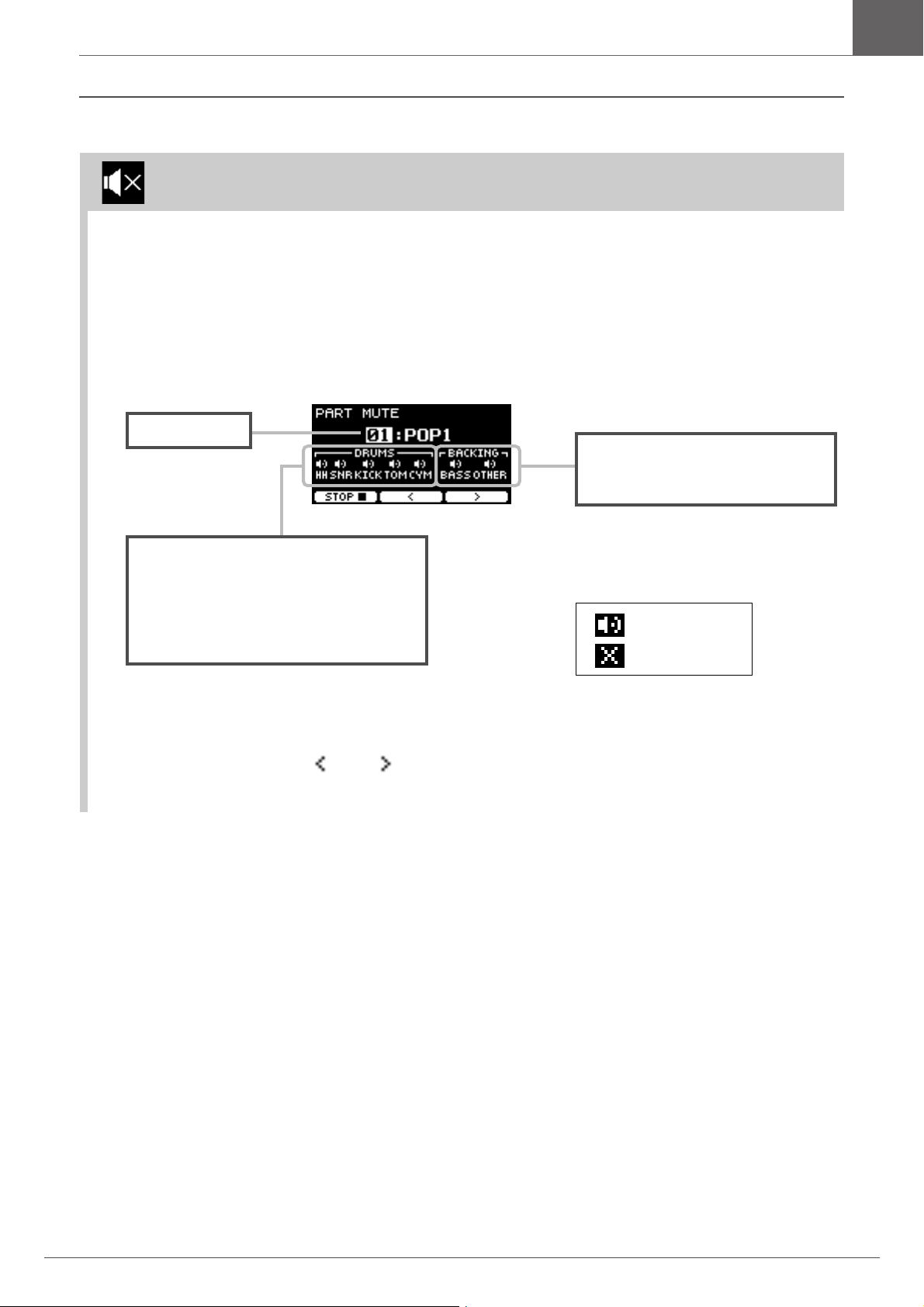

2. PART MUTE

Part Mute is an exercise which you can mute any or all of the drum parts (such as snare and kick) and the backing parts

(non-drum parts) from a training song. Part Mute can be useful in many ways—for example, for practicing only the

snare part of the training song, or for tightening up your rhythm section skills by practicing only with a bass guitar

sound.

Keep in mind that this exercise is not scored.

What you can do during training:

 To select a part to mute:

Use the buttons below “ ” or “ ” ([F2] or [F3]) to move the cursor, then use the [–] [+]

controllers to select a part.

BACKING

BASS: Bass part

OTHER: Parts other than bass

DRUMS: Drum part in the training song

HH: Hi-hat

SNR: Snare

KICK: Bass drum

TOM: Tom

CYM: Cymbal

Training song

Play sounds

Mute sounds

DTX-PRO Owner’s Manual

Details on Training Types

Basic Guide

3. SONG PART GATE

Song Part Gate is a practical exercise for practicing one part or one section of the training song at a time. You can select

a part for working intensively on a specific phrase or to work on independent hand/foot coordination, for example, in

order to learn the essential part of the training song. Practice your drumming skills with other training exercises before

trying Song Part Gate. Then try Song Score Gate (page 51) to play through all sections of the training song.

The score (PDF) is available at the Yamaha website:

https://download.yamaha.com/

After accessing the Support website (and clicking on “Manual Library”), enter the appropriate model name.

What you can do during training:

 To change the training song or the part to practice:

Use the buttons below “ ” or “ ” ([F2] or [F3]) to move the cursor, then use the [–] [+]

controllers to select a training song or a section.

Here, you can only use training songs 1 to 10.

The score is shown at the end of the phrase before it repeats.

Training song

Part to practice

DTX-PRO Owner’s Manual

Details on Training Types

Basic Guide

4. SONG SCORE GATE

Song Score Gate is a final exercise for playing through all parts or sections of an entire training song. We recommend

that you first master Song Part Gate (page 50) before working on Song Score Gate.

The score (PDF) is available at the Yamaha website:

https://download.yamaha.com/

After accessing the Support website (and clicking on “Manual Library”), enter the appropriate model name.

What you can do during training:

 To change the training song

Use the [–] [+] controllers to select a training song.

Here, you can only use training songs 1 to 10.

The score is shown when you reach the end of the training song.

training song

DTX-PRO Owner’s Manual

Details on Training Types

Basic Guide

5. RHYTHM GATE

6. RHYTHM GATE TRIPLET

Rhythm Gate is an exercise for striking pads along with the click at proper timing. Rhythm Gate is an exercise for prac-

ticing with sixteenth notes, while Rhythm Gate Triplets is for triplet notes. When you strike too early or too late, no

sound is produced.

What you can do during training:

 To change the difficulty level (gate width)

Set a narrower gate width to increase the difficulty level.

Use the [–] [+] controllers to adjust the gate width.

 To change the direction of the timing indicator

The direction of FAST to SLOW can be switched to SLOW to FAST.

Press the button below “FAST/SLOW” ([F3]).

Difficulty level (gate width); determines the

time range within which sound is produced.

Actual strike

Accurate timing

DTX-PRO Owner’s Manual

Details on Training Types

Basic Guide

7. DYNAMIC GATE

Dynamic Gate is an exercise for playing pads with proper dynamics. Your aim is to control three levels: Weak, Normal

and Strong. When you strike with the wrong dynamics, it will not produce any sound. How accurately you strike with

the proper dynamics is evaluated at the end of the exercise. Once you master Dynamic Gate, you will be a skillful drum-

mer at controlling dynamics depending on the situation.

What you can do during training:

 To set the pad sounds to be muted for specific dynamics

For example, you can set the pad sound to be produced only when the pad is struck within the NORM range. In such

case, disable WEAK and STRONG.

Use the buttons below “ ” or “ ” ([F2] or [F3]) to move the cursor ( ), then use the

[–] [+] controllers to select a square to show (with sounds) or not to show (without

sounds).

You can also change the cursor position by striking the pad.

Pad names

HI-HAT

SNARE

KICK

TOM

RIDE

CRASH

Strength

WEAK, NORM (normal), STRONG

DTX-PRO Owner’s Manual

Details on Training Types

Basic Guide

8. MEASURE BREAK

Measure Break is an exercise for keeping a steady tempo without the metronome. How accurately you strike the first

beat of the measure after the break is evaluated. Once you master Measure Break, you can keep a steady tempo even

after breaks or fill ins.

What you can do during training:

 To set a specific number of measures to play the click or the total number of measures

Use the buttons below “ ” or “ ” ([F2] or [F3]) to move the cursor, then use [–] [+] to set

the number of measures.

Measure to play click Measure to disable click

Total number of measures

Number of the measures

to play the click

DTX-PRO Owner’s Manual

Details on Training Types

Basic Guide

9. CHANGE UP

Change Up is an exercise for playing seven different rhythms that change every two measures. How well you maintain

good timing along with the rhythms is evaluated. Try your best to keep a steady tempo—even when the rhythms change.

*: The seven practice rhythm patterns:

What you can do during training:

 To select which rhythm to practice

Use the button below “ ” ([F3]) to move the cursor, then use the [–] [+] controllers to

change the setting.

The number of measures can be changed from SETTING.

Current Rhythm

Rhythm Mute

Mute the rhythm guidance. Press the button to turn the setting on or off.

Rhythm guidance on Rhythm guidance off

Rhythm to practice

Rhythm to skip practicing

DTX-PRO Owner’s Manual

Details on Training Types

Basic Guide

10. FAST BLAST

Fast Blast is an exercise for building up the stamina needed for drumming. Strike the pads as many times as possible

within a time limit.

Strike the pads as many times as possible within the time limit.

The timer starts counting when you start striking the pads.

The result appears on the screen.

To see the count for each pad, press the button shown below “ ” ([F2]).

Timer (min: sec)

Best score (times)

Remaining time

Counter

DTX-PRO Owner’s Manual

Application Guide

You can connect add-ons (sold separately) and external devices to the DTX-PRO to access more functions of the DTX-PRO.

 About the Trigger Input Jacks

Trigger Input jacks are used for connecting pads. The [qSNARE] to [!4] jacks on the rear panel accept up to 14 pads. For

more information on the types of pads you can use, see “Playing the Pads” (page 24).

For information on the voice assignment of trigger inputs, refer to the Data List (PDF).

For more information on the separately-sold accessories that can be connected to each trigger input jack, refer to the Pad

Module Compatibility table available on the website shown below.

Yamaha Downloads: https://download.yamaha.com/

* Yamaha Corporation reserves the right to modify this URL at any time without prior notice.

Connecting Separately Sold Add-ons and External

Devices

CONTROL, !1HI-HAT

For connecting the HH65 hi-hat controller, RHH135 real

hi-hat pad and others.

!0CRASH2, oCRASH1, iRIDE

Supports single-piezo pads (3-zone).

!4, qSNARE

Supports multi-piezo pads and single-

piezo pads (3-zone).

To connect additional toms and other

pads, use the !4 jack.

!2KICK/!3, yTOM3/u, rTOM2/t, wTOM1/e

Supports multi-piezo pads.

Single-piezo pads connected to these jacks function as 1-zone pads.

When kick pads such as the KP90 are connected to these jacks, you can use the

input jack on the back of the kick pad to add another pad.

You can connect two pads to one jack using a commercially available Y-cable. (In this

condition, all pads function as single-piezo 1-zone pads.)

To connect two pads to a jack, you may need to set the trigger input to use it sepa-

rately (MENU/Trigger/Input mode). For more information, refer to the Reference Man-

ual (PDF).

Stereo phone plug

Mono phone jack

 Y- c a bl e

DTX-PRO Owner’s Manual

Connecting Separately Sold Add-ons and External Devices

Application Guide

 Integrating Separately Sold Accessories

You can expand your electronic drum kit with various accessories* for an even more enjoyable drumming experience.

(*: sold separately)

 Adding a XP125SD-M (Separately

Sold)

Add a separately sold pad to the DTX-PRO to play the

drum or percussion sounds or to control functions by strik-

ing the pad.

Turn off the drum trigger module.

Attach the XP125SD-M to your drum rack.

Using the cable that came with the XP125SD-M, con-

nect it to the !4 jack on the DTX-PRO.

Turn on the drum trigger module.

Choose the correct pad type for the

XP125SD-M.

For more information on how to set the pad type, refer

to the Reference Manual (PDF). (MENU/TRIGGER/

Pad Type)

 Using a RHH135 (Separately Sold)

Instead of the Hi-hat Pad Included

in the DTX6K-X Kit

You can use a RHH135 (separately sold) instead of the hi-

hat pad included in the DTX6K-X Kit. This way, you can

play different sounds by striking different sections (or

“Zones”) of the pad.

Turn off the drum trigger module.

Connect the cable included with the

RHH135 from the PAD jack of the RHH135

to the !1HI-HAT jack on the DTX-PRO,

and from the HI-HAT jack on the RHH135

to the CONTROL jack on the DTX-PRO.

Turn on the drum trigger module.

Choose the correct pad type for the

RHH135.

For more information on how to set the pad type, refer

to the Reference Manual (PDF). (MENU/TRIGGER/

Pad Type)

The following describes how to connect a XP125SD-M or a RHH135. For the information on the compatibility

of other pads, refer to the Pad Module compatibility table (PDF). https://download.yamaha.com/

OUTPUT

to DTX-PRO

XP125SD-M

HI-HAT

CONTROL

to DTX-PRO

RHH135

PA D

DTX-PRO Owner’s Manual

Connecting Separately Sold Add-ons and External Devices

Application Guide

 Integrating Electronic & Acoustic Drums

The following describes a couple of examples of how you can integrate electronic and acoustic drums.

 Adding Pads to an Acoustic Drum

Set

By attaching a CSAT924A Cymbal Stand Attachment and

a drum holder to the cymbal stand from an acoustic drum

kit, you can easily add a pad such as the XP80, XP70, and

TP70 to that kit. The following diagram shows a typical

example of how the various components can be set up.

When assembled, set the Pad Type parameter. (MENU/

TRIGGER/Pad Type)

 Typical setup

 Playing the DTX-PRO Using Acous-

tic Drums

You can attach a DT50K or DT50S Drum Trigger to the

snare drum or the bass drum and connect to the [!2KICK/

!3] jack or the [qSNARE] jack on the DTX-PRO to send

trigger signals to your drum trigger module whenever the

drum is struck. After connecting cables, set the pad type

parameter. (MENU/TRIGGER/Pad Type)

 Typical setup (for attaching the Drum Triggers to the

snare and the bass drum)

Holder

CSAT924A Cymbal Stand Attachment

Pad

(TP70, XP70, or XP80, etc.)

Cymbal

stand

XP80

DTX-PRO

KP90

For more information on how to attach the Drum Trigger,

refer to the DT50S/DT50K Owner’s Manual.

DT50S

DT50K

to DTX-PRO

DT50S

DTX-PRO

DT50K

DTX-PRO Owner’s Manual

Connecting Separately Sold Add-ons and External Devices

Application Guide

 Using Smart Devices

Connecting a smart device to the [USB TO HOST] jack establishes a digital connection and allows you to:

• Record and play back high-quality audio using apps

• Practice, record (both audio and video), and share your recordings on social networks using Rec’n’Share

Additional parts are required for connecting a smart device.

For more information on the connection, refer to the “iPhone/iPad Connection Manual” or “Smart Device Connection Man-

ual for Android™.”

For details on compatible smart devices and smart device applications such as Rec’n’Share, refer to the web page below.

https://download.yamaha.com/

NOTICE

• Make sure the volume levels on all external devices are set at their minimum.

• Be sure to place your smart device on a stable surface to prevent it from falling over and being damaged.

NOTE

To eliminate the risk of interference due to noise by your smart device when used in combination with the DTX-PRO, turn on the

Airplane Mode and then turn on Wi-Fi.

DTX-PRO Owner’s Manual

Connecting Separately Sold Add-ons and External Devices

Application Guide

 Connecting a Computer

You can connect the DTX-PRO to a computer and use DAW (Digital Audio Workstation) software such as the included

Cubase AI to record your performance, edit, or mix audio.

For more information on how to connect a computer, refer to the Reference Manual (PDF). For more information on how to

use the DAW software, refer to the Owner’s Manual for your DAW software.

Precautions when using the [USB TO HOST] terminal

When connecting the computer to the [USB TO HOST] terminal, make sure to observe the following points to avoid

freezing the computer and corrupting or losing the data.

If the computer or the instrument freezes, restart the application software or the computer OS, or turn the power to

the instrument off then on again.

NOTICE

• Use an AB type USB cable of less than 3 meters. USB 3.0 cables cannot be used.

• Execute the following before turning the power to the instrument on/off or plugging/unplugging the USB cable to/

from the [USB TO HOST] terminal.

- Quit any open application software on the computer.

- Make sure that data is not being transmitted from the instrument.

• While the computer is connected to the instrument, you should wait for six seconds or more between these oper-

ations: (1) when turning the power of the instrument off then on again, or (2) when alternately connecting/discon-

necting the USB cable.

DTX-PRO Owner’s Manual
