WS200
TREADMILL
Scan to quickly and easily
register your new XTERRA
Fitness machine.
If you require assistance or are
experiencing issues with your
XTERRA Machine, please contact
customer care for additional help.
1-800-258-8511
questions@xterratness.com
Online Support
Warranty Registration
WS200_OwnersManual_120082_20230807
2
Table of Contents
Product Registration .........................................................3
Warning / Safety Instructions
Product Labels .....................................................................4
Safety Instructions .............................................................5
Electrical Safety .................................................................. 6
Grounding & Location Requirements ........................... 7
Parts & Assembly
Parts of your treadmill ...................................................... 8
Pack List ................................................................................ 9
Assembly ............................................................................. 10
Setting Up Your Unit ........................................................13
Safety Stop Key .................................................................16
Technology and Features
About Your Machine ........................................................ 17
Console Screen - Overview ............................................ 18
Window Display ................................................................. 19
Functions ............................................................................ 20
How to use the Treadmill ................................................ 21
Using the XTERRA+ App ............................................... 22
Wearing the Chest Strap ................................................ 23
Heart Rate Exertion ........................................................ 24
Maintenance
Maintenance & Care ........................................................ 26
Deck Lubrication .............................................................. 28
Belt & Deck Cleaning ....................................................... 29

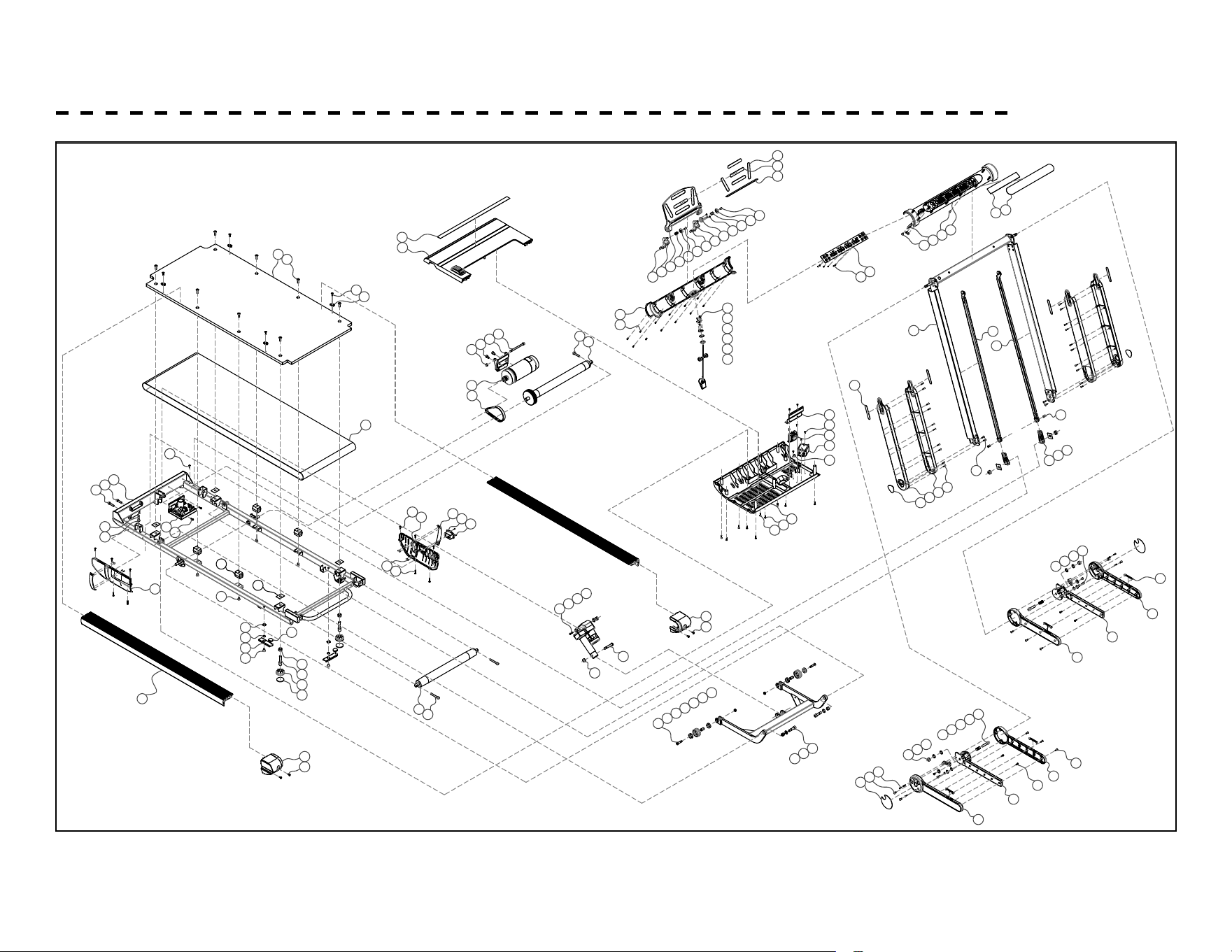

Exploded View Diagram ................................................30
Warranty ............................................................................. 31

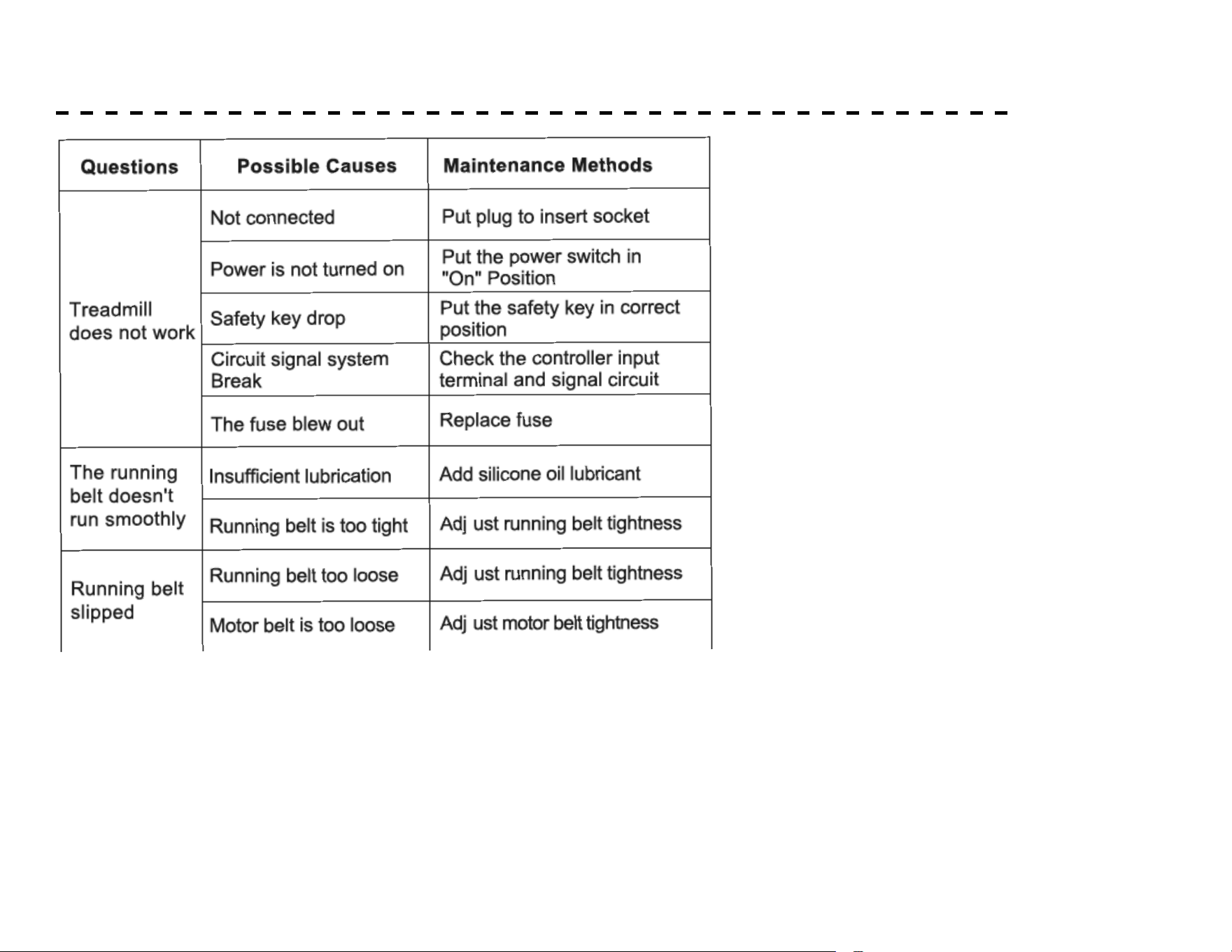

Troubleshooting ............................................................... 34
FCC Warning...................................................................... 36
3
PRODUCT REGISTRATION
WARRANTY REGISTRATION
Use your smartphone to scan the QR code
above to quickly and easily register your
new XTERRA Fitness machine.
You can also go to xterratness.com/
warranty under the Support tab to
register online.
Congratulations on your new treadmill, and welcome to the XTERRA
Fitness family!
Thank you for your purchase of this quality unit from XTERRA
Fitness. Your new unit was manufactured by one of the leading
tness manufacturers in the world and is backed by one of the most
comprehensive warranties available. XTERRA Fitness will do all we can
to make your ownership experience as pleasant as possible for many
years to come.
If you have questions, or if parts are missing or damaged, or you require
customer service, call (870) 336-4286. Please have your model number
and serial number handy when you call.
Please take a moment at this time to record the name of the dealer,
their telephone number, and the date of purchase below to make any
future, needed contact easy. We appreciate your support and we will
always remember that you are the reason that we are in business.
Serial
Number
Date of
Purchase
Dealer /
Place of
Purchase
Version: 2.0
Revision: 10/09/23
4
SERIAL NUMBER
(870) 336-4286
X XXXXXXXXX X
PRODUCT LABELS

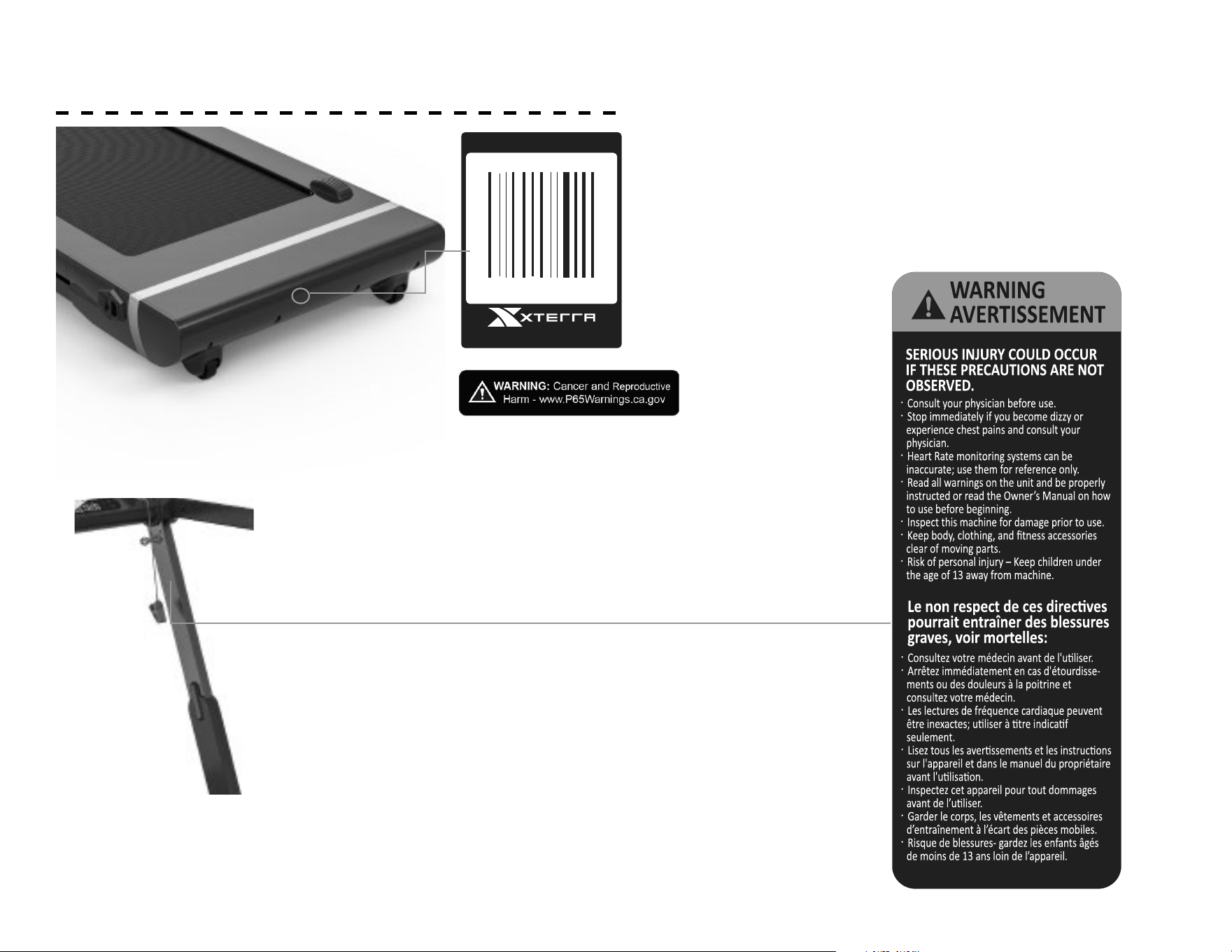

SERIAL NUMBER STICKER
This sticker will be found on the rear of the motor cover.
Please record the number below the barcode for the purpose
of registering your treadmill’s warranty.
PROPOSITION 65 WARNING
This sticker will be found on the rear of the
motor cover. The State of California requires us
to inform you that this unit was manufactured
using chemicals that could cause harm with
improper use.
SAFETY WARNING STICKER
This sticker will be found on the interior side of
your treadmill’s upright. The same warning can
be found in this manual. Please read and be
aware of the precautions before operating your
unit.
5
SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following. Read all instructions before using this
appliance.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after
using and before cleaning.
WARNING - To reduce the risk of burns, re electric shock, or injury
to persons:
1. An appliance should never be left unattended when plugged in. Unplug
from outlet when not in use, and before putting on or taking o parts.
2. Do not operate under blanket or pillow. Excessive heating can occur and
cause re, electric shock, or injury to persons.
3. This appliance is not intended for use by persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety. Keep children
under the age of 13 away from this machine.
4. Close supervision is necessary when this appliance is used by, on, or
near children, invalids, or disabled persons. Do not use attachments not
recommended by the manufacturer. Never operate this appliance if it
has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return the appliance to a
service center for examination and repair.
5. Never operate this appliance if it has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or dropped into
water. Return the appliance to a service center for examination and
repair.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the air
openings free of lint, hair, and the like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being use or where
oxygen is being administered.
12. Connect this appliance to a properly grounded outlet only. See Grounding
Instructions.
13. The appliance is intended for household use.
14. To disconnect, turn all controls to the o position, then remove the plug
from the outlet.
15. Do not operate equipment on deeply padded, plush or shag carpet. Damage
to both carpet and equipment may result.
16. Before beginning this or any exercise program, consult a physician. This is
especially important for persons over the age of 35 or persons with pre-ex-
isting health conditions.
17. Keep hands away from all moving parts.
18. The pulse sensors are not medical devices. Various factors, including the
user’s movement, may aect the accuracy of heart rate readings. The pulse
sensors are intended only as exercise aids in determining heart rate trends in
general.
19. Do not attempt to use your equipment for any purpose other than for the
purpose it is intended.
20. Wear proper shoes. High heels, dress shoes, sandals or bare feet are not
suitable for use on your equipment. Quality athletic shoes are recommended
to avoid leg fatigue.
21. User Weight Limit: 265 lbs.
!
!
Please ensure that you review and adhere to the user
weight restrictions and power requirements of your
new machine. Failure to do so may result in serious
injury or damage to your machine.
!
6
ELECTRICAL SAFETY
WARNING!
Route the power cord away from any moving part of the unit
including the elevation mechanism and transport wheels.
NEVER remove any cover without rst disconnecting AC
power. If voltage varies by ten percent (10%) or more, the
performance of your unit may be aected. Such conditions
are not covered under your warranty. If you suspect the
voltage is low, contact your local power company or a
licensed electrician for proper testing.
NEVER expose this unit to rain or moisture. This product
is NOT designed for use outdoors, near a pool or spa, or
in any other high humidity environment. The temperature
specication is 40 degrees C, and humidity is 95%, non-
condensing (no water drops forming on surfaces).
Circuit breakers: Avoid AFCI/GFCI circuit breakers if
possible. These breakers may trip occasionally during
exercise because of the high inrush currents of the unit drive
electronics and motor. This is an issue that aects all unit
brands. New laws in your area may require these breakers.
If you do have these breakers and outlets in your home,
and are experiencing nuisance tripping, you should check if
there are any other devices plugged into the same circuit.
Some examples of devices that may also cause tripping are
uorescent lights with electronic ballasts, coee maker,
space heater, hair drier.
Optimally the unit should be the only device plugged into the
circuit. Our units have surge suppressors built in to help avoid
nuisance tripping. We have tested several AFCI/GFCI breakers
and outlets with our products. Brands we have tested are: Eaton
(Cutler Hammer Series), Leviton (Smart lock pro) and Schneider
Electric (Canadian home series). These breakers do not trip in our
testing, when connected to our units, as long as no other devices
are plugged into the same circuit.
NEVER operate this unit without reading and completely
understanding the results of any operational change you
request from the computer.
Understand that changes in speed and incline do not occur
immediately. Set your desired work level on the computer
console and release the adjustment key. The computer will obey
the command gradually.
NEVER use your unit during an electrical storm. Surges may
occur in your household power supply that could damage unit
components. Unplug the unit during an
electrical storm as a precaution.
Use caution while participating in other activities while walking
on your unit; such as watching television, reading, etc. These
distractions may cause you to lose balance which may result in
serious injury.
Do not use excessive pressure on console control keys. They are
precision set to function properly with little nger pressure.
!
7
GROUNDING & LOCATION REQUIREMENTS
This product must be grounded. If the unit should malfunction or
breakdown, grounding provides a path of least resistance for electric
current, reducing the risk of electric shock. This product is equipped with a
cord having an equipment-grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with a qualied
electrician or serviceman if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided with the product if it
will not t the outlet; have a proper outlet installed by a qualied electrician.
This product is for use on a nominal 120-volt circuit, and has a grounding

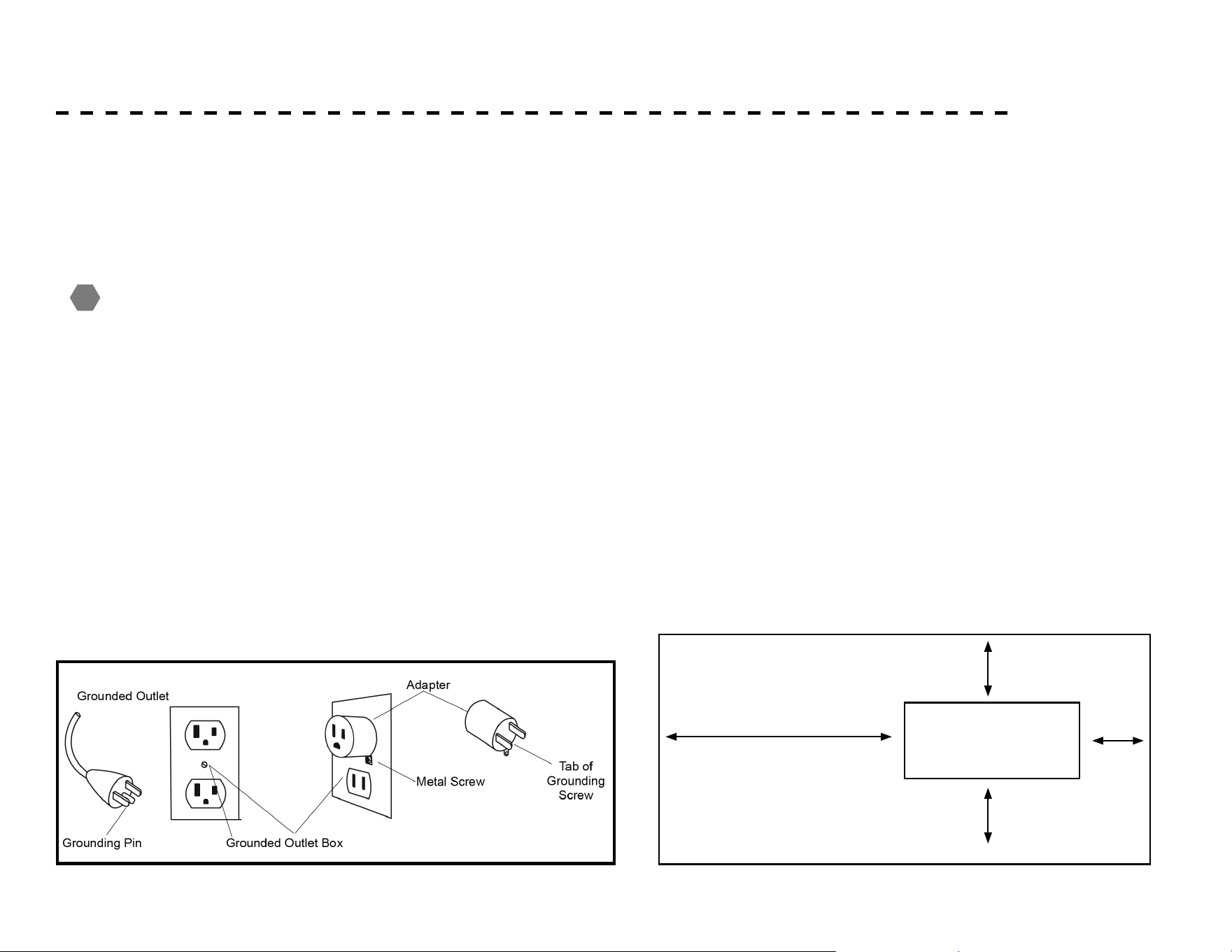

plug that looks like the plug illustrated below. A temporary adapter that
looks like the adapter illustrated below may be used to connect this plug
to a 2-pole receptacle as shown below if a properly grounded outlet is
not available. The temporary adapter should be used only until a properly
grounded outlet, (shown below) can be installed by a qualied electrician.
The green colored rigid ear-lug, or the like, extending from the adapter,
must be connected to a permanent ground such as a properly grounded
outlet box cover. Whenever the adapter is used, it must be held in place by a
metal screw.
!
After assembling your treadmill, you’ll need to make sure you’ve
installed it in a safe area.
• We recommend that you leave an area of at least 20in on the
front, and sides of your machine. The front of the unit is where
the motor is located.
• We recommend that you leave an area of at least 6ft behind the
treadmill.
• Install your treadmill in an area where children and pets cannot
access it.
• Always keep the area around your treadmill clear of furniture,
exercise equipment and other debris.
• Do not install your treadmill on deeply padded, plush, or shag
carpet.
20in
20in
20in
6ft
Location Requirements
8

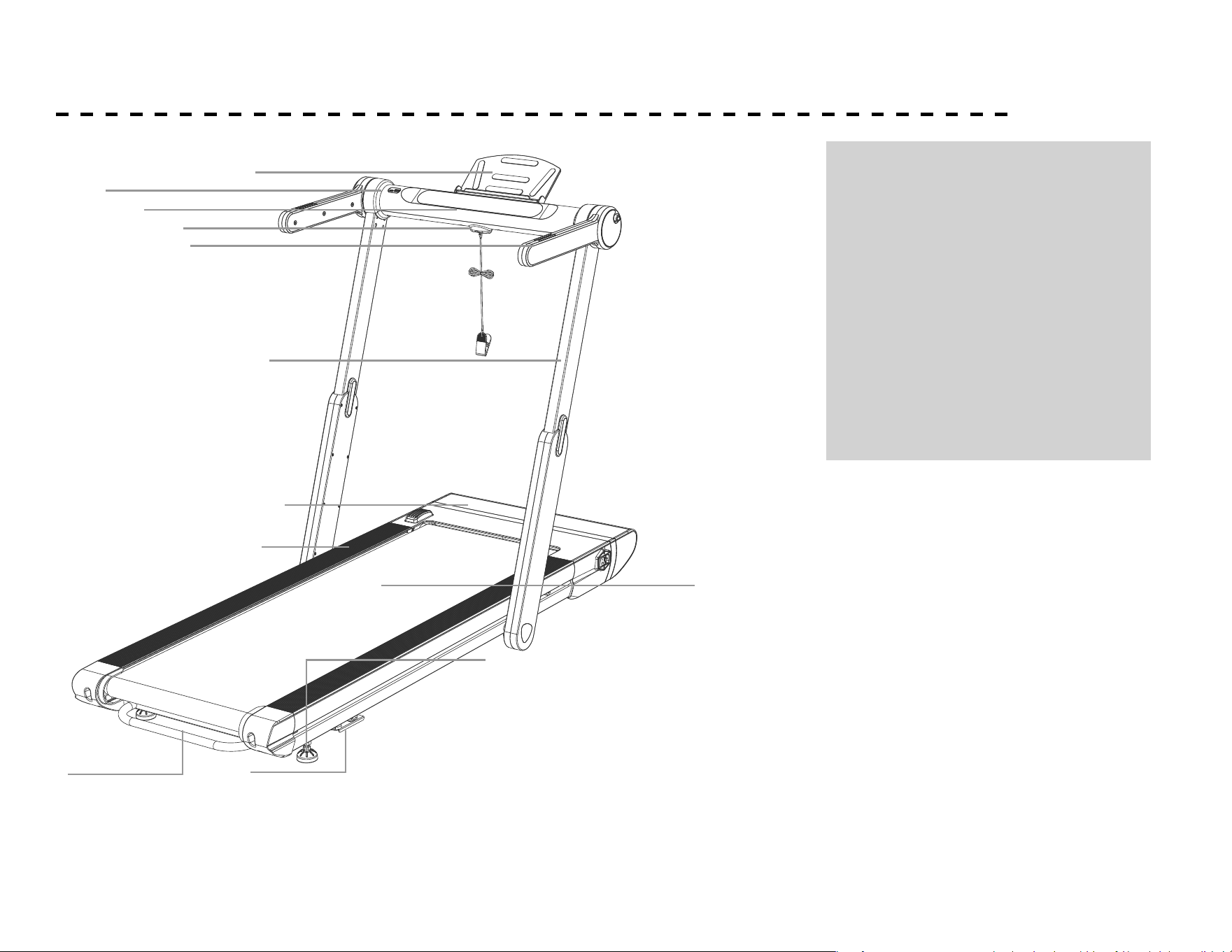

PARTS OF YOUR TREADILL
A. Tablet Holder
B. USB Type A & C Charger Port*
C. LED Screen
D. Safety stop key
E. Hand pulse sensors
F. Uprights
G. Motor cover
H. Belt
I. Side rails
J. Levelers
K. Transport Handlebar
L. Upright Stopper
A
C
B
D
E
F
G
H
I
L
J
K
* USB A and C ports are for charging purposes only;
USB is 5V / 1A.
9
PACK LIST
No Description Quantity
1 4.2 x 19mm Bolts 6
2 5mm Allen Key 1
3 6mm Allen Key 1
4 Wrench 1
5 Tablet Holder 1
6 Power Cord 1
7 Safety Key 1
8 Silicone Oil 2
9 Manual 1
10
ASSEMBLY

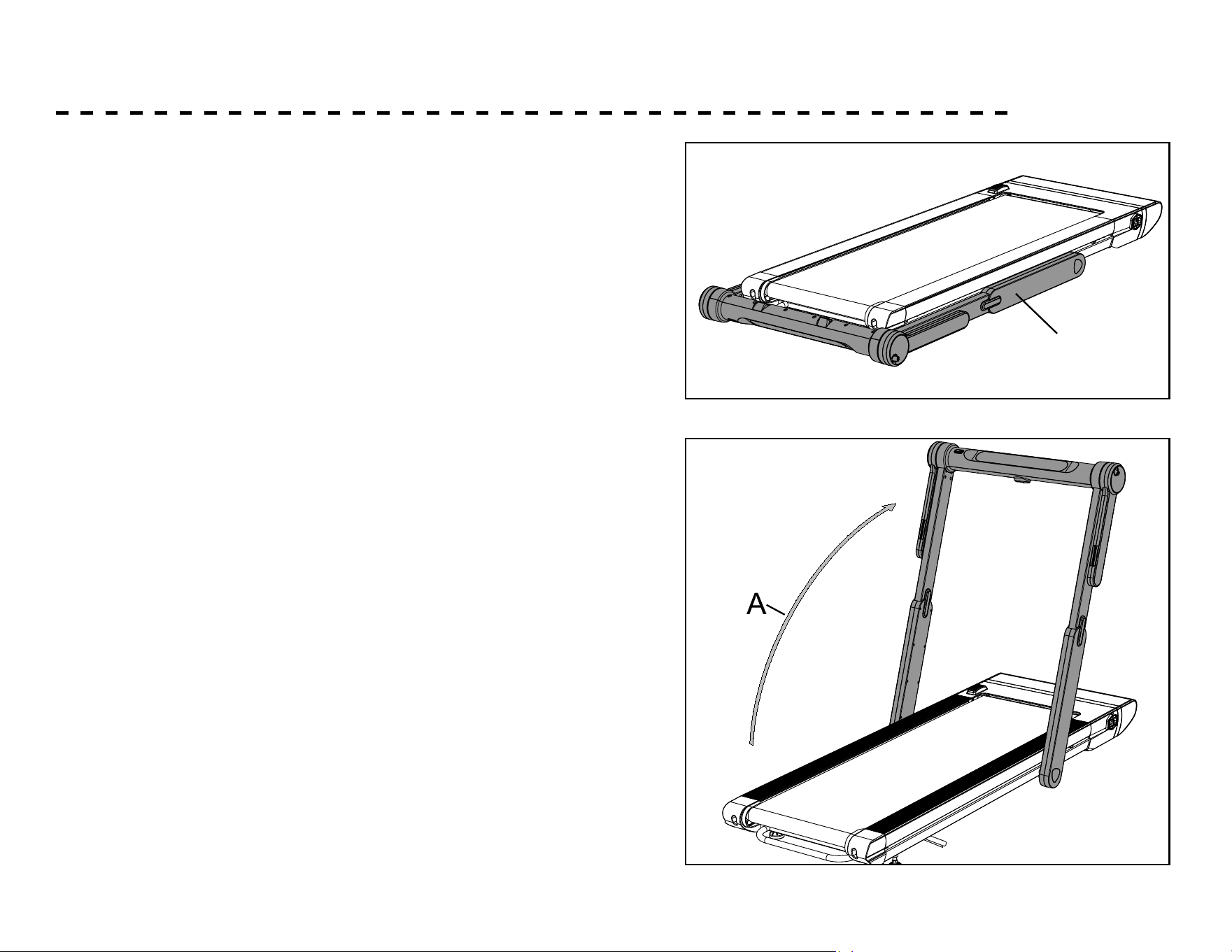

1. Take out the treadmill from the carton and lay it aside on
the smooth ground.
Lift the Upright Crossbar (as shown in A) until it clicks
into place at the top height.
Upright Crossbar
11
ASSEMBLY - CONTINUED

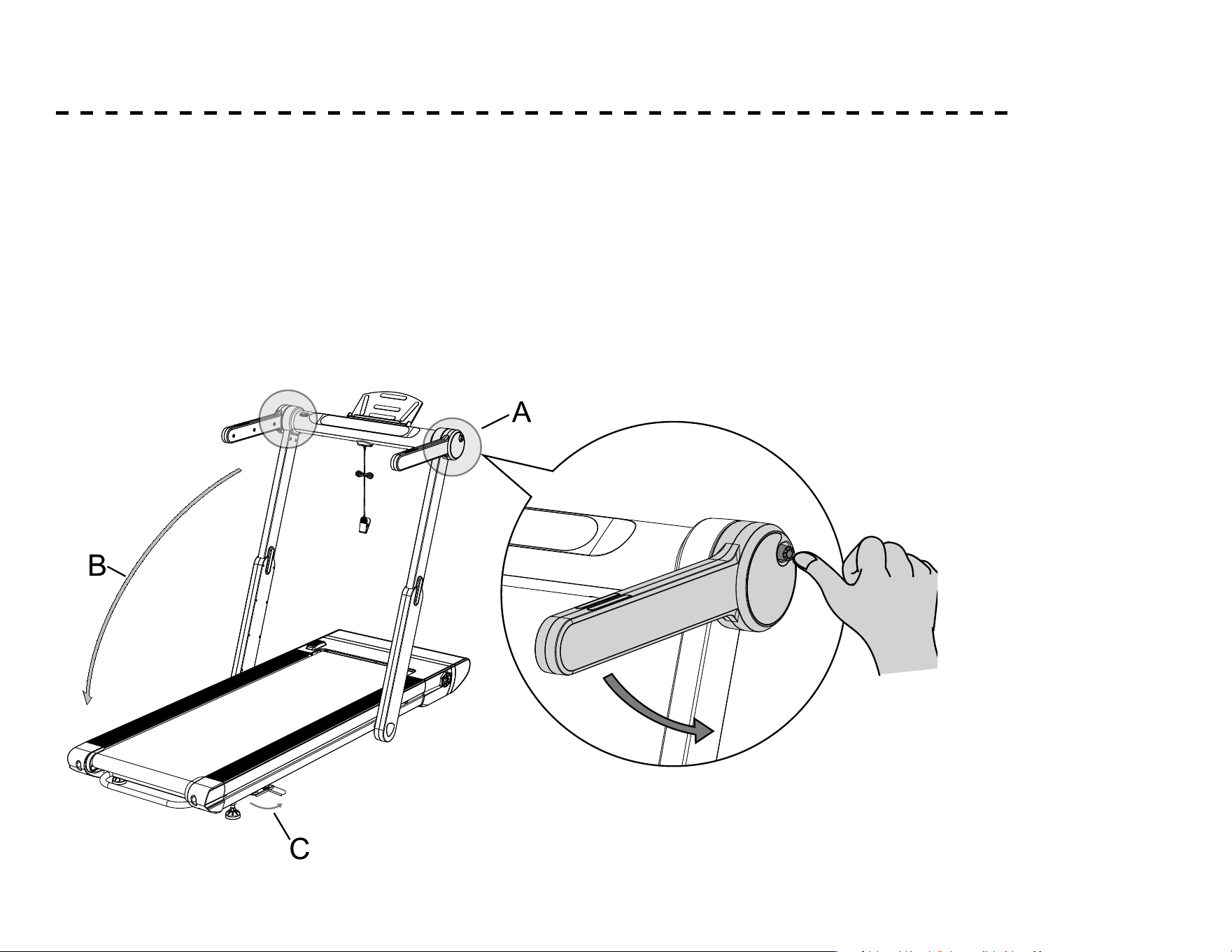

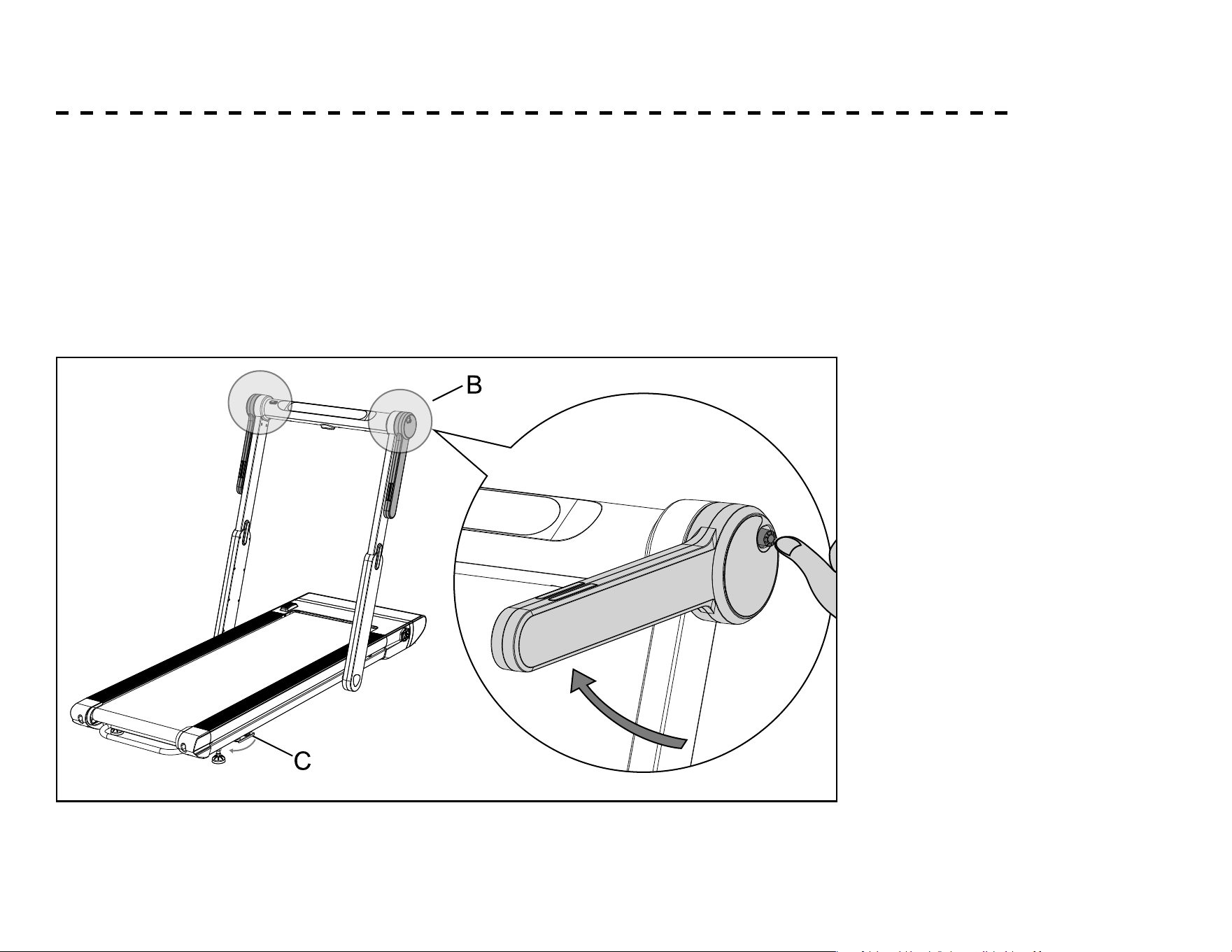

2. Press and hold the red button on the handle with your thumb as shown in step (B), and at the same time lift the
handle up until the handle is locked, and release the button during the process of lifting the handle; (the same
operation on the other side)
As shown in step (C), rotate the left and right Handlebar Stoppers to the bottom of the main frame in the
direction of the arrow so that they are not exposed to avoid damage.
12
ASSEMBLY - CONTINUED

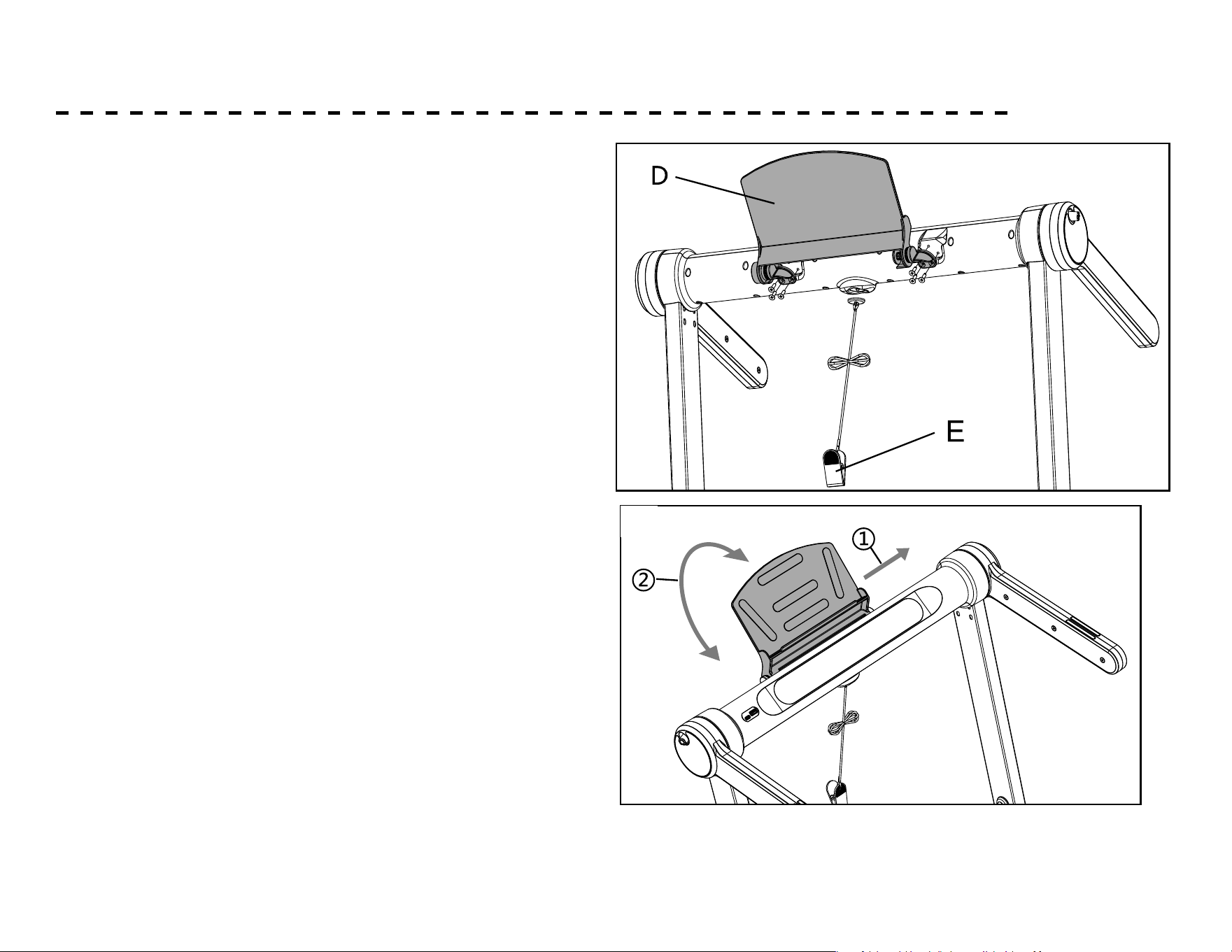

3. Fix the Tablet Holder (D) to the underside of the Console
using 6 cross-recessed countersunk head screws, and
place the red Safety Key (E) onto the yellow area of the
underside of the Console;
Adjust the angle of the Tablet Holder, as shown in the image,
slide the back panel of the bracket in the direction of the
arrow to adjust the angle, turning it to a suitable angle.
13
SETTING UP YOUR TREADMILL

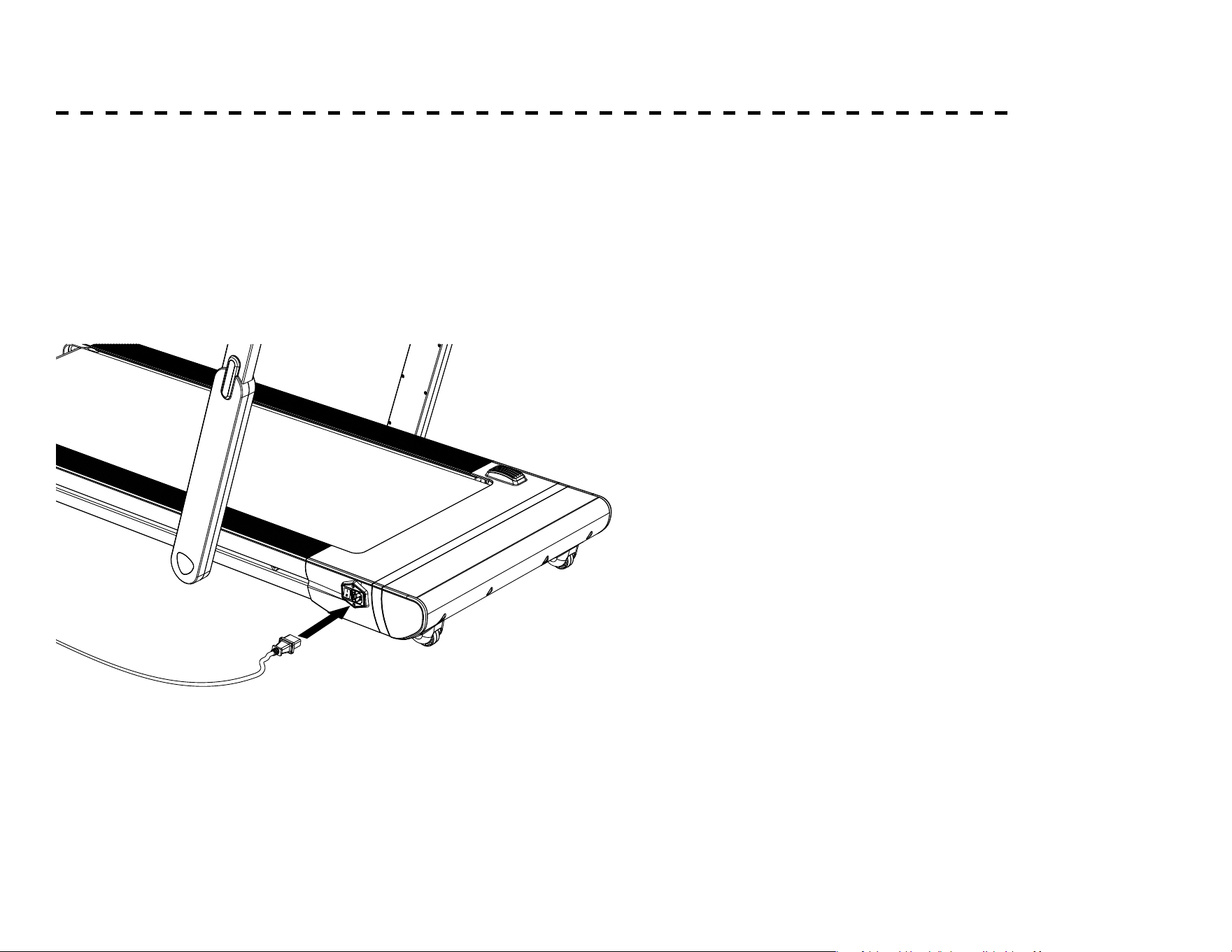

Plugging in and Powering On
As shown in the gure below, insert the power cord into the socket
on the right side of the treadmill. Plug in the power supply and turn
on the power switch of the machine. The treadmill will now enter
standby state.
14
SETTING UP YOUR TREADMILL - CONTINUED
Folding Your Treadmill
As shown in step (A), press and hold the red button on the handle with your thumb, at the same time fold the handle in the direction of
the arrow until the handle is locked, and release the button during the process of raising your hand; (the other side can do the same).
As shown in step (B), fold the Handlebar down and make it parallel to the running platform.
As shown in step (C), rotate the Handlebar Stoppers out so that the stopper catches the Upright.
15
SETTING UP YOUR TREADMILL - CONTINUED
Moving Your Treadmill

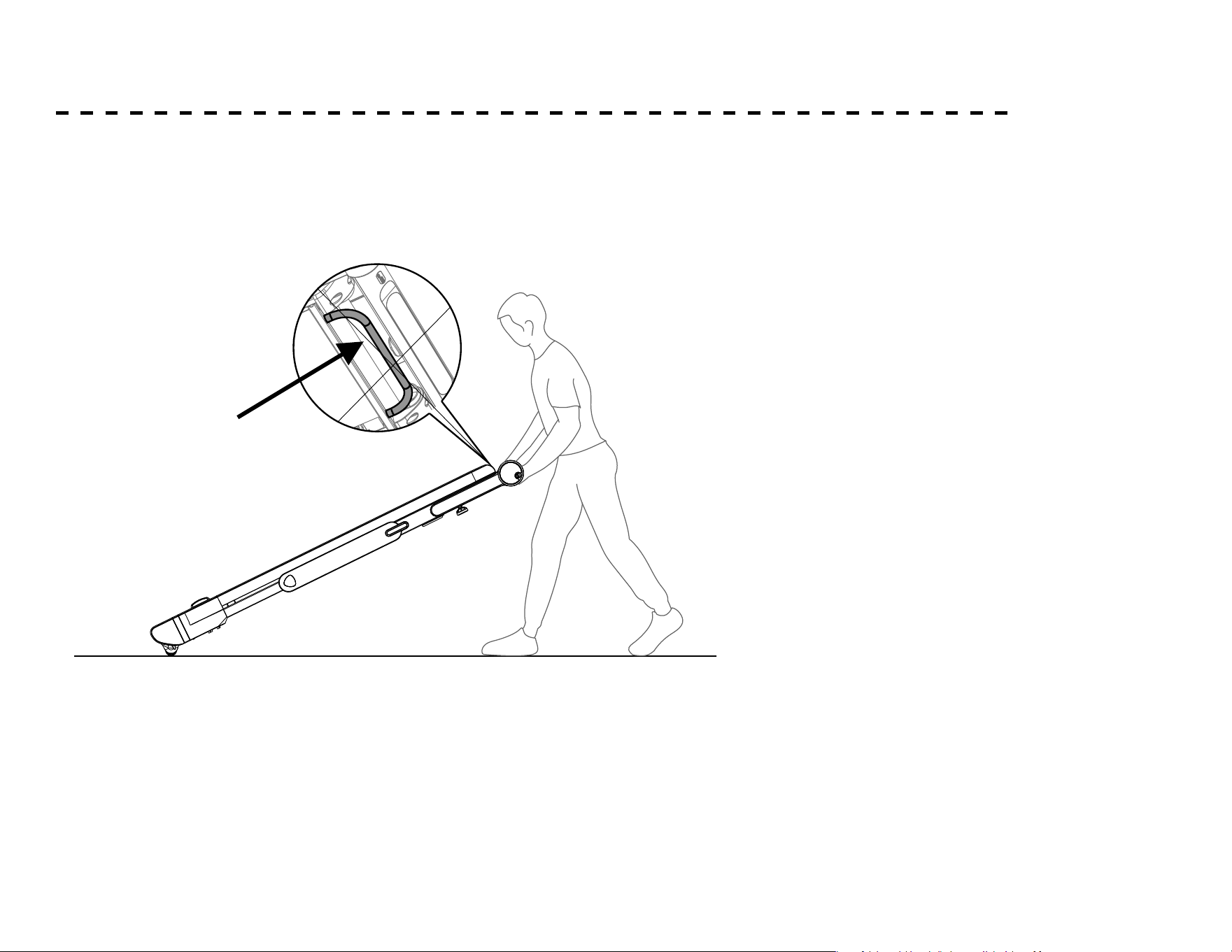

Using the Rear Handlebar, lift from the base and roll the unit away.
16
SAFETY STOP KEY
!
A safety tether cord is provided with this unit.
It is a simple magnetic design that should be used at all times.
It is for your safety should you fall or move too far back on the
tread-belt.
Pulling this safety tether cord will stop tread-belt movement.
To Use:
1. Place the magnet into position on the round metal portion of
the console control head. Your unit will not start and operate
without this. Removing the magnet also secures the unit from
unauthorized use.
2. Fasten the plastic clip onto your clothing securely to ensure
good holding power. Note: The magnet has strong enough
power to minimize accidental, unexpected stopping. The clip
should be attached securely to make certain it does not come
o. Be familiar with its function and limitations. The unit
will stop, depending on speed, with a one to two step coast
anytime the magnet is pulled o the console. Use the Stop /
Pause switch in normal operation.
3. Refer to page 8 for part# D as the safety stop key.
17
ABOUT YOUR MACHINE
Always use care and caution when operating your
machine. Follow instruction in this manual to ensure safe
operation and maintenance of your treadmill
Your new XTERRA Fitness treadmill has Bluetooth
connectivity to give you access to the most advanced
workout experiences available. Follow the instructions on
page 22 to learn more about using the Bluetooth capabilities
to their fullest potential.
Downloading the XTERRA+ app will help unlock more fea-
tures - such as tracking workouts and sharing data via Goo-
gle Fit and Apple Fitness. Simply search for “XTERRA+” in
the app store on your smartphone or tablet, or scan the QR
code on the right
!
The XTERRA Fitness app is
available on Google Play and
the Apple App Store. Scan
the QR Code below, and
quickly and easily sign up to
start taking your workout
experience to a whole new
level.
Be sure to follow XTERRA Fitness on your favorite social
media platforms to view and share the latest tness videos,
images, and news.
facebook.com/XterraFitness
www.instagram.com/XterraFitness
youtube.com/user/XterraFitnessOnline
18

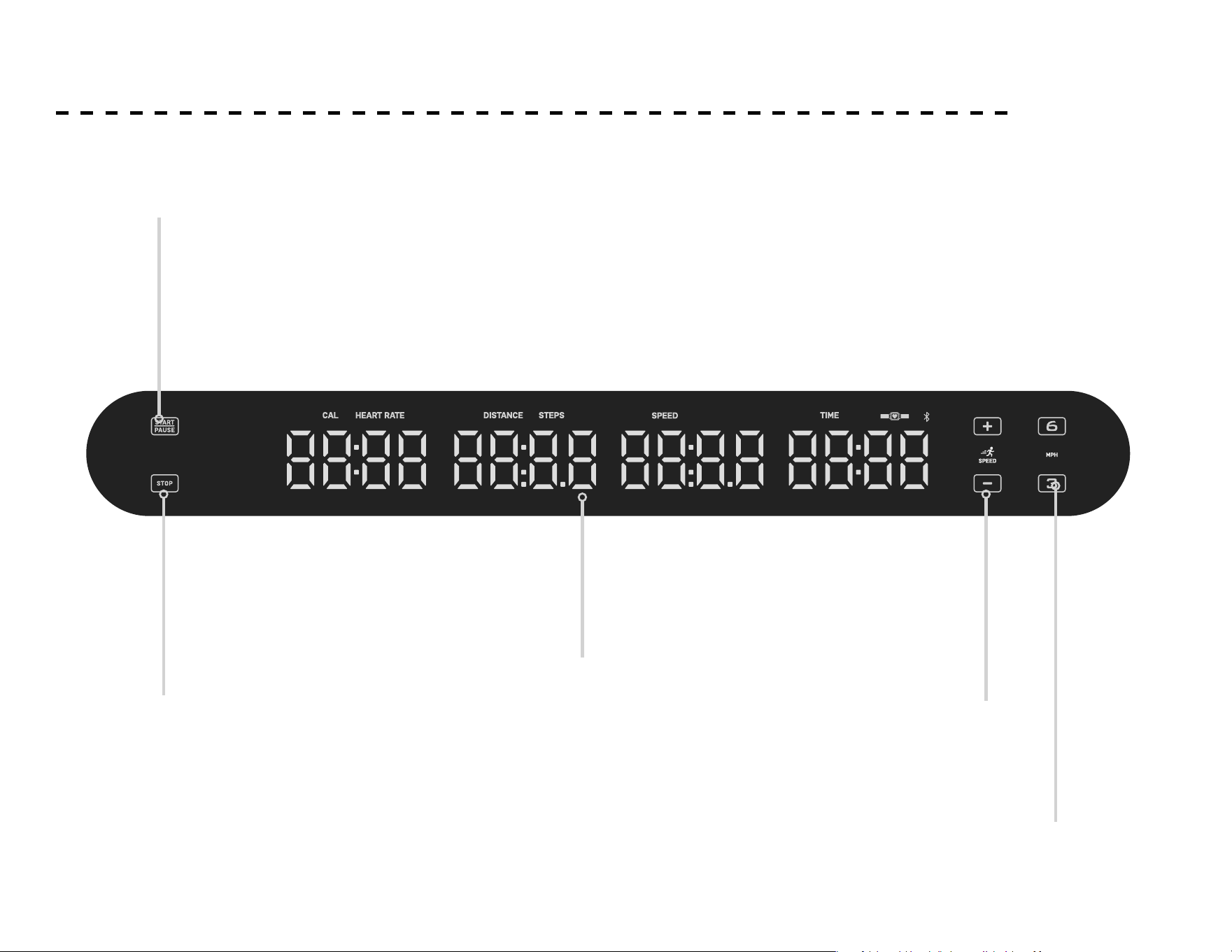

CONSOLE SCREEN - OVERVIEW
Speed
Buttons
Direct
Speed
Buttons
Message
Center
Stop Button
Start / Pause
Button
19
WINDOW DISPLAY
Start/Pause/Resume: Short Press the button to start the
treadmill, Press the button to pause or resume the treadmill
during running.
Stop: short press the button to stop the treadmill during
running.
Speed 3: During the running of the treadmill, short press the
speed shortcut key to 3(Km/h or MPH).
Speed 6: During the running of the treadmill, short press the
speed shortcut key to 6(Km/h or MPH).
Speed + : Short press or long press the “+” key during
the running of the treadmill to increase the speed. The
adjustment will be ineective once the maximum speed limit
is reached.
Speed - : Short press or long press the “-” key during
the running of the treadmill to decrease the speed. The
adjustment will be ineective once the minimum speed limit
is reached.
The LED windows displays the following functions:
Window Display: Time, Speed, Distance, Calories, Heart Rate,
Step Counting Display
Time Display Range: 0:00-99:59
Speed Display Range: 1.0-13.0 (Imperial System: 0.6-8.0mph)
Distance Display Range: 0.00-99.99
Calories Display Range: 0-9999
Heart Rate Display Range: 50-200
Steps Display Range: 0-9999
1. Put the safety key on the safety key position of the treadmill,
turn on the power switch, the buzzer will sound, and the
system will enter the standby state and display 0:00.
2. Press the “Start/Stop” button window to display a 3-2-1
countdown with a one second buzzer sound at each number,
then the motor will start.
3. The starting speed is 0.6mph, at this time, you can press the
speed +, - key to adjust the speed.
Display and Key Distribution Specs
Quick Start
20
FUNCTIONS
Hold the heart rate grips with both hands for 3 to 5 seconds
to display the heart rate value (50-200). If you hold the grips
with one hand, the signal will be invalid.

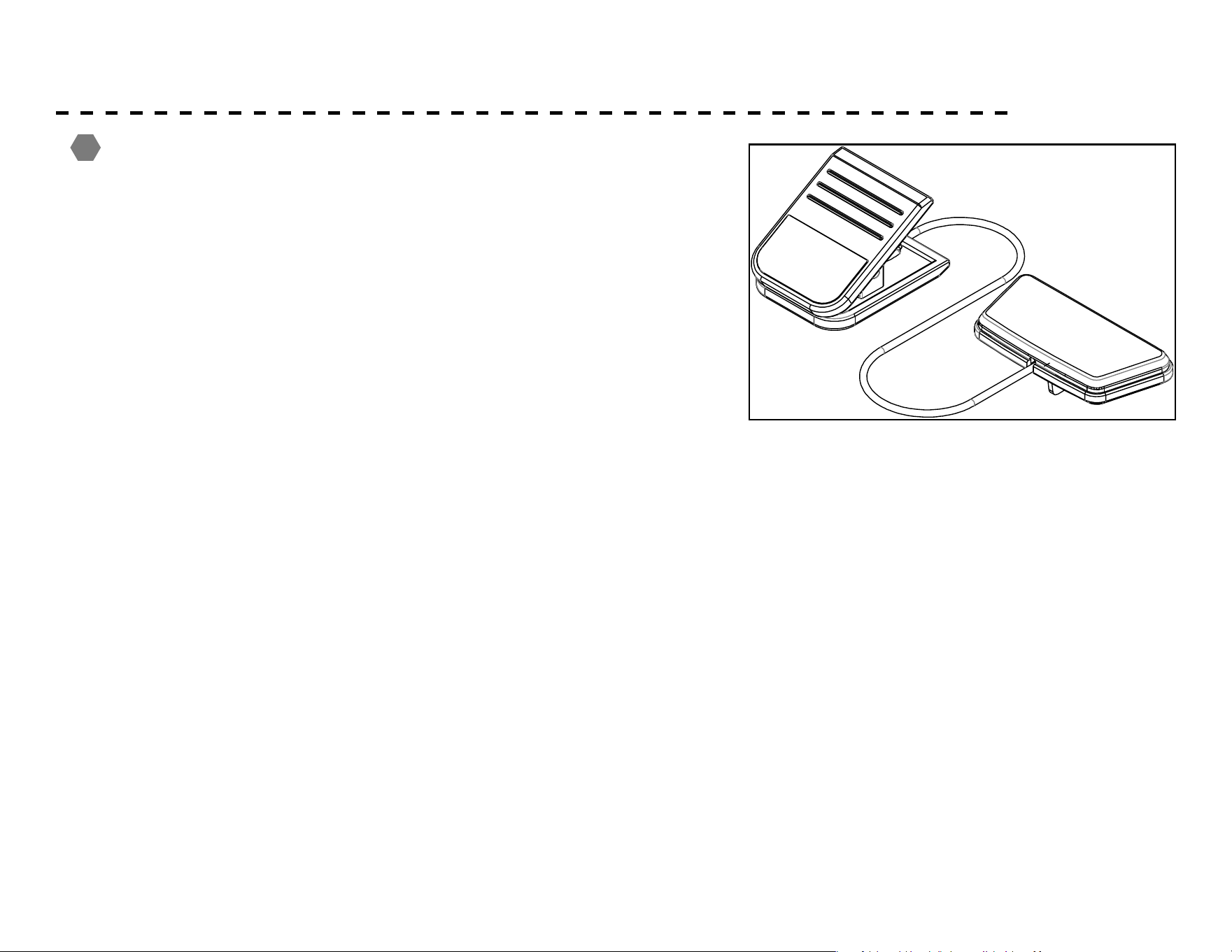

The treadmill will only operate when the uprights are in
the upright position. If they are folded down at any time
during operation, then the treadmill will automatically stop
in 3 seconds. For safety reasons, the treadmill cannot be
used with the uprights folded down (as it was in the original
carton).
Open the desired app (Zwift, Kinomap, etc). Click connect
treadmill (Treadmill Bluetooth Name: WS200). The app
will automatically search and connect the treadmill. If the
connection times out, return to the previous round of
operation.
1. If the safety key is pulled o, the window displays “E07”,
and the buzzer will beep continuously
2. When the treadmill is running, if the safety key is
removed, “E07” is displayed in the window, the treadmill
will stop in an emergency and cannot be started.
Anti-Fall Function
Bluetooth FTMS Connection
Safety Lock FunctionHeart Rate Detection
21
HOW TO USE THE TREADMILL
1. Turn on the power and check whether the machine is working properly.
2. The machine will begin at a speed of 1.0-13.0Km/h (0.6-8.0mph)
3. Clip the safety key into place on the console and to the front of your clothing.
4. Before exercise, ensure that the stability and function of the treadmill is normal. Do not stand on the running belt. Before
running, stand on the left and right bars, hold the handrail, then press the “start” button. The treadmill will delay 3 seconds
before starting. The treadmill will then start at .6 MPH. Now, step onto the running belt while holding onto the handlebar with
at least one hand.
5. You can speed up running by pressing the “+” key. You can also press the - “key to slow it down.
6. If you need to pause your machine, you can press the “pause” key at any time to stop the motor. When you wish to resume,
press the “pause” key again, the motion data will be superimposed in front of the data.
7. You can press the “stop” key at any time to stop the motor.
8. When running, press the “3, 6 speed” selection key to directly increase to that speed.
Note: During exercise, if the safety key is pulled out, the belt will stop immediately, the console will refuse any operation, and
the window displays “E07”.
22
USING THE XTERRA+ APP
In order to help you achieve your exercise goals, your new exercise machine
comes equipped with a Bluetooth® transceiver that will allow it to interact
with selected phones or tablet computers via the XTERRA+ App. Just
download the free XTERRA+ App from the Apple Store or Google Play, and
then follow the instructions in the App to sync with your exercise machine.
Press the “DISPLAY” button from the APP to view the display of the current
workout data. When your exercise is complete, choose “END & SAVE
WORKOUT” to store the workout data.
1. Download the App by scanning the QR code on the right.
2. Open the App on your device (phone or tablet) and make sure Bluetooth® is
enabled on your device (phone or tablet).
3. In the App click the Bluetooth® icon to search for your XTERRA + equipment.
4. Under the Bluetooth® scan result list, select the machine for connect. When the
App and equipment are synced, the Bluetooth® icon on the equipment’s console
display will light up. Click “DISPLAY”, you may now start using your XTERRA +
App.
5. When your exercise is complete, choose “END & SAVE WORKOUT” to store
the workout data. You will be prompted to sync your data with each available
tness cloud site. Please note, you will have to download the applicable
compatible tness App, such as Strava, MapMyFitness,
Fitbit, etc., in order for the icon to be active and available.
Note: Your device will need to be running on a minimum operating system of IOS
13.1 or Android 8.0 for the XTERRA + App to operate properly.
23

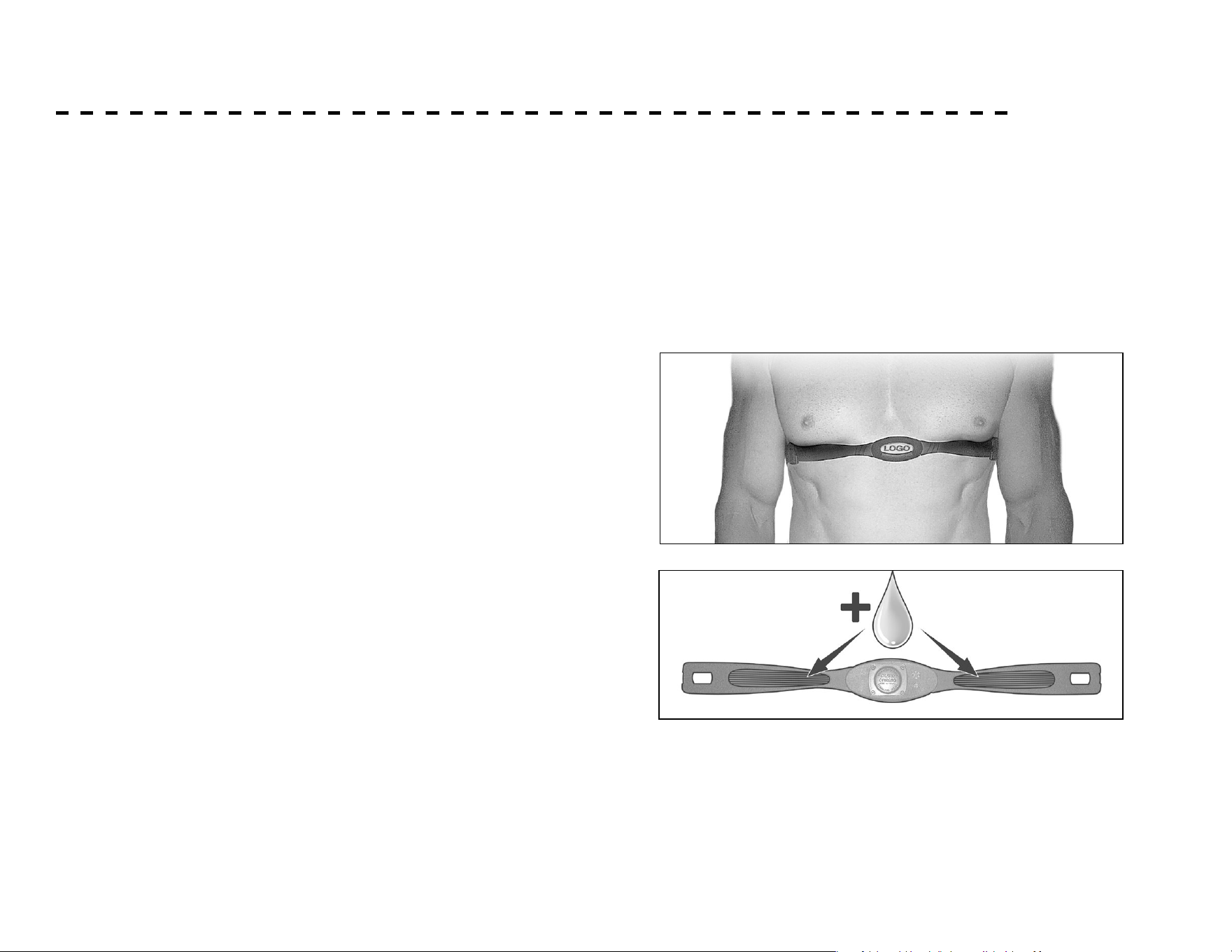

BLUETOOTH HEART RATE CHEST STRAP* (NOT INCLUDED)
1. Attach the transmitter to the elastic strap using the
interlocking key.
2. Adjust the strap as tightly as possible as long as the strap
is not too tight to remain comfortable.
3. Position the transmitter with the logo centered in
the middle of your torso facing away from your chest
(some people must position the transmitter slightly
left of center). Attach the nal end of the elastic strap
by inserting the round end and, using the locking parts,
secure the transmitter and strap around your chest.
4. Position the transmitter directly below the pectoral
muscles.
5. Sweat is the best conductor to measure very minute
heart beat electrical signals. However, plain water can
also be used to pre-wet the electrodes (2 ribbed oval
areas on the reverse side of the belt and both sides of
the transmitter). It’s also recommended that you wear
the transmitter strap a few minutes before your work
out. Some users, because of body chemistry, have a more
dicult time in achieving a strong, steady signal at the
beginning. After “warming up”, this problem lessens.
6. Your workout must be within range - distance between
transmitter/receiver – to achieve a strong steady signal.
The length of range may vary somewhat but generally
stay close enough to the console to maintain good,
strong, reliable readings. Wearing the transmitter directly
on bare skin assures you of proper operation. If you wish,
you may wear the transmitter over a shirt. To do so, wet
the areas of the shirt that the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects
activity from the user’s heart. Additionally, it automatically
deactivates when it does not receive any activity. Although the
transmitter is water resistant, moisture can have the eect of
creating false signals, so you should take precautions to completely
dry the transmitter after use to prolong battery life (estimated
transmitter battery life is 2500 hours). The replacement battery is
Panasonic CR2032.
24

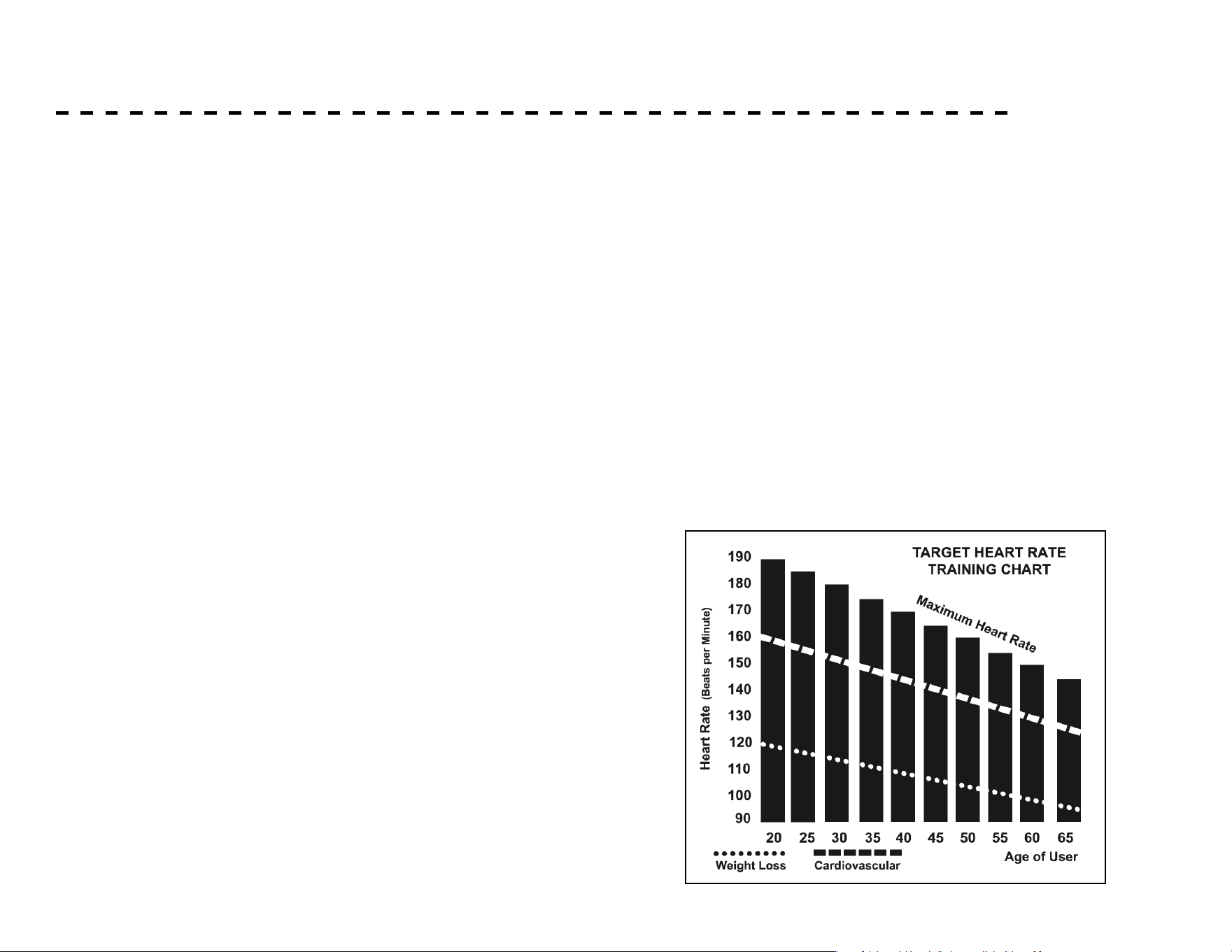

HEART RATE EXERTION
The two most popular reasons for, or goals, of exercise are cardiovascular
tness (training for the heart and lungs) and weight control. The black
columns on the chart represent the MHR for a person whose age is
listed at the bottom of each column. The training heart rate, for either
cardiovascular tness or weight loss, is represented by two dierent lines
that cut diagonally through the chart. A denition of the lines’ goal is in
the bottom left-hand corner of the chart. If your goal is cardiovascular
tness or if it is weight loss, it can be achieved by training at 80% or 60%,
respectively, of your MHR on a schedule approved by your physician.
Consult your physician before participating in any exercise program.
With this Spirit Fitness unit you may use the heart rate monitor feature
without using the Heart Rate program. However, when using the heart
rate monitor feature in conjunction with the Heart Rate programs, the
machine will automatically adjust speed or incline to maintain the desired
heart rate.
The old motto, “no pain, no gain”, is a myth that has been
overpowered by the benets of exercising comfortably. A great deal
of this success has been promoted by the use of heart rate monitors.
With the proper use of a heart rate monitor, many people nd that
their usual choice of exercise intensity was either too high or too low
and exercise is much more enjoyable by maintaining their heart rate in
the desired benet range.
To determine the benet range in which you wish to train, you must
rst determine your Maximum Heart Rate. This can be accomplished
by using the following formula: 220 minus your age. This will give
you the Maximum Heart Rate (MHR)for someone of your age. To
determine the eective heart rate range for specic goals you simply
calculate a percentage of your MHR. Your Heart rate training zone
is 50% to 90% of your maximum heart rate. 60% of your MHR is
the recommended for burning fat while 80% is recommended for
strengthening the cardio vascular system. This 60% to 80% is the
zone to stay in for maximum benet.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute (60% of maximum)
180 X .8 = 144 beats per minute (80% of maximum)
So for a 40 year old the training zone would
be 108 to 144 beats per minute.
If you enter your age during programming the console will perform
this calculation automatically. Entering your age is used for the Heart
Rate programs. After calculating your MHR you can decide upon
which goal you would like to pursue.
25
HEART RATE - PERCEIVED EXERTION
Heart rate is important but listening to your body also has a lot
of advantages. There are more variables involved in how hard
you should workout than just heart rate. Your stress level, phys-
ical health, emotional health, temperature, humidity, the time of
day, the last time you ate and what you ate all contribute to the
intensity at which you should workout. If you listen to your body
it will tell you all of these things.
The rate of perceived exertion (RPE), also known as the Borg
scale, was developed by Swedish physiologist G.A.V. Borg.
This scale rates exercise intensity from 6 to 20 depending upon
how you feel or the perception of your eort.
The scale is as follows:
Rating Perception of Eort
You can get an approximate heart rate level for each rating by
simply adding a zero to each rating. For example a rating of 12 will
result in an approximate heart rate of 120 beats per minute. Your
RPE will vary depending on the factors discussed earlier. If your
body is strong and rested, you will feel strong and your pace will
feel comfortable. When your body is in this condition, you are able
to train harder and the RPE will support this. If you are feeling tired
and sluggish, it is because your body needs a break. In this
condition, your pace will feel dicult. Again, this will show up in
your RPE and you will train at the proper level for that day.
6 Minimal
7 Very, Very Light
8 Very, Very Light +
9 Very Light
10 Very Light +
11 Fairly Light
12 Comfortable
13 Somewhat Hard
14 Somewhat Hard +
15 Hard
16 Hard +
17 Very Hard
18 Very Hard +
19 Very, Very Hard
20 Maximal
26
1. Store your machine according to the folding instructions
when not in use.
2. Use a slightly damp cloth to clean areas where sweat or
oil made contact with the machine.
3. Use a microber cloth to clean the display and remove
unwanted oils and other things that may damage the
screen.
4. Avoid leaving paper or other small debris in the
cupholders.
MAINTENANCE & CARE
General Cleaning
Post-Workout Machine Care
Dirt, dust, and hair can block air inlets and accumulate on
the running belt. Please vacuum underneath your unit on a
monthly basis to prevent excess build-up of dirt that can
get sucked up and get into the inner workings under the
motor cover. Every other month, you should remove the
motor cover and carefully vacuum out dirt and hair that may
accumulate.
UNPLUG THE POWER CORD BEFORE THIS TASK.
Sanitizing Your XTERRA Fitness Equipment
• Unupholstered high-contact surfaces (hard plastics) can be
sanitized using a 75% isopropyl alcohol solution and a clean, dry
cloth.Spray surfaces to be sanitized, and use the dry cloth to
wipe clean. Allow surfaces to dry before using.
• For upholstered or soft-plastic surfaces, use a conditioner
after sanitizing.Be sure to follow the instructions provided
by the conditioner manufacturer to ensure proper use of the
conditioner.
• Alternatively, you can make your own spray by mixing the
proper ratio of isopropyl alcohol and distilled water to reach a
75% solution.
!
27
MAINTENANCE & CARE - CONTINUED
Belt Adjustments

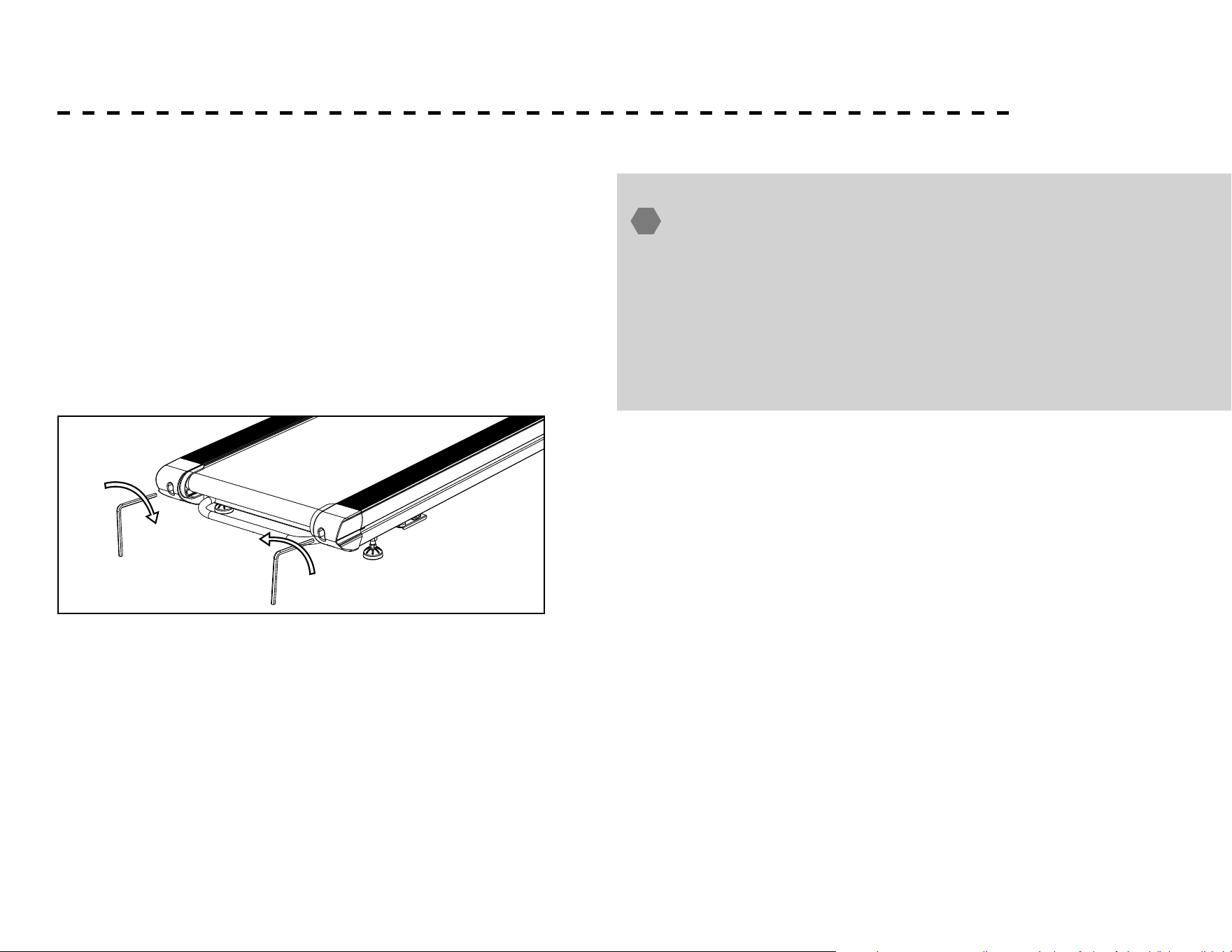

If running belt slips while walking on it, users can adjust tension
of the running belt by turning screws on rear rollers of both
sides with 5mm Allen Wrench, which is included in hardware
kit.
PS . During adjustment, while turning rear rollers’ screws, be
sure to keep running belt tension balanced on both sides,
otherwise the belt shifts from higher tension end to the other.
DO NOT OVERTIGHTEN – Over tightening will cause belt
damage and premature bearing failure. If you tighten the belt
a lot and it still slips, the problem could actually be the drive
belt - located under the motor cover - that connects the
motor to the front roller. If that belt is loose it feels similar
to the walking belt being loose. Tightening the motor belt
should be done by a trained service person.
!
28
DECK LUBRICATION
To lubricate your treadmill belt:
1. Turn the power switch o and unplug the power cord from the
wall outlet.
2. Measure 18” from the edge of the motor cover; kneel down and
reach under the belt approximately 4-6” from one edge. Squirt
a line of lubricant about 1/8” wide x 15” long in an “S” pattern
perpendicular to the motor cover.
3. Repeat the process on the opposite side.
4. Plug the electrical cord back into the outlet and turn the power
switch on.
5. Walk on the belt at a moderate speed for ve minutes to evenly
distribute the silicone lube.
To ensure the longevity and proper function of your
treadmill, proper belt maintenance is required. You should
regularly check between the treadmill belt and the top of the
treadmill base for proper lubrication, and to ensure that no
dirt or debris has become trapped. Keeping the deck clean
and lubricated at the recommended intervals ensures the
longest life possible for your unit. Should lubrication dry out,
or dirt become trapped, the friction between the belt and
deck increases. Increased friction places undue stress on the
drive motor, drive belt, and electronic motor control board
which could result in catastrophic failure of these essential,
expensive components.
Failure to clean and lubricate the deck at regular intervals
may void the warranty.
As a part of your routine maintenance schedule, belt
lubrication and cleaning should be performed every 90 days,
after 90 hours of use, or earlier if you notice that the deck
is dry or dirty. Please also be sure to check belt lubrication
before rst use.
Do not lubricate with anything other than XTERRA Fitness
approved lubricant. Your treadmill comes with one tube of
treadmill belt lubricant.
Extra tubes can be ordered directly from: www.
Xterratness.com, or by calling our customer service
department at (800)258-8511.
Regularly check belt lubrication by completing the following
steps:
1. Ensure that your machine is o, and that the power cord is
unplugged to minimize risk of injury.
2. Reach between the running belt and the top of the treadmill
base to verify that lubrication is present.
29
BELT AND DECK CLEANING
To clean your treadmill belt:
1. Ensure that your machine is o, and that the power cord
is unplugged to minimize risk of injury.
2. Grab one edge of the treadmill belt, and lift slightly to
expose the area between the top of the treadmill base
and the running belt.
3. Do a visual check for any dirt or debris accumulation.
4. Should dirt and debris be present, slide a towel or
cleaning cloth between the treadmill belt and top of the
treadmill base until you can grasp one end on each side.
(The cleaning cloth should be longer than the running
belt is wide to achieve this.)
5. Using both hands, drag the cleaning cloth up and down
the length of the treadmill base 1-2 times.
6. For excessive dirt accumulation, rotate the belt halfway,
and repeat step 5. Continue until your cleaning cloth is no
longer picking up any dirt.
7. Remove cleaning cloth from treadmill before plugging
back in.
Belt & Deck Cleaning
30
EXPLODED VIEW DIAGRAM
123
124
125
126
80
24
80
25
23
76
14
110
108
109
68
85
114
115
84
55
82
104
53
92
93
89
67
88
02
18
78
58
58
15
58
49
49
121
29
88
94
95
28
66
09
90
16
59
77
13
126
43
44
96
40
39
45
42
47
96
40
41
46
45
42
47
101
27
120
116
119
117
118
99
97
19
98
20
88
26
57
56
83
88
103
102
86
54
87
22
65
62
107
106
62
03
66
63
64
105
60
61
91
17
64
61
50
31
30
96
51
83
04
111
112
69
113
05
06
48
75
101
32
07
33
35
08
34
81
83
36
61
11
64
74
12
37
52
10
71
72
73
70
31
WARRANTY - RESIDENTIAL
Eective August 07 2023- WS200 Treadmill LIMITED WARRANTY
Home Use Limited Warranty
XTERRA Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as deter-
mined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA
Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our in-
dependent dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered
by XTERRA Fitness directly to a consumer. The warranty period applies to the following components:
Warranty
Residential
Frame
Lifetime
Parts
90 Days
Labor
90 Days
RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use, and the consumer/facility is responsible for the items listed below:
1. Proper use of the treadmill in accordance with the instructions provided in this manual
2. Proper installation in accordance with instructions provided with the treadmill and with all local electric codes.
3. Expenses for making the treadmill accessible for servicing, including any item that was not part of the treadmill at the time it was
shipped from the factory.
4. Damages to the treadmill nish during shipping, installation or following installation.
5. Routine maintenance of this unit as specied in this manual.
32
WARRANTY - CONTINUED
What is not covered?
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion
may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects
in workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement
period, for treadmill not requiring component replacement, or treadmill not in ordinary household or light commercial use.
3. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies; use of parts other
than original XTERRA Fitness parts; or external causes such as corrosion, discoloration of paint or plastic, alterations, modica-
tions, abuse, misuse, accident, improper maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. XTERRA Fitness reserves the right to request proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRAN-
TIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product use in any environment other than a residential setting or non-dues paying facility with 5 hours use or less per day.
9. Warranties outside of the United States may vary. Please contact your local dealer for details.
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by XTERRA Fitness, Inc. This warranty
applies only in the 48 contiguous United States. NOTE: This does not include Alaska or Hawaii.
33
Responsibilities of the Owner
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your
best interest to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that
vary from state to state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. XTERRA Fitness’ obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’ option, the product through
one of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service
center freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the
product is under warranty, the customer will be responsible for shipping and handling charges. For in-home service, the customer
will be responsible for a trip charge. There will be an additional trip charge if the customer is located over 100 miles from the
nearest service center.
5. The owner is responsible for adequate packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages
in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY
WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
For any further information, or to contact our service department by mail, send your correspondence to:
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by XTERRA
Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
WARRANTY - CONTINUED
34

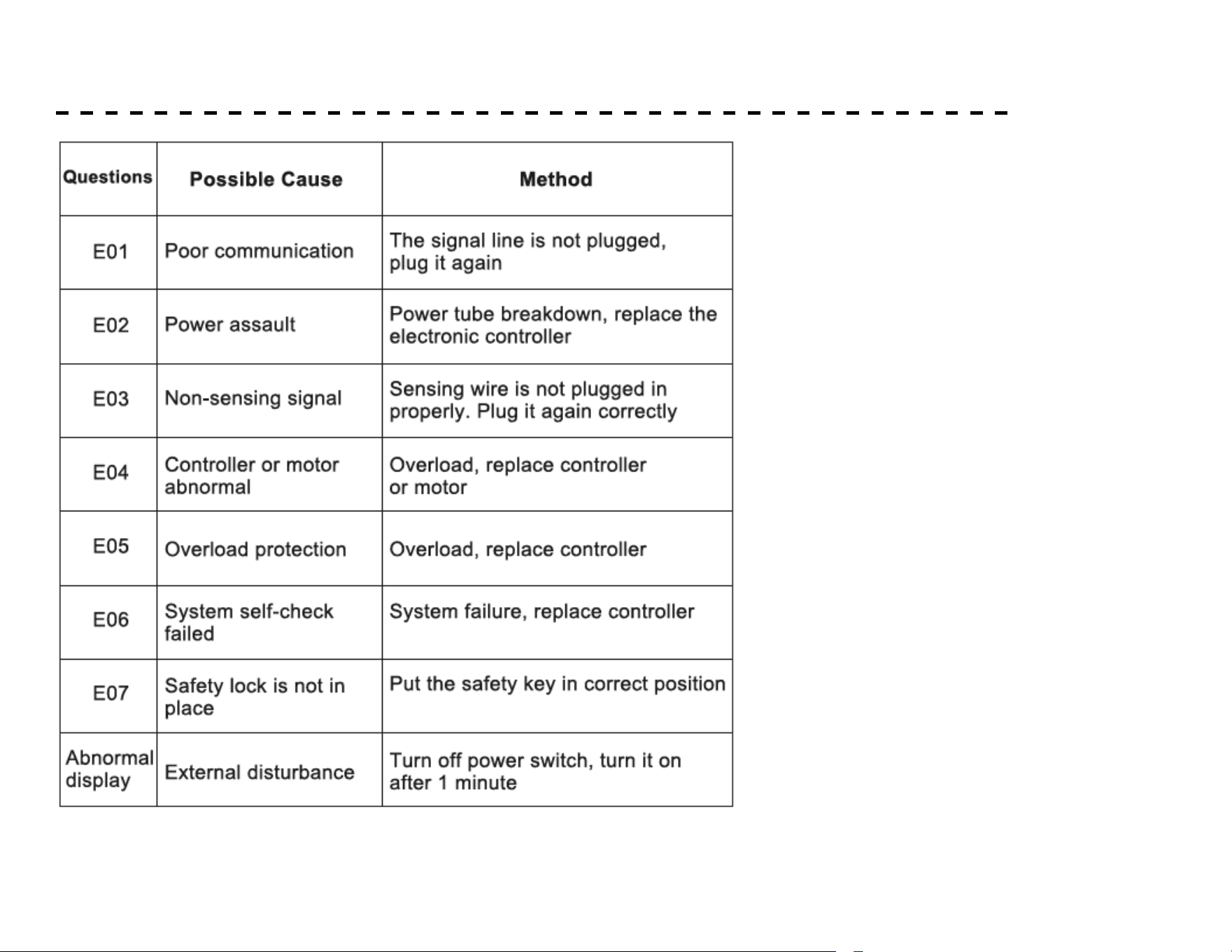

TROUBLESHOOTING
35
TROUBLESHOOTING - CONTINUED
36
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note: The Grantee is not responsible for any changes or modications not expressly approved by the party responsible for compliance.
Such modications could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20cm
between the radiator and your body, and fully supported by the operating and installation
FCC WARNING
37
38
www.xterrafitness.com
©2023 All Rights Reserved. WS200 Owner’s Manual
3000 Nestle Road Jonesboro, AR 72401 | Phone: 800-258-8511 | Fax: 870-935-7611
