USER’S MANUAL
52” Crystal Fan Lamp
EP24375
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: cs.us@costway.com
UK: cs.uk@costway.com
Before You StartBefore You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
www.costway.com
02
www.costway.com
03
www.costway.com
175
125
65
2955
680
The supplier warrants the fan motor to be free from defects in workmanship and material present at
time of shipment from the factory for a lifetime after the date of purchase by the original
purchaser.The supplier also warrants that all other fan parts,excluding any glass or acrylic blades,to
be free from defects in workmanship and material at the time of shipment from the factory for a
period of one year after the date of purchase by the original purchaser.We agree to correct such
defects without charge or at our option replace with a comparable or superior model if the product is
returned.To obtain warranty service,you must present a copy of the receipt s proof of purchase.All
costs of removing and reinstalling the product are your responsibility.Damage to any part,such as by
accident,misuse,improper installation or by affixing any accessories ,is not covered by this
warranty.Because of varrying climatic conditions this warranty does not cover any changes in brass
finish ,including rusting,pitting,corroding,tarnishing.or peeling.Brass finish of this type give their
longest useful life when protected from varying weather conditions.A certain amount of “wobble” is
normal and should not be consided a defect.Servicing performed by unauthorized persons shall
render the warranty invalid.There is no other sxpress warranty.hereby di sclaims any and all
warranties,including but not limited to those of merchantability and fitness for a particular purpose to
the extent permitted by law.The duration of any impiled warranty which cannot be disclaimed is
limited to the time period as specified in the sxpress warranty.Some states do not allow a limitation
on how long an implied warranty lasts,so the above limitation may not apply to you.The retailer shall
not be liable for incidental,consequental,or special damages arising out of or in connection with
product use or perforance except as may otherwise be accorded by law.Some states do not allow
the exclusion of incidrntal or consequential damages,so the above exclusion or limitation may not
apply to you.This warranty gives specific legal rights,and you may also have other rights which vary
from state to state.This warranty supersedes all prior warranties.Shipping costs for any return of
products as part of a claim on the warranty must be paid by the customer.
04
www.costway.com
J

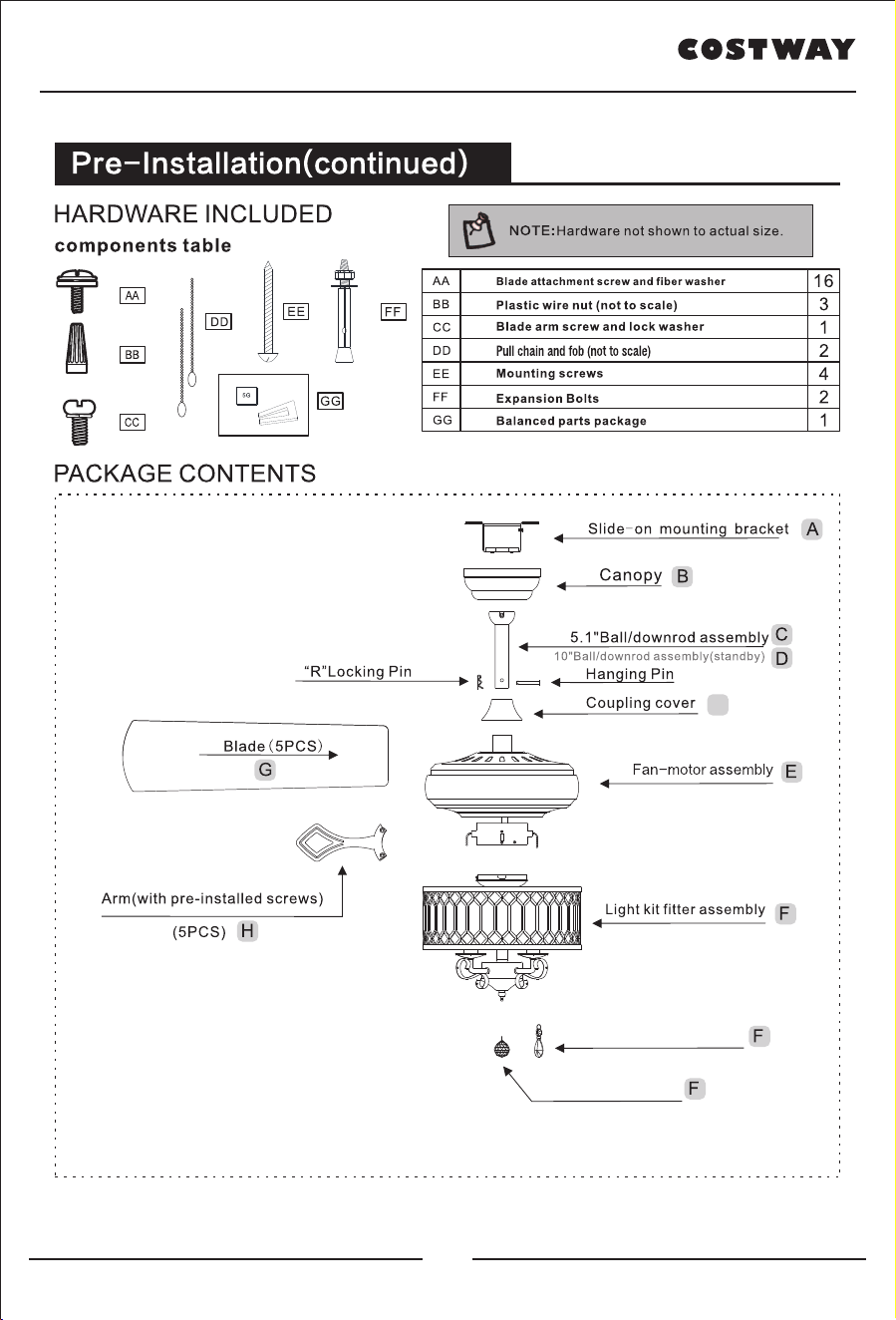

Pls check whether above accessories are completed or not?Yes,and install.
crystal string(24PCS)
crystal ball(1PCS)
05
www.costway.com
06
B
www.costway.com
07
www.costway.com
08
www.costway.com
1. Take the wire into the switching box of the motor.
2. Align the opening of switching box of the light at switch
locking position of the positive and negative rotation of the
motors switching box. Place the cover.Screw in the screw of
the switching box.
09
www.costway.com
controls
weather
Reverse

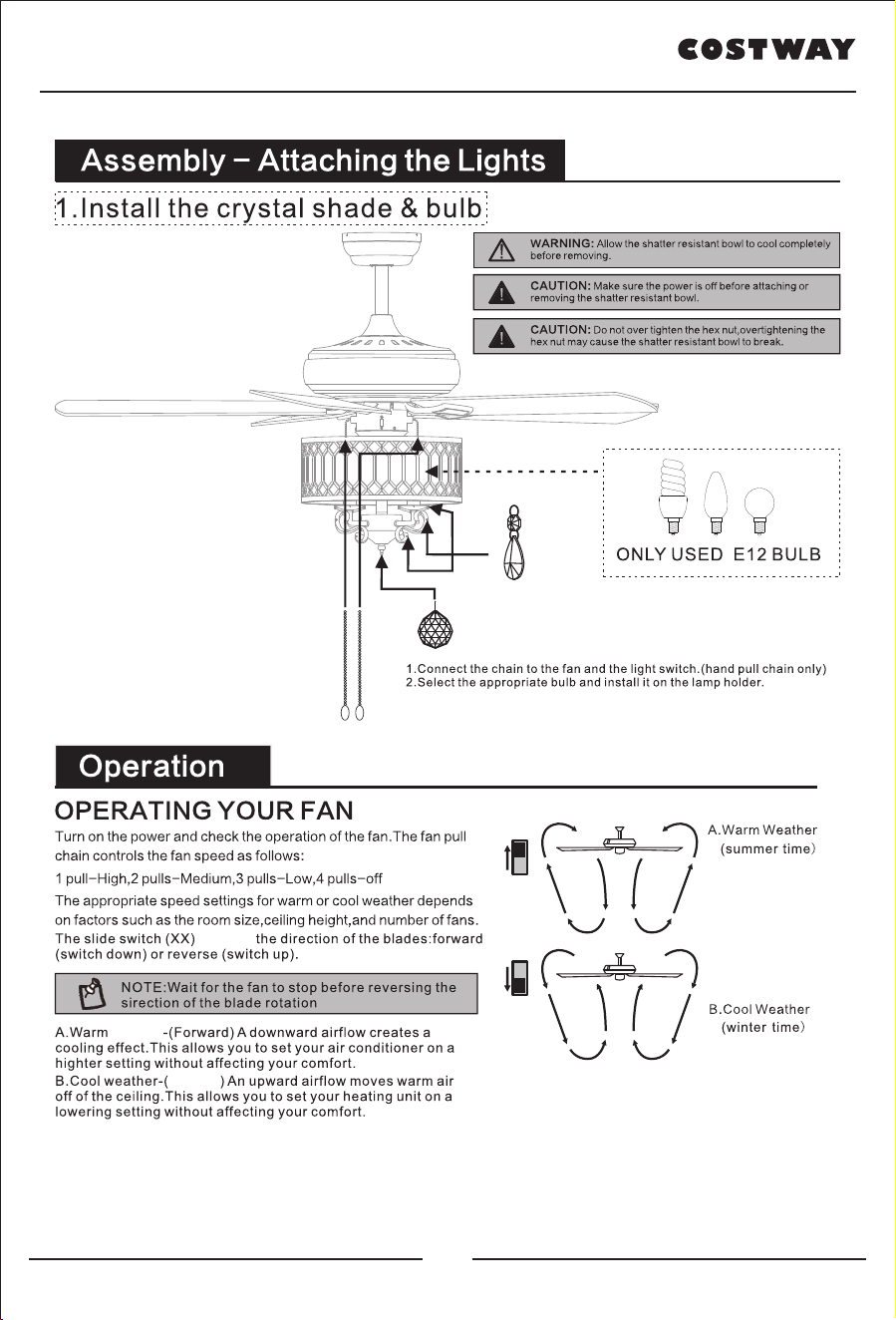

3.lnstall the crystal string on the corresponding lamp arm hanging hole.
4.lnstall the crystal ball on the hanging hole at the bottom of the lamp.
24PCS
10
www.costway.com
Check that all blade and blade arm screws are secure.
Most fan wobble problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the blades.
Measure from a point on the center of each blade to the point on the ceiling. Measure this distance.
Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. Any measurement
deviation should be within 1/8 in.
Run the fan for ten minutes. If the fan continues to wobble please contact Customer Service and a balancing
kit will be sent to you.
◆ Because of the fan's natural movement, some connections may become loose. Check
the support connections, brackets, and blade attachments twice a year. Make sure they
are secure. It is not necessary to remove the fan from the celling.
◆ Clean your fan periodically to help maintain its new appearance over the years. Do not
use water when cleaning, as this could damage the motor or the wood, or possibly cause
an electric shock. Use only a soft brush or lint-free cloth to avoid scratching the finish. The
plathing is sealed with a lacquer to minimize discoloration or tarnishing.
◆ You can apply a light coat of furniture polish to the wood for additional protection and
enhanced beauty. Cover small scratches with a light application of shoe polish.
◆ You do not need to oil your fan. The motor has permanently—lubricated sealed ball
bearings.
