“Operating, servicing and maintaining
a passenger vehicle or off-road
vehicle can expose you to chemicals
including engine exhaust, carbon
monoxide, phthalates, and lead, which
are known to the State of California
to cause cancer and birth defects or
other reproductive harm. To minimize
exposure, avoid breathing exhaust, do
not idle the engine except as necessary,
service your vehicle in a well-ventilated
area and wear gloves or wash your
hands frequently when servicing your
vehicle. For more information go to
www.P65Warnings.ca.gov/passenger-
vehicle.”
WARNING
– California
Proposition 65
FOREWORD
Dear Customer,
Thank you for selecting your new Kia vehicle.
As a global car manufacturer focused on building high-quality vehicles with excep
-
tional value, Kia is dedicated to providing you with a customer service experience that
exceeds your expectations.
This Owner's Manual is valid for all variants of your model, and describes all options,
features, and equipment available, along with the maintenance needs. Therefore, this
manual may also describe optional equipment not purchased on your vehicle, country
specifications, and functions and features not available in your region. Please always
keep this manual in the vehicle for your and any subsequent owner's reference.
Authorized Kia Dealerships provide factory-trained technicians, utilized recom
-
mended special service tools, and supply genuine Kia replacement parts to help you
maintain and service your vehicle during your ownership.
All information contained in this Owner's Manual was accurate at the time of publica
-
tion. However, as Kia continues to make improvements to its products, the company
reserves the right to make changes to this manual or any of its vehicles at any time
without notice and without incurring any obligations.
Please drive safely, and enjoy your Kia vehicle!
© 2023 Kia America, Inc.
All rights reserved. May not be reproduced or translated in whole or in part without the written consent of Kia
America, Inc.
Printed in Korea
How to use this manual
We want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner's Manual can assist
you in many ways.
We strongly recommend that you read
the entire manual. In order to minimize
the chance of death or injury, you must
read the WARNING and CAUTION sec
-
tions in the manual.
Illustrations complement the words in
this manual to best explain how to enjoy
your vehicle. By reading your manual,
you learn about features, important
safety information, and driving tips
under various road conditions.
The general layout of the manual is pro
-
vided in the Table of Contents. Use the
index when looking for a specific area or
subject, it has an alphabetical listing of
all information in your manual.
Chapters: This manual has nine chapters
plus an index. Each chapter begins with
a brief list of contents so you can tell at a
glance if that chapter has the informa
-
tion you want.
You will find various WARNINGS, CAU
-
TIONS, and NOTICES in this manual.
These WARNINGS were prepared to
enhance your personal safety. You
should carefully read and follow ALL
procedures and recommendations pro
-
vided in these WARNINGS, CAUTIONS
and NOTICES.
WARNING
A WARNING indicates a situation in
which harm, serious bodily injury or
death could result if the warning is
ignored.
CAUTION
A CAUTION indicates a situation in
which damage to your vehicle could
result if the caution is ignored.
NOTICE
A NOTICE indicates interesting or helpful
information is being provided.
Table of Contents
1
2
3
4
5
6
7
8
9
A
I
10
Electric vehicle guide
Introduction

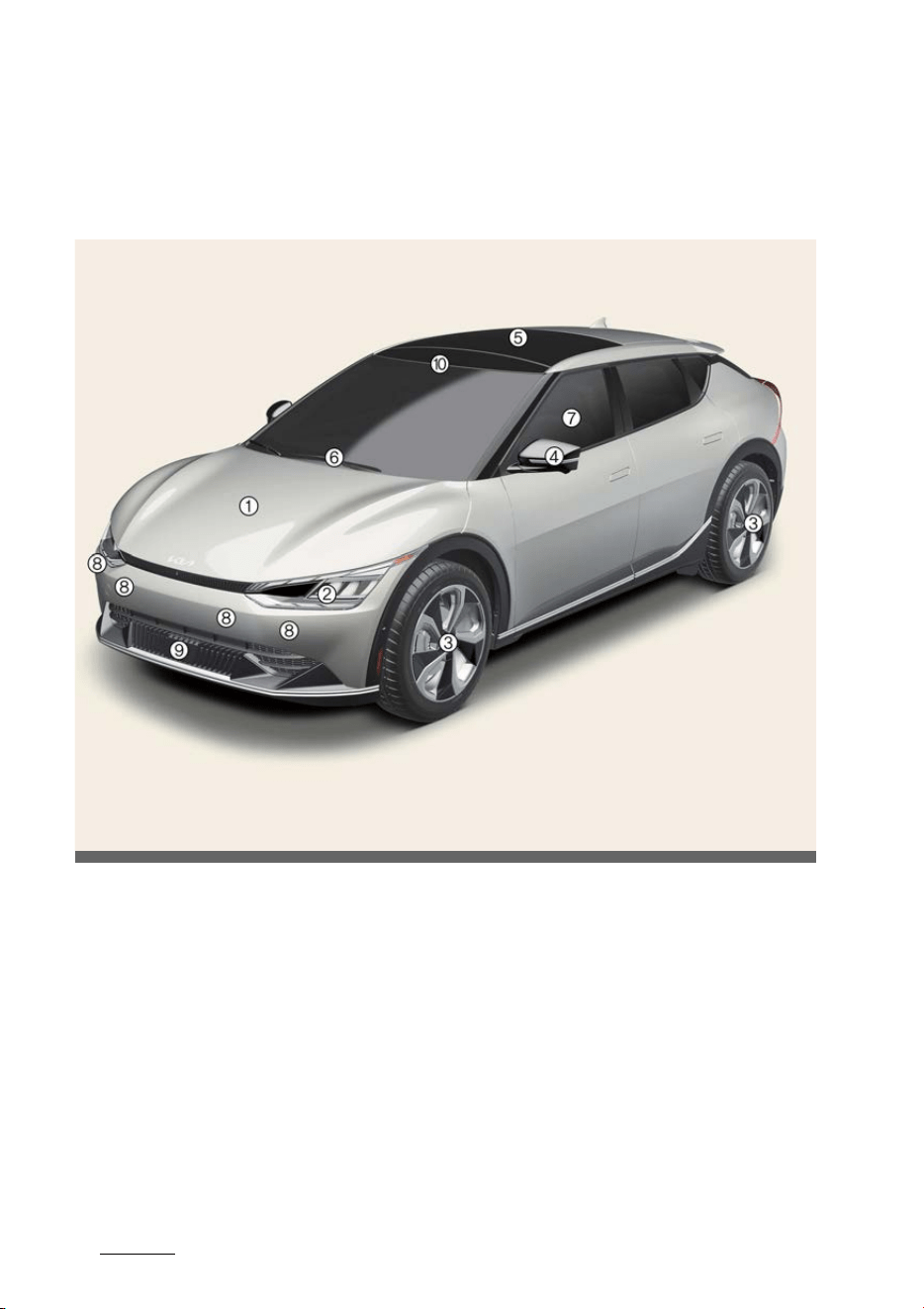

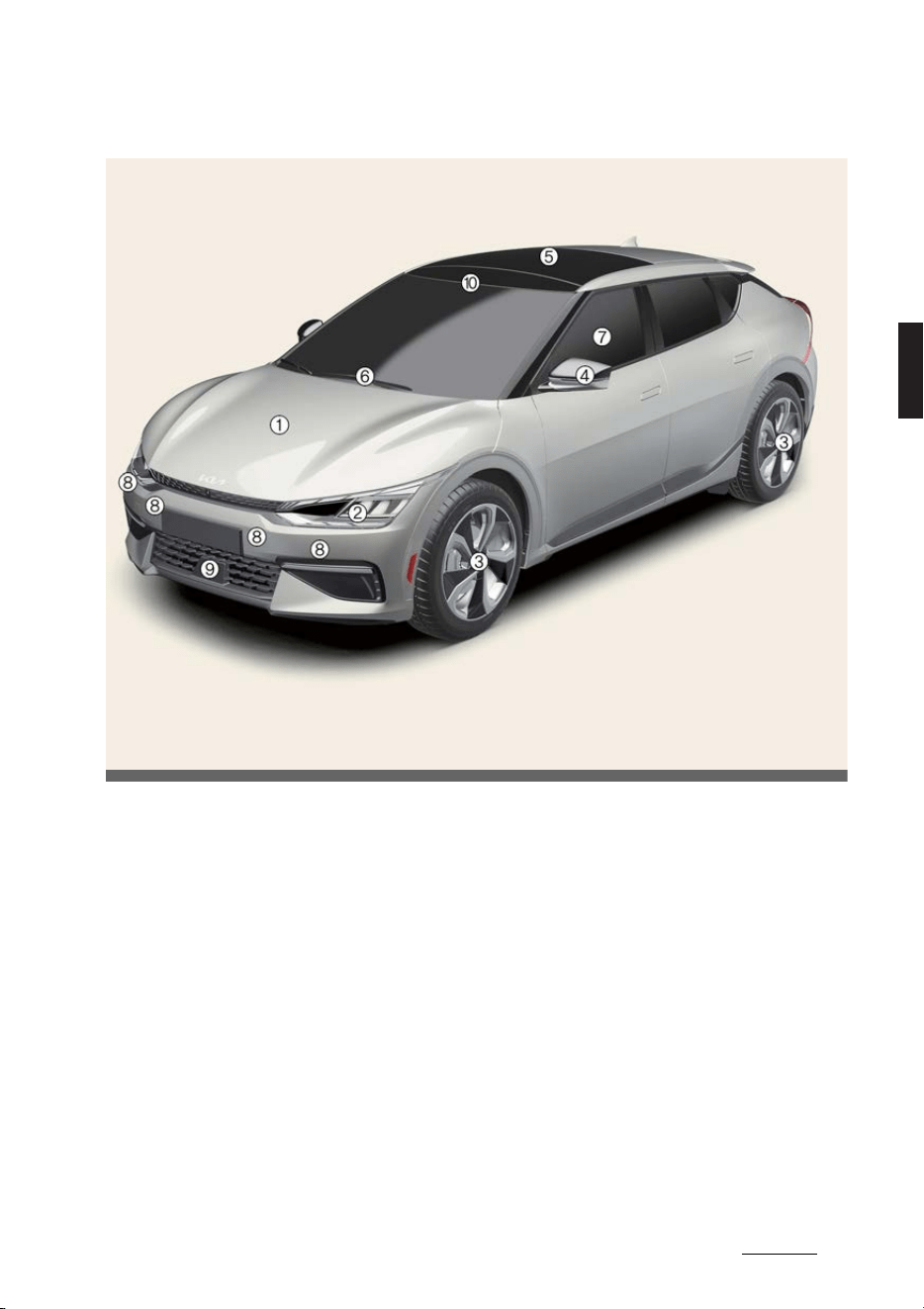

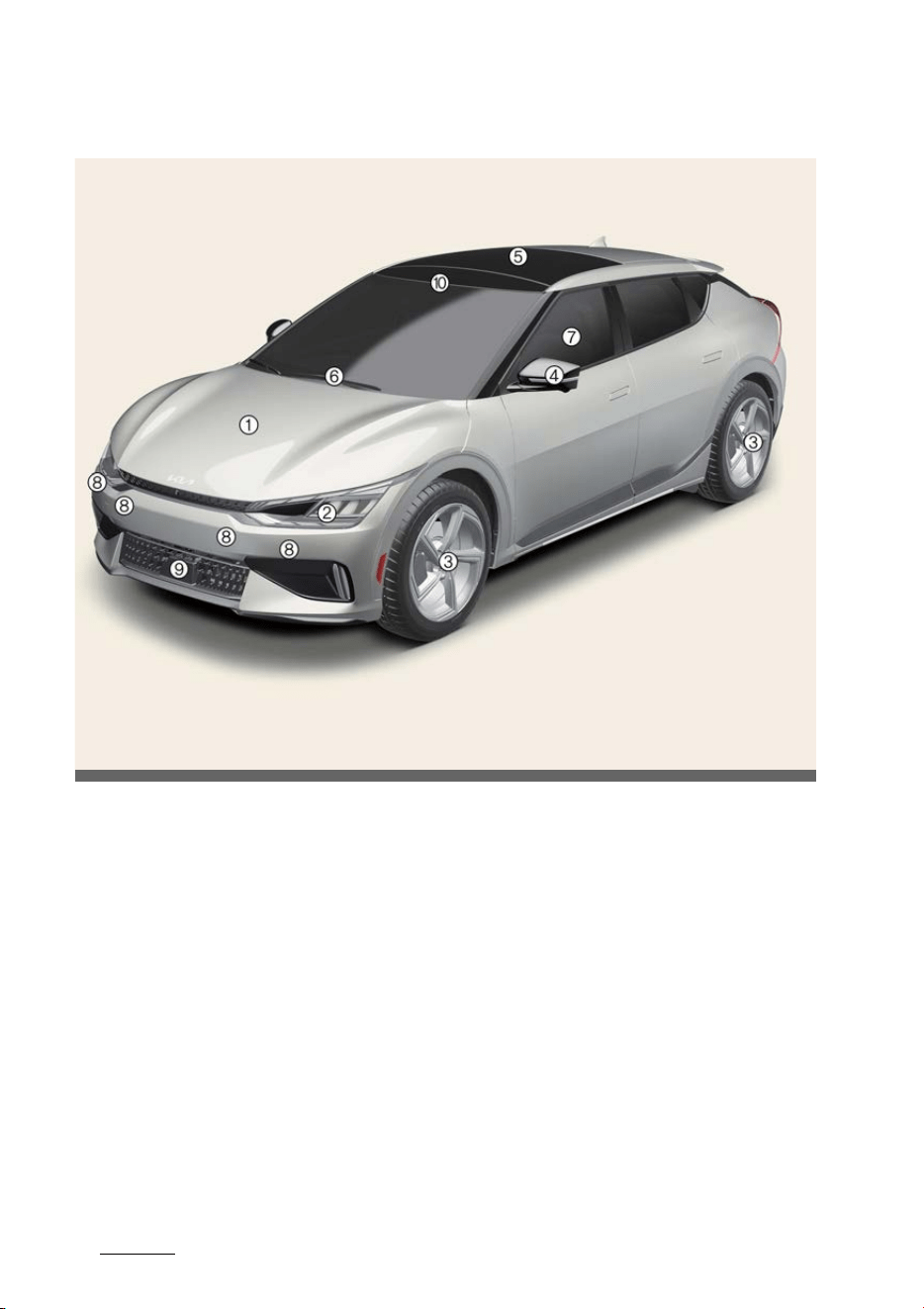

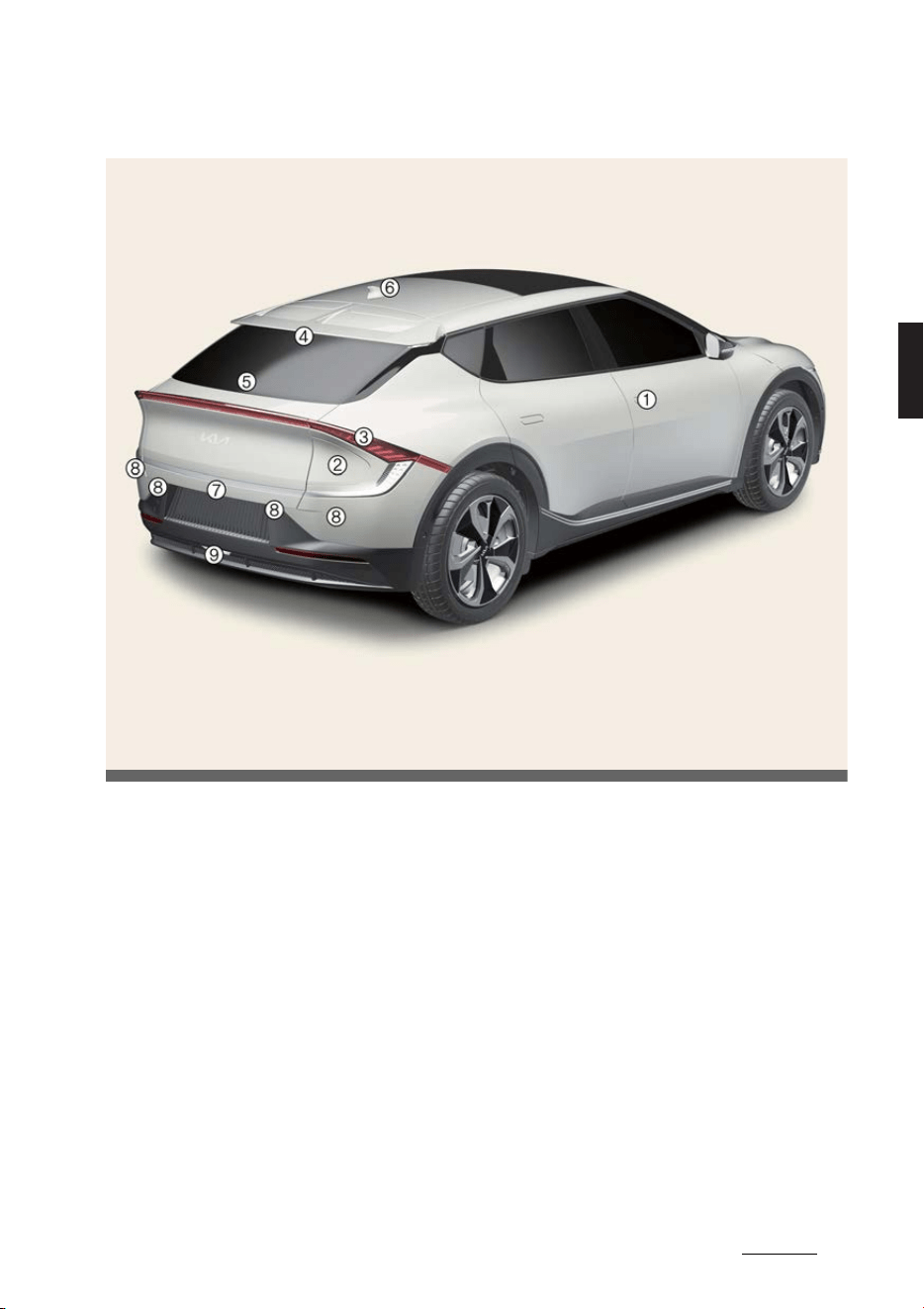

Your vehicle at a glance
Safety features of your vehicle
Features of your vehicle
Driving your vehicle
Driver assistance system
What to do in an emergency
Maintenance
Specifications, Consumer information and Reporting safety defects
Abbreviation
Index
1Electric vehicle guide
Electric vehicle guide
Overview of electric vehicle..........................................................1-3
僅 Battery information..........................................................................................1-3
Main components of electric vehicle ...........................................1-3
僅 High voltage (HV) battery (lithium-ion)...................................................1-4
僅 High voltage battery warmer system ...................................................... 1-5

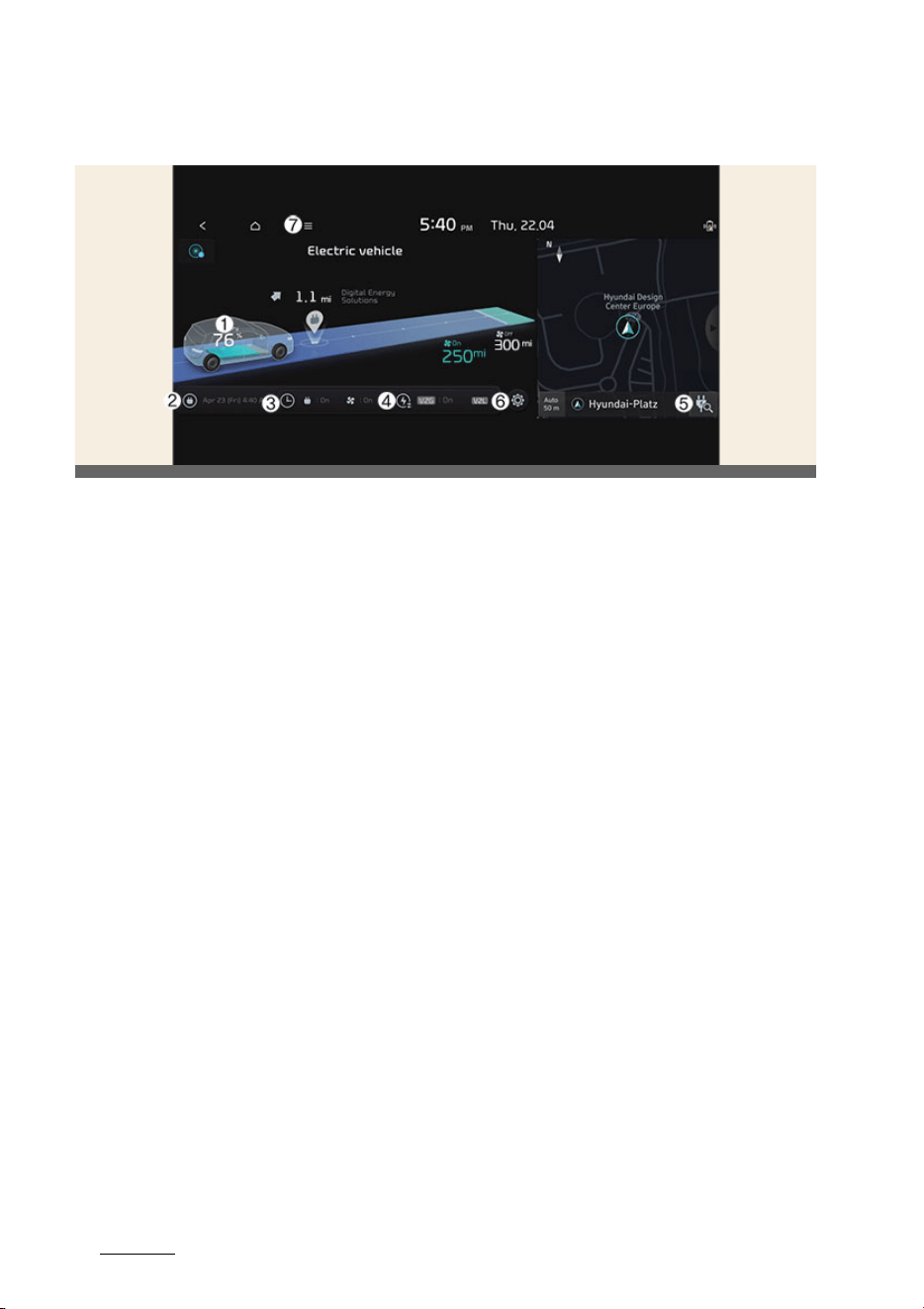

EV menu.......................................................................................... 1-5
僅 EV mode screen.................................................................................................1-6
僅 Energy Information .......................................................................................... 1-7
僅 Next Departure................................................................................................... 1-7
僅 Charging and Climate.....................................................................................1-7
僅 Vehicle To Load (V2L) .....................................................................................1-8
僅 Nearby Stations ............................................................................................... 1-13
僅 EV Settings......................................................................................................... 1-13
Charge types for electric vehicle................................................1-16
僅 Charging information.................................................................................... 1-16
僅 Charging time information ......................................................................... 1-16
僅 Charging types.................................................................................................1-16
Charge indicator lamp for electric vehicle................................1-18
僅 Charging status................................................................................................1-18
Charging connector lock .............................................................1-19
僅 Locking charging cable ................................................................................ 1-19
Scheduled charging .................................................................... 1-20
Charging electric vehicle.............................................................1-21
僅 Electric charging door................................................................................... 1-21
僅 Precautions for charging electric vehicle.............................................1-22
僅 Unlock charging connector in emergency...........................................1-23
僅 AC charge...........................................................................................................1-23
僅 DC charge.......................................................................................................... 1-28
僅 Portable charge (sold separately)...........................................................1-30
Charging electric vehicle (Abrupt stop) ................................... 1-38
1 Electric vehicle guide
僅 Actions to be taken when charging stops abruptly........................ 1-38
Driving electric vehicle................................................................1-39
僅 How to start the vehicle ...............................................................................1-39
僅 How to stop the vehicle................................................................................1-39
僅 Virtual Engine Sound System (VESS).....................................................1-39
僅 Distance to empty..........................................................................................1-40
僅 ECO Driving ....................................................................................................... 1-41
僅 Electricity Use ...................................................................................................1-42
僅 Power/Charge gauge....................................................................................1-42
僅 State of Charge (SOC) gauge for high voltage battery .................1-42
僅 Aux. Battery Saver+ ...................................................................................... 1-43
僅 Warning and indicator lights (Related to electric vehicle) ........... 1-43
僅 LCD display messages (Related to electric vehicle) ....................... 1-45
Safety precautions for electric vehicle .....................................1-50
僅 If an accident occurs ....................................................................................1-50
僅 Other precautions for electric vehicle.................................................... 1-51
僅 High voltage cut-off switch ........................................................................ 1-51
3
1
1
Electric vehicle guide Overview of electric vehicle
Electric vehicle guide
Overview of electric vehicle
Unlike a vehicle with an internal com
-
bustion vehicle electric vehicles are pro
-
pelled by an electric motor powered by a
high-voltage battery. When decelerating
or driving downhill, regenerative braking
can charge the high voltage battery. This
reduces energy loss and can increase
the distance to empty. When the battery
charge is not sufficient, AC charge (L2-
Normal), DC charge and Trickle charge
(L1-Trickle) are available. (Refer to
"Charge types for electric vehicle" on
page 1-16.)
NOTICE
What Does Regenerative Braking Do?
It uses the electric motor when deceler
-
ating and braking and recaptures &
transforms kinetic to electrical energy in
order to charge the high voltage battery.
(Torque is applied in the opposite direc
-
tion when decelerating to generate brak
-
ing force and electric energy.)
Battery information
The vehicle is composed of a high volt
-
age battery that drives the motor, air
conditioner, and charges an auxiliary
battery (12V) that drives all other 12V
systems.
The auxiliary battery is automatically
charged when the vehicle is in the
READY
mode or the high voltage bat
-
tery is being charged.
Main components of electric
vehicle
僅
On-Board Charger (OBC)
: Trans
-
forms (inverts) AC power, to DC
power, to charge the high voltage bat
-
tery.
僅
Inverter
: Transforms direct current
into alternating current to supply
power to the motor, and transforms
alternating current into direct current
to charge the high voltage battery.
僅
LDC
: Transforms (converts) power
from the high voltage battery to low
voltage (12V) to supply power to the
vehicle (DC-DC).
僅
VCU
: Functions as a supervisory con
-
troller of electric vehicle
僅
Motor
: Uses electrical energy stored
inside the high voltage battery to
drive the vehicle (functions like an
engine in a standard vehicle).
僅
Reduction gear
: Delivers rotational
force of the motor to the tires at
appropriate speeds and torque.
僅
High voltage battery (lithium-ion)
:
Stores and supplies power necessary
for the electric vehicle to operate (12V
auxiliary battery provides power to
the vehicle features such as lights and
wipers).
* OBC: On-Board Charger
* LDC: Low Voltage DC-DC Converter
* VCU: Vehicle Control Unit
WARNING
僅 Do not remove or disassemble high
voltage components and high voltage
battery connectors and/or wiring
(orange cabling). Also, be careful not
to damage high voltage components
and the high voltage battery. It may
cause serious injury and significantly
Electric vehicle guide
41
Main components of electric vehicle
impact the performance and durabil
-
ity of the vehicle.
僅 When inspection and maintenance is
required for high voltage components
and the high voltage battery, have the
vehicle inspected by an authorized
Kia dealer.
High voltage (HV) battery (lith
-
ium-ion)
僅 The charge of the high voltage bat
-
tery may gradually decrease when the
vehicle is not driven or charged.
僅 The battery capacity of the high volt
-
age battery may decrease over time
when the vehicle is stored in high or
low temperatures.
僅 Distance to empty may vary depend
-
ing on the driving conditions (cargo,
rain, snow, wind, road surfaces), even
if the charge amount is the same. The
high voltage battery may expend
more energy when driving a fast pace
or uphill. These actions may reduce
the distance to empty.
僅 The high voltage battery is used when
using the air conditioner/heater. This
may reduce the distance to empty.
Make sure to set moderate tempera
-
tures when using the air conditioner/
heater and/or use the pre-condition
-
ing feature prior to departures.
僅 Natural degradation may occur with
the high voltage battery depending
on the number of years the vehicle
was used and/or the number of
charging cycles. This will reduce the
distance to empty over time.
僅 When the charge capacity and dis
-
tance to empty suddenly or dramati
-
cally drops, contact an authorized Kia
dealer for inspection and mainte
-
nance.
僅 If the vehicle will not be in use for an
extended period of time, charge the
high voltage battery once every three
months to prevent it from discharg
-
ing. Also, if the vehicle battery charge
is insufficient, immediately charge the
vehicle to full capacity and store the
vehicle.
僅 AC charging is recommended to keep
the high voltage battery in optimal
condition.
僅 If the high voltage battery charge
amount is below 20%, you can keep
the high voltage battery performance
in optimal condition if you charge the
high voltage battery to 100%. (Once a
month or more is recommended.)
僅 The value of the high voltage battery
charge level may vary according to
the charging conditions (state of char
-
ger, outside temperature, battery
temperature, etc.). In order to fully
charge the battery, the current of the
high voltage battery will be gradually
decreased, so that the longevity and
safety of the battery can be secured.
CAUTION
僅 Make sure to use a designated char
-
ger when charging the high voltage
battery. Using non-approved or inap
-
propriate types of chargers may have
a serious impact on vehicle durability.
僅 If the vehicle is kept with insufficient
charge for a long period, it may dam
-
age the high voltage battery and the
high voltage battery may have to be
replaced depending on the level of
degradation.
僅 If the vehicle is in a collision, contact
an authorized Kia dealer to inspect
whether the high voltage battery is
still connected.
5
1
1
Electric vehicle guide EV menu
僅 Using the V2L function may reduce
the mileage due to the use of high
voltage battery energy, and repeated
use of the V2L function may cause a
decrease in the life of the high voltage
battery.
High voltage battery warmer sys
-
tem (if equipped)
The high voltage battery warmer system
prevents reduction of battery output
when battery temperature is low. If the
charging connector is connected, the
warmer system automatically operates
according to the battery temperature.
Charging time may shorten compare to
vehicles without the high voltage battery
warmer system. But, the use of electric
-
ity charge may increase because of high
voltage battery warmer system opera
-
tion.
NOTICE
The high voltage battery warmer system
operates when the charging connector is
connected to the vehicle. However, the
high voltage warmer system may not
operate when battery temperature
drops below -31 °F (-35 °C).
EV menu
If you select the
EV
menu at the multi
-
media system home screen, you can
enter the
EV
menu.
* The image of
EV
menu screen in this
manual may differ from the actual
screen depending on the vehicle spec
-
ification and the version of the multi
-
media system software. For more
information, please refer to the sepa
-
rately supplied infotainment system
manual.
OCV041277L
Electric vehicle guide
61
EV menu
EV mode screen
1
Energy Information
2
Next Departure
3
Charging and Climate
4
Vehicle to Load (V2L)
5
Nearby Stations
6
EV Settings
7
Menu
OCV041278N
7
1
1
Electric vehicle guide EV menu
Energy Information
Select
EV
and see the vehicle image
from the infotainment system screen.
You can check battery information and
energy consumption.
Battery Information
A:
Energy Information
1 DC Charger
2 AC Charger
You can check the estimated range, bat
-
tery power remaining, and expected
charging time for each charger type.
僅 The distance to empty is calculated
based on the real-time electric energy
efficiency while driving.
僅 The distance may change if the driv
-
ing pattern changes.
Next Departure
A:
Electric Vehicle
1 Next Departure
Select
EV
→
Next Departure
on the
screen. You can set the date and time of
when to charge the battery, climate con
-
trol temperature, and other various
functions.
Departure Time
A:
Next Departure
1 1st Departure Time
2 2nd Departure Time
A:
Departure 1
1
Departure Time: Set the time that you
wish to start the vehicle after charging
the battery.
2
Departure Day: Set the day of the
week to activate reserved charging
and target temperature for departure
time.
Charging and Climate
A:
Electric Vehicle
1 Scheduled Charging and Target
Temperature
OCV041591N
OCVQ011106N
OCV041280L
OCV041281L
OCV041282L
OCV041283L
Electric vehicle guide
81
EV menu
Select
EV
→
Charging and Climate
on
the screen.
NOTICE
Vehicle must be connected with the
charging connector at the time set for
pre-scheduled charging.
A:
Scheduled Charging and Target
Temperature
1 Scheduled Charging
2 Target Temperature
You can set the date and time of when
to charge the battery and the climate
control temperature. Also, you may
select the time to start charging using
the off-peak time setting.
Off-peak Hours Settings
A:
Off-peak Hours Settings
1 Start Time
: Charging begins at the
designated off-peak time. If dese
-
lected, starts charging only on the
scheduled time.
2 End Time
: Set the most inexpensive
time to complete charging.
3
Charging mode
僅 Off-peak tariffs prioritized: If
selected, starts charging at off-
peak time (may keep on charging
pass off-peak time to charge
100%).
僅 Charge only during Off-peak: If
selected, charges only within off-
peak time (may not charge 100%).
NOTICE
Off-peak charging rates for electricity
may not be available everywhere. Check
with your local utility for details.
Target Temperature Settings
A:
Target Temperature Settings
1
Set Target Temperature: If the target
temperature (1) is set with the charger
connected, the cabin temperature will
be adjusted to the target temperature
at departure time (without loss of high
voltage battery charging level). In cold
weather, pre-scheduled heating helps
enhance electric vehicle performance
by heating the vehicle in advance.
Vehicle To Load (V2L) (if
equipped)
V2L is the system that provides AC
power using the high voltage battery for
driving to operate several electronical
products.
A:
Electric Vehicle
OCV041284L
OCV041285L
OCV041579L
OCV041287L
9
1
1
Electric vehicle guide EV menu
1 EV Charge Transfer
Select
EV
→
Vehicle to Load (V2L)
on
the screen.
You can set the battery discharging limit
for high voltage battery for driving.
A:
EV Charge Transfer Settings
1 Discharging Limit
When the vehicle reaches the discharg
-
ing limit, it automatically cuts the supply
of electricity.
Energy information
To check the discharging level, go to the
infotainment system screen and select
EV
and the vehicle image.
How to connect
Exterior
1
Open the cover of the V2L connector.
2
Close the cover after connecting com
-
patible appliances and electronic
products to the power outlet.
3
Connect the V2L connector to the
charging hole on the vehicle.
4
Press the switch (1) of the V2L con
-
nector and check whether the light (2)
is on or off. The light (2) may not turn
on normally when:
僅 The battery discharging limit is set
higher than the actual charge of the
battery. Check the battery dis
-
charging limit for high voltage bat
-
tery for driving in
Energy
Consumption
menu on the screen.
僅 Check whether the light of V2L con
-
nector or interior power outlet turns
on or not.
僅 If the warning message for V2L
appears on the cluster, refer to
"LCD display messages" on page 1-
10.
僅 If V2L does not work the same as
when connecting other compatible
appliances, have your vehicle
inspected by an authorized Kia
dealer.
5
Press the switch (1) to turn off the
light (2) the V2L will be off to stop V2L
charging. You can disconnect the V2L
connector when the light (2) has
turned off or you have deactIvated
the charging door lock by pressing
the door unlock button on the smart
key.
Interior
1. Use the mechanical key to unlock the
power outlet cover.
OCV041288L
OCVQ011001_4
OCVQ011046
Electric vehicle guide
101
EV menu
2. Connect to the power outlet located in
the base of the rear seat with the EV
button in the ON position.
3. Check the operation status through
the front indicator of the power outlet.
僅Blue: Standby
僅 Red: No power supply even though
the power outlet is connected
僅 Green: Normal power supply
through the normal connection of
the power outlet.
LCD display messages
V2L has ended. Battery level has
reached the set value
A:
V2L has ended. Battery level has
reached the set value
When the high voltage battery level
reaches the discharging limit set level,
the V2L will stop and the warning will be
displayed. If you want to use the V2L
continuously, make the discharging limit
set level lower than the present battery
level.
V2L stopped due to excessive
power use
A:
V2L stopped due to excessive
power use
If you use an electrical appliance that
exceeds the maximum power output the
vehicle can supply, it will stop working
and display a warning message. Make
sure that the total power consumption of
your electrical appliances does not
exceed the V2L maximum power output.
V2L conditions not met
A:
V2L conditions not met
If V2L is interrupted for any of the fol
-
lowing reasons, a warning message is
displayed.
僅 V2L connector switch off
僅 V2L connector overheating
僅 Opening the charging door while
using the V2L interior outlet
Make sure there are no problems with
the V2L connector and the vehicle
indoor outlet.
OCVQ011002L
OCVQ011047
OCV041100L
OCV041101L
OCV041102L
11
1
1
Electric vehicle guide EV menu
WARNING
Electrical shock, serious injury and death
can result if you disobey the following
instructions:
僅 Do not touch the V2L connector or the
terminals in the vehicle charging port.
僅 Do not put metal objects to the V2L
connector or charging port.
僅 Do not touch the V2L connector,
charging port or power plug with a
wet hand or while standing in water or
with bare feet.
僅 Do not use the V2L connector,
charging port or power plug if they
are wet or dirty. Dry and clean them
first.
僅 Do not alter or disassemble the V2L
connector.
僅 When the power plug is connected or
disconnected to the V2L connector or
you open or close the connector cover
of the V2L, be careful not to be
scratched on the hand.
僅 Do not charge if the V2L connector,
charging port, power plug or cable are
damaged, corroded or rusted.
僅 Do not use if the sheath of home
appliance cables is damaged or bro
-
ken or the connection is loose.
WARNING
Do not use your vehicle as a power
source for any high amperage appli
-
cances such as irons, coffee pots, and
toasters. This could cause a fire, serious
injury and death.
NOTICE
Be aware of the precautions below to
prevent accidents.
僅 If V2L charging has stopped before
the vehicle is charged, it may be
because the system has overheated.
Check whether the V2L connector,
charging port or power plug are con
-
taminated, worn, corroded or broken
or if the vehicle is drawing 16 amps.
When the temperature falls to normal
levels, you can use it again. (Use only
compatible appliances.)
僅 Do not modify or disassemble the pro
-
vided V2L connector. The failure
caused by modifying or disassem
-
bling is not covered by the warranty.
僅 Do not drop the V2L connector or give
a strong impact to it.
僅 Do not drop or hit the V2L connector.
僅 Be sure to disconnect the V2L connec
-
tor from the vehicle when you are fin
-
ished using V2L.
僅 When the high voltage battery charge
reaches the set discharging limit (%),
the operation stops, and a warning
message is displayed on the instru
-
ment cluster. If you want V2L opera
-
tion, set the discharging limit (%) lower
than the current battery charge.
僅 When using various electric appli
-
ances, use them below the maximum
power capacity that can be supplied
by the vehicle.
僅 If you use an electrical appliance that
exceeds the maximum power capac
-
ity that the vehicle can supply, the
operation will stop and a warning
message will be displayed on the
OCVQ011048
Electric vehicle guide
121
EV menu
instrument cluster. Make sure the
total power consumption of the elec
-
trical appliance you use does not
exceed the V2L maximum power
capacity.
僅 Some of the electric appliances may
not operate normally even if the appli
-
ance has power consumption less
than the maximum power capacity
provided by the vehicle when:
- Electrical appliances that require
high power during initial operation.
- Measuring devices that need to
process accurate data.
- Electric appliances sensitive to
inverter type AC power supply.
僅 Do not use appliances that require a
continuous power supply, such as
medical equipment. The power supply
may be interrupted depending on the
vehicle's condition.
僅 Only use compatible appliances under
16 ampere.
僅 Insert the power plug in fully and do
not use plugs that are worn, corroded
or broken, not meeting the standard.
An electric shock or malfunction may
occur.
僅 Use the power plug with a ground
connection.
僅Do not use high powered home appli
-
ances such as an air conditioner,
washing machine or dryer.
僅 Do not hang home appliances on the
V2L charging cable.
僅 For various devices connected to a
power outlet, use only appliances that
have obtained national safety certifi
-
cation. For usage and precautions,
refer to the manual of the device.
(Electrical appliances, multi-outlets,
cord extension cables, etc.)
僅 For electronic devices that are used
outdoors in a vehicle, use a appliance
with a waterproof function or use it in
a waterproof environment. Do not use
in environments with rain or high
humidity. (Electrical appliances, multi-
outlets, cord extension cables, etc.)
僅 If there is a risk of lightning, do not
use the V2L function outdoors.
僅 Do not connect portable outlets.
僅 Make sure the extension cable is not
twisted. It may cause a fire.
僅 When using the V2L, power is also
supplied to the vehicle's interior
power outlet. Unplug electrical appli
-
ances that are not in use from the
indoor power outlet.
僅 When using the V2L, the cooling fan in
the vehicle motor compartment can
operate automatically even if the
vehicle is turned off. Do not put your
hand near the cooling fan in the V2L
operating state.
僅 Please connect the V2L connector to
the charging hole within 60 seconds
after the charging cover opens. To
prevent theft after connecting, it is
changed to auto lock automatically so
that it is difficult to separate.
僅 V2L discharging mode will shut off if
the vehicle is turned off using the inte
-
rior V2L.
僅 Opening the charging door or con
-
necting the V2L connector to the
charging inlet, the V2L discharging
mode will shut off. If you want to use
the interior and exterior V2L simulta
-
neously, first connect the V2L connec
-
tor to the charging inlet and use the
indoor V2L.
13
1
1
Electric vehicle guide EV menu
Nearby Stations
A:
Electric Vehicle
Select
EV
→
Map
on the screen. Stations
around the current location are
searched.
A:
Electric Vehicle
Select 'Search for charging stations' icon
on the screen.
A:
Near Current Position
The system will search charging stations
near the current position and the
selected destination, When you choose a
charging station, detailed information
will be shown.
For more detailed information, please
refer to the separately supplied info
-
tainment system manual.
EV Settings
A:
Electric Vehicle
Select
EV
→ 'Settings' icon on the
screen. You can set the Battery Charge
Level, Charging Current, Battery Condi
-
tioning Mode, and Utility Mode func
-
tions.
Charging Limit (Max. % Charge)
A:
EV Settings
1 Charging Limit
2 AC Charger
A:
EV Settings
1 Charging Limit
2 DC Charger
The target battery charge level can be
selected when using the AC or DC char
-
ger.
The charging level can be changed by
10%.
OCV041289L
OCV041290L
OCV041291L
OCV041292L
OCV042581N
OCV042580N
Electric vehicle guide
141
EV menu
Charging Current
A:
EV Settings
1 Charging Current
2 AC Charger
3 Maximum
4 Reduced
5 Minimum
You can adjust the charging current for
an AC charger. Select an appropriate
you can adjust the current for AC or DC
charging.
If the charging process does not start or
abruptly stops in the middle, re-select
another proper current and retry
charging the vehicle.
Charging time varies depending on
which charging current is selected.
Battery conditioning mode (if
equipped)
A:
EV Settings
1 Battery conditioning mode
2 Battery conditioning mode
僅 The Battery conditioning mode is effi
-
cient during the winter time when the
high voltage battery temperature is
low. This mode is recommended to
improve driving and DC charging per
-
formance during winter. However, the
driving distance may be reduced as
the energy is required to increase bat
-
tery temperature.
僅 If the battery temperature is low
during driving, The battery condition
-
ing mode raises the battery tempera
-
ture to an adequate level. Also, if the
battery temperature is low when
scheduled air conditioner/heater is
activated, this mode is operated to
improve driving and charging perfor
-
mance. However, this mode is dis
-
abled to maintain range when the
battery level is low.
僅 If you set the DC charging station as a
destination in battery conditioning
mode, you can reduce the charging
time by raising the battery tempera
-
ture to an adequate level when you
arrive.
僅 Battery conditioning mode indicator
light ( ) appears while battery
conditioning mode is operating.
NOTICE
僅 This mode is available for the vehicles
equipped with a battery heater.
僅 The infotainment system may change
after software updates. For more
information, refer to the manual pro
-
vided in the infotainment system and
the quick reference guide.
Utility Mode
When driving is not necessary such as
while camping or when stopping the
vehicle for a long time, it is possible to
use the electrical devices (audio, lights,
etc.) for several hours and the high volt
-
age battery is used to maintain the 12
volt battery and its convenience fea
-
tures.
OCV042295N
OCV042648N
15
1
1
Electric vehicle guide EV menu
System Setting and Activation
A:
EV Settings
1 Utility Mode
2 Activate Utility Mode
When the following conditions are met,
you can activate the Utility Mode func
-
tion by selecting
EV Settings
→
Utility
Mode
on the screen.
僅 The vehicle is in the
READY
mode.
僅 The gear is in P (Park).
僅 EPB (Electronic Parking Brake) is
applied.
僅
EV Settings
→
Utility Mode
is
selected on the infotainment system
screen.
System Activation
僅 The
READY
indicator will turn off and
the
UTIL
indicator will appear on the
cluster and the EPB is applied.
僅 All vehicle electronics are usable but
the vehicle cannot be driven.
僅 The EPB can be canceled by pressing
the EPB switch.
僅 Gear cannot be shifted out of P (Park).
If a shift attempt is made,
Shifting
conditions not met
message will be
displayed on the cluster.
System Deactivation
The Utility Mode can be deactivated by
pressing the EV button to the OFF posi
-
tion. The function cannot be deactivated
from the
EV Settings
.
OCV042297N
Electric vehicle guide
161
Charge types for electric vehicle
Charge types for electric vehicle
Charging information
AC charge
The electric vehicle is charged by plugging into a AC charger installed at your home
or a public charging station. (For further details, refer to "AC charge" on page 1-23.)
DC charge
You can charge at high speed at public charging stations. Refer to the respective
company's manual that is provided for each DC charger type.
Portable charge
The Electric vehicle can be charged by using household electricity. The electrical out
-
let at your home must comply with regulations and can safely accommodate the
Voltage/Current (Amps)/Power (Watts) ratings specified on the portable charge.
(Portable charging cable: Sold separately)
Charging time information
NOTICE
All charging times are approximate and
based on manufacturer testing. Actual
charging times will vary based on a
number of factors including vehicle con
-
dition, battery state of charge, charger
specifications and ambient temperature.
Charging type Standard battery type Extended battery type
AC charge
Takes approx. 9 hours at room tempera
-
ture when charged to 100%
Takes approx. 11 hours 45 minutes at room
temperature when charged to 100%.
DC charge
350 kW charger
Takes about 18 minutes at room tempera
-
ture when charged from 10% to 80%. Can
be charged to 100%.
Takes about 18 minutes at room tempera
-
ture when charged from 10% to 80%. Can be
charged to 100%.
50 kW charger
Takes about 63 minutes at room tempera
-
ture when charged from 10% to 80%. Can
be charged to 100%.
Takes about 73 minutes at room tempera
-
ture when charged from 10% to 80%. Can be
charged to 100%.
Portable charge
Takes approx. 51 hours at room tempera
-
ture when charged to 100%.
Takes approx. 68 hours at room tempera
-
ture when charged to 100%.
17
1
1
Electric vehicle guide Charge types for electric vehicle
Charging types
* Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temperature, the time
required for charging the high voltage battery may vary.
* Actual charger appearance and charging method may vary in accordance with the charger manufacturer.
* For your safety, your vehicle may stop charging if the external charger is outdated or defective. Try charging the vehicle using a dif
-
ferent charger that works properly.
* A maximum diagnosis time of 3 minutes may be added to check the battery condition during the battery charging process.
* Portable charging cable is sold separately.
INFORMATION
Type 3R enclosure satisfies the require
-
ments of UL 50E standard when the
charging connector is connected to the
vehicle side charging inlet. An additional
Type 3R enclosure should be provided in
the end installation of the vehicle side
charging inlet. The “Type 3R” marking
can be found on the charging inlet.
* What is type 3R?: Performance require
-
ment for enclosures intended for out
-
door use that provides a degree of
protection against falling dirt, rain,
sleet, and/or snow.
CAUTION
僅 Risk of Electric Shock, Do Not Discon
-
nect Under Load.
NOTICE
僅 Suitable For Use On A Circuit Capable
Of Delivering Not More Than 30000
rms Symmetrical Amperes, 1000
Volts DC Maximum.
僅 Suitable For Use On A Circuit Capable
Of Delivering Not More Than 5000
rms Symmetrical Amperes, 120 Volts
AC Maximum
Category AC Charge DC Charge Portable Charge
Charging
Inlet (Vehicle)
Charging
Connector
Charging
Outlet
How to
Charge
Use AC charger installed at home or
public charging station
Use the DC charger at public
charging station
Use household current
OCVQ011059N
OCVQ011059
OCVQ011059N
OCVQ011060
OCVQ011061
OCVQ011060
OCVQ011007L
OCVQ011008L
OCVQ011009L
Electric vehicle guide
181
Charge indicator lamp for electric vehicle
Charge indicator lamp for
electric vehicle
Charging status
Electric charging door
When charging the high voltage battery,
the charge level can be checked from
inside the charging door.
High voltage indicator
The high voltage indicator is located on
bottom of the windshield. When the 12V
auxiliary battery is discharged, it is
charged from the high voltage battery of
the vehicle. When the high voltage elec
-
tricity flow in the vehicle, the color of the
indicator changes to amber and turns
off after charging is finished.
WARNING
When the function is activating, the
Charging Indicator Lamp will turn on
and high voltage electricity will be flow
-
ing in the vehicle. Do not touch the high
voltage electric wire (orange), connector,
and all electric components and devices.
This may cause electric shock and lead
to injuries. Also, do not modify your vehi
-
cle in any way. This may affect your
vehicle performance and lead to an acci
-
dent.
Lamp status Battery SOC [%]
0~24
25~49
50~74
75~100
OCVQ013010L
OCVQ011109N
19
1
1
Electric vehicle guide Charging connector lock
Charging connector lock
Locking charging cable
A:
ECO Vehicle
1 Charging Connector Locking Mode
2 Always Lock
3 Lock While Charging
4 Do Not Lock
You may select when the charging con
-
nector can be locked and unlocked in
the charging inlet.
Select
Setup
→
EV
→
Charging Con-
nector Locking Mode
in the infotain
-
ment system.
INFORMATION
The infotainment system may change
after software updates. For more infor
-
mation, refer to the user's manual pro
-
vided at the infotainment system and
the quick reference guide.
When the charging connector is
locked
Always mode
The connector locks when the charging
connector is plugged into the charging
inlet. The connector is locked until all
doors are unlocked by the driver. This
mode can be used to prevent charging
cable theft.
僅 If the charging connector is unlocked
when all doors are unlocked, but the
charging cable is not disconnected
within 15 seconds, the connector will
be automatically locked again.
僅 If the charging connector is unlocked
when all doors are unlocked, but all
doors are locked again, the connector
will be automatically locked again.
Lock While Charging mode
The connector locks when charging
starts. The connector unlocks when
charging is complete. This mode can be
used when charging at a public charging
station.
Do Not Lock mode
The connector unlocks regardless of the
state of charging. Press the charging
connector release button, disconnect the
connector. Be careful of theft of the
charging cable.
Category
While
charging
Always Do not lock
Before charging X O X
While charging O O X
Finished charging X O X
OCV041582L
Electric vehicle guide
201
Scheduled charging
Scheduled charging
You can set up a charging schedule for
your vehicle using the infotainment
screen or the Kia Connect application on
your smart phone.
Refer to the multimedia system and the
Kia Connect manual about scheduled
charging.
Scheduled charging can only be done
when using a AC charger or the Portable
Charging Cable (ICCB: In-Cable Control
Box) (sold separately).
When scheduled charging is set and the
AC charger or the Portable Charging
Cable (ICCB: In-Cable Control Box) is
connected for charging, the indicator
lamp blinks from the first level to the last
for about 3 minutes to indicate that
scheduled charging is set.
When scheduled charging is set,
charging is not initiated immediately
when the AC charger or Portable
Charging Cable (ICCB: In-Cable Control
Box) is connected. When immediate
charging is required, use the infotain
-
ment system or the Kia Connect applica
-
tion on your smart phone to deactivate
the scheduled charging or press and
hold the charging button on the
charging door for 2 seconds.
When scheduled charging is set,
charging time is automatically calcu
-
lated, so in some cases, charging may
start right after the charger is connected.
If you press the charging button to
immediately charge the battery,
charging must be initiated 3 minutes
after the charging cable has been con
-
nected.
When you press the charging button for
immediate charging, the scheduled
charge setting is not completely deacti
-
vated. If you need to completely deacti
-
vate the scheduled charge setting, use
the multimedia system or the Kia Con
-
nect application on your smart phone.
* Refer to "AC charge" on page 1-23,
"Portable charge (sold separately)" on
page 1-30 for details about connecting
the AC charger and the Portable
Charging Cable (ICCB: In-Cable Con
-
trol Box) (sold separately).
OCVQ013010L
OCVQ011110N
21
1
1
Electric vehicle guide Charging electric vehicle
Charging electric vehicle
Electric charging door
The electric charge door will open and
close as follows.
NOTICE
The charging door automatically closes
when:
僅 The charge connector is disconnected
僅 The charging procedure has not
started for approximately 2 minutes
while the charging door is opened.
僅 The gear is in D (drive), N (neutral), or
R (Reverse).
僅 After replacing the battery (12 volt),
open and close the charging door
once to check that the charging door
automatic opening mechanism is
functioning properly.
僅 When replacing the charging door, be
sure to disconnect the vehicle-side
wiring connector of the charging door
module and reconnect it to ensure
normal operation of the charging
door.
OCVQ013011L
Methods Open Close
Push/Touch
Push the charging door.
Press the charging door close button.
Charging door open/close but
-
ton
(Located on the bottom of the
windshield)
Press the charging door open/close button.
Voice Recognition
OCVQ013012L
OCVQ013013L_2
OCVQ011014N
Electric vehicle guide
221
Charging electric vehicle
Precautions for charging electric
vehicle
AC Charger
AC Charging Cable (if equipped)
DC Charger
* Actual charger appearance and
charging method may vary in accor
-
dance with the charger manufacturer.
WARNING
僅 Electromagnetic waves that are gen
-
erated from the charger can seriously
impact medical electric devices, car
-
diac pacemaker.
When using electronic medical
devices, cardiac pacemaker, make
sure to ask the medical team and
manufacturer whether charging your
electric vehicle will impact the opera
-
tion of the medical electric devices,
such as an implantable cardiac pace
-
maker.
僅 Check to make sure there is no water
or dust on the charging cable connec
-
tor and plug before connecting to the
charger and charging inlet. Connect
-
ing while there is water or dust on the
charging cable connector and plug
may cause a fire or electric shock.
WARNING
僅 Be careful not to touch the charging
connector, charging plug, and the
charging inlet when connecting the
charger connector cable to the
charging outlet and the charging inlet
on the vehicle.
僅 Comply with the following in order to
prevent electrical shock when
charging:
- Use a waterproof charger.
- Do not touch the charging connec
-
tor and charging plug when your
hand is wet, or do not stand in
water or snow when connecting the
charging cable.
-Do not charge when there is light
-
ning and/or potential for lightning.
-Do not charge when the charging
connector and plug is wet.
WARNING
僅 Stop charging when you discover
abnormal symptoms (e.g., smell,
smoke, etc.).
僅 Replace the charging cable if the
cable coating is damaged to prevent
electrical shock.
OCVQ011007L
OCVQ011063N
OCVQ011008L
23
1
1
Electric vehicle guide Charging electric vehicle
僅 When connecting or removing the
charging cable, make sure to hold the
charging connector handle.
僅 Only use the charging cable (if
equipped) certified by Kia. If you use a
separate extension cable such as a
reel or use an uncertified cable, it may
cause abnormalities of electrical out
-
lets, leading to fire or explosion.
僅 If you pull the cable itself (without
using the handle), the internal wires
may be disconnected or get dam
-
aged. This may lead to electric shock
or fire.
僅 Do not leave the vehicle with the
charging door open. An open
charging door may indicate that the
vehicle door has been unlocked and
may be subject to vehicle theft.
CAUTION
僅 Always keep the charging connector
and charging plug in a clean and dry
condition. Be sure to keep the
charging cable in a condition where
there is no water or moisture.
僅 Make sure to use the designated
charger for charging the electric vehi
-
cle. Using any other charger may
cause failure.
僅 Before charging the battery, turn the
vehicle OFF.
僅 When the vehicle is switched OFF
while charging, the cooling fan inside
the motor compartment may auto
-
matically operate. Do not touch the
cooling fan while charging.
僅 Be careful not to drop the charging
connector. The charging connector
can be damaged.
僅 Do NOT use an extension cord, when
using the L1-Portable charger, as this
may overheat and/or cause damage.
NOTICE
When right after charging the high volt
-
age battery, the A/C system will activate
to control the high voltage battery tem
-
perature.
Noise from the A/C compressor is nor
-
mal.
Unlock charging connector in
emergency
If the charging cable does not detach
due to battery discharge and failure of
the electric wires, open the liftgate and
slightly pull the emergency cable on the
right side area as shown above. The
charging connector will then unlock.
AC charge
You can use an AC charger at home or
public charging stations, or the charging
cable provided with your vehicle. (if
equipped)
OCVQ011064_2
OCVQ011018L
Electric vehicle guide
241
Charging electric vehicle
AC Charger
AC charging cable (if equipped)
僅A: Charging plug (Charger)
僅B: Charging connector (Vehicle)
* Shape of charger and how to use the
charger may be different for each
manufacturer.
How to connect AC charger
1. While the brake pedal is pressed,
engage the parking brake.
2. Turn OFF all switches, place the gear
in P (Park), and turn OFF the vehicle.
If you try to charge while the gear is
not placed in P (Park), it will automati
-
cally move to P (Park).
However, charge the battery only
when the gear is placed in P for safety
reasons.
3. Press the charging door to open the
charging door. The charging door
opens only when the vehicle's doors
are unlocked.
CAUTION
If you cannot open the charging door
due to freezing weather, tap lightly or
remove any ice near the charging door.
Do not try to forcibly open the charging
door.
4. Open the charging door and remove
the AC charging inlet cover (1) to
access the AC charging inlet port.
CAUTION
In order to connect the charging connec
-
tor, release the door lock to unlatch the
charging connector lock system.
If not, the charging connector and the
vehicle's charging inlet may be dam
-
aged.
5. Check if there is any dust, foreign
substances, water or moisture on the
charging connector and charging
inlet.
6. Hold the charging connector handle
and connect it to the vehicle AC
charging inlet.
7. Push the connector until you hear a
"clicking" sound. If the charging con
-
nector and charging terminal are not
connected properly or damaged, this
may cause a fire.
* For more information about how to
charge and how to disconnect,
please refer to the manual of each
AC charger.
OCVQ011007L
OCVQ011063
OCVQ013012L
25
1
1
Electric vehicle guide Charging electric vehicle
* The shape of the charging connector
may be different for each manufac
-
turer.
8. Connect the charging plug to the elec
-
tric outlet at an AC charging station to
start charging.
AC Charger
9. Check if the charge indicator lamp In
the instrument cluster is turned ON.
Charging does not occur when the
charging indicator lamp is OFF.
When the charging connector and
charging plug are not connected
properly, reconnect the charging
cable to charge.
NOTICE
僅 You can start charging when the EV
button is in the OFF position and the
gear is in P (Park). After charging has
started, you can use electrical compo
-
nents, such as the radio by pressing
the EV button to the ACC or ON posi
-
tion.
僅 Do not shift out of P (Park) while
charging. If the vehicle is shifted to
other gear, charging stops immedi
-
ately. If you want to start charging
again, place the gear to P (Park) again
or press the EV button to the OFF
position. Unplug and reconnect the
charging cable to start charging
again.
僅 During charging, you cannot move
the gear from P (parking) to other
positions.
10.After charging has started, estimated
charging time, current SOC (State Of
Charge), and charge level in kW. is
displayed, as well as the charge level,
on the instrument cluster for about 1
minute.
A:
Remaining Time
* The remaining charging time in the
LCD image may differ from actual
charging time.
If you open the driver door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.
When scheduled charging is set, the
estimated charging time is displayed
as "--".
If air conditioning/remote air condi
-
tioning control is set, the estimated
time to charge is displayed as "--".
CAUTION
If the charge auto unlock has not been
activated, release the door lock to
unlatch it.
If not, the charging connector and the
vehicle's charging inlet may be dam
-
aged.
OCVQ011007L
OCV042299N
OCV042103N
Electric vehicle guide
261
Charging electric vehicle
NOTICE
Depending on the condition and durabil
-
ity of the high voltage battery, charger
specifications, and ambient tempera
-
ture, the time required for charging the
battery may vary.
Charging connector AUTO/LOCK
mode
When the charging connector and the
charging inlet are connected, you can
choose the mode on the infotainment
system. The charging connector will be
locked at a different time depending on
the selected mode.
For more information, refer to the
"Charging connector lock" on page 1-19.
How to disconnect AC charger
1. When charging is complete, remove
the charging plug from the electrical
outlet.
AC Charger
2. Hold the charging connector handle
(2) and pull it while pressing the
release button (1).
To prevent charging cable theft, the
charging connector cannot be discon
-
nected from the inlet when the vehi
-
cle's doors are locked. Unlock all
doors to disconnect the charging con
-
nector from the inlet.
However, if the vehicle is in the
charging connector AUTO mode, the
charging connector automatically
unlocks from the inlet when charging
is completed.
For more details, refer to "Charging
connector lock" on page 1-19.
CAUTION
In order to disconnect the charging con
-
nector, release the door lock to unlatch
the charging connector lock system.
If not, the charging connector and the
vehicle's charging inlet may be dam
-
aged.
CAUTION
Before disconnecting the charging con
-
nector, make sure the vehicle's doors are
unlocked. When the doors are locked,
the charging connector lock release but
-
ton (1) will not work.
When disconnecting the charging con
-
nector, do not try to disconnect it by
force without pressing the release but
-
ton. This may damage the charging con
-
nector and vehicle charging inlet.
If the charging connector lock does not
unlatch even after the door lock doors
have been unlocked, open the liftgate
and pull the emergency release lever to
disconnect the charging connector. If
this occurs, the charging connector lock
function may have a problem, so have
your vehicle inspected by an authorized
Kia dealer.
3. Make sure to completely close the AC
charging inlet cover.
OCVQ011007L
OCVQ011066
27
1
1
Electric vehicle guide Charging electric vehicle
4. Make sure to completely close the
charging door.
5. Close the protective covers of the
charging connector and the charging
plug to prevent foreign substances
from entering the terminals.
6. Store the charging cable safely in the
storage compartment
How to store and keep the AC
charging cable (if equipped)
Store the charging cable safely in the
storage compartment.
NOTICE
僅 Do not disassemble or modify the
charging Cable (ICCB: In-Cable Con
-
trol Box). Such acts will void your war
-
ranty on the charger.
僅 Always keep the charging connector
and charging plug in a clean and dry
condition. Be sure to keep the
charging cable in a condition where
there is no water or moisture.
僅 When the charging connector or
charging plug is damaged, corroded,
or rusted, or if it feels loose when the
charging connector and charging
plug are connected, do not charge the
vehicle and contact an authorized Kia
dealer.
僅 Please note the following when using
the charging cable.
- Do not pull the cable by excessive
force.
- Do not twist or bend it.
- Do not drag it on the floor.
- Do not place any object on the
cable.
- Do not use an extension cord, when
using the L1-Portable/120VAC char
-
ger.
- Do not place an object that can
generate high temperatures near
the charger.
- Do not drop or subject it to shock or
impact.
- Do not store it with liquids.
For cleaning the charging cable, use only
a soft cloth like gauze and lightly wipe
the surface with water containing a 3%
neutral detergent and remove the water
with a clean cloth.
Dry it in a well-ventilated shade after
wiping off the water. Be careful not to
expose the charging connector and
charging plug to water.
WARNING
Do not disassemble or modify the
charging Cable (ICCB: In-Cable Control
Box). Such acts could result in a fire,
electric shock and injury.
CAUTION
When cleaning the charging cable, do
not use an organic solvent, such as paint
thinner, benzene, alcohol or gasoline.
Doing so may change the color and
damage the charging cable.
When you use a general car cleaner to
clean the charging cable, make sure that
any organic solvent mentioned above is
not included.
OCVQ011067
Electric vehicle guide
281
Charging electric vehicle
DC charge
You can charge at high speed at public
charging stations. Use the charging
cable installed with DC chargers.
DC Charger
* Actual charger appearance and
charging method may vary in accor
-
dance with the charger manufacturer.
* If you use a DC charger when the vehi
-
cle is already fully charged, some DC
chargers will send out an error mes
-
sage. When the vehicle is fully
charged, do not charge the vehicle.
CAUTION
If you cannot open the charging door
due to freezing weather, try again after
removing any ice near the charging
door. If you open it by force, the
charging door may be damaged.
How to connect DC charger
1. While the brake pedal is pressed,
engage the parking brake.
2. Place the gear in P (Park), and turn
OFF the vehicle.
If you try to charge while the gear is
not placed in P (Park), it will automati
-
cally move to P (Park).
However, charge the battery only
when the gear is placed in P (Park) for
safety reasons.
3. Press the charging door to open the
charging door.
You cannot open the charging door
when the vehicle's doors are locked.
4. Open the cover of the charging inlet.
5. Check whether there is dust or foreign
substances inside the charging con
-
nector and charging inlet.
6. Hold the charging handle and connect
it to the vehicle DC charging inlet.
Push the connector until you hear a
"clicking" sound. If the charging con
-
nector and charging terminal are not
connected properly, this may cause a
fire.
* Refer to the manual for each type of
DC charger for how to charge and
remove the charger.
* The shape of the charging connector
may vary depending on the manu
-
facturer.
7. Check if the charger indicator lamp in
the instrument cluster in turned ON.
Charging doesn't start when the
charging indicator lamp is OFF.
When the charging connector is not
connected properly, reconnect the
charging cable to charge it again.
OCVQ011008L
OCVQ013012L
OCV042299N
29
1
1
Electric vehicle guide Charging electric vehicle
NOTICE
僅 Charge your car only when the gear is
placed in P (Park) for safety.
僅 You can start charging when the EV
button is in the OFF position and the
gear is in P (Park).
After charging has started, you can
use electrical components, such as
the radio, by pressing the EV button
to ACC or ON position.
僅 You cannot move the gear other than
P (Park) while charging.
NOTICE
To control the temperature of the high
voltage battery while charging, the air
conditioner is used to cool down the bat
-
tery, which may generate noise from
operation of the air conditioner com
-
pressor and cooling fan.
Also, the air conditioner's performance
may be degraded during the summer
due to operation of the cooling system
for the high voltage battery.
8. After charging has started, the esti
-
mated charging time is displayed on
the instrument cluster for about 1
minute.
A:
Remaining Time
* The remaining charging time in the
LCD image may differ from actual
charging time.
NOTICE
僅 Depending on the condition and dura
-
bility of the high voltage battery, char
-
ger specifications, and ambient
temperature, the time required for
charging the battery may vary.
僅 In rare cases, you might hear high fre
-
quency noise (very little beep sound)
outside the car when charging with
400V fast charger that is deteriorated
or has a long communication delay.
The high frequency noise can be gen
-
erated only when the car tries to
reduce its own electromagnetic waves
to keep fast charging as possible. So,
this noise is normal. Because it is the
intentional operation of the car that
does not affect any charging perfor
-
mance or the vehicle itself at all.
How to disconnect DC charger
1. Remove the charging connector when
DC charging is completed, or after
you stop charging using the DC char
-
ger.
Refer to each respective fast charger
manual for details about how to dis
-
connect the charging connector.
CAUTION
When disconnecting the charging con
-
nector, do not try to disconnect it by
force without pressing the release but
-
ton. This may damage the charging con
-
nector and vehicle charging inlet.
2. Make sure to completely close the DC
charging inlet cover.
3. Make sure to completely close the
charging door.
OCV042104N
Electric vehicle guide
301
Charging electric vehicle
Portable charge (sold separately)
1
Cord & AC plug (Cord set)
2
Control Box
3
Charging Cable and Charging Con
-
nector
This cable is designed to prevent prob
-
lems caused by unexpected battery dis
-
charge and when you use general
outlets. This may lead to excessive elec
-
tricity charges. Refrain from using it to
fully charge your car.
If this cable is connected to a household
power source, it may exceed the capac
-
ity of the outlet (amperage), resulting in
safety problems such as electrical shut
-
down and fire.
NOTICE
Household power source should be a
dedicated 120VAC/15AMP/properly
grounded outlet.
How to set the charge level of the
portable charger (sold sepa
-
rately)
1. Check the outlet's current rating
before connecting the plug to the out
-
let.
2. Connect the power plug to the house
-
hold electrical outlet.
3. Check the status of the control box
display
4. Adjust the charging current by press
-
ing the button (1) on the back of the
control box for more than 1 second.
5. Each time the button (1) is pressed,
the control box display is sequentially
changed to 12 A, 10 A and 8 A.
Once the charging current setting is
complete, start charging (refer to
"Portable charge (sold separately)" on
page 1-30 for more information).
Examples of ICCB charging cur
-
rent setting
Control box display window
OCVQ011020L
Outlet Current ICCB Charge Level
14~16 A 12A
12~13 A 10A
10~11 A 8A
8~9 A 6A
OCVQ011107N
OCVQ011021L
OCVQ011023L
31
1
1
Electric vehicle guide Charging electric vehicle
CAUTION
Please make sure that charge level
selection matches the capacity of your
circuit breaker to avoid blowing a fuse.
NOTICE
(Examples are only for reference and sit
-
uations may vary depending on the sur
-
rounding environment.)
How to connect portable charger
(ICCB: In-Cable Control Box) (sold
separately)
1. Connect the plug to a household elec
-
tric outlet.
NOTICE
僅 If the outlet is aged, damaged or
cracked, do not use it.
僅 Do NOT use an extension cord
between the household electric outlet
and L1-trickle charger, as household
power source should be a dedicated
120VAC/15AMP/properly grounded
outlet.
2. Check if the power lamp (green) on
the control box turns ON.
3. While the brake pedal is pressed,
engage the parking brake.
4. Place the gear in P (Park). If you try to
charge while the gear is not placed in
P (Park), it will automatically move to
P (Park).
However, charge the battery only
when the gear is placed in P for safety
reasons.
* Make sure that the plug is not
loosely put into the outlet. (If it is
loose, it may generate heat.)
5. Press the charging door to open. You
cannot open the charging door when
the vehicle's doors are locked.
CAUTION
If you cannot open the charging door
due to freezing weather, tap lightly or
remove any ice near the charging door.
Do not try to forcibly open the charging
door.
CAUTION
In order to connect the charging connec
-
tor, unlock the vehicle's doors to unlatch
the charging connector lock system.
If not, the charging connector and the
vehicle's charging inlet may be dam
-
aged.
6. Open the charging door and then
open the inlet cover.
7. Open the protective cover of the
charging connector and check if there
OCVQ011107N
OCVQ011024
OCVQ013012L
Electric vehicle guide
321
Charging electric vehicle
is dust on the charging connector and
charging inlet.
8. Hold the charging connector handle
and connect it to the vehicle AC
charging inlet.
9. Push the connector until you hear a
"clicking" sound.
Charging starts automatically and the
charging indicator lamp starts to
blink.
WARNING
If the charging connector and charging
terminal are not connected properly, this
may cause a fire.
10.Check if the charge indicator lamp
(green) in the instrument cluster is
turned ON.
Charging does not occur when the
charging indicator lamp is OFF.
When the charging connector is not
connected properly, reconnect the
charging cable to charge it again.
NOTICE
僅 You can start charging when the EV
button is in the OFF position and the
gear is in P (Park).
After charging has started, you can
use electrical components, such as
the radio, by pressing the EV button
to ACC or ON position.
僅 You cannot move the gear other than
P (Park) while charging. Charging
stops immediately. If you want to start
charging again, place the gear to P
(Park) and press the EV button to the
OFF position. Unplug and reconnect
the charging cable to start charging
again.
僅 During charging, you cannot move
the gear from P (parking) to other
positions.
11.After charging has started, the esti
-
mated charging time is displayed on
the instrument cluster for about 1
minute.
A:
Remaining Time
* The remaining charging time in the
LCD image may differ from actual
charging time.
If you open the driver door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.
When scheduled charging is set, the
estimated charging time is displayed
as "--".
CAUTION
In order to disconnect the charging con
-
nector, release the door lock to unlatch
the charging connector lock system.
OCVQ011024
OCV042299N
OCV042103N
33
1
1
Electric vehicle guide Charging electric vehicle
If not, the charging connector and the
vehicle's charging inlet may be dam
-
aged.
NOTICE
Depending on the condition and durabil
-
ity of the high voltage battery, charger
specifications, and ambient tempera
-
ture, the time required for charging the
battery may vary.
Charging connector AUTO/LOCK
mode
When the charging connector and the
charging inlet are connected, you can
choose the mode on the infotainment
system. The charging connector will be
locked at a different time depending on
the selected mode.
For more information, refer to the
"Charging connector lock" on page 1-19.
Charging status indicator lamp for portable charger
Indicator Details
POWER
On: Power on
CHARGE
On: Charge
Blink: Current limit due to high plug temperature or high internal temperature
FAULT
Blink: Charging interrupted
CHARGE LEVEL
12 12 A
10 10 A
08 8 A
06 6 A
The charging current changes whenever the button (1) is pressed for less than 1 sec with the charger
plugged into an electrical outlet but not the vehicle.
Control box
Error Code Item Cause
E1 Control Pilot communication Vehicle communication error
E2
Leakage
Current leakage
E3 Charger error
E4
Plug temperature
Plug overtemperature warning
E5 Plug temperature failure
E6 Charger error
E7 Overcurrent Charging overcurrent warning
E8
Internal temperature
Charger overheating
E9 Charger error
F1 Relay fusion Charger error
OCVQ011021L
Electric vehicle guide
341
Charging electric vehicle
Status/Diagnosis/Countermea
-
sure
僅 Charging connector plugged into
vehicle (
POWER
Green ON)
僅 Plug connected to an electric outlet
(
POWER
Green ON)
While charging
僅Charge indicator (
POWER
Green ON/
CHARGE
Blue ON)
僅 Charging current
Before plugging charging con
-
nector into vehicle (POWER
Green ON, FAULT Red blink)
僅Abnormal temperature
僅 ICCB (In-Cable Control Box) failure
僅 Contact an authorized Kia dealer.
Plugged into vehicle (POWER
Green ON, FAULT Red Blink)
僅 Diagnostic device failure
僅Current leakage
僅Abnormal temperature
F2 Ground Monitoring/Interrupt Poor grounding of outlet
F3
Switched mode power supply power failure
Switched mode power supply error (voltage failure)
F4 Switched mode power supply error (abnormal voltage)
F5
Control Pilot voltage error
Control Pilot (-) voltage error
F6 Control Pilot (+) voltage error
F7
Temperature sensor error
Plug temperature sensor error
F8 PCB internal temperature sensor error
Error Code Item Cause
OCVQ011024
OCVQ011025
OCVQ011027L
OCVQ011027L
35
1
1
Electric vehicle guide Charging electric vehicle
Leakage current failure (POWER
Green ON, FAULT Red Blink)
僅 Disconnect and reconnect the power
plug to clear the error.
Power saving mode
僅 Charge level indicator is turned off if
there is no status change for more
than 1 minute.
How to disconnect portable
charging cable (ICCB: In-Cable
Control Box) (sold separately)
1. Hold the charging connector handle
(2) and pull it while pressing the
release button (1).
Before disconnecting the charging
connector, make sure the vehicle's
doors are unlocked. When the doors
are locked, the charging connector
lock system will be triggered. And the
charging connector will not be discon
-
nected.
However, in AUTO Mode, the lock is
released automatically when charging
is completed, and you can disconnect
the charging connector.
For more information, refer to the
"Charging connector lock" on page 1-
19.
CAUTION
In order to disconnect the charging con
-
nector, unlock the vehicle's doors to
unlatch the charging connector lock sys
-
tem.
If not, the charging connector and the
vehicle's charging inlet may be dam
-
aged.
CAUTION
When disconnecting the charging con
-
nector, do not try to disconnect it by
force while not pressing the release but
-
ton. This may damage the charging con
-
nector and vehicle charging inlet.
僅If the charging connector lock does
not unlatch even after the vehicle's
doors are unlocked, open the liftgate,
and pull the emergency release lever
to disconnect the charging connector.
If such case occurs, the charging con
-
nector lock function may be defective,
so have your vehicle inspected by an
authorized Kia dealer.
2. Make sure to completely close the AC
charging inlet cover.
OCVQ011028L
OCVQ011029L
OCVQ011066
Electric vehicle guide
361
Charging electric vehicle
3. Make sure to completely close the
charging door.
4. Disconnect the plug from the house
-
hold electric outlet. Do not pull the
cable when disconnecting the plug.
5. Close the protective cover for the
charging connector so that foreign
substances do not flow into the termi
-
nal.
6. Put the charging cable inside the
cable compartment to protect it.
Precautions for portable
charging cable (ICCB: In-Cable
Control Box) (sold separately)
WARNING
僅 Use a portable charging cable that is
certified by Kia.
僅 Do not try to repair, disassemble, or
adjust the portable charging cable.
僅 Do not use an extension cord or
adapter.
僅 Stop using immediately when failure
occurs.
僅 Do not touch the plug and charging
connector with wet hands.
僅 Do not touch the terminal part of the
AC charging connector and the AC
charging inlet on the vehicle.
僅 Do not connect the charging connec
-
tor to voltage that does not comply
with specifications.
WARNING
僅 Do not use the portable charging
cable if it is worn out, exposed, or
there exists any type of damage on
the portable charging cable.
僅 If the ICCB case or AC charging con
-
nector is damaged, cracked, or the
wires are exposed in any way, do not
use the portable charging cable.
僅 Do not let children operate or touch
the portable charging cable.
僅 Charging with a worn out or damaged
household electric outlet can result in
a risk of electric shock. If you are
unsure about the condition of a
household electric outlet have it
checked by licensed electrician and
charge again.
僅 Stop using the portable charging
cable immediately if the household
electric outlet or any components are
overheating or you notice burning
odors.
NOTICE
僅 Keep the control box free of water.
僅 Keep the AC charging connector or
plug terminal free of foreign sub
-
stances.
僅 Do not step on the cable or cord.
僅 Do not pull the cable or cord and do
not twist or bend it. Do not charge
when there is lightning.
OCVQ013012L
OCVQ011108N
37
1
1
Electric vehicle guide Charging electric vehicle
僅 Do not drop the control box or place a
heavy object on the control box.
僅 Do not place an object that can gener
-
ate high temperatures near the char
-
ger when charging.
Electric vehicle guide
381
Charging electric vehicle (Abrupt stop)
Charging electric vehicle (Abrupt stop)
Actions to be taken when charging stops abruptly
When you cannot charge the high voltage battery after connecting the charger,
check the following:
1. Check the charging setting for the vehicle. Refer to "EV Settings" on page 1-13. (e.g.
When scheduled charging is set, charging is not initiated immediately when the AC
charger or portable charger (ICCB: In-Cable Control Box) is connected.)
2. Check the operation status of the AC charger, portable charger and DC charger.
(Refer to "Charging status" on page 1-18.)
* Actual method for indicating the charging status may vary in accordance with the
charger manufacturer.
3. When the vehicle does not charge and a warning message appears on the cluster,
check the corresponding message. Refer to "LCD display messages (Related to
electric vehicle)" on page 1-45.
4. If the vehicle is properly charged when charged with another normally working
charger, contact the charger manufacturer.
5. If the vehicle does not charge when charged with another normally working char
-
ger, contact an authorized Kia dealer for inspection.
6. If charging fails and the service warning light ( ) is lit in the cluster, contact an
authorized Kia dealer.
39
1
1
Electric vehicle guide Driving electric vehicle
Driving electric vehicle
How to start the vehicle
1. With the smart key in the vehicle, sit in
the driver's seat.
2. Fasten the seat belt before starting
the vehicle.
3. Make sure to engage the parking
brake.
4. Make sure to depress and hold the
brake pedal.
5. Make sure the vehicle is in P (Park).
6. Depress and hold the brake pedal
while pressing the EV button.
7. When the
READY
indicator is ON, you
can drive the vehicle. When the
READY
indicator is OFF, you cannot
drive the vehicle. Start the vehicle
again.
Vehicle ON →
READY
(Green)
8. Press and hold the brake pedal and
shift to the desired position.
9. Release the parking brake and slowly
release the brake pedal. Check if the
vehicle moves in the intended direc
-
tion, then depress the accelerator
pedal.
NOTICE
While the charging cable is connected,
the gear cannot be shifted from P (Park)
to any other gear for safety reasons.
How to stop the vehicle
1. Hold down the brake pedal.
2. Shift to P (Park).
3. Engage the parking brake.
4. Press the EV button and turn off the
vehicle.
5. Check if the
READY
indicator is
turned OFF in the instrument cluster.
Vehicle OFF
WARNING
When the
READY
indicator in ON and
the gear is in a position other than P
(Park), the driver can accidentally
depress the accelerator pedal, causing
the vehicle to move unexpectedly.
Virtual Engine Sound System
(VESS)
Virtual Engine Sound System (VESS)
generates an engine sound for pedestri
-
ans to hear the vehicle because there is
no sound while the Electric Vehicle (EV)
is operating.
If the vehicle is in the
READY
mode and
the gear is not in P (Park), the VESS will
operate.
When the gear is shifted to R (Reverse),
an additional warning sound will be
heard.
WARNING
The sound system only plays a supple
-
mentary role. The system is not
designed to and does not replace the
care of drivers. Drivers should always
OCV042156N
OCV042157N
Electric vehicle guide
401
Driving electric vehicle
pay attention to their surroundings while
driving.
WARNING
僅 The vehicle is much quieter while driv
-
ing than a conventional gasoline-pow
-
ered vehicle. Be aware of your
surroundings and always drive safely.
僅 After you park the vehicle or while you
are waiting at a traffic light, check
whether there are children or obsta
-
cles around the vehicle.
僅 Check if there is something behind
the vehicle when driving in reverse.
Pedestrians may not hear the sound
of the vehicle.
Distance to empty
The distance to empty is displayed dif
-
ferently according to the selected drive
mode in the drive mode integrated con
-
trol system.
Impact on distance to empty
僅 Driving range depends on the driving
style, electrical load usage, environ
-
ment, and high voltage battery
energy. Distance to empty displayed
on the vehicle may be higher or lower
than the certification range because
these effects are considered.
僅 Driving style refers to driving speed
and acceleration/deceleration ten
-
dency. The higher the speed, or the
more frequent the acceleration/decel
-
eration, distance to empty will be
reduced.
僅 Electrical loads usage means air con
-
ditioning, heaters, lamps or additional
auxiliary loads, and as the usage
increases, distance to empty will be
reduced.
僅 Environment refers to weather, tem
-
perature, and terrain. Distance to
empty is reduced in cases of snow/
rain/high winds or low temperatures,
uphill or slippery or rough road sur
-
faces.
僅 High voltage battery energy is propor
-
tional to SOC (charge amount), but
may vary depending on the battery
temperature, SOH (State of Health),
etc.
Change of distance to empty
when 100% charging
僅If the distance to empty is lowered
due to learning by the driving style or
the environment in which the vehicle
is used, the driving distance may be
increased again if the vehicle contin
-
ues to drive according to the "driving
tips for improving the driving dis
-
tance". The distance to empty can be
reset at the Kia dealer, but it does not
actually increase the range. There
-
fore, the distance to empty may be
inaccurate until the learning proceeds.
僅 Distance to empty decreases when
the high voltage battery temperature
is low in winter. It is not a permanent
change. If the temperature rises, the
distance to empty is restored.
僅 Reducing the use of electrical loads
increases the range available.
僅 Natural degradation of the high volt
-
age battery occurs depending on the
OCV042421N
41
1
1
Electric vehicle guide Driving electric vehicle
length of use of the vehicle, which
reduces the distance to empty.
Operating tips to improve driving
range.
僅 As electric vehicles speed up, air resis
-
tance increases rapidly. Not speeding
up helps increase driving range.
僅 High driving energy is consumed
during rapid acceleration. Motor
regenerative braking is restricted
during rapid deceleration. Keep the
accelerator pedal position constant
and drive at a constant speed.
僅 Excessive operation of the heater and
air conditioner can increase power
consumption and shorten the driving
range. When setting the temperature
to 72°F (22°C) auto, optimal energy
consumption driving is possible. In
particular, using a heated seat and
reducing air heating in winter is very
helpful. Turn off the heater and air
conditioner when heating and cooling
are not needed.
僅 Selecting recirculation mode con
-
sumes less energy than selecting
fresh mode. In the fresh mode, energy
consumption is large because the out
-
door air must be reheated or cooled.
When driving with the window open,
air resistance increases and heater
and air conditioner usage increases.
Close the window completely while
driving to reduce energy consump
-
tion.
僅 When driving alone, use DRIVER
ONLY mode when using the heater
and air conditioning system.
僅 Always maintain the specified tire
pressure and use tires exclusively for
electric vehicles.
僅 Do not use unnecessary electrical
components while driving.
僅 Do not load unnecessary items in the
vehicle.
僅 Do not mount parts that may increase
air resistance.
ECO Driving
A:
Electric Vehicle
1 ECO Driving
Select
Menu
→
Energy Information
→
Menu
→
EV Economy History
on the
screen. You can check ECO level infor
-
mation and ECO driving history.
Electric Energy Economy History
A:
ECO Driving
1 EV Economy
You can check the driving date, driving
distance, and the average energy con
-
sumption rating for the last 30 driving
trips.
OCV041422L
OCV041423L
Electric vehicle guide
421
Driving electric vehicle
Electricity Use
A:
Electric Vehicle
1 Electricity Use
Select
Menu
→
Electricity Use
on the
screen. You can check the current
energy consumption for each system of
the vehicle.
A:
Energy Consumption
1 Battery Care
: Shows the momentary
power and energy consumption
which are used to:
僅 Operate the battery conditioning
mode to increase the battery tem
-
perature during winter to improve
the driving performance.
僅 Cool down the battery temperature
during summer to prevent over
-
heating of the battery.
2 Electronics
: Shows the power and
energy consumption which are used
by the vehicle systems including the
cluster, infotainment system (speaker
and navigation), headlamp, vehicle
control unit, etc.
3 Climate
: Shows the power and energy
consumption which are used by the
heater or air conditioner.
4 Driveterain
: Shows the total power
and energy consumption of the driv
-
ing motor's driving energy and regen
-
erative energy.
Power/Charge gauge
The Power/Charge gauge shows the
energy consumption rate of the vehicle
and the charge/discharge status of the
regenerative brakes.
僅
PWR
(Power): It shows the energy
consumption rate of the vehicle when
driving uphill or accelerating. The
more electric energy is used, the
higher the gauge level.
僅
CHG
(Charge): It shows the charging
status of the battery when it is being
charged by the regenerative brakes
(decelerating or driving on a downhill
road). The more electric energy is
charged, the lower the gauge level.
State of Charge (SOC) gauge for
high voltage battery
The SOC gauge shows the charging sta
-
tus of the high voltage battery.
The low percentage number on the indi
-
cator indicates that there is a limited
amount of driving range in the high volt
-
age battery. 100% indicates that the
driving battery is fully charged.
OCV041424L
OCV041129L
OCV041130L
OCV042131N
43
1
1
Electric vehicle guide Driving electric vehicle
When driving on highways or motor
-
ways, make sure to check in advance if
the driving battery is charged enough.
When the remaining battery is lower
than 10% (15% for GT) on the SOC
gauge, the warning light ( ) turns ON to
alert you of the battery level.
If the distance to empty is insuffi
-
cient
僅 If the battery warning light is on,
recharge immediately at the nearest
charging station.
僅 Drive efficiently according to Operat
-
ing tips to improve driving range.
Refer to "Operating tips to improve
driving range." on page 1-41.
僅 If the remaining battery is 0%, go to a
safe place and request rescue.
Aux. Battery Saver+ (if equipped)
The Aux. Battery Saver+ is a function
that monitors the charging status of the
12 V auxiliary battery. If the auxiliary bat
-
tery level is low, the main high voltage
battery charges the auxiliary battery.
WARNING
When the function is activating the indi
-
cator lamp will appear and high voltage
electricity will be flowing in the vehicle.
Do not touch the high voltage electric
wire (orange), connector, and all electric
components and devices. This may
cause electric shock and lead to injuries.
Also, do not modify your vehicle in any
way. This may affect your vehicle perfor
-
mance and lead to an accident.
NOTICE
僅 The Aux. Battery Saver+ activates for
a maximum of 20 minutes. If the Aux.
Battery Saver+ function activates
more than 10 times consecutively in
the automatic mode, the function will
deactivate because of a potential
problem with the auxiliary battery. In
this case, drive the vehicle for some
period of time. The function will start
activating if the auxiliary battery
returns to normal.
僅 The Aux. Battery Saver+ function can
-
not prevent battery discharge if the
auxiliary battery is damaged, worn
out, used as a power supply or unau
-
thorized electronic devices are used.
僅 If the Aux. Battery Saver+ function
was activated the high voltage battery
level may have decreased.
Warning and indicator lights
(Related to electric vehicle)
The warning light and indicator light
indicate the situation where the driver
should be careful and whether the vari
-
ous functions are activated.
Ready indicator READY
This indicator appears:
When the vehicle is ready to be driven.
OCV042641N
OCVQ011109N
Electric vehicle guide
441
Driving electric vehicle
僅 ON: Normal driving is possible.
僅 OFF: Normal driving is not possible, or
a problem has occurred.
僅 Blinking: Emergency driving.
When the ready indicator goes OFF or
blinks, there is a problem with the sys
-
tem. In this case, have your vehicle
inspected by an authorized Kia dealer.
Service warning light
This warning light appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When there is a problem with related
parts of the electric vehicle control
system, such as sensors, etc.
When the warning light appears while
driving, or does not go OFF after starting
the vehicle, have your vehicle inspected
by an authorized Kia dealer.
Power down indicator light
This indicator appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When the power is limited for the
safety of the high-powered parts of
an electric vehicle. The power is lim
-
ited for the following reasons. (Unless
both Service Warning Light and
Power Down Indicator Light appear at
the same time, it is not a failure.)
- The high voltage battery level is too
low or voltage is decreasing
- The temperature of the high volt
-
age battery is too high or too low
- The temperature of the motor is
high
NOTICE
Do not accelerate or start the vehicle
suddenly when the Power Down Indica
-
tor Light is ON.
Charge the battery immediately when
the high voltage battery level is insuffi
-
cient.
NOTICE
When the power is limited for the safety
of the high-powered parts of an electric
vehicle, the power down indicator light
appears. Your vehicle may not be driven,
or may roll back on a slope with the indi
-
cator light ON due to the limitation of the
vehicle power.
Charging cable connection indi
-
cator light
This indicator appears:
This indicator appears when the
charging cable is connected.
Regenerative brake warning light
(Red color) (Yellow color)
This warning light appears:
When the regenerative brake does not
operate and the brake does not perform
well. This causes the Brake Warning light
(red) and Regenerative Brake Warning
Light (yellow) to appear simultaneously.
45
1
1
Electric vehicle guide Driving electric vehicle
In this case, drive safely and have the
vehicle inspected by an authorized Kia
dealer.
The operation of the brake pedal may be
more difficult than normal, and the brak
-
ing distance can increase, as it may
default to manual hydraulic mode.
High voltage battery low level
warning light
This warning light appears:
When the high voltage battery level is
low.
When the warning light turns ON,
charge the battery immediately.
LCD display messages (Related to
electric vehicle)
Shift to P to charge
A:
Shift to P to charge
This message is displayed if you connect
the charging cable without the gear in
the P (Park) position.
Shift to P (Park) before connecting the
charging cable.
Low EV battery
A:
Low EV battery
When the high voltage battery level
reaches around 10% (around 15% for GT)
or less, this warning message is dis
-
played.
The warning light on the instrument
cluster ( ) will turn on simultaneously.
Charge the battery immediately.
Charge immediately. Power lim
-
ited
A:
Charge immediately. Power limited
When the high voltage battery level
reaches around 5% or less, this warning
message is displayed.
The warning light on the instrument
cluster ( ) will turn on simultaneously.
The vehicle's power will be reduced to
minimize the energy consumption of the
high voltage battery. Charge the battery
immediately.
OCV041105L
OCV041112L
OCV041519L
Electric vehicle guide
461
Driving electric vehicle
Check electric vehicle system
A:
Check electric vehicle system
This warning message is displayed when
there is a problem with the electric vehi
-
cle control system.
WARNING
Refrain from driving when the warning
message is displayed.
If this occurs, park the vehicle in a safe
location and have your vehicle towed to
the nearest authorized Kia dealer and
have the vehicle inspected.
Power limited
A:
Power limited
In the following cases, this warning mes
-
sage is displayed when the vehicle's
power is limited for safety.
僅 When the power is limited for the
safety of the high-powered parts of
an electric vehicle. The power is lim
-
ited for the following reasons (Unless
both Service Warning Light and
Power Down Indicator Light appear at
the same time, it is not a failure.):
僅 The high voltage battery level is too
low or voltage is decreasing.
僅 The temperature of the high voltage
battery is too high or too low.
僅 The temperature of the motor is high.
WARNING
When this warning message is dis
-
played, do not accelerate or start the
vehicle suddenly. Charge the battery
immediately when the high voltage bat
-
tery level is not enough.
NOTICE
When the power is limited for the safety
of the high-powered parts of an electric
vehicle, the power down indicator light
appears. Your vehicle may not be driven,
or may roll back on a slope with the indi
-
cator light ON.
Power limited due to low EV bat
-
tery temperature. Charge battery
A:
Power limited due to low EV battery
temperature. Charge battery
The warning message is displayed to
protect the electric vehicle system when
you turn off or turn on the vehicle while
outside temperature is low. If the high
voltage battery charging level is low and
parked outside in low temperature for a
long time, vehicle power could be lim
-
ited. Charging the battery before driving
increases the battery temperature, and
helps increase power.
OCV041118L
OCV041113L
OCV041114L
47
1
1
Electric vehicle guide Driving electric vehicle
NOTICE
If this warning message is still displayed
even when the ambient temperature is
sufficiently high, have the vehicle
inspected by an authorized Kia dealer.
EV Battery Overheated! Stop
vehicle
A:
EV Battery Overheated! Stop vehi
-
cle
This warning message is displayed to
protect the battery and electric vehicle
system when the high voltage battery
temperature is too high.
Turn off the EV button and stop the
vehicle so that the battery temperature
decreases.
WARNING
If this warning is still displayed even
after the EV button has been turned off
for sufficient time, refrain from driving
and have the vehicle inspected by an
authorized Kia dealer.
Stop vehicle and check power
supply
A:
Stop vehicle and check power sup
-
ply
This warning message is displayed when
a failure occurs in the 12 V power supply
system.
If this occurs, park the vehicle in a safe
location, tow your vehicle to the nearest
authorized Kia dealer and have the vehi
-
cle inspected.
Unplug vehicle to start
A:
Unplug vehicle to start
This message is displayed when you
start the vehicle, without unplugging the
charging cable and will not shift out of
park. Unplug the charging cable and
then turn on the vehicle.
Charging Door Open
A:
Charging Door Open
This message is displayed when the
vehicle is driven with the charging door
opened. Close the charging door and
then start driving.
OCV041115L
OCV041116L
OCV041106L
OCV041107L
Electric vehicle guide
481
Driving electric vehicle
Remaining Time
A:
Remaining Time
* The remaining charging time in the
LCD image may differ from actual
charging time.
This message is displayed to notify the
remaining time to charge the battery, to
the selected target battery charge level,
and the charge voltage level.
Charging Stopped. Check the AC
charger/Charging Stopped.
Check the DC charger
AC Charge
A:
Charging Stopped. Check the AC
charger
DC Charge
A:
Charging Stopped. Check the DC
charger
This warning message is displayed when
charging is stopped for the reasons
below:
僅 There is a problem with the external
AC charger or DC charger.
僅 The external AC charger stopped
charging
僅 The charging cable is damaged.
If this occurs, check whether there is any
problem with the external AC or DC
charger and charging cable.
If the same problem occurs when
charging the vehicle with a well-func
-
tioning external charger or genuine Kia
portable charger, have your vehicle
inspected by an authorized Kia dealer.
Charging Stopped. Check the
cable connection
A:
Charging Stopped. Check the cable
connection
This warning message is displayed for
the reasons below:
僅 The charging connector is not cor
-
rectly connected to the charging inlet.
僅 The charging connector lock release
button is pressed.
If this occurs, separate the charging con
-
nector and re-connect it.
Check whether there is any problem
(external damage, foreign substances,
etc.) with the charging connector and
charging inlet.
If the same problem occurs when
charging the vehicle with a replaced
OCV042103N
OCV041108L
OCV041109L
OCV041110L
49
1
1
Electric vehicle guide Driving electric vehicle
charging cable or genuine Kia portable
charger, have your vehicle inspected by
an authorized Kia dealer.
Check regenerative brakes
A:
Check regenerative brakes
This warning message is displayed when
the regenerative brake system does not
work properly.
In this case, have your vehicle inspected
by an authorized Kia dealer.
Check Virtual Engine Sound Sys
-
tem
A:
Check Virtual Engine Sound System
This message is displayed when there is
a problem with the Virtual Engine Sound
System (VESS).
In this case, have your vehicle inspected
by an authorized Kia dealer.
Check Active Air Flap System
A:
Check Active Air Flap System
This warning message is displayed in the
following situations:
僅 There is a malfunction with the actua
-
tor flap
僅 There is a malfunction with the actua
-
tor air flap controller
僅 The air flap does not open
In this case, have your vehicle inspected
by an authorized Kia dealer.
Refill coolant
A:
Refill coolant
This message is displayed when the
coolant is low. If the warning message is
displayed, stop driving and check the
amount of coolant. Driving without suffi
-
cient amount of coolant for a prolonged
period of time can cause serious prob
-
lems with the vehicle's electrical equip
-
ment and make normal driving
impossible.
OCV041111L
OCV041117L
OCV041192L
OCV041560L
Electric vehicle guide
501
Safety precautions for electric vehicle
Safety precautions for electric
vehicle
If an accident occurs
WARNING
僅 When a vehicle accident occurs, move
the vehicle to a safe place, turn OFF
the vehicle and remove the auxiliary
battery (12V) terminal to prevent high
voltage electricity from flowing.
僅 If electric wires are exposed from
inside or outside the vehicle, do not
touch the wires.
Also, do not touch the high voltage
electric wire (orange), connector, or
any of the electric components and
devices. This may cause electric shock
and lead to injuries.
WARNING
僅 When a vehicle accident occurs and
the high voltage battery is damaged,
harmful gas and electrolytes may
leak. Be careful not to touch the
leaked liquid.
僅 When you suspect leakage of inflam
-
mable gas and other harmful gases,
open the windows and evacuate to a
safe place. If any leaked fluid comes
in contact with your eyes or skin,
immediately clean the affected area
thoroughly with tap water or saline
solution and seek medical attention as
soon as possible.
WARNING
僅 If a small scale fire occurs, use a fire
extinguisher (ABC, BC) that is meant
for electrical fires. If it is impossible to
extinguish the fire in the early stage,
maintain a safe distance away from
the vehicle and immediately call your
local fire emergency responders. Also,
advise them that an electric vehicle is
involved.
僅 If the fire spreads to the high voltage
battery, large amounts of water is
needed to put out the fire. Using small
amounts of water or fire extinguishers
not meant for electrical fires could
cause serious injury or death from
electrical shocks.
WARNING
僅 If you cannot put out the fire immedi
-
ately, the high voltage battery may
explode. Evacuate to a safe place and
do not let other people approach the
site. Contact the fire department and
notify them of an electric vehicle fire.
僅 If the vehicle is flooded with water,
immediately turn OFF the vehicle and
evacuate to a safe place. Contact the
fire department or an authorized Kia
dealer.
WARNING
OCV061001L_3
51
1
1
Electric vehicle guide Safety precautions for electric vehicle
1
Dollies
僅 If towing is required, lift all four
wheels off the ground and tow the
vehicle.
僅 If you tow the vehicle while the rear
wheels (for 2WD vehicle) or all 4
wheels (for AWD vehicle) are touching
the ground, the vehicle motor may
generate electricity and the motor
components may be damaged or a
fire may occur.
僅When a vehicle fire occurs due to the
battery, there is a risk of a second fire.
Contact the fire department when
towing the vehicle.
Other precautions for electric
vehicle
僅 When you paint, apply heat treatment
to the vehicle as a result of an acci
-
dent, and/or weld on the vehicle, the
performance of the high voltage bat
-
tery can be reduced.
僅 If heat treatment is required, have the
vehicle serviced by an authorized Kia
dealer and have the high voltage bat
-
tery removed, prior to any repairs.
僅 When you clean the motor compart
-
ment, do not use high pressure water
to wash. This may cause an electric
shock due to a discharge in high volt
-
age electricity, or damage the vehi
-
cle's electric system.
僅 Use, modify, or install only genuine
parts or those of an equivalent stan
-
dard. If not, this may damage the
electric power system. Kia Genuine
Parts are guaranteed for quality and
performance.
High voltage cut-off switch
The high voltage cut-off switch is
located in the motor room compartment
fuse box.
Pull the yellow lever in the high voltage
cut-off switch to shut down high voltage
battery.
WARNING
Never disconnect the high voltage cutoff
switch except in an emergency situation.
If the high voltage cutoff switch is dis
-
connected the vehicle will not start.
NOTICE
Applying excessive force to the switch
lever while shutting down the high volt
-
age battery may severely damage the
high voltage cut-off switch.
OCV061002L
OCVQ011031L
2Introduction
Introduction
Vehicle data collection and event data recorders .................... 2-2
Vehicle handling instructions ...................................................... 2-3
Vehicle modifications.................................................................... 2-3
Introduction
22
Vehicle data collection and event data recorders
Introduction
Vehicle data collection and
event data recorders
This vehicle is equipped with an event
data recorder (EDR). The main purpose
of an EDR is to record data to help
understand vehicle performance in a
crash or near crash (such as airbag
deployment, hitting an obstacle, etc.).
The EDR is designed to record data
related to vehicle dynamics and safety
systems for a short period of time, typi
-
cally 30 seconds or less. The EDR in this
vehicle is designed to record such data
as:
僅 How various systems in your vehicle
were operating;
僅 Whether or not the driver and passen
-
ger safety belts were buckled/fas
-
tened;
僅 How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
僅 How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a non-trivial crash situa
-
tion occurs; no data are recorded by the
EDR under normal driving conditions
and no personal data (e.g., name, gen
-
der, age, and crash location) are
recorded. However, other parties, such
as law enforcement, could combine the
EDR data with the type of personally
identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, spe
-
cial equipment is required, and access to
the vehicle or the EDR is needed. In addi
-
tion to the vehicle manufacturer, other
parties, such as law enforcement, that
have the special equipment, can read
the information if they have access to
the vehicle or the EDR.
3
2
2
Introduction Vehicle handling instructions
Vehicle handling instructions
As with As with all vehicles of this type,
failure to operate this vehicle correctly
may result in loss of control, an accident
or vehicle rollover.
Specific design characteristics (higher
ground clearance, track, etc.) give this
vehicle a higher center of gravity than
other types of vehicles. In other words
they are not designed for cornering at
the same speeds as conventional 2-
wheel drive vehicles. Avoid sharp turns
or abrupt maneuvers. Again, failure to
operate this vehicle correctly may result
in loss of control, an accident or vehicle
rollover. Be sure to read the “Reducing
the risk of a rollover” driving guidelines
in chapter 6 of this manual.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could affect
its performance, safety or durability and
may even violate governmental safety
and emissions regulations.
NOTICE
Damage or performance problems
resulting from any modification may not
be covered under warranty.
WARNING
If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage, bat
-
tery discharge and fire. For your safety,
do not use unauthorized electronic
devices.
3Your vehicle at a glance
Your vehicle at a glance
Exterior overview .......................................................................... 3-2
Interior overview ...........................................................................3-8
Instrument panel overview ........................................................ 3-10
Motor room compartment.......................................................... 3-12
Your vehicle at a glance
23
Exterior overview
Your vehicle at a glance
Exterior overview
Front view
OCV012001N
3
3
3
Your vehicle at a glance Exterior overview
Front view (GT-Line)
OCV013005N
Your vehicle at a glance
43
Exterior overview
Front view (GT)
* The actual appearance may differ from the illustration. Not all equipment is
included in all vehicles.
1. Hood 5-38
2. Head lamp 5-85, 9-43
3. Wheel and tire 9-19, 10-4
4. Outside rearview mirror 5-57
5. Wide sunroof 5-42
6. Front windshield wiper blades 5-90, 9-15
7. Windows 5-34
8. Front ultrasonic sensor 7-113, 7-125
9. Front radar 7-4
10.Front view camera 7-4
OCVGT012005N
5
3
3
Your vehicle at a glance Exterior overview
Rear view
OCV011002N
Your vehicle at a glance
63
Exterior overview
Rear view (GT-Line)
OCV013006L
7
3
3
Your vehicle at a glance Exterior overview
Rear view (GT)
* The actual appearance may differ from the illustration. Not all equipment is
included in all vehicles.
1. Doors 5-14
2. Charging door 5-41
3. Rear combination lamp 9-43
4. High mounted stop lamp 9-43
5. Liftgate 5-25
6. Antenna 5-121
7. Wide-rear view camera 7-95, 7-98
8. Rear ultrasonic sensor 7-110, 7-113
9. Backup lamp 9-43
OCVGT013002L
Your vehicle at a glance
83
Interior overview
Interior overview
* The actual appearance may differ from the illustration. Not all equipment is
included in all vehicles.
1. Inside door handle 5-18
2. Driver position memory system (Except for GT) 5-23
3. Outside rearview mirror folding switch 5-57
4. Outside rearview mirror control switch 5-57
5. Central door lock/unlock switch 5-18
6. Power window switches 5-35
7. Power window lock/Electronic power child safety lock button 5-21, 5-36
8. Steering wheel tilt/telescopic lever 5-46
9. Steering wheel 5-45
10.Instrument panel illumination control button 5-61
11.Charging door open/close button 5-41
12.ESC OFF button 6-30
13.Power liftgate open/close button 5-28
OCV011003N
9
3
3
Your vehicle at a glance Interior overview
14.EPB switch 6-22
15.Hood release lever 5-38
16.Instrument panel fuse 9-32
17.Seat 4-5
18.Reduction gear (shifter dial) 6-7
Your vehicle at a glance
103
Instrument panel overview
Instrument panel overview
* The actual appearance may differ from the illustration. Not all equipment is
included in all vehicles.
1. Audio remote control button
2. Driver's front air bag 4-41
3. Horn 5-47
4. Driving Assist button 7-23, 7-61
5. Instrument cluster 5-60
6. Light control/turn signals lever (Left) 5-86
Wiper and washer control lever (Right) 5-90
7. EV button 6-4
8. Infotainment system 5-121
9. Hazard warning flasher switch 8-2
10.Infotainment/climate switchable controller 5-121
11.Front seat warmer/air ventilation seat button 5-113, 5-114
12.Glove box 5-112
OCV011004N_2
11
3
3
Your vehicle at a glance Instrument panel overview
13.Steering wheel heater button 5-47
14.AUTO HOLD button 6-26
15.Parking/View button 7-95, 7-98, 7-125
16.Parking Safety button 7-98, 7-125
17.Wireless charging system 5-116
18.Center console storage box 5-111
19.Passenger's front air bag 4-41
Your vehicle at a glance
123
Motor room compartment
Motor room compartment
* The actual appearance may differ from the illustration. Not all equipment is
included in all vehicles.
1. Coolant reservoir 9-11
2. Brake fluid reservoir 9-12
3. Windshield washer fluid reservoir 9-13
4. Fuse box 9-32
5. Negative battery terminal (-) 8-4, 9-17
6. Positive battery terminal (+) 8-4, 9-17
7. Front trunk 5-39
OCV071001L
4Safety features of your vehicle
Safety features of your ve hicle
Important safety precautions ......................................................4-3
Seat..................................................................................................4-5
僅 Feature of seat leather .................................................................................. 4-7
僅 Infotainment system.......................................................................................4-8
僅 Front seat adjustment for manual seat..................................................4-8
僅 Front seat adjustment for power seat ....................................................4-9
僅 Seatback pocket.............................................................................................4-10
僅 Folding the rear seat......................................................................................4-11
僅 Headrest (for front seat) ............................................................................. 4-13
僅 Headrest (for rear seat)............................................................................... 4-15
僅 Armrest............................................................................................................... 4-16
Seat belts ...................................................................................... 4-17
僅 Seat belt restraint system........................................................................... 4-17
僅 Seat belt warning light.................................................................................4-18
僅 Seat belt - driver's 3-point system with emergency locking
retractor ..............................................................................................................4-18
僅 Seat belts - front passenger and rear seat 3-point system with
combination locking retractor.................................................................. 4-20
僅 Pre-tensioner seat belt ................................................................................ 4-21
僅 Seat belt precautions....................................................................................4-22
僅 Care of seat belts .......................................................................................... 4-24
Child Restraint System (CRS).....................................................4-25
僅 Children always in the rear........................................................................4-25
僅 Selecting a Child Restraint System (CRS) ...........................................4-26
僅 Installing a Child Restraint System (CRS)............................................4-27
Air bag - advanced supplemental restraint system................4-32
僅 How does the air bag system operate?................................................4-33
僅 Do not install a child restraint on the front passenger's seat....4-34
僅 Air bag warning light ................................................................................... 4-34
僅 Supplemental Restraint System (SRS) components and
functions.............................................................................................................4-35
4 Safety features of your vehicle
僅 Occupant Detection System (ODS)........................................................4-36
僅 Driver's and passenger's front air bag ................................................. 4-41
僅 Side air bag.......................................................................................................4-43
僅 Curtain air bag ............................................................................................... 4-44
僅 Air bag collision sensors ............................................................................ 4-46
僅 Why didn't my air bag go off in a collision? (Inflation and non-infla-
tion conditions of the air bag)...................................................................4-47
僅 Supplemental Restraint System (SRS) care ...................................... 4-49
僅 Adding equipment to or modifying your air bag-equipped
vehicle................................................................................................................. 4-49
僅 Air bag warning label .................................................................................. 4-50
3
4
4
Safety features of your vehicle Important safety precautions
Safety features of your
vehicle
Important safety precautions
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always wear your seat belt
A seat belt is your best protection in all
types of accidents. Air bags are
designed to supplement seat belts, not
replace them. So even though your vehi
-
cle is equipped with air bags, ALWAYS
make sure you and your passengers
always wear their seat belts, and wear
them properly.
Restrain all children
All children under age 13 should ride in
your vehicle properly restrained in a rear
seat, not the front seat. Infants and small
children should be restrained in an
appropriate child restraint. Larger chil
-
dren should use a booster seat with the
lap/shoulder belt until they can use the
seat belt properly without a booster seat.
Air bag hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and shorter adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using cellular phones.
Drivers can become distracted when
they take their eyes and attention off the
road or their hands off the wheel to
focus on activities other than driving. To
reduce your risk of distraction or getting
into an accident:
僅 ALWAYS set up your mobile devices
(i.e., MP3 players, phones, navigation
units, etc.) when your vehicle is
parked or safely stopped.
僅 ONLY use your mobile device when
allowed by laws and when conditions
permit safe use. NEVER text or email
while driving. Most states have laws
prohibiting drivers from texting. Some
states and cities also prohibit drivers
from using handheld phones.
僅 NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control your speed
Excessive speed is a major factor in
crash injuries and deaths. Generally, the
higher the speed, the greater the risk,
but serious injuries can also occur at
lower speeds. Never drive faster than is
safe for current conditions, regardless of
the maximum speed posted.
Safety features of your vehicle
44
Important safety precautions
Keep your vehicle in safe condi
-
tion
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
5
4
4
Safety features of your vehicle Seat
Seat
The following explains name, feature and adjustment of each seat.
Front seat
1
Forward and backward
2
Seatback angle
3
Seat cushion height
4
Seat cushion tilt
5
Lumbar support (if equipped)
6
Driver position memory system (if
equipped)
7
Headrest
Rear seat
8
Seatback angle/folding
9
Seatback folding
10
Headrest
11
Armrest
OCV031100N_7
Safety features of your vehicle
64
Seat
WARNING
Loose Objects
Do not place anything in the driver's
footwell or under the front seats. Loose
objects in the driver's foot area could
interfere with the operation of the foot
pedals.
WARNING
Uprighting Seat
Do not press the release lever on a man
-
ual seatback without holding and con
-
trolling the seatback. The seatback will
spring upright possibly impacting you or
other passengers.
WARNING
Driver Responsibility for Passengers
The driver must advise the passengers
to keep the seatback in an upright posi
-
tion whenever the vehicle is in motion. If
a seat is reclined during an accident, the
restraint system's ability to restrain will
be greatly reduced.
WARNING
Seat Cushion
Occupants should never sit on aftermar
-
ket seat cushions or sitting cushions. The
passenger Occupant Detection System
(ODS) may not operate properly, or pas
-
senger's hips may slide under the lap
portion of the seat belt during an acci
-
dent or a sudden stop.
WARNING
Driver's Seat
僅 Never attempt to adjust the seat while
the vehicle is moving. This could result
in loss of control of your vehicle.
僅 Do not allow anything to interfere with
the normal position of the seatback.
Storing items against the seatback
could result in serious or fatal injury in
a sudden stop or collision.
僅 Sit as far back as possible from the
steering wheel while still maintaining
comfortable control of the your vehi
-
cle. A distance of at least 10 inches (25
cm) from your chest to the steering
wheel is recommended. Failure to do
so can result in air bag inflation inju
-
ries to the driver.
WARNING
Rear Seatbacks
Always lock the rear seatback before
driving. Failure to do so could result in
passengers or objects being thrown for
-
ward injuring vehicle occupants.
WARNING
Unexpected Seat Movement
After adjusting a manual seat, always
check that it is locked by shifting your
weight to the front and back. Sudden or
unexpected movement of the driver's
seat could cause you to lose control of
the vehicle.
WARNING
Seat Adjustment
OCV031071
7
4
4
Safety features of your vehicle Seat
僅 Do not adjust the seat while wearing
seat belts. Moving the seat forward
will cause strong pressure on the
abdomen.
僅 Do not place your hand near the seat
bottom or seat track while adjusting
the seat. Your hand could get caught
in the seat mechanism.
WARNING
Luggage and Cargo
Do not stock pile or stack luggage or
cargo higher than the seatback in the
cargo area. In an accident the cargo
could strike and injure a passenger. If
objects are large, heavy or must be
piled, they must be secured in the cargo
area.
WARNING
Cargo Area
Do not allow passengers to ride in the
cargo area under any circumstance. The
cargo area is solely for the purpose of
transporting luggage or cargo.
WARNING
Small Objects
Use extreme caution when picking up
small objects trapped under the seats or
between the seat and the center con
-
sole. Your hands might be cut or injured
by the sharp edges of the seats mecha
-
nism.
WARNING
Seat Short Circuit Risk
Be aware of wires or air vents when
placing a seat cover or covering the seat
with plastic cover. A short circuit may
occur, which could lead to fire.
CAUTION
Precautions with Seat Covers
Use caution when working on the seat
cover. A short circuit or disconnection
may occur, which could lead to noise or
damage the ventilation system.
Feature of seat leather (if
equipped)
僅 Our car seats are upholstered with a
combination of artificial and genuine
leather. The genuine leather is made
from the outer skin of an animal,
which goes through a special process
to be available for use. Since it is a
natural substance, each part differs in
thickness or density. Also, wrinkles
could appear depending on the tem
-
perature and humidity.
僅 The seat cover is made of stretchable
material to improve comfort of pas
-
sengers.
僅 The parts contacting the body are
curved and the side supporting area is
high which provides driving comfort
and stability.
僅 Wrinkles may appear naturally from
usage. It is not a fault of the product.
CAUTION
僅 Belts with metallic accessories, zip
-
pers or keys inside the back pocket
may damage the seat fabric.
僅 Make sure not to wet the seat. It may
change the leather.
僅 Jeans or clothes which could bleach
may contaminate the surface of the
seat covering fabric.
Safety features of your vehicle
84
Seat
NOTICE
Wrinkles or abrasions may appear natu
-
rally from usage. It is not a fault of prod
-
uct. Wrinkles or abrasions are not
covered by warranty.
Infotainment system
Select
Setup
→
Vehicle
→
Seat
from
the Settings menu in the infotainment
system screen, you may use various
convenience functions.
僅
Seat Position Change Alert
: When
the seat position changes, details of
the change are shown with a seat
image.
僅
Seat Easy Access
-
Driver Seat Easy Access
(
Normal
/
Extended
/
Off
) the seat automati
-
cally moves when the driver enters
or leaves the vehicle may be
selected.
For detailed information, refer to the
separately supplied infotainment system
manual.
NOTICE
The information provided may differ
according to which functions are appli
-
cable to your vehicle.
Front seat adjustment for man
-
ual seat (if equipped)
The front seat can be adjusted by using
the control levers located on the outside
of the seat cushion.
Forward and backward (1)
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is
not locked properly.
To move the seat forward or backward:
1. Pull the seat slide adjustment lever up
and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure the
seat is locked in place.
OCV041523N
OCV031002L
OCVGT032002L
9
4
4
Safety features of your vehicle Seat
Seatback angle (2)
To recline the seatback:
1. Lean forward slightly and lift up the
seatback recline lever.
2. Carefully lean back on the seat and
adjust the seatback of the seat to the
position you desire.
3. Release the lever and make sure the
seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
WARNING
Reclining Seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts and/
or air bags) are greatly reduced by
reclining your seatback.
Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead, it
will be in front of you. During an acci
-
dent, you could be thrown into the seat
belt, causing neck or other injuries.
The more the seatback is reclined, the
greater chance the passenger's hips will
slide under the lap belt or the passen
-
ger's neck will strike the shoulder belt.
Seat height (3)
To change the height of the seat, push
the lever upwards or downwards.
僅 To lower the seat cushion, push the
lever down several times.
僅 To raise the seat cushion, pull the
lever up several times.
Front seat adjustment for power
seat (if equipped)
The front seat can be adjusted by using
the control switches located on the out
-
side of the seat cushion.
Before driving, adjust the seat to the
proper position so you can easily control
the steering wheel, pedals and switches
on the instrument panel.
Forward and backward (1)
To move the seat forward or backward:
僅 Push the control switch forward or
backward to move the seat to the
desired position. Release the switch
once the seat reaches the desired
position.
OCV031003N_2
OCV031120N_2
Safety features of your vehicle
104
Seat
Seatback angle (2)
To recline the seatback:
僅 Push the control switch forward or
backward to move the seatback to the
desired angle. Release the switch
once the seat reaches the desired
position.
Seat height/tilt (3)
To change the height of the seat:
僅 Pull the front portion of the control
switch up to raise or press down to
lower the front part of the seat cush
-
ion. Pull the rear portion of the control
switch up to raise or press down to
lower the seat cushion. Release the
switch once the seat reaches the
desired position.
Lumbar support for driver's seat
(if equipped)
The lumbar support can be adjusted by
pressing the lumbar support switch on
the side of the seat.
1. Press the front portion of the switch
(1) to increase support, or the rear
portion of the switch (2) to decrease
support.
2. Release the switch once it reaches the
desired position.
Seatback pocket (if equipped)
There is a pocket (1) in the front seat
back for storing simple books or atlases,
and USB charger (2) (if equipped) for
rear passengers.
WARNING
Seatback Pockets
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure vehicle occupants.
OCV031121N_2
OCV031122N_2
OCV031004N_2
OCV031101L
11
4
4
Safety features of your vehicle Seat
Folding the rear seat
The rear seatbacks may be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
WARNING
Folded Seatback
The purpose of the fold-down rear seat
-
backs is to allow you to carry larger
objects that could not otherwise be
accommodated.
僅 Never allow a passenger to sit on top
of the folded down seatback while the
car is moving. This is not a proper
seating position since no seat belts
are available for use.
僅 To reduce the risk of injury caused by
sliding cargo within the passenger
compartment of the vehicle, objects
carried on the folded down seatback
should not extend higher than the top
of the front seats.
Folding down the rear seatback
1. Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
2. Lower the rear headrests to the lowest
position by pressing the headrest
release button (1) while pulling the
headrest down (2).
WARNING
Objects
Objects carried on the folded down seat
-
back should not extend higher than the
top of the front seatbacks. This could
allow cargo to slide forward and cause
injury or damage during sudden stops.
3. Route the seat belt webbing to the
outboard of the rear seat to prevent
the belts from being trapped behind
or under the seats.
4. Pull on the seatback folding lever,
then fold the seat toward the front of
the vehicle. When you return the seat
-
back to its upright position, always be
sure it has locked into position by
pushing on the top of the seatback.
OCV031110N
OCV031112N
Safety features of your vehicle
124
Seat
5. To use the rear seat, lift and unfold
the seatback to the upright position
by pulling up the folding lever. Push
the seatback firmly until it clicks into
place. Make sure the seatback is
locked in place.
6. Return the rear seat belt to the proper
position.
WARNING
Uprighting Seat
When you return the seatback to its
upright position, hold the seatback and
return it slowly. If the seatback is
returned without holding it, the back of
the seat could spring forward, resulting
in injury caused by being struck by the
seatback.
WARNING
Rear Seatback
To ensure maximum protection in the
event of an accident or sudden stop,
when returning the rear seat to the
upright position:
僅 Be careful not to damage the seat belt
webbing or buckle.
僅 Do not allow the seat belt webbing or
buckle to become pinched or caught
in the rear seat.
僅 Ensure the seatback is completely
locked into its upright position by
pushing on the top of the seatback.
Failure to adhere to any of these
instructions could result in serious
injury or death in the event of a crash.
WARNING
Unless the driver's position is properly
set according to the driver's physical
size, do not fold the rear seat. It may
increase bodily injuries in a sudden stop
or collision.
WARNING
Cargo
Cargo should always be secured to pre
-
vent it from being thrown about the
vehicle in a collision and causing injury
to the vehicle occupants. Do not place
objects in the rear seats, since they can
-
not be properly secured and may hit the
front seat occupants in a collision.
CAUTION
Damaging Rear Seat Belt Buckles
When you fold the rear seatback, insert
the buckle between the rear seatback
and cushion. Doing so can prevent the
buckle from being damaged by the rear
seatback.
CAUTION
Rear Seat Belts
When returning the rear seatbacks to
the upright position, remember to return
OCV031009L
OCV031113N
13
4
4
Safety features of your vehicle Seat
the rear shoulder belts to their proper
position.
CAUTION
Be careful when loading cargo through
the rear passenger seats to prevent
damage to the vehicle interior.
Seatback remote folding
Pull the rear seatback folding switch (1,
2) located on both sides of the cargo
area.
WARNING
Rear Seat Folding
Do not fold the rear seats, if passengers,
pets or luggage are in the rear seats. It
may cause injury or damage to passen
-
gers, pets, luggage.
Cargo Loading
Make sure the vehicle is off, the shifter
dial is in P (Park) and the parking brake
is securely applied whenever loading or
unloading cargo. Failure to take these
steps may allow the vehicle to move if
the shifter dial is inadvertently moved to
another position.
Headrest (for front seat)
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps protect the head and neck in
the event of a rear collision.
For maximum effectiveness in case of
an accident, the headrest should be
adjusted so the middle of the headrest is
at the same height of the center of grav
-
ity of an occupant's head. Generally, the
center of gravity of most people's head
is similar with the height of the top of
their eyes.
Also, adjust the headrest as close to your
head as possible. For this reason, the use
of a cushion that holds the body away
from the seatback is not recommended.
WARNING
Headrest Removal/Adjustment
僅 Do not operate the vehicle with the
headrests removed. Headrests can
provide critical neck and head sup
-
port in a crash.
僅 Do not adjust the headrest height
while the vehicle is in motion. Driver
may lose control of the vehicle.
CAUTION
Excessive pulling or pushing may dam
-
age the headrest.
OCV031010L_2
OCV031106N
Safety features of your vehicle
144
Seat
Adjusting the height up and
down (if equipped)
僅 Pull it up to the desired position (1).
僅 To lower the headrest, push and hold
the release button (2) on the headrest
support.
僅 Lower the headrest to the desired
position (3).
Adjusting the headrest forward
and backward (if equipped)
Operation
僅 Pull the headrest fully forward and
release it.
INFORMATION
The headrest may be adjusted forward
to 3 different positions by pulling the
headrest forward.
NOTICE
If you fold the seatback towards the
front with the headrest and seat cushion
raised, the headrest may come in con
-
tact with the sun visor or other parts of
the vehicle.
Removing headrest
Type A
Type B
To remove the headrest:
1. Recline the seatback (2) with the
recline lever or switch (1).
2. Raise headrest as far as it can go.
3. Press the headrest release button (3)
while pulling the headrest up (4).
OCV031012N
OCV031013L
OCV031061L
OCV031102N_3
OCV031103N_3
15
4
4
Safety features of your vehicle Seat
WARNING
Headrest Removal
NEVER allow anyone to ride in a seat
with the headrest removed or reversed.
Headrests can provide critical neck and
head support in a crash.
Reinstalling headrest
Type A
Type B
To reinstall the headrest:
1. Put the headrest poles (2) into the
holes while pressing the release but
-
ton (1).
2. Recline the seatback (4) with the
recline lever or switch (3).
3. Adjust the headrest to the appropriate
height.
WARNING
Headrest Reinstallation
To reduce the risk of injury to the head
or neck, always make sure the headrest
is locked into position and adjusted
properly after reinstalling.
Headrest (for rear seat)
The rear seat is equipped with headrests
in all the seating positions for the occu
-
pant's safety and comfort.
The headrest not only provides comfort
for passengers, but also helps protect
the head and neck in the event of a colli
-
sion.
For maximum effectiveness in case of
an accident, the headrest should be
adjusted so the middle of the headrest is
at the same height of the center of grav
-
ity of an occupant's head. Generally, the
center of gravity of most people's heads
is similar with the height as the top of
their eyes.
Also, adjust the headrest as close to your
head as possible. For this reason, the use
of a cushion that holds the body away
from the seatback is not recommended.
OCV031104N_3
OCV031105N_3
OCV031107N
Safety features of your vehicle
164
Seat
Adjusting the height up and
down
僅 To raise the headrest, pull it up to the
desired position (1).
僅 To lower the headrest, push and hold
the release button (2) on the headrest
support and lower the headrest to the
desired position (3).
Removal and reinstallation
僅 To remove the headrest, raise it as far
as it can go then press the release
button (1) while pulling the headrest
upward (2).
僅 To reinstall the headrest, put the
headrest poles (3) into the holes while
pressing the release button (1).
僅 Then adjust it to the appropriate
height and ensure that it locks in posi
-
tion.
Armrest
To use the armrest, pull it forward from
the seatback.
僅 Slide the cover outwards to use the
cup holder.
僅 Slide the cover inwards to use the
storage area.
OCV031108N
OCV031109N_2
OCV031015L
17
4
4
Safety features of your vehicle Seat belts
Seat belts
The following explains seat belts precau
-
tions and how to fasten seat belts.
Seat belt restraint system
For maximum restraint system protec
-
tion, the seat belts must always be used
whenever the vehicle is moving.
僅A properly positioned shoulder belt
should be positioned midway over
your shoulder across your collarbone.
僅 Never allow children to ride in the
front passenger seat. See "Child
Restraint System (CRS)" on page 4-25
for further discussion.
WARNING
Twisted Seat Belt
Make sure your seat belt is not twisted
when worn. A twisted seat belt may not
properly protect you in an accident and
could even cut into your body.
WARNING
Shoulder Belt
僅 Never wear the shoulder belt under
your arm or behind your back. An
improperly positioned shoulder belt
cannot protect the occupant in a
crash.
僅 Always wear both the shoulder por
-
tion and lap portion of the lap/shoul
-
der belt.
WARNING
Damaged Seat Belt
Replace the entire seat belt assembly if
any part of the webbing or hardware is
damaged, as you can no longer be sure
that a damaged seat belt will provide
protection in a crash.
Seat belts are designed to bear upon the
bony structure of the body, and should
be worn low across the front of the pel
-
vis, chest and shoulders, as applicable;
wearing the lap section of the belt across
the abdominal area must be avoided.
Seat belts should be adjusted as firmly
as possible, consistent with comfort, to
provide the protection for which they
have been designed.
A slack belt will greatly reduce the pro
-
tection afforded to the wearer.
Care should be taken to avoid contami
-
nation of the webbing with polishes, oils
and chemicals, and particularly battery
acid. Cleaning may safely be carried out
using mild soap and water. The belt
should be replaced if webbing becomes
frayed, contaminated or damaged.
僅 No modifications or additions should
be made by the user which would
either prevent the seat belt adjusting
devices from operating to remove
slack, or prevent the seat belt assem
-
bly from being adjusted to remove
slack.
僅 When you fasten the seat belt, be
careful not to latch the seat belt in
buckles of other seats. It is very dan
-
gerous and you may not be protected
by the seat belt properly.
僅 Do not unfasten the seat belt and do
not fasten and unfasten the seat belt
repeatedly while driving. This could
result in loss of control, and an acci
-
dent causing death, serious injury, or
property damage.
僅 When fastening the seat belt, make
sure that the seat belt does not pass
over objects that are hard or can
break easily.
Safety features of your vehicle
184
Seat belts
WARNING
Seat Belt Buckle
Do not allow foreign material (gum,
crumbs, coins, liquids, etc.) to obstruct
the seat belt buckle. This may prevent
the seat belt from fastening securely.
Seat belt warning light
Driver's seat belt warning
As a reminder to the driver, the seat belt
warning light will appear for approxi
-
mately 6 seconds each time the EV but
-
ton is in ON regardless of belt fastening.
If the driver continues not to fasten the
seat belt, the warning light will stay on
and the warning chime will sound for
approximately 6 seconds until the belt is
fastened each time the EV button is in
ON. This will happen every time the EV
button is in ON.
If a driver continues not to fasten the
seat belt and drives 6 mph (9 km/h) or
more but less than 12 mph (20 km/h),
the warning light will stay on. If a driver
unfastens the seat belt while driving
below 12 mph (20 km/h), the warning
light will stay on.
If a driver continues not to fasten the
seat belt while driving over 12 mph (20
km/h), the seat belt warning chime will
sound for approximately 100 seconds
and the corresponding warning light will
blink.
Front passenger's seat belt warn
-
ing
As a reminder to the front passenger,
the seat belt warning light will appear for
approximately 6 seconds each time the
EV button is in ON regardless of belt fas
-
tening. If the front passenger continues
not to fasten the seat belt, the warning
light will stay on until the belt is fastened
each time EV button is in ON.
If a front passenger continues not to fas
-
ten the seat belt and the vehicle is driven
6 mph (9 km/h) or more but less than 12
mph (20 km/h), the warning light will
stay on.
If a front passenger unfastens the seat
belt while the vehicle is driven below 12
mph (20 km/h), the warning light will
stay on.
If a front passenger continues not to fas
-
ten the seat belt while the vehicle is
driven over 12 mph (20 km/h), the seat
belt warning chime will sound for
approximately 100 seconds and the cor
-
responding warning light will blink.
NOTICE
僅 Even if the front passenger seat is not
occupied, the seat belt warning light
will appear for 6 seconds.
僅 The front passenger's seat belt warn
-
ing may operate when luggage is
placed on the front passenger seat.
Seat belt - driver's 3-point system
with emergency locking retractor
The following explains how to fasten and
adjust the driver's seat belt.
OCV031017
19
4
4
Safety features of your vehicle Seat belts
Fastening the seat belt
僅 Pull it out of the retractor and insert
the metal tab (1) into the buckle (2).
There will be an audible "click" when
the tab locks into the buckle.
You should place the lap belt portion as
low as possible and snugly across your
hips. If the lap belt is located too high on
your waist, it may increase the chance of
injury in the event of a collision.
The arm closest to the seat belt buckle
should be over the belt while the other
arm should be under the belt as shown
in the illustration. Never wear the seat
belt under the arm closest to the door.
The seat belt automatically adjusts to
the proper length only after the lap belt
portion is adjusted manually so that it
fits snugly around your hips. If you lean
forward in a slow, easy motion, the belt
will extend and let you move around. If
there is a sudden stop or impact, how
-
ever, the belt will lock into position. It will
also lock if you try to lean forward too
quickly.
NOTICE
If you are not able to pull out the seat
belt from the retractor, firmly pull the
belt out and release it. Then you will be
able to pull the belt out smoothly.
Height adjustment
You can adjust the height of the shoul
-
der belt anchor to one of the 4 positions
for maximum comfort and safety.
The height of the adjusting seat belt
should not be too close to your neck.
The shoulder portion should be adjusted
so that it lies across your chest and mid
-
way over your shoulder near the door
and not your neck.
To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.
僅 To raise the height adjuster, pull it up
(1).
僅 To lower it, push it down (3) while
pressing the height adjuster button
(2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has locked
into position.
Improperly positioned seat belts can
cause serious injuries in an accident.
WARNING
Shoulder Belt Positioning
Verify the shoulder belt anchor is locked
into position at the appropriate height.
Never position the shoulder belt across
your neck or face. Improperly positioned
OCV031125N
OCV031076
OCV031021L_2
Safety features of your vehicle
204
Seat belts
seat belts can cause serious injuries in
an accident.
WARNING
Seat Belt Replacement
After a collision, the seat belt system
should be inspected to ensure it is oper
-
ating normally. Replace any belts that
are not functioning appropriately.
Seat belts - front passenger and
rear seat 3-point system with
combination locking retractor
The following explains how to fasten the
passenger's and rear seat belt.
Fastening the seat belt
Combination retractor type seat belts
are installed in the rear seat positions to
help accommodate the installation of
child restraint systems. Although a com
-
bination retractor is also installed in the
front passenger seat position, it is
strongly recommended that children
always be seated in the rear seat. NEVER
place any infant restraint system in the
front seat of the vehicle.
This type of seat belt combines the fea
-
tures of both an emergency locking
retractor seat belt and an automatic
locking retractor seat belt.
僅 Pull it out of the retractor and insert
the metal tab into the buckle. There
will be an audible "click" when the tab
locks into the buckle. When not secur
-
ing a child restraint, the seat belt
operates in the same way as the
driver's seat belt (emergency locking
retractor type).
It automatically adjusts to the proper
length only after the lap belt portion of
the seat belt is adjusted manually so that
it fits snugly around your hips.
When the seat belt is fully extended
from the retractor to allow the installa
-
tion of a child restraint system, the seat
belt operation changes to allow the belt
to retract, but not to extend (automatic
locking retractor type). Refer to "Secur
-
ing a child restraint with a lap/shoulder
belt" on page 4-30.
CAUTION
Do NOT fold down the left portion of the
rear seatback when the rear center seat
belt is buckled. ALWAYS UNBUCKLE the
rear center seat belt before folding down
the left portion of the rear seatback. If
the rear center seat belt is buckled when
the left portion of the rear seatback is
folded down, distortion and damage to
the top portion of the seatback and seat
belt garnish may result, causing the
seatback to lock into the folded down
position.
NOTICE
Although the combination retractor pro
-
vides the same level of protection for
seated passengers in either emergency
or automatic locking modes, have the
seated passengers use the emergency
locking feature for improved conve
-
nience. The automatic locking function is
intended to facilitate child restraint
installation. To convert from the auto
-
matic locking feature to the emergency
locking operation mode, allow the
unbuckled seat belt to fully retract.
The seat belt should be locked into the
buckle on each seat cushion to be prop
-
erly fastened.
21
4
4
Safety features of your vehicle Seat belts
1
Rear right seat belt fastening buckle
2
Rear center seat belt fastening buckle
3
Rear left seat belt fastening buckle
WARNING
Prior to fastening the rear seat belts,
ensure the latch matches the seat belt
buckle. Forcefully fastening the left or
right seat belt to the center buckle can
result in an improper fastening scenario
that will not protect you in an accident.
When using the rear center seat belt, the
buckle with the "CENTER" mark must be
used.
Releasing the seat belt
The seat belt is released by pressing the
release button (1) on the locking buckle.
When it is released, the belt should auto
-
matically draw back into the retractor.
If this does not happen, check the belt to
make sure it is not twisted, then try
again.
Pre-tensioner seat belt
Your vehicle is equipped with driver's
and front passenger's pre-tensioner seat
belts (retractor pre-tensioner).
The pre-tensioner seat belts may be
activated when a frontal collision is
severe enough, together with the air
bags.
When the vehicle stops suddenly, or if
the occupant tries to lean forward too
quickly, the seat belt retractor may lock
into position. In certain frontal collisions,
the pre-tensioner will activate and pull
the seat belt into tighter contact against
the occupant's body.
1
Retractor pre-tensioner
The purpose of the retractor pre-ten
-
sioner is to make sure that the shoul
-
der belts fit tightly against the
occupant's upper body in certain fron
-
tal collisions.
If the system senses excessive tension
on the driver or passenger's seat belt
when the pre-tensioner system acti
-
vates, the load limiter inside the retractor
pre-tensioner will release some of the
pressure on the affected seat belt.
NOTICE
When the pre-tensioner seat belts are
activated, a loud noise may be heard
and fine dust, which may appear to be
smoke, may be visible in the passenger
OCV031020L
OCV031114N
OCV031126N
ONQ5021042L
Safety features of your vehicle
224
Seat belts
compartment. These are normal operat
-
ing conditions and are not hazardous.
The seat belt pre-tensioner system con
-
sists mainly of the following compo
-
nents. Their locations are shown in the
illustration:
* The actual position of seat belt pre-ten
-
sioner system components may differ
from the illustration.
1
SRS air bag warning light
2
Retractor pre-tensioner assembly
3
SRS control module
WARNING
Skin Irritation
Wash all exposed skin areas thoroughly
after an accident in which the pre-ten
-
sioner seat belts were activated. The fine
dust from the pre-tensioner activation
may cause skin irritation and should not
be inhaled for prolonged periods.
NOTICE
僅 Both the driver's and front passen
-
ger's seat belt pre-tensioner systems
may be activated, not only in certain
frontal collisions, but also in certain
side collisions or rollovers, if the vehi
-
cle is equipped with a side or curtain
air bag.
僅 Because the sensor that activates the
SRS air bag is connected with the pre-
tensioner seat belt, the SRS air bag
warning light ( ) on the instrument
panel will appear for approximately 6
seconds after the EV button has been
changed to the ON position, and then
it should turn off.
If the pre-tensioner seat belt system is
not working properly, this warning light
will appear even if there is not a mal
-
function with the SRS air bag. If the SRS
air bag warning light does not appear
when EV button has been changed to
ON, or if it remains on after appearing
for approximately 6 seconds, or if it
appears while the vehicle is being
driven, have an authorized Kia dealer
inspect the pre-tensioner seat belt and
SRS air bag system as soon as possible.
WARNING
Hot Pre-tensioner
Do not touch the pre-tensioner seat belt
assemblies for several minutes after
they have been activated. When the pre-
tensioner seat belt mechanism fires
during a collision, the pre-tensioner
becomes hot and can burn you.
NOTICE
Do not attempt to service or repair the
pre-tensioner seat belt system in any
manner. Do not attempt to inspect or
replace the pre-tensioner seat belts
yourself. This must be done by an
authorized Kia dealer.
Pre-tensioners are designed to operate
only one time. After activation, pre-ten
-
sioner seat belts must be replaced. If the
pre-tensioner must be replaced, contact
an authorized Kia dealer.
Seat belt precautions
Take the following precautions when
using seat belts.
OCV031023L
23
4
4
Safety features of your vehicle Seat belts
Infant or small child
All 50 states have child restraint laws.
You should be aware of the specific
requirements in your state. Child and/or
infant seats must be properly placed
and installed in the rear seat. For more
information about the use of these
restraints, refer to "Child Restraint Sys
-
tem (CRS)" on page 4-25.
NOTICE
Small children are best protected from
injury in an accident when properly
restrained in the rear seat by a child
restraint system that meets the require
-
ments of the Federal Motor Vehicle
Safety Standards. Before buying any
child restraint system, make sure that it
has a label certifying that it meets Fed
-
eral Motor Vehicle Safety Standard 213.
The restraint must be appropriate for
your child's height and weight. Check
the label on the child restraint for this
information. Refer to "Child Restraint
System (CRS)" on page 4-25.
Larger children
Children who are too large for child
restraint systems should always occupy
the rear seat and use the available lap/
shoulder belts. The lap portion should be
fastened and snug on the hips as low as
possible. Check periodically to insure
that the belt fits. A child's squirming
could put the belt out of position. Chil
-
dren are given the most safety in the
event of an accident when they are
restrained by a proper restraint system
in the rear seat. If a larger child (over age
13) must be seated in the front seat, the
child should be securely restrained by
the available lap/shoulder belt and the
seat should be placed in the rearmost
position. Children age 13 and under
should be restrained securely in the rear
seat. NEVER place a child age 13 and
under in the front seat. NEVER place a
rear facing child seat in the front seat of
a vehicle.
If the shoulder belt portion slightly
touches the child's neck or face, try plac
-
ing the child closer to the center of the
vehicle. If the shoulder belt still touches
their face or neck they need to be
returned to a child restraint system.
WARNING
Small Children
Do not allow small children to ride in the
vehicle without an appropriate child
restraint system. If the shoulder belt
comes in contact with your child's neck
or face, your child is too small to ride in
the vehicle. In a crash the seat belt will
inflict injury to your child's neck, throat
and face.
Restraint of pregnant women
Pregnant women should wear lap/shoul
-
der belt assemblies whenever possible
according to specific recommendations
by their doctors. The lap portion of the
belt should be worn AS SECURELY AND
LOW AS POSSIBLE.
WARNING
Pregnant Women
Pregnant women must never place the
lap portion of the seat belt above or on
the abdomen where the fetus is located.
The force of the seat belt during a colli
-
sion can seriously injure the fetus.
Safety features of your vehicle
244
Seat belts
Injured person
A seat belt should be used when an
injured person is transported. In such
cases, you should consult a physician for
recommendations.
One person per belt
Two people (including children) should
never attempt to use a single seat belt.
This could increase the severity of inju
-
ries in case of an accident.
Do not lie down
To reduce the chance of injuries in the
event of an accident and to achieve
maximum effectiveness of the restraint
system, all passengers should be sitting
up and the front and rear seats should
be in an upright position when the vehi
-
cle is moving. A seat belt cannot provide
proper protection if the person is lying
down in the rear seat or if the front and
rear seats are in a reclined position.
Care of seat belts
Seat belt systems should never be disas
-
sembled or modified. In addition, care
should be taken to assure that seat belts
and belt hardware are not damaged by
seat hinges, doors or other abuse.
WARNING
Pinched Seat Belt
Make sure that the webbing and/or
buckle does not get caught or pinched in
the rear seat when returning the rear
seatback to its upright position. A caught
or pinched webbing/buckle may
become damaged and could fail during
a collision or sudden stop.
WARNING
Seatbelts can become hot in a vehicle
that has been closed up in sunny
weather. They could burn infants and
children.
Periodic inspection
All seat belts should be inspected peri
-
odically for wear or damage of any kind.
Any damaged parts should be replaced
as soon as possible.
Keep belts clean and dry
Seat belts should be kept clean and dry.
If belts become dirty, they can be
cleaned by using a mild soap solution
and warm water. Bleach, dye, strong
detergents or abrasives should not be
used because they may damage and
weaken the fabric.
When to replace seat belts
The entire in-use seat belt assembly or
assemblies should be replaced if the
vehicle has been involved in an accident.
This should be done even if no damage
is visible. Additional questions concern
-
ing seat belt operation should be
directed to an authorized Kia dealer.
25
4
4
Safety features of your vehicle Child Restraint System (CRS)
Child Restraint System (CRS)
Infants and younger children must be
restrained in an appropriate rear-facing
or forward-facing CRS that has first
been properly secured to the rear seat of
the vehicle.
Children always in the rear
Children under age 13 must always ride
in the rear seats and must always be
properly restrained to minimize the risk
of injury in an accident, sudden stop or
sudden maneuver.
WARNING
Restraint Location
Never install a child or infant seat in the
front passenger's seat. A child riding in
the front passenger seat can be force
-
fully struck by an inflating airbag and
get seriously injured.
WARNING
Hot Child Restraint
A child restraint system can become
very hot if it is left in a closed vehicle on
a sunny day. Be sure to check the seat
cover, buckles and latches before plac
-
ing a child in the restraint system.
According to accident statistics, children
are safer when properly restrained in the
rear seats than in the front seat. Even
with air bags, children can be seriously
injured or killed. Children too large for a
child restraint must use the seat belts
provided.
All 50 states have child restraint laws
which require children to travel in
approved child restraint devices. The
laws governing the age or height/weight
restrictions at which seat belts can be
used instead of child restraints differs
among states, so you should be aware of
the specific requirements in your state,
and where you are traveling.
Child restraint systems must be properly
placed and installed in the rear seat. You
must use a commercially available child
restraint system that meets the require
-
ments of the Federal Motor Vehicle
Safety Standards (FMVSS).
Child restraint systems are generally
designed to be secured in a vehicle seat
by lap belt portion of a lap/shoulder belt,
or by a LATCH system in the rear seats
of the vehicle.
Child restraint system (CRS)
Infants and younger children must be
restrained in an appropriate rear-facing
or forward-facing CRS that has first
been properly secured to the rear seat of
the vehicle. Read and comply with the
instructions for installation and use pro
-
vided by the manufacturer of the CRS.
WARNING
Child Restraint Installation
An improperly secured child restraint
system can increase the risk of serious
injury or death in an accident. Always
take the following precautions when
using a child restraint system:
僅 Always follow the child restraint sys
-
tem manufacturer's instructions for
installation and use.
僅 Always properly restrain your child in
the child restraint system.
僅 If the vehicle head restraint prevents
proper installation of a child seat (as
described in the child restraint system
manual), the head restraint of the
respective seating position should be
readjusted or entirely removed.
Safety features of your vehicle
264
Child Restraint System (CRS)
僅 Do not use an infant carrier or a child
safety seat that "hooks" over a seat
-
back, as it may not provide adequate
protection in an accident.
NOTICE
After an accident, have a Kia dealer
check the child restraint system, seat
belts, tether anchors and lower anchors.
Selecting a Child Restraint Sys
-
tem (CRS)
When selecting a CRS for your child,
always:
僅 Make sure the CRS has a label certify
-
ing that it meets applicable Federal
Motor Vehicle Safety Standards
(FMVSS 213).
僅 Select a child restraint based on your
child's height and weight. The
required label or the instructions for
use typically provide this information.
僅 Select a child restraint that fits the
vehicle seating position where it will
be used.
僅 Read and comply with the warnings
and instructions for installation and
use provided with the child restraint
system.
WARNING
Holding Children
Never hold a child in your arms or lap
when riding in a vehicle. The violent
forces created during a crash will tear
the child from your arms and throw the
child against the car's interior. Always
use a child restraint system, which is
appropriate for your child's height and
weight.
WARNING
Unattended Children
Never leave children unattended in a
vehicle. The car can heat up very
quickly, resulting in injuries to the child
in the vehicle.
WARNING
Seat Belt Use
Do not use one seat belt for two occu
-
pants at the same time. This will elimi
-
nate any safety benefit provided by the
seat belt to the occupants.
Child restraint system types
There are three main types of child
restraint systems: rear-facing seats, for
-
ward-facing seats, and booster seats.
They are classified according to the
child's age, height and weight.
Rear-facing child seats
A rear-facing child seat provides
restraint with the seating surface against
the back of the child. The harness sys
-
tem holds the child in place, and in an
accident, acts to keep the child posi
-
tioned in the seat and reduces the stress
to the neck and spinal cord.
All children under age one must always
ride in a rear-facing infant child restraint.
Convertible and 3-in-1 child seats typi
-
cally have higher height and weight lim
-
its for the rear-facing position, allowing
ONQ5021098N
27
4
4
Safety features of your vehicle Child Restraint System (CRS)
you to keep your child rear-facing for a
longer period of time.
Continue to use a rear-facing child seat
for as long as your child will fit within the
height and weight limits allowed by the
child seat manufacturer. It's the best way
to keep them safe. Once your child has
outgrown the rear-facing child restraint,
your child is ready for a forward-facing
child restraint with a harness.
Forward-facing child restraints
A forward-facing child seat provides
restraint for the child's body with a har
-
ness. Keep children in a forward-facing
child seat with a harness until they reach
the top height or weight limit allowed by
your child restraint's manufacturer.
Once your child outgrows the forward-
facing child restraint, your child is ready
for a booster seat.
Booster seats
A booster seat is a restraint designed to
improve the fit of the vehicle's seat belt
system. A booster seat positions the seat
belt so that it fits properly over the lap of
your child.
Keep your child in a booster seat until
they are big enough to sit in the seat
without a booster and still have the seat
belt fit properly. For a seat belt to fit
properly, the lap belt must lie snugly
across the upper thighs, not the stom
-
ach. The shoulder belt should lie snug
across the shoulder and chest and not
across the neck or face. Children under
age 13 must always ride in the rear seats
and must always be properly restrained
to minimize the risk of injury.
Installing a Child Restraint Sys
-
tem (CRS)
After selecting a proper child seat for
your child, check to make sure it fits
properly in your vehicle.
Follow the instructions provided by the
manufacturer when installing the child
seat. Note these general steps when
installing the seat to your vehicle:
僅
Properly secure the child restraint
to the vehicle.
All child restraints
must be secured to the vehicle with
the lap part of a lap/shoulder belt or
with the LATCH system.
僅
Make sure the child restraint is
firmly secured.
After installing a child
restraint to the vehicle, push and pull
the seat forward and from side-to-
side to verify that it is securely
attached to the seat. A child restraint
secured with a seat belt should be
installed as firmly as possible. How
-
ever, some side-to-side movement
can be expected.
僅
Secure the child in the child
restraint.
Make sure the child is prop
-
erly strapped in the child restraint
according to the manufacturer
instructions.
Lower Anchors and Tether for
Children (LATCH) System
The LATCH system holds a child
restraint during driving and in an acci
-
dent. This system is designed to make
installation of the child restraint easier
and reduce the possibility of improperly
installing your child restraint. The LATCH
ONQ5021099N
Safety features of your vehicle
284
Child Restraint System (CRS)
system uses anchors in the vehicle and
attachments on the child restraint. The
LATCH system eliminates the need to
use seat belts to secure the child
restraint to the rear seats.
Lower anchors are metal bars built into
the vehicle. There are two lower anchors
for each LATCH seating position that will
accommodate a child restraint with
lower attachments.
To use the LATCH system in your vehi
-
cle, you must have a child restraint with
LATCH attachments.
The child seat manufacturer will provide
you with instructions on how to use the
child seat with its attachments for the
LATCH lower anchors.
LATCH anchors have been provided in
the left and right outboard rear seating
positions. Their locations are shown in
the illustration. There are no LATCH
anchors provided for the center rear
seating position.
WARNING
LATCH Lower Anchors
Never attempt to attach a LATCH
equipped seat in the center seating posi
-
tion. LATCH lower anchors are only to be
used in the left and right rear outboard
seating positions. You may damage the
anchors or the anchors may fail and
break in a collision if the seat is in the
center seating position.
The lower anchor position indicator sym
-
bols are located on the left and right rear
seatbacks to identify the position of the
lower anchors in your vehicle (see
arrows in illustration).
1
Lower Anchor position indicator
2
Lower Anchor
The LATCH anchors are located
between the seatback and the seat
cushion of the rear seat left and right
outboard seating positions.
To use the lower anchor, push the upper
portion of the lower anchor cover.
Securing a child restraint with the
LATCH anchors system
To install a LATCH-compatible child
restraint in either of the rear outboard
seating positions:
1. Move the seat belt buckle away from
the lower anchors.
2. Move any other objects away from
the anchors that could prevent a
secure connection between the child
restraint and the lower anchors.
3. Place the child restraint on the vehicle
seat, then attach the seat to the lower
anchors according to the instructions
provided by the child restraint manu
-
facturer.
4. Follow the child restraint instructions
for properly adjusting and tightening
OCV031026L
OCV031025L_3
29
4
4
Safety features of your vehicle Child Restraint System (CRS)
the lower attachments on the child
restraint to the lower anchors.
WARNING
Take the following precautions when
using the LATCH system:
僅 Read and follow all installation
instructions provided with your child
restraint system.
僅 To prevent the child from reaching
and taking hold of the unused seat
belts, buckle all unused rear seat belts
before the child is placed into the
vehicle. Lock each unused seatbelt
following the instructions in the "auto
-
matic locking mode" subsection, and
place the webbing behind the child
seat or against an unused seatback.
Children can be strangled if a shoul
-
der belt becomes wrapped around
their neck and the seat belt tightens.
僅 NEVER attach more than one child
restraint to a single anchor. This could
cause the anchor or attachment to
come loose or break.
僅 Always have the LATCH system
inspected by your authorized Kia
dealer after an accident. An accident
can damage the LATCH system and
may not properly secure the child
restraint.
NOTICE
The recommended maximum weight for
the LATCH system is 65 lbs. (30 kg).
When selecting a proper child restraint
system, consider that the maximum total
weight of the child plus the child
restraint should be less than 65 lbs. (30
kg).
As a guide, the MAX child restraint
weight should be determined by the fol
-
lowing calculation:
Child Restraint system Weight = 65 -
(child's total weight in lbs.)
Securing a child restraint seat
with "Tether Anchor" system
First secure the child restraint with the
LATCH lower anchors or the seat belt. If
the child restraint manufacturer recom
-
mends that the top tether strap be
attached, attach and tighten the top
tether strap to the top tether strap
anchor.
Child restraint hook holders are located
on the shelf behind the rear seats.
WARNING
Take the following precautions when
installing the tether strap:
僅 Read and follow all installation
instructions provided with your child
restraint system.
僅 NEVER attach more than one child
restraint to a single tether anchor.
This could cause the anchor or attach
-
ment to come loose or break.
僅 Do not attach the tether strap to any
-
thing other than the correct tether
anchor. It may not work properly if
attached to something else.
僅 Do not use the tether anchors for
adult seat belts or harnesses, or for
attaching other items or equipment to
the vehicle.
僅 Always fasten the seat belts behind
the child restraint seat when they are
not used to secure the child seat. Fail
-
OCV031115N
Safety features of your vehicle
304
Child Restraint System (CRS)
ure to do so may result in child stran
-
gulation.
To install the tether anchor:
1. Route the child restraint tether strap
over the child restraint seatback.
Route the tether strap under the head
restraint and between the head
restraint posts, or route the tether
strap over the top of the vehicle seat
-
back. Make sure the strap is not
twisted.
2. Connect the tether strap hook to the
tether anchor, then tighten the tether
strap according to the child seat man
-
ufacturer's instructions to firmly
secure the child restraint to the seat.
3. Check that the child restraint is
securely attached to the seat by push
-
ing and pulling the seat forward and
from side-to-side.
Securing a child restraint with a
lap/shoulder belt
When not using the LATCH system, all
child restraints must be secured to a
vehicle rear seat with the lap part of a
lap/shoulder belt.
Automatic locking mode
Since all passenger seat belts move
freely under normal conditions and only
lock under extreme or emergency condi
-
tions (emergency locking mode), you
must manually pull the seat belt all the
way out to shift the retractor to the
"automatic locking" mode to secure a
child restraint.
The "automatic locking" mode will help
prevent the normal movement of the
child in the vehicle from causing the seat
belt to loosen and compromise the child
restraint system.
To install a child restraint system on the
rear seats, do the following:
1. Place the child restraint system on a
rear seat and route the lap/shoulder
belt around or through the child
restraint, following the restraint man
-
ufacturer's instructions.
Be sure the seat belt webbing is not
twisted.
2. Fasten the lap/shoulder belt latch into
the buckle. Listen for the distinct
"click" sound.
Position the release button so that it is
easy to access in case of an emer
-
gency.
3. Pull the shoulder portion of the seat
belt all the way out. When the shoul
-
der portion of the seat belt is fully
extended, it will shift the retractor to
the "automatic locking" (child
restraint) mode.
OCV031116N
ONQ5021094N
OCV031127N
31
4
4
Safety features of your vehicle Child Restraint System (CRS)
4. Slowly allow the shoulder portion of
the seat belt to retract and listen for
an audible "clicking" or "ratcheting"
sound. This indicates that the retrac
-
tor is in the "automatic locking" mode.
If no distinct sound is heard, repeat
steps 3 and 4.
5. Remove as much slack from the belt
as possible by pushing down on the
child restraint system while feeding
the shoulder belt back into the retrac
-
tor.
6. Push and pull on the child restraint
system to confirm that the seat belt is
holding it firmly in place. If it is not,
release the seat belt and repeat steps
2 through 5.
7. Double check that the retractor is in
the "automatic locking" mode by
attempting to pull more of the seat
belt out of the retractor. If you cannot,
the retractor is in the "automatic lock
-
ing" mode.
If your CRS manufacturer instructs or
recommends you to use a tether anchor
with the lap/shoulder belt, refer to
"Securing a child restraint with the
LATCH anchors system" on page 4-28
for more information.
WARNING
Auto Lock Mode
Set the retractor to Automatic Lock
mode when installing any child restraint
system. If the retractor is not in the auto
-
matic locking mode, the child restraint
can move when your vehicle turns or
stops suddenly. A child can be seriously
injured or killed if the child restraint is
not properly anchored in the car, includ
-
ing manually pulling the seat belt all the
way out to shift the retractor to the "Auto
Lock" mode.
NOTICE
When the seat belt is allowed to retract
to its fully stowed position, the retractor
will automatically switch from the "auto
-
matic locking" mode to the emergency
lock mode for normal adult usage.
To remove the child restraint, press the
release button on the buckle and then
pull the lap/shoulder belt out of the
restraint and allow the seat belt to
retract fully.
OCV031128N
OCV031129N
Safety features of your vehicle
324
Air bag - advanced supplemental restraint system
Air bag - advanced supplemental restraint system
The appropriate air bags inflate instantly in the event of a serious frontal collision or
side collision in order to help protect the occupants from serious physical injury.
* The actual air bags in the vehicle may differ from the illustration.
1
Passenger's front air bag
2
Driver's front air bag
3
Side air bag
4
Curtain air bag
5
Driver's knee air bag
Even in vehicles with air bags, you and your passengers must always wear the safety
belts provided in order to minimize the risk and severity of injury in the event of a col
-
lision or rollover.
OCV031098N
33
4
4
Safety features of your vehicle Air bag - advanced supplemental restraint system
How does the air bag system
operate?
僅 Air bags are activated (able to inflate
if necessary) only when the EV button
has been changed to ON position or
the vehicle is in the ready mode.
僅 The appropriate air bags inflate
instantly in the event of a serious
frontal collision or side collision in
order to help protect the occupants
from serious physical injury.
僅 Generally, air bags are designed to
inflate based upon the severity of a
collision and its direction. These two
factors determine whether the sen
-
sors produce an electronic deploy
-
ment/inflation signal.
僅 Air bags will inflate based upon the
severity of a collision and its direction,
etc. But air bags will not inflate in
every crash or collision situation.
僅 The front air bags will completely
inflate and deflate in an instant. It is
virtually impossible for you to see the
air bags inflate during an accident. It
is much more likely that you will sim
-
ply see the deflated air bags hanging
out of their storage compartments
after the collision.
僅 In addition to inflating in serious side
collisions, side and/or curtain air bags
will inflate if the sensing system
detects a rollover.
僅 When a rollover is detected, side and/
or curtain air bags will remain inflated
longer to help provide protection from
ejection, especially when used in con
-
junction with the seat belts.
僅In order to help provide protection,
the air bags must inflate rapidly. The
speed of the air bag inflation is a con
-
sequence of extremely short time in
which to inflate the air bag between
the occupant and the vehicle struc
-
tures before the occupant impacts
those structures. This speed of infla
-
tion reduces the risk of serious or life-
threatening injuries and is thus a nec
-
essary part of the air bag design.
However, air bag inflation can also
cause injuries which can include facial
abrasions, bruises and broken bones
because the inflation speed also
causes the air bags to expand with a
great deal of force.
僅
There are even circumstances
under which contact with the steer
-
ing wheel or passenger air bag can
cause fatal injuries, especially if the
occupant is positioned excessively
close to the steering wheel or pas
-
senger air bag.
WARNING
Airbag Inflation
Sit as far back as possible from the
steering wheel while still maintaining
comfortable control of the vehicle. A dis
-
tance of at least 25 cm (10 in) from your
chest to the steering wheel is recom
-
mended. Failure to do so can result in
airbag inflation injuries to the driver.
Noise and smoke
When inflated, the air bags make a loud
noise and leave smoke and powder in
the air inside the vehicle. This is normal
and is a result of the ignition of the air
bag inflator. After the air bag inflates,
you may feel substantial discomfort in
breathing due to the contact of your
chest with both the seat belt and the air
bag, as well as from breathing the
smoke and powder.
Open your doors
and/or windows as soon as possible
after impact in order to reduce dis
-
Safety features of your vehicle
344
Air bag - advanced supplemental restraint system
comfort and prevent prolonged expo
-
sure to the smoke and powder.
Though smoke and powder are non
-
toxic, it may cause irritation to the skin
(eyes, nose and throat, etc). If this is the
case, wash and rinse with cold water
immediately and consult a doctor if the
symptom persists.
WARNING
Hot Components
Do not touch the air bag storage area's
internal components immediately after
airbag inflation. The air bag related parts
in the steering wheel, instrument panel
and the roof rails above the front and
rear doors are very hot. Hot components
can result in burn injuries.
WARNING
Do not install or place any accessories
near air bag deployment areas, such as
the instrument panel, windows, pillars,
and roof rails.
Do not install a child restraint on
the front passenger's seat
Never place a rear-facing child restraint
in the front passenger's seat.
If the air bag deploys, it would impact
the rear-facing child restraint, causing
serious or fatal injury.
In addition, do not place front-facing
child restraints in the front passenger's
seat. If the front passenger air bag
inflates, it could cause serious or fatal
injuries to the child.
WARNING
Air Bag Deployment
When children are seated in the rear
outboard seats of a vehicle equipped
with side and/or curtain air bags, install
the child restraint system as far away
from the door side as possible. Inflation
of the side and/or curtain air bags could
impact the child.
Air bag warning light
The purpose of air bag warning light in
your instrument panel is to alert you of a
potential problem with your air bag sys
-
tem, which could include your side and/
or curtain air bags used for rollover pro
-
tection.
If the air bag warning light appears for
more than 6 seconds after EV button
has been changed to ON, or if appears
during vehicle operation, an SRS compo
-
nent may not be functioning properly
and you should have your vehicle
checked by an authorized Kia dealer.
If any of the following conditions occur,
this indicates a malfunction in the air
bag system. Have an authorized Kia
dealer inspect the air bag system as
soon as possible.
僅 The light does not turn on briefly
when you change EV button to ON.
僅 The light stays on after appearing for
approximately 6 seconds.
僅 The light comes on while the vehicle is
in motion.
OCV031079
35
4
4
Safety features of your vehicle Air bag - advanced supplemental restraint system
僅 The light blinks when EV button is in
the ON position.
Supplemental Restraint System
(SRS) components and functions
The SRS consists of multiple elements
and sensors.
* The actual position of SRS components
may differ from the illustration.
The SRS consists of the following com
-
ponents:
1
Driver's front air bag module
2
Passenger's front air bag module
3
Side air bag modules
4
Curtain air bag modules
5
Retractor pre-tensioner assemblies
6
Air bag warning light
7
SRS control module (SRSCM)/rollover
sensor
8
Front impact sensors
9
Side impact sensors
10
Side pressure sensors
11
Driver's knee air bag module
12
Occupant detection system (Front
passenger's seat only)
13
Front driver/passenger's seat belt
buckle sensor
Driver's front air bag (1)
The front air bag modules are located
both in the center of the steering wheel
and in the front passenger's panel above
the glove box. When the SRSCM detects
a sufficiently severe impact to the front
of the vehicle, it will automatically deploy
the front air bags.
Driver's front air bag (2)
Upon deployment, tear seams molded
directly into the pad covers will separate
under pressure from the expansion of
the air bags. Further opening of the cov
-
ers then allows full inflation of the air
bags.
Driver's front air bag (3)
A fully inflated air bag, in combination
with a properly worn seat belt, slows the
driver's or the passenger's forward
motion, reducing the risk of head and
chest injury.
OCV031035N
OCV031036L
OCV031037L
OCV031038L
Safety features of your vehicle
364
Air bag - advanced supplemental restraint system
After complete inflation, the air bag
immediately starts deflating, enabling
the driver to maintain forward visibility
and the ability to steer or operate other
controls.
Passenger's front air bag
WARNING
Air Bag Obstructions
Do not install or place any accessories
on the steering wheel, instrument panel,
or on the front passenger's panel above
the glove box in a vehicle. Such objects
may become dangerous projectiles if the
air bag deploys.
WARNING
Flying Objects
Do not place any objects (an umbrella,
bag, etc.) between the front door and
the front seat. Such objects may become
dangerous projectiles if the side airbag
inflates.
僅 If an air bag deploys, there may be a
loud noise followed by a fine dust
released in the vehicle. These condi
-
tions are normal and are not hazard
-
ous - the air bags are packed in this
fine powder. The dust generated
during air bag deployment may cause
skin or eye irritation as well as aggra
-
vate asthma for some persons.
Always wash all exposed skin areas
thoroughly with cold water and a mild
soap after an accident in which the air
bags were deployed.
僅 The SRS can function only when EV
button is in the ON position. If the SRS
air bag warning light does not appear,
or continuously remains on after
appearing for about 6 seconds when
EV button is in the ON position after
the vehicle is in the
READY
mode, or
comes on while driving, the SRS is not
working properly. If this occurs, have
your vehicle immediately inspected by
an authorized Kia dealer.
NOTICE
Before you replace a fuse or disconnect
a battery terminal, change the EV button
to the OFF position. Never remove or
replace the air bag related fuse(s) when
the EV button is in the ON position. Fail
-
ure to heed this warning will cause the
SRS air bag warning light to appear.
Occupant Detection System
(ODS)
Your vehicle is equipped with an occu
-
pant detection system in the front pas
-
senger's seat.
The occupant detection system is
designed to detect the presence of a
properly-seated front passenger and
determine if the passenger's front air
bag should be enabled (may inflate) or
not. Only the front passenger front air
bag is controlled by the Occupant
Detection System.
OCV031039L
OCV031034
37
4
4
Safety features of your vehicle Air bag - advanced supplemental restraint system
Do not put anything in front of the pas
-
senger air bag OFF indicator.
Main components of the occu
-
pant detection system
僅 An detection device located within the
front passenger seat cushion.
僅 An electronic system which deter
-
mines whether the passenger air bag
systems should be activated or deac
-
tivated.
僅 An indicator light located on the
instrument panel which appears the
words PASSENGER AIR BAG OFF indi
-
cates the front passenger air bag sys
-
tem is deactivated.
僅 The instrument panel air bag warning
light is interconnected with the occu
-
pant detection system.
If the front passenger seat is occupied
by a person that the system determines
to be of appropriate size, and he/she sits
properly (sitting upright with the seat
-
back in an upright position, centered on
the seat cushion with their seat belt on,
legs comfortably extended and their feet
on the floor), the PASSENGER AIR BAG
OFF indicator will turn off and the front
passenger's air bag will be able to
inflate, if necessary, in frontal crashes.
You will find the PASSENGER AIR BAG
OFF indicator on the map lamp. This
system detects the conditions 1~4 in the
following table and activates or deacti
-
vates the front passenger air bag based
on these conditions.
Always be sure that you and all vehicle
occupants are seated and restrained
properly (sitting upright with the seat in
an upright position, centered on the seat
cushion, with the person's legs comfort
-
ably extended, feet on the floor, and
wearing the safety belt properly) for the
most effective protection by the air bag
and the safety belt.
僅 The ODS (Occupant Detection Sys
-
tem) may not function properly if the
passenger takes actions which can
defeat the detection system. These
include:
1. Failing to sit in an upright position.
2. Leaning against the door or center
console.
3. Sitting towards the sides or the
front of the seat.
4. Putting legs on the dashboard or
resting them on other locations
which reduce the passenger weight
on the front seat.
5. Improperly wearing the safety belt.
6. Reclining the seatback.
Safety features of your vehicle
384
Air bag - advanced supplemental restraint system
Condition and operation in the front passenger occupant detection
system
* 1. The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recog
-
nize him/her as a child depending on his/her physique and posture.
* 2. Do not allow children to ride in the front passenger seat. When a larger child who has outgrown a child restraint system sits in the
front passenger seat, the system may recognize him/her as an adult depending upon his/her physique or sitting position.
* 3. Never install a child restraint system on the front passenger seat.
* 4. The PASSENGER AIR BAG OFF indicator may turn on or off when a child above 12 months to 12 years old (with or without child
restraint system) sits in the front passenger seat. This is a normal condition.
Condition detected by the occupant classification
system
Indicator/Warning light Devices
"PASSENGER AIR BAG
OFF" indicator light
SRS warning light Front passenger air bag
1. Adult
*1
Off Off Activated
2. Child restraint system with child under 12
months old
**2*3*4
On Off Deactivated
3. Unoccupied On Off Deactivated
4. Malfunction in the system Off On Activated
39
4
4
Safety features of your vehicle Air bag - advanced supplemental restraint system
WARNING
僅 Do not install a child restraint system
in the passenger seat when the seat is
heavily soaked with any type of liquid.
僅 Do not alter or modify the ODS (Occu
-
pant Detection System). This may
damage the system and prevent its
proper function in a collision.
NOTICE
僅 Do not use car seat cushions that
cover up the surface of the seat and
aftermarket manufactured passenger
seat heaters.
僅 After conducting car interior cleaning
using steam or detergent, the seat
should be dried properly. Afterward,
check for normal operation of the
PASSENGER AIR BAG OFF and air
bag warning lights.
僅 Any service related to the passenger
seat and the ODS must be done at an
authorized Kia service center.
僅 After the passenger seat has been
removed or installed for repair pur
-
poses, check for normal operation of
the PASSENGER AIR BAG OFF and air
bag warning lights with a person
seated or not seated in the passenger
seat.
WARNING
When the PASSENGER AIR BAG OFF
symbol appears, the passenger air bag
system will not operate. The passenger
air bag system will operate when neces
-
sary if the symbol does not appear.
NOTICE
Do not modify or replace the front pas
-
senger seat. Do not place anything on or
attach anything, such as a blanket, front
seat cover or after market seat heater, to
the front passenger seat. This can
adversely affect the occupant detection
system.
WARNING
ODS System
Riding in an improper position adversely
affects the Occupant Detection System
and may result in the deactivation of the
front passenger airbag. It is important
for the driver to instruct the passenger
as to the proper seating instructions as
contained in this manual.
僅 Do not place a heavy load in the front
passenger seatback pocket or on the
front passenger seat.
僅 Do not place feet on the front passen
-
ger seatback.
僅 Do not move your hips too forward in
the seat.
OCV031082
OCV031083
OCV031084
Safety features of your vehicle
404
Air bag - advanced supplemental restraint system
僅 Never excessively recline the front
passenger seatback.
僅 Never place feet on the dashboard.
僅 Never lean on the door or center con
-
sole.
僅 Do not sit with your weight exces
-
sively skewing to the left or right on
the front passenger seat.
僅 Do not use car seat accessories, such
as thick blankets and cushions, that
cover up the car seat surface.
僅 Do not place electronic devices such
as laptops or DVD players or heavy
objects such as a large quantity of
water bottles on the passenger seat.
僅 Wet Passenger Seat
Do not spill liquid in the passenger
seat. Spilled liquid on the passenger
seat may cause the air bag warning
light to appear or malfunction. If any
liquid is spilled, make sure the seat
has been completely dried before
driving the vehicle.
Proper position
When an adult is seated in the front pas
-
senger seat, if the PASSENGER AIR BAG
OFF indicator is on, change EV button to
the OFF position and ask the passenger
to sit properly (sitting upright with the
seatback in an upright position, centered
on the seat cushion with their seat belt
on, legs comfortably extended and their
feet on the floor). Restart the vehicle and
have the person remain in that position.
This will allow the system to detect the
OCV031071
OCV031085
OCV031086
OCV031088
OCV031089
OCV031090
OCV031081
41
4
4
Safety features of your vehicle Air bag - advanced supplemental restraint system
person and to enable the passenger air
bag.
If the PASSENGER AIR BAG OFF indica
-
tor is still on, ask the passenger to move
to the rear seat.
WARNING
PASSENGER AIR BAG OFF Light
Do not allow an adult passenger to ride
in the front seat when the PASSENGER
AIR BAG OFF indicator appears because
the air bag will not deploy in the event of
a crash. The driver must instruct the
passenger to reposition himself in the
seat. Failure to properly position himself
may lead to air bag deactivation, result
-
ing in air bag non-deployment in a colli
-
sion. If the PASSENGER AIR BAG OFF
indicator remains on after the passenger
repositions themselves properly and the
car is restarted, it is recommended that
the passenger move to the rear seat
because the passenger's front air bag
will not deploy.
NOTICE
The PASSENGER AIR BAG OFF indicator
appears for about 4 seconds after EV
button is turned to the ON position after
the vehicle is started. If the front passen
-
ger seat is occupied, the occupant
detection sensor will then classify the
front passenger after several more sec
-
onds.
僅 Even though your vehicle is equipped
with the occupant detection system,
never install a child restraint system in
the front passenger's seat. A deploy
-
ing air bag can forcefully strike a child
resulting in serious injuries or death.
Any child age 13 and under should ride
in the rear seat. Children too large for
child restraints should use the available
lap/shoulder belts. No matter what type
of crash, children of all ages are safer
when restrained in the rear seat.
If the occupant detection system is not
working properly, the SRS air bag warn
-
ing light on the instrument panel will
appear because the passenger's front air
bag is connected with the occupant
detection system. If there is a malfunc
-
tion of the occupant detection system,
the PASSENGER AIR BAG OFF indicator
will not appear and the passenger's front
air bag will inflate in frontal impact
crashes even if there is no occupant in
the front passenger's seat.
Driver's and passenger's front air
bag
Your vehicle is equipped with an
Advanced Supplemental Restraint (Air
Bag) System and lap/shoulder belts at
both the driver and passenger seating
position.
Driver's front air bag
Driver's knee air bag
OCV031117N
OCV031091
Safety features of your vehicle
424
Air bag - advanced supplemental restraint system
Passenger's front air bag
The indication of the system's presence
are the letters "AIR BAG" located on the
air bag pad cover on the steering wheel
and the passenger's side front panel pad
above the glove box.
The SRS consists of air bags installed
under the pad covers in the center of the
steering wheel and the passenger's side
front panel above the glove box.
The purpose of the SRS is to provide the
vehicle's driver and/or the front passen
-
ger with additional protection than that
offered by the seat belt system alone in
case of a frontal impact of sufficient
severity. The SRS uses sensors to gather
information about the driver's and front
passenger's seat belt usage and impact
severity.
The seat belt buckle sensor determines
if the front passenger's seat belt is fas
-
tened.
These sensors provide the ability to con
-
trol the SRS deployment based on
whether or not the seat belts are fas
-
tened, and how severe the impact is.
The advanced SRS offers the ability to
control the air bag inflation with two lev
-
els. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts.
The passenger's front air bag is
designed to help reduce the injury of
children sitting close to the instrument
panel in low speed collisions. However,
children are safer if they are restrained
in the rear seat.
According to the impact severity and
seat belt usage, the SRSCM (SRS Control
Module) controls the air bag inflation.
Failure to properly wear seat belts can
increase the risk or severity of injury in
an accident.
Additionally, your vehicle is equipped
with an occupant detection system in
the front passenger's seat. The occupant
detection system detects the presence
of a passenger in the front passenger's
seat and will turn off the front passen
-
ger's air bag under certain conditions.
For more detail, see "Occupant Detec
-
tion System (ODS)" on page 4-36.
WARNING
Modification
Modification to the seat structure can
cause the air bag to deploy at a different
level than should be provided.
Manufacturers are required by govern
-
ment regulations to provide a contact
point concerning modifications to the
vehicle for persons with disabilities,
which modifications may affect the vehi
-
cle's advanced air bag system. That con
-
tact is Kia's toll-free Customer
Assistance center at 1-800-333-4Kia
(U.S. only). However, Kia does not
endorse nor will it support any changes
to any part or structure of the vehicle
that could affect the advanced air bag
system, including the occupant detec
-
tion system.
WARNING
Replacement/Modifications
The front passenger seat, dashboard or
door should not be replaced except by
an authorized Kia dealer using original
OCV031118N
43
4
4
Safety features of your vehicle Air bag - advanced supplemental restraint system
Kia parts designed for this vehicle and
model. Any other such replacement or
modification could adversely affect the
operation of the occupant detection sys
-
tem and your advanced air bags.
WARNING
Modification
Modification to the seat structure can
cause the air bag to deploy at a different
level than should be provided.
Advanced air bags are combined with
pre-tensioner seat belts to help provide
enhanced occupant protection in frontal
crashes. Front air bags are not intended
to deploy in collisions in which sufficient
protection can be provided by the seat
belt.
NOTICE
Air bags can only be used once – have
an authorized Kia dealer replace the air
bag immediately after deployment.
Front air bags are not intended to
deploy in side-impact, rear-impact or
rollover crashes. However, when frontal
deployment threshold is satisfied at
side-impact, front air bags may deploy.
In addition, front air bags will not deploy
in frontal crashes below the deployment
threshold.
WARNING
SRS Wiring
Do not tamper with or disconnect SRS
wiring or other components of the SRS
system. Doing so could result in injury,
due to accidental deployment of the air
bags or by rendering the SRS inopera
-
tive.
WARNING
No Attaching Objects
No objects (such as crash pad cover, cel
-
lular phone holder, cup holder, perfume
or stickers) should be placed over or
near the air bag modules on the steering
wheel, instrument panel, windshield
glass, and the front passenger's panel
above the glove box. Such objects could
cause harm if the vehicle is in a crash
severe enough to cause the air bags to
deploy.
Do not place any objects over the air bag
or between the air bag and yourself.
Side air bag
Your vehicle is equipped with a side air
bag in each front seat.
* The actual air bags in the vehicle may
differ from the illustration.
The purpose of the air bag is to provide
the vehicle's driver and/or the front pas
-
senger with additional protection than
that offered by the seat belt alone.
僅 The side air bags are designed to
deploy during certain side-impact col
-
lisions, depending on the crash sever
-
ity of impact.
OCV031042L
OCV031041L
Safety features of your vehicle
444
Air bag - advanced supplemental restraint system
僅 The side air bags may deploy on the
side of the impact or on both sides.
僅 The side and/or curtain air bags on
both sides of the vehicle will deploy if
a rollover or possible rollover is
detected.
僅 The side air bags are not designed to
deploy in all side impact or rollover
situations.
WARNING
Unexpected Deployment
Avoid impact to the side impact airbag
sensor when the EV button is ON to pre
-
vent unexpected deployment of the side
air bag.
僅 The side air bag is supplemental to
the driver's and the passenger's seat
belt systems and is not a substitute
for them. Therefore your seat belts
must be worn at all times while the
vehicle is in operation.
僅 For best protection from the side air
bag system and to avoid being injured
by the deploying side air bag, both
front seat occupants should sit in an
upright position with the seat belt
properly fastened. The driver's hands
should be placed on the steering
wheel at the 9:00 and 3:00 positions.
The passenger's arms and hands
should be placed on their laps.
WARNING
Deployment
Do not install any accessories including
seat covers, on the side or near the side
air bag, as this may adversely affect the
deployment of the side air bags.
僅 If seat or seat cover is damaged, have
the vehicle checked and repaired by
an authorized Kia dealer. Inform the
dealer that your vehicle is equipped
with side air bags and an occupant
detection system.
WARNING
Flying Objects
Do not place any objects (an umbrella,
bag, etc.) between the front door and
the front seat. Such objects may become
dangerous projectiles if the side airbag
inflates.
WARNING
No Attaching Objects
僅 Do not place any objects over the air
bag or between the air bag and your
-
self. Also, do not attach any objects
around the area in which the air bag
inflates, such as the door, side door
glass, front and rear pillar.
僅 Do not put any objects between the
side airbag label and seat cushion. It
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.
僅 Never place or insert any object into
any small opening near the side air
-
bag labels attached to the vehicle
seats. When the air bag deploys, the
object may adversely affect the
deployment and result in an unex
-
pected accident or bodily harm.
僅 Do not install any accessories on the
side or near the side air bags.
Curtain air bag
Curtain air bags are located along both
sides of the roof rails above the front
and rear doors.
45
4
4
Safety features of your vehicle Air bag - advanced supplemental restraint system
* The actual air bags in the vehicle may
differ from the illustration.
They are designed to help protect occu
-
pants in certain side impacts and to help
prevent them from ejecting out of the
vehicle as a result of a rollover, espe
-
cially when the seatbelts are also in use.
僅 The curtain air bags are designed to
deploy during certain side impact col
-
lisions, depending on the severity of
impact. However, when side deploy
-
ment threshold is satisfied at front-
impact, side air bags may deploy.
僅 The curtain air bags may deploy on
the side of the impact or on both
sides.
僅 Also, the curtain air bags on both
sides of the vehicle will deploy in cer
-
tain rollover situations.
僅 The curtain air bags are not designed
to deploy in all side impact or rollover
situations.
Do not allow the passengers to lean their
heads or bodies against the doors, put
their arms on the doors, stretch their
arms out of the window or place objects
between the doors and passengers
when they are seated on seats equipped
with side impact and/or curtain air bags.
NOTICE
Never try to open or repair any compo
-
nents of the side and curtain air bag sys
-
tem. This should only be done by an
authorized Kia dealer.
WARNING
No Attaching Objects
僅 Do not place any objects over the air
bag. Also, do not attach any objects
around the area in which the air bag
inflates, such as the door, side door
glass, front and rear pillar, roof side
rail.
僅 Do not hang hard, breakable, or
heavy objects on the coat hooks for
safety reasons.
OCV031044L
OCV031045L
Safety features of your vehicle
464
Air bag - advanced supplemental restraint system
Air bag collision sensors
The air bag collision sensors are located in the following positions.
* The actual shape and position of sensors may differ from the illustration.
1
Supplemental Restraint System (SRS) control module/rollover sensor
2
Front impact sensor
3
Side pressure sensors (front door)
4
Side impact sensor (B-pillar)
5
Side impact sensor (C-pillar)
1 2 3 4 5
OCV031046N
OCV031047L
OCV031048N
OCV031049L
OCV031050N
OCV031051L
47
4
4
Safety features of your vehicle Air bag - advanced supplemental restraint system
WARNING
Air Bag Sensors
僅 Do not hit or allow any objects to
impact the locations where air bags or
sensors are installed.
This may cause unexpected air bag
deployment, which could result in
serious personal injury or death.
僅 If the installation location or angle of
the sensors is altered in any way, the
air bags may deploy when they
should not or they may not deploy
when they should.
Therefore, do not try to perform main
-
tenance on or around the air bag sen
-
sors. Have the vehicle checked and
repaired by an authorized Kia dealer.
Problems may arise if the sensor instal
-
lation angles are changed due to the
deformation of the front bumper, front
end module, body or front doors where
side collision sensors are installed. Have
the vehicle checked and repaired by an
authorized Kia dealer.
Installing bumper guards (or side step or
running board) or replacing a bumper
(or front door module) with non-genuine
parts may adversely affect your vehicle's
collision and air bag deployment perfor
-
mance. Kia Genuine bumper guards/
bumpers are parts we guarantee for
quality and performance.
Why didn't my air bag go off in a
collision? (Inflation and non-infla
-
tion conditions of the air bag)
There are many types of accidents in
which the air bag would not be expected
to provide additional protection.
These include rear impacts, second or
third collisions in multiple impact acci
-
dents, as well as low speed impacts.
Air bag inflation conditions
Front air bags
Front air bags are designed to inflate in
a frontal collision depending on the
severity of impact of the front collision.
Side and/or curtain air bags
Side and/or curtain air bags are
designed to inflate when an impact is
detected by side collision sensors
depending on the severity of impact
resulting from a side impact collision.
Also, the side and curtain air bags are
designed to inflate when a rollover is
detected by a rollover sensor.
Although the front air bags (driver's and
front passenger's air bags) are primarily
designed to inflate in frontal collisions,
they may inflate in other types of colli
-
sions if the front impact sensors detect a
sufficient frontal force in another type of
impact.
OCV031052L
OCV031056N
OCV031045L
Safety features of your vehicle
484
Air bag - advanced supplemental restraint system
Similarly, although side and curtain air
bags are designed to inflate in certain
side impact collisions, they may inflate in
other types of collisions where a side
force is detected by the sensors. For
instance, side air bag and/or curtain air
bags may inflate if rollover sensors indi
-
cate the possibility of a rollover occur
-
ring (even if none actually occurs) or in
other situations, including when the
vehicle is tilted while being towed.
Even if side and/or curtain air bags do
not provide impact protection in a roll
-
over, they will deploy to prevent ejection
of occupants, especially those who are
restrained with seat belts.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
Air bag non-inflation conditions
僅 In certain low-speed collisions the air
bags may not deploy. The air bags are
designed not to deploy in such cases
because they may not provide bene
-
fits beyond the protection of the seat
belts in such collisions.
僅 Air bags are not designed to inflate in
rear collisions, because occupants are
moved backward by the force of the
impact. In this case, inflated air bags
would not be able to provide any
additional benefit.
僅 Front air bags may not inflate in side
impact collisions, because occupants
move to the direction of the collision,
and thus in side impacts, frontal air
bag deployment would not provide
additional occupant protection.
僅 In an angled collision, the force of
impact may direct the occupants in a
direction where the air bags would not
be able to provide any additional ben
-
efit, and thus the sensors may not
deploy any air bags.
僅 Just before impact, drivers often
brake heavily. Such heavy braking
lowers the front portion of the vehicle
causing it to "ride" under a vehicle
with a higher ground clearance. Air
bags may not inflate in this "under-
ride" situation because deceleration
forces that are detected by sensors
may be significantly reduced by such
"under-ride" collisions.
OCV031052L
OCV031053L
OCV031056N
OCV031055N
49
4
4
Safety features of your vehicle Air bag - advanced supplemental restraint system
僅 Front air bags may not inflate in all
rollover accidents when the SRSCM
indicates that the front air bag
deployment would not provide addi
-
tional occupant protection.
僅 Air bags may not inflate if the vehicle
collides with objects such as utility
poles or trees, where the point of
impact is concentrated to one area
and the full force of the impact is not
delivered to the sensors.
Supplemental Restraint System
(SRS) care
The SRS is virtually maintenance-free
and so there are no parts you can safely
service by yourself.
If the SRS air bag warning light does not
appear, or continuously remains on,
have your vehicle immediately inspected
by an authorized Kia dealer.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger's panel, front seats and roof
rails must be performed by an autho
-
rized Kia dealer. Improper handling of
the SRS system may result in serious
personal injury.
For cleaning the air bag pad covers, use
only a soft, dry cloth or one which has
been moistened with plain water. Sol
-
vents or cleaners could adversely affect
the air bag covers and proper deploy
-
ment of the system.
If components of the air bag system
must be discarded, or if the vehicle must
be scrapped, certain safety precautions
must be observed. An authorized Kia
dealer knows these precautions and can
give you the necessary information. Fail
-
ure to follow these precautions and pro
-
cedures could increase the risk of
personal injury.
WARNING
Tampering with SRS
Do not tamper with or disconnect SRS
wiring, or other components of the SRS
system. Doing so could result in the acci
-
dental inflation of the air bags or render
the SRS inoperative.
WARNING
Towing Vehicle
Always have the vehicle in OFF position
when your vehicle is being towed. The
side air bags may inflate if the vehicle is
tilted, such as when being towed,
because of the rollover sensors in the
vehicle.
Adding equipment to or modify
-
ing your air bag-equipped vehicle
If you modify your vehicle by changing
your vehicle's frame, bumper system,
front end or side sheet metal or ride
OCV031054N
OCV031057N
OCV031058N
Safety features of your vehicle
504
Air bag - advanced supplemental restraint system
height, this may affect the operation of
your vehicle's air bag system.
Air bag warning label
Air bag warning labels, some required
by the U.S. National Highway Traffic
Safety Administration (NHTSA, U.S.
only), are attached to the sun visor to
alert the driver and passengers of
potential risks of the air bag system.
OCV031119N
5Features of your vehicle
Features of your vehicle
Keys.................................................................................................5-6
僅 Smart key............................................................................................................. 5-7
僅 Immobilizer system ........................................................................................5-12
僅 Theft-alarm system....................................................................................... 5-13
Door locks..................................................................................... 5-14
僅 Operating door unlocks from outside the vehicle........................... 5-14
僅 Operating door locks from outside the vehicle ................................ 5-16
僅 Operating door locks from inside the vehicle ................................... 5-17
僅 In case of an emergency ............................................................................ 5-19
僅 Door lock/unlock features......................................................................... 5-20
僅 Child-protector rear door lock................................................................. 5-20
僅 Electronic child safety lock .........................................................................5-21
僅 Rear Occupant Alert (ROA) .......................................................................5-22
Driver Position Memory System ................................................5-23
僅 Storing memory positions ..........................................................................5-23
僅 Recalling memory positions ......................................................................5-23
僅 Resetting memory positions .....................................................................5-23
僅 Seat easy access.............................................................................................5-24
Liftgate..........................................................................................5-25
僅 Opening the liftgate......................................................................................5-25
僅 Closing the liftgate.........................................................................................5-25
僅 Emergency liftgate safety release..........................................................5-25
Power liftgate ..............................................................................5-26
僅 Operating the power liftgate ....................................................................5-28
僅 Setting the power liftgate...........................................................................5-29
僅 Resetting the power liftgate..................................................................... 5-30
僅 Emergency liftgate safety release......................................................... 5-30
Smart Liftgate with Auto Open ................................................. 5-31
僅 Using smart liftgate....................................................................................... 5-31
僅 Deactivating smart liftgate.........................................................................5-32
僅 Detecting area .................................................................................................5-33
5 Features of your vehicle
Windows ...................................................................................... 5-34
僅 Window opening and closing ...................................................................5-35
僅 Power window lock button ........................................................................5-36
僅 Remote window opening............................................................................5-37
Hood ............................................................................................. 5-38
僅 Opening the hood..........................................................................................5-38
僅 Closing the hood ............................................................................................5-38
僅 Hood open warning ......................................................................................5-39
Front trunk................................................................................... 5-39
僅 Opening the front trunk..............................................................................5-39
僅 Closing the front trunk ................................................................................5-39
Charging door ..............................................................................5-41
僅 Opening and closing the charging door.............................................. 5-41
Wide sunroof............................................................................... 5-42
僅 Power sunshade.............................................................................................5-42
僅 Tilt open/close.................................................................................................5-43
僅 Slide open/close .............................................................................................5-43
僅 Automatic reversal ........................................................................................5-43
僅 Resetting the sunroof.................................................................................. 5-44
僅 Sunroof open warning.................................................................................5-45
Steering wheel ............................................................................ 5-45
僅 Electric Power Steering (EPS)...................................................................5-45
僅 Tilt and telescopic steering wheel ..........................................................5-46
僅 Heated steering wheel.................................................................................5-47
僅 Horn .....................................................................................................................5-47
Mirrors.......................................................................................... 5-48
僅 Inside rear view mirror................................................................................ 5-48
僅 Outside rear view mirror.............................................................................5-57
Instrument cluster....................................................................... 5-60
僅 Instrument panel illumination control................................................... 5-61
5Features of your vehicle
僅 Gauges................................................................................................................ 5-61
LCD display.................................................................................. 5-64
僅 LCD display control ...................................................................................... 5-64
僅 LCD display modes....................................................................................... 5-64
僅 LCD display messages.................................................................................5-69
Warning and indicator lights .....................................................5-74
僅 Warning lights..................................................................................................5-74
僅 Indicator lights.................................................................................................5-79
Augmented Reality HUD ............................................................5-82
僅 Head-up display settings............................................................................5-82
僅 Head-up display information....................................................................5-83
僅 Precautions while using the head-up display ...................................5-83
Lighting........................................................................................ 5-85
僅 Battery saver function................................................................................. 5-85
僅 Headlight escort function.......................................................................... 5-85
僅 Daytime running light (DRL) .................................................................... 5-85
僅 Lighting control.............................................................................................. 5-86
僅 Operating high beam...................................................................................5-87
僅 Operating turn signals and lane change signals .............................5-87
僅 One-touch lane change function ............................................................5-87
僅 High Beam Assist (HBA)............................................................................. 5-88
Wipers and washers ................................................................... 5-90
僅 Auto control ...................................................................................................... 5-91
僅 Operating windshield washer................................................................... 5-91
Interior lights................................................................................5-92
僅 Automatic turn off function.......................................................................5-92
僅 Room lamp........................................................................................................5-92
僅 Map lamp...........................................................................................................5-92
僅 Liftgate room lamp........................................................................................5-93
僅 Vanity mirror lamp ........................................................................................5-93
僅 Glove box lamp.............................................................................................. 5-94
5 Features of your vehicle
僅 Charging inlet lamp ......................................................................................5-94
Welcome system ......................................................................... 5-94
Defroster...................................................................................... 5-95
僅 Operating rear window defroster...........................................................5-95
僅 Outside mirror defroster.............................................................................5-96
Automatic climate control system............................................ 5-97
僅 Using the infotainment/climate switchable controller ..................5-98
僅 Heating and air conditioning automatically.......................................5-98
僅 Heating and air conditioning manually.............................................5-100
僅 System operation........................................................................................ 5-104
僅 Climate control air filter............................................................................ 5-106
僅 Air conditioning refrigerant label......................................................... 5-106
僅 Checking the amount of air conditioner refrigerant and
compressor lubricant..................................................................................5-107
Windshield defrosting and defogging................................... 5-108
僅 Defrosting outside windshield with automatic climate
control............................................................................................................... 5-108
僅 Defogging inside windshield with automatic climate control . 5-108
僅 Defogging logic............................................................................................ 5-109
僅 Auto Defogging System (ADS).............................................................. 5-109
僅 Automatic ventilation ................................................................................. 5-110
僅 Smart ventilation .......................................................................................... 5-110
僅 A/C Automatic Drying................................................................................ 5-110
Storage compartment ................................................................5-111
僅 Center console storage .............................................................................. 5-111
僅 Glove box .........................................................................................................5-112
僅 Luggage board...............................................................................................5-112
Interior features ......................................................................... 5-112
僅 Ambient light...................................................................................................5-112
僅 Cup holder .......................................................................................................5-112
僅 Seat warmer....................................................................................................5-113
5Features of your vehicle
僅 Air ventilation seat....................................................................................... 5-114
僅 Sun visor........................................................................................................... 5-114
僅 Power outlet ................................................................................................... 5-115
僅 USB charger ................................................................................................... 5-115
僅 Wireless smart phone charging system............................................. 5-116
僅 Coat hook ........................................................................................................ 5-118
僅 Floor mat anchor(s)..................................................................................... 5-119
僅 Luggage net holder.................................................................................... 5-120
僅 Cargo security screen ............................................................................... 5-120
Audio system...............................................................................5-121
僅 Sharkfin antenna...........................................................................................5-121
僅 USB port............................................................................................................5-121
僅 Using the infotainment/climate switchable controller..................5-121
僅 How vehicle radio works........................................................................... 5-122
Declaration of Conformity ....................................................... 5-124
Features of your vehicle
65
Keys
Features of your vehicle
Keys
The mechanical key and various remote
functions are integrated into the smart
key to provide convenience to the driver.
Battery replacement
A smart key battery should last for sev
-
eral years, but if the smart key is not
working properly, try replacing the bat
-
tery with a new one.
If you are unsure how to use your smart
key or replace the battery, contact an
authorized Kia dealer.
1. Remove the mechanical key.
2. Pry open the rear cover.
3. Replace the battery with a new bat
-
tery (CR2032). When replacing the
battery, make sure the battery is in
the correct position.
4. Install the battery in the reverse order
of removal.
The smart key is designed to give you
years of trouble-free use, however it can
malfunction if exposed to moisture or
static electricity. If you are unsure how to
use or replace the battery, contact an
authorized Kia dealer.
Using the wrong battery can cause the
smart key to malfunction. Be sure to use
the correct battery.
To avoid damaging the smart key, don't
drop it, get it wet, or expose it to heat or
sunlight.
An inappropriately disposed
battery can be harmful to the
environment and human
health. Dispose the battery
according to your local law(s) or regula
-
tions.
WARNING
THIS PRODUCT CONTAINS A BUT
-
TON BATTERY
If swallowed, a lithium button battery
can cause severe or fatal injuries within
2 hours.
Keep batteries out of reach of children.
If you think batteries may have been
swallowed or placed inside any part of
the body, seek immediate medical atten
-
tion.
WARNING
Do not leave the smart key in your vehi
-
cle with unsupervised children. Unat
-
tended children could press the EV
button and may operate power windows
or other controls, or even make the vehi
-
cle move, which could result in serious
injury or death.
Record your key number
The key code number is stamped on the
bar code tag attached to the key set.
Should you lose your keys, this number
will enable an authorized Kia dealer to
duplicate the keys easily. Remove the
bar code tag and store it in a safe place.
Also, record the code number and keep
it in a safe and handy place, but not in
the vehicle.
WARNING
Aftermarket Keys
OCV041005L
7
5
5
Features of your vehicle Keys
Use only Kia original parts for the key in
your vehicle. If an aftermarket key is
used, the EV button may not return to
ON after START. If this happens, the
vehicle will continue to operate causing
possible fire due to excessive current in
the wiring.
Smart key
With a smart key, you can lock or unlock
a door and even start the vehicle without
inserting the key.
1
Door lock
2
Door unlock
3
Liftgate unlock/open
4
Panic alarm
5
Remote start
6
Remote Start Parking Assist (Forward)
7
Remote Start Parking Assist (Back
-
ward)
Locking (1)
Manual type
To lock your vehicle using the door han
-
dle touch sensor or the smart key:
1. Make sure all doors, the hood and the
liftgate are closed.
2. Press the door lock button (1) on the
smart key. The hazard warning lights
will blink with an alarm, and the doors
will be locked.
3. In addition, pushing the button on the
door handle (the engraved part) while
holding the smart key will lock all
doors.
Electric type (if equipped)
To lock your vehicle using the door han
-
dle touch sensor or the smart key:
1. Make sure all doors, the hood and the
liftgate are closed.
2. Press the door lock button (1) on the
smart key. The hazard warning lights
will blink with an alarm, and the han
-
dles will retract back.
3. In addition, touching the touch sensor
on the door handle (the engraved
part) while keeping the smart key will
OCV041003_2
OCV041583L
OCV041085L
Features of your vehicle
85
Keys
lock all doors and let the door handle
to retract back.
NOTICE
僅 The outside rearview mirrors will fold
if
Enable on Door Unlock
is selected
from the Settings menu in the info
-
tainment system screen.
Select
Setup
→
Vehicle
→
Conve
-
nience
→
Welcome Mirror
→
Enable
on Door Unlock
僅 The door handle touch sensor will
only operate when the smart key is
within 28~40 inches (0.7~1 m) from
the outside door handle.
僅 Touching the door handle touch sen
-
sor does not unlock the doors. To
unlock the doors, refer to the follow
-
ing page.
僅 Note that you cannot lock your vehi
-
cle using the door handle touch sen
-
sor if any of the following occur:
- The smart key is in the vehicle.
- The EV button is in ACC or ON posi
-
tion.
- Any of the doors are open except
for the liftgate.
NOTICE
僅 To fold/unfold the outside rearview
mirrors simultaneously when the door
is locked/unlocked, select
Setup
→
Vehicle
→
Convenience
→
Welcome
Mirror
→
Enable on Door Unlock
in
the infotainment system screen.
僅 The door handle button will only oper
-
ate when the smart key is within
28~40 inches (0.7~1 m) from the out
-
side door handle. Other people can
also open the doors without the smart
key in possession.
僅 After unlocking the doors, the doors
will lock automatically after 30 sec
-
onds unless a door is opened.
For detailed information, refer to the
separately supplied infotainment sys
-
tem manual.
僅 If the smart key is not moved for
some time, the detection function for
smart key operation will pause. Lift
the smart key to activate the detec
-
tion again.
Unlocking (2)
Manual type
To unlock your vehicle using the door
handle button or the smart key:
1. Make sure you have the smart key in
your possession.
2. Pushing the button on the door han
-
dle (engraved part) or press the door
unlock button (2) on the smart key. All
doors handles will be unlocked and
the hazard warning lights will blink
twice.
3. After unlocking the doors, the doors
will automatically re-lock after 30 sec
-
onds unless a door is opened.
OCV041583L
9
5
5
Features of your vehicle Keys
Electric type (if equipped)
When you release the Two Press
Unlock function
To unlock your vehicle using the door
handle touch sensor or the smart key:
1. Make sure you have the smart key in
your possession.
2. Touch the touch sensor on the door
handle (engraved part) or press the
door unlock button (2) on the smart
key. All door handles will pop out and
the doors will be unlocked and the
hazard warning lights will blink and
the chime will sound.
3. After unlocking the doors, the doors
will automatically re-lock after 30 sec
-
onds unless a door is opened.
When you set the Two Press
Unlock function
1. Make sure you have the smart key in
your possession.
2. Touch the touch sensor on the door
handle (engraved part) or press the
door unlock button (2) on the smart
key. The driver's door handle will pop
out and the driver's door will be
unlocked.
3. Touch the touch sensor on the door
handle (engraved part) or press the
door unlock button (2) on the smart
key within 4 seconds again. All door
handles will pop out and the doors will
be unlocked and the hazard warning
lights will blink twice and the chime
will sound.
4. After unlocking the doors, the doors
will automatically relock after 30 sec
-
onds unless a door is opened.
Two Press Unlock Feature
The priority for unlocking the driver door
only, or unlocking all the doors with one
press may be adjusted in the infotain
-
ment system screen.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
Select or deselect the Two Press Unlock
Feature in the infotainment system. The
option can be found under the following
menu:
Setup
→
Vehicle
→
Door
→
Two Press
Unlock
The Two Press Unlock Feature can also
be enabled or disabled by pressing the
door lock and unlock buttons simultane
-
ously on the key fob:
僅 Press and hold both the door lock but
-
ton (1) and the door unlock button (2)
simultaneously until the hazard warn
-
ing lights blink.
僅 This will enable or disable the Two
Press Unlock feature. Repeat this pro
-
cedure to enable/disable the mode
again.
NOTICE
僅 The outside rearview mirrors will
unfold if
Enable on Door Unlock
is
selected from the Settings menu in
the infotainment system screen.
Select
Setup
→
Vehicle
→
Conve
-
nience
→
Welcome Mirror
→
Enable
on Door Unlock
OCV041583N
Features of your vehicle
105
Keys
僅 The door handle touch sensor will
only operate when the smart key is
within 28~40 inches (0.7~1 m) from
the outside door handle.
僅 The doors may lock or unlock if the
touch sensor of the outer door handle
is recognized while washing your car
or due to heavy rain.
僅 To prevent unintentional door lock or
unlock:
- Press the lock button on the smart
key and immediately press the
unlock button along with the lock
button for more than 4 seconds.
The hazard warning lights will blink
four times. At this time, the doors
will not lock or unlock even though
the touch sensor is touched on the
outside door handle. To deactivate
the function, press the door lock or
unlock button on the smart key.
僅 The doors may not lock or unlock in
the following situations.
- If the touch sensor is touched with
gloves on
- If the door is suddenly approached
Liftgate open (3)
To open:
1. Make sure you have the smart key in
your possession.
2. Pressing the button (3) on the smart
key will only unlock the liftgate.
3. Once the liftgate is opened and then
closed, the liftgate will lock automati
-
cally.
NOTICE
The liftgate unlock will only operate
when the smart key is within 28~40
inches (0.7~1 m) from the liftgate.
Panic alarm (4)
1. Press the panic button (4) for more
than 1 second.
2. The horn sounds and hazard warning
light flash for about 27 seconds.
To stop the horn and lights, press any
button on the smart key.
Remote start (5)
You can start the vehicle using the
remote start button (5) of the smart key.
To start the vehicle remotely:
僅 Lock the doors by pressing the door
lock button (1) within 32 feet (10 m)
distance from the vehicle.
僅 Press the remote start button (5) for
over 2 seconds within 4 seconds after
locking the doors.
Press the remote start button (5) once to
turn off the vehicle. Air conditioner/
heater system maintains the status
before turning off the vehicle. If no fur
-
ther action for operating/driving the
vehicle is taken, the vehicle will be
turned off 10 minutes after starting the
vehicle remotely.
NOTICE
僅 Laws in your state may restrict the use
of remote start. You should check
country regulations before using this
remote starting system.
僅 It is only possible to start the vehicle
remotely when shifted to P (Park).
僅 If the hood or the liftgate is opened,
you cannot start the vehicle remotely.
Remote Smart Parking Assist
(RSPA) (6, 7) (if equipped)
The Remote Smart Parking Assist
(RSPA) helps the drivers park their vehi
-
cle by using sensors to measure parking
spaces and control the steering wheel,
11
5
5
Features of your vehicle Keys
gear shift and vehicle speed to semi-
automatically park the vehicle.
With the smart key, the driver can move
the vehicle forward or backward using
the forward/backward buttons (6, 7) on
the smart key.
For more information, refer to "Remote
Smart Parking Assist (RSPA) (if
equipped)" on page 7-125.
Mechanical key
If the smart key does not operate nor
-
mally, you can lock or unlock the driver's
door by using the mechanical key.
To remove the mechanical key, press
and hold the release button (1) and
remove the mechanical key (2).
To reinstall the mechanical key, put the
key into the hole and push it until a click
sound is heard.
With a smart key, you can lock or unlock
a door (and liftgate) and start the vehi
-
cle.
Loss of the smart key
A maximum of 2 smart keys can be reg
-
istered to a single vehicle.
If you happen to lose your smart key,
you will not be able to start the vehicle.
You should immediately take the vehicle
and remaining key to your authorized
Kia dealer (tow the vehicle, if necessary)
to protect it from potential theft.
Smart key precautions
The smart key will not work if any of the
following occur:
僅 The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the smart key.
僅 The smart key is near a mobile two
way radio system or a cellular phone.
僅 Another vehicle's smart key is being
operated close to your vehicle.
When the smart key does not work cor
-
rectly, open and close the door with the
mechanical key and contact an autho
-
rized Kia dealer.
If the smart key is in close proximity to
your cell phone or smart phone, the sig
-
nal from the smart key could be blocked
by normal operation of your cell phone
or smart phone. This is especially
important when the phone is active such
as making calls, receiving calls, text mes
-
saging, and/or sending/receiving emails.
Avoid placing the smart key and your
cell phone or smart phone in the same
pants or jacket pocket and maintain
adequate distance between the two
devices.
CAUTION
Smart Key
Keep the smart key away from water or
any liquid, as it can become damaged
and not function properly if wet.
NOTICE
If the smart key is inoperative due to
exposure to water or liquids, it will not be
covered by your manufacturer's vehicle
warranty.
INFORMATION
If the smart key is not moved for some
time, the detection function for smart
OCV041004L
Features of your vehicle
125
Keys
key operation will pause. Lift the smart
key to activate the detection again.
CAUTION
Smart Key Damage
Do not drop, get wet or expose the
smart key to heat or sunlight, or it will be
damaged.
Immobilizer system
The immobilizer system protects your
vehicle from theft. If an improperly
coded key (or other device) is used, the
vehicle's power system is disabled.
When the EV button is placed in the ON
position, the immobilizer system indica
-
tor should come on briefly, then go off. If
the indicator starts to blink, the system
does not recognize the coding of the
key.
Place the EV button to the OFF position,
then place the EV button to the ON posi
-
tion again.
In some circumstances, the vehicle may
not recognize your smart key if another
smart key device is nearby or a metal
object such as a key chain is causing
interference with the smart key.
If this occurs, your vehicle may not start.
Remove any metal objects or additional
keys near the smart key before attempt
-
ing to start the vehicle again.
If the system repeatedly does not recog
-
nize the coding of the key, it is recom
-
mended that you contact your Kia
dealer.
Do not attempt to alter this system or
add other devices to it. Electrical prob
-
lems could result that may make your
vehicle inoperable.
NOTICE
When starting the vehicle, do not use the
key with other immobilizer keys around.
Otherwise the vehicle may not start or
may stop soon after it starts. Keep each
key separate in order to avoid a starting
malfunction.
WARNING
In order to prevent theft of your vehicle,
do not leave spare keys anywhere in
your vehicle. Your immobilizer password
is a customer unique password and
should be kept confidential.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
3. Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.
NOTICE
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's author
-
ity to operate the equipment. If the
smart key is inoperative due to changes
or modifications not expressly approved
by the party responsible for compliance,
it will not be covered by your manufac
-
turer's vehicle warranty.
13
5
5
Features of your vehicle Keys
Theft-alarm system
This system is designed to provide pro
-
tection from unauthorized entry into the
vehicle.
This system is operated in three stages:
the first is the "Armed" stage, the second
is the "Theft-alarm" stage, and the third
is the "Disarmed" stage. If triggered, the
system provides an audible alarm with
blinking of the hazard warning lights.
Armed stage
Park and stop the vehicle. Arm the sys
-
tem as described below.
Entering the armed stage using
the smart key
1. Place the EV button in the OFF posi
-
tion.
2. Make sure that all doors, the hood
and liftgate are closed and latched.
3. Lock the doors by pressing the button
of the front outside door handle with
the smart key in your possession.
After completion of the steps above,
the hazard warning lights will operate
once to indicate that the system is
armed.
If any door (or liftgate) or hood
remains open, the hazard warning
lights and the chime will not operate
and the theft-alarm will not arm. If all
doors and liftgate and hood are
closed after the lock button is
pressed, the hazard warning lights
blink once.
The system can also be armed by
locking the doors with the key from
the front doors; however, the hazard
warning lights will not blink using this
method.
4. Lock the doors by pressing the lock
button on the smart key.
After completion of the steps above,
the hazard warning lights will operate
once to indicate that the system is
armed.
NOTICE
Do not arm the system until all passen
-
gers have left the vehicle. If the system is
armed while a passenger(s) remains in
the vehicle, the alarm may be activated
when the remaining passenger(s) leaves
the vehicle. If any door (or liftgate) or
hood is opened within 30 seconds after
the system enters the armed stage, the
system will be disarmed to prevent
unnecessary alarm.
Theft-alarm stage
The alarm will be activated if any of the
following occurs while the system is
armed.
僅 A front or rear door is opened without
using the smart key.
僅 The liftgate is opened without using
the smart key.
僅 The hood is opened.
The horn will sound and the hazard
warning lights will blink continuously for
approximately 27 seconds, and repeat
the horn 3 times unless the system is
OGL3041503L
Features of your vehicle
145
Door locks
disarmed. To turn off the system, unlock
the doors with the smart key.
Disarmed stage
The system will be disarmed when:
僅 The doors (and liftgate) are unlocked
with the smart key.
After pressing the unlock button, the
hazard warning lights will blink and the
chime will sound twice (in smart key) to
indicate that the system is disarmed.
After pressing the unlock button, if any
door (or liftgate) is not opened within 30
seconds, the system will be rearmed.
NOTICE
僅 Avoid trying to start the vehicle while
the alarm is activated. The vehicle
starting motor is disabled during the
theft-alarm stage.
If the system is not disarmed with the
smart key, open the doors by using
the mechanical key and start the vehi
-
cle by directly pressing the EV button
with the smart key.
僅 If you lose your keys, consult your
authorized Kia dealer.
CAUTION
Adjusting Alarm System
Do not change, alter or adjust the theft
alarm system in your vehicle. Improper
installation of the alarm system could
damage the vehicle or cause the system
to malfunction.
NOTICE
Malfunctions caused by improper alter
-
ations, adjustments or modifications to
the theft-alarm system are not covered
by your vehicle manufacturer warranty.
Door locks
Know how to use the door lock so that
you can lock or unlock the door if neces
-
sary.
Operating door unlocks from out
-
side the vehicle
Manual type
Push the button on the front outside
door handle (the engraved part) while
carrying the Smart Key with you, all
doors will unlock.
The hazard warning lights will blink
twice and chime also sounds twice.
Once the doors are unlocked, when
press the front of the door handle (1)
then rear of the door handle will pop out
(2).
Pull the outside door handle to open the
door.
Electric type (if equipped)
Approach Unlock system
The outside door handle will slide out
and the doors will unlock when the
driver approaches the vehicle possess
-
ing the smart key.
OCV041583L
OCV041007N_2
15
5
5
Features of your vehicle Door locks
The driver can activate/deactivate the
Approach Unlock
system on the info
-
tainment screen.
To activate Approach unlock system for
only the driver's seat, select
Setup
→
Vehicle
→
Door
→
Remote Power
Door Open
→
Unlock All Doors
in the
infotainment system screen.
To activate Approach unlock system,
select
Setup
→
Vehicle
→
Door
→
Acti
-
vate Approach Unlock
in the infotain
-
ment system. The outside door handle
will slide out and the door will unlock
when the driver approaches the vehicle
possessing the smart key. If Approach
-
ing unlock system is deactivated, the
door handle will not slide out even when
the driver approaches to the vehicle with
the smart key. To unlock doors when
Approach unlock system is deactivated,
touch the lock/unlock sensor (engraved
part) on the handle.
When the Approach unlock is
activated
If you approach (within 1 ft. (30 cm)) the
driver or front passenger's door handle
possessing the smart key, the outside
door handles slide out and the doors are
unlocked. In this case, Hazard Warning
Flasher blinks twice and chime also
sounds twice.
After first approach, the vehicle tries
detecting the smart key every 5 seconds
and if the key is not detected, the doors
will lock automatically and the handles
will slide in.
When the Approach unlock is
deactivated
The handle does not slide out even when
you approach with the smart key in pos
-
session. The doors are unlocked if you
press the outside handle as the handles
slide out.
The doors will lock automatically and the
handles will slide in after 30 seconds
unless a door is opened.
NOTICE
In emergency situations, such as battery
is dead, the outside electric door handle
can still be operated in a way that the
manual type outside manual door han
-
dle operate.
OCV041622N
OCV041085N
OCV041583N
OCV041085N
Features of your vehicle
165
Door locks
Operating door locks from out
-
side the vehicle
Manual type
Push the button on the front outside
door handle (the engraved part) while
carrying the smart key with you, all
doors will lock.
The hazard warning lights will blink and
chime also sounds once.
Push the door to close.
Electric type (if equipped)
When all doors are closed, touch the
touch sensor on the front outside door
handle (the engraved part) while carry
-
ing the smart key with you, outside door
handle will return and doors will be
locked.
The hazard warning lights will blink and
chime also sounds once.
NOTICE
僅 If the door is locked/unlocked multiple
times in rapid succession with the
smart key, door lock button or door
lock switch, the system may stop
operating temporarily in order to pro
-
tect the circuit. Also, the
Approach
Unlock
system may not operate. Try
operation after a sufficient time in
case the system does not operate due
to multiple operations.
僅
Approach Unlock
system is not oper
-
ated continuously. Retry after a cer
-
tain period of time when all the doors
are closed.
NOTICE
僅 In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
僅 If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch,
the system may stop operating tem
-
porarily in order to protect the circuit
and prevent damage to system com
-
ponents.
僅 When washing the vehicle
-Self car wash
Keep the door locked with the out
-
side door handle closed.
To keep the door unlocked, push
back the outside door handle by
hand. This function prevents the
door handle from being damaged,
and the door handle pops out again
when the unlock button is pressed.
-Auto car wash
Keep the door locked with the out
-
side door handle closed.
If the smart key is not in the vehicle,
turn off the vehicle and keep the
OCV041583L
OCV041085L
OCV041623N
17
5
5
Features of your vehicle Door locks
smart key away at least 78 inches
(2 m) from the vehicle to prevent
the outside door handle operates.
Mechanical key
Press the front part (1) of the door han
-
dle to pull out the rear part of the door
handle. While keep pressing the front
part of the door handle, insert the
mechanical key (2) to the lock with the
key handle facing the ground as shown.
To lock the door, turn the key toward the
front (left side) of the vehicle. To unlock,
turn the key toward the rear (right side)
of the vehicle.
NOTICE
Do not apply excessive force on the door
and door handle. It may damage the
door and door handle.
CAUTION
Do not apply excessive force on the door
and door handle. It may damage the
door and door handle.
NOTICE
The mechanical key only locks/unlocks
the driver's door handle. For more
details, refer to 'In case of an emergency'
in this chapter.
How to remove ice from door
handles
In extreme winter conditions, the door
handle may not open due to icing inside
the door handle. You can usually use the
bottom of your fist to tap the door han
-
dle a few times to remove the ice.
1. Remove icing by tapping the door
handle using the bottom of your fist in
a circular pattern along the perimeter
of the door handle.
2. If necessary, increase the intensity of
tapping to remove ice, and repeat
until the door handle protrudes when
unlocking the door.
3. When the door handle protrudes and
can be pulled, open and close a few
times to remove any icing residue.
CAUTION
僅 Before performing this procedure,
remove any jewelry or objects that
could damage the paintwork and do
not attempt to use tools or excessive
force.
僅 Do not hit the vehicle too hard as
dents may occur. You should use a
force similar to knocking on your
neighbor's door.
OCV041007L_2
OCV041637N
Features of your vehicle
185
Door locks
Operating door locks from inside
the vehicle
With the door handle
Front door
If the inner door handle is pulled when
the door is locked, the door will unlock
and open.
Rear door
If the inner door handle is pulled once
when the door is locked, the door will
unlock. If the inner door handle is pulled
once more, the door will open.
NOTICE
Door Lock Malfunction
If a power door lock ever fails to function
while you are in the vehicle, try one or
more of the following techniques to exit:
僅 Operate the door unlock feature
repeatedly (both electronic and man
-
ual) while simultaneously pulling on
the door handle.
僅 Operate the other door locks and han
-
dles, front and rear.
僅 Lower a front window and use the key
to unlock the door from outside.
WARNING
Do not pull the inner door handle of
driver's (or passenger's) door while the
vehicle is moving.
With the central door lock switch
Driver side
Passenger side
Operate by pressing the central door
lock switch.
僅 To lock all vehicle doors, press the
central door lock switch (1) of driver
and passenger side.
僅 To unlock all vehicle doors, press cen
-
tral door unlock switch (2) of driver
and passenger side.
僅 When all vehicle doors are locked, the
indicating lights (3) on the driver's
door and passenger's door will turn
on. If any door is unlocked, it will go
off.
僅 Any door is opened, the doors will not
lock even though the central door lock
switch is pressed.
WARNING
Doors
僅 The doors should always be fully
closed and locked while the vehicle is
in motion to prevent accidental open
-
ing of the door.
僅 Be careful when opening doors and
watch out for vehicles, motorcycles,
bicycles or pedestrians approaching
OCV041008L
OCV041009L
OCV041592N
19
5
5
Features of your vehicle Door locks
the vehicle in the path of the door.
Opening a door when something is
approaching can result in an accident
to cause vehicle damage or serious
injury.
WARNING
Unattended children, the elderly or
pets
An enclosed vehicle can become
extremely hot, causing death or severe
injury such as heatstroke to unattended
children, the elderly or pets who cannot
escape the vehicle. When left or trapped
in a hot vehicle, make sure to stay
hydrated and avoid sun exposure
through the vehicle’s windshield. Fur
-
thermore, children might operate fea
-
tures of the vehicle that could injure
them, or they could encounter other
harm, possibly from someone gaining
entry to the vehicle. Never leave children
or animals unattended in your vehicle.
In case of an emergency
In case of emergency such as when the
battery is discharged, the only way to
lock the door(s) is with the mechanical
key from the outside key hole. Doors
without an outside key hole can be
locked as follows:
1. Open the door.
2. Insert the key into the emergency
door lock hole and turn the key to the
lock position.
3. Close the door securely.
WARNING
僅 The doors should always be fully
closed and locked while the vehicle is
in motion. If the doors are unlocked,
the risk of being thrown from the
vehicle in a crash is increased.
僅 Do not pull the inner door handle of
the driver's or passenger's door while
the vehicle is moving.
WARNING
Do not leave children or animals unat
-
tended in your vehicle. An enclosed
vehicle can become extremely hot, caus
-
ing death or serious injury to unattended
children or animals who cannot escape
the vehicle. Children might operate fea
-
tures of the vehicle that could injure
them, or they could encounter other
harm, possibly from someone gaining
entry to the vehicle.
WARNING
Always secure your vehicle. Leaving
your vehicle unlocked increases the
potential risk to you or others from
someone hiding in your vehicle. To
secure your vehicle, while depressing
the brake, shift the gear to the P (Park)
position, engage the parking brake, and
press the EV button to the OFF position,
close all windows, lock all doors, and
always take the key with you.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
OCV041010
Features of your vehicle
205
Door locks
life. Do not lock the vehicle from the out
-
side when someone is in the vehicle.
CAUTION
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the
vehicle in the path of the door.
NOTICE
If the electrical power door lock switch
does not operate (ex. dead car battery)
and the liftgate is closed, you will not be
able to open the liftgate until power is
restored.
Door lock/unlock features
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you
select in the infotainment system screen.
For detailed information, refer to the
separately supplied infotainment system
manual.
Auto LOCK Enable on speed
When this feature is set in the infotain
-
ment system screen, all the doors will be
locked automatically when the vehicle
exceeds 9 mph (15 km/h).
You can activate or deactivate the auto
door lock/unlock features in the vehicle.
Refer to "Vehicle settings (infotainment
system)" on page 5-68.
Auto LOCK Enable on shift
When this feature is set in the infotain
-
ment system screen, all the doors will be
locked automatically when the vehicle is
shifted out of P (Park) while the vehicle
is ON.
Auto UNLOCK On Shift to P
When this feature is set in the infotain
-
ment system screen, all the doors will be
unlocked automatically when the vehicle
is shifted back into P (Park) while the
vehicle is ON.
Auto UNLOCK Vehicle off
When this feature is set in the infotain
-
ment system screen, all the doors will be
unlocked automatically when the vehicle
is turned off.
Additional unlock safety feature
air bag deployment
As an additional safety feature, all doors
will be automatically unlocked when an
impact causes the air bags to deploy.
Impact sensing door unlock sys
-
tem
All doors will automatically unlock when
an impact causes the air bags to deploy.
Child-protector rear door lock (if
equipped)
The child safety lock is provided to help
prevent children from accidentally open
-
ing the rear doors from inside the vehi
-
cle. The rear door safety locks should be
used whenever children are in the vehi
-
cle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position (1), the
rear door will not open if the inner door
handle (2) is pulled.
21
5
5
Features of your vehicle Door locks
To lock the child safety lock, insert a key
(or screwdriver) into the hole and turn it
to the lock position.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
lock.
WARNING
Rear Door Locks
Use the rear door safety locks whenever
children are in the vehicle. If a child acci
-
dentally open the rear doors while the
vehicle is moving, he or she may fall out.
Electronic child safety lock (if
equipped)
If you push the electronic child safety
lock switch and the indicator appears,
rear passengers cannot open the rear
door from inside the vehicle.
To cancel the electronic child safety lock,
push the electronic child safety lock
switch one more time and then the indi
-
cator turns off.
Safe Exit Assist is operated when the
electronic child safety lock is activated
and Safe Exit Assist is selected in the
cluster. However, Safe Exit Assist does
not automatically activate the electronic
child safety lock system.
The electronic child safety lock is always
on when the EV button is in the ON for
approximately 3 minutes.
WARNING
If children accidentally opens the rear
door while the vehicle is in motion, they
could fall out of the vehicle. Electronic
child safety lock should always be used
whenever children are in the vehicle.
NOTICE
If the Electronic child safety lock is not
operated when pushing the Electronic
child safety lock switch, the message is
displayed and the alarm will sound.
A:
Child safety lock failure
Child safety lock failure If this occurs,
have the function checked by an autho
-
rized Kia dealer.
NOTICE
If your vehicle is equipped with the Elec
-
tronic child safety lock, the Child-protec
-
tor rear door locks, which are manually
operated, are not provided.
OCV041011_2
OCV041012L
OCV041260N
Features of your vehicle
225
Door locks
Rear Occupant Alert (ROA)
Rear Occupant Alert (ROA) is provided
to help prevent exiting the vehicle with a
rear passenger left in the vehicle.
僅 When you open the front door after
opening and closing the rear door and
turning off the vehicle,
Check rear
seats
warning message appears on
the cluster.
A:
Check rear seats
You can activate or deactivate Rear
Occupant Alert (ROA) from the infotain
-
ment system.
The option can be found under the fol
-
lowing menu:
1. Press
Setup
button from the infotain
-
ment system screen.
2. Press
Setup
→
Vehicle
→
Conve
-
nience
→
Rear Occupant Alert
on
the infotainment system screen.
For detailed information, refer to the
separately supplied infotainment system
manual.
WARNING
Rear Occupant Alert (ROA) does not
actually detect objects or people in the
rear seat. By using a rear door opened
and closed history, the system informs
the driver that there may be something
in the rear seat.
CAUTION
僅 Rear Occupant Alert (ROA) uses a
rear door opened and closed history.
僅 The history is reset after the driver
turns the vehicle off normally, exits
the vehicle and locks the door
remotely. So even if a rear door does
not reopen, Rear Occupant Alert
(ROA) alert can occur.
僅 For example, after the Rear Occupant
Alert (ROA) alert occurs, if the driver
does not lock the door, and drives
again, the alert can occur.
WARNING
The door lock system may not work if
the electrical system is compromised.
Accordingly, please train children pas
-
sengers regarding how to open the car
door manually before an emergency sit
-
uation arises. That way, they would be
able to open the door manually in the
event an emergency situation arises.
OCV041119L
23
5
5
Features of your vehicle Driver Position Memory System
Driver Position Memory Sys
-
tem (if equipped)
The Driver Position Memory System is
provided to store and recall the following
memory settings with a simple button
operation.
僅 Driver's seat position
僅 Outside rear view mirror position
僅 Instrument panel illumination intensity
僅 Head Up Display (HUD) display mode,
position, AR matching adjustment (if
equipped)
WARNING
Never attempt to operate the driver
position memory system while the vehi
-
cle is moving.
This could result in loss of control, and
an accident causing death, serious
injury, or property damage.
NOTICE
僅 If the battery is disconnected, the
memory settings will be erased.
僅 If the Driver Position Memory System
does not operate normally, have the
system checked by an authorized Kia
dealer.
Storing memory positions
1. Shift to P (Park) while the EV button is
in the ON position.
2. Adjust the driver's seat position, out
-
side rearview mirror position, and
head-up display height to the desired
position.
3. Hold the button (1 or 2). The system
will beep once and notify you ‘Driver 1
(or 2) settings saved' will appear on
the infotainment screen.
Recalling memory positions
1. Shift to P (Park) while the EV button is
in the ON position.
2. Press the desired memory button (1 or
2). The system will beep once, and
then the driver's seat position, outside
rearview mirror position, and head-up
display height will automatically
adjust to the stored positions.
3. ‘Driver 1 (or 2) settings applied' will
appear on the infotainment screen.
NOTICE
僅 In order to adjust the memory button
(2) while adjusting the memory button
(1), press the memory button (1) to
pause the adjustment of (1), then
press memory button (2).
僅 If you adjust the seat, rearview mirror,
head-up display while recalling the
stored positions, the manually
adjusted settings will be applied.
Resetting memory positions
If the Driver position memory system
does not work properly, initialize the sys
-
tem as follows:
Resetting integrated memory
system
1. Stop the vehicle and open the driver's
door with the EV button in the ON
position and the vehicle shifted to P
(Park).
2. Adjust the driver's seat and seatback
to the foremost position.
OCV041013L
Features of your vehicle
245
Driver Position Memory System
3. Press the memory button 1 (or 2) and
push forward the driver's seat move
-
ment switch over 2 seconds simulta
-
neously.
While resetting integrated mem
-
ory system
1. Resetting starts with a notification
sound.
2. The driver's seat and seatback is
adjusted to the rearward position with
the notification sound.
3. The driver's seat and seatback is re-
adjusted to the default position (cen
-
tral position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.
僅 The memory button is pressed.
僅 The seat control switch is operated.
僅 The gear is shifted out of P (Park).
僅 The driving speed exceeds 2 mph (3
km/h).
僅 The driver's door is closed.
NOTICE
僅 While integrated memory system is
being reset, if the resetting and notifi
-
cation sound stops incompletely,
restart the resetting procedure again.
僅Make sure that there is no objects
around the driver's seat in advance of
resetting the integrated memory sys
-
tem.
僅 After resetting the integrated memory
system, the adjustment for the driver
seat must be stored again to recall the
memory position.
Seat easy access (if equipped)
The system will move the driver's seat
automatically as follows:
Exiting the vehicle
The driver's seat will move as follows
when the EV button is in the OFF posi
-
tion with the gear in P (Park) and the
driver's door open.
僅 Driver seat: Moves rearward depend
-
ing on the distance selected from the
Settings menu in the infotainment
system.
However, the driver's seat may not move
rearward if there is not enough space
between the driver's seat and the rear
seats.
Entering the vehicle
The driver's seat will move as follows
when the EV button is pressed to the
ACC, ON or START position or while car
-
rying the smart key, the driver's door is
closed with the EV button in the OFF
position.
僅 Driver seat: Moves back to its original
position.
You can set the Seat Easy Access func
-
tion from the Settings menu in the info
-
tainment system screen. Select:
僅 Driver seat
Setup
→
Vehicle
→
Seat
→
Seat Easy
Access
→
Driver Seat Easy Access
→
Normal
/
Extended
/
Off
INFORMATION
The infotainment system may change
after software updates. For more infor
-
mation, refer to the user's manual pro
-
vided in the infotainment system and
the quick reference guide.
25
5
5
Features of your vehicle Liftgate
Liftgate
When you open the liftgate, you will see
a space where you can load the cargo.
Opening the liftgate
The liftgate is locked or unlocked when
all doors are locked or unlocked with the
key, smart key or central door lock/
unlock switch.
CAUTION
Liftgate lift
Make sure that you close the liftgate
before driving your vehicle. Possible
damage may occur to the liftgate gas
lifters and attached hardware if the lift
-
gate is not closed prior to driving.
僅 Only the liftgate is unlocked if the lift
-
gate unlock button on the smart key is
pressed for approximately 1 second.
僅 If unlocked, the liftgate can be opened
by pressing the handle (1) and pulling
it up.
僅 Once the liftgate is opened and then
closed, the liftgate locks automati
-
cally. (All doors must be locked.)
NOTICE
In cold and wet climates, door lock and
door mechanisms may not work prop
-
erly due to freezing conditions.
WARNING
The liftgate swings upward. Make sure
no objects or people are near the rear of
the vehicle when opening the liftgate.
Closing the liftgate
Lower and push down the liftgate firmly.
Make sure that the liftgate is securely
latched.
Make sure your hands, feet and other
parts of your body are safely out of the
way before closing the liftgate.
WARNING
Rear Cargo Area
Occupants should never ride in the rear
cargo area where no restraints are avail
-
able. Occupants should always be prop
-
erly restrained.
Emergency liftgate safety release
Your vehicle is equipped with the emer
-
gency liftgate safety release lever
located on the bottom of the liftgate.
When someone is inadvertently locked
in the luggage compartment.
OCV041016N_2
OCV041593N
Features of your vehicle
265
Power liftgate
The liftgate can be opened by doing as
follows:
1. Input the mechanical key (1) into the
hole.
2. Push the mechanical key to the right.
3. Push up the liftgate.
WARNING
僅 No one should be allowed to occupy
the cargo area of the vehicle at any
time. The cargo area is a very danger
-
ous location in the event of a crash.
僅 Use the release lever for emergencies
only. Use with extreme caution, espe
-
cially while the vehicle is in motion.
WARNING
Make sure there are no people or
objects around the liftgate before open
-
ing or closing the liftgate. Wait until the
liftgate is open fully and stopped before
loading or unloading cargo from the
vehicle.
WARNING
Do not grasp the part supporting the lift
-
gate (gas lifter), as this may cause seri
-
ous injury.
Power liftgate (if equipped)
Power liftgate operating condi
-
tions
The power liftgate operates when the
gear is in P (Park) with the vehicle run
-
ning. However, the power liftgate will
operate regardless of the gear position
when the vehicle is off. Also, the liftgate
can be opened only when vehicle speed
is below 1.8 mph (3 km/h).
For safety, before attempting to open or
close the liftgate, make sure the vehicle
is in P (Park).
WARNING
僅 Never leave children or animals unat
-
tended in your vehicle. Children may
operate the power liftgate. Doing so
can result in injury to themselves or
others and can damage the vehicle.
僅 Make sure that there are no people or
objects in the path of the power lift
-
gate or smart liftgate prior to use.
Serious injury, damage to the vehicle
or damage to surrounding objects (for
example, walls, ceilings, vehicles, etc.)
may result if contact with the liftgate
occurs.
A: 27 inches (70 cm)
B: 27 inches (70 cm)
僅 The liftgate may not open or may
close unintentionally injuring people
around the liftgate under the follow
-
ing situation:
OCV041021N
OCV041022N
OCV041018L
27
5
5
Features of your vehicle Power liftgate
- There is a lot of snow on the lift
-
gate.
- There is a heavy object on the lift
-
gate such as a bicycle carrier, lad
-
der, etc.
僅 Do not open the liftgate before
removing snow or heavy object on the
liftgate.
NOTICE
僅 Do not close or open the liftgate man
-
ually. This may cause damage to the
power liftgate. If it is necessary to
close or open the liftgate manually
when the battery is discharged or dis
-
connected, do not apply excessive
force.
僅 Do not operate the power liftgate
more than 10 times continuously
when the vehicle is not running. Use
the power liftgate with the vehicle
running when the power liftgate is
used repeatedly to prevent battery
discharge.
僅 Do not leave the power liftgate open
for a long period of time. This may
drain the battery.
僅 Do not apply excessive force when
the power liftgate is operating. Doing
so could result in vehicle damage.
僅 Do not grab or hold on to the liftgate
support struts at any time. Damage to
the liftgate support struts could result.
Deformation of the liftgate support
struts may cause vehicle damage and
personal injury may occur.
僅 Do not modify or repair any part of
the power liftgate by yourself. This
must be done by an authorized Kia
dealer.
僅 Do not operate the power liftgate
under the following conditions. The
power liftgate may not operate prop
-
erly.
- One side of the vehicle is lifted to
inspect the vehicle or change a tire
- Parking on an uneven road such as
a slope, etc.
僅 Close the liftgate completely and lock
all doors and liftgate using the central
door lock button before using an
automatic car wash.
僅 Do not spray high pressure water
directly on the power liftgate outside
open/close button. The liftgate may
open unintentionally.
INFORMATION
僅 If the liftgate is not fully closed and
vehicle speed is at or above 1.8 mph
(3 km/h), a warning will sound 10
times. Immediately park the vehicle at
a safe place, close the liftgate, and
check that the liftgate open warning
on the instrument cluster is turned off.
僅 In cold and wet climates, the outside
power liftgate open/close button may
not work properly due to freezing
conditions. If this occurs, remove the
ice before using the outside power
liftgate open/close button or use the
power liftgate open/close button on
the smart key or the instrument panel.
僅 Operating the power liftgate more
than 5 times continuously could cause
damage to the operating motor. If this
occurs, the power liftgate will not
operate to prevent the motor from
overheating. If any of the power lift
-
OCV041022N
Features of your vehicle
285
Power liftgate
gate buttons are pressed to try to
open the liftgate, the chime will sound
3 times, but the liftgate will remain
closed. Allow the power liftgate sys
-
tem to cool for about 1 minute before
operating the system again.
Operating the power liftgate
Power liftgate open/close button
(Smart key, Instrument panel)
When the liftgate is closed, press the
power liftgate open/close button for 1
second. The power liftgate opens with a
warning sound.
While the liftgate is opening, press the
button to stop liftgate operation.
When the power liftgate is opened, press
and hold the power liftgate open/close
button to close the liftgate. If you release
the button while the liftgate is closing,
power liftgate operation will stop with a
warning sound for 5 seconds.
Also, if the smart key is not within opera
-
tion range (approximately 10 m) from
the vehicle, power liftgate operation will
stop with a warning sound for 5 sec
-
onds.
Power liftgate open/close button
(Outside the power liftgate)
When the liftgate is closed, press the
power liftgate open/close button to open
the liftgate.
If the vehicle is locked, press the power
liftgate open/close button with the smart
key in your possession.
If the liftgate is unlocked, the liftgate will
open or close with a warning sound
when the power liftgate open/close but
-
ton is pressed without carrying the
smart key.
Power liftgate open/close button
(Inside the power liftgate)
Press the power liftgate open/close but
-
ton. The liftgate opens or closes with a
warning sound.
Automatic reverse
During power liftgate operation if the
power liftgate senses any obstacle, the
liftgate will stop or will fully open. The
automatic reverse feature may not oper
-
OCV042642N_2
OCV041016N_2
OCV041019N
29
5
5
Features of your vehicle Power liftgate
ate properly, or it may operate unex
-
pectedly under the following
circumstances:
僅 The automatic reverse feature may
not detect the resistance if the
detected resistance is below a certain
level, or if the liftgate is almost fully
closed near the latched position.
僅 The automatic reverse feature may
operate if a strong impact is applied
with no obstructions placed.
WARNING
Never intentionally place any object or
part of your body in the path of the
power liftgate to make sure the auto
-
matic reverse feature operates. Serious
injury, or damage to the vehicle or object
may occur.
INFORMATION
The power liftgate may stop operating if
the automatic reverse feature operates
more than two times while attempting to
open or close the liftgate. If this occurs,
carefully open or close the liftgate man
-
ually, and then after 30 seconds try to
operate the power liftgate automatically
again.
Setting the power liftgate
To use each feature, you must select the
opening speed or opening height from
the settings menu. Deselect the settings
when you do not want to use the fea
-
ture.
Power liftgate opening speed
To adjust the power liftgate speed,
select 'Setup → Vehicle Settings → Door/
Liftgate → Power Liftgate Opening
Speed → Fast/Slow' in the infotainment
system. (Default setting is 'Fast')
Power liftgate opening height
To adjust the power liftgate opening
height, select 'Setup → Vehicle Settings
→ Door/Liftgate → Power Liftgate Open
-
ing Height → Full Open/Level 3/Level 2/
Level 1/User Height Setting' in the info
-
tainment system.
See additional information in supplied
Infotainment Manual.
User height setting
1. Position the liftgate manually to the
height you prefer.
2. Press the power liftgate open/close
button located inside the liftgate for
more than 3 seconds.
If 'User Height Setting' is selected for
the power liftgate opening height, the
power liftgate will automatically open
to the height manually set by you.
INFORMATION
僅 If the power liftgate opening height
has not been manually set, the power
liftgate will fully open when 'User
Height Setting' from the infotainment
system is selected.
僅 If one of the height setting (Full Open/
Level 3/Level 2/Level 1) is selected
from the settings menu in the info
-
tainment system, and then 'User
Height Setting' is selected, the liftgate
will open to the height manually set
by you.
僅 The power liftgate opening speed and
opening height settings change
according to the linked User Profile. If
the User Profile is changed, power lift
-
gate opening speed and opening
height settings will change accord
-
ingly.
Features of your vehicle
305
Power liftgate
Resetting the power liftgate
In some circumstances resetting the
power liftgate operation may need to be
performed. Some instances where reset
-
ting the power liftgate may be required
include:
僅 When the 12-volt battery is recharged
僅 When the 12-volt battery is reinstalled
after removal or replacement
僅 When the related fuse is reinstalled
after removal or replacement
1. With the vehicle in OFF or ON posi
-
tion, shift to P (Park, Automatic trans
-
mission) or N (Neutral, Manual
transmission).
2. Press the power liftgate open/close
inner button (A) and outer button (B)
simultaneously until a chime sounds.
3. Slowly close the liftgate manually.
4. Press the power liftgate open/close
outer button. The power liftgate will
open with a chime sound.
Wait until the liftgate fully opens to
complete resetting. If the liftgate stops
before it is fully open, resetting cannot
be completed.
INFORMATION
If the power liftgate does not operate
properly after the above procedure,
have the system inspected by an autho
-
rized Kia dealer.
Emergency liftgate safety release
To unlock and open the liftgate manu
-
ally from inside the luggage compart
-
ment, perform the following procedure:
1. Insert a long, flat object, such as a key
into the opening at the bottom of the
liftgate.
2. Slide the latch in the direction of the
arrow to unlock the liftgate.
3. Push the liftgate to open.
WARNING
僅 For emergencies, be fully aware of the
location of the emergency liftgate
safety release latch in the vehicle and
how to open the liftgate if you are
accidentally locked in the luggage
compartment.
僅 No one, including animals, should be
allowed to occupy the luggage com
-
partment of the vehicle at any time.
The luggage compartment is a very
dangerous location in the event of an
accident.
僅 Use the release latch for emergencies
only. Use extreme caution, especially
while the vehicle is in motion.
OCV042016N_2
OCV041021N
31
5
5
Features of your vehicle Smart Liftgate with Auto Open
Smart Liftgate with Auto Open
(if equipped)
On a vehicle equipped with a smart key,
the liftgate can be opened using the
Smart Liftgate with Auto Open system.
The liftgate can be opened with no-
touch activation satisfying all the condi
-
tions below.
僅 After 15 seconds when all doors are
closed and locked
僅 The smart key is positioned within the
detecting area for more than 3 sec
-
onds.
NOTICE
The Smart Liftgate with Auto Open does
not operate when:
僅 The smart key is detected within 15
seconds after the doors are closed
and locked, and is continuously
detected.
僅 The smart key is detected within 15
seconds after the doors are closed
and locked, and 60 inches (1.5 m)
from the front door handles. (for vehi
-
cles equipped with Welcome Light)
僅 A door is not locked or closed.
僅 The smart key is in the vehicle.
Using smart liftgate
1. Setting
To activate the Smart Liftgate with Auto
Open, go to
Setup
→
Vehicle
→
Door
→
Smart Liftgate with Auto Open
on the
infotainment system.
2. Detect and Alert
If you are positioned in the detecting
area (20~40 inches [50~100 cm] behind
the vehicle) carrying a smart key, the
hazard warning lights will blink and
chime will sound to alert you the smart
key has been detected and the liftgate
will open.
NOTICE
Do not approach the detecting area if
you do not want the liftgate to open. If
you have unintentionally entered the
detecting area and the hazard warning
lights and chime starts to operate, leave
the detecting area with the smart key.
The liftgate will stay closed.
3. Automatic Opening
After the hazard warning lights blink and
the chime sounds 6 times, the smart lift
-
gate will open.
OCV041020N
OCV041597N
OCV041597N
Features of your vehicle
325
Smart Liftgate with Auto Open
WARNING
僅 Make sure you close the liftgate
before driving your vehicle.
僅 Make sure there are no people or
objects around the liftgate before
opening or closing the liftgate.
僅 Make sure objects in the cargo area
do not come out when opening the
liftgate on a slope. It may cause seri
-
ous injury.
僅 Make sure to deactivate the Smart
Liftgate with Auto Open when wash
-
ing your vehicle. Otherwise, the lift
-
gate may open inadvertently.
僅 The key should be kept out of reach
of children. Children may inadver
-
tently open the Smart Liftgate with
Auto Open while playing around the
rear area of the vehicle.
CAUTION
Liftgate Lift
Make certain that you close the liftgate
before driving your vehicle. Possible
damage may occur to the liftgate gas
lifters and attached hardware if the lift
-
gate is not closed prior to driving.
Deactivating smart liftgate
1
Door lock
2
Door unlock
3
Liftgate unlock/open
4
Panic button
5
Remote start
6
Remote Start Parking Assist (Forward)
(if equipped)
7
Remote Start Parking Assist (Back
-
ward) (if equipped)
If you press any button of the smart key
during the Detect and Alert stage, the
Smart Liftgate with Auto Open function
will be deactivated.
Make sure to be aware of how to deacti
-
vate the Smart Liftgate with Auto Open
function for emergency situations.
NOTICE
僅 If you press the door unlock button
(2), the Smart Liftgate with Auto Open
function will be deactivated temporar
-
ily. But, if you do not open any door
for 30 seconds, the Smart Liftgate
with Auto Open function will be acti
-
vated again.
僅 If you press the liftgate unlock/open
button (3) for more than 1 second, the
liftgate opens.
僅 If you press the door lock button (1) or
liftgate unlock/open button (3) when
the Smart Liftgate with Auto Open
function is not in the Detect and Alert
stage, the Smart Liftgate with Auto
Open function will not be deactivated.
僅 In case you have deactivated the
Smart Liftgate with Auto Open func
-
tion by pressing the smart key button
and opened a door, the Smart Liftgate
with Auto Open function can be acti
-
vated again by closing and locking all
doors.
OCV041003N
33
5
5
Features of your vehicle Smart Liftgate with Auto Open
Detecting area
僅 The Smart Liftgate with Auto Open
operates with a welcome alert if the
smart key is detected within 20~40
inches (50~100 cm) from the liftgate.
僅 The alert stops at once if the smart
key is positioned outside the detecting
area during the Detect and Alert
stage.
NOTICE
僅 The Smart Liftgate with Auto Open
function may not work if any of the
following occurs:
- The smart key is close to a radio
transmitter such as a radio station
or an airport which can interfere
with normal operation of the trans
-
mitter.
- The smart key is near a mobile two
way radio system or a cellular
phone.
- Another vehicle's smart key is being
operated close to your vehicle.
僅 The detecting range may decrease or
increase when:
- One side of the tire is raised to
replace a tire or to inspect the vehi
-
cle.
- The vehicle is slantingly parked on
a slope or unpaved road, etc.
OCV041598N
Features of your vehicle
345
Windows
Windows
The doors of this vehicle are equipped with power windows that can be operated by
a switch.
1
Driver's door power window switch
2
Front passenger's door power window switch
3
Rear door (left) power window switch
4
Rear door (right) power window switch
5
Power window lock switch
OCV041023N_4
35
5
5
Features of your vehicle Windows
NOTICE
In cold and wet climates, power windows
may not work properly due to freezing
conditions.
The EV button must be in the ON posi
-
tion for power windows to operate.
Each door has a power window switch
that controls the door's window. The
driver has a power window lock button
which can block the operation of rear
passenger windows. The power windows
can be operated for approximately 3
minutes after the EV button is turned off.
However, if the front doors are opened,
the power windows cannot be operated
even within the 3 minute period.
The driver's door has a master power
window switch that controls all the win
-
dows in the vehicle.
If the window cannot be closed because
it is blocked by objects, remove the
objects and close the window.
NOTICE
While driving with the rear windows
down or with the sunroof (if equipped) in
an open (or partially open position), your
vehicle may demonstrate a wind buffet
-
ing or pulsation noise. This noise is a
normal occurrence and can be reduced
or eliminated by taking the following
actions. If the noise occurs with one or
both of the rear windows down, partially
lower both front windows approximately
1 inch (2.5 cm). If you experience noise
with the sunroof open, slightly reduce
the size of the sunroof opening.
CAUTION
Do not install any accessories in the
vehicle that extend into the open win
-
dow area. Such objects will impact the
proper functioning of the automatic
reversal "jam protection" feature.
Window opening and closing
Type A
To open or close a window, press down
or pull up the front portion of the corre
-
sponding switch to the first detent posi
-
tion (1).
Type B - Auto up/down window
(if equipped)
Pressing or pulling up the power window
switch momentarily to the second detent
position (2) completely lowers or raises
the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
If the power window does not operate
normally, the automatic power window
system must be reset as follows:
1. Turn the EV button to the ON position.
2. Close the window and continue pull
-
ing up the power window switch for at
least 1 second after the window is
completely closed.
OCV041599N
OCV041024N
Features of your vehicle
365
Windows
Automatic reversal (For Type B)
If the upward movement of the window
is blocked by an object or part of the
body, the window will detect the resis
-
tance and will stop upward movement.
The window will then lower approxi
-
mately 11.8 inches (30 cm) to allow the
object to be cleared.
If the window detects the resistance
while the power window switch is pulled
up continuously, the window will stop
upward movement then lower approxi
-
mately 1 inch (2.5 cm).
If the power window switch is pulled up
continuously again within 5 seconds
after the window is lowered by the auto
-
matic window reversal feature, the auto
-
matic window reversal will not operate.
NOTICE
The automatic reversal feature for the
window is only active when the "auto up"
feature is used by fully pulling up the
switch. The automatic reverse feature
will not operate if the window is raised
using the halfway position on the power
window switch.
WARNING
Always check for obstructions before
raising any window to avoid injuries or
vehicle damage. If an object less than
0.16 of an inch (4 mm) in diameter is
caught between the window glass and
the upper window channel, the auto
-
matic reverse window may not detect
the resistance and will not stop and
reverse direction.
WARNING
The automatic reverse feature doesn't
activate while resetting power window
system. Make sure body parts or other
objects are safely out of the way before
closing the windows to avoid injuries.
WARNING
Do not install any accessories in the
vehicle that extend into the open win
-
dow area. Such objects could prevent
the automatic reverse feature from
functioning.
Power window lock button
The driver can disable the power win
-
dow switches on the rear passengers'
doors by pressing the power window
lock button to the lock position
(pressed).
When the power window lock button is
pressed:
僅 The driver's master control can oper
-
ate the front passenger's power win
-
dow and the rear passengers' power
windows.
OGL3061066L
OCV041025L
37
5
5
Features of your vehicle Windows
僅 The front passenger's control can
operate the front passenger's power
window.
僅 The rear passengers' control cannot
operate the rear passengers' power
window.
CAUTION
Opening/Closing Window
To prevent possible damage to the
power window system, do not open or
close two windows or more at the same
time. This will also ensure the longevity
of the fuse.
Always double check to make sure all
arms, hands, head and other obstruc
-
tions are safely out of the way before
closing a window.
If the window cannot be closed because
it is blocked by objects, remove the
objects and close the window.
WARNING
Power Windows
僅 Do not allow children to play with the
power windows. Keep the power win
-
dow lock button (on the driver's door)
in the LOCK (pressed) position.
僅 Do not extend a face or arms outside
the window opening while the vehicle
is in motion. Doing so could result in
significant bodily injury.
Remote window opening (if
equipped)
You can still control the windows move
-
ment with the vehicle turned off.
Press the door unlock button (1) for
more than 3 seconds. The window
moves down after the doors are
unlocked, as long as you press the door
unlock button (1). The window move
-
ment stops, when you release the door
unlock button (1).
WARNING
If you keep the windows open after
operating the Remote window opening
function, it is likely to cause a theft.
CAUTION
Using the function while raining may
cause malfunction due to the inflow of
water.
NOTICE
僅 The remote window opening function
may abruptly stop, when you move
away from your vehicle during opera
-
tion. Stay in close proximity from your
vehicle, while monitoring the window
movement.
僅 One of the windows may stop operat
-
ing, when the window is interrupted
by certain force. However, the other
windows will keep operating. Thus,
you should make sure that all win
-
dows are opened.
僅 Be careful when using the remote
window opening function, as the
doors will be unlocked.
NOTICE
Remote window opening requires the
automatic power window up/down func
-
tion equipped for front seats.
OCV041627N
Features of your vehicle
385
Hood
Hood
The hood serves as a cover for the
motor room and access to the front
trunk.
Opening the hood
1. Pull the release lever to unlatch the
hood. The hood should pop open
slightly.
NOTICE
Open the hood after turning off the EV
button on a flat surface, turn the shifter
dial to the P (Park) position and set the
parking brake.
2. Go to the front of the vehicle, raise the
hood slightly, push the secondary
hood release lever (1) up side and lift
the hood (2).
Closing the hood
1. Before closing the hood, check the
following:
僅 All filler caps in the motor compart
-
ment must be correctly installed.
僅 Gloves, rags or any other combusti
-
ble material must be removed from
the motor compartment.
2. Lower the hood halfway and push
down to securely lock in place.
僅 Then double check to be sure the
hood is secure.
僅 If the hood can be lifted with a
slight force, open the hood again
and close it more firmly.
WARNING
Hood Obstruction
Before closing the hood, ensure that all
obstructions are removed from the hood
opening. Closing the hood with an
obstruction present in the hood opening
may result in severe personal injury or
property damage.
WARNING
Fire Risk
Do not leave gloves, rags or any other
combustible material in the motor com
-
partment. Doing so may cause a heat-
induced fire.
WARNING
Unsecured Hood
OCV041600N
OCV041601N
OCV041589N
OCV041590N
39
5
5
Features of your vehicle Front trunk
Always double check to be sure that the
hood is firmly latched before driving
away. If it is not latched, the hood could
fly open while the vehicle is being driven,
causing a total loss of visibility, which
might result in an accident.
Hood open warning
A warning message will appear on the
LCD display when hood is open.
The warning chime will operate when
the vehicle is being driven above 2 mph
(3 km/h) with the hood open.
Front trunk
Opening the front trunk
1
Front trunk lever
1. Open the hood.
2. Lift up the front trunk cover while
depressing the front trunk lever (1).
Closing the front trunk
Push down the front trunk cover.
INFORMATION
Available Front Trunk Weight
僅 2WD/AWD: 25 lbs. (10 kg)
Available front trunk weight depends on
the specifications.
WARNING
僅 NEVER make an attempt to get inside
the front trunk. It will cause a fatal
injury.
僅 Before closing the hood, ensure all
obstructions are removed from
around the hood opening. The hood
will rise up or move down automati
-
cally if the height is not firmly
adjusted. Be aware of the damage
caused by the unintended hood
movements.
僅 Never store cigarette lighters, pro
-
pane cylinders, or other flammable/
explosive materials in the vehicle.
These items may catch fire and/or
explode if the vehicle is exposed to
OCV051268N
OCV041014L
Features of your vehicle
405
Front trunk
hot temperatures for extended peri
-
ods.
CAUTION
僅 Do not exceed the luggage volume
capacity of the front trunk. The over
-
weighted front trunk can be severely
damaged.
僅 Do not store the fragile objects in the
front trunk.
僅 Always keep the front trunk cover
closed securely while driving. Items
inside your vehicle are moving as fast
as the vehicle. If you have to stop or
turn quickly, or if there is a crash, the
items can be damaged.
僅 Do not spray water in the front trunk.
Vehicle driving system may get dam
-
aged since the front trunk is located
at the center of motor compartment.
僅 Be careful when you store any liquid
in the front trunk. If liquid leak outside
the front trunk, it will cause a damage
to the electric devices in the motor
compartment.
僅 Do not press the front trunk cover or
place the objects on the front trunk
cover. It may be deformed or dam
-
aged.
僅 When closing the front trunk cover, be
careful not to touch objects inside the
trunk. Loaded objects or the front
trunk may be deformed or damaged
and the front trunk cover may be
opened during driving due to poor
closing, resulting in damage.
NOTICE
To avoid possible theft, do not leave
valuables in the storage compartments.
CAUTION
Do not put objects that exceeds avail
-
able front trunk weight to the front
trunk, or it may cause damage to the
motor room compartment.
41
5
5
Features of your vehicle Charging door
Charging door
Opening and closing the charging
door
僅 Push the charging door open/close
button on the lower crashpad or press
the rear center edge of the charging
door.
僅 Push the charging door close button
located inner part of the charging
door.
NOTICE
Do not leave the vehicle with the
charging door open. An open charging
door may indicate that the vehicle door
has been unlocked and may be subject
to vehicle theft.
WARNING
The charging door opens to the right.
Check the surrounding while the
charging door is open or close. Use care
when opening and closing the charging
door to avoid your head or limbs from
being hit or entrapped by the charging
door.
CAUTION
Do not hold the hinge to prevent damag
-
ing the charging door and causing other
accidents.
NOTICE
僅 The charging door automatically
closes when:
- The charging connector is discon
-
nected
- The door is opened and the
charging connector is not con
-
nected for approximately 2 minutes
- The gear is not in P (Park)
僅 After replacing battery (12 volt), open
and close the charging door once to
check that the charging door auto
-
matic opening mechanism is function
-
ing properly.
* For more details, refer to "Electric
charging door" on page 1-21.
NOTICE
僅If the charging door does not open
because ice has formed around it, tap
lightly or push on the door to break
the ice and release the door. If neces
-
sary, use hand temperature to melt
down the ice or move the vehicle to a
warm place and allow the ice to melt.
Do not pry on the charging door or
OCVQ011014N
OCVQ013012L
OCVQ013013L_2
Features of your vehicle
425
Wide sunroof
use unauthorized tools to open the
charging door. If you open it by force,
the charging door may be damaged.
僅 Make sure that the charging door is
closed before driving the vehicle. If
the charging door is opened, mechan
-
ical parts of the charging door can be
damaged.
僅 After closed the charging door, be
sure to check the warning light is off.
僅 After charging the vehicle, close the
charging inlet by the charging inlet
cover properly. If the charging door is
closed with the charging inlet cover
closed improperly, the charging door
will not be closed fully or will open
again, then the charging door can be
damaged.
僅 Do not pry on the charging door while
the charging door is opening. The
charging door may stop moving. Also,
the electrical mechanism of the
charging door and its related parts
can be severely damaged.
僅 While washing the vehicle, do not
spray a high pressure water to the
charging door directly. The high pres
-
sure can damage the charging door.
Wide sunroof (if equipped)
If your vehicle is equipped with a sun
-
roof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
The sunroof can only be operated when
the EV button is in the ON or START
position.
The sunroof can be operated for
approximately 3 minutes after the EV
button is in the ACC or OFF position.
However, if the front door is open, the
sunroof cannot be operated even within
the 3 minutes period.
WARNING
僅 Never adjust the sunroof or sunshade
while driving. This could result in loss
of control and an accident that may
cause injury, or property damage.
僅 Do not leave the vehicle running and
the key in your vehicle with unsuper
-
vised children. Unattended children
could operate the sunroof, which
could result in serious injury.
僅 Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
Power sunshade
OCV041027L
OCV041028L_2
43
5
5
Features of your vehicle Wide sunroof
Use the power sunshade to block direct
sunlight coming through the sunroof
glass.
僅 Push the sunroof switch rearward to
the first detent position, the power
sunshade automatically slides open.
僅 Push the sunroof switch forward to
the first detent position, the power
sunshade automatically closes. How
-
ever, if the sunroof glass is open, the
glass will close first.
To stop the power sunshade at any
point, push the sunroof switch in any
direction.
NOTICE
Do not pull or push the power sunshade
by hand as such action may damage the
power sunshade or cause it to malfunc
-
tion.
Wrinkles formed on the power sunshade
are normal due to material characteris
-
tic.
Tilt open/close
僅 Push the sunroof switch upward, the
sunroof glass tilts open. However, if
the power sunshade is close, the sun
-
shade will open first.
僅 Push the sunroof switch upward or
forward when the sunroof glass is tilt
opened, the sunroof glass automati
-
cally closes.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Slide open/close
僅 Push the sunroof switch rearward to
the first detent position, the sunroof
glass opens. However, if the power
sunshade is close, the power sun
-
shade will open first.
Push the sunroof switch forward to
the first detent position, the sunroof
glass closes. However, if the sunroof
glass is close, the power sunshade will
close.
僅 Push the sunroof switch forward or
rearward to the second detent posi
-
tion, the sunroof glass and power sun
-
shade operate automatically until full
open or full close.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Automatic reversal
If the power sunshade or sunroof glass
senses any obstacle while it is closing
automatically, it will reverse direction
then stop at a certain position.
The auto reverse function may not work
if an object thin or soft is caught
between the sliding power sunshade or
sunroof glass and sunroof sash.
OCV041029L_2
OCV041030L_2
OCV041031L
Features of your vehicle
445
Wide sunroof
WARNING
僅 Make sure heads, hands, arms or any
other body parts or objects are out of
the way before operating the sunroof.
Body parts or objects may get caught
causing injuries or vehicle damage.
僅 Never deliberately use your body
parts to test the automatic reversal
function. The power sunshade or sun
-
roof glass may reverse direction, but
there is a risk of injury.
NOTICE
僅 Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.
僅 Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.
僅 Regularly remove any accumulated
dust on the sunroof rail.
僅 Dust accumulated between the sun
-
roof and roof panel can make noise.
Open the sunroof and remove dust
regularly using a clean cloth.
僅 Do not try to open the sunroof when
the temperature is below freezing or
when the sunroof is covered with
snow or ice. The sunroof may not
work properly and may break if
opened by force.
僅 Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.
僅 Do not extend any luggage outside
the sunroof while driving. Vehicle
damage may occur if the vehicle sud
-
denly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
while driving. Injuries may occur if the
vehicle suddenly stops.
Resetting the sunroof
In some circumstances resetting the
sunroof operation may need to be per
-
formed. Some instances where resetting
the sunroof may be required include:
僅 When the 12-volt battery is either dis
-
connected or discharged
僅 When the sunroof fuse is replaced
僅 If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
properly
Sunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle in the
ready mode. Start the vehicle in P
(Park).
2. Make sure the power sunshade and
sunroof glass are in the fully closed
position. If the power sunshade and
sunroof glass are open, push the
switch forward until the power sun
-
shade and sunroof glass are fully
closed.
3. Release the switch when the power
sunshade and sunroof glass are fully
closed.
4. Push the switch forward until the
power sunshade and sunroof glass
move slightly. Then release the switch.
OCV041032L
45
5
5
Features of your vehicle Steering wheel
5. Once again push and hold the sun
-
roof switch forward until the power
sunshade and sunroof glass slide
open and close. Do not release the
switch until the operation is com
-
pleted.
If you release the switch during oper
-
ation, start the procedure again from
step 2.
NOTICE
If the sunroof does not reset when the
vehicle battery is disconnected or dis
-
charged, or the sunroof fuse is blown,
the sunroof may not operate normally.
Sunroof open warning
If the driver turns off the vehicle when
the sunroof is not fully closed, the warn
-
ing chime will sound for several seconds
and the sunroof open warning will
appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle.
If the sunroof is left open, rain or snow
may wet the interior of the vehicle. Also,
leaving the sunroof open when the vehi
-
cle is unattended may invite theft.
Steering wheel
The steering wheel of this vehicle is
equipped with Electric Power Steering.
Electric Power Steering (EPS)
Power steering uses an electric motor to
assist you in steering the vehicle.
If the vehicle is off or if the power steer
-
ing system becomes inoperative, the
vehicle may still be steered, but it will
require increased steering effort.
Electric Power Steering is controlled by
the power steering control unit which
senses the steering wheel torque and
vehicle speed to command the motor.
The steering effort becomes heavier as
the vehicle's speed increases and
becomes lighter as the vehicle's speed
decreases for better control of the steer
-
ing wheel.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the power steer
-
ing checked by an authorized Kia dealer.
NOTICE
The following symptoms may occur
during normal vehicle operation:
僅 The EPS warning light does not
appear.
僅 The steering gets heavy immediately
after turning the EV button in ON
position. This happens as the system
performs the EPS system diagnostics.
When the diagnostics are completed,
the steering wheel will return to its
normal condition.
僅 A click noise may be heard from the
EPS relay after turning the EV button
in ON or OFF position.
僅 A motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.
OCV051190L
Features of your vehicle
465
Steering wheel
僅 When the charging system warning
light comes on due to the low voltage
(when the alternator or battery does
not operate normally or malfunc
-
tions), the steering wheel may require
increased steering effort.
僅 If the vehicle needs to be jump started
due to battery discharge, the steering
wheel may not function normally. This
is a temporary situation caused by low
battery voltage. It will be solved once
the battery is charged. Check for nor
-
mal steering function by turning the
steering wheel slowly before driving
the vehicle.
僅 The steering effort can suddenly
increase, if the operation of the EPS
system is stopped to prevent serious
accidents when EPS control unit
detects malfunction of the EPS sys
-
tem by self-diagnosis.
If the Electric Power Steering system
does not operate normally, the warning
light will appear on the instrument clus
-
ter. The steering wheel may become dif
-
ficult to control or operate abnormally. In
this case, have the system inspected by
an authorized Kia dealer.
When you operate the steering wheel in
low temperature, the steering effort may
be high and abnormal noise could occur.
If temperature rises, the noise will disap
-
pear. This is a normal condition.
When the vehicle is stationary, and the
steering wheel is turned all the way to
the left or right continuously, the steer
-
ing wheel becomes harder to turn. The
power assist is limited to protect the
motor from overheating.
As time passes, the steering wheel will
return to its normal condition.
Tilt and telescopic steering wheel
A tilt and telescopic steering wheel
allows you to adjust the steering wheel
before you drive.
You can also raise it to give your legs
more room when you exit and enter the
vehicle.
The steering wheel should be positioned
so that it is comfortable for you to drive,
while permitting you to see the instru
-
ment panel warning lights and gauges.
WARNING
Steering Wheel Adjustment
Never adjust the angle and height of the
steering wheel while driving. You may
lose steering control.
Adjusting steering wheel angle
and height
1. To change the steering wheel angle,
pull down the lock release lever (1).
2. Adjust the steering wheel to the
desired angle (2) and height (3).
3. Pull up the lock-release lever (4) to
lock the steering wheel in place.
4. Be sure to adjust the steering wheel to
the desired position before driving.
OCV041033L_2
47
5
5
Features of your vehicle Steering wheel
NOTICE
After adjustment, sometimes the lock-
release lever may not lock the steering
wheel.
It is not a malfunction. This occurs when
two gears engage. In this case, adjust
the steering wheel again and then lock
the steering wheel.
Heated steering wheel (if
equipped)
With the EV button in the ON position,
pressing the heated steering wheel but
-
ton warms the steering wheel. The indi
-
cator on the button will appear.
To turn the heated steering wheel off,
press the button once again. The indica
-
tor on the button will turn off.
WARNING
If the steering wheel becomes too warm,
turn the system off. The heated steering
wheel may cause burns even at low tem
-
peratures, especially if used for long
periods of time.
CAUTION
僅 Do not install any type of grip cover
for the steering wheel, it may impair
the function of the heated steering
wheel system.
僅 When cleaning the heated steering
wheel, do not use an organic solvent,
such as paint thinner, benzene, alco
-
hol and gasoline. Doing so may dam
-
age the surface of the steering wheel.
僅 If the surface of the steering wheel is
damaged by a sharp object, damage
to the heated steering wheel compo
-
nents could occur.
NOTICE
The heated steering wheel will turn off
automatically approximately 30 min
-
utes after the heated steering wheel is
turned on.
Horn
To sound the horn, press the area indi
-
cated by the horn symbol on your steer
-
ing wheel (see illustration).
The horn will operate only when this
area is pressed. Check the horn regularly
to be sure it operates properly.
NOTICE
To sound the horn, press the area indi
-
cated by the horn symbol on your steer
-
ing wheel (see illustration). The horn will
operate only when this area is pressed.
OCV041034L
OCV041035L
Features of your vehicle
485
Mirrors
Mirrors
This vehicle is equipped with rearview
mirrors inside and outside to provide
views of objects behind the vehicle.
Inside rear view mirror
Adjust the rear view mirror so that the
center view through the rear window is
seen. Make this adjustment before you
start driving.
Do not place objects in the rear seat or
cargo area which would interfere with
your vision out the rear window.
WARNING
Mirror Adjustment
Do not adjust the rear view mirror while
the vehicle is moving. This could result in
loss of control.
CAUTION
Cleaning Mirror
When cleaning the mirror, use a paper
towel or similar material dampened with
glass cleaner. Do not spray glass cleaner
directly on the mirror. It may cause the
liquid cleaner to enter the mirror hous
-
ing.
WARNING
Do not modify the inside mirror in any
manner, including installing a wide mir
-
ror. Doing so could result in injury during
an accident or deployment of the air
bag.
For Telematics button function
1
Virtual assist button
2
Kia Connect button
3
Roadside assist button
Day/night rear view mirror (if
equipped)
(A): Day, (B): Night
Make this adjustment before you start
driving and while the day/night lever is
in the day position (1).
Pull the day/night lever toward you (2) to
reduce the glare from the headlamps of
the vehicles behind you during night
driving.
Remember that you lose some rear view
clarity in the night position.
Electric Chromic Mirror (ECM) (if
equipped)
The electric rear view mirror automati
-
cally controls the glare from the head
-
lamps of the vehicles behind you in
nighttime or low light driving conditions.
ONQ5A041023
OCV041036L
49
5
5
Features of your vehicle Mirrors
The sensor mounted in the mirror
senses the light level around the vehicle,
and automatically controls the head
-
lamp glare from the vehicles behind you.
When the vehicle is running, the glare is
automatically controlled by the sensor
mounted in the rear view mirror.
Electric Chromic mirror (ECM)
with HomeLink씾 system (if
equipped)
1
HomeLink Channel 1
2
HomeLink Channel 2
3
HomeLink Channel 3
4
Garage Door Opener Status Indicator:
Closing or Closed
5
HomeLink Operation Indicator
6
Garage Door Opener Status Indicator:
Opening or Opened
7
HomeLink User Interface Indicator
Your vehicle may be equipped with a
Gentex Automatic-Dimming Mirror with
an Integrated HomeLink씾 Wireless Con
-
trol System.
During nighttime driving, this feature will
automatically detect and reduce rear
view mirror glare. The HomeLink씾 Uni
-
versal Transceiver allows you to activate
your garage door(s), electric gate, home
lighting, etc.
Automatic-Dimming Night Vision
Safety™(NVS씾) Mirror
The NVS씾 Mirror automatically reduces
glare by monitoring light levels in the
front and the rear of the vehicle. Any
objects that obstructs the light sensor
will degrade the automatic dimming
control feature.
For more information regarding NVS씾
mirrors and other applications, please
refer to the Gentex website:
www.gentex.com
Your mirror will automatically dim upon
detecting glare from the vehicles travel
-
ing behind you.
The mirror defaults to the ON position
each time the vehicle is started.
Integrated HomeLink씾 Wireless
Control System
The HomeLink씾 Wireless Control Sys
-
tem provides a convenient way to
replace up to three handheld radio-fre
-
quency (RF) transmitters used to acti
-
vate compatible devices such as gate
operators, garage door openers, entry
door locks, security systems, and home
lighting.
NOTICE
Considering the Home Security when
the vehicle is parked outside the garage,
the HomeLink will ONLY work when the
ignition switch is in ACC position or ON
position.
NOTICE
Before programming HomeLink to a
garage door opener or gate operator,
OCV041036N
OCV041602N
Features of your vehicle
505
Mirrors
make sure that people and objects are
out of the way of the device to prevent
potential harm or damage. When pro
-
gramming a garage door opener, it is
advised to park outside of the garage.
Do not use HomeLink with any garage
door opener that lacks safety stop and
reverse features as required by U.S. fed
-
eral safety standards (this includes any
garage door opener model manufac
-
tured before April 1, 1982). A garage
door that cannot detect an object signal
-
ing the door to stop and reverse - does
not meet current U.S. federal safety
standards. For more information, con
-
tact HomeLink at
www.homelink.com
,
or call HomeLink customer support at
1-
800-355-3515
.
It is also recommended that a new bat
-
tery be replaced in the hand-held trans
-
mitter of the device being trained to
HomeLink for quicker training and accu
-
rate transmission of the radio frequency.
1. Programming HomeLink씾
The following steps show how to pro
-
gram HomeLink. If you have any ques
-
tions or are having difficulty
programming your HomeLink buttons,
refer to the HomeLink website or call the
HomeLink customer support toll-free
number. Do this, before going back to
the dealer who sold you the car.
僅 Visit the HomeLink website at:
www.homelink.com. Then at the top
of the page, choose your vehicle
make. Then watch the You Tube
video, and/or access additional web
-
site information.
僅 If you choose to access the website
via your cell phone, scan the QR code.
僅 Or, call HomeLink customer support
at
1-800-355-3515
(Please have the vehicle make/model
AND the opener device make/model
readily available.)
1) Programming Preparation
1. When programming a garage door
opener, it is advised to park the vehi
-
cle outside of the garage.
2. It is recommended that a new battery
be placed in the hand-held transmit
-
ter of the device being programmed
to HomeLink for quicker training and
accurate transmission of the radio-
frequency signal.
3. Place the EV button to the ACC
(Accessory) position for program
-
ming of HomeLink.
2) Programming a New Home
-
Link씾 Button
1. Press and release the HomeLink but
-
ton (1), (2) or (3), you would like to
program. The HomeLink indicator
light (7) will flash orange slowly (if not,
perform the steps of "Erasing Home
-
Link Buttons" section, and start over).
OCV041603N
51
5
5
Features of your vehicle Mirrors
2. Position the garage door opener
remote 1~3 inches (2~8 cm) away
from the HomeLink buttons.
3. While the HomeLink indicator light (7)
is flashing orange, press and hold the
hand-held remote button. Continue
pressing the hand-held remote button
until the HomeLink indicator light (7)
light changes from orange to green.
You may now release the hand-held
remote button.
4. Wait until your garage door comes to
a complete stop, regardless of posi
-
tion, before proceeding to the next
steps.
5. Press and release the HomeLink but
-
ton you are programming and
observe the indicator light.
僅 If the indicator light remains solid
green, your device should operate
when the HomeLink button is
pressed. At this point, if your device
operates, programming is com
-
plete.
僅 If the indicator light rapidly flashes
green, firmly press, hold for two
seconds and release the HomeLink
button up to three times in a row
slowly to complete the program
-
ming process. Do not press the
HomeLink button rapidly. At this
point if your device operates, pro
-
gramming is complete. If the device
does not operate, continue with
step 6.
6. At the garage door opener motor,
(security gate motor, etc.) locate the
"Learn", "Smart", "Set" or "Program"
button. This can usually be found
where the hanging antenna wire is
attached to the motor-head unit (see
the device's manual to identify this
button). The name and color of the
button may vary by manufacturer.
* A ladder and/or second person may
simplify the following steps.
7. Firmly press and release the "Learn"
,"Smart", "Set" or "Program"" button.
You now have up to 30 seconds in
which to complete the next step.
8. Return to the vehicle and firmly press,
hold for two seconds and release, the
HomeLink button up to three times in
a row slowly. Do not press the Home
-
Link button rapidly. As soon as you
see the garage door start to move,
stop pressing any buttons until a few
seconds after the garage door has
come to a complete stop, regardless
of position. At this point programming
is complete and your device should
OCV041604N
OCV041605N
OCV041606N
Features of your vehicle
525
Mirrors
operate when the HomeLink button is
pressed and released.
3) Two-Way Communication Pro
-
gramming (For select garage
door openers)
If your garage door opener has the
'myQ' logo on its side, your opener has
Two-Way Communication capability.
HomeLink has the capability to establish
Two-Way Communication with your
garage door opener. HomeLink can
receive and display "closing" or "open
-
ing" status messages from compatible
garage door openers. At any time,
HomeLink can also recall and display the
last recorded status communicated by
the garage door opener to indicate your
garage door being "closed" or "opened".
To check if your garage door opener is
compatible with this feature, refer to
www.homelink.com/compatible/Two-
way-Communication. If your garage
door opener has this functionality, AND
the Two-Way Communication indicators
(4), (6) in the mirror appear while the
garage door is opening/closing, then no
further steps are needed. Two-Way
Communication Programming is already
complete. However, if your garage door
opener has this functionality, AND the
Two-Way Communication indicators (4),
(6) in the mirror DO NOT appear while
the garage door is opening/closing, use
the following instructions to enable this
functionality.
1. In your vehicle, press and hold the
programmed HomeLink button for 2
seconds, then release. Confirm that
the garage door is moving. AFTER it
stops, you will have one minute to
complete the following steps:
* A ladder and/or second person may
simplify the following steps.
2. On your garage door opener in your
garage, locate the "Learn" button
(usually near where the hanging
antenna wire is attached to the
garage door opener). If there is diffi
-
culty locating this button, refer to the
device's owner's manual.
3. Press and release the "Learn" button.
4. A light on your garage door opener
may flash, and your Two-Way Com
-
munication indicators (4), (6) in your
vehicle may flash, confirming comple
-
tion of the process.
5. Return to the vehicle and firmly press
and release the programmed Home
-
Link button to activate your garage
door. The Two-Way Communication
indicators (4), (6) flash in orange
when the door is moving. Do not
make any additional button presses
until AFTER the garage door has
come to a complete stop.
6. Your Two-Way Communication pro
-
gramming is now complete.
NOTICE
If your garage door opener has Two-
Way Communication functionality, it is
possible for HomeLink to stop function
-
ing the garage door shortly after initial
programming, if the Two-Way Commu
-
nication Programming wasn't properly
completed. This usually happens after
the first 10 times a programmed Home
-
Link button is pressed. If you experience
this, completing the "Programming a
New HomeLink Button" and "Two-Way
Communication Programming" will
restore door operation.
53
5
5
Features of your vehicle Mirrors
4) Canadian Programming
Canadian radio-frequency laws require
transmitter remote signals to "time-out"
(or quit) after a couple seconds of trans
-
mission, which may not be long enough
for HomeLink to pick up the signal
during programming.
If you live in Canada or you are having
difficulties programming a gate operator
or garage door opener by using the pro
-
gramming procedures, replace "Pro
-
gramming a New HomeLink Button"
step 3 with the following:
While the HomeLink indicator light (7) is
flashing orange, press and release
("cycle") your device's hand-held remote
every two seconds until the HomeLink
indicator light (7) changes from orange
to green. You may now release the
hand-held remote button. Then proceed
with "Programming a New HomeLink
Button" step 4.
2. Operating HomeLink씾
1) Operating HomeLink씾
1. Press and release the desired pro
-
grammed HomeLink button (1, 2 or 3).
NOTICE
The HomeLink indicator (7) should light
green, solid or flashing, and your pro
-
grammed device should operate.
If your device does not operate, the
HomeLink programming was not suc
-
cessful, and you'll need to reprogram the
button.
2) Two-Way Communication Dis
-
play Behavior
1. Press and release one of the pro
-
grammed HomeLink buttons (1, 2 or
3)
2. The indicator (4) and (6) operates as
below, if your garage door opener has
Two-Way Communication functional
-
ity.
僅 If the indicator (4) flashes in
Orange, it indicates that the garage
door is "Closing".
僅 The indicator (4) turns solid green
once the garage door has closed.
僅 If the indicator (6) flashes in
Orange, it indicates that the garage
door is "Opening".
僅 The indicator (6) turns solid green
once the garage door has fully
opened.
僅 If the indicator (4) or (6) does not
turn to green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last
OCV041604N
OCV041607N
OCV041608N
Features of your vehicle
545
Mirrors
known status of the garage door
for a few seconds.
3) Recalling Garage Door Status
HomeLink mirror with Two-Way Com
-
munication provides a way to view the
last stored message from the garage
door opener. In order to recall the last
known status of the last activated
device, press the buttons "1 and 2" OR "2
and 3" simultaneously.
僅 If the indicator (4) appears solid
Green, it indicates that the last acti
-
vated device was "closed" properly.
僅 If the indicator (6) appears solid
Green, it indicates that the last acti
-
vated device was "open" properly.
3. Erasing HomeLink씾 Buttons
1) Erasing and Reprogramming a
Single HomeLink씾 Button:
1. Press and hold the desired HomeLink
button you want to re-program. DO
NOT release the button.
2. The HomeLink indicator light (7) will
appear solid green. Release the but
-
ton as soon as the HomeLink indicator
light (7) begins to flash orange, usu
-
ally about 20 seconds.
3. Proceed with the steps in the "Pro
-
gramming a New HomeLink Button"
section.
NOTICE
If you do not complete the re-program
-
ming of a new device to the button, it will
revert to the previously stored program
-
ming.
2) The following instructions will
erase ALL HomeLink씾 program
-
ming from ALL buttons:
1. Press and hold the buttons (1) and (3)
simultaneously
2. The HomeLink indicator light (7) will
appear solid Orange for about 10 sec
-
onds
3. Release the buttons once the Home
-
Link indicator light (7) changes to
Green and flashes rapidly
4. Now all three HomeLink buttons (1),
(2) and (3) are cleared of any pro
-
gramming
Information
HomeLink and the HomeLink House
logo are registered trademarks of Gen
-
tex Corporation.
The myQ logo is a registered trademark
of The Chamberlain Group, Inc
FCC (USA) and ISED (Canada)
This device complies with FCC rules part
15 and Innovation, Science, and Eco
-
nomic Development Canada RSS-210.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference that may
be received including interference that
may cause undesired operation. WARN
-
ING: The transmitter has been tested
and complies with FCC and ISED rules.
Changes or modifications not expressly
approved by the party responsible for
OCV041609N_2
55
5
5
Features of your vehicle Mirrors
compliance could void the user's author
-
ity to operate the device.
This equipment complies with FCC and
ISED radiation exposure limits set forth
for an uncontrolled environment. End
Users must follow the specific operating
instructions for satisfying RF exposure
compliance. This transmitter must be at
least 20 cm from the user and must not
be co-located or operating in conjunc
-
tion with any other antenna or transmit
-
ter.
Features of your vehicle
565
Mirrors
HomeLink 5 Programing Flow Chart
OCV041610N
57
5
5
Features of your vehicle Mirrors
Outside rear view mirror
Your vehicle is equipped with both left-
hand and right-hand outside rear view
mirrors.
Be sure to adjust the mirror angles
before driving.
The mirrors can be adjusted remotely
with the remote switch. The mirror
heads can be folded back to prevent
damage during an automatic car wash
or when passing through a narrow
street.
CAUTION
Rear View Mirrors
Do not scrape ice off the mirror face; this
may damage the surface of the glass. If
ice should restrict the movement of the
mirror, do not force the mirror for
adjustment. To remove ice, use a de-icer
spray, a sponge or soft cloth with very
warm water.
If the mirror is jammed with ice, do not
adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) to release the frozen mecha
-
nism or move the vehicle to a warm
place and allow the ice to melt.
WARNING
Mirror Adjustment
Do not adjust or fold the outside rear
view mirrors while the vehicle is moving.
This could result in loss of control.
Adjusting the outside rear view
mirrors
Adjusting the rear view mirrors:
1. Move the R or L switch (1) to select the
right side mirror or the left side mirror.
2. Press a corresponding point on the
mirror adjustment control (2) to posi
-
tion the selected mirror up, down, left
or right.
3. After adjustment, put the button into
neutral (center) position to prevent
inadvertent adjustment.
CAUTION
僅 The mirrors stop moving when they
reach the maximum adjusting angles,
but the motor continues to operate
while the switch is pressed. Do not
press the switch longer than neces
-
sary, the motor may be damaged.
僅 Do not attempt to adjust the outside
rear view mirror by hand. Doing so
may damage the parts.
Folding the outside rear view mir
-
ror
The outside rear view mirror can be
folded or unfolded by pressing the
switch as below.
OCV041037L
OCV041038L_2
Features of your vehicle
585
Mirrors
The mirror will fold or unfold automati
-
cally as follows:
僅 The mirror will fold or unfold when the
door is locked or unlocked by the
smart key.
僅 The mirror will fold or unfold when the
door is locked or unlocked by the but
-
ton on the outside door handle.
僅 The mirror will unfold when you
approach the vehicle (all doors closed
and locked) with a smart key in pos
-
session. (if equipped)
CAUTION
The electric type outside rear view mir
-
ror operates even though the EV button
is in OFF position. However, to prevent
unnecessary battery discharge, do not
adjust the mirrors longer than necessary
while the EV button is ON.
Do not fold an electric type outside rear
view mirror by hand as this could cause
motor failure.
Reverse parking aid function (if
equipped)
When the gear is shifted to the R
(Reverse) position, the outside rear view
lever(s) will rotate downwards to aid with
driving in reverse.
The position of the outside rear view
mirror switch (1) determines whether or
not the mirrors will move:
僅 Left/Right: When either the L (Left) or
R (Right) switch is selected, both out
-
side rear view mirrors will move.
僅 Neutral: When neither switch is
selected, the outside rear view mirrors
will not move.
The outside rear view mirrors will auto
-
matically revert to their original positions
if any of the followings occur:
僅 The EV button is placed to either the
OFF position or the ACC position.
僅 The gear is shifted to any position
except R (Reverse).
僅 The remote control outside rear view
mirror switch is not selected.
Reverse parking aid user settings
mode
If you cannot secure enough visibility
with the angles provided as factory
default conditions, you can readjust and
store the angles of outside rear view mir
-
rors.
The factory default angles of the right
and left rear view mirrors might be set
differently to improve visibility.
1. Set the shift lever to P (Parking). Make
sure that the vehicle is stopped and
the mirrors are not working.
2. Position the lever to L (left) or R (right)
depending on the mirror that you
want to adjust.
3. Step on the brake pedal and shift the
shift lever to R (Reverse).
4. When the downward movement of
the rear view mirror is finished, adjust
the mirror to the desired angle by
pressing the switches, ▼, ▲, ◀, ▶.
5. If you shift the shift lever to a position
other than R (Reverse), or change the
OCV041039L_2
59
5
5
Features of your vehicle Mirrors
rear view mirror selector lever to the
neutral position, and the automatic
return of the mirror is finished, the
adjusted angle will be automatically
saved.
6. You can adjust the rear view mirror on
the other side by following the same
procedures (1~5).
Resetting reverse parking aid
user settings mode
If you want to change the automatic
control function of rear view mirrors to
factory-default conditions, follow the
steps below.
1. Shift the shift lever to P (Park). Make
sure that the vehicle is stopped and
the mirror is not working.
2. Choose the mirror to be adjusted by
positioning the lever to L (left) or R
(right).
3. Step on the brake pedal and shift the
shift lever to R (Reverse).
4. When the downward movement of
the rear view mirror is finished, press
the switch (▲) to locate the mirror in
the position higher than before (P, N
or D).
(Adjust the mirror in the higher posi
-
tion compared to its position in the
driving mode)
5. It is initialized when the shift lever is
shifted to a position other than R
(Reverse), or the rear view mirror
selector lever is changed to the neu
-
tral position. (Initialized position will be
applied from next operation)
6. You can initialize settings for the mir
-
ror on the other side by following the
same procedures (1~5).
NOTICE
We recommend following the proce
-
dures in an orderly manner to change or
initialize the auto reversing user settings.
If you move to the next step before com
-
pleting the previous one, the changed
angle may not be changed or initializa
-
tion may not work properly.
Features of your vehicle
605
Instrument cluster
Instrument cluster
The instrument cluster displays various information about the vehicle's condition.
* The actual cluster and contents of the LCD display in the vehicle may differ from the
illustration.
1
Speedometer
2
Distance to empty
3
Power/Charge gauge
4
Battery SOC (State of Charge) gauge
5
LCD display (including Trip computer)
6
Warning and indicator lights
7
Reduction gear shift indicator
8
Odometer
9
Regenerative braking level indicator
10
Electric energy economy
WARNING
Be careful while driving as dynamic-
themed animation effects can distract
the driver and lead to unexpected acci
-
dents.
OCV042155N
61
5
5
Features of your vehicle Instrument cluster
Instrument panel illumination
control
The brightness of the instrument panel
illumination is changed by pressing the
illumination control button ("+" or "-")
when the vehicle's position lights or
headlamps are turned on.
僅 If you hold the illumination control
button ("+" or "-"), the brightness will
be changed continuously.
僅 If the brightness reaches to the maxi
-
mum or minimum level, an alarm will
sound.
WARNING
Never adjust the instrument cluster
while driving. This could result in loss of
control and lead to an accident that may
cause death, serious injury, or vehicle
damage.
Gauges
The gauges display various information
such as the speed of the vehicle, the
amount of charge of the battery, and so
on.
Speedometer
The speedometer indicates the speed of
the vehicle and is calibrated in miles per
hour (mph) and/or kilometers per hour
(km/h).
Power/Charge gauge
The Power/Charge gauge shows the
energy consumption rate of the vehicle
and the charge/discharge status of the
regenerative brakes.
僅
PWR
(Power): It shows the energy
consumption rate of the vehicle when
driving uphill or accelerating. The
more electric energy is used, the
higher the gauge level.
僅
CHG
(Charge): It shows the charging
status of the battery when it is being
charged by the regenerative brakes
(decelerating or driving on a downhill
road). The more electric energy is
charged, the lower the gauge level.
OCV041057N
OCV041611N
OCV041628N
OCV041130L
Features of your vehicle
625
Instrument cluster
State of Charge (SOC) gauge for
high voltage battery
The SOC gauge shows the charging sta
-
tus of the high voltage battery.
The low percentage number on the indi
-
cator indicates that there is not enough
energy in the high voltage battery. 100%
indicates that the driving battery is fully
charged.
When driving on highways or motor
-
ways, make sure to check in advance if
the driving battery is charged enough.
When the remaining battery is lower
than 10% (15% for GT) on the SOC
gauge, the warning light ( ) turns ON to
alert you of the battery level.
When the warning light ( ) turns ON,
the vehicle can drive approximately an
additional 18~25 miles (30~40 km)
depending on the driving speed, heater/
air conditioner, weather, driving style,
and other factors. Charging is required.
NOTICE
When the high voltage battery range is
25~30 miles (40~50 km), the vehicle
speed is limited, and then eventually the
vehicle will turn OFF. Charge the vehicle
immediately.
Outside temperature gauge
This gauge indicates the current outside
air temperatures by 1 °F (1 °C).
The outside temperature on the display
may not change immediately like a gen
-
eral thermometer to prevent the driver
from being distracted.
You can change the temperature unit
from the Settings menu in the infotain
-
ment system screen. Select:
General Settings
→
Unit
→
Tempera
-
ture Unit
→ °C/°F
For detailed information, refer to the
separately supplied infotainment system
manual.
Both the temperature unit on the cluster
LCD display and climate control screen
will change.
INFORMATION
The infotainment system may change
after software updates. For more infor
-
mation, refer to the user's manual pro
-
vided in the infotainment system and
the quick reference guide.
Odometer
The odometer Indicates the total dis
-
tance that the vehicle has been driven
OCV042131N
OCV042641N
OCV042613N
OCV042612N
63
5
5
Features of your vehicle Instrument cluster
and should be used to determine when
periodic maintenance should be per
-
formed.
Distance to empty
僅 The distance to empty is the esti
-
mated distance the vehicle can be
driven with the remaining electric
energy.
僅 The distance to empty varies depend
on which drive mode is selected
among
ECO
/
NORMAL
/
SPORT
/
SNOW
mode.
NOTICE
僅If the vehicle battery power has been
interrupted, the distance to empty
function may not operate correctly.
僅 The distance to empty may differ
from the actual driving distance as it
is an estimate of the available driving
distance.
僅 The distance to empty may vary sig
-
nificantly based on driving condi
-
tions, driving habits, and condition of
the vehicle.
Reduction gear shift indicator
This indicator displays which position is
selected.
僅Park: P
僅Reverse: R
僅Neutral: N
僅Drive: D
Regenerative braking level indi
-
cator
The regenerative brake indicates the
level of the regenerative braking that
you set. And it also indicates Smart
regenerative system's operation status.
OCV042421N
OCV041614N
OCV041133N
Features of your vehicle
645
LCD display
LCD display
The LCD display shows trip computer
and other information.
LCD display control
The LCD display modes can be changed
by using the control buttons.
1
: MODE button for changing modes
2
/ : MOVE switch for changing
items
3
OK: SELECT/RESET button for setting
or resetting the selected item
LCD display modes
* : if equipped
OCV041040L
Mode
Driving Assist Trip Computer Turn By Turn (TBT)* Information Master Warning
Up/
Down
Forward Collision-Avoid
-
ance Assist
Lane Keeping Assist
Blind-Spot Collision-
Avoidance Assist
Smart Cruise Control
Lane Following Assist
Highway Driving Assist
Drive Info Route Guidance Energy Flow (AWD)
The Master Warn
-
ing mode displays
warning messages
related to the vehicle
when one or more
systems is not oper
-
ating normally.
Driver Attention Warning After Recharging Destination Info TPMS
Intelligent Speed Limit
Assist*
Accumulated Info
65
5
5
Features of your vehicle LCD display
Trip modes
To change the trip mode, toggle the
switch ( / ) on the steering wheel.
Electric energy economy
Average Energy Consumption (1)
僅 The average energy consumption is
calculated by the total driving dis
-
tance and the high voltage battery
consumption since the last average
energy consumption reset.
僅 The average energy consumption can
be reset both manually and automati
-
cally.
Manual reset
To clear the average energy consump
-
tion manually, press the OK button on
the steering wheel for more than 1 sec
-
ond when the average energy consump
-
tion is displayed.
Automatic reset
To automatically reset the average
energy consumption select either menu
from the 'Energy Consumption Reset' in
the Cluster menu on the infotainment
system screen.
僅 At Vehicle Start: The average energy
consumption will reset automatically
whenever it has passed 4 hours after
turning OFF the vehicle.
僅 After recharging: The average energy
consumption will reset automatically
when driving speed exceeds 1 mph (1
km/h), after recharging more than
10%.
NOTICE
The vehicle must be driven for a mini
-
mum of 0.19 miles (300 meters) since
the last ignition key cycle before the
average energy consumption will be
recalculated.
Instant Energy Consumption (2)
僅 The instantaneous energy consump
-
tion is displayed according to the bar
graph in the LCD display while driving.
Driving Assist mode
This mode displays the state of:
僅 Forward Collision-Avoidance Assist
Lane Keeping Assist
Blind-Spot Collision-Avoidance Assist
Smart Cruise Control
Lane Following Assist
OCV051278N
OCV041121N
Features of your vehicle
665
LCD display
Highway Driving Assist
僅 Driver Attention Warning
僅 Intelligent Speed Limit Assist
Trip computer mode
* You may change through items in the
following order.
Drive Info
A:
Drive Info
1
Accumulated trip distance
2
Average energy consumption
3
Total driving time
This display shows the accumulated trip
distance (1), the average energy con
-
sumption (2), and the total driving time
(3).
The information is combined for each
ignition cycle. However, drive Info screen
will reset when the driver's door is
opened after turning off the vehicle, or
the vehicle is turned on after 3 minutes
have passed.
The driving information will continue to
be counted while the vehicle is in the
READY
mode (for example, when the
vehicle is in traffic or stopped at a stop
light).
NOTICE
The vehicle must be driven for a mini
-
mum of 0.19 miles (300 meters) since
the last ignition key cycle before the
driving information is recalculated.
After Recharging
A:
After recharging
1
Accumulated trip distance
2
Average energy consumption
3
Total driving time
This display shows the accumulated trip
distance (1), the average energy con
-
sumption (2), and the total driving time
(3) after recharging.
To manually reset the information, press
and hold the OK button when viewing
the
After Recharging
.
Accumulated Info
A:
Accumulated Info
1
Accumulated trip distance
2
Average energy consumption
3
Total driving time
This display shows the accumulated trip
distance (1), the average energy con
-
sumption (2), and the total driving time
(3).
The information is accumulated starting
from the last reset.
To reset the details, press and hold the
OK button when viewing the Accumu
-
lated driving info. The accumulated trip
distance, the average energy consump
-
OCV041123N
OCV041415N
OCV041122N
67
5
5
Features of your vehicle LCD display
tion, and total driving time will reset
simultaneously.
The accumulated driving information
will continue to be counted while the
vehicle is in the
READY
mode (for exam
-
ple, when the vehicle is in traffic or
stopped at a stop light).
NOTICE
The vehicle must be driven for a mini
-
mum of 0.19 miles (300 meters) since
the last ignition key cycle before the
average accumulated driving informa
-
tion is recalculated.
Energy flow (AWD) (if equipped)
僅 The electric vehicle system informs
the drivers its energy flow in various
operating modes.
僅 The distribution status of the driving
power of the front and rear wheels
are displayed when Auto AWD mode
is activated. For more details, refer to
"All wheel drive (AWD) (if equipped)"
on page 6-42.
Turn By Turn (TBT) mode
This mode displays the Navigation sta
-
tus.
Information mode
Tire pressure
A:
Low tire pressure
僅 Information related to Tire Pressure.
Refer to "Tire Pressure Monitoring
System (TPMS)" on page 8-6.
Master warning mode
This mode informs you of the following
situations:
僅 Driver assistance system malfunction,
limitation or radar/camera blockage
僅 LED headlamp malfunction
僅 Lamp malfunction
僅 TPMS failure, low tire pressure, etc.
At this time, a Master Warning icon ( )
will appear in the lower right corner on
the LCD display. If the warning situation
is solved, the master warning light will
be turned off and the Master Warning
icon will disappear.
OCV041417L
OCV041615N
OCV041126L
OCV041416N
Features of your vehicle
685
LCD display
Service Interval
A:
Service Interval
1
Service interval schedule
To reset the service interval, select
Setup
→
Vehicle
→
Cluster
→
Service
Interval
→
Reset
.
NOTICE
Calculates and displays when you need
a scheduled maintenance service (mile
-
age or days). If the remaining mileage or
time reaches 900 miles (1,500 km) or 30
days, the message
Service in
is dis
-
played for several seconds each time
you set the vehicle to the ON position.
Driver Assistance settings (info
-
tainment system)
Select
Setup
→
Vehicle
→
Driver Assis
-
tance
on the infotainment system
screen to set the Driver Assistance func
-
tion.
僅
Driver Assistance
-
Smart Cruise Control
-
Driving Convenience
-
Speed Limit
-
Warning Timing
-
Warning Methods
-
Driver Attention Warning
-
Forward Safety
-
Lane Safety
-
Blind-Spot Safety
-
Parking Safety
Vehicle settings (infotainment
system)
1. Press the
Settings
button on the head
unit of the infotainment system.
2. Select
Vehicle
and change the setting
of the features.
Vehicle Settings in the infotainment sys
-
tem provides user options for a variety
of settings including door lock/unlock
features, convenience features, driver
assistance settings, etc.
僅
Vehicle Settings
-
Driver Assistance
-
Drive Mode
-
Eco Vehicle
-
Active Sound Design
-
Head-up Display
-
Cluster
-
Climate
-
Seat
-
Lights
-
Door
-
Convenience
WARNING
Do not operate the
Vehicle Settings
while driving. This may cause distraction
resulting in an accident.
OCV041124N
OCV042643N
OCV042643N
69
5
5
Features of your vehicle LCD display
NOTICE
僅 The information provided may differ
depending on which features are
applicable to your vehicle.
僅 For detailed information, refer to the
separately supplied infotainment sys
-
tem manual.
LCD display messages
Door, hood, liftgate open warn
-
ing display
This warning is displayed if any door or
the hood or the liftgate is left open. The
warning will indicate which door is open
in the display.
NOTICE
Before driving the vehicle, you should
confirm that the door/hood/liftgate is
fully closed. Also, check that there is no
door/hood/liftgate open warning light or
message displayed on the instrument
cluster.
Sunroof open warning display (if
equipped)
This warning is displayed if you turn off
the vehicle when the sunroof is open.
Close the sunroof securely before leav
-
ing your vehicle.
Low tire pressure warning display
A:
Low tire pressure
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will appear.
* For more details, refer to "Tire Pressure
Monitoring System (TPMS)" on page
8-6.
Lights mode
A:
Lights
1
2
3
AUTO
4
OFF
This indicator displays which exterior
light is selected using the lighting con
-
trol.
You can activate or deactivate Wiper/
Lights Display function from the info
-
tainment system.
OCV041125
OCV051190L
OCV041126L
OCV041127L
Features of your vehicle
705
LCD display
Wiper mode
A:
Front Wiper
1
OFF
2
AUTO
3
LO
4
HI
This indicator displays which wiper
speed is selected using the wiper con
-
trol.
You can activate or deactivate Wiper/
Lights Display function from the info
-
tainment system.
Low key battery
This warning message is displayed if the
battery of the smart key is discharged
while changing the EV button to the OFF
position.
Press brake pedal to start vehicle
This warning message is displayed if the
EV button changes to the ACC position
twice by pressing the button repeatedly
without depressing the brake pedal.
You can start the vehicle by depressing
the brake pedal.
Key not in vehicle
This warning message is displayed if the
smart key is not in the vehicle when you
press the EV button.
When attempting to start the vehicle,
always have the smart key with you.
Key not detected
This warning message is displayed if the
smart key is not detected when you
press the EV button.
Press EV button again
This message is displayed if you were
unable to start the vehicle when the EV
button was pressed.
If this occurs, attempt to start the vehicle
by pressing the EV button again.
If the warning message appears each
time you press the EV button, have your
vehicle inspected by an authorized Kia
dealer.
Press EV button with key
This warning message is displayed if you
press the EV button while the warning
message
Key not detected
is displayed.
Shift to P to start vehicle
This warning message is displayed if you
try to start the vehicle without shifting to
the P (Park) position.
Shift to P
This warning message is displayed if you
try to turn off the vehicle with the gear in
the N (Neutral) position.
At this time, the EV button changes to
the ACC position (If you press the EV
button once more, it will turn to the ON
position).
Battery discharging due to exter
-
nal electrical devices
This message is displayed if the battery
voltage is weak due to any non-factory
electrical accessories (ex. dashboard
OCV041128L
71
5
5
Features of your vehicle LCD display
camera). Be careful that the battery is
not discharged.
If the warning message appears after
removing the non-factory electrical
accessories, have your vehicle inspected
by an authorized Kia dealer.
Low washer fluid
This warning message is displayed if the
washer fluid level in the reservoir is
nearly empty.
Have the washer fluid reservoir refilled.
Shift to P to charge
This message is displayed if you connect
the charging cable without the gear in
the P (Park) position.
Shift to P (Park) before connecting the
charging cable.
Low EV battery
When the high voltage battery level
reaches around 10% (around 15% for GT)
or less, this warning message is dis
-
played.
The warning light on the instrument
cluster ( ) will turn on simultaneously.
Charge the battery immediately.
Charge immediately. Power lim
-
ited
When the high voltage battery level
reaches around 5% or less, this warning
message is displayed.
The warning light on the instrument
cluster ( ) and the power down indica
-
tor light ( ) will turn on simultaneously.
The vehicle's power will be reduced to
minimize the energy consumption of the
high voltage battery. Charge the battery
immediately.
Check electric vehicle system
This warning message is displayed when
there is a problem with the electric vehi
-
cle control system.
WARNING
Refrain from driving when the warning
message is displayed.
If this occurs, park the vehicle in a safe
location and have your vehicle towed to
the nearest authorized Kia dealer and
have the vehicle inspected.
Power limited
In the following cases, this warning mes
-
sage is displayed when the vehicle's
power is limited for safety.
僅 When the power is limited for the
safety of the high-powered parts of
an electric vehicle. The power is lim
-
ited for the following reasons. (Unless
both Service Warning Light and
Power Down Indicator Light appear at
the same time, it is not a failure.)
僅 The high voltage battery level is too
low or voltage is decreasing.
僅 The temperature of the high voltage
battery is too high or too low.
僅 The temperature of the motor is high.
NOTICE
When this warning message is dis
-
played, do not accelerate or start the
vehicle suddenly. Charge the battery
immediately when the high voltage bat
-
tery level is not enough.
NOTICE
When the power is limited for the safety
of the high-powered parts of an electric
vehicle, the power down indicator light
Features of your vehicle
725
LCD display
appears. Your vehicle may not be driven,
or may roll back on a slope with the indi
-
cator light ON due to the limitation of the
vehicle power.
Power limited due to low EV bat
-
tery temperature. Charge battery
The warning message is displayed to
protect the electric vehicle system when
you turn off or turn on the vehicle while
outside temperature is low. If the high
voltage battery charging level is low and
parked outside in low temperature for a
long time, vehicle power could be lim
-
ited. Charging the battery before driving,
increases the battery temperature, and
helps increase power.
NOTICE
If this warning message is still displayed
even when the ambient temperature is
sufficiently high, have the vehicle
inspected by an authorized Kia dealer.
EV Battery Overheated! Stop
vehicle
This warning message is displayed to
protect battery and electric vehicle sys
-
tem when the high voltage battery tem
-
perature is too high.
Turn off the EV button and stop the
vehicle so that the battery temperature
decreases.
NOTICE
If this warning is still displayed even
after the EV button has been turned off
for sufficient time, refrain from driving
and have the vehicle inspected by an
authorized Kia dealer.
Stop vehicle and check power
supply
This warning message is displayed when
a failure occurs in the 12 V power supply
system.
If this occurs, park the vehicle in a safe
location, tow your vehicle to the nearest
authorized Kia dealer and have the vehi
-
cle inspected.
Unplug vehicle to start
This message is displayed when you
start the vehicle, without unplugging the
charging cable, and will not shift out of
park. Unplug the charging cable, and
then turn on the vehicle.
Charging Door Open
This message is displayed when the
vehicle is driven with the charging door
opened. Close the charging door and
then start driving.
Remaining Time
This message is displayed to notify the
remaining time to charge the battery, to
the selected target battery charge level,
and the charge voltage level.
Charging Stopped. Check the AC
charger/Charging Stopped.
Check the DC charger
This warning message is displayed when
charging is stopped for the reasons
below:
僅 There is a problem with the external
AC charger or DC charger.
僅 The external AC charger stopped
charging
僅 The charging cable is damaged.
73
5
5
Features of your vehicle LCD display
If this occurs, check whether there is any
problem with the external AC or DC
charger and charging cable.
If the same problem occurs when
charging the vehicle with a well-func
-
tioning external charger or genuine Kia
portable charger (sold separately), have
your vehicle inspected by an authorized
Kia dealer.
Charging Stopped. Check the
cable connection
This warning message is displayed for
the reasons below:
僅 The charging connector is not cor
-
rectly connected to the charging inlet.
僅 The charging connector lock release
button is pressed.
If this occurs, separate the charging con
-
nector and re-connect it.
Check whether there is any problem
(external damage, foreign substances,
etc.) with the charging connector and
charging inlet.
If the same problem occurs when
charging the vehicle with a replaced
charging cable or genuine Kia portable
charger (sold separately), have your
vehicle inspected by an authorized Kia
dealer.
Check regenerative brakes
This warning message is displayed when
the regenerative brake system does not
work properly.
In this case, have your vehicle inspected
by an authorized Kia dealer.
Check Virtual Engine Sound Sys
-
tem
This message is displayed when there is
a problem with the Virtual Engine Sound
System (VESS).
In this case, have your vehicle inspected
by an authorized Kia dealer.
Check Active Air Flap System
This warning message is displayed in the
following situations:
僅 There is a malfunction with the actua
-
tor flap
僅 There is a malfunction with the actua
-
tor air flap controller
僅 The air flap does not open
When all of the above conditions are
fixed, the warning will disappear.
Refill coolant
This message is displayed when the
coolant is low. If the warning message is
displayed, stop driving and check the
amount of coolant. Driving without suffi
-
cient coolant for a prolonged period of
time can cause serious problems with
the vehicle's electrical equipment and
make normal driving impossible.
Features of your vehicle
745
Warning and indicator lights
Warning and indicator lights
The warning light and indicator light
indicate a situation where the driver
should be careful and whether the vari
-
ous functions are activated.
Warning lights
The warning light indicates situations
that require the driver to pay attention.
NOTICE
Warning Lights
Make sure that all warning lights are
OFF after starting the vehicle. If any light
is still ON, this indicates a situation that
needs attention.
Service warning light
This warning light appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When there is a problem with related
parts of the electric vehicle control
system, such as sensors, etc.
When the warning light appears while
driving, or does not go OFF after starting
the vehicle, have your vehicle inspected
by an authorized Kia dealer.
Air bag warning light
This warning light appears:
僅 Once you set the EV button to the ON
position.
- It appears for approximately 6 sec
-
onds and then goes off.
僅 When there is a malfunction with the
SRS.
In this case, have the vehicle inspected
by an authorized Kia dealer.
Seat belt warning light
This warning light informs the driver that
the seat belt is not fastened.
* For more details, refer to "Seat belts" on
page 4-17.
Parking brake & brake fluid
warning light
This warning light appears:
僅 Once you set the EV button to the ON
position.
- It appears for approximately 3 sec
-
onds
- It remains on if the parking brake is
applied.
僅 When the parking brake is applied.
僅 When the brake fluid level in the res
-
ervoir is low.
- If the warning light appears with
the parking brake released, it indi
-
cates the brake fluid level in reser
-
voir is low.
If the brake fluid level in the res
-
ervoir is low:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the vehicle stopped, check the
brake fluid level immediately and add
fluid as required (For more details,
refer to "Brake fluid" on page 9-12).
Then check all brake components for
fluid leaks. If any leak on the brake
system is still found, the warning light
remains on, or the brakes do not
75
5
5
Features of your vehicle Warning and indicator lights
operate properly, do not drive the
vehicle.
In this case, have your vehicle towed
to an authorized Kia dealer and
inspected.
Dual-diagonal braking system
Your vehicle is equipped with dual-diag
-
onal braking systems. This means you
still have braking on two wheels even if
one of the dual systems should fail.
With only one of the dual systems work
-
ing, more than normal pedal travel and
greater pedal pressure are required to
stop the vehicle.
Also, the vehicle will not stop in as short
a distance with only a portion of the
brake system working.
WARNING
Parking Brake & Brake Fluid Warning
Light
Driving the vehicle with a warning light
ON is dangerous. If the parking brake &
brake fluid warning light appears with
the parking brake released, it indicates
that the brake fluid level is low.
In this case, have your vehicle inspected
by an authorized Kia dealer.
Anti-lock Brake System (ABS)
warning light
This warning light appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When there is a malfunction with the
ABS (The normal braking system will
still be operational without the assis
-
tance of the anti-lock brake system).
In this case, have your vehicle
inspected by an authorized Kia dealer.
Electronic Brake force Distribu
-
tion (EBD) system warning light
These two warning lights appear
at the same time while driving:
僅 When the ABS and regular brake sys
-
tem may not work normally.
In this case, have your vehicle
inspected by an authorized Kia dealer.
WARNING
Electronic Brake force Distribution
(EBD) System Warning Light
When both ABS and parking brake &
brake fluid warning lights are on, the
brake system will not work normally and
you may experience an unexpected and
dangerous situation during sudden
braking.
In this case, avoid high speed driving
and abrupt braking.
Have your vehicle inspected by an
authorized Kia dealer as soon as possi
-
ble.
Regenerative brake warning light
(Red color) (Yellow color)
This warning light appears:
When the regenerative brake does not
operate and the brake does not perform
well. This causes the Brake Warning light
(red) and Regenerative Brake Warning
Light (yellow) to appear simultaneously.
Features of your vehicle
765
Warning and indicator lights
In this case, drive safely and have the
vehicle inspected by an authorized Kia
dealer.
The operation of the brake pedal may be
more difficult than normal, and the brak
-
ing distance can increase, as it may
default to manual hydraulic mode.
Electric Power Steering (EPS)
warning light
This warning light appears:
僅 When the EV button is in the ON posi
-
tion.
- It remains on until the vehicle is
started.
- When there is a malfunction with
the EPS.
僅 When there is a malfunction with the
EPS.
In this case, have your vehicle
inspected by an authorized Kia dealer.
Charging system warning light
This warning light appears:
僅 When the 12-volt battery level is low or
a failure occurs on the charging sys
-
tem such as LDC.
僅 If the warning light turns on while
driving, move the vehicle to a safe
location, turn off and turn on the vehi
-
cle again, and check if the warning
light turns off. If the warning light
remains on, have your vehicle
inspected by an authorized Kia dealer.
僅 Even if the warning light turns off,
have the vehicle inspected by an
authorized Kia dealer.
If you drive the vehicle while the
warning light is on, vehicle speed may
be limited and the 12-volt battery may
be discharged.
* LDC: Low voltage DC-DC Converter.
High voltage battery low level
warning light
This warning light appears:
僅 When the high voltage battery level is
low.
When the warning light turns ON,
charge the battery immediately.
Power down indicator light
This indicator appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When the power is limited for the
safety of the high-powered parts of
an electric vehicle. The power is lim
-
ited for the following reasons. (Unless
both Service Warning Light and
Power Down Indicator Light appear at
the same time, it is not a failure.)
- The high voltage battery level is too
low or voltage is decreasing
- The temperature of the high volt
-
age battery is too high or too low
- The temperature of the motor is
high
NOTICE
Do not accelerate or start the vehicle
suddenly when the Power Down Indica
-
tor Light is ON.
77
5
5
Features of your vehicle Warning and indicator lights
Charge the battery immediately when
the high voltage battery level is not
enough.
NOTICE
When the remaining battery power is
low, the Power Down Indicator Light
turns on and the output is limited. In that
case, charge the battery immediately;
otherwise, it could be difficult to climb
hills or the vehicle may move backward.
Low tire pressure warning light
This warning light appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When one or more of your tires are
significantly under inflated.
* For more details, refer to "Tire Pressure
Monitoring System (TPMS)" on page
8-6.
This warning light remains ON
after blinking for approximately
60 seconds, or repeats blinking
ON and OFF at the intervals of
approximately 3 seconds:
僅 When there is a malfunction with the
TPMS.
In this case, have your vehicle
inspected by an authorized Kia dealer.
* For more details, refer to "Tire Pressure
Monitoring System (TPMS)" on page
8-6.
WARNING
Low Tire Pressure
僅 Significantly low tire pressure makes
the vehicle unstable and can contrib
-
ute to loss of vehicle control and
increased braking distances.
僅 Continued driving or low pressure
tires will cause the tires to overheat
and fail.
WARNING
Safe Stopping
僅 The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.
僅 If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
Master warning light
This warning light informs the
driver the following situations
僅 Forward Collision-Avoidance Assist
malfunction
僅 Forward Collision-Avoidance Assist
radar blocked
僅 Blind-Spot Collision-Avoidance Assist
malfunction (if equipped)
僅 Blind-Spot Collision-Avoidance Assist
radar blocked (if equipped)
僅 Smart Cruise Control malfunction
僅 Smart Cruise Control radar blocked
僅 Lamp malfunction
僅 High Beam Assist malfunction
To identify the details of the warning,
look at the LCD display.
Features of your vehicle
785
Warning and indicator lights
Electronic Parking Brake (EPB)
warning light EPB
This warning light appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When there is a malfunction with the
EPB.
In this case, have your vehicle
inspected by an authorized Kia dealer.
NOTICE
Electronic Parking Brake (EPB) Warn
-
ing Light
The Electronic Parking Brake (EPB)
Warning Light may appear when the
Electronic Stability Control (ESC) Indica
-
tor Light comes on to indicate that the
ESC is not working properly (This does
not indicate malfunction of the EPB).
LED headlamp warning light
This warning light appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When there is a malfunction with the
LED headlamp.
In this case, have your vehicle inspected
by an authorized Kia dealer.
This warning light blinks:
僅 When there is a malfunction with a
LED headlamp related part.
In this case, have your vehicle inspected
by an authorized Kia dealer.
CAUTION
LED Headlamp Warning Light
Continuous driving with the LED Head
-
lamp Warning Light on or blinking can
reduce LED headlamp (low beam) life.
Forward Safety warning light
This warning light appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When Forward Collision-Avoidance
Assist is turned off.
僅 When ESC is turned off by pressing
and holding the ESC OFF button
僅 When the radar sensor or cover is
blocked with dirt or snow. Check the
sensor and cover and clean them by
using a soft cloth.
僅 When there is a malfunction with For
-
ward Collision-Avoidance Assist. If this
occurs, have your vehicle inspected
by an authorized Kia dealer.
* For more details, refer to "Forward Col
-
lision-Avoidance Assist (FCA)" on page
7-4.
Icy road warning light
This warning light appears:
This warning light is to warn the driver
the road may be icy. When the tempera
-
ture on the outside temperature gauge
is approximately below 39 °F (4 °C) the
icy road warning light and outside tem
-
perature gauge blinks and then appears.
Also, the warning chime sounds 1 time.
79
5
5
Features of your vehicle Warning and indicator lights
NOTICE
If the icy road warning light appears
while driving, you should drive more
attentively and safely refraining from
over-speeding, rapid acceleration, sud
-
den braking or sharp turning, etc.
All Wheel Drive (AWD) warning
light (if equipped)
This warning light appears:
僅 Once you set the EV button to the ON
position.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When there is a malfunction with the
AWD.
In this case, have your vehicle inspected
by an authorized Kia dealer.
* For more details, refer to "All wheel
drive (AWD) (if equipped)" on page 6-
42.
Indicator lights
The indicator light indicates whether the
various functions are activated.
Ready indicator light (READY)
This indicator appears:
When the vehicle is ready to be driven.
僅 ON: Normal driving is possible.
僅 OFF: Normal driving is not possible, or
a problem has occurred.
僅 Blinking: Emergency driving.
When the ready indicator goes OFF or
blinks, there is a problem with the sys
-
tem. In this case, have your vehicle
inspected by an authorized Kia dealer.
Charging cable connection indi
-
cator light
This indicator appears:
This indicator appears when the
charging cable is connected.
Electronic Stability Control (ESC)
indicator light
This indicator light appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When there is a malfunction with the
ESC system.
In this case, have your vehicle
inspected by an authorized Kia dealer.
This indicator light blinks:
While the ESC is operating.
* For more details, refer to "Electronic
Stability Control (ESC)" on page 6-30.
Electronic Stability Control (ESC)
OFF indicator light
This indicator light appears:
僅 When the EV button is in the ON posi
-
tion.
- It appears for approximately 3 sec
-
onds and then goes off.
僅 When you deactivate the ESC system
by pressing the ESC OFF button.
* For more details, refer to "Electronic
Stability Control (ESC)" on page 6-30.
Features of your vehicle
805
Warning and indicator lights
Immobilizer indicator light (with
smart key)
This indicator light appears for
up to 30 seconds:
僅When the vehicle detects the smart
key in the vehicle with the EV button
in the ACC or ON position.
- Once the smart key is detected, you
can start the vehicle (
READY
indi
-
cator ON).
- The indicator light goes off after
starting the vehicle (
READY
indica
-
tor ON).
This indicator light blinks for a
few seconds:
僅 When the smart key is not in the vehi
-
cle.
- At this time, you cannot start the
vehicle.
This indicator light appears for 2
seconds and goes off:
僅 If the smart key is in the vehicle and
the EV button is ON, but the vehicle
cannot detect the smart key.
In this case, have your vehicle
inspected by an authorized Kia dealer.
This indicator light blinks:
僅 When the battery of the smart key is
weak.
僅 When there is a malfunction with the
immobilizer system.
In this case, have your vehicle
inspected by an authorized Kia dealer.
Turn signal indicator light
This indicator light blinks:
僅 When you turn the turn signal light on.
If any of the following occurs, there may
a malfunction with the turn signal sys
-
tem.
In this case, have your vehicle inspected
by an authorized Kia dealer.
僅 The indicator light does not blink but
appears.
僅 The indicator light blinks more rapidly.
僅 The indicator light does not appear at
all.
Low beam indicator light
This indicator light appears:
僅 When the headlights are on.
High beam indicator light
This indicator light appears:
僅 When the headlights are on and in the
high beam position.
僅 When the turn signal switch is pulled
into the Flash-to-Pass position.
High Beam Assist indicator light
This indicator light appears:
僅When High Beam Assist is activated.
* For more details, refer to "High Beam
Assist (HBA)" on page 5-88.
81
5
5
Features of your vehicle Warning and indicator lights
Light ON indicator light
This indicator light appears:
僅 When the tail lights or headlights are
on.
AUTO HOLD indicator light
(AUTO HOLD)
This indicator light appears:
僅 White: When you activate the AUTO
HOLD system by pressing the AUTO
HOLD button.
僅 Green: When you stop the vehicle
completely by depressing the brake
pedal with the AUTO HOLD system
activated.
僅 Yellow: When there is a malfunction
with the AUTO HOLD system.
In this case, have the vehicle inspected
by an authorized Kia dealer.
* For more details, refer to "AUTO HOLD"
on page 6-26.
Lane Safety indicator light
This indicator light appears:
The Lane Safety indicator light will
appear when you turn Lane Keeping
Assist on by pressing and holding the
Lane Driving Assist button.
If there is a problem with the function,
the yellow Lane Safety indicator will
appear.
* For more details, refer to "Lane Keeping
Assist (LKA)" on page 7-23.
Lane Following Assist indicator
This indicator light appears:
Lane Following Assist indicator will
appear when you turn Lane Following
Assist on by pressing Lane Driving Assist
button.
If there is a problem with the function,
the yellow Lane Following Assist indica
-
tor will appear.
* For more details, refer to "Lane Follow
-
ing Assist (LFA)" on page 7-82.
Highway Lane Change Assist
indicator light (if equipped)
This indicator light appears:
僅 Green: When Highway Lane Change
Assist is ready for operation.
僅 Grey: When Highway Lane Change
Assist is in standby.
This indicator light blinks:
僅 Green: When Highway Lane Change
Assist is operating.
僅 White: When Highway Lane Change
Assist is canceled.
* For more details, refer to "Highway
Driving Assist (HDA) (if equipped)" on
page 7-85.
Drive mode indicator light (ECO/
NORMAL/SPORT/SNOW)
This indicator light appears:
僅 When you select each mode as drive
mode.
Features of your vehicle
825
Augmented Reality HUD
* For more details, refer to "Drive mode
integrated control system" on page 6-
37.
Battery conditioning mode indi
-
cator light
This indicator light appears:
僅 When Battery conditioning mode is
activated.
* For more details, refer to "Battery con
-
ditioning mode (if equipped)" on page
1-14.
Drift mode indicator light DRIFT
(if equipped)
This indicator light appears:
僅 When drift mode is activated.
* For more details, refer to "Drift Mode
(For GT)" on page 6-40.
Augmented Reality HUD (if
equipped)
The Head-Up Display projects the instru
-
ment cluster and navigation information
onto the windshield.
Head-up display settings
A:
Head-up display
1 Display mode
2 Augmented reality mode
3 Standard mode
4 Head-up display Off
Head-up display can be enabled from
the Settings menu in the infotainment
system screen. Select either
Augmented
reality mode
or
Standard mode
from:
僅
Setup
→
Vehicle
→
Head-up display
→
Display mode
→
Augmented
reality mode
/
Standard mode
After turning on the head-up display,
you can change the settings of
Display
control
,
AR matching adjustment
(When Augmented reality mode is
selected) and
Content selection
of the
Head-Up Display.
OCV041418N
OCV041186L
83
5
5
Features of your vehicle Augmented Reality HUD
Head-up display information
AR mode display information
1
Turn By Turn (TBT) navigation infor
-
mation
2
Traffic information
3
Speedometer information
4
SCC set speed information
5
SCC vehicle distance information
6
Lane Following Assist information
7
Lane Safety information
8
Blind-Spot Safety information
9
Highway Auto Speed Change infor
-
mation
10
Highway Driving Assist information
11
Turn by turn (TBT) navigation infor
-
mation (AR)
12
Lane Safety information (AR)
13
Front Vehicle indicator (AR) (if High
-
way Lane Change Assist function
equipped)
14
Leading Vehicle Departure Alert (AR)
15
Highway Lane Change Assist infor
-
mation (AR)
Standard mode display informa
-
tion
1
Turn By Turn (TBT) navigation infor
-
mation
2
Traffic information
3
Speedometer information
4
SCC set speed information
5
SCC vehicle distance information
6
Lane Following Assist information
7
Lane Safety information
8
Blind-Spot Safety information
9
Highway Auto Speed Change infor
-
mation
10
Highway Driving Assist information
11
Surrounding vehicle information
Precautions while using the
head-up display
僅 It may sometimes be difficult to read
information on the Head-Up Display
in the following situations.
- The driver is improperly positioned
in the driver's seat
- The driver wears polarizing-filter
sunglasses
-An object is located above the
head-up display cover
- The vehicle is driven on a wet road
- Any improper lighting accessory is
installed inside the vehicle, or there
is incoming light from outside of
the vehicle
- The driver wears glasses
- The driver wears contact lenses
OCV041419N
OCV041420N
OCV041041N
Features of your vehicle
845
Augmented Reality HUD
僅 When it is difficult to read the Head-
Up Display information, adjust the
image position, brightness level or AR
matching information from the Set
-
tings menu in the infotainment sys
-
tem screen.
僅 The AR mode display information
may be difficult to recognize when the
vehicle is driven under severe weather
condition, such as heavy rain, heavy
snow, low visibility, etc.
僅 Head-up display information may
partially overlap the road ahead,
causing fatigue and discomfort while
driving. Adjust the image if you feel
tired or uncomfortable, or if symp
-
toms persist, turn off the head-up dis
-
play.
僅 When the direct flash light or sunlight
hits the front windshield, a warning
message will appear. If the tempera
-
ture of the front windshield keep rises,
Head-up display will be deactivated
temporarily to protect Head-up dis
-
play from the high temperature. When
the temperature drops, Head-up dis
-
play will be reactivated.
僅 For your safety, make sure to stop the
vehicle before adjusting the settings.
僅 Do not tint the front windshield glass
or add other types of metallic coating.
Otherwise, the Head-Up Display
image may be invisible.
僅 Do not place any accessories on the
crash pad or attach any objects on the
windshield glass.
僅 When replacing the front windshield
glass, replace it with a windshield
glass designed for Head-Up Display
operation. Otherwise, duplicated
images may be displayed on the
windshield glass.
WARNING
僅 The warning information of Blind-
Spot Safety on the Head-Up Display
are supplemental. Do not solely
depend on them to change lanes.
Always take a look around before
changing lanes.
The driving route guidance display in
the augmented reality mode is an
auxiliary function. Be sure to check
the navigation screen together.
僅 ALWAYS pay attention on the road
while driving when the Head-Up Dis
-
play is on.
NOTICE
僅 AR mode is the basic setting for Head-
up display.
For detailed information, refer to the
separately supplied infotainment sys
-
tem manual.
僅 Standard Head-up display informa
-
tion may not be consistent based on
the different system settings menu.
NOTICE
Head-Up Display includes GPL, LGPL,
MPL and other open source license soft
-
wares. To obtain the source code devel
-
oped under the open source license
installed on this product, please visit
http://www.mobis.co.kr/opensource/
list.do.
You can download all applicable license
notices, including the source code.
If you send an e-mail to MOBIS_OSSre
-
quest@mobis.co.kr within three (3) years
of your purchase of the product to
request an open source code for the
software on this product, you will receive
it in a CD-ROM and/or other storage
85
5
5
Features of your vehicle Lighting
medium at a minimal charge (the charge
will cover costs for the storage medium
and delivery).
Lighting
This vehicle is equipped with a variety of
lights to illuminate the interior and exte
-
rior of the vehicle.
Battery saver function
The purpose of this feature is to prevent
the battery from being discharged if the
lights are left in the ON position. The
system automatically shuts off the park
-
ing lights after the vehicle is turned off
and the driver's door is opened.
However, the position lamps stay ON
even when the driver-side door is
opened if the light switch is operated
after the vehicle is turned off.
If necessary, to keep the lamps on turn
the position lamps OFF and ON again
using the headlamp switch on the steer
-
ing column after the vehicle is turned
off.
Headlight escort function
If you turn the EV button to the ACC or
OFF position with the headlights ON, the
headlights remain on for about 5 min
-
utes.
However, if the driver's door is opened
and closed, the headlights are turned off
after 15 seconds.
The headlights can be turned off by
pressing the lock button on the smart
key one more time or turning the light
switch to the OFF position.
Daytime running light (DRL)
The Daytime Running Lights can make it
easier for others to see the front of your
vehicle during the day.
DRL can be helpful in many different
driving conditions, and it is especially
helpful after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when:
Features of your vehicle
865
Lighting
僅 The headlight switch is on.
僅 The vehicle is off.
僅 Engaging the parking brake.
Lighting control
The light switch has a Headlight and a
Parking light position.
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
1
OFF position
2
AUTO light position
3
Position & Taillamp
4
Headlamp (Low beam)
Position & Taillamp
When the light switch is in the parking
light position, the tail, license and instru
-
ment panel lights will turn ON.
Headlamp (Low beam)
When the light switch is in the headlamp
(Low beam) position, the head, tail,
license lights will turn ON.
NOTICE
The EV button must be in the ON posi
-
tion to turn on the headlights.
AUTO light
When the light switch is in the AUTO
light position, the taillights and head
-
lights will turn ON or OFF automatically
depending on the amount of light out
-
side the vehicle.
When the light switch is positioned at an
auto light position, at first, the wiper will
turn on and then, after 5 seconds the
head lamp will turn on automatically.
If the head lamp has been turned on due
to this function of the vehicle, the head
lamp will turn off 60 seconds after the
wiper has been turned off.
CAUTION
僅 Never place anything over the sensor
(1) located on the instrument panel, as
this will ensure better auto-light sys
-
tem control.
僅 Do not clean the sensor using a win
-
dow cleaner. The cleaner may leave a
OCV041050
OCV041633N
OCV041634N
OCV041616N_2
87
5
5
Features of your vehicle Lighting
light film which could interfere with
sensor operations.
僅 If your vehicle has window tint or
other types of metallic coating on the
front windshield, the auto light system
may not work properly.
Operating high beam
To turn on the high beam headlamp:
僅 Push the lever away from you.
The lever will return to its original
position.
The high beam indicator will light
when the headlight high beams are
switched on.
To prevent the battery from being dis
-
charged, do not leave the lights on for
a prolonged time while the vehicle is
off.
WARNING
High Beams
Do not use high beam when there are
other vehicles in front of or approaching
your vehicle. Using high beam could
obstruct the other driver's vision.
To flash the headlights:
僅 Pull the lever towards you.
It will return to the normal (low beam)
position when released. The head
-
light switch does not need to be on to
use this flashing feature.
Operating turn signals and lane
change signals
The EV button must be on for the turn
signals to function.
To turn on the turn signals:
僅 Move the lever up or down (A).
The green arrow indicators on the
instrument panel indicate which turn
signal is operating.
They will self-cancel after a turn is
completed. If the indicator continues
to flash after a turn, manually return
the lever to the OFF position.
To signal a lane change:
僅 Move the turn signal switch slightly
and hold it in position (B).
The lever will return to the OFF posi
-
tion when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned out
and will require replacement.
One-touch lane change function
To activate a one-touch lane change
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7 times.
You can activate or deactivate the One
Touch Turn Signal function or choose
the number of blinking (3, 5, or 7) by
OCV041635N
OCV041636N
OCV041051N
Features of your vehicle
885
Lighting
selecting "Vehicle →Lights → One Touch
Turn Signal".
NOTICE
If an indicator flash is abnormally quick
or slow, a bulb may be burned out or
have a poor electrical connection in the
circuit. The bulb may require replace
-
ment.
High Beam Assist (HBA)
High Beam Assist is a function that auto
-
matically adjusts the headlamp range
(switches between high beam and low
beam) depending on the brightness of
detected vehicles and certain road con
-
ditions.
Detecting sensor
Front view camera
The front view camera is used as a
detecting sensor to detect ambient light
and brightness while driving. Refer to
the picture above for the detailed loca
-
tion of the detecting sensor.
CAUTION
Always keep the front view camera in
good condition to maintain optimal per
-
formance of High Beam Assist.
For more details on the precautions of
the front view camera, refer to "Forward
Collision-Avoidance Assist (FCA)" on
page 7-4.
High Beam Assist Setting
A:
Vehicle Settings
1 Lights
2 High Beam Assist
With the vehicle in the ON position,
select
Setup
→
Vehicle
→
Lights
→
High Beam Assist
from the Settings
menu to turn on High Beam Assist func
-
tion.
WARNING
For your safety, change the settings only
after parking the vehicle at a safe loca
-
tion.
High Beam Assist operation
僅 After selecting
High Beam Assist
in
the
Settings
menu, High Beam Assist
will operate by following the proce
-
dure below.
- Place the headlamp switch in the
AUTO position and push the head
-
lamp lever towards the instrument
cluster. The High Beam Assist ( )
indicator light will appear on the
OCV041054
OCV051017N
OCV041522N
89
5
5
Features of your vehicle Lighting
cluster and the function will be
enabled.
- When the function is enabled, high
beam will turn on when vehicle
speed is above 25 mph (40 km/h).
The High Beam ( ) indicator light
will appear on the cluster when
high beam is on. When vehicle
speed is below 15 mph (25 km/h),
high beam will not turn on, and the
white High Beam Assist ( ) indica
-
tor will appear.
僅 When High Beam Assist is operating,
if the headlamp lever or switch is
used, the function operates as follow:
- If the headlamp lever is pulled
towards you when the high beam is
off, the high beam will turn on.
When you let go of the headlamp
lever, High Beam Assist will turn on
again.
- If the headlamp lever is pulled
towards you when the high beam is
on, the low beam will turn on and
High Beam Assist will be canceled.
- If you push the light switch towards
the instrument cluster, high beam is
turned on and High Beam Assist is
released.
- If the headlamp switch is placed
from AUTO to another position
(headlamp/position/off), High
Beam Assist will turn off and the
corresponding lamp will turn on.
僅 When High Beam Assist is operating,
high beam switches to low beam if
any of the following conditions occur:
- When the headlamp of an oncom
-
ing vehicle is detected.
- When the tail lamp of a vehicle in
front is detected.
- When the headlamp or tail lamp of
a motorcycle or a bicycle is
detected.
-When the surrounding ambient
light is bright enough that high
beams are not required.
- When streetlights or other lights are
detected.
NOTICE
Depending on the instrument cluster
specifications or theme, images or colors
may be displayed differently.
High Beam Assist Malfunction
and limitations
High Beam Assist Malfunction
A:
Check High Beam Assist (HBA) sys
-
tem
When High Beam Assist is not working
properly, the warning message will
appear and warning light ( ) will appear
on the cluster. Have your vehicle
inspected by an authorized Kia dealer.
Limitations of High Beam Assist
僅 Light from a vehicle is not detected
because of lamp damage, or because
it is hidden from sight, etc.
僅 Headlamp of a vehicle is covered with
dust, snow or water.
僅 A vehicle's headlamps are off but the
fog lamps are on and etc.
僅 There is a lamp that has a similar
shape as a vehicle's lamp.
OCV051213L
Features of your vehicle
905
Wipers and washers
僅 Headlamps have been damaged or
not repaired properly.
僅 Headlamps are not aimed properly.
僅 Driving on a narrow curved road,
rough road, uphill or downhill.
僅 Vehicle in front is partially visible on a
crossroad or curved road.
僅 There is a traffic light, reflecting sign,
flashing sign or mirror ahead.
僅 There is a temporary reflector or flash
ahead (construction area).
僅 The road conditions are bad such as
being wet, iced or covered with snow.
僅 A vehicle suddenly appears from a
curve.
僅 The vehicle is tilted from a flat tire or
is being towed.
僅 Light from a vehicle is not detected
because of exhaust fume, smoke, fog,
snow, etc.
NOTICE
For more details on the limitations of the
front view camera, refer to "Forward Col
-
lision-Avoidance Assist (FCA)" on page
7-4.
WARNING
僅 At times, High Beam Assist may not
work properly. The function is for your
convenience only. It is the responsibil
-
ity of the driver for safe driving prac
-
tices and always check the road
conditions for your safety.
僅When High Beam Assist does not
operate normally, change the head
-
lamp position manually between high
beam and low beam.
Wipers and washers
The wipers and washers remove foreign
substances from the windshield and rear
window, helping to maintain visibility.
A: Wiper speed control (front)
僅 MIST – Single wipe
僅OFF – Off
僅 AUTO - Auto control wipe
僅 LO – Low wiper speed
僅 HI – High wiper speed
B: Auto control wipe time adjustment
C: Wash with brief wipes
Windshield washers
Operates as follows when the EV button
is turned ON.
MIST
: For a single wiping cycle, move
the lever to this (MIST) position and
release it. The wipers will operate contin
-
uously if the lever is held in this position.
OFF
: Wiper is not in operation
LO
: Normal wiper speed
HI
: Fast wiper speed
CAUTION
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
the snow and/or ice is removed before
using the windshield wipers to ensure
proper operation. If you do not remove
the snow and/or ice before using the
wiper and washer, it may damage the
wiper and washer system.
OCV041056N
91
5
5
Features of your vehicle Wipers and washers
Auto control
The rain sensor (A) located on the upper
end of the windshield glass senses the
amount of rainfall and controls the wip
-
ing cycle for the proper interval. The
more it rains, the faster the wiper oper
-
ates. When the rain stops, the wiper
stops.
To vary the speed setting, turn the
speed control knob (B).
If the wiper switch is set in AUTO mode
when the EV button is ON, the wiper will
operate once to perform a self-check of
the system. Set the wiper to OFF position
when the wiper is not in use.
CAUTION
When the EV button is ON and the wind
-
shield wiper switch is placed in the
AUTO mode, use caution in the following
situations to avoid any injury to the
hands or other parts of the body:
僅 Do not touch the upper end of the
windshield glass facing the rain sen
-
sor.
僅 Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.
僅 Do not put pressure on the windshield
glass.
CAUTION
僅 When washing the vehicle, set the
wiper switch in the OFF position to
stop the auto wiper operation.
The wiper may operate and be dam
-
aged if the switch is set in the AUTO
mode while washing the vehicle.
僅 Do not remove the sensor cover
located on the upper end of the pas
-
senger side windshield glass. Damage
to system parts could occur and may
not be covered by your vehicle war
-
ranty.
僅 When starting the vehicle in winter,
set the wiper switch in the OFF posi
-
tion. Otherwise, wipers may operate
and ice may damage the windshield
wiper blades. Always remove all snow
and ice and defrost the windshield
properly prior to operating the wind
-
shield wipers.
僅 When tinting the windshield, be care
-
ful of any fluid getting into the sensor
located in the top center of the front
windshield. It may damage the related
parts.
Operating windshield washer
Use this function when the windshield is
dirty.
1. Move the wiper speed control switch
to the OFF position.
2. Pull the lever gently toward you to
spray washer fluid on the windshield
and to run the wipers 1~3 cycles.
OGL3041507L
OCV041059L
Features of your vehicle
925
Interior lights
The spray and wiper operation will
continue until you release the lever.
If the washer does not work, check the
washer fluid level. If the fluid level is not
sufficient, you will need to add appropri
-
ate non-abrasive windshield washer
fluid to the washer reservoir.
The reservoir filler neck is located in the
front of the motor compartment on the
passenger side.
CAUTION
Washer Pump
To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
WARNING
Obscured Visibility
Do not use the washer in freezing tem
-
peratures without first warming the
windshield with the defrosters; the
washer solution could freeze on the
windshield and obscure your vision.
CAUTION
Wipers & Windshields
僅 To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is dry.
僅 To prevent damage to the wiper
blades, do not use gasoline, kerosene,
paint thinner, or other solvents on or
near them.
僅 To prevent damage to the wiper arms
and other components, do not
attempt to move the wipers manually.
Interior lights
This vehicle is equipped with lights
throughout the vehicle to illuminate the
interior.
Do not use the interior lights for
extended periods when the vehicle is off.
It may cause battery discharge.
WARNING
Interior Lights
Do not use the interior lights when driv
-
ing in the dark. Accidents could happen
because the view may be obscured by
interior lights.
Automatic turn off function (if
equipped)
The interior lights automatically turn off
approximately 20 minutes after the EV
button is turned off, if the lights are in
the ON position.
If your vehicle is equipped with the theft
alarm system, the interior lights auto
-
matically turn off approximately 5 sec
-
onds after the system is armed.
Room lamp
僅 : The light stays on at all times.
Map lamp
OCV041063L
OCV041061L
93
5
5
Features of your vehicle Interior lights
僅 Press the lens (1) to turn ON the map
lamp.
To turn the map lamp OFF press the
lens (1) again.
僅 (2): DOOR mode
- The map lamp and room lamp
come on when a door is opened.
The lamps go out after approxi
-
mately 30 seconds.
- The map lamp and room lamp
come on for approximately 30 sec
-
onds when doors are unlocked with
a transmitter or smart key as long
as the doors are not opened.
- The map lamp and room lamp will
stay on for approximately 20 min
-
utes if a door is opened with the EV
button in the ACC or LOCK/OFF
position.
- The map lamp and room lamp will
stay on continuously if the door is
opened with the EV button in the
ON position.
- The map lamp and room lamp will
go out immediately if the EV button
is changed to the ON position or all
doors are locked.
- To turn off the DOOR mode, press
the DOOR button (2) once again
(not pressed).
僅 (3): Press this switch to turn the
front and rear room lamps on and off.
NOTICE
The DOOR mode and ROOM mode can
-
not be selected at the same time.
Liftgate room lamp
The liftgate room lamp comes on when
the liftgate is opened.
NOTICE
The liftgate lamp comes on as long as
the liftgate lid is open. To prevent
unnecessary charging system drain,
close the liftgate lid securely after using
the liftgate.
Vanity mirror lamp
僅 Push the switch to turn the light on or
off.
- : The lamp will turn on if this but
-
ton is pressed.
- : The lamp will turn off if this but
-
ton is pressed.
CAUTION
Vanity Mirror Lamp
Always have the switch in the off posi
-
tion when the vanity mirror lamp is not
in use. If the sun visor is closed without
the lamp off, it may discharge the bat
-
tery or damage the sun visor.
OCV041062L
OCV041064L
Features of your vehicle
945
Welcome system
Glove box lamp
The glove box lamp comes on when the
glove box is opened.
CAUTION
To prevent unnecessary charging sys
-
tem drain, close the glove box securely
after using the glove box.
Charging inlet lamp
The charging inlet lamp comes on when
the charging door is opened.
NOTICE
The charging inlet lamp comes on as
long as the charging door is open. To
prevent unnecessary charging system
drain, close the charging door securely
after using the charger.
Welcome system
The welcome system is a function that
illuminates the surroundings or the inte
-
rior when the driver approaches or exits
the vehicle.
Headlight (Headlamp) escort
function
The headlights (and/or taillights) remain
on for approximately 5 minutes after the
vehicle is turned off. However, if the
driver's door is opened and closed, the
headlights are turned off after 15 sec
-
onds.
The headlights can be turned off by
pressing the lock button on the transmit
-
ter or smart key twice or turning off the
light switch from the headlight or Auto
light position.
Interior light
When the interior light switch is in the
DOOR position and all doors (and lift
-
gate) are locked and closed, the room
lamp will come on for 30 seconds if any
of the following occurs.
僅 With the smart key system
- When the door unlock button is
pressed on the smart key.
- When the button of the outside
door handle is pressed.
At this time, if you press the door lock
button, the lamps will turn off immedi
-
ately.
OCV041065L
OCV043648L
95
5
5
Features of your vehicle Defroster
Body silhouette lamp
When all doors are locked and closed,
the body silhouette lamp will come on
for 15 seconds if any of the below is per
-
formed.
僅 With the smart key system
- When the door unlock button is
pressed on the smart key.
- Approaching to a vehicle with a
smart key within 5 ft (1.5 m)
- When the button of the outside
door handle is pressed.
At this time, if you press the door lock
button, the lamps will turn off immedi
-
ately.
If the welcome mirror/light settings are
not activated in the infotainment system
or the liftgate is opened, the body sil
-
houette lamp will not turn on.
Defroster
The vehicle is equipped with a defroster
for removing frost or fog from the rear
window.
CAUTION
Conductors
To prevent damage to the conductors
bonded to the inside surface of the rear
window, never use sharp instruments or
window cleaners containing abrasives to
clean the window.
If you want to defrost and defog the
front windshield, refer to "Windshield
defrosting and defogging" on page 5-
108.
Operating rear window defroster
The defroster heats the window to
remove frost, fog and thin ice from the
rear window, while the vehicle is on.
If there is heavy accumulation of snow
on the rear window, brush it off before
operating the rear defroster.
To activate the rear window defroster:
僅 Press the rear window defroster but
-
ton located in the center fascia switch
panel.
The indicator on the rear window
defroster button appears when the
defroster is ON.
The rear window defroster automati
-
cally turns off after approximately 20
minutes or when the EV button is
turned off.
OCV031092L
OCV041310L
Features of your vehicle
965
Defroster
To turn off the defroster:
僅 Press the rear window defroster but
-
ton again.
Outside mirror defroster (if
equipped)
If your vehicle is equipped with the out
-
side rearview mirror defrosters, they will
operate at the same time you turn on
the rear window defroster.
97
5
5
Features of your vehicle Automatic climate control system
Automatic climate control system
1
Driver's temperature control knob
2
Passenger's temperature control knob
3
AUTO (automatic control) button
4
OFF button
5
Fan speed control button
6
Mode selection button
7
Front windshield defroster button
8
Rear window defroster button
9
SYNC button
10
Air intake control button
11
Air conditioning (A/C) button
12
DRIVER ONLY select button
13
HEAT button
14
Infotainment/climate control mode switching button
NOTICE
Operating the blower when the EV but
-
ton is in the OFF position could cause
the battery to discharge. Operate the
blower when the vehicle is in ON posi
-
tion.
OCV041312N
Features of your vehicle
985
Automatic climate control system
Using the infotainment/climate
switchable controller
Press the button on the switchable con
-
troller to switch between infotainment
system or climate control panel.
Press and hold the button to select the
default mode for the control panel.
Switching between panels
Infotainment control panel
Climate control panel
Press the button on the switchable con
-
troller to select the desired control panel.
The selected control panel icon will
appear and the control panel will be
changed.
僅 The knob display will appear accord
-
ing to the selected control panel
mode.
僅 When the vehicle is in the ACC posi
-
tion, only the infotainment system will
be activated.
Setting the default mode
Press and hold the button to select the
default mode for the control panel.
僅 After the setting, the control panel will
return to the default mode after a cer
-
tain period of time even if the control
panel is switched to the different
mode.
僅 If the mode is set to 'OFF', the control
panel will display the mode used
recently.
Heating and air conditioning
automatically
1. Press the AUTO button.
The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically by setting the tempera
-
ture.
2. Turn the temperature control switch
to the desired temperature.
OCV041315
OCV041316
OCV041548N
OCV041559L
OCV041303
99
5
5
Features of your vehicle Automatic climate control system
僅 To turn the automatic operation off,
select any button or switch of the fol
-
lowing:
- Mode selection button
- Air conditioning button
- Front windshield defroster button
(Press the button one more time to
deselect the front windshield
defroster function. The 'AUTO' sign
will appear on the information dis
-
play once again.)
- Air intake control button
- Fan speed control switch
The selected function will be con
-
trolled manually while other func
-
tions operate automatically.
僅 For your convenience and to improve
the effectiveness of the climate con
-
trol, use the AUTO button and set the
temperature to 72 °F (22 °C).
NOTICE
Do not place anything over the sensor
located on the instrument panel to
ensure better control of the heating and
cooling system.
Level Indicator LCD Display Air flow
High 2~8
Medium 1~6
Low 1~4
OCV041305L
OCV041617N
Features of your vehicle
1005
Automatic climate control system
Heating and air conditioning manually
The heating and cooling system can be controlled manually by pressing buttons or
turning knob(s) other than the AUTO button.
In this case, the system works sequentially according to the order of buttons or
knob(s) selected.
1. Start the vehicle.
2. Set the mode to the desired position.
For improving the effectiveness of heating and cooling;
僅Heating:
僅 Cooling:
3. Set the temperature control to the desired position.
4. Set the air intake control to the outside (fresh) air position.
5. Set the fan speed control to the desired speed.
If air conditioning is desired, turn the air conditioning system on.
Press the AUTO button in order to convert to full automatic control of the system.
OCV041300L
101
5
5
Features of your vehicle Automatic climate control system
Mode selection
The mode selection button controls the
direction of the air flow through the ven
-
tilation system.
The air flow outlet port is directed as fol
-
lows:
Face-Level (B, D, F)
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air dis
-
charged from the outlet.
Bi-Level (B, C, D, E, F)
Air flow is directed towards the face and
the floor.
Floor-Level (A, C, D, E)
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and
side window defrosters.
Floor/Defrost-Level (A, C, D, E)
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
Instrument panel vents
Front
Rear
The outlet vents can be opened or
closed by moving the vent left or right.
Also, you can adjust the direction of air
delivery from these vents using the vent
control lever as shown.
Temperature control
The temperature will increase to the
maximum (HI) by turning the knob to
the extreme right.
The temperature will decrease to the
minimum (LO) by turning the knob to
the extreme left.
OCV041301L
OCV041304L
OCV041322L
OCV041305L
Features of your vehicle
1025
Automatic climate control system
When turning the knob, the temperature
will increase or decrease by 1 °F/0.5 °C.
When set to the lowest temperature set
-
ting, the air conditioning will operate
continuously.
NOTICE
When starting the vehicle in cold
weather using manual temperature con
-
trol, operate the system in the following
method to improve heating.
僅 Turn off or lower the blower, right
after starting the vehicle.
僅 Allow the vehicle to warm up during
this time since the air flow from the
heater is still cold.
僅 After a few minutes of vehicle warm
up, turn on or set the fan to a higher
level and adjust the temperature set
-
ting to hot.
Temperature conversion
You can switch the temperature mode
from Centigrade to Fahrenheit as fol
-
lows:
Go to
Setup
→
Units
→
Temperature
on the infotainment system.
For detailed information, refer to the
separately supplied infotainment system
manual.
INFORMATION
The infotainment system may change
after software updates. For more infor
-
mation, refer to the user's manual pro
-
vided in the infotainment system and
the quick reference guide.
Controlling air intake
This is used to select the outside (fresh)
air position or recirculated air position.
To change the air intake control position:
僅 Push the control button.
Outside (fresh) air position
With the outside (fresh) air position
selected, air enters the vehicle from out
-
side and is heated or cooled according
to the function selected. The indicator
light will turn off.
Recirculated air position
With the recirculated air position
selected, air from the passenger com
-
partment will be drawn through the
heating system and heated or cooled
according to the function selected.
Prolonged operation of the heater in the
recirculated air position (without air con
-
ditioning selected) may cause fogging of
the windshield and side windows and
the air within the passenger compart
-
ment may become stale.
OCV041302L
OCV041324N
OCV041302L
103
5
5
Features of your vehicle Automatic climate control system
In addition, prolonged use of the air con
-
ditioning with the recirculated air posi
-
tion selected will result in excessively dry
air in the passenger compartment.
NOTICE
Operating the system primarily in Fresh
mode is recommended. Use Recircula
-
tion mode temporarily only when
needed. Prolonged operation of the
heater in Recirculation mode and with
-
out the air conditioning ON can cause
fogging of the windshield. In addition,
prolonged use of the air conditioning ON
in Recirculation mode may result in
excessively dry, dehumidified air in the
cabin and may promote formation of
musty vent odor due to stagnant air.
Controlling fan speed
The fan speed can be set to the desired
speed by operating the fan speed con
-
trol switch.
To change the fan speed:
僅 Press right for higher speed, or press
left for lower speed.
僅 To turn the fan speed control off,
press the OFF knob.
Air conditioning
僅 Press the A/C button to turn the air
conditioning system on (indicator light
will appear).
僅 Press the button again to turn the air
conditioning system off.
WARNING
Reduced Visibility
Continuous use of the climate control
system in the recirculated air position
may allow humidity to increase inside
the vehicle, which may fog the glass and
obscure visibility.
WARNING
Recirculated Air
Continued use of the climate control sys
-
tem in the recirculated air position can
cause drowsiness or sleepiness, and loss
of vehicle control. Set the air intake con
-
trol to the outside (fresh) air position as
much as possible while driving.
WARNING
Sleeping with A/C on
Do not sleep in a vehicle with the air con
-
ditioning or heating on, as this may
cause serious harm or death due to a
drop in the oxygen level and/or body
temperature.
NOTICE
Operating the fan when the EV button is
in the OFF position could cause the bat
-
tery to discharge. Operate the fan when
the vehicle is running.
OCV041306L
OCV041303L
Features of your vehicle
1045
Automatic climate control system
Turning heating on or off
僅 Push the HEAT button to turn the
heater on (indicator light will appear).
僅 Push the button again to turn the
heater off.
The air conditioner and heater uses
energy from the battery. If you use the
heater or air conditioner for too long,
distance to empty can be reduced due
to increased power consumption.
Turn off the heater or air conditioner if
not necessary.
Air conditioning for driver only
僅 Press the DRIVER ONLY button and
the indicator light appears, cold air
mostly blows in the direction of the
driver's seat.
However, some of the cold air may
come out of other seats' ducts to keep
indoor air pleasant.
Turning off the front air climate
control
僅 Press the OFF knob to turn off the
front air climate control system.
However, you can still operate the air
intake buttons as long as the EV but
-
ton is in the ON position.
System operation
Ventilation
1. Set the mode to the ( ) position.
2. Set the air intake control to the out
-
side (fresh) air position.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating
1. Set the mode to the ( ) position.
2. Set the air intake control to the out
-
side (fresh) air position.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
5. If dehumidified heating is desired,
turn the air conditioning system (if
equipped) on.
僅 If the windshield fogs up, set the
mode to the ( ) or ( ) position.
Heating operation tips
僅 To keep dust or unpleasant fumes
from entering the vehicle through the
OCV041535L
OCV041313
OCV041308L
105
5
5
Features of your vehicle Automatic climate control system
ventilation system, temporarily set the
air intake control to the recirculated
air position. Be sure to return the con
-
trol to the fresh air position when the
irritation has passed to keep fresh air
in the vehicle. This will help keep the
driver alert and comfortable.
僅 Air for the heating/cooling system is
drawn in through the grilles just
ahead of the windshield. Care should
be taken that these are not blocked
by leaves, snow, ice or other obstruc
-
tions.
僅 To prevent interior fog on the wind
-
shield, set the air intake control to the
fresh air position and fan speed to the
desired position, turn on the air condi
-
tioning system, and adjust the tem
-
perature control to desired
temperature.
Air conditioning
All Kia air conditioning systems are filled
with R-1234yf refrigerant.
1. Start the vehicle. Press the air condi
-
tioning button.
2. Set the mode to the ( ) position.
3. Set the air intake control to the out
-
side-air or recirculated air position.
4. Adjust the fan speed control and tem
-
perature control to maintain maxi
-
mum comfort.
僅 When maximum cooling is desired,
set the temperature control to the
extreme left position, then set the
fan speed control to the highest
speed.
CAUTION
僅 The refrigerant system should only be
serviced by trained and certified tech
-
nicians to insure proper and safe
operation.
僅 The refrigerant system should be ser
-
viced in a well-ventilated place.
僅 The air conditioning evaporator (cool
-
ing coil) shall never be repaired or
replaced with one removed from a
used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.
CAUTION
僅 When using the air conditioning sys
-
tem, monitor the temperature gauge
closely while driving up hills or in
heavy traffic when outside tempera
-
tures are high. Air conditioning system
operation may cause vehicle over
-
heating. Continue to use the blower
fan but turn the air conditioning sys
-
tem off if the temperature gauge indi
-
cates vehicle overheating.
僅 When opening the windows in humid
weather, air conditioning may create
water droplets inside the vehicle.
Since excessive water droplets may
cause damage to electrical equip
-
ment, air conditioning should only be
used with the windows closed.
Air conditioning operation tips
僅 If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time to
let the hot air inside the vehicle
escape.
僅 To help reduce moisture inside of the
windows on rainy or humid days,
decrease the humidity inside the vehi
-
cle by operating the air conditioning
system.
僅 During air conditioning system opera
-
tion, you may occasionally notice a
Features of your vehicle
1065
Automatic climate control system
slight change in vehicle speed as the
air conditioning compressor cycles.
This is a normal system operation
characteristic.
僅 Use the air conditioning system at
least every month only for a few min
-
utes to ensure maximum system per
-
formance.
僅 When using the air conditioning sys
-
tem, you may notice clear water drip
-
ping (or even puddling) on the ground
under the passenger side of the vehi
-
cle. This is a normal system operation
characteristic.
僅 Operating the air conditioning system
in the recirculated air position pro
-
vides maximum cooling; however,
continual operation in this mode may
cause the air inside the vehicle to
become stale.
僅 During cooling operation, you may
occasionally notice a misty air flow
because of rapid cooling and humid
air intake. This is a normal system
operation characteristic.
Climate control air filter
The climate control air filter installed
inside the motor room compartment fil
-
ters the dust or other pollutants that
come into the vehicle from the outside
through the heating and air conditioning
system.
僅A: Outside air
僅 B: Recirculated air
僅 C: Climate control air filter
僅D: Blower
僅 E: Evaporator core
僅F: Heater core
If dust or other pollutants accumulate in
the filter over a period of time, the air
flow from the air vents may decrease,
resulting in moisture accumulation on
the inside of the windshield even when
the outside (fresh) air position is
selected. If this happens, have the cli
-
mate control air filter replaced by an
authorized Kia dealer.
NOTICE
僅 Replace the filter every 15,000 miles
(20,000 km) or once a year. If the
vehicle is being driven in severe con
-
ditions, such as dusty or rough roads,
more frequent air conditioner filter
inspections and changes are required.
僅 When the air flow rate suddenly
decreases, the system should be
checked at an authorized Kia dealer.
Air conditioning refrigerant label
Example
* The actual Air Conditioning refrigerant
label in the vehicle may differ from the
illustration.
Each symbol and specification on the air
conditioning refrigerant label is repre
-
sented below:
1
Classification of refrigerant
2
Amount of refrigerant
3
Classification of Compressor lubricant
ONQ5EP041426L
OCV041068L
107
5
5
Features of your vehicle Automatic climate control system
4
Caution
5
Flammable Refrigerant
6
Requires Registered Technician to
Service Air Conditioning system
You can find out which air conditioning
refrigerant is applied to your vehicle on
the label inside of the motor room com
-
partment.
Refer to "Refrigerant label" on page 10-7
for more detail on the location of air con
-
ditioning refrigerant label.
CAUTION
It is important that the correct type and
amount of oil and refrigerant is used,
otherwise damage to the vehicle may
occur. To prevent damage, the air condi
-
tioning system in your vehicle should
only be serviced by trained and certified
technicians.
Checking the amount of air con
-
ditioner refrigerant and compres
-
sor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also has a nega
-
tive impact on the air conditioning sys
-
tem.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized Kia dealer.
WARNING
The oil and refrigerant in your vehicle's
air conditioning system is under very
high pressure. If proper service proce
-
dures are not followed an explosion may
result. To reduce the risk of serious
injury or death, the air conditioning sys
-
tem in your vehicle should only be ser
-
viced by trained and certified
technicians.
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant is mildly flammable
and operated at high pressure, the air
conditioning system should only be ser
-
viced by trained and certified techni
-
cians. (Refer to the SAE J2845)
It is important that the correct type and
amount of oil and refrigerant are used.
All refrigerants should be reclaimed with
proper equipment. Venting refrigerants
directly to the atmosphere is harmful to
individuals and environment.
Failure to heed these warnings can lead
to serious injuries.
OCV081007N
Features of your vehicle
1085
Windshield defrosting and defogging
Windshield defrosting and
defogging
When the windshield is covered with
frost or moisture, the front view is
blurred, you should remove the frost
and moisture.
WARNING
Windshield Heating
Do not use the ( ) or ( ) position
during cooling operation in extremely
humid weather. The difference between
the temperature of the outside air and
the windshield could cause the outer
surface of the windshield to fog up,
causing loss of visibility. In this case, set
the mode selection to the ( ) position
and fan speed control to the lower
speed.
僅 For maximum defrosting, set the tem
-
perature control to the extreme right/
hot position and the fan speed control
to the highest speed.
僅 If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.
僅 Before driving, clear all snow and ice
from the windshield, rear window,
outside rear view mirrors, and all side
windows.
僅 Clear all snow and ice from the hood
and air inlet in the cowl grill to
improve heater and defroster effi
-
ciency and to reduce the probability
of fogging up the inside of the wind
-
shield.
Defrosting outside windshield
with automatic climate control
1. Set the fan speed to the highest posi
-
tion.
2. Set the temperature to the extreme
hot (HI) position.
3. Press the defroster button ( ).
4. The outside (fresh) air position will be
selected automatically and the air
conditioning will turn on according to
the detected ambient temperature.
Defogging inside windshield with
automatic climate control
1. Set the fan speed to the desired posi
-
tion.
2. Select desired temperature.
3. Press the defroster button ( ).
OCV041325N_4
OCV041326N_4
109
5
5
Features of your vehicle Windshield defrosting and defogging
4. The outside (fresh) air position will be
selected automatically and the air
conditioning will turn on according to
the detected ambient temperature.
If the air conditioning and outside (fresh)
air position are not selected automati
-
cally, adjust the corresponding button
manually. If the ( ) position is selected,
lower fan speed is adjusted to a higher
fan speed.
Defogging logic (if equipped)
To reduce the possibility of fogging up
the inside of the windshield, the air
intake or air conditioning is controlled
automatically according to certain con
-
ditions such as ( ) or ( ) position.
To cancel automatic defogging logic or
return to the automatic defogging logic,
do the following.
Turning the defogging logic on or
off
1. Turn the EV button to the ON position.
2. Press the defroster button ( ).
3. While pressing the air conditioning
button (A/C), press the air intake con
-
trol button at least 5 times within 3
seconds.
The recirculation indicator blinks 3 times
in 0.5 second of intervals. It indicates
that the defogging logic is canceled or
returned to the programmed status.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.
Auto Defogging System (ADS)
Auto defogging reduces the probability
of fogging up the inside of the wind
-
shield by automatically sensing the
moisture of inside the windshield.
The auto defogging system operates
when the heater or air conditioning is on.
The indicator appears when the auto
defogging system senses the moisture
on the inside of the windshield and oper
-
ates.
The auto defogging system addresses
excess moisture on the inside of the
windshield in stages. For example if auto
defogging does not defog inside the
windshield at step 僅 Outside air position,
it tries to defog again at step 僅 Operating
the air conditioning.
僅 Outside air position
僅 Operating the air conditioning
僅 Increasing air flow toward the wind
-
shield
僅 Blowing air flow toward the wind
-
shield
Turning the auto defogging sys
-
tem on or off
僅 Press the front windshield defroster
button for 3 seconds when the EV
button is in the ON position.
OCV041320_3
OCV041309L
Features of your vehicle
1105
Windshield defrosting and defogging
When the ADS system is canceled, the
defroster button indicator will blink 3
times per 0.5 sec.
When the ADS system is reset, the
defroster button indicator will blink 6
times per 0.25 sec.
CAUTION
Do not remove the sensor cover located
on the upper end of the passenger side
windshield glass. Damage to the system
parts could occur and may not be cov
-
ered by your vehicle warranty.
Automatic ventilation
The system automatically selects the
outside (fresh) air position when the cli
-
mate control system operates over a
certain period of time (5 minutes) in low
temperature with the recirculated air
position selected.
To cancel or reset the Automatic
Ventilation
When the air conditioning system is on,
select Face Level ( ) mode and press
the recirculated air position button more
than five times within 3 seconds while
pressing A/C button.
When the automatic ventilation is can
-
celed, the indicator blinks 3 times. When
the automatic ventilation is activated,
the indicator blinks 6 times.
Smart ventilation (if equipped)
The smart ventilation system maintains
pleasant/fresh air conditioning inside the
passenger compartment by automati
-
cally detecting/controlling the tempera
-
ture and humidity level, when you drive
the vehicle with the climate control sys
-
tem in OFF position. When the smart
ventilation system starts to operate, the
message appears for approximately 5
seconds.
The smart ventilation system stops
when:
僅 OFF button is selected.
僅 Any of the buttons of the climate con
-
trol is selected for operation.
NOTICE
The smart ventilation system may not
operate when the vehicle is driven at low
speed.
A/C Automatic Drying
A/C Automatic Drying feature dries the
moisture in the air conditioner and
reduces air conditioner odor. The blower
motor automatically operates after 30
minutes the vehicle is turned off.
Turning A/C Automatic Drying on
or off
The A/C Automatic Drying feature can
be turned on and off by selecting
Setup
→
Climate
→
Climate Features
→
A/C
Automatic Drying
from the infotain
-
ment system. See additional informa
-
tion in supplied infotainment manual.
If the operating condition is satisfied, a
message
Air Conditioning Automatic
Drying will start in 30 minutes
will be
displayed on the infotainment/climate
switchable controller screen and then
the blower motor will automatically
operate on schedule.
When the A/C Automatic Drying feature
is activated, the air conditioner sets the
fan speed to the third level, selects Fresh
mode, and directs the air flow to the
floor.
111
5
5
Features of your vehicle Storage compartment
Operating conditions
The A/C Automatic Drying feature oper
-
ates under the following conditions:
僅 The vehicle is turned off after operat
-
ing the air conditioner for a certain
period
僅 The 12-volt battery level is sufficient
僅 The outside temperature is above a
certain level
Non-operating conditions
The A/C Automatic Drying feature stops
operating under the following condi
-
tions:
僅 The A/C Automatic Drying feature has
operated for 3 minutes
僅 The EV button is pressed, or the vehi
-
cle is ON
僅 The climate control system is oper
-
ated remotely
NOTICE
僅 The A/C Automatic Drying feature
reduces air conditioner odors but may
not remove all odors.
僅 The A/C Automatic Drying feature
does not operate if the remaining bat
-
tery level is insufficient to prevent bat
-
tery discharge.
INFORMATION
The infotainment system may change
after software updates. For more infor
-
mation, refer to the user's manual pro
-
vided in the infotainment system and
the quick reference guide.
Storage compartment
These compartments can be used to
store small items required by the driver
or passengers.
僅 To avoid possible theft, do not leave
valuables in the storage compart
-
ment.
僅 Always keep the storage compart
-
ment covers closed while driving. Do
not attempt to place so many items in
the storage compartment that the
storage compartment cover cannot
close securely.
WARNING
Flammable Materials
Do not store glasses, gas lighter, porta
-
ble battery, canned beverage, spray can,
propane cylinder, cosmetic tube or other
flammable/explosive materials in the
vehicle. These items may catch fire and/
or explode if the vehicle is exposed to
hot temperatures for extended periods.
Center console storage
To open the center console storage:
僅 Pull up the lever.
OCV041069N_2
Features of your vehicle
1125
Interior features
Glove box
To open the glove box:
僅 Push the lever and the glove box will
automatically open.
Close the glove box after use.
WARNING
Glove Box
To reduce the risk of injury in an acci
-
dent or sudden stop, always keep the
glove box door closed while driving.
NOTICE
If the temperature control switch is in
the warm or hot position, warm or hot air
will flow into the glove box.
Luggage board (if equipped)
You can place tools, etc. in the box for
easy access. (if equipped)
僅 Grasp the handle on the edge of the
cover and lift it.
Interior features
There are various features inside the
vehicle for the convenience of the occu
-
pants.
Ambient light (if equipped)
The ambient lights are installed in the
-
front crash pad, front doors, and thetop/
bottom of the center console.
Cup holder
Cups or small beverage cans may be
placed in the cup holders.
WARNING
Hot Liquids
Do not place uncovered cups with hot
liquid in the cup holder while the vehicle
is in motion. If the hot liquid spills, you
may burn yourself. Such a burn to the
driver could lead to loss of control of the
vehicle.
OCV041618N
OCV041071L
OCV041076K
OCV041077L_2
113
5
5
Features of your vehicle Interior features
CAUTION
僅 Keep your drinks sealed while driving
to prevent spilling your drink. If liquid
spills, it may get into the vehicle's
electrical/electronic system and dam
-
age electrical/electronic parts.
僅 When cleaning spilled liquids, do not
use heat to dry the cup holders. This
may damage the cup holder.
CAUTION
Be careful not to spill drinks in the cup
holder. The cup holder may not work.
Seat warmer (if equipped)
The seat warmer is provided to warm
the front and rear (if equipped) seats
during cold weather.
With the EV button in the ON position:
僅 Push either of the buttons to warm
the front and rear (if equipped) seats.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the buttons in the
"OFF" position.
Temperature control (Manual)
Each time you press the button, the tem
-
perature setting of the seat will change
as follows:
Front seat
Rear seat (if equipped)
The seat warmer defaults to the OFF
position whenever the EV button is
turned on.
Temperature control (Automatic)
The seat warmer starts to automatically
control the seat temperature in order to
prevent low-temperature burns after
being manually turned ON.
Front seat
You may manually press the button to
increase the seat temperature. However,
it soon returns to the automatic mode
again. When pressing the button for
more than 1.5 seconds with the seat
warmer operating, the seat warmer will
turn OFF. The seat warmer defaults to
the OFF position whenever the vehicle is
in the ON position.
NOTICE
With the seat warmer button in the ON
position, the heating system in the seat
OCV041078N_2
Features of your vehicle
1145
Interior features
turns off or on automatically depending
on the seat temperature.
WARNING
Seat Warmer Burns
The seat warmer may cause burns, even
at low temperature, if used over a long
period of time. Never allow passengers
who may not be able to take care of
themselves to be exposed to the risk of
seat heater burns. These include:
1. Infants, children, elderly or disabled
persons, or hospital outpatients
2. Persons with sensitive skin or those
that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can
cause drowsiness or sleepiness
(sleeping pills, cold tablets, etc.)
Air ventilation seat (if equipped)
The temperature setting of the seat
changes according to the button indica
-
tor.
僅 To ventilate your seat cushion, press
the switch (blue color).
Each time you press the button, the
airflow will change as follows:
The seat warmer (with air ventilation)
defaults to the OFF position whenever
the EV button is turned on.
CAUTION
Seat Damage
僅 When cleaning the seats, do not use
an organic solvent, such as paint thin
-
ner, benzene, alcohol and gasoline.
Doing so may damage the air ventila
-
tion seat.
僅 Do not place heavy or sharp objects
on the seat. Those things may dam
-
age the air ventilation seat.
僅 Be careful not to spill liquid, such as
water or beverages, on the seat. If you
spill some liquid, wipe the seat with a
dry towel. Before using the air ventila
-
tion seat, dry the seat completely.
Sun visor
Use the sun visor to shield direct light
through the front or side windows.
* The actual sun visor lamp in the vehicle
may differ from the illustration.
僅 To use the sun visor, pull it downward.
僅 To use the sun visor for the side win
-
dow, pull it downward, unsnap it from
the bracket (1) and swing it to the side
(2).
僅 To use the vanity mirror, pull down
the visor and slide the mirror cover
(4).
Adjust the sun visor extension forward
or backward (3).
OCV041619N
OCV041079L
115
5
5
Features of your vehicle Interior features
The ticket holder (5) is provided for
holding a tollgate ticket.
CAUTION
Vanity Mirror Lamp
If you use the vanity mirror lamp, turn
off the lamp before returning the sun
visor to its original position; otherwise, it
could result in battery discharge and
possible sun visor damage.
Power outlet
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems.
The devices should draw less than 10
amps with the vehicle on.
僅 Use the power outlet only when the
vehicle is on and remove the acces
-
sory plug after use. Using the acces
-
sory plug for prolonged periods of
time with the vehicle off could cause
the battery to discharge.
僅 Only use 12 V electric accessories
which are less than 10 A in electric
capacity
僅 Adjust the air-conditioner or heater to
the lowest operating level when using
the power outlet.
僅 Close the cover when not in use.
僅 Some electronic devices can cause
electronic interference when plugged
into a vehicle's power outlet. These
devices may cause excessive audio
static and malfunctions in other elec
-
tronic systems or devices used in your
vehicle.
僅 Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.
僅 Plug in battery equipped electronic
devices with reverse current protec
-
tion. The current from the battery may
flow into the vehicle's electrical/elec
-
tronic system and cause system mal
-
function.
WARNING
Electric Shock
Do not put a finger or a foreign object
(pen, etc.) into a power outlet and do not
touch with a wet hand. You may geft an
electric shock.
USB charger (if equipped)
The USB charger is designed to
recharge batteries of small size electrical
devices using a USB cable.
The electrical devices can be recharged
when the vehicle is in ACC/ON position.
OCV041081L_4
OCV041080L
OCV041544L
Features of your vehicle
1165
Interior features
The battery charging state may be mon
-
itored on the electrical device.
Disconnect the USB cable from the USB
port after use.
NOTICE
僅 Some devices are not supported for
fast charging but will be charged with
normal speed.
僅 Use the USB charger when the vehicle
is on to prevent battery discharge.
僅 Only devices that fit the USB port can
be used.
僅 The USB charger can be used only for
battery charging purposes.
僅 Battery chargers cannot be charged.
INFORMATION
Power Delivery 3.0 is available on the
smart phone or the tablet PC equipped
with fast charging capabilities.
It is applicable to digital devices with
USB C-type.
Charging speed is determined according
to the charging specification of the con
-
nected digital device.
僅Rated output
- Digital device with fast charging:
9.0 V/Max 3.0 A
- Digital devices with normal
charging: 5.0 V/Max 3.0 A
Wireless smart phone charging
system (if equipped)
A wireless smart phone charging system
is located on the center console.
A: Indicator
B: Charging pad
Firmly close all doors, and turn vehicle
on. To start wireless charging, place the
smart phone equipped with wireless
charging function on the wireless
charging pad.
For best wireless charging results, place
the smart phone on the center of the
charging pad.
The wireless charging system is
designed for one smart phone equipped
with QI per single usage only. Please
refer to the smart phone accessory
cover or the smart phone manufacturer
homepage to check whether your smart
phone supports QI function.
Charging wireless smart phone
1. Remove any object on the smart
phone charging pad including the
smart key. If there is any foreign
object on the pad other than a smart
phone, the wireless charging function
may not operate properly.
2. Place the smart phone on the center
of the wireless charging pad.
The indicator light will change to
orange once the wireless charging
begins. After the charging is com
-
plete, the orange light will change to
green.
You can choose to turn the wireless
charging function to either ON or OFF
by selecting the menu on the infotain
-
ment system. (Please refer to "Vehicle
OCV041311L
117
5
5
Features of your vehicle Interior features
settings (infotainment system)" on page
5-68 for details).
If the wireless charging does not work,
gently move your smart phone around
the pad until the charging indicator light
turns orange.
Depending on the smart phone, the
charging indicator light may not turn
green even after the charging is com
-
plete.
If the wireless charging is not function
-
ing properly, the orange light will blink
and flash for ten seconds then turn off.
In such cases, remove the smart phone
from the pad and replace it on the pad
again, or double check the charging sta
-
tus.
If you leave the smart phone on the
charging pad when the vehicle is turned
off, the vehicle will alert you through
warning messages and sound (applica
-
ble for vehicles with voice guidance
function) after the 'Good bye' function
on the instrument cluster ends.
WARNING
Distracted Driving
Driving while distracted can result in a
loss of vehicle control that may lead to
an accident, severe bodily injury, or
death. The driver's primary responsibility
is in the safe and legal operation of a
vehicle. Any use of handheld devices,
other equipment, or vehicle systems that
take the driver's eyes, attention, and
focus away from the safe operation of a
vehicle are not permissible by law. These
should never be used during the opera
-
tion of the vehicle.
CAUTION
Liquid in Wireless Smart Phone Char
-
ger
To prevent liquid from damaging the
wireless smart phone charging system in
your vehicle, be sure not to spill liquid
over the charging system when charging
your phone.
CAUTION
Metal in Wireless Charging System
If any metallic object, system such as a
coin, is located between the wireless
charging system and the smart phone,
the charging may be disrupted. Also, the
metallic object may heat up and poten
-
tially damage the charging system. If
there is any metallic object between the
smart phone and the charging pad,
immediately remove the smart phone.
Remove the metallic object after it has
cooled down.
NOTICE
僅 When the interior temperature of the
wireless charging system rises above
a set temperature, the wireless
charging system will cease to func
-
tion. After the interior temperature
drops below the threshold, the wire
-
less charging function will resume.
僅 The wireless charging system may not
function properly when there is a
heavy accessory cover on the smart
phone.
僅 The wireless charging system will stop
when using the wireless smart key
search function to prevent radio wave
disruption.
僅 The wireless charging system will stop
when the smart key is moved out of
the vehicle with the vehicle in ON.
僅 The wireless charging system will stop
when any of the doors are opened
Features of your vehicle
1185
Interior features
(applicable for vehicles equipped with
smart keys).
僅 The wireless charging system will stop
when the vehicle is turned OFF.
僅 The wireless charging system will stop
when the smart phone is not in com
-
plete contact with the wireless
charging pad.
僅 Items equipped with magnetic com
-
ponents, such as credit card, tele
-
phone card, bankbook or any
transportation ticket, may become
damaged during wireless charging.
僅 Place the smart phone on the center
of the charge pad for best results. The
smart phone may not charge when
placed near the rim of the charging
pad. When the smart phone does get
charged, it may heat up excessively.
僅 For smart phones without a built-in
wireless charging system, an appro
-
priate accessory has to be equipped
in order to use the vehicle's wireless
charging system.
僅 Smart phones of some manufacturers
may display messages on weak cur
-
rent. This is due to the particular char
-
acteristic of the smart phone and
does not imply a malfunction on wire
-
less charging function.
僅 The indicator light of some manufac
-
turers' smart phones may still be
orange after the smart phone is fully
charged. This is due to the particular
characteristic of the smart phone and
not a malfunction of the wireless
charging system.
僅When any smart phone without a
wireless charging function or a metal
-
lic object is placed on the charging
pad, a small noise may sound. This
small sound is due to the vehicle dis
-
cerning compatibility of the object
placed on the charging pad. It does
not affect your vehicle or the smart
phone in any way.
僅 The wireless cellular phone charging
system may not support certain cellu
-
lar phones, which are not verified for
Qi specification ( ).
僅 When placing your cellular phone on
the charging mat, position the phone
in the middle of the mat for optimal
charging performance. If your cell
phone is off to the side, the charging
rate may be less and in some cases
the cell phone may experience higher
heat conduction.
僅 When charging some cellular phones
with a self-protection feature, the
wireless charging speed may
decrease and the wireless charging
may stop.
This device complies with part 15
of the FCC Rules
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
Coat hook
A coat hook is next to the rear grab han
-
dle.
OCV041620N
119
5
5
Features of your vehicle Interior features
* This actual feature may differ from the
illustration.
CAUTION
Hanging Clothing
Do not hang heavy clothes, since they
may damage the hook.
WARNING
Do not hang other objects, such as
hangers or hard objects except clothes.
Also, do not put heavy, sharp or break
-
able objects in the clothing's pockets. In
an accident or when the curtain air bag
is inflated, it may cause vehicle damage
or personal injury.
Floor mat anchor(s)
When using a floor mat on the front floor
carpet, make sure it attaches to the floor
mat anchor(s) in your vehicle. This keeps
the floor mat from sliding forward.
WARNING
僅 Aftermarket Floor Mat
- Do not install after market floor
mats that are not capable of being
securely attached to the vehicle's
floor mat anchors.
Unsecured floor mats can interfere
with pedal operation.
僅 Use floor mats not too thick and
designed to be properly secured on
the floor to avoid the interference with
pedals. Make sure that installing the
floor mats without removing plastic
films on carpets may damage or
break floor mat fix rings, resulting in
the mats to be unsecured.
Especially for a driver's seat, the unse
-
cured mats may cause unintended
acceleration/brake. Ensure to remove
all the plastic films on the carpets
before installing the mats.
The following must be observed when
installing ANY floor mat to the vehicle.
僅 Ensure that the floor mats are
securely attached to the vehicle's floor
mat anchor(s) before driving the vehi
-
cle.
僅 Do not use ANY floor mat that cannot
be firmly attached to the vehicle's
floor mat anchors.
僅 Do not stack floor mats on top of one
another (e.g. all-weather rubber mat
on top of a carpeted floor mat). Only a
single floor mat should be installed in
each position.
NOTICE
Your vehicle was manufactured with
driver's side floor mat anchors that are
designed to securely hold the floor mat
in place. To avoid any interference with
pedal operation, Kia recommends that
OCV041638N
OCV041082N
Features of your vehicle
1205
Interior features
only the Kia floor mat designed for use
in your vehicle be installed.
Luggage net holder
To keep items from shifting in the cargo
area, you can use the holders located in
the cargo area to attach the luggage net.
(if equipped)
If necessary, contact an authorized Kia
dealer.
CAUTION
To prevent damage to the vehicle, care
should be taken when carrying fragile or
bulky objects in the luggage compart
-
ment.
WARNING
Luggage net
Always keep your face and body out of
the luggage net recoil path and avoid
using the luggage net when the straps
have visible signs of wear or damage.
The luggage net can snap and cause
injuries.
Cargo security screen (if
equipped)
Use the cargo security screen to hide
items stored in the cargo area.
僅 To use the cargo security screen, pull
the handle backward and insert the
edges into the slots.
WARNING
Cargo Security Screen
Do not place objects on the cargo secu
-
rity screen. Such objects may be thrown
about inside the vehicle and possibly
injure vehicle occupants during an acci
-
dent or when braking.
CAUTION
Do not place luggage on the cargo secu
-
rity screen. This may cause the security
screen to become damaged or mal
-
formed.
OCV041070L
OCV041072L
121
5
5
Features of your vehicle Audio system
Audio system
NOTICE
If you install an after market HID head
lamp, your vehicle's audio and electronic
device may malfunction.
* If your vehicle is equipped with multi
-
media system, refer to a separately
supplied manual for detailed informa
-
tion.
Sharkfin antenna
The sharkfin antenna transmits and
receives wireless signals such as AM/FM,
Sirius XM, GNSS, etc. * The signals which
antenna can transmit and receive vary
by the vehicle option.
USB port
You can use a USB port to plug in a USB.
Using the infotainment/climate
switchable controller
Press the button on the switchable con
-
troller to switch between infotainment
system or climate control panel.
Press and hold the button to select the
default mode for the control panel.
Switching between panels
Infotainment control panel
Climate control panel
Press the button on the switchable con
-
troller to select the desired control panel.
The selected control panel icon will
appear and the control panel will be
changed.
僅 The knob display will appear accord
-
ing to the selected control panel
mode.
僅 When the vehicle is in the ACC posi
-
tion, only the infotainment system will
be activated.
OCV041083L
OCV041084L
OCV041315
OCV041316
OCV041548N
Features of your vehicle
1225
Audio system
Setting the default mode
Press and hold the button to select the
default mode for the control panel.
僅 After the setting, the control panel will
return to the default mode after a cer
-
tain period of time even if the control
panel is switched to the different
mode.
僅 If the mode is set to 'OFF', the control
panel will display the mode used
recently.
How vehicle radio works
FM reception
AM and FM radio signals are broadcast
from transmitter towers located around
your city. They are intercepted by the
radio antenna on your vehicle. This sig
-
nal is then processed by the radio and
sent to your vehicle speakers.
However, in some cases the signal com
-
ing to your vehicle may not be strong
and clear.
This can be due to factors, such as the
distance from the radio station, close
-
ness of other strong radio stations or the
presence of buildings, bridges or other
large obstructions in the area.
AM reception
AM broadcasts can be received at
greater distances than FM broadcasts.
This is because AM radio waves are
transmitted at low frequencies. These
long distance, low frequency radio
waves can follow the curvature of the
earth rather than traveling straight. In
addition, they curve around obstructions
resulting in better signal coverage.
FM radio station
OCV041559L
OGL3061067L
OGL3061070L
OGL3061069L
123
5
5
Features of your vehicle Audio system
FM broadcasts are transmitted at high
frequencies and do not bend to follow
the earth's surface. Because of this, FM
broadcasts generally begin to fade
within short distances from the station.
Also, FM signals are easily affected by
buildings, mountains, and obstructions.
This can lead to undesirable or unpleas
-
ant listening conditions which might lead
you to believe a problem exists with your
radio.
The following conditions are normal and
do not indicate radio trouble:
僅 Fading - As your vehicle moves away
from the radio station, the signal will
weaken and sound will begin to fade.
When this occurs, we suggest that you
select another station with a stronger
signal.
僅 Flutter/Static - Weak FM signals or
large obstructions between the trans
-
mitter and your radio can disturb the
signal causing static or fluttering
noises to occur. Reducing the treble
level may lessen this effect until the
disturbance clears.
僅 Station Swapping - As an FM signal
weakens, another more powerful sig
-
nal near the same frequency may
begin to play. This is because your
radio is designed to lock onto the
clearest signal. If this occurs, select
another station with a stronger signal.
僅 Multi-Path Cancellation - Radio sig
-
nals being received from several
directions can cause distortion or flut
-
tering. This can be caused by a direct
and reflected signal from the same
station, or by signals from two sta
-
tions with close frequencies. If this
occurs, select another station until the
condition has passed.
Using a cellular phone or a two-
way radio
When a cellular phone is used inside the
vehicle, noise may be produced from the
audio system. This does not mean that
something is wrong with the audio
equipment. In such a case, try to operate
mobile devices as far from the audio
equipment as possible.
When using a communication system
such as a cellular phone or a radio set
inside the vehicle, a separate external
antenna must be fitted. When a cellular
phone or a radio set is used with an
internal antenna alone, it may interfere
with the vehicle's electrical system and
adversely affect safe operation of the
vehicle.
OGL3061071L
OGL3061068L
Features of your vehicle
1245
Declaration of Conformity
WARNING
Cell Phone Use
Do not use a cellular phone while driv
-
ing. Stop at a safe location to use a cellu
-
lar phone.
WARNING
Distracted Driving
Driving while distracted can result in a
loss of vehicle control that may lead to
an accident, severe bodily injury, or
death. The driver's primary responsibility
is in the safe and legal operation of a
vehicle. Any use of handheld devices,
other equipment, or vehicle systems that
take the driver's eyes, attention, and
focus away from the safe operation of a
vehicle are not permissible by law. These
should never be used during the opera
-
tion of the vehicle.
Declaration of Conformity
FCC
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to part
15 of the FCC Rules. These limits are
designed to provide reasonable protec
-
tion against harmful interference in a
residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or televi
-
sion reception, which can be determined
by turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the fol
-
lowing measures:
僅 Reorient or relocate the receiving
antenna.
僅 Increase the separation between the
equipment and receiver.
僅 Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
僅 Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
Any changes or modifications to this
device not explicitly approved by the
manufacturer could void your authority
to operate this equipment.
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
125
5
5
Features of your vehicle Declaration of Conformity
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
This equipment complies with FCC radi
-
ation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum 8 inches (20
cm) between the radiator and your
body. This transmitter must not be collo
-
cated or operating in conjunction with
any other antenna or transmitter unless
authorized to do so by the FCC.
6Driving your vehicle
Driv ing your vehicle
Before driving ................................................................................6-3
EV button........................................................................................6-4
僅 Starting the vehicle.......................................................................................... 6-5
僅 Turning off the vehicle................................................................................... 6-6
Reduction gear ..............................................................................6-7
僅 Reduction gear operation............................................................................. 6-7
僅 Parking.................................................................................................................. 6-9
僅 LCD display messages................................................................................... 6-9
僅 Good driving practices .................................................................................6-11
Regenerative braking system .................................................... 6-12
僅 Regenerative braking (Paddle shifter)...................................................6-12
僅 One pedal driving .......................................................................................... 6-13
僅 i-Pedal ................................................................................................................. 6-14
Smart regeneration system........................................................ 6-15
僅 Setting smart regeneration system........................................................ 6-15
僅 Smart regeneration system activation ................................................. 6-15
僅 Resuming smart regeneration system ................................................. 6-16
僅 Turning smart regeneration system off............................................... 6-16
僅 Vehicle-to-vehicle distance recognition sensor................................ 6-16
僅 System malfunction ...................................................................................... 6-17
僅 Limitations of the system ........................................................................... 6-17
Brake system............................................................................... 6-20
僅 Power brakes .................................................................................................. 6-20
僅 High Performance Brake............................................................................6-22
僅 Electronic Parking Brake (EPB)................................................................6-22
僅 AUTO HOLD .....................................................................................................6-26
僅 Anti-lock Brake System (ABS) ..................................................................6-29
僅 Electronic Stability Control (ESC) ........................................................... 6-30
僅 Vehicle Stability Management (VSM)....................................................6-32
僅 Hill-start Assist Control (HAC) ..................................................................6-33
僅 Brake Assistant System (BAS) ................................................................. 6-34
6 Driving your vehicle
僅 Electronic Limited Slip Differential (For GT).......................................6-34
僅 Electronic Control Suspension .................................................................6-35
僅 Good braking practices...............................................................................6-35
Drive mode integrated control system .....................................6-37
僅 DRIVE MODE....................................................................................................6-37
僅 Selecting DRIVE MODE (For GT).............................................................6-37
僅 Initial setting for each DRIVE MODE .....................................................6-39
Drift Mode (For GT)....................................................................6-40
Maximum Power Output Mode (For GT)..................................6-41
All wheel drive (AWD)................................................................ 6-42
僅 For safe AWD operation..............................................................................6-42
僅 Emergency precautions ............................................................................. 6-44
Active air flap .............................................................................. 6-45
僅 Active air flap malfunction.........................................................................6-45
Vehicle auto-shut off function.................................................. 6-46
Special driving conditions ......................................................... 6-47
Winter driving ..............................................................................6-51
Trailer towing .............................................................................. 6-54
僅 Hitches................................................................................................................6-55
僅 Safety chains....................................................................................................6-55
僅 Trailer brakes...................................................................................................6-56
僅 Driving with a trailer .....................................................................................6-56
僅 Maintenance when trailer towing ...........................................................6-59
僅 If you do decide to pull a trailer...............................................................6-59
Vehicle load limit ........................................................................ 6-62
僅 Steps for Determining Correct Load Limit -.......................................6-62
僅 Certification label ...........................................................................................6-64
Vehicle weight............................................................................. 6-65
3
6
6
Driving your vehicle Before driving
Driving your vehicle
Before driving
Before getting into the vehicle, you
should examine the car and its sur
-
roundings. After getting into the vehicle,
you should check a number of things
before driving.
Before entering the vehicle
僅 Be sure that all windows, outside mir
-
ror(s), and outside lights are clean.
僅 Check the condition of the tires.
僅 Check under the vehicle for any sign
of leaks.
僅 Be sure there are no obstacles behind
you if you intend to back up.
Before starting
僅 Close and lock all doors.
僅 Position the seat so that all controls
are easily reached.
僅Buckle your seat belt.
僅 Adjust the inside and outside rear
view mirrors.
僅 Be sure that all lights work.
僅 Check all gauges.
僅 Check the operation of warning lights
when the EV button is turned to the
ON position.
僅 Release the parking brake and make
sure the brake warning light goes out.
For safe operation, be sure you are
familiar with your vehicle and its equip
-
ment.
WARNING
Check Surroundings
Always check the surrounding areas
near your vehicle for pedestrians, espe
-
cially children, before putting a vehicle
into D (Drive) or R (Reverse).
WARNING
Loose Objects
Securely store items in your vehicle.
When you make a sudden stop or turn
the steering wheel rapidly; loose objects
may drop on the floor and it could inter
-
fere with the operation of the foot ped
-
als, possibly causing an accident.
WARNING
Proper Footwear
Always wear appropriate shoes when
operating your vehicle. Unsuitable shoes
(high heels, ski boots, sandals, etc.) may
interfere with your ability to use the
brake and accelerator pedals.
WARNING
Driving While Intoxicated
Do not drive while intoxicated. Drinking
and driving is dangerous. Even a small
amount of alcohol will affect your
reflexes, perceptions and judgment.
Driving while under the influence of
drugs is as dangerous as or more dan
-
gerous than driving drunk.
WARNING
Distracted Driving
Focus on the road while driving. The
driver's primary responsibility is in the
safe and legal operation of the vehicle.
Use of any handled devices, other
equipment or vehicle systems that dis
-
tract the driver should not be used
during vehicle operation.
Driving your vehicle
46
EV button
WARNING
California Proposition 65
Engine exhaust and a wide vari
-
ety of automobile components
and parts, including components
found in the interior furnishings
in a vehicle, contain or emit
chemicals known to the State of
California to cause cancer and
birth defects and reproductive
harm. In addition, certain fluid
contained in vehicles and certain
products of component wear
contain or emit chemicals known
to the State of California to cause
cancer and birth defects or other
reproductive harm.
EV button
Whenever the front door is opened, the
EV button will appear for your conve
-
nience.
The light will go off after about 30 sec
-
onds when the door is closed.
When all doors are closed, if you lock the
vehicle by using the transmitter or the
smart key, the light will go off immedi
-
ately.
EV button position
The EV button has the following four
positions.
僅OFF
僅 ACC (Accessory)
僅ON
僅START/RUN
OFF
To turn off the vehicle power (ON posi
-
tion), press the EV button with the shifter
dial in the P (Park) position.
ACC (Accessory)
Press the EV button while it is in the OFF
position without depressing the brake
pedal.
If the EV button is in the ACC position for
more than 1 hour, the button is turned
off automatically to prevent battery dis
-
charge.
OCV051001L
5
6
6
Driving your vehicle EV button
ON
Press the EV button while it is in the ACC
position without depressing the brake
pedal.
The warning lights can be checked
before the vehicle is started. Do not
leave the EV button in the ON position
for a long time. The battery may dis
-
charge, because the vehicle is not run
-
ning.
START/RUN
To start the vehicle, depress the brake
pedal and press the EV button with the
shifter dial in the P (Park) position.
If you press the EV button without
depressing the brake pedal, the vehicle
will not start and the EV button changes
as follow:
Go to OFF → ACC → ON → OFF or ACC
NOTICE
If you leave the EV button in the ACC or
ON position for a long time, the battery
will discharge.
WARNING
Starting Vehicle
Never press the EV button while the
vehicle is in motion except in an emer
-
gency. This would result in loss of direc
-
tional control and braking function,
which could cause an accident.
WARNING
Leaving the Vehicle
To avoid unexpected or sudden vehicle
movement, never leave your vehicle if
the reduction gear is not locked in the P
(Park) position and the parking brake is
fully engaged. Before leaving the driver's
seat, always make sure the reduction
gear is engaged in P (Park), set the park
-
ing brake fully and shut the vehicle off.
Starting the vehicle
WARNING
Do not start the vehicle with the acceler
-
ator pedal depressed. The vehicle can
move and lead to an accident.
僅 The vehicle will start by pressing the
EV button, only when the smart key is
in the vehicle.
僅 Even when the smart key is in the
vehicle, if it is far away from the
driver, the vehicle may not start.
僅 When the EV button is in the ACC or
ON position, and any door is open, the
system checks for the smart key.
When the smart key is not in the vehi
-
cle, the
READY
indicator will blink and
Key not in vehicle
message will come
on. When all doors are closed, the
chime will also sound for about 5 sec
-
onds. Keep the smart key in the vehi
-
cle when in the ACC position or if the
vehicle is ON.
1. Always carry the smart key with you.
2. Make sure the parking brake is
applied.
3. Make sure the shifter dial is in P
(Park).
4. Depress the brake pedal.
5. Press the EV button. If the vehicle
starts, the
READY
indicator will come
on.
NOTICE
僅 Always start the vehicle with your foot
on the brake pedal. Do not depress
the accelerator while starting the vehi
-
cle.
Driving your vehicle
66
EV button
僅 If ambient temperature is low, the
READY
indicator may remain illumi
-
nated longer than the normal amount
of time.
CAUTION
To prevent damage to the vehicle:
僅If the
READY
indicator turns off while
you are in motion, do not attempt to
move the shifter dial to the P (Park)
position.
If traffic and road conditions permit,
you may put the shifter dial in the N
(Neutral) position while the vehicle is
still moving and press the EV button
in an attempt to restart the vehicle.
僅 Do not push or tow your vehicle to
start the vehicle.
WARNING
Unintended Vehicle Movement
Never leave the smart key in the vehicle
with children or vehicle occupants who
are unfamiliar with the vehicle operation.
Pushing the EV button while the smart
key is in the vehicle may result in unin
-
tended vehicle activation and/or unin
-
tended vehicle movement.
If the battery is weak or the smart key
does not work correctly, you can start
the vehicle by pressing the EV button
with the smart key.
The side with the lock button should
contact the EV button directly.
When you press the EV button directly
with the smart key, the smart key should
contact the button at a right angle.
When the stop lamp fuse is blown, you
can't start the vehicle normally. Replace
the fuse with a new one. If it is not possi
-
ble, you can start the vehicle by pressing
the EV button for 10 seconds while it is
in the ACC position. The vehicle can start
without depressing the brake pedal. But
for your safety always depress the brake
pedal before starting the vehicle.
Do not press the EV button for more
than 10 seconds except when the stop
lamp fuse is blown.
Turning off the vehicle
1. Depress the brake pedal fully.
2. Shift to P (Park).
3. Apply the parking brake.
4. Press the EV button to turn the vehicle
off.
5. Make sure the
READY
indicator light
on the instrument cluster is turned off.
CAUTION
If the
READY
indicator light on the
instrument cluster is still on, the vehicle
is not turned off and can move when the
gear is in any position except P (Park).
OCV051002L
7
6
6
Driving your vehicle Reduction gear
Reduction gear
Electric cars transmit the rotation of the
motor to the wheel through the reducer.
Reduction gear operation
Select gear positions by turning the
shifter dial.
WARNING
To reduce the risk of serious injury or
death:
僅 ALWAYS check the surrounding areas
near your vehicle for people, espe
-
cially children, before shifting a vehi
-
cle into D (Drive) or R (Reverse).
僅 Before leaving the driver's seat,
always make sure the gear is in the P
(Park) position, then set the parking
brake, and place the Power button in
the OFF position. Unexpected and
sudden vehicle movement can occur
if these precautions are not followed.
For your safety, always depress the
brake pedal while shifting to another
gear.
Gear position
The indicator in the instrument cluster
displays the gear position when the EV
button is in the ON position.
P (Park)
Always come to a complete stop before
shifting into P (Park).
To shift the gear from R (Reverse), N
(Neutral) or D (Drive) to P (Park), press
the [P] button.
If you turn off the vehicle while it is
stopped, the gear automatically shifts to
P (Park).
With the vehicle on, the gear automati
-
cally shifts to P (Park) if you open the
driver's door when the gear is in N (Neu
-
tral), R (Reverse) or D (Drive) and the fol
-
lowing conditions are met:
僅 The vehicle speed is below 1 mph (2
km/h).
When the vehicle is over a certain speed,
the gear does not shift to P (Park) when
the [P] button is pressed.
WARNING
僅 Shifting into P (Park) while the vehicle
is in motion may cause you to lose
control of the vehicle.
僅 After the vehicle has stopped, always
make sure the gear is in P (Park),
apply the parking brake, and turn the
vehicle off.
僅 Do not use the P (Park) position in
place of the parking brake.
R (Reverse)
Use this position to drive the vehicle
backward.
To shift to R (Reverse), turn the shifter
dial to R (Reverse) position while
depressing the brake pedal.
OCV051003L
OCV051104L
Driving your vehicle
86
Reduction gear
CAUTION
Shifting
Always come to a complete stop before
shifting into or out of R (Reverse); you
may damage the reduction gear if you
shift into R (Reverse) while the vehicle is
in motion, except on "Rocking the vehi
-
cle" on page 6-48.
N (Neutral)
To shift to N (Neutral) from P (Park), turn
the shifter dial to N (Neutral) position
while depressing the brake pedal.
If the Electronic Parking Brake is applied,
release the Electronic Parking Brake
manually while depressing the brake
pedal.
If equipped with Electronic Parking
Brake, it is not released automatically
when you turn the shift dial to N (Neu
-
tral).
To turn off the vehicle from the ACC
position, press the [P] button within 3
minutes. The vehicle will shift to P (Park)
and turn off.
When the driver's door is opened within
3 minutes with the EV button in the ACC
position and the gear in N (Neutral), the
vehicle is automatically turned OFF and
shifted to the P (Park) position.
To stay in N (Neutral) when vehi
-
cle is OFF
If you want to stay in N (Neutral) after
the vehicle is OFF (in the ACC state), do
the following.
1. Turn off AUTO HOLD and release
Electronic Parking Brake when the
vehicle is running.
2. Rotate the shift dial to N (Neutral)
while depressing the brake pedal.
3. When you take your foot off the brake
pedal, the message 'Press and hold
OK button on the steering wheel to
stay in Neutral' will appear on the
cluster LCD display.
4. Press and hold the OK button on the
steering wheel for more than 1 sec
-
ond.
If the Electronic Parking Brake is
applied, release the Electronic Parking
Brake manually while depressing the
brake pedal. If equipped with Elec
-
tronic Parking Brake, it is not released
automatically when you turn the shift
dial to N (Neutral).
5. When the message 'Vehicle will stay in
(N). Change gear to cancel' (or 'N will
stay engaged when the vehicle is Off')
will appear on the cluster LCD display,
press the EV button while depressing
the brake pedal.
However, if you open the driver's door
within 3 minutes in the ACC state, the
gear will automatically shift to P (Park)
and the EV button will change to the
OFF position.
CAUTION
Do not open the driver's door when
going through an automatic car wash
tunnel machine. Failure to follow this
instruction can damage your vehicle or
the car wash machine.
For vehicles equipped with Electronic
Parking Brake (EPB), the parking brake
is automatically applied.
NOTICE
With the gear in N (Neutral) the EV but
-
ton will be in the ACC position. Note that
the doors cannot be locked in the ACC
position or the 12V battery may dis
-
9
6
6
Driving your vehicle Reduction gear
charge if left in the ACC position for a
long period.
D (Drive)
This is the normal driving position.
To shift to D (Drive), turn the shifter dial
to D (Drive) position while depressing
the brake pedal.
Shift-lock system
For your safety, your vehicle has a shift-
lock system which prevents shifting the
gear from P (Park) or N (Neutral) into R
(Reverse) or D (Drive) unless the brake
pedal is depressed.
To shift from P (Park) or N (Neutral) into
R (Reverse) or D (Drive), from R
(Reverse) into D (Drive) or from D (Drive)
into R (Reverse):
1. Depress and hold the brake pedal.
2. Start the vehicle or place the EV but
-
ton in the ON position.
3. Press the R (Reverse) or D (Drive) but
-
ton.
NOTICE
You cannot shift the gear while the
charging cable is connected.
When the battery (12V) is dis
-
charged
You cannot shift the gear when the bat
-
tery is discharged.
Jump start your vehicle (refer to "Jump
starting (12V battery)" on page 8-4) or
contact an authorized Kia dealer.
Parking
1. Always come to a complete stop and
continue to depress the brake pedal.
2. Shift to the P (Park) position.
3. Apply the parking brake.
4. Place the EV button in the OFF posi
-
tion.
5. Take the key with you when leaving
the vehicle.
LCD display messages
If a message appears on the LCD dis
-
play, refer to the next section for the
appropriate steps to take.
Shifting conditions not met
A:
Shifting conditions not met, Reduce
speed, then shift
The message appears on the LCD dis
-
play in the following conditions:
1. When driving speed is too fast to shift
the gear. Decrease the vehicle speed
or slow down before shifting the gear.
2. When the gear is shifted while the
vehicle is in Utility mode.
Press brake pedal to change gear
A:
Press brake pedal to change gear
The message appears on the LCD dis
-
play, when the brake pedal is not
depressed while shifting the gear.
Depress the brake pedal and then shift
the gear.
OCV051105L
OCV051106L
Driving your vehicle
106
Reduction gear
Shift to P after stopping
A:
Shift to P after stopping
The message appears on the LCD dis
-
play when the gear is shifted to P (Park)
while the vehicle is moving.
Stop the vehicle before shifting to P
(Park).
Gear already selected
A:
Gear already selected
The message appears on the LCD dis
-
play when the selected gear button is
pressed again.
PARK malfunction. Engage park
-
ing brake when parking vehicle
A:
PARK malfunction. Engage parking
brake when parking vehicle
The message is displayed when there is
a problem with function engaging P
(Park) position.
Immediately have the vehicle inspected
by an authorized Kia dealer.
Check P button
A:
Check P button
The message appears on the LCD dis
-
play when there is problem with the P
button.
Immediately have the vehicle inspected
by an authorized Kia dealer.
Check shifter dial
A:
Check shifter dial
The message appears on the LCD dis
-
play when there is problem with the shift
dial.
Immediately have the vehicle inspected
by an authorized Kia dealer.
Rotary shifter stuck
A:
Rotary shifter stuck
OCV051107L
OCV051108L
OCV051109L
OCV051110L
OCV051111L
OCV051112L
11
6
6
Driving your vehicle Reduction gear
The message appears on the LCD dis
-
play when the shifter dial is continuously
stuck or there is problem with the shifter
dial.
Make sure that there is no object over
the shifter dial. If the problem persists,
immediately have the vehicle inspected
by an authorized Kia dealer.
Shift button held down
A:
Shift button held down
The message appears on the LCD dis
-
play when the shifter button is continu
-
ously pressed or there is problem with
the button.
Make sure that there is no object over
the shift button. If the problem persists,
immediately have the system checked
by an authorized Kia dealer.
Rotary shifter turned while press
-
ing P
A:
Rotary shifter turned while pressing
P
The message appears on the LCD dis
-
play when the shifter dial is turned while
pressing P button.
Make sure that shifter dial is not turned
while pressing P button.
Good driving practices
Good driving habits reduce the risk of
accidents and help maintain vehicle per
-
formance.
僅 Never shift from P (Park) or N (Neu
-
tral) to any other position with the
accelerator pedal depressed.
僅 Never shift from P (Park) when the
vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).
僅 Do not shift to N (Neutral) when driv
-
ing. Doing so may result in an acci
-
dent.
僅Do not drive with your foot resting on
the brake pedal. Even light, but con
-
sistent pedal pressure can result in
the brakes overheating, brake wear
and possibly even brake failure.
僅 Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the gear in P (Park) to keep
the vehicle from moving.
僅 Exercise extreme caution when driv
-
ing on a slippery surface. Be espe
-
cially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change in
vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident.
僅 Optimum vehicle performance and
economy is obtained by smoothly
depressing and releasing the acceler
-
ator.
OCV051228L
OCV051113N
Driving your vehicle
126
Regenerative braking system
WARNING
When driving uphill or downhill, always
shift to D (Drive) for driving forward or
shift to R (Reverse) for driving back
-
wards, and check the gear position indi
-
cated on the cluster before driving.
Driving in the opposite direction of the
selected gear can lead to a dangerous
situation by shutting off the vehicle and
affecting the braking performance.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:
僅 ALWAYS wear your seat belt. In a colli
-
sion, an unbelted occupant is signifi
-
cantly more likely to be seriously
injured or killed than a properly belted
occupant.
僅 Avoid high speeds when cornering or
turning.
僅 Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.
僅 The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.
僅 Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.
僅 In the event your vehicle leaves the
roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.
僅 Kia recommends you follow all posted
speed limits.
Regenerative braking system
The regenerative braking system allows
you to charge the battery when you use
the brakes to stop the vehicle.
Regenerative braking (Paddle
shifter)
The paddle shifter is used to adjust the
regenerative braking level from 0 to 3
during decelerating or braking.
僅 Left side ( ): Increases regenerative
braking and deceleration.
僅 Right side ( ): Decreases regenera
-
tive braking and deceleration.
Pull and hold the left side paddle shifter
for more than 0.5 seconds and One
Pedal Driving function is operated,
increasing the regenerative braking. In
this case, stopping the vehicle is possible
by pulling the paddle shifter.
* Refer to "One pedal driving" on page 6-
13.
Pull and hold the right side paddle
shifter for over 1 second to turn on and
off the automatic change of the regener
-
ative braking.
* Refer to "Smart regeneration system"
on page 6-15.
OCV051004L_2
13
6
6
Driving your vehicle Regenerative braking system
NOTICE
The paddle shifter does not operate
when:
僅 The ( ) and ( ) paddle shifters
are pulled at the same time.
僅 The vehicle is decelerating by
depressing the brake pedal.
僅 Smart Cruise Control is activated.
僅 Regenerative braking system is acti
-
vated when the vehicle state of
charge is 100%.
僅 SNOW mode is activated from DRIVE
MODE.
僅 Trailer is attached to the vehicle.
僅 Selecting 0 step of the regenerative
braking system, the brake disc clean
-
ing function is operated around 10
times. While operating to clean the
brake disc, the driving distance and
the regenerative braking performance
can be reduced. After finishing, the
regenerative braking performance will
be restored.
The selected regenerative braking level
is displayed on the instrument cluster.
Initial setting of the regenerative braking
level and adjustable range vary accord
-
ing to the selected Drive mode.
*1: Except for GT
*2: Only for GT
* For more details, refer to "Drive mode
integrated control system" on page 6-
37.
One pedal driving
The driver can stop the vehicle by pull
-
ing and holding the left side paddle
shifter.
To operate
僅 Pull and hold the left side paddle
shifter while coasting.
僅 When the vehicle speed is above 2
mph (3 km/h), release the paddle
shifter to return to the previously set
level.
僅 When the vehicle speed is below 2
mph (3 km/h), the function maintains
control to stop the vehicle even
though the paddle shifter is released.
僅 While the One pedal driving is in acti
-
vation, the driver can control the vehi
-
cle stopping position using the
accelerator pedal.
Automatic engagement of EPB
After the vehicle is stopped by the One
Pedal Driving function, EPB is automati
-
cally engaged when any of these condi
-
tions occur:
僅 The gear is shifted to P (Park).
僅 The driver's door is open.
僅 The hood is open.
僅 The liftgate is open.
僅 5 minutes have passed after the vehi
-
cle has stopped.
Drive mode Adjustable range
SNOW*1
0~1
ECO
0~3
NORMAL
0~3
SPORT
0~3
OCV041631N
GT*2
0~3
MY DRIVE*2
0~3
Drive mode Adjustable range
Driving your vehicle
146
Regenerative braking system
僅 The system operation is limited due to
other reasons.
WARNING
僅 Do not solely rely on one pedal driving
to stop the vehicle. Stopping the vehi
-
cle may not be possible depending on
the vehicle and road conditions. Pay
attention to the road condition ahead
and apply the brake if necessary.
僅 Avoid increasing the regenerative
braking level suddenly on slippery
roads (like snow or icy conditions)
because it may lead to slipping of the
tires and skidding of vehicle. It can be
dangerous due to the loss of the vehi
-
cle's steering force.
NOTICE
When the vehicle is stopped or parked
by One Pedal Driving on the steep hills,
be sure to depress the brake pedal.
i-Pedal
i-Pedal is controlled by the accelerator
pedal. i-Pedal provides vehicle speed
control (acceleration/deceleration, stop
-
ping) without manually controlling the
paddle shifter.
To operate
1. Pull the left side paddle shifter to level
3 regenerative braking system.
2. Pull the left side paddle shifter once
again when the regenerative braking
level is 3.
僅 Check i-Pedal indicator symbol on
the instrument cluster.
CAUTION
When the vehicle is stopped or parked
by i-Pedal on the steep hills, be sure to
depress the brake pedal.
15
6
6
Driving your vehicle Smart regeneration system
Smart regeneration system
The Smart Regeneration System con
-
trols the regenerative braking automati
-
cally according to the road gradient and
driving condition of the vehicle in front.
The system minimizes the unnecessary
operation of the brake and acceleration
pedal, improving the electric efficiency
and assisting the driver.
Setting smart regeneration sys
-
tem
Pull and hold the right side paddle
shifter for over 1 second to turn on and
off the automatic change of the regener
-
ative braking. The automatic regenera
-
tive braking adjustment by smart
regeneration system is activated above
the standard set level.
Smart regeneration system acti
-
vation
With 'AUTO' for the regenerative braking
level displayed on the cluster, the regen
-
erative braking level is controlled auto
-
matically when vehicle speed is above 6
mph (10 km/h) and one of the condition
below is met.
僅 The road gradient changes
僅 Distance from the vehicle ahead
reduces or increases
僅 Speed of the vehicle ahead reduces or
increases
NOTICE
僅 The regenerative braking level can be
adjusted based on the driver's decel
-
eration style. (
Strong
/
Medium
/
Gen
-
tle
)
To adjust the level, select
Setup
→
EV
→
Smart Regeneration System
in
the infotainment system.
僅 The infotainment system may change
after software updates. For more
information, refer to the user's manual
provided in the infotainment system
and the quick reference guide
NOTICE
When vehicle speed is under 6 mph (10
km/h), the Smart Regeneration System
is canceled. The driver must adjust the
vehicle speed by depressing the acceler
-
ator or brake pedal according to the
road condition ahead and driving condi
-
tion.
When the system is turned on from the
Vehicle Settings menu, but the front
radar doesn't recognize the vehicle in
front, 'AUTO' is displayed in white.
If the front radar recognizes the vehicle
in front, 'AUTO' is displayed in blue. The
regenerative braking level is automati
-
cally controlled depending on the driv
-
ing condition of the vehicle in front and
the level is indicated with arrows.
However, current regenerative braking
level is maintained if the driver
depresses the brake pedal while the sys
-
tem is in activation. Also, the system is
OCV041134N
OCV041134L
Driving your vehicle
166
Smart regeneration system
canceled temporarily if the accelerator
pedal is depressed.
WARNING
The Smart Regeneration System which
automatically controls the regenerative
braking level when coasting is only a
supplemental system for the driver's
convenience. Do not solely rely on this
system to stop the vehicle. The system
cannot completely stop the vehicle in all
situations nor avoid all collisions. The
brake control may be insufficient
depending on the speed of the vehicle in
front and when the vehicle in front sud
-
denly stops, a vehicle cuts in suddenly or
there is a steep slope. Always look ahead
cautiously to prevent unexpected and
sudden situations from occurring.
Smart regeneration system will
be temporarily canceled when:
僅 Canceled manually
Pulling and holding the right side of
the paddle shifter for more than 1 sec
-
ond.
The Smart Regeneration System turns
off temporarily and AUTO for the
regenerative braking level disappears
from the cluster.
僅 Canceled automatically
- The vehicle is shifted to N (Neutral),
R (Reverse) or P (Park).
- Smart Cruise Control is in activa
-
tion.
- The ESC (Electronic Stability Con
-
trol) or ABS is operating.
NOTICE
When the Smart Regeneration System is
canceled automatically, adjust the vehi
-
cle speed directly by depressing the
accelerator or brake pedal according to
the road and driving conditions ahead.
Resuming smart regeneration
system
To re-activate the Smart Regeneration
System while driving:
僅 Pull and hold the right side paddle
shifter for more than 1 second again.
Then, AUTO for the regenerative
braking level will appear on the clus
-
ter.
Turning smart regeneration sys
-
tem off
To turn off the system:
僅 Pull and hold the right side of the pad
-
dle shifter for more than 1 second.
Vehicle-to-vehicle distance rec
-
ognition sensor
In order for the Smart Regeneration Sys
-
tem to operate properly, always make
sure the radar sensor cover is clean and
free of dirt, snow, and debris.
Dirt, snow, or foreign substances on the
lens may adversely affect the sensing
performance of the sensor. In this case,
the system operation may stop tempo
-
rarily and not operate normally.
Front radar
CAUTION
僅 Do not apply license plate frame or
foreign objects such as a bumper
sticker or a bumper guard near the
radar sensor. Doing so may adversely
OCV051005N
17
6
6
Driving your vehicle Smart regeneration system
affect the sensing performance of the
radar.
僅 Always keep the radar sensor and
lens cover clean and free of dirt and
debris.
僅 Use only a soft cloth to wash the vehi
-
cle. Do not spray pressurized water
directly on the sensor or sensor cover.
僅 Be careful not to apply unnecessary
force on the radar sensor or sensor
cover. If the sensor is forcibly moved
out of proper alignment, the Smart
Regeneration System may not oper
-
ate correctly. In this case, a warning
message may not be displayed. Have
the vehicle inspected by an autho
-
rized Kia dealer.
僅If the front bumper becomes dam
-
aged in the area around the radar
sensor, the Smart Regeneration Sys
-
tem may not operate properly. Have
the vehicle inspected by an autho
-
rized Kia dealer.
僅 Use only genuine Kia parts to repair or
replace a damaged sensor or sensor
cover. Do not apply paint to the sen
-
sor cover.
System malfunction
The following message will appear when
the Smart Regeneration System is not
functioning normally.
A:
Check Smart Regeneration System
The message will appear when the sys
-
tem is not functioning normally. The sys
-
tem will be canceled and the word
'AUTO' on the cluster will disappear and
instead display regenerative braking
level. Check for foreign substances on
the front radar. Remove any dirt, snow,
or foreign material that could interfere
with the radar sensors. If the system still
does not operate normally, take your
vehicle to an authorized Kia dealer and
have the system checked.
Limitations of the system
The Smart Regeneration System may
not operate properly in certain situations
when the driving condition is beyond the
performance of the front radar sensor.
Driver's attention is required in such
cases when the system does not react
properly or operate unintentionally.
Driving on a curved road
When driving on the curve, the system
may not detect the vehicle in your lane
and the regenerative braking level will
reduce automatically, making you feel
that the vehicle is accelerating.
Also, if the system suddenly recognizes
the vehicle in front, the regenerative
braking level will increase automatically,
making you feel that the vehicle is decel
-
erating.
The driver must maintain a safe braking
distance, and if necessary, depress the
brake pedal to reduce your driving
speed in order to maintain a safe dis
-
tance.
OCV051114L
OCV051006L
Driving your vehicle
186
Smart regeneration system
The smart regeneration system may rec
-
ognize a vehicle in an adjacent lane
when driving on a curved road. In this
case, the system increase the braking
level and slow the vehicle.
Always pay attention to road and driving
conditions while driving. If necessary,
depress the brake pedal to reduce your
driving speed in order to maintain a safe
distance. Also, when necessary, you may
depress the accelerator pedal to prevent
the system from unnecessarily deceler
-
ating your vehicle.
Always check the traffic conditions
around the vehicle.
Driving on a sloped road
When driving uphill or downhill, the sys
-
tem may not detect the vehicle in your
lane and the regenerative braking level
will reduce automatically, making you
feel that the vehicle is accelerating.
Also, if the system suddenly recognizes
the vehicle in front, the regenerative
braking level will increase automatically,
making you feel that the vehicle is decel
-
erating.
The driver must maintain a safe braking
distance, and if necessary, depress the
brake pedal to reduce your driving
speed in order to maintain a safe dis
-
tance.
Changing lanes
When a vehicle changes lanes in front of
you, the smart regeneration system may
not immediately detect the vehicle,
especially if the vehicle changes lanes
abruptly. In this case, you must maintain
a safe braking distance, and if neces
-
sary, depress the brake pedal to reduce
your driving speed in order to maintain a
safe distance.
Recognizing the vehicle
Some vehicles in your lane cannot be
recognized by the sensor:
僅 Narrow vehicles such as motorcycles
or bicycles
僅 Vehicles offset to one side
僅 Slow-moving vehicles or sudden-
decelerating vehicles
僅 Stopped vehicles (When the vehicle
ahead drives away, the system may
not detect a stopped vehicle.)
僅 Vehicles with small rear profile such
as trailers with no loads
OCV051007L
OCV051008L
OCV051009L
OCV051010L
19
6
6
Driving your vehicle Smart regeneration system
A vehicle ahead cannot be recognized
correctly by the sensor if any of follow
-
ing occurs:
僅 When the vehicle is pointing upwards
due to overloading in the luggage
compartment
僅 While the steering wheel is operating
僅 When driving to one side of the lane
僅 When driving on narrow lanes or on
curves
Apply the brake or accelerator pedal if
necessary.
WARNING
When using the Smart Regeneration
System take the following precautions:
僅 If an emergency stop is necessary,
you must apply the brakes.
僅 Keep a safe distance according to
road conditions and vehicle speed. If
the vehicle distance is too close
during high-speed driving, a serious
collision may result.
僅 Always maintain sufficient braking
distance and decelerate your vehicle
by applying the brakes if necessary.
僅 The Smart Regeneration System is
designed to detect and monitor the
vehicle ahead in the roadway through
radar signals. It is not designed to
detect oncoming vehicles, pedestri
-
ans, bicycles, motorcycles, or smaller
wheeled objects such as luggage
bags, shopping carts, or strollers.
僅 Vehicles moving in front of you with a
frequent lane change may cause a
delay in the system's reaction or may
cause the system to react to a vehicle
actually in an adjacent lane. Always
drive cautiously to prevent unex
-
pected and sudden situations from
occurring.
僅 The Smart Regeneration System may
not recognize complex driving situa
-
tions so always pay attention to driv
-
ing conditions and control your
vehicle speed.
NOTICE
The Smart Regeneration System may
not operate temporarily due to:
僅 Electrical interference
僅 Modifying the suspension
僅 Differences of tire abrasion or tire
pressure
僅 Installing different type of tires
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
3. Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.
Radio frequency radiation expo
-
sure information:
This equipment complies with FCC radi
-
ation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
Driving your vehicle
206
Brake system
This transmitter must not be colocated
or operating in conjunction with any
other antenna or transmitter.
Brake system
This vehicle is equipped with various
brakes and functions to stop the vehicle
or keep it stationary.
Power brakes
Your vehicle has power-assisted brakes
that adjust automatically through nor
-
mal usage.
In the event of a vehicle power failure,
the power assist for the brakes will not
work. You can still stop your vehicle, but
it will require greater force and
increased pedal travel than normal. The
stopping distance, however, will be lon
-
ger than with power brakes.
Pump the brake pedal only when neces
-
sary to maintain steering control on slip
-
pery surfaces.
NOTICE
僅 When stepping on the brake pedal
under a certain driving or weather
condition. you may witness your car
make a sound of squealing or some
other noises. This is not a brake mal
-
function but a normal phenomenon.
僅 When driving on the road to which
deicing chemicals are applied, the
vehicle may witness noises from the
brake or abnormal abrasion of tires
because of such deicing chemicals.
You should operate brake additionally
so that you would be able to remove
the deicing chemicals on the brake
disk and pad under a safe traffic con
-
dition.
CAUTION
Brake Pedal
Do not drive with your foot resting on
the brake pedal. This will create abnor
-
mally high brake temperatures which
21
6
6
Driving your vehicle Brake system
can cause excessive brake lining and
pad wear.
WARNING
Steep Hill Braking
Avoid continuous application of the
brakes when descending a long or steep
hill by increasing the regeneration level.
Continuous brake application will cause
the brakes to overheat and could result
in a temporary loss of braking perfor
-
mance.
Wet brakes may impair the vehicle's abil
-
ity to safely slow down; the vehicle may
also pull to one side when the brakes are
applied. Applying the brakes lightly will
indicate whether they have been
affected in this way. Always test your
brakes in this fashion after driving
through deep water. To dry the brakes,
apply them lightly while maintaining a
safe forward speed until brake perfor
-
mance returns to normal.
NOTICE
Do not depress the brake pedal continu
-
ously without the
READY
indicator ON.
The battery may be discharged.
Brake disc cleaning
If there is a surface rust on the brake
disc or squeal can be heard, select level
0 of the regenerative brake system.
The regenerative brake system will be
temporarily deactivated to clean the
brake disc.
Depressing a brake while driving
approximately 10 times, the regenera
-
tive brake system will not be operated
during Brake Disc Cleaning mode is acti
-
vated (Regenerative brake system level
0). The energy consumption may
increases.
After Brake Disc Cleaning mode oper
-
ates, the regenerative brake system will
activate again.
In the event of brake failure
If service brakes fail to operate while the
vehicle is in motion, you can make an
emergency stop with the parking brake.
The stopping distance, however, will be
much greater than normal.
WARNING
Parking Brake
Avoid applying the parking brake to stop
the vehicle while it is moving except in
an emergency situation. Applying the
parking brake while the vehicle is mov
-
ing at normal speeds can cause a sud
-
den loss of control of the vehicle. If you
must use the parking brake to stop the
vehicle, use great caution in applying the
brake.
Disc brakes wear indicator
When your brake pads are worn and
new pads are required, you will hear a
high-pitched warning sound from your
front brakes or rear brakes. You may
hear this sound come and go or it may
occur whenever you depress the brake
pedal.
Always replace the front or rear brake
pads as pairs.
WARNING
Replace Brake Pads
Do not continue to drive with worn brake
pads. Continuing to drive with worn
brake pads can damage the braking sys
-
Driving your vehicle
226
Brake system
tem and result in costly brake repairs,
and can also lead to a serious accident.
WARNING
Brake Wear
Do not ignore high pitched wear sounds
from your brakes. If you ignore this audi
-
ble warning, you will eventually lose
braking performance, which could lead
to a serious accident.
High Performance Brake (if
equipped)
As this vehicle is equipped with the High
Performance Brake (large diameter
brakes for enhanced braking perfor
-
mance), noise such as a squeal, squeak
or groan is generated while braking. This
is normal and the friction may create cir
-
cle patterns on the disc surface. This is
also a normal situation which does not
affect braking performance.
NOTICE
僅 Occasional brake noise is normal. If a
continuous grinding or continuous
squeal sound is present, the brake lin
-
ing may be worn-out. Contact an
authorized Kia dealer.
僅 If the vehicle has continuous vibration
or shudder in the steering wheel while
braking, contact an authorized Kia
dealer.
CAUTION
Frequent speeding and braking may
deform components and wear the disc
brake causing vibration when braking.
Prevent brake damage by avoiding
excessive braking.
Brake wear, noise, vibration from exces
-
sive braking or deformation of the
brakes caused by repeatedly braking in
high speed, racing on tracks, etc. can be
excluded from warranty coverage.
Electronic Parking Brake (EPB)
The Electronic Parking Brake switch is
located on the lower left side of the
shifter dial.
Applying the parking brake
1. Press the brake pedal.
2. Pull up the EPB switch.
3. Make sure the warning light comes
on.
Also, the EPB is applied automatically if
the Auto Hold button is on when the
vehicle is turned off. If you pull up the
EPB switch after the vehicle is turned off,
the EPB will be Applied.
NOTICE
On a steep incline or when pulling a
trailer, if the vehicle does not remain at a
standstill, do as follows:
1. Apply the EPB.
2. Pull up the EPB switch for more than 3
seconds.
Do not operate the EPB while the vehicle
is moving except in an emergency situa
-
tion.
NOTICE
A click or electric brake motor whine
sound may be heard while operating or
releasing the EPB.
OCV051011N
23
6
6
Driving your vehicle Brake system
These conditions are normal and indi
-
cate that the EPB is functioning properly.
Releasing the parking brake with
Electronic Parking Brake (EPB)
switch
1. Releasing the parking brake with EPB
switch,
僅 Place the EV button in the ON posi
-
tion.
僅 Depress the brake pedal.
僅 The shifter dial must be in P (Park).
2. Make sure the brake warning light
goes off.
Automatic release of Electronic
Parking Brake (EPB)
The EPB is released automatically under
following conditions.
僅 Shifter dial in P (Park)
With the vehicle running depress the
brake pedal and shift out of P (Park)
to R (Reverse) or D (Drive).
僅 Shifter dial in N (Neutral)
With the vehicle running depress the
brake pedal and shift out of N (Neu
-
tral) to R (Reverse) or D (Drive).
僅Reduction gear
1. Start the vehicle.
2. Fasten the driver's seat belt.
3. Close the driver's door, hood and
liftgate.
4. Depress the accelerator pedal while
the shifter dial is in R (Reverse) or D
(Drive).
Make sure the brake warning light goes
off.
WARNING
僅 Never allow a passenger, children, or
animal to touch the Electronic Parking
Brake.
僅 Do not input any other objects around
the Electronic Parking Brake. It may
be operated unintentionally.
NOTICE
僅 For your safety, you can engage the
EPB even though the EV button is in
the OFF position, but you cannot
release it.
僅 For your safety, depress the brake
pedal and release the parking brake
manually with the EPB switch when
you drive downhill or when backing
up the vehicle.
CAUTION
僅 If the parking brake warning light is
still on even though the EPB has been
released, have the system checked by
an authorized Kia dealer.
僅 Do not drive your vehicle with the EPB
applied. It may cause excessive brake
pad and brake rotor wear.
僅 Whenever leaving the vehicle or park
-
ing, make sure the gear is shifted to P
(Park) position, then apply the parking
brake. Block the tires if necessary.
僅 Electronic Parking Brake may not be
released because it can freeze in win
-
ter. Do not use Electronic Parking
Brake and shift the gear to P (Park),
block the tires, and park the vehicle
on the flat and safe road. If the Elec
-
tronic Parking Brake is applied when
you shift the gear to P (Park), release
OCV051255N
Driving your vehicle
246
Brake system
the Auto Hold and Electronic Parking
Brake, and park the vehicle with the
tires blocked.
僅 When driving with the Electronic Park
-
ing Brake applied, brake system may
be overheated, brake lines may be
worn, and the Electronic Parking
Brake may be damaged.
僅 When the battery charge is not suffi
-
cient, Electronic Parking Brake may
not be applied or released. In this
case, connect to the auxiliary battery.
EPB (Electronic Parking Brake)
may be automatically applied
when:
僅 The EPB is overheated
僅 Requested by other systems
僅 If equipped with Electronic Parking
Brake, parking brake is applied auto
-
matically when the gear is shifted to P
(Park).
CAUTION
僅 If you notice a continuous noise or
burning smell when the EPB is used
for emergency braking, have your
vehicle checked by an authorized Kia
dealer.
僅 If the gear is shifted to N (Neutral)
while Electronic Parking Brake is
applied, it is not released automati
-
cally. If you don't release Electronic
Parking Brake manually before using
an automatic car wash tunnel
machine or etc., this may result in
damage to the vehicle or the auto
-
matic car wash tunnel machine.
NOTICE
For EPB (Electronic Parking Brake)
equipped vehicles with AUTO HOLD
function used while driving, if the EV
button has been turned OFF, the EPB
will be engaged automatically. There
-
fore, AUTO HOLD function should be
turned off before the EV button is turned
off.
System warning
The EPB will display a warning message
with sound under certain conditions.
僅 If you try to drive off depressing the
accelerator pedal with the EPB
applied, but the EPB doesn't release
automatically, a warning will sound
and a message will appear.
僅 If the driver's seat belt is not fastened
and the vehicle hood, driver's door or
liftgate is opened, a warning will
sound and a message will appear.
A:
To release EPB, fasten seatbelt
and close door, hood and liftgate
僅 If there is a problem with the vehicle, a
warning may sound and a message
may appear.
If the above situation occurs, depress
the brake pedal and release EPB by
pressing the EPB switch.
OCV051269N
25
6
6
Driving your vehicle Brake system
WARNING
僅 To prevent unintentional movement
when stopped and leaving the vehicle,
do not use the shifter dial in place of
the parking brake. Set the parking
brake and make sure the shifter dial is
securely positioned in P (Park).
僅 Never allow a passenger to touch the
parking brake. If the parking brake is
released unintentionally, serious
injury may occur.
僅 All vehicles should always have the
parking brake fully engaged when
parked to avoid inadvertent move
-
ment of the vehicles which can injure
occupants or pedestrians.
NOTICE
僅 A click or electric brake motor whine
sound may be heard while operating
or releasing the EPB. These conditions
are normal and indicate that the EPB
is functioning properly.
僅If you hand over the vehicle to other
people, make sure they understand
how to use the Electronic Parking
Brake for safety.
僅 The EPB may malfunction if you drive
with the EPB applied.
僅 When you automatically release EPB
by depressing the accelerator pedal,
depress it slowly.
When the conversion from AUTO HOLD
to EPB is not working properly a warning
will sound and a message will appear.
A:
AUTO HOLD turning Off! Press
brake pedal
NOTICE
Engage the brake pedal when the above
message appears for the AUTO HOLD
and EPB may not activate.
If the EPB is applied while AUTO HOLD
is activated because of an ESC (Elec
-
tronic Stability Control) signal, a warning
will sound and a message will appear.
A:
Parking brake automatically
engaged
EPB malfunction indicator
This warning light appears if the EV but
-
ton is changed to the ON position and
goes off in approximately 3 seconds if
the system is operating normally.
OCV051270N
OCV051271N
OCV041136L
Driving your vehicle
266
Brake system
If the EPB malfunction indicator remains
on, comes on while driving, or does not
come on when the EV button is changed
to the ON position, this indicates that the
EPB may have malfunctioned.
If this occurs, have your vehicle checked
by an authorized Kia dealer as soon as
possible.
The EPB malfunction indicator may
appear when the ESC indicator comes
on to indicate that the ESC is not work
-
ing properly, but it does not indicate a
malfunction of the EPB.
The EPB warning light may appear if the
EPB switch operates abnormally. Shut
the vehicle off and turn it on again after
a few minutes.
NOTICE
The warning light will go off and the EPB
switch will operate normally. However, if
the EPB warning light is still on, have the
system checked by an authorized Kia
dealer.
If the parking brake warning light does
not appear or blinks even though the
EPB switch was pulled up, the EPB is not
applied.
If the parking brake warning light blinks
when the EPB warning light is on, press
the EPB switch, then pull it up.
Once more press it back to its original
position and pull it back up. If the EPB
warning does not go off, have the sys
-
tem checked by an authorized Kia
dealer.
Emergency braking
If there is a problem with the brake
pedal while driving, emergency braking
is possible by pulling up and holding the
EPB switch.
Braking is possible only while you are
holding the EPB switch.
WARNING
Do not operate the Electronic Parking
Brake while the vehicle is moving except
in an emergency situation. Applying the
Electronic Parking Brake while the vehi
-
cle is moving at normal speeds can
cause a sudden loss of control of the
vehicle. If you must use the Electronic
Parking Brake to stop the vehicle, use
great caution in applying the brake.
NOTICE
During emergency braking by the EPB,
the parking brake warning light will
appear to indicate that the system is
operating.
If you notice a continuous noise or burn
-
ing smell when the EPB is used for emer
-
gency braking, have your vehicle
checked by an authorized Kia dealer.
When the EPB (Electronic Parking
Brake) is not released
If the EPB does not release normally,
take your vehicle to an authorized Kia
dealer by loading the vehicle on a flat
-
bed tow truck and have the system
checked.
AUTO HOLD
The AUTO HOLD maintains the vehicle
in a standstill even though the brake
pedal is not depressed after the driver
brings the vehicle to a complete stop by
depressing the brake pedal.
Applying AUTO HOLD function
1. Depress the brake pedal, start the
vehicle and then press the AUTO
HOLD button. The white AUTO HOLD
27
6
6
Driving your vehicle Brake system
indicator will come on indicating the
system is in standby.
2. When coming to a complete stop by
depressing the brake pedal, the AUTO
HOLD indicator changes from white
to green indicating the AUTO HOLD is
engaged.
3. The vehicle will remain at a standstill
even if you release the brake pedal.
4. If EPB is applied, AUTO HOLD will be
released.
If you press the accelerator pedal with
the shifter dial in D (Drive), or R
(Reverse) when the accelerator is not
depressed, the AUTO HOLD will be
released automatically and the vehicle
will start to move. The indicator changes
from green to white indicating the AUTO
HOLD is in standby and the EPB is
released.
WARNING
When driving off from AUTO HOLD by
depressing the accelerator pedal, always
check the surrounding area near your
vehicle.
Slowly depress the accelerator pedal for
a smooth launch.
Canceling AUTO HOLD function
僅 To cancel the AUTO HOLD operation,
press the AUTO HOLD switch. The
AUTO HOLD indicator will turn off.
僅 To cancel the AUTO HOLD operation
when the vehicle is at a standstill,
press the AUTO HOLD switch while
depressing the brake pedal.
NOTICE
僅 The following are conditions when the
AUTO HOLD will not engage (AUTO
HOLD light will not turn green and the
AUTO HOLD system remains in
standby):
- The shifter dial is in P (Park)
- The EPB is applied
僅 For your safety, the AUTO HOLD
automatically switches to EPB under
any of the following conditions (AUTO
HOLD light remains white and the
EPB automatically applies):
- The vehicle is in a standstill for
more than 10 minutes
- The vehicle is standing on a steep
slope
- The vehicle moved for a few sec
-
onds
In these cases, the brake warning
light comes on, the AUTO HOLD
indicator changes from green to
white, and a warning sounds and a
message will appear to inform you
that EPB has been automatically
engaged. Before driving off again,
press foot brake pedal, check the
OCV051013L
OCV051012L_2
OCV051013L
Driving your vehicle
286
Brake system
surrounding area near your vehicle
and release parking brake manu
-
ally with the EPB switch.
僅If the AUTO HOLD indicator lights up
yellow, the AUTO HOLD is not work
-
ing properly. Take your vehicle to an
authorized Kia dealer and have the
system checked.
僅 If the vehicle is restarted with the
AUTO HOLD button pressed, AUTO
HOLD will be in the standby state.
WARNING
To reduce the risk of an accident, do not
activate AUTO HOLD while driving
downhill, backing up or parking your
vehicle.
If there is a malfunction with the driver's
door or vehicle hood or liftgate open
detection system, the AUTO HOLD may
not work properly.
Take your vehicle to an authorized Kia
dealer and have the system checked.
NOTICE
A click or electric brake motor whine
sound may be heard while operating or
releasing the EPB, but these conditions
are normal and indicate that the EPB is
functioning properly.
Warning messages
The AUTO HOLD function will display a
warning message with sound under cer
-
tain conditions.
When the EPB is applied from AUTO
HOLD, a warning will sound and a mes
-
sage will appear.
A:
Parking brake automatically
engaged
When the conversion from AUTO HOLD
to EPB is not working properly a warning
will sound and a message will appear.
A:
AUTO HOLD turning Off! Press
brake pedal
NOTICE
When this message is displayed, the
AUTO HOLD and EPB may not operate.
For your safety, depress the brake pedal.
If you do not apply the brake pedal
when you release the AUTO HOLD by
pressing the [AUTO HOLD] switch, a
warning will sound and a message will
appear.
A:
Press brake pedal to deactivate
AUTO HOLD
WARNING
Parking Brake Use
OCV051271N
OCV051270N
OCV051272N
29
6
6
Driving your vehicle Brake system
僅 Never allow a passenger to touch the
parking brake. If the parking brake is
released unintentionally, serious
injury may occur.
僅 All vehicles should always have the
parking brake fully engaged when
parked to avoid inadvertent move
-
ment of the vehicles which can injure
occupants or pedestrians.
Check the brake warning light by press
-
ing EV button ON (do not start the vehi
-
cle). This light will appear when the
parking brake is applied with the EV but
-
ton in the START or ON position.
Before driving, be sure the parking
brake is fully released and the brake
warning light is off.
If the brake warning light remains on
after the parking brake is released while
the vehicle is running, there may be a
malfunction in the brake system. Imme
-
diate attention is necessary.
If at all possible, cease driving the vehi
-
cle immediately. If that is not possible,
use extreme caution while operating the
vehicle and only continue to drive the
vehicle until you can reach a safe loca
-
tion or repair shop.
Anti-lock Brake System (ABS)
The ABS prevents the wheels from lock
-
ing. So the vehicle remains stable and
can still be steered.
ABS (or ESC) will not prevent accidents
due to improper or dangerous driving
maneuvers. Even though vehicle control
is improved during emergency braking,
always maintain a safe distance
between you and objects ahead. Vehicle
speeds should always be reduced during
extreme road conditions. The vehicle
should be driven at reduced speeds in
the following circumstances:
僅 When driving on rough, gravel or
snow-covered roads
僅 When driving with tire chains installed
僅 When driving on roads where the road
surface is pitted or has different sur
-
face heights.
Driving in these conditions increases the
stopping distance for your vehicle.
The ABS continuously senses the speed
of the wheels. If the wheels are going to
lock, the ABS system repeatedly modu
-
lates the hydraulic brake pressure to the
wheels.
When you apply your brakes under con
-
ditions which may lock the wheels, you
may hear a "tik-tik'' sound from the
brakes, or feel a corresponding sensa
-
tion in the brake pedal. This is normal
and it means your ABS is active.
In order to obtain the maximum benefit
from your ABS in an emergency situa
-
tion, do not attempt to modulate your
brake pressure and do not try to pump
your brakes.
NOTICE
A click sound may be heard in the vehi
-
cle compartment when the vehicle
begins to move after the vehicle is
started. These conditions are normal
and indicate that the anti-lock brake sys
-
tem is functioning properly.
Even with the anti-lock brake system,
your vehicle still requires sufficient stop
-
ping distance. Always maintain a safe
distance from the vehicle in front of you.
Always slow down when cornering. The
anti-lock brake system cannot prevent
Driving your vehicle
306
Brake system
accidents resulting from excessive
speeds.
On loose or uneven road surfaces, oper
-
ation of the anti-lock brake system may
result in a longer stopping distance than
for vehicles equipped with a conven
-
tional brake system.
The ABS warning light will stay on for
approximately 3 seconds after the EV
button is ON.
During that time, the ABS will go through
self-diagnosis and the light will go off if
everything is normal. If the light stays on,
you may have a problem with your ABS.
Contact an authorized Kia dealer as
soon as possible.
When you drive on a road having poor
traction, such as an icy road, and have
operated your brakes continuously, the
ABS will be active continuously and the
ABS warning light may appear. Pull your
vehicle over to a safe place and stop the
vehicle.
Restart the vehicle. If the ABS warning
light goes off, then your ABS system is
normal. Otherwise, you may have a
problem with the ABS. Contact an autho
-
rized Kia dealer as soon as possible.
NOTICE
When you jump start your vehicle
because of a drained battery, the vehicle
may not run as smoothly and the ABS
warning light may turn on at the same
time. This happens because of low bat
-
tery voltage. It does not mean your ABS
has malfunctioned.
僅 Do not pump your brakes!
僅 Have the battery recharged before
driving the vehicle.
Electronic Stability Control (ESC)
The ESC system is designed to stabilize
the vehicle during cornering maneuvers.
ESC checks where you are steering and
where the vehicle is actually going. ESC
applies the brakes on individual wheels
and intervenes with the vehicle manage
-
ment system to stabilize the vehicle.
ESC will not prevent accidents. Excessive
speed in turns, abrupt maneuvers and
hydroplaning on wet surfaces can still
result in serious accidents.
Only a safe and attentive driver can pre
-
vent accidents by avoiding maneuvers
that cause the vehicle to lose traction.
Even with ESC installed, always follow all
the normal precautions for driving -
including driving at safe speeds for the
conditions.
WARNING
For maximum protection, always wear
your seat belt. No system, no matter
how advanced, can compensate for all
driver error and/or driving conditions.
Always drive responsibly.
The ESC system is an electronic system
designed to help the driver maintain
vehicle control under adverse condi
-
tions. It is not a substitute for safe driv
-
ing practices. Factors including speed,
road conditions and driver steering input
can all affect whether ESC will be effec
-
OCV051014L
31
6
6
Driving your vehicle Brake system
tive in preventing a loss of control. It is
still your responsibility to drive and cor
-
ner at reasonable speeds and to leave a
sufficient margin of safety.
When you apply your brakes under con
-
ditions which may lock the wheels, you
may hear a "tik-tik'' sound from the
brakes, or feel a corresponding sensa
-
tion in the brake pedal. This is normal
and it means your ESC is active.
NOTICE
A click sound may be heard in the vehi
-
cle compartment when the vehicle
begins to move after the vehicle is
started. These conditions are normal
and indicate that the Electronic Stability
Control System is functioning properly.
Electronic stability control (ESC)
operation
ESC ON condition
僅 When the EV button is turned ON,
ESC and ESC OFF indicator lights
appear for approximately 3 seconds,
then ESC is turned on.
僅 Press the ESC OFF button for at least
half a second after turning the vehicle
ON to turn ESC off. (ESC OFF indica
-
tor will appear). To turn the ESC on,
press the ESC OFF button (ESC OFF
indicator light will go off).
僅 When starting the vehicle, you may
hear a slight ticking sound. This is the
ESC performing an automatic system
self-check and does not indicate a
problem.
When operating
When the ESC is in operation, the
ESC indicator light blinks.
When the Electronic Stability Control is
operating properly, you can feel a slight
pulsation in the vehicle. This is only the
effect of brake control and indicates
nothing unusual.
When moving out of the mud or driving
on a slippery road, pressing the acceler
-
ator pedal may not cause the vehicle
speed to increase.
Electronic stability control (ESC)
operation off
This car has 2 kinds of ESC off
states.
If the vehicle stops when ESC is
off, ESC remains off. Upon restarting the
vehicle, the ESC will automatically turn
on again.
ESC off state 1 - Traction control
disabled
To turn off the traction control function
and only operate the brake control func
-
tion of the ESC, press the ESC OFF but
-
ton (ESC OFF ) for less than 3
seconds and the ESC OFF indicator light
(ESC OFF ) will appear.
When GT mode is selected, automati
-
cally changed to ESC off State 1 and the
ESC OFF indicator light (ESC OFF )
comes on.
ESC off state 2 - Traction & stabil
-
ity control disabled
To turn off the traction control function
and the brake control function of the
ESC, press the ESC OFF button (ESC
OFF ) for more than 3 seconds. ESC
OFF indicator light (ESC OFF ) will
appear and ESC OFF warning chime will
Driving your vehicle
326
Brake system
sound. At this state, the car stability con
-
trol function does not operate any more.
Indicator light
ESC indicator light
ESC OFF indicator light
When EV button is turned to ON, the
indicator light appears, then goes off if
the ESC system is operating normally.
The ESC indicator light blinks whenever
ESC is operating or appears when ESC
fails to operate.
The ESC OFF indicator light comes on
when the ESC is turned off with the but
-
ton.
WARNING
Electronic Stability Control
Drive carefully even though your vehicle
has Electronic Stability Control. It can
only assist you in maintaining control
under certain circumstances.
ESC OFF usage
When driving
僅 ESC should be turned on for daily
driving whenever possible.
僅 To turn ESC off while driving, press
the ESC OFF button while driving on a
flat road surface.
WARNING
Operating ESC
Never press the ESC OFF button while
ESC is operating (ESC indicator light
blinks).
If ESC is turned off while ESC is operat
-
ing, the vehicle may slip out of control.
NOTICE
僅When operating the vehicle on a
dynamometer, ensure that the ESC is
turned off (ESC OFF light appeared). If
the ESC is left on, it may prevent the
vehicle speed from increasing, and
result in false diagnosis.
僅 Turning the ESC off does not affect
ABS or brake system operation.
Vehicle Stability Management
(VSM)
This system provides further enhance
-
ments to vehicle stability and steering
responses when a vehicle is driving on a
slippery road or a vehicle detects
changes in coefficient of friction
between right wheels and left wheels
when braking.
WARNING
Tire/Wheel Size
When replacing tires and wheels, make
sure they are the same size as the origi
-
nal tires and wheels installed. Driving
with varying tire or wheel sizes may
diminish any supplemental safety bene
-
fits of the VSM system.
Vehicle stability management
(VSM) operation
When the VSM is in operation, ESC indi
-
cator light ( ) blinks.
When the vehicle stability management
is operating properly, you can feel a
33
6
6
Driving your vehicle Brake system
slight pulsation in the vehicle and/or
abnormal steering responses (EPS- Elec
-
tric Power Steering). This is only the
effect of brake and EPS control and indi
-
cates nothing unusual.
The VSM does not operate when:
僅 Driving on a sloping road such as a
gradient or incline
僅 Driving in reverse
僅 ESC OFF indicator light ( ) remains
on the instrument cluster
僅 EPS indicator light remains on the
instrument cluster
Vehicle stability management
(VSM) operation off
If you press the ESC OFF button to turn
off the ESC, the VSM will also cancel and
the ESC OFF indicator light ( )
appears.
To turn on the VSM, press the button
again. The ESC OFF indicator light goes
out.
WARNING
Vehicle Stability Management
Drive carefully even though your vehicle
has vehicle stability management. It can
only assist you in maintaining control of
the vehicle under certain circumstances.
Malfunction indicator
The VSM can be deactivated even if you
don't cancel the VSM operation by
pressing the ESC OFF button. It indicates
that a malfunction has been detected
somewhere in the Electric Power Steer
-
ing system or VSM system. If the ESC
indicator light ( ) or EPS warning light
remains on, take your vehicle to an
authorized Kia dealer and have the sys
-
tem checked.
The Vehicle Stability Management sys
-
tem is not a substitute for safe driving
practices but a supplementary function
only. It is the responsibility of the driver
to always check the speed and the dis
-
tance to the vehicle ahead. Always hold
the steering wheel firmly while driving.
Your vehicle is designed to activate
according to the driver's intention, even
with installed VSM. Always follow all the
normal precautions for driving at safe
speeds for the conditions – including
driving in inclement weather and on a
slippery road.
WARNING
For maximum protection, always wear
your seat belt. No system, no matter
how advanced, can compensate for all
driver error and/or driving conditions.
Always drive responsibly.
Hill-start Assist Control (HAC)
A vehicle has the tendency to roll back
on a steep hill when it starts to go after
stopping. The Hill-start Assist Control
(HAC) prevents the vehicle from rolling
back by applying the brakes automati
-
cally for approximately 2 seconds.
The brakes are released when the accel
-
erator pedal is depressed or after about
2 seconds.
The HAC is activated only for about 2
seconds, so when the vehicle is starting
off always depress the accelerator pedal.
WARNING
Maintaining Brake Pressure on Incline
HAC does not replace the need to apply
brakes while stopped on an incline.
Driving your vehicle
346
Brake system
While stopped, make sure you maintain
brake pressure sufficient to prevent your
vehicle from rolling backward and caus
-
ing an accident. Don't release the brake
pedal until you are ready to accelerate
forward.
Brake Assistant System (BAS)
The Brake Assistant System provides
additional pressure when the brake
pedal is momentarily and strongly
depressed in a situation sudden braking
is required while driving.
The Brake Assistant System reduces the
time for ABS (Anti-Lock Brake System)
control to enter and consequently
reduces the braking distance, by provid
-
ing additional pressure up to the point of
ABS intervention.
BAS operation
僅When the vehicle speed is more than
6 mph (10 km/h) and the ABS control
is not entered.
僅 When the brake pedal is depressed
strongly over a certain level.
僅 When the friction of the road surface
is above a certain level.
BAS operation off
僅 The vehicle speed is below 3 mph (5
km/h).
僅 The brake pedal is depressed over a
certain conditions.
僅 The friction of the road surface is
below a certain level.
WARNING
The system may not operate
depending on driver's driving habit, the
degree to which the brake pedal is
depressed and the road surface condi
-
tion.
Electronic Limited Slip Differen
-
tial (For GT)
Electronic Limited Slip Differential con
-
trols the differential functions of the
wheels to help:
僅 Improve steering performance when
circling at high speed.
僅 Improve launching performance.
僅 Prevent slipping on rainy or snowy
roads due to dissimilar friction of the
left and right wheels.
WARNING
Never run the wheels with one of wheels
lifted on a jack. It is extremely dangerous
for a vehicle equipped with Electronic
Limited Slip Differential.
Drive Mode Selection
The characteristic of Electronic Limited
Slip Differential varies according to
which drive mode is selected by using
the DRIVE MODE switch.
For more details, refer to "Drive mode
integrated control system" on page 6-37.
Selected mode Characteristic of e-LSD
ECO / NORMAL
NORMAL
SPORT
SPORT
GT
SPORT+
MY DRIVE
NORMAL/SPORT/SPORT+
35
6
6
Driving your vehicle Brake system
Warning Messages
Electronic Limited Slip Differen
-
tial temporarily disabled due to
overheating
Overheating of related parts will tempo
-
rarily disable Electronic Limited Slip Dif
-
ferential. Wait until the vehicle cools
down.
Limited-slip differential disabled.
Tire diameter mismatch / Tire size
mismatch. Limited-slip differen
-
tial disabled. Check tire sizes
If your vehicle is equipped with different
tires (size, type, etc.), the message will
appear. To use Electronic Limited Slip
Differential, equip the vehicle with the
same tires.
Check Limited Slip Differential
When Electronic Limited Slip Differential
is not working properly, this warning
message will appear on the cluster LCD
display. If this occurs, Kia recommends
visiting an authorized Kia dealer.
Electronic Control Suspension (if
equipped)
Electronic Control Suspension controls
the vehicle suspension automatically
using vehicle sensors to maximize driv
-
ing comfort by taking into account the
driving conditions such as speed, sur
-
face of the road, cornering, stopping
requirements and acceleration.
System Malfunction
A:
Check Electronic Suspension
When Electronic Control Suspension is
not working properly, this warning mes
-
sage will appear on the cluster LCD dis
-
play. If this occurs, have the system
inspected by an authorized Kia dealer.
Good braking practices
Good braking practices help to drive
safely and extend brake life.
僅 Check to be sure the parking brake is
not engaged and the parking brake
indicator light is out before driving
away.
僅 Driving through water may get the
brakes wet. They can also get wet
when the vehicle is washed. Wet
brakes can be dangerous! Your vehi
-
cle will not stop as quickly if the
brakes are wet. Wet brakes may
cause the vehicle to pull to one side.
To dry the brakes, apply the brakes
lightly until the braking action returns
to normal, taking care to keep the
vehicle under control at all times. If
the braking action does not return to
normal, stop as soon as it is safe to do
so and call an authorized Kia dealer
for assistance.
僅 Don't coast down hills with the vehicle
out of gear. This is extremely hazard
-
ous. Keep the vehicle in gear at all
times, use the brakes to slow down,
then shift to a lower gear so that vehi
-
cle braking will help you maintain a
safe speed.
OCVGT042191L
Driving your vehicle
366
Brake system
僅 Don't "ride" the brake pedal. Resting
your foot on the brake pedal while
driving can be dangerous because the
brakes might overheat and lose their
effectiveness. It also increases the
wear of the brake components.
僅 If a tire goes flat while you are driving,
apply the brakes gently and keep the
vehicle pointed straight ahead while
you slow down. When you are moving
slowly enough for it to be safe to do
so, pull off the road and stop in a safe
place.
僅 Be cautious when parking on a hill.
Firmly engage the parking brake and
place the shifter dial in P. If your vehi
-
cle is facing downhill, turn the front
wheels into the curb to help keep the
vehicle from rolling.
If your vehicle is facing uphill, turn the
front wheels away from the curb to
help keep the vehicle from rolling. If
there is no curb or if it is required by
other conditions to keep the vehicle
from rolling, block the wheels.
僅 Under some conditions your parking
brake can freeze in the engaged posi
-
tion. This is most likely to happen
when there is an accumulation of
snow or ice around or near the rear
brakes or if the brakes are wet. If
there is a risk that the parking brake
may freeze, apply it only temporarily
while you put the shifter dial in P and
block the rear wheels so the vehicle
cannot roll. Then release the parking
brake.
僅 Do not hold the vehicle on an incline
with the accelerator pedal. This can
cause the reduction gear to overheat.
Always use the brake pedal or parking
brake.
僅 Do not pump the brake pedal as the
vehicle is equipped with ABS.
僅 The vehicle is equipped with elec
-
tronic hydraulic brake. Due to mal
-
function or power instability, the
brake booster may not operate nor
-
mally and cause the brake pedal to
feel stiff, resulting in longer braking
distances. In this case, stop the vehicle
by depressing the brake pedal stron
-
ger than usual. Have the system
inspected by an authorized Kia dealer.
僅 The sound of electronic hydraulic
brake operating or its motor may be
heard temporarily when:
- Repeatedly depressing the brake
pedal
- Opening driver's door
37
6
6
Driving your vehicle Drive mode integrated control system
Drive mode integrated control
system
The drive mode integrated control sys
-
tem allows the driver to select the drive
mode most appropriate to the surround
-
ing environment.
DRIVE MODE
The drive mode may be selected accord
-
ing to the driver's preference or road
condition.
僅 The mode changes, as below, when
-
ever the DRIVE MODE button is
pressed.
僅 When restarting from ECO mode, the
ECO mode is maintained, and when
restarting from another mode, the
mode is changed to NORMAL mode.
A:
Hold
Selecting DRIVE MODE (For GT)
Operation
僅
DRIVE MODE
will change to
NOR
-
MAL
mode when the vehicle is
restarted.
ECO
mode will be main
-
tained when the vehicle is restarted.
僅 Press the
DRIVE MODE
button.
僅 Press the
GT
button.
NORMAL mode
Normal mode is a driving with auto
changing the driving mode (2WD/AWD)
on road condition.
ECO mode
ECO mode is a driving mode in which
the vehicle can change the engagement
status of the motor according to the situ
-
ation required. Auto changing the driv
-
ing mode (2WD/AWD) helps improve
energy efficiency.
OCV051015L
OCV051115N
OCV051015L
Mode Characteristics
SPORT
Provides sporty but firm riding
NORMAL
Driving on general roads, city center and high
-
ways
ECO
Improves electric energy efficiency for eco-
friendly driving
Mode Characteristics
GT
Provides sportier and firm riding for maximum
performance
MY DRIVE
MODE
Adjusts modes of each driving system.
OCVGT052281L
Driving your vehicle
386
Drive mode integrated control system
Electric energy efficiency varies accord
-
ing to the driver's driving habit and road
condition.
僅When ECO mode is selected, the ECO
indicator will appear on the instru
-
ment cluster and the color of the
mood lamp will change.
僅 When ECO mode is activated:
- The acceleration response may be
slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance
may be limited.
The situations above are normal condi
-
tions when ECO mode is activated to
help improve electric energy efficiency.
SPORT mode
SPORT mode is a driving mode improv
-
ing driving performance by fixing AWD
system.
In SPORT mode, the electric energy effi
-
ciency may decrease.
When SPORT mode is selected, the
SPORT indicator will appear on the
instrument cluster and the color of the
mood lamp will change.
SNOW mode
SNOW mode is a driving mode improv
-
ing driving performance by changing
the engagement status of the motor
according to the situation required. Auto
changing the driving mode (2WD/AWD)
helps improve driving stability.
僅 Press and hold the drive mode button
to select SNOW mode.
僅 When SNOW mode is selected, the
SNOW indicator will appear on the
instrument cluster and the color of the
mood lamp will change.
僅 When SNOW mode is activated, the
driving power is distributed to four
wheels automatically, increasing the
stability of the vehicle.
WARNING
僅 Depress the accelerator pedal softly
on the snow and the ice.
僅 Keep appropriate distance from the
vehicle in the front.
僅 Prevent rapid acceleration, decelera
-
tion and steering control. Abrupt driv
-
ing on the snow may cause the
accident.
GT mode
GT mode Provides sportier and firm rid
-
ing for maximum performance.
In GT mode, the electric energy effi
-
ciency may decrease.
When GT mode is selected, the GT indi
-
cator will appear on the instrument clus
-
ter and the color of the mood lamp will
change.
When GT mode is selected, automati
-
cally changed to ESC off State 1 and the
ESC OFF indicator light (ESC OFF )
comes on.
MY DRIVE mode
In MY DRIVE mode, the driver can select
separate modes and combine them on
the infotainment system screen. Press
the GT button.
39
6
6
Driving your vehicle Drive mode integrated control system
Initial setting for each DRIVE MODE
* It is possible to set the driving condition for each drive mode, at the drive mode setting in Infotainment system, For more information,
refer to the separately supplied manual.
* : Press the
GT
button.
DRIVE MODE SNOW NORMAL ECO SPORT GT
*
MY DRIVE
*
Characteristics Snow driving
Normal driving
mode
High electric
energy efficiency
mode
Sporty driving
mode
More sportier
and firm riding
mode
Adjusts modes of
each driving system
Button activation
Press more than
1 second
Press Press Press Press Press
Cluster indicator
SNOW NORMAL ECO SPORT GT MY
Climate system
control
NORMAL NORMAL ECO
/
NORMAL NORMAL NORMAL NORMAL
Speed Limit - - - - - -
Regenerative
braking level
0~1 0~3
Brake mode
NORMAL
NORMAL
/
SPORT
NORMAL
NORMAL
/
SPORT
-
NORMAL
/
SPORT
Driving your vehicle
406
Drift Mode (For GT)
Drift Mode (For GT)
Drift Mode is a driving mode that auto
-
matically activates rear wheels (2WD)
and brakes or Electronic Limited Slip Dif
-
ferential (e-LSD) to easily achieve drift
with a small steering wheel angle and
accelerator pedal.
Operation
僅 Pull and hold the left and right paddle
shift levers simultaneously for more
than 3 seconds.
僅
Drift Mode activated
message and
the Drift Mode indicator light (
DRIFT
)
will appear on the instrument cluster.
Operating condition(s)
All of the following conditions should be
satisfied:
僅Gear in P (Park)
僅 ESC OFF is in state 2 (Push and hold
the ESC OFF button for approximately
3~5 seconds)
僅 The drive mode is in SPORT or GT
mode
僅 Fully depressing the brake pedal
Non-operating condition(s)
Drift Mode will be canceled or limited
when:
僅 During Drift Mode operation, Drive
mode is changed to a mode other
than SPORT or GT mode
僅 During Drift Mode operation, Pulling
and holding the left and right paddle
shift levers simultaneously for more
than 3 seconds
僅 ESC OFF state 2 is released
僅 The power down indicator light ( )
or service warning indicator light
( ) is appeared
僅 The ESC or e-LSD indicator is
appeared
WARNING
僅 The driver should hold the responsi
-
bility to safely drive and control the
vehicle when using Drift Mode.
僅 Use Drift Mode in wide and flat road
surfaces without any pedestrians,
vehicles or obstacles for the safety of
vehicles and pedestrians.
僅 Always look ahead cautiously to pre
-
vent unexpected and sudden situa
-
tions from occurring.
僅 If you drive in Drift Mode continu
-
ously, it may cause premature wear or
damage to your tires, driveshafts,
brake components and reduction
gear.
41
6
6
Driving your vehicle Maximum Power Output Mode (For GT)
Maximum Power Output Mode
(For GT)
Maximum Power Output Mode opti
-
mizes temperature of power electric sys
-
tems including high voltage battery to
provide high acceleration performance
of the GT. Available power output will be
displayed on the split screen when this
mode is activated.
Operation
僅 Select
Maximum Power Output
Mode
on the infotainment system.
Maximum Power Output Mode can be
turned on and off with the button on
the infotainment system screen.
僅 Maximum Power Output Mode will
automatically deactivate when the
vehicle is turned off (
READY
indicator
off).
Operating condition(s)
Maximum Power Output Mode will be
activated when all of the following con
-
ditions are satisfied.
僅 Vehicle is in ON position (
READY
indi
-
cator on)
僅 High-voltage battery is charged more
than approximately 70%
僅 Power electric system is in normal
condition
If one of the following conditions are not
satisfied, Maximum Power Output Mode
will automatically turn off and the button
will be deactivated.
WARNING
When Maximum Power Output Mode is
activated, the thermal optimization of
vehicle's power electric system may con
-
sume additional power, which may
affect the range and the performance of
the vehicle.
Driving your vehicle
426
All wheel drive (AWD)
All wheel drive (AWD) (if
equipped)
When All Wheel Drive (AWD) is activated,
driving forces are distributed appropri
-
ately to front and rear wheels. It could
improve driving performance by maxi
-
mizing the driving force of vehicles on
severe road conditions such as steep
hills, unpaved, slippery, etc.
Advantage of electronic AWD
僅 Improvement of straight stability
僅 Improvement of driving performance
on curve
僅 Secure stability on severe condition
such as wet and sandy roads.
僅 Improvement of energy efficiency
from driving mode automatic control.
For safe AWD operation
Before driving
僅 Make sure all passengers are wearing
seat belts.
僅 Sit upright and closer to the steering
wheel than usual. Adjust the steering
wheel to a position comfortable for
you to drive.
Driving on snow-covered or icy
roads
僅 Start off slowly by applying the accel
-
erator pedal gently.
僅 Use snow tires or tire chains.
僅 Keep sufficient distance between your
vehicle and the vehicle in front of you.
僅 Using the regenerative braking helps
the steering on the downhill. However
it is difficult to adjust the vehicle while
coasting, so avoid using the third level
of regenerative braking as much as
possible.
僅 Avoid speeding, rapid acceleration,
sudden brake applications, and sharp
turns to prevent skids.
僅 It is difficult to start again if the vehicle
stops on an uphill road. Keep your dis
-
tance from other vehicles and drive
slowly.
Driving in sand or mud
僅 Maintain a slow, constant speed.
僅 Use tire chains driving in mud if nec
-
essary.
僅 Keep sufficient distance between your
vehicle and the vehicle in front of you.
僅 Reduce vehicle speed and always
check the road condition.
僅 Avoid speeding, rapid acceleration,
sudden brake applications, and sharp
turns to prevent getting stuck.
Driving up or down hills
僅 Driving uphill
- Before starting off, check if it is
possible to drive uphill.
- Drive as straight as possible.
僅 Driving downhill
- Do not change gear while driving
downhill. Select gear before driving
downhill.
- Drive straight as possible.
Driving through water
僅 Try to avoid driving in deep standing
water.
僅 If you need to drive in water, stop
your vehicle, set the vehicle in Multi
Terrain mode and drive under 5 mph
(8 km/h).
43
6
6
Driving your vehicle All wheel drive (AWD)
僅 Do not change gear while driving in
water.
Additional driving conditions
僅 Become familiar with the off-road
conditions before driving.
僅 Always pay attention when driving
off-road and avoid dangerous areas.
僅 Drive slowly when driving in heavy
wind.
僅 Reduce vehicle speed when corner
-
ing. The center of gravity of AWD
vehicles is higher than conventional
2WD vehicles, making them more
likely to roll over when you rapidly
turn corners.
僅 Always hold the steering wheel firmly
when you are driving off-road.
WARNING
僅 If the AWD warning light ( ) stays on
the instrument cluster, your vehicle
may have a malfunction with the AWD
system. When the AWD warning light
( ) appears, have your vehicle
checked by an authorized Kia dealer.
僅 Do not drive in conditions that exceed
the vehicles intended design such as
challenging off-road conditions.
僅 Avoid high speeds when cornering or
turning.
僅 Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.
僅 The risk of a rollover is greatly
increased if you lose control of your
vehicle at highway speeds.
僅 Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.
僅 In the event your vehicle leaves the
roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.
僅 Exercise extreme caution when driv
-
ing up or down steep hills. The vehicle
may flip depending on the grade, ter
-
rain and water/mud conditions.
僅 Do not grab the inside of the steering
wheel when you are driving off-road.
You may hurt your arm by a sudden
steering maneuver or from steering
wheel rebound due to an impact with
objects on the ground. You could lose
control of the steering wheel which
may lead to serious injury or death.
CAUTION
Always drive slowly in water. If you drive
too fast, water may get into the motor
compartment, causing your vehicle to
suddenly stop.
NOTICE
僅 Do not drive in water if the level is
higher than the center of the wheel.
僅 Check your brake condition once you
are out of mud or water. Depress the
brake pedal several times as you
move slowly until you feel normal
braking return.
僅 Shorten your scheduled maintenance
interval if you drive in off-road condi
-
tions such as sand, mud or water
(refer to "Scheduled maintenance ser
-
vice" on page 9-7.)
僅 Make sure that AWD vehicle is towed
by a flatbed tow truck.
僅 AWD vehicles could change the
engagement status of the motor
according to the situation required.
Auto changing the driving mode
Driving your vehicle
446
All wheel drive (AWD)
(2WD/AWD) helps improve energy
efficiency and driving stability.
僅When the vehicle is stuck in snow,
sand or mud, place a non-slip material
under the drive wheels to provide
traction OR slowly spin the wheels in
forward and reverse directions which
causes a rocking motion that may free
the vehicle.
僅 When putting the tire chains to the
tire, be sure to attach the chain to the
two rear wheels. In this case, drive
below 20 mph (30 km/h) and mini
-
mize the driving distance. High-speed
or long-term driving with putting the
tire chains may cause malfunction or
damage to the all-wheel drive.
僅 If tire chains must be used, use fabric
snow chain and install the tire chain
after reviewing the instructions pro
-
vided with the tire chains. For more
information on Snow Tires and Tire
Chains, refer to "Winter driving" on
page 6-51.
Emergency precautions
Tires
When replacing the tires, be sure to
equip all four tires with the tire and
wheel of the same size, type, tread,
brand and load-carrying capacity.
In case of emergency such as tire punc
-
ture, repair it using TMK (Tire Mobility
Kit) for temporary use. Afterwards, have
the tire be inspected by an authorized
Kia dealer.
Towing
AWD vehicles must be towed with a
wheel lift and dollies or flatbed equip
-
ment with all the wheels off the ground.
For more information, refer to "Towing"
on page 8-17.
Vehicle inspection
僅 When the vehicle is on a car lift, do not
operate the front and rear wheels
separately. All four wheels should be
operated.
僅 Never engage the parking brake while
running the vehicle on a car lift. This
may damage the AWD system.
Dynamometer testing
AWD vehicle must be tested on a special
four wheel chassis dynamometer.
If a 2WD roll tester must be used, per
-
form the following procedure.
僅 A: Roll tester (Speedometer)
僅 B: Temporary free roller
Operation
1. Check the tire pressures recom
-
mended for your vehicle.
2. Place the rear wheels on the roll tester
for a speedometer test as shown in
the illustration.
3. Release the parking brake.
4. Place the front wheels on the tempo
-
rary free roller as shown in the illustra
-
tion.
WARNING
僅 Do not use tire and wheel with differ
-
ent size and type from the one origi
-
nally installed on your vehicle. It can
affect the safety and performance of
your vehicle, which could lead to
steering failure or rollover causing
serious injury.
OCV061004L
45
6
6
Driving your vehicle Active air flap
僅 Never start or run the vehicle while
AWD vehicle is raised on a jack. The
vehicle can slip or roll off of a jack
causing serious injury or death to you
or those nearby.
僅 Keep away from the front of the vehi
-
cle while the vehicle is in gear on the
dynamometer. The vehicle can jump
forward and cause serious injury or
death.
Active air flap
Active air flap system controls the air
flap below the front bumper to cool the
vehicle parts and improve energy econ
-
omy.
Active air flap malfunction
A:
Check Active Air Flap System
The active air flap system may not oper
-
ate normally if the air flap is temporarily
opened due to foreign factors or if the
controller is contaminated by snow or
rain, etc.
When the message is popped up on the
display, stop the vehicle in a safe place
and check the status of the air flap.
Start the vehicle after performing the
necessary work like foreign matter
removal and waiting 10 minutes. If the
pop-up remains up, have the vehicle
inspected by an authorized Kia dealer.
CAUTION
僅 Regardless of the warning message
display, if the air flaps are visually
asymmetrical (vehicles with exposed
flap applied), turn off the engine and
restart after about 10 minutes to
inspect the air flap.
OCV041202N
OCV041192L
Driving your vehicle
466
Vehicle auto-shut off function
僅 The active air flap system is actuated
by motors. Do not disturb actuation or
apply force excessively. It may cause
failure.
NOTICE
Active air flap system could be activate
regardless of the vehicle condition.
(Parking, driving, charging, etc.)
Vehicle auto-shut off function
If you forget to turn off the vehicle for a
period of time, Vehicle shuts off auto
-
matically to prevent waste electric
power.
A:
Vehicle will be turned dff automati
-
cally in:
B:
Reset
Operating conditions
Vehicle Auto-Shut Off timer activates
when the following conditions are met.
僅 Not Auto-Shut Off timer reset condi
-
tion
- Vehicle is not in EV READY state
(Only Ignition On) or the Utility
Mode is on
- Gear shift other than P (Park)
- Stepped on the brake pedal instead
of the accelerator pedal
- Fastened driver's seat belt and pas
-
senger's seat belt
- Passenger's seat is occupied
- The vehicle moves (vehicle speed is
above 2 mph (3 km/h))
- When Auto-Shut Off timer is left
10minutes, the user setting mode
pops up in the instrument cluster.
And you can check the time left. If
you push the 'OK' button, Auto-
Shut off timer is reset.
僅 Head unit is not updating
僅 Outside of vehicle charging connector
engaged or exterior V2L used
OCV051274N
47
6
6
Driving your vehicle Special driving conditions
僅If you want to deactivate auto-shut off
function during interior V2L, use the
Utility Mode
System operation
If the system meets operating conditions
after 90 minutes, vehicle shuts off auto
-
matically.
Special driving conditions
If driving conditions deteriorate due to
poor weather or road conditions, you
should pay even more attention than
usual to your driving.
Hazardous driving conditions
When hazardous driving conditions are
encountered such as water, snow, ice,
mud, sand, or similar hazards, follow
these suggestions:
僅 Drive cautiously and allow extra dis
-
tance for braking.
僅 Avoid sudden braking or steering.
僅 When braking with non-ABS brakes
pump the brake pedal with a light up-
and-down motion until the vehicle is
stopped.
僅 Do not pump the brake pedal on a
vehicle equipped with ABS.
僅 If stalled in snow, mud, or sand, use
the second gear. Accelerate slowly to
avoid spinning the drive wheels.
僅 Use sand, rock salt, or other nonslip
material under the drive wheels to
provide traction when stalled in ice,
snow, or mud.
Reducing the risk of a rollover
This multi-purpose passenger vehicle is
defined as a Sport Utility vehicles (SUV).
Utility vehicles have a significantly
higher rollover rate than other types of
vehicles. SUV's have higher ground
clearance and a narrower track to make
them capable of performing in a wide
variety of offroad applications.
Specific design characteristics give them
a higher center of gravity than ordinary
vehicles. An advantage of the higher
ground clearance is a better view of the
Driving your vehicle
486
Special driving conditions
road, which allows you to anticipate
problems.
They are not designed for cornering at
the same speeds as conventional pas
-
senger vehicles, any more than low-
slung sports vehicles are designed to
perform satisfactorily in off-road condi
-
tions. Due to this risk, driver and passen
-
gers are strongly recommended to
buckle their seat belts.
In a rollover crash, an unbelted person is
significantly more likely to die than a
person wearing a seat belt. There are
steps that a driver can make to reduce
the risk of a rollover.
If at all possible, avoid sharp turns or
abrupt maneuvers, do not load your roof
rack with heavy cargo, and never modify
your vehicle in any way.
WARNING
Rollover
As with other Sports Utility Vehicle
(SUV), failure to operate this vehicle cor
-
rectly may result in loss of control, an
accident or vehicle rollover.
僅 SUVs have a significantly higher roll
-
over rate than other types of vehicles.
僅 Specific design characteristics (higher
ground clearance, narrower track,
etc.) give this vehicle a higher center
of gravity than ordinary vehicles.
僅 A SUV is not designed for cornering at
the same speeds as conventional
vehicles.
僅 Avoid sharp turns or abrupt maneu
-
vers.
僅 In a rollover crash, an unbelted person
is significantly more likely to die than
a person wearing a seat belt. Make
sure everyone in the vehicle is prop
-
erly buckled up.
WARNING
Your vehicle is equipped with tires
designed to provide safe riding and han
-
dling capability. Do not use a size and
type of tire and wheel that is different
from the one that is originally installed
on your vehicle. It can affect the safety
and performance of your vehicle, which
could lead to steering failure or rollover
and serious injury. When replacing the
tires, be sure to equip all four tires with
the tire and wheel of the same size, type,
tread, brand and load-carrying capacity.
If you nevertheless decide to equip your
vehicle with any tire/wheel combination
not recommended by Kia for off road
driving, you should not use these tires
for highway driving.
Rocking the vehicle
If it is necessary to rock the vehicle to
free it from snow, sand, or mud, first
turn the steering wheel right and left to
clear the area around your front wheels.
Then, shift back and forth between R
(Reverse) and any forward gear.
Do not race the vehicle, and spin the
wheels as little as possible. If you are still
stuck after a few tries, have the vehicle
pulled out by a tow vehicle to avoid vehi
-
cle overheating and possible damage to
the reduction gear.
WARNING
Sudden Vehicle Movement
Do not attempt to rock the vehicle if
people or objects are nearby. The vehi
-
cle may suddenly move forward or
backwards as it becomes unstuck.
49
6
6
Driving your vehicle Special driving conditions
WARNING
Vehicle Rocking
Prolonged rocking may cause vehicle
overheating, reduction gear damage or
failure, and tire damage.
WARNING
Spinning Tires
Do not spin the wheels, especially at
speeds more than 35 mph (56 km/h).
Spinning the wheels at high speeds
when the vehicle is stationary could
cause tires to overheat, which could
result in tire damage that may injure
bystanders.
The ESC system should be turned OFF
prior to rocking the vehicle.
Smooth cornering
Avoid braking or gear changing in cor
-
ners, especially when roads are wet. Ide
-
ally, corners should always be taken
under gentle acceleration. If you follow
these suggestions, tire wear will be held
to a minimum.
Driving at night
Because night driving presents more
hazards than driving in the daylight,
here are some important tips to remem
-
ber:
僅 Slow down and keep more distance
between you and other vehicles, as it
may be more difficult to see at night,
especially in areas where there may
not be any street lights.
僅 Adjust your mirrors to reduce the
glare from other driver's headlights.
僅 Keep your headlights clean and prop
-
erly aimed. (On vehicles not equipped
with the automatic headlight aiming
feature.) Dirty or improperly aimed
headlights will make it much more dif
-
ficult to see at night.
僅 Avoid staring directly at the head
-
lights of oncoming vehicles. You could
be temporarily blinded, and it will take
several seconds for your eyes to read
-
just to the darkness.
Driving in the rain
Rain and wet roads can make driving
dangerous, especially if you're not pre
-
pared for the slick pavement.
Here are a few things to consider when
driving in the rain:
僅 A heavy rainfall will make it harder to
see and will increase the distance
needed to stop your vehicle, so slow
down.
僅 Keep your windshield wiping equip
-
ment in good shape. Replace your
windshield wiper blades when they
show signs of streaking or missing
areas on the windshield.
僅 If your tires are not in good condition,
making a quick stop on wet pavement
can cause a skid and possibly lead to
an accident. Be sure your tires are in
good shape.
僅 Turn on your headlights to make it
easier for others to see you.
僅 Driving too fast through large puddles
can affect your brakes. If you must go
through puddles, try to drive through
them slowly.
僅 If you believe you may have gotten
your brakes wet, apply them lightly
while driving until normal braking
operation returns.
Driving your vehicle
506
Special driving conditions
Driving in flooded areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel
hub. Drive through any water slowly.
Allow adequate stopping distance
because brake performance may be
affected.
After driving through water, dry the
brakes by gently applying them several
times while the vehicle is moving slowly.
If the brake system is wet and has
reduced braking effect or frequent
sounds when braking, adjust the setting
for the regenerative braking to '0' speed
with paddle shifter and apply the brake
pedal lightly several times. Maintain a
safe distance to dry the brake system.
Setting the regenerative braking to '0'
may reduce efficiency while braking sev
-
eral times for brake performance, but
this is normal. The regenerative braking
system will be normally operated after
-
wards.
Driving off-road
Drive carefully off-road because your
vehicle may be damaged by rocks or
roots of trees. Become familiar with the
off-road conditions where you are going
to drive before you begin driving.
Highway driving
Tires
Adjust the tire inflation pressures to
specification. Low tire inflation pressures
will result in overheating and possible
failure of the tires.
Avoid using worn or damaged tires
which may result in reduced traction or
tire failure.
Never exceed the maximum tire inflation
pressure shown on the tires.
WARNING
Under/Overinflated Tires
Always check the tires for proper infla
-
tion before driving. Underinflated or
overinflated tires can cause poor han
-
dling, loss of vehicle control, and sudden
tire failure leading to accidents, injuries,
and even death. For proper tire pres
-
sures, refer to "Tires and wheels" on
page 10-4.
WARNING
Tire Tread
Always check the tire tread before driv
-
ing your vehicle. Worn-out tires can
result in loss of vehicle control. Worn-out
tires should be replaced as soon as pos
-
sible. For further information and tread
limits, refer to "Tires and wheels" on
page 9-19.
51
6
6
Driving your vehicle Winter driving
Winter driving
Severe weather conditions in the winter
result in greater wear and other prob
-
lems.
To minimize the problems of winter driv
-
ing, you should follow these sugges
-
tions:
Snowy or icy conditions
To drive your vehicle in deep snow, it
may be necessary to use snow tires or to
install tire chains on your tires.
If snow tires are needed, it is necessary
to select tires equivalent in size and type
of the original equipment tires. Failure to
do so may adversely affect the safety
and handling of your vehicle. Further
-
more, speeding, rapid acceleration, sud
-
den brake applications, and sharp turns
are potentially very hazardous practices.
During deceleration, use vehicle braking
to the fullest extent. Sudden brake appli
-
cations on snowy or icy roads may cause
skids to occur. You need to keep suffi
-
cient distance between the vehicle in
operation in front of your vehicle. Also,
apply the brake gently. It should be
noted that installing tire chains on the
tire will provide a greater driving force,
but will not prevent side skids.
Tire chains are not legal in all states.
Check state laws before fitting tire
chains.
Snow tires
If you mount snow tires on your vehicle,
make sure they are radial tires of the
same size and load range as the original
tires. Mount snow tires on all four wheels
to balance your vehicle's handling in all
weather conditions. Keep in mind that
the traction provided by snow tires on
dry roads may not be as high as your
vehicle's original equipment tires. You
should drive cautiously even when the
roads are clear. Check with the tire
dealer for maximum speed recommen
-
dations.
Do not install studded tires without first
checking local, state and municipal reg
-
ulations for possible restrictions against
their use.
WARNING
Snow Tire Size
Snow tires should be equivalent in size
and type to the vehicle's standard tires.
Otherwise, the safety and handling of
your vehicle may be adversely affected.
Tire chains
When using tire chains, install tire chains
only on the rear tires.
Since the sidewalls of radial tires are
thinner, they can be damaged by
mounting some types of snow chains on
them. Therefore, the use of snow tires is
recommended instead of snow chains.
Do not mount tire chains on vehicles
equipped with aluminum wheels; snow
chains may cause damage to the
wheels. If snow chains must be used, use
fabric type snow chains to prevent dam
-
age to your vehicle. Damage to your
vehicle caused by improper snow chain
use is not covered by your vehicle man
-
ufacturer's warranty.
Install tire chains only on the rear tires.
OCV051103L
Driving your vehicle
526
Winter driving
Always check chain installation for
proper mounting after driving approxi
-
mately 0.3~0.6 miles (0.5~1 km) to
ensure safe mounting. Retighten or
remount the chains if they are loose.
Chain installation
When installing chains, follow the manu
-
facturer's instructions and mount them
as tightly as possible. Drive slowly (less
than 20 mph (30 km/h)) with chains
installed. If you hear the chains contact
-
ing the body or chassis, stop and tighten
them. If they still make contact, slow
down until it stops. Remove the chains
as soon as you begin driving on cleared
roads.
When mounting snow chains, park the
vehicle on level ground away from traf
-
fic. Turn on the vehicle Hazard Warning
flashers and place a triangular emer
-
gency warning device behind the vehicle
if available. Always place the vehicle in P
(Park), apply the parking brake and turn
off the vehicle before installing snow
chains.
僅 The use of chains may adversely
affect vehicle handling.
僅 Do not exceed 20 mph (30 km/h) or
the chain manufacturer's recom
-
mended speed limit, whichever is
lower.
僅 Drive carefully and avoid bumps,
holes, sharp turns, and other road
hazards, which may cause the vehicle
to bounce.
僅 Avoid sharp turns or locked-wheel
braking.
CAUTION
Snow Chains
僅 Chains that are the wrong size or
improperly installed can damage your
vehicle's brake lines, suspension,
body and wheels.
僅 Stop driving and retighten the chains
any time you hear them hitting the
vehicle.
Use high quality ethylene glycol
coolant
Your vehicle is delivered with high qual
-
ity ethylene glycol coolant in the cooling
system. It is the only type of coolant that
should be used because it helps prevent
corrosion in the cooling system, lubri
-
cates the water pump and prevents
freezing. Be sure to replace or replenish
your coolant refer to "Scheduled mainte
-
nance service" on page 9-7. Before win
-
ter, have your coolant tested to assure
that its freezing point is sufficient for the
temperatures anticipated during the
winter.
Check 12V battery and cables
Winter puts additional burdens on the
battery system. Visually inspect the 12V
battery and cables (refer to "12V battery"
on page 9-17). The level of charge in
your battery can be checked by an
authorized Kia dealer or a service sta
-
tion.
To keep locks from freezing
To keep the locks from freezing, squirt
an approved de-icer fluid or glycerine
into the key opening. If a lock is covered
with ice, squirt it with an approved de-
icing fluid to remove the ice. If the lock is
frozen internally, you may be able to
thaw it out by using a heated key. Han
-
dle the heated key with care to avoid
injury.
53
6
6
Driving your vehicle Winter driving
Use approved window washer
anti-freeze in system
To keep the water in the window washer
system from freezing, add an approved
window washer anti-freeze solution in
accordance with instructions on the con
-
tainer. Window washer anti-freeze is
available from an authorized Kia dealer
and most auto parts outlets. Do not use
vehicle coolant or other types of anti-
freeze as these may damage the paint
finish.
Don't let your parking brake
freeze
Under some conditions your parking
brake can freeze in the engaged posi
-
tion. This is most likely to happen when
there is an accumulation of snow or ice
around or near the rear brakes or if the
brakes are wet. If there is a risk the park
-
ing brake may freeze, apply it only tem
-
porarily while you put the gear shifter
dial in P (Park) and block the rear wheels
so the vehicle cannot roll. Then release
the parking brake.
Don't let ice and snow accumu
-
late underneath
Under some conditions, snow and ice
can build up under the fenders and
interfere with the steering. When driving
in severe winter conditions where this
may happen, you should periodically
check underneath the vehicle to be sure
the movement of the front wheels and
the steering components are not
obstructed.
Carry emergency equipment
Depending on the severity of the
weather, you should carry appropriate
emergency equipment. Some of the
items you may want to carry include tow
straps or chains, flashlight, emergency
flares, sand, shovel, jumper cables, win
-
dow scraper, gloves, ground cloth, cov
-
eralls, blanket, etc.
Driving your vehicle
546
Trailer towing
Trailer towing (if equipped)
If you are considering towing with your
vehicle, you should first check with your
country's Department of Motor Vehicles
to determine their legal requirements.
Since laws vary the requirements for
towing trailers, cars, or other types of
vehicles or apparatus may differ. Ask an
authorized Kia dealer.
WARNING
Towing a Trailer
If you don't use the correct equipment
and drive improperly, you can lose con
-
trol when you pull a trailer. For example,
if the trailer is too heavy, the brakes may
not work well - or even at all. You and
your passengers could be seriously or
fatally injured. Pull a trailer only if you
have followed all the steps in this sec
-
tion.
WARNING
Weight Limits
Before towing, make sure the total trailer
weight, gross combination weight, gross
vehicle weight, gross axle weight and
trailer tongue load are all within the lim
-
its.
CAUTION
Any part of the rear number plate or
lighting devices of the vehicle must not
be obscured by the mechanical coupling
device. If the rear number plate and/or
lighting devices can be obscured par
-
tially by any part of the mechanical cou
-
pling device, mechanical coupling
devices that can not be easily removed
or repositioned without use of any
tool, except an easily operated (i.e. an
effort not exceeding 20 N·m) release key
which is supplied by the manufacturer of
the coupling device, are not permitted
for use. Please note that the mechanical
coupling device that is fitted and not in
use must always be removed or reposi
-
tioned if the rear number plate and/or
rear lighting devices are obscured by
any part of the mechanical coupling
device.
NOTICE
僅 The technically permissible maximum
load on the rear axle(s) may be
exceeded by not more than 15% and
the technically permissible maximum
laden mass of the vehicle may be
exceeded by not more than 10% or
220.4 lbs (100 kg), whichever value is
lower. In this case, do not exceed 60
mph (100 km/h) for vehicle of cate
-
gory M1 or 50 mph (80 km/h) for
vehicle of category N1.
僅 When towing a trailer, the additional
load imposed at the trailer coupling
device may cause the rear tire maxi
-
mum load ratings to be exceeded, but
not by more than 15%. In such a case,
do not exceed 60 miles (100 km/h),
and the rear tire pressure should be at
least 0.2 bar (20 kPa) above the tire
pressure(s) as recommended for nor
-
mal use (i.e. without a trailer
attached).
CAUTION
Pulling a trailer improperly can damage
your vehicle and result in costly repairs
not covered by your warranty. To pull a
trailer correctly, follow the advice in this
section.
Your vehicle can tow a trailer. To identify
what the vehicle trailering capacity is for
55
6
6
Driving your vehicle Trailer towing
your vehicle, refer to "Weight of the
trailer" on page 6-59 that appears later
in this section.
Remember that trailering is different
than just driving your vehicle by itself.
Trailering means changes in handling,
durability, and electric energy economy.
Successful, safe trailering requires cor
-
rect equipment, and it has to be used
properly.
This section contains many time-tested,
important trailering tips and safety rules.
Many of these are important for your
safety and that of your passengers.
Please read this section carefully before
you pull a trailer.
Load-pulling components such as the
motor, reduction gear, wheel assemblies,
and tires are forced to work harder
against the load of the added weight.
The motor is required to operate at rela
-
tively higher speeds and under greater
loads. This additional burden generates
extra heat. The trailer also considerably
adds wind resistance, increasing pulling
requirements.
NOTICE
Location of Trailer Mounting
The mounting hole for hitches are
located on both sides of the underbody
behind the rear tires.
Hitches
It's important to have the correct hitch
equipment. Crosswinds, large trucks
going by, and rough roads are a few rea
-
sons why you'll need the right hitch.
Here are some rules to follow:
僅 Do you have to make any holes in the
body of your vehicle when you install
a trailer hitch? If you do, then be sure
to seal the holes later when you
remove the hitch.
If you don't seal them, dirt and water
can get into your vehicle.
僅 The bumpers on your vehicle are not
intended for hitches. Do not attach
rental hitches or other bumper-type
hitches. Use only a frame-mounted
hitch that does not attach to the
bumper.
僅 Any part of the rear number plate or
lighting devices of the vehicle must
not be obscured by the mechanical
coupling device.
僅If the rear number plate and/or light
-
ing devices can be obscured partially
by any part of the mechanical cou
-
pling device, mechanical coupling
devices that can not be easily
removed or repositioned without use
of any tools, except an easily operated
(i.e. an effort not exceeding 20 Nm)
release key which is supplied by the
manufacturer of the coupling device,
are not permitted for use.
僅 Please note that the mechanical cou
-
pling device that is fitted and not in
use must always be removed or repo
-
sitioned if the rear number plate and/
or rear lighting devices are obscured
by any part of the mechanical cou
-
pling device.
僅 Kia trailer hitch accessory is available
at an authorized Kia dealer.
Safety chains
You should always attach chains
between your vehicle and your trailer.
Cross the safety chains under the
OCV051025N
Driving your vehicle
566
Trailer towing
tongue of the trailer so that the tongue
will not drop to the road if it becomes
separated from the hitch.
Instructions about safety chains may be
provided by the hitch manufacturer or
by the trailer manufacturer. Follow the
manufacturer's recommendation for
attaching safety chains. Always leave
just enough slack so you can turn with
your trailer. And, never allow safety
chains drag on the ground.
Trailer brakes
If your trailer is equipped with a braking
system, make sure it conforms to your
country's regulations and that it is prop
-
erly installed and operating correctly.
If your trailer weighs more than the max
-
imum trailer weight without trailer
brakes loaded, then it needs its own
brakes and they must be adequate. Be
sure to read and follow the instructions
for the trailer brakes so you'll be able to
install, adjust and maintain them prop
-
erly.
僅 Don't tap into your vehicle's brake
system.
WARNING
Trailer Brakes
Do not use a trailer with its own brakes
unless you are absolutely certain that
you have properly set up the brake sys
-
tem. This is not a task for amateurs. Use
an experienced, competent trailer shop
for this work.
Driving with a trailer
Towing a trailer requires a certain
amount of experience. Before setting
out for the open road, you must get to
know your trailer. Acquaint yourself with
the feel of handling and braking with the
added weight of the trailer. And always
keep in mind that the vehicle you are
driving is now a good deal longer and
not nearly so responsive as your vehicle
is by itself.
Before you start, check the trailer hitch
and platform, safety chains, electrical
connector(s), lights, tires and mirror
adjustment. If the trailer has electric
brakes, start your vehicle and trailer
moving and then apply the trailer brake
controller by hand to be sure the brakes
are working. This lets you check your
electrical connection at the same time.
During your trip, check occasionally to
be sure that the load is secure, and that
the lights and trailer brakes are still
working.
Following distance
Stay at least twice as far behind the
vehicle ahead as you would when driv
-
ing your vehicle without a trailer. This
can help you avoid situations that
require heavy braking and sudden turns.
Passing
You'll need more passing distance up
ahead when you're towing a trailer. And,
because of the increased vehicle length,
you'll need to go much farther beyond
the passed vehicle before you can return
to your lane.
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, just move your hand to the
left. To move the trailer to the right,
move your hand to the right. Always
back up slowly and, if possible, have
someone guide you.
57
6
6
Driving your vehicle Trailer towing
Making turns
When you're turning with a trailer, make
wider turns than normal. Do this so your
trailer won't strike soft shoulders, curbs,
road signs, trees, or other objects. Avoid
jerky or sudden maneuvers. Signal well
in advance.
Turn signals when towing a
trailer
When you tow a trailer, your vehicle has
to have a different turn signal flasher
and extra wiring. The green arrows on
your instrument panel will flash when
-
ever you signal a turn or lane change.
Properly connected, the trailer lights will
also flash to alert other drivers you're
about to turn, change lanes, or stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer are
burned out. Thus, you may think drivers
behind you are seeing your signals
when, in fact, they are not. It's important
to check occasionally to be sure the
trailer bulbs are still working. You must
also check the lights every time you dis
-
connect and then reconnect the wires.
Do not connect a trailer lighting system
directly to your vehicle's lighting system.
Use only an approved trailer wiring har
-
ness.
Have yourself assisted by a professional
authorized Kia dealer in installing the
wiring harness.
Visit an authorized Kia dealer.
WARNING
Failure to use an approved trailer wiring
harness could result in damage to the
vehicle electrical system and/or personal
injury.
Detection of trailer light connec
-
tion
This functionality is only given with gen
-
uine accessories (tow bar and wiring
harness) that recognize when a trailer is
connected and consequently inform the
vehicle systems. Trailer recognition
works as follows: when a trailer socket is
plugged in, either the brake pedal shall
be pushed or turn signal lamps acti
-
vated; the electronic control unit will
then detect the trailer because of the
power consumption by the trailer light
-
ing and inform the vehicle systems.
When the trailer is disconnected, the
brake pedal shall be pushed again or
turn signal lamps activated for the con
-
trol unit to be able to detect that there is
no power consumption anymore by
trailer lighting; the assistance systems
that were turned off will automatically
turn on again.
It is the driver's responsibility to ensure
that all electrical connections are work
-
ing and all trailer lights are operating
before and during towing. You must per
-
form manual checks.
CAUTION
Use only genuine electrical connections.
Do not attempt to arbitrarily splice or
directly connect the trailer wiring using
any other methods. Doing so may dam
-
age the vehicle's electrical system,
resulting in malfunctions.
Driving on grades
Reduce the speed and shift to a lower
gear before you start down a long or
steep downgrade. If you don't shift
down, you might have to use your
brakes so much that they would get hot
and no longer operate efficiently.
Driving your vehicle
586
Trailer towing
On a long uphill grade, shift down and
reduce your speed to around 45 mph
(70 km/h) to reduce the possibility of
motor and reduction gear overheating.
CAUTION
僅 To prevent motor overheating: If you
tow a trailer with the maximum gross
vehicle weight and maximum trailer
weight, it can cause the motor to
overheat. When driving in such condi
-
tions, stop the vehicle until it cools
down. You may proceed once the
motor has cooled sufficiently. When
towing a trailer, your vehicle speed
may be much slower than the general
flow of traffic, especially when climb
-
ing an uphill grade. Use the outer lane
when towing a trailer on an uphill
grade. Choose your vehicle speed
according to the maximum posted
speed limit for vehicles with trailers,
the steepness of the grade, and your
trailer weight.
僅 You must decide the driving speed
depending on trailer weight and uphill
grade to reduce the possibility of
motor and reduction gear overheat
-
ing.
Parking on hills
Generally, if you have a trailer attached
to your vehicle, you should not park your
vehicle on a hill. People can be seriously
or fatally injured, and both your vehicle
and the trailer can be damaged if unex
-
pectedly roll down hill.
WARNING
Parking on a Hill
Parking your vehicle on a hill with a
trailer attached could cause serious
injury or death, should the trailer break
loose.
However, if you ever have to park your
trailer on a hill, here's how to do it:
1. Pull the vehicle into the parking space.
Turn the steering wheel in the direc
-
tion of the curb (right if headed down
hill, left if headed up hill).
2. Set the parking brake and shut off the
vehicle.
3. Place chocks under the trailer wheels
on the down hill side of the wheels.
4. Start the vehicle, hold the brakes, shift
to neutral, release the parking brake
and slowly release the brakes until the
trailer chocks absorb the load.
5. Reapply the brakes, reapply the park
-
ing brake.
6. Shut off the vehicle and release the
vehicle brakes but leave the parking
brake set.
WARNING
Parking Brake
It can be dangerous to get out of your
vehicle if the parking brake is not firmly
set.
If you have left the vehicle running, the
vehicle can move suddenly. You or oth
-
ers could be seriously or fatally injured.
When you are ready to leave
after parking on a hill
1. Apply your brakes and hold the brake
pedal down while you:
僅 Start your vehicle;
僅 Shift into gear; and
僅 Release the parking brake.
2. Slowly remove your foot from the
brake pedal.
59
6
6
Driving your vehicle Trailer towing
3. Drive slowly until the trailer is clear of
the chocks.
4. Stop and have someone pick up and
store the chocks.
Maintenance when trailer towing
Your vehicle will need service more
often when you regularly pull a trailer.
Important items to pay particular atten
-
tion to include reduction gear fluid, axle
lubricant and cooling system fluid. Brake
condition is another important item to
frequently check. Each item is covered in
this manual, and the Index will help you
find them quickly. If you're trailering, it's
a good idea to review these sections
before you start your trip.
Don't forget to also maintain your trailer
and hitch. Follow the maintenance
schedule that accompanied your trailer
and check it periodically. Preferably,
conduct the check at the start of each
day's driving. Most importantly, all hitch
nuts and bolts should be tight.
CAUTION
僅 Due to higher load during trailer
usage, overheating might occur in hot
days or during uphill driving. If the
coolant gauge indicates overheating,
switch off the A/C and stop the vehi
-
cle in a safe area to cool down the
motor.
僅 When towing, check the reduction
gear fluid more frequently.
僅 If your vehicle is not equipped with an
air conditioner, you should install a
condenser fan to improve motor per
-
formance when towing a trailer.
If you do decide to pull a trailer
Here are some important points if you
decide to pull a trailer:
僅 Consider using a sway control. You
can ask a hitch dealer about sway
control.
僅 Do not do any towing with your vehi
-
cle during its first 1,200 miles (2,000
km) in order to allow the motor to
properly break in. Failure to heed this
caution may result in serious motor or
reduction gear damage.
僅 When towing a trailer, consult an
authorized Kia dealer on additional
requirements such as a towing kit, etc.
僅 Always drive your vehicle at a moder
-
ate speed (less than 60 mph (100 km/
h)).
僅 On a long uphill grade, do not exceed
45 mph (70 km/h) or the posted tow
-
ing speed limit, whichever is lower.
僅 The chart contains important consid
-
erations that have to do with weight:
僅 The driving range of electric vehicle is
affected by the weight and the shape
of the trailer. Depending on the trailer,
the driving range can decrease up to
50%.
Weight of the trailer
A: Tongue Load
B: Total Trailer Weight
What is the maximum safe weight of a
trailer? It should never weigh more than
the maximum trailer weight with trailer
brakes. But even that can be too heavy.
It depends on how you plan to use your
trailer. For example, speed, altitude, road
OCV051256N
Driving your vehicle
606
Trailer towing
grades, outside temperature and how
often your vehicle is used to pull a trailer
are all important. The ideal trailer weight
can also depend on any special equip
-
ment that you have on your vehicle.
Weight of the trailer tongue
A: Gross Axle Weight
B: Gross Vehicle Weight
The tongue load of any trailer is an
important weight to measure because it
affects the total gross vehicle weight
(GVW) of your vehicle. This weight
includes the curb weight of the vehicle,
any cargo you may carry in it, and the
people who will be riding in the vehicle.
And if you tow a trailer, you must add
the tongue load to the GVW because
your vehicle will also be carrying that
weight.
The trailer tongue should weigh a maxi
-
mum of 10% of the total loaded trailer
weight, within the limits of the maximum
trailer tongue load permissible.
After you've loaded your trailer, weigh
the trailer and then the tongue, sepa
-
rately, to see if the weights are proper. If
they aren't, you may be able to correct
them simply by moving some items
around in the trailer.
WARNING
Trailer
僅 Never load a trailer with more weight
in the rear than in the front. The front
should be loaded with approximately
60% of the total trailer load; the rear
should be loaded with approximately
40% of the total trailer load.
僅 Never exceed the maximum weight
limits of the trailer or trailer towing
equipment. Improper loading can
result in damage to your vehicle and/
or personal injury. Check weights and
loading at a commercial scale or high
-
way patrol office equipped with
scales.
僅 An improperly loaded trailer can
cause loss of vehicle control.
OCV051257N
61
6
6
Driving your vehicle Trailer towing
Reference weight when towing a trailer
Item Weight (Standard type) Weight (Extended type) Weight (Extended type - GT)
Maximum trailer
weight
With brake system - 2,300 lbs. (1,043 kg) 2,300 lbs. (1,043 kg)
Without brake sys
-
tem
- 1,653 lbs. (750 kg) 1,653 lbs. (750 kg)
Maximum tongue weight - 220 lbs. (100 kg) 220 lbs. (100 kg)
Driving your vehicle
626
Vehicle load limit
Vehicle load limit
The vehicle load limit is displayed
on the tire and loading informa
-
tion label on the driver's door.
Tire and loading information
label
The label located on the driver's
door sill gives the original tire
size, cold tire pressures recom
-
mended for your vehicle, the
number of people that can be in
your vehicle and vehicle capacity
weight.
Vehicle capacity weight:
Standard type: 826 lbs. (375 kg)
Extended type: 826 lbs. (375 kg)
Vehicle capacity weight is the
maximum combined weight of
occupants and cargo. If your
vehicle is equipped with a trailer,
the combined weight includes
the tongue load.
Seating capacity:
Total: 5 persons (Front seat: 2
persons, Rear seat: 3 persons)
Seating capacity is the maximum
number of occupants including a
driver, your vehicle may carry.
However, the seating capacity
may be reduced based upon the
weight of all of the occupants,
and the weight of the cargo
being carried or towed.
Do not overload the vehicle as
there is a limit to the total weight,
or load limit including occupants
and cargo, the vehicle can carry.
Towing capacity:
僅 Standard type: N/A
僅 Extended type
- With brake system: 2,300
lbs. (1,043 kg)
- Without brake system: 1,653
lbs. (750 kg)
Towing capacity is the maximum
trailer weight including its cargo
weight, your vehicle can tow.
Cargo capacity:
The cargo capacity of your vehi
-
cle will increase or decrease
depending on the weight and the
number of occupants.
Steps for Determining Correct
Load Limit -
(1) Locate the statement "The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lbs.'' on your vehi
-
cle's placard.
OCV051258N
63
6
6
Driving your vehicle Vehicle load limit
(2) Determine the combined
weight of the driver and passen
-
gers that will be riding in your
vehicle.
(3) Subtract the combined weight
of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals
the available amount of cargo
and luggage load capacity. For
example, if the "XXX" amount
equals 1400 lbs. and there will be
five 150 lb passengers in your
vehicle, the amount of available
cargo and luggage load capacity
is 650 lbs. (1400-750 (5 x 150) =
650 lbs.)
(5) Determine the combined
weight of luggage and cargo
being loaded on the vehicle. That
weight may not safely exceed
the available cargo and luggage
load capacity calculated in Step
4.
(6) If your vehicle will be towing a
trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity
of your vehicle.
WARNING
Loose Cargo
Do not travel with unsecured
objects in the passenger com
-
partment of your vehicle (e.g. suit
cases or unsecured child seats).
These items may strike an occu
-
pant during a sudden stop or
crash.
Example 1
Example 2
Item Description Total
A
Vehicle Capacity
Weight
849 lbs.
(385 kg)
B
Subtract Occupant
Weight
150 lbs. (68 kg) × 2
300 lbs.
(136 kg)
C
Available Cargo and
Luggage weight
549 lbs.
(249 kg)
OCV051259N
OCV051260N
Driving your vehicle
646
Vehicle load limit
Example 3
Refer to your vehicle's tire and
loading information label for spe
-
cific information about your vehi
-
cle's capacity weight and seating
positions. The combined weight
of the driver, passengers and
cargo should never exceed your
vehicle's capacity weight.
Certification label
The certification label is located
on the driver's door sill at the
center pillar.
This label shows the maximum
allowable weight of the fully
loaded vehicle. This is called the
GVWR (Gross Vehicle Weight
Rating). The GVWR includes the
weight of the vehicle, all occu
-
pants and cargo.
This label also tells you the maxi
-
mum weight that can be sup
-
ported by the front and rear
axles, called Gross Axle Weight
Rating (GAWR).
To find out the actual loads on
your front and rear axles, you
need to go to a weigh station and
weigh your vehicle. Your dealer
can help you with this. Be sure to
spread out your load equally on
both sides of the centerline.
WARNING
Over Loading
Item Description Total
A
Vehicle Capacity
Weight
849 lbs.
(385 kg)
B
Subtract Occupant
Weight
150 lbs. (68 kg) × 5
750 lbs.
(340 kg)
C
Available Cargo and
Luggage weight
99 lbs.
(45 kg)
Item Description Total
A
Vehicle Capacity
Weight
849 lbs.
(385 kg)
B
Subtract Occupant
Weight
161 lbs. (73 kg) × 5
805 lbs.
(365 kg)
C
Available Cargo and
Luggage weight
44 lbs.
(20 kg)
OCV051261N
OSG2EV052180N
65
6
6
Driving your vehicle Vehicle weight
Never exceed the GVWR for your
vehicle, the GAWR for either the
front or rear axle and vehicle
capacity weight. Exceeding these
ratings can affect your vehicle's
handling and braking ability.
The label will help you decide
how much cargo and installed
equipment your vehicle can
carry.
If you carry items inside your
vehicle - like suitcases, tools,
packages, or anything else - they
are moving as fast as the vehicle.
If you have to stop or turn
quickly, or if there is a crash, the
items will keep going and can
cause an injury if they strike the
driver or a passenger.
WARNING
Over Loading
Do not overload your vehicle.
Overloading your vehicle can
cause heat buildup in your vehi
-
cle's tires and possible tire fail
-
ure, increased stopping
distances and poor vehicle han
-
dling--all of which may result in a
crash.
NOTICE
Overloading your vehicle may
cause damage. Repairs would
not be covered by your warranty.
Do not overload your vehicle.
Vehicle weight
This chapter will guide you in the
proper loading of your vehicle
and/or trailer, to keep your
loaded vehicle weight within its
design rating capability, with or
without a trailer.
Properly loading your vehicle will
provide maximum return of the
vehicle design performance.
Before loading your vehicle,
familiarize yourself with the fol
-
lowing terms for determining
your vehicle's weight ratings,
with or without a trailer, from the
vehicle's specifications and the
compliance label:
Base curb weight
This is the
weight of the vehicle including a
full tank of fuel and all standard
equipment. It does not include
passengers, cargo, or optional
equipment.
Vehicle curb weight
This is the
weight of your new vehicle when
you picked it up from your dealer
plus any aftermarket equipment.
Cargo weight
This figure
includes all weight added to the
Base Curb Weight, including
cargo and optional equipment.
GAW (Gross axle weight)
This is
the total weight placed on each
axle (front and rear) - including
vehicle curb weight and all pay
-
load.
Driving your vehicle
666
Vehicle weight
GAWR (Gross axle weight rat
-
ing)
This is the maximum allow
-
able weight that can be carried
by a single axle (front or rear).
These numbers are shown on the
compliance label. The total load
on each axle must never exceed
its GAWR.
GVW (Gross vehicle weight)
This is the Base Curb Weight plus
actual Cargo Weight plus pas
-
sengers.
GVWR (Gross vehicle weight
rating)
This is the maximum
allowable weight of the fully
loaded vehicle (including all
options, equipment, passengers
and cargo). The GVWR is shown
on the certification label located
on the driver's door sill.
7Driver assistance system
Driver assistance system
Forward Collision-Avoidance Assist (FCA) ................................7-4
僅 Forward Collision-Avoidance Assist settings ....................................... 7-6
僅 Forward Collision-Avoidance Assist operation ................................... 7-9
僅 Forward Collision-Avoidance Assist malfunction and
limitations........................................................................................................... 7-16
Lane Keeping Assist (LKA)......................................................... 7-23
僅 Lane Keeping Assist settings ....................................................................7-23
僅 Lane Keeping Assist operation.................................................................7-25
僅 Lane Keeping Assist malfunction and limitations............................7-26
Blind-Spot Collision-Avoidance Assist (BCA) ..........................7-28
僅 Blind-Spot Collision-Avoidance Assist settings................................ 7-30
僅 Blind-Spot Collision-Avoidance Assist operation............................. 7-32
僅 Blind-Spot Collision-Avoidance Assist malfunction and
limitations...........................................................................................................7-34
Safe Exit Warning (SEW) ............................................................7-38
僅 Safe Exit Warning settings.........................................................................7-39
僅 Safe Exit Warning operation .....................................................................7-39
僅 Safe Exit Warning malfunction and limitations ................................ 7-41
Safe Exit Assist (SEA)..................................................................7-42
僅 Safe Exit Assist settings...............................................................................7-43
僅 Safe Exit Assist operation .......................................................................... 7-44
僅 Safe Exit Assist malfunction and limitations ......................................7-45
Manual Speed Limit Assist (MSLA) ...........................................7-47
僅 Manual Speed Limit Assist operation....................................................7-47
Intelligent Speed Limit Assist (ISLA).........................................7-49
僅 Intelligent Speed Limit Assist settings...................................................7-49
僅 Intelligent Speed Limit Assist operation.............................................. 7-50
僅 Intelligent Speed Limit Assist malfunction and limitations..........7-52
Driver Attention Warning (DAW) ..............................................7-54
僅 Driver Attention Warning settings ..........................................................7-55
7 Driver assistance system
僅 Driver Attention Warning operation ......................................................7-55
僅 Driver Attention Warning malfunction and limitations .................7-58
Blind-Spot View Monitor (BVM) ............................................... 7-60
僅 Blind-Spot View Monitor settings .......................................................... 7-60
僅 Blind-Spot View Monitor operation....................................................... 7-60
僅 Blind-Spot View Monitor malfunction.................................................. 7-60
Smart Cruise Control (SCC) ........................................................ 7-61
僅 Smart Cruise Control settings .................................................................. 7-62
僅 Smart Cruise Control operation...............................................................7-66
僅 Smart Cruise Control malfunction and limitations...........................7-71
Navigation-based Smart Cruise Control (NSCC).....................7-76
僅 Navigation-based Smart Cruise Control settings............................7-76
僅 Navigation-based Smart Cruise Control operation ........................ 7-77
僅 Navigation-based Smart Cruise Control limitations.......................7-78
Lane Following Assist (LFA).......................................................7-82
僅 Lane Following Assist settings .................................................................7-82
僅 Lane Following Assist operation..............................................................7-83
僅 Lane Following Assist malfunction and limitations.........................7-84
Highway Driving Assist (HDA).................................................. 7-85
僅 Highway Driving Assist settings..............................................................7-86
僅 Highway Driving Assist operation ..........................................................7-87
僅 Highway Driving Assist malfunction and limitations......................7-92
Rear View Monitor (RVM).......................................................... 7-95
僅 Rear View Monitor settings .......................................................................7-95
僅 Rear View Monitor operation....................................................................7-96
僅 Rear View Monitor malfunction and limitations............................... 7-97
Surround View Monitor (SVM).................................................. 7-98
僅 Surround View Monitor settings..............................................................7-98
僅 Surround View Monitor operation....................................................... 7-100
僅 Surround View Monitor malfunction and limitations................... 7-101
7Driver assistance system
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)........ 7-102
僅 Rear Cross-Traffic Collision-Avoidance Assist settings.............. 7-103
僅 Rear Cross-Traffic Collision-Avoidance Assist operation.......... 7-103
僅 Rear Cross-Traffic Collision-Avoidance Assist malfunction
and limitations............................................................................................... 7-106
Reverse Parking Distance Warning (PDW)............................ 7-110
僅 Reverse Parking Distance Warning settings.................................... 7-110
僅 Reverse Parking Distance Warning operation................................. 7-111
僅 Reverse Parking Distance Warning malfunction and
precautions....................................................................................................... 7-111
Forward/Reverse Parking Distance Warning (PDW) ............7-113
僅 Forward/Reverse Parking Distance Warning settings................. 7-114
僅 Forward/Reverse Parking Distance Warning operation............. 7-114
僅 Forward/Reverse Parking Distance Warning malfunction and
precautions.......................................................................................................7-116
Reverse Parking Collision-Avoidance Assist (PCA).............. 7-118
僅 Reverse Parking Collision- Avoidance Assist settings..................7-119
僅 Reverse Parking Collision- Avoidance Assist operation .............7-120
僅 Reverse Parking Collision- Avoidance Assist malfunction and lim-
itations ................................................................................................................7-121
Remote Smart Parking Assist (RSPA)..................................... 7-125
僅 Remote Smart Parking Assist settings ............................................... 7-126
僅 Remote Smart Parking Assist operation............................................7-128
僅 Remote Smart Parking Assist malfunction and limitations.......7-142
Declaration of conformity ........................................................ 7-147
Driver assistance system
47
Forward Collision-Avoidance Assist (FCA)
Driver assistance system
INFORMATION
Due to the infotainment software ver
-
sion, the description of each function of
the driver assistance system may differ
from the owner's manual. In this case,
for detailed information on updates,
refer to the separately supplied infotain
-
ment system manual.
Forward Collision-Avoidance
Assist (FCA)
Basic function
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or help detect a pedes
-
trian or cyclist in the roadway and warn
the driver that a collision is imminent
with a warning message and an audible
warning apply emergency braking.
In addition, if equipped with front corner
radars, when driving at high speeds, For
-
ward Collision-Avoidance Assist will help
detect vehicles in front and adjacent
lanes. If a collision is imminent when
changing lanes, Forward Collision-
Avoidance Assist may apply emergency
braking to help prevent a collision. (if
equipped)
Junction Turning function
Junction Turning function may help
avoid a collision with an oncoming vehi
-
cle in an adjacent lane when turning left
at a crossroad with the turn signal on by
applying emergency braking.
Junction Crossing function (if
equipped)
Junction Crossing function may help
avoid a collision with oncoming vehicles
on the left or right side when crossing an
intersection by applying emergency
braking.
Lane-Change Oncoming function
(if equipped)
[A]: Oncoming vehicle
Lane-Change Oncoming function may
help avoid a collision with an oncoming
OCV052019N
OCV052020N
OCV052232N
OCV052021N
5
7
7
Driver assistance system Forward Collision-Avoidance Assist (FCA)
vehicle when changing lanes by assist
-
ing the driver's steering.
Lane-Change Side function (if
equipped)
[A]: Front-side vehicle
Lane-Change Side function may help
avoid a collision with the vehicle ahead
in the next lane when changing lanes by
assisting the driver's steering.
Evasive Steering Assist function
(if equipped)
僅 Driver steering assist
Evasive Steering Assist function may
help avoid a collision with a vehicle,
pedestrian or cyclist ahead in the
same lane. When a risk of collision is
detected, Evasive Steering Assist
function will warn the driver and if the
driver steers to avoid collision it may
assist the driver's steering.
僅 Evasive steering assist
Evasive Steering Assist function may
help to avoid a collision with a pedes
-
trian or cyclist ahead in the same lane.
When a risk of collision is detected,
Evasive Steering Assist function may
warn the driver and if there is space to
avoid collision in the lane, it will assist
the driver's steering.
Detecting sensor
Front view camera
Front radar
Front corner radar (if equipped)
Rear corner radar (if equipped)
OCV052022N
OCV052023N
OCV051017N
OCV051005N
OCV051024N
OCV051277N
Driver assistance system
67
Forward Collision-Avoidance Assist (FCA)
Refer to the pictures above for the
detailed location of the detecting sen
-
sors.
CAUTION
Take the following precautions to main
-
tain optimal performance of the detect
-
ing sensors:
僅 Never disassemble a detecting sensor
or sensor assembly, or apply any
impact to it.
僅If the detecting sensors have been
replaced or repaired, have the vehicle
inspected by an authorized Kia dealer.
僅 Never install any accessories or stick
-
ers on the front windshield, or tint the
front windshield.
僅 Pay extreme caution to keep the front
view camera dry.
僅 Never place any reflective objects (i.e.
white paper, mirror) over the dash
-
board.
僅 Do not place any objects near the
front windshield or install any acces
-
sories on the front windshield. It can
affect the performance of the defog
-
ging and defrosting function of the cli
-
mate control system, which may
prevent the Driver Assistance systems
from operating.
僅 Do not apply license plate frame or
objects, such as a bumper sticker, film
or a bumper guard, near the front
radar cover.
僅 Always keep the front radar and cover
clean and free of dirt and debris.
Use only a soft cloth to wash the vehi
-
cle. Do not spray pressurized water
directly on the sensor or sensor cover.
僅 If unnecessary force has been applied
to the radar or around the radar, For
-
ward Collision-Avoidance Assist may
not properly operate even though a
warning message does not appear on
the cluster. Have the vehicle
inspected by an authorized Kia dealer.
僅 The genuine Kia front radar sensor
covers are parts with quality and per
-
formance ensured. If arbitrarily apply
-
ing paint on or changing the cover,
Forward Collision-Avoidance Assist
may not function properly. Use only
Kia Genuine Parts or those of an
equivalent standard with proven qual
-
ity and performance to repair or
replace the radar sensor covers.
僅 Vehicles equipped with front corner
radar and/or rear corner radar
- Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard, near the
front corner radar or rear corner
radar.
- The function may not work prop
-
erly when the bumper has been
replaced, or the surroundings of
the front corner radar or rear cor
-
ner radar has been damaged or
paint has been applied.
- If a trailer, carrier, etc. is installed, it
may adversely affect the perfor
-
mance of the rear corner radar or
Forward Collision-Avoidance Assist
may not operate properly.
Forward Collision-Avoidance
Assist settings
Forward Safety
OCV041563L
7
7
7
Driver assistance system Forward Collision-Avoidance Assist (FCA)
A:
Driver Assistance
1 Forward Safety
2 Active Assist
3 Warning Only
4 Off
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
For
-
ward Safety
from the infotainment sys
-
tem screen to set whether or not to use
each function.
僅
Active Assist
: Forward Collision-
Avoidance Assist will warn the driver
with a warning message and/or an
audible warning depending on the
collision risk levels. Braking assist or
steering assist (if equipped) may be
applied depending on the collision
risk.
僅
Warning Only
: Forward Collision-
Avoidance Assist will warn the driver
with a warning message, an audible
warning depending on the collision
risk levels. Braking and steering (if
equipped) will not be assisted. The
driver must apply the brake pedal or
steer the vehicle if necessary.
僅
Off
: Forward Collision-Avoidance
Assist will turn off. The warning light
( ) will appear on the cluster.
The driver can monitor Forward Colli
-
sion-Avoidance Assist On/Off status
from the Settings menu. If the warning
light ( ) remains On when Forward Col
-
lision-Avoidance Assist is On, have the
vehicle inspected by an authorized Kia
dealer.
Forward Cross-Traffic Safety
A:
Driver Assistance
1 Forward Safety
2 Forward Cross-Traffic Safety
With the vehicle on, select
Setup
→
Vehicle
→
Driver assistance
→
For
-
ward safety
→
Forward Cross-Traffic
Safety
from the infotainment system
screen to turn on Junction Crossing
function and deselect to turn off the
function.
WARNING
When the vehicle is restarted, Forward
Collision-Avoidance Assist will always
turn on. However, if
Off
is selected, the
driver should always be aware of the
surroundings and drive safely.
CAUTION
僅If
Warning Only
is selected, braking
and steering (if equipped) is not
assisted.
僅 The settings for Forward Safety
include 'Basic function' and 'Junction
Turning', 'Lane-Change Oncoming',
'Lane-Change Side' and 'Evasive
Steering Assist' (if equipped).
僅 If Forward Safety is set to
Off
, Junc
-
tion Crossing function will not operate
even when
Forward Cross-Traffic
Safety
(if equipped) is selected.
OCV041564L
Driver assistance system
87
Forward Collision-Avoidance Assist (FCA)
NOTICE
Forward Collision-Avoidance Assist will
turn off when electronic stability Control
(ESC) is turned off by pressing and hold
-
ing the ESC OFF button. The warning
light ( ) will appear on the cluster.
Warning Timing
A:
Driver Assistance
1 Warning Timing
2 Standard
3 Late
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
Warn
-
ing Timing
from the infotainment sys
-
tem screen to change the initial warning
activation time for Forward Collision-
Avoidance Assist.
僅
Standard
: Use in a normal driving
environment. If the function operates
too sensitively, set to the warning tim
-
ing to
Late
.
僅
Late
: The warning timing will be slow
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
3 Haptic Warning
4 Driving Safety Priority
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
僅
Haptic Warning
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Haptic Warn
-
ing
on the infotainment system, and
set the steering wheel vibration warn
-
ing. (if equipped)
僅
Driving Safety Priority
: Select
Setup
→
Vehicle Settings
→
Driver Assis
-
tance
→
Warning Methods
→
Driv
-
ing Safety Priority
on the
infotainment system.
For safe driving, the audio volume will
temporarily decrease to warn the
driver when the audible warning.
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
僅 With the warning volume is 0, if you
deselect
Haptic Warning
, the warn
-
OCV042644N
OCV053294L
9
7
7
Driver assistance system Forward Collision-Avoidance Assist (FCA)
ing volume will be automatically
adjusted to volume 2.
僅With the
Haptic Warning
is dese
-
lected, if you adjust the warning vol
-
ume to 0, the
Haptic Warning
will be
automatically selected.
Forward Collision-Avoidance
Assist operation
Basic function
The basic function for Forward Collision-
Avoidance Assist is warned and con
-
trolled by the following level.
僅 Collision Warning
僅Emergency Braking
僅 Stopping vehicle and ending brake
control
Collision Warning
A:
Collision Warning
The warning message and an audible
warning will sound and the steering
wheel will vibrate (if equipped) to warn
the driver of a collision.
Collision Warning will operate under the
following conditions depending on the
collision risk level, target, and your driv
-
ing speed:
僅 Vehicle: approximately 6~124 mph
(10~200 km/h)
僅 Pedestrian or cyclist: approximately
6~53 mph (10~85 km/h)
Emergency braking
A:
Emergency Braking
The warning message and an audible
warning will sound and the steering
wheel will vibrate (if equipped) to warn
the driver that emergency braking will
be assisted. The brake assist will be acti
-
vated and it may help avoid a collision
with a vehicle, pedestrian and cyclist.
Emergency Braking will be activated in
following conditions depending on the
target and the level of risk.
僅 Vehicle:
- (if equipped)*: If Forward Collision-
Avoidance Assist judges that avoid
-
ing collision is difficult even by
changing the driving lane due to
surroundings of the vehicle, it assist
braking at an earlier time.
僅 Pedestrian or cyclist: approximately
6~40 mph (10~65 km/h)
OCV051116L
Driving target Stopped target
Weak braking
power
Approximately 6~124 mph (10~200 km/h)
Strong brak
-
ing power
Approximately 6~53
mph (10~85 km/h)
Approximately 6~47
mph (10~75 km/h)
Strong brak
-
ing power - (if
equipped)*
Approximately 6~62 mph (10~100 km/h)
OCV052117N
Driver assistance system
107
Forward Collision-Avoidance Assist (FCA)
Stopping vehicle and ending
brake control
A:
Drive carefully
When the vehicle is stopped due to
emergency braking, the warning mes
-
sage will appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
僅 Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
Junction Turning function
Warning and control
The basic functions of Junction Turning
depend on the collision risk level:
僅 Collision Warning
僅Emergency Braking
僅 Stopping vehicle and ending brake
control
Collision Warning
A:
Collision Warning
The warning message and an audible
warning will sound and the steering
wheel will vibrate (if equipped) to warn
the driver of a collision.
Collision Warning will be activated under
the following conditions.
僅 Your driving speed: Approximately
6~19 mph (10~30 km/h)
僅 Oncoming vehicle speed: Approxi
-
mately 19~44 mph (30~70 km/h)
Emergency braking
A:
Emergency Braking
The warning message and an audible
warning will sound and the steering
wheel will vibrate (if equipped) to warn
the driver that emergency braking will
be assisted. The brake assist will be acti
-
vated and it may help avoid a collision.
Emergency Braking will be activated
under the following conditions.
僅 Your driving speed: Approximately
6~19 mph (10~30 km/h)
僅 Oncoming vehicle speed: Approxi
-
mately 19~44 mph (30~70 km/h)
NOTICE
If the driver's seat is on the left side,
Junction Turning function will operate
only when the driver turns left. If the
driver's seat is on right side, the function
will operate only when you turn right.
OCV051118L
OCV051121L
OCV052122N
11
7
7
Driver assistance system Forward Collision-Avoidance Assist (FCA)
Stopping vehicle and ending
brake control
A:
Drive carefully
When the vehicle is stopped due to
emergency braking, the warning mes
-
sage will appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
僅 Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
Junction Crossing function (if
equipped)
Warning and control
The basic function for Junction Crossing
function is warned and controlled by the
following level.
僅 Collision Warning
僅Emergency Braking
僅 Stopping vehicle and ending brake
control
Collision Warning
A:
Collision Warning
The warning message, an audible warn
-
ing will sound and the steering wheel will
vibrate (if equipped) to warn the driver
of a collision.
Collision Warning will be activated in fol
-
lowing conditions.
僅 Your driving speed: Approximately
6~19 mph (10~30 km/h)
僅 Crossing vehicle speed: Approxi
-
mately 6~37 mph (10~60 km/h)
Emergency braking
A:
Emergency Braking
The warning message, an audible warn
-
ing will sound and the steering wheel will
vibrate (if equipped) to warn the driver
that emergency braking will be assisted.
The brake assist will be activated and it
may help avoid a collision of a vehicle.
Emergency Braking will be activated in
following conditions.
OCV051118L
OCV051124L
OCV051123L
OCV051126L
OCV051125L
Driver assistance system
127
Forward Collision-Avoidance Assist (FCA)
僅 Your driving speed: Approximately
6~19 mph (10~30 km/h)
僅 Crossing vehicle speed: Approxi
-
mately 6~12 mph (10~20 km/h)
Stopping vehicle and ending
brake control
A:
Drive carefully
When the vehicle is stopped due to
emergency braking, the
Drive carefully
warning message will appear on the
cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
僅 Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
CAUTION
If the collision angle with the crossing
vehicle is beyond a certain range, Junc
-
tion Crossing Warning and control may
be late or may not operate.
Lane-Change Oncoming function
(if equipped)
Warning and control
The basic function for Lane-Change
Oncoming function is warned and con
-
trolled by the following level.
僅 Collision Warning
僅Emergency Steering
Collision Warning
A:
Collision Warning
The warning message, an audible warn
-
ing will sound and the steering wheel will
vibrate (if equipped) to warn the driver
of a collision.
Collision Warning will be activated in fol
-
lowing conditions.
僅 Your driving speed: Approximately
25~90 mph (40~145 km/h)
僅 Oncoming vehicle speed: Approxi
-
mately above 6 mph (10 km/h)
僅 Relative speed: Approximately below
124 mph (200 km/h)
Emergency Steering
A:
Emergency Steering
To warn the driver that emergency
steering will be assisted, the warning
message will appear on the cluster, an
audible warning will sound and the
steering wheel will vibrate (if equipped).
Emergency Steering will be activated in
following conditions.
僅 Your driving speed: Approximately
25~90 mph (40~145 km/h)
僅 Oncoming vehicle speed: Approxi
-
mately above 6 mph (10 km/h)
OCV051118L
OCV051121L
OCV051127L
13
7
7
Driver assistance system Forward Collision-Avoidance Assist (FCA)
僅 Relative speed: Approximately below
124 mph (200 km/h)
Lane-Change Side function (if
equipped)
Warning and control
The basic function for Lane-Change
Oncoming function is warned and con
-
trolled by the following level.
僅 Collision Warning
僅 Emergency Steering
Collision Warning
A:
Collision Warning
To warn the driver of a collision, the
warning message will appear on the
cluster, an audible warning will sound
and the steering wheel will vibrate (if
equipped).
Emergency Steering will be activated in
following conditions.
僅 Your driving speed: 25~90 mph
(40~145 km/h)
僅 Front-side vehicle: Driving
Emergency Steering
A:
Emergency Steering
To warn the driver that emergency
steering will be assisted, the warning
message will appear on the cluster, an
audible warning will sound and the
steering wheel will vibrate (if equipped).
Emergency Steering will be activated in
following conditions.
僅 Your driving speed: Approximately
25~90 mph (40~145 km/h)
CAUTION
Lane-Change Side function does not
operate if the oncoming vehicle from the
front side is stopped.
Evasive Steering Assist function
(if equipped)
Warning and control
The basic function for Lane-Change
Oncoming function is warned and con
-
trolled by the following level.
僅 Emergency Steering
OCV051121L
OCV041193L
OCV051129N
OCV051128N
Driver assistance system
147
Forward Collision-Avoidance Assist (FCA)
Emergency Steering (Driver
steering assist)
A:
Emergency Steering
To warn the driver that emergency
steering will be assisted, the warning
message will appear on the cluster, an
audible warning will sound and the
steering wheel will vibrate (if equipped).
If there is a risk of collision with a vehicle,
pedestrian or cyclist in front, the steering
will be assisted to help prevent collision
when the driver steers the vehicle to
avoid collision.
Emergency Steering will be activated in
following conditions.
僅 Vehicle speed: 25~53 mph (40~85
km/h)
Emergency Steering (Evasive
steering assist)
A:
Emergency Steering
To warn the driver that emergency
steering will be assisted, the warning
message will appear on the cluster, an
audible warning will sound and the
steering wheel will vibrate (if equipped).
If there is high risk of collision with a
pedestrian or cyclist in front, and the
vehicle speed to operate emergency
braking is within the operation range,
the steering will be assisted to help pre
-
vent collision when there is space to
avoid collision in the driving lane.
Emergency Steering will be activated in
following conditions.
僅 Your driving speed: 40~47 mph
(65~75 km/h)
CAUTION
僅 The steering wheel may turn auto
-
matically when emergency steering is
operating.
僅 Emergency steering will automati
-
cally cancel when risk factors disap
-
pear. If necessary, the driver must
steer the vehicle.
僅 Emergency steering may not operate
or may cancel during operation if the
steering wheel is held tight or steered
in the opposite direction.
僅 When steering is assisted to avoid col
-
lision with a vehicle, pedestrian and
cyclist, Evasive steering assist will be
canceled if collisions with other
objects (vehicles, pedestrians, or
cyclists) are expected.
OCV051275N
OCV051276N
OCV051275N
OCV051276N
15
7
7
Driver assistance system Forward Collision-Avoidance Assist (FCA)
僅 Evasive steering assist may not oper
-
ate if space to avoid collision in the
driving lane is insufficient.
NOTICE
For more details on warning messages,
refer to "Collision Warning" on page 7-9.
WARNING
僅 For your safety, change the Settings
after parking the vehicle at a safe
location.
僅With
Active Assist
or
Warning Only
selected, when ESC is turned off by
pressing and holding the ESC OFF
button, Forward Collision-Avoidance
Assist will turn off automatically. In
this case, Forward Collision-Avoid
-
ance Assist cannot be set from the
Settings menu and the ( ) warning
light will appear on the cluster which
is normal. If ESC is turned on by
pressing the ESC OFF button again,
Forward Collision-Avoidance Assist
will maintain the last setting. Forward
Collision-Avoidance Assist does not
operate in all situations or cannot
avoid all collisions.
僅 The driver has primary responsibility
to control the vehicle. Do not solely
depend on Forward Collision-Avoid
-
ance Assist. Rather, maintain a safe
braking distance, and if necessary,
depress the brake pedal to reduce
driving speed or to stop the vehicle.
僅 Never deliberately test Forward Colli
-
sion-Avoidance Assist on people,
objects, etc. It may cause serious
injury or death.
僅 Forward Collision-Avoidance Assist
may not operate if the driver
depresses the brake pedal to avoid
collision.
僅 Depending on the road and driving
conditions, Forward Collision-Avoid
-
ance Assist may warn the driver late
or may not warn the driver.
僅 During Forward Collision-Avoidance
Assist operation, the vehicle may stop
suddenly injuring passengers and
shifting loose objects. Always wear
seat belts on and keep loose objects
secured.
僅 If any other function's warning mes
-
sage is displayed or audible warning
is generated, Forward Collision-Avoid
-
ance Assist warning message may not
be displayed and audible warning
may not be generated.
僅 You may not hear the warning sound
of Forward Collision-Avoidance Assist
if the surroundings are noisy.
僅 Forward Collision-Avoidance Assist
may turn off or may not operate prop
-
erly or may operate unnecessarily
depending on the road conditions and
the surroundings.
僅 Even if there is a problem with For
-
ward Collision-Avoidance Assist, the
vehicle's basic braking performance
will operate normally.
僅 During emergency braking, braking
control by Forward Collision-Avoid
-
ance Assist will automatically cancel
when the driver excessively depresses
the accelerator pedal or sharply steers
the vehicle.
CAUTION
僅 Depending on the condition of the
vehicle, pedestrian and cyclist in front
and the surroundings, or as the recog
-
nizable distance is reduced, the speed
range to operate Forward Collision-
Driver assistance system
167
Forward Collision-Avoidance Assist (FCA)
Avoidance Assist may reduce. For
-
ward Collision-Avoidance Assist may
only warn the driver, or it may not
operate.
僅 Forward Collision-Avoidance Assist
will operate under certain conditions
by determining the risk level based on
the condition of the oncoming vehicle,
driving direction, speed and sur
-
roundings.
僅 If your speed is too high or the speed
difference with the other vehicle is
large, Forward Collision-Avoidance
Assist may be limited or may not
operate properly.
WARNING
When a collision with a surrounding
vehicle is expected, Lane-Change
Oncoming, Lane-Change Side and Eva
-
sive Steering Assist functions will only
warn the driver. (if equipped)
NOTICE
僅 When a collision is imminent, the For
-
ward Collision-Avoidance Assist may
assist the driver with brakes if the
driver fails to brake enough.
僅 The images or colors may be dis
-
played differently depending on the
specifications of the instrument clus
-
ter or theme.
Forward Collision-Avoidance
Assist malfunction and limitations
Forward Collision-Avoidance
Assist malfunction
A:
Check Forward Safety system
When Forward Collision-Avoidance
Assist is not working properly, the warn
-
ing message will appear, and the ( )
and ( ) warning lights will appear on
the cluster. Have the vehicle inspected
by an authorized Kia dealer.
Forward Collision-Avoidance
Assist disabled
A:
Forward Safety system disabled.
Radar blocked
A:
Forward Safety system disabled.
Camera obscured
When the front windshield where the
front view camera is located, front radar
cover, bumper or sensor is covered with
OCV051119L
OCV051130L
OCV051120L
17
7
7
Driver assistance system Forward Collision-Avoidance Assist (FCA)
foreign material, such as snow or rain, it
can reduce the detecting performance
and temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the warning message, and
the ( ) and ( ) warning lights will
appear on the cluster.
Forward Collision-Avoidance Assist will
operate normally when snow, rain or for
-
eign material is removed.
If Forward Collision-Avoidance Assist
does not operate normally after obstruc
-
tion (snow, rain, or foreign material) is
removed (including trailer, carrier, etc.
from the rear bumper), have the vehicle
inspected by an authorized Kia dealer.
WARNING
僅 Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.
僅 Forward Collision-Avoidance Assist
may not properly operate in an area
(e.g. open terrain), where any sub
-
stance are not detected after turning
ON the vehicle.
僅 If the vehicle is turned off and then
restarted with the sensor blocked or
malfunction, Forward Collision-Avoid
-
ance Assist may not operate properly.
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate normally, or it may operate
unexpectedly under the following cir
-
cumstances:
僅 The detecting sensor or the surround
-
ings are contaminated or damaged
僅 The temperature around the front
view camera is high or low due to sur
-
rounding environment
僅 The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass
僅 Moisture is not removed or frozen on
the windshield
僅 Washer fluid is continuously sprayed,
or the wiper is on
僅 Driving in heavy rain or snow, or thick
fog
僅 The field of view of the front view
camera is obstructed by sun glare
僅 Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road
僅 An object is placed on the dashboard
僅 Your vehicle is being towed
僅 The surrounding is very bright
僅 The surrounding is very dark, such as
in a tunnel, etc.
僅 The brightness changes suddenly, for
example when entering or exiting a
tunnel
僅 The brightness outside is low, and the
headlamps are not on or are not
bright
僅 Driving through steam, smoke or
shadow
僅 Only part of the vehicle, pedestrian or
cyclist is detected
僅 The vehicle in front is a bus, heavy
truck, truck with a unusually shaped
luggage, trailer, etc.
僅 The vehicle in front has no tail lights,
tail lights are located unusually, etc.
僅 The brightness outside is low, and the
tail lamps are not on or are not bright
僅 The rear of the front vehicle is small or
the vehicle does not look normal, such
as when the vehicle is tilted, over
-
Driver assistance system
187
Forward Collision-Avoidance Assist (FCA)
turned, or the side of the vehicle is vis
-
ible, etc.
僅 The front vehicle's ground clearance
is low or high
僅 A vehicle, pedestrian or cyclist sud
-
denly cuts in front
僅 The bumper around the front radar is
impacted, damaged or the front radar
is out of position
僅 The temperature around the front
radar is high or low
僅 Driving through a tunnel or on an iron
bridge
僅 Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)
僅 Driving through toll gate, construc
-
tion areas, partially paved roads,
bumpy roads, speed bumps, etc.
僅 Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.
僅 There is a material near the front
radar that strongly reflects the radar,
such as a guardrail or a nearby vehi
-
cle.
僅 The cyclist in front is on a bicycle
made of material that does not reflect
on the front radar
僅 The vehicle in front is detected late
僅 The vehicle in front is suddenly
blocked by a obstacle
僅 The vehicle in front suddenly changes
lane or suddenly reduces speed
僅 The vehicle in front is bent out of
shape
僅 The vehicle in front is covered with
snow
僅 You are departing or returning to the
lane
僅 Unstable driving
僅 You are on a roundabout and the
vehicle in front is not detected
僅 You are continuously driving in a cir
-
cle
僅 The vehicle in front has an unusual
shape
僅 The vehicle in front is driving uphill or
downhill
僅 The pedestrian or cyclist is not fully
detected, for example, if the pedes
-
trian is leaning over or is not fully
walking upright
僅 The pedestrian or cyclist is wearing
clothing or equipment that makes it
difficult to detect as a pedestrian or
cyclist
僅 The pedestrian or cyclist in front is
moving very quickly
The illustration below shows the image
the front view camera and front radar
will detect as a vehicle, pedestrian and
cyclist.
僅 The pedestrian or cyclist in front is
short or is posing a low posture
僅 The pedestrian or cyclist in front has
impaired mobility
僅 The pedestrian or cyclist in front is
moving intersected with the driving
direction
僅 There is a group of pedestrians,
cyclists or a large crowd in front
僅 The pedestrian or cyclist is wearing
clothing that easily blends into the
background, making it difficult to
detect
OCV061029L
19
7
7
Driver assistance system Forward Collision-Avoidance Assist (FCA)
僅 The pedestrian or cyclist is difficult to
distinguish from a similarly shaped
structure in the surroundings
僅 You are driving by a pedestrian,
cyclist, traffic signs, structures, etc.
near an intersection
僅 Driving in a parking lot
僅 Driving through a tollgate, construc
-
tion area, unpaved road, partial paved
road, uneven road, speed bumps, etc.
僅 Driving on an incline road, curved
road, etc.
僅 Driving through a roadside with trees
or streetlights
僅 The adverse road conditions cause
excessive vehicle vibrations while
driving
僅 Your vehicle height is low or high due
to heavy loads, abnormal tire pres
-
sure, etc.
僅 Driving through a narrow road where
trees or grass are overgrown
僅 There is interference by electromag
-
netic waves, such as driving in an area
with strong radio waves or electrical
noise
Junction Crossing, Lane-Change
Oncoming, Lane-Change Side,
Evasive Steering Assist function
(if equipped)
僅 The temperature around the front
corner radar or rear corner radar is
high or low
僅 A trailer or carrier is installed around
the rear corner radar
僅 The front corner radar or rear corner
radar is covered with snow, rain, dirt,
etc.
僅 The bumper around the front corner
radar or rear corner radar is covered
with objects, such as a bumper
sticker, bumper guard, bike rack, etc.
僅 The bumper around the front corner
radar or rear corner radar is impacted,
damaged or the radar is out of posi
-
tion
僅 The front corner radar or rear corner
radar is blocked by other vehicles,
walls or pillars
僅 Driving on a highway (or motorway)
ramp
僅 Driving on a road where the guardrail
or wall is in double structured
僅 The other vehicle drives so close
behind your vehicle, or the other vehi
-
cle passes by your vehicle in close
proximity
僅 The speed of the other vehicle is very
fast that it passes by your vehicle in a
short time
僅 Your vehicle passes by the other vehi
-
cle
僅 Your vehicle has started at the same
time as the vehicle next to you and
has accelerated
僅 The vehicle in the next lane moves
two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you
僅 A motorcycle or bicycle is detected
僅 A vehicle such as a flat trailer is
detected
僅 A big vehicle such as a bus or truck is
detected
僅 A small moving obstacle such as a
pedestrian, animal, shopping cart or a
baby stroller is detected
僅 A vehicle with low height such as a
sports car is detected
僅 The lane is difficult to see due to for
-
eign material, such as rain, snow,
dust, sand, oil and water puddles
Driver assistance system
207
Forward Collision-Avoidance Assist (FCA)
僅 The color of the lane marking is not
distinguishable from the road
僅 There are markings on the road near
the lane or the markings on the road
looks similar to the lane markings
僅A shadow is on the lane marking by a
median strip, trees, guardrail, noise
barriers, etc.
僅 The lane number increases or
decreases, or the lane markings are
crossing
僅 There are more than two lane mark
-
ings on the road
僅 The lane markings are complicated or
a structure substitutes for the lines,
such as a construction area
僅 There are road markings, such as zig
-
zag lanes, crosswalk markings and
road signs
僅 The lane suddenly disappears, such
as at the intersection
僅 The lane is very wide or narrow
僅 There is a curb or road edges without
a lane
僅 The vehicle in front is driving with one
side on the lane marking
僅 The distance to the front vehicle is
extremely short
WARNING
僅 Driving on a curved road
Forward Collision-Avoidance Assist
may not detect other vehicles, pedes
-
trians or cyclists in front of you on
curved roads adversely affecting the
performance of the sensors. This may
result in no warning, braking assist or
steering assist (if equipped) when
necessary.
When driving on a curved road, you
must maintain a safe braking dis
-
tance, and if necessary, steer the vehi
-
cle and depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
Forward Collision-Avoidance Assist
may detect a vehicle, pedestrian or
cyclist in the next lane or outside the
lane when driving on a curved road.
If this occurs, Forward Collision-Avoid
-
ance Assist may unnecessarily warn
the driver and control the brake or
steering wheel (if equipped). Always
check the traffic conditions around
the vehicle.
僅 Driving on a sloped road
Forward Collision-Avoidance Assist
may not detect other vehicles, pedes
-
trians or cyclists in front of you while
driving uphill or downhill, adversely
affecting the performance of the sen
-
sors.
This may result in unnecessary warn
-
ing, braking assist or steering assist (if
equipped) or no warning, braking
OCV051029L_3
OCV051030L_3
OCV052031N_3
21
7
7
Driver assistance system Forward Collision-Avoidance Assist (FCA)
assist or steering assist (if equipped)
when necessary.
Also, vehicle speed may rapidly
decrease when a vehicle, pedestrian
or cyclist ahead is suddenly detected.
Always have your eyes on the road
while driving uphill or downhill and if
necessary, steer your vehicle and
depress the brake pedal to reduce
your driving speed in order to main
-
tain a safe distance.
僅 Changing lanes
[A]: Your vehicle, [B]: Lane changing
vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Forward
Collision-Avoidance Assist may not
immediately detect the vehicle when
the vehicle changes lanes abruptly. In
this case, you must maintain a safe
braking distance, and if necessary,
steer your vehicle and depress the
brake pedal to reduce your driving
speed in order to maintain a safe dis
-
tance.
[A]: Your vehicle, [B]: Lane changing
vehicle,
[C]: Same lane vehicle
When a vehicle in front of you merges
out of the lane, Forward Collision-
Avoidance Assist may not immedi
-
ately detect the vehicle that is now in
front of you. In this case, you must
maintain a safe braking distance, and
if necessary, steer your vehicle and
depress the brake pedal to reduce
your driving speed in order to main
-
tain a safe distance.
僅 Detecting a vehicle
If the vehicle in front of you has cargo
that extends rearward from the cab,
OCV052238N
OCV052239N
OCV051032L_2
Driver assistance system
227
Forward Collision-Avoidance Assist (FCA)
or when the vehicle in front of you has
higher ground clearance, additional
special attention is required. Forward
Collision-Avoidance Assist may not be
able to detect the cargo extending
from the vehicle. In these instances,
you must maintain a safe braking dis
-
tance from the rearmost object, and if
necessary, steer your vehicle and
depress the brake pedal to reduce
your driving speed in order to main
-
tain distance.
WARNING
僅 When you are towing a trailer or
another vehicle, we recommend that
Forward Collision-Avoidance Assist is
turned off due to safety reasons.
僅 Forward Collision-Avoidance Assist
may operate if objects that are similar
in shape or characteristics to vehicles,
pedestrians and cyclists are detected.
僅 Forward Collision-Avoidance Assist
does not operate on bicycles, motor
-
cycles, or smaller wheeled objects,
such as luggage bags, shopping carts,
or strollers.
僅 Forward Collision-Avoidance Assist
may not operate normally if interfered
with by strong electromagnetic
waves.
僅 Forward Collision-Avoidance Assist
may not operate for 15 seconds after
the vehicle is started, or the front view
camera is initialized.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
3. Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.
Radio frequency radiation expo
-
sure information:
This equipment complies with FCC radi
-
ation exposure limits set forth for an
uncontrolled environment. This equip
-
ment should be installed and operated
with minimum distance of 8 inches (20
cm) between the radiator (antenna) and
your body. This transmitter must not be
co-located or operating in conjunction
with any other antenna or transmitter.
23
7
7
Driver assistance system Lane Keeping Assist (LKA)
Lane Keeping Assist (LKA)
Lane Keeping Assist is designed to help
detect lane markings (or road edges)
while driving over a certain speed. Lane
Keeping Assist will warn the driver if the
vehicle leaves the lane without using the
turn signal, or will automatically assist
the driver's steering to help prevent the
vehicle from departing the lane.
Detecting sensor
Front view camera
The front view camera is used as a
detecting sensor to detect lane markings
(or road edges).
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions of
the front view camera, refer to "Forward
Collision-Avoidance Assist (FCA)" on
page 7-4.
Lane Keeping Assist settings
Lane Safety
A:
Driver Assistance
1 Lane Safety
2 Assist
3 Warning Only
4 Off
With the vehicle on, select or deselect
Setup
→
Vehicle
→
Driver Assistance
→
Lane Safety
from the infotainment
system screen to set whether or not to
use each function.
僅
Assist
: Lane Keeping Assist will auto
-
matically assist the driver's steering
when lane departure is detected to
help prevent the vehicle from moving
out of its lane.
僅
Warning Only
: Lane Keeping Assist
will warn the driver with an audible
warning when lane departure is
detected. The driver must steer the
vehicle.
僅
Off
: Lane Keeping Assist will turn off.
The indicator ( ) light will turn off
on the cluster.
WARNING
僅If
Warning Only
is selected, steering
is not assisted.
僅 Lane Keeping Assist does not control
the steering wheel when the vehicle is
driven in the middle of the lane.
僅 The driver should always be aware of
the surroundings and steer the vehi
-
cle if
Off
is selected.
Turning Lane Keeping Assist On/
Off
OCV051017N
OCV041565L
OCV051033L
Driver assistance system
247
Lane Keeping Assist (LKA)
With the vehicle on, press and hold the
Lane Driving Assist button located on
the steering wheel to turn on Lane Keep
-
ing Assist. The gray ( ) indicator light
will appear on the cluster.
Press and hold the button again to turn
off the function.
If the vehicle is restarted, Lane Keeping
Assist will maintain the last setting.
NOTICE
僅When the Lane Driving Assist button
is pressed quickly, Lane Following
Assist will turn on and off.
僅 When Lane Keeping Assist is turned
off with the Lane Driving Assist but
-
ton, the Lane Safety setting also
changes to
Off
.
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
3 Haptic Warning
4 Driving Safety Priority
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
僅
Haptic Warning
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Haptic Warn
-
ing
on the infotainment system, and
set the steering wheel vibration warn
-
ing. (if equipped)
僅
Lane Safety Audible Warning Off
:
You can turn on or off the warning
volume of Lane Keeping Assist. Lane
Safety Audible Warning Off can be
selected when both Warning Volume
and haptic warning are on.
僅
Driving Safety Priority
: Select
Setup
→
Vehicle Settings
→
Driver Assis
-
tance
→
Warning Methods
→
Driv
-
ing Safety Priority
on the
infotainment system.
For safe driving, the audio volume will
temporarily decrease to warn the
driver with the audible warning.
CAUTION
僅Ensure that
Warning Methods
you
have set apply to the Warning Meth
-
ods of other driver assistance sys
-
tems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
僅
Lane Safety Audible Warning Off
can be selected when both
Warning
Volume
and
Haptic Warning
is
turned on.
僅 With the warning volume is 0, if you
deselect
Haptic Warning
, the warn
-
ing volume will be automatically
adjusted with volume 2.
OCV053294L
25
7
7
Driver assistance system Lane Keeping Assist (LKA)
僅With the
Haptic Warning
is dese
-
lected, if you adjust the warning vol
-
ume to 0, the
Haptic Warning
will be
automatically selected.
Lane Keeping Assist operation
Left
Right
Lane Keeping Assist will warn and con
-
trol the vehicle with Lane Departure
Warning and Lane Keeping Assist.
Lane Departure Warning
僅 To warn the driver that the vehicle is
departing from the projected lane in
front, the green ( ) indicator light
will blink on the cluster, the lane line
will blink on the cluster depending on
which direction the vehicle is veering,
and an audible warning will sound
and the steering wheel will vibrate (if
equipped).
僅 Your driving speed: Approximately
40~120 mph (60~200 km/h).
Lane Keeping Assist
僅 To warn the driver that the vehicle is
departing from the projected lane in
front, the green ( ) indicator light
will blink on the cluster, and the steer
-
ing wheel will make adjustments to
keep vehicle inside the lane.
僅 Your driving speed: Approximately
40~120 mph (60~200 km/h).
Hands-off warning
A:
Keep hands on steering wheel
If the driver takes their hands off the
steering wheel for several seconds, the
warning message will appear on the
cluster, and an audible warning will
sound in stages.
WARNING
僅 The steering wheel may not be
assisted if the steering wheel is held
tightly or the steering wheel is steered
over a certain degree.
僅 Lane Keeping Assist does not operate
at all times. It is the responsibility of
the driver to safely steer the vehicle
and to maintain the vehicle in its lane.
僅 The hands–off warning message may
appear late depending on road condi
-
tions. Always have your hands on the
steering wheel while driving.
僅 If the steering wheel is held very
lightly, the hands–off warning mes
-
sage may appear because Lane Keep
-
ing Assist may not detect that the
driver has their hands on the steering
wheel.
僅 If you attach objects to the steering
wheel, the hands-off warning may not
work properly.
OCV051131L
OCV051132L
OCV051133L
Driver assistance system
267
Lane Keeping Assist (LKA)
NOTICE
僅 For more details on setting the instru
-
ment cluster, refer to "Instrument
cluster" on page 5-60.
僅 When lane markings (or road edges)
are detected, the lane lines on the
cluster will change from gray to white
and the green ( ) indicator light
will appear.
僅 When the lane markings (or road
edges) are detected and Highway
Lane Change Assist is on, the lane
lines on the cluster may change to
green.
Lane undetected
Lane detected
僅 Even though the steering is assisted
by Lane Keeping Assist, the driver can
control the steering wheel.
僅 The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Keeping Assist than
when it is not.
NOTICE
The images or colors may be displayed
differently depending on the specifica
-
tions of the instrument cluster or theme.
Lane Keeping Assist malfunction
and limitations
Lane Keeping Assist malfunction
A:
Check Lane Safety system
When Lane Keeping Assist are not work
-
ing properly, the warning message will
appear and the yellow ( ) indicator
light will appear on the cluster. If this
occurs, have the function inspected by
an authorized Kia dealer.
Limitations of Lane Keeping
Assist
Lane Keeping Assist may not operate
normally or may operate unexpectedly
under the following circumstances:
僅 The lane is contaminated or difficult
to distinguish because,
- The lane markings (or road edge) is
covered with rain, snow, dirt, sand,
oil, puddle etc.
- The color of the lane marking (or
road edge) is not distinguishable
from the road
- There are markings (or road edges)
on the road near the lane or the
markings (or road edges) on the
road looks similar to the lane mark
-
ings (or road edges)
OCV051134L
OCV051135L
OCV051136L
27
7
7
Driver assistance system Lane Keeping Assist (LKA)
- The lane marking (or road edge) is
indistinct or damaged
- The shadow is on the lane marking
(or road edge) by a median strip,
trees, guardrail, noise barriers, etc.
僅 The lane number increases or
decreases, or the lane markings are
crossing
僅 There are more than two lane mark
-
ings (or road edges) on the road
僅 The lane markings (or road edges) are
complicated or a structure substitutes
for the lines, such as a construction
area
僅 There are road markings, such as zig
-
zag lanes, crosswalk markings and
road signs
僅 The lane suddenly disappears, such
as at the intersection
僅 The lane (or road width) is very wide
or narrow
僅 There is a road edge without a lane
僅 There is a boundary structure in the
roadway, such as a tollgate, sidewalk,
curb, etc.
僅 The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking (or road
edge)
NOTICE
For more details on the limitations of the
front view camera, refer to "Forward Col
-
lision-Avoidance Assist (FCA)" on page
7-4.
WARNING
Take the following precautions when
using Lane Keeping Assist:
僅 The driver should hold the responsi
-
bility to safely drive and control the
vehicle. Do not solely rely on the func
-
tion and drive dangerously.
僅 The operation of Lane Keeping Assist
can be canceled or not work properly
depending on road conditions and
surroundings. Always be cautious
while driving.
僅 Refer to "Limitations of Lane Keeping
Assist" if the lane is not detected prop
-
erly.
僅 When you are towing a trailer or
another vehicle, we recommend that
Lane Keeping Assist is turned off due
to safety reasons.
僅 If the vehicle is driven at high speed,
the steering wheel will not be con
-
trolled. The driver must always follow
the speed limit when using Lane
Keeping Assist.
僅 If any other function's warning mes
-
sage is displayed or audible warning
is generated, Lane Keeping Assist
warning message may not be dis
-
played and audible warning may not
be generated.
僅 You may not hear the warning sound
of Lane Keeping Assist if the sur
-
rounding is noisy.
僅 If you attach objects to the steering
wheel, steering may not be assisted
properly.
僅 Lane Keeping Assist may not operate
for 15 seconds after the vehicle is
started, or the Front view camera is
initialized.
僅 Lane Keeping Assist will not operate
when:
- The turn signal or hazard warning
flasher is turned on
- The vehicle is not driven in the cen
-
ter of the lane when the function is
turned on or right after changing a
lane
Driver assistance system
287
Blind-Spot Collision-Avoidance Assist (BCA)
- ESC (Electronic Stability Control) or
VSM (Vehicle Stability Manage
-
ment) is activated
- The vehicle is driven on a sharp
curved road
- Vehicle speed is below 35 mph (55
km/h) or above 130 mph (210 km/
h)
- The vehicle makes sharp lane
changes
- The vehicle brakes suddenly
Blind-Spot Collision-Avoid
-
ance Assist (BCA) (if
equipped)
Blind-Spot Collision-Avoidance Assist is
designed to help detect and monitor
approaching vehicles in the driver's blind
spot area and warn the driver of a possi
-
ble collision with a warning message and
audible warning.
In addition, if there is a risk of collision
when changing lanes or driving forward
out of a parking space, Blind-Spot Colli
-
sion-Avoidance Assist will help avoid col
-
lision by applying the brake.
Blind-Spot Collision-Avoidance Assist
helps detect and inform the driver that a
vehicle is in the blind spot.
CAUTION
The detecting range may vary depend
-
ing on the speed of your vehicle. How
-
ever, even if there is a vehicle in the
blind spot area, the function may not
warn you when you pass by at high
speeds.
Blind-Spot Collision-Avoidance Assist
helps detect and inform the driver that a
vehicle is approaching at high speed
from the blind spot area.
OCV052034N
OCV052035N
29
7
7
Driver assistance system Blind-Spot Collision-Avoidance Assist (BCA)
CAUTION
Warning timing may vary depending on
the speed of the vehicle approaching at
high speed.
When changing lanes by detecting the
lane ahead, if Blind-Spot Collision-Avoid
-
ance Assist judges that there is a colli
-
sion risk with an approaching vehicle in
the blind spot, it will help avoid collision
by applying the brake.
When you are driving forward out of a
parking space, if Blind-Spot Collision-
Avoidance Assist judges that there is a
collision risk with an approaching vehicle
in the blind spot, it will help avoid colli
-
sion by applying the brake.
Detecting sensor
Front view camera
Rear corner radar
Refer to the picture above for the
detailed location of the detecting sen
-
sors.
CAUTION
Take the following precautions to main
-
tain optimal performance of the detect
-
ing sensor:
僅 Never disassemble the rear corner
radar or radar assembly, or apply any
impact on it.
僅 If there is impact on the rear corner
radar or near the radar, even though
the warning message does not appear
on the cluster, Blind-Spot Safety sys
-
tem may not operate properly. Have
the function be inspected by an
authorized Kia dealer.
僅 If the rear corner radars have been
replaced or repaired, have the vehicle
inspected by an authorized Kia dealer.
僅 The genuine Kia rear bumpers which
the Rear corner radar sensors are
mounted are parts with quality and
performance ensured. If arbitrarily
applying paint on or changing the
bumper, the Blind-Spot Collision-
Avoidance Assist may not function
properly. Use only Kia Genuine Parts
or those of an equivalent standard
with proven quality and performance
to repair or replace the bumper.
僅 Do not apply license plate frame or
objects, such as a bumper sticker, film
or a bumper guard near the rear cor
-
ner radar.
OCV052036N
OCV052037N
OCV051017N
OCV051277N
Driver assistance system
307
Blind-Spot Collision-Avoidance Assist (BCA)
僅 Blind-Spot Collision-Avoidance Assist
may not work properly if the bumper
has been replaced, or the surround
-
ings of the rear corner radar has been
damaged or paint has been applied.
僅 If a trailer, carrier or other equipment
is installed, it may adversely affect the
performance of the rear corner radar
or the function may not operate.
For more details on the precautions of
the front view camera, refer to "Forward
Collision-Avoidance Assist (FCA)" on
page 7-4.
Blind-Spot Collision-Avoidance
Assist settings
Blind-Spot Safety
A:
Driver Assistance
1 Blind-Spot Safety
2 Active Assistance
3 Warning Only
4 Off
With the vehicle on, select or deselect
Setup
→
Vehicle
→
Driver Assistance
→
Blind-Spot Safety
from the infotain
-
ment system screen to set whether or
not to use each function.
僅
Active Assistance
: Blind-Spot Colli
-
sion-Avoidance Assist will warn the
driver with a warning message, an
audible warning, and braking assist
will be applied depending on the colli
-
sion risk levels.
僅
Warning Only
: Blind-Spot Collision-
Avoidance Assist will warn the driver
with a warning message, an audible
warning depending on the collision
risk levels. Braking will not be assisted.
僅
Off
: Blind-Spot Collision-Avoidance
Assist will turn off.
A:
Blind-Spot Safety System is Off
When the vehicle is restarted with Blind-
Spot Collision-Avoidance Assist off, the
Blind-Spot Safety System is Off
mes
-
sage will appear on the cluster.
If you change the setting from
Off
to
Active Assist
or
Warning Only
, the
warning light on the outside rear view
mirror will blink for three seconds.
In addition, if the vehicle is turned on,
when Blind-Spot Collision-Avoidance
Assist is set to
Active Assist
or
Warning
Only
, the warning light on the outside
rear view mirror will blink for three sec
-
onds.
WARNING
僅If
Warning Only
is selected, braking is
not assisted.
僅If
Off
is selected, the driver should
always be aware of the surroundings
and drive safely.
NOTICE
If the vehicle is restarted, Blind-Spot Col
-
lision-Avoidance Assist will maintain the
last setting.
OCV041566L
OCV051137L
31
7
7
Driver assistance system Blind-Spot Collision-Avoidance Assist (BCA)
Warning Timing
A:
Driver Assistance
1 Warning Timing
2 Standard
3 Late
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
Warn
-
ing Timing
from the infotainment sys
-
tem screen to change the initial warning
activation time for Blind-Spot Collision-
Avoidance Assist.
To select the Warning time
Standard
or
Late
.
僅
Standard
: Use under normal driving
conditions. If it feels too sensitive, set
the warning timing to
Late
.
僅
Late
: The warning timing will be late
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
3 Haptic Warning
4 Driving Safety Priority
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
僅
Haptic Warning
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Haptic Warn
-
ing
on the infotainment system, and
set the steering wheel vibration warn
-
ing. (if equipped)
僅
Driving Safety Priority
: Select
Setup
→
Vehicle Settings
→
Driver Assis
-
tance
→
Warning Methods
→
Driv
-
ing Safety Priority
on the
infotainment system.
For safe driving, the audio volume will
temporarily decrease to warn the
driver with the audible warning.
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
僅 With the warning volume is 0, if you
deselect
Haptic Warning
, the warn
-
ing volume will be automatically
adjusted with volume 2.
僅With the
Haptic Warning
is dese
-
lected, if you adjust the warning vol
-
ume to 0, the
Haptic Warning
will be
automatically selected.
OCV042644N
OCV053294L
Driver assistance system
327
Blind-Spot Collision-Avoidance Assist (BCA)
Blind-Spot Collision-Avoidance
Assist operation
Vehicle detection
僅 Warning light will appear in the out
-
side rear view mirror and head-up dis
-
play (if equipped) when the vehicle on
both lanes is detected from the rear.
Blind-Spot Collision-Avoidance Assist
will operate as following circumstances.
僅 Your driving speed: Above 12 mph (20
km/h)
僅 The speed of the vehicle in the blind
spot area: Above 7 mph (10 km/h)
Collision warning
Collision warning will operate when the
turn signal to change the lane in the
direction of the vehicle in the blind spot
area.
僅 To warn the driver of a collision, the
warning light on the side view mirror
and head-up display (if equipped) will
blink. At the same time, an audible
warning will sound and the steering
wheel will vibrate (if equipped).
僅 When the turn signal is turned off or
you move away from the lane, the col
-
lision warning will be canceled and
the function will return to vehicle
detection state.
Collision warning will operate as follow
-
ing circumstances.
僅 Your driving speed: Above 25 mph
(40 km/h)
僅 The speed of the vehicle in the blind
spot area: Above 7 mph (10 km/h)
NOTICE
If
Warning Only
is selected from the
Settings menu, the collision warning will
operate when your vehicle approaches
the lane in which the blind spot vehicle is
detected.
WARNING
僅 The detecting range of the rear corner
radar is determined by a standard
road width, therefore, on a narrow
road, the function may detect other
vehicles in the two lanes away and
warn you. In contrast, on a wide road,
the function may not be able to detect
a vehicle driving in the next lane and
may not warn you.
僅When the hazard warning flasher is
on, the collision warning by the turn
signal will not operate.
NOTICE
僅 If the driver's seat is on the left side,
the collision warning may occur when
you turn left. If the driver's seat is on
the right side, the collision warning
may occur when you turn right. Main
-
tain a proper distance with the vehi
-
cles in the lane.
僅 Images or colors may be displayed
differently depends on the instrument
cluster specifications or theme.
OCV051038L
33
7
7
Driver assistance system Blind-Spot Collision-Avoidance Assist (BCA)
Collision-Avoidance Assist (while
driving)
A:
Emergency Braking
僅 To warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message will
appear on the cluster. At the same
time, an audible warning will sound,
warning light on the head-up display
(if equipped) will blink and the steer
-
ing wheel will vibrate (if equipped). It
assists in braking control to help pre
-
vent collision with the vehicle in the
blind spot area.
僅 Collision-Avoidance Assist will be
operated under the following circum
-
stances.
- Your driving speed: 40~120 mph
(60~200 km/h)
- Both lane markings of the driving
lane are detected.
WARNING
僅 Collision-Avoidance Assist will be can
-
celed under the following circum
-
stances:
- Your vehicle enters the next lane by
a certain distance
- Your vehicle is away from the colli
-
sion risk
- The steering wheel is sharply
steered
- The brake pedal is depressed
- Forward Collision-Avoidance Assist
is operating
僅 After Blind-Spot Collision-Avoidance
Assist operation or changing lane, you
must drive to the center of the lane.
The function will not operate if the
vehicle is not driven in the center of
the lane.
Collision-Avoidance Assist (while
departing)
A:
Emergency Braking
僅 To warn the driver of a collision, the
warning light on the outside rear view
mirror will blink and a warning mes
-
sage will appear on the cluster. At the
same time, an audible warning will
sound, warning light on the head-up
display (if equipped) will blink and the
steering wheel will vibrate (if
equipped).
僅 Blind-Spot Collision-Avoidance Assist
will operate when your vehicle speed
is below 2 mph (3 km/h) and the
speed of the vehicle in the blind spot
area is above 3 mph (5 km/h).
僅 Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.
A:
Drive carefully
OCV051138L
OCV051138N
OCV051118L
Driver assistance system
347
Blind-Spot Collision-Avoidance Assist (BCA)
When the vehicle is stopped due to
emergency braking, the warning mes
-
sage will appear on the cluster. For your
safety, the driver should depress the
brake pedal immediately and check the
surroundings.
僅 Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Blind-Spot Collision-Avoidance
Assist:
僅 For your safety, change the Blind-
Spot Safety system Settings after
parking the vehicle at a safe location.
僅 If any other function's warning mes
-
sage is displayed or audible warning
is generated, Blind-Spot Collision-
Avoidance Assist's warning message
may not be displayed and audible
warning may not be generated.
僅 You may not hear the warning sound
of Blind-Spot Collision-Avoidance
Assist if the surrounding is noisy.
僅 Blind-Spot Collision-Avoidance Assist
may not operate if the driver applies
the brake pedal to avoid collision.
僅 When Blind-Spot Collision-Avoidance
Assist is operating, braking control by
the function will automatically cancel
when the driver excessively depresses
the accelerator pedal or control the
steering wheel.
僅 During Blind-Spot Collision-Avoidance
Assist operation, the vehicle may stop
suddenly injuring passengers and
shifting loose objects. Always have the
seat belt on and keep loose objects
secured.
僅 Even if there is a problem with Blind-
Spot Collision-Avoidance Assist, the
vehicle's basic braking performance
will operate normally.
僅 Blind-Spot Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.
僅 Blind-Spot Collision-Avoidance Assist
may warn the driver late or may not
warn the driver depending on the
road and driving conditions.
僅 Driver should maintain control of the
vehicle at all times. Do not depend on
Blind-Spot Collision-Avoidance Assist.
Maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop the
vehicle.
僅 The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Con
-
trol) warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function
NOTICE
The images or colors may be displayed
differently depending on the specifica
-
tions of the instrument cluster or theme.
Blind-Spot Collision-Avoidance
Assist malfunction and limitations
Blind-Spot Collision-Avoidance
Assist malfunction
OCV051139L
35
7
7
Driver assistance system Blind-Spot Collision-Avoidance Assist (BCA)
A:
Check Blind-Spot Safety system
When Blind-Spot Collision-Avoidance
Assist is not working properly, the warn
-
ing message will appear on the cluster
for several seconds, and the master
warning light ( ) will appear. Have
Blind-Spot Collision-Avoidance Assist be
inspected by an authorized Kia dealer.
A:
Check side view mirror warning
light
When the outside rear view mirror warn
-
ing light is not working properly, the
warning message will appear on the
cluster for several seconds, and the
master warning light ( ) will appear.
Have Blind-Spot Collision-Avoidance
Assist be inspected by an authorized Kia
dealer.
Blind-Spot Collision-Avoidance
Assist disabled
A:
Blind-Spot Safety system disabled.
Radar blocked
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain, or
installing a trailer or carrier, it can reduce
the detecting performance and tempo
-
rarily limit or disable Blind-Spot Colli
-
sion-Avoidance Assist.
If this occurs, a warning message will
appear on the cluster. However it is not a
malfunction.
Blind-Spot Collision-Avoidance Assist
will operate normally when such foreign
material or trailer, other equipment is
removed, and then the vehicle is
restarted. Always keep it clean.
If Blind-Spot Collision-Avoidance Assist
does not operate normally after vehicle
rear luggage, other equipment or for
-
eign material is removed, have Blind-
Spot Collision-Avoidance Assist be
inspected by an authorized Kia dealer.
WARNING
僅 Even though the warning message
does not appear on the cluster, Blind-
Spot Collision-Avoidance Assist may
not properly operate.
僅 Blind-Spot Collision-Avoidance Assist
may not properly operate in an area
(e.g. open terrain) where any sub
-
stance are not detected right after the
vehicle is turned on, or when the
detecting sensor is blocked with for
-
eign material right after the vehicle is
turned on.
CAUTION
Turn off Blind-Spot Collision-Avoidance
Assist to install a trailer, carrier, etc., or
remove the trailer, carrier, etc. to use
Blind-Spot Collision-Avoidance Assist.
Limitations of Blind-Spot Colli
-
sion-Avoidance Assist
Blind-Spot Collision-Avoidance Assist
may not operate normally as following
circumstances:
OCV051140N
OCV051141L
Driver assistance system
367
Blind-Spot Collision-Avoidance Assist (BCA)
僅 There is inclement weather, such as
heavy snow, heavy rain, etc.
僅 The rear corner radar is covered with
snow, rain, dirt, etc.
僅 The temperature around the rear cor
-
ner radar is high or low
僅 The rear corner radar is covered by
vehicle or pillar, walls etc.
僅 Driving on a highway (or motorway)
ramp and tollgate.
僅 The road pavement (or the peripheral
ground) abnormally contains metallic
components (i.e. possibly due to sub
-
way construction).
僅 There is a fixed object near the vehi
-
cle, such as sound barriers, guardrails,
double guardrails, central dividers,
entry barriers, street lamps, signs,
tunnels, walls, etc. (including double
structures)
僅 Driving through a narrow road where
trees or grass are overgrown
僅 Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)
僅 Driving on a wet road surface, such as
a puddle on the road
僅 The other vehicle drives very close
behind your vehicle, or the other vehi
-
cle passes by your vehicle in close
proximity
僅 The speed of the other vehicle is very
fast that it passes by your vehicle in a
short time
僅 Your vehicle passes by the other vehi
-
cle
僅Your vehicle changes lane
僅 Your vehicle has started at the same
time as the vehicle next to you and
has accelerated
僅 The vehicle in the next lane moves
two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you
僅 A trailer or carrier is installed around
the rear corner radar
僅 The bumper around the rear corner
radar is covered with objects, such as
a bumper sticker, bike rack, etc.
僅 The bumper around the rear corner
radar is impacted, damaged or the
radar is out of position
僅 Your vehicle height is low or high due
to heavy loads, abnormal tire pres
-
sure, etc.
Blind-Spot Collision-Avoidance Assist
may not operate normally, or it may
operate unexpectedly when the follow
-
ing objects are detected:
僅 A motorcycle or bicycle is detected
僅 A vehicle such as a flat trailer is
detected
僅 A big vehicle such as a bus or truck is
detected
僅 A moving obstacle such as a pedes
-
trian, animal, shopping cart or a baby
stroller is detected
僅 A vehicle with low height such as a
sports car is detected
Braking control may not work as follow
-
ing circumstances:
僅 The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch
僅 Driving on a slippery surface due to
snow, water puddle, ice, etc.
僅 The tire pressure is low or a tire is
damaged
僅 The brake is reworked
僅 The vehicle makes abrupt lane
changes
37
7
7
Driver assistance system Blind-Spot Collision-Avoidance Assist (BCA)
NOTICE
For more details on the limitations of the
front view camera, refer to "Forward Col
-
lision-Avoidance Assist (FCA)" on page
7-4 and "Lane Keeping Assist (LKA)" on
page 7-23.
WARNING
僅 Driving on a curved road
Blind-Spot Collision-Avoidance Assist
may not operate properly when driv
-
ing on a curved road. Blind-Spot Colli
-
sion-Avoidance Assist may not detect
the vehicle in the next lane.
Always pay attention to road and driv
-
ing conditions while driving.
Blind-Spot Collision-Avoidance Assist
may not operate properly when driv
-
ing on a curved road. Blind-Spot Colli
-
sion-Avoidance Assist may detect a
vehicle in the same lane.
Always pay attention to road and driv
-
ing conditions while driving.
僅 Driving where the road is merging/
dividing
Blind-Spot Collision-Avoidance Assist
may not operate properly when driv
-
ing where the road merges or divides.
Blind-Spot Collision-Avoidance Assist
may not detect the vehicle in the next
lane.
Always pay attention to road and driv
-
ing conditions while driving on the
road merges or divides.
僅 Driving on a sloped road
Blind-Spot Collision-Avoidance Assist
may not operate properly when driv
-
ing on a sloped road. Blind-Spot Colli
-
sion-Avoidance Assist may not detect
the vehicle in the next lane or may
incorrectly detect the ground or struc
-
ture.
Always pay attention to road and driv
-
ing conditions while driving.
僅 Driving where the heights of the lanes
are different
OCV052039N
OCV052040N
OCV052041N
OCV051042L_2
Driver assistance system
387
Safe Exit Warning (SEW)
Blind-Spot Collision-Avoidance Assist
may not operate properly when driv
-
ing where the heights of the lanes are
different. Blind-Spot Collision-Avoid
-
ance Assist may not detect the vehicle
on a road with different lane heights.
Always pay attention to road and driv
-
ing conditions while driving.
WARNING
僅 When you are towing a trailer or
another vehicle, make sure that you
turn off Blind-Spot Collision-Avoid
-
ance Assist.
僅 Blind-Spot Collision-Avoidance Assist
may not operate normally if interfered
by strong electromagnetic waves.
僅 Blind-Spot Collision-Avoidance Assist
may not operate for approximately 15
seconds after the vehicle is started, or
the front view camera or rear corner
radars are initialized.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
Safe Exit Warning (SEW) (if
equipped)
After the vehicle stops, when an
approaching vehicle from the rear area
is detected as soon as a passenger
opens a door, Safe Exit Warning will
warn the driver with a warning message
and an audible warning to help prevent
a collision.
CAUTION
Warning timing may vary depending on
the speed of the approaching vehicle.
Detecting sensor
Rear corner radar
Refer to the picture above for the
detailed location of the detecting sen
-
sors.
CAUTION
For more details on the precautions of
the rear corner radars, refer to "Blind-
Spot Collision-Avoidance Assist (BCA) (if
equipped)" on page 7-28.
OCV051043L
OCV052044N
OCV051277N
39
7
7
Driver assistance system Safe Exit Warning (SEW)
Safe Exit Warning settings
Safe Exit Warning
A:
Driver Assistance
1 Blind-Spot Safety
2 Safe Exit Warning
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
Blind-
Spot Safety
→
Safe Exit Warning
from
the infotainment system screen to turn
on Safe Exit Warning and deselect to
turn off the function.
WARNING
The driver should always be aware of
unexpected and sudden situations from
occurring. If
Safe Exit Warning
is dese
-
lected, Safe Exit Warning cannot assist
you.
NOTICE
If the vehicle is restarted, Safe Exit Warn
-
ing will maintain the last setting.
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
3 Driving Safety Priority
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
僅
Driving Safety Priority
: Select
Setup
→
Vehicle Settings
→
Driver Assis
-
tance
→
Warning Methods
→
Driv
-
ing Safety Priority
on the
infotainment system.
For safe driving, the audio volume will
temporarily decrease to warn the
driver with the audible warning.
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
Safe Exit Warning operation
Safe Exit Warning warns the following
actions.
OCV041567N
OCV053295L
Driver assistance system
407
Safe Exit Warning (SEW)
Collision warning when exiting
vehicle
A:
Watch for traffic
僅 The warning light on the side view
mirror will blink and the warning mes
-
sage will appear on the cluster, and an
audible warning will sound.
僅 Safe Exit Warning will warn under the
following circumstances:
- Your driving speed: below 2 mph (3
km/h)
- The speed of the approaching vehi
-
cle from the rear: above 4 mph (6
km/h)
WARNING
Take the following precautions when
using Safe Exit Warning:
僅 For your safety, change the Settings
after parking the vehicle at a safe
location.
僅 If any other function's warning mes
-
sage is displayed or audible warning
is generated, Safe Exit Warning warn
-
ing message may not be displayed
and audible warning may not be gen
-
erated.
僅 You may not hear the warning sound
of Safe Exit Warning if the surround
-
ing is noisy.
僅 Safe Exit Warning does not operate in
all situations and cannot prevent all
collisions.
僅 Safe Exit Warning may warn the
driver late or may not warn the driver
depending and driving conditions.
Always check vehicle surroundings.
僅 The driver and passengers are
responsible for accidents that occurs
while exiting the vehicle. Always check
the surroundings before you exit the
vehicle.
僅 Safe Exit Warning does not operate if
there is a problem with Blind-Spot
Collision-Avoidance Assist.
僅 The warning message of Blind-Spot
Collision-Avoidance Assist will appear
when:
- Blind-Spot Collision-Avoidance
Assist sensor or the sensor sur
-
rounding is polluted or covered
- Blind-Spot Collision-Avoidance
Assist fails to warn passengers or
falsely warn passengers
NOTICE
僅 After the vehicle is turned off, Safe
Exit Warning operates for 3 minutes,
but turns off immediately if the doors
are locked.
僅 Images or colors may be displayed
differently depends on the instrument
cluster specifications or theme.
OCV051038L
OCV051142L
41
7
7
Driver assistance system Safe Exit Warning (SEW)
Safe Exit Warning malfunction
and limitations
Safe Exit Warning malfunction
A:
Check Blind-Spot Safety system
When Safe Exit Warning is not working
properly, the warning message will
appear on the cluster, and the master
warning light ( ) will appear on the clus
-
ter. Have Safe Exit Warning be inspected
by an authorized Kia dealer.
A:
Check side view mirror warning
light
When the side view mirror warning light
is not working properly, the warning
message will appear on the cluster for
several seconds, and the master warn
-
ing light ( ) will appear on the cluster.
Have Safe Exit Warning be inspected by
an authorized Kia dealer.
Safe Exit Warning disabled
A:
Blind-Spot Safety system disabled.
Radar blocked
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain, or
installing a trailer or carrier, it can reduce
the detecting performance and tempo
-
rarily limit or disable Safe Exit Warning.
If this occurs, the
Blind-Spot Safety
system disabled. Radar blocked
warn
-
ing message will appear on the cluster.
Safe Exit Warning will operate normally
when such foreign material or trailer, etc.
is removed, and then the vehicle is
restarted.
If Safe Exit Warning does not operate
normally after it is removed, have Safe
Exit Warning be inspected by an autho
-
rized Kia dealer.
WARNING
僅 Even though the warning message
does not appear on the cluster, Safe
Exit Warning may not properly oper
-
ate.
僅 Safe Exit Warning may not properly
operate in an area (e.g., open terrain),
where any substance are not detected
right after the vehicle is turned on, or
when the detecting sensor is blocked
with foreign material right after the
vehicle is turned on.
CAUTION
Turn off Safe Exit Warning to install a
trailer, carrier, etc., or remove the trailer,
carrier, etc. to use Safe Exit Warning.
Limitations of Safe Exit Warning
Safe Exit Warning may not operate nor
-
mally, or Safe Exit Warning may operate
OCV051139L
OCV051140N
OCV051141L
Driver assistance system
427
Safe Exit Assist (SEA)
unexpectedly under the following warn
-
ing.
僅 Getting out of the vehicle where trees
or grass are overgrown
僅 Getting out of the vehicle where the
road is wet
僅 The approaching vehicle is very fast
or very slow
NOTICE
For more details on the precautions of
the rear corner radars, refer to "Blind-
Spot Collision-Avoidance Assist (BCA) (if
equipped)" on page 7-28.
WARNING
僅 Safe Exit Warning may not operate
normally if interfered by strong elec
-
tromagnetic waves.
僅 Safe Exit Warning may not operate for
3 seconds after the vehicle is
restarted, or the rear corner radars
are initialized.
Safe Exit Assist (SEA) (if
equipped)
After the vehicle stops, when an
approaching vehicle from the rear area
is detected as soon as a passenger
opens a door, Safe Exit Assist will warn
the driver with a warning message and
an audible warning to help prevent a
collision.
In addition, when the electronic child
safety lock button is in the LOCK posi
-
tion and an approaching vehicle from
the rear area is detected, the electronic
child safety lock button will not unlock
even if the driver presses the button to
prevent the rear doors from opening.
CAUTION
Warning timing may vary depending on
the speed of the approaching vehicle.
OCV052045N
OCV041012L
43
7
7
Driver assistance system Safe Exit Assist (SEA)
Detecting sensor
Rear corner radar
Refer to the picture above for the
detailed location of the detecting sen
-
sors.
CAUTION
For more details on the precautions of
the rear corner radars, refer to "Blind-
Spot Collision-Avoidance Assist (BCA) (if
equipped)" on page 7-28.
Safe Exit Assist settings
Safe Exit Assist
A:
Driver Assistance
1 Blind-Spot Safety
2 Safe Exit Assist
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
Blind-
Spot Safety
→
Safe Exit Assist
from
the infotainment system screen to turn
on Safe Exit Assist and deselect to turn
off Safe Exit Assist.
WARNING
The driver should always be aware of
unexpected and sudden situations from
occurring. If
Safe Exit Assist
is dese
-
lected, Safe Exit Assist cannot assist you.
NOTICE
If the vehicle is restarted, Safe Exit Assist
will maintain the last setting.
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
3 Driving Safety Priority
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
僅
Driving Safety Priority
: Select
Setup
→
Vehicle Settings
→
Driver Assis
-
tance
→
Warning Methods
→
Driv
-
ing Safety Priority
on the
infotainment system.
For safe driving, the audio volume will
temporarily decrease to warn the
driver with the audible warning.
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
OCV051277N
OCV041568N
OCV053295L
Driver assistance system
447
Safe Exit Assist (SEA)
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
Safe Exit Assist operation
Safe Exit Assist warns and controls with
the following actions.
Collision warning when exiting
vehicle
A:
Watch for traffic
僅 The warning light on the side view
mirror will blink and the warning mes
-
sage will appear on the cluster, and an
audible warning will sound.
僅 Safe Exit Assist will warn under the
following circumstances:
- Your driving speed: below 2 mph (3
km/h)
- The speed of the approaching vehi
-
cle from the rear: above 4 mph (6
km/h)
Safe Exit Assist linked with Elec
-
tronic child safety lock
A:
Check surroundings then try again
僅 When Electric child safety lock is oper
-
ating and an approaching vehicle
from the rear area is detected, the
rear doors cannot be unlocked even if
the driver tries to unlock the rear
doors using the electronic child safety
lock button. The warning light on the
outside rearview mirror will blink and
the warning message will appear on
the cluster.
僅 Safe Exit Assist will warn under the
following circumstances:
- Your driving speed: below 2 mph (3
km/h)
- The speed of the approaching vehi
-
cle from the rear: above 4 mph (6
km/h)
CAUTION
If the driver presses the electronic child
lock button ( ) again within 10 seconds
after the warning message appears,
Safe Exit Assist judges that the driver
has unlocked the door and the door will
open regardless of vehicles approach
-
ing. The electronic child safety lock will
turn off (button indicator OFF). Always
check the surroundings before turning
off the electronic child safety lock but
-
ton.
OCV051038L
OCV051142L
OCV051143L
45
7
7
Driver assistance system Safe Exit Assist (SEA)
NOTICE
If a rear door is opened from the outside,
it will open regardless of Safe Exit Assist
operation.
WARNING
Take the following precautions when
using Safe Exit Assist:
僅 For your safety, change the Settings
after parking the vehicle at a safe
location.
僅 If any other function's warning mes
-
sage is displayed or audible warning
is generated, Safe Exit Assist warning
message may not be displayed and
audible warning may not be gener
-
ated.
僅 You may not hear the warning sound
of Safe Exit Assist if the surrounding is
noisy.
僅 Safe Exit Assist does not operate in all
situations or cannot prevent all colli
-
sions.
僅 Safe Exit Assist may warn the driver
late or may not warn the driver
depending on the road and driving
conditions. Always check vehicle sur
-
roundings.
僅 The driver and passengers are
responsible for accidents that occur
while exiting the vehicle. Always check
the surroundings before you exit the
vehicle.
僅 Never deliberately operate Safe Exit
Assist. Doing so may lead to serious
injury or death.
僅 Safe Exit Assist does not operate if
there is a problem with Blind-Spot
Collision-Avoidance Assist.
僅 The warning message of Blind-Spot
Collision-Avoidance Assist will appear
when:
- Blind-Spot Collision-Avoidance
Assist sensor or the sensor sur
-
rounding is polluted or covered
- Blind-Spot Collision-Avoidance
Assist fails to warn passengers or
falsely warn passengers
NOTICE
僅 After the vehicle is turned off, Safe
Exit Assist operates for 3 minutes, but
turns off immediately if the doors are
locked.
僅 Images or colors may be displayed
differently depends on the instrument
cluster specifications or theme.
Safe Exit Assist malfunction and
limitations
Safe Exit Assist malfunction
A:
Check Blind-Spot Safety system
When Safe Exit Assist is not working
properly, the warning message will
appear and ( ) warning lights will
appear on the cluster, and Safe Exit
Assist will turn off automatically or Safe
Exit Assist will be limited. Have Safe Exit
Assist inspected by an authorized Kia
dealer.
OCV051139L
OCV051140N
Driver assistance system
467
Safe Exit Assist (SEA)
A:
Check side view mirror warning
light
When the side view mirror warning light
is not working properly, the warning
message will appear on the cluster for
several seconds, and ( ) warning light
will appear on the cluster. Have Safe Exit
Assist inspected by an authorized Kia
dealer.
Safe Exit Assist disabled
A:
Blind-Spot Safety system disabled.
Radar blocked
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain, or
installing a trailer or carrier, it can reduce
the detecting performance and tempo
-
rarily limit or disable Safe Exit Assist.
If this occurs, the
Blind-Spot Safety
system disabled. Radar blocked
warn
-
ing message will appear on the cluster.
Safe Exit Assist will operate normally
when such foreign material or trailer, etc.
is removed, and then the vehicle is
restarted.
If Safe Exit Assist does not operate nor
-
mally after it is removed, have Safe Exit
Assist inspected by an authorized Kia
dealer.
WARNING
僅 Even though the warning message
does not appear on the cluster, Safe
Exit Assist may not properly operate.
僅 Safe Exit Assist may not properly
operate in an area (e.g., open terrain),
where any substance are not detected
right after the vehicle is turned on, or
when the detecting sensor is blocked
with foreign material right after the
vehicle is turned on.
CAUTION
Turn off Safe Exit Assist to install a
trailer, carrier, other equipment, or
remove the trailer, carrier, etc. to use
Safe Exit Assist.
Limitations of Safe Exit Assist
Safe Exit Assist may not operate nor
-
mally, or Safe Exit Assist may operate
unexpectedly under the following cir
-
cumstances:
僅 Getting out of the vehicle where trees
or grass are overgrown
僅 Getting out of the vehicle where the
road is wet
僅 The approaching vehicle is very fast
or very slow
NOTICE
For more details on the limitations of the
rear corner radar, refer to "Blind-Spot
Collision-Avoidance Assist (BCA) (if
equipped)" on page 7-28.
WARNING
僅 Safe Exit Assist may not operate nor
-
mally if interfered by strong electro
-
magnetic waves.
僅 Safe Exit Assist may not operate for 3
seconds after the vehicle is started, or
the rear corner radars are initialized.
OCV051141L
47
7
7
Driver assistance system Manual Speed Limit Assist (MSLA)
Manual Speed Limit Assist
(MSLA)
1
Speed Limit indicator
2
Set speed
You can set the speed limit when you do
not want to drive over a specific speed.
If you drive over the preset speed limit,
the warning function operates (set
speed limit will blink and chime will
sound) until the vehicle speed returns
within the speed limit.
Manual Speed Limit Assist opera
-
tion
Setting speed limit
1. Press and hold Driving Assist ( ) but
-
ton at the desired speed.
The speed limit indicator ( )
light will appear and the set speed
limit will be displayed on the cluster.
2. Push the + switch up or - switch down,
and release it at the desired speed.
Push the + switch up or - switch down
and hold it. The speed will increase or
decrease to the nearest multiple of
five (multiple of ten in km/h) at first,
and then increase or decrease by 5
mph (10 km/h).
3. If you would like to drive over the pre
-
set speed limit, depress the accelera
-
tor pedal.
The set speed limit (1) will blink and
chime will sound until you return the
vehicle speed within the speed limit.
NOTICE
When the accelerator pedal is not
depressed beyond the pressure point,
vehicle speed will maintain within the
speed limit.
Temporarily pausing Manual
Speed Limit Assist
Press the ( ) switch to temporarily
pause the set speed limit. The set speed
limit will turn off but the Speed Limit
indicator ( ) will stay on.
OCV041169N
OCV051046L
OCV051047L
OCV041170N
OCV051049L
Driver assistance system
487
Manual Speed Limit Assist (MSLA)
Resuming Manual Speed Limit
Assist
To resume Manual Speed Limit Assist
after the function was paused, operate
the +, -, ( ) switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the ( ) switch, vehicle speed
will resume to the preset speed.
Turning off Manual Speed Limit
Assist
Press the Driving Assist ( ) button to
turn Manual Speed Limit Assist off. The
Speed Limit indicator ( ) will go
off.
Always press the Driving Assist ( ) but
-
ton to turn Manual Speed Limit Assist off
when not in use.
WARNING
Take the following precautions when
using Manual Speed Limit Assist:
僅 Always set the vehicle speed to the
speed limit in your country.
僅 Keep Manual Speed Limit Assist off
when the function is not in use, to
avoid inadvertently setting a speed.
Check that the Speed Limit indicator
( ) is off.
僅 Manual Speed Limit Assist does not
substitute for proper and safe driving.
It is the responsibility of the driver to
always drive safely and should always
be aware of unexpected and sudden
situations from occurring. Pay atten
-
tion to the road conditions at all times.
NOTICE
The images or colors may be displayed
differently depending on the specifica
-
tions of the instrument cluster or theme.
OCV051050L_3
OCV051046L
49
7
7
Driver assistance system Intelligent Speed Limit Assist (ISLA)
Intelligent Speed Limit Assist
(ISLA) (if equipped)
Intelligent Speed Limit Assist uses infor
-
mation from the detected road sign and
navigation system to inform the driver of
the speed limit and additional road signs
of the current road. Also, the function
helps the driver to maintain within the
speed limit of the road.
CAUTION
僅 Intelligent Speed Limit Assist may not
operate properly if the function is
used in other countries.
僅 Update navigation system regularly
for Intelligent Speed Limit Assist to
operate normally.
Detecting sensor
Front view camera
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more precautions related to the
camera sensor, refer to "Forward Colli
-
sion-Avoidance Assist (FCA)" on page 7-
4.
Intelligent Speed Limit Assist set
-
tings
Speed Limit
A:
Driver Assistance
1 Speed Limit
2 Speed Limit Assist
3 Speed Limit Warning
4 Off
With the vehicle on, select or deselect
Setup
→
Vehicle
→
Driver Assistance
→
Speed Limit
from the Settings menu
to set whether or not to use each func
-
tion.
僅If
Speed Limit Assist
is selected, Intel
-
ligent Speed Limit Assist will inform
the driver of speed limit and addi
-
tional road signs. In addition, Intelli
-
gent Speed Limit Assist will inform the
driver to change set speed of Manual
Speed Limit Assist and/or Smart
Cruise Control to help the driver stay
within the speed limit.
僅If
Speed Limit Warning
is selected,
Intelligent Speed Limit Assist will
inform the driver of speed limit and
additional road signs. In addition,
Intelligent Speed Limit Assist will warn
the driver when the vehicle is driven
faster than the speed limit. Manual
Speed Limit Assist or Smart Cruise
Control set speed will not be automat
-
ically adjusted. The driver should
adjust the speed manually.
僅If
Off
is selected, Intelligent Speed
Limit Assist will turn off.
OCV051017N
OCV041569N
Driver assistance system
507
Intelligent Speed Limit Assist (ISLA)
Speed Limit Offset
A:
Driver Assistance
1 Speed Limit
2 Speed Limit Offset
(mph)
With the vehicle on, when
Setup
→
Vehicle
→
Driver Assistance
→
Speed
Limit
→
Speed Limit Offset
is selected,
the Speed Limit Offset can be changed.
Speed Limit Warning and Speed Limit
Assist will operate by applying the Speed
Limit Offset setting to the detected
speed limit.
WARNING
僅 For your safety, change the Settings
after parking the vehicle at a safe
location.
僅 Speed Limit Assist function operates
based on the Offset setting added to
the speed limit. If you want to change
the set speed according to the speed
limit, set the offset to
0
.
僅 Speed Limit Warning function warns
the driver when driving speed
exceeds the speed at which the set
Offset is added to speed limit. If you
want Speed Limit Warning to warn
you immediately when the driving
speed exceeds the speed limit, set the
offset to
0
.
NOTICE
The setting of
Speed Limit Offset
is not
reflected in Navigation-based Smart
Cruise Control (NSCC).
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
Intelligent Speed Limit Assist
operation
Warning and control
Intelligent Speed Limit Assist will warn
and control the vehicle by 'Displaying
OCV042570N
OCV053293L
51
7
7
Driver assistance system Intelligent Speed Limit Assist (ISLA)
speed limit', 'Warning overspeed' and
'Changing set speed'.
NOTICE
Intelligent Speed Limit Assist warning
and control are described based on the
Offset set to
0
. For details on Offset set
-
ting, refer to "Intelligent Speed Limit
Assist settings" on page 7-49.
Displaying speed limit
Speed limit information is displayed on
the instrument cluster.
NOTICE
僅 If speed limit information of the road
cannot be recognized, '---' sign will be
displayed. Please refer to "Limitations
of Intelligent Speed Limit Assist" if the
road signs are difficult to recognize.
僅 Intelligent Speed Limit Assist provides
additional road sign information in
addition to speed limit. The additional
road sign information provided may
vary according to your country.
僅 Supplementary sign displayed under
the speed limit or overtaking restric
-
tion sign means the conditions under
which the signs must be followed. If
the supplementary sign is not recog
-
nized, it will be displayed as blank.
Warning overspeed
When driving at a speed higher than the
displayed speed limit, the red speed limit
indicator will blink.
Changing set speed
If the speed limit of the road changes
during the operation of Manual Speed
Limit Assist or Smart Cruise Control, an
arrow in the direction of up or down is
displayed to inform the driver that the
set speed needs to be changed. At this
time, the driver can change the set
speed according to the speed limit by
using the + or - switch on the steering
wheel.
WARNING
僅 If the Offset is set over
0
, the set
speed will change to a higher speed
than the speed limit of the road. If you
want to drive below the speed limit,
set the Offset under
0
or use the -
OCV051146N
OCV051147N
OCV051148N
OCV051149N
Driver assistance system
527
Intelligent Speed Limit Assist (ISLA)
switch on the steering wheel to lower
the set speed.
僅 Even after changing the set speed
according to the speed limit of the
road, the vehicle can still be driven
over the speed limit. If necessary,
depress the brake pedal to reduce
your driving speed.
僅 If the speed limit of the road is under
20 mph (30 km/h), the set speed
change function will not work.
僅 Intelligent Speed Limit Assist oper
-
ates using the speed unit in the instru
-
ment cluster set by the driver. If the
speed unit is set to a unit other than
the speed unit used in your country,
Intelligent Speed Limit Assist may not
operate properly.
NOTICE
僅 For more details on function opera
-
tion of Manual Speed Limit Assist,
refer to "Manual Speed Limit Assist
(MSLA)" on page 7-47.
僅 For more details on operation of
Smart Cruise Control, refer to "Smart
Cruise Control (SCC)" on page 7-61.
NOTICE
The images or colors may be displayed
differently depending on the specifica
-
tions of the instrument cluster or theme.
Intelligent Speed Limit Assist
malfunction and limitations
Intelligent Speed Limit Assist
malfunction
A:
Check Speed Limit system
When Intelligent Speed Limit Assist is not
working properly, the warning message
will appear on the cluster for several sec
-
onds, and the master ( ) warning light
will appear on the cluster. If this occurs,
have the Intelligent Speed Limit Assist
checked by an authorized Kia dealer.
Intelligent Speed Limit Assist dis
-
abled
A:
Speed Limit system disabled. Cam
-
era obscured
When the front windshield where the
front view camera is located is covered
with foreign material, such as snow or
rain, it can reduce the detecting perfor
-
mance and temporarily limit or disable
Intelligent Speed Limit Assist.
If this occurs, the warning message will
appear on the cluster. The function will
operate normally when snow, rain or for
-
eign material is removed.
OCV051150L
OCV051151L
53
7
7
Driver assistance system Intelligent Speed Limit Assist (ISLA)
If Intelligent Speed Limit Assist does not
operate normally after it is removed,
have the Intelligent Speed Limit Assist
checked by an authorized Kia dealer.
NOTICE
僅 Even though the warning message or
warning light does not appear on the
cluster, Intelligent Speed Limit Assist
may not operate properly.
僅 If the vehicle is turned off and then
restarted with the sensor blocked or
malfunction, Intelligent Speed Limit
Assist may not operate properly.
Limitations of Intelligent Speed
Limit Assist
Intelligent Speed Limit Assist may not
operate normally, or the function may
operate unexpectedly under the follow
-
ing circumstances:
僅 The road sign is contaminated or
indistinguishable
- The road sign is difficult to see due
to bad weather, such as rain, snow,
fog, etc.
- The road sign is not clear or dam
-
aged
- The road sign is partially obscured
by surrounding objects or shadow
- A road sign near the road you are
driving is detected
僅 The road signs do not conform to the
standard
- The text or picture on the road sign
is different from the standard
- The road sign is installed between
the main line and the exit road or
between diverging roads
- A conditional road sign is not
installed with a sign located on the
road to enter or exit
- A sign is attached to another vehi
-
cle
僅 The distance between the vehicle and
the road signs is too far
僅 The vehicle encounters illuminating
road signs
僅 Intelligent Speed Limit Assist incor
-
rectly recognizes numbers in the
street signals or other signs as the
speed limit
僅 The minimum speed limit sign is on
the road
僅 The brightness changes suddenly, for
example when entering or exiting a
tunnel or passing under a bridge
僅 Headlamps are not used or the bright
-
ness of the headlamps are weak at
night or in the tunnel
僅 Road signs are difficult to recognize
due to the reflection of sunlight, street
lights, or oncoming vehicles
僅 The navigation information or GPS
information contain errors.
僅 The driver does not follow the guide
of the navigation.
僅 The driver is driving a new road that is
not in the navigation system yet.
僅 The field of view of the Front view
camera is obstructed by sun glare
僅 Driving on a road that is sharply
curved or continuously curved
僅 Driving through speed bumps, or driv
-
ing up and down or left to right on
steep inclines
僅 The vehicle is shaking heavily
僅 There is an error in the navigation
map information or GPS information
僅 The driver is not driving along the
navigation guide route
僅 Driving on a newly opened road
Driver assistance system
547
Driver Attention Warning (DAW)
WARNING
僅 Intelligent Speed Limit Assist is a sup
-
plemental function that helps the
driver to comply with the speed limit
on the road, and may not display the
correct speed limit or control the driv
-
ing speed properly.
僅 Always set the vehicle speed to the
speed limit in your country.
僅 Intelligent Speed Limit Assist may not
operate for 15 seconds after the vehi
-
cle is started, or the front view camera
is initialized.
NOTICE
For more details on the limitations of the
front view camera, refer to "Forward Col
-
lision-Avoidance Assist (FCA)" on page
7-4.
Driver Attention Warning
(DAW)
Basic function
Driver Attention Warning will help deter
-
mine the driver's attention level by ana
-
lyzing driving pattern, driving time, etc.
while vehicle is being driven. Driver
Attention Warning will recommend a
break when the driver's attention level
falls below a certain level.
Leading vehicle departure alert
function
Leading Vehicle Departure Alert function
will inform the driver when the front
vehicle departs from a stop.
Detecting sensor
Front view camera
The front view camera is used to detect
driving patterns and front vehicle depar
-
ture while vehicle is being driven.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera in
good condition to maintain optimal per
-
formance of Driver Attention Warning.
For more details on the precautions of
the front view camera, refer to "Forward
Collision-Avoidance Assist (FCA)" on
page 7-4.
OCV051017N
55
7
7
Driver assistance system Driver Attention Warning (DAW)
Driver Attention Warning set
-
tings
Driver Attention Warning
A:
Driver Assistance
1 Driver Attention Warning
2 Inattentive Driving Warning
3 Safety Notice Call
With the vehicle on, select or deselect
Setup
→
Vehicle
→
Driver Assistance
→
Driver Attention Warning
from the
infotainment system screen to set
whether or not to use each function.
僅 Inattentive Driving Warning: Driver
Attention Warning will inform the
driver the driver's attention level and
will recommend taking a break when
the level falls below a certain level.
Leading Vehicle Departure Alert
A:
Driver Assistance
1 Driver Attention Warning
2 Leading Vehicle Departure Alert
Leading Vehicle Departure Alert: The
function will inform the driver when the
front vehicle departs from a stop.
Warning Timing
A:
Driver Assistance
1 Warning Timing
2 Standard
3 Late
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
Warn
-
ing Timing
from the infotainment sys
-
tem screen to change the initial warning
activation time for Driver Attention
Warning.
僅
Standard
: Use in a normal driving
environment. If Driver Attention Warn
-
ing operates too sensitive, set the
warning timing to
Late
.
僅
Late
: The warning timing will be late
NOTICE
僅 If you change the Warning Timing, the
warning time of other Driver Assis
-
tance systems may change.
僅 If the vehicle is restarted, Driver Warn
-
ing Time will maintain the last setting.
Driver Attention Warning opera
-
tion
The basic functions of the Driver Atten
-
tion Warning include:
僅 Attention Level
僅 Consider taking a break
OCV041571L
OCV041572N
OCV042644N
Driver assistance system
567
Driver Attention Warning (DAW)
Basic function
Attention level
Function off
1 Driver Attention Warning
2 System Off
Standby/Disabled
1 Driver Attention Warning
2 Standby
3 Last Break
Attentive driving
1 Attention Level
2 High
3 Last Break
Inattentive driving
1 Attention Level
2 Low
3 Last Break
The driver's attention level is displayed
on the scale of 1 to 5. The lower the level
is, the more inattentive the driver is. The
level decreases when the driver does not
take a break for a certain period of time.
Driver Attention Warning operates under
the following conditions:
僅 Your driving speed: Approximately
0~130 mph (0~210 km/h).
When the
Inattentive driving warning
is deselected from the Settings menu,
System Off
is displayed.
When vehicle speed is not within the
operating speed, the message
Standby
will be displayed.
Taking a break
A:
Consider taking a break
The warning message will appear on the
cluster and an audible warning will
sound to suggest that the driver take a
break, when the driver's attention level is
below 1.
OCV051152L
OCV051153L
OCV051154L
OCV051252L
OCV051156L
57
7
7
Driver assistance system Driver Attention Warning (DAW)
Driver Attention Warning will not sug
-
gest a break when the total driving time
is shorter than 10 minutes or 10 minutes
has not passed after the last break was
suggested.
WARNING
For your safety, change the Settings
after parking the vehicle at a safe loca
-
tion.
CAUTION
僅 Driver Attention Warning may suggest
a break depending on the driver's
driving pattern or habits, even if the
driver doesn't feel fatigued.
僅 Driver Attention Warning is a supple
-
mental function and may not be able
to determine whether the driver is
inattentive.
僅 The driver who feels fatigued should
take a break at a safe location, even
though there is no break suggestion
by Driver Attention Warning.
NOTICE
僅 For more details on setting the instru
-
ment cluster, refer to "Instrument
cluster" on page 5-60.
僅 Driver Attention Warning will reset the
last break time to 00:00 in the follow
-
ing situations:
- The vehicle is turned off
- The driver unfastens the seat belt
and opens the driver's door.
- The vehicle is stopped for more
than 10 minutes.
Leading vehicle departure alert
function
A:
Leading vehicle is driving away
When the front vehicle departs from a
stop, Leading Vehicle Departure Alert
will inform the driver by displaying the
warning message on the cluster and an
audible warning will sound.
WARNING
僅 If any other function's warning mes
-
sage is displayed or audible warning
is generated, Leading Vehicle Depar
-
ture Alert warning message may not
be displayed and audible warning
may not be generated.
僅 The driver should hold the responsi
-
bility to safely drive and control the
vehicle.
CAUTION
僅 Leading Vehicle Departure Alert is a
supplemental function and may not
alert the driver whenever the front
vehicle departs from a stop.
僅 Always check the front of the vehicle
and road conditions before departure.
NOTICE
The images or colors may be displayed
differently depending on the specifica
-
tions of the instrument cluster or theme.
OCV051157L
Driver assistance system
587
Driver Attention Warning (DAW)
Driver Attention Warning mal
-
function and limitations
Driver Attention Warning mal
-
function
A:
Check Inattentive Driving Warning
system
When Driver Attention Warning is not
working properly, the warning message
will appear and ( ) warning lights will
appear on the cluster. If this occurs, have
Driver Attention Warning inspected by
an authorized Kia dealer.
Limitations of Driver Attention
Warning
Driver Attention Warning may not work
properly in the following situations:
僅 The vehicle is driven violently
僅 The vehicle intentionally crosses over
lanes frequently
僅 The vehicle is controlled by Driver
Assistance system, such as Lane
Keeping Assist
Leading vehicle departure alert
function
僅 When the vehicle cuts in
[A]: Your vehicle, [B]: Front vehicle
If a vehicle cuts in front of your vehi
-
cle, Leading Departure Alert may not
operate properly.
僅 When the vehicle ahead sharply
steers
[A]: Your vehicle, [B]: Front vehicle
If the vehicle in front makes a sharp
turn, such as to turn left or right or
make a U- turn, etc., Leading Vehicle
Departure Alert may not operate
properly.
僅 When the vehicle ahead abruptly
departures
If the vehicle in front abruptly depar
-
tures, Leading Vehicle Departure Alert
may not operate properly.
僅 When a pedestrian or bicycle is
between you and the vehicle ahead
OCV051158L
OCV052051N
OCV052052N
OCV052053N
OCV052054N
59
7
7
Driver assistance system Driver Attention Warning (DAW)
If there is a pedestrian(s) or bicycle(s)
in between you and the vehicle in
front, Leading Vehicle Departure Alert
may not operate properly.
僅 When in a parking lot
If a vehicle parked in front drives
away from you, Leading Vehicle
Departure Alert may alert you that the
parked vehicle is driving away.
僅 When driving at a tollgate or intersec
-
tion, etc.
If you pass a tollgate or intersection
with lots of vehicles or you drive
where lanes are merged or divided
frequently, Leading Vehicle Departure
Alert may not operate properly.
WARNING
Driver Attention Warning may not oper
-
ate for 15 seconds after the vehicle is
started, or the front view camera is ini
-
tialized.
NOTICE
For more details on the precautions of
the front view camera, refer to "Forward
Collision-Avoidance Assist (FCA)" on
page 7-4.
OCV051055L
OCV052056N
OCV052057N
Driver assistance system
607
Blind-Spot View Monitor (BVM)
Blind-Spot View Monitor
(BVM) (if equipped)
Left side
Right side
Blind-Spot View Monitor displays the
rear blind spot area of the vehicle in the
cluster when the turn signal is turned on
to help safely change lanes.
Detecting sensor
Wide-side view camera
(camera located at bottom of the mirror)
Refer to the picture above for the
detailed location of the detecting sen
-
sors.
Blind-Spot View Monitor settings
Blind-Spot View
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
Blind-
Spot Safety
→
Blind-Spot View
from
the infotainment system screen to turn
on Blind-Spot View Monitor and deselect
to turn off the function.
Blind-Spot View Monitor opera
-
tion
Turn signal switch
Blind-Spot View Monitor will turn on and
off when the turn signal is turned on and
off.
Blind-Spot View Monitor
Operating conditions
僅 When the left or right turn signal turns
on, the image on the instrument clus
-
ter will turn on.
Off conditions
Blind-Spot View Monitor will turn off
when one of the following conditions are
satisfied:
僅 When the turn signal is turned off.
僅When the hazard warning flasher is
on.
僅 When other important warning is dis
-
played on the instrument cluster.
Blind-Spot View Monitor mal
-
function
When Blind-Spot View Monitor is not
working properly, or the cluster display
flickers, or the camera image does not
display normally, have Blind-Spot View
Monitor inspected by an authorized Kia
dealer.
OCV052250N
OCV052251N
OCV051058L
OCV051059
61
7
7
Driver assistance system Smart Cruise Control (SCC)
WARNING
僅 The image shown on the cluster may
differ from the actual distance of the
object. Make sure to directly check the
vehicle's surroundings for safety.
僅 If the camera lens is covered with for
-
eign material, the Blind-Spot View
Monitor may not operate normally.
Always keep the camera lens clean.
However, do not use chemical sol
-
vents such as strong detergents con
-
taining high alkaline or volatile
organic solvents (gasoline, acetone
etc.). This may damage the camera
lens.
Smart Cruise Control (SCC)
Smart Cruise Control is designed to
detect the vehicle ahead and help main
-
tain the desired speed and minimum
distance with the vehicle ahead.
Overtaking Acceleration Assist
While Smart Cruise Control is operating,
if the function judges that the driver is
determined to overtake the vehicle in
front, acceleration will be assisted.
Based on Driving Style (if
equipped)
Smart Cruise Control will operate based
on the driver's driving style, such as
inter-vehicle distance, acceleration,
reaction speed.
Detecting sensor
Front view camera
Front radar
OCV051017N
OCV051005N
Driver assistance system
627
Smart Cruise Control (SCC)
Front corner radar (if equipped)
The front view camera, front radar, and
front corner radars (if equipped) are
used as a detecting sensor to detect the
vehicles in front.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
僅 Always keep the front view camera
and front radar in good condition to
maintain optimal performance of
Smart Cruise Control.
僅 For more details on the precautions of
the front view camera and front radar,
refer to "Forward Collision-Avoidance
Assist (FCA)" on page 7-4.
Smart Cruise Control settings
Based on Driving Style (if
equipped)
A:
Driver Assistance
1 Smart Cruise Control
2 Based on Driving Style
With the vehicle on, if
Setup
→
Vehicle
→
Driver Assistance
→
Smart Cruise
Control
→
Based on Driving Style
is
selected from the infotainment system
screen, Smart Cruise Control will operate
based on the driver's driving style, such
as vehicle distance, acceleration, reac
-
tion speed.
While Smart Cruise Control is operating
with
Based on Driving Mode
selected, if
you press and hold the Vehicle Distance
( ) button, Smart Cruise Control will
change to
Based on Driving Style
.
While Smart Cruise Control is operating
with
Based on Driving Style
, if the Vehi
-
cle Distance ( ) button is pressed, it will
change to
Based on Driving Mode
.
NOTICE
僅 If equipped with Based on Driving
Style,
Based on Driving Mode
and
Based on Driving Style
can be
selected from the infotainment sys
-
tem screen by selecting
Setup
→
Vehicle
→
Driver Assistance
→
Smart Cruise Control
.
僅If
Based on Driving Mode
is selected,
Smart Cruise Control will operate
based on the drive mode selected.
僅 While Smart Cruise Control is operat
-
ing with
Based on Driving Style
selected, if you press and hold the
Vehicle Distance ( ) button, Smart
Cruise Control will change to Based
on driving mode. Press and hold the
Vehicle Distance ( ) button to
change Smart Cruise Control to
Based on Driving Style
mode.
Driving Style Settings (if
equipped)
OCV051024N
OCV041573N
OCV043585N
63
7
7
Driver assistance system Smart Cruise Control (SCC)
A:
Driver Assistance
1 Smart Cruise Control
2 View Driving Style Analysis
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
Smart
Cruise Control
→
View Driving Style
Analysis
from the infotainment system
screen to check the driver's driving style,
and to change each driving style manu
-
ally.
NOTICE
僅
View Driving Style Analysis
is dis
-
played when
Based on Driving Style
is selected.
僅 Smart Cruise Control learns the
driver's driving styles only when the
driver drives the vehicle.
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
3 Haptic Warning
4 Driving Safety Priority
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
僅
Haptic Warning
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Haptic Warn
-
ing
on the infotainment system, and
set the steering wheel vibration warn
-
ing. (if equipped)
僅
Driving Safety Priority
: Select
Setup
→
Vehicle Settings
→
Driver Assis
-
tance
→
Warning Methods
→
Driv
-
ing Safety Priority
on the
infotainment system.
For safe driving, the audio volume will
temporarily decrease to warn the
driver with the audible warning.
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
僅 With the warning volume is 0, if you
deselect
Haptic Warning
, the warn
-
ing volume will be automatically
adjusted with volume 2.
僅With the
Haptic Warning
is dese
-
lected, if you adjust the warning vol
-
ume to 0, the
Haptic Warning
will be
automatically selected.
OCV053294L
Driver assistance system
647
Smart Cruise Control (SCC)
To turn on Smart Cruise Control
Press the Driving Assist ( ) button to
turn on the function. The speed will be
set to the current speed on the cluster.
僅 If there is no vehicle in front of you,
the set speed will be maintained.
僅 If there is a vehicle in front of you, the
speed may be adjusted to maintain
the distance to the vehicle ahead. If
the vehicle ahead accelerates, your
vehicle will travel at a steady cruising
speed after accelerating to the set
speed.
NOTICE
If your vehicle speed is between 0~20
mph (0~30 km/h) when you press the
Driving Assist ( ) button, the set speed
will be set to 20 mph (30 km/h).
To set vehicle distance
Each time the button is pressed, the
vehicle distance changes as follows:
NOTICE
僅 If you drive at 56 mph (90 km/h), the
distance is maintained as follows:
- Distance 4 - approximately 172 ft.
(52.5 m)
- Distance 3 - approximately 130 ft.
(40 m)
- Distance 2 - approximately 106 ft.
(32.5 m)
- Distance 1 - approximately 82 ft. (25
m)
僅 The distance is set to the last set dis
-
tance when the vehicle is restarted, or
when Smart Cruise Control was tem
-
porarily canceled.
To increase set speed
Push the + switch up and release it
immediately. The set speed will increase
by 1 mph (1 km/h) each time the switch
is operated in this manner.
僅 Push the + switch up and hold it. The
set speed will increase by 5 mph (10
km/h) each time the switch is oper
-
ated in this manner.
僅 You can set the speed to 110 mph
(180 km/h).
WARNING
Check the driving condition before using
the + switch. Driving speed may sharply
increase when you push up and hold the
+ switch.
OCV051046L
OCV051060L
OCV051248L
65
7
7
Driver assistance system Smart Cruise Control (SCC)
To decrease set speed
Push the - switch down and release it
immediately. The set speed will decrease
by 1 mph (1 km/h) each time the switch
is operated in this manner.
僅 Push the - switch down and hold it.
The set speed will decrease by 5 mph
(10 km/h) each time the switch is
operated in this manner.
僅 You can set the speed to 20 mph (30
km/h).
To temporarily cancel Smart
Cruise Control
Press the ( ) switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.
To resume Smart Cruise Control
To resume Smart Cruise Control after
the function was canceled, operate the
+, - or ( ) switch.
僅 If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
僅 If you push the ( ) switch, vehicle
speed will resume to the preset speed.
WARNING
Check the driving condition before using
the ( ) switch. Driving speed may
sharply increase or decrease when you
press the ( ) switch.
To turn off Smart Cruise Control
Press the Driving Assist ( ) button to
turn Smart Cruise Control off.
NOTICE
If your vehicle is equipped with Manual
Speed Limit Assist, press and hold the
Driving Assist ( ) button to turn off
Smart Cruise Control. However Manual
Speed Limit Assist will turn on.
Based on Driving Mode
Smart Cruise Control will change accel
-
eration based on the drive mode
selected from Drive Mode Integrated
Control function. Refer to the following
chart.
OCV051249L
OCV051224L_2
OCV051050L_3
Drive Mode Smart Cruise Control
SNOW
* Normal
ECO
Slow
SPORT
Fast
NORMAL
Normal
GT
* Fast
OCV051046L
Driver assistance system
667
Smart Cruise Control (SCC)
* : if equipped
NOTICE
僅 For more details on Drive Mode, refer
to "Drive mode integrated control sys
-
tem" on page 6-37.
僅 Smart Cruise Control may not turn on
or off in some of the drive modes for
the operating conditions are not satis
-
fied.
僅 If your vehicle is not equipped with
Drive Mode Integrated Control sys
-
tem, Smart Cruise Control accelerates
your vehicle at a normal level.
Smart Cruise Control operation
Operating conditions
Smart Cruise Control will operate when
the following conditions are satisfied.
Basic function
僅 The gear is in D (Drive)
僅 The driver's door is closed
僅 EPB (Electronic Parking Brake) is not
applied
僅 Your vehicle speed is within the oper
-
ating speed range
-When there is no vehicle in front:
5~110 mph (10~180 km/h)
- when there is a vehicle in front:
0~110 mph (0~180 km/h)
僅 ESC (Electronic Stability Control) or
ABS is on
僅 ESC (Electronic Stability Control) or
ABS is not controlling the vehicle
僅 Forward Collision-Avoidance Assist
brake control is not operating
僅Remote Smart Parking Assist brake
control is not operating (if equipped)
僅 The vehicle is not in a power down
status (Power down indicator light
does not appear)
NOTICE
When stopped behind another vehicle,
the driver can turn on Smart Cruise Con
-
trol while the brake pedal is depressed.
Overtaking Acceleration Assist
Overtaking Acceleration Assist will oper
-
ate when the turn signal indicator is
turned on to the left while Smart Cruise
Control is operating, and the following
conditions are satisfied:
僅 Your vehicle speed is above 40 mph
(60 km/h)
僅 The hazard warning flasher is off
僅 A vehicle is detected in front of your
vehicle
僅 Deceleration is not needed to main
-
tain distance with the vehicle in front
WARNING
僅 When the turn signal indicator is
turned on to the left (left-hand drive)
or turned on to the right (right-hand
drive) while there is a vehicle ahead,
the vehicle may accelerate temporar
-
ily. Pay attention to the road condi
-
tions at all times.
僅 Regardless of your country's driving
direction, Overtaking Acceleration
Assist will operate when the condi
-
tions are satisfied. When using the
function in countries with different
driving direction, always check the
road conditions at all times.
67
7
7
Driver assistance system Smart Cruise Control (SCC)
Smart Cruise Control display and
control
Basic function
You can see the status of the Smart
Cruise Control operation in the Driving
Assist mode on the cluster. Refer to
"Instrument cluster" on page 5-60.
Smart Cruise Control will be displayed as
below depending on the status of the
function.
僅When operating
1. Whether there is a vehicle ahead
and the selected distance level are
displayed.
2. Set speed is displayed.
3. Whether there is a vehicle ahead
and the selected target distance are
displayed.
僅 When temporarily canceled
1. ( ) indicator is displayed.
2. The previous set speed is shaded.
NOTICE
僅 The distance of the front vehicle on
the cluster is displayed according to
the actual distance between your
vehicle and the vehicle ahead.
僅 The target distance may vary accord
-
ing to the vehicle speed and the set
distance level. If vehicle speed is low,
even though the vehicle distance have
changed, the change of the target
vehicle distance may be small.
To temporarily accelerate
If you want to speed up temporarily
without altering the set speed while
Smart Cruise Control is operating,
depress the accelerator pedal. While the
accelerator pedal is depressed, the set
speed, distance level and target distance
will blink on the cluster.
However, if the accelerator pedal is
depressed insufficiently, the vehicle may
decelerate.
WARNING
Be careful when accelerating temporar
-
ily, because the speed and distance is
not controlled automatically even if
there is a vehicle in front of you.
Based on Driving Style operating
(if equipped)
OCV041187N
OCV041188N
OCV041189N
OCV051165N
Driver assistance system
687
Smart Cruise Control (SCC)
A:
Driving Style Adaptive SCC
When Based on Driving Style is operat
-
ing, the message will appear on the clus
-
ter for 2 seconds, and the distance level
and target distance will be displayed
based on the driving style.
Smart Cruise Control temporarily
canceled
A:
Smart Cruise Control canceled
Smart Cruise Control will be temporarily
canceled automatically when:
僅 The vehicle speed is above 120 mph
(190 km/h)
僅 The vehicle is stopped for a certain
period of time
僅 The accelerator pedal is continuously
depressed for a certain period of time
僅 The conditions for the Smart Cruise
Control to operate is not satisfied
If Smart Cruise Control is temporarily
canceled automatically, a warning mes
-
sage will appear on the cluster, and an
audible warning will sound to warn the
driver.
NOTICE
If Smart Cruise Control is automatically
canceled temporarily when the vehicle is
stopped, the Electronic Parking Brake
(EPB) may be applied.
WARNING
When Smart Cruise Control is temporar
-
ily canceled, distance with the front vehi
-
cle will not be maintained. Always have
your eyes on the road while driving, and
if necessary, depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
Smart Cruise Control conditions
not satisfied
A:
Smart Cruise Control conditions not
met
If the Driving Assist button, + switch, -
switch or ( ) switch is pushed when
Smart Cruise Control's operating condi
-
tions are not satisfied, a warning mes
-
sage will appear on the cluster, and an
audible warning will sound.
In traffic situation
OCV051164N
OCV051166L
OCV051167L
OCV051168L
69
7
7
Driver assistance system Smart Cruise Control (SCC)
A:
Use switch or pedal to accelerate
In traffic, your vehicle will stop if the
vehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving, your
vehicle will start as well.
In addition, after the vehicle has stopped
and a certain time have passed, a warn
-
ing message like above will appear on
the cluster. Depress the accelerator
pedal or push the + switch, - switch or
( ) switch to start driving.
Warning road conditions ahead
A:
Watch for surrounding vehicles
In the following situation, the warning
message will appear on the cluster, and
an audible warning will sound to warn
the driver of road conditions ahead.
僅 The vehicle in front disappears when
Smart Cruise Control is maintaining
the distance with the vehicle ahead
while driving below a certain speed.
WARNING
Always pay attention to vehicles or
objects that may suddenly appear in
front of you, and if necessary, depress
the brake pedal to reduce your driving
speed in order to maintain a safe dis
-
tance.
Collision warning
A:
Collision Warning
While Smart Cruise Control is operating,
when the collision risk with the vehicle
ahead is high, a warning message will
appear on the cluster, and an audible
warning will sound to warn the driver.
Always have your eyes on the road while
driving, and if necessary, depress the
brake pedal to reduce your driving
speed in order to maintain a safe dis
-
tance.
WARNING
In the following situations, Smart Cruise
Control may not warn the driver of a col
-
lision.
僅 The distance from the front vehicle is
near, and the vehicle speed of the
front vehicle is faster or similar with
your vehicle
僅 The speed of the front vehicle is very
slow or is at a standstill
僅 The accelerator pedal is depressed
right after Smart Cruise Control is
turned on
WARNING
Take the following precautions when
using Smart Cruise Control:
僅 Smart Cruise Control does not substi
-
tute for proper and safe driving. It is
the responsibility of the driver to
always check the speed and distance
to the vehicle ahead.
OCV051169L
OCV051116L
Driver assistance system
707
Smart Cruise Control (SCC)
僅 Smart Cruise Control may not detect
unexpected and sudden situations or
complex driving situations, so always
pay attention to driving conditions
and control your vehicle speed.
僅 Keep Smart Cruise Control off when
the function is not in use to avoid
inadvertently setting a speed.
僅 Do not open the door when Smart
Cruise Control is operating, even if the
vehicle is stopped.
僅Always be aware of the selected
speed and vehicle to vehicle distance.
僅 Keep a safe distance according to
road conditions and vehicle speed. If
the vehicle to vehicle distance is too
close during high-speed driving, a
serious collision may result. Always
pay attention to the road condition
ahead.
僅 When maintaining distance with the
vehicle ahead, if the front vehicle dis
-
appears, the function may suddenly
accelerate to the set speed. Always be
aware of unexpected and sudden sit
-
uations from occurring.
僅 Vehicle speed may decrease on an
upward sloped road and increase on a
downward sloped road.
僅 Always be aware of situations such as
when a vehicle cuts in suddenly.
僅 When you are towing a trailer or
another vehicle, we recommend that
Smart Cruise Control is turned off due
to safety reasons.
僅 Turn off Smart Cruise Control when
your vehicle is being towed.
僅 Smart Cruise Control may be can
-
celed if interfered by strong electro
-
magnetic waves.
僅 Smart Cruise Control may not detect
an obstacle in front and lead to a colli
-
sion. Always look ahead cautiously to
prevent unexpected and sudden situ
-
ations from occurring.
僅 Vehicles moving in front of you with a
frequent lane change may cause a
delay in the function's reaction or may
cause the function to react to a vehi
-
cle actually in an adjacent lane.
Always drive cautiously to prevent
unexpected and sudden situations
from occurring.
僅 Always be aware of the surroundings
and drive safely, even though a warn
-
ing message does not appear or an
audible warning does not sound.
僅 If any other function's warning mes
-
sage is displayed or warning sound is
generated, Smart Cruise Control
warning message may not be dis
-
played and warning sound may not
be generated.
僅 You may not hear the warning sound
of Smart Cruise Control if the sur
-
rounding is noisy. Always pay atten
-
tion to the road condition ahead.
僅 The vehicle manufacturer is not
responsible for any traffic violation or
accidents caused by the driver while
Smart Cruise Control is operating.
僅 Always set the vehicle speed under
the speed limit in your country.
僅 Vehicle distance, acceleration and
reaction speed may change if the
driver's driving style changes. Always
pay attention to the road condition
ahead.
CAUTION
僅 The vehicle must be driven suffi
-
ciently to reflect the actual driving
style of the driver, such as vehicle dis
-
tance, acceleration and reaction
speed.
71
7
7
Driver assistance system Smart Cruise Control (SCC)
僅 Based on Driving Style may not reflect
the driver's driving style or driving
conditions that affects driving safety.
僅 If you are driving in special conditions,
such as snow, rain, fog or steep
sloped roads, the vehicle may not be
driven according to the driver's driv
-
ing style.
NOTICE
僅 Smart Cruise Control may not operate
for 15 seconds after the vehicle is
restarted or the front view camera or
front radar is initialized.
僅 You may hear a sound when the
brake is controlled by Smart Cruise
Control.
僅 Based on Driving Style may not reflect
the driver's driving style that is not
safe such as rapid acceleration.
僅 Based on Driving Style does not
reflect any other driving style other
than vehicle distance, acceleration
and reaction speed.
NOTICE
The images or colors may be displayed
differently depending on the specifica
-
tions of the instrument cluster or theme.
Smart Cruise Control malfunc
-
tion and limitations
Smart Cruise Control malfunction
A:
Check Smart Cruise Control System
When Smart Cruise Control is not work
-
ing properly, a warning message will
appear, and the ( ) warning light will
appear on the cluster. Have Smart
Cruise Control inspected by an autho
-
rized Kia dealer.
Smart Cruise Control disabled
A:
Smart Cruise Control disabled.
Radar blocked
When the front radar cover or sensor is
covered with snow, rain, or foreign
material, it can reduce the detecting per
-
formance and temporarily limit or dis
-
able Smart Cruise Control.
If this occurs, a warning message will
appear on the cluster.
Smart Cruise Control will operate nor
-
mally when snow, rain or foreign mate
-
rial is removed.
WARNING
Even though the warning message does
not appear on the cluster, Smart Cruise
Control may not properly operate.
CAUTION
Smart Cruise Control may not properly
operate in an area (e.g. open terrain),
where there is nothing to detect after
turning ON the vehicle.
OCV051170L
OCV051171L
Driver assistance system
727
Smart Cruise Control (SCC)
Limitations of Smart Cruise Con
-
trol
Smart Cruise Control may not operate
normally under the following circum
-
stances:
僅 The detecting sensor or the surround
-
ings are contaminated or damaged
僅 Washer fluid is continuously sprayed,
or the wiper is on
僅 The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or stuck of foreign
material (sticker, bug, etc.) on the
glass
僅 Moisture is not removed or frozen on
the windshield
僅 The field of view of the front view
camera is obstructed by sun glare
僅 Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road
僅 The temperature around the front
view camera is high or low
僅 An object is placed on the dashboard
僅 The surrounding is very bright
僅 The surrounding is very dark, such as
in a tunnel, etc.
僅 The brightness changes suddenly, for
example when entering or exiting a
tunnel
僅 The brightness outside is low, and the
headlamps are not on or are not
bright
僅 Driving in heavy rain or snow, or thick
fog
僅 Driving through steam, smoke or
shadow
僅 Only part of the vehicle is detected
僅 The vehicle in front has no tail lights,
tail lights are located unusually, etc.
僅 The brightness outside is low, and the
tail lamps of the vehicle in front are
not on or are not bright
僅 The rear of the front vehicle is small or
does not look normal (i.e. tilted, over
-
turned, etc.)
僅 The front vehicle's ground clearance
is low or high
僅 A vehicle suddenly cuts in front
僅 Your vehicle is being towed
僅 Driving through a tunnel or iron
bridge
僅 Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.
僅 A material is near that reflects very
well on the front radar, such as a
guardrail, nearby vehicle, etc.
僅 The bumper around the front radar is
impacted, damaged or the front radar
is out of position
僅 The temperature around the front
radar is high or low
僅 Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)
僅 The vehicle in front is made of mate
-
rial that does not reflect on the front
radar
僅 Driving near a highway (or motorway)
interchange or tollgate
僅 Driving on a slippery surface due to
snow, water puddle, ice, etc.
僅 Driving on a curved road
僅 The vehicle in front is detected late
僅 The vehicle in front is suddenly
blocked by a obstacle
僅 The vehicle in front suddenly changes
lane or suddenly reduces speed
僅 The vehicle in front is bent out of
shape
73
7
7
Driver assistance system Smart Cruise Control (SCC)
僅 The front vehicle's speed is fast or
slow
僅 With a vehicle in front, your vehicle
changes lane suddenly at low speed
僅 The vehicle in front is covered with
snow
僅 Unstable driving
僅 You are on a roundabout and the
vehicle in front is not detected
僅 You are continuously driving in a cir
-
cle
僅 Driving in a parking lot
僅 Driving through a construction area,
unpaved road, partial paved road,
uneven road, speed bumps, etc.
僅 Driving on an incline road, curved
road, etc.
僅 Driving through a roadside with trees
or streetlights
僅 The adverse road conditions cause
excessive vehicle vibrations while
driving
僅 Your vehicle height is low or high due
to heavy loads, abnormal tire pres
-
sure, etc.
僅 Driving through a narrow road where
trees or grass are overgrown
僅 There is interference by electromag
-
netic waves, such as driving in an area
with strong radio waves or electrical
noise
僅 Driving on a curved road
On curved roads, Smart Cruise Con
-
trol may not detect a vehicle in the
same lane, and may accelerate to the
set speed. Also, vehicle speed may
rapidly decrease when the vehicle
ahead is detected suddenly.
Select the appropriate set speed on
curved roads and apply the brake
pedal or accelerator pedal according
to the road and driving conditions
ahead.
Your vehicle speed can be reduced
due to a vehicle in the adjacent lane.
Check to be sure that the road condi
-
tions permit safe operation of the
Smart Cruise Control and if necessary,
depress the brake pedal to reduce
your driving speed in order to main
-
tain a safe distance.
僅 Driving on a sloped road
During uphill or downhill driving, the
Smart Cruise Control may not detect a
moving vehicle in your lane, and
cause your vehicle to accelerate to the
set speed. Also, vehicle speed will rap
-
idly decrease when the vehicle ahead
is detected suddenly.
Select the appropriate set speed on
sloped roads and apply the brake
pedal or accelerator pedal according
to the road and driving conditions
ahead.
OCV052061N
OCV051062L
OCV052063N
Driver assistance system
747
Smart Cruise Control (SCC)
僅 Changing lanes
[A]: Your vehicle
[B]: Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart
Cruise Control may not immediately
detect the vehicle when the vehicle
changes lanes abruptly. Always pay
attention to the road and driving con
-
ditions and drive safely. If necessary,
depress the brake pedal to reduce
your driving speed in order to main
-
tain a safe distance.
僅 Detecting a vehicle
In the following cases, some vehicles
in your lane cannot be detected by
the sensor:
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Vehicles with higher ground clear
-
ance or vehicles carrying loads that
stick out of the back of the vehicle
- Vehicles that has the front lifted
due to heavy loads
-Oncoming vehicles
- Stopped vehicles
- Vehicles with small rear profile,
such as trailers
- Narrow vehicles, such as motorcy
-
cles or bicycles
-Special vehicles
- Animals and pedestrians
In the following cases, the vehicle in
front cannot be detected by the sen
-
sor. Always pay attention to the road
and driving conditions and drive
safely. If necessary, adjust your vehi
-
cle speed.
- You are steering your vehicle
- Driving on narrow or sharply
curved roads
OCV052238N
OCV052010N
OCV051032L_2
75
7
7
Driver assistance system Smart Cruise Control (SCC)
僅 When a vehicle ahead disappears at
an intersection, your vehicle may
accelerate.
Always pay attention to road and driv
-
ing conditions while driving.
僅 When a vehicle in front of you merges
out of the lane, Smart Cruise Control
may not immediately detect the new
vehicle that is now in front of you.
Always pay attention to road and driv
-
ing conditions while driving.
僅 Always look out for pedestrians when
your vehicle is maintaining a distance
with the vehicle ahead.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
3. Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.
Radio frequency radiation expo
-
sure information:
This equipment complies with FCC radi
-
ation exposure limits set forth for an
uncontrolled environment. This equip
-
ment should be installed and operated
with minimum distance of 8 inches (20
cm) between the radiator (antenna) and
your body. This transmitter must not be
colocated or operating in conjunction
with any other antenna or transmitter.
OCV052064N
OCV052065N
OCV052066N
Driver assistance system
767
Navigation-based Smart Cruise Control (NSCC)
Navigation-based Smart
Cruise Control (NSCC) (if
equipped)
Navigation-based Smart Cruise Control
will help automatically adjust vehicle
speed when driving on highways (or
motorways) by using road information
from the navigation function while Smart
Cruise Control is operating.
NOTICE
僅 Navigation-based Smart Cruise Con
-
trol is available only on controlled
access road or certain highways.
* Controlled access road indicates
roads with limited entrances and
exits that allow uninterrupted high
speed traffic flow. Only passenger
cars and motorcycles are allowed on
controlled access roads.
僅 Additional highways may be
expanded by future navigation
updates.
NOTICE
Navigation-based Smart Cruise Control
operates on main roads of highways (or
motorways), and does not operate on
interchanges or junctions.
WARNING
Navigation-based Smart Cruise Control
is a supplemental function and is not a
substitute for safe driving. It is the
responsibility of the driver to always
check the speed and distance to the
vehicle ahead. Always drive safely and
use caution.
Highway Curve Zone Auto Slow
-
down
If vehicle speed is high, Highway Curve
Zone Auto Slowdown function will tem
-
porarily decelerate your vehicle or limit
acceleration to help you drive safely on a
curve based on the curve information
from the navigation.
Highway Set Speed Auto Change
Highway Set Speed Auto Change func
-
tion automatically changes Smart Cruise
Control set speed based on the speed
limit information from the navigation.
Navigation-based Smart Cruise
Control settings
A:
Driver Assistance
1 Driving Convenience
2 Highway Auto Speed Change
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
Driving
Convenience
→
Highway Auto Speed
Change
from the infotainment system
screen to turn on Navigation-based
Smart Cruise Control and deselect to
turn off the function.
NOTICE
When there is a problem with Naviga
-
tion-based Smart Cruise Control, the
Available highway (Controlled access road)
USA
Select Interstate Highway and U.S. (Federal) and
State Highways
Canada Select Provincial and Territorial Highways
OCV041575N
77
7
7
Driver assistance system Navigation-based Smart Cruise Control (NSCC)
function cannot be set from the Settings
menu.
Navigation-based Smart Cruise
Control operation
Operating conditions
Navigation-based Smart Cruise Control
is ready to operate if all of the following
conditions are satisfied:
僅 Smart Cruise Control is operating
僅 Driving on main roads of highways (or
motorways)
NOTICE
For more details on how to operate
Smart Cruise Control, refer to "Smart
Cruise Control (SCC)" on page 7-61.
Navigation-based Smart Cruise
Control display
When Navigation-based Smart Cruise
Control operates, it will be displayed on
the cluster as follows:
Navigation-based Smart Cruise
Control standby
If the operating conditions are satisfied,
the white ( ) symbol will appear.
Navigation-based Smart Cruise
Control operating
If temporary deceleration is required in
the standby state and Navigation-based
Smart Cruise Control is operating, the
green ( ) symbol will appear on the
cluster.
If the Highway Set Speed Auto Change
function operates, the green ( )
symbol and set speed will appear on the
cluster, and an audible warning will
sound.
WARNING
The warning message will appear in the
following circumstances:
A:
Drive carefully
僅 Navigation-based Smart Cruise Con
-
trol is not able to slow down your
vehicle to a safe speed.
NOTICE
Highway Curve Zone Auto Slowdown
and Set Speed Auto Change function
uses the same ( ) symbol.
OCV051172N
OCV051173N
OCV051118L
Driver assistance system
787
Navigation-based Smart Cruise Control (NSCC)
Highway Curve Zone Auto Slow
-
down
僅 Depending on the curve ahead on the
highway (or motorway), the vehicle
will decelerate, and after passing the
curve, the vehicle will accelerate to
Smart Cruise Control set speed.
僅 Vehicle deceleration time may differ
depending on the vehicle speed and
the degree of the curve on the road.
The higher the driving speed, deceler
-
ation will start faster.
Highway Set Speed Auto Change
僅 Highway Set Speed Auto Change
function will operate when Smart
Cruise Control set speed and the
highway (or motorway) speed limit is
matched.
僅 While Highway Set Speed Auto
Change function is operating, when
the highway (or motorway), speed
limit changes, Smart Cruise Control
set speed automatically changes to
the changed speed limit.
僅 If Smart Cruise Control set speed is
adjusted different from the speed
limit, Highway Set Speed Auto
Change function will be in the standby
state.
僅 If Highway Set Speed Auto Change
function has changed to the standby
state by driving on a road other than
the highway (or motorway) main road,
Highway Set Speed Auto Change
function will operate again when you
drive on the main road again without
setting the set speed.
僅 If Highway Set Speed Auto Change
function has changed to the standby
state by depressing the brake pedal,
press the ( ) switch to restart the
function.
僅 Highway Set Speed Auto Change
function does not operate on highway
interchanges or junctions.
NOTICE
僅 Highway Set Speed Auto Change
function only operates based on the
speed limits of the highway (or motor
-
way), it does not work with the speed
cameras.
僅 When Highway Set Speed Auto
Change function is operating, the
vehicle automatically accelerates or
decelerates when the highway (or
motorway) speed limit changes.
僅 The maximum set speed for Highway
Set Speed Auto Change function is 90
mph (140 km/h).
僅 If the speed limit of a new road is not
updated in the navigation, Highway
Set Speed Auto Change function may
not operate properly.
僅 If the speed unit is set to a unit other
than the speed unit used in your
country, Highway Set Speed Auto
Change function may not operate
properly.
NOTICE
The images or colors may be displayed
differently depending on the specifica
-
tions of the instrument cluster or theme.
Navigation-based Smart Cruise
Control limitations
Navigation-based Smart Cruise Control
may not operate normally under the fol
-
lowing circumstances:
僅 The navigation is not working prop
-
erly
79
7
7
Driver assistance system Navigation-based Smart Cruise Control (NSCC)
僅 Map information is not transmitted
due to infotainment system's abnor
-
mal operation
僅 Speed limit and road information in
the navigation is not updated
僅 The map information and the actual
road is different because of real-time
GPS data or map information error
僅 The navigation searches for a route
while driving
僅 GPS signals are blocked in areas such
as a tunnel
僅 A road that divides into two or more
roads and joins again
僅 The driver goes off course the route
set in the navigation
僅 The route to the destination is
changed or canceled by resetting the
navigation
僅 The vehicle enters a service station or
rest area
僅 Android Auto or Car Play is operating
僅 The navigation cannot detect the cur
-
rent vehicle position (ex: elevated
roads including overpass adjacent to
general roads or nearby roads exist in
a parallel way)
僅 The navigation is being updated while
driving
僅 The navigation is being restarted
while driving
僅 The speed limit of some sections
changes according to the road situa
-
tions
僅 Driving on a road under construction
僅 Driving on a road that is controlled
僅 There is bad weather, such as heavy
rain, heavy snow, etc.
僅 Driving on a road that is sharply
curved
[1]: Set route, [2]: Branch line, [3]: Driving
route, [4]: Main road, [5]: Curved road
section
僅 When there is a difference between
the navigation set route (branch line)
and the driving route (main road),
Highway Curve Zone Auto Slowdown
function may not operate until the
driving route is recognized as the
main road.
僅 When the vehicle's driving route is
recognized as the main road by main
-
taining the main road instead of the
navigation set route, Highway Curve
Zone Auto Slowdown function will
operate. Depending on the distance to
the curve and the current vehicle
speed, vehicle deceleration may not
be sufficient or may decelerate rap
-
idly.
[1]: Main road, [2]: Branch line, [3]: Driv
-
ing route, [4]: Set route, [5]: Curved road
section
僅 When there is a difference between
the navigation route (main road) and
the driving route (branch line), High
-
way Curve Zone Auto Slowdown func
-
tion will operate temporarily based on
the curve information on the main
road.
OCV052067N
OCV052068N
Driver assistance system
807
Navigation-based Smart Cruise Control (NSCC)
僅 When it is judged that you are driving
out of the route by entering the high
-
way interchange or junction, Highway
Curve Zone Auto Slowdown function
will not operate.
[1]: Driving route, [2]: Branch line, [3]:
Curved road section, [4]: Main road
僅 If there is no destination set on the
navigation, Highway Curve Zone Auto
Slowdown function will operate based
on the curve information on the main
road.
僅 Even if you depart from the main
road, Highway Curve Zone Auto Slow
-
down function may temporarily oper
-
ate due to navigation information of
the highway curve section.
WARNING
僅 Navigation-based Smart Cruise Con
-
trol is not a substitute for safe driving
practices, but a convenience function.
Always have your eyes on the road,
and it is the responsibility of the driver
to avoid violating traffic laws.
僅 The navigation's speed limit informa
-
tion may differ from the actual speed
limit information on the road. It is the
driver's responsibility to check the
speed limit on the actual driving road
or lane.
僅 Navigation-based Smart Cruise Con
-
trol will automatically be canceled
when you leave the highway (or
motorway) main road. Always pay
attention to road and driving condi
-
tions while driving.
僅 Navigation-based Smart Cruise Con
-
trol may not operate due to the exis
-
tence of leading vehicles and the
driving conditions of the vehicle.
Always pay attention to road and driv
-
ing conditions while driving.
僅 When you are towing a trailer or
another vehicle, we recommend that
Navigation-based Smart Cruise Con
-
trol is turned off due to safety rea
-
sons.
僅 After you pass through a tollgate on a
highway (or motorway), Navigation-
based Smart Cruise Control will oper
-
ate based on the first lane. If you enter
one of the other lanes, the function
might not operate properly.
僅 The vehicle will accelerate if the driver
depresses the accelerator pedal while
Navigation-based Smart Cruise Con
-
trol is operating, and the function will
not decelerate the vehicle. However, if
the accelerator pedal is depressed
insufficiently, the vehicle may deceler
-
ate.
僅 If the driver accelerates and releases
the accelerator pedal while Naviga
-
tion-based Smart Cruise Control is
operating, the vehicle may not decel
-
erate sufficiently or may rapidly
decelerate to a safe speed.
僅 If the curve is too large or too small,
Navigation-based Smart Cruise Con
-
trol may not operate.
NOTICE
僅 The speed information on the cluster
and navigation may differ.
僅 The time gap could occur between
the navigation's guidance and when
Navigation-based Smart Cruise Con
-
trol operation starts and ends.
OCV052069N
81
7
7
Driver assistance system Navigation-based Smart Cruise Control (NSCC)
僅 Even if you are driving at a speed
lower than Smart Cruise Control set
speed, acceleration may be limited by
the curve sections ahead.
僅 If Navigation-based Smart Cruise
Control is operating while leaving the
main road to enter an interchange,
junction, rest area, etc., the function
may operate for a certain period of
time.
僅 Deceleration by Navigation-based
Smart Cruise Control may feel it is not
sufficient due to road conditions such
as uneven road surfaces, narrow
lanes, etc.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
3. Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.
Radio frequency radiation expo
-
sure information:
This equipment complies with FCC radi
-
ation exposure limits set forth for an
uncontrolled environment. This equip
-
ment should be installed and operated
with minimum distance of 8 inches (20
cm) between the radiator (antenna) and
your body. This transmitter must not be
colocated or operating in conjunction
with any other antenna or transmitter.
Driver assistance system
827
Lane Following Assist (LFA)
Lane Following Assist (LFA)
Lane Following Assist is designed to help
detect lane markings and/or vehicles on
the road, and assists the driver's steering
to help keep the vehicle between lanes.
Detecting sensor
Front view camera
The front view camera is used as a
detecting sensor to detect lane markings
and front vehicles.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions of
the front view camera, refer to "Forward
Collision-Avoidance Assist (FCA)" on
page 7-4.
Lane Following Assist settings
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
3 Driving Safety Priority
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
僅
Driving Safety Priority
: Select
Setup
→
Vehicle Settings
→
Driver Assis
-
tance
→
Warning Methods
→
Driv
-
ing Safety Priority
on the
infotainment system.
For safe driving, the audio volume will
temporarily decrease to warn the
driver with the audible warning.
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
Turning Lane Following Assist
On/Off
OCV051017N
OCV053295L
OCV051033L
83
7
7
Driver assistance system Lane Following Assist (LFA)
With the vehicle on, shortly press the
Lane Driving Assist button located on
the steering wheel to turn on Lane Fol
-
lowing Assist. The gray or green ( )
indicator light will appear on the cluster.
Press the button again to turn off the
function.
Lane Following Assist operation
Lane Following Assist will control and
warn the vehicle by 'Lane Following
Assist' and 'Hands-off warning'.
Lane Following Assist
If the vehicle ahead and/or both lane
markings are detected and your vehicle
speed is below 110 mph (180 km/h),
Lane Following Assist will help center the
vehicle in the lane by assisting the steer
-
ing wheel. The green ( ) indicator light
will appear on the cluster.
CAUTION
When the steering wheel is not assisted,
the green ( ) indicator light will blink
and change to gray.
Hands-off warning
A:
Keep hands on steering wheel
If the driver takes their hands off the
steering wheel for several seconds, the
warning message will appear and an
audible warning will sound in stages.
僅 First stage: Warning message
僅 Second stage: Warning message (red
steering wheel) and audible warning
A:
Lane Following Assist (LFA) can
-
celed
If the driver still does not have their
hands on the steering wheel after the
hands-off warning, the warning mes
-
sage will appear and Lane Following
Assist will be automatically canceled.
WARNING
僅 The steering wheel may not be
assisted if the steering wheel is held
very tight or the steering wheel is
steered over a certain degree.
僅 Lane Following Assist does not oper
-
ate at all times. It is the responsibility
of the driver to safely steer the vehicle
and to maintain the vehicle in its lane.
僅 The hands–off warning message may
appear late depending on road condi
-
tions. Always have your hands on the
steering wheel while driving.
僅 If the steering wheel is held very
lightly the hands–off warning mes
-
sage may appear because Lane Fol
-
lowing Assist may not detect that the
driver has their hands on the steering
wheel.
OCV051174L
OCV051133L
OCV051175L
Driver assistance system
847
Lane Following Assist (LFA)
僅 If you attach objects to the steering
wheel, the hands-off warning may not
work properly.
NOTICE
僅 For more details on setting Lane Fol
-
lowing Assist in the infotainment sys
-
tem, refer to the separately supplied
infotainment system manual.
僅 When both lane markings are
detected, the lane lines on the cluster
will change from gray to white.
Lane undetected
Lane detected
僅 The images and colors in the cluster
may differ depending on the cluster
type or theme selected from the clus
-
ter.
僅 If lane markings are not detected,
steering wheel control by Lane Fol
-
lowing Assist can be limited depend
-
ing on whether a vehicle is in front or
the driving conditions of the vehicle.
僅 Even though the steering is assisted
by Lane Following Assist, the driver
may control the steering wheel.
僅 The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Following Assist than
when it is not.
Lane Following Assist malfunc
-
tion and limitations
Lane Following Assist malfunc
-
tion
A:
Check Lane Following Assist (LFA)
system
When Lane Following Assist is not work
-
ing properly, the warning message will
appear and the master warning light ( )
will appear on the cluster. If this occurs,
have Lane Following Assist inspected by
an authorized Kia dealer.
Limitations of Lane Following
Assist
WARNING
For more details on Lane Following
Assist precautions, refer to "Lane Keep
-
ing Assist (LKA)" on page 7-23.
OCV041159K
OCV041160L
OCV051176L
85
7
7
Driver assistance system Highway Driving Assist (HDA)
Highway Driving Assist (HDA)
(if equipped)
Basic function
Highway Driving Assist is designed to
help detect vehicles and lanes ahead,
and help maintain distance from the
vehicle ahead, maintain the set speed,
and keep the vehicle between lanes
while driving on the highway (or motor
-
way).
Highway Lane Change Assist (if
equipped)
Highway Lane Change Assist function
helps change lanes to the direction the
driver slightly moves the turn signal
switch if the function judges that lane
change is possible.
NOTICE
僅 Highway Driving Assist is available
only on controlled access road or cer
-
tain highways. (except for the inter
-
change/junction)
* Controlled access road indicates
roads with limited entrances and
exits that allow uninterrupted high
speed traffic flow. Only passenger
cars and motorcycles are allowed on
controlled access roads.
僅 Additional highways may be
expanded by future navigation
updates.
Detecting sensor
Front view camera
Front radar
Front corner radar (if equipped)
OCV052070N
OCV052071N
Available highway (Controlled access road)
USA
Select Interstate Highway and U.S. (Federal) and
State Highways
Canada Select Provincial and Territorial Highways
OCV051017N
OCV051005N
OCV051024N
Driver assistance system
867
Highway Driving Assist (HDA)
Rear corner radar (if equipped)
Refer to the picture above for the
detailed location of the detecting sen
-
sors.
CAUTION
For more details on the precautions of
the detecting sensors, refer to "Forward
Collision-Avoidance Assist (FCA)" on
page 7-4.
Highway Driving Assist settings
Basic function
A:
Driver Assistance
1 Driving Convenience
2 Highway Driving Assist
With the vehicle on, select or deselect
Setup
→
Vehicle
→
Driver Assistance
→
Driving Convenience
from the info
-
tainment system screen to set whether
or not to use each function.
僅If
Highway Driving Assist
is selected,
it helps maintain distance from the
vehicle ahead, maintain the set speed,
and helps center the vehicle in the
lane.
Highway Lane Change Assist (if
equipped)
If
Highway Lane Change Assist
is
selected, it helps the driver change
lanes.
NOTICE
僅When
Highway Driving Assist
is
deselected, the setting for
Highway
Lane Change Assist
cannot be
changed.
僅 If there is a problem with the func
-
tions, the settings cannot be changed.
Have the function be inspected by an
authorized Kia dealer.
僅 If the vehicle is restarted, the func
-
tions will maintain the last setting.
WARNING
For your safety, change the Settings
after parking the vehicle at a safe loca
-
tion.
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
3 Driving Safety Priority
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
OCV051277N
OCV041576N
OCV053295L
87
7
7
Driver assistance system Highway Driving Assist (HDA)
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
僅
Driving Safety Priority
: Select
Setup
→
Vehicle Settings
→
Driver Assis
-
tance
→
Warning Methods
→
Driv
-
ing Safety Priority
on the
infotainment system.
For safe driving, the audio volume will
temporarily decrease to warn the
driver with the audible warning.
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
Highway Driving Assist operation
Basic function
Highway Driving Assist display
and control
You can see the status of the Highway
Driving Assist operation in the Driving
Assist view on the cluster. Refer to
"Instrument cluster" on page 5-60.
Highway Driving Assist will be displayed
as below depending on the status of the
function.
Operating State
Standby State
1
Highway Driving Assist indicator,
whether there is a vehicle ahead and
the selected distance level are dis
-
played.
僅 Highway Driving Assist indicator
- Green: Operating state
- Grey: Standby state
-White blink: Accelerator
depressed state
2
Set speed is displayed.
3
Lane Following Assist indicator dis
-
played.
4
Whether there is a vehicle ahead and
the target vehicle to vehicle distance
are displayed.
5
Whether the lane is detected or not is
displayed.
NOTICE
僅 For more details on the display, refer
to "Smart Cruise Control (SCC)" on
page 7-61.
僅 For more details on the display, refer
to "Lane Following Assist (LFA)" on
page 7-82.
OCV041621N
OCV051253N
Driver assistance system
887
Highway Driving Assist (HDA)
Highway Driving Assist operating
When driving on available road, press
Drive Assist button to turn on Highway
Driving Assist.
Highway Driving Assist will operate
when entering or driving on the main
road of highways (or motorways), and
satisfying all the following conditions:
僅 Lane Following Assist is operating
僅 Smart Cruise Control is operating
NOTICE
僅 While driving on the highway (or
motorway), if Smart Cruise Control
starts operating, Highway Driving
Assist will operate.
僅 When entering the main roads of
highways (or motorways) while Smart
Cruise Control is operating, Driving
Assist will not turn on if Lane Follow
-
ing Assist is turned off.
Restarting after stopping
A:
Use switch or pedal to accelerate
When Highway Driving Assist is operat
-
ing, your vehicle will stop if the vehicle
ahead of you stops. Also, if the vehicle
ahead of you starts moving approxi
-
mately within 30 seconds after the stop,
your vehicle will start as well. In addition,
after the vehicle has stopped and
approximately 30 seconds have passed,
the
Use switch or pedal to accelerate
message will appear on the cluster.
Depress the accelerator pedal or push
the + switch, - switch or ( ) switch to
start driving.
Hands-off warning
A:
Keep hands on steering wheel
If the driver takes their hands off the
steering wheel for several seconds, the
warning message will appear and an
audible warning will sound in stages.
僅First stage: Warning message
僅 Second stage: Warning message (red
steering wheel) and audible warning
A:
Highway Driving Assist (HDA) sys
-
tem canceled
If the driver still does not have their
hands on the steering wheel after the
hands-off warning, the warning mes
-
sage will appear and Highway Driving
Assist and Lane Change Assist will be
automatically canceled.
Driving speed limit
OCV051168L
OCV051133L
OCV051179L
OCV041195L
89
7
7
Driver assistance system Highway Driving Assist (HDA)
A:
Driver's grasp not detected. Driving
speed will be limited
When Highway Driving Assist is can
-
celed by the hands-off warning, The
driving speed will be limited. While Driv
-
ing Speed Limit function is operating,
the warning message will appear on the
cluster, and an audible warning will
sound continuously.
Driving to one side within lane (if
equipped)
When vehicle speed is above 40 mph
(60 km/h), if a vehicle around you is
driving at a close distance, your vehicle
will control steering in the opposite
direction of the vehicle to assist in safe
driving. If there are vehicles in both sides
of the lane that are driving close to you,
the function will not veer to the opposite
side of the lane.
Highway Driving Assist standby
When the Smart Cruise Control is tem
-
porarily canceled while Highway Driving
Assist is operating, Highway Driving
Assist will be in the standby state. At this
time, Lane Following Assist will operate
normally.
NOTICE
僅 Driving Speed Limit helps you drive
below 40 mph (60 km/h). At this time,
the vehicle decelerates due to the
vehicle ahead. After the vehicle has
decelerated, it cannot automatically
accelerate.
僅 Driving Speed Limit will cancel in the
following circumstances:
- When the driver grabs the steering
wheel again
- When the driver turns on Lane Fol
-
lowing Assist by pressing the Lane
Driving Assist button
- When Smart Cruise Control switch
+, -, or ( ) switch is pushed, or the
accelerator pedal or the brake
pedal is depressed
Highway Lane Change Assist (if
equipped)
Display and control
You can see the status of the Highway
Lane Change Assist function operation
in the Driving Assist view on the cluster.
Refer to "Instrument cluster" on page 5-
60.
Highway Lane Change Assist function
will be displayed as below depending on
the status of the function.
Ready/Operating
Standby/Canceled
1
Highway Lane Change Assist indicator
僅 Green ( ) on: Ready state
OCV052072N
OCV041263N
OCV051221N
Driver assistance system
907
Highway Driving Assist (HDA)
僅 Green ( ) blink: Operating state
僅 Grey ( ) on: Standby state
僅 White ( ) blink: Canceled state
(display only a certain time)
2
Lane line
The lane line is displayed identical to
Highway Lane Change Assist indicator
(1). However, the lane detection avail
-
ability will be showed on Standby
state.
3
Green arrow and shade
The green arrow is displayed when a
certain amount of time has passed
after the function has started operat
-
ing, and until the lane change has
completed.
4
Message
僅 Message is displayed when the
function does not operate even
though the turn signal lever is used.
僅 Message is displayed when the
function is canceled while operat
-
ing.
To turn on Highway Lane Change
Assist
A:
Press OK button to enable Lane
Change Assist
1 Confirm
Highway Lane Change Assist function
will turn on when the following condi
-
tions are satisfied.
僅 The Driving Assist button or Lane
Driving Assist button is used to turn
on Highway Driving Assist.
僅 The OK button is pressed on the
steering wheel while a message ask
-
ing to use Highway Lane Change
Assist is displayed on the cluster.
Highway Lane Change Assist
ready to operate
While Highway Lane Change Assist
function is on, the function will be ready
to operate when all the following condi
-
tions are satisfied:
僅 Highway Driving Assist is operating
僅 Lane Following Assist is operating
僅 A vehicle in the rear area of your vehi
-
cle is detected more than once after
the vehicle is turned on
僅 Your vehicle speed is above 40 mph
(60 km/h)
僅 Hands-off warning is not displayed on
the cluster
僅 Hazard warning flasher is off
NOTICE
僅 While Lane Change Assist function is
turned on (indicator on), Lane Follow
-
ing Assist will not cancel even if the
turn signal indicator or hazard warn
-
ing flasher is operating.
僅 Lane Change Assist function turns off
automatically when driven in the fol
-
lowing road conditions:
- One driving lane
- A road with no structure, such as a
median strip, guardrails, etc.
- There is a pedestrian or cyclist on
the road ahead
僅 When the function is in the ready
state, and vehicle speed is below 35
mph (55 km/h), the function will
change to the standby state.
OCV051210L
91
7
7
Driver assistance system Highway Driving Assist (HDA)
WARNING
When Highway Lane Change Assist
function turns off while operating, steer
-
ing assist will be temporarily canceled.
Always be cautious while driving.
Highway Lane Change Assist
operating
Highway Lane Change Assist function
will operate, when you push the turn sig
-
nal lever up or down while the function is
in the ready state (( ) indicator is
green), and all of the following condi
-
tions are satisfied:
僅 The driver has his/her hand on the
steering wheel
僅 There is no collision risk in the direc
-
tion of lane change
僅 There is a single dotted lane line in the
direction of lane change
僅 There are no Forward Collision-Avoid
-
ance Assist and Blind Spot Collision-
Avoidance Assist warnings
僅 The vehicle is driven in the middle of
the lane (should not be driving close
to one side of the lane)
僅 The road you are driving on, or the
road you are about to change lane is a
road that the function can operate
NOTICE
僅 When the turn signal lever is placed at
A position, the Highway Lane Change
Assist function is performed. After
that, if the turn signal lever is placed
in neutral, Highway Lane Change
Assist function is canceled before
vehicle stepping on the lane.
The Highway Lane Change Assist
function is not canceled after stepping
on the lane, but when the lane change
is completed, it is canceled and the
turn signal turns off.
僅 When the turn signal lever is placed at
B position for a certain period of time,
the green arrow will appear. At this
time, even when the lever is released
and returns to it's original position,
lane change will still be assisted.
While lane change is being made by
the function, the turn signal indicator
will blink even when the turn signal
lever is not held, and the turn signal
indicator will turn off when lane
change is complete.
Highway Lane Change Assist
standby
Highway Lane Change Assist function
will be in the standby state when one of
the ready state condition is not satisfied,
or when entering or driving on one of
the following roads:
僅 Road within a certain distance from
the tollgate on the main road of the
highway (or motorway)
僅 The road ahead ends without an inter
-
change or junction
僅 Road with sharp curves
僅Road with narrow lanes
Highway Lane Change Assist
cancel
The function will be canceled when:
僅 The turn signal lever is turned on in
the opposite direction of lane change
僅 The steering wheel is steered sharply
OCV051059
Driver assistance system
927
Highway Driving Assist (HDA)
僅 The turn signal lever is placed at A
position, and then placed to the origi
-
nal position before entering the next
lane
WARNING
僅 While the function is operating, the
function will cancel if one of the fol
-
lowing occurs:
- Highway Driving Assist is turned off
- Lane Following Assist or Smart
Cruise Control is turned off or tem
-
porarily canceled
- Hands-off warning message is dis
-
played on the cluster
- The turn signal lever is placed at A
position
- The hazard warning flasher is
turned on
- Forward Collision-Avoidance Assist
or Blind-Spot Collision-Avoidance
Assist warning message is dis
-
played
- Possible collision is detected in the
next lane, even though there are no
Forward Collision-Avoidance Assist
and Blind Spot Collision-Avoidance
Assist warning
- The target lane to make a lane
change disappears
- The target lane to make a lane
change is not detected
- There is a problem with turn signal
lamps
- Highway Lane Change Assist func
-
tion is off (The function turns off
when the function is turned off
from the settings menu, when the
road changes to a one-way road,
when there is a intersection or
crosswalk ahead, when you enter a
road with no structure, such as a
median strip, guardrail, etc., or
when there is a pedestrian or cyclist
on the driving lane.)
- Your vehicle speed is below 35 mph
(55 km/h)
僅 While the function is operating, when
the function is canceled, depending
on the driving conditions, the vehicle
may drive to the middle of the driving
lane or steering assist may stop.
Always pay attention to road and driv
-
ing conditions while driving.
僅 The function may not operate nor
-
mally on roads with pedestrians or
cyclists, such as an intersection or
crosswalk. Always pay attention to
road and driving conditions while
driving.
NOTICE
The images or colors may be displayed
differently depending on the specifica
-
tions of the instrument cluster or theme.
Highway Driving Assist malfunc
-
tion and limitations
Highway Driving Assist malfunc
-
tion
A:
Check Highway Driving Assist
(HDA) system
OCV051180L
93
7
7
Driver assistance system Highway Driving Assist (HDA)
A:
Check Lane Change Assist function
When Highway Driving Assist is not
working properly, the warning message
will appear, and the ( ) warning light
will appear on the cluster. Have Highway
Driving Assist be inspected by an autho
-
rized Kia dealer.
WARNING
僅 The driver is responsible for con
-
trolling the vehicle for safe driving.
僅 Always have your hands on the steer
-
ing wheel while driving.
僅 Highway Driving Assist is a supple
-
mental function that assists the driver
in driving the vehicle and is not a
complete autonomous driving system.
Always check road conditions, and if
necessary, take appropriate actions to
drive safely.
僅 Always have your eyes on the road,
and it is the responsibility of the driver
to avoid violating traffic laws. The
vehicle manufacturer is not responsi
-
ble for any traffic violation or acci
-
dents caused by the driver.
僅 Highway Driving Assist may not be
able to recognize all traffic situations.
The function may not detect possible
collisions due to Limitations. Always
be aware of the Limitations. Obstacles
such as vehicles, motorcycles, bicy
-
cles, pedestrians, guardrails, tollgate,
unspecified objects, structures, etc.
that may collide with the vehicle may
not be detected.
僅 Highway Driving Assist will turn off
automatically under the following sit
-
uations:
- Driving on roads that the function
does not operate, such as a rest
area, intersection, junction, etc.
- The navigation does not operate
properly such as when the naviga
-
tion is being updated or restarted
僅 Highway Driving Assist may inadver
-
tently operate or turn off depending
on road conditions (navigation infor
-
mation) and surroundings.
僅 Lane Following Assist function may be
temporarily disabled when the front
view camera cannot detect lanes
properly or the hands-off warning is
on.
僅 You may not hear the warning sound
of Highway Driving Assist if the sur
-
rounding is noisy.
僅 If the vehicle is driven at high speed
above a certain speed at a curve, your
vehicle may drive to one side or may
depart from the driving lane.
僅 When you are towing a trailer or
another vehicle, we recommend that
Highway Driving Assist is turned off
due to safety reasons.
僅 The hands–off warning message may
appear early or late depending on
how the steering wheel is held or road
conditions. Always have your hands
on the steering wheel while driving.
僅 For your safety, please read the
owner's manual before using the
Highway Driving Assist.
僅 Highway Driving Assist will not oper
-
ate when the vehicle is started, or
when the detecting sensors or naviga
-
tion is being initialized.
OCV041196L
Driver assistance system
947
Highway Driving Assist (HDA)
Limitations of Highway Driving
Assist
Highway Driving Assist and Highway
Lane Change function may not operate
normally, or may not operate under the
following circumstances:
僅 The map information and the actual
road is different because the naviga
-
tion is not updated
僅 The map information and the actual
road is different because of real-time
GPS data or map information error
僅 The infotainment system is over
-
loaded by simultaneously performing
functions such as route search, video
playback, voice recognition, etc.
僅 GPS signals are blocked in areas such
as a tunnel
僅 The driver goes off course, or reset
-
ting the navigation route by changing
the destination (including route
change according to real-time road
traffic information), or canceling the
route to the destination
僅 The vehicle enters a service station or
rest area
僅 Android Auto or Car Play is operating
僅 The navigation cannot detect the cur
-
rent vehicle position (ex: elevated
roads including overpass adjacent to
general roads or nearby roads exist in
a parallel way)
僅 White single dotted lane line or road
edge cannot be detected
僅 The road is temporarily controlled due
to construction, etc.
僅 There is no structure, such as a
median strip, guardrails, etc., on the
road
僅 There is a changeable lane in the
direction of lane change
NOTICE
For more details on the limitations of the
front view camera and front radar, refer
to "Forward Collision-Avoidance Assist
(FCA)" on page 7-4.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
3. Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.
Radio frequency radiation expo
-
sure information:
This equipment complies with FCC radi
-
ation exposure limits set forth for an
uncontrolled environment. This equip
-
ment should be installed and operated
with minimum distance of 8 inches (20
cm) between the radiator (antenna) and
your body. This transmitter must not be
colocated or operating in conjunction
with any other antenna or transmitter.
95
7
7
Driver assistance system Rear View Monitor (RVM)
Rear View Monitor (RVM) (if
equipped)
Rear View Monitor will show the area
behind the vehicle to assist you when
parking or Reversing.
Detecting sensor
Rear view camera
Refer to the picture above for the
detailed location of the detecting sensor.
Rear View Monitor settings
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
3 Driving Safety Priority
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
僅
Parking Safety Priority
: Select
Setup
→
Vehicle Settings
→
Driver Assis
-
tance
→
Warning Methods
→
Park
-
ing Safety Priority
on the
infotainment system.
For safe parking, the audio volume
will temporarily decrease while Rear
View Monitor is operating.
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
Camera settings
OCV041043N_2
OCV041044N
OCV042647N
OCV051194L
Driver assistance system
967
Rear View Monitor (RVM)
With the vehicle on, select the setup icon
( ) on the screen or
Setup
→
Vehicle
→
Driver Assistance
→
Parking Safety
→
Camera Settings
from the infotainment
system screen to change the Rear View
Monitor settings.
僅 Display Contents: To change the set
-
tings of
Extended Rear View Moni
-
tor
and
Rear Parking Guide Lines
.
僅 Display Settings: To change the
screen's brightness and contrast.
Rear View Monitor operation
Parking/View button
Press the Parking/View button (1) to turn
on or off Rear View Monitor while P
(Park) position is selected.
Rear view
Operating conditions
Rear View Monitor will turn on when the
following conditions are satisfied:
僅 Shifting the gear to R (Reverse).
僅 Pressing the Parking/View button (1)
while P (Park) gear position is selected
僅 Pressing the View icon with the Rear
top view on the screen
Off conditions
Rear View Monitor will turn off when the
following conditions are satisfied:
僅 Pressing the Parking/View button (1)
again while P (Park) gear position is
selected. with the rear view on the
screen.
僅Changing the gear from R (Reverse)
to P (Park).
NOTICE
The rear view cannot be turned off when
the gear is in R (Reverse).
Extended Rear View Monitor
Extended Rear View Monitor function
maintains the rear view of the vehicle
when shifting the gear from R (Reverse)
to N (Neutral) or D (Drive) to help you
park safely.
Operating conditions
Rear View Monitor will maintain when
the following conditions are satisfied:
僅 Shifting the gear from R (Reverse) to
N (Neutral) or D (Drive).
僅 The vehicle speed is below approxi
-
mately 6 mph (10 km/h).
Off conditions
Extended Rear View Monitor function
will turn off when one the following con
-
ditions are satisfied:
僅 The vehicle speed is above approxi
-
mately 6 mph (10 km/h).
僅 Pressing the Parking/View button (1).
僅Shifting the gear to P (Park).
OCV041045L
OCV051229L
97
7
7
Driver assistance system Rear View Monitor (RVM)
Rear top view
Rear top view shows the distance from
the vehicle or the object in the back of
your vehicle while parking.
Press the Rear top view button to turn
on Rear top view.
Rear View Monitor malfunction
and limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display nor
-
mally, have your vehicle inspected by an
authorized Kia dealer.
Limitations of Rear View Monitor
WARNING
僅 The wide-rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and outside rear view mir
-
ror before parking or Reversing.
僅 The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check the
vehicle's surroundings for safety.
僅 Always keep the wide-rear view cam
-
era lens clean. If the lens is covered
with foreign material, it may adversely
affect camera performance and Rear
View Monitor may not operate nor
-
mally. However, do not use chemical
solvents such as strong detergents
containing high alkaline or volatile
organic solvents (gasoline, acetone
etc.). This may damage the camera
lens.
OCV051197N
Driver assistance system
987
Surround View Monitor (SVM)
Surround View Monitor (SVM)
(if equipped)
Surround View Monitor can assist in
parking by allowing the driver to see
around the vehicle.
Detecting sensor
僅 1: Wide-front view camera
僅 2, 3: Wide-side view camera (under
the side view mirror)
僅 4: Wide-rear view camera
Refer to the picture above for the
detailed location of the detecting sen
-
sors.
Surround View Monitor settings
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
3 Driving Safety Priority
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
僅
Parking Safety Priority
: Select
Setup
→
Vehicle Settings
→
Driver Assis
-
tance
→
Warning Methods
→
Park
-
ing Safety Priority
on the
infotainment system.
For safe parking, the audio volume
will temporarily decrease while Sur
-
round View Monitor is operating.
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
OCV041045L
OCV051201K
OCV041046N_2
OCV042647N
99
7
7
Driver assistance system Surround View Monitor (SVM)
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
Camera settings
With the vehicle on, select the setup icon
( ) on the screen or
Setup
→
Vehicle
→
Driver Assistance
→
Parking Safety
→
Camera Settings
from the infotainment
system screen to change the Rear View
Monitor settings.
僅 Display Contents: To change the set
-
tings of
Top View Parking Guidance
,
Parking Guide in Rear View
, and
Parking Distance Warning
function.
僅 Display Settings: To change the
screen's brightness and contrast.
Top View Parking Guidance
Front top view
Rear top view
Parking guidance is displayed on the
right side of the Surround View Monitor
screen when the
Front or Rear Top
View Parking Guidance
is selected.
Rear View Parking Guidance
Rear view parking guidance is displayed
in the rear view when the
Parking
Guide in Rear View
is selected.
NOTICE
The horizontal guideline of the Rear
View Parking Guidance shows the dis
-
tance of 1.6 ft. (0.5 m), 3.3 ft. (1 m) and
7.6 ft. (2.3 m) from the vehicle.
Parking Distance Warning
Parking distance warning is displayed on
the right side of the Surround View Mon
-
itor top view screen when the
Parking
Distance Warning
is selected.
Surround View Monitor Auto On
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
Park
-
ing Safety
→
Surround View Monitor
Auto On
from the infotainment system
screen to use the function.
OCV051198K
OCV051199K
OCV051200K
OCV051201K
OCV051254L
Driver assistance system
1007
Surround View Monitor (SVM)
NOTICE
For more details on Surround View Mon
-
itor Auto On, refer to "Surround View
Monitor Auto On" on page 7-99.
Surround View Monitor operation
Parking/View button
Press the Parking/View button (1) to turn
on or off Surround View Monitor.
Front view
Front view function is displayed on the
screen when the gear is in N (Neutral) or
D (Drive) to assist in parking. The front
view has a top view, front view, side view
and 3D view. Also, other view modes can
be selected by pressing the view icons
on the Surround View Monitor screen.
Operating conditions
Front view function will turn on when the
following conditions are satisfied:
僅 Shifting from R (Reverse) to N (Neu
-
tral) or D (Drive) and the vehicle speed
is below approximately 6 mph (10 km/
h).
僅 Pressing the Parking/View button (1)
when the gear is in D (Drive) or N
(Neutral) and vehicle speed is below 6
mph (10 km/h).
僅 Forward Parking Distance Warning
warns the driver while driving in D
(Drive) (
Setup
→
Vehicle
→
Driver
Assistance
→
Parking Safety
→
Sur
-
round View Monitor Auto On
selected from the infotainment sys
-
tem screen)
Off conditions
Front view function will turn off when
the following conditions are satisfied:
僅 Press the Parking/View button (1) or
the infotainment system button (2).
僅 When vehicle speed is above 6 mph
(10 km/h).
僅 Press one of the infotainment system
button (2), the screen will change to
the infotainment system screen.
僅Shifting to P (Park).
NOTICE
If the Surround View Monitor is turned
off after driving more than 6 mph (10
km/h), driving below 6 mph (10 km/h)
again will not switch to the Surround
View Monitor screen.
Rear view
Rear view function is displayed on the
screen when the gear is in R (Reverse) or
P (Park) to assist in parking. The rear
view has a top view, rear view, side view
and 3D view. Also, other view modes can
be selected by pressing the view icons
on the Surround View Monitor screen.
Operating conditions
Rear view function will turn on when the
following conditions are satisfied:
僅 Shifting to R (Reverse).
OCV041045L
OCV051196L
101
7
7
Driver assistance system Surround View Monitor (SVM)
僅 Pressing the Parking/View button (1)
when P (Park) gear position is
selected.
Off conditions
Rear view function will turn off when the
following conditions are satisfied:
僅 Shifting from R (Reverse) to P (Park).
僅 Pressing the Parking/View button (1)
when P (Park) gear position is
selected.
NOTICE
Pressing the infotainment system button
(2) will not turn the rear view off when
the gear is in R (Reverse).
3D view
3D view function shows the vehicle in
various angles. Press the 3D view icon
on the Surround View Monitor screen to
choose the angle. Press the 3D view icon
again to reset the angle.
Operating conditions
3D view function will turn on when the
following conditions are satisfied:
僅 Shifting to P (Park), N (Neutral) or D
(Drive) and the vehicle speed is below
6 mph (10 km/h).
僅 When shifting to R (Reverse) and Sur
-
round View Monitor is on, Press 3D
view icon on the Surround View Moni
-
tor screen.
Off conditions
3D view function will turn off when the
following conditions are satisfied:
僅 Vehicle in P (Park), N (Neutral) or D
(Drive)
- Shifting to P (Park)
- Pressing the Parking/View button
(1)
- Pressing the infotainment screen
button (3)
-Pressing the home button on the
Surround View Monitor screen (2)
- Vehicle speed is above 6 mph (10
km/h)
僅 Vehicle in R (Reverse)
- Shifting to P (Park)
NOTICE
3D view function does not display the
parking guide.
Surround View Monitor malfunc
-
tion and limitations
Surround View Monitor malfunc
-
tion
When Surround View Monitor is not
working properly, or the screen flickers,
or the camera image does not display
normally, have your vehicle inspected by
an authorized Kia dealer.
Limitations of Surround View
Monitor
僅 The screen may be displayed abnor
-
mally, and an icon will appear at the
top left side of the screen under the
following circumstances:
- The liftgate is opened.
- The driver or front passenger door
is opened.
- The outside rear view mirror is
folded.
WARNING
僅 ALWAYS look around your vehicle to
make sure there are no objects or
obstacles before moving the vehicle.
Driver assistance system
1027
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
What you see on the screen may dif
-
fer from the actual vehicle's location.
僅 The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check the
vehicle's surroundings for safety.
僅 Surround View Monitor is designed to
be used on a flat surface. Therefore, if
used on roads with different heights
such as curbs and speed bumps, the
image in the screen my not look cor
-
rect.
僅 Always keep the camera lens clean. If
the lens is covered with foreign mate
-
rial, it may adversely affect camera
performance and Surround View
Monitor may not operate normally.
However, do not use chemical sol
-
vents such as strong detergents con
-
taining high alkaline or volatile
organic solvents (gasoline, acetone
etc.). This may damage the camera
lens.
Rear Cross-Traffic Collision-
Avoidance Assist (RCCA) (if
equipped)
Rear Cross-Traffic Collision-Avoidance
Assist is designed to help detect vehicles
approaching from blind spot area while
your vehicle is reversing, and warn the
driver that a collision is imminent with a
warning message and an audible warn
-
ing. Also, braking may be assisted to
potentially help prevent a collision.
[A]: Rear Cross-Traffic Collision Warning
operating range
[B]: Rear Cross-Traffic Collision-Avoid
-
ance Assist operating range
CAUTION
The time of warning may vary depend
-
ing on vehicle speed of the approaching
vehicle.
Detecting sensor
Rear corner radar
Refer to the picture above for the
detailed location of the detecting sensor.
OCV052075N
OCV051277N
103
7
7
Driver assistance system Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
NOTICE
For more details on the precautions of
the rear corner radar, refer to "Blind-
Spot Collision-Avoidance Assist (BCA) (if
equipped)" on page 7-28.
Rear Cross-Traffic Collision-
Avoidance Assist settings
Warning Timing
A:
Driver Assistance
1 Warning Timing
2 Standard
3 Late
With the vehicle on, select
Setup
→
Vehicle
→
Driver Assistance
→
Warn
-
ing Timing
from the infotainment sys
-
tem screen to change the initial warning
activation time for Rear Cross-Traffic
Collision-Avoidance Assist.
When the vehicle is first delivered, Warn
-
ing Timing is set to
Standard
. If you
change the Warning Timing, the warning
time of other Driver Assistance systems
may change.
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
You can adjust the Warning Methods
with the EV button in the ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
on the Infotain
-
ment system.
CAUTION
僅 Changing the Warning Methods may
also change the Warning Methods of
other driver assistance systems.
Please ensure and change it.
僅 Warning Methods will maintain its last
setting even if the vehicle is restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
僅 Descriptions of each Driver Assistance
system may be slightly different from
the owner's manual after updating the
software of your infotainment system.
In this case, scan the QR code in the
infotainment system manual to
access the web manual for checking
the changes.
僅 Depending on your region or update,
the menu may be displayed as 'Warn
-
ing Sound' or 'Warning Methods'.
Rear Cross-Traffic Collision-
Avoidance Assist operation
Rear Cross-Traffic Collision-Avoidance
Assist will warn and control the vehicle
depending on collision level
僅 Collision Warning
僅Emergency Braking
僅 Stopping vehicle and ending brake
control
OCV042644N
OCV042646N
Driver assistance system
1047
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
Collision warning
僅 To warn the driver of an approaching
vehicle from the rear left/right side of
your vehicle, the warning light on the
outside rear view mirror will blink and
a warning will appear on the cluster.
At the same time, an audible warning
will sound and the steering wheel will
vibrate (if equipped). If the Rear View
Monitor is operating, a warning will
also appear on the infotainment sys
-
tem screen. (if equipped)
僅 Rear Cross-Traffic Collision-Avoid
-
ance Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
and the vehicle speed is below 5
mph (8 km/h)
- The approaching vehicle is within
approximately 82 ft. (25 m) from
the blind spot area of your vehicle
- The speed of the vehicle approach
-
ing from the blind spot area is
above 3 mph (5 km/h)
NOTICE
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).
Emergency braking
A:
Emergency Braking
僅 To warn the driver of an approaching
vehicle from the rear left/right side of
your vehicle, the warning light on the
outside rear view mirror will blink and
a warning message will appear on the
cluster. At the same time, an audible
warning will sound and the steering
wheel will vibrate (if equipped). If the
Rear View Monitor is operating, a
OCV051038L
OCV051181L
OCV041204K
OCV051038L
OCV051182L
OCV041204K
105
7
7
Driver assistance system Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
warning will also appear on the info
-
tainment system screen. (if equipped)
僅 Rear Cross-Traffic Collision-Avoid
-
ance Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
and the vehicle speed is below 5
mph (8 km/h)
- The approaching vehicle is within
approximately 5 ft. (1.5 m) from the
blind spot area of your vehicle
- The speed of the vehicle approach
-
ing from the left and right is above
3 mph (5 km/h)
僅 Emergency braking will be assisted to
help prevent collision with approach
-
ing vehicles from the blind spot area.
WARNING
Brake control will end:
僅 The approaching vehicle is out of the
detecting range
僅 The approaching vehicle passes
behind your vehicle
僅 The approaching vehicle does not
drive toward your vehicle
僅 The approaching vehicle speed slows
down
僅 The driver depresses the brake pedal
with sufficient power
Stopping vehicle and ending
brake control
A:
Drive carefully
僅 When the vehicle is stopped due to
emergency braking, the warning mes
-
sage will appear on the cluster. For
your safety, the driver should depress
the brake pedal immediately and
check the surroundings.
- Brake control will end after the
vehicle is stopped by emergency
braking for approximately 2 sec
-
onds.
- During emergency braking, braking
control by the function will auto
-
matically cancel when the driver
excessively depresses the brake
pedal.
WARNING
Take the following precautions when
using Rear Cross-Traffic Collision-Avoid
-
ance Assist:
僅 For your safety, set the Settings after
parking the vehicle at a safe location.
僅 If any other function's warning mes
-
sage is displayed or audible warning
is generated, Rear Cross-Traffic
Safety function's warning message
may not be displayed and audible
warning may not be generated.
僅 You may not hear the warning sound
of Rear Cross-Traffic Collision-Avoid
-
ance Assist if the surrounding is noisy.
僅 Rear Cross-Traffic Collision-Avoid
-
ance Assist may not operate if the
driver applies the brake pedal to avoid
collision.
僅 During Rear Cross-Traffic Safety
Function Operation, the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.
僅 Even if there is a problem with Rear
Cross-Traffic Collision-Avoidance
OCV051118L
Driver assistance system
1067
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
Assist, the vehicle's basic braking per
-
formance will operate normally.
僅 Rear Cross-Traffic Collision-Avoid
-
ance Assist does not operate in all sit
-
uations or cannot avoid all collisions.
僅 When Rear Cross-Traffic Collision-
Avoidance Assist is operating, braking
control by the function will automati
-
cally cancel when the driver exces
-
sively depresses the accelerator
pedal.
僅 Rear Cross-Traffic Collision- Avoid
-
ance Assist may warn the driver late
or may not warn the driver depending
on the road and driving conditions.
僅 The driver should hold the responsi
-
bility to control the vehicle. Do not
solely depend on Rear Cross-Traffic
Collision-Avoidance Assist. Rather,
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop the
vehicle.
僅 Never deliberately test Rear Cross-
Traffic Collision-Avoidance Assist on
people, animal, objects, etc. It may
cause serious injury or death.
CAUTION
The brake control may not operate
properly depending on the status of ESC
(Electronic Stability Control).
There will only be a warning when:
僅 The ESC (Electronic Stability Control)
warning light is on
僅 ESC (Electronic Stability Control) is
engaged in a different function
NOTICE
If braking is assisted by Rear Cross-Traf
-
fic Collision-Avoidance Assist, the driver
must immediately depress the brake
pedal and check vehicle surroundings.
僅 Brake control will end when the driver
depresses the brake pedal with suffi
-
cient power.
僅 After shifting the gear to R (Reverse),
braking control will operate once for
left and right vehicle approach.
NOTICE
The images or colors may be displayed
differently depending on the specifica
-
tions of the instrument cluster or theme.
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
and limitations
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
A:
Check Rear Cross-Traffic Safety
system
When Rear Cross-Traffic Collision-
Avoidance Assist is not working prop
-
erly, the warning message will appear
and the master warning light ( ) will
appear on the cluster. Have the function
be inspected by an authorized Kia
dealer.
OCV051183L
OCV051140N
107
7
7
Driver assistance system Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
A:
Check side view mirror warning
light
When the outside rear view mirror warn
-
ing light is not working properly, the
warning message will appear and the
master warning light ( ) will appear on
the cluster. Have the function be
inspected by an authorized Kia dealer.
Rear Cross-Traffic Collision-
Avoidance Assist disabled
A:
Rear Cross-Traffic Safety system
disabled. Radar blocked
When the rear bumper around the rear
corner radar or rear sensor is covered
with foreign material, such as snow or
rain, or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Collision-Avoidance Assist.
If this occurs, the warning message will
appear on the cluster. But it is not a Rear
Cross-Traffic Collision-Avoidance Assist
malfunction.
The function will operate normally when
such foreign material or trailer, etc. is
removed. Always keep it clean.
If the function does not operate normally
after it is removed, have the function
inspected by an authorized Kia dealer.
WARNING
僅 Even though the warning message or
warning light does not appear on the
cluster, Rear Cross-Traffic Collision-
Avoidance Assist may not operate
properly.
僅 Rear Cross-Traffic Collision-Avoid
-
ance Assist may not operate properly
in an area (for example: open terrain),
where any substance are not detected
after turning ON the vehicle.
CAUTION
Turn off Rear Cross-Traffic Collision-
Avoidance Assist to install a trailer, car
-
rier, etc., or remove the trailer, carrier,
etc. to use Rear Cross-Traffic Collision-
Avoidance Assist.
Limitations of Rear Cross-Traffic
Collision-Avoidance Assist
Rear Cross-Traffic Collision-Avoidance
Assist may not operate normally, or the
function may operate unexpectedly
under the following circumstances:
僅 Departing from where trees or grass
are overgrown
僅 Departing from where roads are wet
僅 Speed of the approaching vehicle is
fast or slow
Braking control may not work, driver's
attention is required in the following cir
-
cumstances:
僅 The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch
僅 Driving on a slippery surface due to
snow, water puddle, ice, etc.
僅 The tire pressure is low or a tire is
damaged
僅 The brake is reworked
僅 Remote Smart Parking Assist is oper
-
ating (if equipped)
OCV051184L
Driver assistance system
1087
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
NOTICE
For more details on the limitations of the
rear corner radar, refer to "Blind-Spot
Collision-Avoidance Assist (BCA) (if
equipped)" on page 7-28.
WARNING
僅 Driving near a vehicle or structure
[A]: Structure
Rear Cross-Traffic Collision-Avoid
-
ance Assist may be limited when driv
-
ing near a vehicle or structure, and
may not detect the vehicle approach
-
ing from the blind spot area. If this
occurs, the function may not warn the
driver or control the brakes when nec
-
essary.
Always check your surroundings while
Reversing.
僅 When the vehicle is in a complex
parking environment
Rear Cross-Traffic Collision-Avoid
-
ance Assist may detect vehicles which
are parking or pulling out near your
vehicle (for example: a vehicle leaving
beside your vehicle, a vehicle parking
or pulling out in the rear area, a vehi
-
cle approaching your vehicle making
a turn, etc.). If this occurs, the function
may unnecessarily warn the driver
and control the brake.
Always check your surroundings while
Reversing.
僅 When the vehicle is parked diagonally
[A]: Vehicle
Rear Cross-Traffic Collision-Avoid
-
ance Assist may be limited when
Reversing diagonally, and may not
detect the vehicle approaching from
the blind spot area. If this occurs, the
function may not warn the driver or
control the brakes when necessary.
Always check your surroundings while
Reversing.
僅 When the vehicle is on or near a slope
Rear Cross-Traffic Collision-Avoid
-
ance Assist may be limited when the
vehicle is on a uphill or downhill slope,
or near it, and may not detect the
vehicle approaching from the blind
spot area. If this occurs, the function
may not warn the driver or control the
brakes when necessary.
Always check your surroundings while
Reversing.
僅 Pulling into the parking space where
there is a structure
OCV052245N
OCV052246N
OCV052247N
OCV052079N
109
7
7
Driver assistance system Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
[A]: Structure, [B]: Wall
Rear Cross-Traffic Collision-Avoid
-
ance Assist may detect vehicles pass
-
ing by in front of you when parking
backwards into a parking space with a
wall or structure in the rear or side
area. If this occurs, the function may
unnecessarily warn the driver and
control the brake.
Always check your surroundings while
Reversing.
僅 When the vehicle is parked rearward
Rear Cross-Traffic Collision-Avoid
-
ance Assist may detect vehicles pass
-
ing by behind you when parking
backwards into a parking space. If this
occurs, the function may unnecessar
-
ily warn the driver and control the
brake.
Always check your surroundings while
Reversing.
WARNING
僅 When you are towing a trailer or
another vehicle, do not use Rear
Cross-Traffic Collision-Avoidance
Assist. The function could destabilize
the vehicle.
僅 Rear Cross-Traffic Collision-Avoid
-
ance Assist may not operate suddenly
if interfered by strong electromag
-
netic waves.
僅 Rear Cross-Traffic Collision-Avoid
-
ance Assist may not operate for 3 sec
-
onds after the vehicle is started, or the
rear corner radars are initialized.
僅 If the vehicle is turned off and then
restarted with the sensor blocked or
malfunction, Rear Cross-Traffic Colli
-
sion-Avoidance Assist may not oper
-
ate properly.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
OCV052080N
OCV052081N
Driver assistance system
1107
Reverse Parking Distance Warning (PDW)
Reverse Parking Distance
Warning (PDW) (if equipped)
Reverse Parking Distance Warning will
help warn the driver if a person, an ani
-
mal or an object is detected within a cer
-
tain distance when the vehicle is moving
in reverse.
Detecting sensor
Rear ultrasonic sensors (Type A)
Rear ultrasonic sensors (Type B - GT-
Line)
Rear ultrasonic sensors (Type C - GT)
Refer to the picture above for the
detailed location of the detecting sen
-
sors.
Reverse Parking Distance Warn
-
ing settings
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
OCV041047N
OCV042645L
OCVGT042643N
OCV053293L
111
7
7
Driver assistance system Reverse Parking Distance Warning (PDW)
Reverse Parking Distance Warn
-
ing operation
Parking Safety button
Press the Parking Safety ( ) button to
turn on or off Reverse Parking Distance
Warning.
僅 When Reverse Parking Distance
Warning is off (button indicator light
off), if you shift the gear to R
(Reverse), Reverse Parking Distance
Warning will automatically turn on.
僅 If you shift the gear to R (Reverse),
Reverse Parking Distance Warning
will not turn off even if you press the
Parking Safety ( ) button for your
safety.
Reverse Parking Distance Warn
-
ing
Reverse Parking Distance Warning will
operate under the following conditions.
僅 Shift the gear to R (Reverse).
僅 The vehicle's speed is below 6 mph
(10 km/h).
Warning indication and warning
sound
僅 The corresponding indicator will
appear on the cluster or infotainment
system whenever each ultrasonic sen
-
sor detects a person, animal or object
in its sensing range. Also an audible
warning will sound.
僅 When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
僅 Distance from object may be detected
differently when obstacles are not
located in front of the sensor.
僅 The shape of the indicator in the illus
-
tration may differ from the actual
vehicle.
Reverse Parking Distance Warn
-
ing malfunction and precautions
Reverse Parking Distance Warn
-
ing malfunction
After starting the vehicle, a beep will
sound once when the gear is shifted to R
(Reverse) to indicate Reverse Parking
Distance Warning is operating normally.
However, if one or more of the following
occurs, first check whether the ultra
-
sonic sensor is damaged or blocked with
foreign material. If it still does not work
properly, have your vehicle inspected by
an authorized Kia dealer.
僅 The audible warning does not sound.
僅 The buzzer sounds intermittently.
Distance from
object
Warning indicator
when driving back
-
ward
Warning sound
24~48 inches
(60~120 cm)
Buzzer beeps inter
-
mittently
OCV041048L
12~24 inches
(30~60 cm)
Beeps more fre
-
quently
within 12 inches (30
cm)
Beeps continuously
Distance from
object
Warning indicator
when driving back
-
ward
Warning sound
Driver assistance system
1127
Reverse Parking Distance Warning (PDW)
僅 The warning message appears on the
cluster.
A:
Ultrasonic sensor error or blockage
Limitations of Reverse Parking
Distance Warning
僅 Reverse Parking Distance Warning
may not operate normally when:
- Moisture is frozen to the sensor
(Reverse Parking Distance Warn
-
ing will operate normally when it is
melted.)
- Sensor is covered with foreign
material, such as snow or water
(Reverse Parking Distance Warn
-
ing will operate normally when
such foreign material are removed.)
- The weather is extremely hot or
cold
- The sensor or sensor assembly is
disassembled
- The surface of the sensor is
pressed hard or an impact is
applied with a hard object
- The surface of the sensor is
scratched with a sharp object
- The sensors or its surrounding area
is directly sprayed with high pres
-
sure washer
僅 Reverse Parking Distance Warning
may malfunction when:
- Heavy rain or water spray is pres
-
ent
- Water flows on the surface of the
sensor
- Affected by another vehicle's sen
-
sors
- The sensor is covered with snow
- Driving on uneven road, gravel
roads or bushes
- Objects that generates ultrasonic
waves are near the sensor
- Installing the license plate differ
-
ently from the original location
- The vehicle bumper height or ultra
-
sonic sensor installation has been
modified
- Attaching equipments or accesso
-
ries around the ultrasonic sensors
僅 The following objects may not be
detected:
- Sharp or slim objects, such as
ropes, chains or small poles.
- Objects, which tend to absorb sen
-
sor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 inches
(100 cm) in length and narrower
than 6 inches (14 cm) in diameter.
- Pedestrians, animals or objects that
are very close to the ultrasonic sen
-
sors
WARNING
僅 Reverse Parking Distance Warning is
a supplemental function. The opera
-
tion of Reverse Parking Distance
Warning can be affected by several
factors (including environmental con
-
ditions). It is the responsibility of the
driver to always check the rear view
before and while parking.
僅Your vehicle warranty does not cover
any accidents or damage to the vehi
-
cle due to the malfunction of Reverse
Parking Distance Warning.
OCV051191L
113
7
7
Driver assistance system Forward/Reverse Parking Distance Warning (PDW)
僅 Pay close attention when driving near
objects, pedestrians, and especially
children. Some objects may not be
detected by the ultrasonic sensors,
due to the objects distance, size or
material, all of which can limit the
effectiveness of the sensor.
僅 Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.
僅 If Reverse Parking Distance Warning
needs repair, have your vehicle
inspected by an authorized Kia dealer.
Forward/Reverse Parking Dis
-
tance Warning (PDW) (if
equipped)
Forward/Reverse Parking Distance
Warning will help warn the driver if a
person, an animal or an object is
detected within a certain distance from
the ultrasonic sensors when the vehicle
is moving forward or in reverse.
Detecting sensor
Front ultrasonic sensors
Rear ultrasonic sensors (Type A)
Rear ultrasonic sensors (Type B - GT-
Line)
OCV041049N
OCV041047N
OCV042645L
Driver assistance system
1147
Forward/Reverse Parking Distance Warning (PDW)
Rear ultrasonic sensors (Type C - GT)
Refer to the picture above for the
detailed location of the detecting sen
-
sors.
Forward/Reverse Parking Dis
-
tance Warning settings
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
Parking Distance Warning Auto
On
You can set the parking distance warn
-
ing to be ON at low speeds. To use Park
-
ing Distance Warning Auto On function,
select
Setup
→
Vehicle
→
Driver Assis
-
tance
→
Parking Safety
→
Parking
Distance Warning Auto On
from the
infotainment system screen.
NOTICE
If Parking Distance Warning Auto On is
selected, the Parking Safety ( ) button
indicator light will turn on.
Forward/Reverse Parking Dis
-
tance Warning operation
Parking Safety button
Press the Parking Safety ( ) button to
turn on or off Forward/Reverse Parking
Distance Warning.
僅 When Forward/Reverse Parking Dis
-
tance Warning is off (button indicator
light off), if you shift the gear to R
(Reverse), Forward/Reverse Parking
Distance Warning will automatically
turn on.
OCVGT042643N
OCV053293L
OCV041048L
115
7
7
Driver assistance system Forward/Reverse Parking Distance Warning (PDW)
僅 If you shift the gear to R (Reverse),
Forward/Reverse Parking Distance
Warning will not turn off even if you
press the Parking Safety ( ) button
for your safety.
Forward Parking Distance Warn
-
ing
Forward Parking Distance Warning will
operate when one of the condition is sat
-
isfied.
僅 The gear is shifted from R (Reverse)
to D (Drive)
僅 The gear is in D (Drive) and the Park
-
ing Safety ( ) button indicator light is
on
僅
Parking Distance Warning Auto On
is selected from the Settings menu
and the gear is in D (Drive)
僅 The function warns the driver when
Setup
→
Vehicle
→
Driver Assis
-
tance
→
Parking Safety
→
Parking
Distance Warning Auto On
is
selected from the infotainment sys
-
tem, and the gear is in D (Drive)
僅 Vehicle speed is below 6 mph (10 km/
h)
NOTICE
僅 Forward Parking Distance Warning
does not operate when the vehicle's
forward speed is above 6 mph (10
km/h) even when the function is on
(Parking Safety button indicator is on).
Forward Parking Distance Warning
will operate again when the vehicle's
forward speed decreases below 6
mph (10 km/h).
僅 When the vehicle's forward speed is
above 18 mph (30 km/h), the Forward
Parking Distance Warning will turn off
(Parking Safety button indicator off).
Although you drive below 6 mph (10
km/h) again, Forward Parking Dis
-
tance Warning will not automatically
turn on. (
Setup
→
Vehicle
→
Driver
Assistance
→
Parking Safety
→
Parking Distance Warning Auto On
is not selected from the infotainment
system)
Warning indication and warning
sound
僅 The corresponding indicator will
appear on the cluster or infotainment
system screen whenever each ultra
-
sonic sensor detects a person, animal
or object in its sensing range. Also an
audible warning will sound.
僅 When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
僅 Distance from object may be detected
differently when obstacles are not
located in front of the sensor.
僅 The shape of the indicator in the illus
-
tration may differ from the actual
vehicle.
Distance from
object
Warning indicator
when driving for
-
ward
Warning sound
24~40 inches
(60~100 cm)
Buzzer beeps inter
-
mittently
12~24 inches
(30~60 cm)
Beeps more fre
-
quently
within 12 inches (30
cm)
Beeps continuously
Driver assistance system
1167
Forward/Reverse Parking Distance Warning (PDW)
Reverse Parking Distance Warn
-
ing
Reverse Parking Distance Warning will
operate when one of the condition is sat
-
isfied.
僅 The gear is shifted to R (Reverse).
僅 The vehicle's rearward speed is below
6 mph (10 km/h).
NOTICE
When the vehicle's rearward speed is
below 6 mph (10 km/h), both the front
and rear ultrasonic sensors will detect
objects. However, the front ultrasonic
sensors can detect a person, animal or
object when it is within 24 inches (60
cm) from the sensors.
Warning indication and warning
sound
僅 The corresponding indicator will
appear on the cluster or infotainment
system screen whenever each ultra
-
sonic sensor detects a person, animal
or object in its sensing range. Also an
audible warning will sound.
僅 When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
僅 Distance from object may be detected
differently when obstacles are not
located in front of the sensor.
僅 The shape of the indicator in the illus
-
tration may differ from the actual
vehicle.
Forward/Reverse Parking Dis
-
tance Warning malfunction and
precautions
Forward/Reverse Parking Dis
-
tance Warning malfunction
After starting the vehicle, a beep will
sound once when the gear is shifted to R
(Reverse) to indicate Forward/Reverse
Parking Distance Warning is operating
normally.
However, if one or more of the following
occurs, first check whether the ultra
-
sonic sensor is damaged or blocked with
foreign material. If it still does not work
properly, have your vehicle inspected by
an authorized Kia dealer.
僅 The audible warning does not sound.
僅 The buzzer sounds intermittently.
僅 The warning message appears on the
cluster.
A:
Ultrasonic sensor error or blockage
Limitations of Forward/Reverse
Parking Distance Warning
僅 Forward/Reverse Parking Distance
Warning may not operate normally
when:
Distance from
object
Warning indicator
when driving back
-
ward
Warning sound
24~48 inches
(60~120 cm)
Buzzer beeps inter
-
mittently
12~24 inches
(30~60 cm)
Beeps more fre
-
quently
within 12 inches (30
cm)
Beeps continuously
OCV051193L
117
7
7
Driver assistance system Forward/Reverse Parking Distance Warning (PDW)
- Moisture is frozen to the sensor
(Forward/Reverse Parking Dis
-
tance Warning will operate nor
-
mally when it is melted.)
- Sensor is covered with foreign
material, such as snow or water
(Forward/Reverse Parking Dis
-
tance Warning will operate nor
-
mally when such foreign material
are removed.)
- The weather is extremely hot or
cold
- The sensor or sensor assembly is
disassembled
- The surface of the sensor is
pressed hard or an impact is
applied with a hard object
- The surface of the sensor is
scratched with a sharp object
- The sensors or its surrounding area
is directly sprayed with high pres
-
sure washer
僅 Forward/Reverse Parking Distance
Warning may malfunction when:
- Heavy rain or water spray is pres
-
ent
- Water flows on the surface of the
sensor
- Affected by another vehicle's sen
-
sors
- The sensor is covered with snow
- Driving on uneven road, gravel
roads or bushes
- Objects that generates ultrasonic
waves are near the sensor
- Installing the license plate differ
-
ently from the original location
- The vehicle bumper height or ultra
-
sonic sensor installation has been
modified
- Attaching equipments or accesso
-
ries around the ultrasonic sensors
僅 The following objects may not be
detected:
- Sharp or slim objects, such as
ropes, chains or small poles.
- Objects, which tend to absorb sen
-
sor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 inches
(100 cm) in length and narrower
than 6 inches (14 cm) in diameter.
- Pedestrians, animals or objects that
are very close to the ultrasonic sen
-
sors
WARNING
僅 Forward/Reverse Parking Distance
Warning is a supplemental function.
The operation of Forward/Reverse
Parking Distance Warning can be
affected by several factors (including
environmental conditions). It is the
responsibility of the driver to always
check the front and rear views before
and while parking.
僅 Your vehicle warranty does not cover
any accidents or damage to the vehi
-
cle due to the malfunction of For
-
ward/Reverse Parking Distance
Warning.
僅 Pay close attention when driving near
objects, pedestrians, and especially
children. Some objects may not be
detected by the ultrasonic sensors,
due to the objects distance, size or
material, all of which can limit the
effectiveness of the sensor.
僅 Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.
僅 If Forward/Reverse Parking Distance
Warning needs repair, have your vehi
-
Driver assistance system
1187
Reverse Parking Collision-Avoidance Assist (PCA)
cle inspected by an authorized Kia
dealer.
Reverse Parking Collision-
Avoidance Assist (PCA) (if
equipped)
Reverse Parking Collision-Avoidance
Assist can warn the driver or assist with
braking to help reduce the possibility of
collision with a pedestrian or an object
when Reversing.
Detecting sensor
Rear view camera
Rear ultrasonic sensors (Type A)
Rear ultrasonic sensors (Type B - GT-
Line)
OCV041044N
OCV041047N
OCV042645L
119
7
7
Driver assistance system Reverse Parking Collision-Avoidance Assist (PCA)
Rear ultrasonic sensors (Type C - GT)
Refer to the picture above for the
detailed location of the detecting sen
-
sors.
Reverse Parking Collision- Avoid
-
ance Assist settings
Parking Safety
A:
Driver Assistance
1 Parking Safety
2 Rear Active Assist
3 Rear Warning Only
4 Off
With the vehicle on, select or deselect
Setup
→
Vehicle
→
Driver Assistance
→
Parking Safety
from the infotain
-
ment system screen to set whether or
not to use each function.
僅
Rear Active Assist
: Reverse Parking
Collision-Avoidance Assist may warn
the driver and assist with braking
when a collision with a pedestrian or
an object is imminent.
僅
Rear Warning Only
: Reverse Parking
Collision-Avoidance Assist may warn
the driver when a collision with a
pedestrian or an object is imminent.
Braking will not be assisted.
僅
Off
: Reverse Parking Collision-Avoid
-
ance Assist will turn off.
Turning On/Off
Press and hold the Parking Safety ( )
button for more than 2 seconds to turn
Active rear assist or Rear Warning Only
on or off.
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
OCVGT042643N
OCV041586N
OCV041048L
OCV053293L
Driver assistance system
1207
Reverse Parking Collision-Avoidance Assist (PCA)
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
Reverse Parking Collision- Avoid
-
ance Assist operation
Operating conditions
After selecting
Active assistance
or
Warning only
from the Settings menu,
Reverse Parking Collision-Avoidance
Assist will turn on when the following
conditions are satisfied:
僅 The liftgate is closed
僅 The gear is shifted to R (Reverse)
僅 Vehicle speed is below 6 mph (10 km/
h) (For pedestrians)
僅 Vehicle speed is below 2 mph (4 km/
h) (For objects)
僅 Reverse Parking Collision-Avoidance
Assist components such as the rear
view camera and the rear ultrasonic
sensors are in normal conditions
When Reverse Parking Collision- Avoid
-
ance Assist activates, a line appears
behind the vehicle image in the instru
-
ment cluster.
NOTICE
Reverse Parking Collision-Avoidance
Assist operates only once after the gear
is shifted to R (Reverse). To reactivate
Reverse Parking Collision-Avoidance
Assist, shift the gear from another gear
to R (Reverse).
Rear Collision-Avoidance Assist
If Reverse Parking Collision-Avoidance
Assist detects a risk of collision with a
pedestrian or an object, Reverse Parking
Collision-Avoidance Assist will warn the
driver with an audible warning and
warning message on the cluster. When
Rear View Monitor is operating, a warn
-
ing will appear on the infotainment sys
-
tem screen. The warning will turn off
when the driver shifts the gear to P
(Park), N (Neutral), or D (Drive).
If Reverse Parking Collision-Avoidance
Assist detects an imminent collision with
a pedestrian or an object behind the
vehicle, Reverse Parking Collision-
Avoidance Assist will assist you with
braking. The driver needs to pay atten
-
tion as the brake assist will end within 5
minutes. Brake control will also end
when:
僅 The gear is shifted to P (Park) or D
(Drive).
僅 The driver depresses the brake pedal
with sufficient power.
NOTICE
If braking assist has lasted for approxi
-
mately 5 minutes, the Electronic Parking
Brake
EPB
will be engaged simultane
-
ously.
Rear Collision Warning
If Reverse Parking Collision-Avoidance
Assist detects a risk of collision with a
pedestrian or an object, Reverse Parking
Collision-Avoidance Assist will warn the
driver with an audible warning and
warning message on the cluster. When
Rear View Monitor is operating, a warn
-
OCV051185L
121
7
7
Driver assistance system Reverse Parking Collision-Avoidance Assist (PCA)
ing will appear on the infotainment sys
-
tem screen. Braking will not be assisted.
The warning will turn off when the gear
is shifted to P (Park), N (Neutral) or D
(Drive).
Reverse Parking Collision- Avoid
-
ance Assist malfunction and lim
-
itations
Reverse Parking Collision- Avoid
-
ance Assist malfunction
A:
Check Parking Safety system
When Reverse Parking Collision- Avoid
-
ance Assist or other related functions
are not working properly, the warning
message will appear on the cluster, and
Reverse Parking Collision-Avoidance
Assist will turn off automatically.
Have your vehicle inspected by an
authorized Kia dealer.
Reverse Parking Collision-Avoid
-
ance Assist disabled
Wide-rear view camera
The wide-rear view camera is used as a
detecting sensor to detect pedestrians. If
the camera lens is covered with foreign
material, such as snow or rain, it may
adversely affect camera performance
and Reverse Parking Collision-Avoid
-
ance Assist may not operate normally.
Always keep the camera lens clean.
Rear ultrasonic sensors (Type A)
Rear ultrasonic sensors (Type B - GT-
Line)
Rear ultrasonic sensors (Type C - GT)
The rear ultrasonic sensors are located
inside the rear bumper to detect objects
in the rear area. If the sensors are cov
-
ered with foreign material, such as snow
or rain, it may adversely affect sensor
performance and Reverse Parking Colli
-
sion-Avoidance Assist may not operate
normally. Always keep the rear bumper
clean.
The warning message will appear on the
cluster if the following situations occur:
OCV051186L
OCV041044N
OCV041047N
OCV042645L
OCVGT042643N
Driver assistance system
1227
Reverse Parking Collision-Avoidance Assist (PCA)
Wide-rear view camera
A:
Camera error or blockage
Rear ultrasonic sensors
A:
Ultrasonic sensor error or blockage
僅 The wide-rear view camera or rear
ultrasonic sensor(s) is covered with
foreign material, such as snow or rain,
etc.
僅 There is inclement weather, such as
heavy snow, heavy rain, etc.
If this occurs, Reverse Parking Collision-
Avoidance Assist may turn off or may
not operate properly. Check whether the
rear view camera and rear ultrasonic
sensors are clean.
Limitations of Reverse Parking
Collision-Avoidance Assist
Reverse Parking Collision-Avoidance
Assist may not assist braking or warn the
driver even if there are pedestrians or
objects under the following circum
-
stances:
僅 Any non-factory equipment or acces
-
sory is installed
僅 Your vehicle is unstable due to an
accident or other causes
僅 Bumper height or rear ultrasonic sen
-
sor installation has been modified
僅 Rear view camera or rear ultrasonic
sensor(s) is damaged
僅 Rear view camera or the rear ultra
-
sonic sensor(s) is stained with foreign
material, such as snow, dirt, etc.
僅 Rear view camera is obscured by a
light source or by inclement weather,
such as heavy rain, fog, snow, etc.
僅 The surrounding is very bright or very
dark
僅 Outside temperature is very high or
very low
僅 The wind is either strong (above 12
mph (20 km/h)) or blowing perpen
-
dicular to the rear bumper
僅 Objects generating excessive noise,
such as vehicle horns, loud motorcy
-
cle engines or truck air brakes, are
near your vehicle
僅 An ultrasonic sensor with similar fre
-
quency is near your vehicle
僅 The pedestrians are difficult to recog
-
nize under following conditions:
- There is ground height difference
between the vehicle and the pedes
-
trian
- The image of the pedestrian in the
rear view camera is indistinguish
-
able from the background
- The pedestrian is near the rear
edge of the vehicle
- The pedestrian is not standing
upright
- The pedestrian is either very short
or very tall for Reverse Parking Col
-
lision- Avoidance Assist to detect
- The pedestrian or cyclist is wearing
clothing that easily blends into the
background, making it difficult to
detect
OCV051187L
OCV051188L
123
7
7
Driver assistance system Reverse Parking Collision-Avoidance Assist (PCA)
- The pedestrian is wearing clothing
that does not reflect ultrasonic
waves well
僅 Size, thickness, height, or shape of the
object does not reflect ultrasonic
waves well (e.g. pole, bush, curbs,
carts, edge of a wall, etc.)
僅 The pedestrian or the object is moving
僅 The pedestrian or the object is very
close to the rear of the vehicle
僅 A wall is behind the pedestrian or the
object
僅 The object is not located at the rear
center of your vehicle
僅 The object is not parallel to the rear
bumper
僅 The road is slippery or inclined
僅 The driver backs up the vehicle imme
-
diately after shifting to R (Reverse)
僅 The driver accelerates or circles the
vehicle
Reverse Parking Collision-Avoidance
Assist may unnecessarily warn the driver
or assist with braking even if there are
no pedestrians or objects under the fol
-
lowing circumstances:
僅 Any non-factory equipment or acces
-
sory is installed
僅Your vehicle is unstable due to an
accident or other causes
僅 Bumper height or rear ultrasonic sen
-
sor installation has been modified
僅 Your vehicle height is low or high due
to heavy loads, abnormal tire pres
-
sure, etc.
僅 Rear view camera or the rear ultra
-
sonic sensor(s) is stained with foreign
material, such as snow, dirt, etc.
僅 The pattern on the road is mistaken
for a pedestrian
僅 There is shadow or light reflecting on
the ground
僅 Pedestrians or objects are around the
path of the vehicle
僅 Objects generating excessive noise,
such as vehicle horns, loud motorcy
-
cle engines or truck air brakes, are
near your vehicle
僅 Your vehicle is backing towards a nar
-
row passage or parking space
僅 Your vehicle is backing towards an
uneven road surface, such as an
unpaved road, gravel, bump, gradient,
etc.
僅 A trailer or carrier is installed on the
rear of your vehicle
僅 An ultrasonic sensor with similar fre
-
quency is near your vehicle
WARNING
僅 Always use extreme caution while
driving. The driver is responsible for
controlling the brake for safe driving.
僅 Always pay attention to road and traf
-
fic conditions while driving, whether
or not there is a warning.
僅 Always look around your vehicle to
make sure there are no pedestrians or
objects before moving the vehicle.
僅 The performance of Reverse Parking
Collision-Avoidance Assist may vary
under certain conditions. If vehicle
speed is above 2 mph (4 km/h),
Reverse Parking Collision- Avoidance
Assist will provide collision avoidance
assist only when pedestrians are
detected. Always look around and pay
attention when Reversing your vehi
-
cle.
僅 Some objects may not be detected by
the rear ultrasonic sensors due to the
objects distance, size or material, all of
Driver assistance system
1247
Reverse Parking Collision-Avoidance Assist (PCA)
which can limit the effectiveness of
the sensor.
僅 Reverse Parking Collision-Avoidance
Assist may not operate properly or
may operate unnecessarily depending
on the road conditions and the sur
-
roundings.
僅 Do not solely rely on Reverse Parking
Collision-Avoidance Assist. Doing so
may lead to vehicle damage or inju
-
ries.
僅 Always keep the rear view camera
and rear ultrasonic sensors clean.
僅 Do not use any cleanser containing
acid or alkaline detergents when
cleaning the rear view camera lens.
Use only a mild soap or neutral deter
-
gent, and rinse thoroughly with water.
僅 Do not spray the rear view camera or
the rear ultrasonic sensors or their
surrounding area directly with a high
pressure washer. It may cause the
rear view camera or the rear ultra
-
sonic sensors to malfunction.
僅 Do not apply objects, such as a
bumper sticker or a bumper guard,
near the rear view camera or rear
ultrasonic sensors or apply paint to
the bumper. Doing so may adversely
affect the performance of Reverse
Parking Collision-Avoidance Assist.
僅 Never disassemble or apply impact on
the rear view camera or the rear ultra
-
sonic sensors components.
僅 Do not apply unnecessary force on
the rear view camera or the rear ultra
-
sonic sensors. Reverse Parking Colli
-
sion-Avoidance Assist may not
operate properly if the rear view cam
-
era or the rear ultrasonic sensor(s) is
forcibly moved out of proper align
-
ment. Have your vehicle inspected by
an authorized Kia dealer.
僅 Noise may be heard when sudden
braking occurs to avoid a collision.
僅 If any other warning sound such as
the seat belt warning chime is already
generated, Reverse Parking Collision-
Avoidance Assist warning may not
sound.
僅 Reverse Parking Collision-Avoidance
Assist may not work properly if the
bumper has been damaged, replaced
or repaired.
僅 Reverse Parking Collision-Avoidance
Assist may not operate normally if
interfered by strong electromagnetic
waves.
僅 Playing the vehicle audio system at
high volume may prevent passengers
from hearing Reverse Parking Colli
-
sion-Avoidance Assist warning
sounds.
僅 The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Con
-
trol) warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function
NOTICE
Reverse Parking Collision-Avoidance
Assist can detect a pedestrian or an
object when:
僅 A pedestrian is standing behind the
vehicle
僅 A large obstacle, such as a vehicle, is
parked in the rear center of your vehi
-
cle
125
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
Remote Smart Parking Assist
(RSPA) (if equipped)
Remote Smart Parking Assist uses vehi
-
cle sensors to help the driver park and
exit parking spaces remotely from out
-
side the vehicle by automatically search
-
ing for parking spaces, and controlling
the steering wheel, vehicle speed and
gearshifts.
僅 Remote Smart Parking and Remote
Operation function may be operated
from outside the vehicle using the
smart key.
僅 Smart Parking and Remote Smart
Parking function may be operated
from inside the vehicle.
僅 Smart Parking and Remote Smart
Parking function helps the driver with
perpendicular reverse parking and
parallel reverse parking.
僅 Smart Exit function helps the driver
with parallel forward exit.
僅 When Remote Smart Parking Assist
operates, Parking Distance Warning
and Surround View Monitor will also
operate. For more details, refer to
"Forward/Reverse Parking Distance
Warning (PDW) (if equipped)" on page
7-113 and "Surround View Monitor
(SVM) (if equipped)" on page 7-98.
Detecting sensor
Front ultrasonic sensors
Front side ultrasonic sensors
Rear side ultrasonic sensors
Function Description
Remote Opera
-
tion
Remotely moving forward or backward
Smart Parking
or Remote
Smart Parking
Perpendicular reverse parking
Parallel reverse parking
Smart Exit
Parallel forward exit
OCV051082L
OCV051083L
OCV051084L
OCV052085N
OCV041049N
OCV051086N
OCV051087N
Driver assistance system
1267
Remote Smart Parking Assist (RSPA)
Rear ultrasonic sensors (Type A)
Rear ultrasonic sensors (Type B - GT-
Line)
Rear ultrasonic sensors (Type C - GT)
Refer to the picture above for the
detailed location of the detecting sen
-
sors.
WARNING
僅 Never disassemble the detecting sen
-
sor or sensor assembly, or apply any
impact on it.
僅 If the detecting sensor have been
replaced or repaired, have your vehi
-
cle inspected by an authorized Kia
dealer.
僅Remote Smart Parking Assist may
malfunction if the vehicle bumper
height or ultrasonic sensor installation
has been modified or damaged. Any
non-factory installed equipment or
accessories may also interfere with
the sensor performance.
僅 When the ultrasonic sensor is frozen
or stained with snow, dirt, or water,
the sensor may not operate until the
stains are removed using a soft cloth.
僅 Do not push, scratch or strike the
ultrasonic sensor. Sensor damage
could occur.
僅 Do not spray the ultrasonic sensors or
its surrounding area directly with a
high pressure washer.
Remote Smart Parking Assist set
-
tings
Warning Methods
A:
Driver Assistance
1 Warning Methods
2 Warning Volume
Warning Methods can be set when the
vehicle is in ON position.
僅
Warning Volume
: Select
Setup
→
Vehicle
→
Driver Assistance
→
Warning Methods
→
Warning Vol
-
ume
on the infotainment system, and
adjust the warning volume.
Even if you set the warning volume to
0, Warning volume will keep its vol
-
ume in 1. (If steering wheel vibration
equipped)
CAUTION
僅Ensure that
Warning Methods
you
have set may apply to the Warning
Methods of other driver assistance
systems.
OCV041047N
OCV042645L
OCVGT042643N
OCV053293L
127
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
僅
Warning Methods
will maintain its
last setting even if the vehicle is
restarted.
僅 The setting menu may not be avail
-
able for your vehicle depending on
the vehicle features and specifica
-
tions.
Driver assistance system
1287
Remote Smart Parking Assist (RSPA)
Remote Smart Parking Assist operation
Remote Smart Parking button
Parking/View button, Parking Safety button Smart key
Location Name Symbol Description
Inside vehicle
Parking/View button
僅 Press and hold the Parking/View button to turn on Remote Smart Park
-
ing Assist. Also, Forward/Reverse Parking Distance warning will auto
-
matically turn on.
(However, functions may differ depending on the situations. Refer to
each function's description for more details in the following pages.)
僅 Press and hold the Parking/View button while Smart Parking or Smart
Exit function is on to operate the function.
Parking Safety button
僅 Press the Parking Safety button while Remote Smart Parking Assist is
operating to end function operation.
Smart key
Remote Start button
僅 Press the Remote Start button after the door is locked with the vehicle
off to start the vehicle remotely.
僅 Press the Remote Start button while Remote Operation function is oper
-
ating to end function operation.
Forward button
僅 When using Remote Smart Parking function, regardless of which direc
-
tion button is pressed, reverse parking is supported while the button is
pressed.
僅 When using the Remote Operation function, the vehicle moves in the
direction of the button while the button is pressed.
Backward button
OCV051088L_2
OGL3051095
129
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
Remote Operation
Operating order
Remote Operation operates in the fol
-
lowing order:
1. Getting ready to remotely move for
-
ward and backward
2. Remotely moving forward and back
-
ward
1. Getting ready to remotely
move forward and backward
There are two ways to operate Remote
Operation function.
Method (1): Using the function
with vehicle off
1. Within a certain range from the vehi
-
cle press the door lock ( ) button on
the smart key and lock all doors.
2. Press and hold the Remote Start but
-
ton ( ) within 4 seconds until the
vehicle starts.
* For more details on remotely starting
the vehicle, refer to "Smart key" on
page 5-7.
Method (2): Using the function
with vehicle on
A:
REMOTELY moving forward/back
-
ward...
1 1. Unfasten driver's seat belt
.
2 2. Leave car (keep the key) and
close doors.
3 3. Press and hold PARKING button
on car key.
1. Park the vehicle in front of the space
where you want to use Remote Oper
-
ation function, and shift the gear to P
(Park).
2. Press and hold the Parking/View ( )
button to turn on Smart Parking
Assist. A message
Under REMOTE
control
will appear on the infotain
-
ment system screen.
3. Get out of the vehicle with the smart
key and close all doors.
NOTICE
僅
Agree
must be selected on the info
-
tainment system screen and the info
-
tainment system has to operate
properly to use Remote Operation
function.
僅 Method (2) can be used after the vehi
-
cle has been driven above 3 mph (5
km/h).
僅 If the function is turned on again after
parallel parking is completed by
Remote Smart Parking Assist, Remote
Operation function can be used with
Method (2).
OCV052089N_2
OCV052090N_2
OCV041184L
Driver assistance system
1307
Remote Smart Parking Assist (RSPA)
2. Remote Operation
1. Press and hold one of the Forward
( ) or Backward ( ) button on the
smart key.
僅 Remote Smart Parking Assist will
automatically control the steering
wheel, vehicle speed and gear shift.
The vehicle will move in the direc
-
tion of the button pressed.
僅 While Remote Operation function is
operating, if the you let the button,
the vehicle will stop and function
control will pause. The function will
start operating again when the but
-
ton is pressed and held again.
2. Hold down the Forward ( ) or Back
-
ward ( ) button until the vehicle
reaches the target location.
3. When Remote Operation is done, get
in the vehicle with the smart key or
press the Remote Start ( ) button on
the smart key from outside the vehi
-
cle.
僅 The message will appear on the
infotainment system screen. The
vehicle will automatically shift to P
(Park) and engage the parking
brake.
僅 When the Remote Start ( ) button
is pressed, the vehicle will turn off.
If the driver is in the vehicle, the
vehicle will retain ON position.
NOTICE
僅 Remote Operation can control the
vehicle remotely using the smart key
outside the vehicle.
僅 Check that all smart keys are outside
the vehicle when using Remote Oper
-
ation function.
僅 Remote Operation function will oper
-
ate only when the smart key is within
13 ft. (4 m) from the vehicle. If there is
no vehicle movement even when the
Forward or Backward button is
pressed on the smart key, check the
distance to the vehicle and press the
button again.
僅 The detecting range of the smart key
may vary depending on the surround
-
ings that are affected by radio waves
such as transmission tower, broadcast
station, etc.
僅 When remotely moving forward using
method (1), it is recognized as an exit
situation, and the vehicle moves 13 ft.
(4 m) to check for pedestrians, ani
-
mals or objects around the vehicle.
After confirmation, the steering wheel
is controlled according to the condi
-
tion ahead.
僅 When remotely moving forward using
method (2), it is recognized as a park
-
ing situation, and will immediately
control the steering wheel according
to the condition ahead to assist with
entering the parking space and align
-
ing the vehicle. However, perfor
-
mance may reduce depending on the
pedestrians, animals, shape of
objects, location, etc. around the vehi
-
cle.
僅 For moving remotely backward, both
method (1) and (2) aligns the steering
OCV052091N
131
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
wheel first, and then will only move
the vehicle straight.
WARNING
僅 When using Remote Operation func
-
tion, make sure that all passengers
have gotten out of the vehicle.
僅 Before leaving the vehicle, close win
-
dows and sunroofs, and make sure
the vehicle is off before locking the
doors.
僅 If the vehicle's battery is discharged or
Remote Smart Parking Assist mal
-
functions when parked in a narrow
parking space, Remote Operation
function will not operate. Always park
your vehicle in a space wide enough
for you to get in or out of your vehicle.
僅 Please note that depending on the
parking space, you may not be able to
exit from the space you have entered
by using Remote Operation function.
僅 After parking, the surrounding may
change due to the movement of sur
-
rounding vehicles. If this occurs,
Remote Operation function may not
operate.
Remote Smart Parking Assist
operation status
NOTICE
僅 Operation status by the hazard warn
-
ing light may not be applicable based
on the regulation of your country.
僅 If the smart key is not within the oper
-
ating range from the vehicle (approxi
-
mately 13 ft. (4 m)), the smart key LED
will not appear or blink. Use the smart
key within the operating range.
How to turn off Remote Opera
-
tion function while operating
僅 Press the Parking/View ( ) button or
shift the gear except to P (Park) while
the infotainment system screen
guides the driver using method 2.
僅 Press the Parking Safety ( ) button
or select
Cancel
on the infotainment
system screen.
僅 Press the Remote Start ( ) button on
the smart key while the vehicle is
being controlled by Remote Operation
function. Remote Operation function
will turn off. At this time, the vehicle
will turn off.
僅 Get in the vehicle with the smart key.
Remote Operation function will turn
off. At this time, the vehicle will remain
on.
The function will pause in the fol
-
lowing conditions when:
When Remote Operation function is
paused, the vehicle will stop. If the con
-
dition that made the function to pause
disappears, the function may operate
again.
僅 There is a pedestrian, animal or object
in the direction the vehicle is moving
僅 The door or liftgate is open
Operation Status Smart key LED
Hazard warning
light
Under control
Green LED Contin
-
uously blinks
-
Pause
Red LED Continu
-
ously blinks
Blinks
Off
Red LED appears
for 4 seconds and
then turns off
Blinks 3 times and
turns off
Complete
Green LED appears
for 4 seconds and
then turns off
Blinks 1 time and
turns off
Driver assistance system
1327
Remote Smart Parking Assist (RSPA)
僅 The Forward ( ) or Backward ( )
button is not continuously pressed
僅 Simultaneously pressing multiple but
-
tons on a smart key
僅 The smart key is not operated within
13 ft. (4 m) from the vehicle
僅 Button of another smart key is
pressed in addition to the operating
smart key (Excluding start button)
僅 Blind-Spot Collision-Avoidance Assist
or Rear Cross-Traffic Collision-Avoid
-
ance Assist operates while the vehicle
is being controlled in the reverse
direction.
僅 The vehicle moves 22 ft. (7 m) while
the smart key is pressed with Remote
Operation function (maximum travel
distance per button press)
The function will cancel in the fol
-
lowing conditions when:
When Remote Operation function is can
-
celed, the vehicle will automatically stop,
shift the gear to P (Park) and engage
EPB (Electronic Parking Brake).
僅 The steering wheel is steered
僅 The gear is shifted while the vehicle is
moving
僅 Operating EPB while the vehicle is
moving
僅 The vehicle hood is open
僅 The brake pedal or accelerator pedal
is depressed when all the doors are
closed
僅 The smart key is outside the vehicle
when the brake pedal is depressed
while the driver's door is open
僅 Rapid acceleration occurs
僅 Vehicle skid occurs
僅 The wheel is stuck by an obstacle and
cannot move
僅 Approximately 3 minutes and 50 sec
-
onds have past after Remote Opera
-
tion function has started to operate
僅 The slope of the road exceeds the
operational range
僅 The function is paused for more than
1 minute
僅 The total travel distance of the vehicle
has exceeded 45 ft. (14 m) after
Remote Operation function operation
僅 The steering wheel, gearshift, braking,
and drive controls are not working
normally
僅 There is a problem with the smart key
or the smart key battery is low
僅 ABS, TCS or ESC system operates due
to slippery road conditions
僅 The alarm of the Theft Alarm System
sounds
僅 The charging door opens
僅 The EV mode is utility mode
Smart Parking, Remote Smart
Parking
Operating order
Parking function operates in the follow
-
ing order:
1. Getting ready for parking
2. Searching for parking space
3. Select parking type and operating
mode
4. Smart Parking
5. Remote Smart Parking
NOTICE
Parking function includes Smart Parking
and Remote Smart Parking.
133
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
1. Getting ready for parking
1. With the vehicle turned on, depress
the brake pedal and shift the gear to
D (Drive) or N (Neutral).
2. Press and hold the Parking/View ( )
button to turn on Remote Smart Park
-
ing Assist.
NOTICE
僅
Agree
must be selected on the info
-
tainment system screen and the info
-
tainment system has to operate
properly to use Parking function.
僅 If you drive above 3 mph (5 km/h)
with the vehicle on, you may use the
Parking function with the gear shifted
to N (Neutral).
2. Searching for parking space
A:
Searching for parking space...
1 Slowly drive forward (below 12
mph).
Slowly drive forward maintaining the
distance of approximately 40 inches
(100 cm) from the parked vehicles. The
vehicle will search for a parking space
from the side or front/rear of parked
vehicle.
When searching for a parking space is
complete, a message will appear on the
infotainment system screen.
Select
parking type
will be displayed and the
selected parking space will appear on
Top View screen of Surround View Mon
-
itor.
NOTICE
僅 Remote Smart Parking Assist
searches for parking spaces that are
next to parked vehicles, or parking
spaces with parked vehicles in front or
rear.
僅 While searching for a parking space,
when vehicle speed is above 12 mph
(20 km/h), a message will appear on
the infotainment system screen
informing you to slow down. When
vehicle speed is above 18 mph (30
km/h), Parking function will turn off.
僅 Searching for a parking space will be
completed when there is enough
space to move the vehicle in addition
to the parking space.
僅 Even if an audible sound is heard to
notify that searching for a parking
space is complete, search completion
can be canceled immediately depend
-
ing on surroundings.
NOTICE
僅 If the distance is below 20 inches (50
cm) or over 59 inches (150 cm),
Remote Smart Parking Assist may not
be able to search for a parking space.
OCV051092L
OCV041152N
OCV052093N
Driver assistance system
1347
Remote Smart Parking Assist (RSPA)
[A]: Searching for parking space
僅 If you do not maintain a certain dis
-
tance from the parked vehicle, the
performance to search for a parking
space may reduce.
僅 Even if a diagonal parking space is
searched as a parking space, parking
is not assisted normally.
僅 Due to abnormal performance of the
ultrasonic sensor or the influence of
the surroundings, Parking function
may not be able to search for a park
-
ing space even if there is a parking
space, or may search for a space that
is not suitable for parking.
3. Select parking type and oper
-
ating mode
1. Parking type – Perpendicular
reverse (Left/Right), Parallel
reverse (Left/Right)
A:
Select parking type
1 Parking type can only be selected at
standstill.
With the vehicle stopped by depressing
the brake pedal, touch the infotainment
system screen to select the desired
parking type.
NOTICE
僅 If you continue to drive without stop
-
ping after the parking type selection
screen appears, Remote Smart Park
-
ing Assist will return to the previous
stage and search for a parking space.
僅 If Parking function is canceled unin
-
tentionally by pressing the Parking/
View ( ) button before the parking
type is selected, you can return to the
parking type selection stage by press
-
ing and holding the button again
while the vehicle is stopped.
WARNING
Before selecting the Parking type, the
driver should check whether the parking
space is suitable.
If the searched parking space by
Remote Smart Parking Assist is narrow
or unsuitable for parking, do not select
the Parking type and move the vehicle
to search for another parking space.
2. Operating mode – Remote
Parking, Smart Parking
A:
Operation guide
1 REMOTE Parking
2 SMART Parking
After selecting a parking type, the info
-
tainment system screen will guide you
with Remote Smart Parking function and
Smart Parking function. Follow the
instructions to operate Remote Smart
Parking Assist.
OCV041153L
OCV041154L
135
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
NOTICE
僅 Operating instructions will be dis
-
played on the screen for each desired
function you select.
僅 Do not take your foot off the brake
pedal during the Parking function
guide. When the vehicle moves,
Remote Smart Parking Assist will turn
off.
NOTICE
A:
SMART Parking
1 Take hands off steering wheel.
2 Press and hold PARKING button.
If Remote Smart Parking Assist cannot
activate Remote Smart Parking function,
only the Smart Parking guide will be dis
-
played on the infotainment system
screen.
4. Smart Parking
1. Press the Parking/View ( ) button
when the vehicle is stopped by
depressing the brake pedal.
2. Release the brake pedal while holding
the Parking/View ( ) button.
僅 Remote Smart Parking Assist will
automatically control the steering
wheel, vehicle speed and gear shift.
僅 If you do not hold down the Park
-
ing/View button, the vehicle will
stop and function control will
pause. The function will start oper
-
ating again when the Parking/View
button is pressed and held again.
3. Hold the Parking/View ( ) button
until the vehicle reaches the target
parking position.
僅 Message will appear on the info
-
tainment system screen to inform
you that parking is complete. The
vehicle will automatically shift to P
(Park) and engage the parking
brake.
4. If you need to change the vehicle's
position or location, manually com
-
plete parking your vehicle.
NOTICE
僅 Smart Parking function will not oper
-
ate if the door is open or the seat belt
is not fastened.
僅 The parking location indicator is dis
-
played on Surround View Monitor
screen and is displayed until the vehi
-
cle enters the parking space for the
first time by Smart Parking function.
OCV041197L
OCV041198L
OCV041199L
Driver assistance system
1367
Remote Smart Parking Assist (RSPA)
僅 Vehicle speed can be adjusted by
depressing the brake pedal while
Smart Parking function is operating.
However, the vehicle does not accel
-
erate even when the accelerator pedal
is depressed.
僅 Depending on parking environments,
if the vehicle is stopped by a stopper,
parking may be completed.
5. Remote Smart Parking
A:
REMOTE Parking
1 1. Unfasten driver's seat belt.
2 2. Leave car (keep the key) and
close doors.
3 3. Press and hold PARKING button
on car key.
1. Shift the gear to P (Park).
2. Get out of the vehicle with the smart
key, and close all doors.
3. Press and hold one of the Forward
( ) or Backward ( ) button on the
smart key.
僅 Remote Smart Parking Assist will
automatically control the steering
wheel, vehicle speed and gear shift.
僅 If you do not hold down the For
-
ward ( ) or Backward ( ) button,
the vehicle will stop and function
control will pause. The function will
start operating again when the but
-
ton is pressed and held again.
4. Hold the Forward ( ) or Backward
( ) button on the smart key until the
parking is complete.
僅 When the vehicle reaches the tar
-
get parking position, a message will
appear on the infotainment system
screen to inform you that parking is
complete. The vehicle will automati
-
cally shift to P (Park), engage EPB
(Electronic Parking Brake) and the
vehicle will turn off.
5. If you need to change the vehicle's
position or location, manually com
-
plete parking your vehicle.
NOTICE
僅 When operating Remote Smart Park
-
ing function, make sure all smart keys
are outside of the vehicle.
僅 Remote Smart Parking function will
operate only when the smart key is
within 13 ft. (4 m) from the vehicle. If
there is no vehicle movement even
when the Remote Forward or Back
-
ward button is pressed on the smart
key, check the distance to the vehicle
and press the button again.
僅 The detecting range of the smart key
may vary depending on the surround
-
ings that are affected by radio waves
such as transmission tower, broadcast
station, etc.
僅 The parking location indicator is dis
-
played on Surround View Monitor
screen and is displayed until the vehi
-
cle enters the parking space for the
first time by Remote Smart Parking
function.
僅 Depending on parking environments,
if the vehicle is stopped by a stopper,
parking may be completed.
OCV041521L
137
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
WARNING
僅 When using Remote Smart Parking
function, make sure that all passen
-
gers have gotten out of the vehicle.
僅 After ending or turning off Remote
Smart Parking function, before leav
-
ing the vehicle, close windows and
sunroof, and make sure the vehicle is
off before locking the doors.
Smart Parking function
NOTICE
僅 Operation status by the hazard warn
-
ing light may not be applicable based
on the regulation of your country.
僅 If the smart key is not within the oper
-
ating range from the vehicle (approxi
-
mately 13 ft. (4 m)), the smart key LED
will not appear or blink. Use the smart
key within the operating range.
How to turn off Parking function
while operating
僅 Press the Parking Safety ( ) button
or select
Cancel
on the infotainment
system screen to turn off.
僅 Press the Parking Safety ( ) button in
Searching for parking space and
Select parking type stage.
僅 Shift the gear to R (Reverse) while
searching for parking space, select
parking type and Select operating
mode stage.
僅 While Smart Parking function is oper
-
ating, depress the brake pedal to stop
the vehicle. At this time, EPB (Elec
-
tronic Parking Brake) will not be
engaged.
僅 While Smart Parking function is oper
-
ating, press the Remote Start ( ) but
-
ton on the smart key.
NOTICE
Get in the vehicle with the smart key.
Remote Smart Parking function will turn
off. At this time, the vehicle will remain
on.
Parking function operation status
The function will pause in the fol
-
lowing conditions when:
When Parking function is paused, the
vehicle will automatically stop. If the con
-
dition that made the function to pause
disappears, the function may operate
again.
僅Smart Parking
- There is a pedestrian, animal or
object in the direction the vehicle is
moving
- The door or liftgate is open
Operation status Turn signal
Under control
The turn signal of the parking direction
blinks until the first reverse is complete.
Opera
-
tion sta
-
tus
Smart key
LED
Hazard
warning
light
Turn signal
Under
control
Green LED
continuously
blinks
-
The turn signal of the
parking direction blinks
until the first reverse is
complete.
Pause
Red LED con
-
tinuously
blinks
Blinks -
Off
Red LED
appears for 4
seconds and
then turns off
Blinks 3
times
and
turns off
-
Complete
Green LED
appears for 4
seconds and
then turns off
Blinks 1
time and
turns off
-
Driver assistance system
1387
Remote Smart Parking Assist (RSPA)
- The driver's seat belt is not fas
-
tened
- Blind-Spot Collision-Avoidance
Assist or Rear-Cross Traffic Colli
-
sion Assist operates while the vehi
-
cle is being controlled in the reverse
direction
- The Parking/View ( ) button is not
continuously pressed
- The vehicle is stopped by depress
-
ing the brake pedal
僅 Remote Smart Parking
- There is a pedestrian, animal or
object in the direction the vehicle is
moving
- The door or liftgate is open
- The Forward ( ) or Backward ( )
button is not continuously pressed
- Simultaneously pressing multiple
buttons on a smart key
- The smart key is not operated
within 13 ft. (4 m) from the vehicle
- Button of another smart key is
pressed in addition to the operating
smart key
- Blind-Spot Collision-Avoidance
Assist or Rear-Cross Traffic Colli
-
sion Assist operates while the vehi
-
cle is being controlled in the reverse
direction
The function will cancel in the fol
-
lowing conditions when:
僅Smart Parking
When Smart Parking function is can
-
celed, the vehicle will automatically
stop, shift the gear to P (Park) and
engage EPB (Electronic Parking
Brake).
- The steering wheel is steered
- The gear is shifted while the vehicle
is moving
- Operating EPB while the vehicle is
moving
- The hood is open
- The driver opens the door with the
seatbelt unfastened
- Rapid acceleration occurs
- Vehicle skid occurs
- The wheel is stuck by an obstacle
and cannot move
- There are pedestrians, animals or
objects at the front and rear of the
vehicle
- Approximately 3 minutes and 50
seconds have passed after Smart
Parking function has started to
operate
- The slope of the road exceeds the
operational range
- The function is paused for more
than 1 minute
- The steering wheel, gearshift, brak
-
ing, and drive controls are not
working normally
- ABS, TCS or ESC system operates
due to slippery road conditions
- The charging door opens
- The EV mode is utility mode
僅Remote Smart Parking
When Remote Smart Parking function
is canceled, the vehicle will automati
-
cally stop, shift the gear to P (Park)
and engage EPB (Electronic Parking
Brake).
- The steering wheel is steered
- The gear is shifted
- Operating EPB while the vehicle is
moving
- The hood is open
139
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
- The brake pedal or accelerator
pedal is depressed when all the
doors are closed
- The smart key is outside the vehicle
when the brake pedal is depressed
while the driver's door is open.
- Rapid acceleration occurs
- Vehicle skid occurs
- The wheel is stuck by an obstacle
and cannot move
- There are pedestrians, animals or
objects at the front and rear of the
vehicle
- Approximately 3 minutes and 50
seconds have passed after Remote
Smart Parking function has started
to operate
- The slope of the road exceeds the
operational range
- The function is paused for more
than 1 minute
- The steering wheel, gearshift, brak
-
ing, and drive controls are not
working normally
- There is a problem with the smart
key or the smart key battery is low
- ABS, TCS or ESC system operates
due to slippery road conditions
- The alarm of the Theft Alarm Sys
-
tem sounds
- The charging door opens
- The EV mode is utility mode
Smart Exit
Operating order
Smart Exit function operates in the fol
-
lowing order:
1. Getting ready for exit
2. Checking space
3. Select exit direction
4. Smart Exit
1. Getting ready for exit
1. With the vehicle turned on, depress
the brake pedal and shift the gear to P
(Park) or N (Neutral).
2. Press and hold the Parking/View ( )
button to turn on Remote Smart Park
-
ing Assist.
NOTICE
僅
Agree
must be selected on the info
-
tainment system screen and the info
-
tainment system has to operate
properly to use Smart Exit function.
僅 Drive below 3 mph (5 km/h) with the
vehicle on and shift the gear to N
(Neutral), Smart Exit function can be
used.
僅 If the function is turned on again after
parallel parking is completed by
Remote Smart Parking Assist, Smart
Exit function can be used.
2. Checking space
A:
Checking space...
1 Stop the vehicle.
1. When the vehicle is stopped by
depressing the brake pedal, the vehi
-
cle sensors will detect the distance
OCV051092L
OCV041205L
Driver assistance system
1407
Remote Smart Parking Assist (RSPA)
from nearby objects and check for
space to exit.
2. When checking for space is complete,
a message will appear on the infotain
-
ment system screen with an audible
sound to notify the search is com
-
plete.
WARNING
僅 While checking for space, if there is a
risk of collision with pedestrian, ani
-
mal or object in the direction of vehi
-
cle exit, for your safety, Smart Exit
function can be turned off.
僅 Even if check for space is completed,
objects in the blind spot area cannot
be detected by the sensors. The driver
must directly check the blind spot
area to continue using the function.
NOTICE
Due to abnormal performance of the
ultrasonic sensor or the influence of the
surroundings, Parking function may not
be able to search for a parking space
even if there is a parking space, or may
search for a space that is not suitable for
parking.
3. Select exiting direction
A:
Select exiting direction
1 Direction can only be selected at
standstill.
1. With the vehicle stopped by depress
-
ing the brake pedal, the infotainment
system screen displays the possible
directions for parallel exit.
2. Touch the infotainment system screen
to select the desired exit direction.
WARNING
Before selecting the Exit Direction, the
driver should check whether the space
for exit is suitable. If the searched exit
space by Remote Smart Parking Assist is
narrow or unsuitable (surrounding vehi
-
cles are parked vertically, etc.), do not
use the Smart Exit function.
4. Smart Exit
A:
SMART Exiting
1 1. Take hands off steering wheel.
2 2. Press and hold PARKING button.
1. Press the Parking/View ( ) button
when the vehicle is stopped by
depressing the brake pedal.
僅 When the brake pedal is released,
Remote Smart Parking Assist will
automatically control the steering
wheel, vehicle speed and gearshift.
僅 While Smart Exit function is operat
-
ing, if you do not hold down the
Parking/View button, the vehicle
will stop and function control will
pause. The function will start oper
-
ating again when the Parking/View
button is pressed and held again.
2. Hold the Parking/View ( ) button
until the vehicle reaches the target
exit location. When the vehicle
OCV041200L
OCV041201L
141
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
reaches the target exit location, a
message will appear on the infotain
-
ment system screen to inform you
that exit is complete.
僅 When the vehicle reaches the tar
-
get exit location, a message will
appear on the infotainment system
screen to inform you that exit is
complete.
NOTICE
僅 Smart Exit function will not operate if
the door is open or the seat belt is not
fastened.
僅 Vehicle speed can be adjusted by
depressing the brake pedal while
Smart Exit function is operating. How
-
ever, the vehicle does not accelerate
even when the accelerator pedal is
depressed.
僅 If exit is completed while depressing
the brake pedal, Smart Exit function
will complete with the gear in D
(Drive).
僅 If exit is completed while depressing
the accelerator pedal, you must take
your foot off the accelerator pedal
once for the accelerator pedal to
operate.
僅 If there is no vehicle operation such as
depressing the brake pedal or accel
-
erator pedal within 4 seconds after
exit is complete, the vehicle will auto
-
matically shift to P (Park) and engage
EPB (Electronic Parking Brake).
僅 After Exit function is complete, always
check the surroundings before driv
-
ing.
Smart Exit operation status
How to turn off Smart function
while operating
僅 Press the Parking/View ( ) button in
the following stage:
-Checking space
- Select exit direction
僅 Shift the gear to R (Reverse) in the fol
-
lowing stage:
-Checking space
- Select exit direction
僅 Press the Parking Safety ( ) button
or select
Cancel
on the infotainment
system screen to turn off Exit func
-
tion.
僅 While Smart Exit function is operating,
if the vehicle is stopped by depressing
the brake pedal, and the gear is
shifted, Exiting function will turn off.
At this time, EPB (Electronic Parking
Brake) will not be engaged.
The function will pause in the fol
-
lowing conditions when:
When Exit function is paused, the vehicle
will stop. If the condition that made the
function to pause disappears, the func
-
tion may operate again.
僅 There is a pedestrian, animal or object
in the direction the vehicle is moving
僅 The door or liftgate is open
僅 The driver's seat belt is not fastened
僅 Blind-Spot Collision-Avoidance Assist
or Rear-Cross Traffic Collision Assist
operates while the vehicle is being
controlled in the reverse direction
Operation status Turn signal
Under control
The turn signal of the exit direction blinks
until the exit is complete or Smart Exit is
canceled.
Driver assistance system
1427
Remote Smart Parking Assist (RSPA)
僅 The Parking/View ( ) button is not
continuously pressed
僅 The vehicle is stopped by depressing
the brake pedal
The function will cancel in the fol
-
lowing conditions when:
When Smart Exit function is canceled,
the vehicle will automatically stop, shift
the gear to P (Park) and engage EPB
(Electronic Parking Brake).
僅Smart Exit
- The steering wheel is steered
- The gear is shifted while the vehicle
is moving
- Operating EPB while the vehicle is
moving
- The hood is open
- The driver opens the door with the
seatbelt unfastened
- Rapid acceleration occurs
-Vehicle skid occurs
- The wheel is stuck by an obstacle
and cannot move
- There are pedestrians, animals or
objects at the front and rear of the
vehicle
- Approximately 3 minutes and 50
seconds have passed after Smart
Exit function has started to operate
- The slope of the road exceeds the
operational range
- The function was paused for more
than 1 minute
- The steering wheel, gearshift, brak
-
ing, and drive controls are not
working normally
- ABS, TCS or ESC system operates
due to slippery road conditions
- The charging door opens
Remote Smart Parking Assist
malfunction and limitations
Remote Smart Parking Assist
malfunction
Remote Smart Parking Assist
check
A:
Check Parking Assist
1 Visit a nearby service center.
When Remote Smart Parking Assist is
not working properly, the
Check Park
-
ing Assist
warning message will appear
on the infotainment system screen. If the
message appears, stop using the func
-
tion, and have the function inspected by
an authorized Kia dealer.
Remote Smart Parking Assist
canceled
A:
Parking Assist cancelled.
1 Please refer to owner's manual.
When Remote Smart Parking Assist is
operating, the function can be canceled,
and the
Parking Assist Cancelled.
warning message may appear regard
-
less of the parking order. Other mes
-
sages may appear depending on the
OCV041207L
OCV041208L
143
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
situations. Follow the instructions pro
-
vided on the infotainment system screen
while parking your vehicle with Remote
Smart Parking Assist. Always look
around and pay attention when using
the function.
Remote Smart Parking Assist
standby
A:
Parking Assist conditions not met
1 Please refer to owner's manual.
When
Parking Assist conditions not
met
message appears, when Parking/
View ( ) button has been pressed and
held, Remote Smart Parking Assist is in
standby. After a while, press and hold
the Parking/View ( ) button again to
see if the function works.
The message appears even when the
smart key's battery is low. Check the
smart key battery level.
Limitations of Remote Smart
Parking Assist
In the following circumstances, function
performance to park or exit the vehicle
may be limited, there may be a risk of
collision, or Remote Smart Parking Assist
may turn off. Park or exit the vehicle
manually if necessary.
僅 An object is attached to the steering
wheel
僅 The vehicle is installed with a snow
chain, spare tire or different size
wheel
僅 Tire pressure is lower or higher than
the standard tire pressure
僅 Your vehicle is loaded with cargo lon
-
ger or wider than your vehicle or a
trailer is connected to your vehicle
僅 There is a problem with the wheel
alignment
僅 Your vehicle is leaned severely to one
side
僅 Your vehicle is equipped with a trailer
hitch
僅 The license plate is installed differ
-
ently from the original location
僅 There is a person, animal or object
above or below the ultrasonic sensor
when Remote Smart Parking Assist is
activated
僅 The parking space is curved or diago
-
nal
僅 There is an obstacle such as a person,
animal or object (trash can, bicycle,
motorcycle, shopping cart, narrow pil
-
lar etc.) near the parking space
僅 There is a circular pillar or narrow pil
-
lar, or a pillar surrounded by objects
such as fire extinguisher, etc. near the
parking space
僅 The road surface is bumpy (curb
-
stone, speed bump, etc.)
僅 The road is slippery
僅 The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.
僅 The parking space is Inclined
僅 There is heavy wind
僅 Operating Remote Smart Parking
Assist on uneven roads, gravel roads,
bushes, etc.
僅 The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather
OCV041209L
Driver assistance system
1447
Remote Smart Parking Assist (RSPA)
僅 The ultrasonic sensor is covered with
snow or water
僅 An object that generates ultrasonic
waves is nearby
僅 A wireless device with a transmission
function operates near the ultrasonic
sensors
僅 Your vehicle is affected by another
vehicle's Parking Distance Warning
僅 The sensor is mounted or positioned
incorrectly by an impact to the
bumper
僅 When the ultrasonic sensor cannot
detect the following objects: Sharp or
slim objects, such as ropes, chains or
small poles
僅 Objects smaller than 40 inches (100
cm) in length and narrower than 6
inches (14 cm) in diameter
僅 Objects which tend to absorb sensor
frequency, such as clothes, spongy
material or snow
僅 A narrow object such as a corner of a
square pillar
僅 Person, animal or object near the
ultrasonic sensor
Remote Smart Parking Assist may not
operate normally under the following
circumstances:
僅 Parking on inclines
Park manually when parking on
inclines.
僅 Parking in snow
Snow may interfere with sensor oper
-
ation, or Remote Smart Parking Assist
may cancel if the road is slippery
while parking.
僅 Parking on uneven surfaces
Remote Smart Parking Assist may
cancel when the vehicle slips, or the
vehicle cannot move due to road con
-
ditions such as pebbles or fragmented
stones.
僅 Parking behind a truck
Do not use Remote Smart Parking
Assist around vehicles with higher
ground clearance, such as a bus,
truck, etc. It may lead to an accident.
僅 Parking near a pillar
OCV052252N
OCV052253N
OCV051096L
OCV051097L
OCV051098K
145
7
7
Driver assistance system Remote Smart Parking Assist (RSPA)
Remote Smart Parking Assist perfor
-
mance may reduce or collision with an
obstacle may occur when there is a
narrow object, circular pillar, square
pillar, or a pillar surrounded by objects
such as a fire extinguisher, etc. near
the parking space. The driver should
park the vehicle manually.
僅 Parking in a parking space with a
vehicle on one side only
If Remote Smart Parking Assist is
used, when parking in a parking
space with a vehicle only on one side,
your vehicle may cross the parking
line to avoid the parked vehicle.
僅 Parking diagonal
Remote Smart Parking Assist does not
provide diagonal parking. Even if your
vehicle was able to enter the parking
space, do not use the function
because the function cannot operate
normally.
僅 Leaving a parking space near a wall or
parking in a narrow space
- Remote Smart Parking Assist may
not operate properly when leaving
a parking space that is narrow and
near a wall. Always check for
pedestrians, animals, objects while
leaving.
- For your safety, Remote Smart
Parking Assist does not search for
parking spaces at areas with nar
-
row parking spaces that are nar
-
rower than the minimum space
required for parking.
WARNING
僅 It is the driver's responsibility to park
and exit safely. Use Remote Smart
Parking Assist while checking your
surroundings at all times when park
-
ing and exiting. Under various envi
-
ronmental conditions, braking control
may not operate because people, ani
-
mals, other vehicles or objects around
the vehicle may not be properly
detected. If there is a risk of collision
with a nearby obstacle, release the
control button to stop the function.
僅 When using Remote Smart Parking
Assist, stay out of the way in the direc
-
tion the vehicle moves for your safety.
僅 Always check surroundings when
using Remote Smart Parking Assist.
You may collide with pedestrians, ani
-
mals, or objects if they are near the
sensor or are in the sensor's blind spot
area.
僅 A collision may occur if a pedestrian,
animal, or object suddenly appears
OCV051099L
OCV051100L
OCV051101L
Driver assistance system
1467
Remote Smart Parking Assist (RSPA)
while Remote Smart Parking Assist is
operating.
僅 Do not use Remote Smart Parking
Assist when under the influence of
alcohol.
僅 Do not let children or other people to
use the smart key.
僅 If Remote Smart Parking Assist is
used continuously for a long period, it
may adversely affect Remote Smart
Parking Assist performance.
僅 Remote Smart Parking Assist may not
operate normally if the vehicle needs
wheel alignment adjustment such as
when the vehicle tilts to one side.
Have the vehicle inspected by an
authorized Kia dealer.
僅 Noise may be heard when braking
occurs by Remote Smart Parking
Assist or when the brake pedal is
depressed by the driver.
僅Remote Smart Parking Assist may
suddenly apply the brake to avoid col
-
lision.
僅 Use Remote Smart Parking Assist only
in a parking space that is large
enough for the vehicle to move safely.
NOTICE
僅 If the 3rd stage warning (continuous
beep) of the Forward/Reverse Parking
Distance Warning sounds while
Remote Smart Parking Assist is oper
-
ating, it means the obstacle detected
is close to your vehicle. At this time,
Remote Smart Parking Assist will tem
-
porarily stop operating. Make sure
there are no pedestrians, animals, or
objects around your vehicle.
僅 Depending on brake operation, the
brake lights may come on while the
vehicle is moving.
僅 If the vehicle is remotely started that
has been parked in cold weather for a
long time, the operation of Remote
Smart Parking function may be
delayed or canceled depending on
vehicle condition.
147
7
7
Driver assistance system Declaration of conformity
Declaration of conformity (if
equipped)
The radio frequency components
(Front Radar) complies:
For United States and United
States territories
For Canada
The radio frequency components
(Front Corner Radar/Rear Corner
Radar) complies: (if equipped)
For United States and United
States territories
OSG2EV052204L
OSG2EV052205L
OCV051263N
Driver assistance system
1487
Declaration of conformity
For Canada
OCV051264N
OCV051265N
8What to do in an emergency
What to do in an emergency
Road warning.................................................................................8-2
僅 Hazard warning flasher................................................................................. 8-2
In case of an emergency while driving.......................................8-2
僅 If the vehicle stalls while driving................................................................ 8-2
僅 If the vehicle stalls at a crossroad or crossing .................................... 8-2
僅 If you have a flat tire while driving........................................................... 8-2
If the vehicle will not start............................................................8-3
Emergency starting .......................................................................8-4
僅 Jump starting (12V battery).........................................................................8-4
僅 Push-starting...................................................................................................... 8-5
Tire Pressure Monitoring System (TPMS) ..................................8-6
僅 Effective Use of the Tire Pressure Monitoring System (TPMS)...8-6
僅 Low tire pressure telltale ............................................................................. 8-7
僅 Tire replacement with TPMS.......................................................................8-8
If you have a flat tire (with Tire Mobility Kit) ..........................8-10
僅 Components of the Tire Mobility Kit...................................................... 8-13
僅 Using the Tire Mobility Kit..........................................................................8-14
僅 Distributing the sealant ............................................................................... 8-15
僅 Checking the tire inflation pressure....................................................... 8-15
僅 Technical data ................................................................................................. 8-16
Towing .......................................................................................... 8-17
僅 Using removable towing hook ................................................................. 8-17
If an accident occurs ...................................................................8-18
What to do in an emergency
28
Road warning
What to do in an emergency
Road warning
When an emergency situation occurs
while driving or when you park by the
edge of the roadway, you must alert
approaching or passing vehicles to be
careful as they pass. For this, you should
use the hazard warning flasher.
Hazard warning flasher
The hazard warning flasher serves as a
warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emergency
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.
Depress the flasher switch with the EV
button in any position. The flasher
switch is located in the center facia
panel. All turn signal lights will flash
simultaneously.
僅 The hazard warning flasher operates
whether your vehicle is running or not.
僅 The turn signals do not work when the
hazard flasher is on.
僅 Care must be taken when using the
hazard warning flasher while the vehi
-
cle is being towed.
In case of an emergency while
driving
The hazard warning flasher serves as a
warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
If the vehicle stalls while driving
1. Reduce your speed gradually, keep
-
ing a straight line.
2. Move cautiously off the road to a safe
place.
3. Turn on your hazard warning flasher.
4. Try to start the vehicle again. If your
vehicle will not start, contact an
authorized Kia dealer or seek other
qualified assistance.
If the vehicle stalls at a crossroad
or crossing
1. If safe to do so, shift to the N (Neutral)
position.
2. Push the vehicle to a safe location.
If you have a flat tire while driv
-
ing
僅 Take your foot off the accelerator
pedal and let the vehicle slow down
while driving straight ahead.
WARNING
Do not apply the brakes immediately to
slow down the vehicle.
僅 Use the paddle shifter (left side lever)
to increase regenerative braking con
-
trol.
WARNING
Do not attempt to pull off the road as
this may cause loss of vehicle control
resulting in an accident.
OCV061005L
3
8
8
What to do in an emergency If the vehicle will not start
僅 When the vehicle has slowed to such
a speed that it is safe to do so, brake
carefully and pull off the road.
僅 Drive off the road as far as is possible
and safe and park on firm, level
ground.
WARNING
If you are on a divided highway, do not
park in the median area between the
two traffic lanes.
僅 When the vehicle is stopped, press the
hazard warning flasher button, shift to
P (Park), apply the parking brake, and
place the EV button in the OFF posi
-
tion.
僅 Have all passengers get out of the
vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.
僅 Follow the instructions provided later
in this chapter.
If the vehicle will not start
The vehicle may not start if the battery
level is low.
Check the battery level by performing
the following procedure.
1. Be sure the shifter dial is in P (Park).
The vehicle starts only when the
shifter dial is in P (Park).
2. Check the 12-volt battery connections
to be sure they are clean and tight.
WARNING
Do not push or pull the vehicle to start it.
This could cause damage to your vehicle
and/or injure you or those near the vehi
-
cle.
What to do in an emergency
48
Emergency starting
Emergency starting
Jump starting (12V battery)
Connect cables in numerical order and
disconnect in reverse order.
Jump starting can be dangerous if done
incorrectly. Therefore, to avoid harm to
yourself or damage to your vehicle or
battery, follow these jump starting pro
-
cedures. If in doubt, we strongly recom
-
mend that you have a competent
technician or towing service jump start
your vehicle.
WARNING
Battery
Never attempt to check the electrolyte
level of the battery as this may cause the
battery to rupture or explode.
WARNING
Frozen Batteries
Do not attempt to jump start the vehicle
if the discharged battery is frozen, as the
battery may rupture or explode.
WARNING
Electrolyte
僅 Do not charge or discharge the bat
-
tery arbitrarily. It may lead to fault,
electric shock or burns.
僅 Do not damage the battery in such
ways as to drop, deform, impact, out
or spear with a sharp object. It may
cause electrolyte leakage or fire.
僅 Breakdown of the battery may lead to
electrolyte leakage or flammable gas
generation. Contact an authorized Kia
dealer immediately.
僅 If electrolyte leaks out, avoid contact
with eyes, skin or clothes. In event of
accident, flush with water and get
medical help immediately.
僅 Do not place the battery near open
flame or incinerate. It may lead to fire
or explosion.
僅 Keep out of reach of children or ani
-
mals.
僅 Keep the battery away from moisture
or liquid. Do not touch or use if liquids
have been spilled on.
WARNING
Battery Cables
Do not connect the jumper cable from
the negative terminal of the booster bat
-
tery to the negative terminal of the dis
-
charged battery, directly. This can cause
the discharged battery to overheat,
crack, and degrade.
Connect the jumper cable from the neg
-
ative terminal of the booster battery to
the chassis ground in the motor room.
WARNING
Sulfuric Acid Risk
Automobile batteries contain sulfuric
acid. When jump starting your vehicle,
be careful not to get sulfuric acid on
yourself, your clothing, or on the vehicle.
This acid is poisonous and highly corro
-
sive.
WARNING
Battery
OCV061006N
5
8
8
What to do in an emergency Emergency starting
Keep all flames or sparks away from the
battery. The battery produces hydrogen
gas which will explode if exposed to
flame or sparks.
Jump-starting
1. Make sure the booster battery is 12-
volt and that its negative terminal is
grounded.
2. If the booster battery is in another
vehicle, do not allow the vehicles to
come in contact.
3. Turn off all unnecessary electrical
loads.
4. Connect the jumper cables in the
exact sequence shown in the illustra
-
tion. First connect one end of a
jumper cable to the positive terminal
of the discharged battery (1), then
connect the other end to the positive
terminal of the booster battery (2).
Proceed to connect one end of the
other jumper cable to the negative
terminal of the booster battery (3),
then the other end to a solid, station
-
ary, metallic point away from the bat
-
tery (4).
Do not allow the jumper cables to
contact anything except the correct
battery terminals or the correct
ground. Do not lean over the battery
when making connections.
5. Start vehicle with the booster battery
and let it run, then start the vehicle
with the discharged battery.
If the cause of your battery discharging
is not apparent, you should have your
vehicle checked by an authorized Kia
dealer.
NOTICE
Make sure to connect one end of the
jumper cable to the negative terminal of
the booster battery, and the other end to
a metallic point, far away from the bat
-
tery.
Push-starting
Your vehicle equipped with reduction
gear should not be push-started.
WARNING
Tow Starting Vehicle
Never tow a vehicle to start it.
When the vehicle starts, the vehicle can
suddenly surge forward and could cause
a collision with the tow vehicle.
What to do in an emergency
68
Tire Pressure Monitoring System (TPMS)
Tire Pressure Monitoring Sys
-
tem (TPMS)
The tire pressure monitoring system
detects the pressure of vehicle's tires
and displays it on the LCD display.
1
Low tire pressure telltale / TPMS mal
-
function indicator
2
Low tire pressure position telltale
(Shown on the LCD display)
Tire Pressure Indicator
僅 You can check the tire pressure in the
assist mode on the cluster.
- Refer to "LCD display modes" on
page 5-64.
僅 Tire pressure is displayed 1~2 minutes
later after driving.
僅 If tire pressure is not displayed when
the vehicle is stopped,
Drive to dis
-
play
message displays. After driving,
check the tire pressure.
僅 You can change the tire pressure unit
in the Setup menu on the infotain
-
ment system screen.
- psi, kPa, bar (Refer to "Vehicle set
-
tings (infotainment system)" on
page 5-68).
NOTICE
僅 The tire pressure may change due to
factors such as parking condition,
driving style, and altitude above sea
level.
僅 Low tire pressure warning may sound
when a tire's pressure unit is equal or
higher than nearby tires. This is a nor
-
mal occurrence, which is due to the
change in tire pressure along with tire
temperature.
僅 The tire pressure shown on the dash
-
board may differ from the tire pres
-
sure measured by tire pressure
gauge.
Effective Use of the Tire Pressure
Monitoring System (TPMS)
Each tire, including the spare (if pro
-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard or
tire inflation pressure label.
(If your vehicle has tires of a different
size than the size indicated on the vehi
-
cle placard or tire inflation pressure
label, you should determine the proper
tire inflation pressure for those tires.)
As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS) that illumi
-
nates a low tire pressure telltale when
one or more of your tires is significantly
under-inflated. Accordingly, when the
low tire pressure telltale illuminates, you
should stop and check your tires as soon
as possible, and inflate them to the
proper pressure. Driving on a signifi
-
cantly under- inflated tire causes the tire
to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi
-
ciency and tire tread life, and may affect
OCV061007N_2
7
8
8
What to do in an emergency Tire Pressure Monitoring System (TPMS)
the vehicle’s handling and stopping abil
-
ity.
Please note that the TPMS is not a sub
-
stitute for proper tire maintenance, and
it is the driver's responsibility to maintain
correct tire pressure, even if under-infla
-
tion has not reached the level to trigger
illumination of the TPMS low tire pres
-
sure telltale.
Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not operat
-
ing properly. The TPMS malfunction
indicator is combined with the low tire
pressure telltale. When the system
detects a malfunction, the telltale will
flash for approximately one minute and
then remain continuously illuminated.
This sequence will continue upon subse
-
quent vehicle start-ups as long as the
malfunction exists. When the malfunc
-
tion indicator is illuminated, the system
may not be able to detect or signal low
tire pressure as intended. TPMS mal
-
functions may occur for a variety of rea
-
sons, including the installation of
replacement or alternate tires or wheels
on the vehicle that prevent the TPMS
from functioning properly. Always check
the TPMS malfunction telltale after
replacing one or more tires or wheels on
your vehicle to ensure that the replace
-
ment or alternate tires and wheels allow
the TPMS to continue to function prop
-
erly.
Always check the TPMS malfunction tell
-
tale after replacing one or more tires or
wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.
NOTICE
If any of the below happens, have the
system checked by an authorized Kia
dealer.
1. The Low Tire Pressure TPMS Malfunc
-
tion Indicator does not appear for 3
seconds when the EV button is placed
to the ON position or vehicle is ON
(
READY
indicator ON).
2. The TPMS Malfunction Indicator
remains illuminated after blinking for
approximately 1 minute.
3. The Low Tire Pressure LCD display
remains illuminated.
Low tire pressure telltale
Low tire pressure position telltale
When the tire pressure monitoring sys
-
tem warning indicators appear, one or
more of your tires is significantly under-
inflated.
A:
Low tire pressure
If the telltale appears, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping dis
-
tances. You should stop and check your
tires as soon as possible.
Inflate the tires to the proper pressure as
indicated on the vehicle's placard or tire
inflation pressure label located on the
driver's side center pillar outer panel. If
you cannot reach a service station or if
the tire cannot hold the newly added air,
OCV041126L
What to do in an emergency
88
Tire Pressure Monitoring System (TPMS)
replace the low pressure tire with the
spare tire.
Then the TPMS malfunction indicator
and the Low Tire Pressure telltale may
turn on and appear after restarting and
about 20 minutes of continuous driving
before you have the low pressure tire
repaired and replaced on the vehicle.
In winter or cold weather, the low tire
pressure telltale may be illuminated if
the tire pressure was adjusted to the rec
-
ommended tire inflation pressure in
warm weather. It does not mean your
TPMS is malfunctioning because the
decreased temperature leads to a pro
-
portional lowering of tire pressure.
When you drive your vehicle from a
warm area to a cold area or from a cold
area to a warm area, or the outside tem
-
perature is greatly higher or lower, you
should check the tire inflation pressure
and adjust the tires to the recommended
tire inflation pressure.
When filling tires with more air, condi
-
tions to turn off the low tire pressure tell
-
tale may not be met. This is because a
tire inflator has a margin of error in per
-
formance. The low tire pressure telltale
will be turned off if the tire pressure is
above the recommended tire inflation
pressure.
WARNING
Low Pressure Damage
Do not drive on low pressure tires. Sig
-
nificantly low tire pressure can cause the
tires to overheat and fail making the
vehicle unstable resulting in increased
braking distances and a loss of vehicle
control.
Tire Pressure Monitoring System
(TPMS) malfunction indicator
The low tire pressure telltale will appear
after it blinks for approximately one min
-
ute when there is a problem with the
Tire Pressure Monitoring System.
If the system is able to correctly detect
an underinflation warning at the same
time as system failure then it will illumi
-
nate both the TPMS malfunction and low
tire pressure position telltales e.g. if
Front Left sensor fails, the TPMS mal
-
function indicator appears, but if the
Front Right, Rear Left, or Rear Right tire
is under-inflated, the low tire pressure
position telltales may appear together
with the TPMS malfunction indicator.
Have the system checked by an autho
-
rized Kia dealer as soon as possible to
determine the cause of the problem.
僅 The TPMS malfunction indicator may
appear if the vehicle is moving around
electric power supply cables or radios
transmitters such as at police stations,
government and public offices, broad
-
casting stations, military installations,
airports, or transmitting towers, etc.
This can interfere with normal opera
-
tion of the Tire Pressure Monitoring
System (TPMS).
僅 The TPMS malfunction indicator may
appear if snow chains are used or
some separate electronic devices
such as notebook computer, mobile
charger, remote starter or navigation
etc., are used in the vehicle. This can
interfere with normal operation of the
Tire Pressure Monitoring System
(TPMS).
Tire replacement with TPMS
If you have a flat tire, the Low Tire Pres
-
sure telltale will come on. Have the flat
9
8
8
What to do in an emergency Tire Pressure Monitoring System (TPMS)
tire repaired by an authorized Kia dealer
as soon as possible or replace the flat
tire with the spare tire.
CAUTION
Repair Agents
Never use a puncture-repairing agent
not approved by Kia to repair and/or
inflate a low pressure tire. The sealant
not approved by Kia may damage the
tire pressure sensor.
Each wheel is equipped with a tire pres
-
sure sensor mounted inside the tire
behind the valve stem. You must use
TPMS specific wheels. It is recom
-
mended that you always have your tires
serviced by an authorized Kia dealer.
Even if you replace the low pressure tire
with the spare tire, the Low Tire Pressure
telltale will remain on until the low pres
-
sure tire is repaired and placed on the
vehicle.
After you replace the low pressure tire
with the spare tire, the TPMS malfunc
-
tion indicator may appear after a few
minutes because the TPMS sensor
mounted on the spare wheel is not initi
-
ated.
Once the low pressure tire is inflated
again to the recommended pressure and
installed on the vehicle or the TPMS sen
-
sor mounted on the replaced spare
wheel is initiated by an authorized Kia
dealer, the TPMS malfunction indicator
and the low tire pressure telltale will turn
off within a few minutes of driving.
If the indicator has not disappeared after
a few minutes of driving, please visit an
authorized Kia dealer.
If an original mounted tire is replaced
with the spare tire, the TPMS sensor on
the replaced spare wheel should be initi
-
ated and the TPMS sensor on the origi
-
nal mounted wheel should be
deactivated. If the TPMS sensor on the
original mounted wheel located in the
spare tire carrier still activates, the tire
pressure monitoring system may not
operate properly. Have the tire with
TPMS serviced or replaced by an autho
-
rized Kia dealer.
You may not be able to identify a low tire
by simply looking at it. Always use a
good quality tire pressure gauge to mea
-
sure the tire's inflation pressure. Please
note that a tire that is hot (from being
driven) will have a higher pressure mea
-
surement than a tire that is cold (from
sitting stationary for at least 3 hours and
driven less than 1 mile (1.6 km) during
that 3 hour period).
Allow the tire to cool before measuring
the inflation pressure. Always be sure
the tire is cold before inflating to the rec
-
ommended pressure.
A cold tire means the vehicle has been
sitting for 3 hours and driven for less
than 1 mile (1.6 km) in that 3 hour period.
Never use tire sealant if your vehicle is
equipped with a Tire Pressure Monitor
-
ing System. The liquid sealant can dam
-
age the tire pressure sensors.
僅 The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors such as nails or road
debris.
僅 If you feel any vehicle instability,
immediately take your foot off the
accelerator, apply the brakes gradu
-
ally and with light force, and slowly
move to a safe position off the road.
NOTICE
Protecting TPMS
Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
What to do in an emergency
108
If you have a flat tire (with Tire Mobility Kit)
(TPMS) components may interfere with
the system's ability to warn the driver of
low tire pressure conditions and/or
TPMS malfunctions. Tampering with,
modifying, or disabling the Tire Pressure
Monitoring System (TPMS) components
may void the warranty for that portion of
the vehicle.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer
-
ence received, including interference
that may cause undesired operation.
3. Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.
If you have a flat tire (with Tire
Mobility Kit)
The Tire Mobility Kit is a temporary fix to
the tire and the tire should be inspected
by an authorized Kia dealer as soon as
possible.
1
Compressor
2
Sealant bottle
For safe operation, carefully read and
follow the instructions in this manual
before use.
NOTICE
When two or more tires are flat, do not
use the tire mobility kit because the one
supplied canister of sealant in the Tire
Mobility Kit is only enough sealant for
one flat tire.
WARNING
Tire Wall
Do not use the Tire Mobility Kit to repair
large punctures or damage to the tire
sidewalls. In these situations, the tire
cannot be sealed completely and air will
leak from the tire. This can result in tire
failure.
WARNING
Have your tire repaired as soon as possi
-
ble. The tire may loose air pressure at
any time after inflating with the Tire
Mobility Kit.
OCV061009L
11
8
8
What to do in an emergency If you have a flat tire (with Tire Mobility Kit)
WARNING
Speed with Temporary Fix
Do not exceed a speed of 50 mph (80
km/h) when driving with a tire sealed
with the Tire Mobility Kit.
While driving, if you experience any
unusual vibration, ride disturbance, or
noise, reduce your speed and drive with
caution until you can safely pull off to
the side of the road.
Introduction
With the Tire Mobility Kit you stay mobile
even after experiencing a tire puncture.
The system of compressor and sealing
compound effectively seals most punc
-
tures in a passenger car tire caused by
nails or similar objects and reinflates the
tire.
After you ensure that the tire is properly
sealed you can drive cautiously on the
tire at a max. speed of 50 mph (80 km/
h) in order to reach a service station or
tire dealer to have the tire replaced as
soon as possible.
It is possible that some tires, especially
with larger punctures or damage to the
sidewall, cannot be sealed completely.
Air pressure loss in the tire may
adversely affect tire performance.
For this reason, you should avoid abrupt
steering or other driving maneuvers,
especially if the vehicle is heavily loaded
or if a trailer is in use.
The Tire Mobility Kit is not designed or
intended as a permanent tire repair
method and is to be used for one tire
only.
This instruction shows you the step by
step procedure to temporarily seal the
puncture.
Read the section "Notes on the safe use
of the Tire Mobility Kit".
Notes on the safe use of the Tire
Mobility Kit
僅 Park your car at the side of the road
so that you can work with the Tire
Mobility Kit away from moving traffic.
僅 To be sure your vehicle will not move,
even when you're on fairly level
ground, always set your parking
brake.
僅 Only use inflating Tire Mobility Kit for
sealing/inflation passenger car tires.
Only punctured areas located within
the tread region of the tire can be
sealed using the Tire Mobility Kit.
僅 Do not use on motorcycles, bicycles or
any other type of tires.
僅 When the tire and wheel are dam
-
aged, do not use Tire Mobility Kit for
your safety.
僅 Use of the Tire Mobility Kit may not be
effective for tire damage larger than
approximately 0.16 inches (4 mm).
Please contact the nearest Kia dealer
-
ship if the tire cannot be made road
-
worthy with the Tire Mobility Kit.
僅 Do not use the Tire Mobility Kit if a tire
is severely damaged by driving with
flat tires or with insufficient air pres
-
sure.
僅 Do not remove any foreign objects
such as nails or screws that have pen
-
etrated the tire.
僅 Provided the car is outdoors, leave the
vehicle ON (
READY
indicator ON).
Otherwise operating the compressor
may eventually drain the car battery.
僅 Never leave the Tire Mobility Kit unat
-
tended while it is being used.
What to do in an emergency
128
If you have a flat tire (with Tire Mobility Kit)
僅 Do not leave the compressor running
for more than 10 minutes at a time or
it may overheat.
僅 Do not use the Tire Mobility Kit if the
ambient temperature is below -22 °F
(-30 °C).
NOTICE
When repairing a flat tire with the Tire
Mobility Kit (TMK), quickly remove the
sealant on the tire pressure sensor and
wheel. When installing the repaired tire
and wheel, tighten the wheel nut to a
torque value of 79~94 lbf·ft (11~13
kgf·m).
WARNING
Sealant
僅 Keep out of the reach of children.
僅 Avoid contact with eyes.
僅 Do not swallow.
WARNING
Do not use the tire sealant after the seal
-
ant has expired (i.e. past the expiration
date on the sealant container). This can
increase the risk of tire failure.
WARNING
僅 If the sealant gets on your skin, wash
it with a large amount of water. If skin
irritation continues, visit a doctor for
examination.
僅 If the sealant gets into your eyes, raise
your eyelid and wash for at least 15
minutes. If eye irritation continues,
visit a doctor for examination.
僅 If you swallowed the sealant, wash the
mouth and drink a large amount of
water. However, do not give anything
to an unconscious person and see the
doctor immediately.
Exposure to the sealant for a long
time may cause damage to the bodily
tissues.
NOTICE
For 20 inch wheel, take out the remover
tool in the Tire Mobility Kit. Insert the tool
to the hole and pull out the wheel cover.
OCV041414L
13
8
8
What to do in an emergency If you have a flat tire (with Tire Mobility Kit)
Components of the Tire Mobility Kit
Connectors, cable and connection hose are stored in the compressor housing.
1
Speed restriction label
2
Sealant bottle
3
Filling hose from sealant bottle to wheel
4
Connectors and cable for the power outlet direct connection
5
Holder for the sealant bottle
6
Compressor
7
ON/OFF switch
8
Pressure gauge for displaying the tire inflation pressure
9
Valve for reducing tire inflation pressure
OCV061008_2
What to do in an emergency
148
If you have a flat tire (with Tire Mobility Kit)
WARNING
Before using the Tire Mobility Kit, follow
the instructions on the sealant bottle.
Remove the label with the speed restric
-
tion from the sealant bottle and apply it
to the steering wheel.
Please note the expiration date on the
sealant bottle.
NOTICE
The sealant bottle and insert hose (3)
cannot be reused.
NOTICE
Before using the tire repair kit, please
read carefully the instruction attached
on the sealant bottle. Detach the speed
limit label on the sealant case and put it
on a highly visible place. Always drive
within the speed limit.
Using the Tire Mobility Kit
Carefully follow below steps.
1. Shake the sealant bottle.
2. Remove the sealant bottle cap and
sealant bottle holder cap and screw
the bottle onto the sealant bottle
holder.
3. Unscrew the valve cap from the valve
of the defective wheel and screw fill
-
ing hose of the sealant bottle onto the
valve.
NOTICE
If a visible foreign object has punctured
the tire, do not remove it before using
Tire Mobility Kit.
NOTICE
If the sealant is injected when the tire air
pressure injection valve and sealant
injection hose are not fully interlocked,
the sealant may overflow and clog the
valve.
4. Make sure the compressor valve on
the filling hose is locked.
5. Ensure that the compressor is
switched off, position 0.
OCV061030N
OCV061010L
OCV061011L
OCV061015N
OCV061014N
15
8
8
What to do in an emergency If you have a flat tire (with Tire Mobility Kit)
6. Connect between compressor and the
vehicle power outlet using the cable
and connectors.
7. With the EV button ON, switch on the
compressor and let it run for approxi
-
mately 5~7 minutes to fill the sealant
up to cold tire recommended pres
-
sure. (refer to "Tires and wheels" on
page 10-4). Be careful not to overin
-
flate the tire and stay away from the
tire when filling it.
WARNING
Tire Pressure
Do not attempt to drive your vehicle if
the tire pressure is below 26 psi (180
kPa). This could result in an accident due
to sudden tire failure.
8. Switch off the compressor.
9. Detach the hoses from the sealant
bottle connector and from the tire
valve.
10.Return the Tire Mobility Kit to its stor
-
age location in the vehicle.
Distributing the sealant
After putting sealant into the tire, it is
necessary to drive the vehicle so that the
sealant becomes evenly distributed
inside the tire.
僅 Immediately drive approximately 4~6
miles (7~10 km or, about 10 minutes)
to evenly distribute the sealant in the
tire.
Do not exceed a speed of 50 mph (80
km/h). If possible, do not fall below a
speed of 12 mph (20 km/h).
While driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive with
caution until you can safely pull off of
the side of the road.
NOTICE
When you use the Tire Mobility Kit, the
tire pressure sensors and wheel may be
stained by sealant. Therefore, remove
the tire pressure sensors and wheel
stained by the sealant and have your
vehicle inspected by an authorized Kia
dealer.
Checking the tire inflation pres
-
sure
After driving briefly so as to distribute
the sealant throughout the inside of the
tire, you should check the tire inflation
pressure.
1. After driving approximately 4~6 miles
(7~10 km or about 10 minutes), stop
at a safe location.
2. Connect the filling hose of the com
-
pressor (clip mounted side) directly
and then connect the filling hose
(opposite side) to the tire valve.
OCV061012L
OCV061013L_2
What to do in an emergency
168
If you have a flat tire (with Tire Mobility Kit)
3. Connect between compressor and the
vehicle power outlet using the cable
and connectors.
4. Adjust the tire inflation pressure to the
cold tire recommended pressure as
indicated on the vehicle's placard or
tire inflation pressure label located on
the driver's side center pillar outer
panel. (In this owner's manual, refer to
"Tires and wheels" on page 10-4.)
僅
To increase the inflation pres
-
sure
, switch on the compressor,
position I. To check the current
inflation pressure setting, briefly
switch off the compressor.
NOTICE
The pressure gauge may show higher
than actual reading when the compres
-
sor is running. To get an accurate tire
reading, the compressor needs to be
turned off.
CAUTION
Do not let the compressor run for more
than 10 minutes; otherwise, the device
may overheat and be damaged.
僅
To reduce the inflation pressure
,
press the valve on the compressor.
CAUTION
Tire Pressure Sensor
When you use the Tire Mobility Kit with a
sealant that is not approved by Kia, the
tire pressure sensors may be damaged
by sealant. The sealant on the tire pres
-
sure sensor and wheel should be
removed when you replace the tire with
a new one and the tire pressure sensors
should be inspected at an authorized
dealer.
Technical data
The specifications of the Tire Mobility Kit
are as follows.
* Sealant and spare parts can be
obtained and replaced at an autho
-
rized vehicle or tire dealer. Empty seal
-
ant bottles may be disposed of at
home. Liquid residue from the sealant
should be disposed of by your vehicle
or tire dealer or in accordance with
local waste disposal regulations.
OCV061015L
System Voltage DC 12 V
Working Voltage DC 12 V
Amperage rating max. 15 A
Suitable for use at
temperatures
-22 to 158 °F
-30 to 70 °C
Max. working pressure 101 psi (7 bar)
Size
Compressor
5.9 x 5.1 x 2.4 inches
(150 x 130 x 60 mm)
Sealant bottle
4.5 x 3.4 ø inches
(115.3 x 87.3 ø mm)
Compressor
weight
1.36 lbs.
(620 g)
Sealant volume 24.4 cu. in. (400 ml)
17
8
8
What to do in an emergency Towing
Towing
If emergency towing is necessary, we
recommend having it done by an autho
-
rized Kia dealer or a commercial tow-
truck service.
Towing service
Proper lifting and towing procedures are
necessary to prevent damage to the
vehicle. The use of wheel dollies (1) or
flatbed is recommended.
WARNING
Side and Curtain Air Bag
If your vehicle is equipped with side and
curtain air bag, place the EV button in
OFF or ACC when the vehicle is being
towed.
The side and curtain air bag may deploy
when the EV button is ON, and the roll
-
over sensor detects the situation as a
rollover.
CAUTION
Towing (For 2WD Vehicle)
僅 Do not tow the vehicle forward with
the rear wheels on the ground as this
may cause damage to the vehicle.
僅 Do not tow with sling-type equipment.
Use wheel lift or flatbed equipment.
WARNING
僅 If you tow the vehicle while the rear
(or front and rear for AWD vehicle)
wheels are touching the ground, the
vehicle motor may generate electricity
and the motor components may be
damaged or a fire may occur.
僅 When a vehicle fire occurs due to the
battery, there is a risk of a second fire.
Contact the fire department when
towing the vehicle.
When the vehicle is being towed with
tow truck or it needs to be moved, move
the vehicle very short distance (within 32
ft. (10 m)) with the speed of 3 mph (5
km/h). In this case, the vehicle should be
in N (Neutral) and the parking brake
should be disengaged. If the parking
brake and gear change operation is
unavailable, move the vehicle with the
rear wheels off the ground.
Using removable towing hook
OCV061001L_3
OCV061016L
OCV061031N
What to do in an emergency
188
If an accident occurs
Front
Rear
1. Open the liftgate, and remove the
towing hook from the tool case.
2. Remove the hole cover pressing the
lower part (front/rear) of the cover on
the bumper.
3. Install the towing hook by turning it
clockwise into the hole until it is fully
secured.
4. Remove the towing hook and install
the cover after use.
If an accident occurs
If an accident occurs, stay calm and take
the following precautions.
WARNING
High Voltage Components
僅 For your safety, do not touch high
voltage cables, connectors and pack
-
age modules. High voltage compo
-
nents are orange in color.
僅 Exposed cables or wires may be visi
-
ble inside or outside of the vehicle.
Never touch the wires or cables,
because an electrical shock, an injury,
or a death may occur.
NOTICE
Any gas or electrolyte leakage from your
vehicle is not only poisonous but also
flammable. Upon witnessing one of
those, make sure your car is parked in a
safe area away from any roads, open the
windows, and maintain a safe distance
away from the vehicle. Immediately con
-
tact an authorized Kia dealer and advise
them that an electric vehicle is involved.
僅If you need towing, refer to "Towing"
on page 8-17.
僅 When the vehicle is severely dam
-
aged, remain a safe distance of 50 ft.
(15 m) or more between your vehicle
and other vehicles/flammables.
僅 If a fire occurs, immediately call emer
-
gency services (911) and advise the
emergency responders that an elec
-
tric vehicle is involved.
WARNING
Submersion in Water
Do not touch your vehicle if it has been
submerged in water. The high-voltage
battery may cause shock or may catch
OCV061018N
OCV061017L
19
8
8
What to do in an emergency If an accident occurs
fire. Immediately contact the authorities
and advise them of the condition of your
vehicle and that an electric vehicle is
involved.
9Maintenance
Maintenance
Motor room compartment............................................................9-3
Maintenance services....................................................................9-4
Owner maintenance ......................................................................9-5
Scheduled maintenance service ..................................................9-7
Explanation of scheduled maintenance items.........................9-10
Coolant...........................................................................................9-11
Brake fluid .................................................................................... 9-12
僅 Checking the brake fluid level...................................................................9-12
Washer fluid ................................................................................. 9-13
僅 Checking the washer fluid level............................................................... 9-13
Climate control air filter ............................................................. 9-14
僅 Inspecting and replacing climate control air filter........................... 9-14
Wiper blades ................................................................................ 9-15
僅 Replacing front windshield wiper blade .............................................. 9-16
12V battery ................................................................................... 9-17
Tires and wheels.......................................................................... 9-19
僅 Checking tire inflation pressure.............................................................. 9-20
僅 Tire rotation ..................................................................................................... 9-20
僅 Wheel alignment and tire balance...........................................................9-21
僅 Tire replacement .............................................................................................9-21
僅 Wheel replacement .......................................................................................9-22
僅 Tire traction ...................................................................................................... 9-22
僅 Tire maintenance ...........................................................................................9-23
僅 Tire sidewall labeling ....................................................................................9-23
僅 Tire terminology and definitions .............................................................9-26
僅 All season tires.................................................................................................9-29
僅 Summer tires....................................................................................................9-29
僅 Snow tires..........................................................................................................9-29
僅 Tire chains........................................................................................................ 9-30
僅 Radial-ply tires................................................................................................ 9-30
9 Maintenance
僅 Low aspect ratio tire ......................................................................................9-31
Fuses..............................................................................................9-32
僅 Replacing inner panel fuse........................................................................9-33
僅 Replacing motor compartment fuse .....................................................9-34
僅 Fuse/relay panel description ....................................................................9-36
Light bulbs................................................................................... 9-42
僅 Light position (Front)....................................................................................9-43
僅 Light position (Rear) .....................................................................................9-43
僅 Replacing lights (LED type, except glove box lamp)..................... 9-44
僅 Side repeater lamp replacement ........................................................... 9-44
僅 Replacing high mounted stop lamp (LED type) .............................. 9-44
僅 Glove box lamp (Bulb type) replacement .......................................... 9-44
Appearance care......................................................................... 9-45
僅 Exterior care .....................................................................................................9-45
僅 Interior care ..................................................................................................... 9-50
California perchlorate notice .................................................... 9-52
3
9
9
Maintenance Motor room compartment
Maintenance
Motor room compartment
Open the hood to see the motor room compartment.
* The actual motor compartment in the vehicle may differ from the illustration.
1
Coolant reservoir
2
Brake fluid reservoir
3
Windshield washer fluid reservoir
4
Fuse box
5
Negative battery terminal (-)
6
Positive battery terminal (+)
7
Front trunk
OCV071001L
Maintenance
49
Maintenance services
Maintenance services
You should exercise the utmost care to
prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection proce
-
dures.
Should you have any doubts concerning
the inspection or servicing of your vehi
-
cle, have an authorized Kia dealer per
-
form this work.
An authorized Kia dealer has factory-
trained technicians and genuine Kia
parts to service your vehicle properly.
For expert advice and quality service,
see an authorized Kia dealer.
Inadequate, incomplete or insufficient
servicing may result in operational prob
-
lems with your vehicle that could lead to
vehicle damage, an accident, or personal
injury.
Owner's responsibility
NOTICE
Maintenance Service and Record Reten
-
tion are the owner's responsibility.
You should retain documents that show
proper maintenance has been per
-
formed on your vehicle in accordance
with the scheduled maintenance service
charts shown on the following pages.
You need this information to establish
your compliance with the servicing and
maintenance requirements of your vehi
-
cle warranties.
Detailed warranty information is pro
-
vided in your Warranty & Consumer
Information manual.
Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not cov
-
ered.
Have your vehicle maintained and
repaired by an authorized Kia dealer. An
authorized Kia dealer meets Kia's high
service quality standards and receives
technical support from Kia in order to
provide you with a high level of service
satisfaction.
NOTICE
NHTSA Safety Corrosion Alert
The National Highway Traffic Safety
Administration (NHTSA) has issued a
general warning to all vehicle owners of
all brands regarding the risks associated
with vehicle underbody corrosion. From
your initial purchase, take the following
steps to prevent unsafe corrosion dam
-
age to your vehicle:
僅 Wash the undercarriage of your vehi
-
cle regularly during the winter and
whenever your vehicle has been
exposed to such salts or chemicals.
僅 Do a thorough washing of the under
-
carriage at the end of the winter.
僅 Use professional service technicians
or governmental inspection stations
to annually inspect for corrosion.
僅 Immediately seek an inspection of
your vehicle if you become visually
aware of corrosion flaking or scaling
or if you become aware of a change in
vehicle performance, such as soft or
spongy brakes, fluids leaking, impair
-
ment of directional control, suspen
-
sion noises or rattling metal straps.
僅 NHTSA further advises that after a
vehicle is 7 years old, it is essential
that you take these indicated mainte
-
nance steps to ensure that you pro
-
tect yourself from unsafe corrosion
conditions.
5
9
9
Maintenance Owner maintenance
Owner maintenance precautions
Improper or incomplete service may
result in problems. This section gives
instructions only for the maintenance
items that are easy to perform.
As explained earlier in this section, sev
-
eral procedures can be done only by an
authorized Kia dealer with special tools.
NOTICE
Improper owner maintenance during the
warranty period may affect warranty
coverage. For details, read the separate
Warranty & Consumer Information man
-
ual provided with the vehicle. If you're
unsure about any servicing or mainte
-
nance procedure, have it done by an
authorized Kia dealer.
WARNING
Maintenance Work
Do not wear jewelry or loose clothing
while working under the hood of your
vehicle with
READY
mode. These items
can become entangled in moving parts,
if you must run the vehicle in the
READY
mode while working under the hood,
make certain that you remove all jewelry
(especially rings, bracelets, watches, and
necklaces) and all neckties, scarves, and
similar loose clothing before getting
near cooling fans.
WARNING
Touching Metal Parts
Do not touch metal parts (including strut
bars) while the vehicle is operating or
hot. Doing so could result in serious
bodily injury. Turn the vehicle off and
wait until the metal parts cool down to
perform maintenance work on the vehi
-
cle.
Owner maintenance
The following lists are vehicle checks
and inspections that should be per
-
formed by the owner or an authorized
Kia dealer at the frequencies indicated
to help ensure safe, dependable opera
-
tion of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer
as soon as possible.
These Owner Maintenance Checks are
generally not covered by warranties and
you may be charged for labor, parts and
lubricants used.
When you stop for charge
僅 Check the coolant level in coolant res
-
ervoir.
僅 Check the windshield washer fluid
level.
WARNING
Be careful when checking your coolant
level when the motor compartment is
hot. This may result in coolant being
blown out of the opening and cause seri
-
ous burns and other injuries.
While operating your vehicle:
僅 Check for vibrations in the steering
wheel. Notice any increased steering
effort or looseness in the steering
wheel, or change in its straight-ahead
position.
僅 Notice if your vehicle constantly turns
slightly or "pulls" to one side when
traveling on smooth, level road.
僅 When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or "hard-
to-push" brake pedal.
Maintenance
69
Owner maintenance
僅 If any slipping or changes in the oper
-
ation of your gear shift occurs, take
your vehicle to an authorized Kia
dealer.
僅 Check the reduction gear P (Park)
function.
僅 Check for fluid leaks under your vehi
-
cle (water dripping from the air condi
-
tioning system during or after use is
normal).
At least monthly:
僅 Check the coolant level in the coolant
reservoir.
僅 Check the operation of all exterior
lights, including the stop/tail lamps,
turn signals and hazard warning
flashers.
僅 Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.
僅 Check for loose wheel lug nuts.
At least once every 6 months:
僅 Check the windshield washer spray
and wiper operation. Clean the wiper
blades with clean cloth dampened
with washer fluid.
僅 Check the head lamp alignment.
僅 Check the lap/shoulder belts for wear
and function.
At least once a year:
僅 Clean the body and door drain holes.
僅 Lubricate the door hinges and check
the hood hinges.
僅 Lubricate the door and hood locks
and latches.
僅 Lubricate the door rubber weather
-
strips.
僅 Check the air conditioning system.
僅 Inspect and lubricate reduction gear
linkage and controls.
僅 Clean the 12V battery and terminals.
僅 Check the brake fluid level.
7
9
9
Maintenance Scheduled maintenance service
Scheduled maintenance ser
-
vice
Follow the Normal Maintenance Sched
-
ule if the vehicle is usually operated
where none of the following conditions
apply.
If any of the following conditions apply,
follow the Maintenance Under Severe
Usage Conditions.
僅 Repeated driving short distance of
less than 5 miles (8 km) in normal
temperature or less than 10 miles (16
km) in freezing temperature
僅 Driving on rough, dusty, muddy,
unpaved, graveled or salt-spread
roads
僅 Driving in areas using salt or other
corrosive materials or in very cold
weather
僅 Driving in heavy dust condition
僅 Driving in heavy traffic area with the
ambient temperature higher than 90
°F (32 °C) while consuming more than
50% of electric energy
僅 Driving on uphill, downhill, or moun
-
tain road repeatedly
僅 Towing a trailer, or using a camper or
roof rack
僅 Driving as a patrol car, taxi, other
commercial use of vehicle towing
僅 Frequently driving under high speed
or rapid acceleration/deceleration
僅 Frequently driving in stop-and-go
condition
If your vehicle is operated in any of the
prior listed conditions, you should
inspect, replace or refill more frequently,
using the severe usage maintenance
schedule instead of the normal usage
maintenance schedule.
NOTICE
After 10 years or 100,000 miles
(150,000 km), we recommend to use
severe maintenance schedule.
Maintenance
89
Scheduled maintenance service
Normal maintenance schedule
I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.
* Coolant
When replacing or adding coolant, we recommend that you visit an authorized Kia
dealer.
For your convenience, it can be replaced prior to it's interval when you do mainte
-
nance of other items.
* Reduction gear fluid
Reduction gear fluid should be changed anytime it has been submerged in water.
Number of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96
Km×1,000 13 26 39 52 65 78 91 104 117 130 143 156
Tire rotation Rotate every 8,000 miles (13,000 km)
Reduction gear fluid
*
- - - I - - - I - - - I
Climate control air filter I R I R I R I R I R I R
Brake fluid
Inspect every 8,000 miles (13,000 km) or 12 months
Replace every 48,000 miles (78,000 km) or 48 months
Coolant
*
At first, replace at 120,000 miles (195,000 km) or 120 months
After that, replace every 24,000 miles (39,000 km) or 24 months
Air conditioner refrigerant
I I I I I I I I I I I I
Air conditioner compressor
12V Battery condition
Brake discs and pads
Brake lines, hoses and connections
Suspension ball joints
Steering gear rack, linkage and boots
Cooling system
Drive shaft and boots - I - I - I - I - I - I
9
9
9
Maintenance Scheduled maintenance service
Maintenance under severe usage conditions
I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.
Severe driving conditions
A. Repeated driving short distance of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature
B. Driving on rough, dusty, muddy, unpaved, graveled or salt spread roads
C. Driving in areas using salt or other corrosive materials or in very cold weather
D. Driving in heavy dust condition
E. Driving in heavy traffic area with the ambient temperature higher than 90 °F (32
°C) while consuming more than 50% of electric energy.
F. Driving on uphill, downhill, or mountain roads repeatedly
G. Towing a trailer, or using a camper or roof rack
H. Driving as a patrol car, taxi, other commercial use or vehicle towing
I. Frequently driving under high speed or rapid acceleration/deceleration
J. Frequently driving in stop-and-go conditions
Maintenance item
Maintenance
operation
Maintenance intervals Driving condition
Reduction gear fluid R
Every 72,000 miles (117,000
km)
A, B, E, F, H, J
Drive shaft and boots I More frequently B, C, D, E, F, G, H, I
Climate control air filter R More frequently B, D, F
Brake discs, pads and calipers I More frequently B, C, D, F, G, H, I, J
Steering gear rack, linkage and
boots
I More frequently C, D, E, F, G
Suspension ball joints I More frequently B, C, D, E, F
Maintenance
109
Explanation of scheduled maintenance items
Explanation of scheduled
maintenance items
The following parts require scheduled
maintenance.
Reduction gear fluid
The reduction gear fluid should be
inspected according to the intervals
specified in the maintenance schedule.
Cooling system
Check the cooling system components,
such as the radiator, coolant reservoir,
hoses and connections, coolant 3-way
valve, chiller for leakage and damage.
Replace any damaged parts.
Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Brake hoses and lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
NOTICE
NHTSA Safety Corrosion Alert
NHTSA has warned all vehicle owners of
all brands that they must maintain their
vehicles in a manner which will prevent
brake hose and brake line failures due to
corrosion when such vehicles are
exposed to winter road salt and related
chemicals. While serious corrosion con
-
ditions typically only manifest them
-
selves as safety issues after 7 years of
vehicle use, the corrosion process starts
immediately, and thus, underbody
cleaning maintenance must commence
from your vehicle's first exposure to
road salts and chemicals. NHTSA urges
vehicle owners to take the following
steps to prevent corrosion:
1. Wash the undercarriage of your vehi
-
cle regularly throughout the winter
and do a thorough washing in the
spring to remove road salt and other
de-icing chemicals.
2. Monitor the brake system for signs of
corrosion by having regular profes
-
sional inspections and watching for
signs of problems, including loss of
brake fluid, unusual leaks and soft or
spongy feel in the brake pedal.
3. Replace the entire brake pipe assem
-
bly if you find severe corrosion that
causes scaling or flaking of brake
components.
Brake fluid
Check the brake fluid level in the brake
fluid reservoir. The level should be
between "MIN" and "MAX" marks on the
side of the reservoir. Use only hydraulic
brake fluid conforming to DOT 4 specifi
-
cation.
Brake discs, pads and calipers
Check the pads for excessive wear, discs
for run out and wear, and calipers for
fluid leakage.
Suspension mounting bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
11
9
9
Maintenance Coolant
Steering gear box, linkage &
boots/lower arm ball joint
With the vehicle stopped and off, check
for excessive free-play in the steering
wheel.
Check the linkage for bends or damage.
Check the dust boots and ball joints for
deterioration, cracks, or damage.
Replace any damaged parts.
Drive shafts and boots
Check the drive shafts, boots and
clamps for cracks, deterioration, or dam
-
age. Replace any damaged parts and, if
necessary, repack the grease.
Air conditioning refrigerant
Check the air conditioning lines and con
-
nections for leakage and damage.
Coolant
The high-pressure cooling system has a
reservoir filled with year round anti
-
freeze coolant. The reservoir is filled at
the factory.
Check the antifreeze protection and
coolant level at least once a year, at the
beginning of the winter season, and
before traveling to a colder climate.
WARNING
The electric motor
(cooling fan) is con
-
trolled by coolant tem
-
perature, refrigerant
pressure and vehicle
speed. It may some
-
times operate even when the vehicle is
not operating. Use extreme caution
when working near the blades of the
cooling fan so that you are not injured
by a rotating fan blades. As the coolant
temperature decreases, the electric
motor will automatically shut off. This is
a normal condition.
Check the condition and connections of
all cooling system hoses.
Replace any swollen or deteriorated
hoses. The coolant level should be filled
between F (MAX) and L (MIN) marks on
the side of the coolant reservoir when
motor compartment is cool. When the
coolant level (in the reservoir) is low,
have your vehicle inspected by an
authorized Kia dealer. Use only desig
-
nated coolant water for electric vehicles,
OCV071002L
Maintenance
129
Brake fluid
adding other types of water or anti
-
freeze can damage the vehicle.
WARNING
Be careful when checking your coolant
level when the motor compartment is
hot. This may result in coolant being
blown out of the opening and cause seri
-
ous burns and other injuries.
Brake fluid
The brake fluid acts to transmit force to
the brake when the driver depresses the
brake pedal. Brake fluid must be main
-
tained periodically to ensure that the
brakes operate smoothly.
Checking the brake fluid level
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the
side of the reservoir.
1. Before removing the reservoir cap
and adding brake fluid, clean the area
around the reservoir cap thoroughly
to prevent brake fluid contamination.
CAUTION
Proper fluid
Only use brake fluid in the brake system.
Small amounts of improper fluids can
cause damage to the brake system.
2. Periodically check that the fluid level
in the brake fluid reservoir is between
MIN and MAX. The level will fall with
accumulated mileage. This is a normal
condition associated with the wear of
the brake linings. If the fluid level is
excessively low, have the brake sys
-
tem checked by an authorized Kia
dealer.
Use only the specified brake fluid. (Refer
to "Recommended lubricants and capac
-
ities" on page 10-5.)
Never mix different types of fluid.
OCV071003L
13
9
9
Maintenance Washer fluid
In the event the brake system requires
frequent additions of fluid, the vehicle
should be inspected by an authorized
Kia dealer.
When changing and adding brake fluid,
handle it carefully. Do not let it come in
contact with your eyes. If brake fluid
should come in contact with your eyes,
immediately flush them with a large
quantity of fresh tap water. Have your
eyes examined by a doctor as soon as
possible.
CAUTION
Brake fluid
Do not allow brake fluid to contact the
vehicle's body paint, as paint damage
will result.
Brake fluid, which has been exposed to
open air for an extended time should
never be used as its quality cannot be
guaranteed. It should be disposed of
properly.
Washer fluid
Washer fluid is used when wiping the
windshield of the vehicle with a wind
-
shield wiper. You should check and refill
washer fluid periodically to make sure
that it doesn't run out.
Checking the washer fluid level
The reservoir is translucent so that you
can check the level with a quick visual
inspection.
僅 Check the fluid level in the washer
fluid reservoir and add fluid if neces
-
sary. Plain water may be used if
washer fluid is not available. However,
use washer solvent with antifreeze
characteristics in cold climates to pre
-
vent freezing.
WARNING
Flammable Fluid
Do not allow the washer fluid to come in
contact with open flames or sparks. The
windshield washer fluid reservoir is flam
-
mable under certain circumstances. This
can result in a fire.
WARNING
Coolant
僅Do not use radiator coolant or anti
-
freeze in the washer fluid reservoir.
僅 Radiator coolant can severely obscure
visibility when sprayed on the wind
-
shield and may cause loss of vehicle
control.
OCV071004L
Maintenance
149
Climate control air filter
WARNING
Windshield fluid
Do not drink the windshield washer fluid.
The windshield washer fluid is poisonous
to humans and animals.
Climate control air filter
The climate control air filter should be
replaced according to the maintenance
schedule. If the vehicle is operated in
severely air-polluted cities or on dusty
rough roads for a long period, it should
be inspected more frequently and
replaced earlier.
Inspecting and replacing climate
control air filter
When you replace the climate control air
filter, replace it performing the following
procedure, and be careful to avoid dam
-
aging other components.
1. Open the hood and lift up the front
trunk cover while depressing the front
trunk lever (1).
2. Remove the cover by pulling the
upper part of the cover.
3. Remove the climate control air filter
case (2) by pulling out left side of the
cover (1).
OCV041014L
OCV071005N
OCV071006N
15
9
9
Maintenance Wiper blades
4. Replace the climate control air filter.
5. Reassemble in the reverse order of
disassembly.
When replacing the climate control air
filter, install it properly. Otherwise, the
system may produce noise and the
effectiveness of the filter may be
reduced.
Wiper blades
When the wipers no longer clean ade
-
quately, the blades may be worn or
cracked, and require replacement.
To prevent damage to the wiper arms or
other components, do not attempt to
move the wipers manually.
The use of a non-specified wiper blade
could result in wiper malfunction and
failure.
Blade inspection
Commercial hot waxes applied by auto
-
matic vehicle washes have been known
to make the windshield difficult to clean.
Contamination of either the windshield
or the wiper blades with foreign matter
can reduce the effectiveness of the
windshield wipers. Common sources of
contamination are insects, tree sap, and
hot wax treatments used by some com
-
mercial vehicle washes. If the blades are
not wiping properly, clean both the win
-
dow and the blades with a good cleaner
or mild detergent, and rinse thoroughly
with clean water.
CAUTION
Wiper blades
To prevent damage to the wiper blades,
do not use gasoline, kerosene, paint
thinner, or other solvents on or near
them.
OCV071048L
Maintenance
169
Wiper blades
Replacing front windshield wiper
blade
After turning off the vehicle, move the
wiper switch to the single wiping (MIST)
position within 20 seconds and hold the
switch more than 2 seconds until the
wiper blade is in the fully up position.
Type A (if equipped)
1. Raise the wiper arm and turn the
wiper blade assembly to expose the
plastic locking clip.
CAUTION
Wiper Arms
僅 Do not allow the wiper arm to fall
against the windshield, since it may
chip or crack the windshield.
僅 Do not pull wiper arm forward, since it
could chip the hood paint.
2. Compress the clip and slide the blade
assembly downward.
3. Lift it off the arm.
4. Install the blade assembly in the
reverse order of removal.
Type B (if equipped)
1. Raise the wiper arm.
2. Lift up the wiper blade clip (1). Then
pull down the blade assembly and
remove it (2).
3. Install the new blade assembly.
4. Return the wiper arm on the wind
-
shield.
5. Change EV button to the ON position
and wiper arms will return to the nor
-
mal operating position.
OCV071007
OCV071070N
OCV071071N
OCV071072N
OCV071011L
OCV071012L
17
9
9
Maintenance 12V battery
12V battery
The battery powers the various devices
installed in the vehicle.
For best battery service
僅 Keep the battery securely mounted.
僅 Keep the battery top clean and dry.
僅 Keep the terminals and connections
clean, tight, and coated with petro
-
leum jelly or terminal grease.
僅 Rinse any spilled electrolyte from the
battery immediately with a solution of
water and baking soda.
僅 If the vehicle is not going to be used
for an extended time, disconnect the
battery cables.
WARNING
Risk of Explosion
Keep lit cigarettes and all other
flames or sparks away from
the battery.
The battery contains hydrogen
-- a highly combustible gas
which will explode if it comes
in contact with a flame or
spark.
Keep batteries out of the reach
of children because batteries
contain highly corrosive SUL
-
FURIC ACID and electrolytes.
Do not allow battery acid to contact your
skin, eyes, clothing or paint finish.
Wear eye protection when
charging or working near a
battery. Always provide venti
-
lation when working in an
enclosed space.
Always read the following
instructions carefully when
handling a battery.
If any electrolyte gets into
your eyes, flush your eyes with
clean water for at least 15 min
-
utes and get immediate medi
-
cal attention. If electrolyte gets on your
skin, thoroughly wash the contacted
area. If you feel pain or burning sensa
-
tion, get medical attention immediately.
An inappropriately disposed
battery can be harmful to the
environment and human
health. Dispose the battery
according to your local law(s) or regula
-
tion.
The battery contains lead. Do
not dispose of it after use.
Please return the battery to an
authorized Kia dealer to be
recycled.
WARNING
Risk of Electrocution
Never touch the electrical motor while
the vehicle is running. This system works
with high voltage, which can electrocute,
injure, or kill you.
NOTICE
If you connect unauthorized electronic
devices to the battery, the battery may
be discharged. Never use unauthorized
devices.
OCV071008L
Maintenance
189
12V battery
WARNING
Recharging Battery
Never attempt to recharge the battery
when the battery cables are connected.
WARNING
California Proposition 65
Battery posts, terminals, and related
accessories contain lead and lead com
-
pounds, chemicals known to the State of
California to cause cancer, birth defects
and reproductive harm. Batteries also
contain other chemicals known to the
State of California to cause cancer. Wash
hands after handling.
Battery recharging
Your vehicle has a maintenance-free,
calcium-based battery
僅 If the battery becomes discharged in a
short time (because, for example, the
headlights or interior lights were left
on while the vehicle was not in use),
recharge it by slow charging (trickle)
for 10 hours.
僅 If the battery gradually discharges
because of high electric load while the
vehicle is being used, recharge it at
20~30 A for two hours.
When recharging the battery, observe
the following precautions:
僅 The battery must be removed from
the vehicle and placed in an area with
good ventilation.
僅 Do not allow cigarettes, sparks, or
flame near the battery.
僅 Watch the battery during charging,
and stop or reduce the charging rate
if the battery cells begin gassing (boil
-
ing) violently or if the temperature of
the electrolyte of any cell exceeds 120
°F (49 °C).
僅 Wear eye protection when checking
the battery during charging.
僅 Disconnect the battery charger in the
following order.
1. Turn off the battery charger main
switch.
2. Unhook the negative clamp from
the negative battery terminal.
3. Unhook the positive clamp from the
positive battery terminal.
僅 Before performing maintenance or
recharging the battery, turn off all
accessories and stop the vehicle.
僅 The negative battery cable must be
removed first and installed last when
the battery is disconnected.
Reset items
The following items should be reset after
the battery has been discharged or the
battery has been disconnected.
僅 Auto up/down window (Refer to "Win
-
dow opening and closing" on page 5-
35)
僅 Trip computer (Refer to "Trip com
-
puter mode" on page 5-66)
僅 Climate control system (Refer to
"Automatic climate control system" on
page 5-97)
19
9
9
Maintenance Tires and wheels
Tires and wheels
For proper maintenance, safety,
and maximum fuel economy,
you must always maintain rec
-
ommended tire inflation pres
-
sures and stay within the load
limits and weight distribution rec
-
ommended for your vehicle.
Recommended cold tire infla
-
tion pressures
All tire pressures should be
checked when the tires are cold.
"Cold Tires" means the vehicle
has not been driven for at least
three hours or driven less than
one mile (1.6 km).
Recommended pressures must
be maintained for the best ride,
vehicle handling, and minimum
tire wear.
For recommended inflation pres
-
sure, refer to
"Tires and wheels" on
page 10-4
.
All specifications (sizes and pres
-
sures) can be found on a label
attached to the driver's side cen
-
ter pillar.
WARNING
Tire Underinflation
Inflate your tires consistent with
the instructions provided in this
manual. Severe underinflation
(10 psi (70 kPa) or more) can
lead to severe heat build-up,
causing blowouts, tread separa
-
tion and other tire failures that
can result in the loss of vehicle
control. This risk is much higher
on hot days and when driving for
long periods at high speeds.
Failure to maintain specified
pressure may result in excessive
wear, poor handling, reduced
fuel economy, deformation of
tire and/or wheel, harsh ride con
-
ditions, possibility for additional
damage from road hazards, or
result in tire failure.
Tire pressure
Always observe the following:
僅 Check tire pressure when the
tires are cold. (After vehicle has
been parked for at least three
hours or hasn't been driven
more than one mile (1.6 km)
since startup.)
僅 Check the pressure of your
spare tire each time you check
the pressure of other tires.
僅 Never overload your vehicle.
Be careful not to overload a
vehicle luggage rack if your
vehicle is equipped with one.
OCV081011N
Maintenance
209
Tires and wheels
僅 Warm tires normally exceed
recommended cold tire pres
-
sures by 4 to 6 psi (28 to 41
kPa). Do not release air from
warm tires to adjust the pres
-
sure or the tires will be under
-
inflated.
WARNING
Tire Inflation
Overinflation or underinflation
can reduce tire life, adversely
affect vehicle handling, and lead
to sudden tire failure. This could
result in loss of vehicle control
and potential injury.
Checking tire inflation pres
-
sure
Check your tires once a month or
more.
Use a good quality gauge to
check tire pressure. You cannot
tell if your tires are properly
inflated simply by looking at
them. Radial tires may look prop
-
erly inflated even when they're
underinflated.
Check the tire's inflation pressure
when the tires are cold. "Cold"
means your vehicle has been sit
-
ting for at least three hours or
driven no more than 1 mile (1.6
km).
1. Remove the valve cap from the
tire valve stem.
2. Press the tire gauge firmly
onto the valve to get a pres
-
sure measurement. If the cold
tire inflation pressure matches
the recommended pressure on
the tire and loading informa
-
tion label, no further adjust
-
ment is necessary.
3. If the pressure is low, add air
until you reach the recom
-
mended amount.
4.If you overfill the tire, release
air by pushing on the metal
stem in the center of the tire
valve.
5. Recheck the tire pressure with
the tire gauge.
6.Be sure to put the valve caps
back on the valve stems. They
help prevent leaks by keeping
out dirt and moisture.
Inspect your tires frequently for
proper inflation as well as wear
and damage. Always use a tire
pressure gauge.
Tires with too much or too little
pressure wear unevenly causing
poor handling, loss of vehicle
control, and sudden tire failure
leading to accidents, injuries, and
even death. The recommended
cold tire pressure for your vehicle
can be found in this manual and
on the tire label located on the
driver's side center pillar.
21
9
9
Maintenance Tires and wheels
Tire rotation
To equalize tread wear, it is rec
-
ommended that the tires be
rotated every 8,000 miles
(13,000 km) or sooner if irregular
wear develops.
During rotation, check the tires
for correct balance.
When rotating tires, check for
uneven wear and damage.
Abnormal wear is usually caused
by incorrect tire pressure,
improper wheel alignment, out
of-balance wheels, severe brak
-
ing or severe cornering. Look for
bumps or bulges in the tread or
side of tire. Replace the tire if you
find either of these conditions.
Replace the tire if fabric or cord
is visible. After rotation, be sure
to bring the front and rear tire
pressures to specification and
check lug nut tightness.
Refer to
"Tires and wheels" on page
10-4
.
Disc brake pads should be
inspected for wear whenever
tires are rotated.
Rotate radial tires that have an
asymmetric tread pattern only
from front to rear and not from
right to left.
WARNING
Mixing Tires
Do not mix bias ply and radial ply
tires under any circumstances.
This may cause unusual handling
characteristics.
Wheel alignment and tire bal
-
ance
The wheels on your vehicle were
aligned and balanced carefully at
the factory to give you the lon
-
gest tire life and best overall per
-
formance.
In most cases, you will not need
to have your wheels aligned
again. However, if you notice
unusual tire wear or your vehicle
pulling one way or the other, the
alignment may need to be reset.
If you notice your vehicle vibrat
-
ing when driving on a smooth
road, your wheels may need to
be rebalanced.
CAUTION
Wheel Weight
Improper wheel weights can
damage your vehicle's alumi
-
num wheels. Use only approved
wheel weights.
OCV072055
Maintenance
229
Tires and wheels
Tire replacement
If the tire is worn evenly, a tread
wear indicator will appear as a
solid band across the tread.
A: Tread wear indicator
This shows there is less than 1/16
inch (1.6 mm) of tread left on the
tire. Replace the tire when this
happens.
Do not wait for the band to
appear across the entire tread
before replacing the tire.
The ABS (Anti-lock Brake Sys
-
tem) works by comparing the
speed of the wheels. The tire size
affects wheel speed. When
replacing tires, all 4 tires must
use the same size originally sup
-
plied with the vehicle. Using tires
of a different size can cause the
ABS (Anti-lock Brake System)
and ESC (Electronic Stability
Control) to work irregularly.
It is best to replace all four tires
at the same time. If that is not
possible, or necessary, then
replace the two front or two rear
tires as a pair. Replacing just one
tire can seriously affect your
vehicle's handling.
NOTICE
We recommend that when
replacing tires, use the same
originally supplied with the vehi
-
cles. If not, that affects driving
performance.
Wheel replacement
When replacing the metal wheels
for any reason, make sure the
new wheels are equivalent to the
original factory units in diame
-
ter, rim width and offset.
A wheel that is not the correct
size may adversely affect wheel
and bearing life, braking and
stopping abilities, handling char
-
acteristics, ground clearance,
body-to-tire clearance, snow
chain clearance, speedometer
and odometer calibration, head
-
light aim and bumper height.
CAUTION
Wheels
Wheels that do not meet Kia
specifications may fit poorly and
result in damage to the vehicle or
unusual handling and poor vehi
-
cle control.
Tire traction
Tire traction can be reduced if
you drive on worn tires, tires that
are improperly inflated or on slip
-
pery road surfaces.
OCV071013L
23
9
9
Maintenance Tires and wheels
Tires should be replaced when
tread wear indicators appear.
Slow down whenever there is
rain, snow or ice on the road to
reduce the possibility of losing
control of the vehicle.
Tire maintenance
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear.
If you find a tire is worn
unevenly, have your dealer
check the wheel alignment.
When you have new tires
installed, make sure they are bal
-
anced. This will increase vehicle
ride comfort and tire life. Addi
-
tionally, a tire should always be
rebalanced if it is removed from
the wheel.
Tire sidewall labeling
This information identifies and
describes the fundamental char
-
acteristics of the tire and also
provides the tire identification
number (TIN) for safety standard
certification.
The TIN can be used to identify
the tire in case of a recall.
1. Manufacturer or brand
name
Manufacturer or Brand name is
shown.
2. Tire size designation
A tire's sidewall is marked with a
tire size designation. You will
need this information when
selecting replacement tires for
your vehicle. The following
explains what the letters and
numbers in the tire size designa
-
tion mean.
Example tire size designation:
(These numbers are provided as
an example only; your tire size
designator could vary depend
-
ing on your vehicle.)
P255/45R20 105H
僅 P: Applicable vehicle type (tires
marked with the prefix "P" are
intended for use on passenger
vehicles or light trucks; how
-
ever, not all tires have this
marking).
僅 255: Tire width in millimeters.
僅 45: Aspect ratio. The tire's sec
-
tion height as a percentage of
its width.
僅 R: Tire construction code
(Radial).
僅 20: Rim diameter in inches.
僅 105: Load Index, a numerical
code associated with the maxi
-
mum load the tire can carry.
OCV071010L
Maintenance
249
Tires and wheels
僅 H: Speed Rating Symbol. See
the speed rating chart in this
section for additional informa
-
tion.
Wheel size designation
Wheels are also marked with
important information that you
need if you ever have to replace
one. The following explains what
the letters and numbers in the
wheel size designation mean.
Example wheel size designation:
8.0JX20
僅 8.0: Rim width in inches.
僅 J: Rim contour designation.
僅 20: Rim diameter in inches.
Tire speed ratings
The chart below lists many of the
different speed ratings currently
being used for passenger vehicle
tires. The speed rating is part of
the tire size designation on the
sidewall of the tire. This symbol
corresponds to that tire's
designed maximum safe operat
-
ing speed.
3. Checking tire life (TIN: Tire
Identification Number)
Any tires that are over 6 years
old, based on the manufacturing
date, should be replaced by new
ones. You can find the manufac
-
turing date on the tire sidewall
(possibly on the inside of the
wheel), displaying the DOT Code.
The DOT Code is a series of
numbers on a tire consisting of
numbers and English letters. The
manufacturing date is desig
-
nated by the last four digits
(characters) of the DOT code.
DOT: XXXX XXXX OOOO
The front part of the DOT means
a plant code number, tire size
and tread pattern and the last
four numbers indicate week and
year manufactured.
For example:
DOT XXXX XXXX 1623 rep
-
resents that the tire was pro
-
duced in the 16th week of 2023.
WARNING
Tire Age
Replace tires within the recom
-
mended time frame. Failure to
replace tires as recommended
Speed Rat
-
ing Symbol
Maximum Speed
S 112 mph (180 km/h)
T 118 mph (190 km/h)
H 130 mph (210 km/h)
V 149 mph (240 km/h)
Z Above 149 mph (240 km/h)
Speed Rat
-
ing Symbol
Maximum Speed
25
9
9
Maintenance Tires and wheels
can result in sudden tire failure,
which could lead to a loss of con
-
trol and an accident.
4. Tire ply composition and
material
The number of layers or plies of
rubber- coated fabric in the tire.
Tire manufacturers also must
indicate the materials in the tire,
which include steel, nylon, poly
-
ester, and others. The letter "R"
means radial ply construction;
the letter "D" means diagonal or
bias ply construction; and the let
-
ter "B" means belted-bias ply
construction.
5. Maximum permissible infla
-
tion pressure
This number is the greatest
amount of air pressure that
should be put in the tire. Do not
exceed the maximum permissi
-
ble inflation pressure. Refer to
the Tire and Loading Informa
-
tion label for recommended
inflation pressure.
6. Maximum load rating
This number indicates the maxi
-
mum load in kilograms and
pounds that can be carried by
the tire. When replacing the tires
on the vehicle, always use a tire
that has the same load rating as
the factory installed tire.
7. Uniform Tire Quality Grad
-
ing
Quality grades can be found
where applicable on the tire side
-
wall between tread shoulder and
maximum section width.
For example:
僅Treadwear 200
僅Traction AA
僅Temperature A
Tires degrade over time, even
when they are not being used.
Regardless of the remaining
tread, we recommend that tires
be replaced after approximately
six (6) years of normal service.
Heat caused by hot climate or
frequent high loading conditions
can accelerate the aging process.
Tread wear
The tread wear grade is a com
-
parative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course. For example, a tire
graded 150 would wear one-and-
a-half times (1½) as well on the
government course as a tire
graded 100.
The relative performance of tires
depends upon the actual condi
-
Maintenance
269
Tires and wheels
tions of their use, however, and
may depart significantly from the
norm due to variations in driving
habits, service practices and dif
-
ferences in road characteristics
and climate.
These grades are molded on the
side-walls of passenger vehicle
tires. The tires available as stan
-
dard or optional equipment on
your vehicle may vary with
respect to grade.
Traction - AA, A, B & C
The traction grades, from highest
to lowest, are AA, A, B and C.
Those grades represent the tire's
ability to stop on wet pavement
as measured under controlled
conditions on specified govern
-
ment test surfaces of asphalt and
concrete. A tire marked C may
have poor traction performance.
The traction grade assigned to
this tire is based on straight-
ahead braking traction tests, and
does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
Temperature -A, B & C
The temperature grades are A
(the highest), B and C represent
-
ing the tire's resistance to the
generation of heat and its ability
to dissipate heat when tested
under controlled conditions on a
specified indoor laboratory test
wheel.
Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life,
and excessive temperature can
lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger
vehicle tires must meet under the
Federal Motor Vehicle Safety
Standard No. 109. Grades B and
A represent higher levels of per
-
formance on the laboratory test
wheel than the minimum
required by law.
Tire terminology and defini
-
tions
Refer to the following for detailed
definitions of the terms that are
found in the tire description.
Air Pressure
The amount of air
inside the tire pressing outward
on the tire. Air pressure is
expressed in pounds per square
inch (psi) or kilopascal (kPa).
Accessory Weight
This means
the combined weight of optional
accessories. Some examples of
optional accessories are auto
-
matic transaxle, power seats, and
air conditioning.
Aspect Ratio
The relationship of
a tire's height to its width.
Belt
A rubber coated layer of
cords that is located between the
27
9
9
Maintenance Tires and wheels
plies and the tread. Cords may
be made from steel or other rein
-
forcing materials.
Bead
The tire bead contains steel
wires wrapped by steel cords
that hold the tire onto the rim.
Bias Ply Tire
A pneumatic tire in
which the plies are laid at alter
-
nate angles less than 90 degrees
to the centerline of the tread.
Cold Tire Pressure
The amount
of air pressure in a tire, mea
-
sured in pounds per square inch
(psi) or kilopascals (kPa) before a
tire has built up heat from driv
-
ing.
Curb Weight
This means the
weight of a motor vehicle with
standard and optional equip
-
ment including the maximum
capacity of fuel, oil and coolant,
but without passengers and
cargo.
DOT Markings
A code molded
into the sidewall of a tire signify
-
ing that the tire is in compliance
with the U.S. Department of
Transportation motor vehicle
safety standards. The DOT code
includes the Tire Identification
Number (TIN), an alphanumeric
designator which can also iden
-
tify the tire manufacturer, pro
-
duction plant, brand and date of
production.
GVWR
Gross Vehicle Weight
Rating
GAWR FRT
Gross Axle Weight
Rating for the Front Axle.
GAWR RR
Gross Axle Weight
Rating for the Rear axle.
Intended Outboard Sidewall
The side of an asymmetrical tire
that must always face outward
when mounted on a vehicle.
Kilopascal (kPa)
The metric unit
for air pressure.
Light truck (LT) tire
A tire desig
-
nated by its manufacturer as pri
-
marily intended for use on
lightweight trucks or multipur
-
pose passenger vehicles.
Load ratings
The maximum load
that a tire is rated to carry for a
given inflation pressure.
Load Index
An assigned number
ranging from 1 to 279 that corre
-
sponds to the load carrying
capacity of a tire.
Maximum Inflation Pressure
The maximum air pressure to
which a cold tire may be inflated.
The maximum air pressure is
molded onto the sidewall.
Maximum Load Rating
The load
rating for a tire at the maximum
permissible inflation pressure for
that tire.
Maximum Loaded Vehicle
Weight
The sum of curb weight;
accessory weight; vehicle capac
-
ity weight; and production
options weight.
Maintenance
289
Tires and wheels
Normal Occupant Weight
The
number of occupants a vehicle is
designed to seat multiplied by
150 pounds (68 kg).
Occupant Distribution
Desig
-
nated seating positions.
Outward Facing Sidewall
The
side of a asymmetrical tire that
has a particular side that faces
outward when mounted on a
vehicle. The outward facing side
-
wall bears white lettering or
bears manufacturer, brand, and/
or model name molding that is
higher or deeper than the same
moldings on the inner facing
sidewall.
Passenger (P-Metric) Tire
A tire
used on passenger cars and
some light duty trucks and multi
-
purpose vehicles.
Ply
A layer of rubber-coated par
-
allel cords.
Pneumatic tire
A mechanical
device made of rubber, chemi
-
cals, fabric and steel or other
materials, that, when mounted
on an automotive wheel, pro
-
vides the traction and contains
the gas or fluid that sustains the
load.
Production options weight
The
combined weight of installed
regular production options
weighing over 5 lb. (2.3 kg) in
excess of the standard items
which they replace, not previ
-
ously considered in curb weight
or accessory weight, including
heavy duty brakes, ride levelers,
roof rack, heavy duty battery,
and special trim.
Recommended Inflation Pres
-
sure
Vehicle manufacturer's rec
-
ommended tire inflation pressure
and shown on the tire placard.
Radial Ply Tire
A pneumatic tire
in which the ply cords that
extend to the beads are laid at
90 degrees to the centerline of
the tread.
Rim
A metal support for a tire
and upon which the tire beads
are seated.
Sidewall
The portion of a tire
between the tread and the bead.
Speed Rating
An alphanumeric
code assigned to a tire indicating
the maximum speed at which a
tire can operate.
Traction
The friction between
the tire and the road surface. The
amount of grip provided.
Tread
The portion of a tire that
comes into contact with the road.
Treadwear Indicators
Narrow
bands, sometimes called "wear
bars," that show across the tread
of a tire when only 2/32 inch (1.6
mm) of tread remains.
UTQGS
Uniform Tire Quality
Grading Standards, a tire infor
-
mation system that provides
29
9
9
Maintenance Tires and wheels
consumers with ratings for a
tire's traction, temperature and
treadwear. Ratings are deter
-
mined by tire manufacturers
using government testing proce
-
dures. The ratings are molded
into the sidewall of the tire.
Vehicle Capacity Weight
The
number of designated seating
positions multiplied by 150 lbs.
(68 kg) plus the rated cargo and
luggage load.
Vehicle Maximum Load on the
Tire
Load on an individual tire
due to curb and accessory
weight plus maximum occupant
and cargo weight.
Vehicle Normal Load on the
Tire
Load on an individual tire
that is determined by distributing
to each axle its share of the curb
weight, accessory weight, and
normal occupant weight and
dividing by 2.
Vehicle Placard
A label perma
-
nently attached to a vehicle
showing the original equipment
tire size and recommended infla
-
tion pressure.
All season tires
Kia specifies all season tires on
some models to provide good
performance for use all year
round, including snowy and icy
road conditions.
All season tires are identified by
ALL SEASON and/or M+S (Mud
and Snow) on the tire sidewall.
Snow tires have better snow trac
-
tion than all season tires and
may be more appropriate in
some areas.
Summer tires
Kia specifies summer tires on
some models to provide superior
performance on dry roads.
Summer tire performance is sub
-
stantially reduced in snow and
ice. Summer tires do not have the
tire traction rating M+S (Mud and
Snow) on the tire side wall. if you
plan to operate your vehicle in
snowy or icy conditions, Kia rec
-
ommends the use of snow tires
or all season tires on all four
wheels.
Snow tires
If you equip your vehicle with
snow tires, they should be the
same size and have the same
load capacity as the original tires.
Snow tires should be installed on
all four wheels; otherwise, poor
handling may result.
Snow tires should carry 4 psi (28
kPa) more air pressure than the
pressure recommended for the
standard tires on the tire label on
the driver's side of the center pil
-
lar, or up to the maximum pres
-
Maintenance
309
Tires and wheels
sure shown on the tire sidewall,
whichever is less.
Do not drive faster than 75 mph
(120 km/h) when your vehicle is
equipped with snow tires.
WARNING
Do not use summer tires at tem
-
peratures below 45 °F (7 °C) or
when driving on snow or ice. At
temperatures below 45 °F (7 °C),
summer tires can lose elasticity,
and therefore traction and brak
-
ing power as well. Change the
tires on your vehicle to winter or
all-weather tires of the same size
as the standard tires of the vehi
-
cle. Both types of tires are identi
-
fied by the M+S (Mud and Snow)
marking. Using summer tires at
very cold temperatures could
cause cracks to form, thereby
damaging the tires permanently.
Tire chains
Tire chains, if necessary, should
be installed on the rear wheels.
Be sure that the chains are
installed in accordance with the
manufacturer's instructions.
To minimize tire and chain wear,
do not continue to use tire chains
when they are no longer needed.
僅 When driving on roads covered
with snow or ice, drive at less
than 20 mph (30 km/h).
僅 If you hear noise caused by
chains contacting the body,
retighten the chain to avoid
contact with the vehicle body.
僅 To prevent body damage,
retighten the chains after driv
-
ing 0.3~0.6 miles (0.5~1.0 km).
僅 Do not use tire chains on vehi
-
cles equipped with aluminum
wheels. In unavoidable circum
-
stance, use fabric type snow
chains.
Radial-ply tires
Radial-ply tires provide improved
tread life, road hazard resistance
and smoother high speed ride.
The radial-ply tires used on this
vehicle are of belted construc
-
tion, and are selected to comple
-
ment the ride and handling
characteristics of your vehicle.
Radial-ply tires have the same
load carrying capacity, as bias-
ply or bias belted tires of the
same size, and use the same rec
-
ommended inflation pressure.
Mixing of radial-ply tires with
bias-ply or bias belted tires is not
recommended. Any combina
-
tions of radial-ply and bias-ply or
bias belted tires when used on
the same vehicle will seriously
deteriorate vehicle handling. The
best rule to follow is: Identical
radial-ply tires should always be
used as a set of four.
31
9
9
Maintenance Tires and wheels
Longer wearing tires can be
more susceptible to irregular
tread wear. It is very important to
follow the tire rotation interval
shown in this section to achieve
the tread life potential of these
tires. Cuts and punctures in
radial-ply tires are repairable
only in the tread area, because of
sidewall flexing. Consult your tire
dealer for radial-ply tire repairs.
Low aspect ratio tire (if
equipped)
Low aspect ratio tires, whose
aspect ratio is lower than 50, are
provided for sporty looks.
Because the low aspect ratio tires
are optimized for handling and
braking, it may be more uncom
-
fortable to ride in and there is
more noise compare with normal
tires.
CAUTION
Because the sidewall of the low
aspect ratio tire is shorter than
the normal, the wheel and tire of
the low aspect ratio tire is easier
to be damaged. So, follow the
instructions below.
僅 When driving on a rough road
or off road, drive cautiously
because tires and wheels may
be damaged. And after driving,
inspect tires and wheels.
僅 When passing over a pothole,
speed bump, manhole, or curb
stone, drive slowly so that the
tires and wheels are not dam
-
aged.
僅 If the tire is impacted, we rec
-
ommend that you inspect the
tire condition or contact an
authorized Kia dealer.
僅 To prevent damage to the tire,
inspect the tire condition and
pressure every 1,900 miles
(3,000 km).
僅 It is not easy to recognize the
tire damage with your own
eyes. But if there is the slight
-
est hint of tire damage, even
though you cannot see the tire
damage with your own eyes,
have the tire checked or
replaced because the tire dam
-
age may cause air leakage
from the tire.
僅 If the tire is damaged by driv
-
ing on a rough road, off road,
pothole, manhole, or curb
stone, it will not be covered by
the warranty.
僅 You can find out the tire infor
-
mation on the tire sidewall.
Maintenance
329
Fuses
Fuses
A vehicle's electrical system is protected
from electrical overload damage by
fuses.
Blade type
Cartridge type
Multi fuse
BFT
* Left side: Normal, Right side: Blown
This vehicle has 2 (or 3) fuse panels, one
located in the driver's side panel bolster,
the other in the motor compartment
near the battery.
If any of your vehicle's lights, accesso
-
ries, or controls do not work, check the
appropriate circuit fuse. If a fuse has
blown, the element inside the fuse will
melt.
If the electrical system does not work,
first check the driver's side fuse panel.
If the replacement fuse blows, this indi
-
cates an electrical problem. Avoid using
the system involved and immediately
consult an authorized Kia dealer.
Three kinds of fuses are used: blade
type for lower amperage rating, car
-
tridge type, and multi fuse for higher
amperage ratings.
WARNING
Fuse Replacement
僅 Never replace a fuse with anything
but another fuse of the same rating.
僅 A higher capacity fuse could cause
damage and possibly a fire.
僅 Never install a wire or aluminum foil
instead of the proper fuse - even as a
temporary repair. It may cause exten
-
sive wiring damage and a possible
fire.
僅 Do not arbitrarily modify or add-on
electric wiring to the vehicle.
CAUTION
Do not use a screwdriver or any other
metal object to remove fuses because it
may cause a short circuit and damage
the system.
NOTICE
僅 When replacing a fuse, change the EV
button to the OFF position and turn
off switches of all electrical devices;
then remove the battery (-) terminal.
僅 The actual fuse/relay panel label may
differ from equipped items.
OCV071014L
OCV071015L
OCV071017L
OCV071018L
33
9
9
Maintenance Fuses
WARNING
Electrical Fire
Always ensure replacement fuses and
relays are securely fastened when
installed. Failure to do so can result in a
vehicle fire.
Do not remove fuses, relays and termi
-
nals fastened with bolts or nuts. The
fuses, relays and terminals may be fas
-
tened incompletely, and it may cause a
possible fire. If fuses, relays and termi
-
nals fastened with bolts or nuts are
blown, consult with an authorized Kia
dealer.
CAUTION
When replacing a blown fuse or relay,
make sure the new fuse or relay fits
tightly into the clips. Failure to tightly
install the fuse or relay may cause dam
-
age to the wiring and electric systems.
CAUTION
僅 Do not input any other objects except
fuses or relays into fuse/relay termi
-
nals, such as a screwdriver or wiring. It
may cause contact failure and system
malfunction.
僅 Do not plug in screwdrivers or after
-
market wiring into the terminal origi
-
nally designed for fuses and relays
only. The electrical system and wiring
of the vehicle interior may be dam
-
aged or burned due to contact failure.
僅 If you directly connect the wire on the
taillight or replace the bulb which is
over the regulated capacity to install
trailers etc., the inner junction block
can get burned.
WARNING
Electrical Wiring Repairs
All electrical repairs should be per
-
formed by an authorized Kia dealership
using approved Kia parts. Using other
wiring components, especially when ret
-
rofitting multimedia or theft alarm sys
-
tem, car phone or radio may cause
vehicle damage and increase the risk of
a vehicle fire.
NOTICE
Rewiring Prohibited
Do not rewire your vehicle in any way as
doing so may affect the performance of
several safety features in your vehicle.
Rewiring your vehicle may also void your
warranty and cause you to be responsi
-
ble for any subsequent vehicle damage
which may result.
Replacing inner panel fuse
1. Press the EV button to OFF position
and turn off all the vehicle electrical
devices.
2. Open the fuse panel cover.
If the switch is located in the "OFF"
position, a caution indicator will be
displayed in the cluster.
To identify the location of a specific
fuse, please refer to the inside of the
fuse panel cover and the description
list in this section.
OCV071019L
Maintenance
349
Fuses
3. Pull the suspected fuse straight out.
Use the removal tool provided on the
motor compartment fuse panel cover.
4. Check the removed fuse; replace it if
it is blown.
Spare fuses are provided in the motor
compartment fuse panel.
5. Push in a new fuse of the same rating,
and make sure it fits tightly in the
clips.
If it fits loosely, consult an authorized Kia
dealer.
If you do not have a spare, use a fuse of
the same rating from a circuit you may
not need for operating the vehicle, such
as the power outlet fuse.
If the head lamp, turn signal lamp, stop
signal lamp, DRL, tail lamp, HMSL do not
work and the fuses are OK, check the
fuse panel in the motor compartment. If
a fuse is blown, it must be replaced.
NOTICE
If the headlamp, turn signal lamp, or tail
lamp malfunctions even without any
problem to the lamps, have the vehicle
checked by an authorized Kia dealer for
assistance.
Replacing motor compartment
fuse
1. Press the EV button to OFF position
and turn off all the vehicle electrical
devices.
2. Remove the fuse panel cover by
pressing the tab and pulling the cover
up.
3. Check the removed fuse; replace it if
it is blown. To remove or insert the
fuse, use the fuse puller in the motor
compartment fuse panel.
4. Push in a new fuse of the same rating,
and make sure it fits tightly in the
clips. If it fits loosely, consult an autho
-
rized Kia dealer.
CAUTION
Always securely install the fuse panel
cover in the motor compartment to pro
-
tect against electrical failure which may
occur from water contact. Listen for the
audible clicking sound to ensure fuse
panel cover is securely fastened.
Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Press the EV button to OFF position
and turn off all the vehicle electrical
devices.
2. Disconnect the negative battery cable.
OCV071020L
OCV071066L
OCV071021L
35
9
9
Maintenance Fuses
3. Remove the nuts shown in the picture
above.
4. Replace the fuse with a new one of
the same rating.
5. Reverse these steps to reinstall the
multi fuse.
DANGER
Do not disassemble nor assemble the
multi fuse when it is secured with nuts
and bolts. Incorrect or partial assembly
torque may cause a fire. Have the vehi
-
cle checked by an authorized Kia dealer.
Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn the EV button and all other
switches off.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture
above.
4. Replace the fuse with a new one of
the same rating.
5. Reverse these steps to reinstall the
multi fuse.
NOTICE
The electronic system may not function
correctly even when the motor compart
-
ment and internal fuse box's individual
fuses are not disconnected. In such a
case, the cause of the problem may be
disconnection of the main fuse (BFT
type), which is located inside the positive
battery terminal (+) cap.
Since the main fuse is designed more
intricately than other parts, have the
vehicle checked by an authorized Kia
dealer.
CAUTION
Visually inspect the battery cap for
secure closing. If the battery cap is not
securely latched, the electrical system
may be damaged to due influx of mois
-
ture into the system.
OCV071021L
Maintenance
369
Fuses
Fuse/relay panel description
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
fuse/relay name and capacity.
Driver's side fuse panel
NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi
-
cle. It is accurate at the time of printing.
When you inspect the fuse panel in your
vehicle, refer to the fuse panel label on
the inside of the fuse cover. This dia
-
gram will provide you with the specific
information for your vehicles.
ICU Junction Block
Refer to the following table for a description of the fuse.
OCV071022L
OCV071023N
Fuse Name Fuse Rating Circuit Protected
15A Child Lock Relay, Child Unlock Relay
37
9
9
Maintenance Fuses
20A AFCU
7.5A Overhead Console
10A ADP, Head-Up Display, ADS Unit
7.5A VCU, IBU
15A Liftgate Latch
10A Rear Inverter
7.5A Multifunction Switch, IBU, Stop Lamp Switch, Driver Door Module
7.5A Head-Up Display, Instrument Cluster
10A V2L Unit, ICCU, VCMS, SCU, Rear Electronic Oil Pump, CDM
10A
In-car Temperature Sensor, A/V & Navigation Head Unit, A/C PTC Heater, A/C
Control Module, Instrument Cluster, Charger Indicator
10A Driver/Passenger Door Outside Handle
15A Electronic Control Suspension
10A Driver/Passenger Power Seat Module, Driver/Passenger Manual Seat Switch
20A Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module
15A Multifunction Switch
7.5A IBU
10A Rear Inverter, BMU
10A Not Used
10A BMU
10A SRS Control Module
25A Sunroof Control Unit (Glass/Roller)
25A Driver Safety Power Window Module, Rear Power Window Switch LH
15A Not Used
10A Electronic ATM Shift Dial
10A
Front/Rear Corner Radar LH/RH, Front/Rear Inverter, ADAS Unit (Driving), VESS
Unit, Front Radar, Front View Camera, ADAS Unit (Parking), Console Upper Cover
Switch
15A
Driver/Passenger Seat USB Charger, Front USB Charging Connector, Universal
Island UBS Charger Connector
15A
ICU Junction Block (Fuse Memory2), Instrument Cluster, A/C Control Module, Con
-
sole Mood Lamp (Upper/Lower), Console Floor Switch, Driver/Passenger Door
Mood Lamp, Rear Door Mood Lamp LH/RH, Instrument Cluster, Crash Pad Mood
Lamp LH/RH, Mood Lamp Unit
10A Not Used
10A
A/C Control Module, High Pressure Valve, Refrigerants Valve #1/#2, P/R Junction
Block (Blower Relay), BSA Chiller #1, A/C Coolant Valve
25A AMP
25A Passenger Safety Power Window Module, Rear Power Window Switch RH
7.5A IBU
10A
Data Link Connector, Electro Chromic Mirror, ADP, A/V & Navigation Head Unit,
Crash Pad Switch, AMP, Front Air Ventilation Seat Control Module, Front Seat
Warmer Control Module, Smart Phone Wireless Charger, Driver/Passenger Power
Seat Module, Rear Seat Warmer Control Module, Console Floor Switch
Fuse Name Fuse Rating Circuit Protected
AFCU
Maintenance
389
Fuses
10A Not Used
10A Not Used
15A IBU
10A Stop Lamp Switch, IBU
30A Driver Power Seat Switch, Driver Power Seat Module (With IMS)
20A Electronic Limited-Slip Differential
7.5A A/C Control Module
15A SRS Control Module
10A
AMP, ADP, P/E Junction Block (Power Outlet Relay), IBU, ADAS Unit, A/V & Naviga
-
tion Keyboard, A/V & Navigation Head Unit
15A A/V & Navigation Head Unit
20A Door Lock Relay, Door Unlock Relay, Two Turn Unlock Relay
10A
Hazard Lamp Switch, Multifunction Switch, Data Link Connector, Rain Sensor,
Puddle Lamp, PTG Unit, Driver Door Module, Driver/Passenger Outside Mirror
Unit
P/SEAT PASS 30A Passenger Power Seat Switch, Passenger Power Seat Module
S/HEATER REAR 25A Rear Seat Warmer Control Module
7.5A Not Used
HEATED MIRROR 10A Outside Mirror
Fuse Name Fuse Rating Circuit Protected
39
9
9
Maintenance Fuses
Motor compartment fuse panel
P/R Junction Block
Refer to the following table for a description of the fuse.
OCV071067L
OCV071024N
Fuse Name Fuse Rating Circuit Protected
MULTI FUSE-1
180A
P/R Junction Block (Fuse: POWER TAILGATE, EOP1, EOP2, POWER
OUTLET1)
*1
100A EPS Unit
Maintenance
409
Fuses
*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
PCB Block
Refer to the following table for a description of the fuse.
MULTI FUSE-3
60A PCB Block (IG3 Main Relay, Fuse: EPCU1, VCU2, WIPER1, HORN)
60A
ICU Junction Block (Fuse: EPCU3, P/SEAT DRV, P/SEAT PASS, P/
WINDOW LH, P/WINDOW RH, AFCU, E-LSD, SUNROOF1, S/HEATER
FRT, S/HEATER RR, AMP, MODULE8, TAILGATE OPEN, CHILD
LOCK)
60A ICU Junction Block (IPS1, PS6, IPS8, IPS9, IPS10)
50A ICU Junction Block (IPS2, IPS3, IPS5, IPS7, IPS13)
60A IEB Unit
60A IEB Unit
40A P/R Junction Block (ACC Relay, IG1 Relay)
40A P/R Junction Block (IG2 Relay)
MULTI FUSE-2
80A Cooling Fan Motor
50A P/R Junction Block (Rear Heated Relay)
50A Trailer Connector Unit
50A P/R Junction Block (Blower Relay)
FUSE
40A
ICU Junction Block (Long Term Load Latch Relay, Fuse: IBU1, BRAKE
SWITCH, AIR BAG2, A/C2, ECS, BATTERY MANAGEMENT, MOD
-
ULE1, IAU, SPARE3(B+))
40A P/R Junction Block (E-Shifter Relay, Fuse: E-SHIFTER2)
10A P/R Junction Block (Charger Lock/Unlock Relay), ICCU, VCMS
10A CDM
10A 12V Battery Sensor
20A Electronic Water Pump #1
20A Electronic Water Pump #2
20A Not Used
10A VESS Unit
40A VCU
40A P/R Junction Block (Power Outlet Relay)
30A PTG Unit
40A Rear Electronic Oil Pump
40A Front Electronic Oil Pump (AWD)
10A P/R Junction Block (E-Shifter Relay), SCU, Electronic ATM Shift Dial
POWER OUTLET3 20A Rear Power Outlet
POWER OUTLET2 20A Front Power Outlet
Fuse Name Fuse Rating Circuit Protected
Fuse Name Fuse Rating Circuit Protected
25A PCB Block (Wiper Main Relay)
15A Front Inverter (AWD)
41
9
9
Maintenance Fuses
*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
Relay
Refer to the following table for a description of the fuse.
10A Spare
15A PCB Block (Horn Relay)
7.5A IBU
15A VCU
20A ICU Junction Block (Fuse: IG3 7, IG3 8, IG3 9, IG3 10)
15A Electronic Water Pump
10A BMS Coolant 3Way Valve
10A VCU
10A Front Inverter (AWD), Electronic Water Pump #1, #2, Electronic A/C Compressor
10A IEB Unit
10A Cooling Fan Motor, Front Electronic Oil Pump (AWD)
*1
10A EPS Unit
15A VCU
Fuse Name Fuse Rating Circuit Protected
Relay No. Relay Name Type
RLY. 1 CHARGER LOCK MICRO
RLY. 2 E-SHIFTER MICRO
RLY. 3 REAR HEATED MINI
RLY. 5 ACC MICRO
RLY. 7 IG1 MICRO
RLY. 9 BLOWER MICRO
RLY. 10 IG2 MICRO
RLY. 11 POWER OUTLET MICRO
RLY. 12 CHARGER UNLOCK MICRO
Maintenance
429
Light bulbs
Light bulbs
Light bulbs are installed in various parts
of the vehicle to provide lighting inside
and outside the vehicle as well as to alert
other vehicles.
Bulb replacement precaution
Please keep extra bulbs on hand with
appropriate wattage ratings in case of
emergencies.
Refer to "Bulb wattage" on page 10-3.
When changing lamps, first turn off the
vehicle at a safe place, firmly apply the
parking brake and detach the battery's
negative (-) terminal.
WARNING
Working on the Lights
Prior to working on the light, firmly apply
the parking brake, ensure that the vehi
-
cle EV button is in the OFF position and
turn off the lights to avoid sudden move
-
ment of the vehicle and burning your
fingers or receiving an electric shock.
Use only bulbs of the specified wattage.
CAUTION
Light Replacement
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electric wiring system.
CAUTION
Headlamp Lens
To prevent damage, do not clean the
headlamp lens with chemical solvents or
strong detergents.
NOTICE
僅 If the light bulb or lamp connector is
removed while the lamp is still on, the
fuse box's electronic system may log
it as a malfunction. Therefore, a lamp
malfunction incident may be recorded
as a Diagnostic Trouble Code (DTC) in
the fuse box.
僅 It is normal for an operating lamp to
flicker momentarily. This is due to a
stabilization function of the vehicle's
electronic control device. If the lamp
lights up normally after momentarily
blinking, then it is functioning as nor
-
mal.
However, if the lamp continues to
flicker several times or turns off com
-
pletely, there may be an error in the
vehicle's electronic control device.
Please have the vehicle checked by
an authorized Kia dealer immediately.
NOTICE
Have your vehicle inspected by an
authorized Kia dealer after an accident
or after the headlight assembly is rein
-
stalled.
NOTICE
You can find moisture inside the lens of
lamps after a car wash or driving in the
rain. It is a natural event caused by the
temperature difference between the
inside and the outside of the lamp and
does not mean a problem with its func
-
tions. The moisture inside the lamp
would disappear if you drive the vehicle
with the headlamp turned on; however,
the level at which the moisture is
removed may differ depending on the
size/location/condition of the lamp. If the
moisture continues to stay inside the
43
9
9
Maintenance Light bulbs
lamp, have the vehicle checked by an
authorized Kia dealer.
If you don't have the necessary tools, the
correct bulbs and the expertise, consult
an authorized Kia dealer. In many cases,
it is difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true if you have to
remove the headlamp assembly to get
to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle. If non-genuine parts or substan
-
dard bulbs are used, it may lead to blow
-
ing a fuse or other wiring damages. Kia
Genuine Parts we guarantee for quality
and performance.
Do not install extra lamps or LEDs to the
vehicle. If additional lights are installed, it
may lead to lamp malfunctions and flick
-
ering. Additionally, the fuse box and
other wiring may be damaged.
Light position (Front)
Head lamp
1
Headlamp (Low) (LED type)
2
Headlamp (High) (LED type)
3
Front turn signal lamp (LED type)
4
Day time running lamp/Position lamp
(LED type)
5
Side marker (LED type)
If the LED lamp does not operate, have
the system inspected by an authorized
Kia dealer.
The LED lamps cannot be replaced as a
single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, or it may damage
related parts of the vehicle.
Light position (Rear)
Type A
Type B
1
Stop and tail lamp (LED type)
OCV071026N
OCV071028N
OCV071068N
Maintenance
449
Light bulbs
2
Tail lamp (LED type)
3
Rear turn signal lamp (LED type)
4
High mounted stop lamp (LED type)
5
Back up lamp (LED type)
6
Rear side marker (LED type)
7
License plate lamp (LED type)
CAUTION
Be careful when opening and closing the
liftgate, as you may be injured or dam
-
aged if your body or an object hits a
sharp part such as a corner when open
-
ing or closing the liftgate or inserting or
removing objects. In particular, children
may be injured if their face or head hits
the area around the liftgate, so please
pay attention at all times.
Replacing lights (LED type,
except glove box lamp)
If the LED lamp does not operate, have
the system inspected by an authorized
Kia dealer.
The LED lamps cannot be replaced as a
single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Side repeater lamp replacement
1
Side repeater lamp (LED type)
If the LED lamp does not operate, have
the system inspected by an authorized
Kia dealer.
The LED lamps cannot be replaced as a
single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Replacing high mounted stop
lamp (LED type)
If the high mounted stop lamp (LED)
does not operate, have your vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced as a
single component because it is an inte
-
grated unit. The LED lamp has to be
replaced with the unit.
A skilled technician should check or
repair the high mounted stop lamp
(LED), for it may damage related parts of
the vehicle.
Glove box lamp (Bulb type)
replacement
OCV071031L
OCV071073N
OCV071041L_2
45
9
9
Maintenance Appearance care
1. Using a flat-blade screwdriver, gently
pry the lamp assembly from interior.
2. Remove the cover from the lamp
assembly.
3. Remove the bulb by pulling it straight
out.
4. Install a new bulb in the socket.
5. Install the cover to the lamp assembly.
6. Install the lamp assembly to interior.
WARNING
Prior to working on the Interior lamps,
ensure that the "OFF" button is
depressed to avoid burning your fingers
or receiving an electric shock.
Appearance care
Use the information in the following sec
-
tions to keep the exterior and interior of
your vehicle clean.
Exterior care
Use the information in the following sec
-
tions to maintain the exterior of your
vehicle. Keeping the exterior clean is not
only aesthetically pleasing, but it also
helps to prolong the life of the vehicle.
NOTICE
If you park the vehicle around a stainless
steel signboard or building windshield
etc., the plastic exterior trim (bumper,
spoiler, garnish, lamp, outside mirror
etc.) may be damaged by reflected sun
-
light from the external structure. To
avoid damaging the plastic exterior trim,
park the vehicle away from the areas
where the reflected light may occur or
use a vehicle cover (Depending on the
vehicle, the type of exterior trim applied
such as spoiler may differ).
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
Finish maintenance
Washing
To help protect your vehicle's finish from
rust and deterioration, wash it thor
-
oughly and frequently at least once a
month with lukewarm or cold water.
If you use your vehicle for off-road driv
-
ing, you should wash it after each off-
Maintenance
469
Appearance care
road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle's finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.
After washing, rinse the vehicle thor
-
oughly with lukewarm or cold water. Do
not allow soap to dry on the finish.
After washing the vehicle, test the
brakes while driving slowly to see if they
have been affected by water. If braking
performance is impaired, dry the brakes
by applying them lightly while maintain
-
ing a slow forward speed.
CAUTION
僅 Do not use strong soap, chemical
detergents or hot water, and do not
wash the vehicle in direct sunlight or
when the body of the vehicle is warm.
僅 Be careful when washing the side win
-
dows and other gaps (between door
and body structure, side windows and
exterior) of your vehicle. Especially
with high-pressure water. Water may
leak through the windows and wet the
interior.
僅 To prevent damage to the plastic
parts and lamps, do not clean with
chemical solvents or strong deter
-
gents.
High-pressure washing
When using high-pressure washers,
make sure to maintain sufficient dis
-
tance from the vehicle.
Insufficient clearance or excessive pres
-
sure can lead to component damage or
water penetration.
Do not spray the camera, sensors or its
surrounding area directly with a high
pressure washer. Shock applied from
high pressure water may cause the
device to not operate normally.
Do not bring the nozzle tip close to boots
(rubber including weather strips or plas
-
tic covers) or connectors as they may be
damaged if they come into contact with
high pressure water.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see if they
have been affected by water. If braking
performance is impaired, dry the brakes
by applying them lightly while maintain
-
ing a slow forward speed.
CAUTION
Wetting motor compartment
僅 Water washing in the motor compart
-
ment including high pressure water
washing may cause the failure of elec
-
trical circuits located in the motor
compartment.
僅 Never allow water or other liquids to
come in contact with electrical/elec
-
OCV071047L
47
9
9
Maintenance Appearance care
tronic components inside the vehicle
as this may damage them.
僅 To prevent damage to the charging
door, make sure to close and lock the
vehicle doors when washing (high-
pressure washing, automatic car
washing, etc.) the vehicle.
NOTICE
Matte paint finish vehicle (if
equipped)
Automatic car wash which uses rotating
brushes should not be used as this can
damage the surface of your vehicle. A
steam cleaner which washes the vehicle
surface at high temperature may cause
the oil to adhere and leave stains that
are difficult to remove.
Use a soft cloth (e.g. microfiber towel or
sponge) when washing your vehicle and
dry with a microfiber towel. When you
hand wash your vehicle, you should not
use a cleaner that finishes with wax.
Waxing
Wax the vehicle when water will no lon
-
ger bead on the paint.
Always wash and dry the vehicle before
waxing. Use a good quality liquid or
paste wax, and follow the manufac
-
turer's instructions. Wax all metal trim to
protect it and to maintain its luster.
Removing oil, tar, and similar materials
with a spot remover will usually strip the
wax from the finish. Be sure to re-wax
these areas even if the rest of the vehicle
does not yet need waxing.
CAUTION
Drying vehicle
僅 Wiping dust or dirt off the body with a
dry cloth will scratch the finish.
僅 Do not use steel wool, abrasive clean
-
ers, acid detergents or strong deter
-
gents containing high alkaline or
caustic agents on chrome-plated or
anodized aluminum parts. This may
result in damage to the protective
coating and cause discoloration or
paint deterioration.
NOTICE
Matte paint finish vehicle (if
equipped)
Do not use any polish protector such as
a detergent, an abrasive or a polish. In
case wax is applied, remove the wax
immediately using a silicon remover and
if any tar or tar contaminant is on the
surface use a tar remover to clean. How
-
ever, be careful not to apply too much
pressure on the painted area.
Finish damage repair
Deep scratches or stone chips in the
painted surface must be repaired
promptly. Exposed metal will quickly rust
and may develop into a major repair
expense.
NOTICE
If your vehicle is damaged and requires
any metal repair or replacement, be sure
the body shop applies anti-corrosion
materials to the parts repaired or
replaced.
NOTICE
Matte paint finish vehicle (if
equipped)
In case of matte paint finish vehicles, it is
impossible to modify only the damaged
area and repair of the whole part is nec
-
Maintenance
489
Appearance care
essary. If the vehicle is damaged and
painting is required, have your vehicle
maintained and repaired by an autho
-
rized Kia dealer. Take extreme care, as it
is difficult to restore the quality after the
repair.
Bright-metal maintenance
To remove road tar and insects, use a tar
remover, not a scraper or other sharp
object.
To protect the surfaces of bright metal
parts from corrosion, apply a coating of
wax or chrome preservative and rub to a
high luster.
During winter weather or in coastal
areas, cover the bright metal parts with
a heavier coating of wax or preservative.
If necessary, coat the parts with non-cor
-
rosive petroleum jelly or other protective
compound.
Underbody maintenance
Road salt and other corrosive chemicals
are used in cold weather states to melt
snow and prevent ice accumulation. If
these chemicals are not regularly
removed, they will corrode the vehicle
underbody and over time damage the
vehicle suspension, and even the body
frame.
The National Highway Traffic Safety
Administration has warned all vehicle
owners of all brands of the need to take
the following steps:
僅 Wash the undercarriage of your vehi
-
cle regularly during the winter and
whenever your vehicle has been
exposed to such salts or chemicals.
僅 Do a thorough washing of the under
-
carriage at the end of the winter.
僅 Use professional service technicians
or governmental inspection stations
to annually inspect for corrosion.
僅 Immediately seek an inspection of
your vehicle if you become visually
aware of corrosion flaking or scaling
or if you become aware of a change in
vehicle performance, such as soft or
spongy brakes, fluids leaking, impair
-
ment of directional control, suspen
-
sion noises or rattling metal straps.
Aluminum wheel maintenance
The aluminum wheels are coated with a
clear protective finish.
僅 Do not use any abrasive cleaner, pol
-
ishing compound, solvent, or wire
brushes on aluminum wheels. They
may scratch or damage the finish.
僅 Clean the wheel when it has cooled.
僅 Use only a mild soap or neutral deter
-
gent, and rinse thoroughly with water.
Also, be sure to clean the wheels after
driving on salted roads. This helps
prevent corrosion.
僅 Avoid washing the wheels with high
-
speed vehicle wash brushes.
僅Do not use any alkaline or acid deter
-
gents It may damage and corrode the
aluminum wheels coated with a clear
protective finish.
Corrosion protection
Protecting your vehicle from cor
-
rosion
By using the most advanced design and
construction practices to combat corro
-
sion, we produce vehicles of the highest
quality. However, this is only part of the
job. To achieve the long-term corrosion
resistance your vehicle can deliver, the
49
9
9
Maintenance Appearance care
owner's cooperation and assistance is
also required.
Common causes of corrosion
The most common causes of corrosion
on your vehicle are:
僅 Road salt, dirt and moisture that is
allowed to accumulate underneath
the vehicle.
僅 Removal of paint or protective coat
-
ings by stones, gravel, abrasion or
minor scrapes and dents which leave
unprotected metal exposed to corro
-
sion.
High-corrosion areas
If you live in an area where your vehicle
is regularly exposed to corrosive materi
-
als, corrosion protection is particularly
important. Some of the common causes
of accelerated corrosion are road salts,
dust control chemicals, ocean air and
industrial pollution.
Moisture breeds corrosion
Moisture creates the conditions in which
corrosion is most likely to occur. For
example, corrosion is accelerated by
high humidity, particularly when tem
-
peratures are just above freezing. In
such conditions, the corrosive material is
kept in contact with the vehicle's surface
by moisture that evaporates slowly.
Mud is particularly corrosive because it
dries slowly and holds moisture in con
-
tact with the vehicle. Although the mud
appears to be dry, it can still retain the
moisture and promote corrosion.
High temperatures can also accelerate
corrosion of parts that are not properly
ventilated so the moisture can be dis
-
persed. For all these reasons, it is partic
-
ularly important to keep your vehicle
clean and free of mud or accumulations
of other materials. This applies not only
to the visible surfaces but particularly to
the underside of the vehicle.
To help prevent corrosion
You can help prevent corrosion from
beginning by observing the following:
Keep your vehicle clean
The best way to prevent corrosion is to
keep your vehicle clean and free of cor
-
rosive materials. Attention to the under
-
side of the vehicle is particularly
important.
If you live in a high-corrosion area —
where road salts are used, near the
ocean, areas with industrial pollution,
acid rain, etc.—, you should take extra
care to prevent corrosion. In winter, hose
off the underside of your vehicle at least
once a month and be sure to clean the
underside thoroughly when winter is
over.
When cleaning underneath the vehicle,
give particular attention to the compo
-
nents under the fenders and other areas
that are hidden from view. Do a thor
-
ough job; just dampening the accumu
-
lated mud rather than washing it away
will accelerate corrosion rather than pre
-
vent it. Water under high pressure and
steam are particularly effective in
removing accumulated mud and corro
-
sive materials.
When cleaning lower door panels, rocker
panels and frame members, be sure that
drain holes are kept open so that mois
-
ture can escape and not be trapped
inside to accelerate corrosion.
Maintenance
509
Appearance care
Keep your garage dry
Don't park your vehicle in a damp,
poorly ventilated garage. This creates a
favorable environment for corrosion.
This is particularly true if you wash your
vehicle in the garage or drive it into the
garage when it is still wet or covered
with snow, ice or mud. Even a heated
garage can contribute to corrosion
unless it is well ventilated so moisture is
dispersed.
Keep paint and trim in good con
-
dition
Scratches or chips in the finish should be
covered with "touch-up" paint as soon as
possible to reduce the possibility of cor
-
rosion. If bare metal is showing through,
the attention of a qualified body and
paint shop is recommended.
Bird droppings: Bird droppings are
highly corrosive and may damage
painted surfaces in just a few hours.
Always remove bird droppings as soon
as possible.
Don't neglect the interior
Moisture can collect under the floor
mats and carpeting and cause corrosion.
Check under the mats periodically to be
sure the carpeting is dry. Use particular
care if you carry fertilizers, cleaning
materials or chemicals in the vehicle.
These should be carried only in proper
containers and any spills or leaks should
be cleaned up, flushed with clean water
and thoroughly dried.
Interior care
Use the information in the following sec
-
tions to maintain the interior of your
vehicle.
Interior general precautions
CAUTION
Prevent chemicals such as perfume, cos
-
metic oil, sun cream, hand cleaner, and
air freshener from contacting the interior
parts because they may cause damage
or discoloration. If they do contact the
interior parts, wipe them off immedi
-
ately. If necessary, use a mixture of
warm water and mild non-detergent
cleaner (test all cleaners on a concealed
area before use). Use proper car cleaner
to clean interior parts.
CAUTION
Electrical components
Never allow water or other liquids to
come in contact with electrical/electronic
components inside the vehicle as this
may damage them.
CAUTION
Leather
When cleaning leather products (steer
-
ing wheel, seats etc.), use neutral deter
-
gents or low alcohol content solutions. If
you use high alcohol content solutions or
acid/alkaline detergents, the color of the
leather may fade or the surface may get
stripped off.
Taking care of leather seats
僅 Vacuum the seat periodically to
remove dust and sand on the seat. It
will prevent abrasion or damage of
the leather and maintain its quality.
僅 Wipe the leather seat cover often with
dry or soft cloth.
僅 Sufficient use of a leather protective
may prevent abrasion of the cover
51
9
9
Maintenance Appearance care
and helps maintain the color. Be sure
to read the instructions and consult a
specialist when using leather coating
or protective agents.
僅 Leather with bright colors (beige,
cream beige) is easily contaminated
and clear in appearance. Clean the
seats frequently.
僅 Avoid wiping with wet cloth. It may
cause the surface to crack.
Cleaning the leather seats
Remove all contaminations instantly.
Refer to instructions below for removal
of each contaminant.
僅 Cosmetic products (sunscreen, foun
-
dation, etc.)
- Apply cleansing cream on a cloth
and wipe the contaminated point.
Wipe off the cream with a wet cloth
and remove water with a dry cloth.
僅 Beverages (coffee, soft drink, etc.)
- Apply a small amount of neutral
detergent and wipe until contami
-
nations do not smear.
僅Oil
- Remove oil instantly with absorb
-
able cloth and wipe with stain
remover for leather only.
僅 Chewing gum
- Harden the gum with ice and
remove gradually.
Fabric seat cover (if equipped)
Please clean the fabric seats regularly
with a vacuum cleaner in consideration
of fabric material characteristics. If they
are heavily soiled with beverage stains,
etc., use a suitable interior cleaner. To
prevent damage to seat covers, wipe off
the seat covers down to the seams with
a large wiping motion and moderate
pressure using a soft sponge or microfi
-
ber cloth.
Velcro closures on clothing or sharp
objects may cause snagging or
scratches on the surface of the seats.
Make sure not to rub such objects
against the surface.
Cleaning the upholstery and inte
-
rior trim
Car interior surfaces
Remove dust and loose dirt from interior
surfaces with a whisk broom or a vac
-
uum cleaner. If necessary, clean interior
surfaces with a mixture of warm water
and mild non-detergent cleaner (test all
cleaners on a concealed area before
use).
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean with a mild soap solution recom
-
mended for upholstery or carpets.
Remove fresh spots immediately with a
fabric spot cleaner. If fresh spots do not
receive immediate attention, the fabric
can be stained and its color can be
affected. Also, its fire-resistant proper
-
ties can be reduced if the material is not
properly maintained.
Using anything but recommended
cleaners and procedures may affect the
fabric's appearance and fire-resistant
properties.
Cleaning the lap/shoulder belt
webbing
Clean the belt webbing with any mild
soap solution recommended for clean
-
Maintenance
529
California perchlorate notice
ing upholstery or carpet. Follow the
instructions provided with the soap. Do
not bleach or re-dye the webbing
because this may weaken it.
Cleaning the interior window
glass
If the interior glass surfaces of the vehi
-
cle become fogged (that is, covered with
an oily, greasy or waxy film), they should
be cleaned with a glass cleaner. Follow
the directions on the glass cleaner con
-
tainer.
CAUTION
Rear Window
Do not scrape or scratch the inside of
the rear window. This may result in dam
-
age of the rear window defroster grid.
California perchlorate notice
Perchlorate Material-special handling
may apply, See
https://dtsc.ca.gov/perchlorate
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such
as air bag inflators, seatbelt pre-tension
-
ers and keyless remote entry batteries,
must be disposed of according to Title
22 California Code of Regulations Sec
-
tion 67384.10 (a).
10
Specifications, Consumer information and
Reporting safety defects
Specifications, Consumer information and Reporting safety defects
Dimensions ................................................................................... 10-2
Electric vehicle specifications.................................................... 10-2
Available front trunk weight...................................................... 10-3
Bulb wattage ................................................................................ 10-3
Tires and wheels..........................................................................10-4
Vehicle weight .............................................................................10-5
Luggage volume ..........................................................................10-5
Air conditioning system.............................................................. 10-5
Recommended lubricants and capacities ................................10-5
Vehicle identification number (VIN) .........................................10-6
Vehicle certification label...........................................................10-6
Tire specification and pressure label........................................10-6
Motor number .............................................................................. 10-7
Air conditioner compressor label .............................................. 10-7
Refrigerant label.......................................................................... 10-7
Consumer Assistance (U.S. only)...............................................10-8
Electrical Equipment (U.S. only) .............................................. 10-10
Reporting Safety Defects (U.S. only).......................................10-11
Online factory authorized manuals (U.S. only) ......................10-11
Specifications, Consumer information
and Reporting safety defects
210
Dimensions
Specifications, Consumer information and Reporting safety
defects
Dimensions
Electric vehicle specifications
OBC: On-Board Battery Chargers
Item inches (mm)
Overall length
Type A 184.3 (4,680)
Type B (GT-Line) 184.8 (4,695)
Type C (GT) 184.8 (4,695)
Overall width
Type A 74.0 (1,880)
Type B (GT-Line) 74.4 (1,890)
Type C (GT) 74.4 (1,890)
Overall height Type A, Type B (GT-Line), Type C (GT) 60.8 (1,545)
Tread
Front
235/55 R19 64.2 (1,630)
255/45 R20 64.0 (1,625)
255/40 R21 64.1 (1,628)
Rear
235/55 R19 64.6 (1,640)
255/45 R20 64.4 (1,635)
255/40 R21 64.4 (1,637)
Wheelbase 114.2 (2,900)
Items
Standard type Extended type Extended type (GT)
2WD AWD 2WD AWD AWD
Motor
Max. output (kW)
Front - 53 - 74 160
Rear 125 120 168 165 270
Max. torque (Nm)
Front - 255 - 255 350
Rear 350 350 350 350 390
Battery
(Lithium-ion)
Capacity (kWh) 58 - 77.4 77.4
Power output (kW) 195 - 277
481(discharge) /
384(charge)
Voltage (V) 523 - 697 697
Charger (OBC) Max. output (kW)
AC single
phase
10.9 10.9 10.9
3
10
10
Specifications, Consumer information
and Reporting safety defects
Available front trunk weight
Available front trunk weight
Bulb wattage
2WD AWD
25 lbs. (10 kg) 25 lbs. (10 kg)
Light bulb Bulb type Wattage (Watt)
Front
High beam LED LED
Low beam LED LED
Position and daytime running
lamps
LED LED
Turn signal lamps LED LED
Front side marker lamps LED LED
Front trunk lamp LED LED
Rear
Stop and tail lamps LED LED
Turn signal lamps LED LED
Backup lamps LED LED
Rear side marker lamps LED LED
High mounted stop lamp LED LED
License plate lamps LED LED
Interior
Map lamps LED LED
Room lamps LED LED
Vanity mirror lamps LED LED
Glove box lamp W5W 5W
Luggage lamp LED LED
Specifications, Consumer information
and Reporting safety defects
410
Tires and wheels
Tires and wheels
*1. Load Index
*2. Speed Symbol
CAUTION
When replacing tires, use the same size
as those originally supplied with the
vehicle.
Using tires of a different size can dam
-
age the related parts or make them work
irregularly.
NOTICE
僅 It is permissible to add 3 psi to the
standard tire pressure specification if
colder temperatures are expected
soon.
Tires typically loose 1 psi for every 12
°F temperature drop. If extreme tem
-
perature variations are expected,
recheck your tire pressure as neces
-
sary to keep them properly inflated.
僅 We recommend that when replacing
tires, use the same originally supplied
with the vehicles. If not, that affects
driving performance.
僅 When driving in high altitude grades,
it is natural for the atmospheric pres
-
sure to decrease. Therefore, please
check the tire pressure and add more
air when necessary.
Additionally required tire air pressure
per km above sea level: 1.5 psi (10.5
kPa)/km
Item Tire size Wheel size
Load capacity Speed capacity
Inflation pressure
[bar (psi, kPa)]
Wheel lug nut
torque kgf·m
(lbf·ft, N·m)
LI
*1
kg
SS
*2
km/h Front Rear
Full size tire
235/55R19 7.5J X 19" 101 825
H 210 2.5 (36, 250)
11~13
(79~94,
107~127)
255/45R20 8.0J X 20" 105 925
255/40R 21 8.5J X 21" 102 850 Y 300
2.35 (34,
235)
2.7 (39,
270)
5
10
10
Specifications, Consumer information
and Reporting safety defects
Vehicle weight
Vehicle weight
Luggage volume
僅MIN: Behind rear seat
僅 MAX: Behind front seat
Air conditioning system
Have your vehicle inspected by an authorized Kia dealer.
Recommended lubricants and capacities
To help achieve proper vehicle performance and durability, use only lubricants of the proper quality.
These lubricants and fluids are recommended for use in your vehicle.
Item Gross vehicle weight [lbs. (kg)]
Standard type 2WD 5,004 lbs. (2,270 kg)
Extended type
2WD 5,335 lbs. (2,420 kg)
AWD 5,556 lbs. (2,520 kg)
Extended range (GT) AWD 5,732 lbs. (2,600 kg)
Item
Luggage Volume
Type A Type B (GT-Line) Type C (GT)
Luggage volume (SAE)
[cu ft (L)]
MIN. 24.4 cu ft. (690 L)
MAX. 46.7 cu ft. (1,322 L) 48.0 cu ft. (1,360 L)
Item Weight of volume (g) Classification
Refrigerant
With heat pump 850±25 R-1234yf
Without heat pump 750±25 R-1234yf
Compressor lubricant 180±10 POE
Lubricant Volume Classification
Reduction gear fluid
2WD Rear
3.59~3.70 US qt.
(3.4 ~ 3.5 L)
SK ATF SP4M-1, MICHANG ATF SP4M-1, S-
OIL ATF SP4M-1, Kia Genuine ATF SP4M-1
AWD
Front
3.38~3.49 US qt.
(3.2 ~ 3.3 L)
Rear
3.59~3.70 US qt.
(3.4 ~ 3.5 L)
Brake fluid As required
SAE J1704 DOT-4 LV, FMVSS 116 DOT-4,
ISO4925 CLASS-6
Coolant
Standard type
2WD
18.70 US qt.
(17.7 L)
An Phosphate based ethylene glycol based
coolant
AWD
18.91 US qt.
(17.9 L)
Extended type
2WD
20.50 US qt.
(19.4 L)
AWD
20.71 US qt.
(19.6 L)
Specifications, Consumer information
and Reporting safety defects
610
Vehicle identification number (VIN)
Vehicle identification number
(VIN)
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertain
-
ing to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.
Frame number
The VIN is also on a plate attached to the
top of the dashboard. The number on
the plate can easily be seen through the
windshield from outside.
VIN label
Vehicle certification label
The vehicle certification label attached
on the driver's side center pillar gives the
vehicle identification number (VIN).
Tire specification and pressure
label
The tire label located on the driver's side
center pillar gives the tire pressures rec
-
ommended for your vehicle.
The tires supplied on your new vehicle
are chosen to provide the best perfor
-
mance for normal driving.
OCV081001N
OCV081002N
OCV081003L
OCV081011N
7
10
10
Specifications, Consumer information
and Reporting safety defects
Motor number
Motor number
The motor number is stamped on the
motor block as shown in the drawing.
The motor number can be seen from
under the vehicle.
Rear
Front (if equipped)
Air conditioner compressor
label
A compressor label informs you of the
type of compressor your vehicle is
equipped with such as model, supplier
part number, production number, refrig
-
erant (1) and refrigerant oil (2).
Refrigerant label
The refrigerant label is located on the
underside of the hood.
OCV081004L
OCV081005L
OCV081006L
OCV081007N
Specifications, Consumer information
and Reporting safety defects
810
Consumer Assistance (U.S. only)
Consumer Assistance (U.S.
only)
Roadside Assistance is provided on all
new current model year Kia Vehicles
from the date the vehicle is delivered to
the first retail buyer or otherwise put into
use (inservice date), whichever is earlier,
for a period of 60 months or 60,000
miles, whichever is earlier, subject to the
terms, conditions and exclusions set
forth in the Kia Warranty and Consumer
Information Manual applicable to your
model year vehicle.
Kia America, Inc. reserves the right to
limit or deny services or other benefits to
any owner or driver when, in Kia Amer
-
ica, Inc.'s judgment, the claims and/or
service requests are excessive in fre
-
quency or type of occurrence.
Toll free consumer assistance
from 5:00 AM to 6:00 PM PST, Monday
through Friday and is accessible by dial
-
ing 1-800-333-4Kia (4542).
For more information regarding assis
-
tance available, please refer to your Kia
Warranty & Consumer Information Man
-
ual.
Emergency roadside assistance
hours a day, 365 days a year and is
accessible by dialing 1-800-333-4Kia
(4542).
Please note that you must provide your
Vehicle Identification Number (VIN) to
verify coverage at the time of your call.
The VIN can be found on the dash of
your vehicle on the driver's side, on the
door jamb of the driver's door, your vehi
-
cle's registration or proof of insurance
card.
Kia utilizes a network of over 30,000
roadside assistance providers. Should
you accidentally run out of fuel, require
a battery jump, or need help changing a
tire, a Kia Roadside Assistance Repre
-
sentative will dispatch someone to
deliver a small quantity of gas, change a
flat tire with your inflated spare, or
arrange a battery jump to allow you to
proceed to your destination. We have
access to a network of over 10,000 lock
-
smiths to help you should you become
locked out of your Kia.
In the event that mechanical difficulty
renders your vehicle undriveable due to
a warranty-related concern, Kia's Road
-
side Assistance Representative will
arrange to transport your vehicle to the
nearest Kia dealer or to an authorized
Kia alternative service location.
Your vehicle must be accessible to our
dispatch transport vehicle, as deter
-
mined by our driver, to receive this ser
-
vice.
NOTICE
Roadside Assistance benefits are not
available for any Kia vehicle that has
ever been or should have been issued a
"salvage" title or similar "branded" title
under any state's law, or has been
declared a "total loss" or equivalent by a
financial institution or insurance com
-
pany.
Trip interruption
Trip interruption expense benefits are
provided in the event that a warranty-
related disablement occurs more than
150 miles from your home, and the
repairs require more than 24 hours to
complete. Reasonable reimbursement is
included for meals, lodging, or rental
9
10
10
Specifications, Consumer information
and Reporting safety defects
Consumer Assistance (U.S. only)
vehicle expenses. Trip interruption cov
-
erage is limited to $100 per day subject
to a three day maximum limit per inci
-
dent. You must contact the Kia Roadside
Assistance Center to obtain pre-authori
-
zation of expenses. Once the Kia Road
-
side Assistance Center gives
authorization for trip interruption bene
-
fits, they will assist you in making the
necessary arrangements. Insurance
deductibles, expenses, and claims paid
by your insurance company or other
providers are not eligible for reimburse
-
ment.
Fleet vehicles are excluded from reim
-
bursement under Kia's Trip Interruption
Policy.
Registering your vehicle in a for
-
eign country
If you plan to register your vehicle in a
foreign country, you should confirm that
it conforms to the regulations in that
country. Even if you successfully register
the vehicle in a foreign country, you may
experience the following problems and
should therefore consider the possibility
of having to deal with them:
1. The fuel specified for your vehicle
may be unavailable. If other than the
specified fuel is used, it could cause
damage to the engine, the fuel injec
-
tion system, and other fuel-related
parts which may not be covered
under your New Vehicle Emissions
Limited Warranty.
2. We must, therefore, clearly state that
when you leave the country in which
you purchased your Kia new and reg
-
ister it in another country, problems
arising from the use of fuel other than
the specified fuel are not subject to
manufacturer's warranty. Because
vehicles like yours may not be mar
-
keted in the new country of registra
-
tion, parts, servicing techniques and
tools necessary to maintain and repair
your vehicle may be unavailable.
Even if vehicles like yours are sold
there, mechanical specifications
required by the government may vary
enough from the country of purchase
to cause additional problems.
3. There may not be an Authorized Kia
Dealer in the area in which you plan to
register your vehicle. You may addi
-
tionally experience difficulty in obtain
-
ing services in a foreign country for
any number of reasons.
Further, we cannot assume any respon
-
sibility for problems that result from
unsatisfactory service or lack of service
outside of the United States.
Specifications, Consumer information
and Reporting safety defects
1010
Electrical Equipment (U.S. only)
Electrical Equipment (U.S.
only)
The electrical system of your vehicle is
designed to perform under all reason
-
ably expected operating conditions.
However, before any additional electrical
equipment is installed in your vehicle,
consult an Authorized Kia Dealer, in
order to ensure that you do not void
your warranty.
Certain electrical equipment, or the way
in which it is installed, may adversely
affect the operation of your vehicle,
including such systems as the engine
control system, the audio system and
the electrical charging system and thus
potentially void all or part of your war
-
ranty.
We assume no responsibility for any
expense you may incur or for any mal
-
function of your vehicle or any of its
components or systems that may result
from the installation of additional electri
-
cal equipment that is not supplied, or
recommended for installation by, Kia.
Installation of a mobile two-way
radio system
If a mobile two-way radio system is
installed improperly, or if an excessively
powerful type of system is used, other
electronic systems may be adversely
affected. To avoid damage to your vehi
-
cle, consult an Authorized Kia Dealer
concerning the proper equipment and
installation.
Kia vehicles are designed and manufac
-
tured to meet or exceed all applicable
safety standards.
For your safety, however, we strongly
urge you to read and follow all directions
in this Owner's Manual, particularly the
information under the headings
"NOTICE", "CAUTION" and "WARNING".
If, after reading this manual, you have
any questions regarding the operation
of your vehicle, safety issues and defects
please contact your Kia's toll-free Con
-
sumer Assistance hot line as below:
National Consumer Affairs Manager
Kia America, Inc.
P.O. Box 52410
Irvine, CA 92619-2410
1-800-333-4Kia (4542)
11
10
10
Specifications, Consumer information
and Reporting safety defects
Reporting Safety Defects (U.S. only)
Reporting Safety Defects (U.S.
only)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
Kia America, Inc.
If NHTSA receives similar com
-
plaints, it may open an investiga
-
tion, and if it finds that a safety
defect exists in a group of vehi
-
cles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Kia America,
Inc.
To contact NHTSA, you may call
the Vehicle Safety Hotline toll-
free at 1-888-327-4236 (TTY: 1-
800-424-9153); go to http://
www.safercar.gov; download the
SaferCar mobile application; or
write to: Administrator, NHTSA,
1200 New Jersey Ave. SE., Wash
-
ington, DC 20590. You can also
obtain other information about
motor vehicle safety from http://
www.safercar.gov.
Online factory authorized
manuals (U.S. only)
The following publications are available
on www.KiaTechinfo.com.
Service manual
This manual covers maintenance and
recommended procedures for repair to
engine and chassis components. It is
written for the Journeyman mechanic,
but is simple enough for most mechani
-
cally inclined owners to understand.
Electrical troubleshooting manual
This manual complements the Service
Manual by providing indepth trouble
-
shooting information for each electrical
circuit in your vehicle.
Owner's manual
This manual describes the overall fea
-
tures and operating procedures for the
vehicle.
AAbbreviation
Abbreviation
Abbreviation
2A
Abbreviation
ABS
Anti-lock Brake System
BCM
Body Control Module
BCW
Blind-spot Collision Warning
CRS
Child Restraint System
DAW
Driver Attention Warning
DRL
Day time Running Light
EBD
Electronic Brake force Distribution
ECM
Electric Chromic Mirror
EDR
Event Data Recorder
EFD
Emergency fastening device
EPB
Electronic Parking Brake
EPS
Electric Power Steering
ESC
Electronic Stability Control
EV
Electric Vehicle
FCA
Forward Collision-Avoidance Assist
FCC
Federal Communications Commission
FMVSS
Federal Motor Vehicle Safety Stan
-
dards
HAC
Hill-start Assist Control
HBA
High Beam Assist
HMSL
High Mounted Stop Lamp
HV
High Voltage
ICCB
In-Cable Control Box
LATCH
Lower Anchors and Tether for Chil
-
dren
LDC
Low voltage DC-DC Converter
LFA
Lane Following Assist
LKA
Lane Keeping Assist
NHTSA
National Highway Traffic Safety
Administration
MIL
Malfunction Indicator Lamp
3A
Abbreviation
MMT
Methylcyclopentadienyl Manganese
Tricarbonyl
OBC
On-board Battery Chargers
ODS
Occupant Detection System
RCCA
Rear Cross-traffic Collision-avoidance
Assist
RCCW
Rear Cross-traffic Collision Warning
SCC
Smart Cruise Control
SOC
State Of Charge
SRS
Supplemental Restraint System
SRSCM
SRS Control Module
TBT
Turn By Turn
TIN
Tire Identification Number
TMK
Tire Mobility Kit
TPMS
Tire Pressure Monitoring System
VCU
Vehicle Control Unit
VESS
Virtual Engine Sound System
VIN
Vehicle Identification Number
VSM
Vehicle Stability Management
IIndex
Index
2I
Index
Numerics
12v battery 9-17
A
A/C automatic drying 5-110
active air flap 6-45
malfunction
6-45
air bag warning label 4-50
air bag warning light 4-34
air bags 4-32
adding equipment to or modifying
your vehicle
4-49
air bag collision sensors
4-46
air bag warning label
4-50
air bag warning light
4-34
curtain air bag
4-44
driver’s and passenger’s front
air bag
4-41
how air bags operate
4-33
inflation and non-inflation conditions
4-47
inflation conditions
4-47
non-inflation conditions
4-48
occupant detection system (ODS)
4-36
side air bag
4-43
SRS care
4-49
SRS components and functions
4-35
air conditioner compressor
label
10-7
air ventilation seat 5-114
all wheel drive (AWD) 6-42
emergency precautions
6-44
for safe AWD operation
6-42
ambient light 5-112
anti-lock brake system (ABS) 6-29
appearance care 9-45
exterior care
9-45
interior care
9-50
armrest 4-16
audio system 5-121
how vehicle radio works
5-122
USB port
5-121
using the infotainment/
climate switchable controller
5-121
augmented reality HUD 5-82
head-up display information
5-83
head-up display settings
5-82
precautions
5-83
auto defogging system (ADS) 5-109
auto hold 6-26
automatic climate control
system
5-97
air conditioning refrigerant label
5-106
checking the amount of air conditioner
refrigerant and compressor
lubricant
5-107
climate control air filter
5-106
heating and air conditioning
automatically
5-98
heating and air conditioning
manually
5-100
system operation
5-104
using the infotainment/climate
switchable controller
5-98
aux. battery saver+ 1-43
B
battery
for best battery service 9-17
recharging the battery
9-18
reset items
9-18
battery saver function 5-85
before driving 6-3
blind-spot collision-
avoidance assist (BCA) 7-28
malfunction and limitations
7-34
operation
7-32
settings
7-30
blind-spot view monitor (BVM) 7-60
malfunction
7-60
operation
7-60
settings
7-60
Brake Assistant System (BAS) 6-34
brake fluid 9-12
checking the brake fluid level
9-12
brake system 6-20
anti-lock brake system (ABS)
6-29
auto hold
6-26
Brake Assistant System (BAS)
6-34
electronic parking brake (EPB)
6-22
electronic stability control (ESC)
6-30
3I
hill-start assist control (HAC) 6-33
power brakes
6-20
vehicle stability management (VSM)
6-32
bulb replacement precaution 9-42
C
california perchlorate notice 9-52
cargo security screen 5-120
center console storage 5-111
certification label 6-64
charge indicator lamp for electric
vehicle 1-18
charging status
1-18
charge types for electric vehicle 1-16
charging information
1-16
charging time information
1-16
charging types
1-16
charging connector lock 1-19
locking charging cable
1-19
charging door 5-41
opening and closing the charging
door
5-41
charging electric vehicle 1-21
ac charge
1-23
dc charge
1-28
electric charging door
1-21
portable charge
1-30
precautions for charging electric
vehicle
1-22
unlock charging connector in
emergency
1-23
charging electric vehicle (abrupt
stop) 1-38
actions to be taken
1-38
charging inlet lamp 5-94
child restraint system (CRS) 4-25
children always in the rear
4-25
installing a CRS
4-27
selecting a CRS
4-26
child-protector rear door lock 5-20
climate control air filter 9-14
inspecting and replacing climate control air
filter
9-14
coat hook 5-118
consumer assistance 10-8
coolant 9-11
cup holder 5-112
curtain air bag 4-44
D
day/night rear view mirror 5-48
daytime running light (DRL) 5-85
declaration of
conformity
5-124, 7-147
defroster 5-95
operating rear window defroster
5-95
outside mirror defroster
5-96
door locks 5-14
child-protector rear door lock
5-20
door lock/unlock features
5-20
electronic child safety lock
5-21
in case of an emergency
5-19
operating door locks from inside the
vehicle
5-17
operating door locks from outside the
vehicle
5-16
operating door unlocks from outside
the vehicle
5-14
rear occupant alert (ROA)
5-22
drift mode 6-40
drive mode 6-37
drive mode integrated control
system 6-37
drive mode
6-37
driver attention warning (DAW) 7-54
malfunction and limitations
7-58
operation
7-55
settings
7-55
driver position memory system 5-23
recalling memory positions
5-23
resetting memory positions
5-23
seat easy access
5-24
storing memory positions
5-23
driver’s and passenger’s front air
bag 4-41
driving electric vehicle 1-39
aux. battery saver+
1-43
distance to empty
1-40
eco driving
1-41
electricity use
1-42
how to start the vehicle
1-39
how to stop the vehicle
1-39
4I
lcd display messages (related to
electric vehicle)
1-45
power/charge gauge
1-42
state of charge (soc) gauge for high
voltage battery
1-42
virtual engine sound system (VESS)
1-39
warning and indicator lights (related to
electric vehicle)
1-43
E
electric chromic mirror (ECM) 5-48
electric chromic mirror (ECM) with
HomeLink씾 system
5-49
electrical equipment 10-10
electronic child safety lock 5-21
electronic limited slip
differential
6-34, 6-35
electronic parking brake (EPB) 6-22
electronic stability control
(ESC)
6-30
emergency liftgate safety
release 5-25
emergency starting 8-4
emergency while driving 8-2
EV button 6-4
starting the vehicle
6-5
turning off the vehicle
6-6
EV menu 1-5
charging and climate
1-7
energy information
1-7
EV mode screen
1-6
EV settings
1-13
nearby stations
1-13
next departure
1-7
vehicle to load (V2L)
1-8
ev settings
battery conditioning mode 1-14
explanation of scheduled
maintenance items 9-10
exterior overview 3-2
F
flat tire (with tire mobility kit) 8-10
checking the tire inflation pressure
8-15
components of the tire mobility kit
8-13
distributing the sealant
8-15
introduction
8-11
notes on the safe use of the tire
mobility kit
8-11
technical data
8-16
using the tire mobility kit
8-14
floor mat anchor(s) 5-119
forward collision-avoidance assist
(FCA) 7-4
malfunction and limitations
7-16
operation
7-9
settings
7-6
forward/reverse parking distance
warning (PDW)
7-113
malfunction and precautions
7-116
operation
7-114
settings
7-114
front trunk 5-39
closing the front trunk
5-39
opening the front trunk
5-39
fuses 9-32
fuse/relay panel description
9-36
replacing inner panel fuse
9-33
replacing motor compartment fuse
9-34
G
gauges 5-61
glove box 5-112
glove box lamp 5-94
H
hazard warning flasher 8-2
headlight escort function 5-85
headrest (for front seat) 4-13
headrest (for rear seats) 4-15
heated steering wheel 5-47
high beam assist (HBA) 5-88
high voltage cut-off switch 1-51
highway driving assist (HDA) 7-85
malfunction and limitations
7-92
operation
7-87
settings
7-86
hill-start assist control (HAC) 6-33
hood 5-38
closing the hood
5-38
5I
hood open warning 5-39
opening the hood
5-38
horn 5-47
I
if an accident occurs 1-50, 8-18
immobilizer system 5-12
important safety precautions 4-3
indicator lights 5-79
inside rear view mirror 5-48
day/night rear view mirror
5-48
electric chromic mirror (ECM)
5-48
electric chromic mirror (ECM) with
HomeLink씾 system
5-49
installing a CRS 4-27
securing a child restraint seat with tether
anchor
4-29
securing a child restraint with a lap/
shoulder belt
4-30
securing a child restraint with the LATCH
anchors
4-28
instrument cluster 5-60
gauges
5-61
instrument panel illumination control
5-61
instrument panel illumination
control 5-61
instrument panel overview 3-10
intelligent speed limit assist
(ISLA) 7-49
malfunction and limitations
7-52
operation
7-50
settings
7-49
interior features 5-112
air ventilation seat
5-114
ambient light
5-112
cargo security screen
5-120
coat hook
5-118
cup holder
5-112
floor mat anchor(s)
5-119
luggage net holder
5-120
power outlet
5-115
seat warmer
5-113
sun visor
5-114
USB charger
5-115
wireless smart phone charging
system
5-116
interior lights 5-92
automatic turn off function
5-92
charging inlet lamp
5-94
glove box lamp
5-94
liftgate room lamp
5-93
map lamp
5-92
room lamp
5-92
vanity mirror lamp
5-93
interior overview 3-8
K
keys 5-6
immobilizer system
5-12
smart key
5-7
theft-alarm system
5-13
L
lane following assist (LFA) 7-82
malfunction and limitations
7-84
operation
7-83
settings
7-82
lane keeping assist (LKA) 7-23
malfunction and limitations
7-26
operation
7-25
settings
7-23
LCD display 5-64
LCD display control
5-64
LCD display modes
5-64
LCD display modes 5-64
driver assistance settings (infotainment
system)
5-68
driving assist mode
5-65
electric energy economy
5-65
information mode
5-67
master warning mode
5-67
service Interval
5-68
trip computer mode
5-66
turn by turn (TBT) mode
5-67
vehicle settings (infotainment
system)
5-68
liftgate 5-25
closing the liftgate
5-25
emergency liftgate safety release
5-25
opening the liftgate
5-25
liftgate room lamp 5-93
light bulbs 9-42
bulb replacement precaution
9-42
6I
glove box lamp (bulb type)
replacement
9-44
light position (front)
9-43
light position (rear)
9-43
replacing lights (LED type, except glove
box lamp)
9-44
side repeater lamp replacement
9-44
lighting 5-85
battery saver function
5-85
daytime running light (DRL)
5-85
headlight escort function
5-85
high beam assist (HBA)
5-88
lighting control
5-86
one-touch lane change
5-87
operating high beam
5-87
operating turn signals and lane change
signals
5-87
luggage board 5-112
luggage net holder 5-120
M
main components of electric
vehicle 1-3
high voltage battery warmer system
1-5
high voltage (hv) battery (lithium-ion)
1-4
maintenance services 9-4
manual speed limit assist
(MSLA) 7-47
operation
7-47
map lamp 5-92
maximum power output mode 6-41
mirrors 5-48
inside rear view mirror
5-48
outside rear view mirror
5-57
motor number 10-7
motor room compartment 3-12, 9-3
N
navigation-based smart cruise
control (NSCC) 7-76
limitations
7-78
operation
7-77
settings
7-76
O
occupant detection system
(ODS) 4-36
odometer 5-62
one-touch lane change 5-87
online factory authorized
manuals
10-11
outside rear view mirror 5-57
adjusting the outside rear view
mirrors
5-57
folding the outside rear view mirror
5-57
reverse parking aid function
5-58
outside temperature gauge 5-62
overview of electric vehicle 1-3
battery information
1-3
owner maintenance 9-5
P
power button
power button position 6-4
power button position 6-4
power outlet 5-115
power window lock button 5-36
precautions for charging electric
vehicle 1-22
pre-tensioner seat belt 4-21
R
rear cross-traffic collision-
avoidance assist (RCCA)
7-102
malfunction and limitations
7-106
operation
7-103
settings
7-103
rear occupant alert (ROA) 5-22
rear view monitor (RVM) 7-95
malfunction and limitations
7-97
operation
7-96
settings
7-95
reduction gear 6-7
good driving practices
6-11
LCD display messages
6-9
operation
6-7
parking
6-9
refrigerant label 10-7
7I
remote smart parking assist
(RSPA)
7-125
malfunction and limitations
7-142
operation
7-128
settings
7-126
reporting safety defects 10-11
reverse parking collision-avoidance
assist (PCA)
7-118
malfunction and limitations
7-121
operation
7-120
settings
7-119
reverse parking distance warning
(PDW)
7-110
malfunction and precautions
7-111
operation
7-111
settings
7-110
road warning 8-2
room lamp 5-92
S
safe exit assist (SEA) 7-42
malfunction and limitations
7-45
operation
7-44
settings
7-43
safe exit warning (SEW) 7-38
malfunction and limitations
7-41
operation
7-39
settings
7-39
safety precautions for electric
vehicle
1-50
high voltage cut-off switch
1-51
if an accident occurs
1-50
other precautions for electric vehicle
1-51
scheduled charging 1-20
scheduled maintenance service 9-7
seat 4-5
armrest
4-16
feature of seat leather
4-7
folding the rear seat
4-11
front seat adjustment for manual seat
4-8
front seat adjustment for power seat
4-9
headrest (for front seat)
4-13
headrest (for rear seats)
4-15
infotainment system
4-8
seatback pocket
4-10
seat belt precautions 4-22
seat belt restraint system 4-17
seat belt warning light 4-18
seat belts 4-17
care of seat belts
4-24
driver’s 3-point system with emergency
locking retractor
4-18
front passenger and rear seat 3-point
system with combination locking
retractor
4-20
pre-tensioner seat belt
4-21
seat belt precautions
4-22
seat belt restraint system
4-17
seat belt warning light
4-18
seat warmer 5-113
securing a child restraint seat with
tether anchor
4-29
securing a child restraint with a lap/
shoulder belt
4-30
securing a child restraint with the
LATCH anchors 4-28
side air bag 4-43
smart cruise control (SCC) 7-61
malfunction and limitations
7-71
settings
7-62, 7-66
smart key 5-7
smart key precautions
5-11
smart key precautions 5-11
smart liftgate with auto open 5-31
deactivating smart liftgate
5-32
detecting area
5-33
using smart liftgate
5-31
smart regeneration system 6-15
activation
6-15
limitation
6-17
malfunction
6-17
resuming
6-16
setting
6-15
turning off
6-16
smart ventilation 5-110
special driving conditions 6-47
specifications
air conditioning system 10-5
available front trunk weight
10-3
bulb wattage
10-3
dimensions
10-2
electric vehicle specifications
10-2
luggage volume
10-5
8I
recommended lubricants and
capacities
10-5
tires and wheels
10-4
vehicle weight
10-5
SRS components and functions 4-35
steering wheel 5-45
electric power steering (EPS)
5-45
heated steering wheel
5-47
horn
5-47
tilt and telescopic steering wheel
5-46
storage compartment 5-111
center console storage
5-111
glove box
5-112
luggage board
5-112
sun visor 5-114
surround view monitor (SVM) 7-98
malfunction and limitations
7-101
operation
7-100
settings
7-98
T
theft-alarm system 5-13
armed stage
5-13
disarmed stage
5-14
theft-alarm stage
5-13
tilt and telescopic steering
wheel 5-46
tire pressure indicator 8-6
tire pressure monitoring system
(TPMS) 8-6
effective use of TPMS
8-6
low tire pressure position telltale
8-7
malfunction indicator
8-8
tire pressure indicator
8-6
tire replacement with TPMS
8-8
tire specification and pressure
label
10-6
tires and wheels 9-19
all season tires
9-29
checking tire inflation pressure
9-20
low aspect ratio tire
9-31
radial-ply tires
9-30
snow tires
9-29
summer tires
9-29
tire chains
9-30
tire maintenance
9-23
tire replacement
9-21
tire rotation
9-20
tire sidewall labeling
9-23
tire terminology and definitions
9-26
tire traction
9-22
wheel alignment and tire balance
9-21
wheel replacement
9-22
towing 8-17
removable towing hook
8-17
towing service
8-17
trailer towing 6-54
driving with a trailer
6-56
hitches
6-55
maintenance
6-59
pull a trailer
6-59
safety chains
6-55
trailer brakes
6-56
U
unlock charging connector in
emergency
1-23
USB charger 5-115
USB port 5-121
using the infotainment/climate
switchable controller
5-121
utility mode 1-14
V
vanity mirror lamp 5-93
vehicle auto-shut off function 6-46
vehicle certification label 10-6
vehicle data collection and event
data recorders 2-2
vehicle handling instructions 2-3
vehicle identification number
(VIN)
10-6
vehicle load limit 6-62
certification label
6-64
vehicle modifications 2-3
vehicle stability management
(VSM) 6-32
vehicle to load (V2L) 1-8
vehicle weight 6-65
virtual engine sound system
(vess) 1-39
9I
W
warning and indicator lights 5-74
indicator lights
5-79
warning lights
5-74
warning lights 5-74
washer fluid 9-13
checking the washer fluid level
9-13
welcome system 5-94
wide sunroof 5-42
automatic reversal
5-43
power sunshade
5-42
resetting the sunroof
5-44
slide open/close
5-43
sunroof open warning
5-45
tilt open/close
5-43
windows 5-34
power window lock button
5-36
remote window opening
5-37
window opening and closing
5-35
windshield defrosting and
defogging 5-108
A/C automatic drying
5-110
auto defogging system (ADS)
5-109
automatic ventilation
5-110
defogging inside windshield with
automatic climate control
5-108
defogging logic
5-109
defrosting outside windshield with the
automatic climate control
5-108
smart ventilation
5-110
windshield washers 5-90
winter driving 6-51
wiper blades 9-15
blade inspection
9-15
replacing front windshield wiper
blade
9-16
wipers and washers 5-90
auto control
5-91
operating windshield washer
5-91
windshield washers
5-90
wireless smart phone charging
system
5-116
2023
