USER’S MANUAL
Model No. NTL10425-INT.1
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
iconeurope.com
UNITED KINGDOM
Website: iFITsupport.eu
E-mail: [email protected]
Write:
iFIT Health & Fitness Limited
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iFIT.com
Write:
iFIT Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

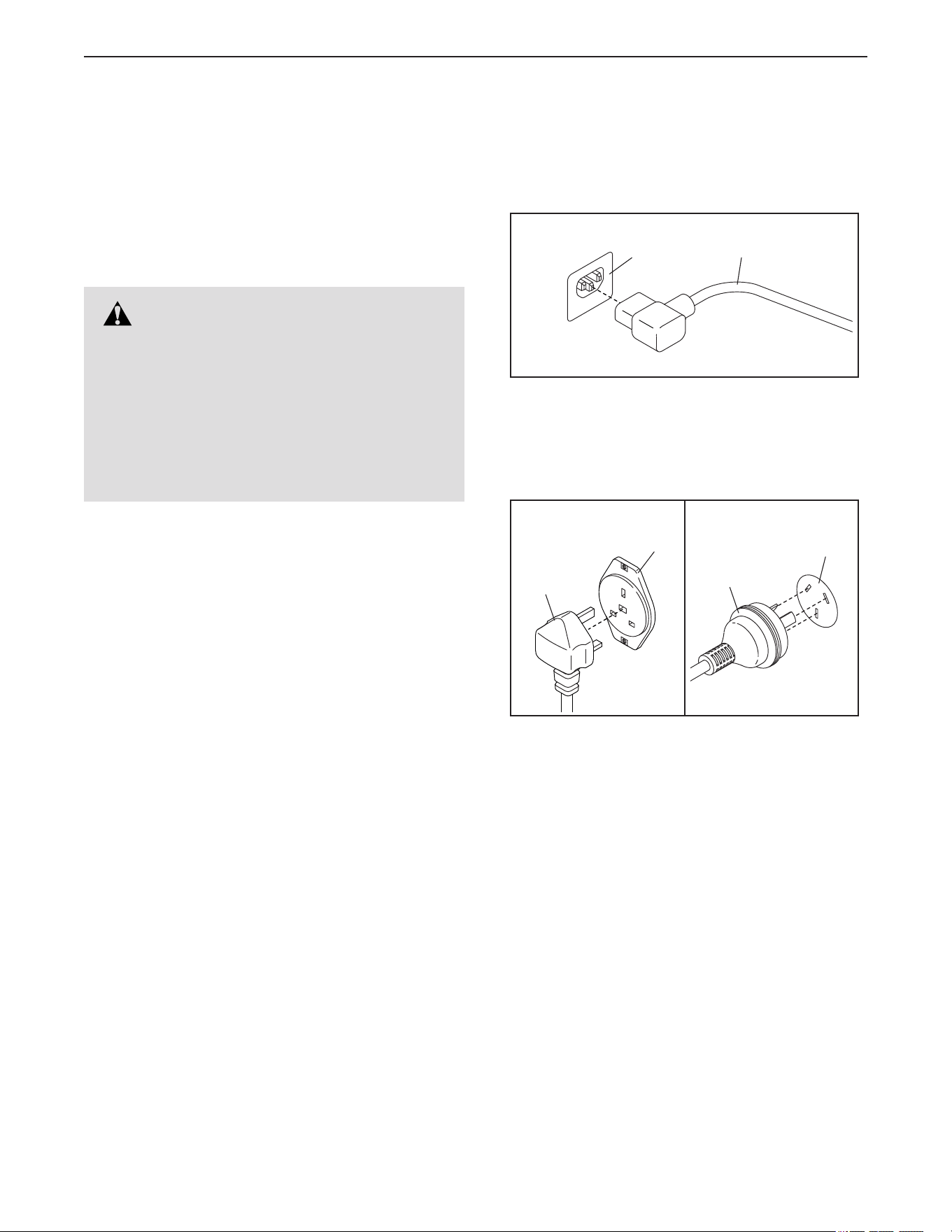

HOW TO PLUG IN THE POWER CORD ........................................................15
HOW TO USE THE TREADMILL ..............................................................16

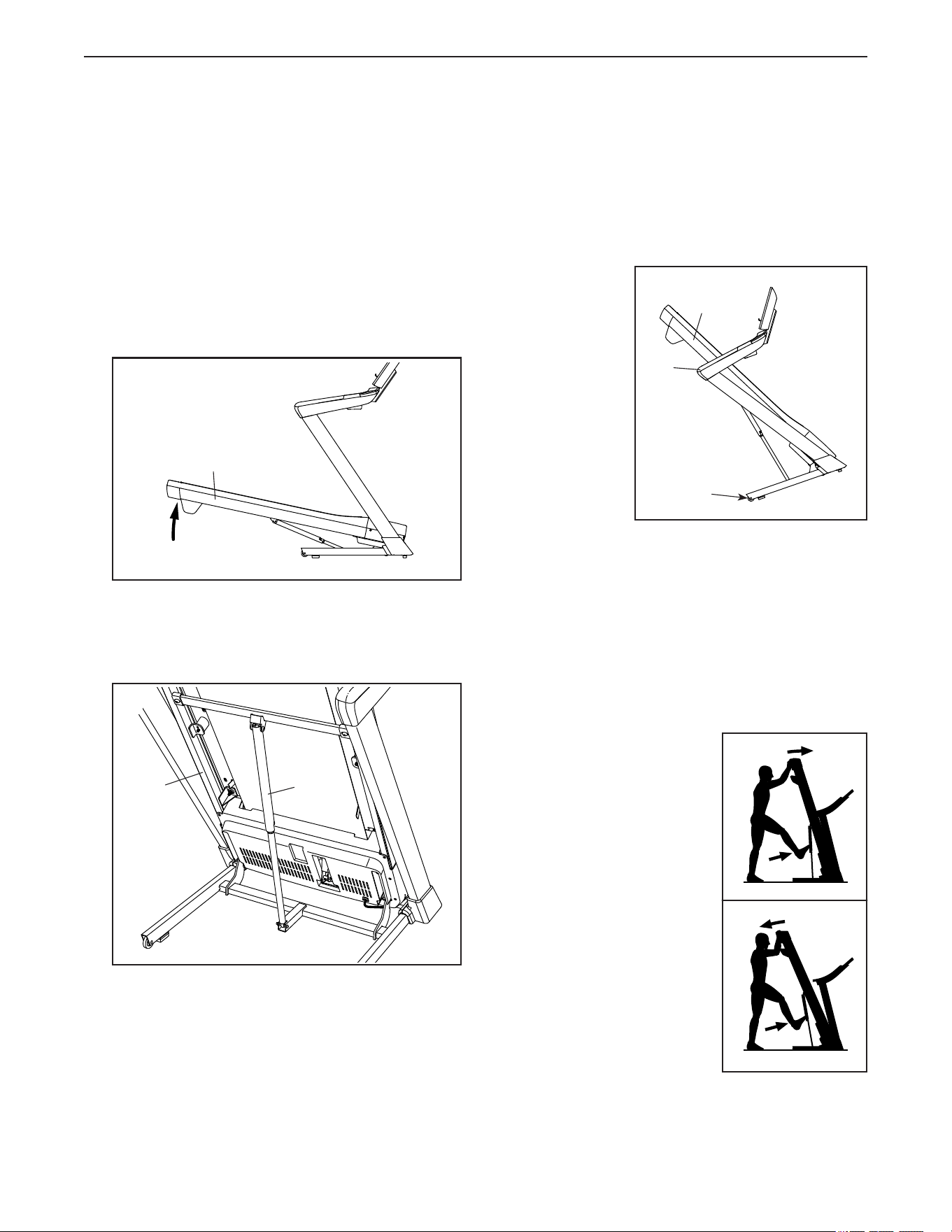

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
MAINTENANCE AND TROUBLESHOOTING .....................................................25

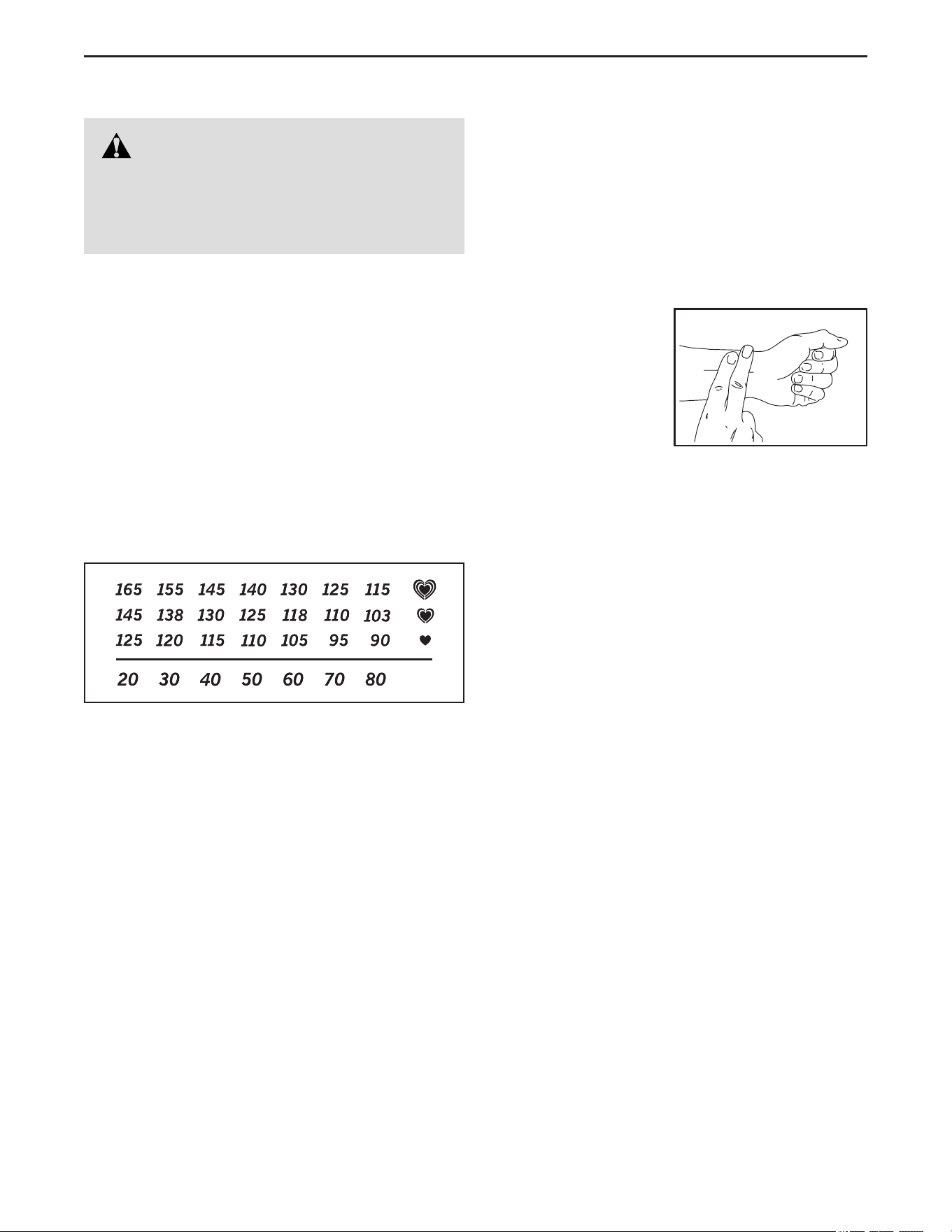

EXERCISE GUIDELINES ....................................................................27
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

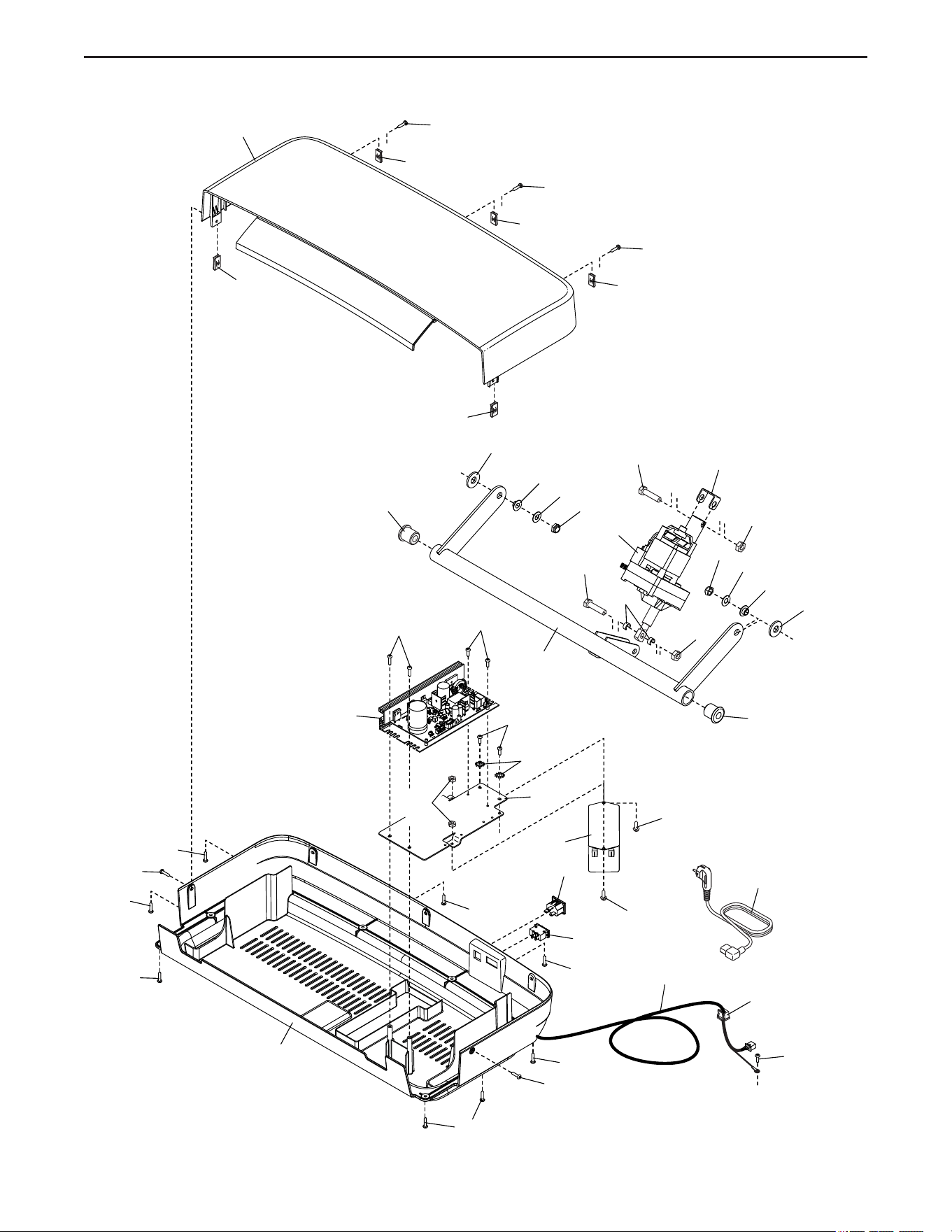

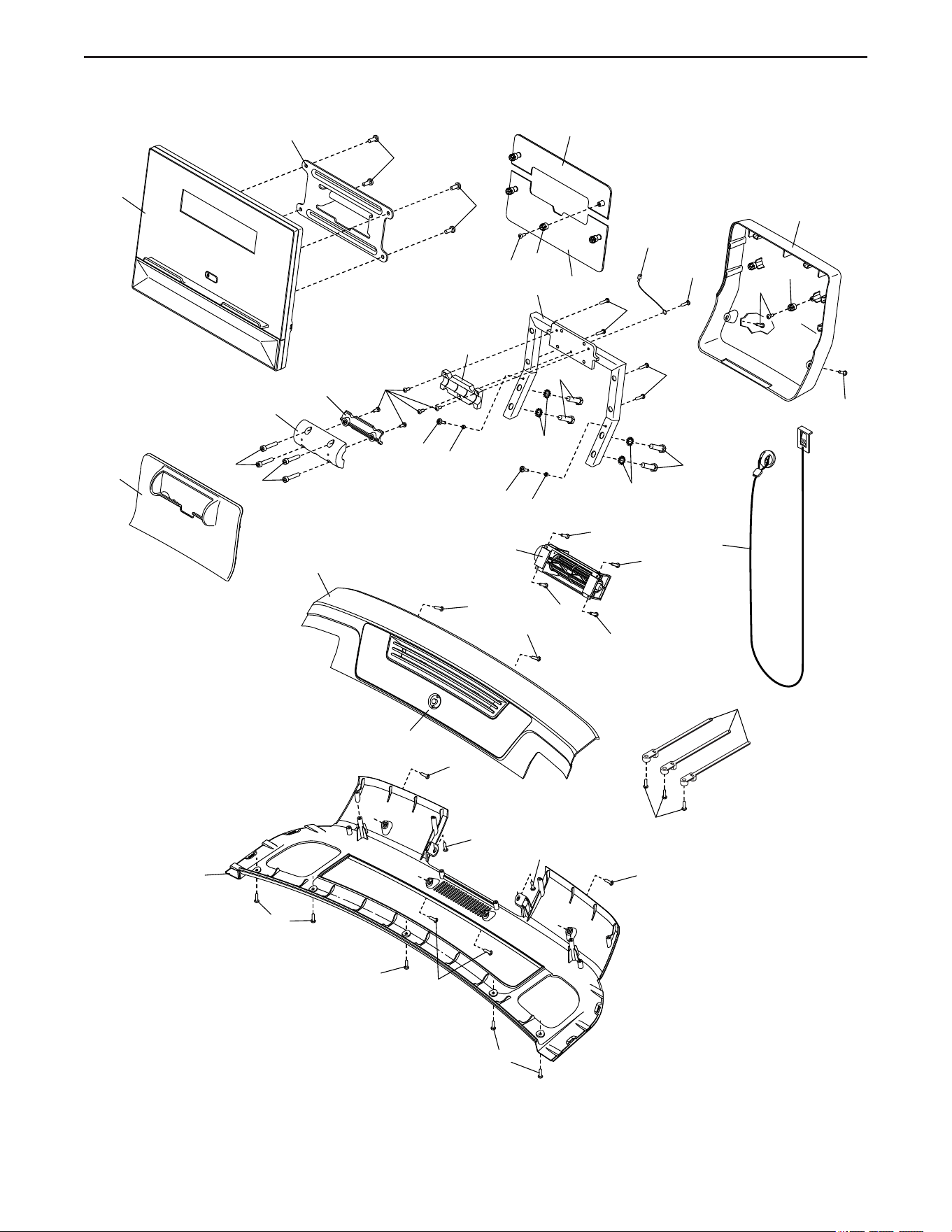

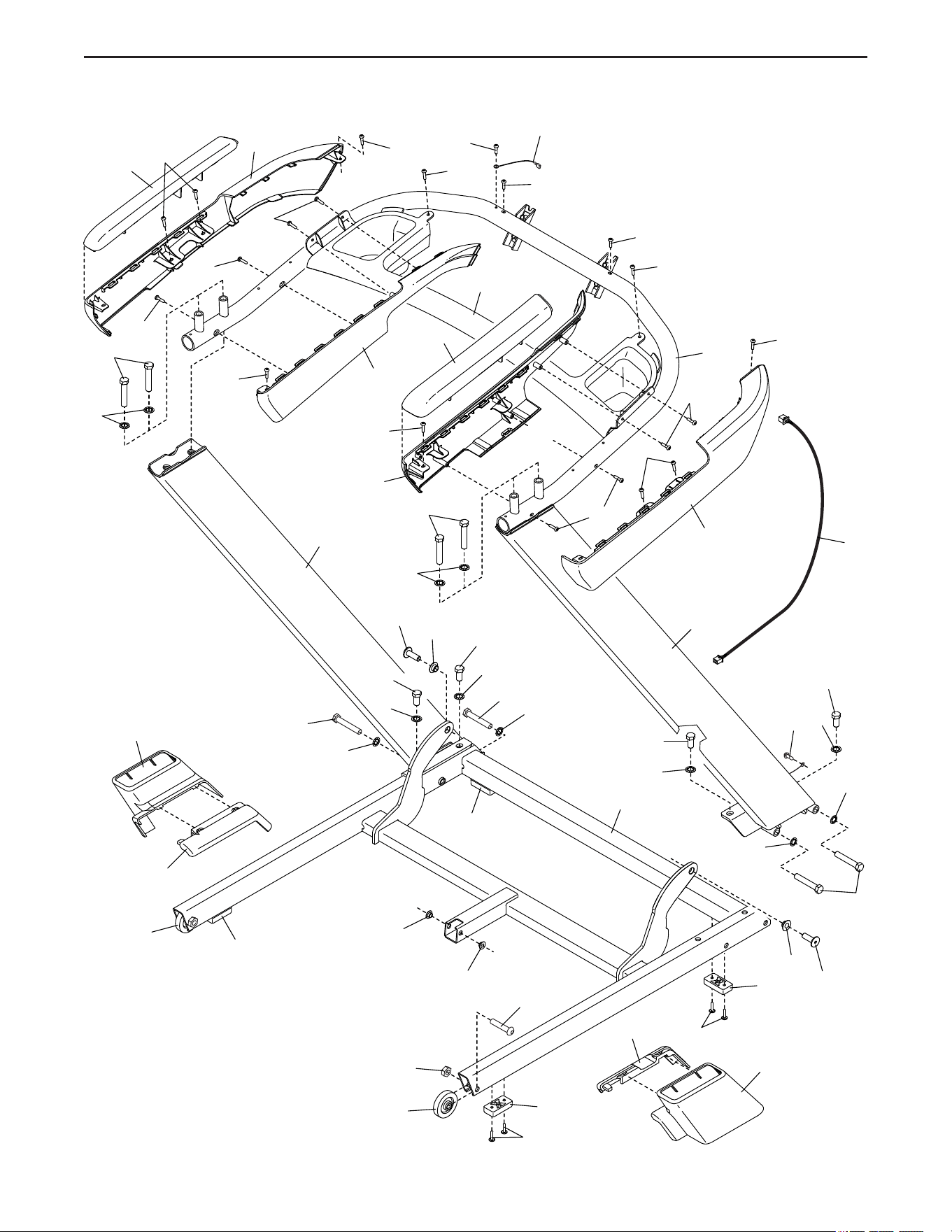

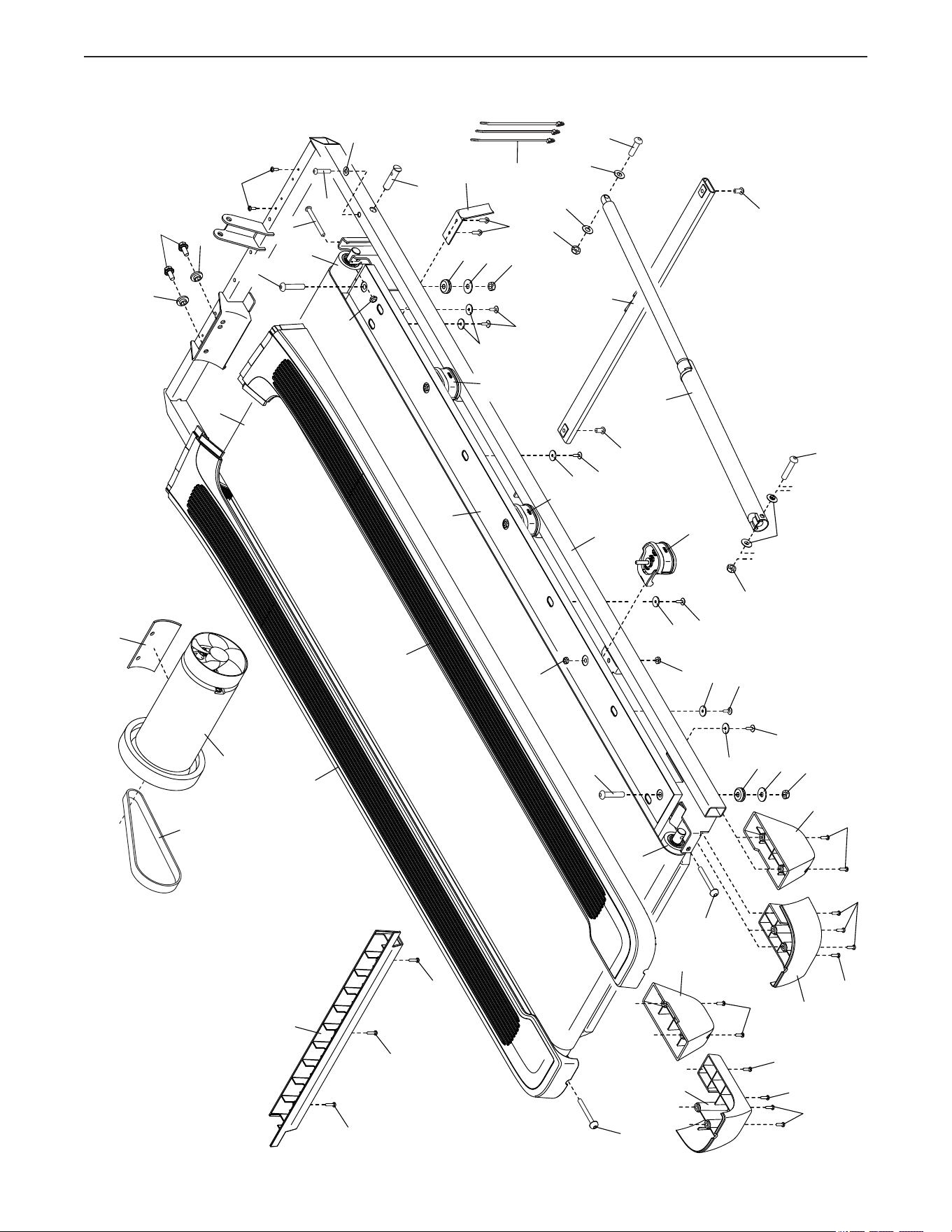

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
UK/EU DECLARATION OF CONFORMITY .............................................. Back Cover

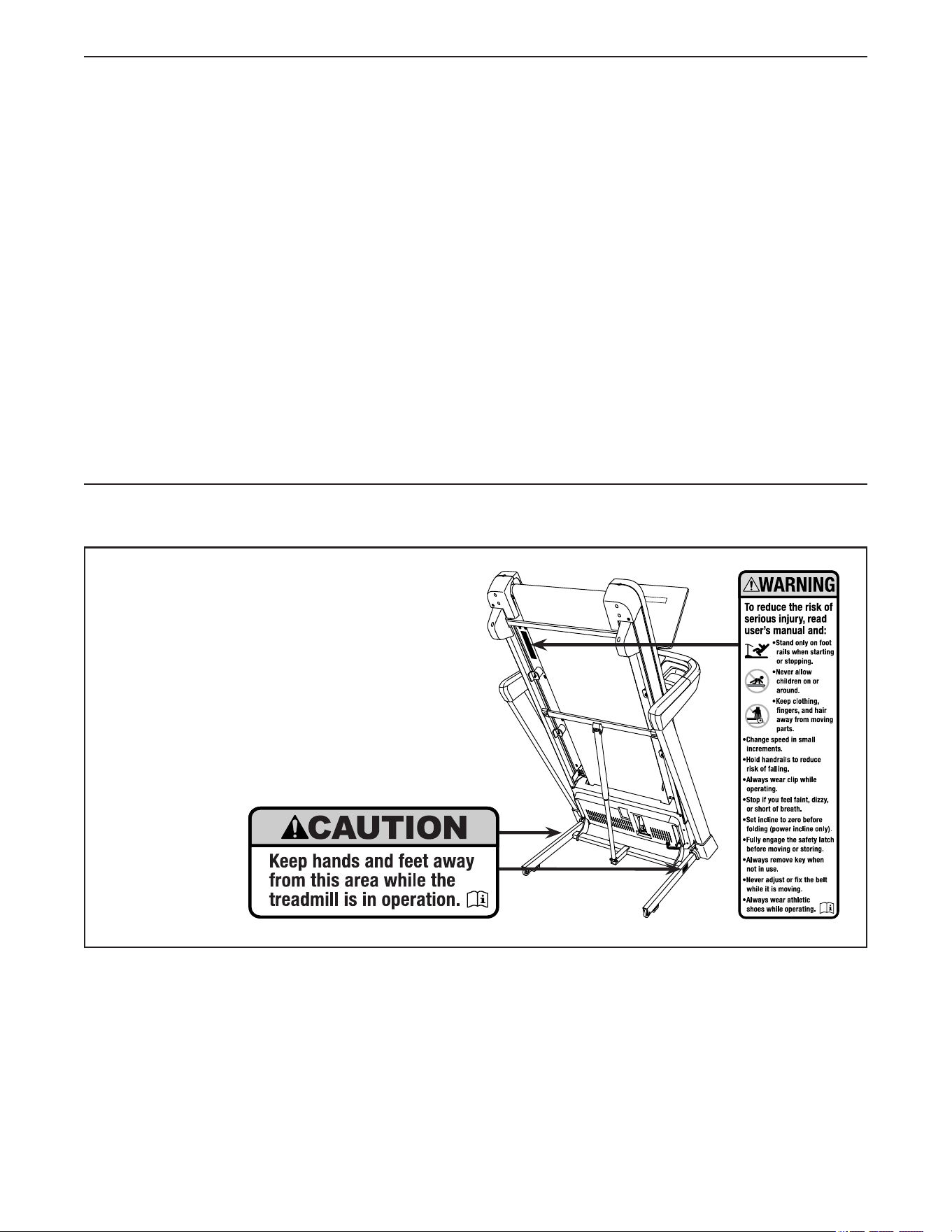

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decals may not be
shown at actual size.
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of iFIT Inc. App store is a trademark of Apple Inc., registered
in the U.S. and other countries. Android and Google Play are trademarks of Google LLC. The Bluetooth
®
word
mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark
or registered trademark of Cisco in the U.S. and other countries and is used under license.
3
1. It is the responsibility of the owner to ensure
that all users of the treadmill are adequately
informed of all warnings and precautions.
2. Keep children under age 16 and pets away
from the treadmill at all times.
3. Consult your health care provider before
beginning any exercise program. This is
especially important for persons over age 35
or persons with pre-existing health problems.
4. Consult your health care provider before
beginning or continuing any exercise
program during pregnancy. Use the treadmill
only as authorized by your health care
provider.
5. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the
use of the treadmill by someone responsible
for their safety.
6. Use the treadmill only as described in this
manual.
7. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
8. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
9. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
10. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
11. The treadmill should be used only by per-
sons weighing 325 lbs. (148 kg) or less.
12. Never allow more than one person on the
treadmill at a time.
13. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
14. When connecting the power cord (see
page 15), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
15. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm
2
) cord that is
no longer than 5 ft. (1.5 m).
16. Keep the power cord away from heated
surfaces.
17. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 25 if the treadmill is not working
properly.)
18. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE CONSOLE on
page 17). Always wear the clip while using the
treadmill.
19. Be careful when mounting and dismounting
the treadmill. Always stand on the foot rails
when starting or stopping the walking belt.
Always hold the handrails while using the
treadmill.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. iFIT assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS
4
20. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
21. Keep fingers, hair, and clothing away from
the moving walking belt.
22. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
23. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until
it is properly assembled. (See ASSEMBLY
on page 7 and HOW TO FOLD AND MOVE
THE TREADMILL on page 24.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
25. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
26. Do not change the incline of the treadmill by
placing objects under the treadmill.
27. Never insert any object into any opening on
the treadmill.
28. Inspect and properly tighten all parts each
time the treadmill is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
29. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
30. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
5
Thank you for selecting the new NORDICTRACK
®
T SERIES 8 treadmill. The T SERIES 8 treadmill
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us (see
the front cover of this manual).

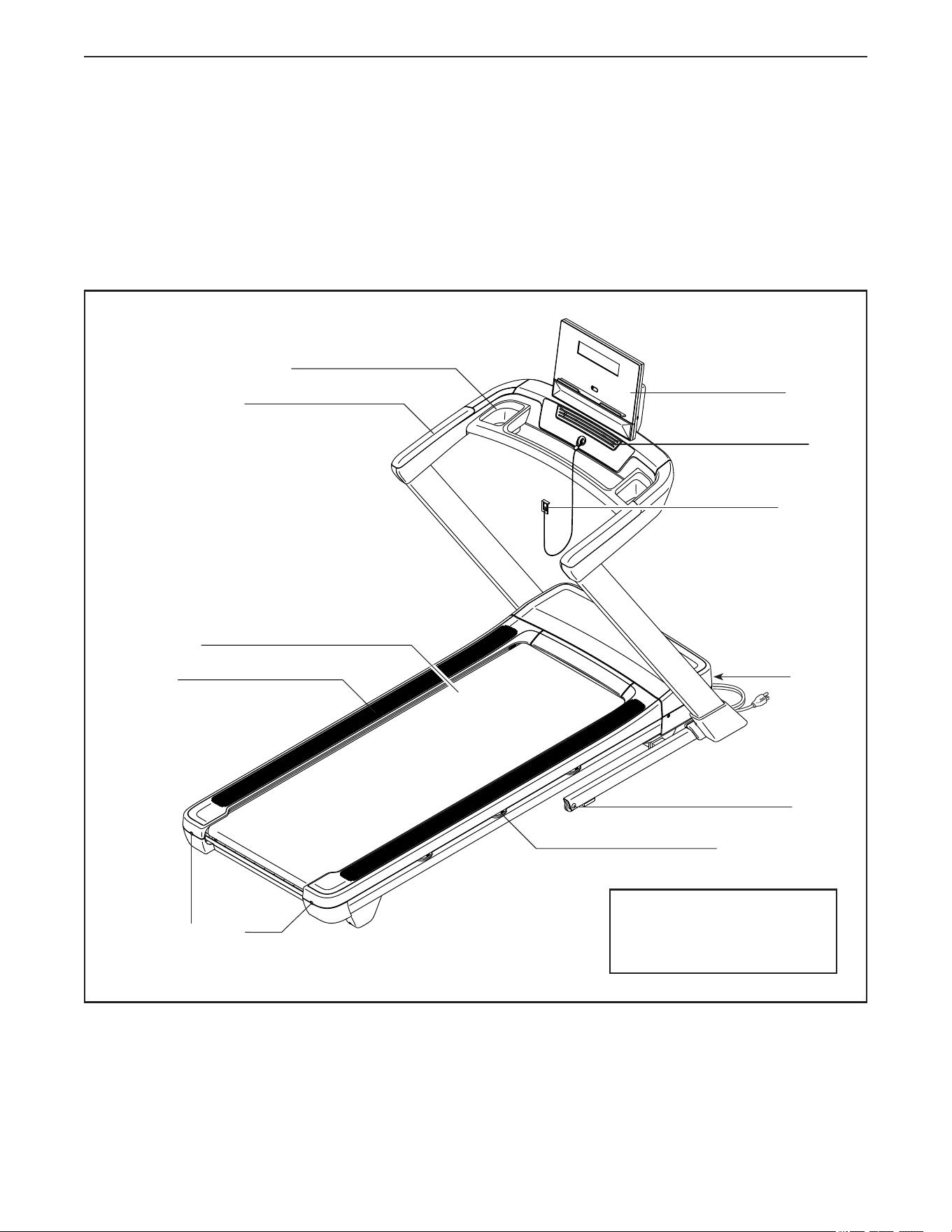

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Display
Key/Clip
Accessory Tray
Power
Switch
Walking Belt
Wheel
Foot Rail
Idler Roller Screws
Platform Cushion
Length: 6 ft. 3 in. (191 cm)
Width: 2 ft. 10 in. (86 cm)
Weight: 212 lbs. (96 kg)
Fan
6

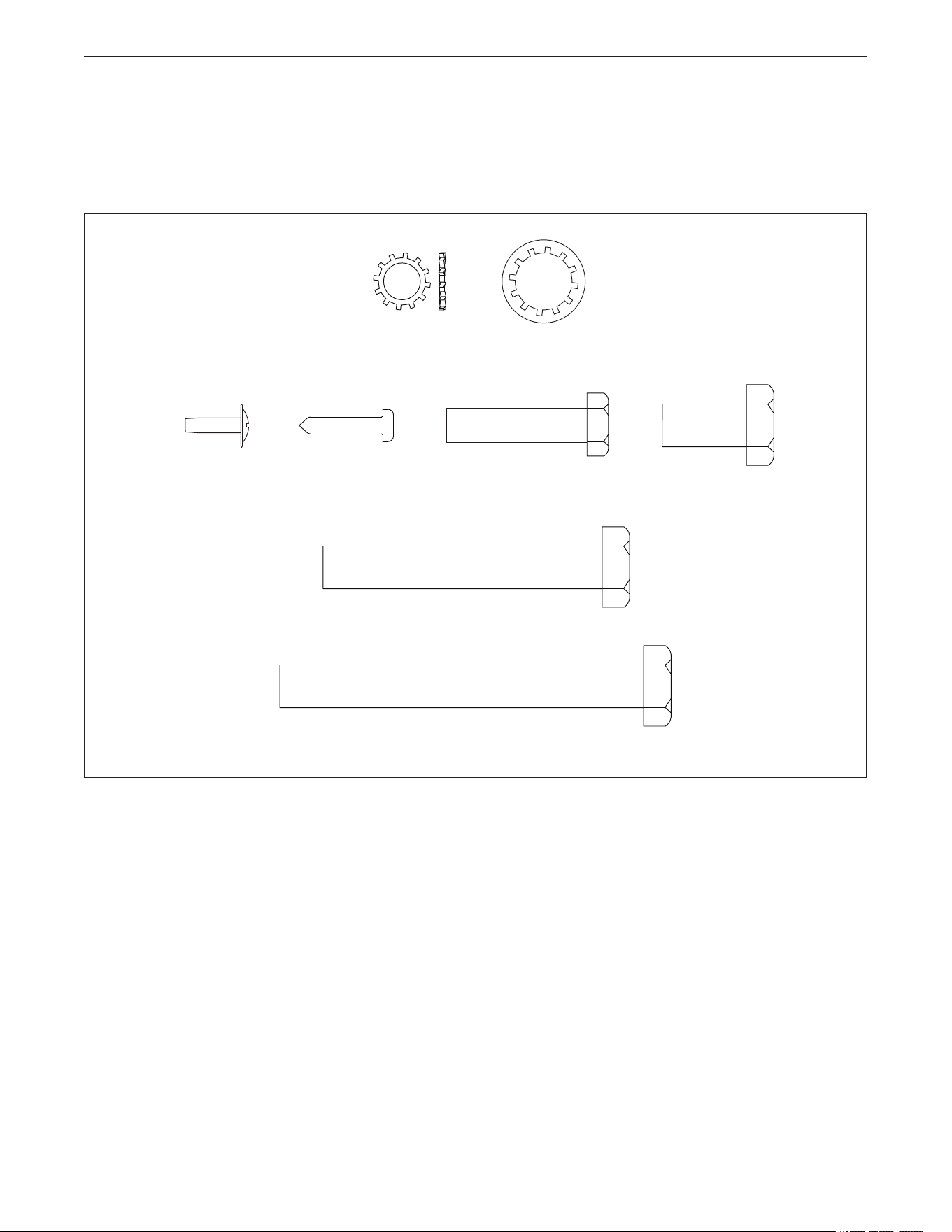

PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number after the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
3/8" Star
Washer (6)–12
3/8" x 2 1/2" Screw (1)–4
Ground
Screw (3)–1
3/8" x 3 1/4" Screw (115)–4
#8 x 3/4"
Screw (12)–2
3/8" x 3/4" Screw
(2)–4
5/16
"
Star
Washer (7)–4
5/16" x 1 1/4"
Screw (4)–4
7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly can be completed using the included
tools. Note: Keep the included tools. One or
more of the tools may be needed to make adjust-
ments in the future. To avoid damaging parts, do
not use power tools for assembly or adjustment.
ASSEMBLY
1
1. To register your product and activate your
warranty in the UK, go to iFITsupport.eu. If you
do not have internet access, complete the war-
ranty registration card in the warranty booklet
and send it by registered post to the address on
the back cover of the warranty booklet.
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
8

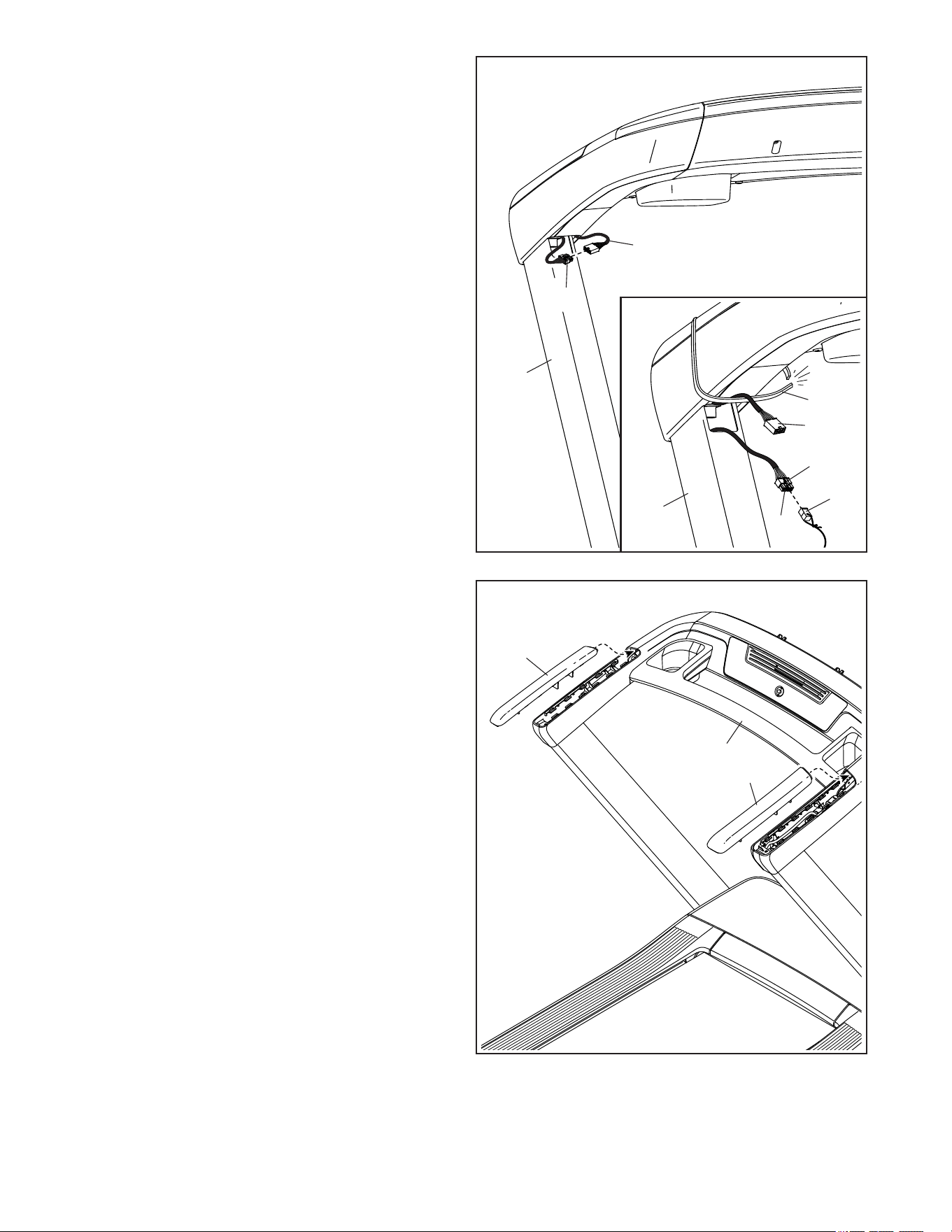

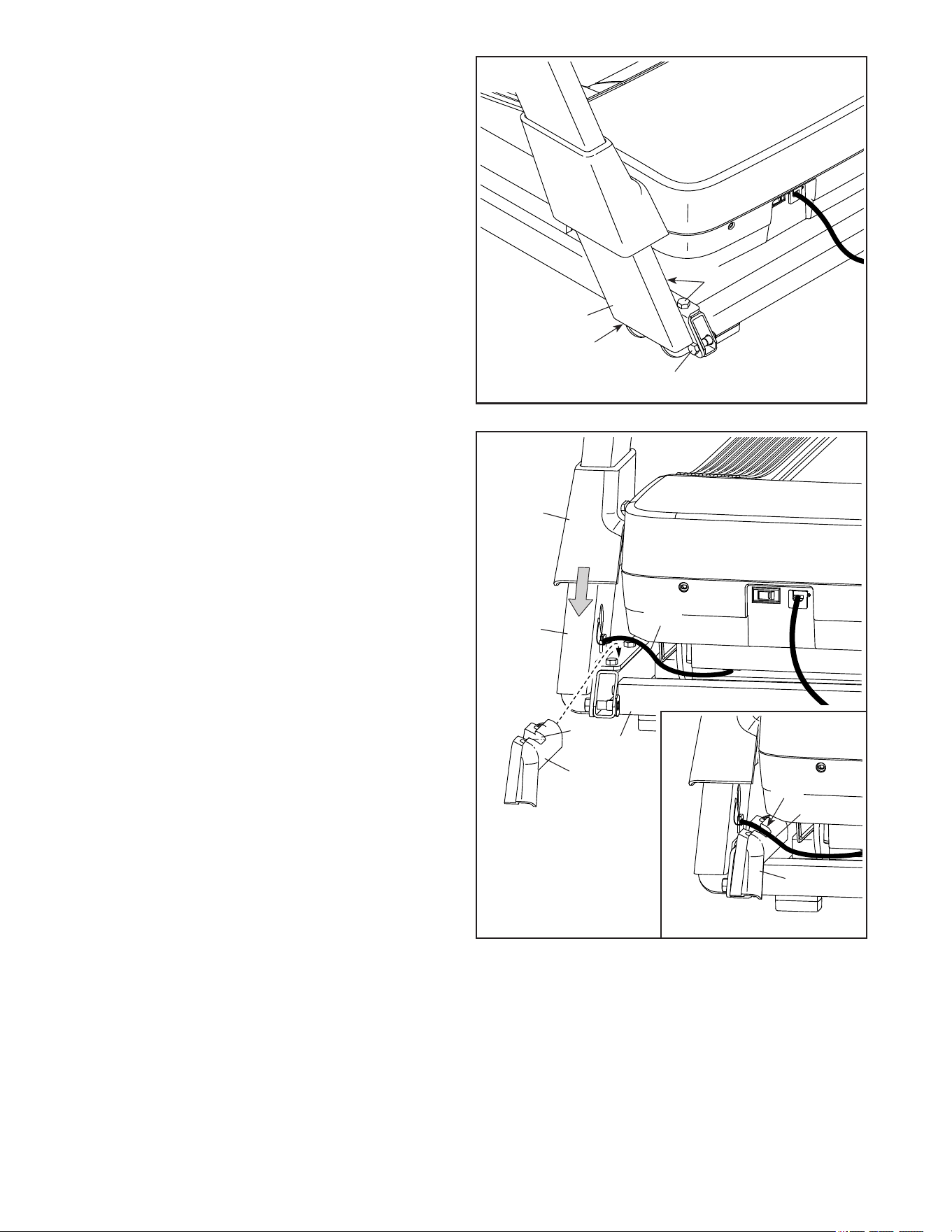

3. Remove and discard the indicated screw (C) in
the Right Upright (85). Then, attach the ground
wire (D) to the Right Upright with a Ground
Screw (3).
See the inset drawing. Locate the small ear
(E) on the Grommet (86) on the Upright Wire
(82). Insert the ear into the square hole (F) in the
Right Upright (85), and then press the Grommet
into the square hole.
85
2
82
94

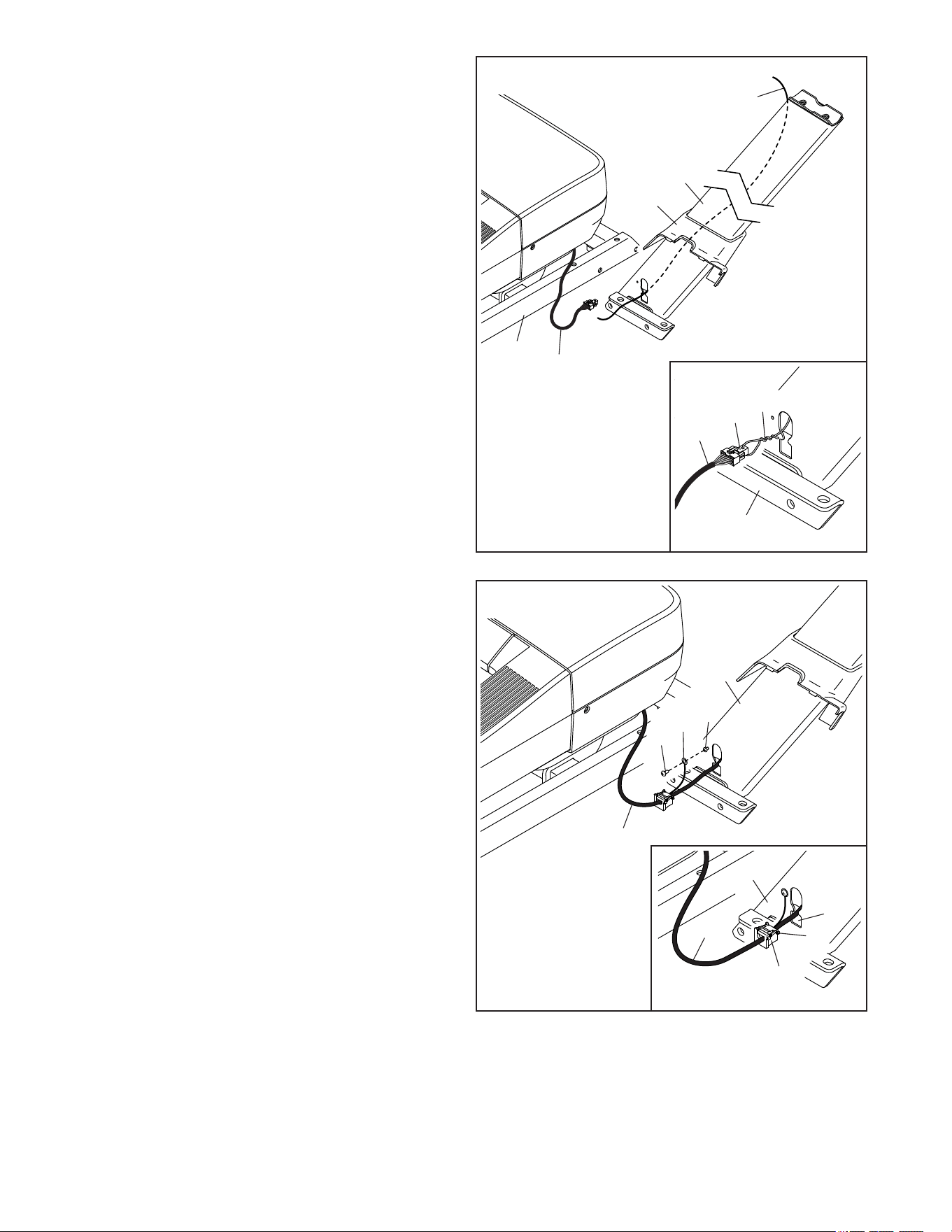

2. Make sure that the power cord is unplugged.
Identify the Right Upright (85) and the Right
Base Cover (89), orient them as shown,
and slide the Right Base Cover onto the Right
Upright.
Slide the Left Base Cover (not shown) onto
the Left Upright (not shown) in the same way.
Next, remove the tie securing the Upright Wire
(82) on the right side of the Base (94).
See the inset drawing. Locate the wire tie (A)
in the Right Upright (85). Tie the wire tie through
the wire pull (B) on the Upright Wire (82). Then,
insert the wire pull and the Upright Wire into the
Right Upright.
Then, pull the upper end of the wire tie (A) until
the Upright Wire (82) is routed through the Right
Upright (85). Do not untie the wire tie yet.
B
A
82
85
85
3
82
3
C
E
F
86
D
85
A
82
89
9

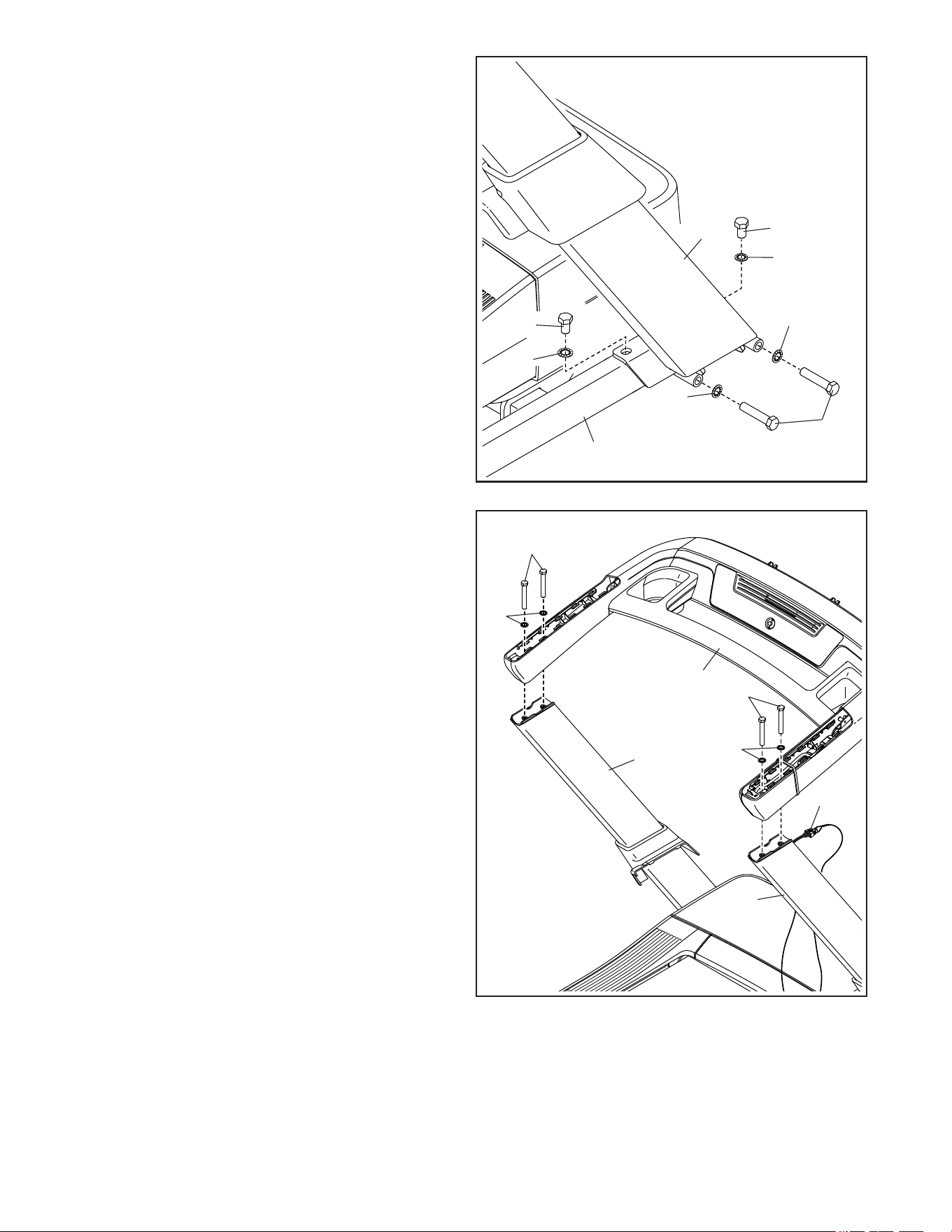

5. Do not pinch the Upright Wire (82) during this
step. With the help of a second person, hold
the handrail assembly (G) on the Left and Right
Uprights (84, 85). Attach the handrail assembly
with four 3/8" x 3 1/4" Screws (115) and four 3/8"
Star Washers (6); start all four Screws, and
then tighten them.
5
84
G
115
6
115
6
4. Have a second person hold the Right Upright
(85) against the Base (94).
Insert two 3/8" x 3/4" Screws (2) with two 3/8"
Star Washers (6) into the top of the bracket on
the Right Upright (85), and partially tighten the
Screws into the Base (94); do not fully tighten
the Screws yet.
Finish attaching the Right Upright (85) with
two 3/8" x 2 1/2" Screws (1) and two 3/8"
Star Washers (6); do not fully tighten the
Screws yet.
Attach the Left Upright (not shown) in the
same way.
4
94
1
2
2
6
6
6
85
85
82
6
10
7
7. Identify the Right Handrail Cover (75). Insert
the front edge of the Right Handrail Cover into
the top of the handrail assembly (G) as shown.
Then, press down on the top of the Right
Handrail Cover until it snaps into place.
Attach the Left Handrail Cover (74) to the
handrail assembly (G) in the same way.
G
74
75
6
6. See the inset drawing. Press the small latch
(H) on the connector on the Upright Wire (82),
and remove and discard the wire pull (B). Then,
cut and discard the plastic tie (I) securing the
Handrail Wire (83).
Next, connect the Upright Wire (82) to the
Handrail Wire (83). IMPORTANT: The wire
connectors should slide together easily and
snap into place with an audible click. You
must connect the wires properly for your
treadmill to function properly.
Then, insert the connectors and the excess wire
into the Right Upright (85).
85
H
B
82
83
85
82
83
I
11
8

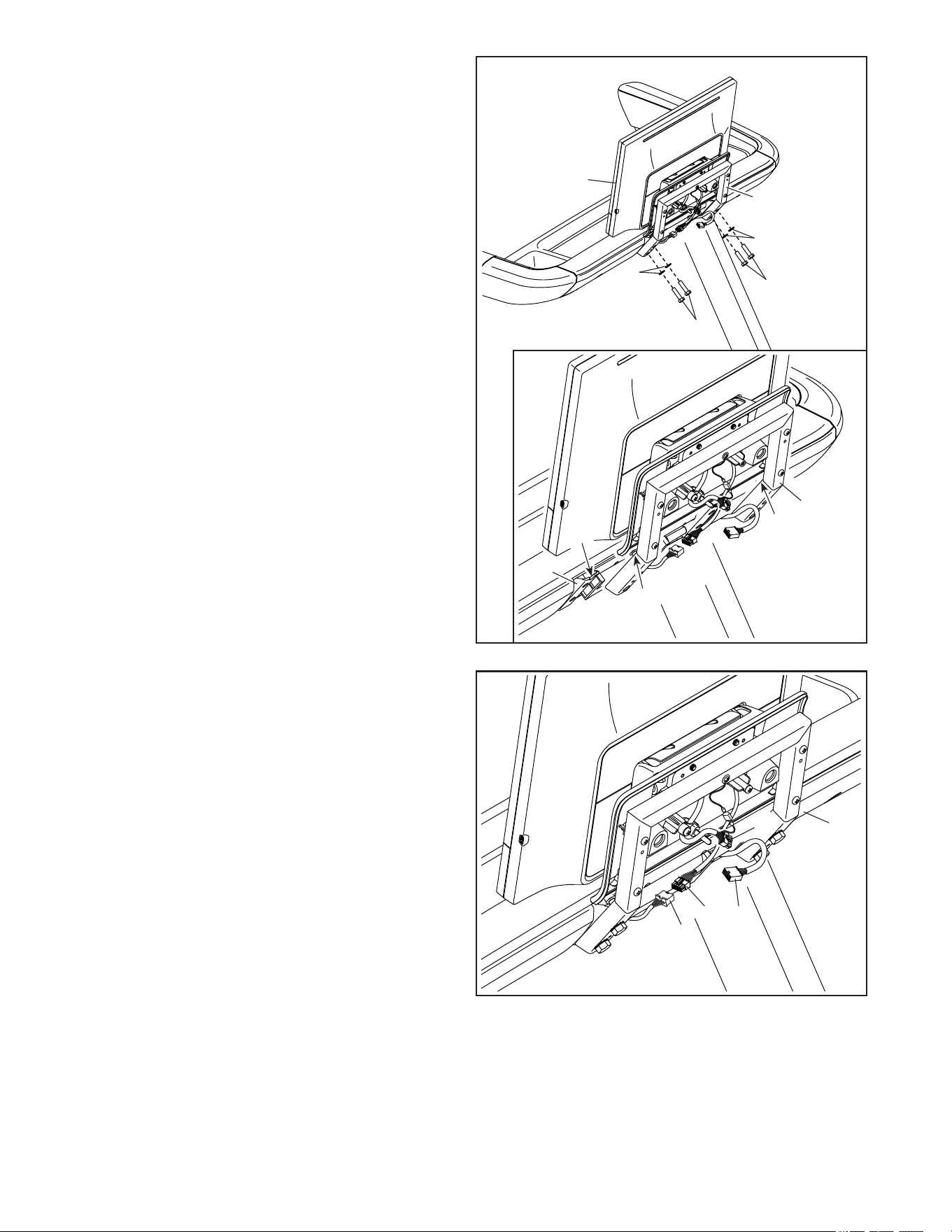

8. Do not pinch any wires during this step.
Have a second person hold the display assem-
bly (J) in the location shown.
See the inset drawing. Locate the two Mounting
Spacers (100) on the Display Frame (97). Have
the second person slide the Display Frame onto
the Handrail Frame (81), with the Mounting
Spacers in the indicated slots (K).
Attach the Display Frame (97) with four
5/16" x 1 1/4" Screws (4) and four 5/16" Star
Washers (7); start all four Screws, and then
tighten them.
9. Connect the two console wires (L, M) to the two
wires (N, O) in the handrail assembly (G).
IMPORTANT: The wire connectors should
slide together easily and snap into place
with an audible click. You must connect the
wires properly for your treadmill to function
properly.
9
100
4
4
K
81
L
J
97
7
7
100
97
M
N
O
G
12

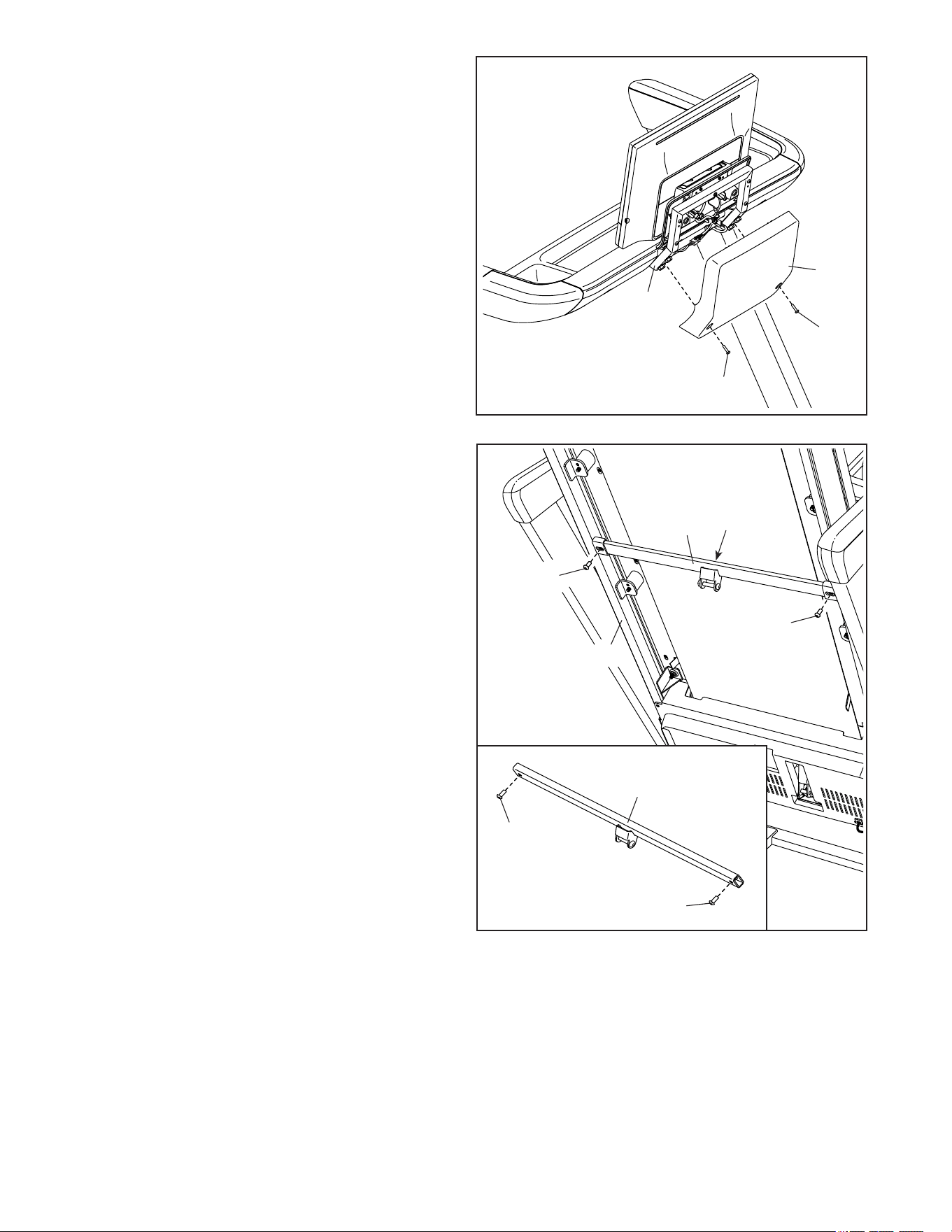

11. Raise the Frame (57) to the position shown.
IMPORTANT: Have a second person hold the
Frame until step 13 is completed.
See the inset drawing. Remove the two
5/16" x 3/4" Screws (8) from the Latch Crossbar
(53).
Then, orient the Latch Crossbar (53) as shown,
with the “This side toward belt” sticker (R)
facing the treadmill. Attach the Latch Crossbar
to the Frame (57) with the two 5/16" x 3/4"
Screws (8) that you just removed.
57
53
R
11
8
10
97
10. Do not pinch the wires during this step.
Attach the Large Pivot Cover (102) to the Display
Frame (97) with two #8 x 3/4" Screws (12).
8
8
53
102
12
12
8
13

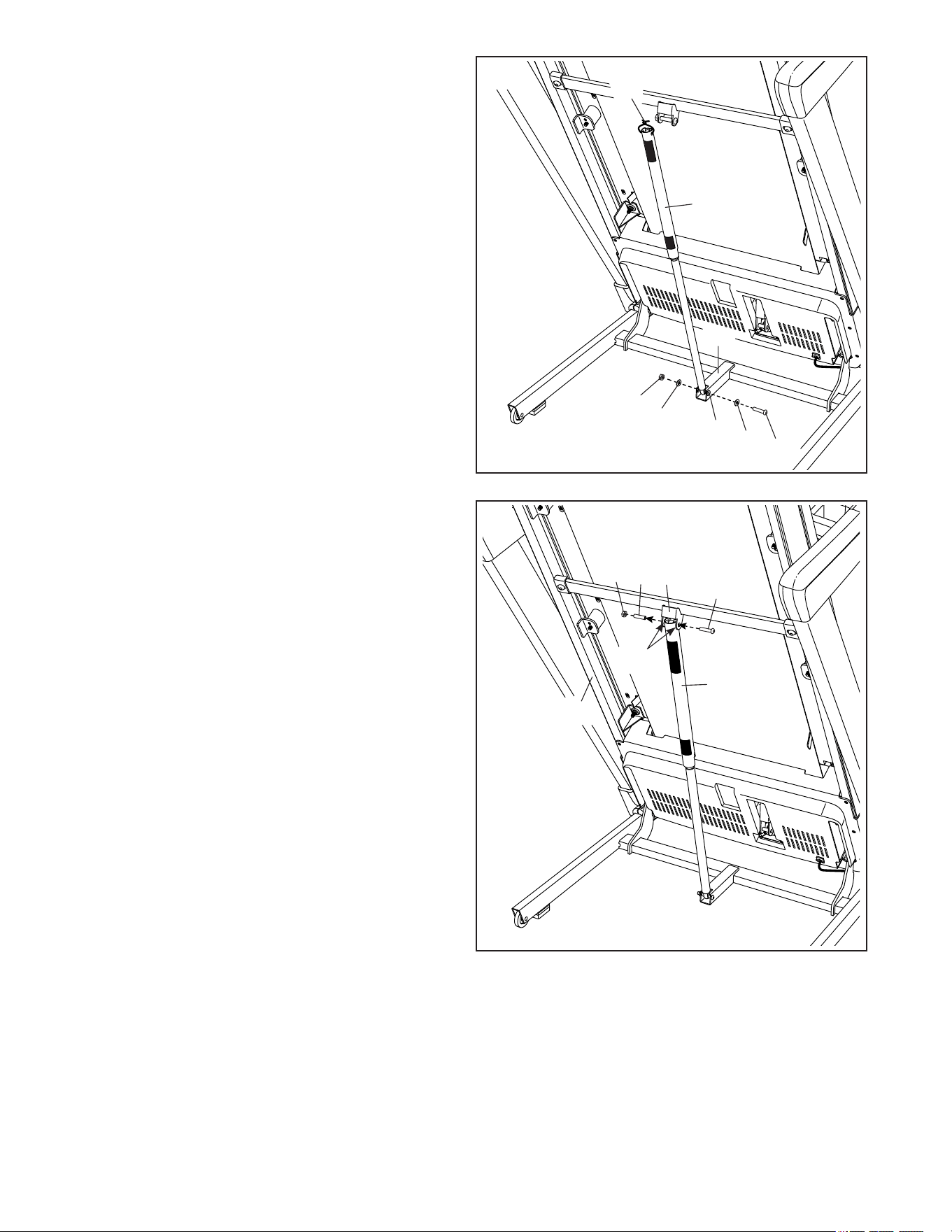

13. Remove the 5/16" Nut (34) and the 5/16" x
2 1/4" Bolt (23) from the bracket on the Latch
Crossbar (53).
Next, align the upper end of the Storage Latch
(56) with the bracket on the Latch Crossbar (53),
and insert the 5/16" x 2 1/4" Bolt (23) through the
bracket and the Storage Latch. This will push a
spacer (Q) out of the Storage Latch; discard
the spacer. Note: If one of the 5/16" Bushings
(108) comes out, reinsert it.
Next, tighten the 5/16" Nut (34) onto the
5/16" x 2 1/4" Bolt (23). Do not overtighten the
Nut; the Storage Latch (56) must be able to
pivot.
Then, lower the Frame (57) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 24).
53
23
34
Q
56
13
57
108
108
56
22
34
12
P
29
29
12. Remove the 5/16" Nut (34), the two 3/8" Thrust
Washers (29), and the 5/16" x 1 3/4" Bolt (22)
from the bracket on the Base (94). Note: If one
of the 5/16" Bushings (108) comes out, rein-
sert it.
Next, orient the Storage Latch (56) as shown.
Attach the Storage Latch (56) to the Base (94)
with the 5/16" x 1 3/4" Bolt (22), the two 3/8"
Thrust Washers (29), and the 5/16" Nut (34) that
you just removed.
Then, raise the Storage Latch (56) to a vertical
position, and remove the tie (P).
94
14
14. Firmly tighten the two 3/8" x 3/4" Screws (2)
and the two 3/8" x 2 1/2" Screws (1) in the Right
Upright (85).
Repeat this step on the left side of the
treadmill.
14
85
1
1
2
16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included tools in a secure
place; one or more of the tools may be needed to make adjustments to the treadmill in the future. Note: Extra
hardware may be included.
15. Identify the Right Inner Base Cover (91). Slide
the Right Inner Base Cover onto the Base (94),
under the Upright Wire (82), as shown in the
inset drawing. Make sure that the Upright Wire
is in the notch (R) in the Right Inner Base
Cover as shown.
Then, slide the Right Base Cover (89) downward
onto the Right Inner Base Cover (91).
Repeat this step on the left side of the tread-
mill with the Left Inner Base Cover (not
shown) and the Left Base Cover (not shown).
Note: There is not a wire on the left side of the
treadmill.
15
82
94
91
89
85
R
91
R
82
15
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord (A) into the
socket (B) on the treadmill.
2. Plug the other end of the power cord (A) into an
appropriate outlet (C) that is properly installed and
earthed in accordance with all local codes and
ordinances.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
IT
FR/SP
UK
GR
RU
HU
B
A
IT
FR/SP
UK
GR
RU
HU
UK
Dubai
DU
GR
RU
HU
CZ
TR
RO
BU
UKR
SW
FR/
SP/
PL/
SK
IT
AUS
AUS
TYPE E
TYPE F
UK
Australia
A
C
A
C
16
ETNT10425
HOW TO USE THE TREADMILL

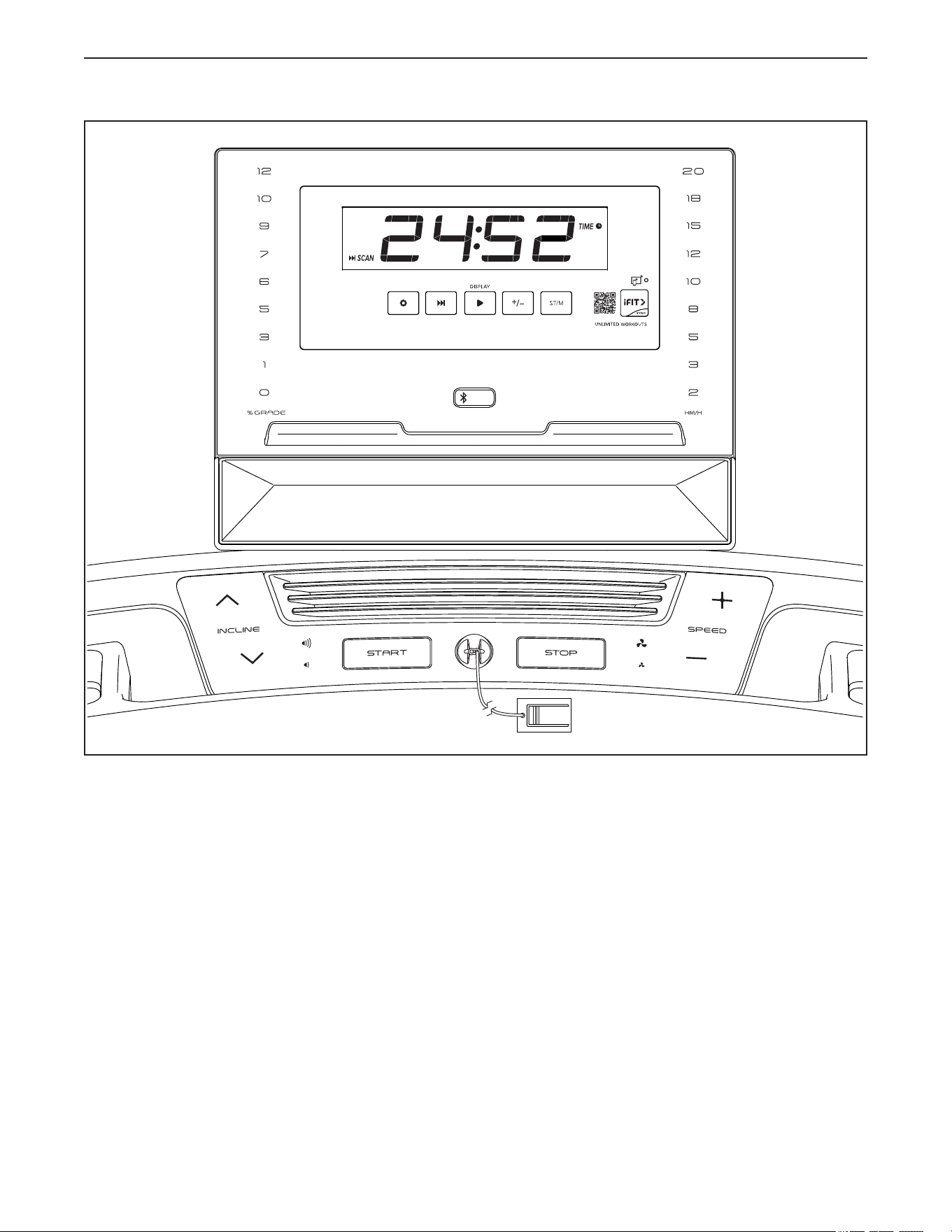

FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more effective and
exciting.
When you use the manual mode of the console, you
can change the speed and incline of the treadmill with
a touch of a button. As you exercise, the console will
display instant exercise feedback.
The console also features wireless technology that
enables the console to connect to iFIT
®
. With iFIT,
you can choose from a changing selection of fea-
tured workouts that automatically control the speed
and incline of the treadmill as iFIT trainers guide you
through immersive exercise sessions.
With an iFIT subscription, you can access a library
of thousands of on-demand destination and stu-
dio workouts, create your own workouts, track your
workout results, and access many other features. Go
to iFIT.com to learn more.
IMPORTANT: To prevent damage to the treadmill,
wear clean athletic shoes while using the treadmill.
The first time you use the treadmill, observe the
alignment of the walking belt, and center it if nec-
essary (see page 26).
17
HOW TO TURN ON THE CONSOLE
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the console. If you do
not do this, you may damage the console display
or other electrical components.
Plug in the power cord (see
page 15). Next, locate the power
switch on the treadmill frame
near the power cord. Make sure
that the power switch is in the
reset position (A).
Next, stand on the
foot rails of the
treadmill. Find the
clip (B) attached to the
key (C), and slide the
clip onto the waist-
band of your clothes.
Then, insert the key
into the console. After
a moment, the display
will light. IMPORTANT: In an emergency, the key can
be pulled from the console, causing the walking
belt to slow to a stop. Test the clip by carefully tak-
ing a few steps backward; if the key is not pulled
from the console, adjust the position of the clip.
IMPORTANT: The console may feature a demo
mode, designed to be used if the treadmill is dis-
played in a store. If the display lights as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the display
remains lit, see HOW TO CHANGE CONSOLE
SETTINGS on pages 21 and 22 to turn off the demo
mode.

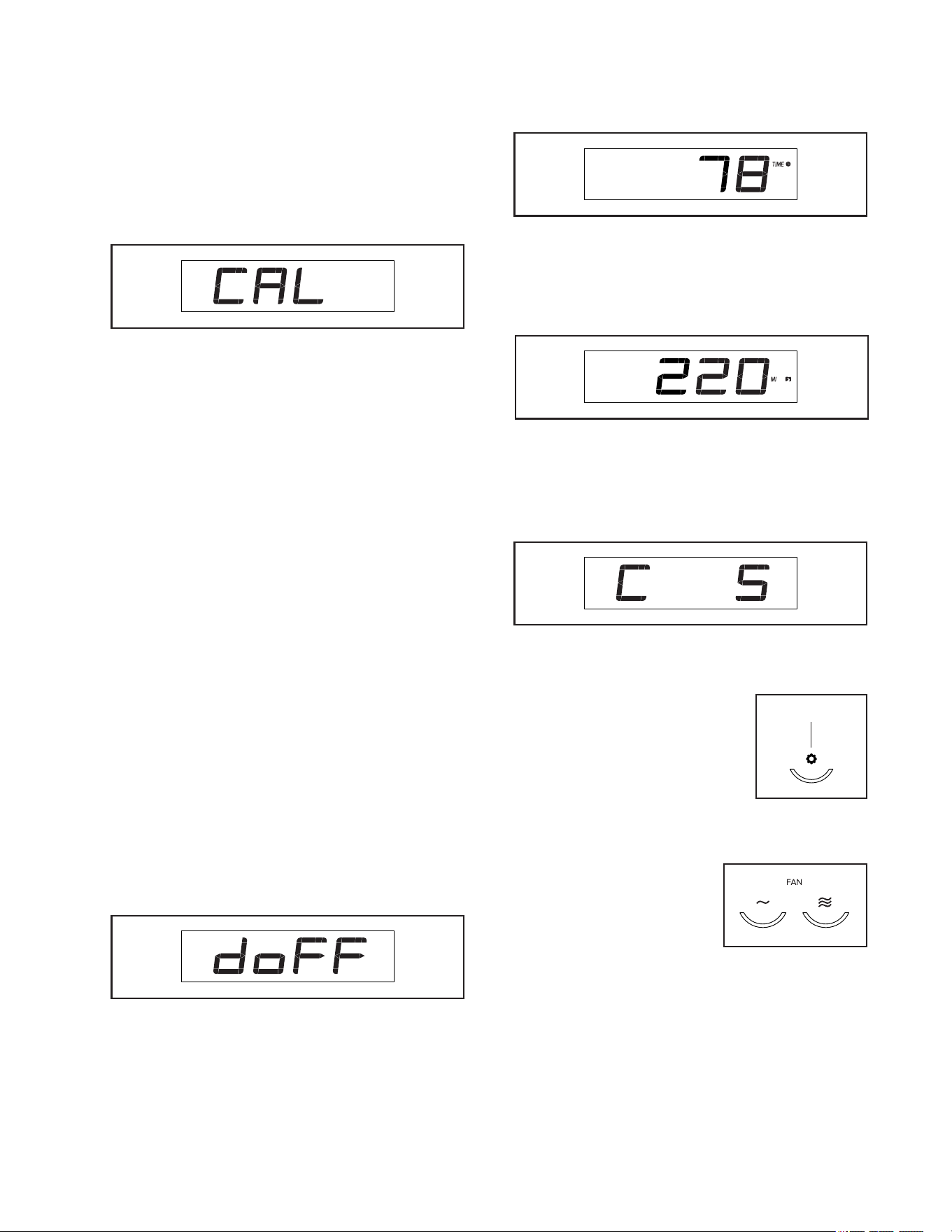

IMPORTANT: The first time you use the tread-
mill, you must calibrate the incline system. To
calibrate the incline system, see HOW TO CHANGE
CONSOLE SETTINGS on pages 21 and 22.
IMPORTANT: To prevent damage to the walking
platform, wear clean athletic shoes while using
the treadmill. The first time you use the treadmill,
observe the alignment of the walking belt, and
center the walking belt if necessary (see page 26).
HOW TO TURN OFF THE CONSOLE
When you finish using the treadmill, first remove the
key from the console and put it in a secure place.
Then, press the power switch into the off position and
unplug the power cord. IMPORTANT: If you do not do
this, the electrical components of the treadmill may
wear prematurely.
IMPORTANT: To avoid damaging the treadmill,
adjust the incline to 0% before you fold the
treadmill.
A
C
B
18
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE CONSOLE on
page 17.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected automatically.
3. Get ready for the workout.
To use the fan, see page 22.
To use the sound system, see page 23.
To use a heart rate monitor, see page 23.
4. Change the speed as desired.
To start the workout, press the Start button. The
walking belt will start to move at a low speed.
You can change the speed of the walking belt in
the following ways:
Speed increase and decrease buttons—Each
time you press a button, the speed setting will
change in small increments; if you hold down the
button, the speed setting will change more quickly.
Numbered speed buttons—Each time you press
a button, the walking belt will gradually change
speed until it reaches the selected speed setting.
To select a speed setting that includes a decimal—
such as 3.5 mph—press two numbered buttons in
succession. For example, to select a speed setting
of 3.5 mph, press the 3 button and then immedi-
ately press the 5 button.
5. Change the incline as desired.
You can change the incline of the treadmill in the
following ways:
Incline increase and decrease buttons—Each
time you press a button, the incline will gradually
change until it reaches the selected incline setting.
Numbered incline buttons—Each time you press
a button, the incline will gradually change until it
reaches the selected incline setting.
6. Follow your progress.
The display can show the following workout
information:
Calories (CALS)—The approximate number of
calories you have burned.
Calories per Hour (CALS/HR)—The approximate
number of calories you are burning per hour.
Time—The elapsed time.
Pace—The speed in minutes per mile or minutes
per kilometer. To change the unit of measurement,
press the St/M button.
Vertical Distance (VRT FT or VRT M)—The
distance you have walked or run in vertical
feet or vertical meters. To change the unit of
measurement, press the St/M button.
Incline (%Grade)—The incline level.
Distance (MI or KM)—The distance that you have
walked or run in miles or kilometers. To change the
unit of measurement, press the St/M button.
Speed (MPH or KPH)—The speed in miles per
hour or kilometers per hour. To change the unit of
measurement, press the St/M button.
Pulse (BPM and heart symbol)—Your heart rate
when you use a compatible heart rate monitor (see
page 23).
19
Press the Display
button (D) repeat-
edly to view the
desired workout
information in the
display.
Scan mode—The console also has a scan mode
that will display workout information in a repeating
cycle. To turn on the scan mode, press the Scan
button (E); the scan indicator (F) and the word
SCAN will turn on in the display.
To manually advance the scan cycle, press the
Scan button (E) repeatedly.
To turn off the scan mode, press the Display
button (D); the scan indicator and the word SCAN
will turn off.
You can also customize the scan mode to display
only the desired workout information in the
repeating cycle.
To customize the scan mode, first press the
Display button (D) repeatedly until the workout
information that you want to add to or remove from
the scan cycle appears in the display.
Next, press the +/- button (G) to add or remove that
workout information from the scan cycle. When
workout information is added, its indicator will
turn on in the display. When workout information
is removed, its indicator will turn off.
Then, press the Scan button (E) to turn on the scan
mode.
7. Pause or end the workout.
To pause the workout, first step onto the foot
rails. Next, press the Stop button. The walking belt
will stop and the time will flash in the display.
To continue the workout, press the Start button or
one of the speed buttons.
To end the workout and reset the display to zero,
first step onto the foot rails. Next, press the
Stop button twice. The word DONE will appear in
the display, and then your workout results will be
shown. Press the Stop button a third time to reset
the display to zero.
8. When you are finished using the treadmill, turn
off the console (see page 17).
F
DE G
20
HOW TO USE AN IFIT WORKOUT
The console offers access to a large and varied library
of iFIT workouts when you download the iFIT app to
your smart device and connect it to the console.
Note: The console supports Bluetooth
®
connections to
smart devices via the iFIT app and to compatible heart
rate monitors. Other Bluetooth connections are not
supported.
1. Download and install the iFIT app on your
smart device.
On your iOS
®
or Android™ smart device, open the
App Store℠ or the Google Play™ store, search for
the free iFIT app, and then install the app on your
smart device. Make sure that the Bluetooth option
is enabled on your smart device.
Then, open the iFIT app and follow the instructions
to set up an iFIT account and customize settings.
Take time to explore the iFIT app and learn
about its features and settings.
2. Get ready for the workout.
To use the fan, see page 22.
To use the sound system, see page 23.
To use a heart rate monitor, see page 23. Note:
If you are connecting both your heart rate monitor
and your smart device to the console, you must
connect your heart rate monitor before you
connect your smart device.
3. Connect your smart device to the console.
Press the iFIT Sync button on the console; the
console pairing number will appear in the display.
Then, follow the instructions in the iFIT app to con-
nect your smart device to the console.
When a connection is established, the LED on the
console will turn solid blue.
4. Select an iFIT workout.
In the iFIT app, touch the buttons at the bottom of
the screen to select either the home screen (Home
button) or the workout library (Browse button).
To select a workout from the home screen or the
workout library, simply touch the desired workout
image on the screen. Slide or flick the screen to
scroll as necessary.
When you select a workout, the screen will show
an overview of the workout that includes details
such as the duration and distance of the workout
and the approximate number of calories you will
burn during the workout.
5. Start the workout.
Touch Start Workout to start the workout.
During some workouts, an iFIT trainer will guide
you through an immersive video workout. Touch
the screen in any open space to view and select
music, trainer voice, and volume options for the
workout.
During some workouts, the screen will show a map
of the route and a marker indicating your prog-
ress. Touch the buttons on the screen to select the
desired map options.
If the speed or incline setting for the current seg-
ment of the workout is too high or too low, you
can manually override the setting by pressing the
speed and incline buttons on the console.
To return to the programmed speed and incline set-
tings of the workout, touch Follow Trainer.
Note: The calorie goal shown in the workout
description is an estimate of the number of cal-
ories that you will burn during the workout. The
actual number of calories that you burn will depend
on various factors, such as your weight. In addition,
if you manually change the speed or incline during
the workout, the number of calories you burn will
be affected.
21
6. Pause or end the workout.
To pause the workout, simply touch the screen or
press the Stop button on the console. To continue
the workout, touch the play symbol on the screen,
or press the Start button on the console.
To end the workout, touch the screen to pause the
workout, and then follow the prompts on the screen
to end the workout and return to the home screen.
When the workout ends, a workout summary will
appear on the screen. If desired, you can select
options such as adding the workout to your sched-
ule or adding the workout to your favorites list.
Then, touch Finish to return to the home screen.
7. Disconnect your smart device from the
console.
To disconnect your smart device from the console,
select the disconnect option in the iFIT app.
Note: All Bluetooth connections between the
console and other devices (including any smart
devices, heart rate monitors, and so forth) will be
disconnected.
8. When you are finished using the treadmill, turn
off the console (see page 17).
HOW TO CHANGE CONSOLE SETTINGS
1. Select the settings mode.
To select the settings mode,
press the settings button (H).
The first settings screen will
appear in the display. Note:
If you have selected a work-
out, you may need to press
the Stop button repeatedly to
return to the main menu before
selecting the settings mode.
2. Navigate the settings mode.
While the settings mode is selected, you can
navigate through several settings screens. Press
the Stop button repeatedly to select the desired
settings screen.
3. Change settings as desired.
Unit of Measurement—The currently selected unit
of measurement may appear in the display. The
console can show speed and distance in standard
or metric units of measurement. To change the unit
of measurement, press the Speed increase button
repeatedly. To view workout information in standard
units, select STD. To view workout information in
metric units, select MET.
Software Version Number—The software version
number will appear in the display.
H
22
Incline System Calibration—The letters CAL will
appear in the display. If the incline system is not
functioning properly, it may need to be calibrated.
To calibrate the incline system, press the Incline
increase or decrease button. The frame will auto-
matically rise to the maximum incline level, lower to
the minimum level, and then return to the starting
position. When the treadmill stops moving, the
incline system is calibrated.
IMPORTANT: Keep pets, feet, and other objects
away from the treadmill while the incline sys-
tem is calibrating. In an emergency, remove the
key from the console to stop the calibration
operation.
Note: The incline system may occasionally
calibrate automatically when you turn on the
treadmill. Wait for the frame to stop moving
before you attempt to use the treadmill.
Display Test—This screen is intended to be used
by service technicians to identify whether the
display is working correctly.
Button Test—This screen is intended to be used
by service technicians to identify whether a certain
button is working correctly.
Demo Mode—The currently selected demo mode
option will appear in the display. The console
features a demo mode, designed to be used if the
treadmill is displayed in a store. If the demo mode
is turned on, the console will not turn off and the
display will not be reset when you finish exercis-
ing. Press the Speed increase button repeatedly to
select a demo mode option. To turn on the demo
mode, select DON. To turn off the demo mode,
select DOFF.
Total Time—The word TIME will appear in the
display. The display will show the total number of
hours that the treadmill has been used.
Total Distance—The letters MI or KM will appear
in the display. The display will show the total
distance (in miles or kilometers) that the walking
belt has moved.
Contrast Level—The currently selected contrast
level will appear in the display. Press the Incline
increase and decrease buttons to adjust the
contrast level.
4. Exit the settings mode.
Press the settings button (H) to
exit the settings mode.
HOW TO USE THE FAN
The fan has multiple speed
settings. Press the Fan
increase and decrease
buttons on the console
repeatedly to select a fan
speed or to turn off the fan.
H
23
HOW TO USE THE SOUND SYSTEM
1. Make sure that your device’s Bluetooth setting
is turned on, and hold your device near the
console.
2. Press and hold the Bluetooth Audio button on
the console for 3 seconds.
A tone will sound and the Bluetooth button will
begin flashing to indicate that the console has
entered pairing mode.
3. Pair your device to the console.
Once your device and the
console pair successfully,
the audio from your
device will play through
the console speakers.
To adjust the volume,
press the Vol increase and decrease buttons on
the console or the use the volume control on your
personal audio player.
Note: The console can save multiple devices in its
memory. If you have previously paired your device
to the console, you can simply press the Bluetooth
Audio button to connect your device to the console.
4. Erase the console’s device memory if
necessary.
If you need to erase all the Bluetooth-enabled
devices saved in the console’s memory, press and
hold the Bluetooth Audio button for 10 seconds
HOW TO USE THE CHARGING PORT
The console features a charging port to charge USB-C
compatible devices, such as smartphones and tablets,
while you exercise.
To use the charging port, plug a USB-C charging cable
(not included) into the charging port on the right side
of the console and into the receptacle on your device;
make sure that the USB-C charging cable is fully
plugged in. Note: The charging port cannot be used
to view or transfer data or to play music through the
console sound system.
HOW TO USE AN OPTIONAL HEART RATE
MONITOR
Whether your goal
is to burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart rate
during your work-
outs. The optional
heart rate monitor will enable you to continuously
monitor your heart rate while you exercise, helping you
to reach your personal fitness goals. To purchase an
optional heart rate monitor, please see the front
cover of this manual.
The console is compatible with all Bluetooth
®
Smart
heart rate monitors.
To connect your Bluetooth Smart heart rate moni-
tor to the console, press the iFIT Sync button on the
console; the console pairing number will appear in the
display. When your heart rate monitor is connected, the
LED on the console will flash red twice. Note: If there
is more than one compatible heart rate monitor near
the console, the console will connect to the heart rate
monitor with the strongest signal.
To disconnect your heart rate monitor from the
console, press and hold the iFIT Sync button on the
console until the LED on the console turns solid green.
Note: All Bluetooth connections between the console
and other devices (including any smart devices, heart
rate monitors, and so forth) will be disconnected.
24
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
to 0% before you fold the treadmill. Then, remove the
key and unplug the power cord. CAUTION: You must
be able to safely lift 45 lbs. (20 kg) to raise, lower, or
move the treadmill.
1. Hold the metal frame (A) rmly in the location
shown by the arrow below. CAUTION: Do not hold
the frame by the plastic foot rails. Bend your
legs and keep your back straight.
2. Raise the frame (A) until the storage latch (B) locks
in the storage position. CAUTION: Make sure that
the storage latch locks.
To protect the oor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85°F (30°C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the storage latch
is in the locked position. Moving the treadmill
requires two people. Take any necessary measures
to avoid damaging your floor.
1. Hold the
frame (A) and
one of the
handrails (C),
and place one
foot against a
wheel (D).
2. Pull back on
the handrail
(C) until the
treadmill will
roll on the
wheels (D),
and care-
fully move it to the desired location. CAUTION: Do
not move the treadmill without tipping it back,
do not pull on the frame, and do not move the
treadmill over an uneven surface.
3. Place one foot against a wheel (D), and carefully
lower the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. Push the upper end of the
frame forward, and gently
press the upper part of
the storage latch with your
foot at the same time.
2. While pressing the storage
latch with your foot, pull
the upper end of the frame
toward yourself.
3. Step back and let the
frame descend to the floor.
1
A
B
A
2
C
A
D
1
1
2
25
MAINTENANCE
Regular maintenance is important for optimal per-
formance and to reduce wear. Inspect and properly
tighten all parts each time the treadmill is used.
Replace any worn parts immediately. Use only
manufacturer-supplied parts.
Regularly clean the treadmill and keep the walking belt
clean and dry. First, press the power switch into the
off position and unplug the power cord. Wipe exte-
rior parts of the treadmill with a damp cloth and a small
amount of mild soap. IMPORTANT: Do not spray
liquids directly onto the treadmill. To avoid damage
to the console, keep liquids away from the console.
Then, thoroughly dry the treadmill with a soft towel.
TROUBLESHOOTING
Most treadmill problems can be solved by follow-
ing the simple steps below. Find the symptom
that applies, and follow the steps listed. If further
assistance is needed, please see the front cover of
this manual.
SYMPTOM: The power does not turn on
a. If an extension cord is needed, use only a 3-con-
ductor, 14-gauge (2 mm
2
) cord that is no longer
than 5 ft. (1.5 m).
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown (A), the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in (B).
SYMPTOM: The power turns off during use
a. Check the power switch (see drawing c above). If
the switch has tripped, wait for five minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console, and then
reinsert it.
d. If the treadmill still will not run, please see the front
cover of this manual.
SYMPTOM: The incline of the treadmill does not
change correctly
a. See page 22 to calibrate the incline system.
SYMPTOM: The console displays remain lit when
you remove the key from the console
a. The console features a display demo mode,
designed to be used if the treadmill is displayed
in a store. See HOW TO CHANGE CONSOLE
SETTINGS on pages 21 and 22 to check your con-
sole settings and turn off the demo mode if needed.
B
A
c
MAINTENANCE AND TROUBLESHOOTING
26

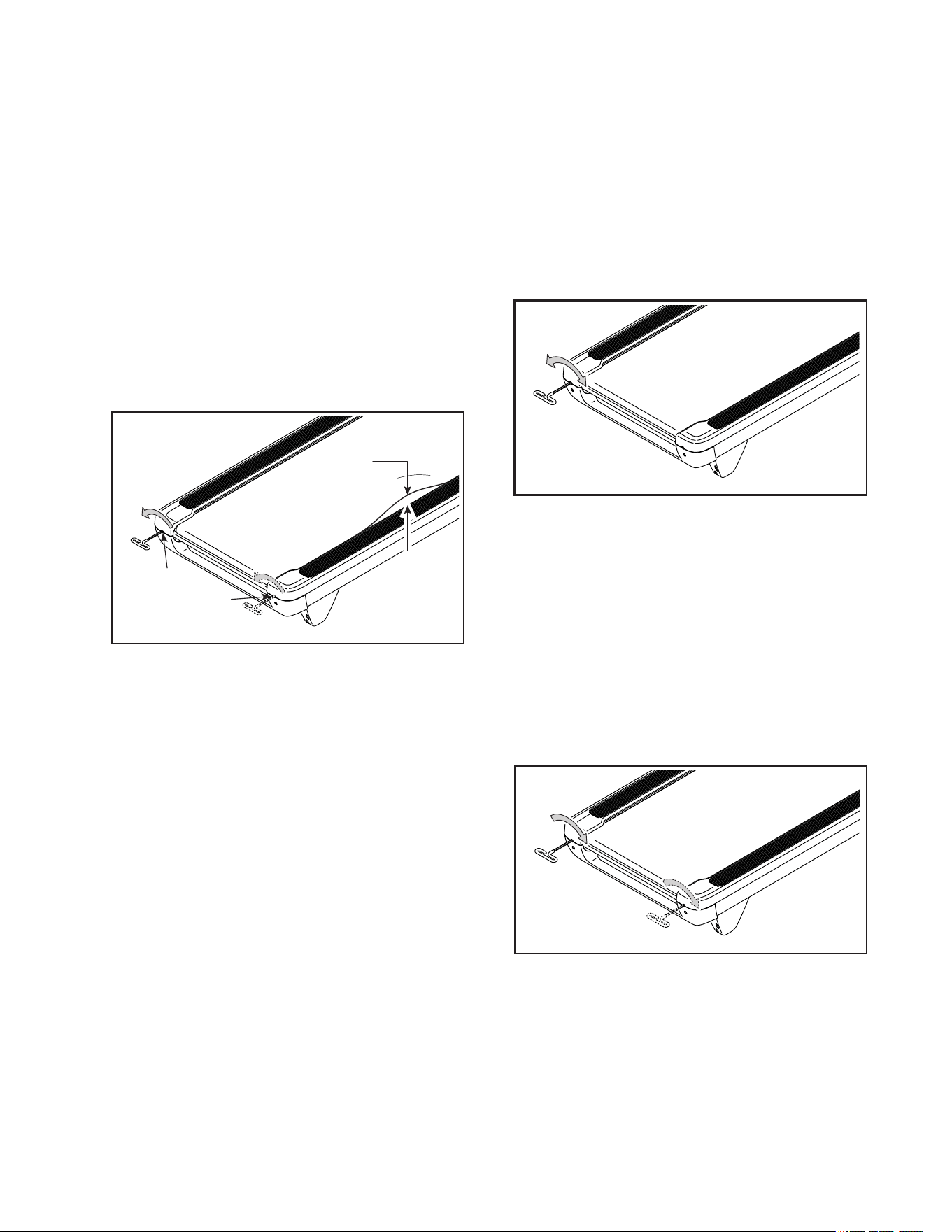

SYMPTOM: The walking belt slows when walked on
a. If an extension cord is needed, use only a 3-con-
ductor, 14-gauge (2 mm
2
) cord that is no longer
than 5 ft. (1.5 m).
b. If the walking belt is overtightened, treadmill per-
formance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws (C) counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened,
you should be able to lift each edge of the walking
belt 2 to 3 in. (5 to 7 cm) off the walking platform.
Be careful to keep the walking belt centered.
Then, plug in the power cord, insert the key, and
walk on the treadmill for a few minutes. Repeat
until the walking belt is properly tightened.
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deterio-
rate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, please see the front cover of this manual.
d. If the walking belt still slows when walked on,
please see the front cover of this manual.
SYMPTOM: The walking belt is off-center
a. First, remove the key and UNPLUG THE POWER
CORD. If the walking belt has shifted to the left,
use the hex key to turn the left idler roller screw
clockwise 1/2 of a turn; if the walking belt has
shifted to the right, turn the left idler roller screw
counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Then, plug in the
power cord, insert the key, and walk on the tread-
mill for a few minutes. Repeat until the walking belt
is centered.
SYMPTOM: The walking belt slips when walked on
a. First, remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walking
belt is correctly tightened, you should be able to lift
each edge of the walking belt 2 to 3 in. (5 to 7 cm)
off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power
cord, insert the key, and walk on the treadmill for a
few minutes. Repeat until the walking belt is prop-
erly tightened.
C
C
5–7 cm
b
a
a
27
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only
after the first few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training zone. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, exercise for at
least four minutes.
Then, stop exercis-
ing and place two
fingers on your wrist
as shown. Take a
six-second heartbeat
count, and multiply the
result by 10 to find your heart rate. For example, if your
six-second heartbeat count is 14, your heart rate is 140
beats per minute.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
28
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat on
the floor. Bend your front leg, lean forward and move your hips toward
the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg.
To cause further stretching of the achilles tendons, bend your back leg
as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks as
possible. Hold for 15 counts, then relax. Repeat 3 times for each leg.
Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
1
2
3
4
5
29
NOTES
30
Key No. Qty. Description Key No. Qty. Description
PART LIST
Model No. NTL10425-INT.1 R0824A
1 4 3/8" x 2 1/2" Screw
2 4 3/8" x 3/4" Screw
3 1 Ground Screw
4 4 5/16" x 1 1/4" Screw
5 5 M4 x 10mm Screw
6 12 3/8" Star Washer
7 4 5/16" Star Washer
8 2 5/16" x 3/4" Screw
9 2 3/8" x 1 3/8" Bolt
10 3 1/4" x 2 1/2" Screw
11 2 3/8" x 1 1/8" Screw
12 45 #8 x 3/4" Screw
13 2 1/4" x 1 1/4" Screw
14 37 #8 x 3/4" Washer Head Screw
15 12 #8 x 5/8" Screw
16 1 3/8" x 2 1/4" Bolt
17 1 3/8" x 1 1/2" Bolt
18 2 5/16" Motor Screw
19 1 Saddle Bracket Cover
20 4 #8 Belt Guide Screw
21 4 5/16" x 1 3/4" Shoulder Bolt
22 1 5/16" x 1 3/4" Bolt
23 1 5/16" x 2 1/4" Bolt
24 9 #8 x 1/2" Washer Head Screw
25 4 #4 x 1/4" Screw
26 6 Mushroom Fastener
27 2 #8 Star Washer
28 4 5/16" Flat Washer
29 4 3/8" Thrust Washer
30 12 Small Flat Washer
31 13 1/4" Nut
32 5 Hood Clip
33 4 3/8" Nut
34 6 5/16" Nut
35 – (Not Used)
36 2 #8 x 3/4" Truss Head Screw
37 6 Large Cushion
38 1 Rear Cover
39 4 M6 x 16mm Pan Head Screw
40 4 M6 x 25mm Screw
41 1 Walking Platform
42 1 Walking Belt
43 2 Belt Guide
44 1 Left Foot Rail
45 1 Right Foot Rail
46 1 Drive Roller/Pulley
47 4 Small Cushion
48 2 9/32" Plastic Bushing
49 2 1/2" Pin
50 – (Not Used)
51 1 Controller Plate
52 3 Wire Tie
53 1 Latch Crossbar
54 1 Drive Motor
55 1 Motor Belt
56 1 Storage Latch
57 1 Frame
58 2 Rear Foot
59 1 Right Rear Endcap
60 1 Left Rear Endcap
61 1 Idler Roller
62 1 Motor Hood
63 2 Incline Frame Spacer
64 4 3/8" Plastic Bushing
65 2 Frame Spacer
66 1 Incline Frame
67 1 Incline Motor
68 2 Incline Motor Spacer
69 1 Controller
70 1 Power Cord
71 1 Receptacle
72 1 Power Switch
73 1 Belly Pan
74 1 Left Handrail Cover
75 1 Right Handrail Cover
76 1 Left Handrail Outer Cover
77 1 Right Handrail Outer Cover
78 1 Left Handrail Inner Cover
79 1 Right Handrail Inner Cover
80 1 Tray
81 1 Handrail Frame
82 1 Upright Wire
83 1 Handrail Wire
84 1 Left Upright
85 1 Right Upright
86 1 Grommet
87 – (Not Used)
88 4 Base Pad
89 1 Right Base Cover
90 1 Left Base Cover
91 1 Right Inner Base Cover
92 1 Left Inner Base Cover
93 1 Lower Display Cover
94 1 Base
95 1 Display
96 1 Upper Display Cover
97 1 Display Frame
98 1 Ground Wire
99 1 Key/Clip
100 2 Mounting Spacer
31
Key No. Qty. Description Key No. Qty. Description
101 1 Small Pivot Cover
102 1 Large Pivot Cover
103 1 Primary Control
104 1 Fan Grill
105 3 Cable Tie
106 1 Primary Control Base
107 1 Display Back Plate
108 4 5/16" Bushing
109 1 U-bracket
110 2 Wheel
111 2 3/8" Distorted Nut
112 1 Fan
113 1 4" Ground Wire
114 1 Large Saddle Bracket
115 4 3/8" x 3 1/4" Screw
116 – (Not Used)
117 1 Small Saddle Bracket
118 4 #8 x 1/2" Screw
119 2 Motor Bushing
120 1 Motor Isolator
121 2 #8 Nut
122 1 Filter
123 2 #8 x 1/2" Bolt
* – Assembly/Adjustment Tool Kit
* – User’s Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
32
57
61
46
24
119
119
52
120
43
20
18
30
30
30
30
30
15
15
15
15
15
42
21
45
14
14
14
14
14
38
60
58
59
10
10
14
14
14
53
56
54
55
31
31
37
58
36
36
34
22
108
29
29
23
34
44
41
31
49
21
13
48
10
47
28
34
47
28
34
37
37
8
8
EXPLODED DRAWING A
Model No. NTL10425-INT.1 R0824A
33
62
65
111
29
64
63
66
17
68
33
111
29
64
63
65
14
12
14
14
14
14
12
73
14
24
72
71
82
67
32
32
12
32
12
14
86
33
16
109
69
14
27
24
24
51
123
123
122
70
121
12
32
12
32
EXPLODED DRAWING B
Model No. NTL10425-INT.1 R0824A
34
11
64
115
33
94
88
1
9
3
6
14
64
6
11
6
77
6
110
84
1
6
2
6
6
88
88
1
2
6
85
79
14
75
78
12
12
12
81
12
2
2
6
80
74
14
14
12
12
12
76
12
14
83
12
12
24
113
12
108
108
110
92
91
89
90
14
88
6
115
EXPLODED DRAWING C
Model No. NTL10425-INT.1 R0824A
35
99
106
12
95
96
93
39
39
102
12
12
12
25
12
12
12
118
12
12
24
98
12
12
12
103
25
112
40
40
12
105
104
107
97
4
7
12
5
101
19
117
114
26
26
7
100
12
4
14
100
14
25
25
EXPLODED DRAWING D
Model No. NTL10425-INT.1 R0824A
Part No. 455595 R0824A Printed in China © 2024 iFIT Inc.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
ORDERING REPLACEMENT PARTS
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful life
as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
RECYCLING INFORMATION
UK/EU DECLARATION OF CONFORMITY
NTL10425-INT contains the BMD-ICN-1 Bluetooth module.
Hereby, iFIT Health & Fitness declares that the radio equipment type BMD-ICN-1 is in compliance with Directive
2014/53/EU and Radio Equipment Regulation 2017.
iFIT Health & Fitness, 1500 S 1000 W, Logan, UT 84320, USA
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Object of the declaration: FCCID OMCBMD1 - Broadcast Frequency: 2.402GHz to 2.480GHz
Transmit Power: +4dBm
Certification: Article 3.1a - Safety EN 62479:2010, EN 62368-1:2014/AC:2015, Article 3.1b – EMC EN 301 489-17
V3.2.4, Article 3.2 – Radio parameters EN 300 328 V2.2.2
UK Representative: ICON Health & Fitness Ltd, Unit 1D The Gateway, Fryers Way, Silkwood Park, Ossett,
WF5 9TJ, United Kingdom
EU Representative: iFIT Health & Fitness SAS Business Park, 5 rue Alfred de Vigny
78112 Fourqueux, France
