1
PURE DESIGN
UP7
DELUXE EXERCISE BIKE
OWNER’S MANUAL
IMPORTANT !
Please read all instructions carefully before using this product.
Retain this manual for future reference.
The specifications of this product may vary slightly from the illustrations and are subject
to change without notice
2
Before You Start
Thank you for purchasing this Magnetic Bike! For your safety and benefit, read this manual
carefully before using the machine.
Prior to assembly, remove components from the box and verify that all the listed parts were
supplied. Assembly instructions are described in the following steps and illustrations.
IMPORTANT SAFETY NOTICE
PRECAUTIONS
BE SURE TO READ THE ENTIRE MANUAL BEFORE YOU ASSEMBLE OR OPERATE YOUR
MACHINE. IN PARTICULAR, NOTE THE FOLLOWING SAFETY PRECAUTIONS:
1、 Check all the screws, nuts and other connections before using the machine for the first time
and ensure that the trainer is in the safe condition.
2、 Set up the machine in a dry level place and leave it away from moisture and water.
3、 Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine in the
area of assembly to avoid dirt and etc..
4、 Before beginning training, remove all objects within a radius of 2 meters from the machine.
5、 DO NOT use aggressive cleaning articles to clean the machine, Only use the supplied tools or
suitable tools of your own to assemble the machine or repair any parts of machine. Remove
drops of sweat from the machine immediately after finishing training.
6、 Your health can be affected by incorrect or excessive training. Consult a doctor before
beginning a training program. He can define the maximum setting (Pulse. Watts. Duration of
training etc) to which you may train yourself and can get precise information during training.
This machine is not suitable for therapeutic purpose.
7、 Only do training on the machine when it is in correct working way. Use only original spare
parts for any necessary repairs.
8、 This machine can be used for only one person’s training at a time.
9、 Wear training clothes and shoes which are suitable for fitness training with the machine.
Your training shoes should be appropriate for the trainer.
10、 If you have a feeling of dizziness, sickness or other abnormal symptoms, please stop training
and consult a doctor ASAP.
11、 People such as children and handicapped persons should only use the machine in the
presence of another person who can give aid and advice.
12、 The power of the machine increases with increasing the speed, and the reverse. The
machine is equipped with adjustable knob which can adjust the resistance. Reduce the
resistance by turning the adjusting knob for the resistance setting towards stage 1. Increase
the resistance by turning the adjusting knob for the resistance setting towards stage 8.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN.
THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS
WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY
FITNESS EQUIPMENT.
SAVE THESE INSTRUCTIONS / Maximum user’s weight: 120KG
3

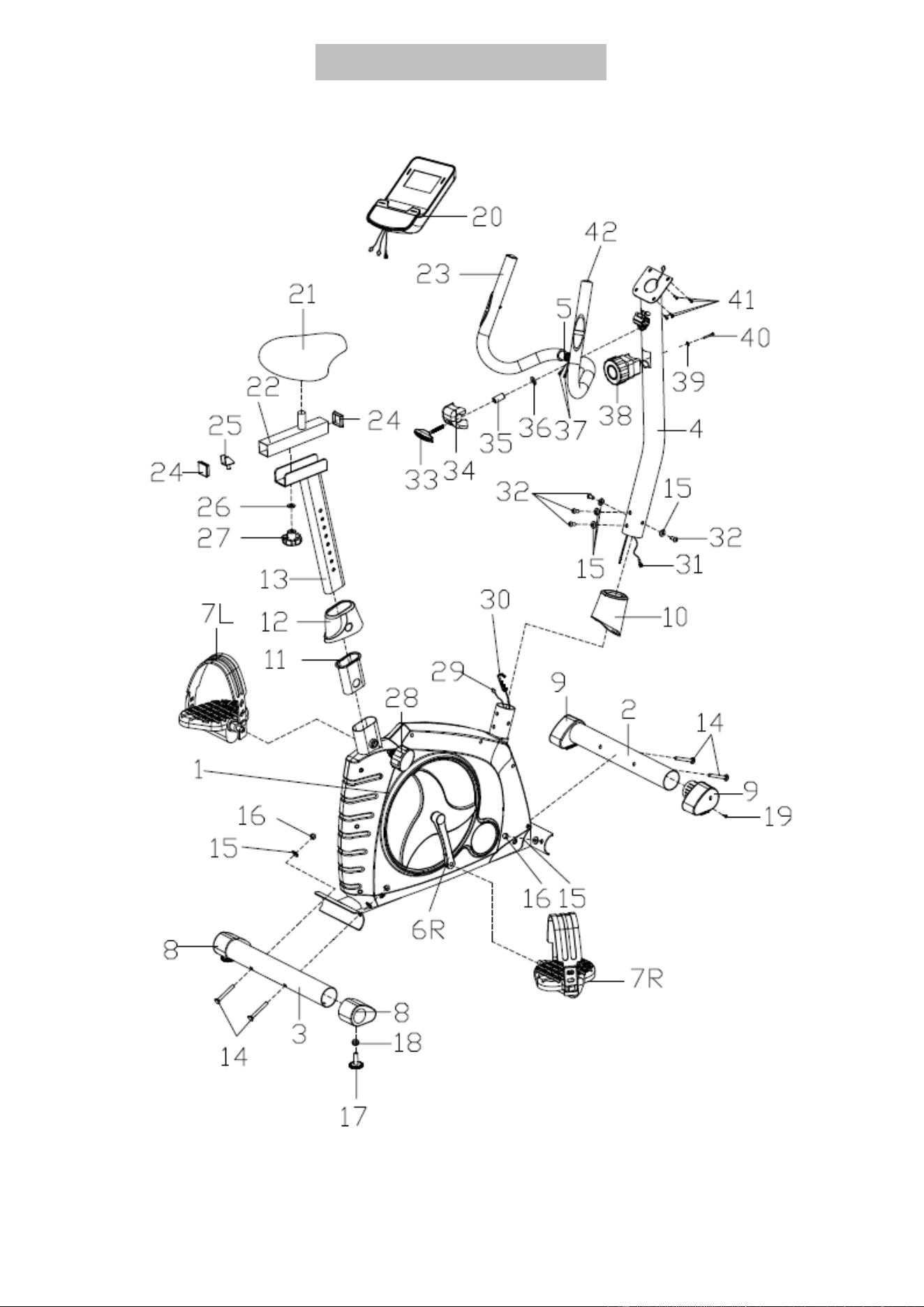

EXPLODED DIAGRAM
4
PARTS LIST
NO. DESCRIPTION Q’TY NO. DESCRIPTION Q’TY
1 Main frame 1 22 Horizontal Saddle Post 1
2 Front Stabilizer 1 23 Foam grip 2
3 Rear Stabilizer 1 24 Square end cap 2
4 Handlebar post 1 25 U-shaped slider 1
5 Handlebar 1 26 Flat washer D10 1
6L/R Crank 1/1 27 Knob M10 1
7 L/R Pedal 1/1 28 Pop-pin knob M16×1.5 1
8 Rear end cap 2 29 Sensor wire 1
9 Front end cap 2 30 Tension wire 1
10 Handlebar post cover 1 31 Extension wire 1
11 Saddle Bushing 1 32 Inner hex bolt M8×15 4
12 Saddle post cover 1 33 T-shape bolt M8×65 1
13 Vertical Saddle Post 1 34 Handlebar Chuck Cover 1
14 Carriage bolt M8×73 4 35 Spacer 1
15 Arc Washer Φ20×d8.5×R30 8 36 Flat washer D8 1
16 Acorn nut M8 4 37 Pulse wire 2
17 Adjusting Knob M10×38 2 38 Tension controller 1
18 Hex bolt M10 2 39 Arc washer D5 1
19 Cross tapping screw ST3.5×13 2
40
Cross screw M5×40 1
20 Computer 1
41 Cross scre
w
4
21 Saddle 1
42 Round end cap 2
NOTE:
Most of the listed assembly hardware has been packaged separately, but some hardware items
have been preinstalled in the identified assembly parts. In these instances, simply remove and
reinstall the hardware as assembly is required.
Please reference the individual assembly steps and make note of all preinstalled hardware.
PREPARATION: Before assembling, make sure that you will have enough space around the item; Use
the present tooling for assembling; before assembling please check whether all needed parts are
available.It is strongly recommended this machine to be assembled by two or more people to avoid
possible injury.
5
ASSEMBLY INSTRUCTION

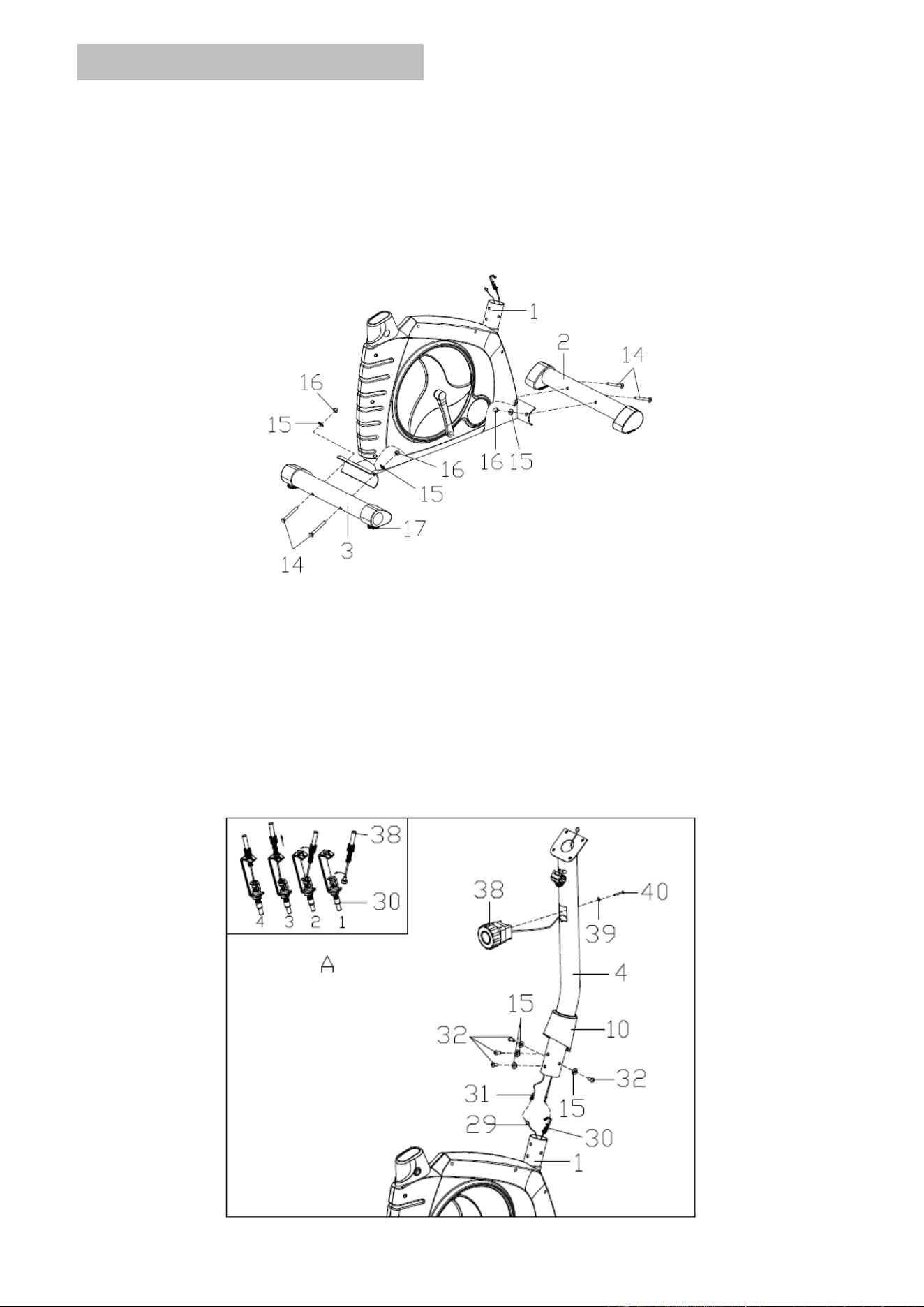

STEP 1
Attach the front stabilizer (2) and rear stabilizer (3) to the main frame (1) with the
carriage bolts (14), arc washers (15) and acorn nuts (16) as shown.
Note: The adjusting knob (17) end of the rear stabilizer can be ADJUSTED to keep the
equipment stable.
STEP 2
1.Insert the handlebar post cover (10) to the handlebar post (4).
2.Connect the Extension Wire (31) with the sensor wire (29).Then hook the tension wire
(30) to the cable from tension controller (38) as pic.A shown.
3.Attached the tension controller (38) to the handlebar post (4) with cross screw (40) and
arc washer (39).
4.Fix the handlebar post (4) to the main frame (1) with the Inner hex bolts (32) and arc
washers (15).Finally put down the handlebar poster cover (10).
6

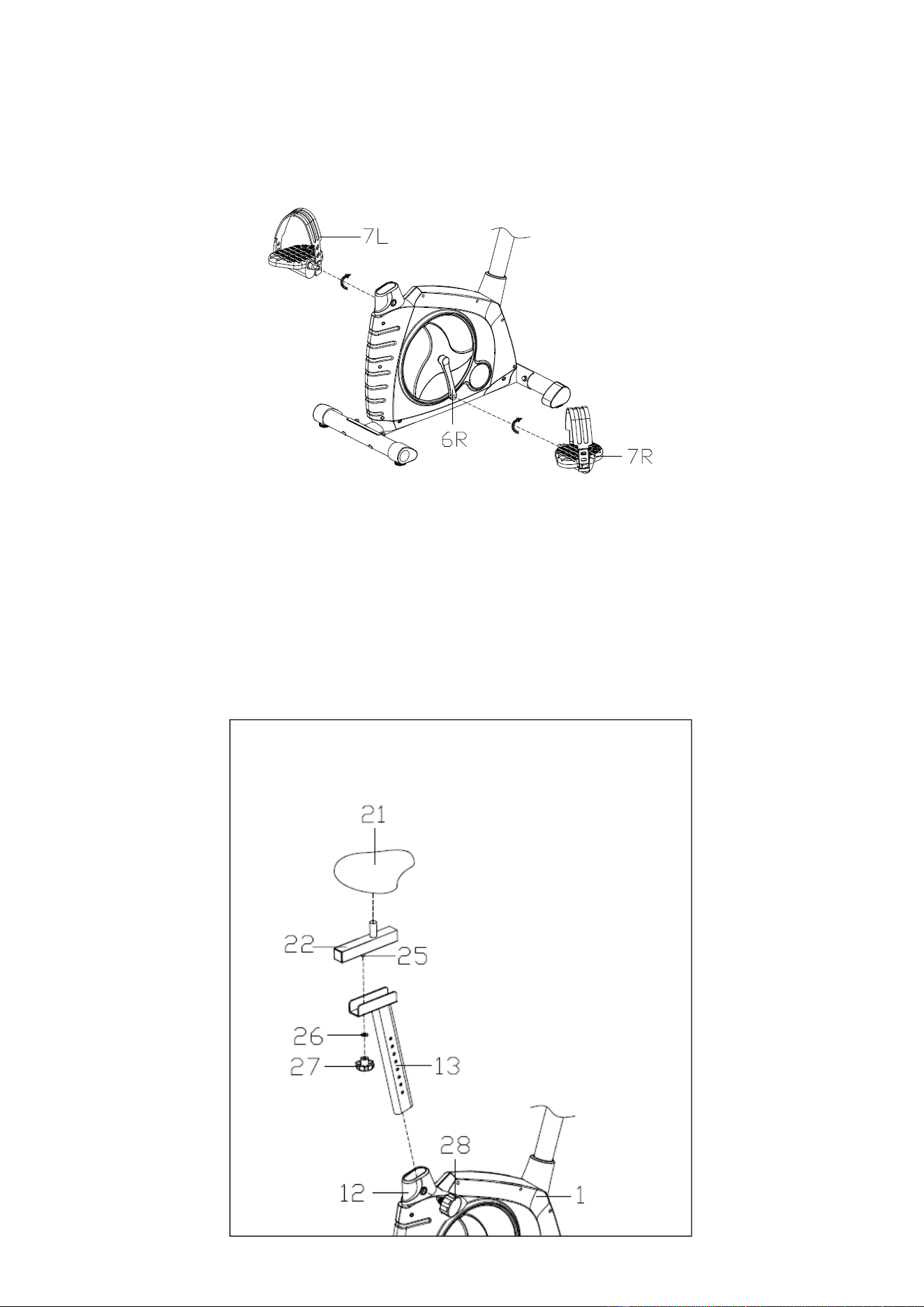

STEP 3
Attach the pedals (7L/R) to the Crank (6L/R) respectively, The right Pedal (7R) should be
threaded clockwise. The left Pedal (7L) should be threaded counterclockwise.
Always make sure the pedals are securely tightened before any exercise.
Note: The right and left Pedals (9L/R) are marked “R” for right & “L” for left.
STEP 4
1.Insert the vertical saddle post(13) in the tube of main frame (1) at a proper height，and
fix it with pop-pin knob(28).
2.Attach the Horizontal Saddle Post(22) to the Vertical Saddle Post(13),then fix it with
U-shaped slider(25),flat washer (26) and knob(27).
3.Attach the saddle(21) to the tube of the Horizontal Saddle Post(22) with cross wrench
Note: Make sure the saddle is locked on the Horizontal Saddle Post when exercising.
7

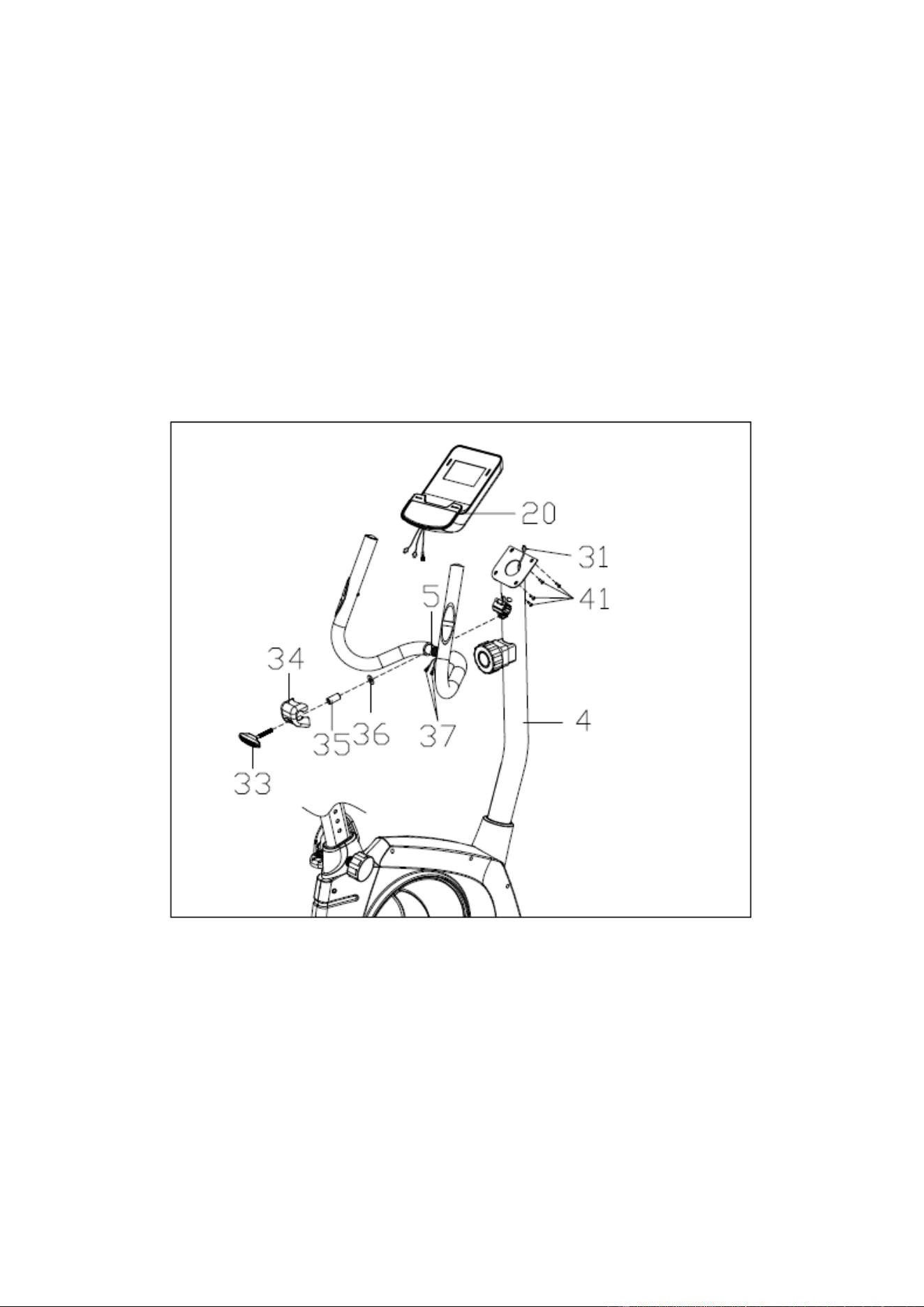

STEP 5
1.Feed the pulse wire (37) out of the handlebar post (4) through the top of the computer
bracket.
2.Attach the handlebar (5) to the handlebar post (4) with the T-shape bolt (33), spacer(35),
flat washer (36) and Handlebar Chuck Cover (34).
3.Connect the pulse wire (37) and extension wire (31) with the wire come from the
computer (20).
4.Fix the computer (20) onto the computer bracket on the top of the handlebar post (4)
with the cross screw (41).
Note: The tilt Angle of the handle (5) can be adjusted by properly loosening the T-shape
bolt (33) .
8
EXERCISE MONITOR INSTRUCTION MANUAL
SPECIFICATIONS:
TIME……………………………………………………………………………00:00-99:59
SPEED(SPD)..………………………………………………0.0-99.9KM/H (ML/H)
DISTANCE…………………………………………………………0.00-9999KM (ML)
CALORIES…………………………………………………………………0.0-9999KCAL
※ ODOMETER(ODO)…………………………………………0.0(0)-9999KM (ML)
※ RPM…………………………………………………………………………………0-9999
※ PULSE (PUL) ………………………………………………………0，40~240BPM
KEY FUNCTIONS:
MODE: This key lets you to select and lock on to a particular function you want.
※SET:Can to proceed the data establish for TIME、DISTANCE、CALORIES、PULSE.
CLEAR(RESET):The key to reset the value to zero by pressing the key.
※ON/OFF(START/STOP):The key to pause the signal input by pressing the key.
Remark ：With ※ is an optional feature.
OPERATION PROCEDURES:
1. AUTO ON/OFF：
The system turns on when any key is pressed or when it sensor an input from the speed
sensor.
The system turns off automatically when the speed has no signal input or no key are
pressed for approximately 4 minutes.
2. RESET：The unit can be reset by either changing battery or pressing the MODE key for
3 seconds.
3. MODE：To choose the SCAN or LOCK if you do not want the scan mode, press the MODE
key when the pointer on the function you want which begins blinking.
FUNCTIONS:
1. TIME: Press the MODE key until pointer lock on to TIME. The total working time will
be shown when starting exercise.
2.SPEED:Press the MODE key until the pointer advance to SPEED. The current speed will
be shown.
3.DISTANCE:Press the MODE key until the pointer advance to DISTANCE. The distance of
each workout will be displayed.
4.CALORIE: Press the MODE key until pointer lock on to CALORIE. The calorie burned
will be displayed when starting exercise.
5.ODOMETER(IF HAVE): Press the MODE key until the pointer advance to ODOMETER.
The total accumulated distance will be shown.
6.RPM(IF HAVE):Measure the average number of times.
7.PULSE(IF HAVE): Press the MODE key until the pointer advance to PULSE .User’s
current heart rate will be displayed in beats per minute. Place the palms of your
hands on both of the contact pads(or put ear-clip to ear),and wait for 30 seconds for
the most accurate reading.
SCAN: Automatically display changes every 4 seconds.
BATTERY:If improper display on monitor, please reinstall the batteries to have a good
result.
9
WARM-UP and COOL-DOWN
A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do
the entire program at least two and preferably three times a week, resting for a day between
workouts. After several months, you can increase your workouts to four or five times per week.
WARM-UP
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to five minutes before strength-training or aerobic exercising. Perform
activities that raise your heart rate and warm the working muscles. Activities may include brisk
walking, jogging, jumping jacks, jump rope, and running in place.
STRETCHING
Stretching while your muscles are warm after a proper warm-up and again after your strength
or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches
should be held for 15 to 30 seconds. DO NOT BOUNCE.
Remember always to check with your physician before starting any exercise program.
COOL-DOWN
The purpose of cooling down is to return the body to its normal or near normal, resting state at
the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart.
Calf-Achilles Stretch
Inner Thigh Stretch
Toe Touch
Side Stretch
Hamstring Stretch
10
WaterRower
104 Yale Drive Epping VIC 3076, AUSTRALIA
Ph: 02 98981405
email: [email protected]
For registration or service enquiries please visit our website:
www.puredesignfitness.com.au
