UNIMAC TOLNLGUMCB4A CB400 32-64mm 34-Deg 15ga Finishing User Manual

User Manual

[Revision 2.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

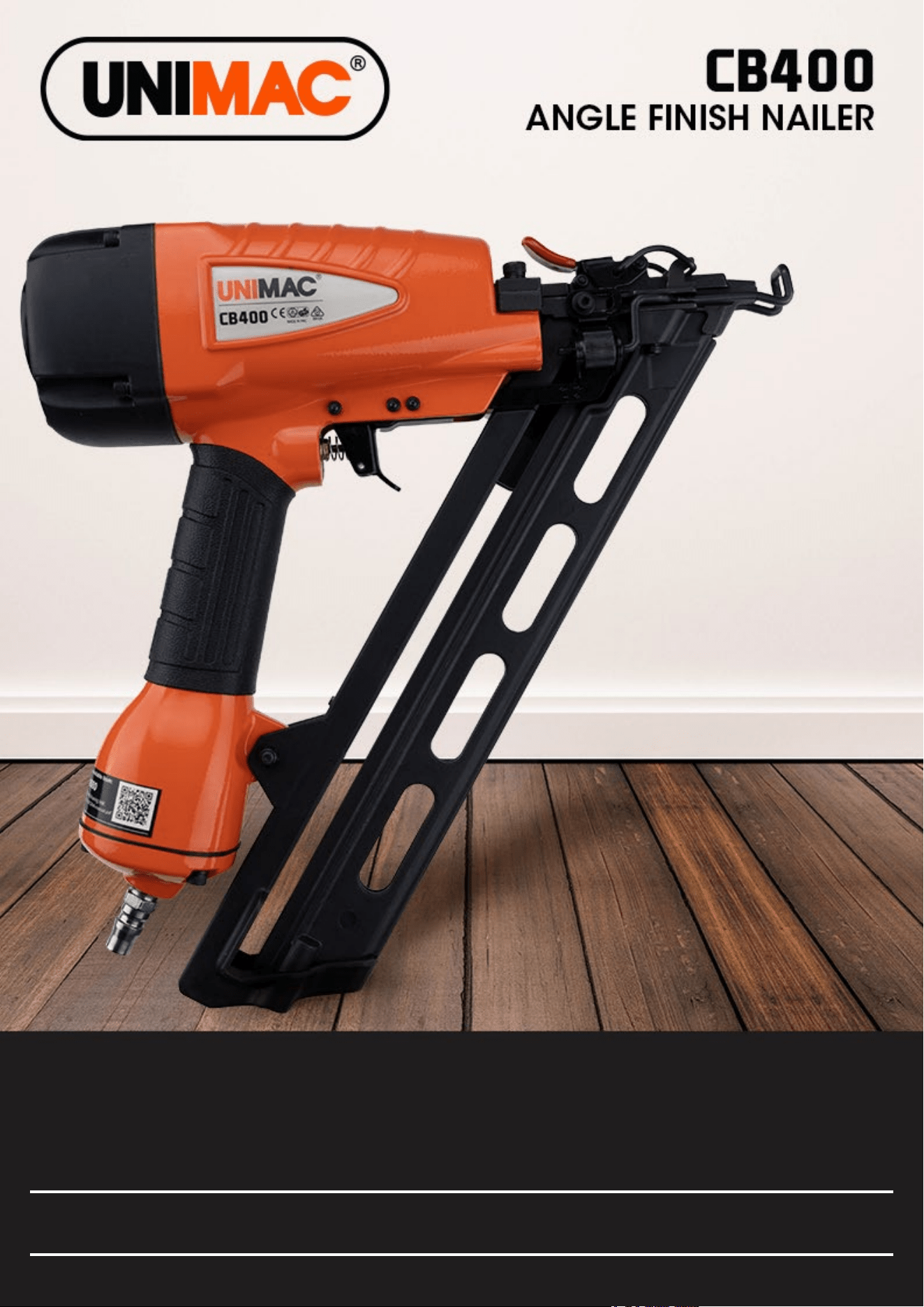

CB400 Angle Finish Nailer

E&OE © Unimac 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well-ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•

Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

•

Keep packaging away from children and

pets, potential risk of suffocation or

choking.

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

CB400 Angle Finish Nailer

E&OE © Unimac 3

General Electrical Safety

•

Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•

Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•

The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Nailer Safety

• E

NSURE THAT NO PART OF ANY HUMAN, ANIMAL OR CLOTHING IS PLACED IN/NEAR THE AREA WHERE NAILS ARE FIRED OUT OF

THE GUN, REGARDLESS OF WHETHER YOU THINK THE GUN IS EMPTY OR LOADED WITH NAILS.

• KEEP CHILDREN AWAY. All children should be kept away from the work area. Don’t let them handle the tool.

• USE SAFETY GLASS AND EAR PROTECTION: Air tool operators and others in work area should always wear safety glass to prevent the injury

from fasteners and flying debris when loading and unloading this tool. Maybe the noise would harm your hearing, wear the ear protection to

safeguard. (See fig 1.)

• NEVER USE OXYGEN, COMBUSTIBLE OR ANY OTHER BOTTLE GAS as a power source or would cause explosion and serious personal

injury. (See fig 2.)

• DO NOT CONNECT TOOL TO COMPRESSED AIR which pressure exceeds 120psi.

• DO NOT PLACE OVER-LONG AIR HOSE in working area in case of the operator’s unexpected tripping. Make sure all connections are tight.

• CARRING TOOL ONLY BY THE HANDLE do not keep the trigger pull on safety yoke mechanism to avoid unintentional firing of fastener.

• KEEP THE TOOL POINTED AWAY FROM YOURSELF and others at all times and keep hands, any body parts away rear area to Safety guard

against possible injury.

• DISCONNECT TOOL FROM AIR SUPPLY BEFORE LOADING fasteners to prevent a fastener from being fired during connection. (See fig3.)

• DO NOT KEEP THE TRIGGER OR SAFETY DEPRESSED during loading fasteners or the unintentional firing of a fastener would cause

personal injury.

• DISCONNECT TOOL FROM AIR SUPPLY HOSE and close the compressor before performing maintenance, alter the accessories or during

non-operation.

• DO NOT DRIVE FASTENER ON SCAFFOLDINGS, LADDERS and on such similarly construction, not working on airtight case, and vehicles.

• DO NOT DRIVE FASTENERS CLOSE TO THE EDGE OF THE WORK PIECE. The workpiece would split allowing fastener to fly free or ricochet

causing personal injury.

• DO NOT DRIVE FASTENER ON TOP OF NAILED FASTENER, or the fastener can ricochet causing personal injury.

• NEVER USE A TOOL that is leaking air, had missing or damaged parts or requires repair and make sure all the screws and securely tightened.

• MAKE DAILY INSPECTION FOR FREE MOVEMENT of trigger, safety mechanism and spring to ensure the tool can operate well.

• ONLY USE PARTS AND ACCESSORIES recommend by manufacturer.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

CB400 Angle Finish Nailer

E&OE © Unimac 4

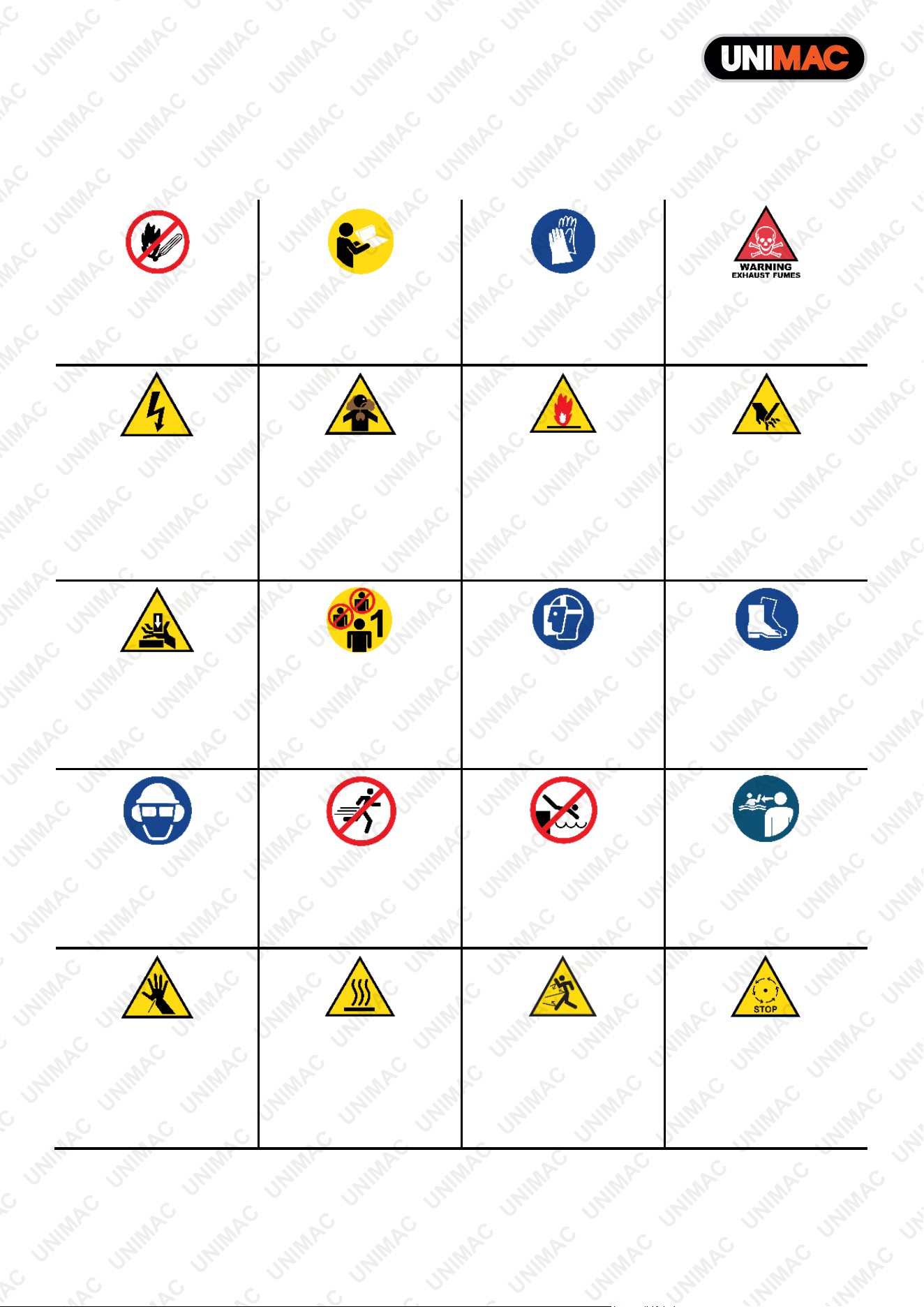

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

CB400 Angle Finish Nailer

E&OE © Unimac 5

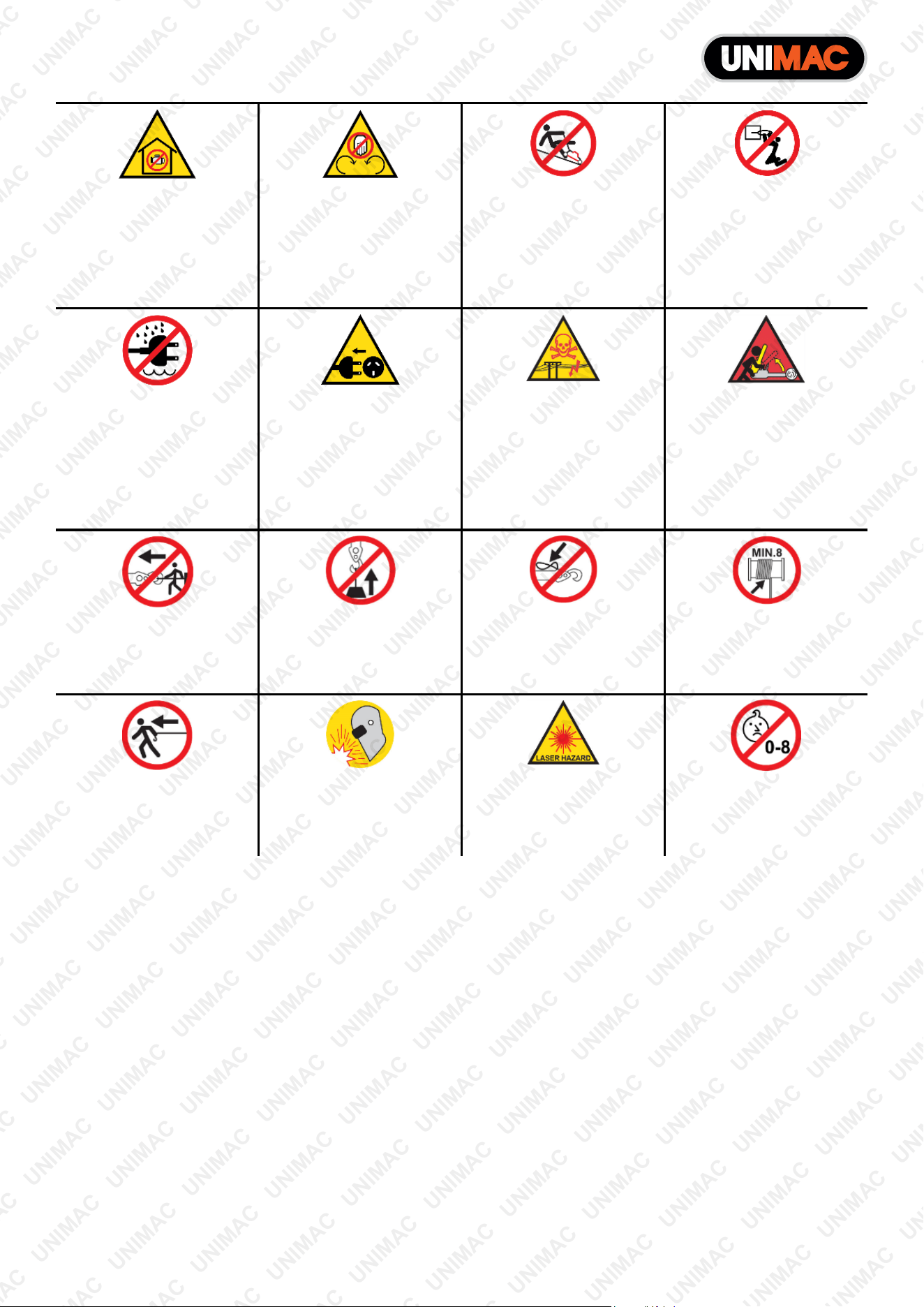

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

CB400 Angle Finish Nailer

E&OE © Unimac 6

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 4

Operation ....................................................................................................................................................... 7

Description .................................................................................................................................................................. 7

Air supply .................................................................................................................................................................... 7

Loading Fastener and Operation ................................................................................................................................ 7

Maintenance .................................................................................................................................................. 8

Troubleshooting ........................................................................................................................................... 9

Specifications ............................................................................................................................................. 10

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

CB400 Angle Finish Nailer

E&OE © Unimac 7

Operation

Description

This angle finish nailer drives Ga. 15 finish nails. Large cast aluminium body provide more power to easily drive

nails in to hard wood. The well balance design can make you work efficient. The angle magazine can make you

shoot any corners. Features 360-degree exhaust port can be adjusted to any direction. And quick release nose

cover to easily clear jams. Angle finish nailer is ideal for door and window trims, exterior trims, and cabinet work,

finish panelling, decorative trims and etc.

Air supply

•

Use clean, Dry and Regulated compressed air.

•

Never exceed maximum and minimum pressure. Too low or too high pressure would cause noise, fast-worn

or misfiring.

•

When connecting air supply always keep hands and body from discharge area of tool.

•

A filter-regulator-lubrication is required and should be located as close to tool as possible.

•

Keep air filter clean. A dirty filter will reduce the air pressure to the tool causing a reduction in power and

efficiency.

•

For better performance, install a quick connector in your tool and quick coupler on the hose if possible.

•

Be sure all connections in air supply system are sealed to prevent air loss.

Loading Fastener and Operation

Always disconnect the tool from the compressed air before loading. When loading the tool always point the tool

away from yourself and others. Make sure that you are not holding the tool with trigger depressed while loading

the tool.

1. Insert a strip of fasteners into magazine keeping it point down.

2. Release the latch and pusher, slid the pusher against the nails.

3. Connect the tool to the air supply. Make sure the air pressure is in the correct range denoted in the

Technical Data.

4. Then test the driving depth in a sample piece of wood before using. If the fasteners are being driven too far

or not far enough, adjust the regulator to provide less air pressure or more air pressure.

5. Never operate tool unless safety nose is contact with workpiece. Do not operate tool without fasteners or

damage to tool may result.

6. Never fire fasteners into air because fasteners may injury operator or others and damage to tool may result.

7. The air tool is equipped with safety stand mechanism that disable tool unless safety stand is pushed against

work. Hold gun body firmly and press safety stand on workpiece where fastener is to be applied. Pull the

trigger to drive fastener into workpiece.

8. This operating procedure provides rapid-fire fastener driving. Never operate tool unless safety stand is in

contact with workpiece.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

CB400 Angle Finish Nailer

Maintenance

Disconnect the tool from the air compressor before adjusting, clearing jams, servicing, relocating and during

non-operation.

•

Regular lubrication, if your tool without using the in-liner automatic oilier, place 2 or 6 drops of pneumatic tool

oil into the air inlet before each work day or after 2 hours of continuous use depending on the characteristic

of workpiece or type of fasteners.

•

Check and change all worn or damaged O-rings, seals, etc. Tight all the screws and caps in case personal

injury.

•

Inspect trigger and safety mechanism to assure safe system is complete and functional: no loose and

missing parts, no building or sticking parts.

•

Keep magazine and nose of tool clean and free of any dirt lint or abrasive particles.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

CB400 Angle Finish Nailer

Troubleshooting

•

The following form lists the common operating system with problem and solutions. Please read the form

carefully and follow it.

•

If any of the following symptoms appears during your operating, stop using the tool immediately, or serious

personal injury could result. Only qualified persons or an authorised service centre can perform repairs or

replacement of tool.

•

Disconnect tool from air supply before attempting repair or adjustment. When replacing O-rings or Cylinder,

lubricate with air tool oil before assembly.

SYMPTOM PROBLEM SOLUTIONS

Air leak near top of tool or in

trigger area

1. O-ring in trigger valve is damaged.

2. Trigger valve head are damage.

3. Trigger valve stem, seal or O-ring

are damaged.

1. Check and replace O-ring.

2. Check and replace.

3. Check and replace trigger valve

stem, seal, or O-ring

Air leak near bottom of tool.

1. Loose screws.

2. Worn or damaged O-rings or

bumper.

1. Tighten screws.

2. Check and replace O-rings or

bumper.

Air leak between body and

cylinder cap.

1. Loose screws.

2. Worn or damaged O-rings or

seals.

1. Tighten screw.

2. Check and replace O-rings or

bumper.

Blade driving fastener too deep.

1. Worn bumper.

2. Air pressure is too high.

1. Replace bumper.

2. Adjust the air pressure.

Tool does not operate well:

cannot drive fastener or operate

sluggishly.

1. Inadequate air supply.

2. Inadequate lubrication.

3. Worn or damaged O-rings or

seals.

4. Exhaust port in cylinder head is

blocked.

1. Verify adequate air supply.

2. Place 2 or 6 drops of oil into air

inlet.

3. Check and replace O-rings or

seal.

4. Replace damaged internal parts.

Tool skips fasteners.

1. Worn bumper or damaged spring.

2. Dirt in front plate.

3. Dirt or damage prevents fasteners

from moving freely in magazine.

4. Worn or dry O-ring on piston or

lack of lubrication.

5. Cylinder cover seal leaking.

1. Replace bumper or pusher spring.

2. Clean drive channel on front plate.

3. Magazine needs to be cleaned.

4. O-ring need to be replaced and/or

lubricate.

5. Replace Sealing washer.

Tool jams.

1. Incorrect or damaged fasteners.

2. Damaged or worn driver guide.

3. Magazine or nose screw loose.

4. Magazine is dirty.

1. Change and use correct fastener.

2. Check and replace the driver.

3. Tighten the magazine.

4. Clean the magazine.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

CB400 Angle Finish Nailer

Specifications

Type Pneumatic Finishing Nail Gun

Colour Orange

Required Pressure 80-110PSi (5.5-7.5bar)

Maximum Pressure 120PSI (8.3bar)

Air Inlet 1/4" NPT

Nail Capacity 100pcs

Nail Size 32mm-64mm

Nail Type Finishing

Gauge 15

Firing Speed 60-90 nails per min

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.
