545, 550XP, 550XP
TrioBrake, 550XPG,
550XPG TrioBrake
Operator
′
s manual
Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.
KEY TO SYMBOLS
2 – English

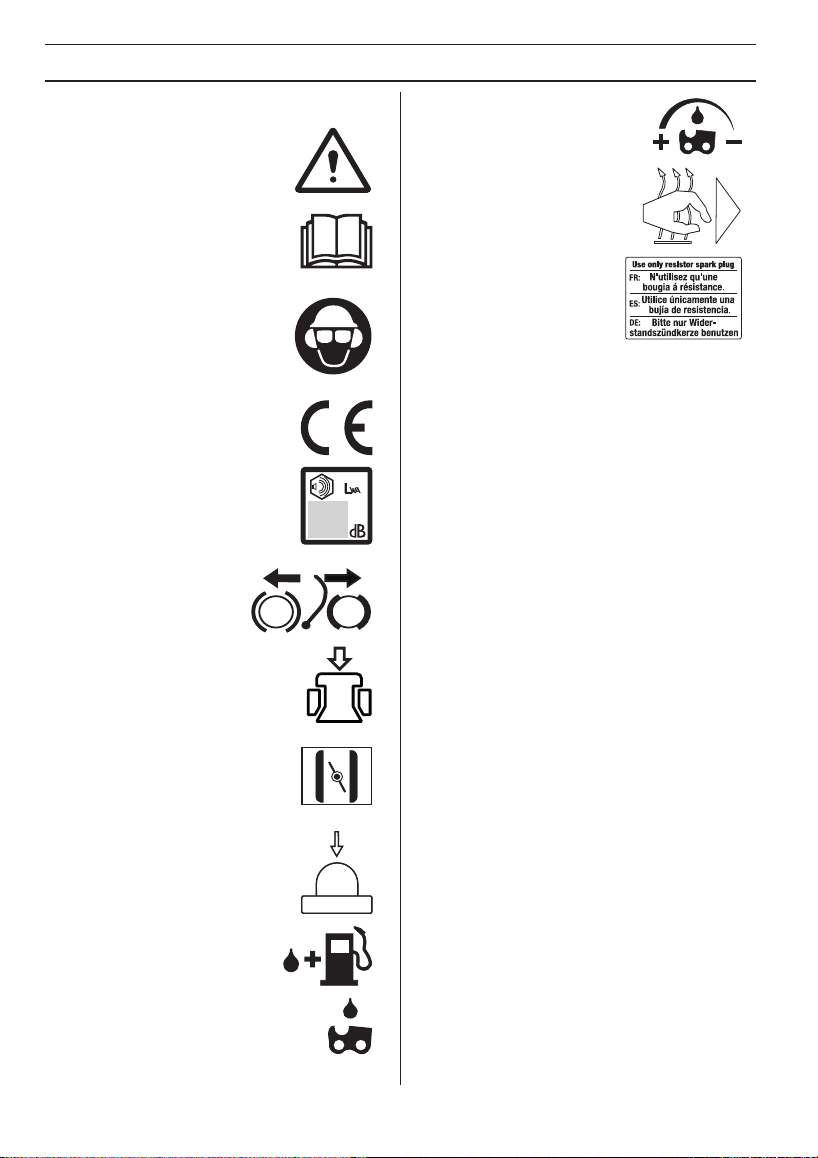

Symbols on the machine:
WARNING! Chain saws can be
dangerous! Careless or incorrect use
can result in serious or fatal injury to
the operator or others.
Please read the operator’s manual
carefully and make sure you understand
the instructions before using the
machine.
Always wear:
• Approved protective helmet
• Approved hearing protection
• Protective goggles or a visor
This product is in accordance with
applicable EC directives.
Noise emission to the environment
according to the European Community’s
Directive. The machine’s emission is
specified in the Technical data chapter
and on the label.
Chain brake, activated (right)
Chain brake, not activated (left)
Decompression valve:
The valve is to
reduce the pressure in the cylinder and
make starting easier. You should always
use the decompression valve when
starting the machine.
Ignition; choke:
Set the choke control
in the choke position. This should
automatically set the stop switch to the
start position.
Air purge
Refuelling.
Chain oil fill.
Adjustment of the oil pump
If your machine bears this symbol it
is equipped with heated handles.
Always use the recommended
spark plug type! Use of the
wrong spark plug can damage
the piston/cylinder. Check that
the spark plug is fitted with a
suppressor.
Other symbols/decals on the machine refer to special
certification requirements for certain markets.
KEY TO SYMBOLS
English
–
3
Symbols in the operator’s
manual:
Switch off the engine by moving the
stop switch to the STOP position
before carrying out any checks or
maintenance. CAUTION! The start/
stop switch automatically returns to
run position. In order to prevent
unintentional starting, the spark plug
cap must be removed from the spark
plug when assembling, checking
and/or performing maintenance.
Always wear approved protective
gloves.
Regular cleaning is required.
Visual check.
Protective goggles or a visor must be
worn.
Refuelling.
Filling with oil and adjusting oil flow.
The chain brake must be engaged when
the chain saw is started.

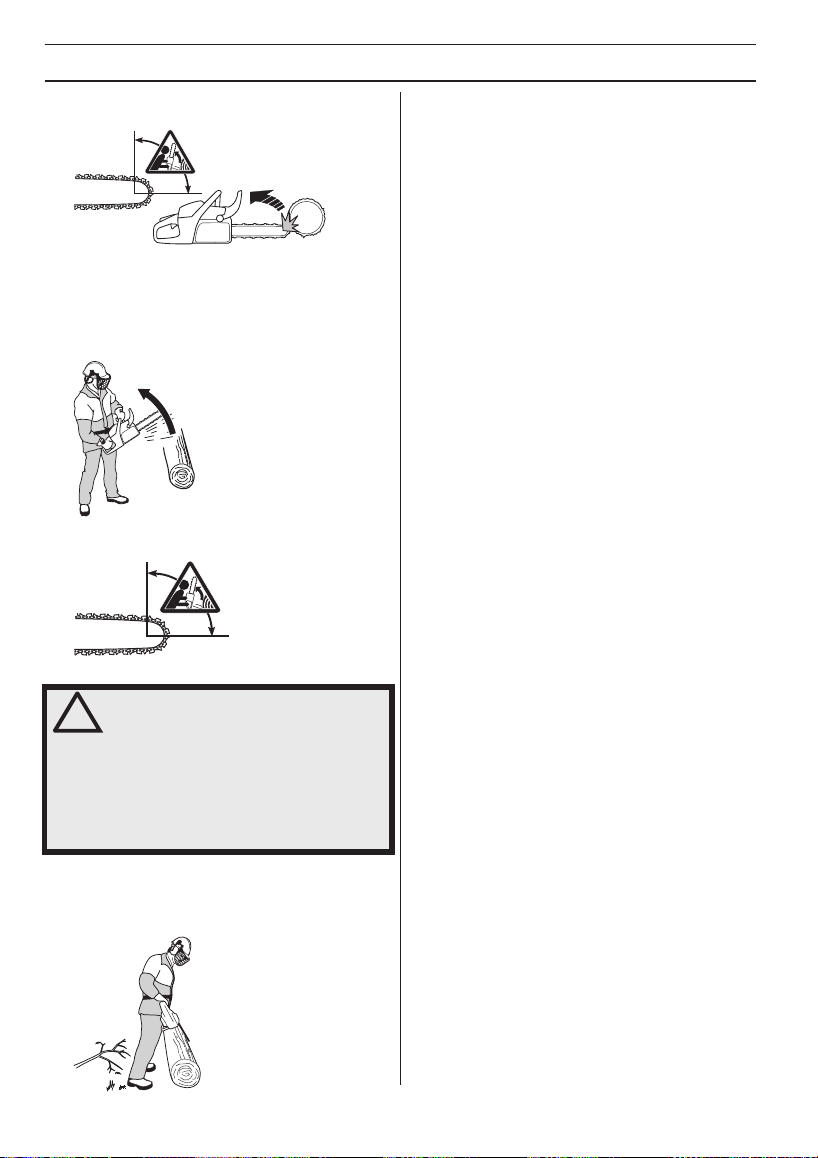

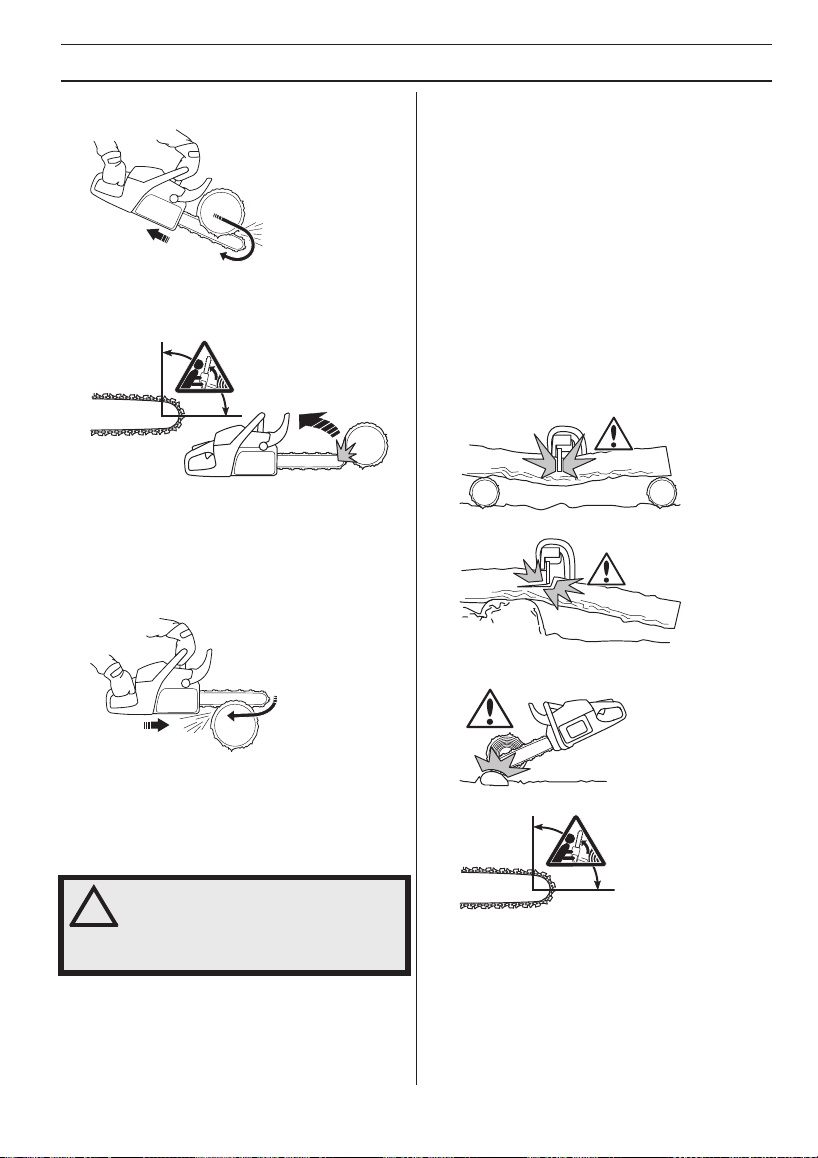

WARNING! Kickback may occur when
the nose or tip of the guide bar touches
an object, and cause a lightning fast
reverse reaction, kicking the guide bar
up and towards the operator. May cause
serious personal injury.
CONTENTS
4 – English
Contents
KEY TO SYMBOLS
Symbols on the machine: ...................................... 2
Symbols in the operator’s manual: ........................ 3
CONTENTS
Contents ............................................................... 4
INTRODUCTION
Dear Customer, ..................................................... 5
WHAT IS WHAT?
What is what on the chain saw? ........................... 6
GENERAL SAFETY PRECAUTIONS
Before using a new chain saw .............................. 7
Important .............................................................. 8
Always use common sense .................................. 8
Personal protective equipment ............................. 8
Machine
′
s safety equipment ................................. 9
Cutting equipment ................................................. 12
ASSEMBLY

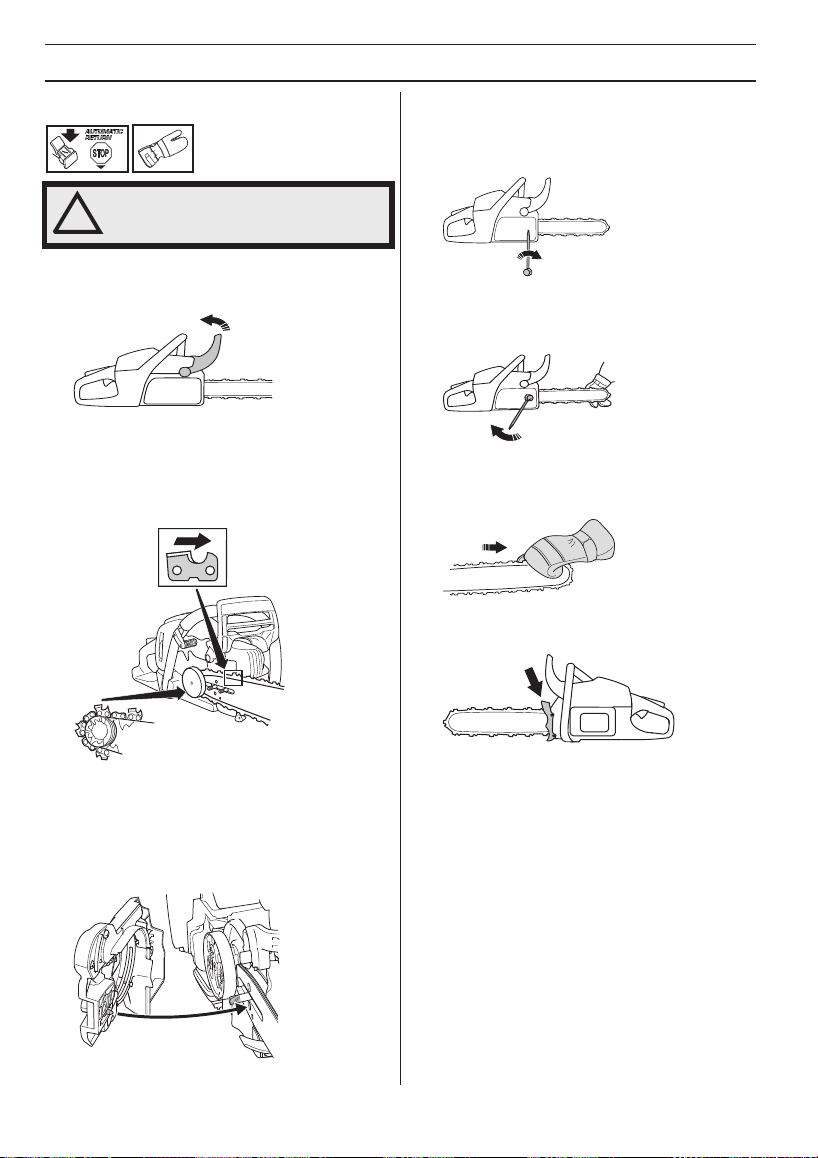

Fitting the bar and chain ....................................... 18
FUEL HANDLING
Fuel ....................................................................... 19
Fueling .................................................................. 20
Fuel safety ............................................................ 20
STARTING AND STOPPING
Starting and stopping ............................................ 21
WORKING TECHNIQUES
Before use: ............................................................ 23
General working instructions ................................ 23
How to avoid kickback ........................................... 29
MAINTENANCE
General ................................................................. 31
Carburettor adjustment ......................................... 31
Checking, maintaining and servicing chain saw
safety equipment .................................................. 31
Muffler ................................................................... 33
Starter housing ..................................................... 34
Air filter .................................................................. 35
Spark plug ............................................................. 35
Needle bearing lubrication .................................... 36
Adjustment of the oil pump ................................... 36
Cooling system ..................................................... 36
”Air Injection” centrifugal cleaning ......................... 37
Winter use ............................................................. 37
Heated handles ..................................................... 37
Maintenance schedule .......................................... 38
TECHNICAL DATA
Technical data ....................................................... 39
Recommended cutting equipment ........................ 41

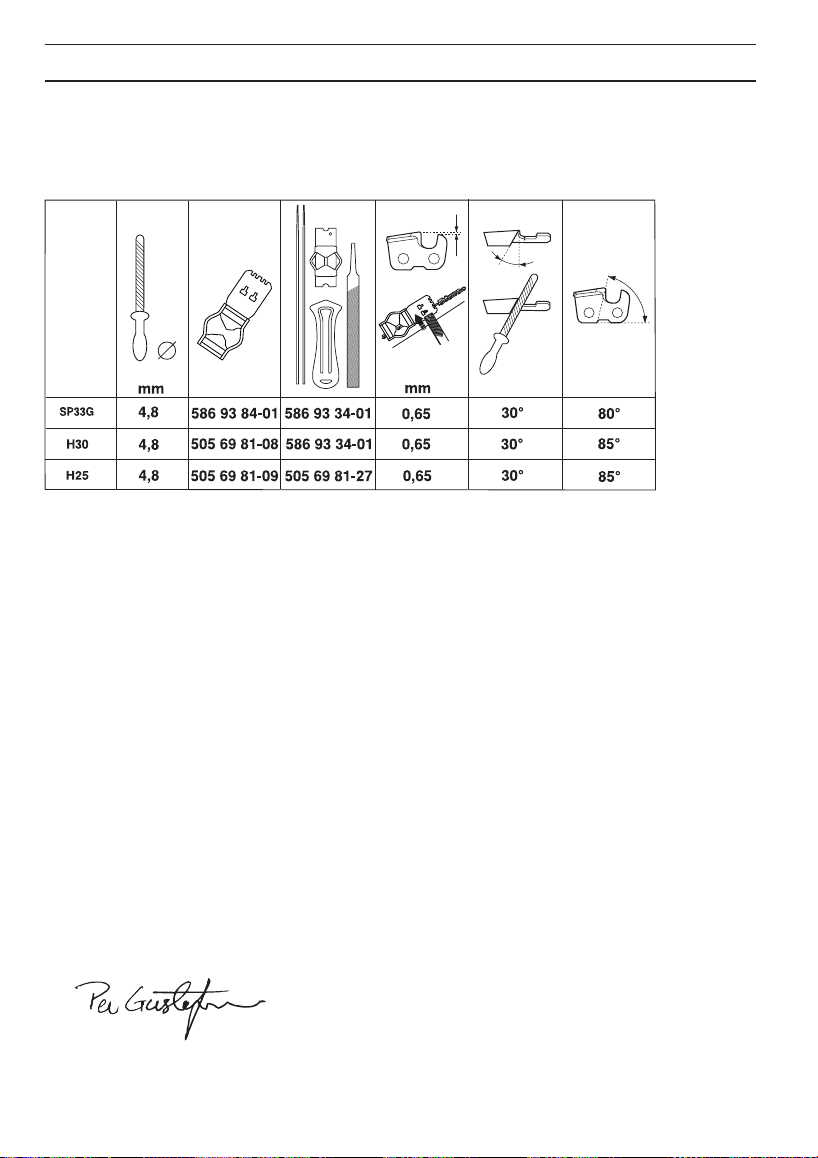

Filing equipment and filing angles ........................ 42
EC Declaration of Conformity ............................... 42
English – 5
INTRODUCTION
Dear Customer,
Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689,
when the Swedish King Karl XI ordered the construction of a factory on the banks of the Husqvarna River, for production
of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-
powered plant. During the more than 300 years in existence, the Husqvarna factory has produced a lot of different
products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first
motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working
today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our
highest priority. The business concept is to develop, manufacture and market motor-driven products for forestry and
gardening, as well as for the building and construction industry. Husqvarna
′
s aim is also to be at the front edge for
ergonomics, usability, security and environmental protection. That is the reason why we have developed many different
features to add to our products within these areas.
We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very
long time to come. The purchase of one of our products gives you access to professional help with repairs and service
whenever this may be necessary. If the retailer who sells your machine is not one of our authorized dealers, ask for the
address of your nearest service workshop.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this
operator
′
s manual as a valuable document. By following its content (usage, service, maintenance, etc), the life span and
the second-hand value of the machine can be extended. If you sell this machine, make sure that the operator
′
s manual
is passed on to the buyer.
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.
6 – English
WHAT IS WHAT?

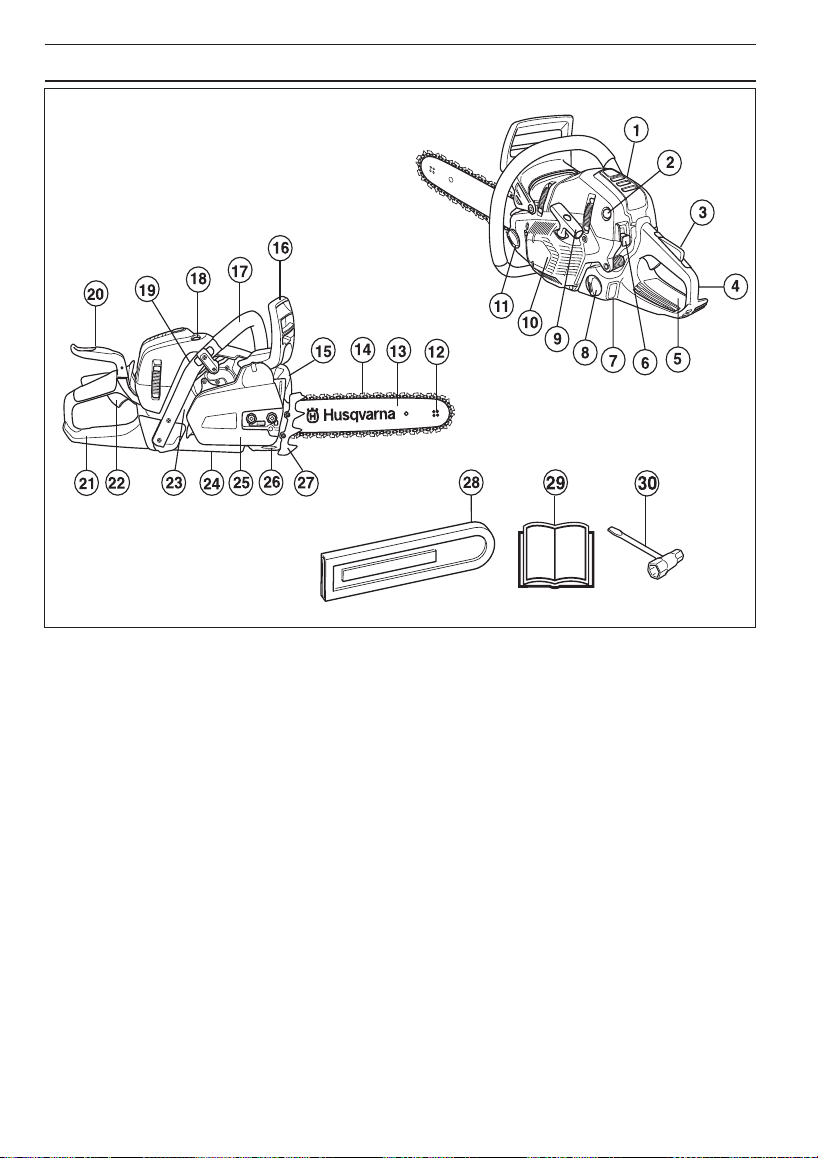

What is what on the chain saw?
1 Cylinder cover
2 Air purge
3 Throttle trigger lockout
4 Rear handle
5 Information and warning decal
6 Combined start and stop switch
7 Fuel level window
8 Fuel tank
9 Starter handle
10 Starter housing
11 Chain oil tank
12 Bar tip sprocket
13 Guide bar
14 Saw chain
15 Muffler
16 Chain brake and front hand guard
17 Front handle
18 Decompression valve
19 Switch for heated handle (550XPG, 550XPG
TrioBrake)
20 Right-hand brake trigger (550XP TrioBrake, 550XPG
TrioBrake)
21 Right hand guard
22 Throttle trigger
23 Product and serial number plate
24 Oil pump adjustment screw
25 Clutch cover
26 Chain catcher
27 Spiked bumper
28 Guide-bar cover
29 Operator
′
s manual
30 Combination spanner
GENERAL SAFETY PRECAUTIONS
English
–
7
Before using a new chain saw
• Please read this manual carefully.
• Check that the cutting equipment is correctly fitted
and adjusted. See instructions under the heading
Assembly.
• Refuel and start the chain saw. See the instructions
under the headings Fuel Handling and Starting and
Stopping.
• Do not use the chain saw until sufficient chain oil has
reached the chain. See instructions under the
heading Lubricating cutting equipment.
• Long-term exposure to noise can result in permanent
hearing impairment. So always use approved hearing
protection.
!
WARNING! Tampering with the engine
voids the EU type-approval of this
product.
!
WARNING! Under no circumstances may
the design of the machine be modified
without the permission of the
manufacturer. Always use original
accessories. Non-authorized
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
!
WARNING! A chain saw is a dangerous
tool if used carelessly or incorrectly and
can cause serious, even fatal injuries. It
is very important that you read and
understand the contents of this
operator’s manual.
!
WARNING! The inside of the muffler
contain chemicals that may be
carcinogenic. Avoid contact with these
elements in the event of a damaged
muffler.
!
WARNING! Long term inhalation of the
engine’s exhaust fumes, chain oil mist
and dust from sawdust can represent a
health risk.
!
WARNING! This machine produces an
electromagnetic field during operation.
This field may under some
circumstances interfere with active or
passive medical implants. To reduce the
risk of serious or fatal injury, we
recommend persons with medical
implants to consult their physician and
the medical implant manufacturer before
operating this machine.
!
WARNING! Never allow children to use or
be in the vicinity of the machine. As the
machine is equipped with a spring-
loaded stop switch and can be started by
low speed and force on the starter
handle, even small children under some
circumstances can produce the force
necessary to start the machine. This can
mean a risk of serious personal injury.
Therefore remove the spark plug cap
when the machine is not under close
supervision.
GENERAL SAFETY PRECAUTIONS
8 – English
Important
Always use common sense
It is not possible to cover every conceivable situation you
can face when using a chain saw. Always exercise care
and use your common sense. Avoid all situations which
you consider to be beyond your capability. If you still feel
uncertain about operating procedures after reading these
instructions, you should consult an expert before
continuing. Do not hesitate to contact your dealer or us if
you have any questions about the use of the chain saw.
We will willingly be of service and provide you with advice
as well as help you to use your chain saw both efficiently
and safely. Attend a training course in chain saw usage if
possible. Your dealer, forestry school or your library can
provide information about which training materials and
courses are available.
Work is constantly in progress to improve the design and
technology - improvements that increase your safety and
efficiency. Visit your dealer regularly to see whether you
can benefit from new features that have been introduced.

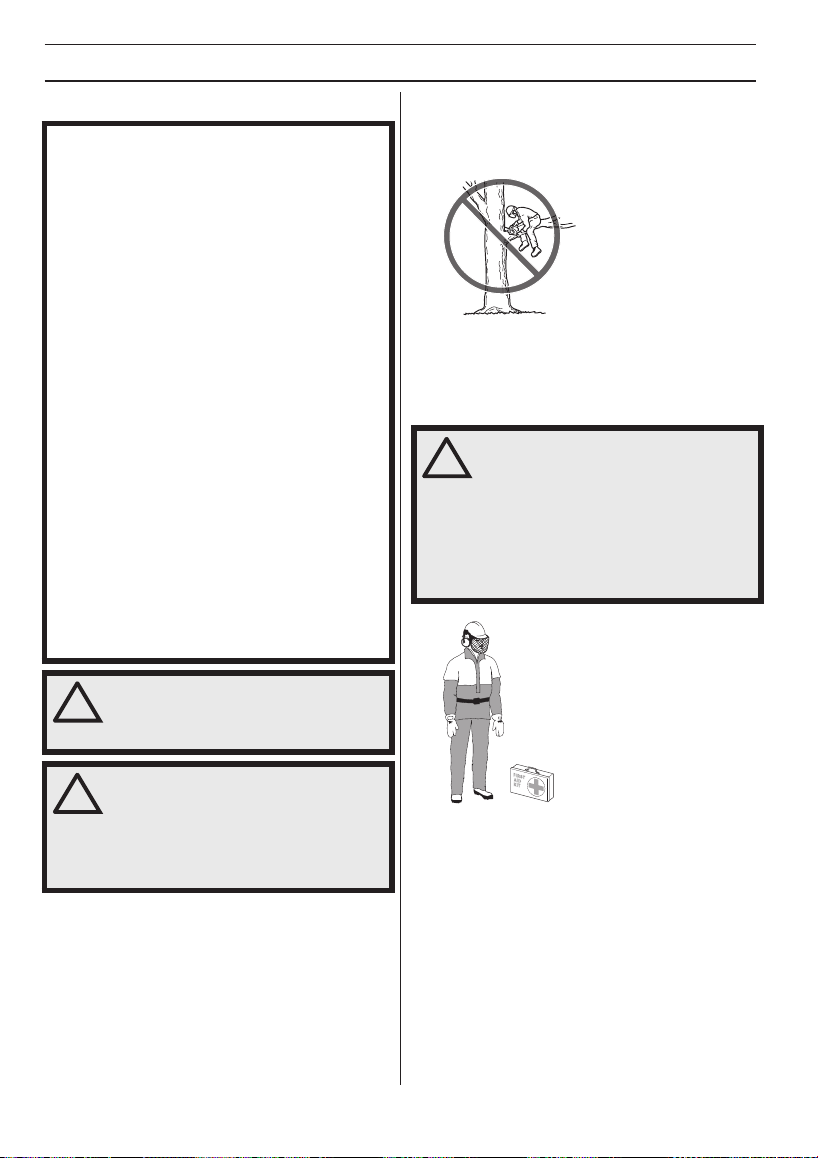

Personal protective equipment
Always wear:
• Approved protective helmet
• Hearing protection
• Protective goggles or a visor
• Gloves with saw protection
• Trousers with saw protection
• Boots with saw protection, steel toe-cap and non-slip
sole
• Always have a first aid kit nearby.
IMPORTANT!
This chain saw for forest service is designed for forest
work such as felling, limbing and cutting.
National regulation can restrict the use of the machine.
You should only use the saw with the bar and chain
combinations we recommend in the chapter Technical
data.
Never use the machine if you are fatigued, while under
the influence of alcohol or drugs, medication or anything
that could affect your vision, alertness, coordination or
judgement.
Wear personal protective equipment. See instructions
under the ”Personal protective equipment” heading.
Do not modify this product or use it if it appears to have
been modified by others.
Never use a machine that is faulty. Carry out the safety
checks, maintenance and service instructions
described in this manual. Some maintenance and
service measures must be carried out by trained and
qualified specialists. See instructions under the
Maintenance heading.
Never use any accessories other than those
recommended in this manual. See instructions under
the headings Cutting equipment and Technical data.
CAUTION! Always wear protective glasses or a face
visor to reduce the risk of injury from thrown objects. A
chain saw is capable of throwing objects, such as wood
chips, small pieces of wood, etc, at great force. This can
result in serious injury, especially to the eyes.
!
WARNING! Running an engine in a
confined or badly ventilated area can
result in death due to asphyxiation or
carbon monoxide poisoning.
!
WARNING! Faulty cutting equipment or
the wrong combination of bar and saw
chain increases the risk of kickback!
Only use the bar/saw chain combinations
we recommend, and follow the filing
instructions. See instructions under the
heading Technical data.
!
WARNING! Most chain saw accidents
happen when the chain touches the
operator. You must use approved
personal protective equipment whenever
you use the machine. Personal protective
equipment cannot eliminate the risk of
injury but it will reduce the degree of
injury if an accident does happen. Ask
your dealer for help in choosing the right
equipment.
GENERAL SAFETY PRECAUTIONS
English
–
9

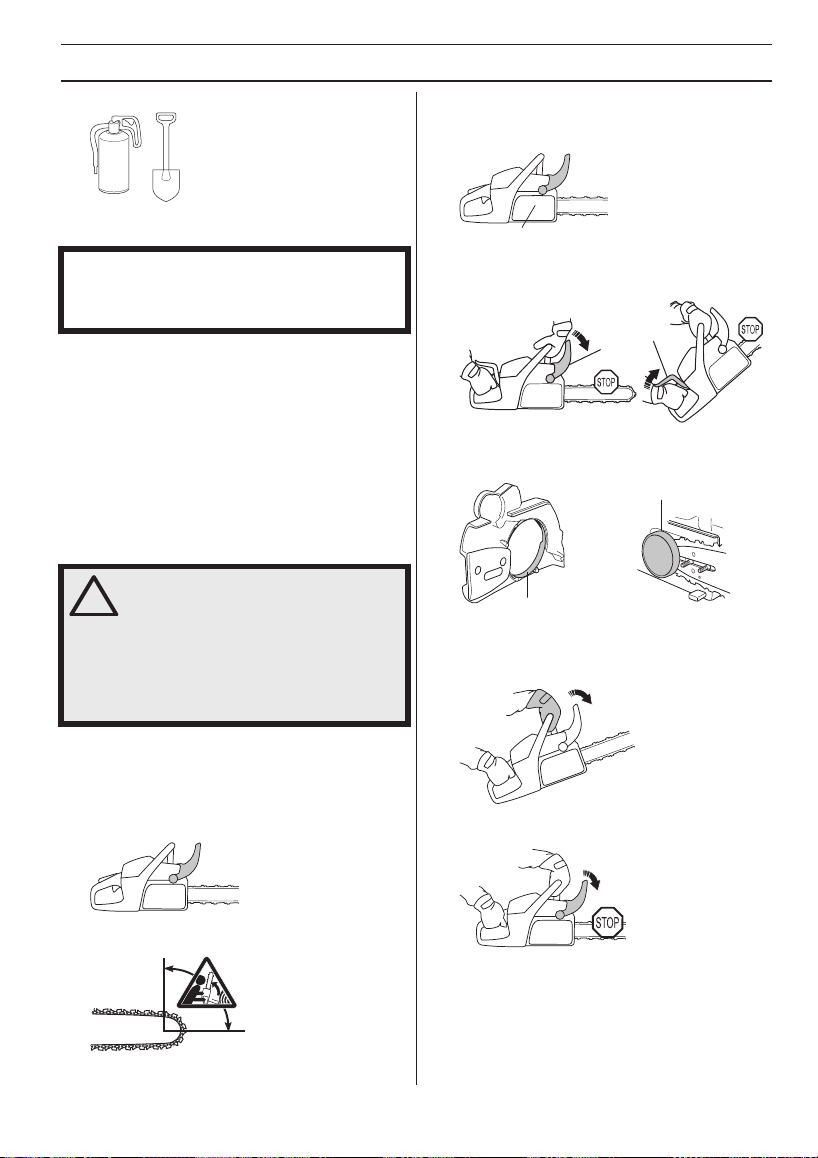

• Fire Extinguisher and Shovel
Generally clothes should be close-fitting without
restricting your freedom of movement.
Machine
′
s safety equipment
In this section the machine’s safety features and their
function are explained. For inspection and maintenance
see instructions under the heading Checking, maintaining
and servicing chain saw safety equipment. See
instructions under the heading, What is what?, to find
where these parts are located on your machine.
The life span of the machine can be reduced and the risk
of accidents can increase if machine maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact your nearest service workshop.
Chain brake and front hand guard
Your chain saw is equipped with a chain brake that is
designed to stop the chain if you get a kickback. The chain
brake reduces the risk of accidents, but only you can
prevent them.
Take care when using your saw and make sure the
kickback zone of the bar never touches any object.
• The chain brake (A) can either be activated manually
(by your left hand) or automatically by the inertia
release mechanism.
• The brake is applied when the front hand guard (B) is
pushed forwards or when the right-hand brake trigger
(E) is pushed up and forwards.
• This movement activates a spring-loaded mechanism
that tightens the brake band (C) around the engine
drive system (D) (clutch drum).
• The front hand guard is not designed solely to activate
the chain brake. Another important feature is that it
reduces the risk of your left hand hitting the chain if
you lose grip of the front handle.
• The chain brake must be engaged when the chain
saw is started to prevent the saw chain from rotating.
• Use the chain brake as a ”parking brake” when
starting and when moving over short distances, to
reduce the risk of moving chain accidentally hitting
your leg or anyone or anything close by.
IMPORTANT! Sparks can come from the muffler, the bar
and chain or other sources. Always have fire
extinguishing tools available if you should need them.
Help prevent forest fires.
!
WARNING! Never use a machine with
defective safety components. Safety
equipment must be inspected and
maintained. See instructions under the
heading Checking, maintaining and
servicing chain saw safety equipment. If
your machine does not pass all the
checks, take the saw to a servicing
dealer for repair.
A
B
E
C
D
GENERAL SAFETY PRECAUTIONS
10 – English

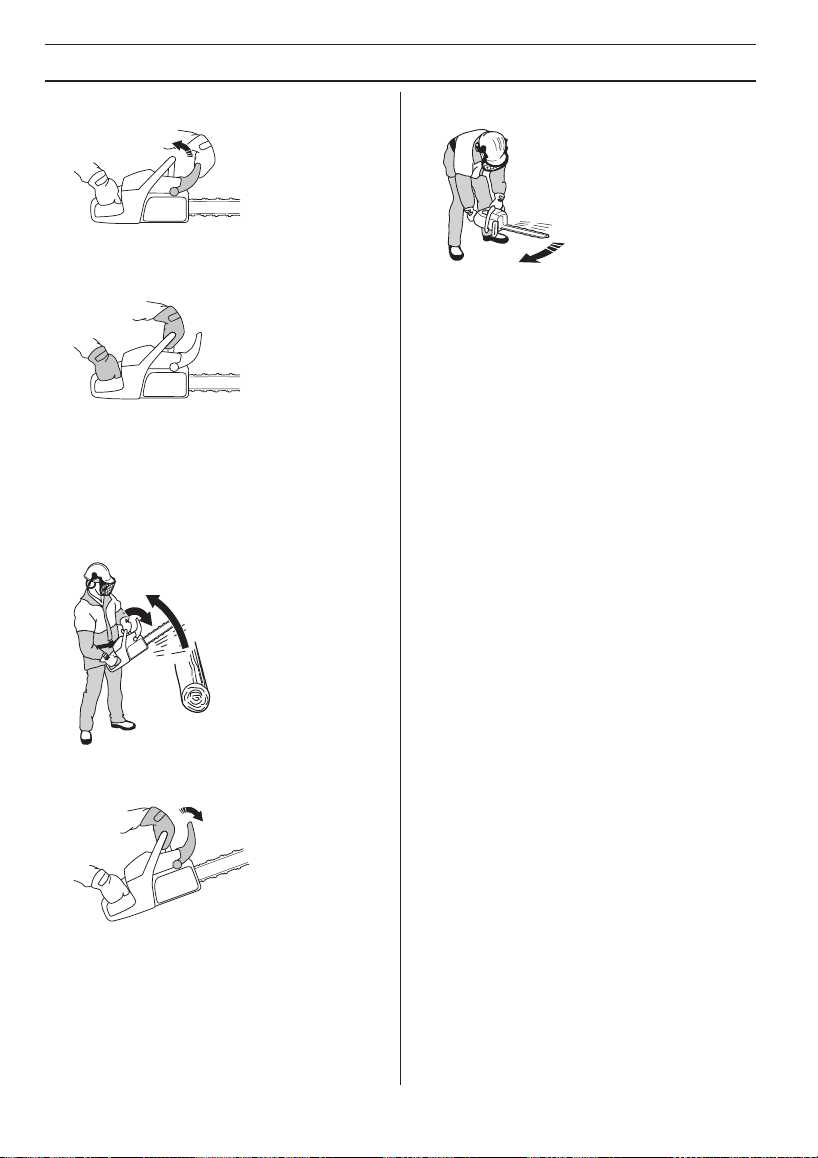

• To release the chain brake pull the front hand guard
backwards, towards the front handle.
• Kickback can be very sudden and violent. Most
kickbacks are minor and do not always activate the
chain brake. If this happens you should hold the chain
saw firmly and not let go.
• The way the chain brake is activated, either manually
or automatically by the inertia release mechanism,
depends on the force of the kickback and the position
of the chain saw in relation to the object that the
kickback zone of the bar strikes.
If you get a violent kickback while the kickback zone of
the bar is farthest away from you the chain brake is
designed to be activated by the inertia in the kickback
direction.
If the kickback is less violent or the kickback zone of
the bar is closer to you the chain brake will be
activated manually by the movement of your left hand.
• In the felling position the left hand is in a position that
makes manual activation of the chain brake
impossible. With this type of grip, that is when the left
hand is placed so that it cannot affect the movement
of the front hand guard, the chain brake can only be
activated by the inertia action.
Will my hand always activate the chain
brake during a kickback?
No. It takes a certain force to move the hand guard
forward. If your hand only lightly touches the front guard
or slips over it, the force may not be enough to trigger the
chain brake. You should also maintain a firm grip of the
chain saw handles while working. If you do and
experience a kickback, your hand may never leave the
front handle and will not activate the chain brake, or the
chain brake will only activate after the saw has swung
around a considerable distance. In such instances, the
chain brake might not have enough time to stop the saw
chain before it touches you.
There are also certain positions in which your hand
cannot reach the front hand guard to activate the chain
brake; for example, when the saw chain is held in felling
position.
Will my inertia activated chain brake
always activate during kickback in the
event of a kickback?
No. First your brake must be in working order. Testing the
brake is simple, see instructions under the heading
Checking, maintaining and servicing chain saw safety
equipment. We recommend you do before you begin each
work session. Second the kickback must be strong
enough to activate the chain brake. If the chain brake is
too sensitive it would activate all the time which would be
a nuisance.
Will my chain brake always protect me
from injury in the event of a kickback?
No. First, the chain brake must be in working order to
provide the intended protection. Second, it must be
activated during the kickback as described above to stop
the saw chain. Third, the chain brake may be activated but
if the bar is too close to you the brake might not have
enough time to slow down and stop the chain before the
chain saw hits you.
Only you and proper working technique can eliminate
kickback and its danger.

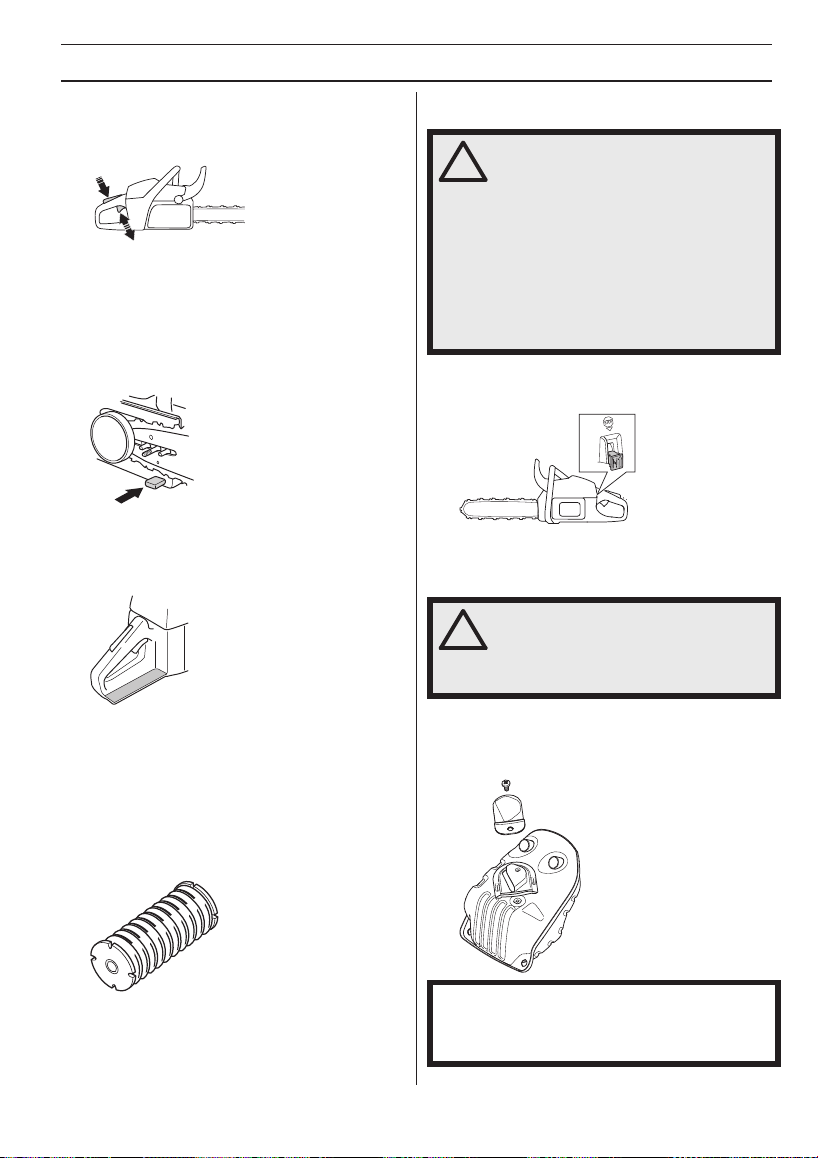

Throttle trigger lockout
The throttle lockout is designed to prevent accidental
operation of the throttle control. When you press the lock
(A) (i.e. when you grasp the handle) it releases the throttle
GENERAL SAFETY PRECAUTIONS
English
–
11
control (B). When you release the handle the throttle
control and the throttle lockout both move back to their
original positions. This arrangement means that the
throttle control is automatically locked at the idle setting.
Chain catcher
The chain catcher is designed to catch the chain if it
snaps or jumps off. This should not happen if the chain is
properly tensioned (see instructions under the heading
Assembly) and if the bar and chain are properly serviced
and maintained (see instructions under the heading
General working instructions).
Right hand guard
Apart from protecting your hand if the chain jumps or
snaps, the right hand guard stops branches and twigs
from interfering with your grip on the rear handle.
Vibration damping system
Your machine is equipped with a vibration damping
system that is designed to minimize vibration and make
operation easier.
The machine
′
s vibration damping system reduces the
transfer of vibration between the engine unit/cutting
equipment and the machine
′
s handle unit. The body of the
chain saw, including the cutting equipment, is insulated
from the handles by vibration damping units.
Cutting hardwoods (most broadleaf trees) creates more
vibration than cutting softwoods (most conifers). Cutting
with cutting equipment that is blunt or faulty (wrong type
or badly sharpened) will increase the vibration level.
Stop switch
Use the stop switch to switch off the engine.
Muffler
The muffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user.
In areas with a hot, dry climate there is a high risk of fires.
These areas are sometimes subject to government rules
requiring among other things the muffler must be
equipped with an approved type of spark arrestor mesh.
A
B
!
WARNING! Overexposure to vibration
can lead to circulatory damage or nerve
damage in people who have impaired
circulation. Contact your doctor if you
experience symptoms of overexposure
to vibration. Such symptoms include
numbness, loss of feeling, tingling,
pricking, pain, loss of strength, changes
in skin colour or condition. These
symptoms normally appear in the
fingers, hands or wrists. These
symptoms may be increased in cold
temperatures.
!
WARNING! The exhaust fumes from the
engine are hot and may contain sparks
which can start a fire. Never start the
machine indoors or near combustible
material!
CAUTION! The muffler gets very hot during and after
use. This also applies during idling. Be aware of the fire
hazard, especially when working near flammable
substances and/or vapours.
GENERAL SAFETY PRECAUTIONS
12 – English
Cutting equipment
This section describes how to choose and maintain your
cutting equipment in order to:
• Reduce the risk of kickback.
• Reduce the risk of the saw chain breaking or jumping
off the bar.
• Obtain optimal cutting performance.
• Extend the life of cutting equipment.
• Avoid increasing vibration levels.
General rules
•
Only use cutting equipment recommended by us!
See instructions under the heading Technical data.
•

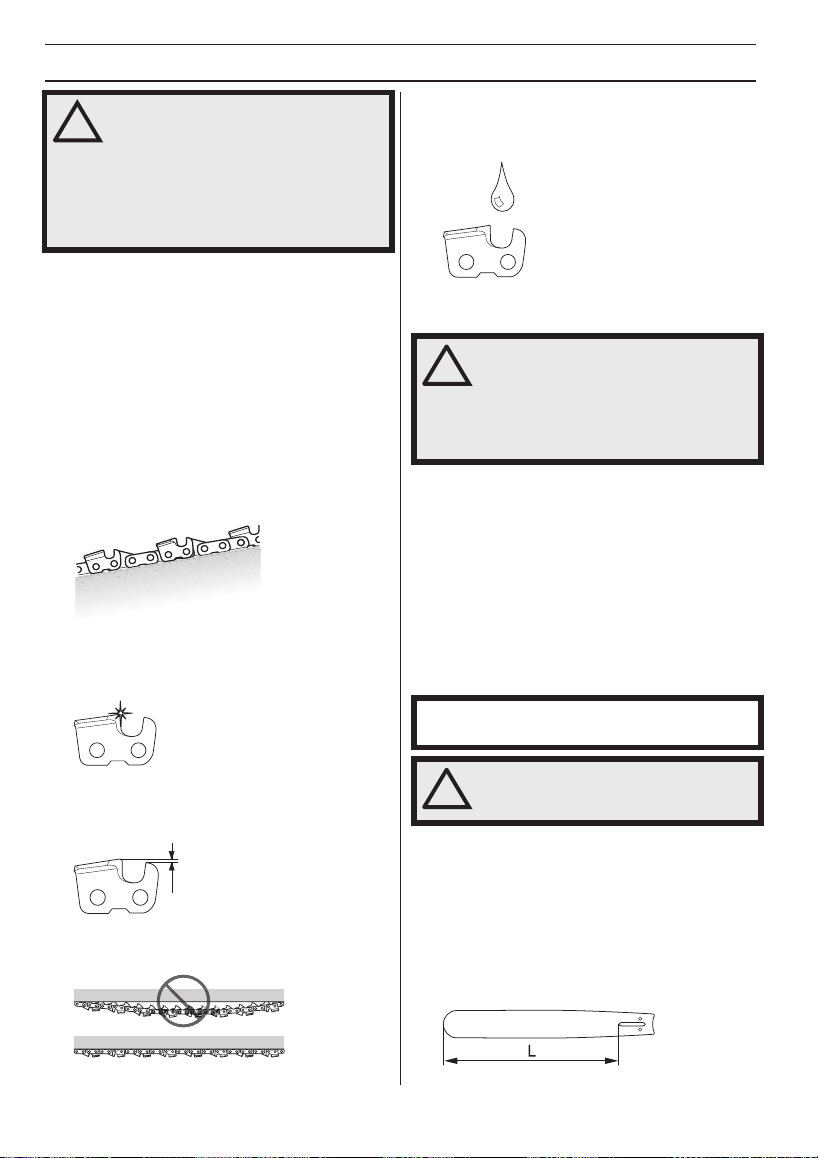

Keep the chain’s cutting teeth properly
sharpened! Follow our instructions and use the
recommended file gauge.
A damaged or badly
sharpened chain increases the risk of accidents.
•
Maintain the correct depth gauge setting! Follow
our instructions and use the recommended depth
gauge clearance.
Too large a clearance increases
the risk of kickback.
•
Keep the chain properly tensioned!
If the chain is
slack it is more likely to jump off and lead to increased
wear on the bar, chain and drive sprocket.
•
Keep cutting equipment well lubricated and
properly maintained!
A poorly lubricated chain is
more likely to break and lead to increased wear on the
bar, chain and drive sprocket.
Cutting equipment designed to reduce
kickback
The only way to avoid kickback is to make sure that the
kickback zone of the bar never touches anything.
By using cutting equipment with ”built-in” kickback
reduction and keeping the chain sharp and well-
maintained you can reduce the effects of kickback.
Guide bar
The smaller the tip radius the lower the chance of
kickback.
Saw chain
A chain is made up of a number of links, which are
available in standard and low-kickback versions.
Some terms that describe the bar and chain
To maintain the safety features of the cutting equipment,
you should replace a worn or damaged bar or chain with
a bar and chain combinations recommended by
Husqvarna. See instructions under the heading Technical
Data for a list of replacement bar and chain combinations
we recommend.
Guide bar
• Length (inches/cm)
!
WARNING! Never use a saw without a
muffler, or with a damaged muffler. A
damaged muffler may substantially
increase the noise level and the fire
hazard. Keep fire fighting equipment
handy. If a spark arrestor screen is
required in your area, never use the saw
without or with a broken spark arrestor
screen.
!
WARNING! Faulty cutting equipment or
the wrong combination of bar and saw
chain increases the risk of kickback!
Only use the bar/saw chain combinations
we recommend, and follow the filing
instructions. See instructions under the
heading Technical data.
IMPORTANT! No saw chain design eliminates the
danger of kickback.
!
WARNING! Any contact with a rotating
saw chain can cause extremely serious
injuries.
GENERAL SAFETY PRECAUTIONS
English – 13

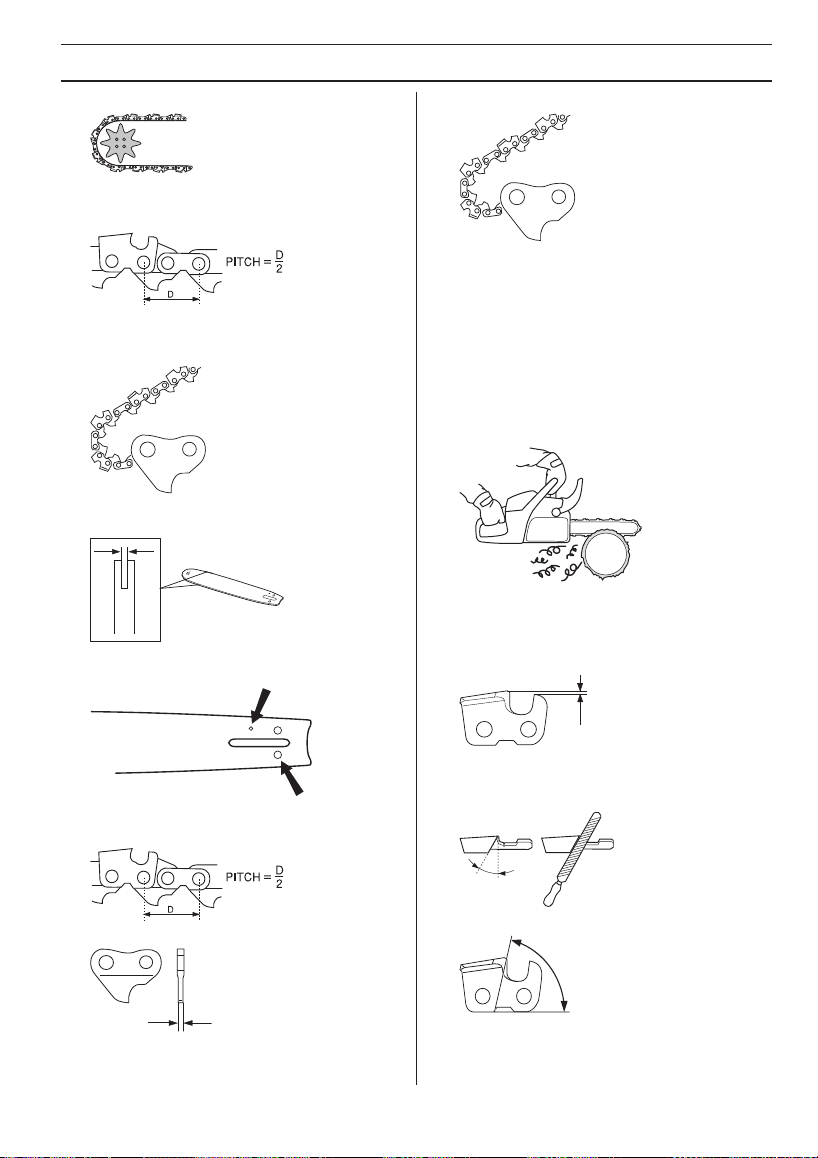

• Number of teeth on bar tip sprocket (T).
• Chain pitch (inches). The spacing between the drive
links of the chain must match the spacing of the teeth
on the bar tip sprocket and drive sprocket.
• Number of drive links. The number of drive links is
determined by the length of the bar, the chain pitch
and the number of teeth on the bar tip sprocket.
• Bar groove width (inches/mm). The groove in the bar
must match the width of the chain drive links.
• Chain oil hole and hole for chain tensioner. The bar
must be matched to the chain saw design.
Saw chain
• Chain pitch (inches)
• Drive link width (mm/inches)
• Number of drive links.
Sharpening your chain and adjusting
depth gauge setting
General information on sharpening cutting teeth
• Never use a blunt chain. When the chain is blunt you
have to exert more pressure to force the bar through
the wood and the chips will be very small. If the chain
is very blunt it will produce wood powder and no chips
or shavings.
• A sharp chain eats its way through the wood and
produces long, thick chips or shavings.
• The cutting part of the chain is called the cutter and
consists of a cutting tooth (A) and the depth gauge
(B). The cutters cutting depth is determined by the
difference in height between the two (depth gauge
setting).
When you sharpen a cutting tooth there are four important
factors to remember.
1 Filing angle
2 Cutting angle
A
B
GENERAL SAFETY PRECAUTIONS
14 – English
3 File position
4 Round file diameter
It is very difficult to sharpen a chain correctly without the
right equipment. We recommend that you use our file
gauge. This will help you obtain the maximum kickback
reduction and cutting performance from your chain.
See instructions under the heading Technical data for
information about sharpening your chain.

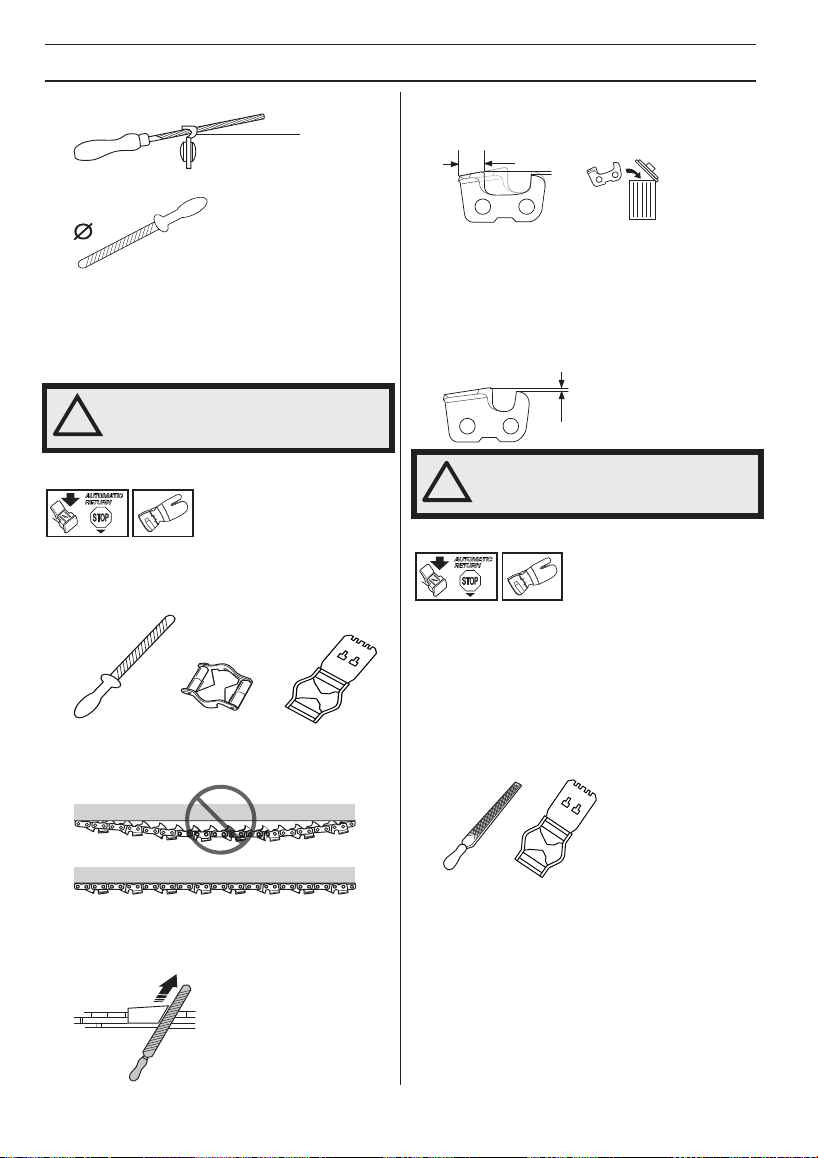

Sharpening cutting teeth
To sharpen cutting teeth you will need a round file and a
file gauge. See instructions under the heading Technical
data for information on the size of file and gauge that are
recommended for the chain fitted to your chain saw.
• Check that the chain is correctly tensioned. A slack
chain will move sideways, making it more difficult to
sharpen correctly.
• Always file cutting teeth from the inside face. Reduce
the pressure on the return stroke. File all the teeth on
one side first, then turn the chain saw over and file the
teeth on the other side.
• File all the teeth to the same length. When the length
of the cutting teeth is reduced to 4 mm (5/32") the
chain is worn out and should be replaced.
General advice on adjusting depth gauge setting
• When you sharpen the cutting tooth (A) the depth
gauge setting (C) will decrease. To maintain optimal
cutting performance the depth gauge (B) has to be
filed down to achieve the recommended depth gauge
setting. See instructions under the heading Technical
data to find the correct depth gauge setting for your
particular chain.
Adjustment of depth gauge setting
• The cutting teeth should be newly sharpened before
adjusting the depth gauge setting. We recommend
that you adjust the depth gauge setting every third
time you sharpen the cutting teeth. NOTE! This
recommendation assumes that the length of the
cutting teeth is not reduced excessively.
• You will need a flat file and a depth gauge tool. We
recommend that you use our depth gauge tool to
acheive the correct depth gauge setting and bevel for
the depth gauge.
• Place the depth gauge tool over the chain. Detailed
information regarding the use of the depth gauge tool,
will be found on the package for the depth gauge tool.
Use the flat file to file off the tip of the depth gauge that
protrudes through the depth gauge tool. The depth
gauge setting is correct when you no longer feel
!
WARNING! Departure from the
sharpening instructions considerably
increases the risk of kickback.
!
WARNING! The risk of kickback is
increased if the depth gauge setting is
too large!
min 4 mm
(5/32")
A
B
C
GENERAL SAFETY PRECAUTIONS
English – 15
resistance as you draw the file along the depth gauge
tool.

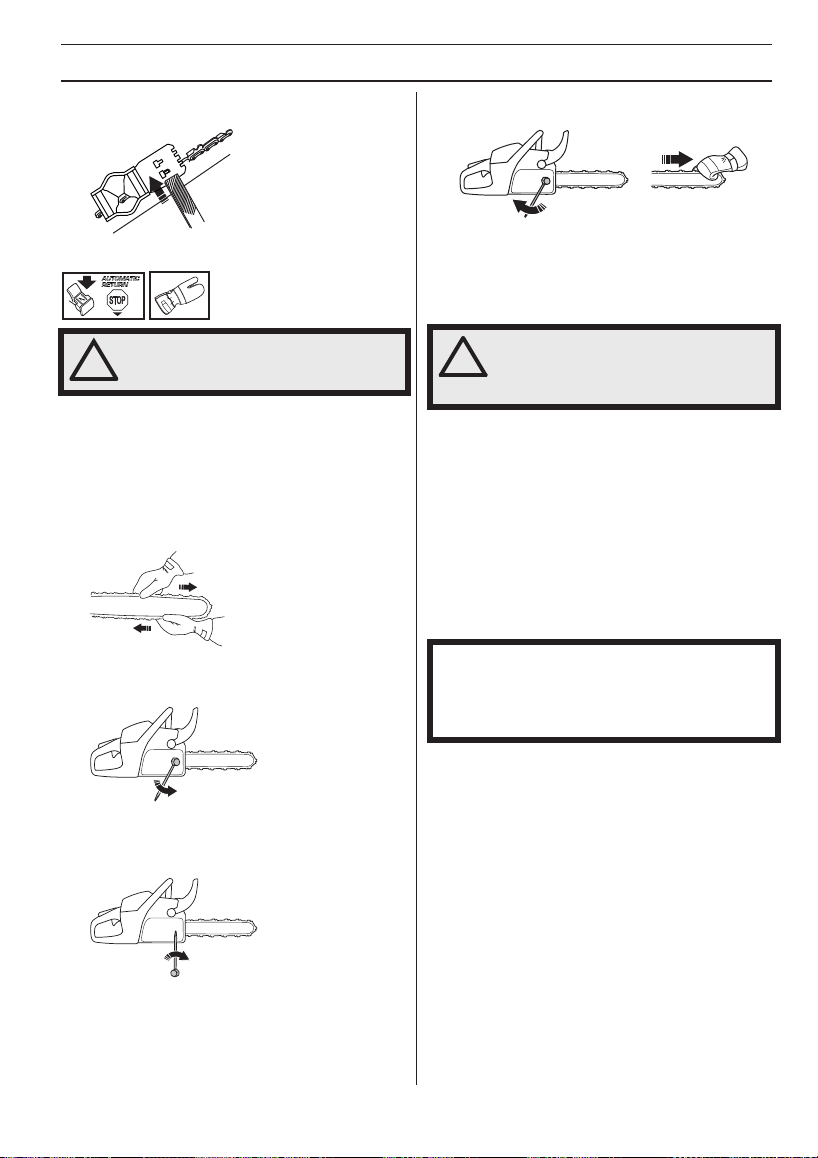

Tensioning the chain
The more you use a chain the longer it becomes. It is
therefore important to adjust the chain regularly to take up
the slack.
Check the chain tension every time you refuel. NOTE! A
new chain has a running-in period during which you
should check the tension more frequently.
Tension the chain as tightly as possible, but not so tight
that you cannot pull it round freely by hand.
• Undo the bar nuts that hold the clutch cover/chain
brake. Use the combination spanner. Then tighten the
bar nuts by hand as tight as you can.
• Raise the tip of the bar and stretch the chain by
tightening the chain tensioning screw using the
combination spanner. Tighten the chain until it does
not sag from the underside of the bar.
• Use the combination spanner to tighten the bar nuts
while lifting the tip of the bar at the same time. Check
that you can pull the chain round freely by hand and
that it does not sag from the underside of the bar.
The position of the chain tensioning screw on our chain
saws varies from model to model. See instructions under
the heading What is what? to find out where it is on your
model.
Lubricating cutting equipment
Chain oil
Chain oil must demonstrate good adhesion to the chain
and also maintain its flow characteristics regardless of
whether it is warm summer or cold winter weather.
As a chain saw manufacturer we have developed an
optimal chain oil which, with its vegetable oil base, is also
biodegradable. We recommend the use of our own oil for
both maximum chain life and to minimise environmental
damage. If our own chain oil is not available, standard
chain oil is recommended.
Never use waste oil! Using waste oil can be dangerous
to you and damage the machine and environment.

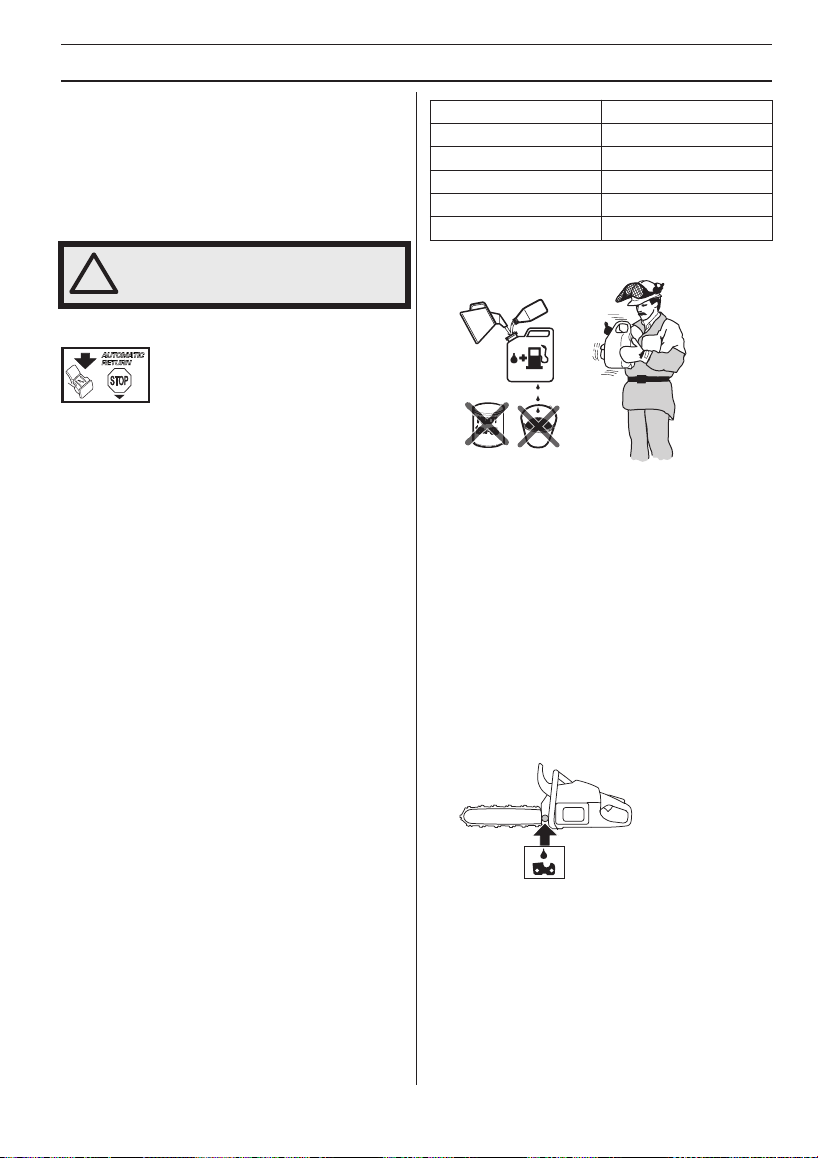

Filling with chain oil
• All our chain saws have an automatic chain lubrication
system. On some models the oil flow is also
adjustable.
• The saw chain oil tank and the fuel tank are designed
so that the fuel runs out before the saw chain oil.
However, this safety feature requires that you use the
right sort of chain oil (if the oil is too thin it will run out
before the fuel) and that you also use the
recommended cutting equipment (a bar that is too
long will use more chain oil).
Checking chain lubrication
• Check the chain lubrication each time you refuel.
Aim the tip of the bar at a light coloured surface about
20 cm (8 inches) away. After 1 minute running at 3/4
!
WARNING! A slack chain may jump off
and cause serious or even fatal injury.
!
WARNING! Poor lubrication of cutting
equipment may cause the chain to snap,
which could lead to serious, even fatal
injuries.
IMPORTANT! When using vegetable based saw chain
oil, dismantle and clean the groove in the bar and saw
chain before long-term storage. Otherwise there is a risk
of the saw chain oil oxidizing, which will result in the saw
chain becoming stiff and the bar tip sprocket jamming.
GENERAL SAFETY PRECAUTIONS
16 – English
throttle you should see a distinct line of oil on the light
surface.
If the chain lubrication is not working:
• Check that the oil channel in the bar is not obstructed.
Clean if necessary.
• Check that the groove in the edge of the bar is clean.
Clean if necessary.
• Check that the bar tip sprocket turns freely and that
the lubricating hole in the tip sprocket is not blocked.
Clean and lubricate if necessary.
If the chain lubrication system is still not working after
carrying out the above checks and associated measures
you should contact your service agent.

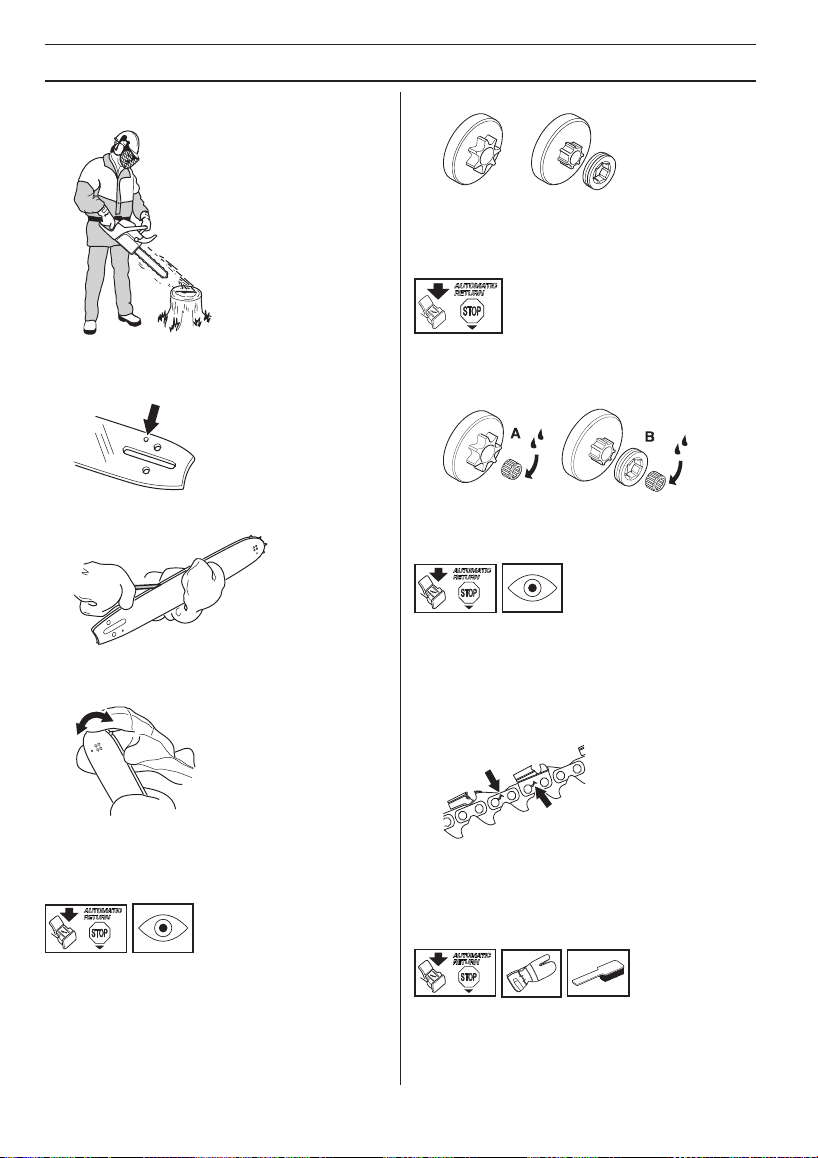

Chain drive sprocket
The clutch drum is fitted with one of the following drive
sprockets:
A Spur sprocket (the chain sprocket is welded on the
drum)
B Rim sprocket (replaceable)
Regularly check the degree of wear on the drive sprocket.
Replace if wear is excessive. Replace the drive sprocket
whenever you replace the chain.
Needle bearing lubrication
Both versions of sprockets have a needle bearing on the
drive shaft, which has to be greased regularly (once a
week). CAUTION! Use a high-quality bearing grease or
engine oil.
See instructions under the heading Maintenance, Needle
bearing lubrication.
Checking wear on cutting equipment
Check the chain daily for:
• Visible cracks in rivets and links.
• Whether the chain is stiff.
• Whether rivets and links are badly worn.
Replace the saw chain if it exhibits any of the points
above.
We recommend you compare the existing chain with a
new chain to decide how badly the existing chain is worn.
When the length of the cutting teeth has worn down to
only 4 mm the chain must be replaced.
Guide bar
Check regularly:
AB
GENERAL SAFETY PRECAUTIONS
English – 17
• Whether there are burrs on the edges of the bar.
Remove these with a file if necessary.
• Whether the groove in the bar has become badly
worn. Replace the bar if necessary.
• Whether the tip of the bar is uneven or badly worn. If
a hollow forms on the underside of the bar tip this is
due to running with a slack chain.
• To prolong the life of the bar you should turn it over
daily.
!
WARNING! Most chain saw accidents
happen when the chain touches the
operator.
Wear personal protective equipment. See
instructions under the ”Personal
protective equipment” heading.
Do not tackle any job that you feel you
are not adequately trained for. See
instructions under the headings
Personal protective equipment, How to
avoid kickback, Cutting equipment and
General working instructions.
Avoid situations where there is a risk of
kickback. See instructions under the
heading Machine′s safety equipment.
Use the recommended protective
equipment and check its condition. See
instructions under the heading General
working instructions.
Check that all the chain saw safety
features are working. See instructions
under the headings General working
instructions and General safety
precautions.
ASSEMBLY
18 – English
Fitting the bar and chain
• Check that the chain brake is in disengaged
position by moving the front hand guard towards
the front handle.
• Remove the bar nuts and remove the clutch cover
(chain brake). Take off the transportation guard (A).
• Fit the bar over the bar bolts. Place the bar in its
rearmost position. Place the chain over the drive
sprocket locate it in the groove on the bar. Begin on
the top edge of the bar.
• Make sure that the edges of the cutting links are
facing forward on the top edge of the bar.
• Fit the clutch cover and locate the chain adjuster pin
in the hole in the bar. Check that the drive links of the
chain fit correctly over the drive sprocket and that the
chain is correctly located in the groove in the bar.
Tighten the bar nuts finger tight.
• Tension the chain by turning the chain tensioning
screw clockwise using the combination spanner. The
chain should be tensioned until it does not sag from
the underside of the bar. See instructions under the
heading Tensioning the chain.
• The chain is correctly tensioned when it does not sag
from the underside of the bar, but can still be turned
easily by hand. Hold up the bar tip and tighten the bar
nuts with the combination spanner.
• When fitting a new chain, the chain tension has to be
checked frequently until the chain is run-in. Check the
chain tension regularly. A correctly tensioned chain
ensures good cutting performance and long life.
Fitting a spiked bumper
To fit a spiked bumper – contact your service agent.
!
WARNING! Always wear gloves, when
working with the chain.
FUEL HANDLING
English – 19
Fuel
Note! The machine is equipped with a two-stroke engine
and must always be run using a mixture of petrol and two-
stroke oil. It is important to accurately measure the
amount of oil to be mixed to ensure that the correct
mixture is obtained. When mixing small amounts of fuel,
even small inaccuracies can drastically affect the ratio of
the mixture.
Petrol
• Use good quality unleaded or leaded petrol.
• The lowest recommended octane grade is 90 (RON).
If you run the engine on a lower octane grade than 90
so-called knocking can occur. This gives rise to a high
engine temperature and increased bearing load,
which can result in serious engine damage.
• When working with continuous high revs (e.g. limbing)
a higher octane is recommended.
Husqvarna alkylate fuel
Husqvarna recommends the use of Husqvarna alkylate
fuel for best performance. The fuel contains less
dangerous substances compared to regular fuel, which
reduces dangerous exhaust fumes. The fuel provides low
amount of residues when combusted which keeps the
engine parts cleaner and optimizes the engine life.
Husqvarna alkylate fuel is not available in all markets.
Ethanol fuel
HUSQVARNA recommends commercial available fuel
with maximum 10% ethanol content.
Running-in
Avoid running at a too high speed for extended periods
during the first 10 hours.
Two-stroke oil
• For best results and performance use HUSQVARNA
two-stroke engine oil, which is specially formulated for
our air-cooled two-stroke engines. Mixture 1:50 (2%).
• If HUSQVARNA two-stroke oil is not available, you
may use another two-stroke oil of good quality that is
intended for air cooled engines. Contact your dealer
when selecting an oil.
• Never use two-stroke oil intended for water-cooled
outboard engines, sometimes referred to as outboard
oil.
• Never use oil intended for four-stroke engines.
Mixing
• Always mix the petrol and oil in a clean container
intended for fuel.
• Always start by filling half the amount of the petrol to
be used. Then add the entire amount of oil. Mix
(shake) the fuel mixture. Add the remaining amount of
petrol.
• Mix (shake) the fuel mixture thoroughly before filling
the machine’s fuel tank.
• Do not mix more than one month’s supply of fuel at a
time.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Chain oil
• We recommend the use of special oil (chain oil) with
good adhesion characteristics.
• Never use waste oil. This results in damage to the oil
pump, the bar and the chain.
• It is important to use oil of the right grade (suitable
viscosity range) to suit the air temperature.
• In temperatures below 0°C (32°F) some oils become
too viscous. This can overload the oil pump and result
in damage to the oil pump components.
• Contact your service agent when choosing chain oil.
!
WARNING! Always ensure there is
adequate ventilation when handling fuel.
Petrol, litre Two-stroke oil, litre
2% (1:50)
5 0,10
10 0,20
15 0,30
20 0,40
FUEL HANDLING
20 – English
Fueling
Clean the area around the fuel cap. Clean the fuel and
chain oil tanks regularly. The fuel filter must be replaced
at least once a year. Contamination in the tanks causes
malfunction. Make sure the fuel is well mixed by shaking
the container before refuelling. The capacities of the chain
oil tank and fuel tank are carefully matched. You should
therefore always fill the chain oil tank and fuel tank at the
same time.
Fuel safety
• Never refuel the machine while the engine is running.
• Make sure there is plenty of ventilation when refuelling
or mixing fuel (petrol and 2-stroke oil).

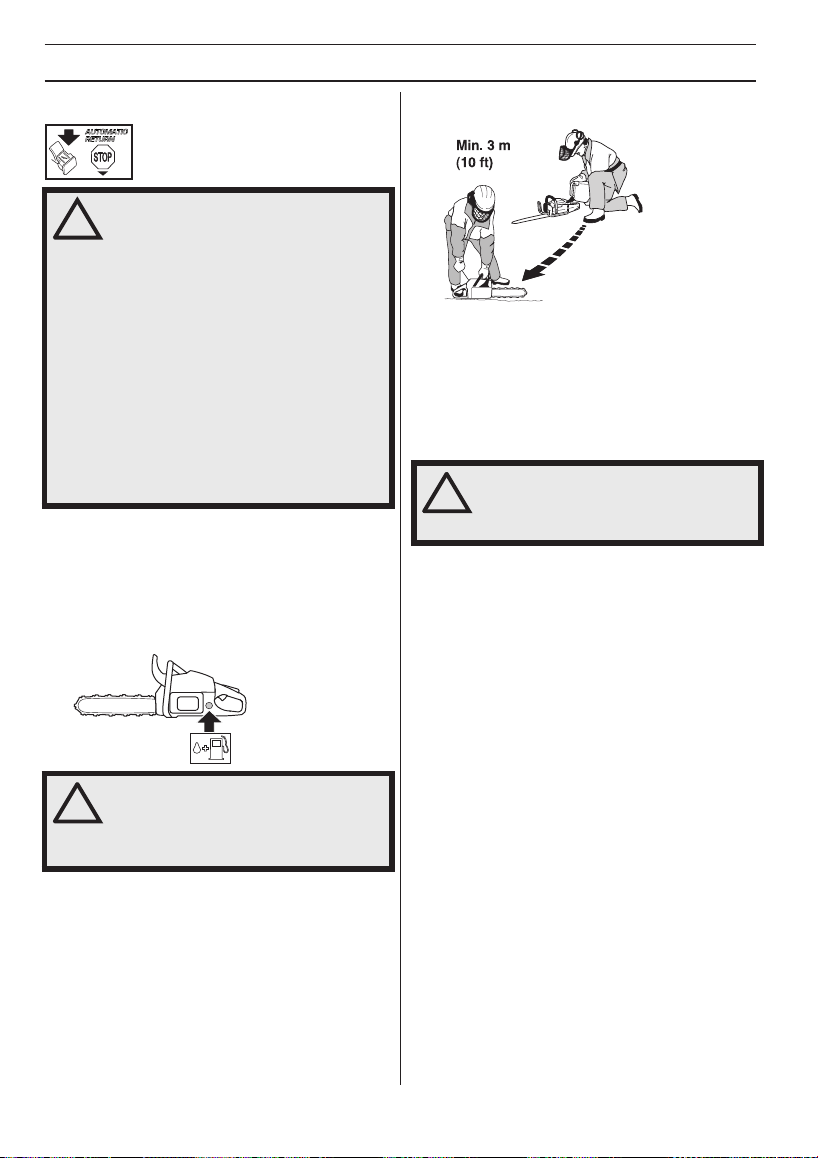

• Move the machine at least 3 m from the refuelling
point before starting it.
• Never start the machine:
1 If you have spilt fuel or chain oil on the machine. Wipe
off the spillage and allow remaining fuel to evaporate.
2 If you have spilled fuel on yourself or your clothes,
change your clothes. Wash any part of your body that
has come in contact with fuel. Use soap and water.
3 If the machine is leaking fuel. Check regularly for
leaks from the fuel cap and fuel lines.
Transport and storage
• Always store the chain saw and fuel so that there is no
risk of leakages or fumes coming into contact with
sparks or naked flames from electrical equipment,
electric motors, relays/switches, boilers and the like.
• Always store fuel in an approved container designed
for that purpose.
• For longer periods of storage or for transport of the
chain saw, the fuel and chain oil tanks should be
emptied. Ask where you can dispose of waste fuel and
chain oil at your local petrol station.
• The guide bar cover must always be fitted to the
cutting attachment when the machine is being
transported or in storage, in order to prevent accident
contact with the sharp chain. Even a non-moving
chain can cause serious cuts to yourself or persons
you bump into with an exposed chain.
• Remove the spark plug cap from the spark plug.
Activate the chain brake.
• Secure the machine during transport.
Long-term storage
• Empty the fuel/oil tanks in a well ventilated area. Store
the fuel in approved cans in a safe place. Fit the guide
bar cover. Clean the machine. See instructions under
the heading Maintenance schedule.
• Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
!
WARNING! Taking the following
precautions, will lessen the risk of fire:
Do not smoke and do not place any hot
objects in the vicinity of fuel.
Always stop the engine and let it cool for
a few minutes before refuelling.
When refuelling, open the fuel cap slowly
so that any excess pressure is released
gently.
Tighten the fuel cap carefully after
refuelling.
Always move the machine away from the
refuelling area and source before
starting.
!
WARNING! Fuel and fuel vapour are
highly flammable. Take care when
handling fuel and chain oil. Be aware of
the risks of fire, explosion and those
associated with inhalation.
!
WARNING! Never use a machine with
visible damage to the spark plug guard
and ignition cable. A risk of sparking
arises, which can cause a fire.
STARTING AND STOPPING
English – 21

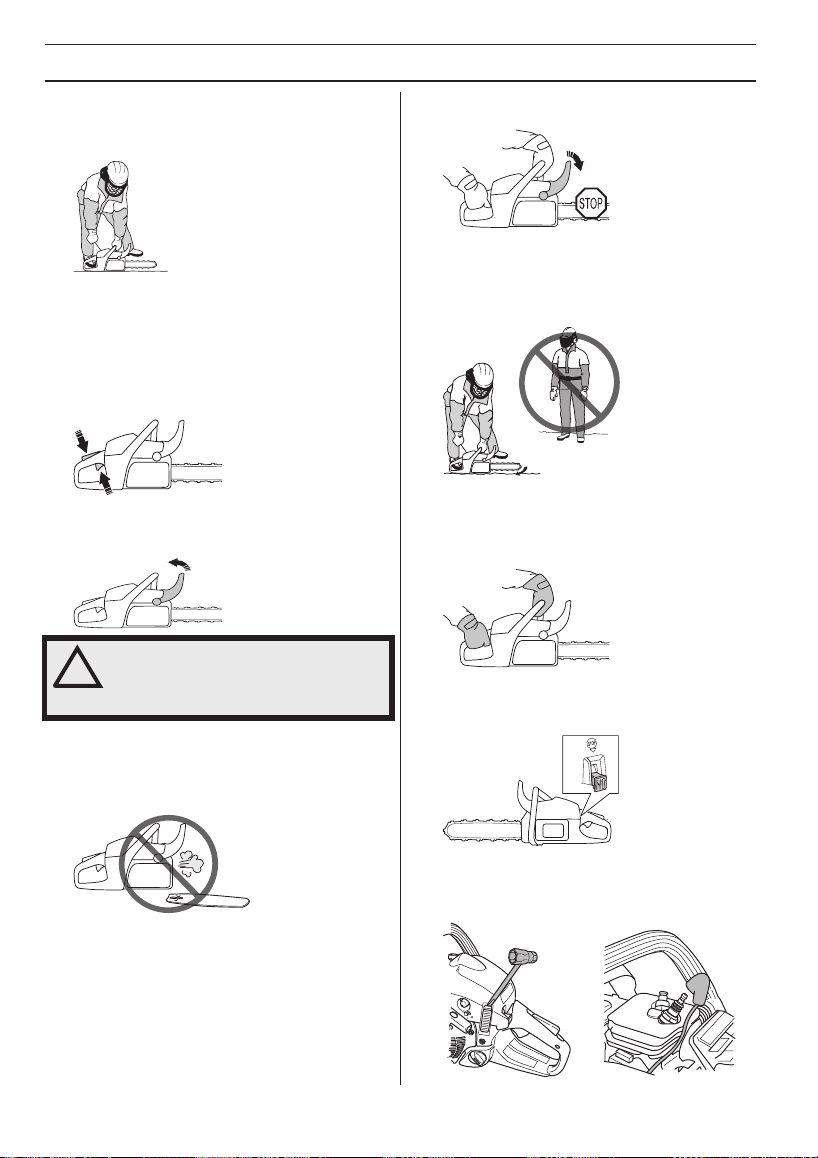

Starting and stopping
Starting
The chain brake must be engaged when the chain saw is
started. Activate the brake by moving the front hand guard
forwards.

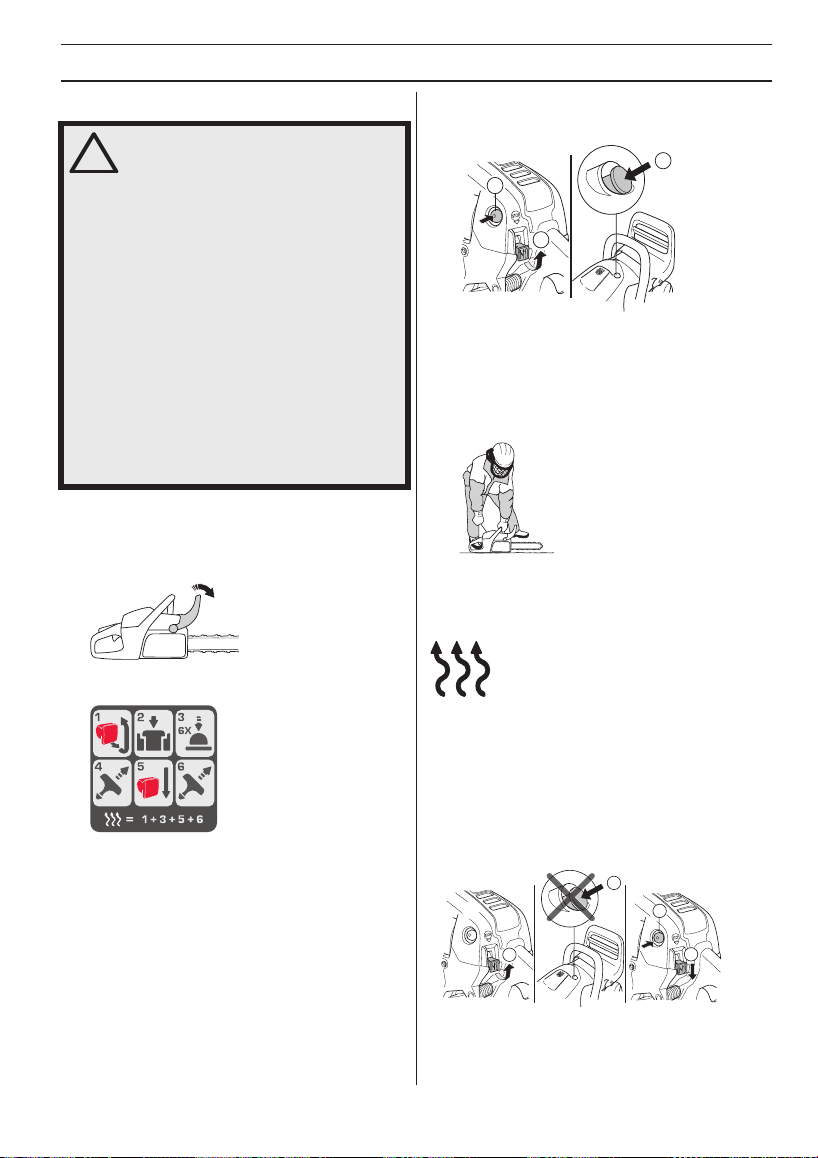

There is a simplified start reminder with illustrations
to describe each step on the rear edge of the saw.
Cold engine
Start position (1): Set the start/stop switch in the choke
position by pulling the red control outward - upward.
Decompression valve (2): Press the valve to reduce the
pressure in the cylinder and make starting easier. Once
the machine has started the valve will automatically return
to its original setting.
Air purge (3): Press the air purge diaphragm repeatedly
until fuel begins to fill the diaphragm (about 6 times). The
diaphragm need not be completely filled.
Grip the front handle with your left hand. Put your right
foot into the boot grip through the lower section of the rear
handle pressing the machine against the ground.
Pull the starter handle with your right hand and pull out
the starter cord slowly until you feel a resistance (as the
starter pawls engage) then pull firmly and rapidly until the
engine starts.
Push down the red choke control as soon as the engine
fires which can be heard through a "puff" sound. Keep on
pulling the cord powerfully until the engine starts.
Warm engine
Start position (1): Set the start/stop switch in the choke
position by pulling the red control outward - upward.
Decompression valve (2): Do not use the
decompression valve.
Air purge (3): Press the air purge diaphragm repeatedly
until fuel begins to fill the diaphragm (about 6 times). The
diaphragm need not be completely filled.
Start position (4): Press down on the start/stop switch to
attain start throttle setting.
Grip the front handle with your left hand. Put your right
foot into the boot grip through the lower section of the rear
handle pressing the machine against the ground.
!
WARNING! Note the following before
starting:
The chain brake must be engaged when
the chain saw is started to reduce the
chance of contact with the moving chain
during starting.
Never start a chain saw unless the bar,
chain and all covers are fitted correctly.
Otherwise the clutch can come loose and
cause personal injuries.
Place the machine on firm ground. Make
sure you have a secure footing and that
the chain cannot touch anything.
Keep people and animals well away from
the working area.
Never twist the starter cord around your
hand.
2
3
1
1
4
2
3
STARTING AND STOPPING
22 – English
Pull the starter handle with your right hand and pull out
the starter cord slowly until you feel a resistance (as the
starter pawls engage) then pull firmly and rapidly until the
engine starts.
NOTE! Do not pull the starter cord all the way out and do
not let go of the starter handle when the cord is fully
extended. This can damage the machine.
As the chain brake is still engaged the speed of the
engine must be set to idling as soon as possible, this is
achieved by quickly disengaging the throttle lock. This
prevents unnecessary wear to the clutch, clutch drum and
brake band.
Note! Reset the chain brake by pulling the front hand
guard back (marked ”PULL BACK TO RESET”) towards
the front handle. The chain saw is now ready for use.
• Never start a chain saw unless the bar, chain and all
covers are fitted correctly. See instructions under the
heading Assembly. Without a bar and chain attached
to the chain saw the clutch can come loose and cause
serious injury.
• The chain brake should be activated when starting.
See instructions under the heading Start and stop. Do
not drop start. This method is very dangerous
because you may lose control of the saw.
• Never start the machine indoors. Exhaust fumes can
be dangerous if inhaled.
• Observe your surroundings and make sure that there
is no risk of people or animals coming into contact
with the cutting equipment.
• Always hold the saw with both hands. The right hand
should be on the rear handle, and the left hand on the
front handle. All people, whether right or left handed,
should use this grip. Use a firm grip with thumbs and
fingers encircling the chain saw handles.
Stopping
• Stop the engine by pushing the start/stop switch
down.
NOTE! The start/stop switch automatically returns to run
position. To avoid involuntary start up, the spark plug cap
must always be removed from the spark plug when the
machine is unsupervised.
!
WARNING! Long term inhalation of the
engine’s exhaust fumes, chain oil mist
and dust from sawdust can represent a
health risk.
WORKING TECHNIQUES
English – 23

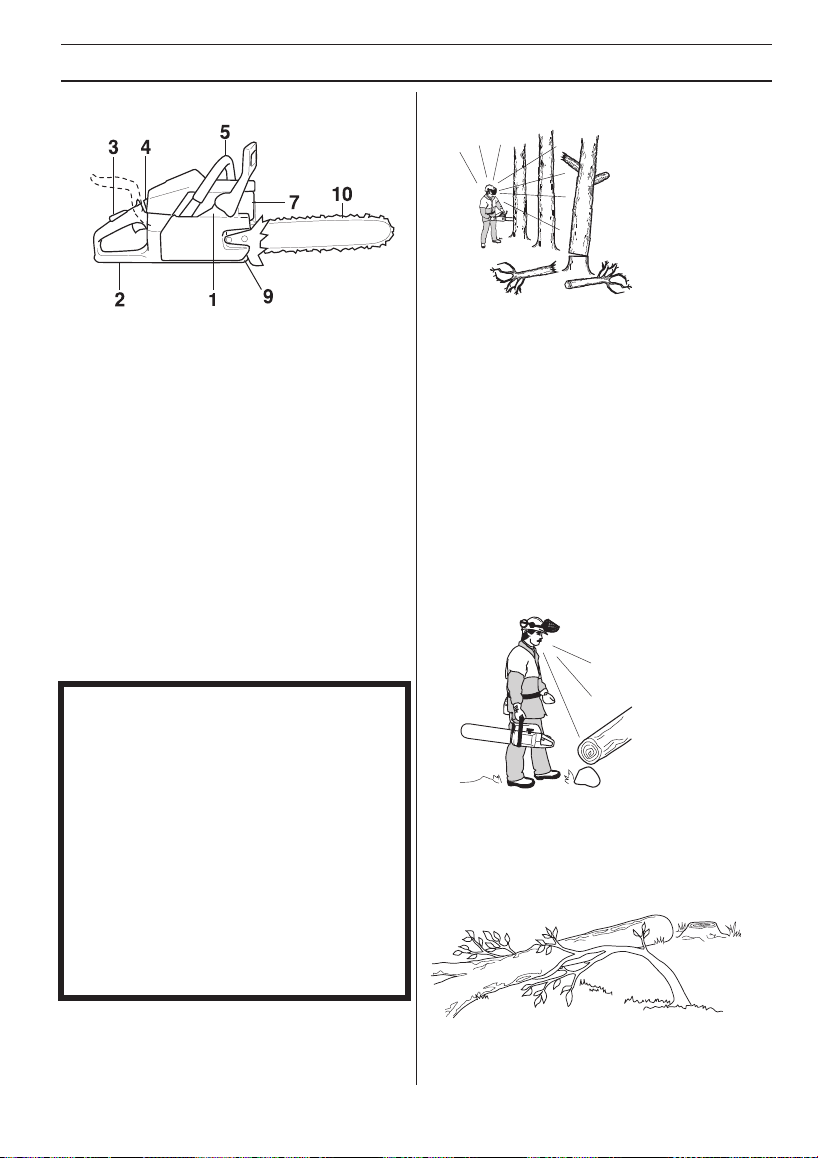

Before use:
1 Check that the chain brake works correctly and is not
damaged.
2 Check that the rear right hand guard is not damaged.
3 Check that the throttle lockout works correctly and is
not damaged.
4 Check that the stop switch works correctly and is not
damaged.
5 Check that all handles are free from oil.
6 Check that the anti vibration system works and is not
damaged.
7 Check that the muffler is securely attached and not
damaged.
8 Check that all parts of the chain saw are tightened
correctly and that they are not damaged or missing.
9 Check that the chain catcher is in place and not
damaged.
10 Check the chain tension.
General working instructions
Basic safety rules
1 Look around you:
• To ensure that people, animals or other things cannot
affect your control of the machine.
• To make sure that none of the above might come
within reach of your saw or be injured by falling trees.
CAUTION! Follow the instructions above, but do not use a
chain saw in a situation where you cannot call for help in
case of an accident.
2 Do not use the machine in bad weather, such as
dense fog, heavy rain, strong wind, intense cold, etc.
Working in bad weather is tiring and often brings
added risks, such as icy ground, unpredictable felling
direction, etc.
3 Take great care when removing small branches and
avoid cutting bushes (i.e. cutting many small branches
at the same time). Small branches can be grabbed by
the chain and thrown back at you, causing serious
injury.
4 Make sure you can move and stand safely. Check the
area around you for possible obstacles (roots, rocks,
branches, ditches, etc.) in case you have to move
suddenly. Take great care when working on sloping
ground.
5 Take great care when cutting a tree that is in tension.
A tree that is in tension may spring back to its normal
position before or after being cut. If you position
yourself incorrectly or make the cut in the wrong place
the tree may hit you or the machine and cause you to
lose control. Both situations can cause serious
personal injury.
6 Before moving your chain saw switch off the engine
and lock the chain using the chain brake. Carry the
chain saw with the bar and chain pointing backwards.
Fit a guard to the bar before transporting the chain
saw or carrying it for any distance.
IMPORTANT!
This section describes basic safety rules for using a
chain saw. This information is never a substitute for
professional skills and experience. If you get into a
situation where you feel unsafe, stop and seek expert
advice. Contact your chain saw dealer, service agent or
an experienced chain saw user. Do not attempt any task
that you feel unsure of!
Before using a chain saw you must understand the
effects of kickback and how to avoid them. See
instructions under the heading How to avoid kickback.
Before using a chain saw you must understand the
difference between cutting with the top and bottom
edges of the bar. See instructions under the headings
How to avoid kickback and Machine’s safety equipment.
Wear personal protective equipment. See instructions
under the ”Personal protective equipment” heading.
6, 8
WORKING TECHNIQUES
24 – English

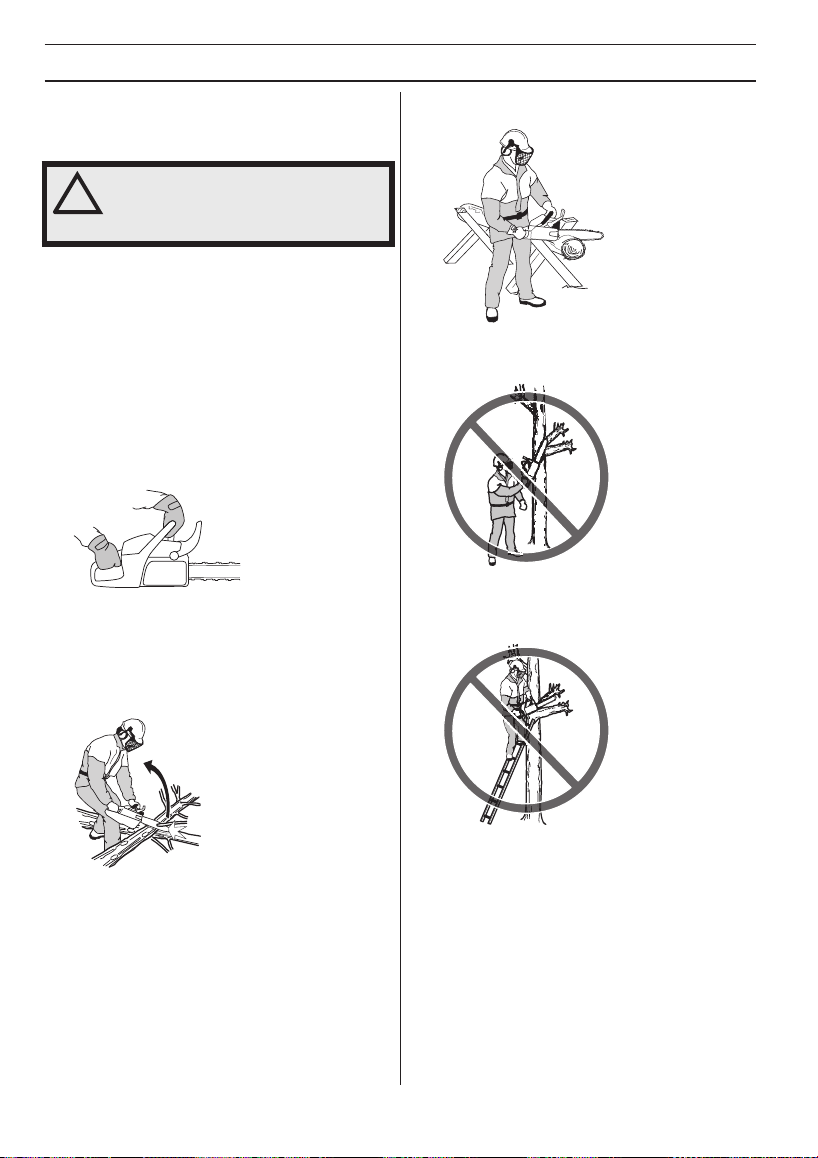

7 When you put the chain saw on the ground, lock the
saw chain using the chain brake and ensure you have
a constant view of the machine. Switch the engine off
before leaving your chain saw for any length of time.
General rules
1 If you understand what kickback is and how it happens
then you can reduce or eliminate the element of
surprise. By being prepared you reduce the risk.
Kickback is usually quite mild, but it can sometimes be
very sudden and violent.
2 Always hold the chain saw firmly with your right hand
on the rear handle and your left hand on the front
handle. Wrap your fingers and thumbs around the
handles. You should use this grip whether you are
right-handed or left-handed. This grip minimises the
effect of kickback and lets you keep the chain saw
under control. Do not let go of the handles!
3 Most kickback accidents happen during limbing. Make
sure you are standing firmly and that there is nothing
in the way that might make you trip or lose your
balance.
Lack of concentration can lead to kickback if the
kickback zone of the bar accidentally touches a
branch, nearby tree or some other object.
Have control over the workpiece. If the pieces you
intend to cut are small and light, they can jam in the
saw chain and be thrown towards you. Even if this
does not need to be a danger, you may be surprised
and lose control of the saw. Never saw stacked logs or
branches without first separating them. Only saw one
log or one piece at a time. Remove the cut pieces to
keep your working area safe.
4 Never use the chain saw above shoulder height
and try not to cut with the tip of the bar. Never use
the chain saw one-handed!
5 You must have a steady stance in order to have full
control over the chain saw. Never work standing on a
ladder, in a tree or where you do not have firm ground
to stand on.
6 Always use a fast cutting speed, i.e. full throttle.
7 Take great care when you cut with the top edge of the
bar, i.e. when cutting from the underside of the object.
This is known as cutting on the push stroke. The chain
tries to push the chain saw back towards the user. If
!
WARNING! Sometimes chips get stuck in
the clutch cover causing the chain to
jam. Always stop the engine before
cleaning.
WORKING TECHNIQUES
English – 25
the saw chain is jamming, the saw may be pushed
back at you.
8 Unless the user resists this pushing force there is a
risk that the chain saw will move so far backwards that
only the kickback zone of the bar is in contact with the
tree, which will lead to a kickback.
Cutting with the bottom edge of the bar, i.e. from the
top of the object downwards, is known as cutting on
the pull stroke. In this case the chain saw pulls itself
towards the tree and the front edge of the chain saw
body rests naturally on the trunk when cutting. Cutting
on the pull stroke gives the operator better control
over the chain saw and the position of the kickback
zone.
9 Follow the instructions on sharpening and maintaining
your bar and chain. When you replace the bar and
chain use only combinations that are recommended
by us. See instructions under the headings Cutting
equipment and Technical data.
Basic cutting technique
General
• Always use full throttle when cutting!
• Reduce the speed to idle after every cut (running the
engine for too long at full throttle without any load, i.e.
without any resistance from the chain during cutting,
can lead to serious engine damage).
• Cutting from above = Cutting on the pull stroke.
• Cutting from below = Cutting on the push stroke.
Cutting on the push stroke increases the risk of kickback.
See instructions under the heading How to avoid
kickback.
Terms
Cutting = General term for cutting through wood.
Limbing = Cutting branches off a felled tree.
Splitting = When the object you are cutting breaks off
before the cut is complete.
There are five important factors you should consider
before making a cut:
1 Make sure the cutting equipment will not jam in the
cut.
2 Make sure the object you are cutting will not split.
3 Make sure the chain will not strike the ground or any
other object during or after cutting.
4 Is there a risk of kickback?
5 Do the conditions and surrounding terrain affect how
safely you can stand and move about?
Two factors decide whether the chain will jam or the object
that you are cutting will split: the first is how the object is
supported before and after cutting, and the second is
whether it is in tension.
In most cases you can avoid these problems by cutting in
two stages; from the top and from the bottom. You need to
!
WARNING! Never use a chain saw by
holding it with one hand. A chain saw is
not safely controlled with one hand.
Always have a secure, firm grip around
the handles with both hands.

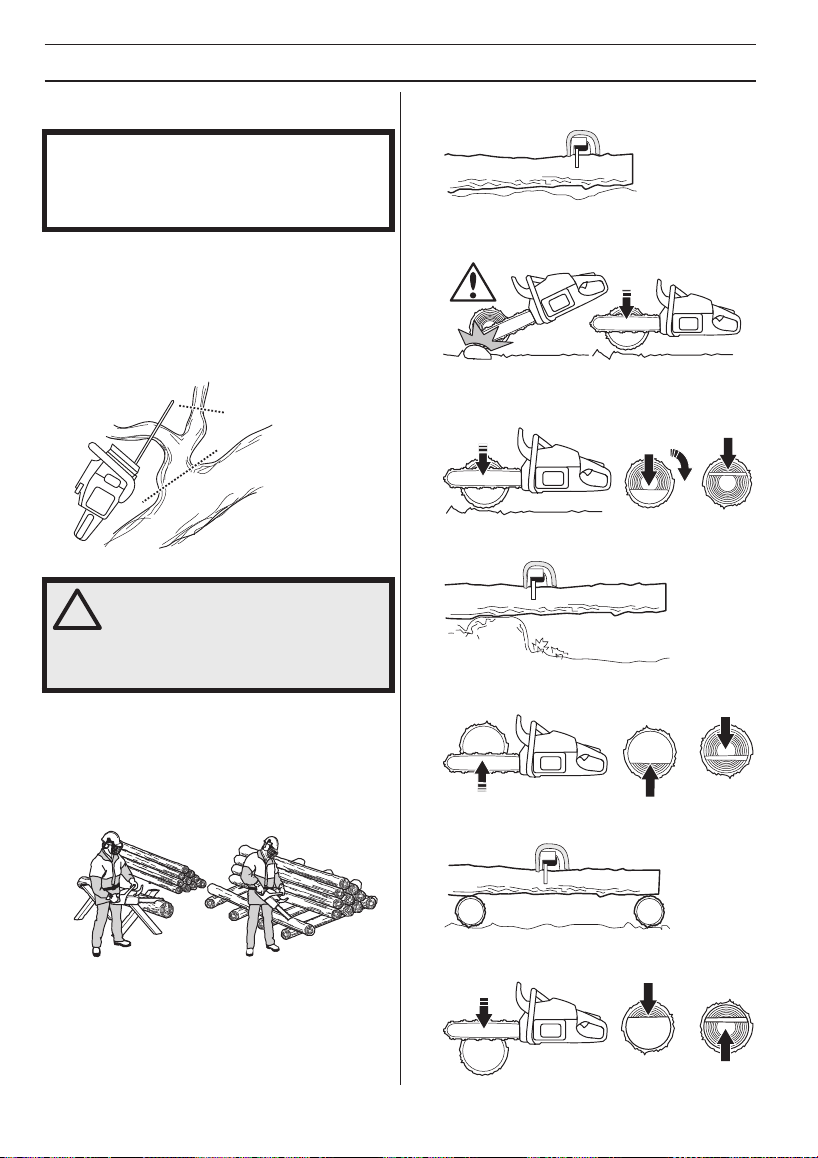

WORKING TECHNIQUES
26 – English
support the object so that it will not trap the chain or split
during cutting.
The following instructions describe how to handle the
commonest situations you are likely to encounter when
using a chain saw.
Limbing
When limbing thick branches you should use the same
approach as for cutting.
Cut difficult branches piece by piece.
Cutting
If you have a pile of logs, each log you attempt to cut
should be removed from the pile, placed on a saw horse
or runners and cut individually.
Remove the cut pieces from the cutting area. By leaving
them in the cutting area, you increase the risk for
inadvertently getting a kickback, as well as increasing the
risk of losing your balance while working.
The log is lying on the ground. There is little risk of the
chain jamming or the object splitting. However there is a
risk that the chain will touch the ground when you finish
the cut.
Cut all the way through the log from above. Avoid letting
the chain touch the ground as you finish the cut. Maintain
full throttle but be prepared for what might happen.
If it is possible (can you turn the log?) stop cutting about
2/3 of the way through the log.
Turn the log and finish the cut from the opposite side.
The log is supported at one end. There is a high risk
that it will split.
Start by cutting from below (about 1/3 of the way through).
Finish by cutting from above so that the two cuts meet.
The log is supported at both ends. There is a high risk
that the chain will jam.
Start by cutting from above (about 1/3 of the way through).
Finish by cutting from below so that the two cuts meet.
IMPORTANT! If the chain jams in the cut: stop the
engine! Don’t try to pull the chain saw free. If you do you
may be injured by the chain when the chain saw
suddenly breaks free. Use a lever to open up the cut and
free the chain saw.
!
WARNING! Never attempt to cut logs
while they are in a pile or when a couple
of logs are lying together. Such
procedures drastically increase the risk
of kickback which can result in a serious
or fatal injury.
1
2
3
WORKING TECHNIQUES
English – 27

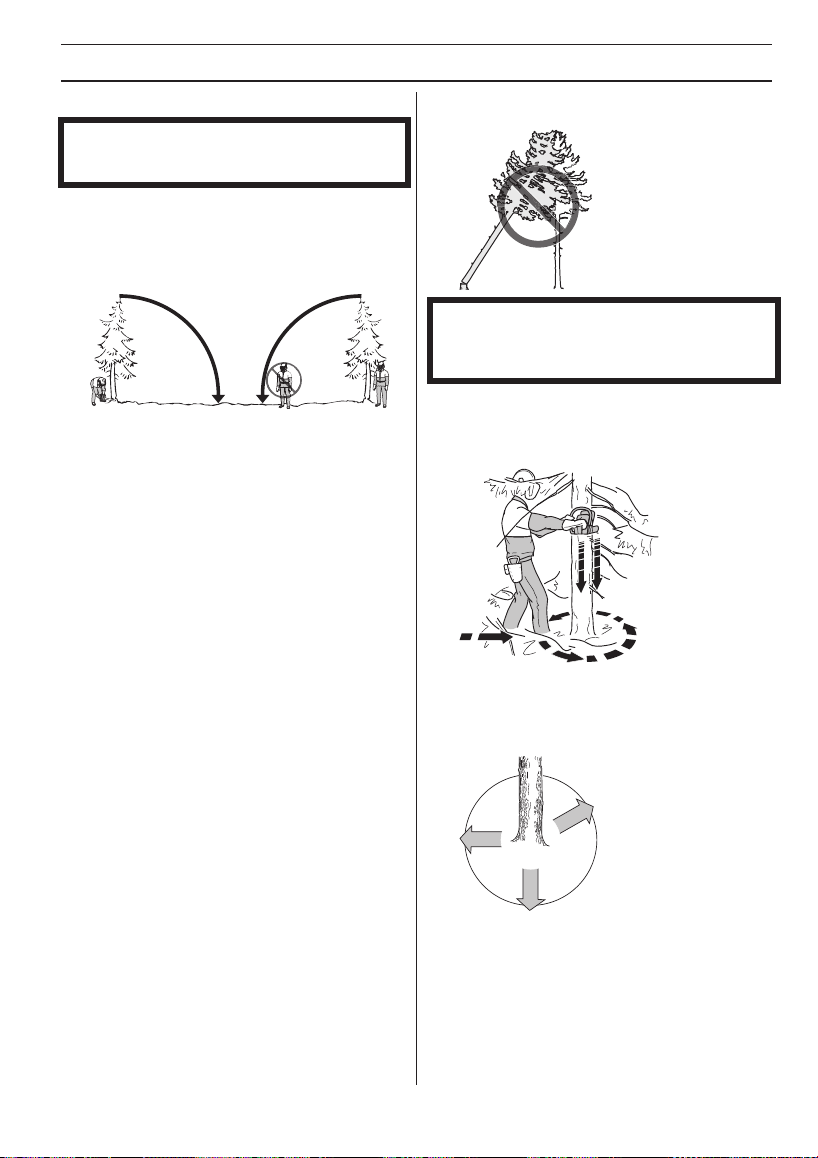

Tree felling technique
Safe distance
The safe distance between a tree that is to be felled and
anyone else working nearby is at least 2 1/2 tree lengths.
Make sure that no-one else is in this ”risk zone” before or
during felling.
Felling direction
The aim is to fell the tree in a position where you can limb
and cross-cut the log as easily as possible. You want it to
fall in a location where you can stand and move about
safely.
Once you have decided which way you want the tree to fall
you must judge which way the tree would fall naturally.
Several factors affect this:
• Lean of the tree
• Bend
• Wind direction
• Arrangement of branches
• Weight of snow
• Obstacles within the reach of the tree: for example,
other trees, power lines, roads and buildings.
• Look for signs of damage and rot in the stem, this
makes it more probably that the tree will break and
start to fall before you expect it to.
You may find you are forced to let the tree fall in its natural
direction because it is impossible or dangerous to try to
make it fall in the direction you first intended.
Another very important factor, which does not affect the
felling direction but does affect your safety, is to make sure
the tree has no damaged or dead branches that might
break off and hit you during felling.
The main point to avoid is letting the tree fall onto another
tree. It is very dangerous to remove a trapped tree and
there is high accident risk. See instructions under the
heading Freeing a tree that has fallen badly.
Clearing the trunk and preparing your retreat
Delimb the stem up to shoulder height. It is safer to work
from the top down and to have the tree between you and
the saw.
Remove any undergrowth from the base of the tree and
check the area for obstacles (stones, branches, holes,
etc.) so that you have a clear path of retreat when the tree
starts to fall. Your path of retreat should be roughly 135
degrees away from the intended felling direction.
1 Danger zone
2 Retreat path
3 Felling direction
IMPORTANT! It takes a lot of experience to fell a tree.
Inexperienced users of chain saws should not fell trees.
Do not attempt any task that you feel unsure of!
IMPORTANT! During critical felling operations, hearing
protectors should be lifted immediately when sawing is
completed so that sounds and warning signals can be
heard.
1
2
2
1
1
3

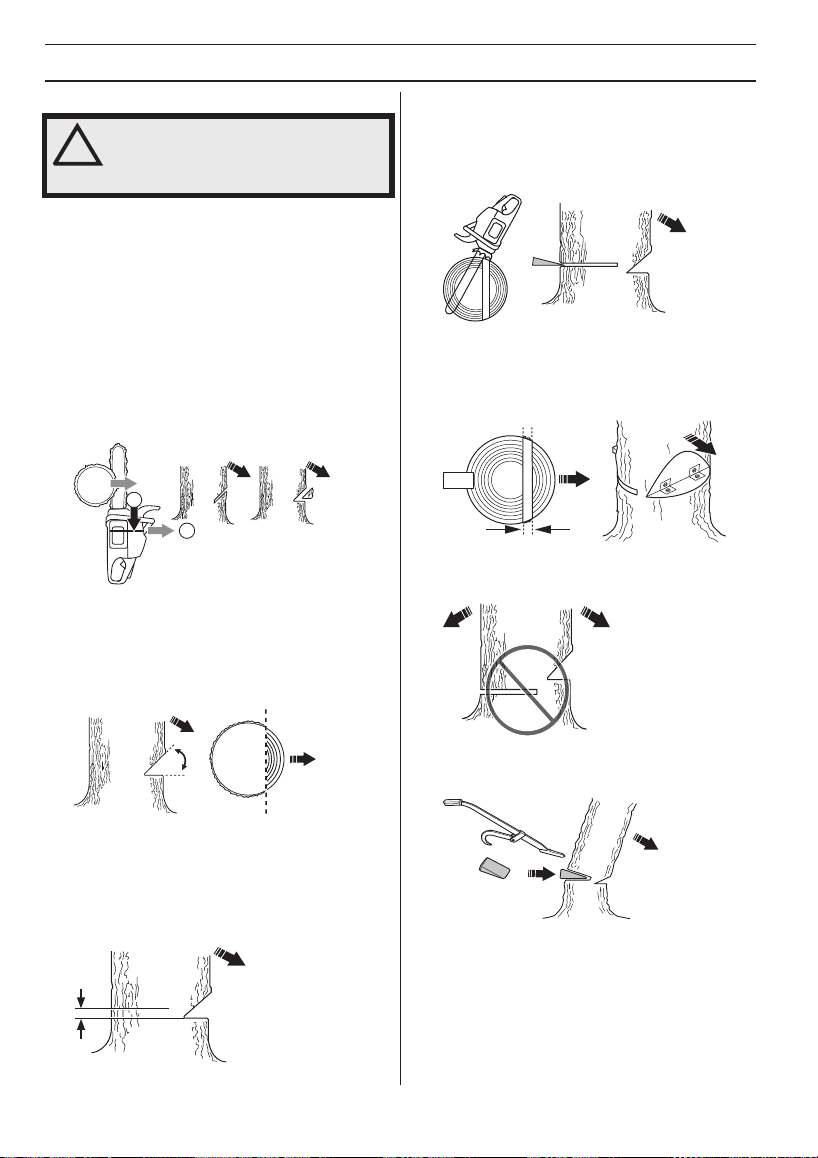

WORKING TECHNIQUES
28 – English
Felling
Felling is done using three cuts. First you make the
directional cuts, which consist of the top cut and the
bottom cut, then you finish with the felling cut. By placing
these cuts correctly you can control the felling direction
very accurately.
Directional cuts
To make the directional cut you begin with the top cut. Aim
using to the saw’s felling direction mark (1) toward a goal
further forward in the terrain, where you would like the tree
to fall (2). Stand on the right-hand side of the tree, behind
the saw, and cut with a pull stroke.
Next make the bottom cut so that it finishes exactly at the
end of the top cut.
The directional cuts should run 1/4 of the diameter
through the trunk and the angle between the top cut and
bottom cut should be 45°.
The line where the two cuts meet is called the directional
cut line. This line should be perfectly horizontal and at
right angles (90°) to the chosen felling direction.
Felling cut
The felling cut is made from the opposite side of the tree
and it must be perfectly horizontal. Stand on the left side
of the tree and cut on the pull stroke.
Make the felling cut about 3-5 cm (1.5-2 inches) above the
bottom directional cut.
Set the spiked bumper (if one is fitted) just behind the
felling hinge. Use full throttle and advance the chain/bar
slowly into the tree. Make sure the tree does not start to
move in the opposite direction to your intended felling
direction. Drive a wedge or breaking bar into the cut as
soon as it is deep enough.
Finish the felling cut parallel with the directional cut line so
that the distance between them is at least 1/10 of the
trunk diameter. The uncut section of the trunk is called the
felling hinge.
The felling hinge controls the direction that the tree falls in.
All control over the felling direction is lost if the felling
hinge is too narrow or non-existent, or if the directional
cuts and felling cut are badly placed.
When the felling cut and directional cut are complete the
tree should start to fall by itself or with the aid of a felling
wedge or breaking bar.
We recommend that you use a bar that is longer than the
diameter of the tree, so that you can make the felling cut
and directional cuts with single cutting strokes. See
instructions under the heading Technical data section to
!
WARNING! Unless you have special
training we advise you not to fell trees
with a diameter larger than the bar length
of your saw!
2
1

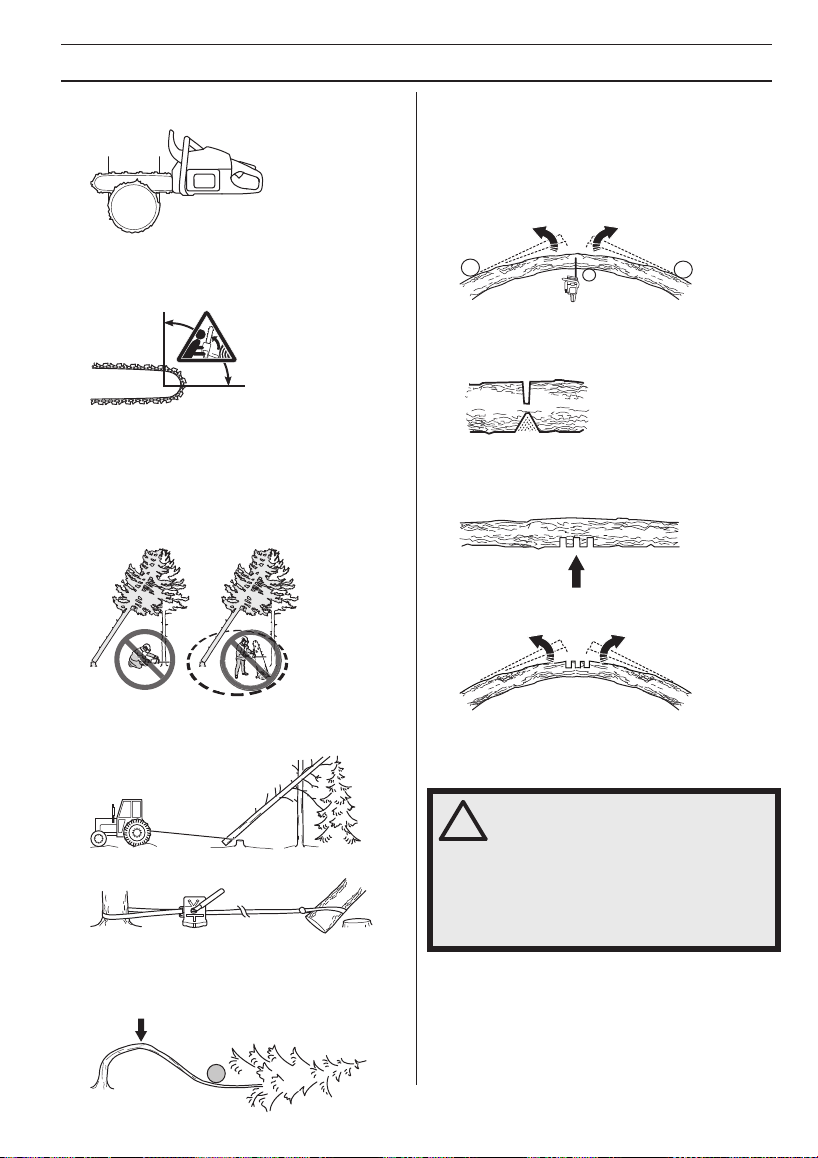

WORKING TECHNIQUES
English – 29
find out which lengths of bar are recommended for your
saw.
There are methods for felling trees with a diameter larger
than the bar length. However these methods involve a
much greater risk that the kickback zone of the bar will
come into contact with the tree.
Freeing a tree that has fallen badly
Freeing a ”trapped tree”
It is very dangerous to remove a trapped tree and there is
high accident risk.
Never try to fell the tree that is trapped.
Never work in the risk zone of the hanging trapped tree.
The safest method is to use a winch.
• Tractor-mounted
• Portable
Cutting trees and branches that are in tension
Preparations: Work out which side is in tension and where
the point of maximum tension is (i.e. where it would break
if it was bent even more).
Decide which is the safest way to release the tension and
whether you are able to do it safely. In complicated
situations the only safe method is to put aside your chain
saw and use a winch.
General advice:
Position yourself so that you will be clear of the tree or
branch when the tension is released.
Make one or more cuts at or near the point of maximum
tension. Make as many cuts of sufficient depth as
necessary to reduce the tension and make the tree or
branch break at the point of maximum tension.
Never cut straight through a tree or branch that is in
tension!
If you must cut across tree/limb, make two to three cuts,
one inch apart, one to two inches deep.
Continue to cut deeper until tree/limb bends and tension
is released.
Cut tree/limb from outside the bend, after tension has
been released.
How to avoid kickback
What is kickback?
The word kickback is used to describe the sudden
reaction that causes the chain saw and bar to jump off an
!
WARNING! Kickback can happen very
suddenly and violently; kicking the chain
saw, bar and chain back at the user. If
this happens when the chain is moving it
can cause very serious, even fatal
injuries. It is vital you understand what
causes kickback and that you can avoid
it by taking care and using the right
working technique.
WORKING TECHNIQUES
30 – English
object when the upper quadrant of the tip of the bar,
known as the kickback zone, touches an object.
Kickback always occurs in the cutting plane of the bar.
Normally the chain saw and bar are thrown backwards
and upwards towards the user. However, the chain saw
may move in a different direction depending on the way it
was being used when the kickback zone of the bar
touched the object.
Kickback only occurs if the kickback zone of the bar
touches an object.
Limbing
Make sure that you can stand and move about safely.
Work on the left side of the trunk. Work as close as
possible to the chain saw for maximum control. If possible,
let the weight of the chain saw rest on the trunk.
Keep the trunk between you and the chain saw as you
move along the trunk.
Cutting the trunk into logs
See instructions under the heading Basic cutting
technique.
!
WARNING! A majority of kickback
accidents occur during limbing. Do not
use the kickback zone of the guide bar.
Be extremely cautious and avoid
contacting the log, other limbs or objects
with the nose of the guide bar. Be
extremely cautious of limbs under
tension. They can spring back toward
you and cause loss of control resulting
in injury.
MAINTENANCE
English – 31

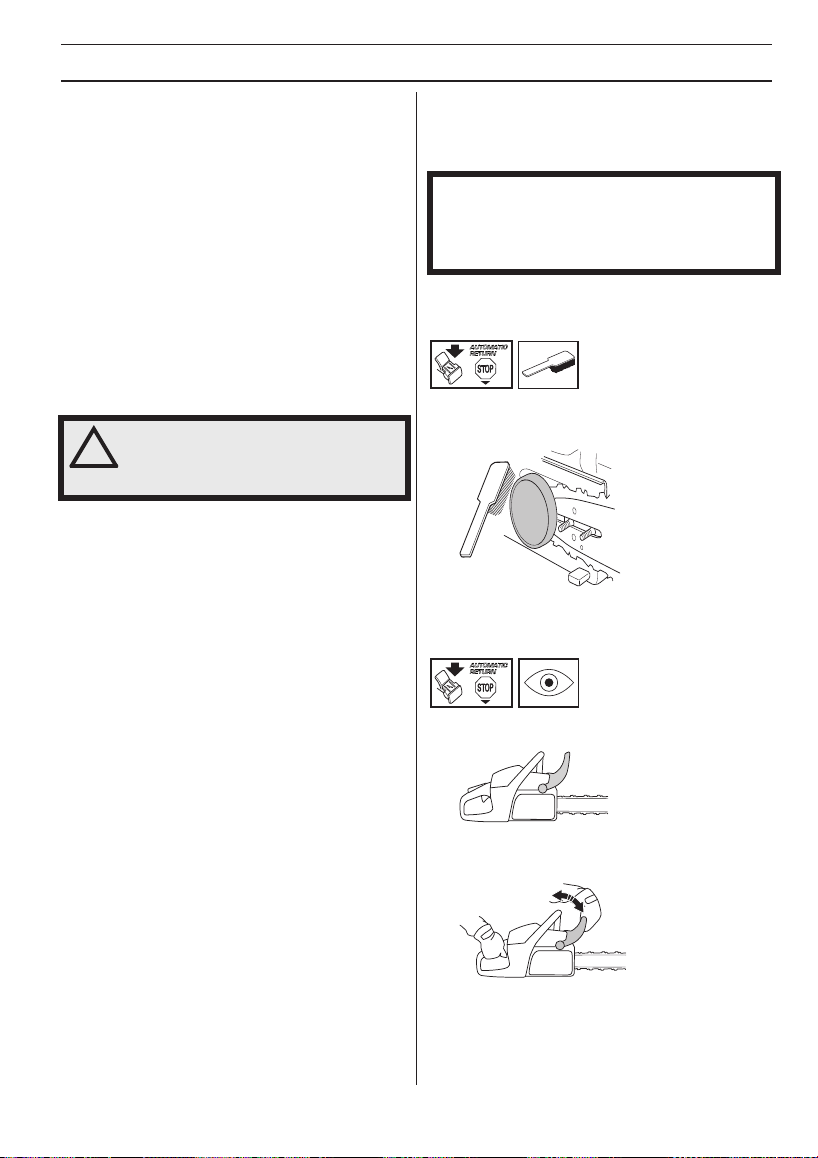

General
The user must only carry out the maintenance and
service work described in this Operator's Manual. More
extensive work must be carried out by an authorized
service workshop.
Carburettor adjustment
Your Husqvarna product has been designed and
manufactured to specifications that reduce harmful
emissions.
AutoTune
The engine is equipped with AutoTune, so manual
adjustment of the carburettor’s H and L needles and the
T-screw no longer applies. Both needles and the T-screw
have been removed. AutoTune is a function that adjusts
the carburettor electronically, always resulting in optimal
adjustment.
Function
• The carburettor controls the speed of the engine via
the throttle. Air/fuel is mixed in the carburettor. This
air/fuel mixture is adjustable.
• The automatic adjustment of the carburettor means
that the engine is adapted to local conditions, e.g. the
climate, altitude, petrol and the type of 2-stroke oil.
This function is controlled by AutoTune.
Engine adjustment
The chain saw will be completely adjusted automatically
after a few fuelings at normal running.
• The high speed part is set during loaded running,
such as cutting and felling.
• The idle part is set when the chain saw idles for some
time.
Conditions
NOTE! The ignition system includes an in-built speed
limiter. When the speed governor is activated, you will get
the same sound experience as when the chain saw 4-
cycles.
Checking, maintaining and
servicing chain saw safety
equipment
Chain brake and front hand guard
Checking brake band wear
• Brush off any wood dust, resin and dirt from the chain
brake and clutch drum. Dirt and wear can impair
operation of the brake.
• Regularly check that the brake band is at least 0,6 mm
thick at its thinnest point.
Checking the front hand guard
• Make sure the front hand guard is not damaged and
that there are no visible defects such as cracks.
• Move the front hand guard forwards and back to make
sure it moves freely and that it is securely anchored to
the clutch cover.
!
WARNING! If the saw chain rotates while
idling, contact your servicing dealer. Do
not use the chain saw until it has been
properly adjusted or repaired.
Note! All service and repair work on the machine
demands special training. This is especially true of the
machine’s safety equipment. If your machine fails any of
the checks described below we recommend that you
take it to your service workshop.

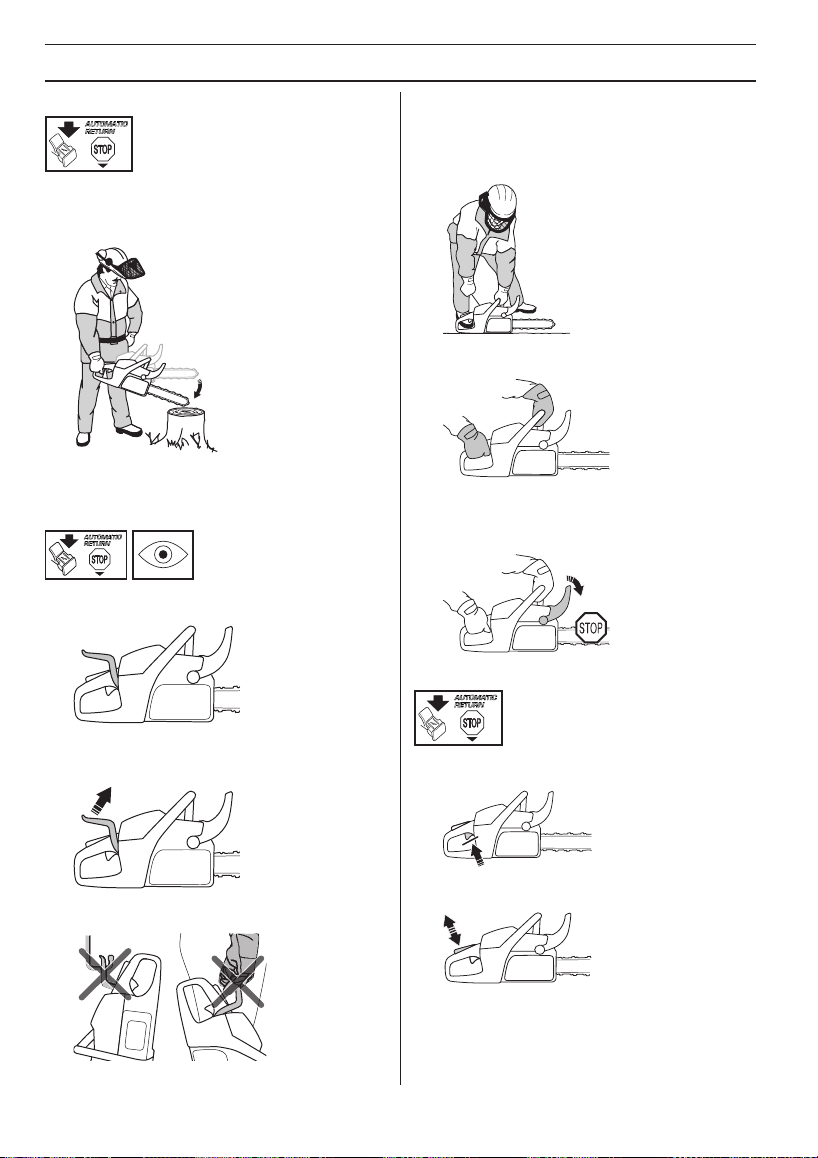

MAINTENANCE
32 – English
Checking the inertia brake release
• Place the chain saw, with the engine switched off, on
a stump or other stable surface. Release the front
handle and let the saw fall by its own weight, rotating
around the rear handle towards the stump.
When the bar hits the stump the brake should be
activated.
Checking the right-hand brake trigger
• Check that the right hand guard is not damaged and
that there are no visible defects, such as cracks.
• Push the trigger up and forwards to check that it
moves freely and is securely hinged to the clutch
cover.
Never carry or hang the saw by the trigger! This could
damage the mechanism and disable the chain brake.
Checking the brake trigger
• Place the chain saw on firm ground and start it. Make
sure the chain does not touch the ground or any other
object. See instructions under the heading Starting
and stopping.
• Grasp the chain saw firmly, wrapping your fingers and
thumbs around the handles.
• Apply full throttle and activate the chain brake by tilting
your left wrist forward onto the front hand guard. Do
not let go of the front handle. The chain should stop
immediately.
Throttle trigger lockout
• Make sure the throttle control is locked at the idle
setting when the throttle lockout is released.
• Press the throttle lockout and make sure it returns to
its original position when you release it.

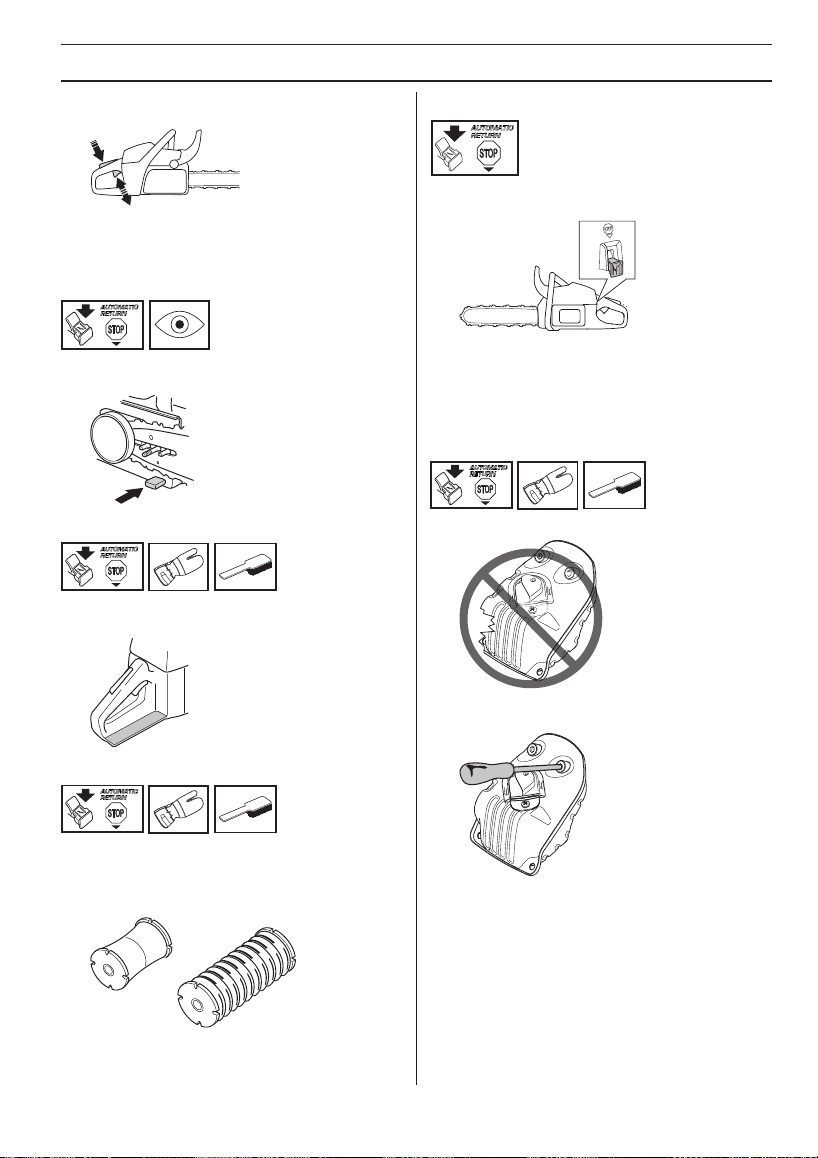

MAINTENANCE
English – 33
• Check that the throttle trigger and throttle lockout
move freely and that the return springs work properly.
• Start the chain saw and apply full throttle. Release the
throttle control and check that the chain stops and
remains stationary.
Chain catcher
• Check that the chain catcher is not damaged and is
firmly attached to the body of the chain saw.
Right hand guard
• Check that the right hand guard is not damaged and
that there are no visible defects, such as cracks.
Vibration damping system
• Regularly check the vibration damping units for cracks
or deformation.
• Make sure the vibration damping units are securely
attached to the engine unit and handle unit.
Stop switch
• Start the engine and make sure the engine stops
when you move the stop switch to the stop setting.
NOTE! The start/stop switch automatically returns to run
position. In order to prevent unintentional starting, the
spark plug cap must be removed from the spark plug
when assembling, checking and/or performing
maintenance.
Muffler
• Never use a machine that has a faulty muffler.
• Regularly check that the muffler is securely attached
to the machine.
Some mufflers are equipped with a special spark arrestor
mesh. If your machine has this type of muffler, you should
clean the mesh at least once a week. This is best done
with a wire brush. A blocked mesh will cause the engine
to overheat and may lead to serious damage.
Note! The mesh must be replaced if it is damaged. If the
mesh is blocked the machine will overheat and this will
cause damage to the cylinder and piston. Never use a
machine with a muffler that is in poor condition. Never

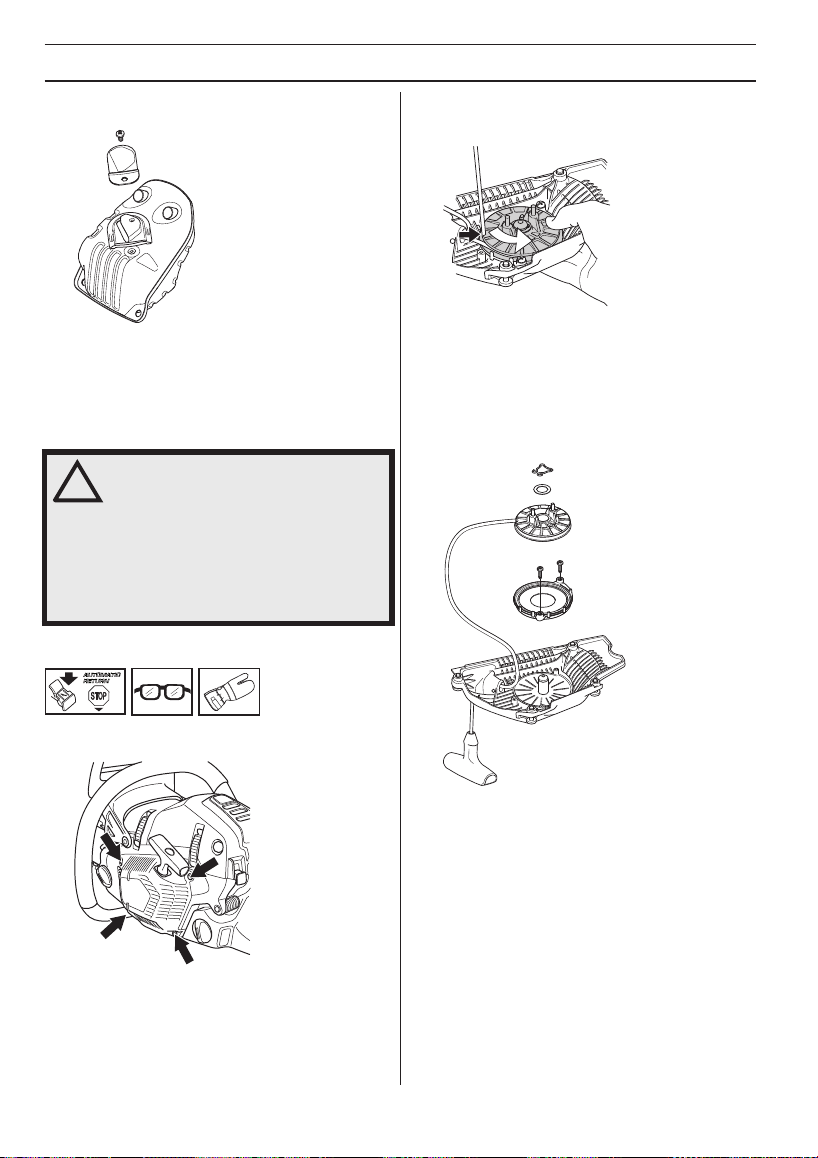

MAINTENANCE
34 – English
use a muffler if the spark arrestor mesh is missing or
defective.
The muffler is designed to reduce the noise level and to
direct the exhaust gases away from the operator. The
exhaust gases are hot and can contain sparks, which may
cause fire if directed against dry and combustible
material.
Starter housing
Changing a broken or worn starter cord
• Loosen the screws that hold the starter against the
crankcase and remove the starter.
• Pull out the cord approx. 30 cm and hook it into the
notch in the rim of the pulley. Release the recoil spring
by letting the pulley rotate slowly backwards.
• Remove the clip in the centre of the pulley. Remove
the spacer and the pulley. Insert and fasten a new
starter cord onto the pulley. Wind approx. 3 turns of
the starter cord onto the pulley. Connect the pulley to
the recoil spring so that the spring engages in the
pulley. Fit the spacer and secure the pulley with the
clip. Insert the starter cord through the hole in the
starter housing and the starter handle. Make a secure
knot in the end of the starter cord.
Tensioning the recoil spring
• Hook the starter cord in the notch in the pulley and
turn the starter pulley about 2 turns clockwise.
!
WARNING! When the recoil spring is
wound up in the starter housing it is
under tension and can, if handled
carelessly, pop out and cause personal
injury.
Care must be exercised when replacing
the return spring or the starter cord.
Wear protective glasses and protective
gloves.

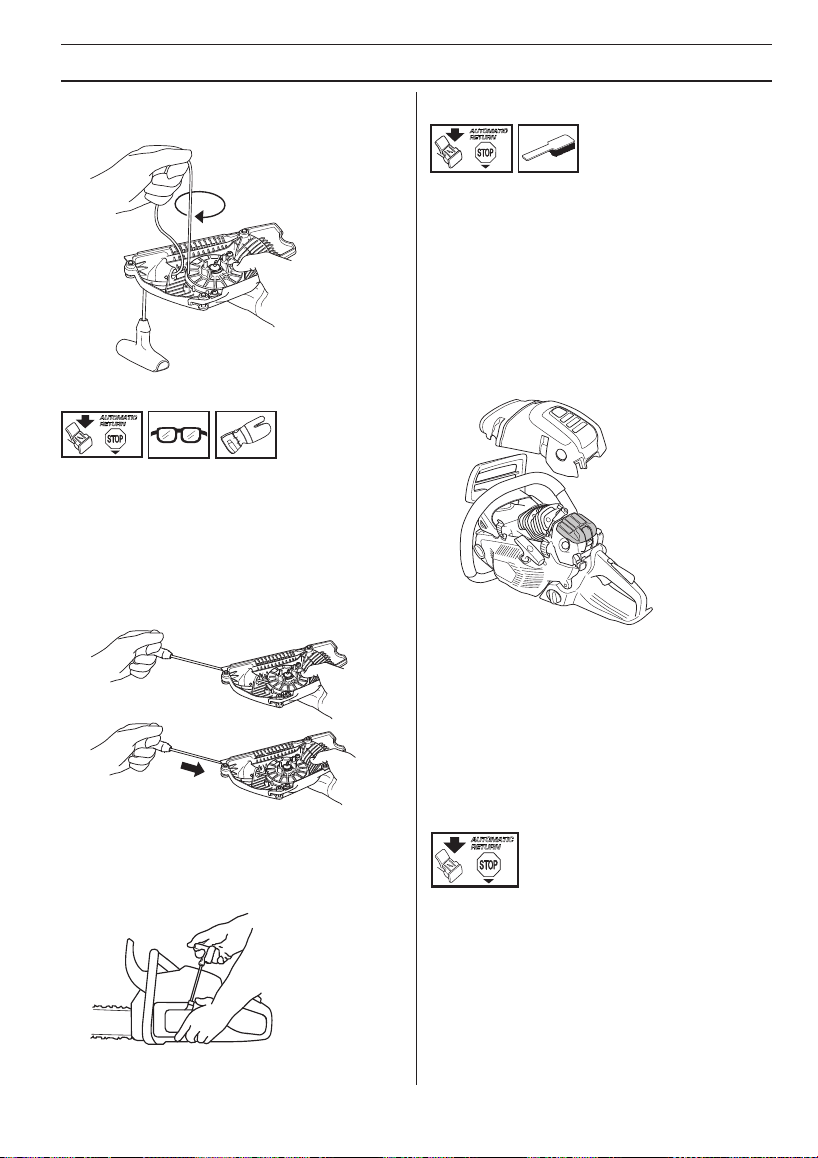

MAINTENANCE
English – 35
Note! Check that the pulley can be turned at least a
further 1/2 turn when the starter cord is pulled all the
way out.
Changing a broken recoil spring
• Lift up the starter pulley. See instructions under the
heading Changing a broken or worn starter cord.
Remember that the recoil spring is coiled under
tension in the starter housing.
• Remove the cassette with the recoil spring from the
starter.
• Lubricate the recoil spring with light oil. Fit the
cassette with recoil spring in the starter. Fit the starter
pulley and tension the recoil spring.
Fitting the starter
• To fit the starter, first pull out the starter cord and place
the starter in position against the crankcase. Then
slowly release the starter cord so that the pulley
engages with the pawls.
• Fit and tighten the screws that hold the starter.
Air filter
The air filter must be regularly cleaned to remove dust
and dirt in order to avoid:
• Carburettor malfunctions.
• Starting problems.
• Loss of engine power.
• Unnecessary wear to engine parts.
• Excessive fuel consumption.
• Remove the air filter after taking off the air filter cover.
When refitting make sure that the air filter seals tightly
against the filter holder. Clean the filter by brushing or
shaking it.
The filter can be cleaned more thoroughly by washing it in
water and detergent.
An air filter that has been in use for a long time cannot be
cleaned completely. The filter must therefore be replaced
with a new one at regular intervals. A damaged air filter
must always be replaced.
A HUSQVARNA chain saw can be equipped with different
types of air filter according to working conditions, weather,
season, etc. Contact your dealer for advice.
Spark plug
The spark plug condition is influenced by:
• An incorrect fuel mixture (too much or incorrect type
of oil).
• A dirty air filter.
These factors cause deposits on the spark plug
electrodes, which may result in operating problems and
starting difficulties.
If the machine is low on power, difficult to start or runs
poorly at idle speed: always check the spark plug first
before taking any further action. If the spark plug is dirty,

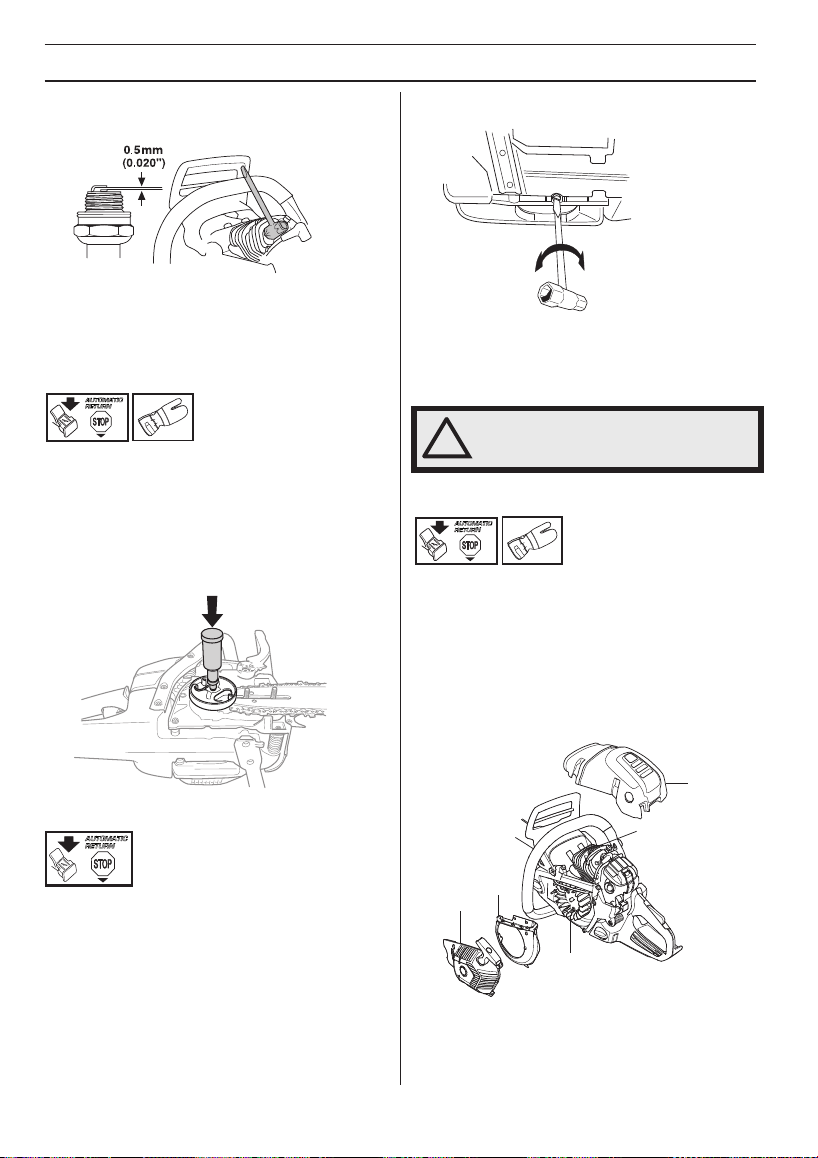

MAINTENANCE
36 – English
clean it and check that the electrode gap is 0,5 mm. The
spark plug should be replaced after about a month in
operation or earlier if necessary.
Note! Always use the recommended spark plug type! Use
of the wrong spark plug can damage the piston/cylinder.
Check that the spark plug is fitted with a suppressor.
For recommended spark plug, see Technical data.
Needle bearing lubrication
The clutch drum has a needle bearing on the output shaft.
This needle bearing must be lubricated regularly (once a
week).
When lubricating, remove the clutch cover by loosening
the two bar nuts. Lay the saw on its side with the clutch
drum upwards.
Lubrication involves grease being squirted into the centre
of the crankshaft using a grease gun.
Adjustment of the oil pump
The oil pump is adjustable. Adjustments are made by
turning the screw using a screwdriver or combination
spanner. The machine is supplied from the factory with
the screw set to middle position. Turning the screw
clockwise will reduce the oil flow and turning the screw
anti-clockwise will increase the oil flow.
Recommended settings:
Bar 13"-15": Minimum flow
Bar 16”-18”: Medium flow
Bar -20": Maximum flow
Cooling system
To keep the working temperature as low as possible the
machine is equipped with a cooling system.
The cooling system consists of:
1 Air intake on the starter.
2 Air guide plate.
3 Fins on the flywheel.
4 Cooling fins on the cylinder.
5 Cylinder cover (directs cold air over the cylinder).
Clean the cooling system with a brush once a week, more
often in demanding conditions. A dirty or blocked cooling
system results in the machine overheating which causes
damage to the piston and cylinder.
!
WARNING! The engine must not be
running when making adjustments.
–
+
1
2
3
4
5

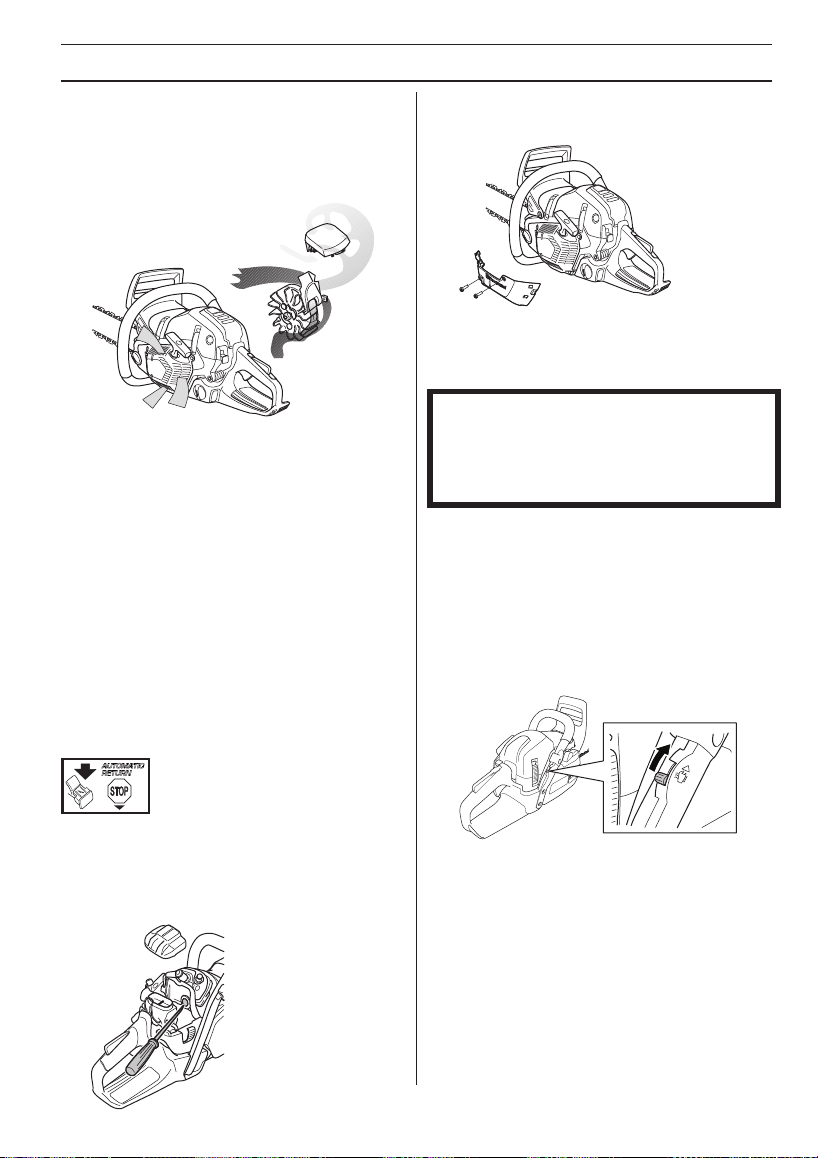

MAINTENANCE
English – 37
”Air Injection” centrifugal
cleaning
Centrifugal cleaning means the following: All air to the
carburettor passes through the starter. Dirt and dust is
centrifuged out by the cooling fan.
IMPORTANT! In order to maintain operation of the
centrifugal cleaning system it must be regularly
maintained. Clean the air intake to the starter, the fins on
the flywheel, the space around the flywheel, inlet pipe and
carburettor compartment.
Winter use
Running problems can occur when using the machine in
the cold and snowy conditions caused by:
• Too low engine temperature.
• Icing of the air filter and carburettor.
Special measures are therefore often required:
• Partly mask the air inlet on the starter to increase the
working temperature of the engine.
• Preheat the intake air to the carburettor by using the
heat from the cylinder.
Temperature 0°C or colder
The intermediate wall is designed so it can be adjusted for
running in cold weather, so that preheated air from the
cylinder can pass into the carburettor space preventing
icing of the air filter, etc. Lift off the air filter to obtain better
access. Use a screwdriver to carefully knock away the
plug in the partition.
For temperatures below -5°C and/or in snow conditions a
special cover is available, which is mounted on the starter
housing.
Part number: 522 98 66-01.
These reduce the flow of cooling air and prevent large
amounts of snow from being sucked into the carburettor
space.
Heated handles
550XPG, 550XPG TrioBrake
On models with the model code XPG both the front
handle bar and the rear handle are equipped with
electrical heating coils. These are supplied with electricity
from a generator built into the chain saw.
When the switch is pushed upwards, the heat is switched
on. When the switch is pushed downwards, the heat is
switched off.
Electrical carburettor heating
550XPG, 550XPG TrioBrake
On models with the designation XPG there is an
electrically heated carburettor. Electrically powered
heating prevents ice formation in the carburettor. A
thermostat regulates the heating so that the carburettor
always has the right working temperature.
IMPORTANT! If the temperature rises above -5°C or
0°C respectively, the starter housing cover MUST be
removed and the accompanying plug, art. no. 503 40
59-01 fitted in the hole in the partition wall. Otherwise
there is a risk of overheating, resulting in severe
damage to the engine.
38 – English
MAINTENANCE
Maintenance schedule
The following is a list of the maintenance steps that must be performed on the machine. Most of the items are described
in the Maintenance section.
Daily maintenance Weekly maintenance Monthly maintenance
Clean the outside of the machine. Check the cooling system weekly.
Check the brake band on the chain
brake for wear. Replace when less
than 0.6 mm (0.024 inch) remains at
the most worn point.
Check that the components of the
throttle trigger work safely. (Throttle
lockout and throttle trigger.)
Check the starter, starter cord and
return spring.
Check the clutch centre, clutch drum
and clutch spring for wear.
Clean the chain brake and check that
it operates safely. Make sure that the
chain catcher is undamaged, and
replace it if necessary.
Check that the vibration damping
elements are not damaged.
Clean the spark plug. Check that the
electrode gap is 0.5 mm.
The bar should be turned daily for
more even wear. Check the
lubrication hole in the bar, to be sure it
is not clogged. Clean the bar groove.
Lubricate the clutch drum bearing. Clean the outside of the carburettor.
Check that the bar and chain are
getting sufficient oil.
File off any burrs from the edges of
the bar.
Check the fuel filter and the fuel hose.
Replace if necessary.
Check the saw chain with regard to
visible cracks in the rivets and links,
whether the saw chain is stiff or
whether the rivets and links are
abnormally worn. Replace if
necessary.
Clean or replace the spark arrestor
mesh on the muffler.
Empty the fuel tank and clean the
inside.
Sharpen the chain and check its
tension and condition. Check the
drive sprocket for excessive wear and
replace if necessary.
Clean the carburettor compartment.
Empty the oil tank and clean the
inside.
Clean the starter units air intake.
Clean the air filter. Replace if
necessary.
Check all cables and connections.
Check that nuts and screws are tight.
Check that the chain oil tank
ventilation is not clogged. Clean if
necessary.
Check that the stop switch works
correctly.
Check that there are no fuel leaks
from the engine, tank or fuel lines.
Check that the chain does not rotate
when the engine is idling.
English – 39
TECHNICAL DATA
Technical data
545 550XP
Engine
Cylinder displacement, cm
3
50,1 50,1
Cylinder bore, mm 43 43
Stroke, mm 34,5 34,5
Idle speed, rpm 2600-2800 2600-2800
Power, kW/ rpm 2,5/9600 2,8/10200
Ignition system
Spark plug NGK CMR6H NGK CMR6H
Electrode gap, mm 0,5 0,5
Fuel and lubrication system
Fuel tank capacity, litre/cm
3
0,52/520 0,52/520
Oil pump capacity at 9,000 rpm, ml/min 5-12 5-12
Oil tank capacity, litre/cm
3
0,27/270 0,27/270
Type of oil pump Adjustable Adjustable
Weight
Chain saw without bar, chain and with empty tanks, kg 4,9 4,9
Noise emissions (see note 1)
Sound power level, measured dB(A) 114 114
Sound power level, guaranteed L
WA
dB(A) 116 116
Sound levels (see note 2)
Equivalent sound pressure level at the operator’s ear, dB(A) 106 106
Equivalent vibration levels, a
hveq
(see note 3)
Front handle, m/s
2
3,8 3,8
Rear handle, m/s
2
3,7 3,7
Chain/bar
Standard bar length, inch/cm 15/38 15/38
Recommended bar lengths, inch/cm 13-20/33-51 13-20/33-51
Usable cutting length, inch/cm 12-19/31-49 12-19/31-49
Pitch, mm 0,325/8,25 0,325/8,25
Thickness of drive links, inch/mm 0,050/1,3 0,050/1,3
0,058/1,5 0,058/1,5
Type of drive sprocket/number of teeth Rim/7 Rim/7
Chain speed at 133% of maximum engine power speed, m/s. 24,6 26,1
40 – English
TECHNICAL DATA
Note 1: Noise emissions in the environment measured as sound power (L
WA
) in conformity with EC directive 2000/14/
EC.
Note 2: Equivalent sound pressure level, according to ISO 22868, is calculated as the time-weighted energy total for
different sound pressure levels under various working conditions. Typical statistical dispersion for equivalent sound
pressure level is a standard deviation of 1 dB (A).
Note 3: Equivalent vibration level, according to ISO 22867, is calculated as the time-weighted energy total for vibration
levels under various working conditions. Reported data for equivalent vibration level has a typical statistical dispersion
(standard deviation) of 1 m/s
2
.
550XP
TrioBrake
550XPG 550XPG TrioBrake
Engine
Cylinder displacement, cm
3
50,1 50,1 50,1
Cylinder bore, mm 43 43 43
Stroke, mm 34,5 34,5 34,5
Idle speed, rpm 2600-2800 2600-2800 2600-2800
Power, kW/ rpm 2,8/10200 2,8/10200 2,8/10200
Ignition system
Spark plug NGK CMR6H NGK CMR6H NGK CMR6H
Electrode gap, mm 0,5 0,5 0,5
Fuel and lubrication system
Fuel tank capacity, litre/cm
3
0,52/520 0,52/520 0,52/520
Oil pump capacity at 9,000 rpm, ml/min 5-12 5-12 5-12
Oil tank capacity, litre/cm
3
0,27/270 0,27/270 0,27/270
Type of oil pump Adjustable Adjustable Adjustable
Weight
Chain saw without bar, chain and with empty tanks, kg 5,0 5,1 5,2
Noise emissions (see note 1)
Sound power level, measured dB(A) 114 114 114
Sound power level, guaranteed L
WA
dB(A) 116 116 116
Sound levels (see note 2)
Equivalent sound pressure level at the operator’s ear, dB(A) 106 106 106
Equivalent vibration levels, a
hveq
(see note 3)
Front handle, m/s
2
3,8 3,8 3,8
Rear handle, m/s
2
3,7 3,7 3,7
Chain/bar
Standard bar length, inch/cm 15/38 15/38 15/38
Recommended bar lengths, inch/cm 13-20/33-51 13-20/33-51 13-20/33-51
Usable cutting length, inch/cm 12-19/31-49 12-19/31-49 12-19/31-49
Pitch, mm 0,325/8,25 0,325/8,25 0,325/8,25
Thickness of drive links, inch/mm 0,050/1,3 0,050/1,3 0,050/1,3
0,058/1,5 0,058/1,5 0,058/1,5
Type of drive sprocket/number of teeth Rim/7 Rim/7 Rim/7
Chain speed at 133% of maximum engine power speed, m/s. 26,1 26,1 26,1
English – 41
TECHNICAL DATA
Recommended cutting equipment
Chain saw model(s) Husqvarna 545, 550 XP, 550 XP TrioBrake, 550 XPG, 550 XPG TrioBrake has been evaluated for
safety according to EN-ISO 11681-1 (Machinery for forestry - Portable chain saw safety requirements and testing) and
fulfills the safety requirements when equipped with the below listed guide bar and saw chain combination(s).
We recommend only to use the listed guide bar and saw chain combination(s).
Low kickback saw chain
A saw chain that is designated as Low kickback has been evaluated according to ANSI B175.1-2012 and passed the
criteria to be listed as a Low kickback saw chain.
Kickback and guide bar nose radius
For sprocket nose bars the nose radius is defined by the number of teeth (e.g. 10T). For solid bars the nose radius is
defined by the size of the nose radius. For a given guide bar length, you may use a guide bar with smaller nose radius
than listed.
Pixel
Pixel is a guide bar and saw chain combination that is more light weight and designed to offer more energy efficient use
by cutting narrow cuts. Both guide bar and saw chain need to be Pixel to get these benefits. Pixel cutting equipment is
marked with this symbol.
Guide bar Saw chain
Length Pitch Gauge Max. nose radius Type Low kickback
Length, drive links
(no.)
13”
0.325” 1,3 mm 10T
Husqvarna
SP33G
Husqvarna
H30
Ye s
56
15” 64
16” 66
18” 72
13”
0.325” 1,5 mm
10T
Husqvarna
H25
Ye s
56
15” 64
16” 66
18” 72
20” 12T 80
42 – English
TECHNICAL DATA
Filing equipment and filing angles
Using Husqvarna file gauge will give you the correct filing angles. We recommend always using a Husqvarna file gauge
to restore the sharpness of the saw chain. The part numbers are given in the table below.
If you are not sure of how to identify what saw chain you have on your chain saw, please visit www.husqvarna.com for
more information.
EC Declaration of Conformity
Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declares under sole responsibility that the chain
saws for forest service Husqvarna 545, 550XP, 550XP TrioBrake, 550XPG and 550XPG TrioBrake from 2016’s serial
numbers and onwards (the year is clearly stated in plain text on the type plate with subsequent serial number), are in
conformity with the requirements of the COUNCIL’S DIRECTIVES:
- of May 17, 2006 ”relating to machinery” 2006/42/EC.
- of February 26, 2014 ”relating to electromagnetic compatibility” 2014/30/EU.
- of May 8, 2000 ”relating to the noise emissions in the environment” 2000/14/EC.
- of June 8, 2011 ”on the restriction of the use of certain hazardous substances in electrical and electronic equipment”
2011/65/EU.
The following standards have been applied:
EN ISO 12100:2010, ISO 14982:2009, EN ISO 11681-1:2011, EN 50581:2012.
Notified body: 0404, SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden, has carried out EC
type examination in accordance with the machinery directive’s (2006/42/EC) article 12, point 3b. The certificates for EC
type examination in accordance with annex VI, have the numbers:
0404/11/2324 – 545 0404/11/2325 – 550XP, 550XP TrioBrake, 550XPG, 550XPG TrioBrake.
In addition, SMP, Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden, has certified conformity with
annex V of the Council’s Directive of May 8, 2000 ”relating to the noise emissions in the environment” 2000/14/EC. The
certificates have the numbers:
01/161/095 - 545 01/161/096 - 550XP, 550XP TrioBrake, 550XPG, 550XPG TrioBrake.
For information relating to noise emissions, see the Technical data chapter.
The supplied chain saw conforms to the example that underwent EC type examination.
Huskvarna March 30, 2016
Per Gustafsson, Development manager (Authorized representative for Husqvarna AB and responsible for technical
documentation.)
1157564-26
´®z+YXJ¶6•¨
´®z+YXJ¶6•¨
2018-10-01
Original instructions
