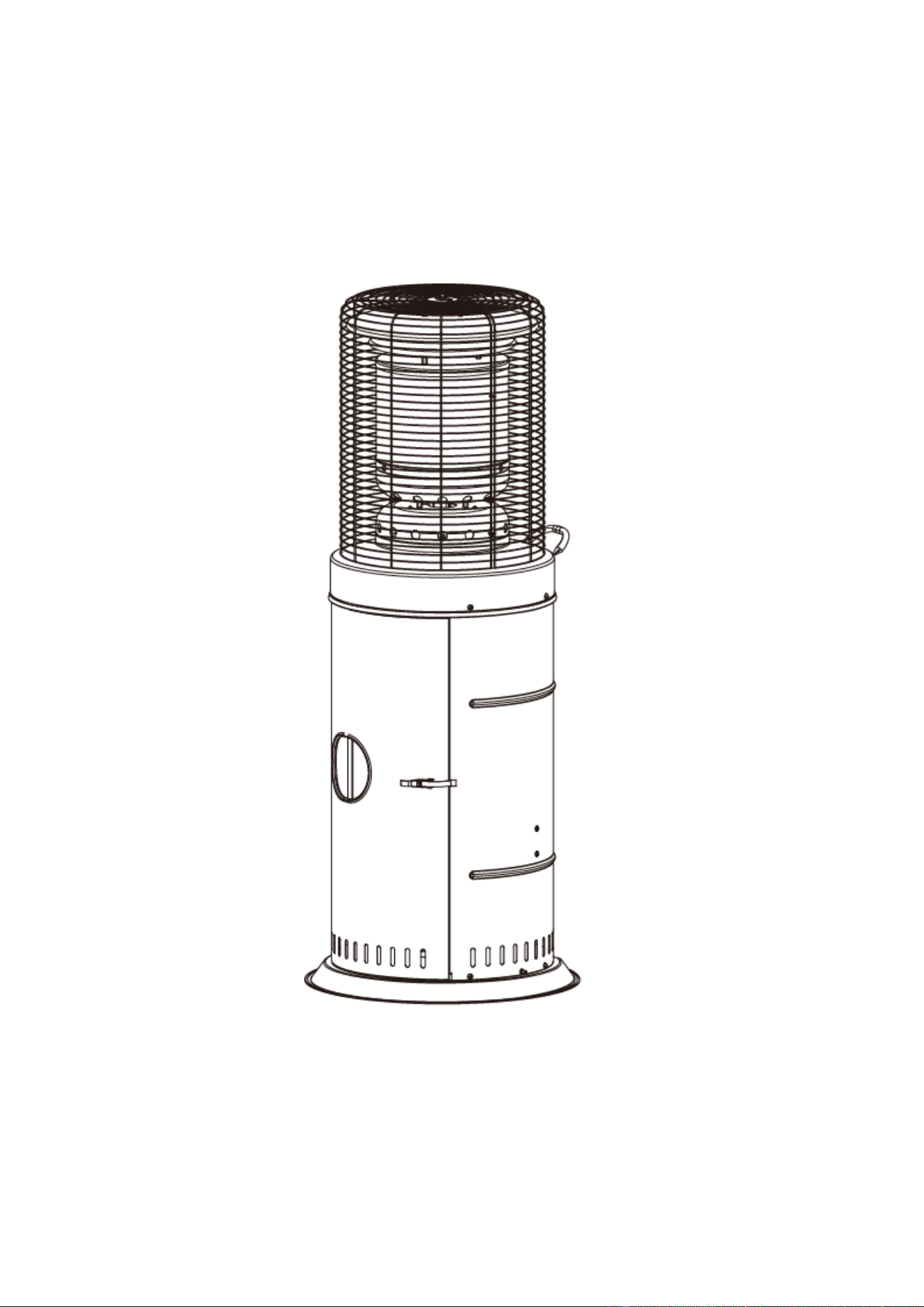

AREA PATIO HEATERS
INSTRUCTION MANUAL
MODEL: H1109F AND H1209F
FOR OUTDOOR USE ONLY !
PLEASE KEEP THE MANUAL FOR FUTURE USE.
THE INSTALLER OR SELLER MUST LEAVE THE MANUAL TO THE CONSUMER.
1
TABLE OF CONTENTS
Warnings 1-3
Assembly 3
Gas Requirements & Connecting To A Gas Cylinder 4
Securing A Gas Cylinder 4
Minimum Clearance from Combustible Materials 5
Gas Leak testing 5
Lighting Instructions 6
Safe Appliance Locations 6-7
Maintenance & Servicing 8
Storage 8
Trouble Shooting 9

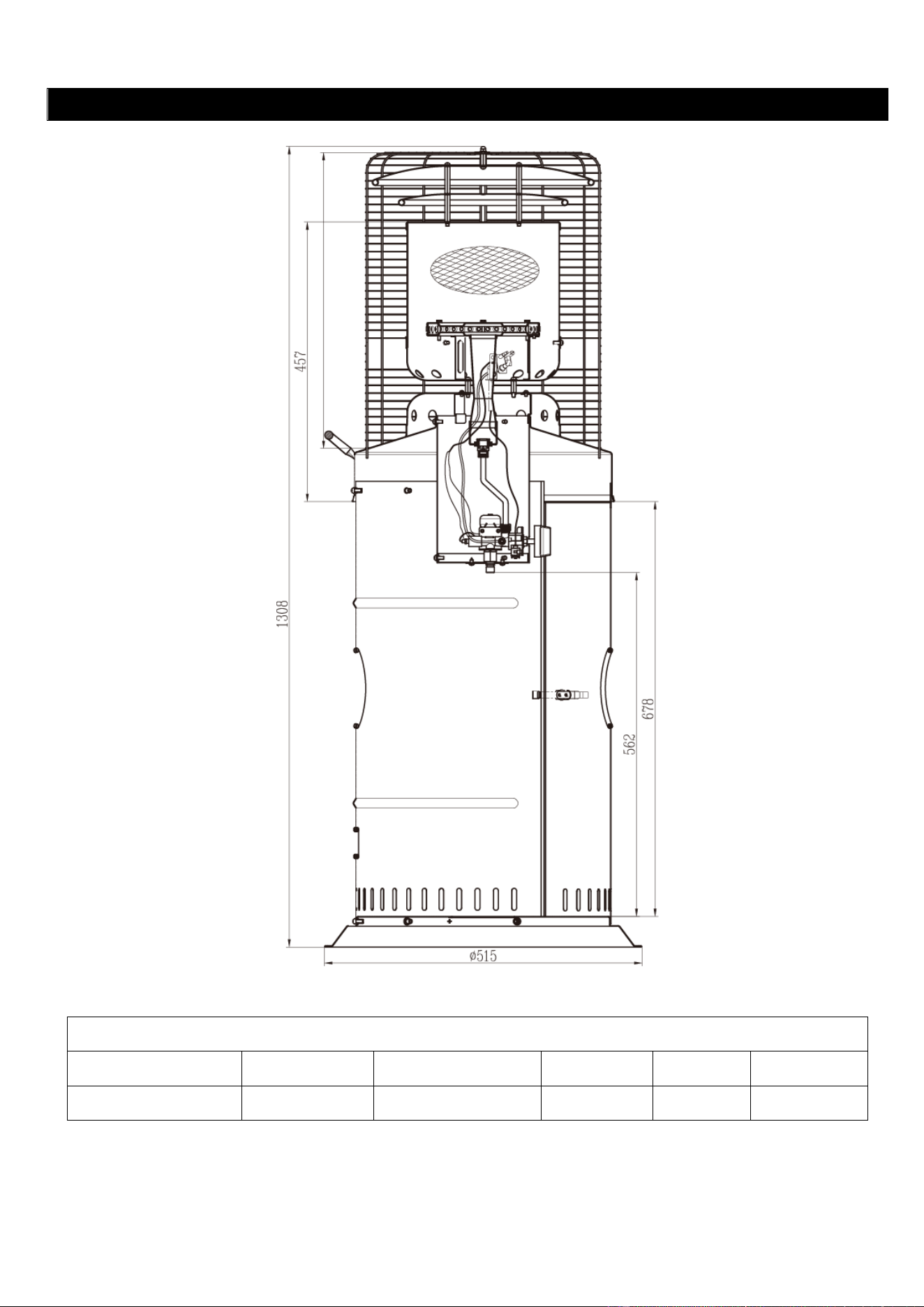

Technical Data 10
WARNINGS
For outdoor use only !
For propane gas use only.
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Read the instructions thoroughly before installing or servicing this appliance.
For your safety, if you smell gas:
Shut off the gas to the appliance.
Extinguish any open flame.
If odor continues, immediately call your gas supplier.
Do not store or use gasoline or other flammable vapor and liquids in the vicinity of this or any other appliance.
This appliance must only be used in a well ventilated area.
This appliance shall not be installed or used indoors, in buildings, garages or any other enclosed area.
Do not place articles on or against this appliance.
Do not use or store flammable materials near this appliance.
Never hang anything including clothes or other flammable items on the appliance.
Do not operate this appliance unless it is fully assembled with burner guard in place.
Any guard or other protective device removed for servicing the appliance must be replaced prior to
operating the appliance.
Do not spray aerosols in the vicinity of this appliance while it is in operation.
Children and adults should be alerted to the hazards of high surface temperatures burns and clothing
ignition.
Young children should be carefully supervised when they are in the area of the appliance
Repair should be done by a qualified service person. The appliance must be inspected before use and
at least annually by a qualified service person. It is imperative that control compartment, burners and
circulating air passages of the heater be kept clean.
Prior to assembling your appliance, the following must be reviewed. Compliance with the following should
result in satisfactory heater operation. The installation must conform with local codes or authority have
jurisdiction.
The appliance is intended for heating residential and non residential outdoor spaces. The installation must
conform with local codes or in the absence of local codes, with the Australian Standard AS/NZS5601.1:2013.
Adequate clearance around air opening into the combustion chamber, clearances from combustible materials,
2
provisions for accessibility and for the combustions and ventilating air supply must be maintained at all times
when the appliance is operating.
Combustible materials are considered to be wood, compressed paper, plant fibers, plastic, plexiglas or other
materials capable of being ignited and burned. Such materials shall be considered combustible even though
flame proofed, fire retardant treated or plastered. Additional clearance may be required for glass, painted
surfaces and other materials which may be damaged by radiant or convention heat.
Heater must be placed on a level and adequate footing and be readily accessible.
The gas manifold supply pressure must be regulated at 2.75kPa utilizing an AGA approved regulator.
The appliance must be kept clear and free of combustible materials, gasoline and other flammable vapors and
liquids.
Gas orifices and burner must be kept clear of dirt and cobwebs. Flow of combustion and ventilation air through
the perforated portions of the heater must not be obstructed. Cleaning with a soft brush before use and at least
every six months is recommended.
All gas connections should be checked for leaks utilizing a soap solution. Never use a flame for this purpose.
The flame pattern at the emitter grid should be visually checked whenever heater is operated. If flames extend
beyond surface of the emitter grid or black spot is accumulating on the emitter grid or reflector, the heater
should be turned off immediately. The heater should not be operated again until the heater is serviced and or
repaired.
Any cleaning agent used on the heater should be of a noncombustible and non corrosive nature.
The stainless steel emitter grid normally does not require cleaning and should never be painted.
The hose assembly should be located out of pathways where people may trip over it. The hose must be
protected from contact with hot or sharp surfaces both during use and while in storage. The hose assembly
should be visually inspected prior to each use of the heater. If excessive abrasion or wear is evident, or the
hose is cut, it must be replaced prior to operating the heater. The replacement hose assembly may be obtained
from the manufacture.
Do not use any pressure regulator or hose assembly other than those supplied with the appliance.
Replacement pressure regulator and hose assembly must be those specified. Replacement parts may be
obtained from the manufacture or your local dealer.
Installation and use of this heater must conform with local codes or in the absence of local codes, with the
Standards of Storage and Handling of Liquefied Petroleum Gases.
This heater is designed to operate with a 9kg propane cylinder with approved cylinder connection.
The valve outlet must be maintained in good condition. When the cylinder is not in use, be sure to cover it with
a dust cap. A leak test should be performed with soapy water whenever the connecting a new cylinder. Never
use a match to test for leaks.
The propane cylinder must be turned off whenever the heater is not in use. When the heater is to be stored
indoors, the propane cylinder and the heater must be disconnected and the cylinder stored in accordance with
the Standard for Storage and Handling of Liquefied Gases.
The heater has been designed with several safety features which include a tip over switch.
Storage of an appliance indoors with the cylinder attached is only permitted if the size of the cylinder complies
with AS/NZS 1596, otherwise cylinders must be stored outdoors in a well ventilated area.
The guards are fitted to the appliance to reduce the risk of fire or injury from burns and no part of it should be
removed.
The appliance must be protected from exposure to rain.
Any modification to the heater not described in the installation instructions may be compromise the safety of
this appliance. Special concerns are as follows:
Do not bypass the thermocouple safety burner.
Do not operate the heater without the guard.
Clothing or other flammable materials should not be hung from the heater, or placed on or near the
heater. The area above the burner may be extremely hot. Direct contact with these metal surfaces
should be avoided in order to prevent burns or clothing ignition.
3

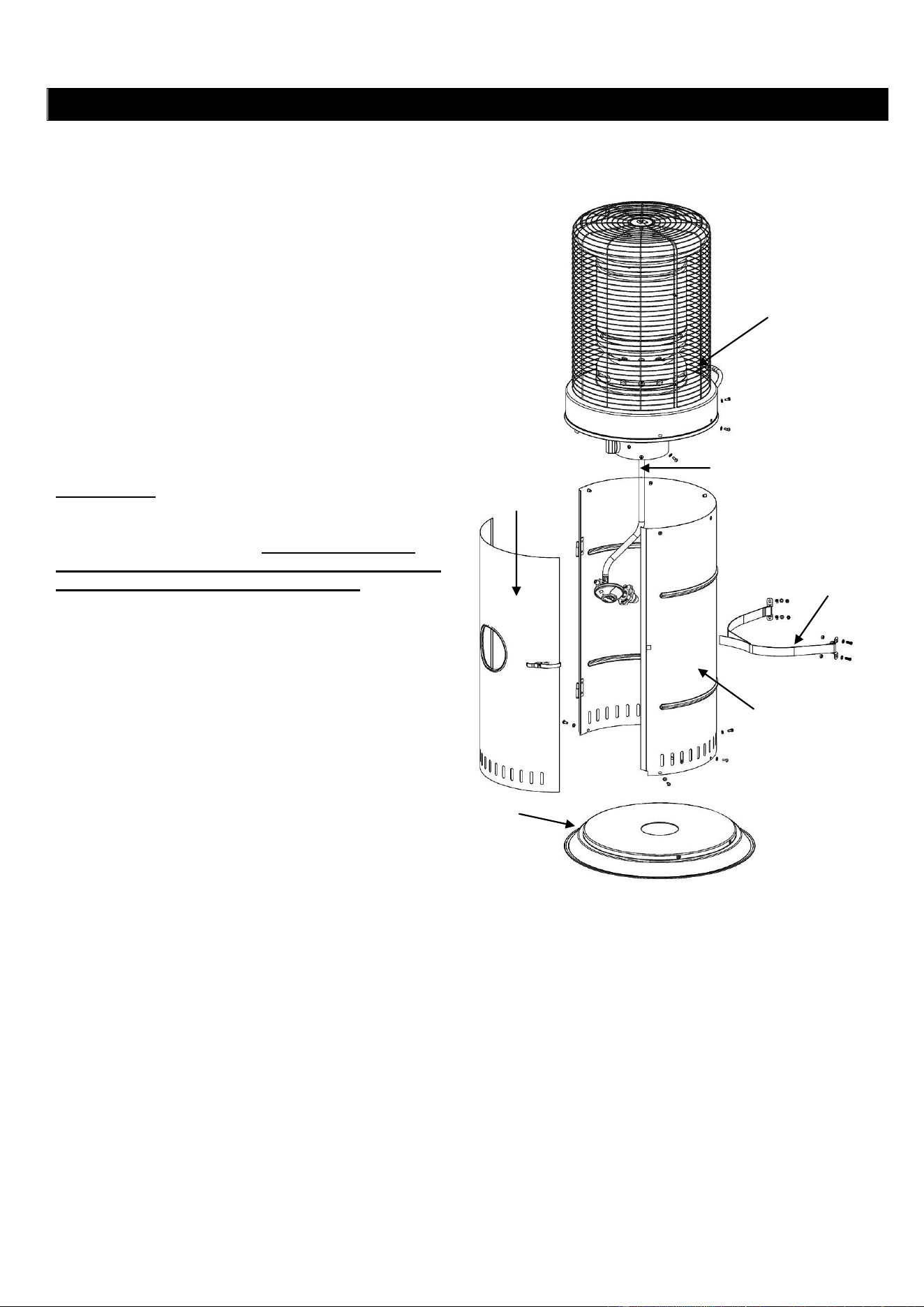

ASSEMBLY
Note: Remove any transit protection material before assembly.
Tools required:
Philips head screwdriver
2 adjustable spanners
Step 1.
Place the base on a flat surface. Secure the rear
housing to the base with 5pcs M5*10 screws and
washers.
Step 2.
Connecting hose & regulator to the burner assembly.
(Ignore this step in case hose & regulator is
assembled).
IMPORTANT: When fitting or removing the hose &
regulator, please use 2 spanners. One is on the
brass nut and the other is on the flat edges of the
aluminum gas connection. Failure to do it can
cause the aluminum gas connection to move and
break the gas sealant and cause a leak.
Step 3.
Secure burner head assembly outside of the cylinder
housing with 5pcs M5*10 screws and washers.
ATTENTION: To close the door well, lift burner head
assembly by one hand to secure 5pcs M5*10 screws
and washers with the lowest position of screw holes in
burner assembly.
Step 4.
Slide the housing door onto the hinge, close and lock.
Base
Burner assembly
Housing door
Rear housing
Hose & regulator
Belts for gas cylinder
4
GAS REQUIREMENTS & CONNECTING TO A GAS CYLINDER
The pressure regulator and hose assembly to be used must conform to local standard codes.
Never use a gas cylinder with a damaged body, valve, collar, or foot ring. A dented or rusty gas tank may be
hazardous and should be checked out by a gas supplier.
Never connect this appliance to an unregulated gas source.
When the appliance is not in use, turn the gas cylinder OFF.
Use 9 kg gas cylinder. Please refer to your gas supplier for suitable gas cylinder.
Refer to your gas supplier for instructions on the use of your gas cylinder.
Connect the pressure regulator and hose assembly onto the valve of gas cylinder.
The gas connection type is left-handed POL type connection
Tighten all connections firmly or with a spanner where appropriate. The cylinder should be located on the
cylinder base.
Only change gas cylinders outdoors or in a well ventilated area away from naked flames and any other source
of ignition.
The gas cylinder must always be used in an upright position.

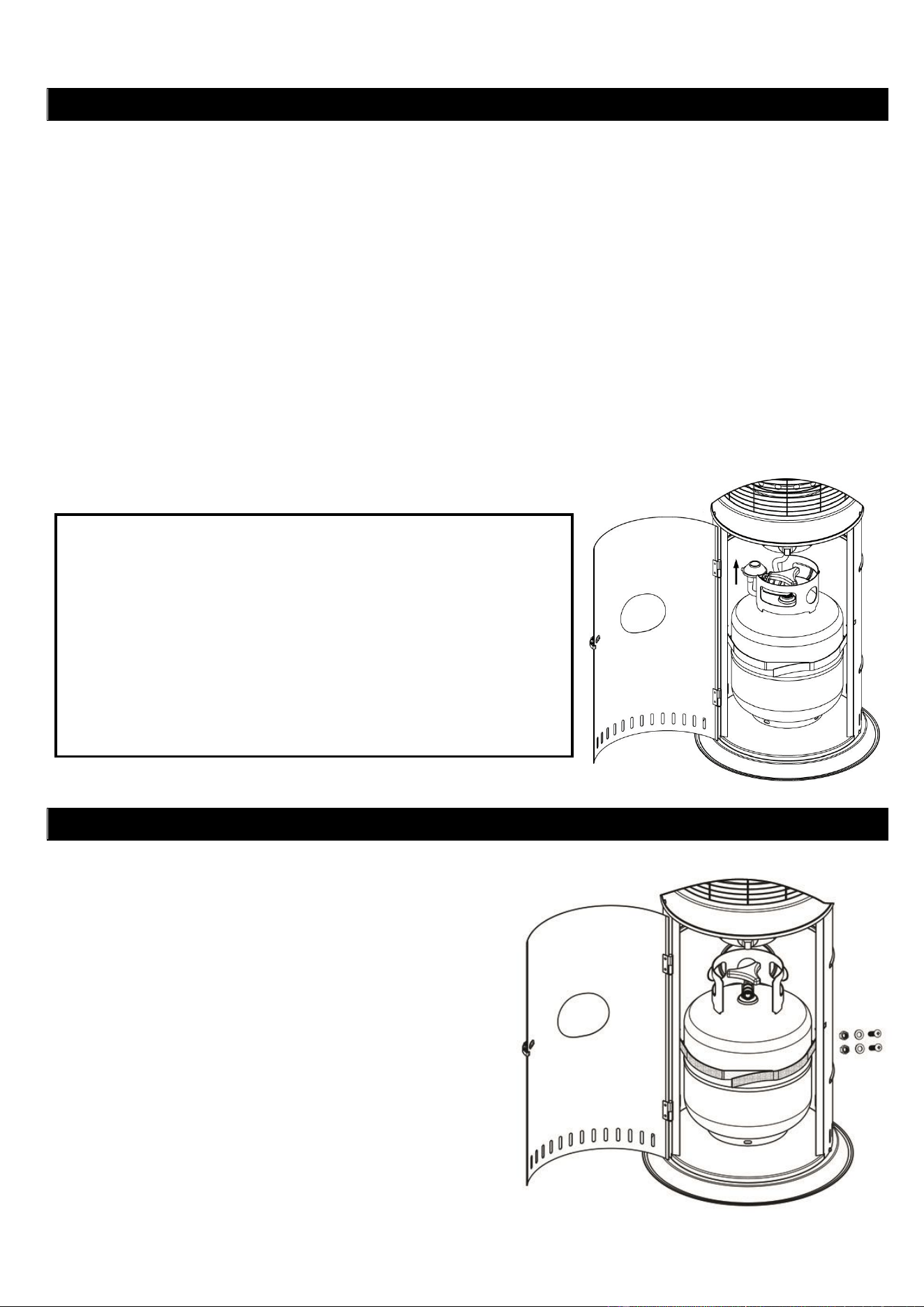

SECURING A GAS CYLINDER
1. Fix both cylinder restraint straps onto the rear tank
housing using 4pcs M5*12 bolts with M5 washer and M5
nuts.
2. Position a gas cylinder inside the tank housing.
3. Connect the gas cylinder with a regulator. Please refer to
the instructions attached with the regulator on how to
connect a regulator with the gas cylinder.
4. Stick cylinder restraint straps together as above photo
illustrated. The straps must be in a proper tightness for
the gas cylinder.
Caution: Please take care that the cylinder restraint straps.
DO NOT strain the regulator assembly.
ATTENTION
Do not twist or kink gas hose badly that may cause leak of
connections
Make sure pressure regulator must be used in an upright
position as figure showed!
Always perform a Leak Test on gas connections whenever
a cylinder is connected. If bubbles form in the leak test
solution, do not use. Never use a flame to test for leaks.
5

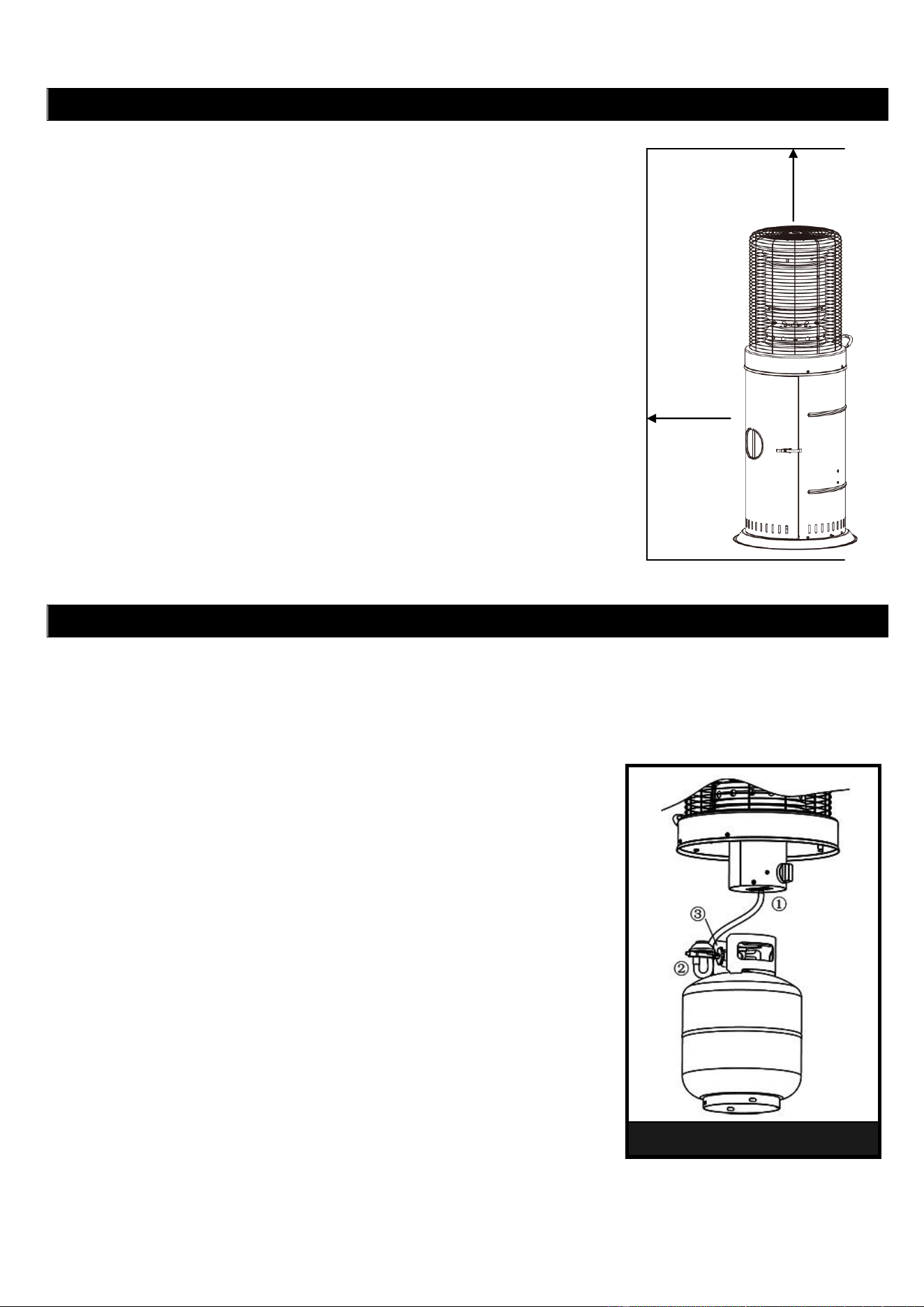

MINIMUM CLEARANCE FROM COMBUSTIBLE MATERIALS
Combustible materials are considered to be wood, compressed paper, plant
fibre, plastic, plexiglas or other materials capable of being ignited and burned.
GAS LEAKAGE TEST
Please follow the lighting instructions on the heater to fire the heater firstly. Leak test all gas connections
with soapy water solution. Soap bubbles indicate gas leakage, DO NOT use a match to test for gas leaks.
Warning: White smoke may appear around the radiant head during the first use of this appliance.
NEVER USE A NAKED FLAME TO CHECK FOR LEAKS.!
NEVER LEAK TEST WHILE SMOKING!
This appliance needs to be periodically checked for leaks and an immediate
check is required if the smell of gas is detected.
Make a soap solution using 1 part of liquid dish-washing soap to 3 parts
water. The soap solution can be applied with a soap bottle, brush, or rag
to the leak tested points shown in the figure above.
The valve of the gas cylinder should be in the OFF position at this point
of the leak test. Once the soapy solution is applied to the gas
connections, the valve of the gas cylinder needs to be turned to the ON
position.
Soap bubbles will begin to form in the soapy solution if a leak is present.
In case of a leak, turn off the gas supply. Tighten any leaking fittings,
then turn the gas supply on and recheck.
Leak Test Point ① ② ③
Side 500mm
Top 1000mm
6
LIGHTLING INSTRUCTIONS
1. Open the gas cylinder valve.
2. Push in control knob and turn anti clockwise to “IGNITION&LOW”. The rotary piezo will make a clicking sound.
3. Check for flame at the burner, if burner does not light immediately, turn control knob to OFF setting and try
again from the start. Allow 30 seconds between ignition attempts for gas to dissipate. Several attempts may be
necessary.
Failure to follow this lighting procedure may result in flame roll out beyond the emitter grid.
4. With the burner alight, keep control knob depressed for 15 seconds.
5. For maximum heat, turn control knob to “HIGH”.
6. To turn the heater off, turn control knob to “OFF”.
NOTE: Allow one minute to purge air through to pilot after connection to a new cylinder or replace hose & regulator.
SAFE APPLIANCE LOCATIONS
This appliance shall only be used in an above ground open air situation with natural ventilation,
without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind

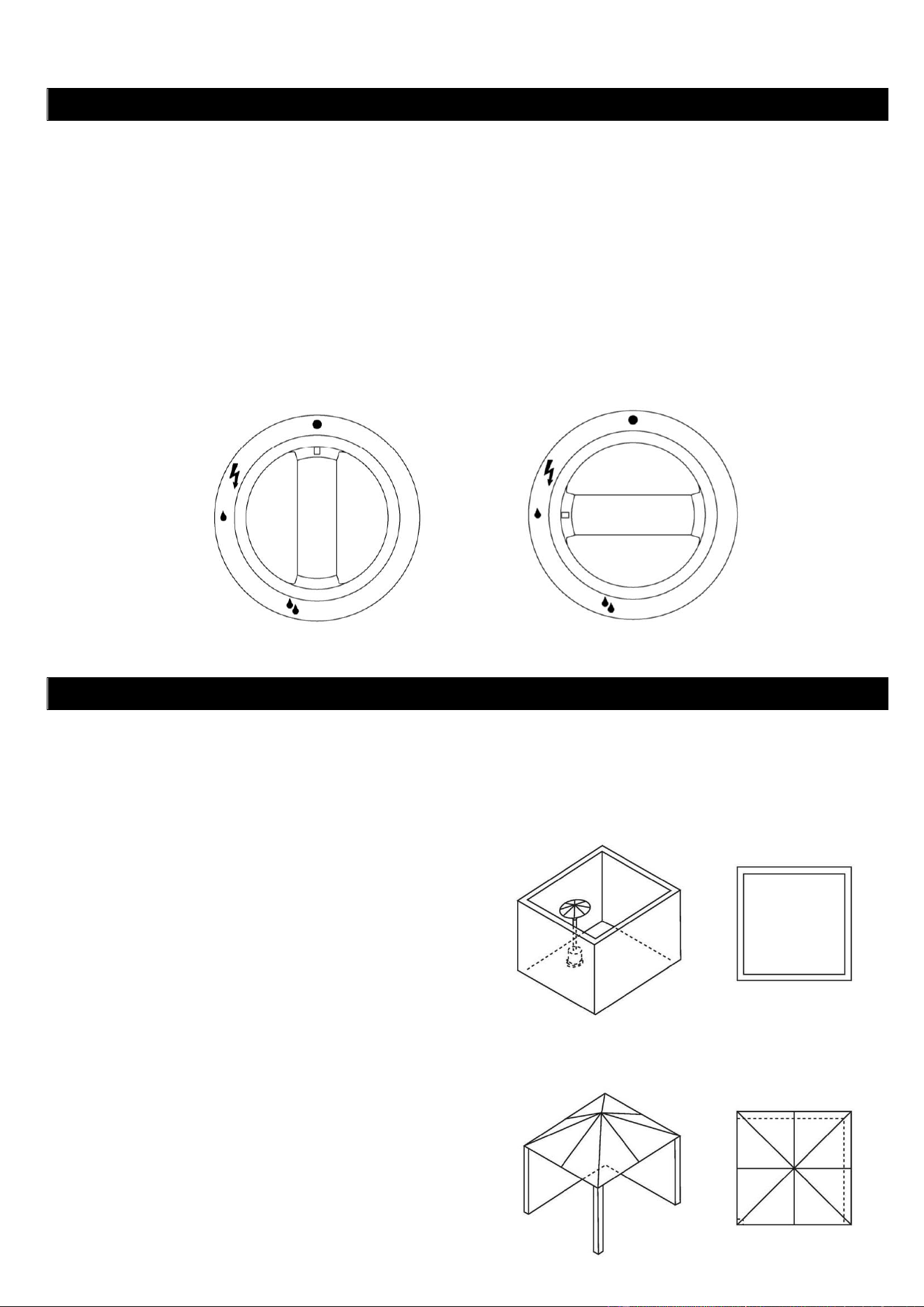

or natural convection.
Any enclosure in which the appliance is used shall comply with one of the following:
An enclosure with walls on all sides, but at least one
permanent opening at ground level and no overhead cover.
With a partial enclosure that includes an overhead cover and
no more than two walls.
With a partial enclosure that includes an overhead cover and
more than two walls, the following will apply:
At least 25% of the total wall area is completely open, and
At least 30% of the remaining wall area is open and
unrestricted.
In the case of balconies, at least 20% of the total wall area
shall be and remain open and unrestricted.

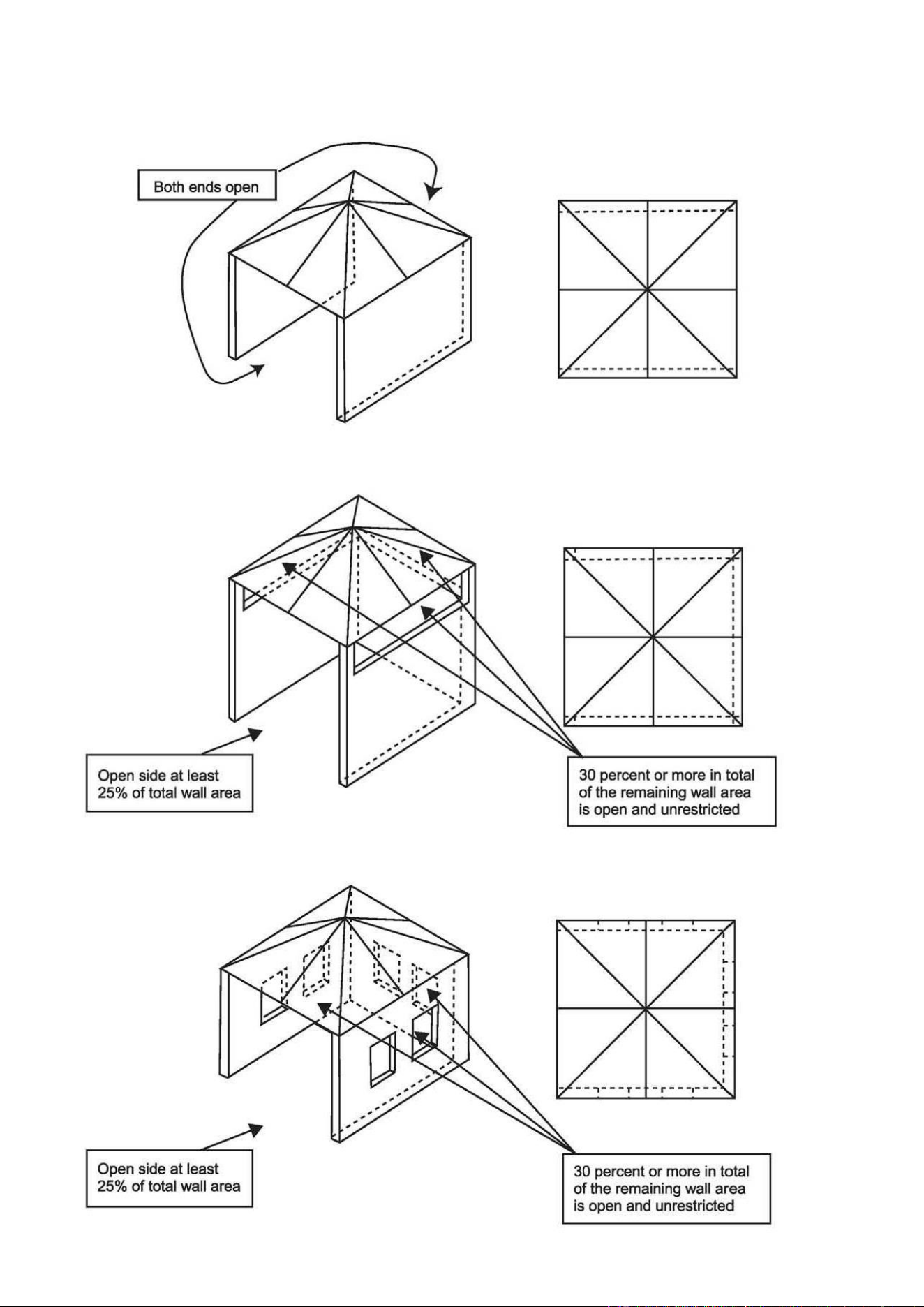

The following figures are diagrammatical representations of
outdoor areas. Rectangular areas have been used in these
figures-the same principles apply to any other shaped areas.
OFF
HIGH
IGNITION&LOW
7
8
MAINTENANCE & SERVICING
To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance
activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all times. If the
gas control is exposed to water in any way, DO NOT try to use it. It must be replaced.
Airflow must be unobstructed. Keep controls, burner and circulation air passageways clean. Signs of possible
blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Spiders and insects can nest in burner or orifices. This dangerous condition can damage the heater and render
it unsafe for use. Clean burner holes by using a heavy duty pipe cleaner. Compressed air may help clear away
smaller particles.
Carbon deposits may create a fire hazard. If any carbon deposits develop, clean dome and engine with warm
soapy water.
Note: in a salt-air environment (such as near the sea), corrosion occurs more quickly than normal.
Frequently check the corroded areas and repair them promptly.
SERVICING
Please consult your local dealer for servicing this appliance and replacement of its parts. The servicing of the
appliance shall be carried out only by authorised personnel.
Caution: do not use unauthorized parts or components for this appliance, only use original equipment
replacement parts and components. The use of unauthorized parts or components will void the warranty and
can create an unsafe condition.
STORAGE
There is no limitation on the storage of the appliance indoors provided that the cylinder is removed from
the appliance. Between uses:
Turn control knob OFF
Turn gas cylinder OFF
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow,
dust and debris).
If desired, cover to protect exterior surfaces and to prevent build up in air passages.
Note: Wait until heater is cool before covering.
During periods of extended inactivity or when transporting:
Turn control knob OFF.
Disconnect gas cylinder and move to a secure, well ventilated location outdoors. DO NOT store in a location
that will exceed 50°C.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow,
dust and debris).
If desired, cover heater to protect exterior surfaces and to prevent build up in air passages.
Note: Wait until heater is cool before covering
9
TROUBLE SHOOTING
Warning: Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Any modifications or adjustments made to product without prior authority from the
manufacturer will void any warranty claims. Read the installations, operating and maintenance
instructions thoroughly before installing or servicing this appliance.
Problem
Possible causes
Solution
Pilot won’t light
Cylinder valve is closed
Open valve
Blockage in orifice or pilot tube
Clean or replace orifice or pilot tube
Air in the gas line
Open gas line and bleed it (pressing
control knob in) for not more than
1-2 minutes or until you smell gas
Low gas pressure
Replace new gas cylinder
Igniter fails
Use match to light pilot, or obtain new
igniter or replace.
Pilot won’t stay lit
Dirt or debris build up around pilot
Clean dirty area
Loose connection between gas valve and
thermocouple
Tighten connection
Thermocouple is not operating correctly
Replace thermocouple
Gas leak in line
Check connections
Burner won’t light
Gas pressure is low
Replace new gas cylinder
Blockage in orifice
Remove, Clean and replace
Burner flame is low
Note: Do not operate
heater below 5
℃
Gas pressure is low
Replace new gas cylinder
Tank is less than 25% full
Replace new gas cylinder
Supply hose is bent or kinked
Straighten hose and perform leak test o
n hose connections
Blockage in orifice
Remove, Clean and replace
Carbon build-up
Dirt or film on reflector and emitter
Clean reflector and emitter
Thick black smoke
Blockage in burner
Turn control knob to "OFF", let it cool to
room temperature and remove
blockage and clean burner inside and
outside.
Note: If the appliance can not be adjusted to perform correctly, it should not be used until serviced or repaired.
10
TECHNICAL DATA
AREA PATIO HEATER
Model
Nominal GC
Test point pressure
Injector size
Gas type
AGA no.
H1109F & H1209F
36MJ/H
2.75kPa
1.65mm
Propane
AGA 8401 G
Ningbo Innopower Hengda Metal Products Co.,Ltd
