COSTWAY NP11327 52 Inches Outdoor Wicker Gas Fire Pit User Manual

NP11327

Gas Fire Pit Table

Table de Foyer à Gaz

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

If you're having difficulty, our friendly

customer team is always here to help.

USA office: Fontana AUS office: Truganina

GBR office: Ipswich FRA office: Saint Vigor d'Ymonville

USA:[email protected]

AUS:cs.au@costway.com

GBR:cs.uk@costway.com

FRA:cs.fr@costway.com

Before You Start

Please read all instructions carefully.

Retain instructions for future reference.

Separate and count all parts and hardware.

Read through each step carefully and follow the proper order.

We recommend that, where possible, all items are assembled near to the area in

which they will be placed in use, to avoid moving the product unnecessarily once

assembled.

Always place the product on a flat, steady and stable surface.

Keep all small parts and packaging materials for this product away from babies

and children as they potentially pose a serious choking hazard.

Veuillez lire attentivement toutes les instructions.

Conservez les instructions pour vous y référer ultérieurement.

Vérifiez toutes les pièces et les accessoires.

Lisez attentivement chaque étape et suivez l'ordre correct.

Nous recommandons que, dans la mesure du possible, tous les produits

soient assemblés à proximité de la zone où ils seront utilisés, afin d'éviter tout

déplacement inutile du produit une fois assemblé.

Placez toujours le produit sur une surface plane et stable.

Conservez toutes les petites pièces de ce produit et les matériaux d'emballage

hors de portée des bébés et des enfants, car ils pourraient présenter un risque

d'étouffement.

Avant de Commencer

Installer: Leave these instructions with consumer.

Consumer: Keep these instructions for further reference.

If you smell gas:

·Shut off gas to the appliance.

·Extinguish any open flame.

·If odor continues, keep away from the appliance and immediately

call fire department.

WARNING: For Outdoor Use Only.

DANGER

Do not store or use gasoline, or other flammable vapors and

liquids, in the vicinity of this or any other appliance. An LP-cylinder

not connected for use shall not be stored in the vicinity of this or

any other appliance.

This appliance can produce carbon

monoxide which has no odor.

Using it in an enclosed space can kill

you.

Never use this appliance in an enclosed

space such as a camper, tent, car or

home.

WARNING

DANGER CARBON MONOXIDE HAZARD

02 03

Before You Start

Please read all instructions carefully.

Retain instructions for future reference.

Separate and count all parts and hardware.

Read through each step carefully and follow the proper order.

We recommend that, where possible, all items are assembled near to the area in

which they will be placed in use, to avoid moving the product unnecessarily once

assembled.

Always place the product on a flat, steady and stable surface.

Keep all small parts and packaging materials for this product away from babies

and children as they potentially pose a serious choking hazard.

Veuillez lire attentivement toutes les instructions.

Conservez les instructions pour vous y référer ultérieurement.

Vérifiez toutes les pièces et les accessoires.

Lisez attentivement chaque étape et suivez l'ordre correct.

Nous recommandons que, dans la mesure du possible, tous les produits

soient assemblés à proximité de la zone où ils seront utilisés, afin d'éviter tout

déplacement inutile du produit une fois assemblé.

Placez toujours le produit sur une surface plane et stable.

Conservez toutes les petites pièces de ce produit et les matériaux d'emballage

hors de portée des bébés et des enfants, car ils pourraient présenter un risque

d'étouffement.

Avant de Commencer

Installer: Leave these instructions with consumer.

Consumer: Keep these instructions for further reference.

If you smell gas:

·Shut off gas to the appliance.

·Extinguish any open flame.

·If odor continues, keep away from the appliance and immediately

call fire department.

WARNING: For Outdoor Use Only.

DANGER

Do not store or use gasoline, or other flammable vapors and

liquids, in the vicinity of this or any other appliance. An LP-cylinder

not connected for use shall not be stored in the vicinity of this or

any other appliance.

This appliance can produce carbon

monoxide which has no odor.

Using it in an enclosed space can kill

you.

Never use this appliance in an enclosed

space such as a camper, tent, car or

home.

WARNING

DANGER CARBON MONOXIDE HAZARD

02 03

Improper installation, adjustment, alteration, service or

maintenance can cause injury or property damage. Read the

installation, operating, and maintenance instructions thoroughly

before installing or servicing this equipment.

DANGER·FLAMMABLE GAS UNDER PRESSURE.

LEAKING LP-GAS MAY CAUSE A FIRE OR EXPLOSION IF

IGNITED CAUSING SERIOUS BODILY INJURY OR DEATH.

CONTACT QUALIFIED TECHNICIAN FOR REPAIRS, OR

DISPOSAL OF THIS CYLINDER OR UNUSED LP-GAS

WARNING·FOR OUTDOOR USE ONLY.*

DO NOT USE OR STORE CYLINDER IN A BUILDING, GARAGE

OR ENCLOSED AREA.

·Know the odor of LP-gas. If you hear, see or smell leaking LP-gas,

immediately get everyone away from the cylinder and call the Fire

Department. Do not attempt repairs.

·Caution your LP-gas supplier to:

Be certain cylinder is purged of trapped air prior to first filling.

Be certain not to over fill the cylinder.

Be certain cylinder requalification date is checked.

·LP-gas is heavier than air and may settle in low places while

dissipating.

·Contact with the liquid contents of cylinder will cause freeze burns

to the skin.

·Do not allow children to tamper or play with cylinder.

·When not connected for use, keep cylinder valve turned off. Self

contained appliances shall be limited to a cylinder of 30 lbs capacity

or less.

·Do not use, store or transport cylinder where it would be exposed to

high temperatures. Relief valve may open allowing a large amount of

flammable gas to escape.

·When transporting, keep cylinder secured in an upright position with

cylinder valve turned off.

WARNING:

DANGER: Do not store a spare LP cylinder under or near

barbecue grill, or other heat sources. NEVER fill an LP cylinder

beyond 80% full: a fire causing death or serious injury may occur.

DO NOT REMOVE, DEFACE, OR OBLITERATE THIS LABEL

*EXCEPT AS AUTHORIZED BY ANSI/NFPA 58.

WARNING:

·Use only in compliance with applicable codes.

·Read and follow manufacturer's instructions.

·Consult manufacturer's instructions concerning the cylinder

connection provided with your appliance.

·Be sure regulator vent is not pointing up.

·Turn off all valves no the appliance.

·Do not check for gas leaks with a match or open flame. Apply soapy

water at areas marked "x". Open cylinder valve. If bubble appears,

close valve and have LP-gas service person make needed repairs.

Also, check appliance valves and connections to make sure they do

not leak before lighting appliance.

·Light appliance(s) following manufacturer's instructions.

·When appliance is not in use, keep the cylinder valve closed.

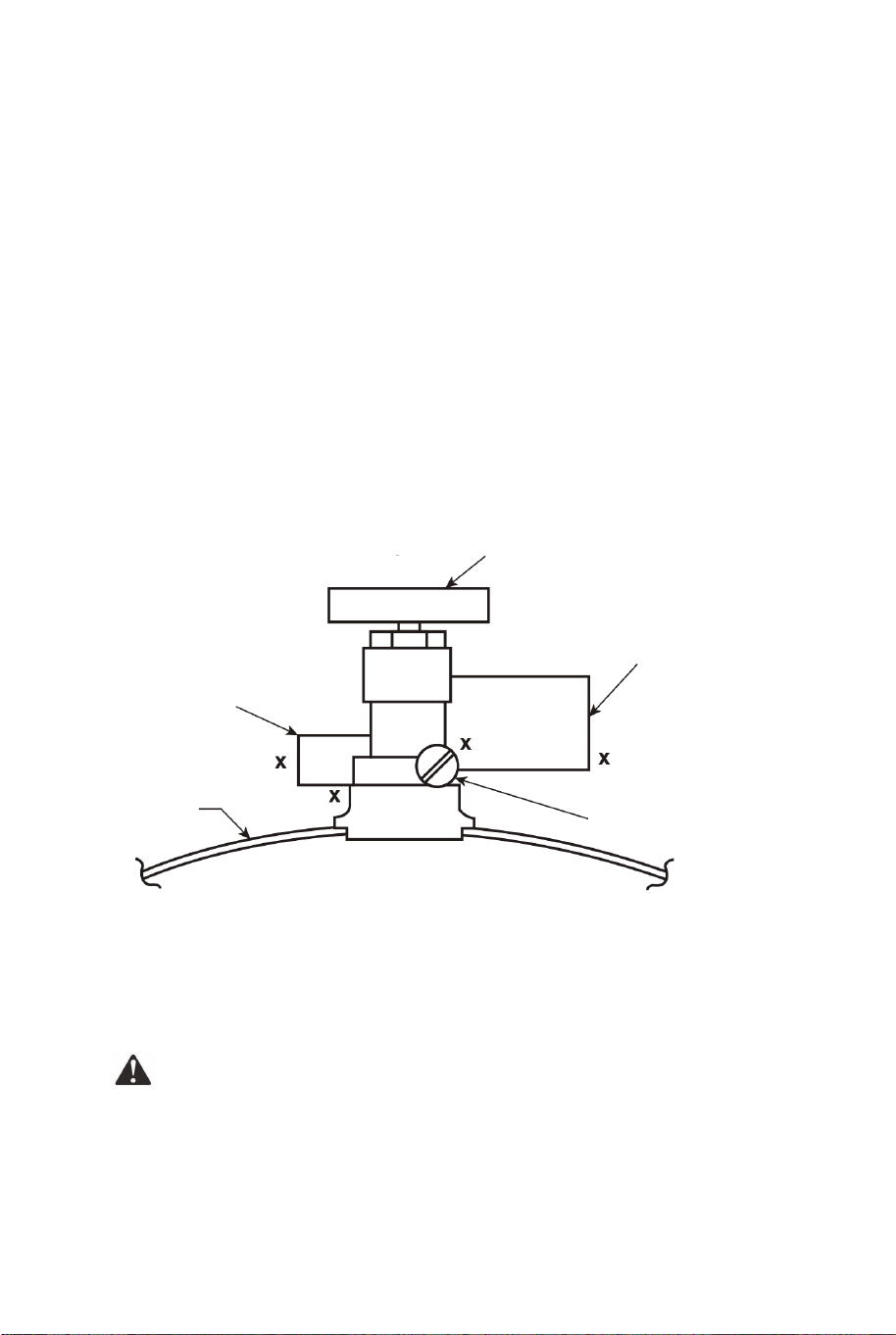

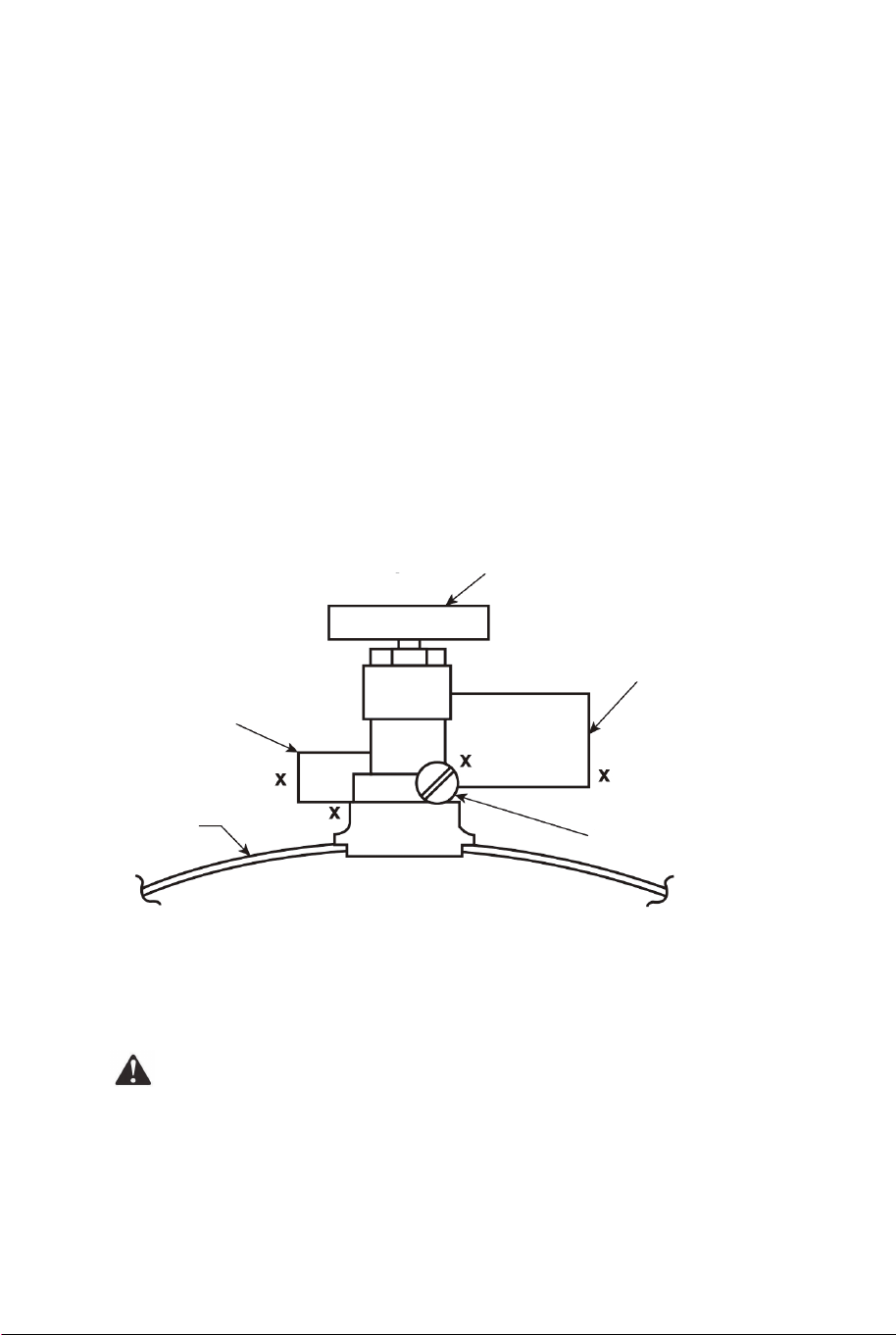

WHEN CONNECTING FOR USE:

Cylinder

Pressure relief valve

Cylinder valve hand wheel

Point of

connection

Liquid level

indicator(optional)

04 05

Improper installation, adjustment, alteration, service or

maintenance can cause injury or property damage. Read the

installation, operating, and maintenance instructions thoroughly

before installing or servicing this equipment.

DANGER·FLAMMABLE GAS UNDER PRESSURE.

LEAKING LP-GAS MAY CAUSE A FIRE OR EXPLOSION IF

IGNITED CAUSING SERIOUS BODILY INJURY OR DEATH.

CONTACT QUALIFIED TECHNICIAN FOR REPAIRS, OR

DISPOSAL OF THIS CYLINDER OR UNUSED LP-GAS

WARNING·FOR OUTDOOR USE ONLY.*

DO NOT USE OR STORE CYLINDER IN A BUILDING, GARAGE

OR ENCLOSED AREA.

·Know the odor of LP-gas. If you hear, see or smell leaking LP-gas,

immediately get everyone away from the cylinder and call the Fire

Department. Do not attempt repairs.

·Caution your LP-gas supplier to:

Be certain cylinder is purged of trapped air prior to first filling.

Be certain not to over fill the cylinder.

Be certain cylinder requalification date is checked.

·LP-gas is heavier than air and may settle in low places while

dissipating.

·Contact with the liquid contents of cylinder will cause freeze burns

to the skin.

·Do not allow children to tamper or play with cylinder.

·When not connected for use, keep cylinder valve turned off. Self

contained appliances shall be limited to a cylinder of 30 lbs capacity

or less.

·Do not use, store or transport cylinder where it would be exposed to

high temperatures. Relief valve may open allowing a large amount of

flammable gas to escape.

·When transporting, keep cylinder secured in an upright position with

cylinder valve turned off.

WARNING:

DANGER: Do not store a spare LP cylinder under or near

barbecue grill, or other heat sources. NEVER fill an LP cylinder

beyond 80% full: a fire causing death or serious injury may occur.

DO NOT REMOVE, DEFACE, OR OBLITERATE THIS LABEL

*EXCEPT AS AUTHORIZED BY ANSI/NFPA 58.

WARNING:

·Use only in compliance with applicable codes.

·Read and follow manufacturer's instructions.

·Consult manufacturer's instructions concerning the cylinder

connection provided with your appliance.

·Be sure regulator vent is not pointing up.

·Turn off all valves no the appliance.

·Do not check for gas leaks with a match or open flame. Apply soapy

water at areas marked "x". Open cylinder valve. If bubble appears,

close valve and have LP-gas service person make needed repairs.

Also, check appliance valves and connections to make sure they do

not leak before lighting appliance.

·Light appliance(s) following manufacturer's instructions.

·When appliance is not in use, keep the cylinder valve closed.

WHEN CONNECTING FOR USE:

Cylinder

Pressure relief valve

Cylinder valve hand wheel

Point of

connection

Liquid level

indicator(optional)

04 05

1. The installation must conform with local codes or, in the absence

of local codes, with the National Fuel Gas Code, ANSI Z223.1.NFPA

54; National Fuel Gas Code; Natural Gas and Propane Installation

Code, CSA B149.1, or Propane Storage and Handling Code, CSA

B149.2, as applicable.

2. The appliance must be isolated from the gas supply piping system

by closing its individual manual shutoff valve during any pressure

testing of the gas supply piping system at test pressures equal to or

less than 1/2 psi (3.5 kPa).

3. The maximum inlet gas supply pressure is 250 psi.

4. The appliance area must be kept clear and free from combustible

materials, gasoline, and other flammable vapors and liquids.

5. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the

appliance and to replace any part of the control system and any gas

control that has been under water.

6. Children and adults should be alerted to the hazards of high

surface temperatures and should stay away to avoid burns or

clothing ignition.

7. Young children should be carefully supervised when they are in

the area of the appliance.

8. Clothing or other flammable materials should not be hung from the

appliance or placed on or near the appliance.

9. Any guard or other protective device removed for servicing the

appliance shall be replaced prior to operating the appliance.

10. Installation and repair should be done by a qualified service

person. The appliance should be inspected before use and at least

annually by a qualified service person. More frequent cleaning may

be required as necessary. It is imperative that the control

compartment, burners, and circulating air passageways of the

appliance are kept clean.

11. CAUTION: The propane gas pressure regulator provided with

this appliance must be used. This regulator is set for an outlet

pressure of 11” water column.

12. DO NOT burn solid fuels in this appliance.

13. This outdoor gas appliance is for Outdoor Use ONLY.

14. This outdoor gas appliance is not intended to be installed in or on

recreational vehicles and/or boats.

15. This outdoor appliance is not for use on wood decks or other

flammable surface.

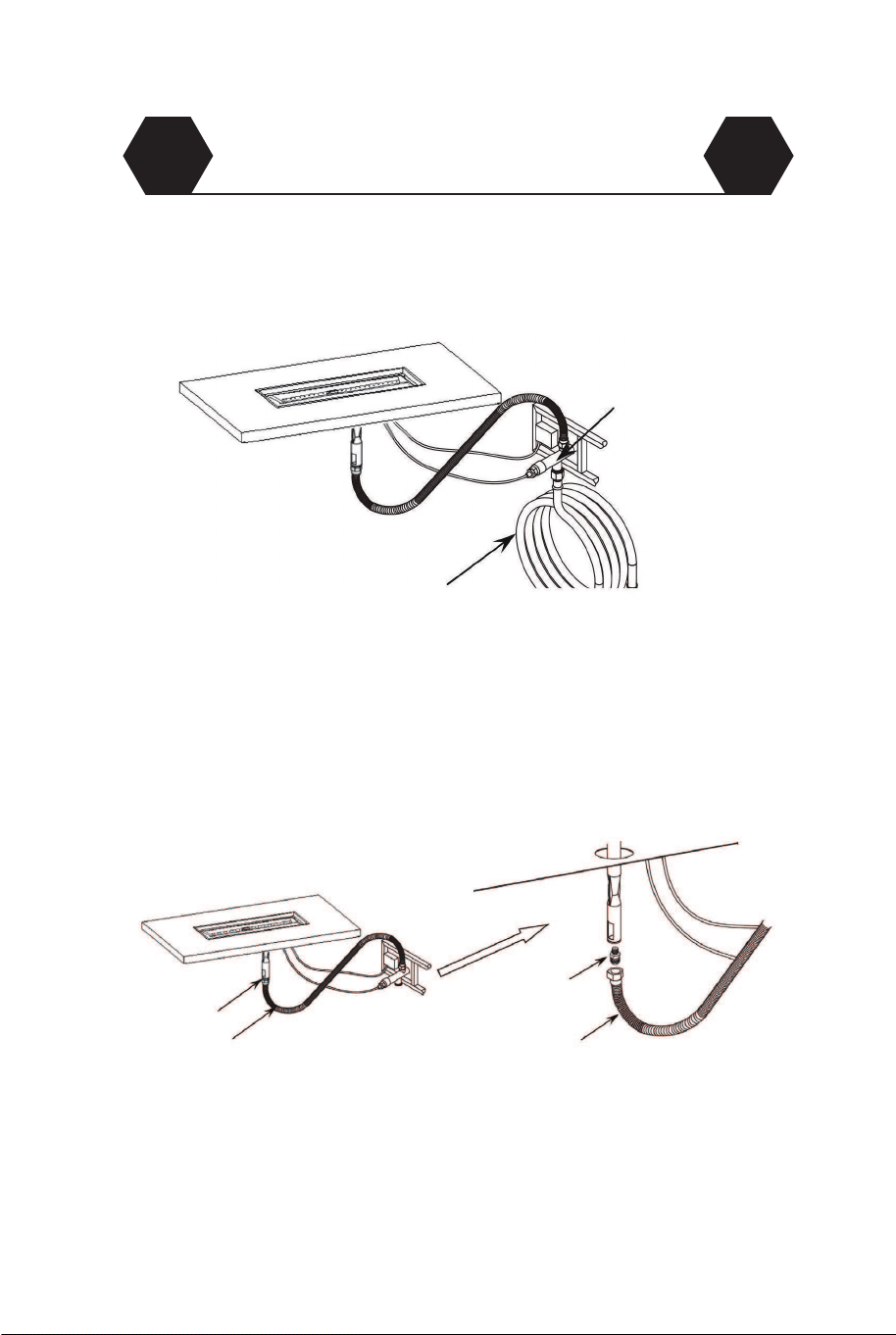

16. Before each use of this gas appliance, open the door and/or the

LP (Liquid Propane) Tank Drawer and inspect the hose. If there is

evidence of excessive abrasion or wear or if the hose is damaged,

the hose assembly must be replaced prior to the appliance being put

into operation. Use only the replacement hose assembly specified in

this manual. Make sure to leak test.

17. Before each use of this gas appliance, inspect the burner. The

burner must be replaced prior to the appliance being put into

operation if it is evident that the burner is damaged. Use only the

replacement burner specified in this manual.

18. Make sure to properly locate the gas hose including locating the

hose out of pathways where people may trip over it or in areas

where the hose may be subject to accidental damage.

19. Keep the fuel supply hose away from any heated surface.

20. Never use this appliance closer than 10 feet from anything

flammable, including houses or overhead tree branches.

21. Never use gasoline, kerosene, or any other liquid fuel to start a

fire.

22. Always maintain a safe distance from the fire.

23. Always supervise children around the fire.

24. Never leave a fire unattended.

25. The appliance is hot during and after use, always allow ample

cooling time before touching or moving.

1. The LP-gas supply cylinder to be used must be constructed and

marked in accordance with the U.S. Department of Transportation

(D.O.T.) Specifications for LP-Gas Cylinders, or the Standard for

Cylinders, Spheres and Tubes for Transportation of Dangerous

Goods and Commission, CAN/CSA-B339, as applicable.

2. The LP-gas supply cylinder to be used must have a listed

overfilling prevention device (See Figure 1).

3. The LP-gas supply cylinder to be used must have a cylinder

connection device compatible with the connection for the appliance.

4. A self-contained LP-gas cylinder for use with this appliance must

have a capacity of 20 lbs cylinder (Height approximately 18”, Tank

Body approximately 12” diameter, Base approximately 8” diameter).

IMPORTANT SAFETY INFORMATION

IMPORTANT SAFETY INFORMATION ABOUT PROPANE

(LP) GAS

06 07

1. The installation must conform with local codes or, in the absence

of local codes, with the National Fuel Gas Code, ANSI Z223.1.NFPA

54; National Fuel Gas Code; Natural Gas and Propane Installation

Code, CSA B149.1, or Propane Storage and Handling Code, CSA

B149.2, as applicable.

2. The appliance must be isolated from the gas supply piping system

by closing its individual manual shutoff valve during any pressure

testing of the gas supply piping system at test pressures equal to or

less than 1/2 psi (3.5 kPa).

3. The maximum inlet gas supply pressure is 250 psi.

4. The appliance area must be kept clear and free from combustible

materials, gasoline, and other flammable vapors and liquids.

5. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the

appliance and to replace any part of the control system and any gas

control that has been under water.

6. Children and adults should be alerted to the hazards of high

surface temperatures and should stay away to avoid burns or

clothing ignition.

7. Young children should be carefully supervised when they are in

the area of the appliance.

8. Clothing or other flammable materials should not be hung from the

appliance or placed on or near the appliance.

9. Any guard or other protective device removed for servicing the

appliance shall be replaced prior to operating the appliance.

10. Installation and repair should be done by a qualified service

person. The appliance should be inspected before use and at least

annually by a qualified service person. More frequent cleaning may

be required as necessary. It is imperative that the control

compartment, burners, and circulating air passageways of the

appliance are kept clean.

11. CAUTION: The propane gas pressure regulator provided with

this appliance must be used. This regulator is set for an outlet

pressure of 11” water column.

12. DO NOT burn solid fuels in this appliance.

13. This outdoor gas appliance is for Outdoor Use ONLY.

14. This outdoor gas appliance is not intended to be installed in or on

recreational vehicles and/or boats.

15. This outdoor appliance is not for use on wood decks or other

flammable surface.

16. Before each use of this gas appliance, open the door and/or the

LP (Liquid Propane) Tank Drawer and inspect the hose. If there is

evidence of excessive abrasion or wear or if the hose is damaged,

the hose assembly must be replaced prior to the appliance being put

into operation. Use only the replacement hose assembly specified in

this manual. Make sure to leak test.

17. Before each use of this gas appliance, inspect the burner. The

burner must be replaced prior to the appliance being put into

operation if it is evident that the burner is damaged. Use only the

replacement burner specified in this manual.

18. Make sure to properly locate the gas hose including locating the

hose out of pathways where people may trip over it or in areas

where the hose may be subject to accidental damage.

19. Keep the fuel supply hose away from any heated surface.

20. Never use this appliance closer than 10 feet from anything

flammable, including houses or overhead tree branches.

21. Never use gasoline, kerosene, or any other liquid fuel to start a

fire.

22. Always maintain a safe distance from the fire.

23. Always supervise children around the fire.

24. Never leave a fire unattended.

25. The appliance is hot during and after use, always allow ample

cooling time before touching or moving.

1. The LP-gas supply cylinder to be used must be constructed and

marked in accordance with the U.S. Department of Transportation

(D.O.T.) Specifications for LP-Gas Cylinders, or the Standard for

Cylinders, Spheres and Tubes for Transportation of Dangerous

Goods and Commission, CAN/CSA-B339, as applicable.

2. The LP-gas supply cylinder to be used must have a listed

overfilling prevention device (See Figure 1).

3. The LP-gas supply cylinder to be used must have a cylinder

connection device compatible with the connection for the appliance.

4. A self-contained LP-gas cylinder for use with this appliance must

have a capacity of 20 lbs cylinder (Height approximately 18”, Tank

Body approximately 12” diameter, Base approximately 8” diameter).

IMPORTANT SAFETY INFORMATION

IMPORTANT SAFETY INFORMATION ABOUT PROPANE

(LP) GAS

06 07

5. The cylinder supply system must be arranged for vapor

withdrawal.

6. The cylinder used must include a collar to protect the cylinder

valve.

7. This appliance shall be used only outdoors in a well-ventilated

space and shall not be used in a building, garage or any other

enclosed space.

8. When this appliance is not in use, the gas must be turned off at

the supply cylinder.

9. Storage of this appliance indoors is permissible only if the cylinder

is disconnected and removed from the appliance.

10. Cylinders must be stored outdoors in a well-ventilated area out of

the reach of children. Disconnected cylinders must have threaded

valve plugs tightly installed and must not be stored in a building,

garage or any other enclosed areas.

11. This appliance is certified by CSA (Canadian Standards

Association) to ANSI Z21.97/CSA 2.41-2014, Outdoor Decorative

Gas Appliances.

Rated Heat Input (Liquid Propane

& Natural Gas)

Propane Regulator Pressure

Natural Gas Inlet Pressure

Clearance to combustible

surfaces

11 inches water column

7 inches water column

Sides: 24in. (610mm), Top:

72in. (1829mm)

50,000 BTU/hr

Warning: The fuels used in liquefied

propane gas equipment and the

combustion products of such fuels

may expose you to chemicals

including benzene, which is known to

cause cancer and lead to birth

defects or other reproductive hazards

in California.

Recommendation: Use combustible

gases as combustion products and

use them in California's economic

processes to prevent cancer, disease,

and other systems from replicating

Standard 20 lbs tank

Figure 1

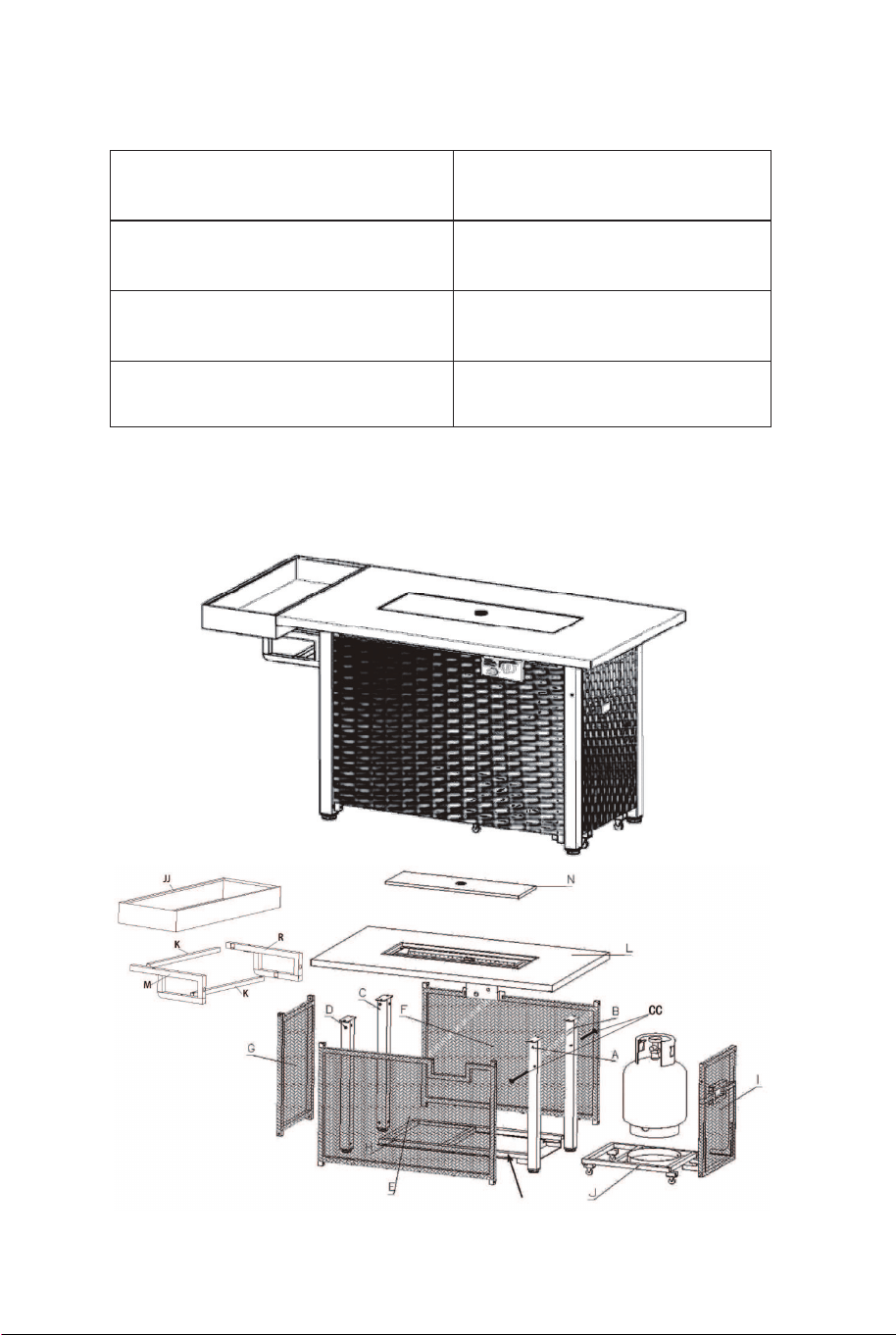

SPECIFICATIONS

Assembly Instructions

08 09

5. The cylinder supply system must be arranged for vapor

withdrawal.

6. The cylinder used must include a collar to protect the cylinder

valve.

7. This appliance shall be used only outdoors in a well-ventilated

space and shall not be used in a building, garage or any other

enclosed space.

8. When this appliance is not in use, the gas must be turned off at

the supply cylinder.

9. Storage of this appliance indoors is permissible only if the cylinder

is disconnected and removed from the appliance.

10. Cylinders must be stored outdoors in a well-ventilated area out of

the reach of children. Disconnected cylinders must have threaded

valve plugs tightly installed and must not be stored in a building,

garage or any other enclosed areas.

11. This appliance is certified by CSA (Canadian Standards

Association) to ANSI Z21.97/CSA 2.41-2014, Outdoor Decorative

Gas Appliances.

Rated Heat Input (Liquid Propane

& Natural Gas)

Propane Regulator Pressure

Natural Gas Inlet Pressure

Clearance to combustible

surfaces

11 inches water column

7 inches water column

Sides: 24in. (610mm), Top:

72in. (1829mm)

50,000 BTU/hr

Warning: The fuels used in liquefied

propane gas equipment and the

combustion products of such fuels

may expose you to chemicals

including benzene, which is known to

cause cancer and lead to birth

defects or other reproductive hazards

in California.

Recommendation: Use combustible

gases as combustion products and

use them in California's economic

processes to prevent cancer, disease,

and other systems from replicating

Standard 20 lbs tank

Figure 1

SPECIFICATIONS

Assembly Instructions

08 09

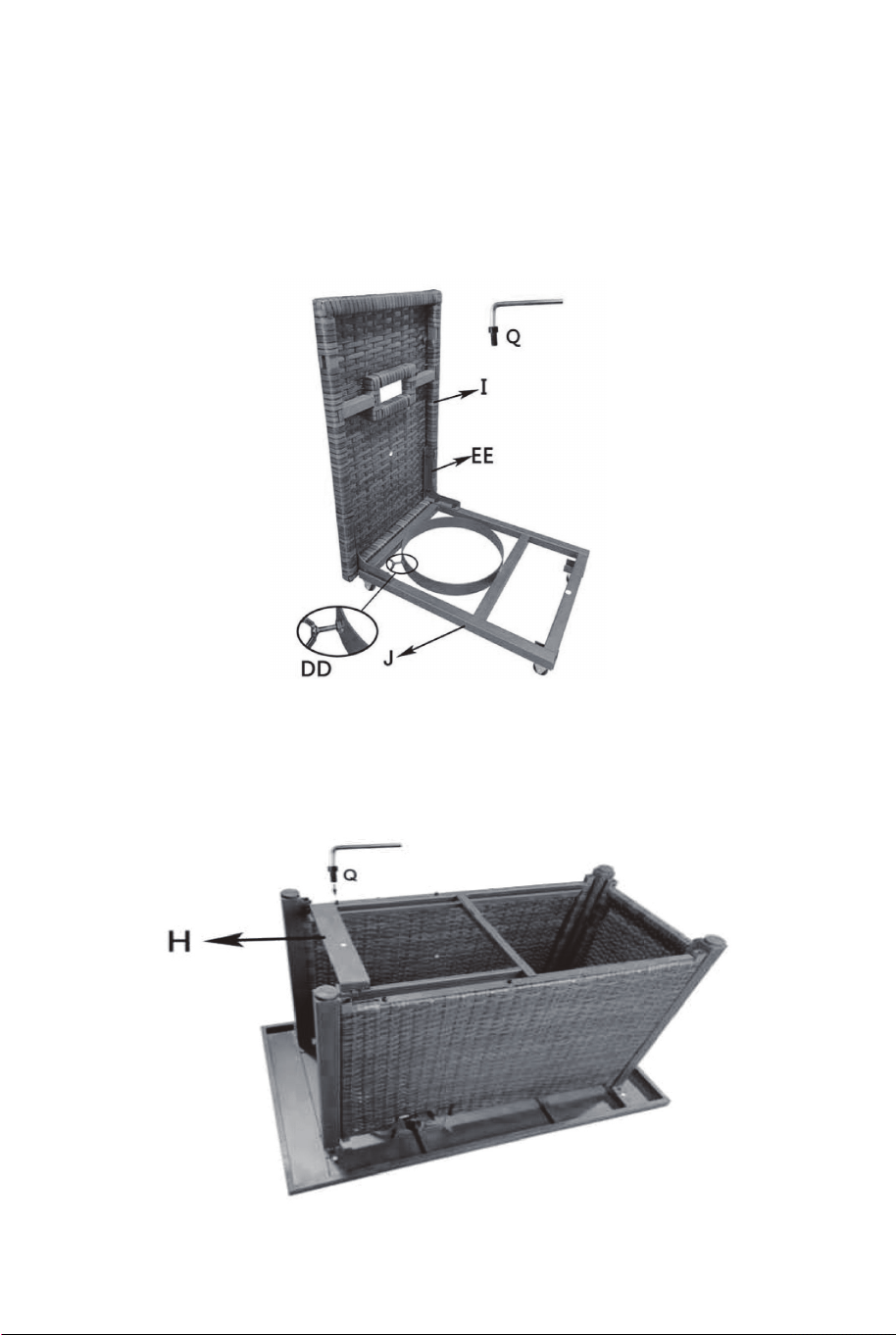

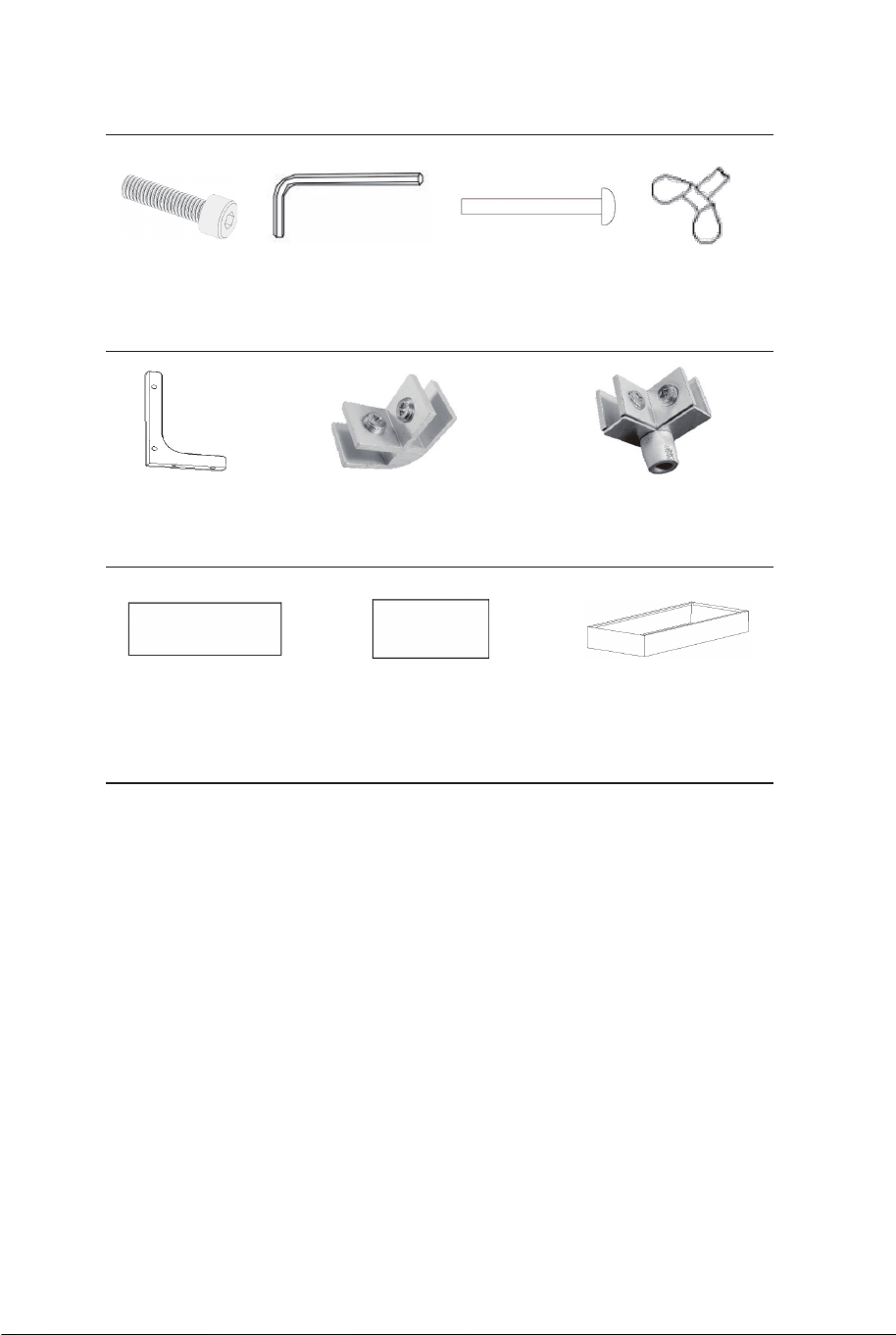

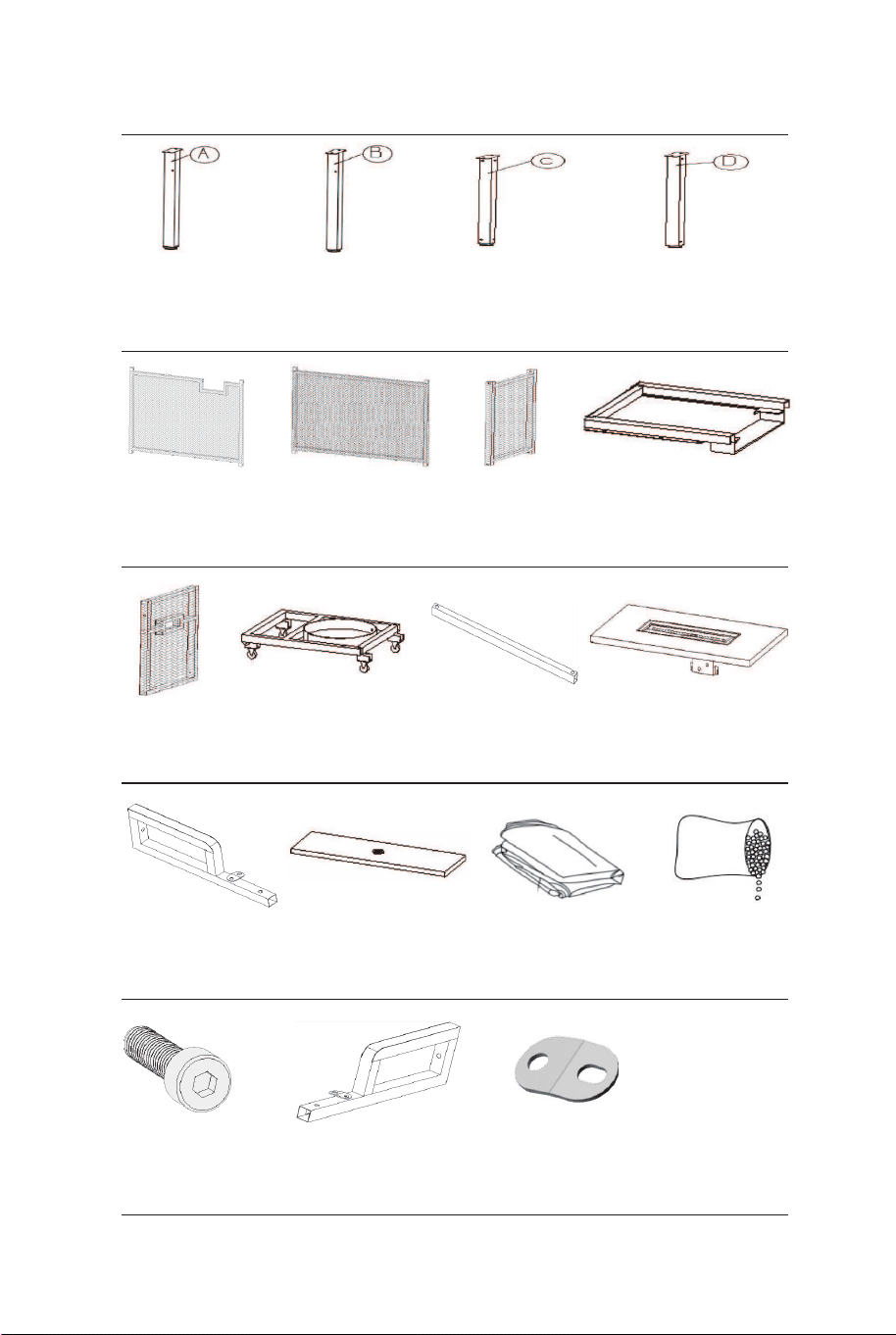

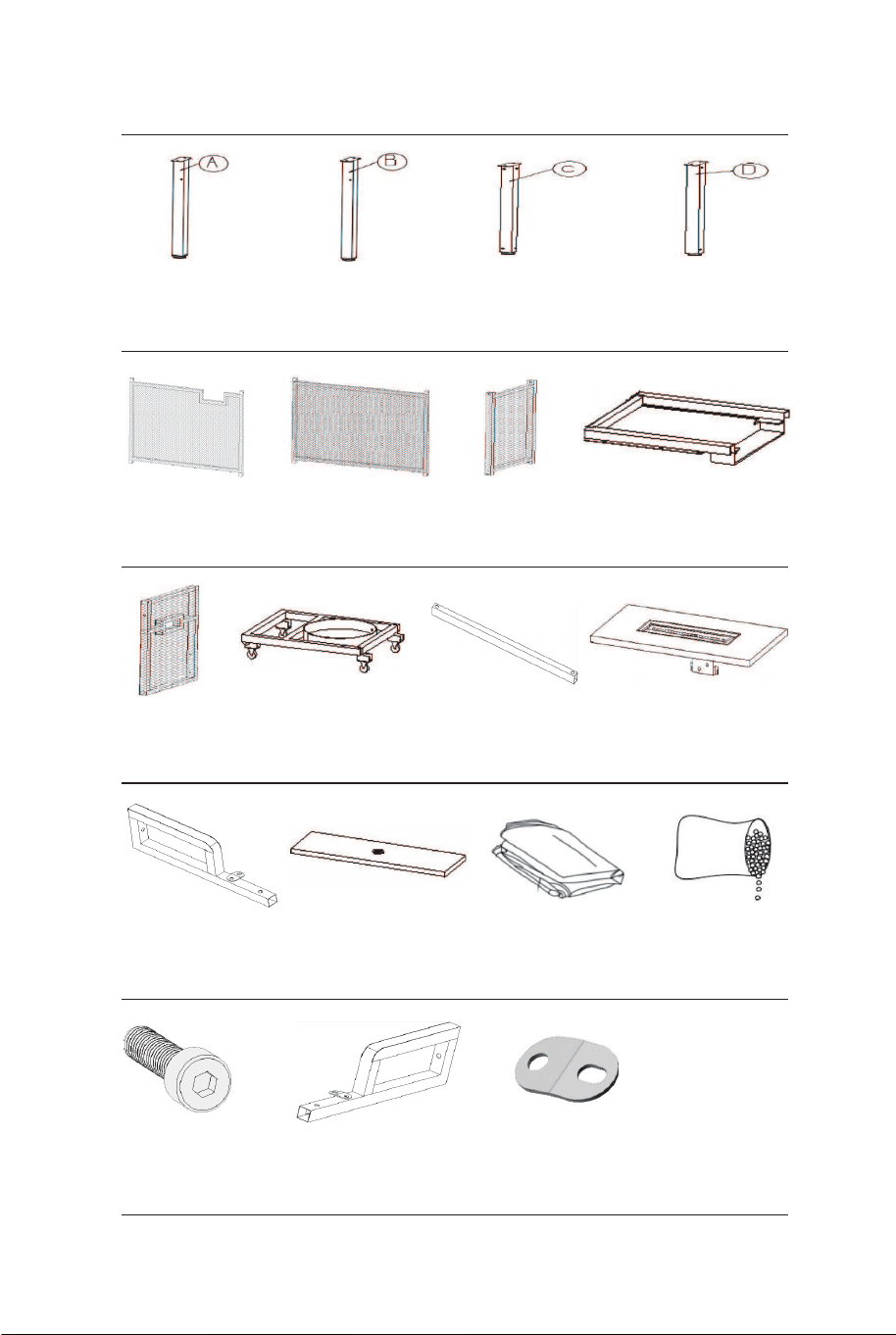

A B C D

E F G H

I J

AA BB CC DD

EE FF GG

HH II JJ

K L

M N O P

Q R S

Right front leg Right rear leg Left rear leg Left front leg

Front panel Back panel Left panel Support frame

Door Rolling base

Bolt

M6 x 30 M5 x 25

Allen key Latch Bolt

Connector Top Aluminum device Bottom Aluminum device

Long glass Short glass BoxConnector rod Tabletop

Connector (right) Lid Cover Lava rocks

Bolt Connector (left) Connector

10 11

A B C D

E F G H

I J

AA BB CC DD

EE FF GG

HH II JJ

K L

M N O P

Q R S

Right front leg Right rear leg Left rear leg Left front leg

Front panel Back panel Left panel Support frame

Door Rolling base

Bolt

M6 x 30 M5 x 25

Allen key Latch Bolt

Connector Top Aluminum device Bottom Aluminum device

Long glass Short glass BoxConnector rod Tabletop

Connector (right) Lid Cover Lava rocks

Bolt Connector (left) Connector

10 11

NOTE: Tool Required for Assembly: Phillips screw driver (NOT

included)

1. Carefully unpack all parts from the box, compare parts with

package content listed above, make sure all parts are present before

beginning assembly of product. If any part is missing or damaged, do

not attempt to assemble the product. Ask qualified technician for help.

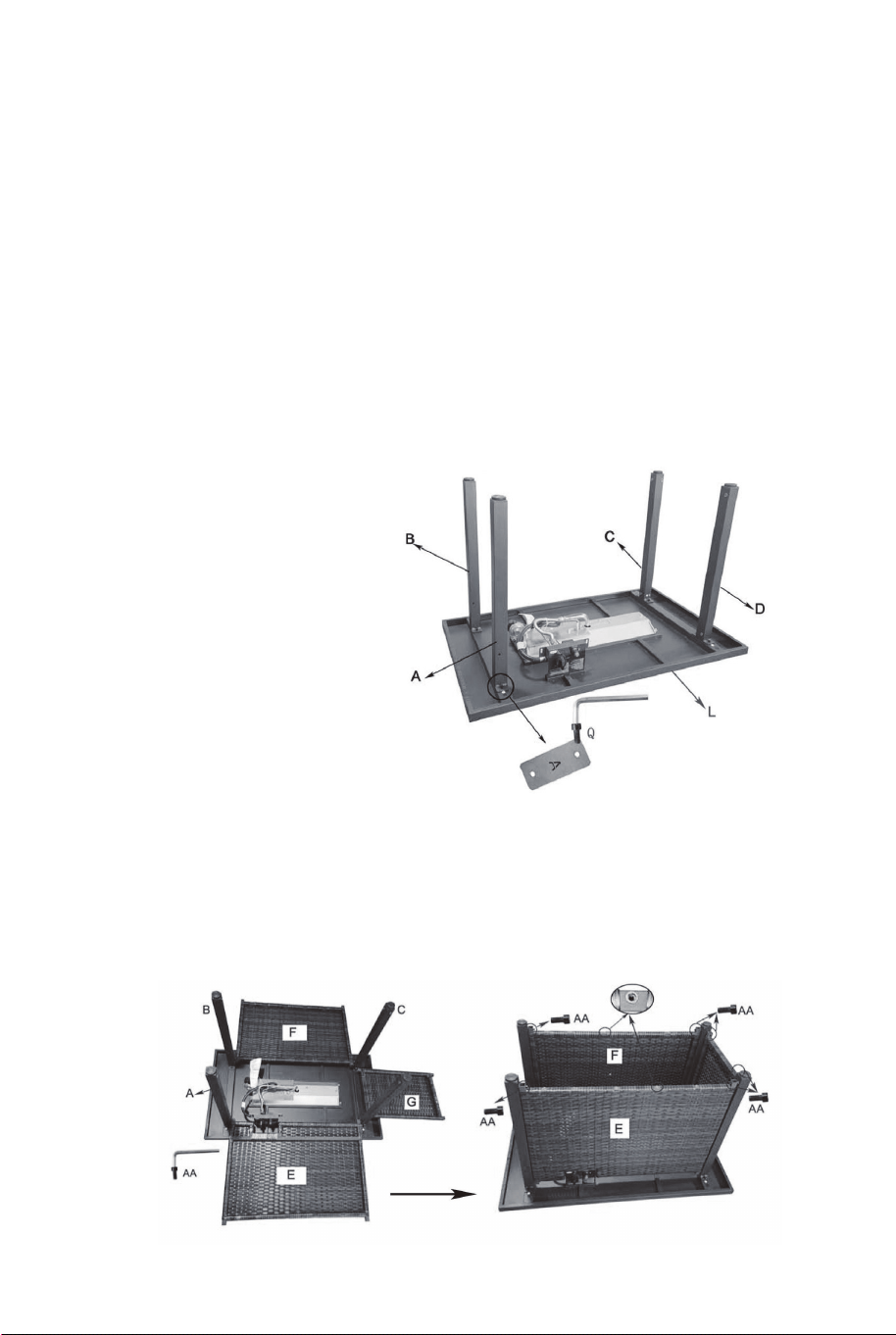

2. Attach the 4 legs(Part A-D) to the Table Top(Part L) with the

Bolt(Part Q) by using the Tool(Part BB) included in package. There

are label on the bottom of the table top, Please attach the legs to the

right place.

NOTE: DO NOT tighten the screws completely.

4. Attach the Part I to the Part J with the Part EE and Part Q.

Note: The Door need to be attached on the side near the circle. You

may not able to find the Hole on the another side.

NOTE: DO NOT tighten the screws completely.

5. Attach the Part H to the Bottom of the Whole Table(between front

panel and back panel).

NOTE: DO NOT tighten the screws completely.

3. Attach the Part E, Part F and Part G with the Part AA.

Note: The Part E need to be attached between the D and A

NOTE: DO NOT tighten the screws completely.

The side which with screw holes facing up

Hardware Used:

·Bolt(Part Q)*8

·Table Top(Part L)

·4 Legs(Part A-D)

Hardware Used:

·AA

·E

·F

·G

Hardware Used:

·I

·J

·EE

·Q

·H

·Q

Figure 2

Figure 4

Figure 5

Figure 3

ASSEMBLY INSTRUCTIONS

12 13

NOTE: Tool Required for Assembly: Phillips screw driver (NOT

included)

1. Carefully unpack all parts from the box, compare parts with

package content listed above, make sure all parts are present before

beginning assembly of product. If any part is missing or damaged, do

not attempt to assemble the product. Ask qualified technician for help.

2. Attach the 4 legs(Part A-D) to the Table Top(Part L) with the

Bolt(Part Q) by using the Tool(Part BB) included in package. There

are label on the bottom of the table top, Please attach the legs to the

right place.

NOTE: DO NOT tighten the screws completely.

4. Attach the Part I to the Part J with the Part EE and Part Q.

Note: The Door need to be attached on the side near the circle. You

may not able to find the Hole on the another side.

NOTE: DO NOT tighten the screws completely.

5. Attach the Part H to the Bottom of the Whole Table(between front

panel and back panel).

NOTE: DO NOT tighten the screws completely.

3. Attach the Part E, Part F and Part G with the Part AA.

Note: The Part E need to be attached between the D and A

NOTE: DO NOT tighten the screws completely.

The side which with screw holes facing up

Hardware Used:

·Bolt(Part Q)*8

·Table Top(Part L)

·4 Legs(Part A-D)

Hardware Used:

·AA

·E

·F

·G

Hardware Used:

·I

·J

·EE

·Q

·H

·Q

Figure 2

Figure 4

Figure 5

Figure 3

ASSEMBLY INSTRUCTIONS

12 13

Figure 6

FigureⅠ

FigureⅢ

FigureⅡ

gas valve

propane hose

6. Attach the control board that is come with the table top on the small

hole of the Part E with the Part Q

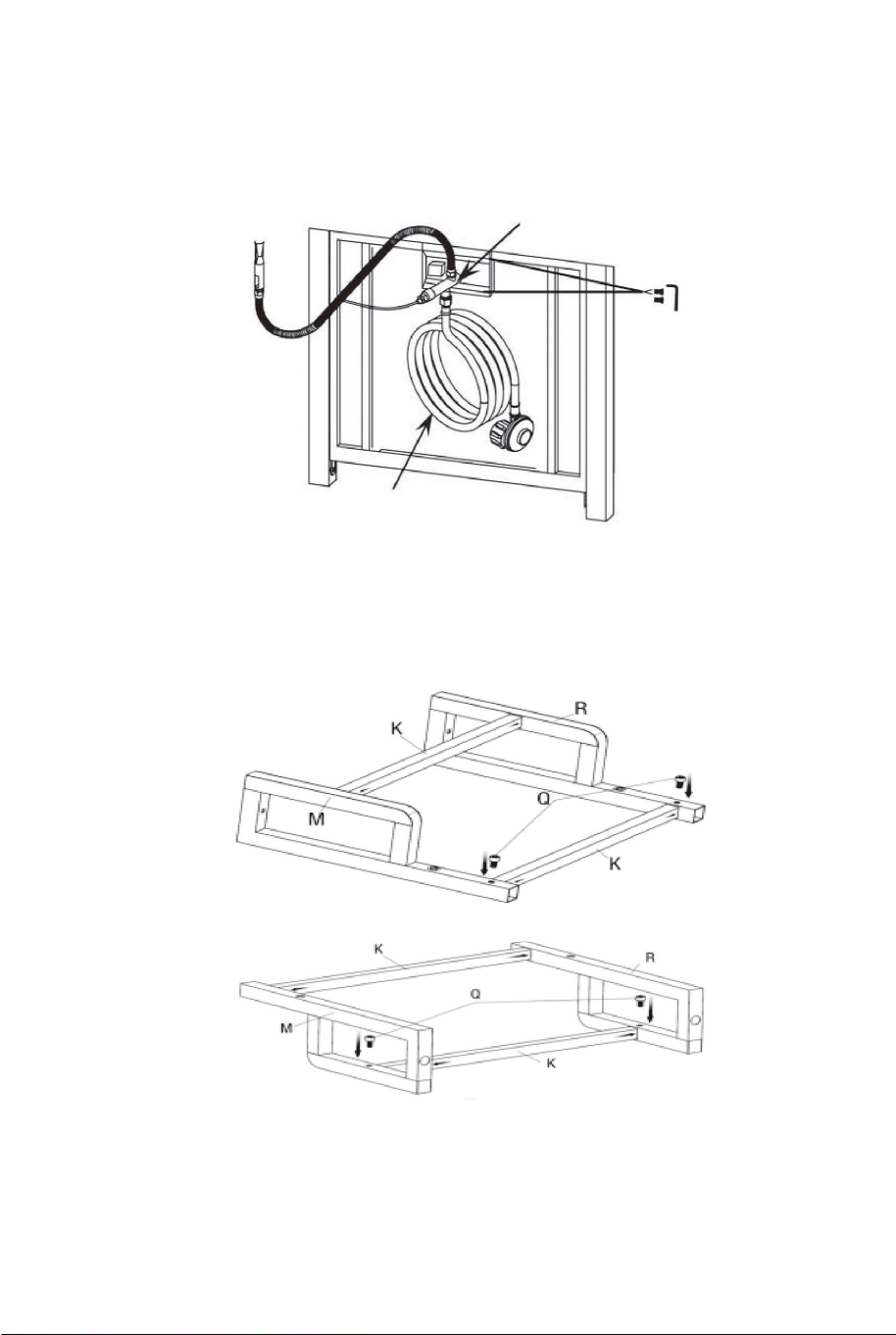

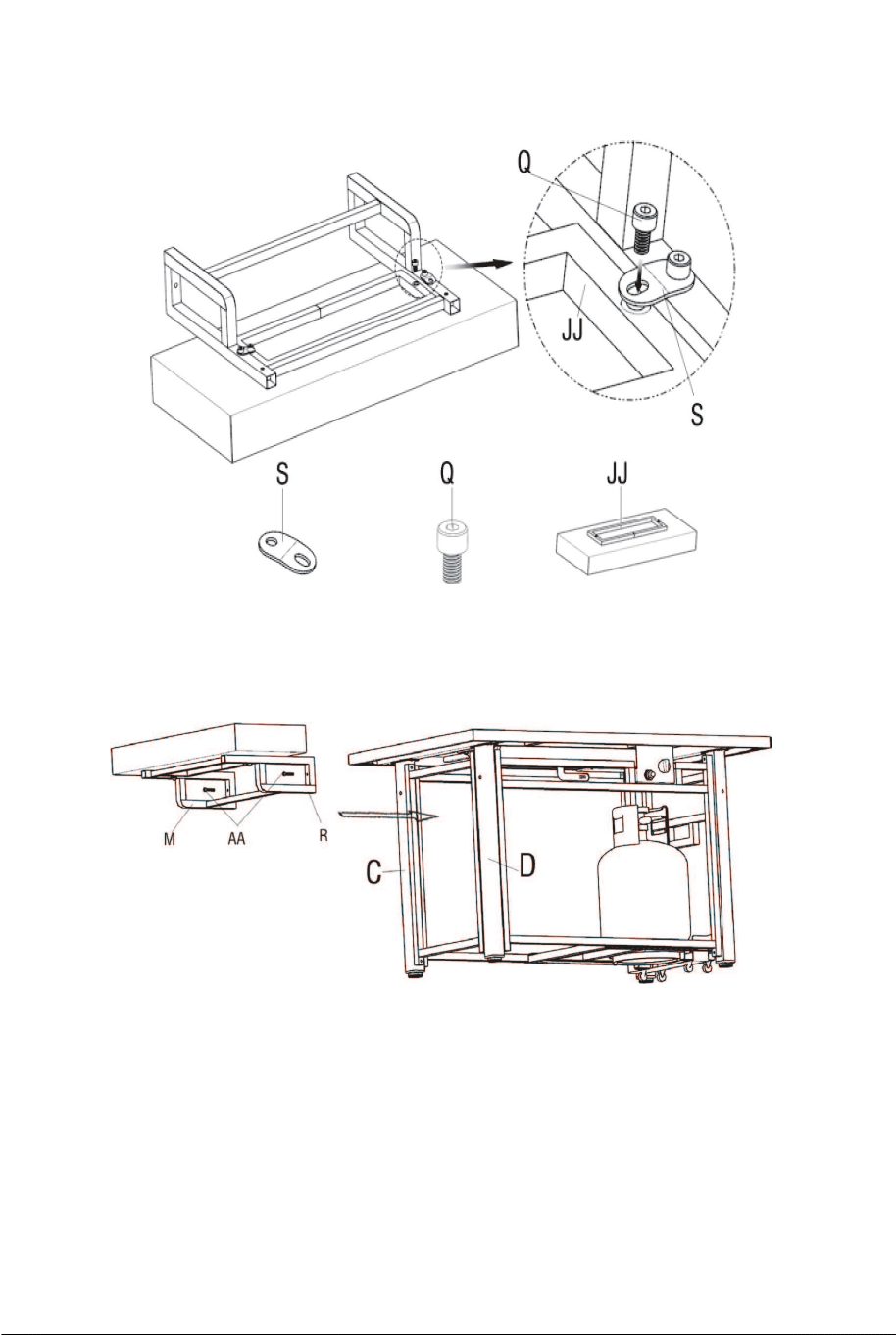

7. Connect Q, S to J to form an integral part (FigureⅡ), which uses

(AA) in C and D D(Figure Ⅲ).

14 15

Figure 6

FigureⅠ

FigureⅢ

FigureⅡ

gas valve

propane hose

6. Attach the control board that is come with the table top on the small

hole of the Part E with the Part Q

7. Connect Q, S to J to form an integral part (FigureⅡ), which uses

(AA) in C and D D(Figure Ⅲ).

14 15

Figure 7

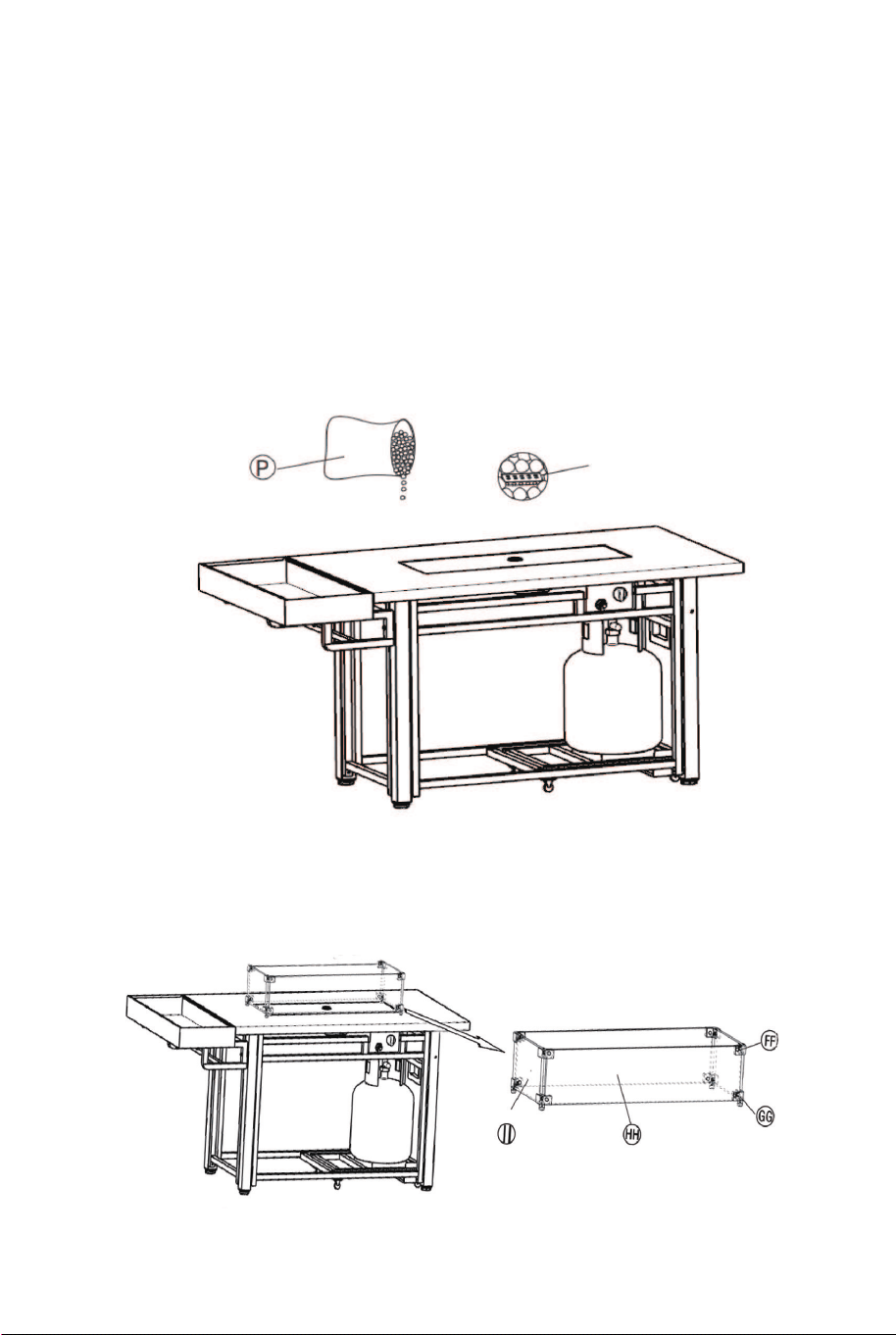

7. Put the P around the burner, then remove the label from the box

(see Figure 7).

A gas fire pit requires 6.6 lbs rocks. NOTE: DO NOT completely

cover the burner element or block the box with the lava rocks. When

the first use, preheat the lava rocks for 15 minutes to burn out the

impurities and air in the natural lava rocks.

WARNING: keep children away during assembly, as this item

contains lava rock, which are small pieces and can be swallowed by

children.

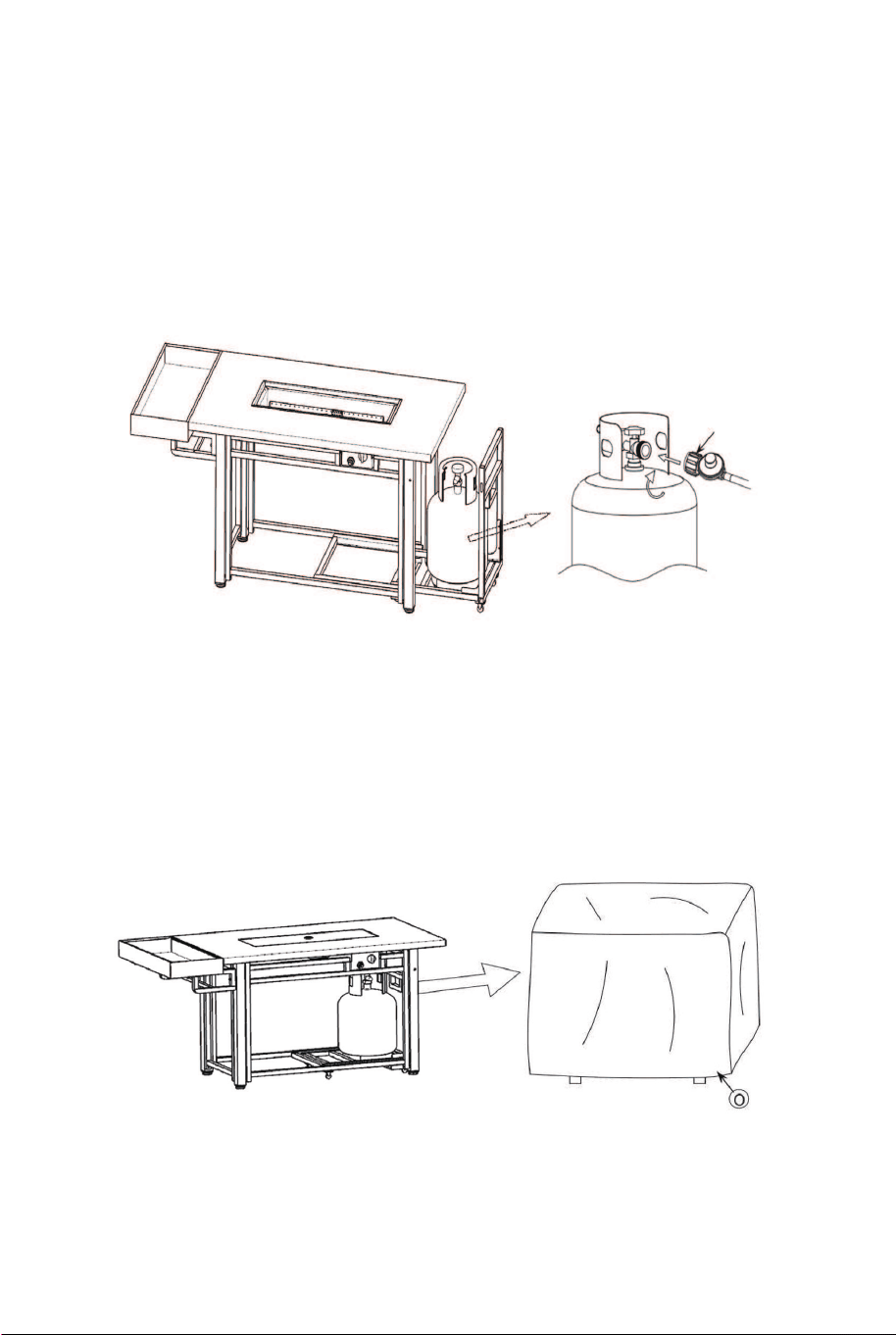

9. Open the door, place the gas cylinder into the J, connect the

regulator, screw the black handle clockwise to tighten, turn the black

handle counterclockwise to remove. The hose must point down. The

knob on the control panel is turned all the way to the "OFF" position

when the fire pit is NOT in use(see Figure 9).

10. Secure the gas cylinder by tightening clockwise the butterfly

screw found on the J, so that the gas cylinder cannot move from

side to side or fall down. Close the l, cover the fire pit with the O

when not in use to protect it from the elements or when fire pit is

cool COMPLETELY after the use (see Figure 10)

8. Attach the Part HH and Part II together by using the Part F and

Part GG. Please make sure all of the foots are on the same side.

box

black

handle

Figure 9

Figure 10

16 17

Figure 7

7. Put the P around the burner, then remove the label from the box

(see Figure 7).

A gas fire pit requires 6.6 lbs rocks. NOTE: DO NOT completely

cover the burner element or block the box with the lava rocks. When

the first use, preheat the lava rocks for 15 minutes to burn out the

impurities and air in the natural lava rocks.

WARNING: keep children away during assembly, as this item

contains lava rock, which are small pieces and can be swallowed by

children.

9. Open the door, place the gas cylinder into the J, connect the

regulator, screw the black handle clockwise to tighten, turn the black

handle counterclockwise to remove. The hose must point down. The

knob on the control panel is turned all the way to the "OFF" position

when the fire pit is NOT in use(see Figure 9).

10. Secure the gas cylinder by tightening clockwise the butterfly

screw found on the J, so that the gas cylinder cannot move from

side to side or fall down. Close the l, cover the fire pit with the O

when not in use to protect it from the elements or when fire pit is

cool COMPLETELY after the use (see Figure 10)

8. Attach the Part HH and Part II together by using the Part F and

Part GG. Please make sure all of the foots are on the same side.

box

black

handle

Figure 9

Figure 10

16 17

Natural gas conversion must be performed only by natural gas

provider or service company.

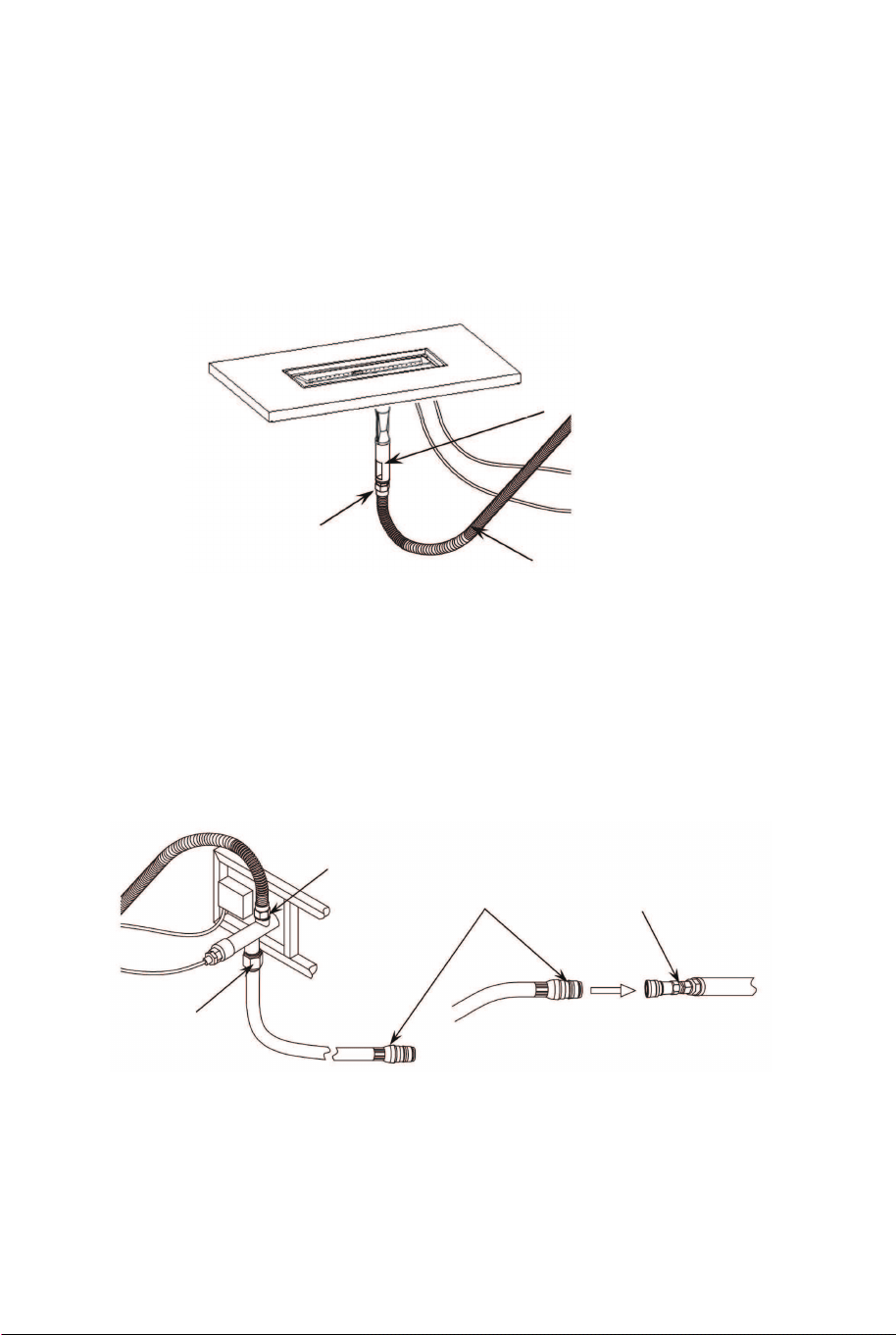

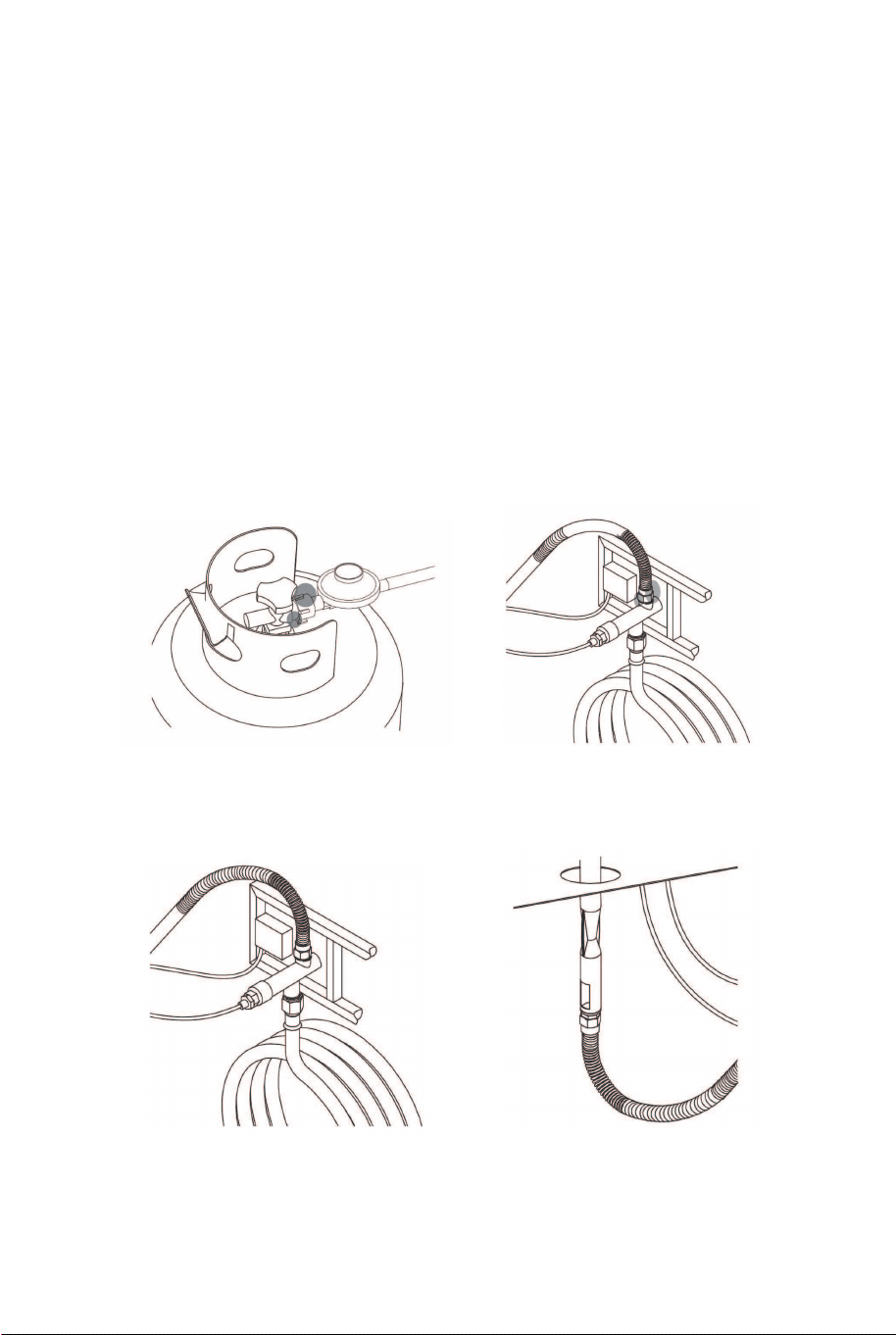

1. Disconnect the propane hose from the gas valve (see Figure 11).

2. Unscrew and disconnect the propane orifice from the bellows (see

Figure 12). Propane orifice(2.21 mm diameter size).

4. Connect the natural gas hose with the gas valve by screwing

clockwise tightly (see Figure 14). Plug the natural gas fixture into the

natural gas supply piping system (see Figure 15).

3. Replace the propane orifice with the natural gas orifice, screw the

natural gas orifice with the bellows tightly, then connect and tighten

the natural gas orifice with inlet tube (see Figure13). Natural gas

orifice(4.18 mm diameter size).

Figure 11

Figure 14 Figure 15

Figure 12

Figure 13

gas valve

propane hose

propane

orifice

bellows bellows

propane

orifice

STOP STOPNATURAL GAS CONVERSION

natural gas orifice

inlet tube

gas valve

natural gas fixture

natural gas supply

piping system

natural gas hose

bellows

18 19

Natural gas conversion must be performed only by natural gas

provider or service company.

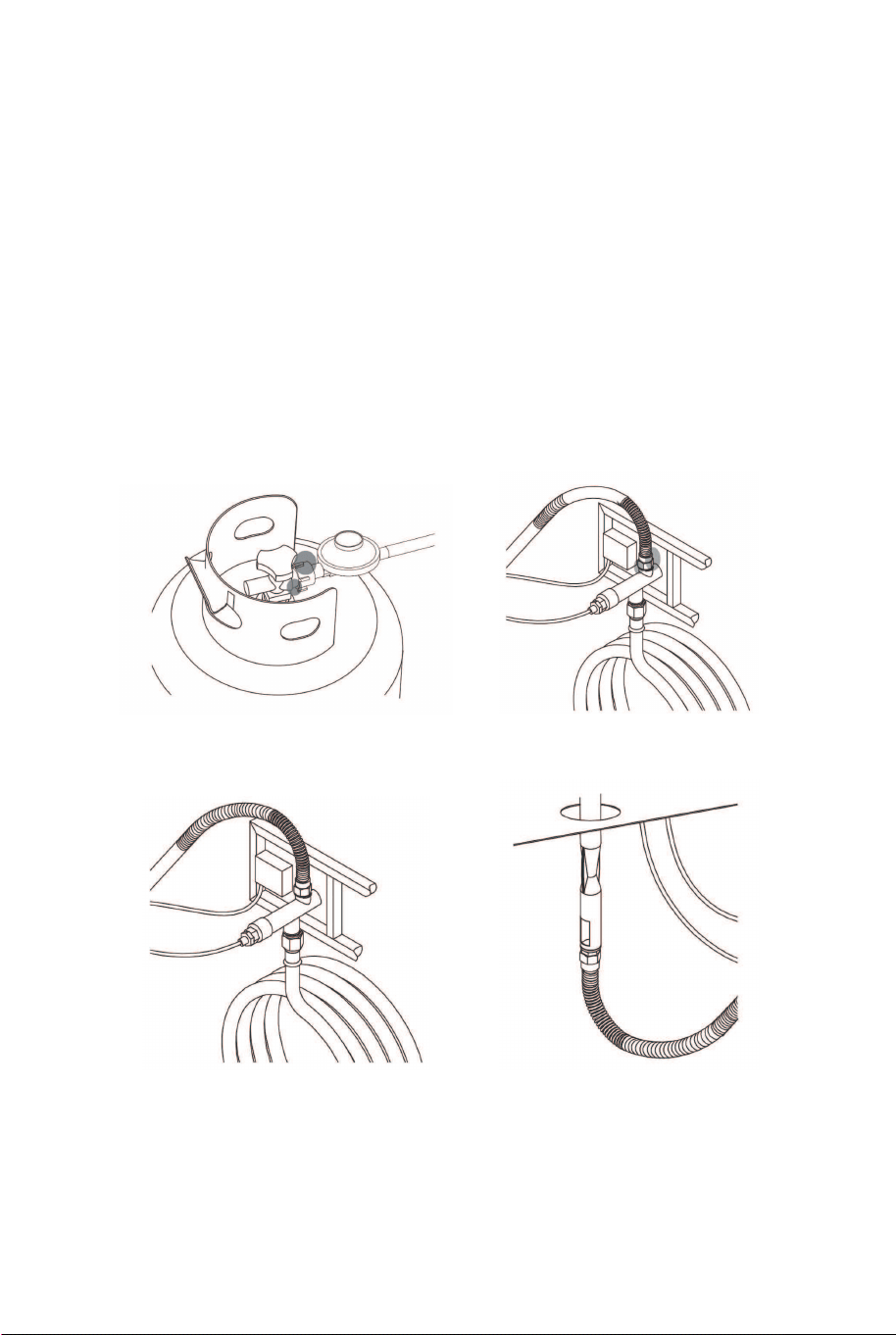

1. Disconnect the propane hose from the gas valve (see Figure 11).

2. Unscrew and disconnect the propane orifice from the bellows (see

Figure 12). Propane orifice(2.21 mm diameter size).

4. Connect the natural gas hose with the gas valve by screwing

clockwise tightly (see Figure 14). Plug the natural gas fixture into the

natural gas supply piping system (see Figure 15).

3. Replace the propane orifice with the natural gas orifice, screw the

natural gas orifice with the bellows tightly, then connect and tighten

the natural gas orifice with inlet tube (see Figure13). Natural gas

orifice(4.18 mm diameter size).

Figure 11

Figure 14 Figure 15

Figure 12

Figure 13

gas valve

propane hose

propane

orifice

bellows bellows

propane

orifice

STOP STOPNATURAL GAS CONVERSION

natural gas orifice

inlet tube

gas valve

natural gas fixture

natural gas supply

piping system

natural gas hose

bellows

18 19

DANGER CARBON MONOXIDE HAZARD

Outdoor Decorative

Gas Appliances

5. Stick and cover the conversion label onto the propane rating plate

(see Figure 16).

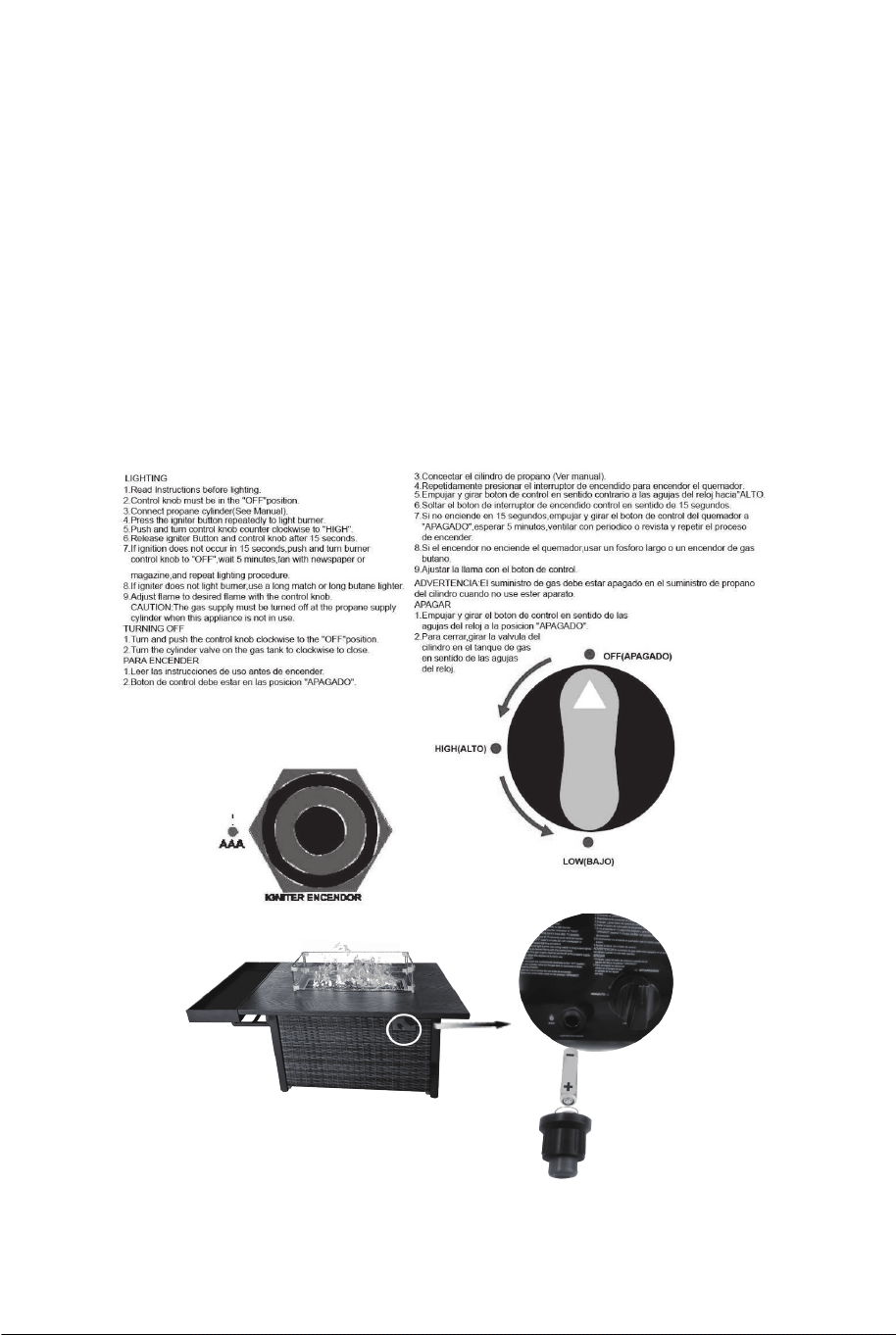

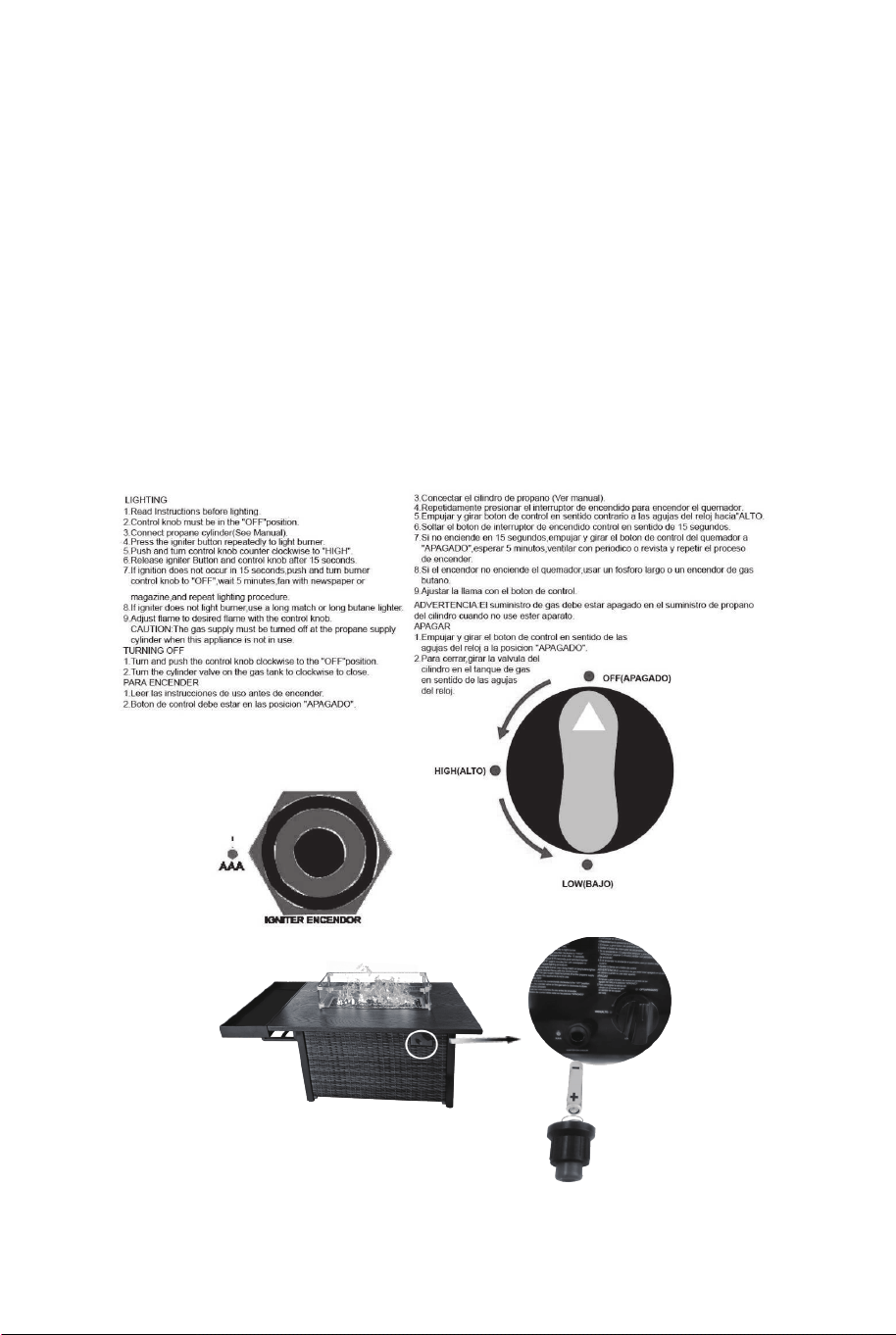

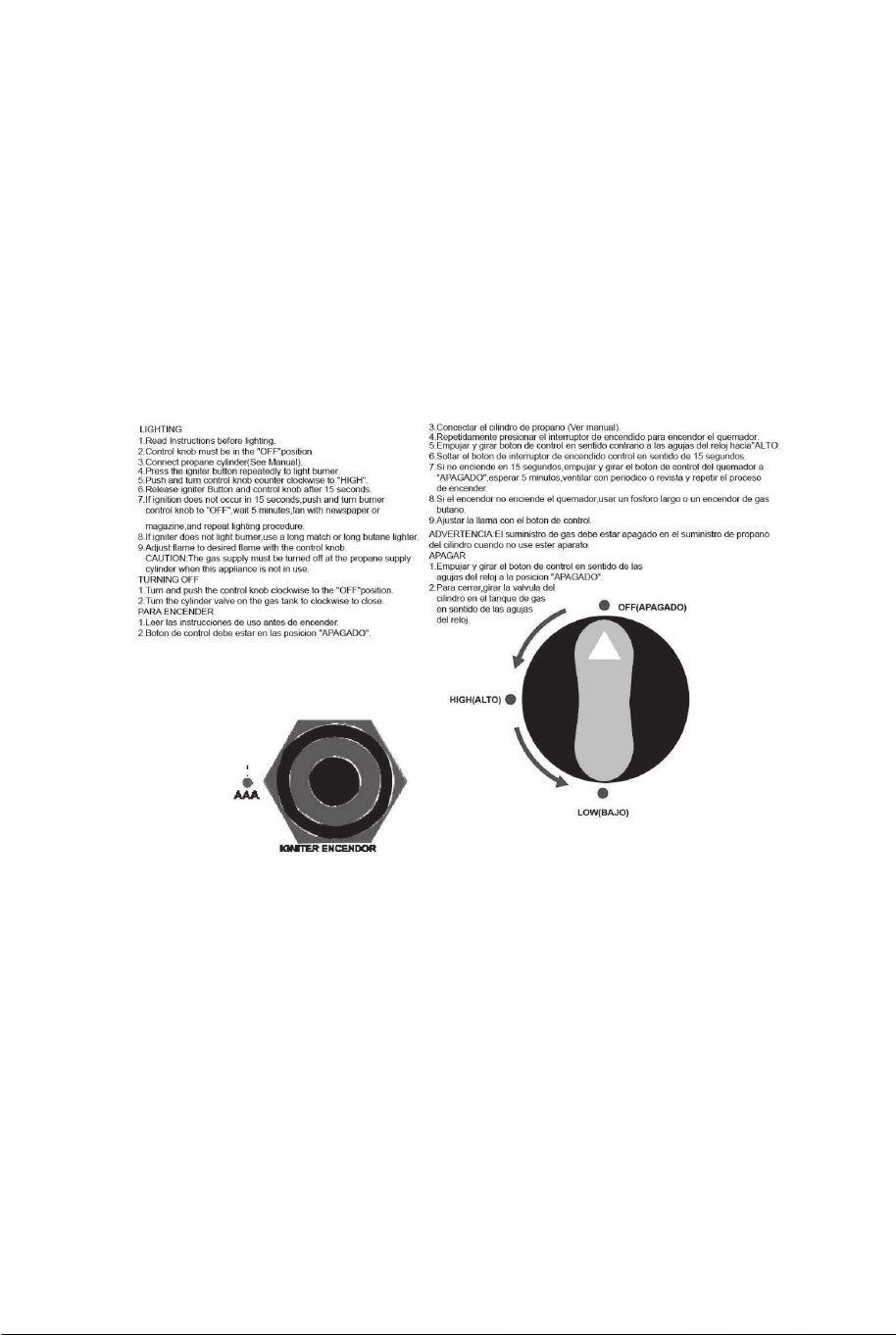

Make sure the control knob is in the "OFF" position. Unscrew the

push button cap on the igniter module located on the control panel to

access the battery compartment. The igniter module requires one

AAA size battery (See Figure 17), BATTERY IS NOT INCLUDED.

1. Please observe proper polarity and use the correct battery type

when placing or replacing the battery.

Improper installation could result in ignition failure.

2. Please remove the battery if consumed or if product is to be left

unused for a long period of time.

Minimum clearance from combustible constructions: Sides: 24in. 610mm. Top:

72in. 1829mm.

FOR OUTDOOR USE ONLY. If stored indoors, detach and leave cylinder outdoors.

Do not connect to a remote gas supply. It is shipped with LP gas orifice. You can

find the orifices on the package with LP manual. Please follow the instructions

package with the orifices for gas conversion.

The instruction manual contains important information necessary for the proper

assembly and safe use of the appliance.

Read and follow all warnings and instructions before assembling and using the

appliance.

Follow all warnings and instructions when using the appliance.

If instructions or parts are missing, contact us.

WARNING: Improper installation, adjustment alteration, service or maintenance can cause

injury or property damage. Read the installation, operating, and maintenance instructions

thoroughly before installing or servicing this equipment.

Figure 16

Figure 17

BATTERY

WARNING:

Serial Number:

conversion

label

propane rating plate

CAUTION: This appliance has been converted to use natural gas.

Propane orifice dia2.21mm, natural gas orifice dia 4.18mm.

Rated Heat Input: 50,000 BTU/hr

Type of Gas: Natural gas

Max Gas Supply Pressure: 7 inches water column (1.74kPa)

Min. Gas Supply Pressure: 5 inches water column (1.24kPa)

WARNING: Do not store or use gasoline, or other flammable vapors and liquids, in the

vicinity of this or any other appliance. An LP-cylinder not connected for use shall not be stored in

the vicinity of this or any other appliance.

This appliance can produce carbon

monoxide which has no odor.

Using it in an enclosed space can kill

you. Never use this appliance in an

enclosed space such as a camper, tent,

car or home.

20 21

DANGER CARBON MONOXIDE HAZARD

Outdoor Decorative

Gas Appliances

5. Stick and cover the conversion label onto the propane rating plate

(see Figure 16).

Make sure the control knob is in the "OFF" position. Unscrew the

push button cap on the igniter module located on the control panel to

access the battery compartment. The igniter module requires one

AAA size battery (See Figure 17), BATTERY IS NOT INCLUDED.

1. Please observe proper polarity and use the correct battery type

when placing or replacing the battery.

Improper installation could result in ignition failure.

2. Please remove the battery if consumed or if product is to be left

unused for a long period of time.

Minimum clearance from combustible constructions: Sides: 24in. 610mm. Top:

72in. 1829mm.

FOR OUTDOOR USE ONLY. If stored indoors, detach and leave cylinder outdoors.

Do not connect to a remote gas supply. It is shipped with LP gas orifice. You can

find the orifices on the package with LP manual. Please follow the instructions

package with the orifices for gas conversion.

The instruction manual contains important information necessary for the proper

assembly and safe use of the appliance.

Read and follow all warnings and instructions before assembling and using the

appliance.

Follow all warnings and instructions when using the appliance.

If instructions or parts are missing, contact us.

WARNING: Improper installation, adjustment alteration, service or maintenance can cause

injury or property damage. Read the installation, operating, and maintenance instructions

thoroughly before installing or servicing this equipment.

Figure 16

Figure 17

BATTERY

WARNING:

Serial Number:

conversion

label

propane rating plate

CAUTION: This appliance has been converted to use natural gas.

Propane orifice dia2.21mm, natural gas orifice dia 4.18mm.

Rated Heat Input: 50,000 BTU/hr

Type of Gas: Natural gas

Max Gas Supply Pressure: 7 inches water column (1.74kPa)

Min. Gas Supply Pressure: 5 inches water column (1.24kPa)

WARNING: Do not store or use gasoline, or other flammable vapors and liquids, in the

vicinity of this or any other appliance. An LP-cylinder not connected for use shall not be stored in

the vicinity of this or any other appliance.

This appliance can produce carbon

monoxide which has no odor.

Using it in an enclosed space can kill

you. Never use this appliance in an

enclosed space such as a camper, tent,

car or home.

20 21

To prevent fire or explosion hazard when testing for a leak:

Always perform the leak test as described below before lighting this

appliance or each time the cylinder is connected for use.

2.Do not smoke or allow other sources of ignition in the area while

conducting a leak test.

3.Conduct the leak test outdoors in a well-ventilated area.

4.Do not use matches, lighters or a flame to check for leaks.

5.Do not use this appliance until any and all leaks are corrected. If

you are unable to stop a leak, disconnect the propane supply. Call a

gas appliance service shop or your local propane gas supplier.

To perform a leak test:

1. Make 2-3 oz. of leak solution by mixing one part liquid

dishwashing detergent and three parts water. Noted: make sure

control knob is "OFF".

2. Apply several drops of solution where the cylinder attaches to

regulator (see Figure 18), inspect the solution at the connection

looking for bubbles. If NO bubbles appear, the connection is secure.

If bubbles appear, the connection has the leak, disconnect the

regulator, reconnect, perform another leak check. If you continue to

see bubbles after several attempts, cylinder valve is defective, ask

qualified technician for help.

3. Apply several drops of solution where gas valve attaches to

bellows (see Figure 19), where gas valve attaches to hose (see

Figure 20), and where inlet tube attaches to bellows (see Figure 21).

If NO bubbles appear, the connections are secure. If bubbles appear,

the connection has the leak, disconnect, reconnect,perform another

leak check. If you continue to see bubbles after several attempts, the

part is defective and should replace the part

1.Press the igniter button repeatedly to light burner.

2.Push and turn control knob counter clockwise to "HIGH".

3.Release igniter Button and control knob after 15 seconds

4. If ignition does not occur in 15 seconds, push and turn burner

control knob to "OFF", wait 5 minutes, fan with newspaper or

magazine, and repeat lighting procedure.

BATTERY

LIGHTING INSTRUCTIONS

cylinder-regulator connection

(Figure 18)

gas valve-bellows connection

(Figure 19)

gas valve-hose connection

(Figure 20)

inlet tube-bellows connection

(Figure 21)

22 23

To prevent fire or explosion hazard when testing for a leak:

Always perform the leak test as described below before lighting this

appliance or each time the cylinder is connected for use.

2.Do not smoke or allow other sources of ignition in the area while

conducting a leak test.

3.Conduct the leak test outdoors in a well-ventilated area.

4.Do not use matches, lighters or a flame to check for leaks.

5.Do not use this appliance until any and all leaks are corrected. If

you are unable to stop a leak, disconnect the propane supply. Call a

gas appliance service shop or your local propane gas supplier.

To perform a leak test:

1. Make 2-3 oz. of leak solution by mixing one part liquid

dishwashing detergent and three parts water. Noted: make sure

control knob is "OFF".

2. Apply several drops of solution where the cylinder attaches to

regulator (see Figure 18), inspect the solution at the connection

looking for bubbles. If NO bubbles appear, the connection is secure.

If bubbles appear, the connection has the leak, disconnect the

regulator, reconnect, perform another leak check. If you continue to

see bubbles after several attempts, cylinder valve is defective, ask

qualified technician for help.

3. Apply several drops of solution where gas valve attaches to

bellows (see Figure 19), where gas valve attaches to hose (see

Figure 20), and where inlet tube attaches to bellows (see Figure 21).

If NO bubbles appear, the connections are secure. If bubbles appear,

the connection has the leak, disconnect, reconnect,perform another

leak check. If you continue to see bubbles after several attempts, the

part is defective and should replace the part

1.Press the igniter button repeatedly to light burner.

2.Push and turn control knob counter clockwise to "HIGH".

3.Release igniter Button and control knob after 15 seconds

4. If ignition does not occur in 15 seconds, push and turn burner

control knob to "OFF", wait 5 minutes, fan with newspaper or

magazine, and repeat lighting procedure.

BATTERY

LIGHTING INSTRUCTIONS

cylinder-regulator connection

(Figure 18)

gas valve-bellows connection

(Figure 19)

gas valve-hose connection

(Figure 20)

inlet tube-bellows connection

(Figure 21)

22 23

Figure 22

1. Push in gas control knob slightly and turn to "OFF". WARNING:

For your safety, read and follow the Lighting Instructions in this

manual and in the Rating Plate on the appliance. IMPROPER

LIGHTING PROCEDURES COULD RESULT IN A FIRE HAZARD

OR EXPLOSION HAZARD OR PROPERTY DAMAGE, INJURY OR

LOSS OF LIFE.

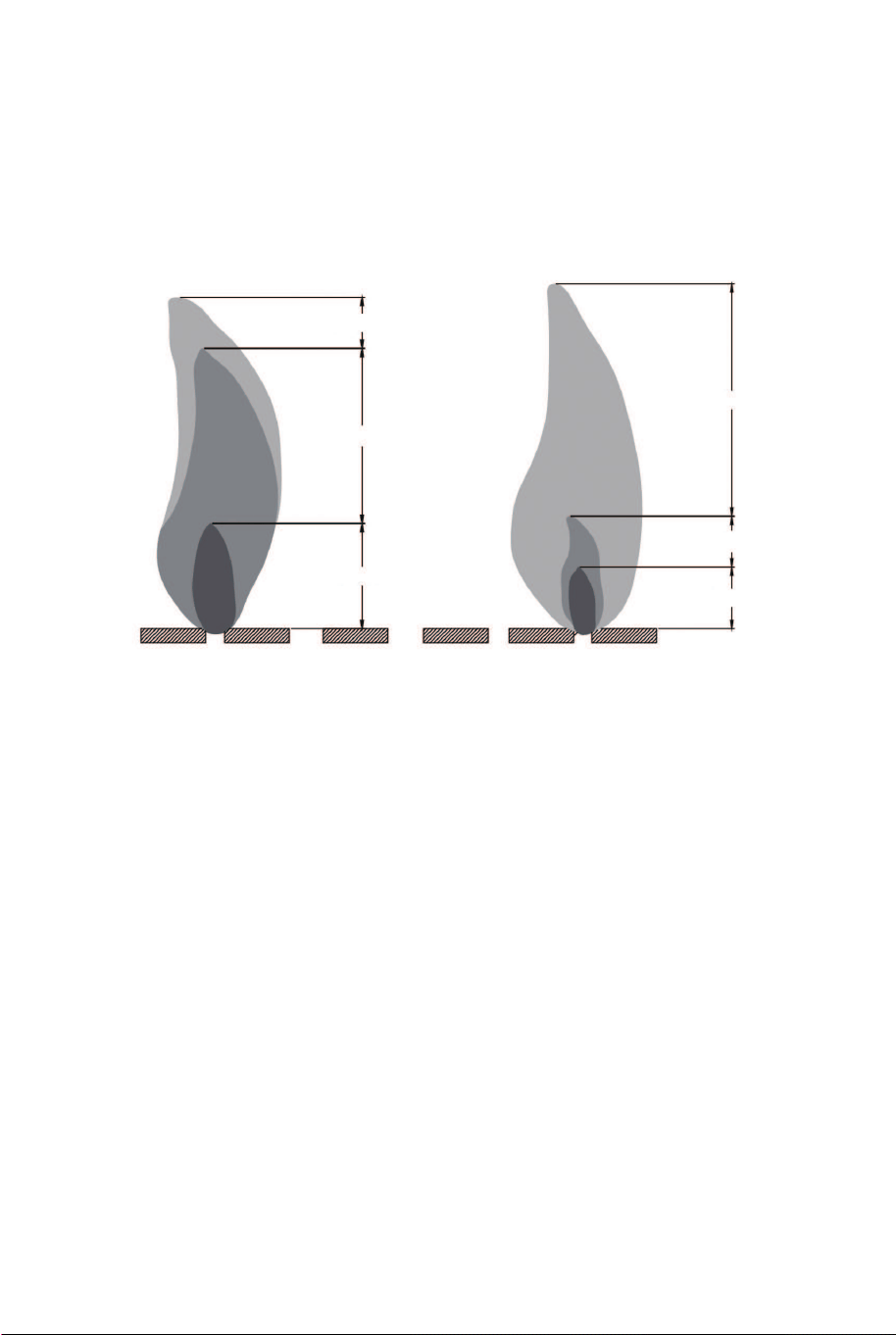

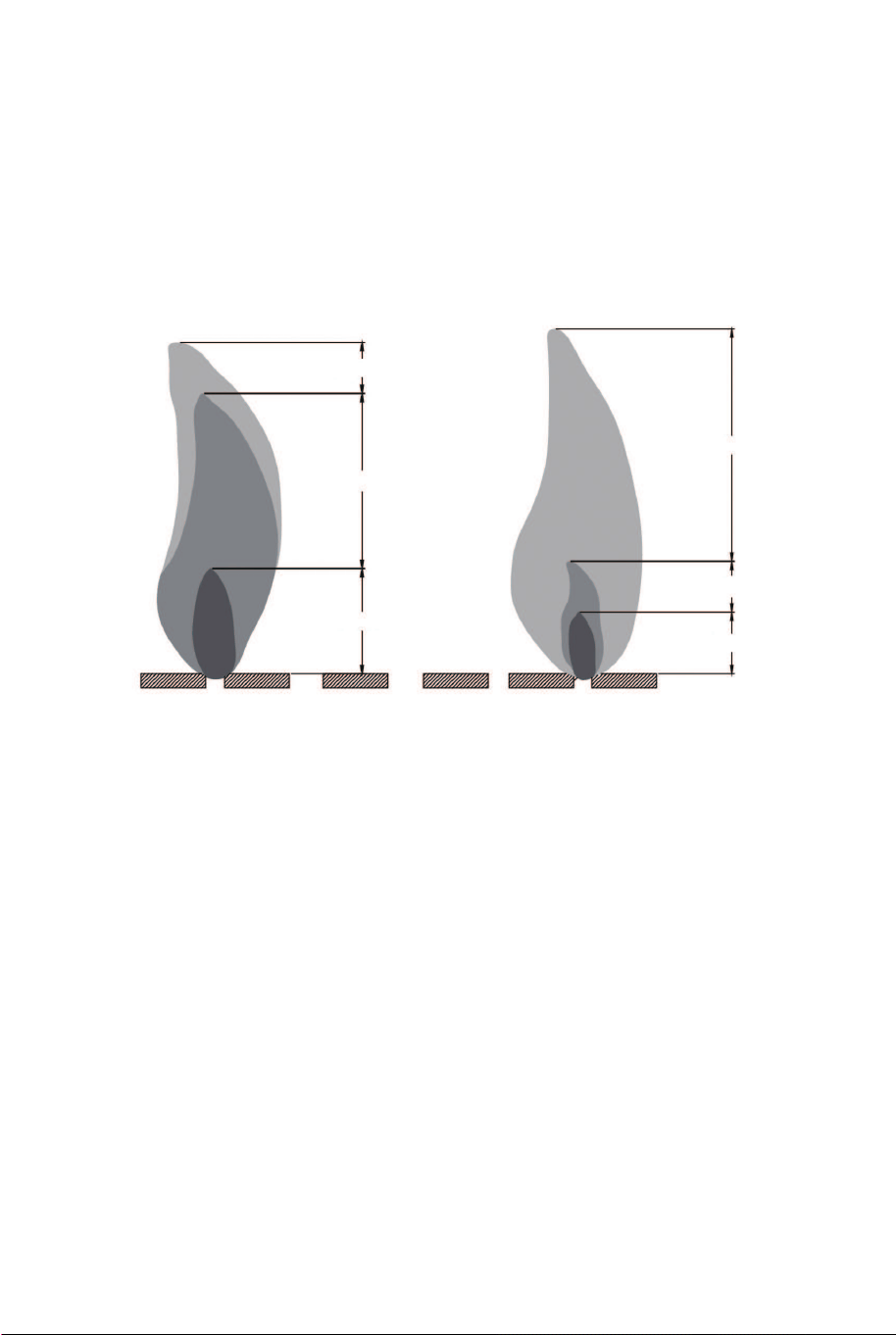

Observe Flame Height When Lit: Flame should be a blue / yellow

color between 1”-2” height (see Figure 23).

TO TURN OFF GAS

Good

Figure 23

Yellow

Light Blue

Blue

Yellow

Light Blue

Blue

Bad

24 25

Figure 22

1. Push in gas control knob slightly and turn to "OFF". WARNING:

For your safety, read and follow the Lighting Instructions in this

manual and in the Rating Plate on the appliance. IMPROPER

LIGHTING PROCEDURES COULD RESULT IN A FIRE HAZARD

OR EXPLOSION HAZARD OR PROPERTY DAMAGE, INJURY OR

LOSS OF LIFE.

Observe Flame Height When Lit: Flame should be a blue / yellow

color between 1”-2” height (see Figure 23).

TO TURN OFF GAS

Good

Figure 23

Yellow

Light Blue

Blue

Yellow

Light Blue

Blue

Bad

24 25

To enjoy the outstanding performance from your fire pit, make sure

you perform the following activities on a regular basis:

1. Use warm soapy water for cleaning. Never use flammable or

corrosive cleaning agents.

2. While cleaning the fire pit, make sure to keep the area around the

burner dry at all times. DO NOT submerge the control valve

assembly. If the gas control is submerge in water, DO NOT use it. It

must be replaced.

3. Air flow must be unobstructed. Keep controls, burner, and

circulating air passageways clean. Signs of possible blockage

include:

(1). Gas odor with extreme yellow tipping of flame.

(2). Fire pit does NOT reach the desired temperature.

(3). Fire pit flame is excessively uneven.

(4). Fire pit makes popping noises.

(5). Spiders and insects can nest in burner or orifice. This dangerous

condition can damage fire pit and render it unsafe for use. Clean

burner holes by using a heavy-duty pipe clearer. Compressed air

may help clear away small particles.

4. Carbon deposits may create a fire hazard. Clean burner with

warm soapy water if any carbon deposits develop.

5. Cover your fire pit with an outdoor weather cover when not in use

to protect it from the elements.

NOTE: Always allow fire pit to cool COMPLETELY before you cover

the fire pit with an outdoor weather cover or you attempt the service

or maintenance.

CARE AND MAINTENANCE

Installateur : Laisser ces instructions au consommateur.

Consommateur : Conserver ces instructions pour référence ultérieure.

Si vous sentez une odeur de gaz :

• Fermez l'alimentation en gaz de l'appareil.

• Éteignez toute flamme nue.

• Si l'odeur persiste, éloignez-vous de l'appareil et appelez

immédiatement les pompiers.

AVERTISSEMENT : Pour utilisation à l'extérieur uniquement.

DANGER

Ne stockez pas et n'utilisez pas d'essence ou d'autres vapeurs et

liquides inflammables à proximité de cet appareil ou de tout autre

appareil. Une bouteille de GPL non raccordée ne doit pas être

stockée à proximité de cet appareil ou de tout autre appareil.

Cet appareil peut produire du monoxyde

de carbone qui n'a pas d'odeur.

Son utilisation dans un espace clos peut

être mortelle.

N'utilisez jamais cet appareil dans un

espace clos tel qu'un camping-car, une

tente, une voiture ou une maison.

AVERTISSEMENT

DANGER

RISQUE DE MONOXYDE DE CARBONE

26 27

To enjoy the outstanding performance from your fire pit, make sure

you perform the following activities on a regular basis:

1. Use warm soapy water for cleaning. Never use flammable or

corrosive cleaning agents.

2. While cleaning the fire pit, make sure to keep the area around the

burner dry at all times. DO NOT submerge the control valve

assembly. If the gas control is submerge in water, DO NOT use it. It

must be replaced.

3. Air flow must be unobstructed. Keep controls, burner, and

circulating air passageways clean. Signs of possible blockage

include:

(1). Gas odor with extreme yellow tipping of flame.

(2). Fire pit does NOT reach the desired temperature.

(3). Fire pit flame is excessively uneven.

(4). Fire pit makes popping noises.

(5). Spiders and insects can nest in burner or orifice. This dangerous

condition can damage fire pit and render it unsafe for use. Clean

burner holes by using a heavy-duty pipe clearer. Compressed air

may help clear away small particles.

4. Carbon deposits may create a fire hazard. Clean burner with

warm soapy water if any carbon deposits develop.

5. Cover your fire pit with an outdoor weather cover when not in use

to protect it from the elements.

NOTE: Always allow fire pit to cool COMPLETELY before you cover

the fire pit with an outdoor weather cover or you attempt the service

or maintenance.

CARE AND MAINTENANCE

Installateur : Laisser ces instructions au consommateur.

Consommateur : Conserver ces instructions pour référence ultérieure.

Si vous sentez une odeur de gaz :

• Fermez l'alimentation en gaz de l'appareil.

• Éteignez toute flamme nue.

• Si l'odeur persiste, éloignez-vous de l'appareil et appelez

immédiatement les pompiers.

AVERTISSEMENT : Pour utilisation à l'extérieur uniquement.

DANGER

Ne stockez pas et n'utilisez pas d'essence ou d'autres vapeurs et

liquides inflammables à proximité de cet appareil ou de tout autre

appareil. Une bouteille de GPL non raccordée ne doit pas être

stockée à proximité de cet appareil ou de tout autre appareil.

Cet appareil peut produire du monoxyde

de carbone qui n'a pas d'odeur.

Son utilisation dans un espace clos peut

être mortelle.

N'utilisez jamais cet appareil dans un

espace clos tel qu'un camping-car, une

tente, une voiture ou une maison.

AVERTISSEMENT

DANGER

RISQUE DE MONOXYDE DE CARBONE

26 27

Une installation, un ajustement, une modification, un entretien ou un

entretien inadéquats peuvent causer des blessures ou des dommages

matériels. Lisez attentivement les instructions d’installation, d’utilisation et

d’entretien avant d’installer ou de réparer cet appareil.

DANGER • GAZ INFLAMMABLE SOUS PRESSION.

UNE FUITE DE GAZ GPL PEUT PROVOQUER UN INCENDIE

OU UNE EXPLOSION SI ELLE S'ENFLAMME, CAUSANT DES

BLESSURES CORPORELLES GRAVES OU LA MORT.

CONTACTER UN TECHNICIEN QUALIFIÉ POUR LES

RÉPARATIONS OU L'ÉLIMINATION DE CETTE BOUTEILLE OU

DU GAZ GPL INUTILISÉ.

AVERTISSEMENT • POUR UTILISATION A L'EXTERIEUR

UNIQUEMENT.*

NE PAS UTILISER NI STOCKER LA BOUTEILLE DANS UN

BÂTIMENT, UN GARAGE OU UN ENDROIT CLOS.

• Connaissez l'odeur du gaz GPL. Si vous entendez, voyez ou sentez une

fuite de gaz GPL, éloignez immédiatement tout le monde de la bouteille et

appelez les pompiers. N'essayez pas de faire des réparations.

• Avertissez votre fournisseur de gaz GPL de :

Assurez-vous que la bouteille est purgée de l'air emprisonné avant de la

remplir pour la première fois.

Assurez-vous de ne pas trop remplir le cylindre.

Assurez-vous que la date de requalification du cylindre est vérifiée.

• Le gaz GPL est plus lourd que l'air et peut se déposer dans des endroits

bas tout en se dissipant.

• Le contact avec le contenu liquide de la bouteille peut provoquer des

brûlures de congélation sur la peau.

• Ne laissez pas les enfants manipuler ou jouer avec la bouteille.

• Lorsque la bouteille n'est pas utilisée, le robinet de la bouteille doit être

fermé. Les appareils autonomes doivent être limités à une bouteille d'une

capacité de 30 lbs ou moins.

• Ne pas utiliser, stocker ou transporter la bouteille dans un endroit où elle

serait exposée à des températures élevées. La soupape de sûreté peut

s'ouvrir et laisser s'échapper une grande quantité de gaz inflammable.

• Lors du transport, la bouteille doit être maintenue en position verticale et le

robinet de la bouteille doit être fermé.

AVERTISSEMENT:

DANGER : Ne rangez pas une bouteille de GPL de rechange

sous ou à proximité d'un barbecue ou d'autres sources de chaleur. Ne

remplissez JAMAIS une bouteille de GPL à plus de 80 % : un incendie

causant la mort ou des blessures graves pourrait se produire.

NE PAS ENLEVER, DÉGRADER OU OBLITÉRER CETTE

ÉTIQUETTE *SAUF AUTORISATION DE L'ANSI/NFPA 58.

AVERTISSEMENT :

• Utiliser uniquement en conformité avec les codes applicables.

• Lire et respecter les instructions du fabricant.

• Consultez les instructions du fabricant concernant le raccordement

de la bouteille fournie avec votre appareil.

• Assurez-vous que l'évent du détendeur n'est pas orienté vers le haut.

• Fermez tous les robinets de l'appareil.

• Ne vérifiez pas les fuites de gaz à l'aide d'une allumette ou d'une

flamme nue. Appliquez de l'eau savonneuse aux endroits marqués « x

». Ouvrez le robinet de la bouteille. Si une bulle apparaît, fermez le

robinet et demandez à un technicien en gaz GPL d'effectuer les

réparations nécessaires. Avant d'allumer un appareil, vérifiez

également que les vannes et les raccords de l'appareil ne fuient pas.

• Allumez le(s) appareil(s) en suivant les instructions du fabricant.

• Lorsque l'appareil n'est pas utilisé, laissez le robinet de la bouteille

fermé.

LORS DE LA CONNEXION POUR L’UTILISATION :

Cylindre

Soupape de surpression

Volant du robinet de la bouteille

Point de raccordement

L'indicateur de

niveau de liquide

(en option)

28 29
