1 Introducon
Smart managed switches support management via web,
supporng funcons such as acvaon and login, device
overview, network conguraon, device conguraon, and
system maintenance.
Note
The funcons supported vary with device models. If there are
dierences between the gures shown in this manual and the
actual interfaces of your device, the laer prevails.
2 Acvaon and Login
If you use the switch for the rst me, you need to acvate it and
congure the password.
Before You Start
Ensure that your computer and switch are on the same network
segment.
Steps
Note
All gures in this manual are for illustraon purpose only.
1. Enter the default IP address of the switch in the address bar of
a web browser, and press Enter.
Figure 2-1 Device Acvaon
Note
●
You can obtain the default IP address of the switch using the
SADP tool.
●
You are recommended to use the following web browsers:
Microso Edge 89 or later, Google Chrome 89 or later, and
Firefox 78 or later.
2. Set a password and conrm the password.
1
Note
●
The password should contain 8 to 16 characters, including at
least two types of the following categories: uppercase
leers, lowercase leers, digits, and special characters.
●
The password cannot contain user name or the reverse, 123,
or admin
(case-insensive), 4 or more consecuvely
increasing or decreasing digits (such as 1234 and 4321), or 4
or more idencal characters (such as 1111 and aaaa).
●
The password cannot be a common risky password.
3. Oponal: Check Cloud Management.
The Hik-Connect service is enabled.
4. Click OK.
The network
conguraon page is displayed.
5. Oponal: Modify the network conguraons.
1) Go to System → Network Conguraon → Network
Conguraon .
Figure 2-2 Network Conguraon
2) Modify the IPv4 address, IPv4 subnet mask, default IPv4
gateway, preferred DNS address, and alternate DNS address
as required, or enable DHCP for
automac IP address
assignment.
Note
You are recommended to modify the network conguraons
to beer manage your switch.
3) Log in to the switch web again with the new IP address aer
modicaon.
Figure 2-3 Login
2
3 Device Informaon
Aer logging in to the switch web, you can obtain detailed
informaon about the switch, including the device overview
informaon, port status informaon, and network status
informaon.
3.1 Device Overview
You can view or edit the device overview informaon on the
Overview page.
Basic Device Informaon
You can view the device model, soware version, serial No., IP
address, and MAC address of the switch in the lower right corner
of the Overview page.
Figure 3-1 Basic Device Informaon
Device Name
You can view the current device name or click next to it to
customize the device name on the Overview page.
Figure 3-2 Device Name
Device Running Time
You can also view the running me of the current device in the
upper right corner of the Overview page.
Figure 3-3 Device Running Time
VLANs Added
You can quickly view the number of VLANs that have been added,
or click
to go to the VLAN Management page for VLAN
conguraon.
3

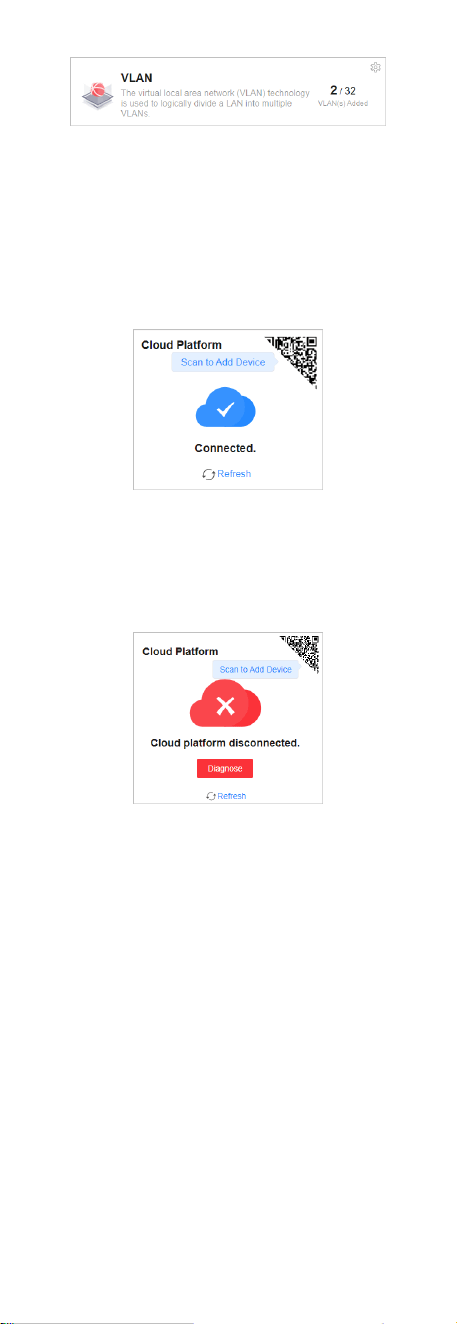

Figure 3-4 Number of VLANs Added
Cloud Plaorm Connecon Status
The Cloud Plaorm module shows whether the device is
connected to Hik-Connect.
●
If the cloud plaorm is connected, scan the QR code to add the
device to Hik-Partner Pro app for remote management.
Figure 3-5 Cloud Plaorm Connected
●
If the cloud plaorm is disconnected, click Refresh to
reconnect, or click Diagnose to
nd out the cause of the
connecon failure and go to the cloud plaorm conguraon
page as prompted for cloud plaorm conguraon.
Figure 3-6 Cloud Plaorm Disconnected
3.2 Port Status
The Overview page provides a visual representaon of the
physical ports and shows the connecon or power supply status
of each port, making it easier for users to manage switch ports.
Port Panel
The Port Panel module displays the connecon and power supply
status of each port. When you hover the mouse over a port, the
port name,
connecon status, rate/duplex, ow control status,
and packet receiving/sending rate are displayed. If the port is a
PoE port, you can view the PoE power of the port.
4
Figure 3-7 Port Panel
Port Details
The Port Details module lists the status parameters of each port.
You can also congure the port status, rate/duplex, and ow
control of each port, and view the port name, connecon status,
and actual rate/duplex of each port.
Figure 3-8 Port Details
Connecon Status
The connecon status of a port: Connected or Disconnected.
Port Status
Enable or disable a port. Ports are enabled by default.
Actual Rate/Duplex
The actual rate and duplex mode of a port.
Congured Rate/Duplex
The default value is Auto/Auto. You can select dierent
combinaons of rates and duplex modes as required.
Flow Control
Enabled by default. Flow control can eecvely reduce the
impact of large amounts of data on the network and maintain
the stability of the network.
PoE Power
You can view the whole device PoE power and peak PoE power in
last seven days of the switch. Click in the upper right corner of
the module to go to the PoE Management page for PoE funcon
conguraon.
Figure 3-9 PoE Power
Note
PoE power display is only available for switches supporng PoE.
3.3 Network Status
5
Network Monitoring allows you to view the same-LAN network
device informaon, MAC addresses learned by ports, port
stascs, and cable status.
Find Network Devices
Network Device Discovery is a funcon that automacally
detects transmission devices in the same LAN with the switch and
displays informaon about these devices. Go to Network
Monitoring → Network Device Discovery , and you can view the
device IP address, type, model, and serial No. of the network
device(s) found. You can also select a device and click
in the
Operaon column to go to the web conguraon page of the
device.
Figure 3-10 Network Device Discovery
Query Port MAC Address
You can query the MAC address(es) learned by each port. Go to
Network Monitoring → MAC Address , select the desired port
from the Port drop-down list, and click Search. The MAC
address(es) learned by the port and type(s) of the MAC
address(es) are displayed in the list below.
Figure 3-11 Port MAC Address
View Port Stascs
You can monitor and collect stascs on the transmied data of
device ports. Go to Network Monitoring → Port
Stascs , and
you can view the current connecon status of each port and the
data transmied by each port in the stascs list.
Figure 3-12 Port
Stascs
You can also perform the following
operaons:
6
●
Clear port stascs: You can click Clear All to clear all the port
stascs.
●
Manually refresh port stascs: You can click to manually
refresh the port
stascs.
●
Auto refresh port stascs: You can set the interval for
automacally refreshing port stascs: 30 seconds or 60
seconds.
Detect Cable Status
Cable Detecon is a funcon that detects the statuses of
Ethernet port cables, for example, to check whether there is a
short circuit or an open circuit in the receiving or sending
direcon of a cable, and if any, to locate the faulty cable. Go to
Network Monitoring → Cable Detecon , select the desired port
on the le port panel, and click Detect to view the detecon
result.
Figure 3-13 Cable Status Detecon
4 Network Conguraon
You can click on the home page to check Hik-Connect
connecon status, or go to System Management → Network
Conguraon for network conguraon, cloud plaorm
conguraon, and SADP conguraon.
Network
Conguraon
Figure 4-1 Network Conguraon
Set the IPv4 address, IPv4 subnet mask, default IPv4 gateway,
preferred DNS address, and alternate DNS address as required, or
enable DHCP for
automac IP address assignment.
Cloud
Plaorm Conguraon
7
If the device is displayed as oine when you add it to Hik-Partner
Pro, you need to modify the DNS server address and congure
Hik-Connect parameters.
Go to System → Network
Conguraon → Cloud Plaorm
Conguraon , and ensure that Hik-Connect is enabled. You can
also check the operaon code, and bind the device to your cloud
account on Hik-Partner Pro app.
Figure 4-2 Cloud Plaorm Conguraon
Note
It takes several minutes for reconnecng to Hik-Connect service.
SADP Conguraon
Figure 4-3 SADP Conguraon
Enable
SADP Server or SADP Agent as required.
Note
●
Aer SADP server is enabled, devices supporng SADP can be
searched and informaon about the devices is displayed.
●
Aer SADP agent is enabled, query requests are sent to the
LAN periodically (every minute) for network topology drawing.
5 Device Conguraon
5.1 Port Conguraon
5.1.1 Congure Port Aributes
The basic aributes can inuence the working status of a port.
Congure the parameters as required.
Steps
1. Go to L2
Conguraon → Port Aributes .
8
Figure 5-1 Congure Port Aributes
2. Select the desired port(s) and congure the parameters.
Port Status
Enable or disable the selected port(s). Once a port is
disabled, no data will be
transmied on it.
Rate/Duplex
The data transmission speed of a port or the duplex mode of
a port. The congurable rates or duplex modes of ports vary
with device models.
Flow Control
Enable or disable
ow control of a port. Enabling ow
control can prevent data loss in data transmission.
3. Click Save.
4. Oponal: View the port aributes in the port status list.
5.1.2
Congure Long-Range Mode
Aer the long-range mode is enabled for a port, the transmission
distance of the port can reach 300 meters at a rate of 10 Mbps.
Steps
1. Go to L2
Conguraon → Long-Range Mode .
Figure 5-2
Congure Long-Range Mode
2. Select the desired port(s) on the le port panel.
Note
You can also click or on the right to batch select
or deselect all ports.
3. Enable or disable Long-Range Mode on the right as required.
4. Click Save.
5. Oponal: View the long-range statuses of dierent ports in the
Port Long-Range Status list.
5.1.3
Congure Port Isolaon
9
Port isolaon is a feature to add mulple ports to an isolaon
group so that ports in the same isolaon group cannot
communicate with each other. For example, by using port
isolaon funcon, you can achieve the goal of prevenng PCs
under dierent ports communicang with each other without
conguring VLANs.
Steps
1. Go to L2
Conguraon → Port Isolaon .
Figure 5-3 Congure Port Isolaon
2. Select the desired port(s) on the le port panel.
Note
You can also click or on the right to batch select
or deselect all ports.
3. Enable or disable Port Isolaon on the right as required.
4. Click Save.
5. Oponal: View the port isolaon statuses of dierent ports in
the Port Isolaon Status list.
5.1.4
Congure Port Mirroring
Port mirroring is a feature in network switches that allows
administrators to monitor trac on one port (mirrored port) and
replicate this data to another port (mirroring port) for analysis.
This
replicaon occurs in real-me, allowing an administrator to
view a "mirror" or exact duplicate of the trac moving on the
mirrored port.
Steps
1. Go to L2
Conguraon → Port Mirroring .
Figure 5-4
Congure Port Mirroring
2. Select the desired port(s) on the le port panel as the mirrored
ports, and congure the parameters as required.
10
Note
You can also click or on the right to batch select
or deselect all ports.
Enable
Enable or disable port mirroring of the selected port(s).
Monitoring Port
Only one port can be set as the monitoring port (mirroring
port).
Mirroring
Direcon
Ingress
The data received by the source port will be under
monitoring.
Egress
The data sent by the source port will be under monitoring.
Egress and Ingress
Both the data received by and the data sent from the
source port will be under monitoring.
3. Click Save.
Note
The latest conguraon will overwrite the previous
conguraon.
4. Oponal: View the mirroring statuses of dierent ports in the
Port Mirroring Status list.
5.2 STP Conguraon
Spanning Tree Protocol (STP) is a layer-2 link management
protocol that provides path redundancy and prevents loops in a
network topology. STP uses a spanning-tree algorithm to select
one switch as the root of a spanning tree, and determines the
network topology by
transming Bridge Protocol Data Unit
(BPDU) packets between devices, helping to create a stable
network.
Steps
1. Go to L2
Conguraon → STP .
Figure 5-5 STP
Conguraon
2. In STP Conguraon, toggle on Enable STP.
3. Set STP parameters as required.
11
Table 5-1 STP Parameters
Parameter Descripon
Bridge Priority
●
The value ranges from 0 to
61440, in an increment of
4096. The default value is
32768. Valid values are 0,
4096, 8192, 12288, 16384,
…, and 61440.
●
The smaller the value, the
higher the bridge priority of
a switch. A switch with
higher bridge priority is
more likely to become the
root bridge.
Hello Time
The interval between each
BPDU that is sent on a port,
which is used for port link
diagnosis. The value ranges
from 1 to 10 seconds. The
default value is 2 seconds.
Max. Aging Time
The maximum length of me
interval that a STP-enabled
switch port saves its
conguraon BPDU
informaon. The value ranges
from 6 to 40 seconds. The
default value is 20 seconds.
Note
The Max. aging me must
meet the following condions:
2 × (Hello Time + 1) ≤ Max.
Aging Time ≤ 2 × (Forwarding
Delay – 1)
Forwarding Delay
The me interval that is spent
in the listening and learning
state when the topology
changes. The value ranges from
4 to 30 seconds. The default
value is 15 seconds.
4. Click Save.
5. Oponal: Click Port Status or STP Status to view the status of
each port or the global status of STP
sengs.
12
Note
●
The Port Status informaon includes the port name, path
cost, port role, and port status.
●
The STP Status informaon includes the bridge ID, root
bridge ID, as well as hello me, Max. aging me, and
forwarding delay of the root bridge.
5.3 LLDP Conguraon
Link Layer Discovery Protocol (LLDP) is a layer 2 neighbor
discovery protocol that allows devices to adverse device
informaon to their directly connected peers/neighbors. With
LLDP enabled, network devices can send LLDP data units
(LLDPDUs) to inform other devices of their status. LLDP helps to
draw network topology and detect improper
conguraons in a
network.
Steps
1. Go to L2
Conguraon → LLDP .
2. Enable or disable LLDP.
Figure 5-6 LLDP Conguraon
Note
Aer LLDP is enabled, network devices can discover each other,
facilitang network topology drawing.
3. Oponal: View the local port(s), MAC address(es) of peer
device(s), and peer port(s) in the Neighbor
Informaon list.
5.4 VLAN Conguraon
Virtual Local Area Networks (VLANs) separate an exisng physical
network into
mulple logical networks. Thus, each VLAN creates
its own broadcast domain. With VLANs congured on a switch,
users in the same VLAN can communicate with each other, while
users in
dierent VLANs are isolated. In this way, dierent
broadcast domains are isolated, enhancing network security.
5.4.1 Add VLAN
Steps
1. Click VLAN Management in the le navigaon pane.
2. In VLAN Conguraon, click Edit.
3. Click Add.
Figure 5-7 Add VLAN(s)
13
4. Select an adding mode.
-
Single: Only one VLAN is added at a me.
-
Batch: Mulple VLANs are added in a batch.
5. Set VLAN ID.
-
Single: Enter a VLAN ID. The VLAN ID should be an integer
between 1 to 4094.
-
Batch: Enter the start VLAN ID and end VLAN ID. The VLAN
ID should be an integer between 1 to 4094, and the end
VLAN ID should be greater than the start VLAN ID.
Note
The maximum number of VLANs that can be added in a batch
varies with dierent device models. Please refer to the actual
situaon.
6. Click Save.
7. Oponal: Select the desired VLAN(s) and click Delete to delete
one or more VLANs.
Note
The default VLAN 1 cannot be deleted.
5.4.2 Congure Port VLAN
Steps
1. Select the desired port(s) on the le port panel.
Note
●
You can also click or on the right to batch
select or deselect all ports.
●
VLAN conguraon is not allowed for ports in an aggregaon
group.
2.
Congure the port VLAN type.
Figure 5-8 Congure Port VLAN
-
ACCESS: An ACCESS port can have only one VLAN congured
on the interface, and it can carry trac for only one VLAN,
usually the default VLAN (VLAN 1). Select Type as ACCESS,
and set PVID.
-
TRUNK: A TRUNK port can have two or more VLANs
congured on the interface, and it can carry trac for
several VLANs simultaneously. Select Type as TRUNK, set
PVID, and enter Accessible VLANs.
3. Click Save.
4.
Oponal: View the VLAN conguraon informaon of each
port in the port VLAN details list.
14

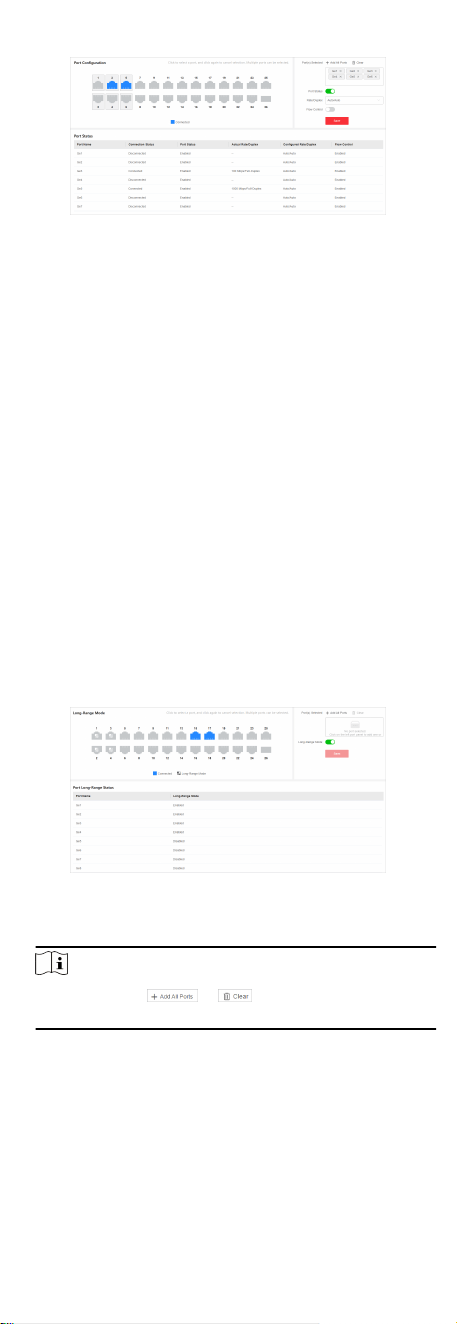

Figure 5-9 Port VLAN Details
5.5 PoE Management
Click PoE Management in the le navigaon pane.
Figure 5-10 PoE Management
PoE Watchdog
Enable PoE watchdog to auto-detect and restart IP cameras that
do not respond.
Port PoE
Conguraon
Select the desired port(s) on the le port panel and enable PoE to
supply power to the powered device(s) connected.
Note
You can click or to batch select or deselect all ports.
PoE Status
View the PoE enabling status and output power of PoE ports in
the PoE Status list.
6 System Management
6.1 Time Synchronizaon
Steps
1. Go to System Management → Time
Conguraon .
Figure 6-1 Time Conguraon
2. Set Time Zone.
15
3. Set Time Sync Mode.
-
Manual: Click to manually set the date and me, or check
Sync. with Computer Time to synchronize the device me.
Figure 6-2 Manual Time Synchronizaon
-
NTP: Enter the NTP server address, NTP port, and
me sync.
interval for
automac me synchronizaon.
Figure 6-3 NTP Time Synchronizaon
4. Click Save.
6.2 System Maintenance
Go to System Management → System Maintenance to restart,
upgrade, back up, or reset the device.
Restart Device
Figure 6-4 Device Restart
In Restart, click Restart to remotely restart the switch.
Note
You will enter the login page automacally aer the device is
restarted.
Upgrade Device
Upload an upgrade le to upgrade the switch.
Figure 6-5 Device Upgrade
1.
In Upgrade, click to select an upgrade patch le.
2. Click Upgrade.
Note
-
If upgrading failed or the device cannot funcon, please
contact our technical support engineers.
-
The device will restart automacally to enter the login
page aer upgrade is completed.
Back Up Device
16
Export the conguraon le for local backup.
Figure 6-6 Device Backup
1. In Backup, click Export to export the conguraon le
containing device parameters.
2. Set a password and conrm the password for le encrypon.
Note
Remember the password as it is required when imporng
device parameters.
3. Click OK.
Reset Device
Figure 6-7 Device Reset
●
Restore to Defaults: Click Restore to restore all parameters
except network parameters and user parameters to factory
defaults.
●
Restore All to Defaults: Click Restore All to restore all
parameters to factory defaults.
Note
○
The device parameters cannot be recovered once being
restored to factory defaults.
○
The device will restart automacally aer being restored
to factory defaults.
●
Import Device Parameters: Click
to select the conguraon
le containing device parameters, click Import, enter the
password for le decrypon, and then click OK to import the
conguraon le for fast device conguraon.
Note
The device will restart automacally to enter the login page
aer the conguraon le is imported.
6.3 Log Management
System operaon logs can be searched and exported for backup.
Steps
1. Go to System Management → System Maintenance → Log
Management .
17
Figure 6-8 Log Management
2. Set search condions, including Major Type, Subtype, and
Time.
3. Click Search.
Note
A maximum of 1024 search results can be displayed. Please
narrow down the search scope if there are too many search
results.
4. Oponal: Click Export to export all the search results.
Note
Logs can be exported as a TXT le. A prompt will pop up aer
logs are exported successfully.
6.4 Remote Management
Go to System Management → Network Conguraon → Remote
Management for remote device management via HTTP, HTTPS, or
SSH.
Figure 6-9 Remote Device Management
HTTP
Set HTTP Port. The HTTP port number should be an integer
between 2000 and 65535, or 80 by default.
HTTPS
Enable HTTPS
Enable or disable HTTPS as required.
HTTPS Port
If HTTPS is enabled, you need to set the HTTPS port number.
The HTTPS port number should be an integer between 2000 to
65535, or 443 by default.
Redirect HTTP to HTTPS
18
Enable or disable Redirect HTTP to HTTPS as required. If
Redirect HTTP to HTTPS is enabled, trac accessed through
port 80 will be automacally redirected to port 443.
SSH
Enable or disable SSH as required. Enabling SSH can prevent
informaon leakage in remote management of the device. By
default, SSH is disabled.
Note
The user name of SSH is root, and the password is the device
login password.
19
