-1- -2-
Please contact customer service for help.
-1- -2-
Please contact customer service for help.
-3- -4-
R
Wall hanger

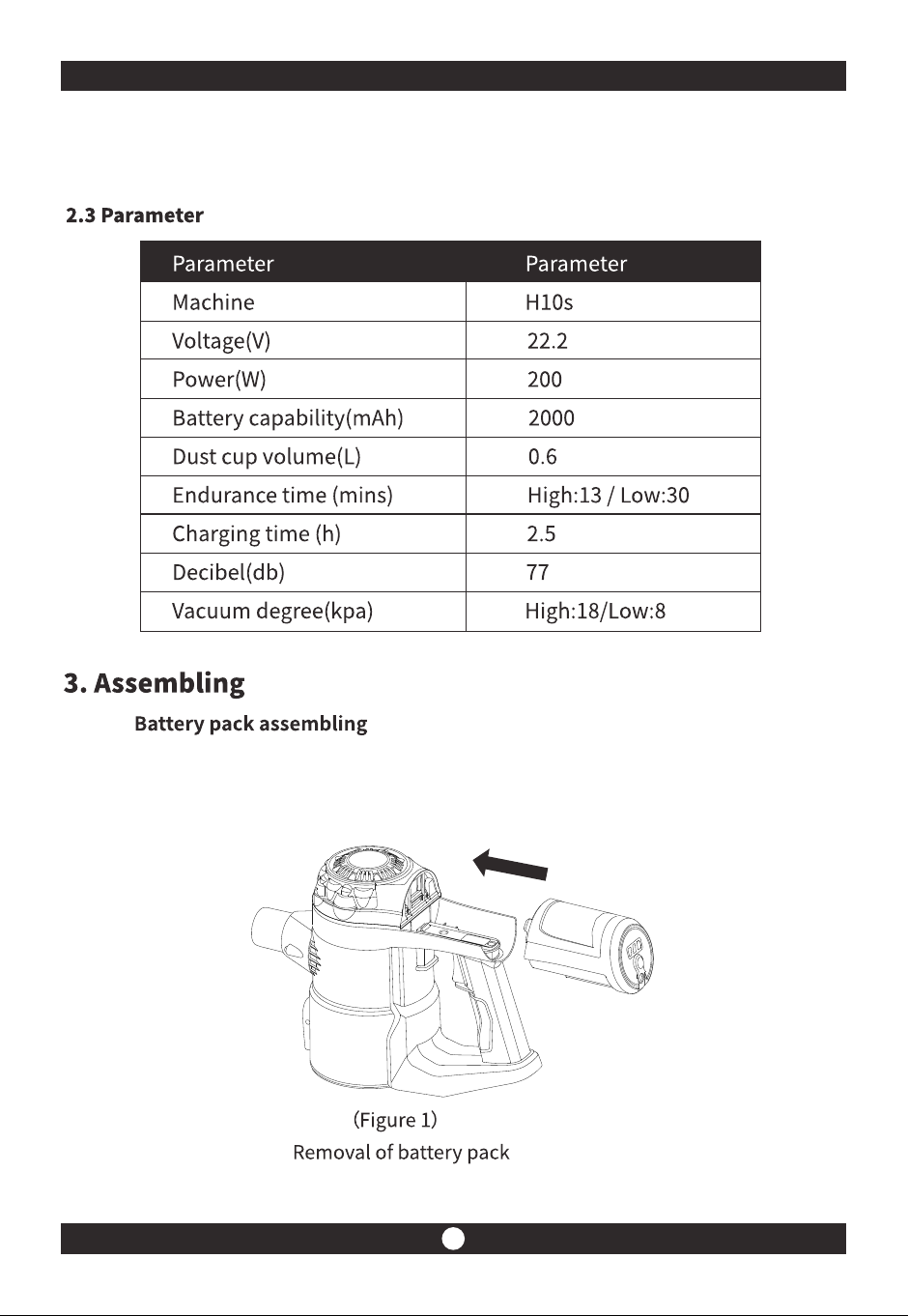

*Aim at the slot of main engine and plug it with the batter pack. A "click" will be heard
if it is connected well.(Figure 1)
-3- -4-
R
Wall hanger
*Aim at the slot of main engine and plug it with the batter pack. A "click" will be heard
if it is connected well.(Figure 1)
-5- -6-
" "
-5- -6-
" "
-7- -8-
When all three indicator lights are off, it shows that the battery is fully charged.
When there is only on light blinking, it shows the battery is running out and please
stop using to charging.
-7- -8-
When all three indicator lights are off, it shows that the battery is fully charged.
When there is only on light blinking, it shows the battery is running out and please
stop using to charging.
-9- -10-
Problem Possible reason Potential solution
The machine does not work
Less than normal or no pickup
than usual
Noise coming from working
machine
The machine can not be charged
1.Battery runs low/out
2.The cleaner head has blockage
1.Filtering parts are full of dust
2.HEPA has blockage
Blockage in the filtering parts/
stretched wand
The battery and the adapter is
not connected well
1.Charge the battery
2.Check for blockage and clean it
1.Remove and dust cup and
filtering parts
2.Remove the HEPA to clean or
change it
Remove the filtering parts/
stretched wand check for
blockage and clean it thoroughly
Check the connection and
reconnect to charge
Storing the appliance
To store the appliance, install the wall hanger and hang the machine on it.
(Figure 8)
HEPA disassembling
(Figure 7)

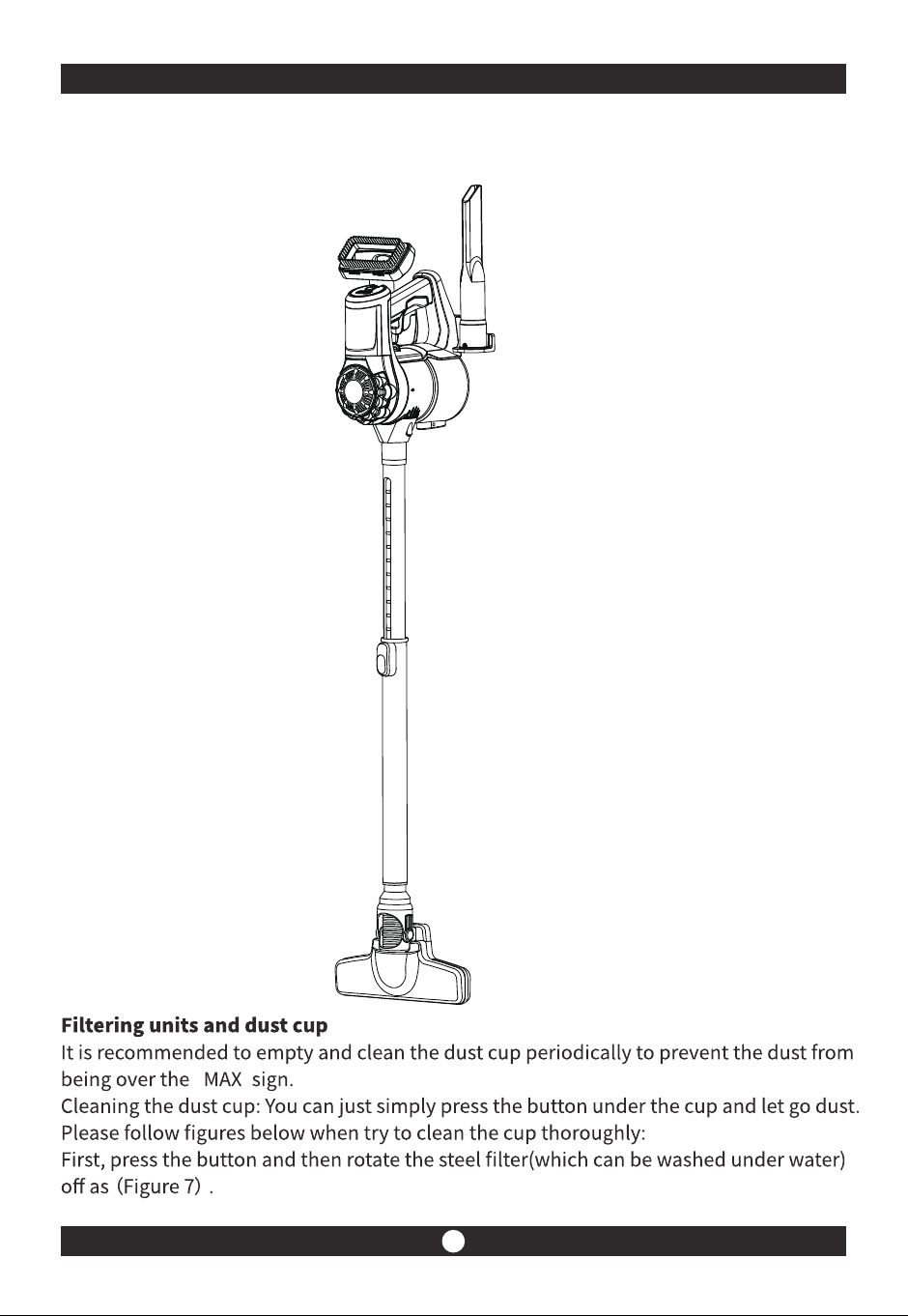

Steel filter disassembling
'
" "
-9- -10-
Problem Possible reason Potential solution
The machine does not work
Less than normal or no pickup
than usual
Noise coming from working
machine
The machine can not be charged
1.Battery runs low/out
2.The cleaner head has blockage
1.Filtering parts are full of dust
2.HEPA has blockage
Blockage in the filtering parts/
stretched wand
The battery and the adapter is
not connected well
1.Charge the battery
2.Check for blockage and clean it
1.Remove and dust cup and
filtering parts
2.Remove the HEPA to clean or
change it
Remove the filtering parts/
stretched wand check for
blockage and clean it thoroughly
Check the connection and
reconnect to charge
Storing the appliance
To store the appliance, install the wall hanger and hang the machine on it.
(Figure 8)
HEPA disassembling
(Figure 7)
Steel filter disassembling
'
" "
