EQAXF01BXWT
USER MANUAL 1EN
Thank you for choosing ELECTROLUX. This manual contains

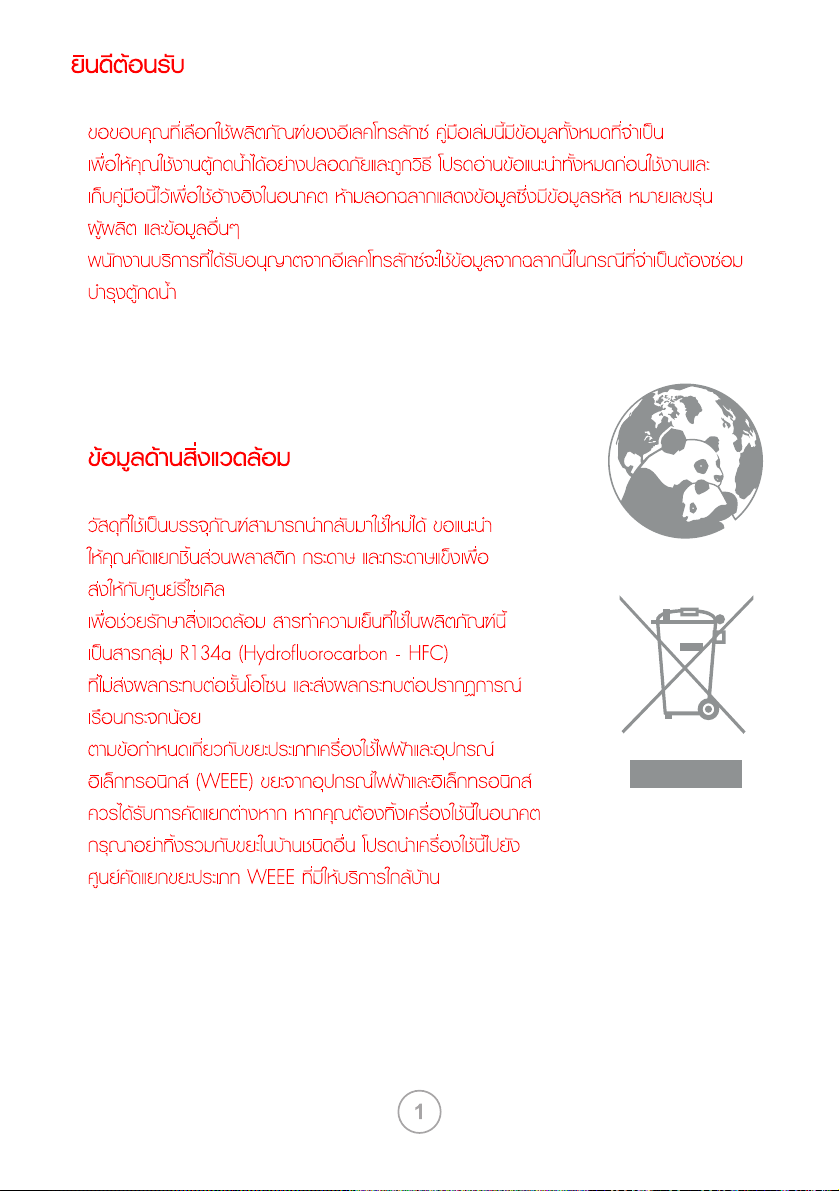

Welcome
Environmental Notice
1
all the information you need to safely and correctly use your water
dispenser. Please read all the instructions prior to using the appliance,
and keep this manual in a secure place for future reference. Do not
remove the rating plate label which attached adhesive identification label
containing the code, model number, manufacturer and other information.
This label will be used by an ELECTROLUX authorized service
representative in the event that your water dispenser needs service.
The packaging material used is recyclable. We
recommend that you separate plastic, paper and
cardboard and give them to recycling agents.
To help preserve the environment, the refrigerant
used in this product is R134a (Hydrofluorocarbon -
HFC), which does not affect the ozone layer and
has little impact on the greenhouse effect.
According to WEEE (Waste of Electrical and
Electronic Equipment) guidelines, waste from
electrical and electronic devices should be
collected separately. If you need to remove of this
appliance in the future, do not throw it away with
the rest of your domestic garbage. Instead, please
take the appliance to the nearest WEEE collecting
agents, where available.
12
10
Do not try to install or turn on the unit without having read the indicated
safety precautions in this manual.
The dispenser heats water to a temperature of 90°C. It can cause severe
scalding. Please operate it carefully.
In case of damage, please contact an authorized technical service agent.
Do not disassemble the electrical parts of this appliance. Any repairs done
by an unauthorized person may cause serious injuries or properties incident.
The adult should supervise the children in order to make sure the children can
not play with the appliance.
The appliance is not intended for use by persons(including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
This appliance is intended to be household used only.
If the power cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
To avoid danger of suffocation, keep plastic bag away from babies and children.
Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.

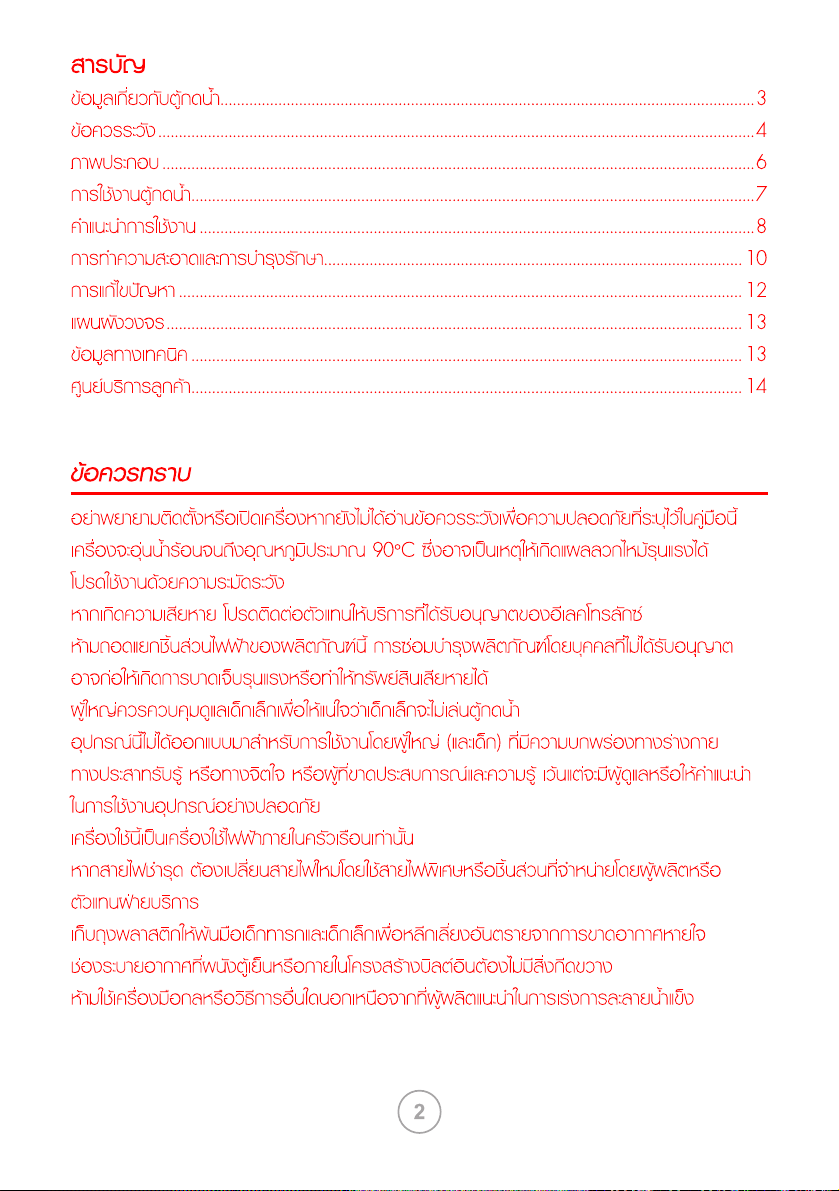

Water dispenser information .........................................................
Precautions .................................................................................
Illustration ...................................................................................
Using your water dispenser ...........................................................
Cleaning and maintenance .................................................................
Trouble Shooting .............................................................................

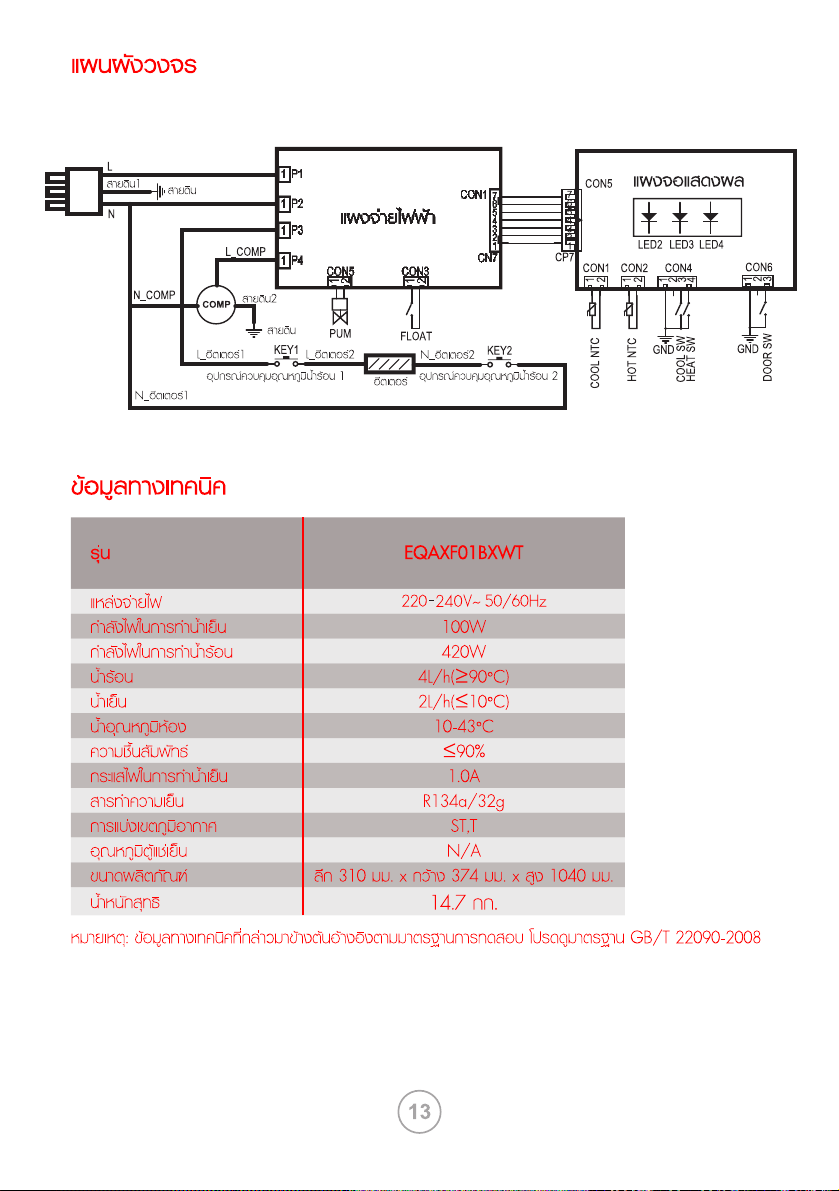

Circuit diagram ...............................................................................
Technical Information .......................................................................

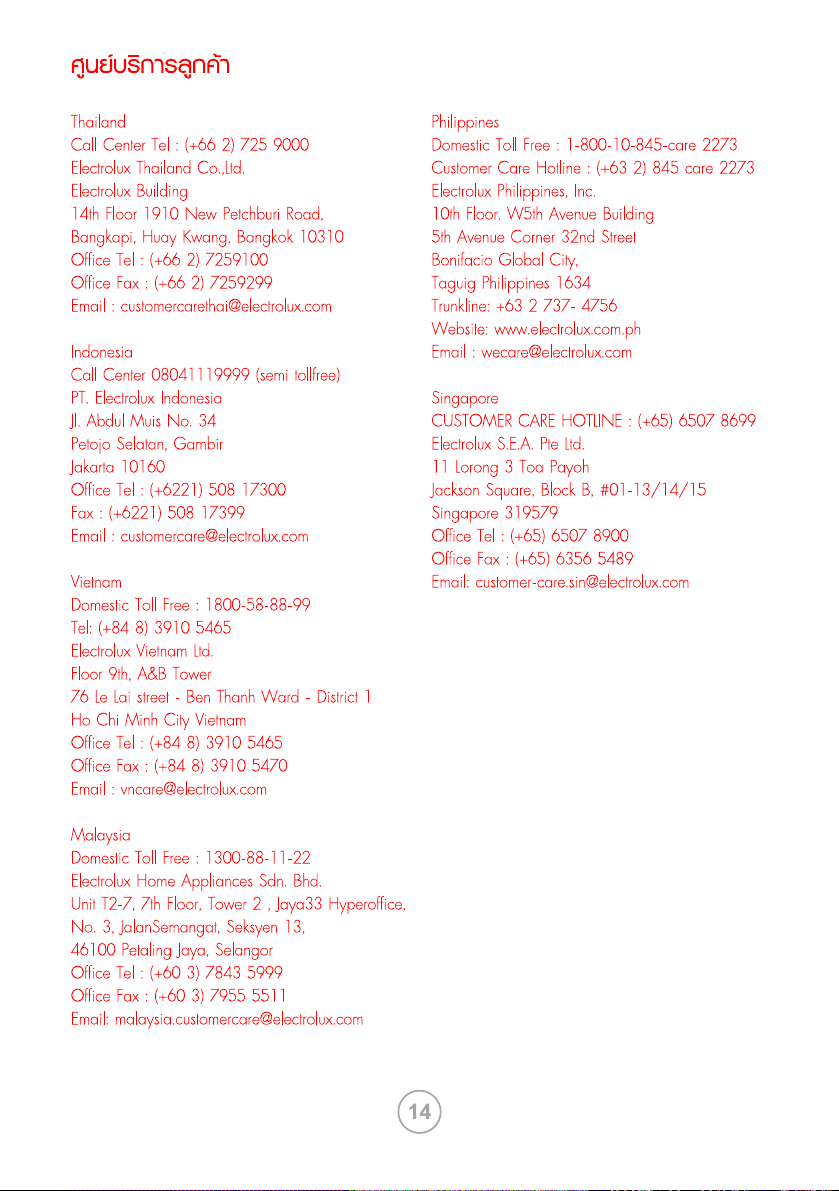

Customer Care ...............................................................................
Operation instructions .......................................................................
Contents
Attention
4
3
6
7
8
13
13
14
2
5. Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
1. This unit is designed for drinkable water only. Put bottles as specified inside
2. This unit should be used in an environment with temperatures ranging from
10°C to 43°C with a relative humidity not higher than 90%.
the cabinet before using.
3. The dispenser can satisfy the need for hot water, cold water, room
temperature water and water as a mixture of the cold water and room
temperature water.
4. With the adoption of distinctive thermal isolation technology, this unit can
minimize thermal exchange between hot, room temperature and cold water.
The heating method of machine can be only used in the lower than 1500m
elevations.
6. Regional restrictions

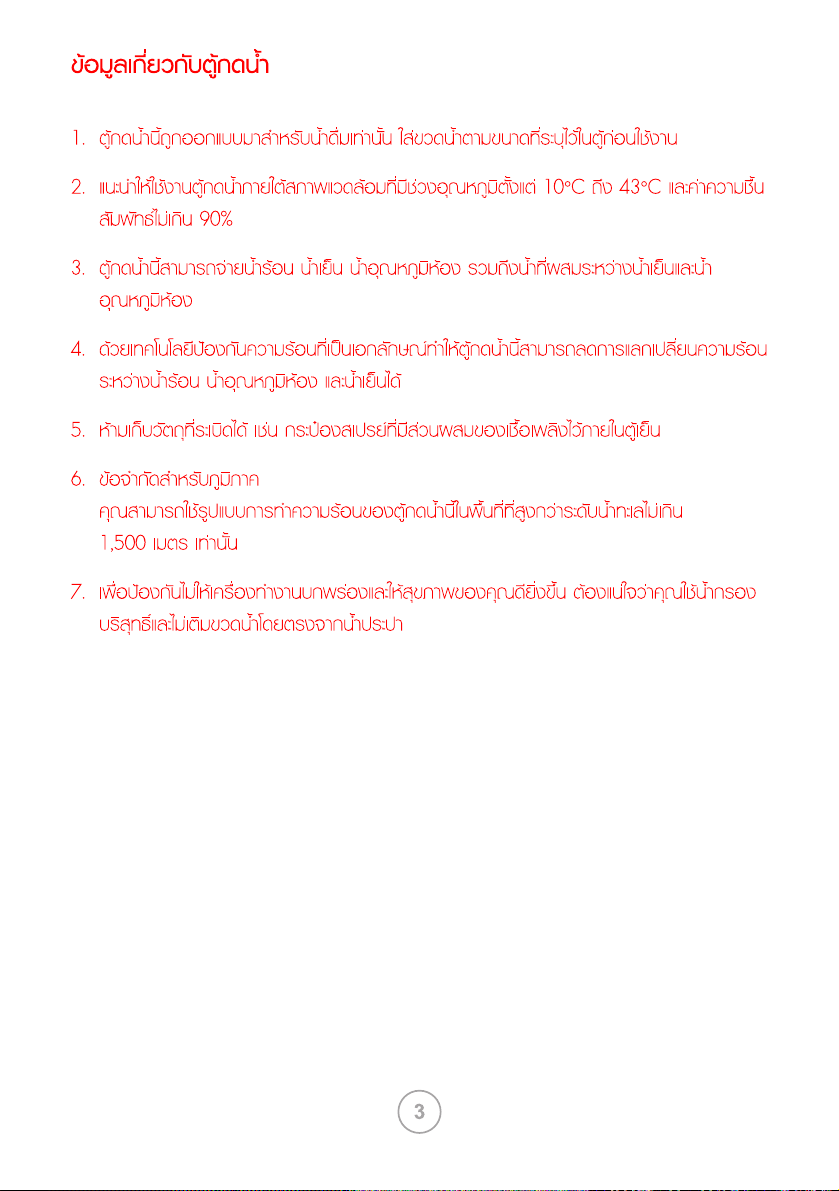

Water dispenser information
3
7. To avoid any malfunction and keep your health better, please make sure you
are using purified water and don’t fill the water bottles directly from the tap.

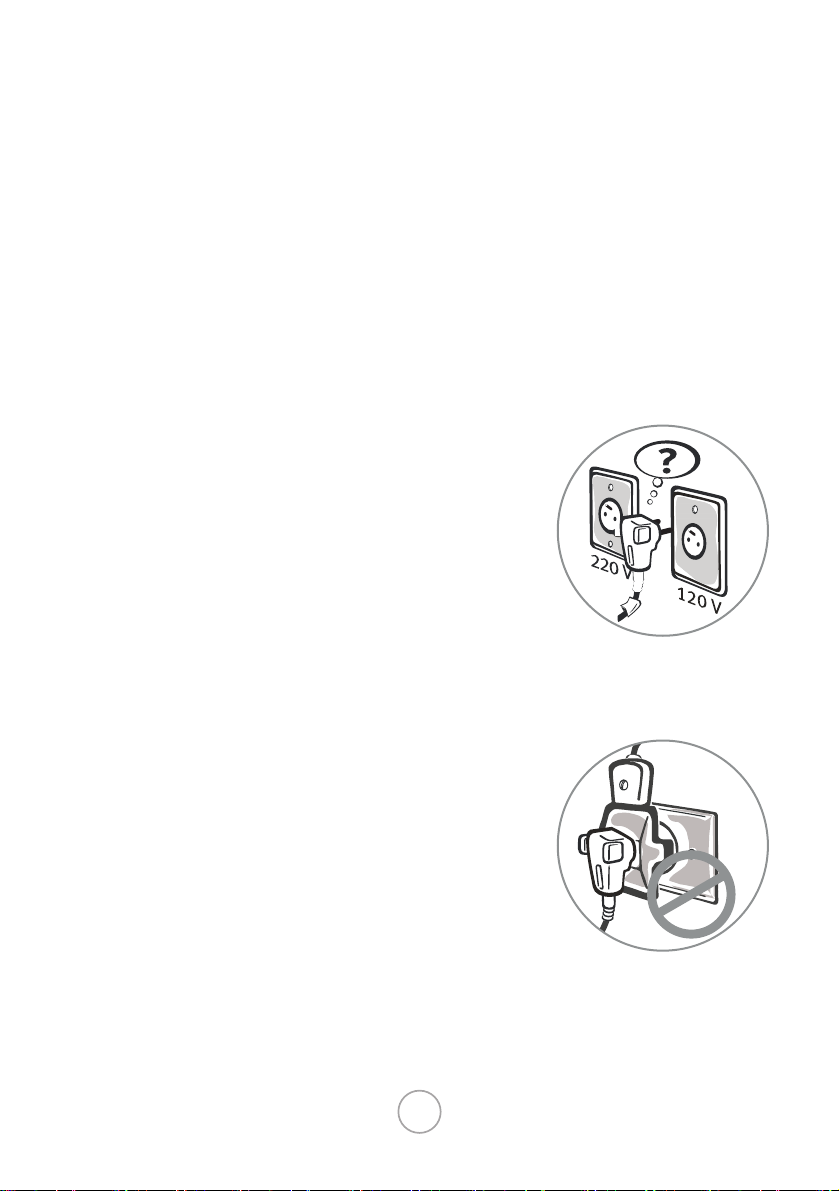

Do not use an extension cord or
plug adaptor.(Fig.2)
Fig. 1
Fig. 2
1. Plug the water dispenser directly into the
socket. The unit requires proper
grounding and the correct voltage (as
technical information specified on page 13
of this manual).(Fig. 1)
2. An appropriate length of power-supply cord
3. Connect the plug firmly.
4.
is provided to reduce the risks of becoming
entangled in, or tripping over a longer cord.
6. Do not place the water dispenser sitting over the
power cord.
3. Recommend to install the anti-tilt bracket at the
1. Destroy the carton, plastic bag and other
2. Children require supervision when using the
back side of this water dispenser to prevent
dispenser.
packing materials after the dispenser is
unpacked. Children might use them for
play.
the dispenser from falling down which could
cause injury.(Fig. 6)
5. Choose a place that is near a grounded
electrical socket. Keep the dispenser at least
20cm away from walls and other appliances
and furniture on all 4 sides.
Precautions
For children
For the user/installer
4
8. Use the switch when turning the heating/
9. Do not fasten, twist or tie the power cord. if

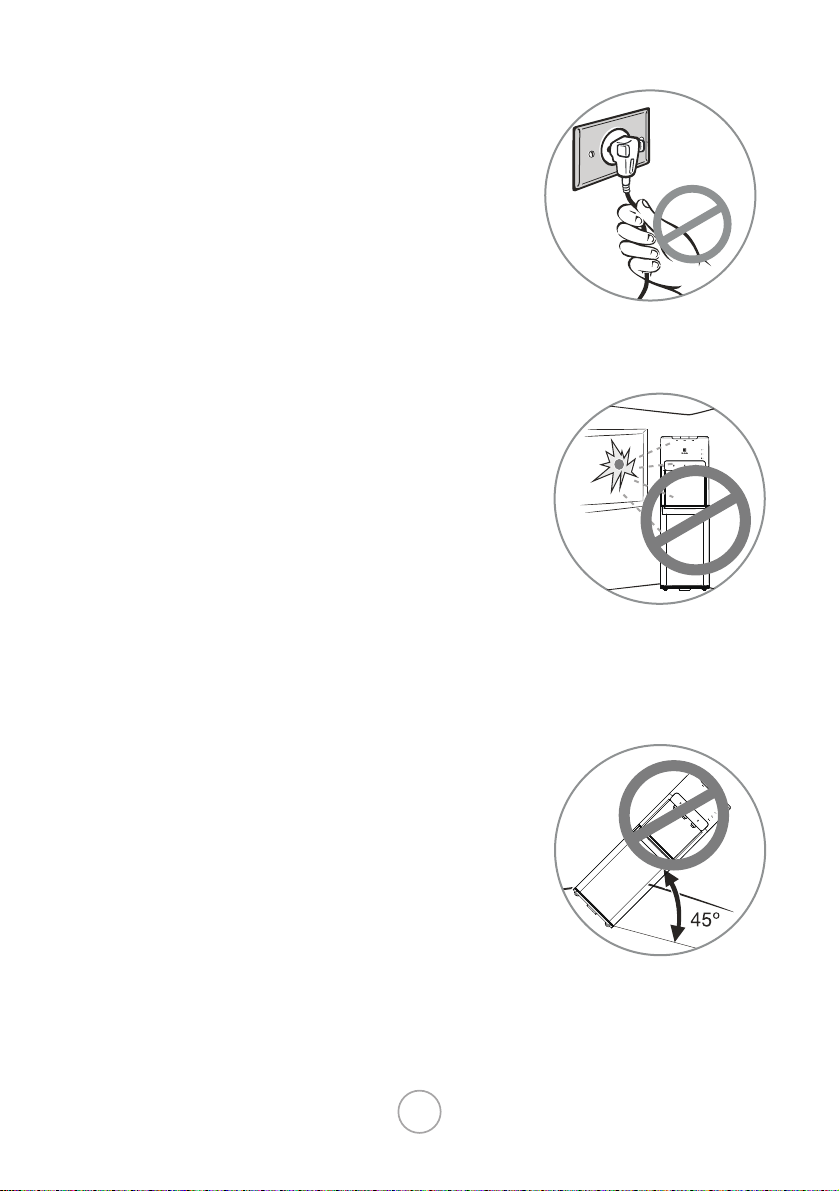

7. Do not pull out or insert the plug with wet
cooling On/Off. Locate on the left back
hands to avoid electric shock.(Fig. 3)
side of water dispenser.(page 6)
the power cord is damaged, it should be
replaced by the manufacturer, service
technician or a qualified person to prevent
any risk.
10. Keep the unit in a dry place and away from
11. To avoid damage to the unit, do not plug the
direct sunlight. Do not place the machine on
paper or foam. Do not place anything
flammable beside this machine.(Fig. 4)
12. Unplug the unit when the unit will not be
used for a long period for the reason of
saving electricity.
14. Never use organic liquids polishing chemical
13. Never turn the unit upside down or tilt it
more than 45°.(Fig. 5)
to clean the machine.
15. The thermostat to control temperature has
been set up by There is no manufacturer.
need to adjust it yourself.
Fig. 3
Fig. 4
Fig. 5
power cord or turn on the heating switch
until the water can flow out from the hot water
spout when the hot water button be activated.
5
button of cold water
button of hot water
(FRONT)
(REAR)
button of normal water
panel
spout
front carapace
indicator light
drip tray
11
12
9
13
10
4
6
5
7
condenser
power cord
cooling switch
heating switch
drain hole

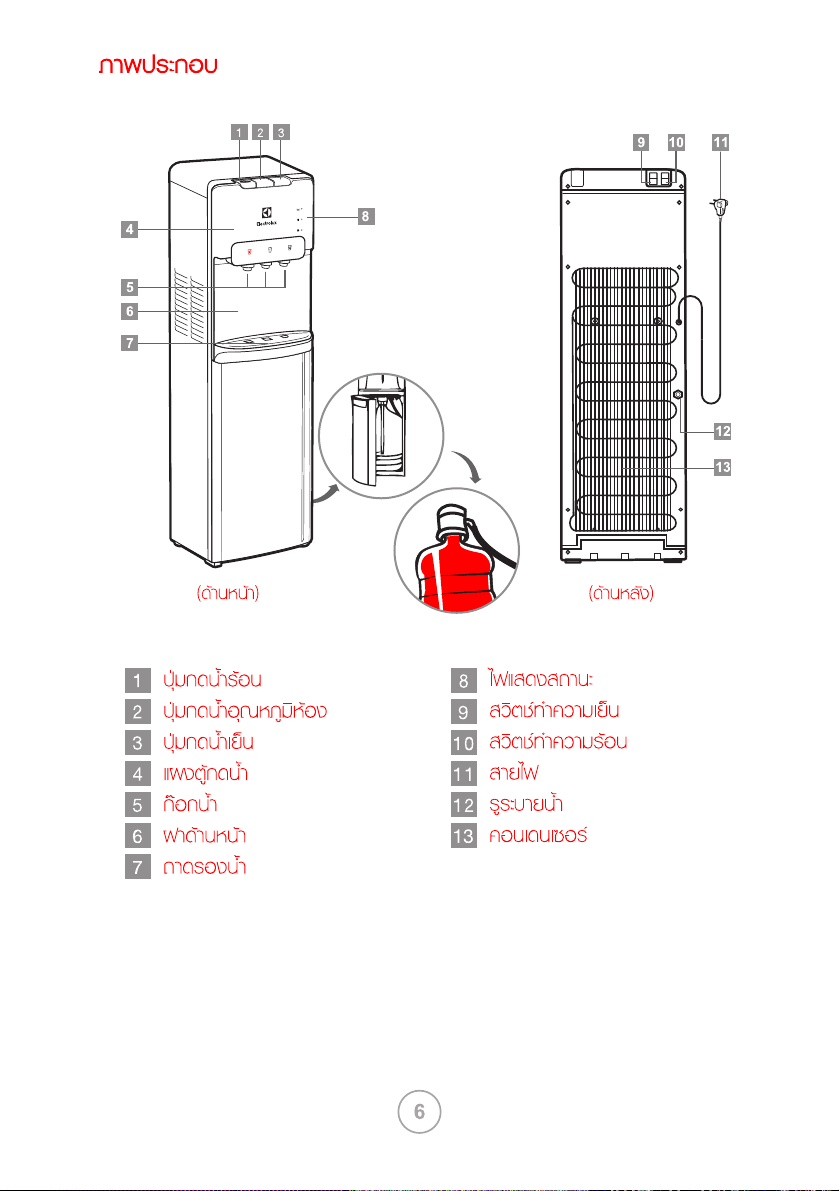

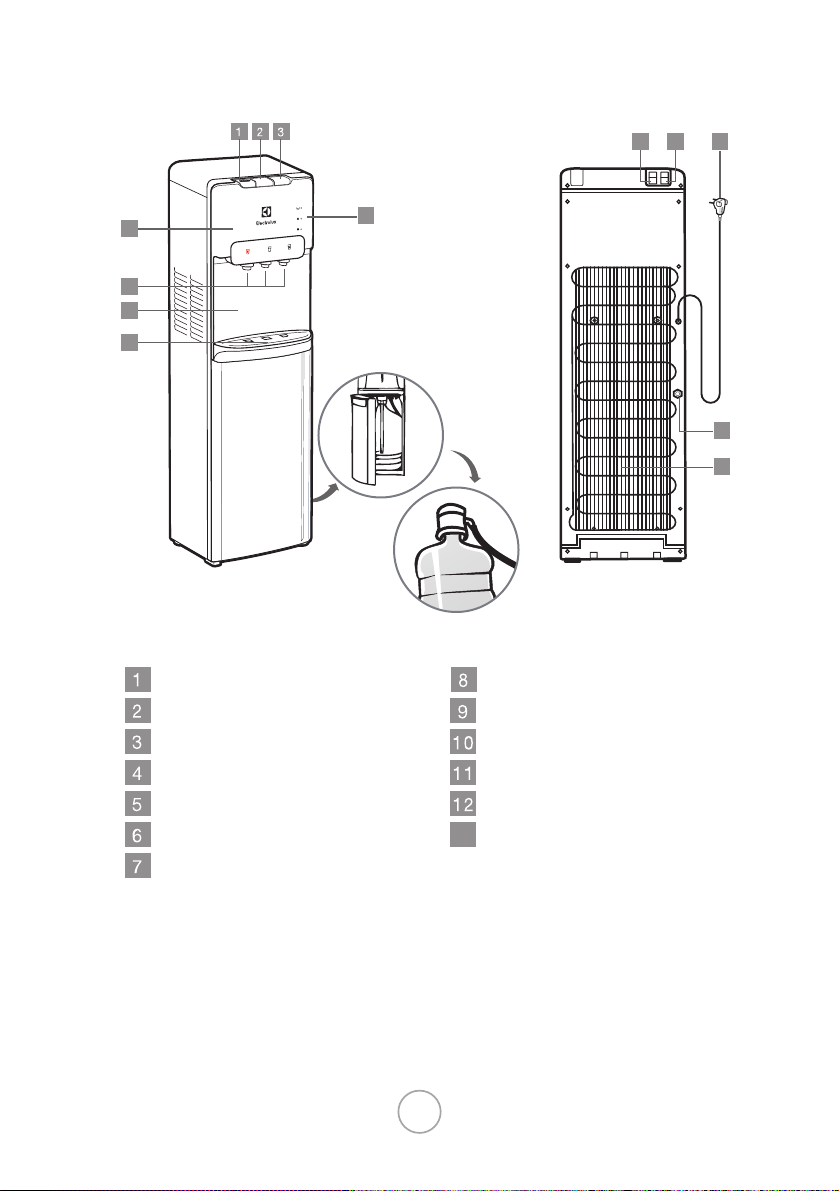

Illustration
6
8
13
near a grounded socket. Do not plug in power cord yet.
Fig. 6

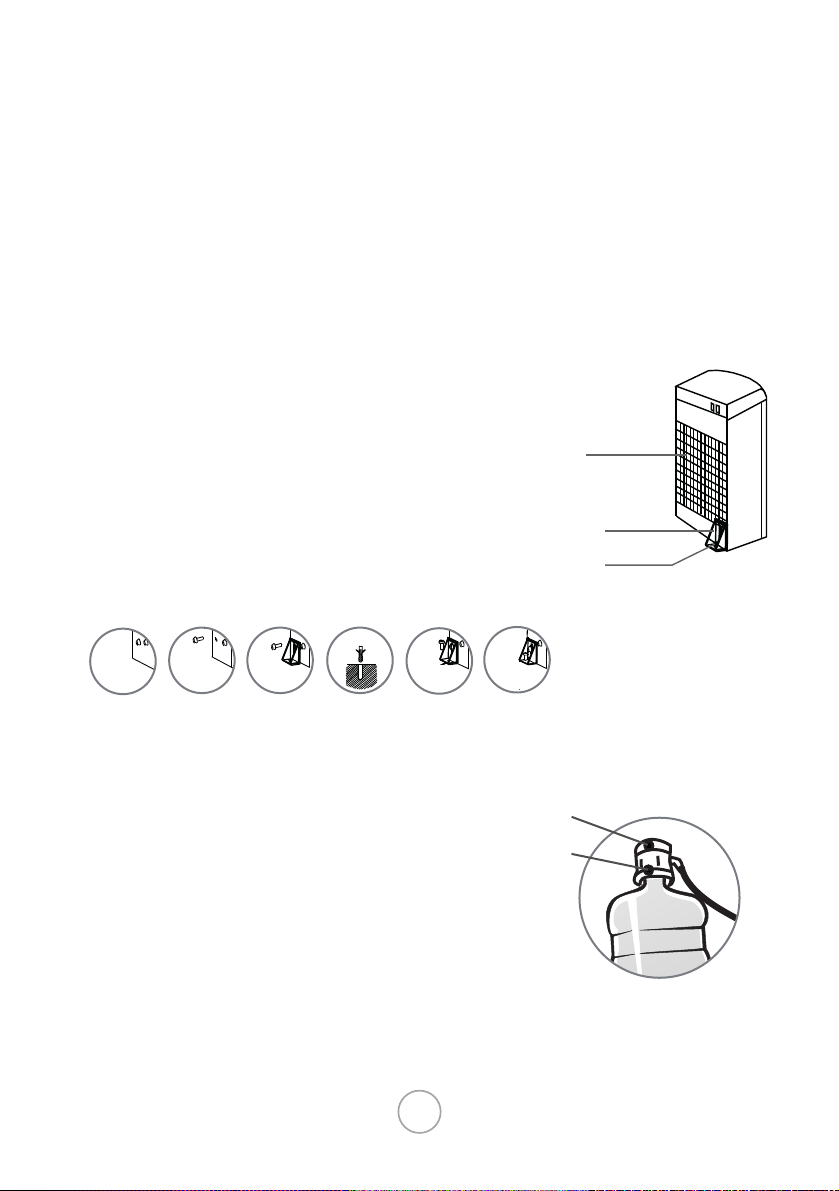

Installing the floor Bracket kit(Fig.6)
Water dispenser
Bracket
Head
Collar
The hole for
tighten screw
1. Place dispenser upright.
2. Locate dispenser on a hard and level surface in a cool shaded location
at least 20 cm of clearance on both sides.
3. Position dispenser so the back is at least 20 cm from wall and there are
1. Snap drip tray and grid assembly into front carapace.
1. Use 13 mm screw to fix the fixing bracket on the
side of base pan.
2. Drill out a screw hole(6 mm) on the floor.
3. Insert a screw anchor (wall plug) into the drilled hole.
4. Move water dispenser, Align fixing bracket hole
with screw hole of the floor.
5. Put the 25mm screw into the screw hole of fixing
bracket.
6. Tighten the screw.
1 1 1
2-3
4-5
6
Fig. 7
1. Open cabinet door.
2. Place fresh bottle outside of cabinet.
3. Remove the entire plastic cap from top
of bottle.
4. Clean outside of new bottle with a cloth.
5. Place probe assembly into bottle.
6. Slide collar with head down until it clicks
in place.
7. Slide bottle into cabinet and close door.

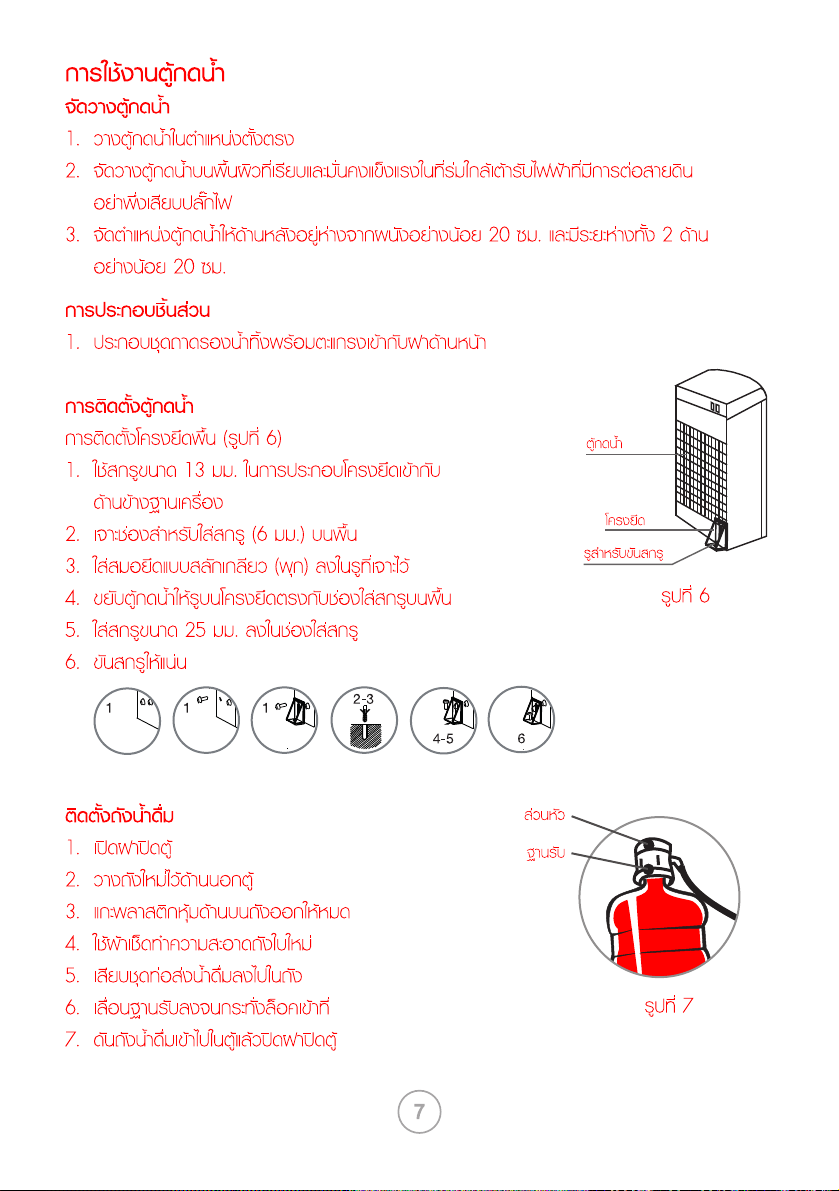

Using your water dispenser
Locate dispenser
Assemble
Machine Installation
Install water bottle
7

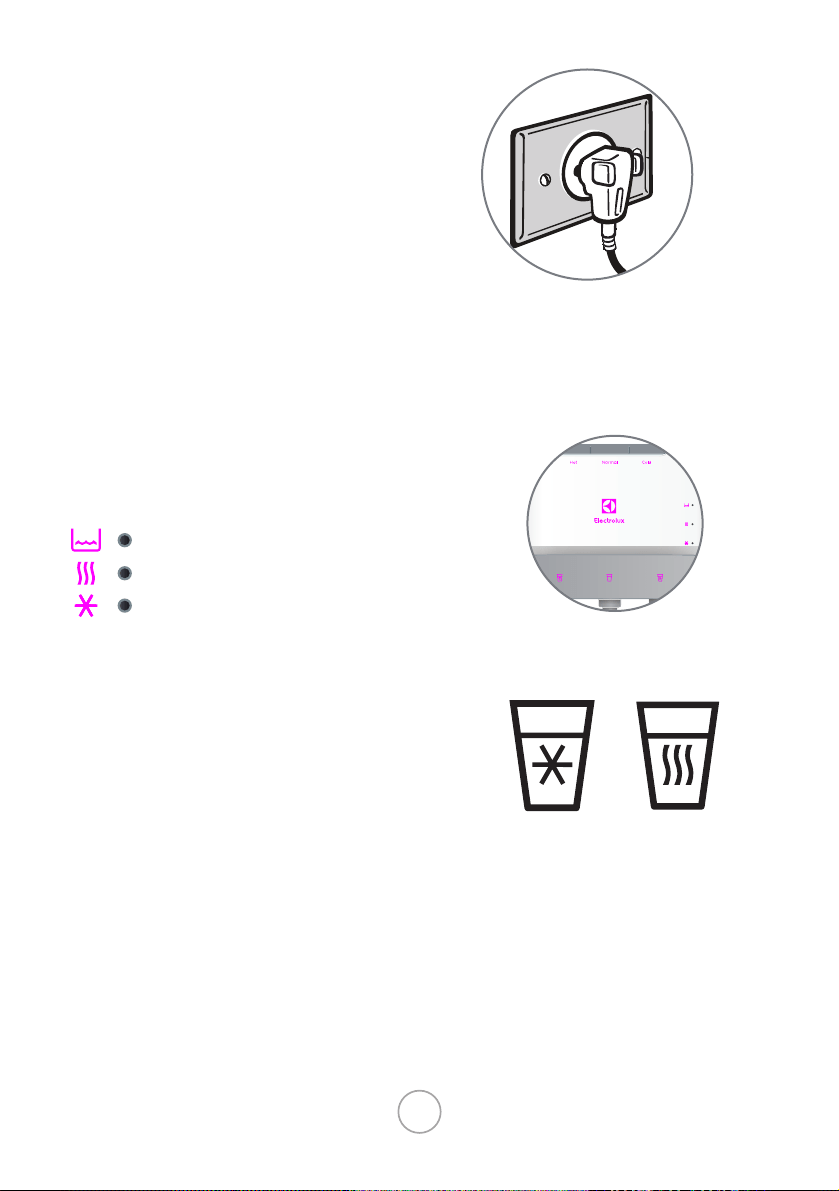

Fig. 8
Plug cord into a properly grounded
socket.
At this time the pump will begin to
move water from the bottle to the hot
and cold tanks. It will take up to
approximate 5 minutes to fill the tanks
for the first time. During this period the
pump will run continuously. This is normal.
Fig. 9

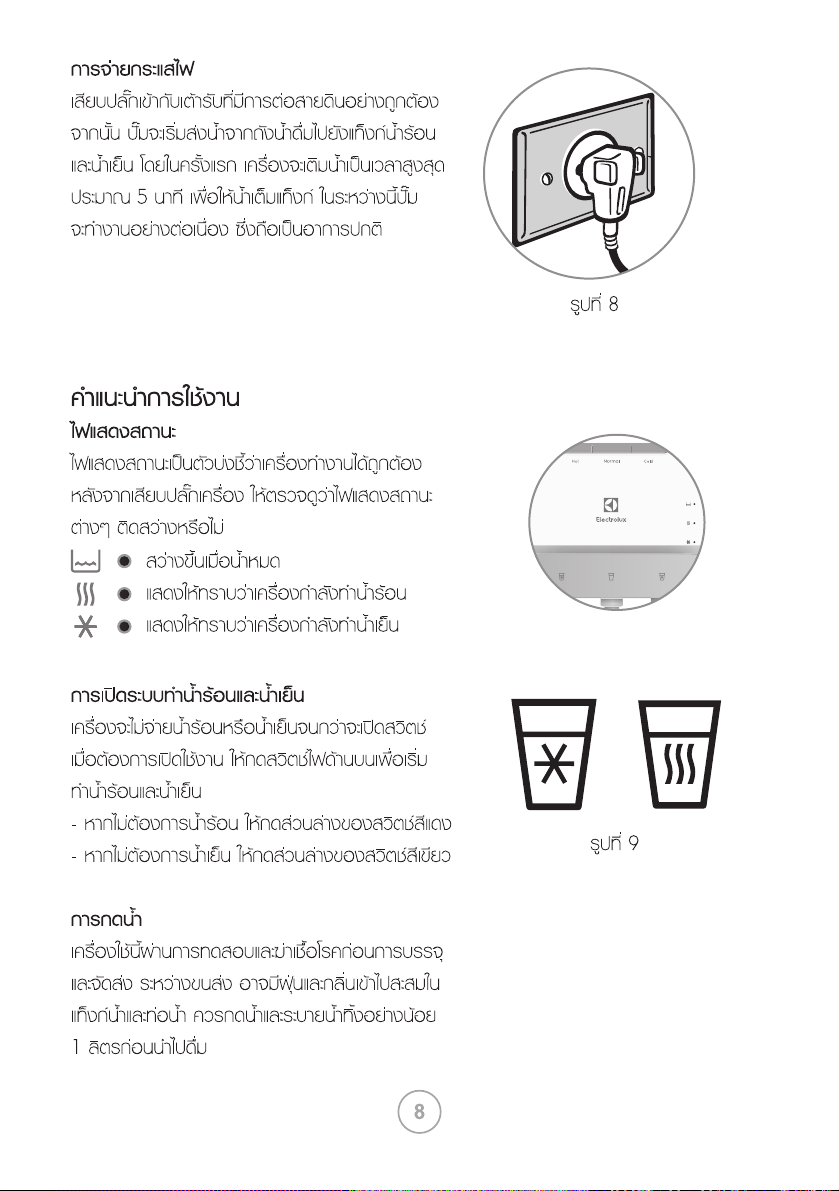

Provide electricity
Activate heating and cooling
Light indicators
Dispensing water
Operation Instructions
8
This unit has been tested and sanitized
prior to packing and shipping. During
transit dust and odors can accumulate in
the tank and lines. Dispense and dispose
at least one liter of water to prior to
drinking any water.
This unit will not dispense hot or cold
water until the switches are activated.
To activate, push top side of power
switches in to start heating and cooling
water.
- If you do not want to heat water, push
bottom side of red switch in.
- If you do not want to cool water, push
bottom side of green switch in;
Lights up when water shortage.
Indicates that the water is being heated.
Indicates that the water is being chilled.
The indicator lights show that the device is
working correctly. After connecting the
device, check if the indicators are on.
Fig.10
Fig.11
After setup, it will take up to approximate
1 hour get water to maximum cold
temperature. During this time the
compressor could run continuously.
This is normal.
1. Position bottle, glass, pitcher or
cooking pot below spout.
2. Press cold water button
downward to start cold water flow.
3. Release button once desired fill
level is achieved.
1. Position bottle, glass, pitcher or
cooking pot below spout.
2. Press normal water button
downward to start normal water
flow.
3. Release button once desired fill
level is achieved.

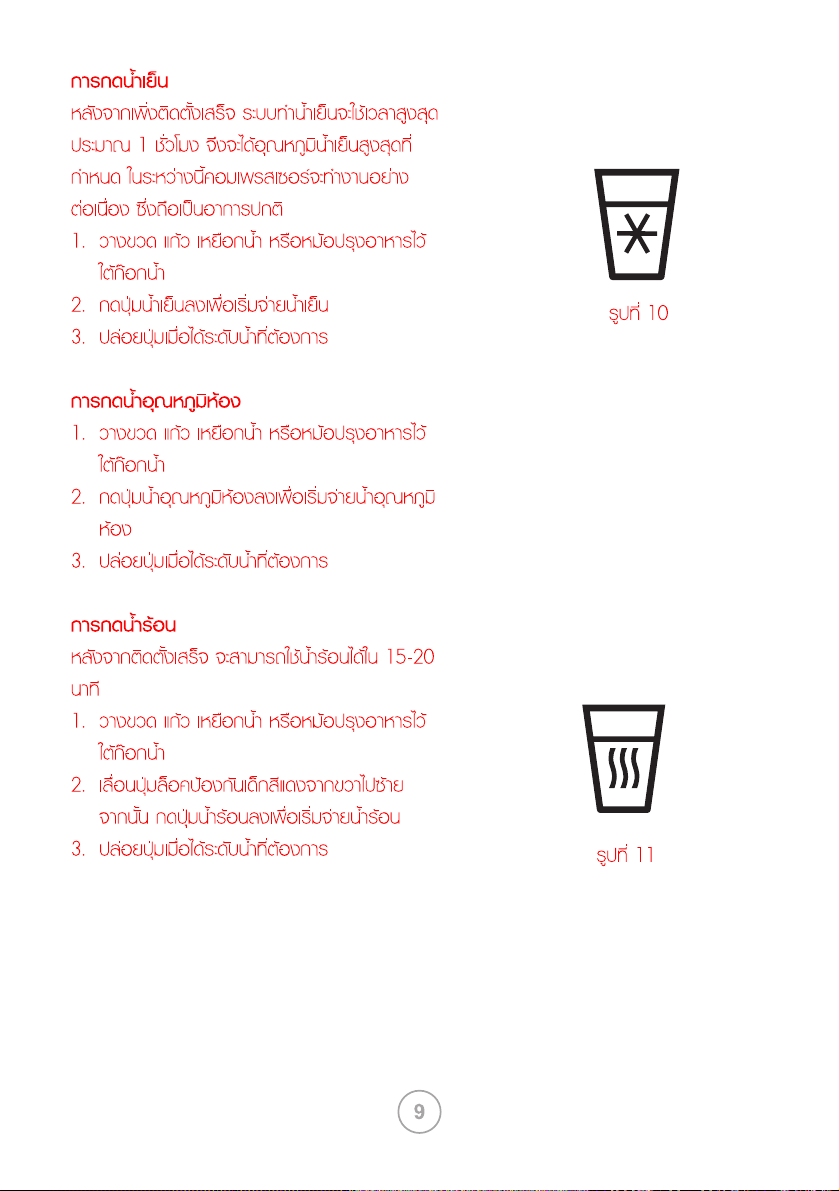

Dispensing cold water
Dispensing normal water
After setup, hot water will be available
in 15-20 minutes.
1. Position bottle, glass, pitcher or
cooking pot below spout.
2. Push the red child lock button from
right to left and press hot water button
downward to start hot water flow.
3. Release button once desired fill
level is achieved.
Dispensing hot water
9

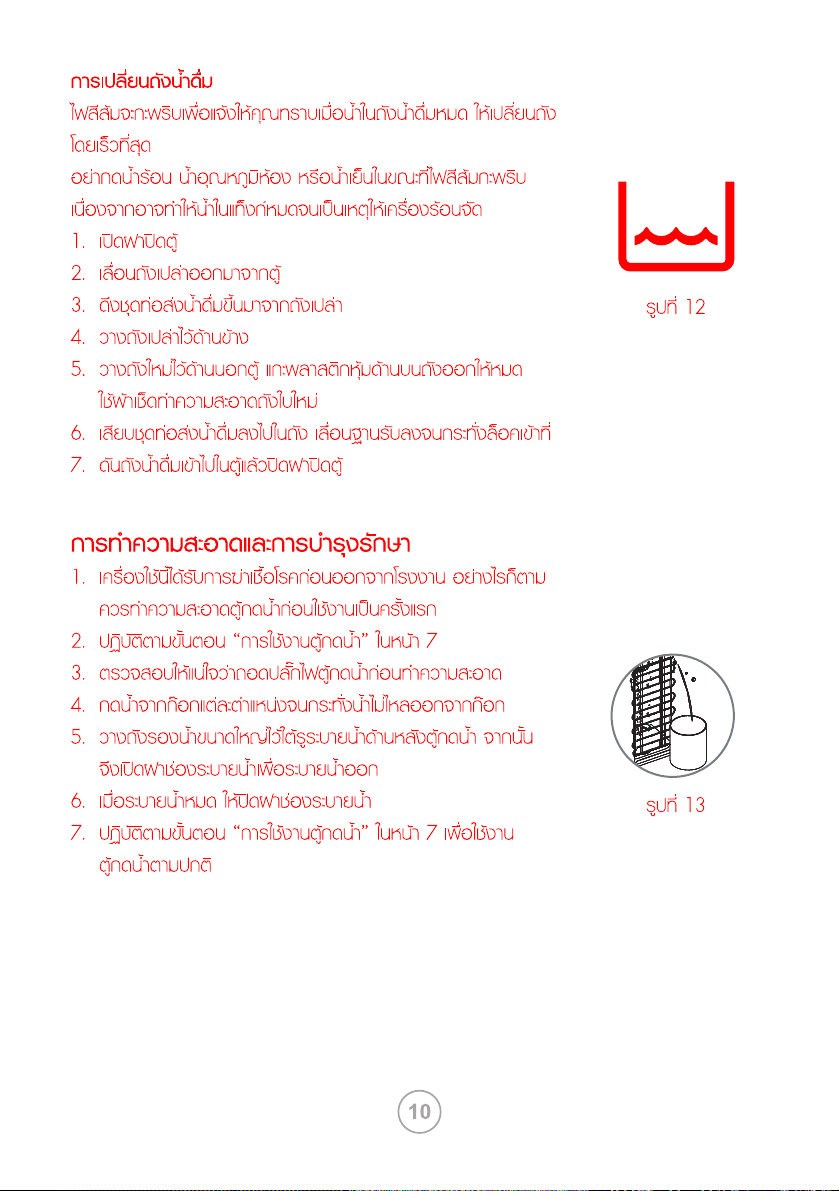

Cleaning and maintenance
Fig.12
Fig.13
A flashing orange light on your function lights alerts you
when your bottle is empty. Replace the bottle as
soon as possible.
Do not dispense hot, cool or cold water if the orange
light is flashing as you could empty the tanks and
cause the dispenser to overheat.
1. Open the cabinet door.
2. Slide empty bottle out of cabinet.
3. Remove probe assembly from empty bottle.
4. Set empty bottle aside.
5. Place fresh bottle outside of cabinet. Remove entire plastic cap
from top of bottle. Clean outside of new bottle with a cloth.
6. Place probe assembly into bottle. Slide collar with head down
until it clicks in place.
7. Slide bottle into cabinet and close door.
1. The unit has been factory disinfected, however,
it is advisable to clean the dispenser prior
to initial use.
2. Follow the step of “using your water dispenser
“ on page 7
3. Make sure unplug the water dispenser before
cleaning.
4. Dispense water from each spout till no water
flow out from spout.
5. Place a large bucket beneath the drain hole which
is on the back of water dispenser, then remove the
drain cap and drain out water.
6. Once draining finished, close the drain hole with
drain cap.
7. Follow “using your water dispenser “ on page 7
to use the water dispenser normally.
Changing bottles
10
Fig. 14
Drain cap loose may cause water leakage and cause floor damage.
Please make sure it is tighten enough before long term using.
Unplug the water dispenser before cleaning and wiping up spilled water on unit.
Be careful on the hot water coming out
Never disassemble this machine by yourself to avoid risk of damaging machine.
when tapping hot water and drain water from drain hole.
Scald Hazard
Electrical Shock Hazard
Water Leakage
WARNING
CAUTION

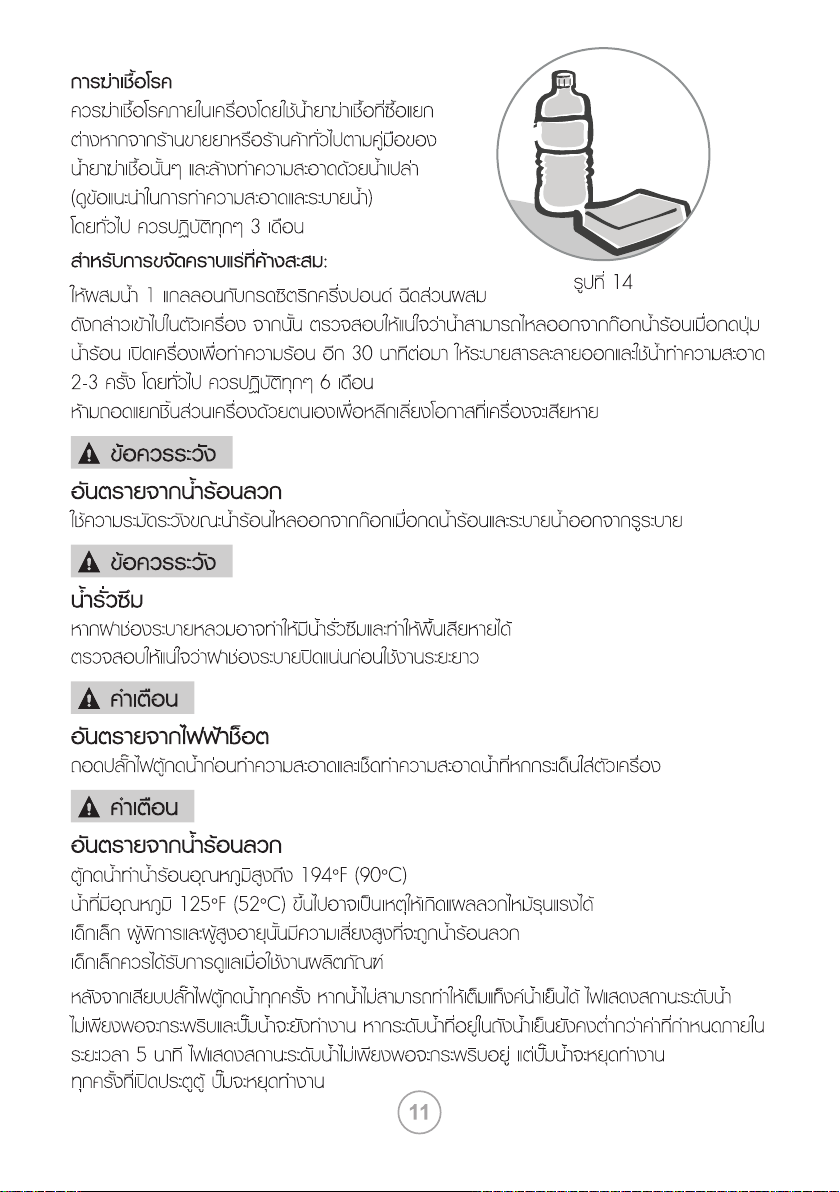

Sanitizing
To remove mineral deposits
CAUTION
WARNING
Scald Hazard
Dispenser heats water to a temperature of 194°F (90°C).
Water temperatures above 125°F (52°C) can cause severe burns or scalding.
Children, the disabled and the elderly are at highest risk of being scalded.
Children should be supervised by an adult when using this product.
Mix 1 gallon of water with half pound of citric acid crystals, inject
into the machine and make sure the water can flow out from the hot water spout
when the hot water button be activated. Switch on the power and heat water,
30 minutes later, drain off the liquid and clean it with water two or three times.
Generally this should be done every six months.
11
The machine should be disinfected with
disinfectant separately bought from drugstore or
marketplace according to the instruction manual
of the disinfectant and then clean it with water
(see cleaning and draining instructions).
Generally this should be done every three
months.
After plug-in each time, if the water not fill in the cold tank fully, the water shortage
indicator will blinking and pump is working.
If the water level of the cold tank still fails to reach the limit within 5 minutes, the
water shortage indicator will continue blinking, but the water pump will stop working.
In any time, once the cabinet door is opened, the pump should not working.
Water dispenser does not work
• Make sure the water dispenser is properly connected to a working socket and
the heating/cooling switches are set ON.
Water is leaking
• Unplug the water dispenser, remove bottle and replace with new one.
• Make sure the drain cap at the back side of water dispenser is tighten enough.
No water is coming from the spout
• Make sure the bottle is not empty, if empty, replace it with new one.
• Make sure to completely depress the pushbutton controls.
• Make sure the connection tube inside the unit is not loose.
Cold water is not cold
• Make sure the water dispenser is properly connected to a working socket
• Make sure the green cooling switch is set ON.
• Wait until the COOLING indicator turns off, it takes up to approximate 1 hour to
cool the water in general.
• Make sure the back of the water dispenser is at least 20 cm away from a wall
and there is free airflow on all sides of the water dispenser.
Hot water is not hot
• Make sure the water dispenser is properly connected to a working socket.
• Make sure the red heating switch is set ON.
• Wait until the HEATING indicator turns off, it takes 15~20 minutes to heat the
water in general.
Dispenser is noisy
• Make sure water dispenser is placed on placid and solid surface.
• Compressor on and off operation will happen to control the cold water as
specification, it is normal.
• Pump will working to pump water into the tank when tap water, it is normal.
Water tastes
• Dust and odor be accumulated in the tank, dispose the reservoir water and
replace bottle with a new one.
• Sanitize water dispenser or descale according to “Cleaning and maintenance”.
To avoid accident, cut off the power supply before operation according to the
following instruction.
Sometimes when water is dispensed for more than 2 minutes, the pump fails
to take the necessary amount of water, in this case the lack of water indicator
light on control panel will turn on. If this happens, just open the cabinet door,
then close it, and wait for 2 minutes, then the dispenser will return to dispense
water.

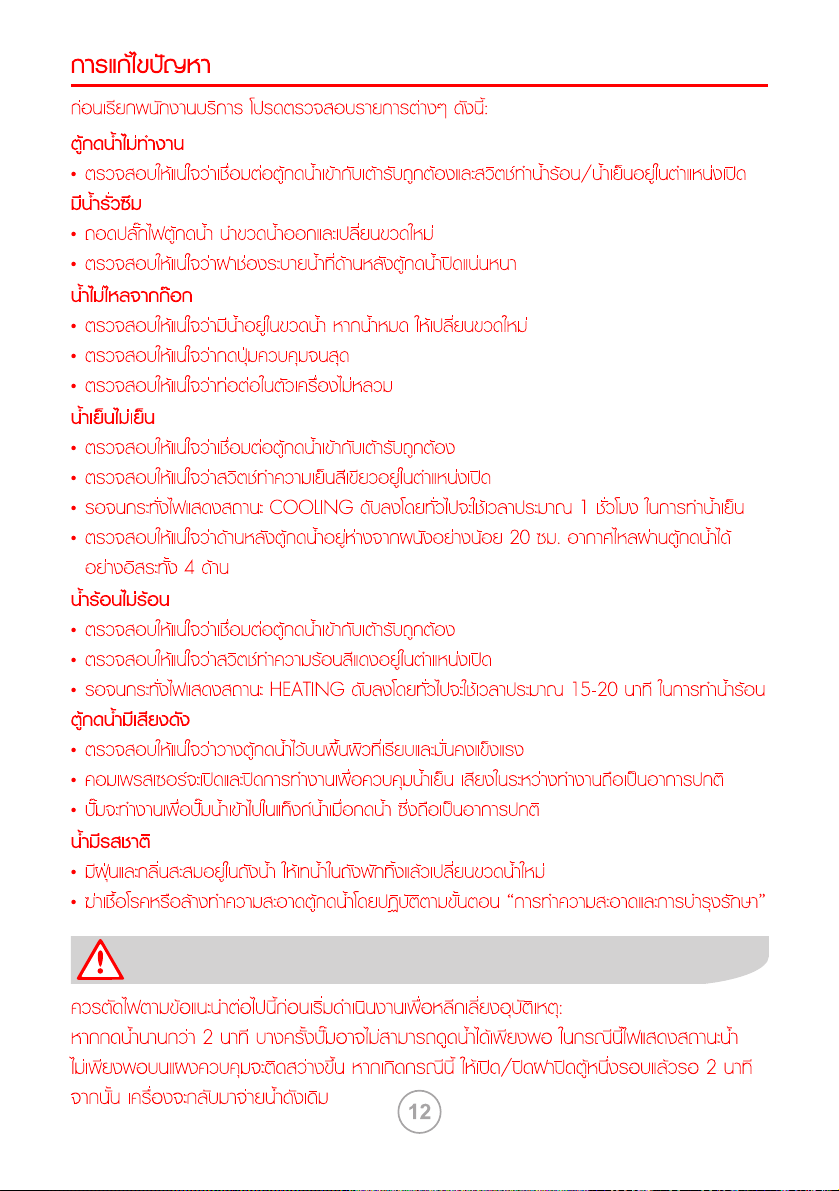

Trouble Shooting
Before calling your service representative check the following items:
12
Remarks: Above technical data is based on standard testing method, refer to GB/T 22090-2008
Technical Information
Circuit diagram
EQAXF01BXWT
100W
220
-240V~ 50/60Hz
4L/h(≥90°C)
≤90%
1.0A
R134a/32g
ST,T
N/A
2L/h(≤10°C)
10-43°C
L310mmxW374mmxH1040mm
420W
14.7kg
Cooling Power
Power supply
Hot Water
Relative Humidity
Cooling Current
Refrigerant
Climate Class
Cooling Cabinet Temperature
Cold Water
Room Temperature Operation
Product Dimension
Heating Power
Net Weight
Model
13
LED2 LED3 LED41
2
3
4
5
6
7
CON1
CN7
7
6
5
4
3
2
1
CON5
CP7
COMP
1 P4
1 P3
1 P2
1 P1
EARTH
KEY1
Hot Thermostat 1
KEY2
Hot Thermostat 2
HEATER
1
2
CON5
1
2
CON3
1
2
CON1
1
2
CON2
1
2
3
4
CON4
GND
EARTH
L
N
1
2
3
CON6
GND
POWER BOARD
COOL NTC
HOT NTC
COOL SW
HEAT SW
DOOR SW
FLOAT
PUM
DISPLAY BOARD
N_COMP
N_HEATER1
N_HEATER2L_HEATER2L_HEATER1
EARTH2
EARTH1
L_COMP
Customer Care
Thailand
Call Center Tel : (+66 2) 725 9000
Electrolux Thailand Co.,Ltd.
Electrolux Building
14th Floor 1910 New Petchburi Road,
Bangkapi,Huay Kwang, Bangkok 10310
Office Tel : (+66 2) 7259100
Office Fax : (+66 2) 7259299
Email : [email protected]
Indonesia
Call Center 08041119999 (semi tollfree)
PT. Electrolux Indonesia
Jl. Abdul Muis No. 34
Petojo Selatan, Gambir
Jakarta 10160
Office Tel
Fax
Email
Vietnam
Domestic Toll Free : 1800-58-88-99
Tel : (+84 8) 3910 5465
Electrolux Vietnam Ltd.
Floor 9th, A&B Tower
76 Le Lai street - Ben Thanh Ward - District 1
Ho Chi Minh City Vietnam
Office Tel : (+84 8) 3910 5465
Office Fax : (+84 8) 3910 5470
Email : [email protected]
Malaysia
Domestic Toll Free : 1300-88-11-22
Electrolux Home Appliances Sdn. Bhd.
Unit T2-7, 7th Floor, Tower 2 , Jaya33 Hyperoffice,
No. 3, Jalan Semangat, Seksyen 13,
46100 Petaling Jaya, Selangor
Office Tel : (+60 3) 7843 5999
Office Fax : (+60 3) 7955 5511
Email : [email protected]
Philippines
Domestic Toll Free : 1-800-10-845-care 2273
Customer Care Hotline : (+63 2) 845 care 2273
Electrolux Philippines, Inc.
10th Floor. W5th Avenue Building
5th Avenue Corner 32nd Street
Bonifacio Global City,
Taguig Philippines 1634
Trunkline: +63 2 737- 4756
Website : www.electrolux.com.ph
Email : [email protected]
Singapore
CUSTOMER CARE HOTLINE : (+65) 6507 8699
Electrolux S.E.A. Pte Ltd.
11 Lorong 3 Toa Payoh
Jackson Square, Block B, #01-13/14/15
Singapore 319579
Office Tel : (+65) 6507 8900
Office Fax : (+65) 6356 5489
Email : [email protected]
14
: (+6221) 508 17300
: (+6221) 508 17399
