Frost Free Refrigerator
Operating Instructions
P
220TMW
P220TMS
• Please carefully read the operation instructions before powering on, and keep them safe.
• Product specifications subject to change without notice.

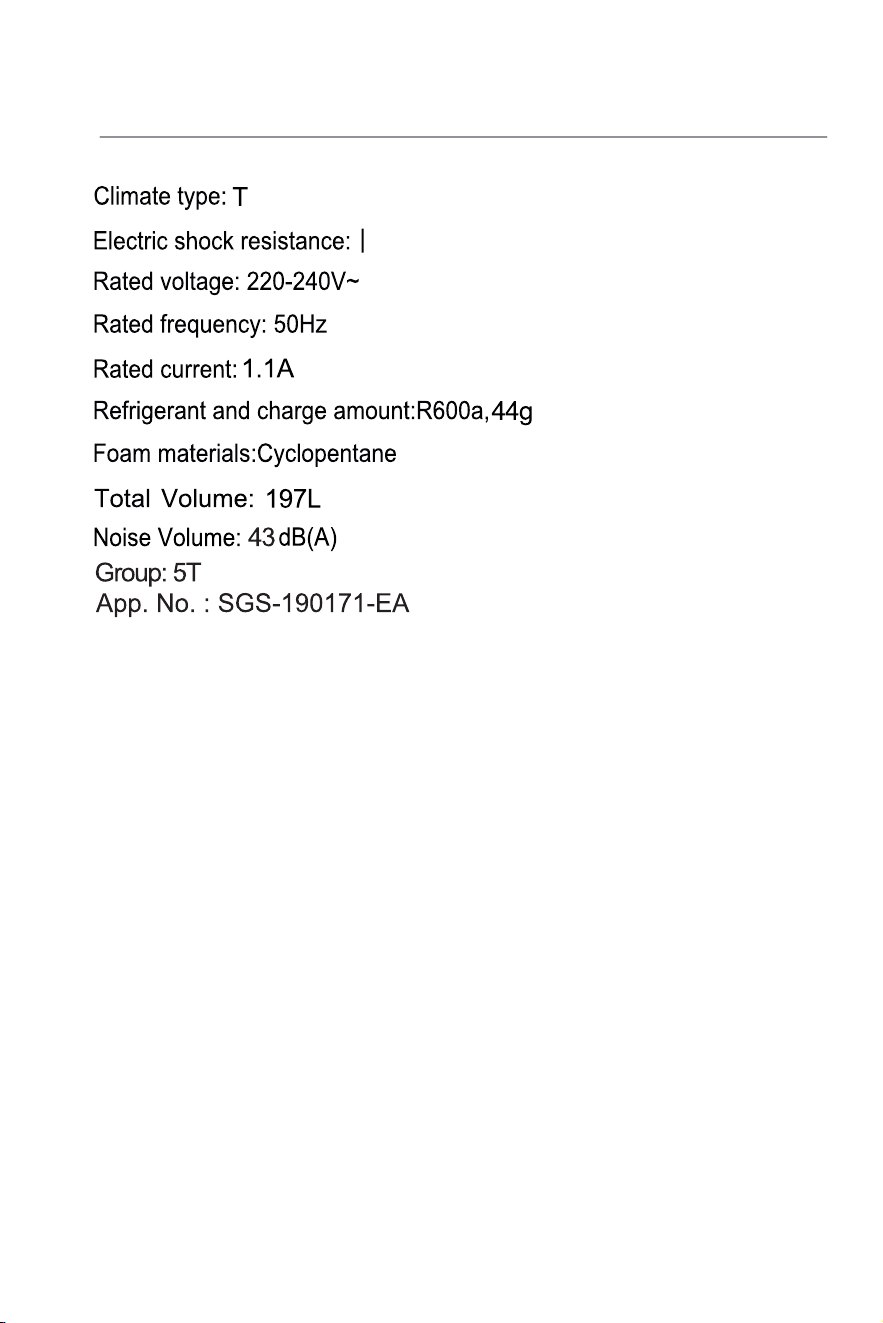

Technical detail
1.This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.Children should be supervised to ensure that they do not play with the appliance.
2.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a haz
ard.
3.This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
4.WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
5.WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
6.WARNING: Do not damage the refrigerant circuit.
7.WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
8.Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
9.This appliance is intended to be used in household and similar applications such as
— Staff kitchen areas in shops, offices and other working environments;
— Farm houses and by clients in hotels, motels and other residential type environments;
— Bed and breakfast type environments;
— Catering and similar non-retail applications.
P1
P7
P 8
P12
P14
Congratulations on purchasing this TCL refrigerator. We hereby express our
thanks.
Safety Instructions---------------------------------------------------------------------------
Overview ----------------------------------------------------------------------------------------
Door Reversal---------------------------------------------------------------------------------
Installation----------------------------------------------------------------------------------------
Daily Use----------------------------------------------------------------------------------------

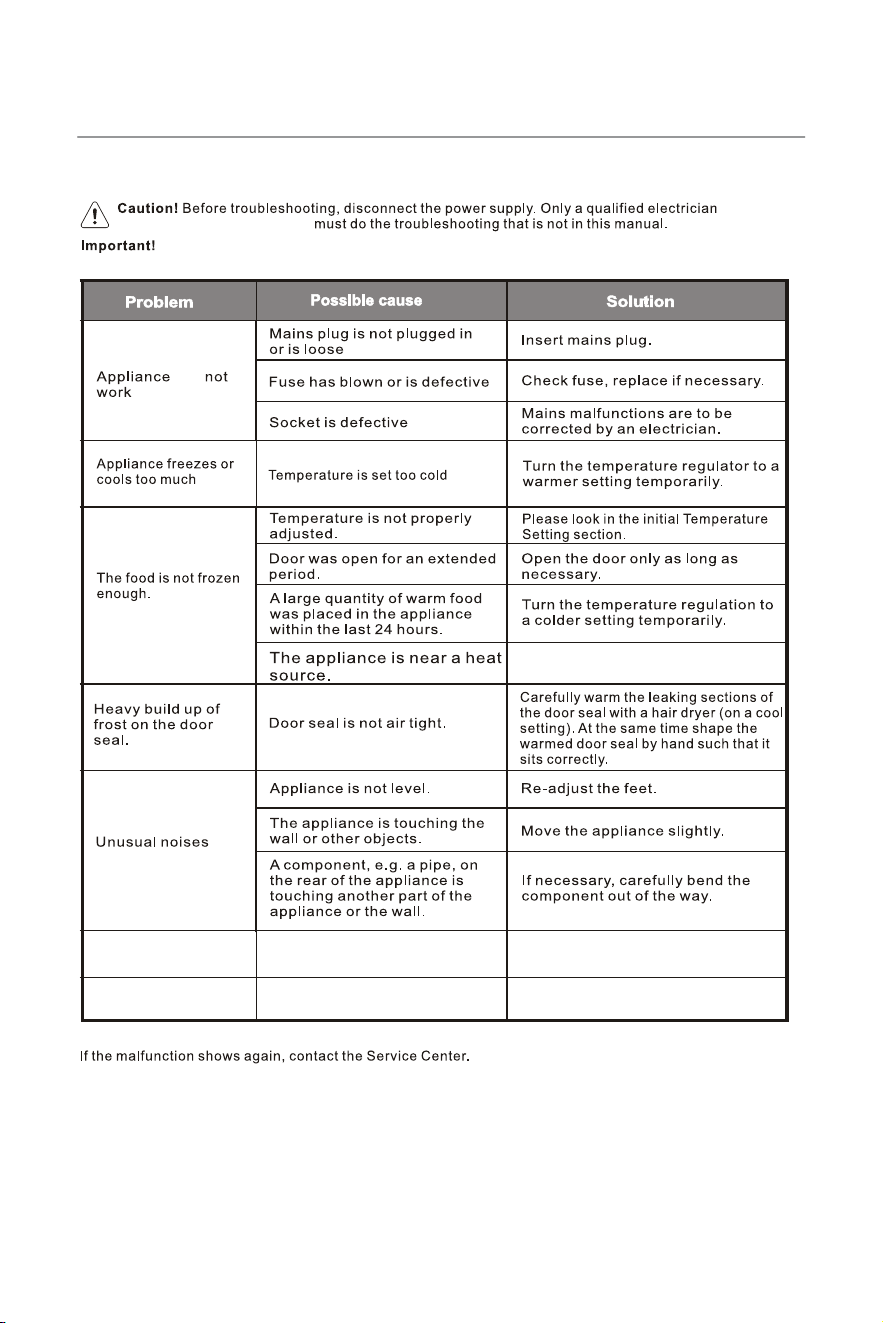

Troubleshooting---------------------------------------------------------------------------------
Contents
1
P18
In the interest of your safety and to ensure the correct use, before
installing and first using the appliance, read this user manual c
arefully,
including its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to ensu「e that all people using the appliance
are thoroughly familiar with its operation and safety features. Save
these instructions and make sure that they remain with the appliance if
it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user's
instructions as the manufacturer is not responsible for damages
caused by omission.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given super
vision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children should be supervised to ensure that they do not play with the
appliance.
• Cleaning and user maintenance shall not be made by children unless
they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of
suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut
the connection cable (as close to the appliance as you can) and
remove the door to prevent playing children to suffer electric shock or
to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older
appliance having a spring lock (latch) on the door or lid, be sure to
make that spring lock unusable before you discard the old appliance.
This will prevent it from becoming a death trap for a child.
General safety
心WARNING! Keep ventilat"
10n openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
&WARNING! Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
少WARNING! Do not damage the refrigerant circuit.
2

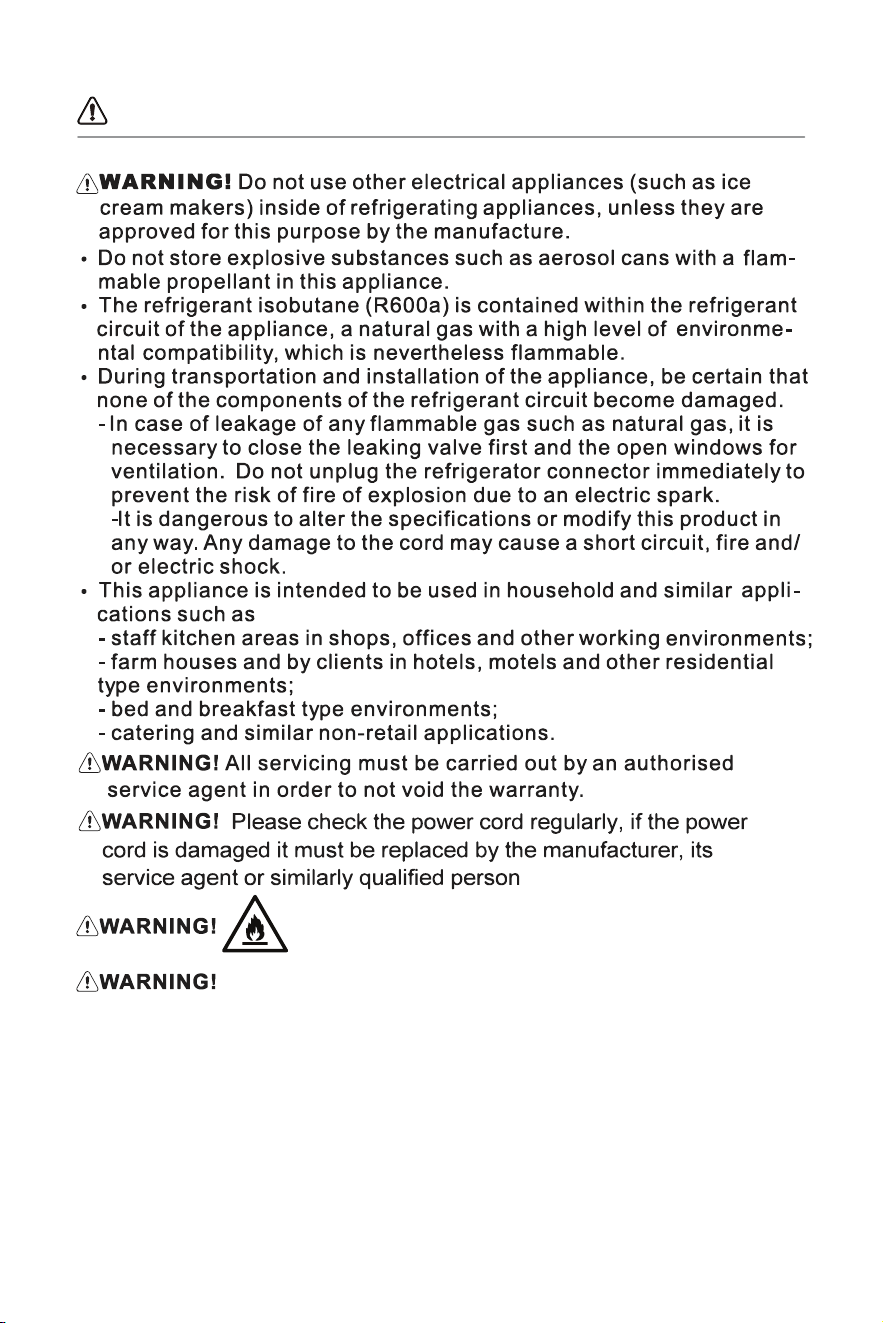

Risk of fire/flammable materials
Do not place multiple portable socket outlets (power boards)
or power supplies at the rear of the appliance.
3
• Power cord must not be lengthened.
．心WARNING! When positioning the appliance ensure the supply cord
is not trapped or damaged. A squashed or damaged power plug
may overheat and cause a fire.
• Make sure that you have easy access to the mains plug of the
appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There
is a risk of electric shock or fire.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if you
hands are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
• Do not put hot items on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. 11
• Store pre-packed frozen food in accordance with the frozen food
manufacture·s instructions.11
• Appliance·s manufactures storage recommendations should be
strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as
it creates pressure on the container, which may cause it to explode,
resulting in damage to the appliance.11
• Ice lollies can cause frost burns if consumed straight from the
appliance.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the
mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a
plastic scraper.1>
• Regularly examine the drain in the refrigerator for defrosted water. If
necessary, clean the drain. If the drain is blocked, water will collect in
te bottom of the appliance.2>
1) If there is a freezer compartment.
2) If the『e is a fresh-food storage
4
Installation
Important! For electrical connection carefully follow the instructions
given in specific paragraphs.
• Unpack the appliance and check if there are damages on it. Do not
connect the appliance if it is damaged. Report possible damages
immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the
appliance to allow the oil to flow back in the compressor.

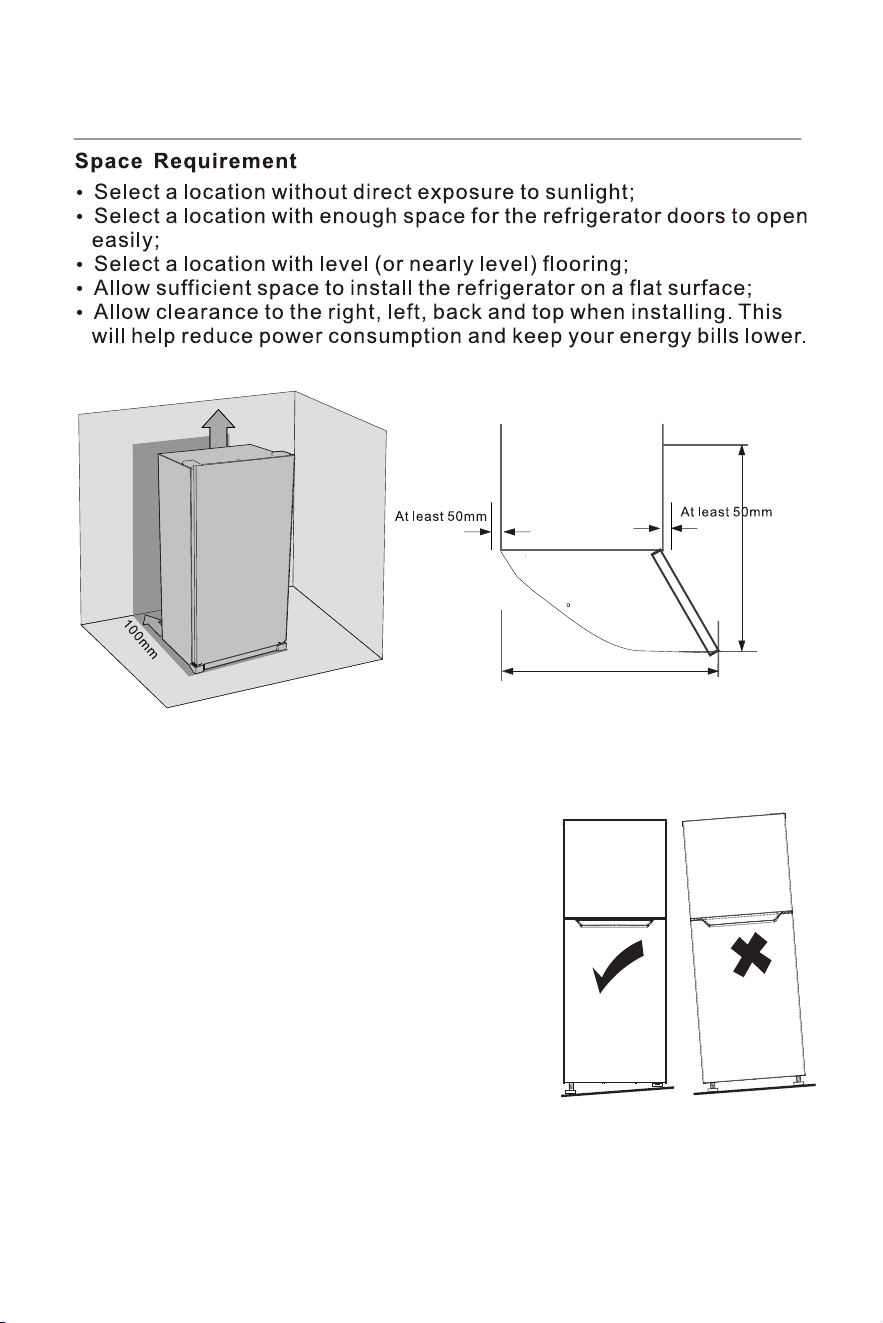

• Adequate air circulation should be around the appliance, lacking this
leads to overheating. To achieve sufficient ventilation follow the
instructions relevant to installation.
• Wherever possible the spacers of the product should be against a
wall to avoid touching or catching warm parts (compressor, con
denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of
the appliance.
Service
• Any electrical work required to do the servicing of the appliance
should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and
only genuine spare parts must be used. Please refer to the warranty
card for further information.
• In
Q
ueensland Australia the Authorized Service Provider MUST hold
a
G
as Work Authorization for hydrocarbon refrigerants to carry out
servicing or repairs which involve the removal of covers.
Energy saving
• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;

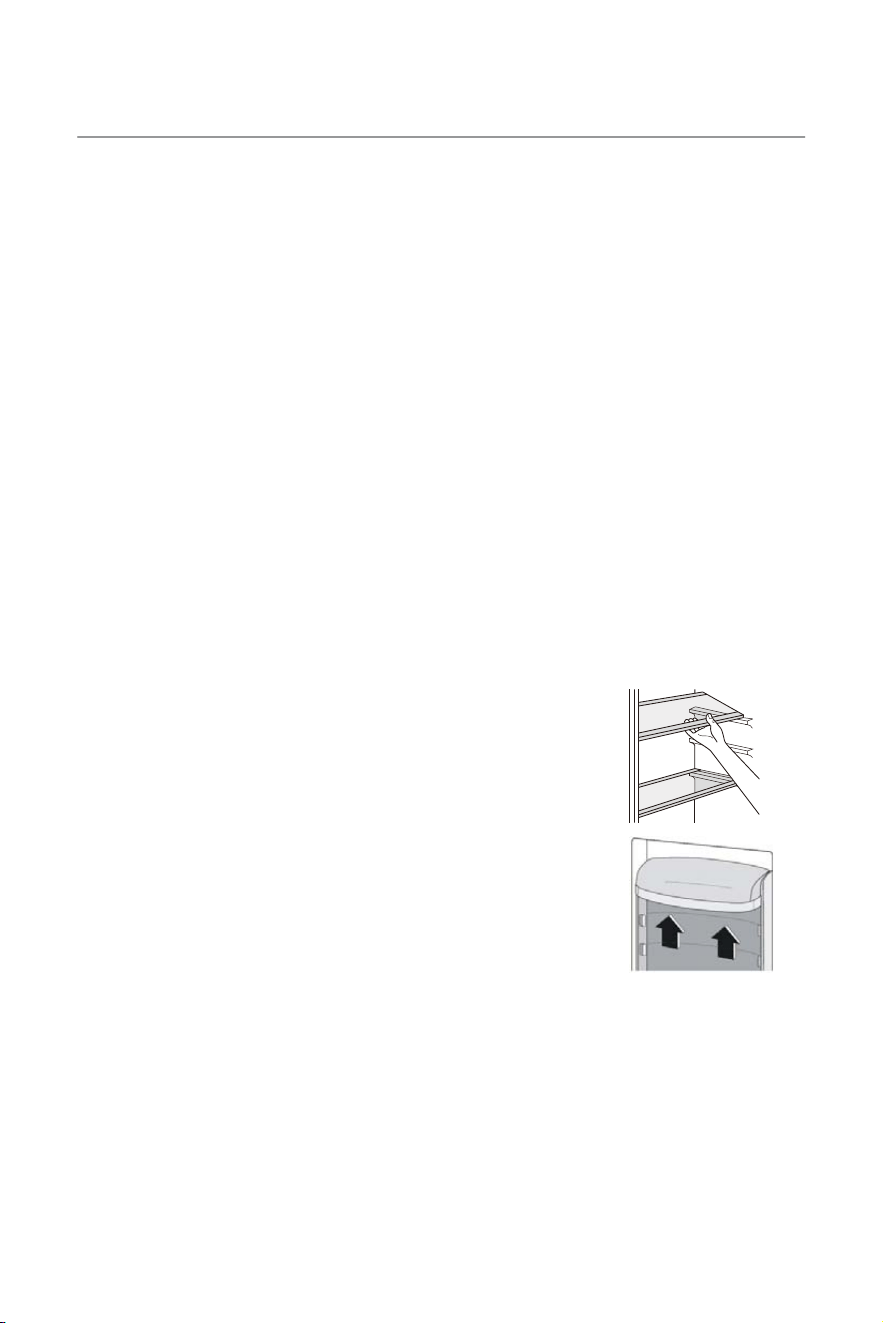

• Some accessaries, such as drawers, can be removed to get larger
storage volume and lower energy consumption.
5
Environment Protection
� This appliance does not contain gas
ses which could damage the
ozone layer, in either its refrigerant circuit or insulation materials. The
appliance shall not be discarded together with the urban refuse and
rubbish. The insulation foam contains flammable gases: the appliance
shall be disposed according to the appliance regulations to obtain from
your local authorities. Avoid damaging the cooling unit, especially the
heat exchanger. The materials used on this appliance marked by the
symbol are recyclable.
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it
- should be taken to the appropriate collection point for the
recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please
contact your local council, your household waste disposal service or
the shop where you purchased the product.
Pacging marials
The materials with the symbol are recyclable. Dispose the packaging in
a suitable collection containers to recycle it.
Disposal of the applian
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.
3. R
emove doors so not to entrap small children
WARNING: RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigeration products are still dangero
us- even if they sit for a "just a few days". If you are
getting rid of your old appliance, please follow the below instructions to help prevent
accidents.
Before You Throw Away Your Old Refrigeration Product:
- Take off the doors
- Leave the shelves in place so that children may not easily come inside.
6

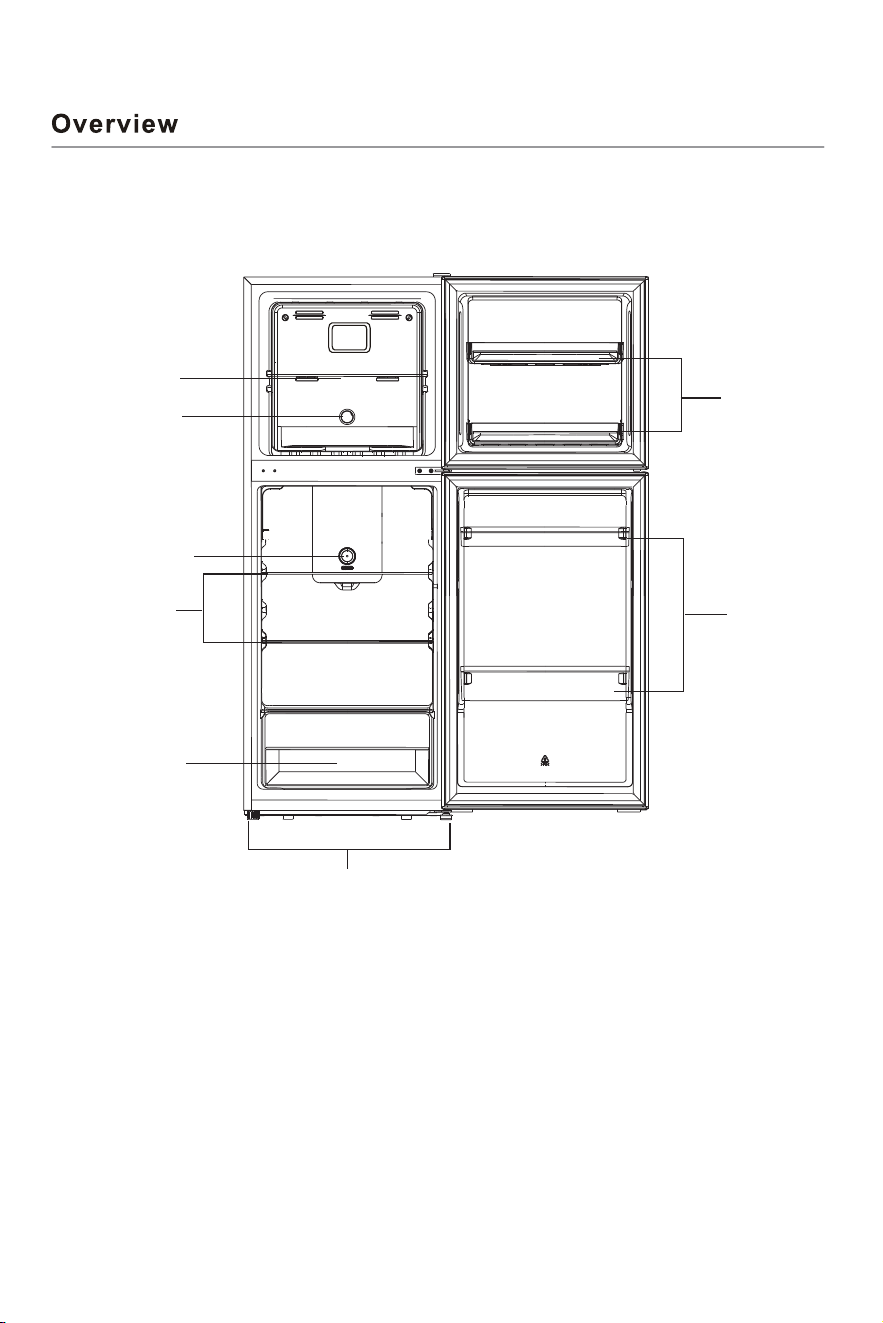

Shelf
Shelves
Crisper
Leveling Feet
Door Shelves
Door Shelves

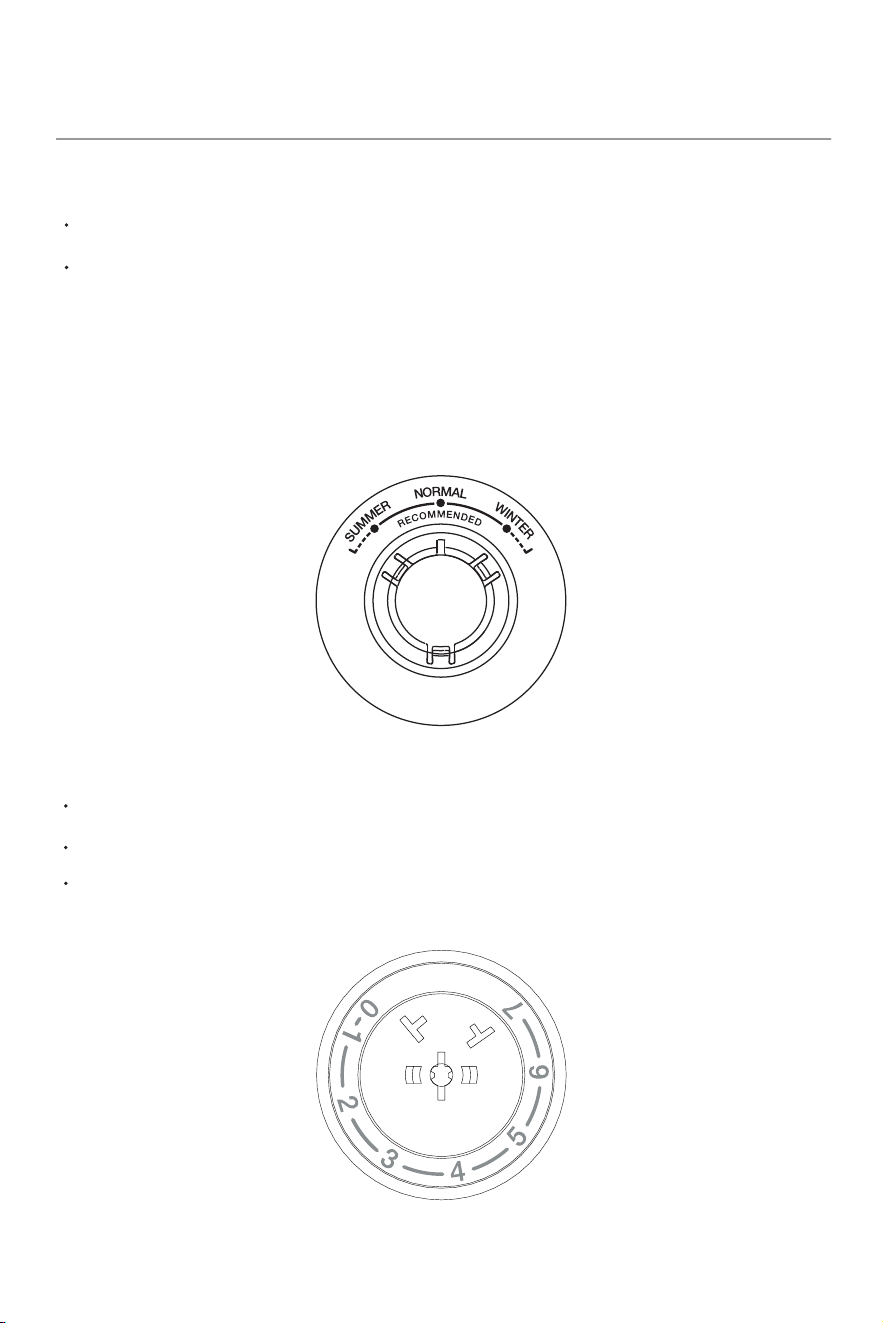

Temperature
control knob
Temperature
control knob
7
Note:Above picture is for reference only. Product specifications subject to change

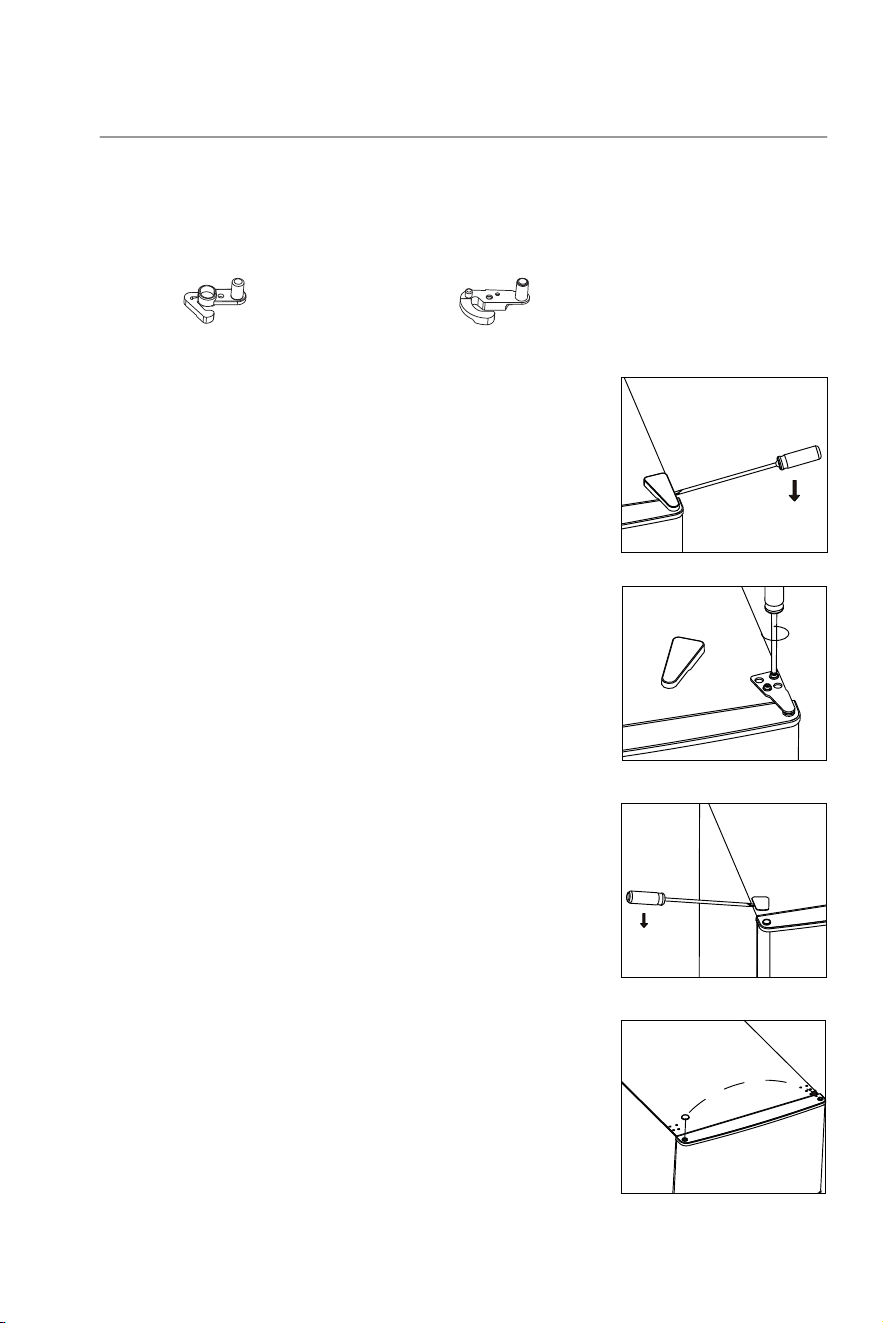

Door Reversal
% &' head.
$ (Phead
) *'head
+,!
Upper door left aid stopper x1 Lower door left aid stopper x1
Before reversing the door, please prepare the following tools: Flat Head screwdriver, Philips Head
screwdriver, spanner, and components included in the poly bag:
8

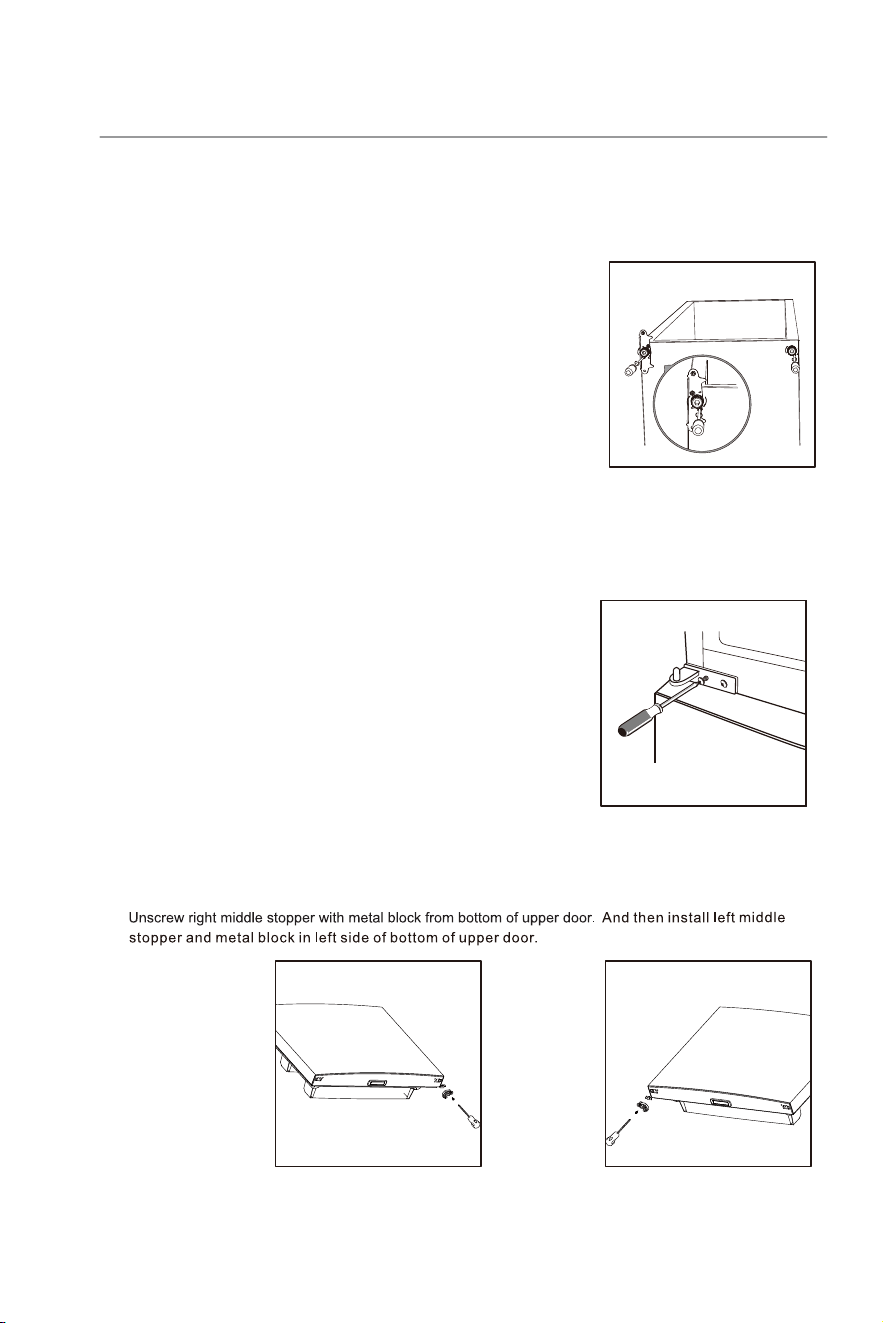

Door Reversal
5.Unscrew the middle hinge using a Philips head screwdriver, then remove the lower door.
as shown below.
7
6 .Laying down the refrigerator, remove the adjusting feet as shown below, then unscrew the
lower hinge using a Philips head screwdriver.
9

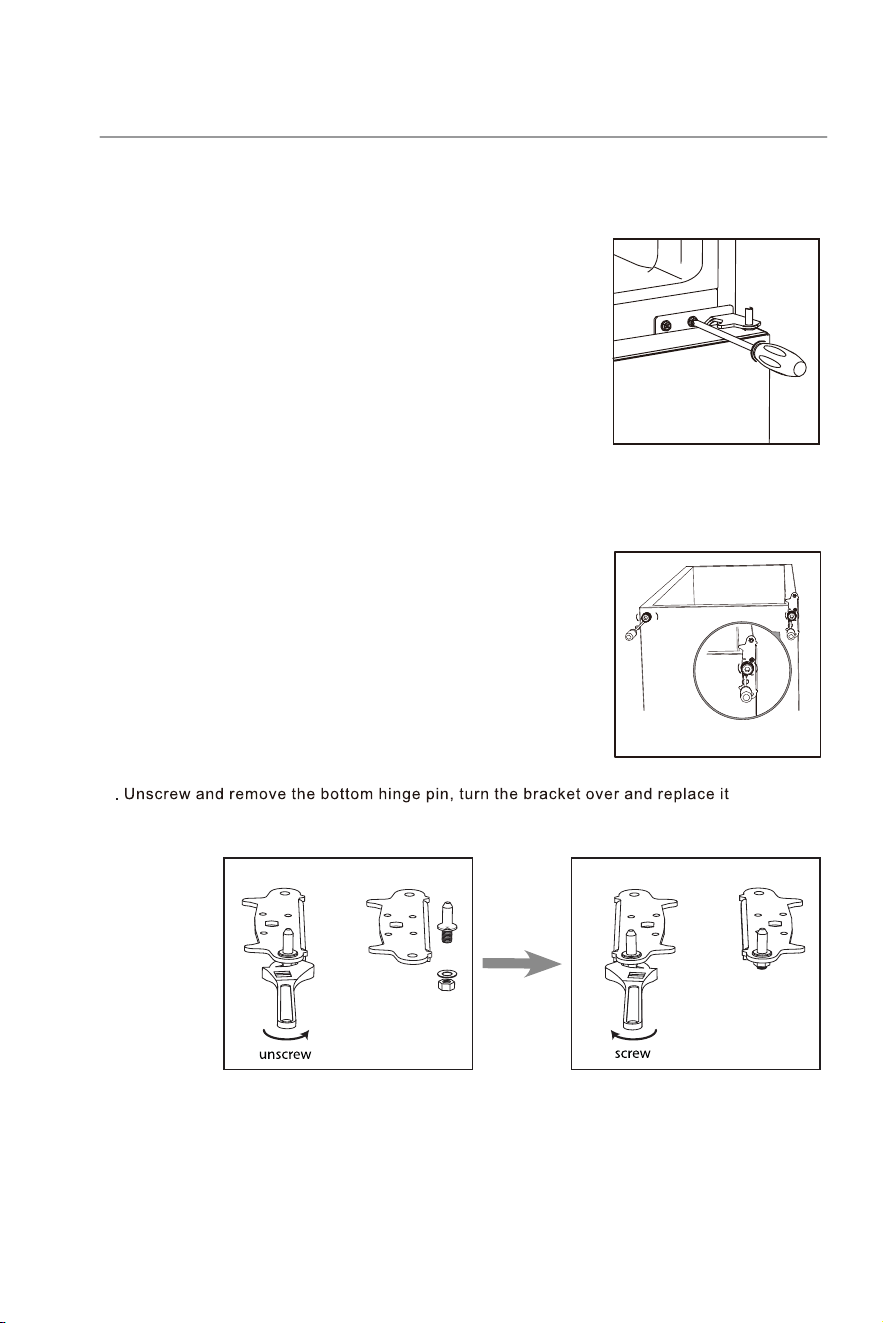

Door Reversal
8. Refit the bracket with the bottom hinge pin. Refit both adjustable feet. Return the fridge
to the upright
position, and refit the bottom door. Please note: as the fridge has been
lied down, please allow several hours after completion of the door reversal before
connecting to mains power.
9.Reverse the middle hinge 180°, then fit to the left side as shown
below. Once in position, refit the screws.
10.
10
Door Reversal
%1 #
%2 &ithe
11
135
980mm
910mm
Leveling the unit
To do this adjust the two leveling feet at front of the unit.
If the unit is not level, the doors and magnetic seal may
not be properly aligned.
12
#
8
6
&
:" 6:+ 6
&!!
$&!
!5
00#!!
7
,
#2
13
Using the Control Panel
Turn on your appliance. The internal temperature is controlled by a sensor. There are 3 settings:
SUMMER,RECOMMENDED and WINTER.
The appliance may not operate at the correct temperature if it is in a particularly hot or if you open
the door often.
Freezer compartment Temperature Setting
Important!
Usually we advise the user sets the temperature control knob at "NORMAL" or "RECOMMENDED". Set the
temperature control knob at "SUMMER" in summer or hot days.
If the ambient temperature is very high (above 43℃), consider adjusting it to the dotted line on the left. Set the
temperature control knob at "WINTER" in winter or cold days.
If the ambient temperature is very low (below 10℃), consider adjusting it to the dotted line on the right.
Fridge compartment Temperature Setting
Turn on your appliance. The internal temperature is controlled by a sensor. There are 8 settings:
0,1,2,3,4,5,6,7. 1 is warmest setting and 7 is coldest setting,0 is off.
The appliance may not operate at the correct temperature if it is in a particularly hot or if you open
the door often.
Neither fridge or freezer compartment works when the setting is OFF.
14
'
"#
"##*+##+#7+
+;#5,+*#5#"#5
!
%#&
6
"
,;+*#+"##!
65
'"#
2#,"#"
"!
##,#,!
2#8#,##"!
2#"#<"##,!
."
=#" "###
###"#"!
%#&)#;"*#,>757
5# 7!
2#+"
6 *,*,#+#"
*"#;,#!
.5;,7*5#!)#*7"+7
"!
?;,#;
2#+#">+#
###;,!
"#shelves
2"7";*#
helves,#"#!27#
+<"5#shelf#
#+*#>!
15
@"
2,#,#*5#<
7##5
+>5,5#
A
,#####,
A
#>5;"#,55!
&*5,!
68#",5#!
@#"
2,#,<
6+;">#"
6;+#*5#";
@"
-#<
?75<+5#,"#"#;,;#;",+!
'5*#+55
+5#!
7*#*!!!<##,;5,5#!
';",<##,#"#5#+;!
,#<##,"#+
5#,"8#,!
?7,<###;#,#,#!
**"*7*,7#"!
2#57##"*##<
#8>5+##,#!#+#"A
#"7#!3#,#,"#A
5>5*##"#5*A
,,557,
,>5#+5#>5>A
+#5#7##7""#A
+#*#+##5*#;"
#A
,"#5A#"A
+*5;#*,5
#7,,A
;,#+#"#;7,5;#
*,5#7,,A
;,#+#"#;7,57,#
"!
@#
@"
16
"
'#5"#*"*#,"5!
&2#5,#
""!6"
#7B"+##;#"#*+#
#,7!3;#+#!?
*"#7B@;#"
!2#,5,,7;!
%#&/#";7*!"!#
"*,5*#!
6+#,#!
65,;
0;##!.#*+;!
.+##;#"#*+#
#,7
!
##+##7++!"+
+##+,5!
;5#"5,7;!
17
or
There will be some sound/noise during normal operation (compressor or refrigerant circulation).
does
authorized service provider
Please check the installation
position of your fridge.
Interior light
not working
LED Light may be defective.
Contact Authorized service provider
Door switch may be defective.
18
Flashing LED light The controll is not set to the
correct position
Do not leave the controller between
clicks, otherwise the light may flash.
Troubleshooting
TCL Electronics Australia Pty Ltd.
ABN 83 111 032 896
Telephone: 1300 738 149
www.tcl.com/au
CKTCL-U12
