BAUMR-AG BRWPWRBMRABP8 Motorized Power Wheelbarrow Mini User Manual

E&OE © Baumr-AG

User Manual

[Revision 9.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to

add a

dequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory or

mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•

Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors and

vents.

General Equipment Use and Care

•

Keep packaging away from children and

pets, potential risk of suffocation or

choking.

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 3

General Electrical Safety

•

Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•

Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•

The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Understand your Powered Wheel Barrow

•

Read and understand the operator’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific

potential hazards peculiar to it.

• Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.

• Make sure to read and understand all the instructions and safety precautions as outlined in the Engine Manufacturer’s Manual, packed separately

with your unit. Do not attempt to operate the machine until you fully understand how to properly operate and maintain the Engine and how to

avoid accidental injuries and/or property damage.

Work area

•

Never start or run the machine inside a closed area. The exhaust fumes are dangerous, containing carbon monoxide, an odourless and deadly

gas. Operate this unit only in a well-ventilated outdoor area.

• Never operate the machine without good visibility or light.

Personal safety

•

Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly.

• Dress properly. Wear heavy long pants, boots and gloves. Do not wear loose clothing, short pants, and jewellery of any kind. Secure long hair so

it is above shoulder level. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in

moving parts.

• Use safety equipment. Always wear eye protection. Safety equipment such as a dust mask, hard hat, or hearing protection used for appropriate

conditions will reduce personal injuries.

• Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc. are securely tightened.

• Never operate the machine when it needs repair or is in poor mechanical condition. Replace damaged, missing or failed parts before using it.

Check for fuel leaks. Keep the machine in safe working condition.

• Never remove or tamper with safety device. Check their proper operation regularly.

• Do not use the machine if the engine’s switch does not turn it on or off. Any gasoline powered machine that cannot be controlled with the engine

switch is dangerous and must be replaced.

• Form a habit of checking to see that keys and adjusting wrenches are removed from machine area before starting it. A wrench or a key that is left

attached to a rotating part of the machine may result in personal injury.

• Stay alert, watch what you are doing and use common sense when operating the machine.

• Do not overreach. Do not operate the machine while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear

that will protect your feet and improve your footing on slippery surfaces. Keep proper footing and balance at all times. This enables better control

of the machine in unexpected situations.

• Avoid accidental starting. Be sure the engine is off before transporting the machine or performing any maintenance or service on the unit.

Transporting or performing maintenance or service on a machine with engine on invites accidents.

Fuel safety

•

Fuel is highly flammable, and its vapours can explode if ignited. Take precautions when using to reduce the chance of serious personal injury.

• When refilling or draining the fuel tank, use an approved fuel storage container while in a clean, well-ventilated outdoor. Do not smoke, or allow

sparks, open flames or other sources of ignition near the area while adding fuel or operating the unit. Never fill fuel tank indoors.

• Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections to avoid sparking or arcing. These

events could ignite fumes or vapours.

• Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of the fuel tank or add fuel while the engine is

running or when the engine is hot. Do not operate the machine with known leaks in the fuel system.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 4

• Loose the fuel tank cap slowly to relieve any pressure in the tank.

• Never over fill fuel tank. Fill tank to no more than 12.5mm (1/2”) below the bottom of the filler neck to provide space for expansion as the heat of

the engine can cause fuel to expand.

• Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the unit without the fuel cap securely in place.

• Avoid creating a source of ignition for spilled fuel. If fuel is spilled, do not attempt to start the engine but move the machine away from the area of

spillage and avoid creating any source of ignition until fuel vapours have dissipated.

• Store fuel in containers specifically designed and approved for this purpose.

• Store fuel in a cool, well-ventilated area, safely away from sparks, open flames or other sources of ignition.

• Never store fuel or machine with fuel in the tank inside a building where fumes may reach a spark, open flame, or other sources of ignition, such

as a water heater, furnace, clothes dryer and the like. Allow the engine to cool before storing in any enclosure.

Machine use and care

•

Position the machine in such a way that it cannot move during maintenance, cleaning, adjustment, assembly of accessories or spare parts, as

well as under storage.

• Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which

it was designed.

• Do not change the engine governor settings or over-speed the engine. The governor controls the maximum safe operating speed of the engine.

• Do not run the engine at a high speed when you are not working.

• Do not put hands or feet near rotating parts.

• Avoid contact with hot fuel, oil, exhaust fumes and hot surfaces. Do not touch the engine or muffler. These parts get extremely hot from

operation. They remain hot for a short time after you turn off the unit. Allow the engine to cool before doing maintenance or making adjustments.

• If the machine should start to make an unusual noise or vibration, immediately shut off the engine, disconnect the spark plug wire, and check for

the cause. Unusual noise or vibration is generally warning of trouble.

• Use only attachments and accessories approved by the manufacturer. Failure to do so can result in personal injury.

• Maintain the machine. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the

machine’s operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained equipment.

• Keep the engine and muffler free of grass, leaves, excessive grease or carbon build up to reduce the chance of a fire hazard.

• Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use.

• Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.

• Store idle machine out of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate it. Machine is

dangerous in the hands of untrained users.

Service

•

Before cleaning, repair, inspecting, or adjusting, shut off the engine and make certain all moving parts have stopped. Disconnect the spark plug

wire and keep the wire away from the plug to prevent accidental starting.

• Have your machine serviced by qualified repair personnel using only identical replacement parts. This will ensure that the safety of the machine

maintained.

Specific Safety Rules

•

Thoroughly inspect the area to be worked, keep the working area clean and free of debris to prevent tripping. Operate on a flat level ground.

• Never place any part of your body where it would be in danger if movement should occur during assembly, installation, and operation,

maintenance, repairing or moving.

• Keep all bystanders, children, and pets at least 23m (75 feet) away. If you are approached, stop the unit immediately.

• Do not mount on dump box and never carry passengers.

• Never park the machine in a place with unstable ground which could give way, particularly when it is full.

• Disengage clutch lever before starting the engine.

• Start the engine carefully according to instructions and with feet well away from the moving parts.

• Never leave the operating position when the engine is running.

• Always hold the unit with both hands when operating. Keep a firm grip on the handlebars. Be aware that the machine may unexpectedly bounce

upward or jump forward if the machine should strike buried obstacles such as large stones.

• Walk, never run with the machine.

• Do not overload the machine capacity. Drive at a safe speed, adjusting the speed to the slope of the land, the surface conditions of the road, and

the weight of the load.

• Use extreme caution when in reverse or pulling the machine towards you.

• Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.

• On soft ground, drive at the first forward/reverse gear. Do not rapidly accelerate, turn sharply or stop.

• Pay the utmost attention when working on frozen ground as the machine may tend to skid.

• If possible, avoid driving on pebbly river bed, crushed stone terrains, steel concrete, stumpy field, logs etc., since such operation causes fatal

damage or shortens life span of tracks.

• Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object.

• Never operate the machine on slopes where angle is over 20°.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 5

• When moving over a slope, whether moving forward or in reverse, always make certain that the weight is evenly balanced. Always move in

directions parallel with the slope (up or down). To avoid danger, do not shift gears on slopes.

• When tipping the load from a dumper, the centre of gravity will change continuously, and the ground conditions will be essential for the stability of

the machine. There are special hazards for dumpers working on soft ground and when the load is sticking to body e.g. wet clay.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 6

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 7

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 8

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 6

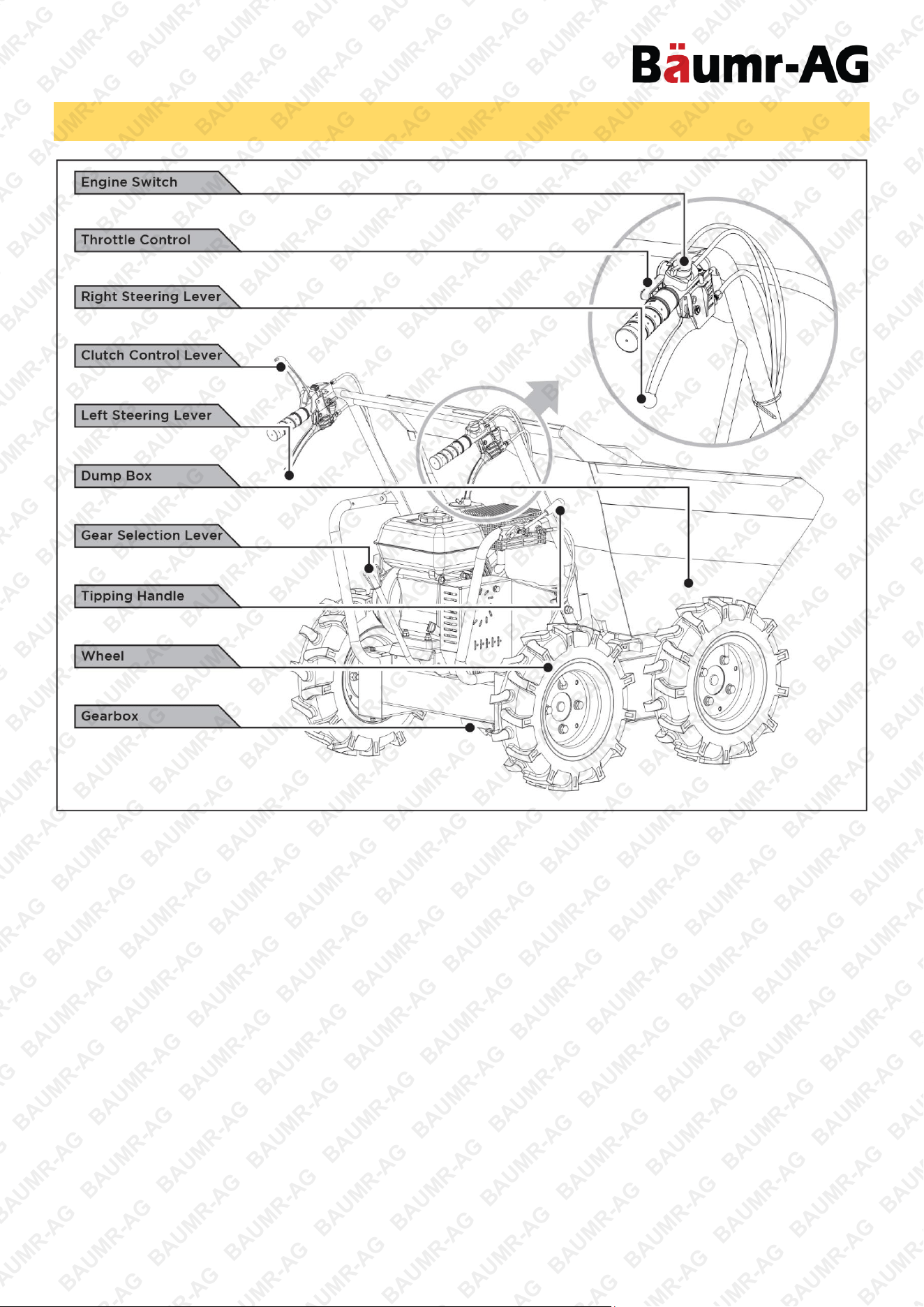

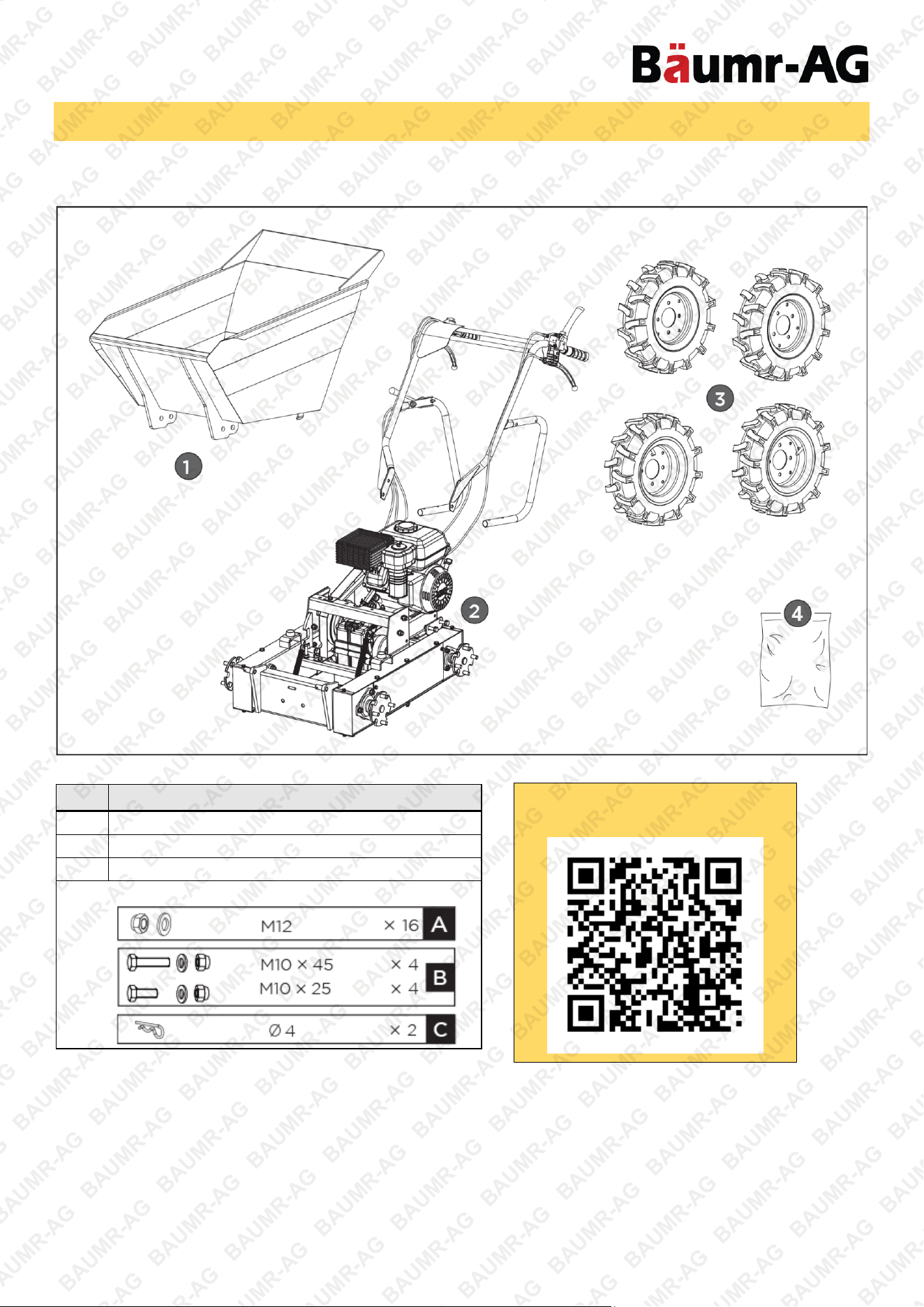

Parts Identification ....................................................................................................................................... 9

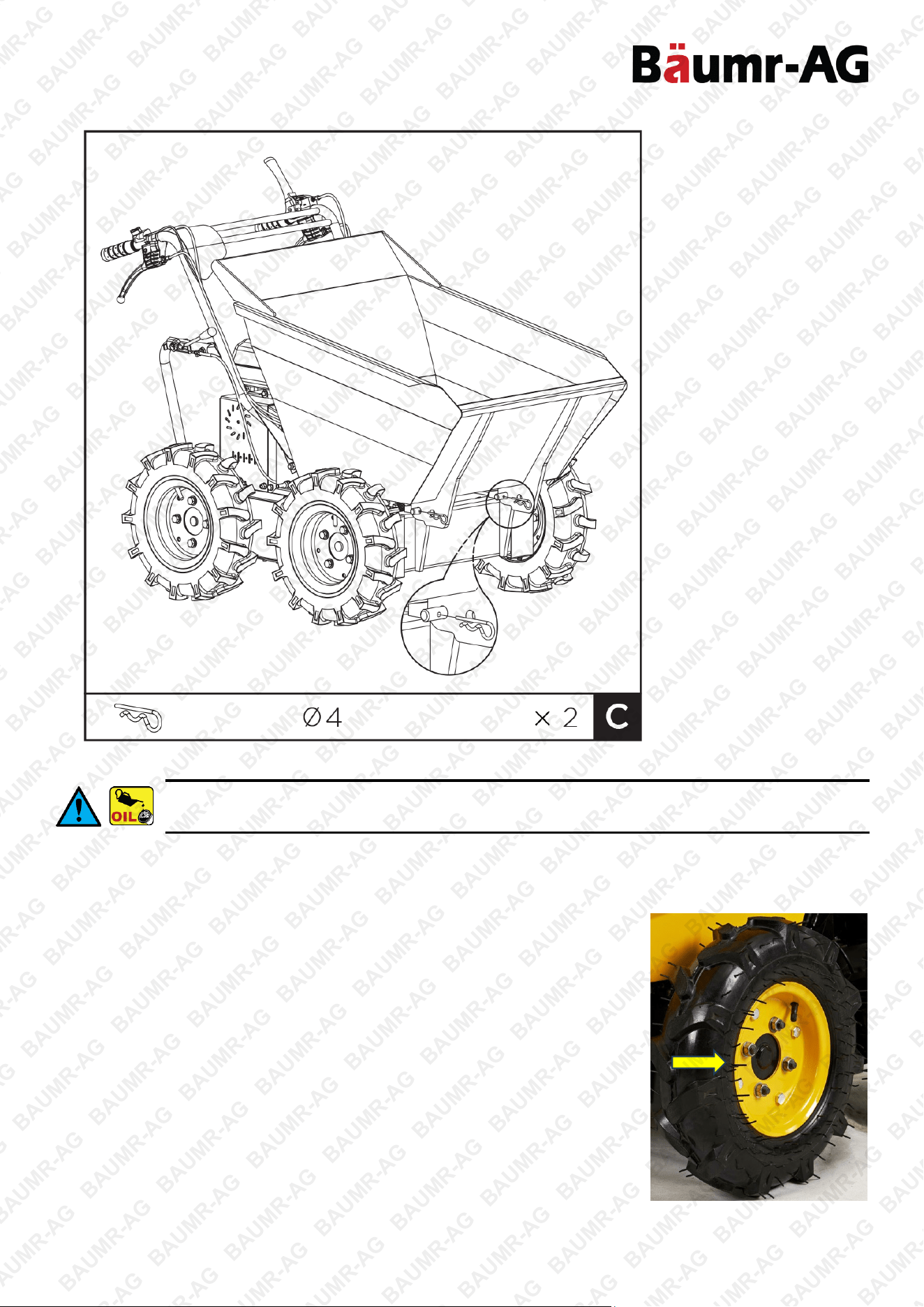

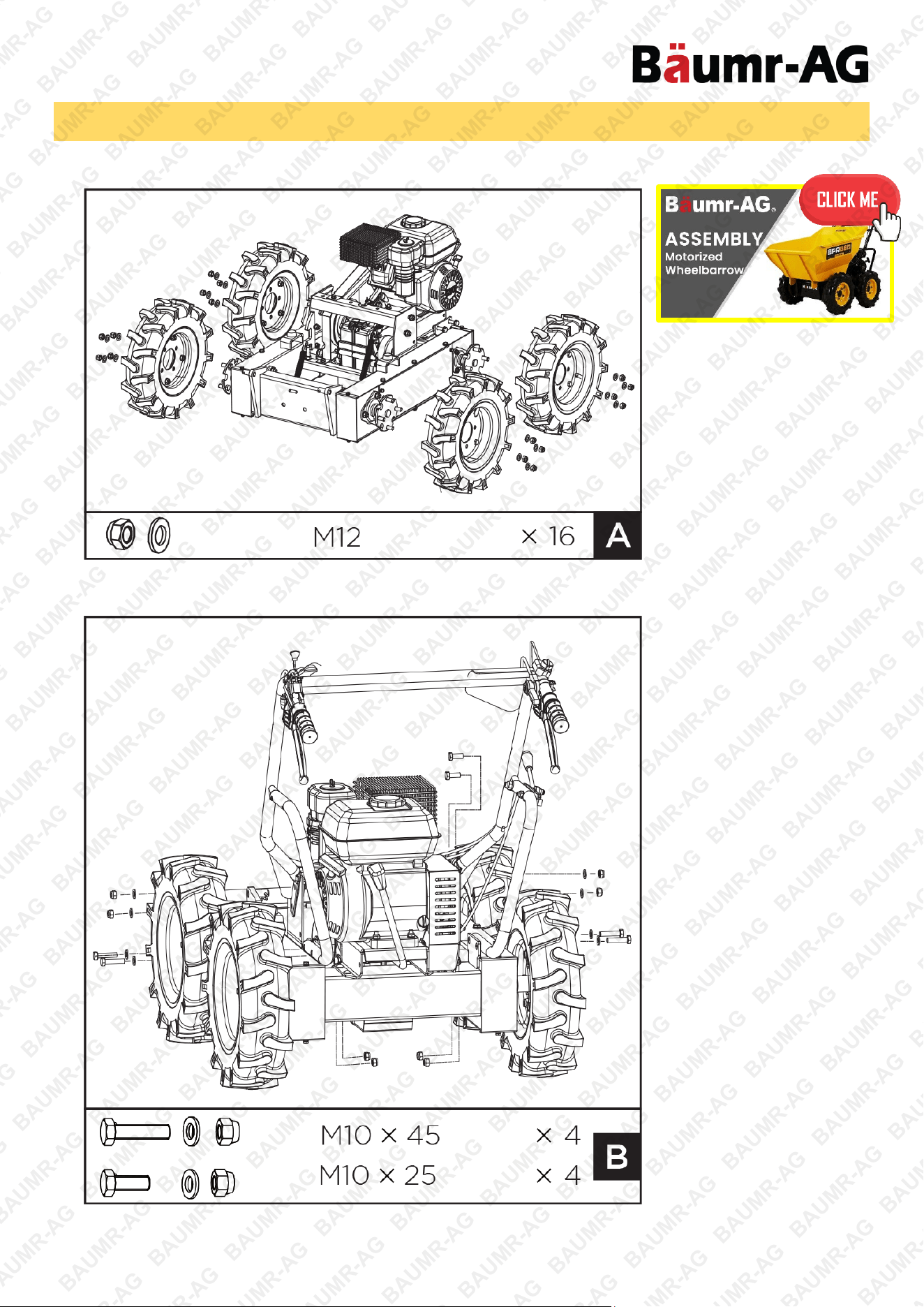

Assembly and Set-Up ................................................................................................................................. 10

Tyre Inflation ............................................................................................................................................................. 11

Know Your Powered Wheel Barrow .......................................................................................................... 12

Operation ..................................................................................................................................................... 15

Adding Fuel ............................................................................................................................................................... 15

Starting the Engine ................................................................................................................................................... 15

Operating the Wheel Barrow .................................................................................................................................... 15

Idle Speed ................................................................................................................................................................. 16

Stopping the Engine ................................................................................................................................................. 16

Maintenance ................................................................................................................................................ 17

Preventive Maintenance ........................................................................................................................................... 17

Adjusting the Clutch .................................................................................................................................................. 17

Adjusting the Steering .............................................................................................................................................. 17

Lubrication ................................................................................................................................................................ 17

Tyre Pressure ........................................................................................................................................................... 18

Engine Maintenance ................................................................................................................................................. 18

Storage ........................................................................................................................................................ 18

Troubleshooting ......................................................................................................................................... 20

Specifications ............................................................................................................................................. 21

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 9

Parts Identification

The powered wheel barrow comes partially assembled and is shipped in carefully packed package. After all the

parts have been removed from the package, you should have:

No. Name

1

Dump Box

2

Main Frame

3

Wheels

4 Hardware Bag, including

Spare parts available for

purchase, scan QR code below:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 10

Assembly and Set-Up

1. Mount the wheels and fasten them with M12 nuts.

2. Mount the handle frame assembly to the chassis and secure it with M10X25 bolts, washers and nuts at the

front and M10X45 bolts, washers and nuts at the rear.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 11

3. Install the dump box and fasten the front with two Ø 4 R-clips.

4. Add oil according to Engine Manual packed separately with your unit.

Oil has been drained for shipping. Failure to fill engine sump with oil before starting

engine will result in permanent damage and will void engine warranty.

Tyre Inflation

The tyres must be inflated before use. The required PSI or KPA is printed on the

tyres side wall as shown in the image to the right. Failure to pump the tyres to

the required spec can result in a flat. Tyres and tubes are classed as

consumable items and are not generally covered under warranty.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 12

Know Your Powered Wheel Barrow

Engine Switch

•

The engine switch enables and disables the

ignition system.

•

The engine switch must be in the ON position for

the engine to run.

•

Turning the engine switch to the OFF position

stops the engine.

Clutch control lever

•

Squeeze the control lever, clutch engaged.

•

Release the lever, clutch disengaged.

Throttle control

•

It controls engine speed. Put the throttle control

on low speed (L) or high speed (H) or an

intermediary position between L and H to

increase or decrease the speed of engine.

Left steering lever

•

Operate the lever to turn left.

Right steering lever

•

Operate the lever to turn right.

Gear selection lever

•

It controls forward or reverse movements of the

machine.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 13

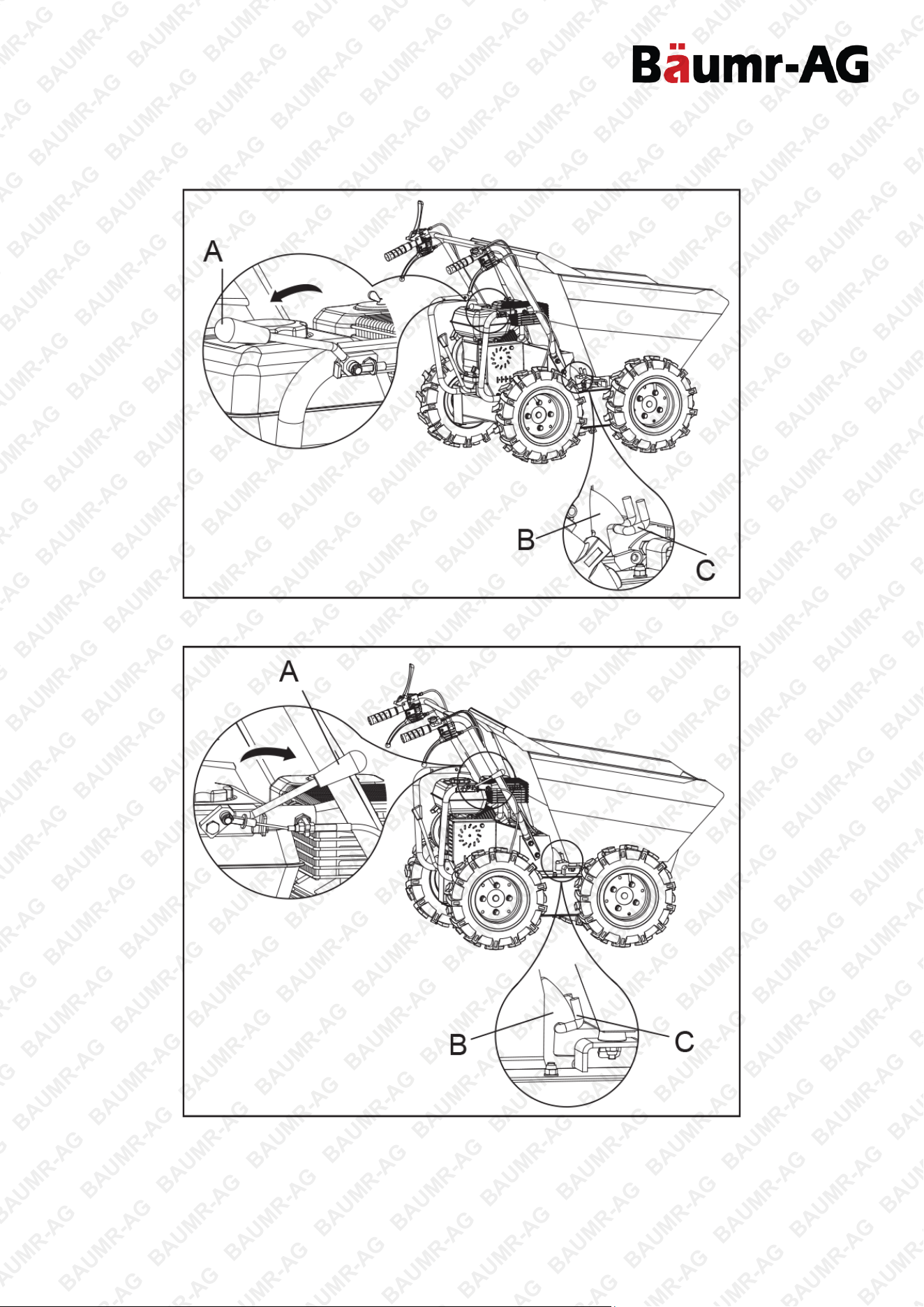

Tipping handle

It controls tipping of the dump box. Swing tipping handle A in the direction of the arrow to release limiter B out of

hook C. The dump box will be released.

After tipping the load, swing handle A back to reset limiter B into hook C, which will lock the dump box.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 14

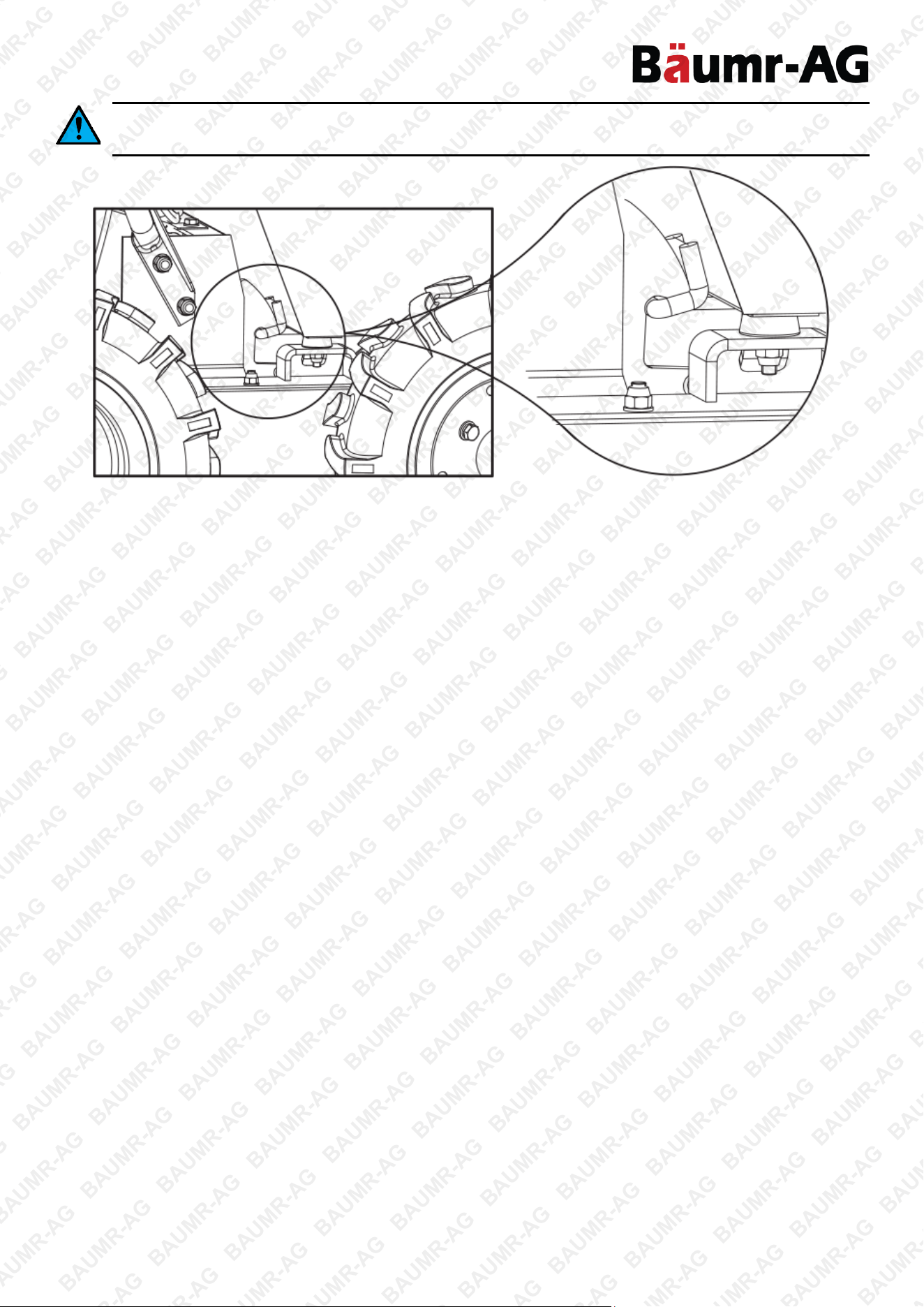

Before you start to use the dumper, please check the dump box to make sure it is locked as

shown in the diagram below.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

E&OE © Baumr-AG 15

Operation

Adding Fuel

Fill the fuel tank as instructed in the separate Engine Manual packed with the machine.

Fill tank to no more than 12.5mm (1/2”) below the bottom of the filler neck to provide space for

expansion.

Starting the Engine

A more detailed description of the engine operation and all related precautions and procedures can be found in

the Engine Manual packed separately with the powered wheel barrow.

Follow the procedure below for cold starts:

1. Turn choke lever on the engine to full choke position.

2. Set the throttle lever on the handlebar at halfway position.

3. Turn the engine switch on.

4. Pull the starting rope slowly several times to allow the gasoline to flow into the engine’s carburettor. Then

hold the start handle firmly and pull rope out a short distance until you feel some resistance. Then pull the

rope smoothly and briskly and allow rope to return gently. Do not let the rope snap back. If necessary, pull

the rope several times until the engine starts.

5. Allow the engine to run for several seconds to warm up. Then, gradually move chock lever to “OPEN”

position.

Restarting an engine that is already warm from previous running does not normally require use of the choke.

1. Set the throttle lever on the handlebar at halfway position.

2. Hold the start handle firmly and pull rope out a short distance until you feel some resistance. Then pull the

rope smoothly and briskly and allow rope to return gently. Do not let the rope snap back.

Operating the Wheel Barrow

•

After engine warms up, pull throttle lever to accelerate engine speed.

•

Engage the required gear and slowly squeeze the clutch control lever. If the gear does not engage straight

away, slowly release the clutch lever and try again. In this way the powered wheel barrow will start moving.

•

The powered wheel barrow has the steering levers on the handlebars, and this makes steering very easy. To

turn right or left, simply operate the corresponding right or left steering lever.

•

The sensitivity of the steering increases in proportion to the speed of the machine and that with the empty

machine, a light pressure on the lever is all that is needed to turn. While when the machine is loaded, more

pressure is required.

•

The powered wheel barrow has a maximum capacity of 300kg. However, it is advisable to assess the load

and adjust it according to the ground on which the machine will be used.

•

It is therefore advisable to cover such stretches using low gear and taking extra care. In such situations, the

machine should be kept in low gear for the whole stretch.

•

Avoid sharp turns and frequent changes of direction while driving on the road, in particularly on rough, hard

terrains full of sharp, uneven points with a high degree of friction.

Video Tutorial:

Starting a 4-Stroke Engine

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

•

Remember to be careful when working in adverse weather conditions (ice, heavy rain and snow) or on types

of ground that could make the powered wheel barrow unstable.

•

When the clutch control lever is released, the machine will stop and brake automatically.

•

If the machine is stopped on a steep slope, a wedge should be placed against one of the wheels.

Idle Speed

Set throttle control lever to its “SLOW” position to reduce stress on the engine when working is not being

performed. Lowering the engine speed to idle the engine will help extend the life of the engine, as well as

conserve fuel and reduce the noise level of the machine.

Stopping the Engine

To stop the engine in an emergency, simply turn the engine switch to the OFF position. Under normal conditions,

use the following procedure.

1. Move the throttle lever to the SLOW position.

2. Let engine idle for one or two minutes.

3. Turn the engine switch to the OFF position.

4. Turn the fuel valve lever to the OFF position.

Do not move choke control to CHOKE to stop engine. Backfire or engine damage may occur.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

Maintenance

A proper maintenance and lubrication will help the machine in a perfect working condition.

Preventive Maintenance

•

Turn off engine and disengage all command levers. Engine must be cool.

•

Inspect the general condition of the unit. Check for loose screws, misalignment or binding of moving parts,

cracked or broken parts, and any other condition that may affect its safe operation.

•

Remove all debris and other materials that may have accumulated to the track and unit. Clean after each

use. Then use a premium quality lightweight machine oil to lubricate all moving parts.

Never use a “pressure washer” to clean your unit. Water can penetrate tight areas of the

machine and its transmission case and cause damage to spindles, gears, bearings, or the

engine. The use of pressure washers will result in shortened life and reduce serviceability.

Adjusting the Clutch

As the clutch wears out, the same lever could have a wider opening, being so uneasy to use. This means that it

is necessary to adjust the cable, setting clutch lever on its original position acting on the adjustment device and

on counter-nut.

Adjusting the Steering

If you have difficulty steering the unit, you will need to adjust the steering levers with the special adjusters.

Slacken off the locknut and unscrew the adjusters to eliminate the play in the cable, which can occur after initial

use or normal wear. Be very careful not to unscrew the adjusters too much because this can create another

problem: the loss of traction. Remember to tighten the locknut when you have finished.

Lubrication

•

The gearbox is pre-lubricated and sealed at the factory. No need to lubricate until 50 hours use.

•

After first 50 hours use, change all the transmission oil. Capacity is 1.5L.

•

For future use, just check the oil level every 50 hours of working. If remove the drain plug, no oil flow out,

then add the oil.

•

Gear oil SAE10W-30 is recommended. Do not use synthetic oil.

•

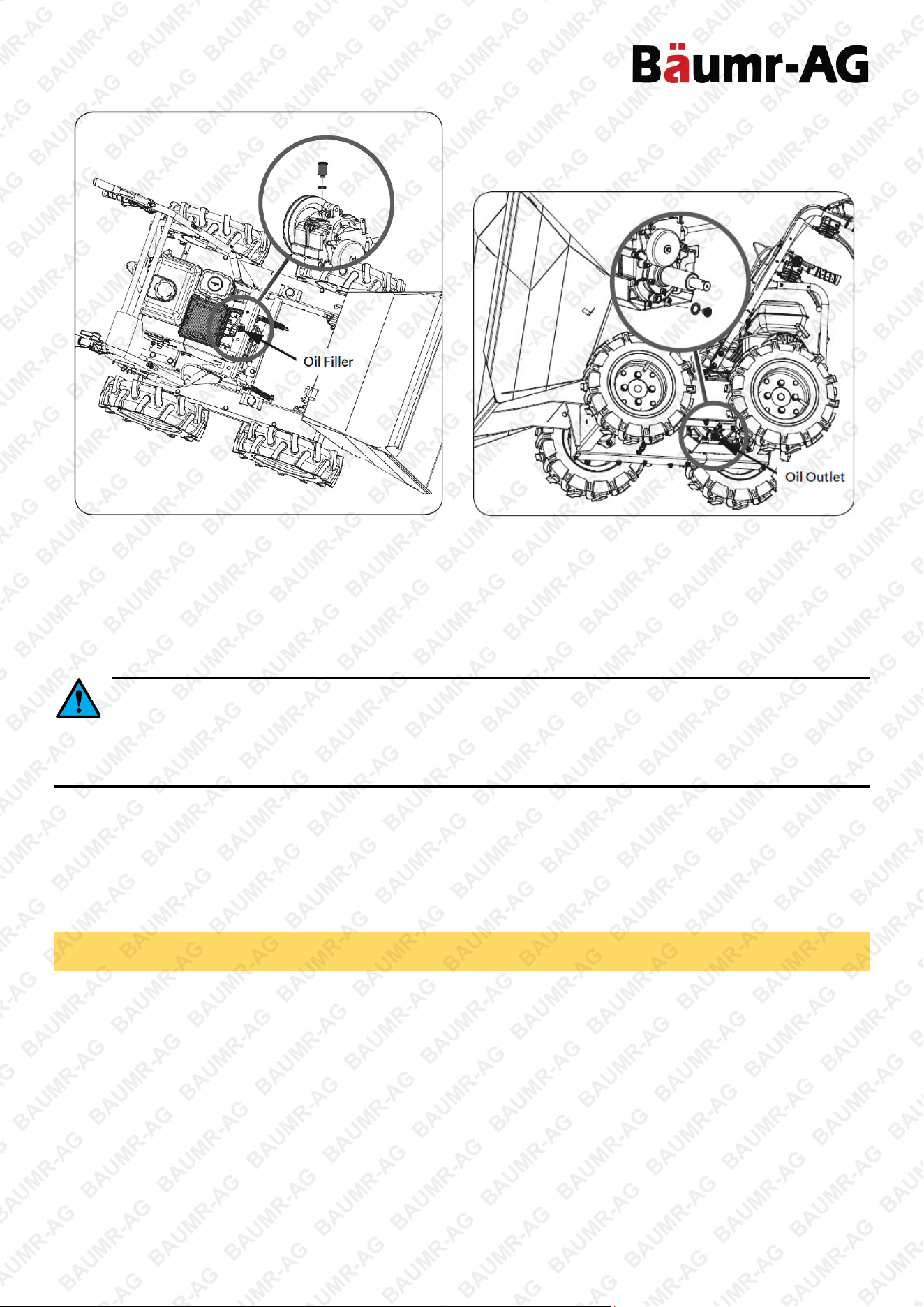

Transmission oil must be replaced when engine is stopped and warm by unscrewing filler cap and drain

plug. When oil is completely drained, replace filler cap, and fill up with fresh oil (See Figure 1).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

Figure 1 Figure 2

Tyre Pressure

Check the pressure of tyres periodically to make sure they are properly inflated. Recommended pressure is

30psi for all the tyres.

Separation of tyre an

d rim parts is possible when they are serviced incorrectly. 1.Do not attempt

to mount a tyre without the proper equipment and experience to perform the job. 2. Do not inflate

the tyres above the recommended pressure. 3. Do not weld or heat a wheel and tyre assembly. Welding

can structurally weaken or deform the wheel. Heating can cause an increase in the air pressure resulting

in burst. 4. Do not stand in front or over the tyre assembly while inflating.

Engine Maintenance

Refer to the Engine Manual included in your unit for the information on engine maintenance. Your engine

manual provides detailed information and a maintenance schedule for performing the tasks.

Storage

If the powered wheel barrow will not be used for a period longer than 30 days, follow the steps below to prepare

your unit for storage.

1. Drain the fuel tank completely. Stored fuel containing ethanol or MTBE can start to go stale in 30 days. Stale

fuel has high gum content and can clog the carburettor and restrict fuel flow.

2. Start the engine and allow it to run until it stops. This ensures no fuel is left in the carburettor. Run the engine

until it stops. This helps prevent gum deposits from forming inside the carburettor and possible engine

damage.

3. While the engine is still warm, drain the oil from the engine. Refill with fresh oil of the grade recommended in

the Engine Manual.

4. Use clean clothes to clean off the outside of the machine and to keep the air vents free of obstructions.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

Do not use strong detergents or petroleum-based cleaners when cleaning plastic parts.

Chemicals can damage plastics.

5. Inspect for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or

bolts.

6. Store your unit on flat ground in a clean, dry building that has good ventilation.

Do not store the machine with fuel in a non-ven

tilated area where fuel fumes may reach flame,

sparks, pilot lights or any ignition sources.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

Troubleshooting

Problem Cause Remedy

Engine fails to start.

1. Spark plug wire disconnected.

2. Out of fuel or stale fuel.

3. Choke not in open position.

4. Blocked fuel line.

5. Fouled spark plug.

6. Engine flooding.

1. Attach spark plug wire securely to spark

plug.

2. Fill with clean, fresh gasoline.

3. Throttle must be positioned at choke for a

cold start.

4. Clean the fuel line.

5. Clean, adjust gap, or replace.

6. Wait a few minutes to restart, but do not

prime.

Engine runs erratically.

1. Spark plug wire loose.

2. Unit running on CHOKE.

3. Blocked fuel line or stale fuel.

4. Vent plugged.

5. Water or dirt in fuel system.

6. Dirty air cleaner.

7. Improper carburettor adjustment.

1. Connect and tighten spark plug wire.

2. Move choke lever to OFF.

3. Clean fuel line. Fill tank with clean, fresh

gasoline.

4. Clear vent.

5. Drain fuel tank. Refill with fresh fuel.

6. Clean or replace air cleaner.

7. Refer to Engine Manual.

Engine overheats.

1. Engine oil level low.

2. Dirty air cleaner.

3. Air flow restricted.

4. Carburettor not adjusted

properly.

1. Fill crankcase with proper oil.

2. Clean air cleaner.

3. Remove housing and clean.

4. Refer to Engine Manual.

Machine does not move while

engine is running.

1. Gear is not properly selected.

2. Drive belt not tight enough.

1. Ensure gear lever is not in-between two

different gears.

2. Tighten drive belt.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Powered Wheel Barrow - BPR880

Specifications

Model

BPR880

Engine

196cc, 6.5HP 4-Stroke

Emissions Compliance

Euro II

Transmission

3 forward gears + reverse

Load Capacity

300kg

Bucket Dimensions

94 x 64 x 33cm

Bucket Volume

125L

Track Width / Tyre Size

4x8 inches

Max Climb Angle (loaded to capacity)

20°

Motion

4 wheel drive / skid steering

Tyres

Pneumatic/agricultural tread

Forward Max Speed

6.4km/h

Reverse Max Speed

2.0km/h

Ground Clearance

100mm

Stair Climbing

Yes (30° with 100kg max load)

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business

or employee, or financially affect the user, business or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement or service by a technician

may cause financial loss, loss of employee time or an

inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.
