1. Before attaching the adapter, look through your optic (telescope, spotting scope,
binocular, etc.) and make sure that the view is in sharp focus.
2. Open the eyepiece clamp (B) by loosening the eyepiece clamp knob (A) at the
top of the eyepiece clamp.
3. Place the eyepiece clamp over the eyepiece of your optic. Tighten the eyepiece
clamp knob to secure the eyepiece clamp tightly against the eyepiece.
NOTE: Make sure to mount the clamp on a section of the eyepiece barrel that does not rotate freely,
such as an eye relief adjuster.
4. Loosen the holder clamp knob (D) until the holder clamp (C) is open wide
enough to accommodate the width of your phone. Once the phone is in place,
tighten the holder clamp knob until the phone is secured.
NOTE: This adapter can be used with most phone cases, but the case surface MUST be flat so it will fit in the
holder correctly. Any grips, stands, rings, or raised surfaces on the case will impede the placement
of the phone. All folio-style phone cases must be removed.
USING YOUR
SMARTPHONE ADAPTER
Model #81035

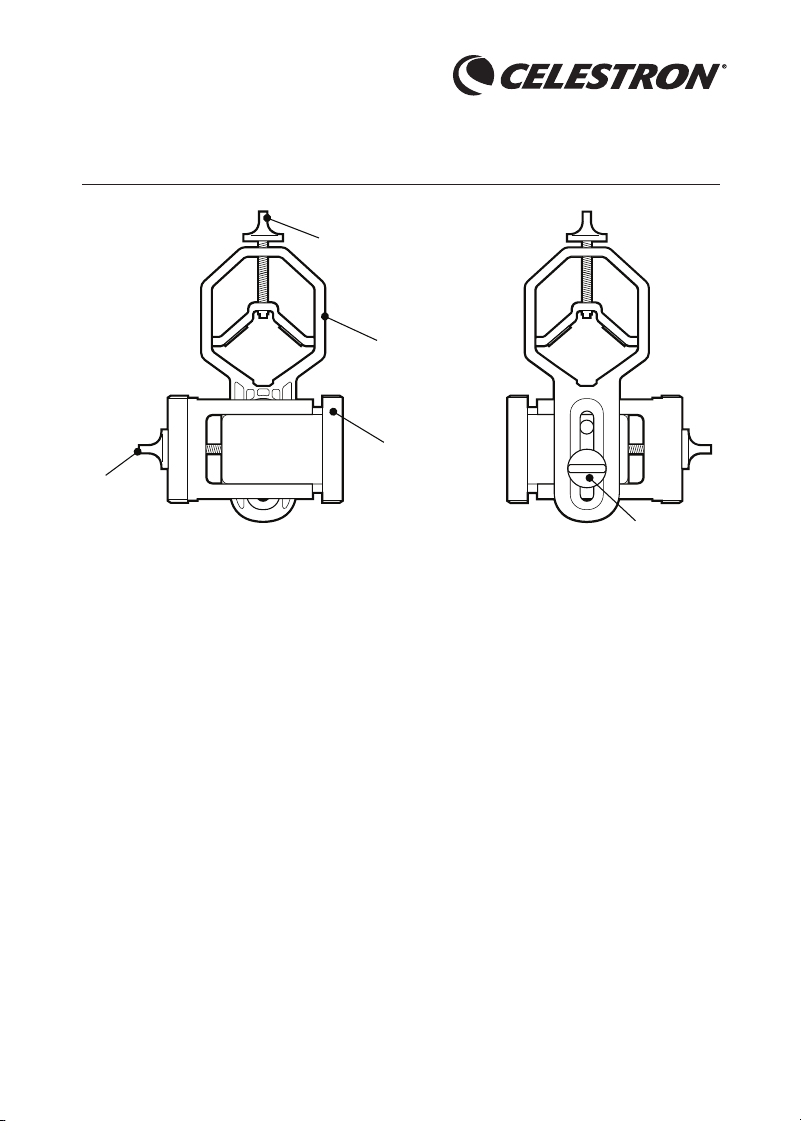

(A)
(B)
(C)
(D)
(E)
ENGLISH
FRONT BACK
