TITLE GUITAR AMPLIFIER
MODEL PVAMP20
：
：
www.pyleaudio.com

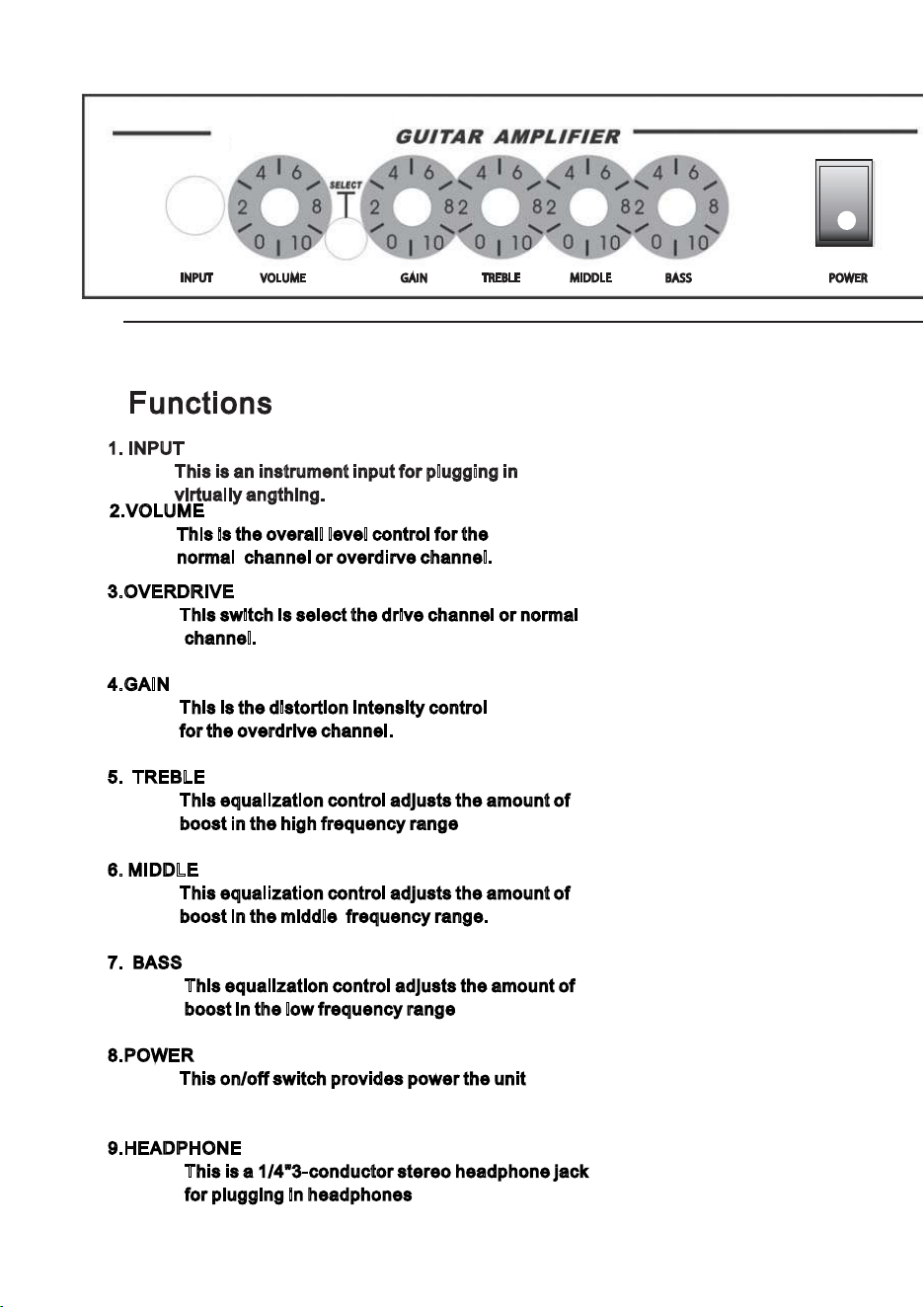

1. INPUT
This is an instrument input for plugging in
virtually angthing.
3.OVERDRIVE
This switch is select the drive channel or normal
channel.
4.GAIN
This is the distortion intensity control
for the overdrive channel.
5. TREBLE
This equalization control adjusts the amount of
boost in the high frequency range
6. MIDDLE
This equalization control adjusts the amount of
boost in the middle frequency range.
7. BASS
This equalization control adjusts the amount of
boost in the low frequency range
8.POWER
This on/off switch provides power the unit
9.HEADPHONE
This is a 1/4"3-conductor stereo headphone jack
for plugging in headphones

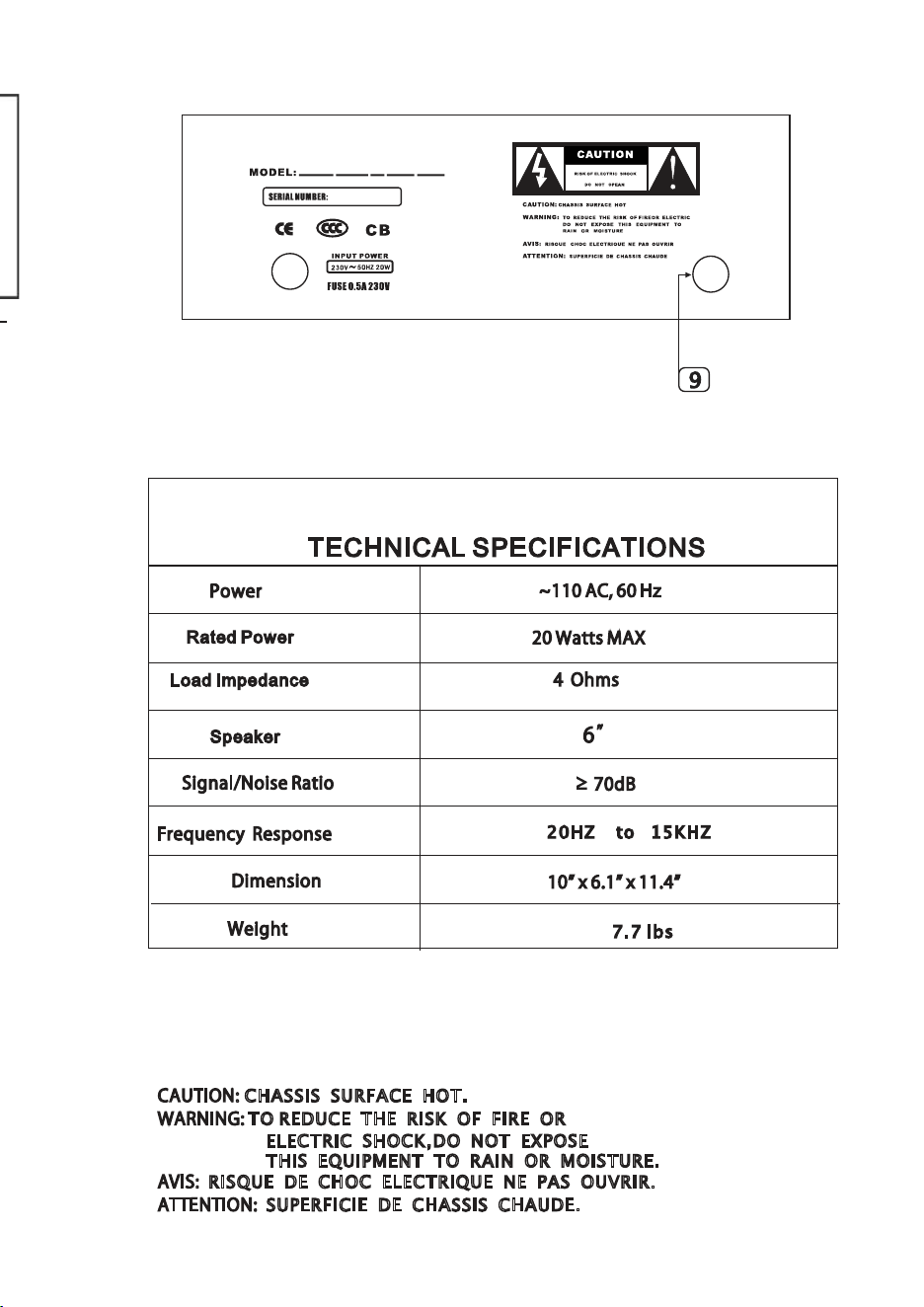

CAUTION:
WARNING:
AVIS:
ATTENTION:
CHASSIS SURFACE HOT.
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK,DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR.
SUPERFICIE DE CHASSIS CHAUDE.
2.VOLUME
This is the overall level control for the
normal channel or overdirve channel.
HEADPHONE
PVAMP20
PVAMP20
