THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.PLEASE READ AND KEEP FOR FUTURE REFERENCE.
USER’S MANUAL
52” Crystal style Ceiling fan
E 24560US
P
Follow Costway
Visit us: www.costway.com
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
E-mail
US:cs.us@costway.com
UK:cs.uk@costway.com
3
Pre-installation-----------------------------------------------------------------------------------------------------------4
Installation of the hanging bracket------------------------------------------------------------------------------------6
Hanging the fan-----------------------------------------------------------------------------------------------------------7
Attaching the fan Blades------------------------------------------------------------------------------------------------8
Care and cleaning -------------------------------------------------------------------------------------------------------9
Troubleshooting---------------------------------------------------------------------------------------------------------10
4
To reduce the risk of electric shock, the electricity
has been turned off at the circuit breaker or fuse
box before begin.
To avoid possible electric shock,
turn the ele c trici t y o ff a t th e ma i n f use box befo r e
wiring.If yo u feel you do not ha v e e n o u g h electric a l
wiring kn o w l e d g e or experience,contact a li c e n s e d
electrician.
WA R NI N G :
The outlet box and support structure must be securely
mounted and capable of reliably supporting
35lb.(15.9kg).Use only UL listed outlet boxes marked
“Acceptable for Fan Support of 35lbs(15.9kg)or less.”
To avoid personal injury or damage to the fan and
other items, please be careful when working around
or cleaning the fan.
5
9.21kg 11kg
3.53cu.ft
20.28lb 24.25lb
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment
from the factory for a lifetime after the date of purchase by the original purchaser.The supplier also warrants that all
other fan parts,excluding any glass or acrylic blades,to be free from defects in workmanship and material at the time
of shipment from the factory for a period of one year after the date of purchase by the original purchaser.We agree to
correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned.To obtain warranty service,you must present a copy of the receipt as proof of purchase.All costs of removing
and reinstalling the product are your responsibility.Damage to any part,such as by accident,misuse,improper
installation or by affixing any accessories ,is not covered by this warranty.Because of varying climatic conditions this
warranty does not cover any changes in brass finish ,including rusting,pitting,corroding,tarnishing or peeling.Brass
finish of this type give their longest useful life when protected from varying weather conditions.A certain amount of
“wobble”is normal and should not be consided a defect.Servicing performed by unauthorized persons shall render the
warranty invalid.There is no other sxpress warranty.hereby di sclaims any and all warranties,including but not limited
to those of merchantability and fitness for a particular purpose to the extent permitted by law.The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specified in the sxpress warranty.Some
states do not allow a limitation on how long an implied warranty lasts,so the above limitation may not apply to you.The
retailer shall not be liable for incidental,consequental,or special damages arising out of or in connection with product
use or perforance except as may otherwise be accorded by law.Some states do not allow the exclusion of incidental or
consequential damages,so the above exclusion or limitation may not apply to you.This warranty gives specific legal
rights,and you may also have other rights which vary from state to state.This warranty supersedes all prior
warranties.Shipping costs for any return of products as part of a claim on the warranty must be paid by the customer.
6

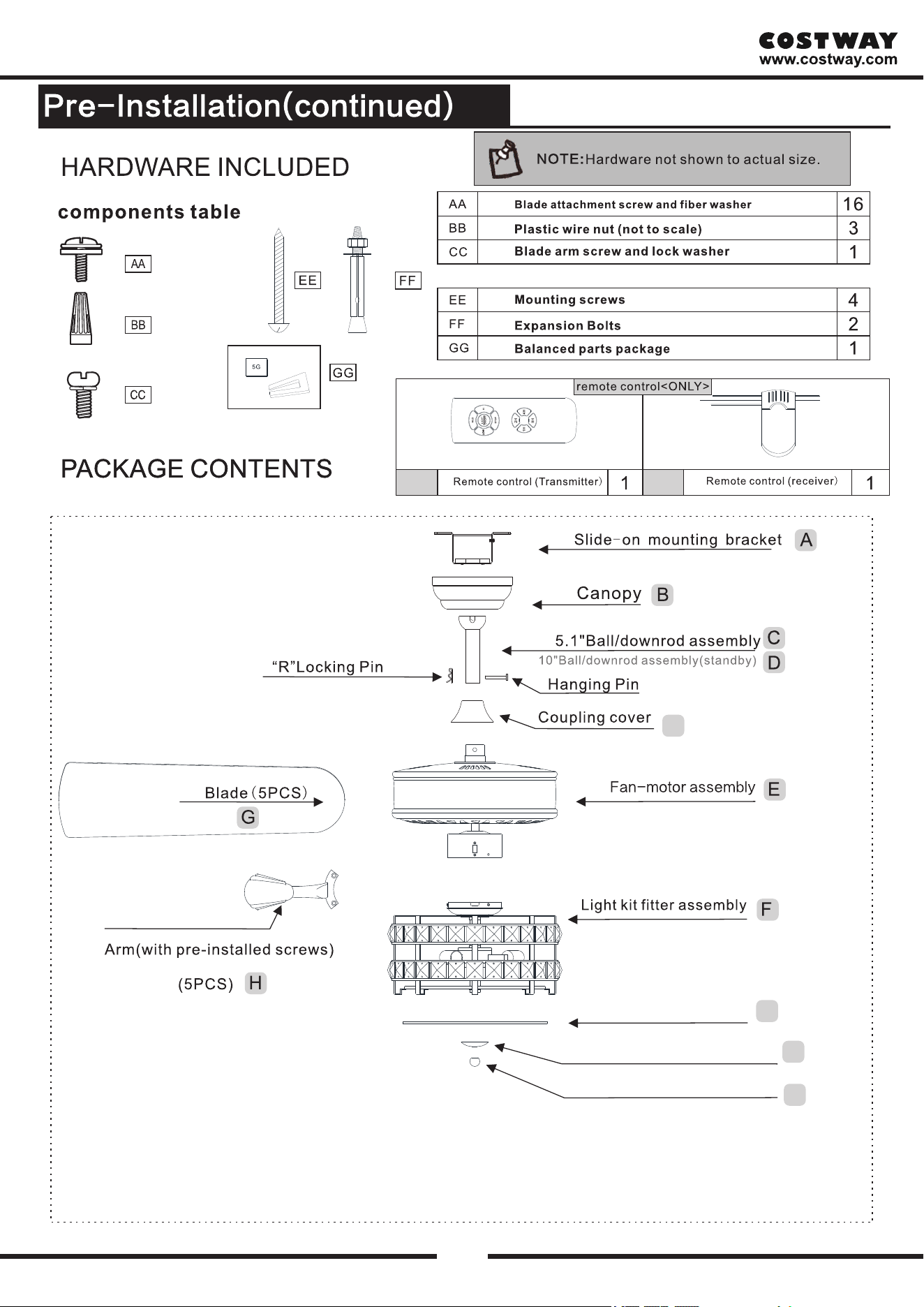

J
Please check whether above accessories are completed or not?Yes,and install.
Sleeving(5pcs)
J
I
K
L M
Hardware decorative cover
Metal ball
7
B
8
bracket.
(no shorter than 12in.).
9

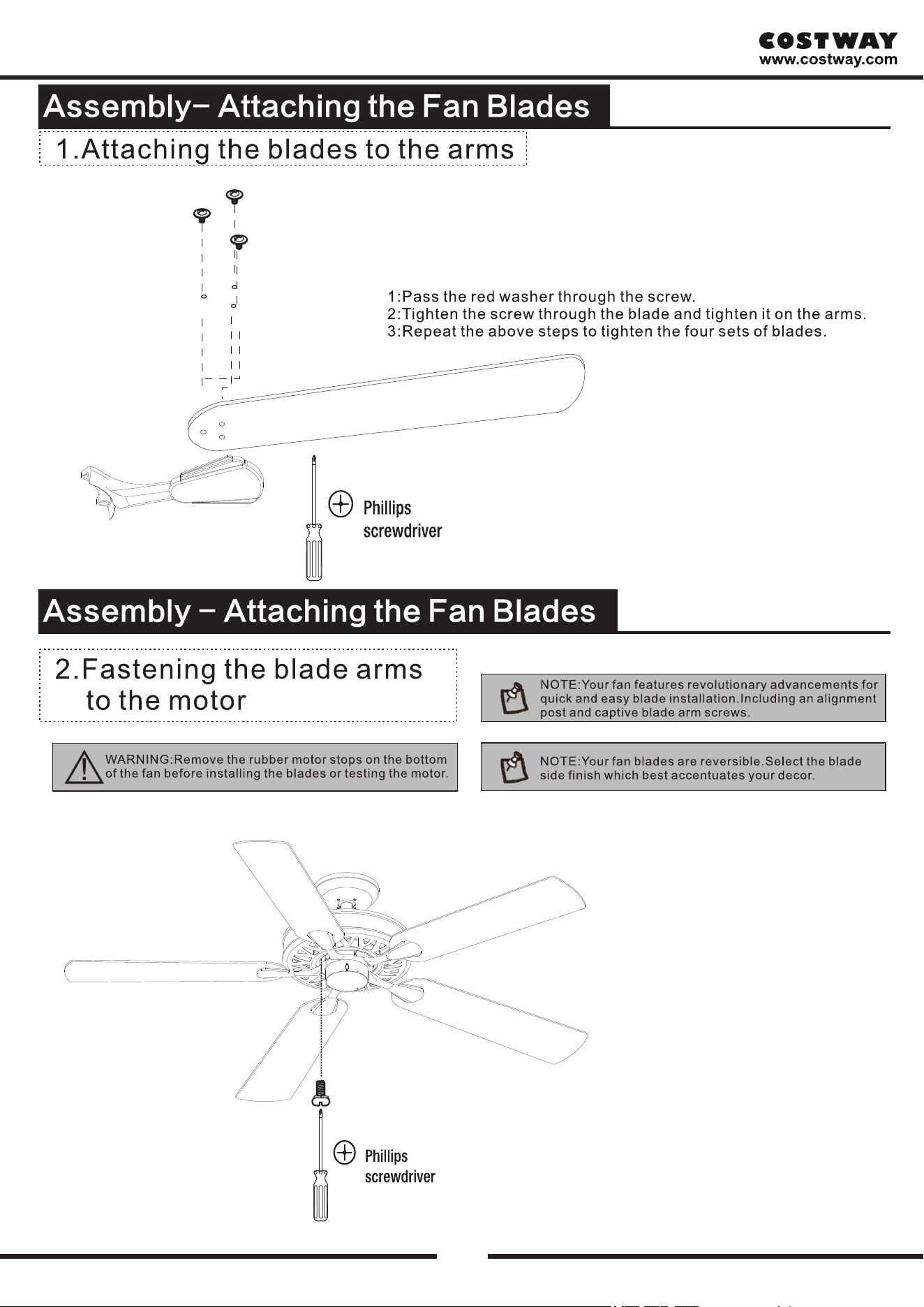

1: Fasten the arm to the fan-motor assembly by
inserting the alignment post in the slot on the
bottom of the motor and tightening the per-
installed arm screws.
2: Repeat this step for the remaining blade assemblies.
910

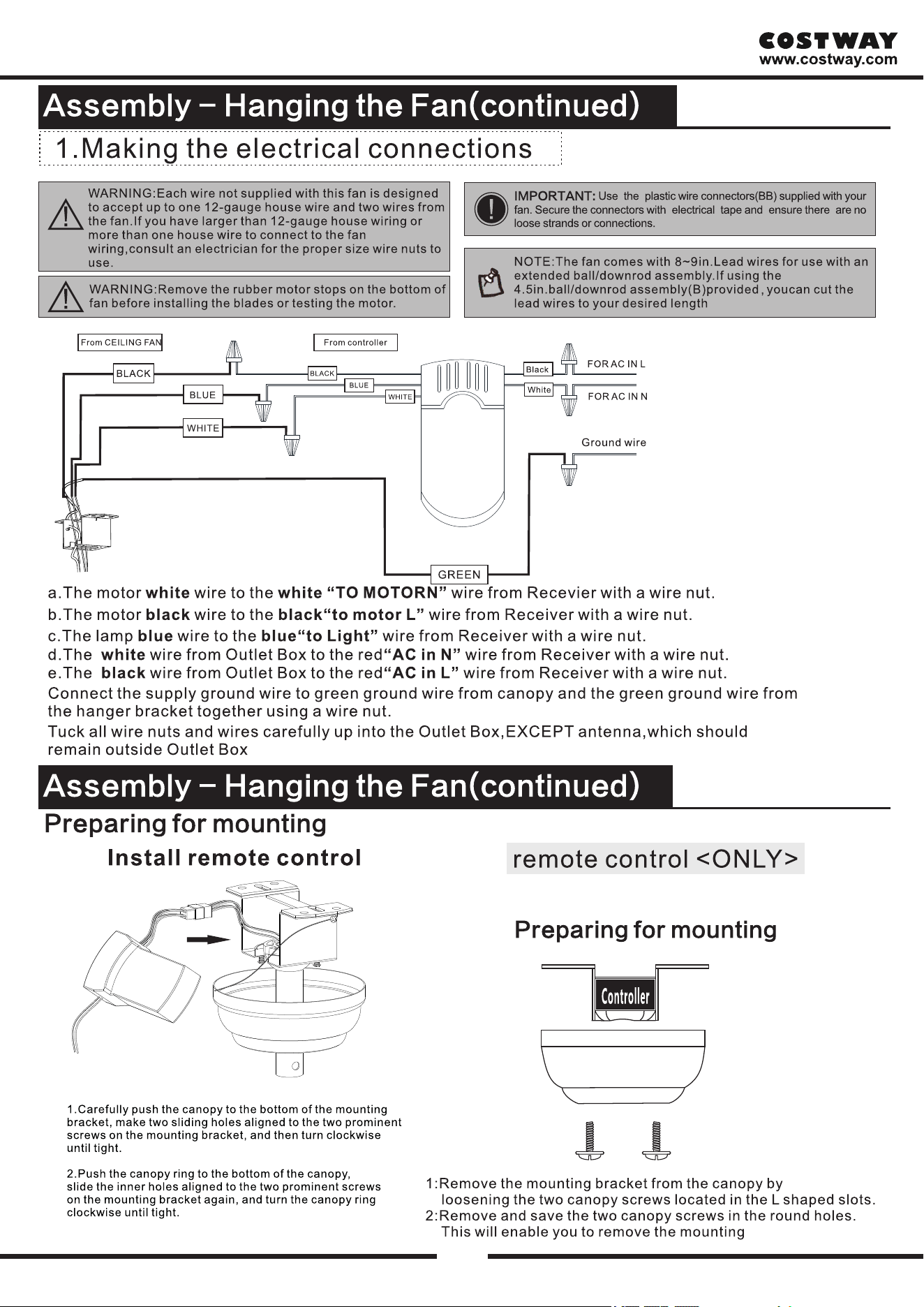

1.Take the wire into the switching box of the motor.
2.Align the opening of switching box of the light at
switch locking position of the positive and negative
rotation of the motors witching box. Place the
cover.Screw in the screw of the switching box.
To reduce the risk of electric shock,
disconnect the elecrtical circuit to the fan
before installing the light fixture.

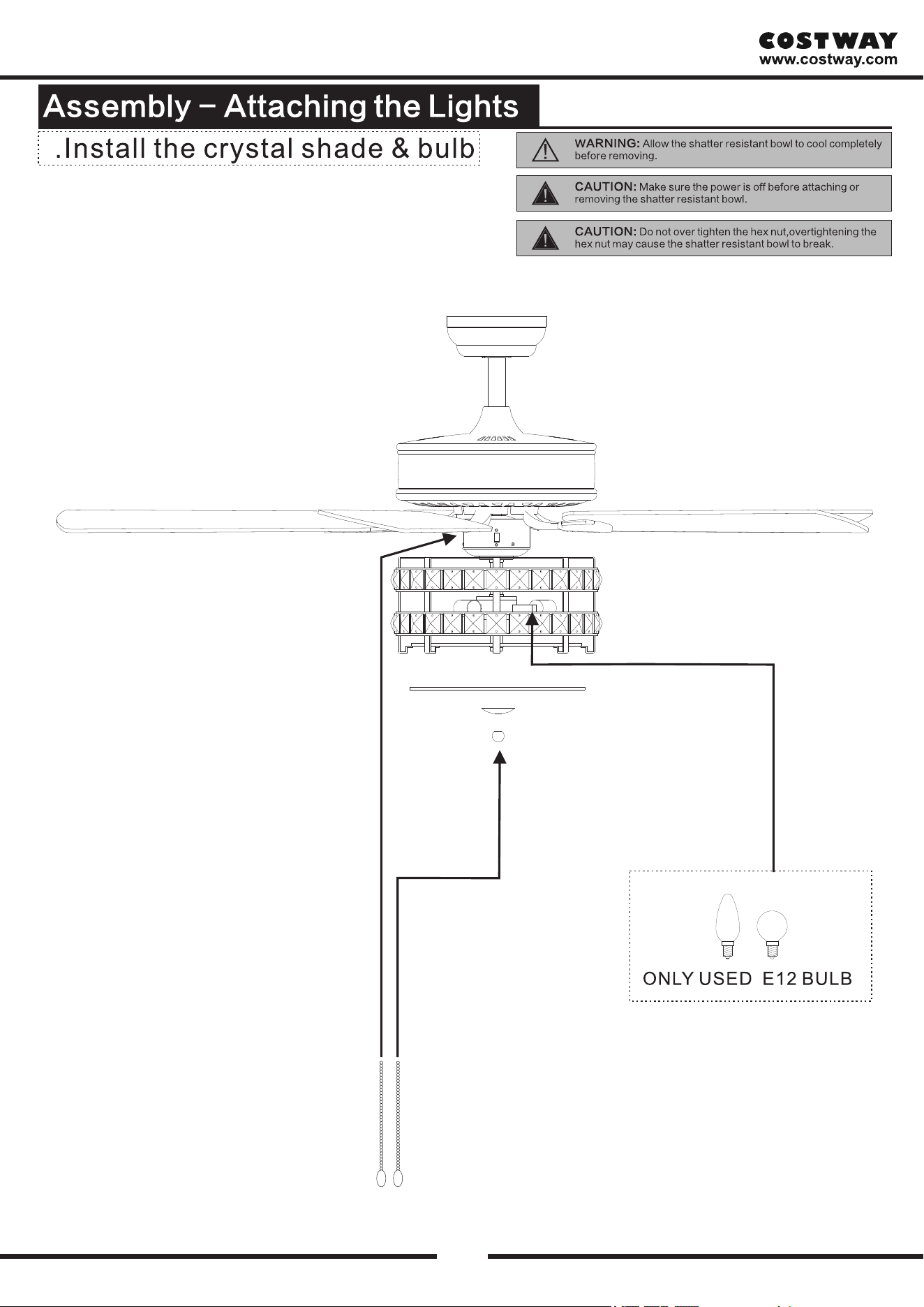

1.Connect the chain to the fan and the light switch.(hand pull chain only)
2.Select the appropriate bulb and install it on the lamp holder.
3.After installing the bulb, put the glass piece into the lampshade,
tighten it with hexagon nut, then cover it with hardware decorative cover,
and finally lock it with hardware ball.
11
Hanging crystal(BIG)
3
12

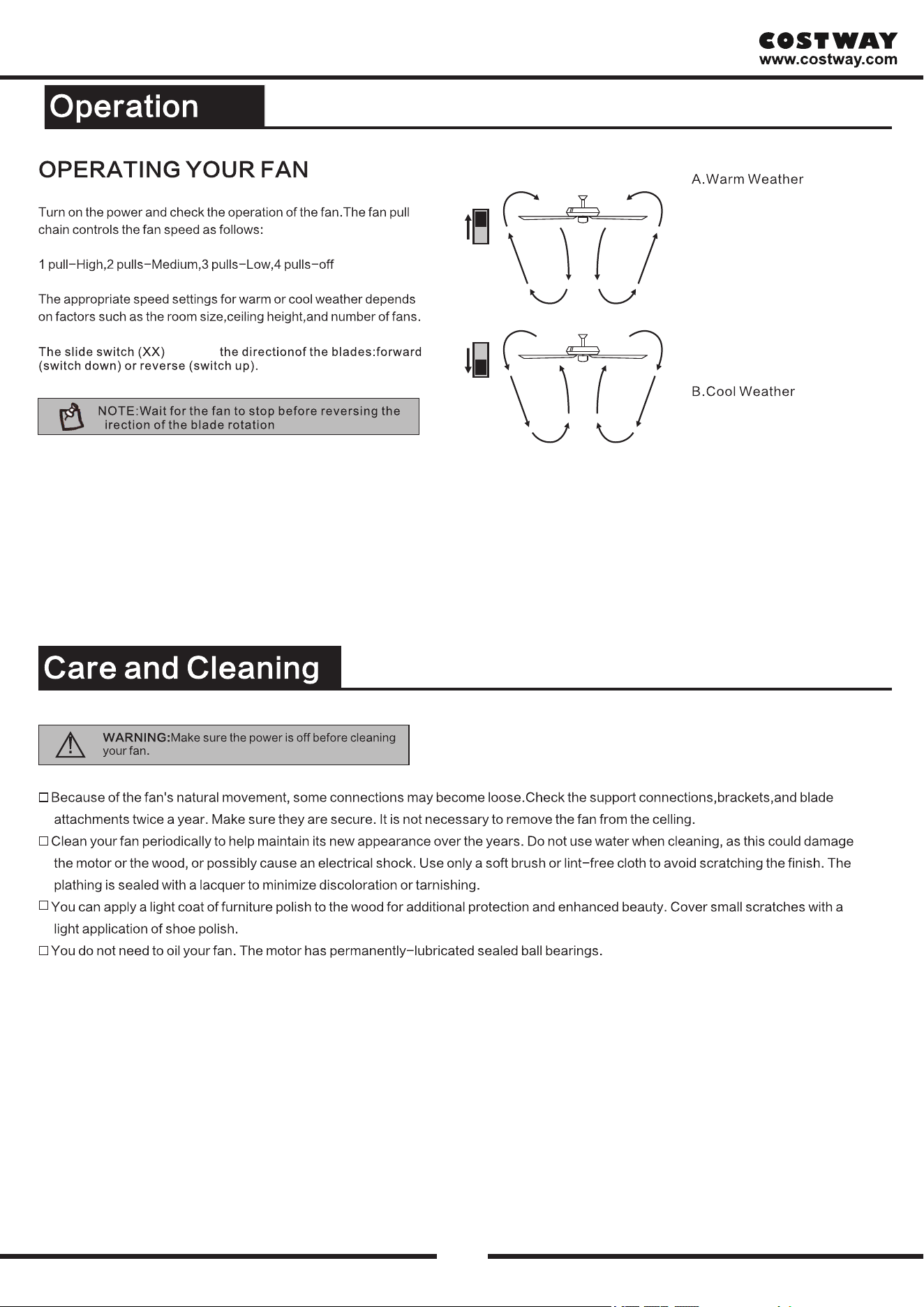

LIGHT ON/OFF
ON/OF F
13
controls
(WINTER TIME)
(SUMMER TIME)
A.warm weather-(Forward) A Downward airflow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
B.Cool weather-(Reverse) An upward airflow moves warm air off the
ceiling.This allows Reverse you to set heating unit on a lower setting
without affecting your comfort.
d
14
The fan will not start.
interior
Repeat for each blade.Any measurement deviation should be within 1/8 in.
Check this level by selecting a point on the ceiling above the tip of ine of the blades.
Most fan wobble problems are caused when blade levels are unequal.
Measure from a point on the center of each blade to the point on the ceiling.Measure this distance.
Check that all blades and bladearm screws are secure.
Rotate the fan until the next blade is positioned for measurement.
Run the fan for ten minutes.if the fan continues to wobble please contact Customer Service and a
balancing kit will be sent to you.
