SELF-PRIMING PISTON PUMP
MODEL NO: TP89
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! DO NOT operate using ammable liquids in a conned space, the area
should have adequate ventilation.
9 If pumping ammable liquids, avoid proximity to naked ames or welding operations.
9 Wear appropriate protective clothing when pumping solvents. We recommend eye/face
and hand protection, available from your authorised Sealey stockist.
9 Ensure Health & Safety, local authority, and general workshop practice regulations are
adhered to when using this equipment.
9 Ensure any spillages are dealt with immediately. Failure to do so could lead to injury.
9 Keep children away from areas where solvents are being used.
2. INTRODUCTION
Self-priming, piston pump tted with anti-drip nozzle and 2”BSP adaptor and dip tube. Suitable for
oils, antifreeze, degreasants and other non-corrosive uids. Unit will deliver 200ml per stroke but by
using the two sleeves supplied, delivery can be limited to 40, 80 or 140ml per stroke. Will t most
containers and drums from 25-205L.
3. OPERATION & ASSEMBLY

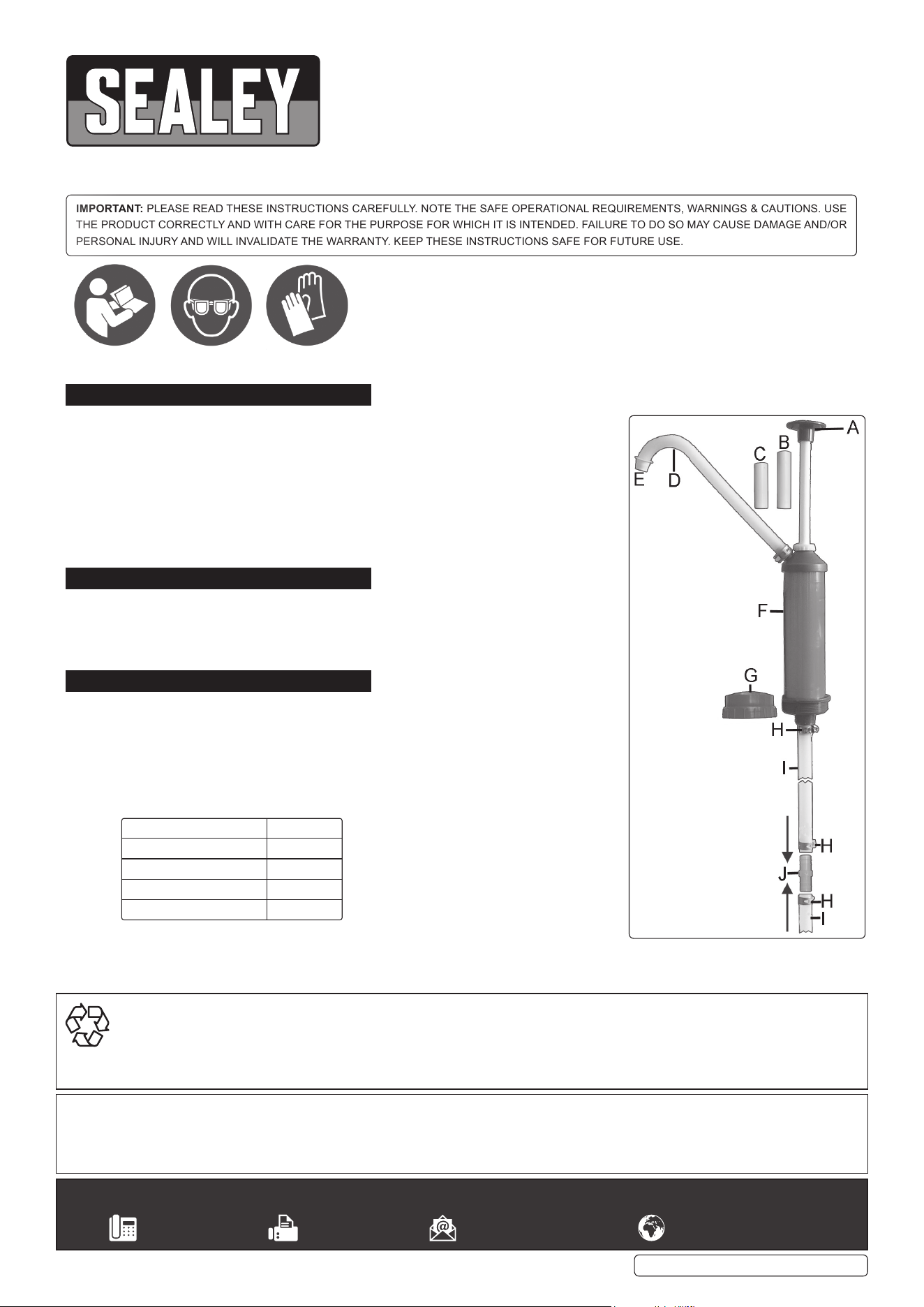

3.1. Attach the extension tubes together with the connector ‘J’ and secure with hose clips ‘H’.
Attach extension tubes to main pump and secure.
3.2. When fitting to 3/4” diameter inlet, unscrew and remove the 2” adapter ‘G’, when using a 2”
inlet replace the adaptor.
3.3. Screw the pump onto the drum/container.
3.4. The pump stroke can be set at 40, 80, 140 or 200ml per stroke using the sleeves provided
‘B/C’. Unscrew the handle ‘A’ and slide the sleeves over the shaft, replace the handle.
Sleeve Combination Per Stroke
No Sleeve 200ml
Small Sleeve (C) 140ml
Long Sleeve (B) 80ml
Both long and short sleeve 40ml
TP89 Issue 2 (HF) 03/06/2021
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
