Operating instructions
AdoraDish V2000
Dishwasher
V-ZUG-Home
Install the app, network your appliances and
benefit from a wide range of useful functions.
Thank you for choosing to buy one of our products. Your appliance is made to high
standards and is easy to use. Nevertheless, please take the time to read these operating
instructions in order to familiarize yourself with the appliance and get the best use out of
it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifications
for the purpose of the further development of the appliances is reserved.
Validity
These operating instructions apply to:
Model designationTypeSize system
AdoraDish V2000 VGAS2T-41163EURO 60
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6302 Zug, 2024
2
3
Contents
1Safety warnings4
1.1Symbols used.........................................................4
1.2General safety precautions..................................4
1.3Appliance-specific safety precautions................5
1.4Instructions for use................................................6
2Using for the first time8
2.1Before using for the first time..............................8
2.2Setting the door weight.........................................8
3Appliance description10
3.1Construction.........................................................10
3.2Operating and display elements......................11
3.3FunctionLight *.....................................................12
4Functions14
4.1Programmes........................................................14
4.2Setting options.....................................................15
4.3Frequently used user settings..........................16
4.4EcoManagement.................................................16
5Loading16
5.1Loading tips for the lower basket....................17
5.2Loading tips for the upper basket...................23
5.3Hints on loading the cutlery drawer *..............28
6Operation30
6.1Dish washing tips................................................30
6.2Selecting detergent.............................................30
6.3Adding the detergent.........................................31
6.4Operating the display.........................................32
6.5Selecting and starting a programme..............33
6.6Adding extra dishes............................................34
6.7Aborting a programme before time.................34
6.8Unloading dishes................................................35
7Programme options36
7.1Delayed start........................................................36
7.2Programme in permanent mode......................37
7.3Favourites.............................................................38
7.4Permanently selecting setting options............39
7.5Childproof lock....................................................40
7.6All in 1...................................................................41
7.7Wipe protection...................................................41
7.8EcoManagement.................................................42
7.9Information...........................................................42
8V-ZUG-Home42
8.1Conditions............................................................43
8.2Initial set-up..........................................................43
9User settings44
9.1Changing the user settings...............................44
9.2Overview of user settings..................................44
10Demo mode47
10.1General information............................................47
10.2Switching on.........................................................47
10.3Switching off.........................................................48
11Care and maintenance48
11.1Cleaning the interior and exterior....................48
11.2Cleaning the spray arms...................................49
11.3Cleaning the filter system..................................50
11.4Refilling with regeneration salt.........................51
11.5Filling with rinse agent.......................................53
12Trouble-shooting53
12.1Error messages...................................................53
12.2Other possible problems...................................55
12.3Unsatisfactory washing results.........................56
12.4In the event of a power failure..........................57
13Accessories and spare parts58
14Technical data59
14.1Safety concept.....................................................59
14.2Overflow protection.............................................59
14.3Note for testing institutes...................................60
14.4Noise measurement...........................................60
15Disposal60
16Index62
17Service & Support67
4
1 Safety warnings
1.1 Symbols used
Unauthorized repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot ac-
cept liability. Repairs should only be
undertaken by an authorized ser-
vice technician, otherwise any sub-
sequent damage will not be
covered by the warranty.
Denotes important safety precau-
tions.
Failure to observe said precautions
can result in injury or in damage to
the appliance or fittings!
Information and precautions that
should be observed.
Information on disposal
Information about the Operating In-
structions
Remove plug from mains socket /
disconnect power supply
Insert plug into mains socket / con-
nect power supply
Do not cut off or modify mains plug
Wear protective gloves
Before connecting the appliance
ensure that the installation is de-
signed for appliances with a rated
current of over 13A. If you are un-
sure, consult an authorized electri-
cian.
▸Indicates step-by-step instructions.
– Describes how the appliance reacts
to the steps taken.
▪ Indicates a list.
1.2 General safety precautions
▪ Read the operating instruc-
tions before using the appli-
ance for the first time.
▪ This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experi-
ence and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪ If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
1 Safety warnings
5
ently installed electrical install-
ation in accordance with the
installation regulations.
▪ If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.
1.3 Appliance-specific safety
precautions
▪ Under no circumstances use
a steam cleaner to clean this
appliance.
▪ Ensure that any ventilation
openings in the base of the
appliance are not obstructed
by carpet.
▪ Only leave the appliance door
open in the at-rest position.
Do not leave the appliance
door open as it can pose a
risk – danger of tripping and
bruising! Do not sit or lean on
the appliance door. Do not
place any objects on the ap-
pliance door.
▪ CAUTION: Knives and other
objects with sharp points
must be placed into the bas-
ket with the points facing
downwards or be laid down
horizontally in the basket.
▪ CAUTION: Do not drop or in-
sert any knives, forks or other
pointed objects into the door
lock opening.
▪ Ensure no cleaning agent
gets into the opening of the
door lock. This can cause the
door lock to malfunction.
▪ The appliance is only suitable
for washing household dishes
and cutlery with water and
standard dishwasher deter-
gent. The appliance is for use
in the home and for the inten-
ded purpose only. No liability
is assumed for any damage
caused by improper or incor-
rect use.
▪ Capacity: 13 or 14 interna-
tional place settings (with cut-
lery drawer *).
*Depending on model
▪ This appliance is intended for
use in the home and similar
settings such as: in staff kit-
chens in shops, offices and
other commercial establish-
ments; in agricultural estab-
lishments; by guests in hotels,
motels and other accommod-
ation establishments; in bed
and breakfast establishments.
1 Safety warnings
6
1.4 Instructions for use
Switching off the power to the appli-
ance disables the built-in overflow
protection system.
Dishwasher detergents are strongly
alkaline. They can be extremely
dangerous if swallowed. Avoid con-
tact with the skin and eyes and keep
children away from the dishwasher
when the door is open. Check that
the detergent receptable is empty
after completion of the wash cycle.
Before using for the first time
▪ The appliance must be installed and
connected to the electricity supply in
accordance with the separate installa-
tion instructions. Have a qualified fitter/
electrician carry out the necessary
work.
The appliance was tested with water
before being shipped. There may
therefore still be traces of water left
in the appliance.
Correct use
▪ Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its Cus-
tomer Services or a similarly qualified
person. Repairs if carried out incorrectly
may cause serious injury, damage to
the appliance and fittings, as well as af-
fect the functioning of the appliance. If
the appliance is not working properly or
in case a repair is needed, follow the in-
structions given in the «Service & Sup-
port» section. If required, please contact
our Customer Services.
▪ Retain these operating instructions for
future reference.
▪ Any work carried out by an unauthor-
ized service provider as well as the use
of spare parts other than the original
spare parts void the obligations under
the warranty.
Children in the home
▪ The water in the appliance is not to be
used as drinking water. Detergent
residue in the appliance could cause
eye or skin irritation! Keep children
away from the open appliance.
Note on use
▪ Use the childproof locking facility (see
page 40).
▪ If the appliance is visibly damaged, do
not use it. Contact our Customer Ser-
vices.
▪ If the appliance is not functioning prop-
erly, disconnect it from the power sup-
ply immediately.
▪ Before closing the appliance door and
starting a programme ensure that there
are no foreign objects or pets in the ap-
pliance. Foreign objects such as nails
and paper clips can damage parts of
the appliance as well as the dishes.
▪ Only use detergent, rinse agent and re-
generation salt explicitly recommended
for use with dishwashers by the manu-
facturer in its instructions for use. Fol-
low the corresponding instructions for
use carefully.
▪ Do not use the appliance without any or
too little detergent – risk of causing
damage to the appliance!
▪ Do not use washing-up liquid as it can
produce excessive foaming, causing
your appliance to malfunction.
▪ After filling the salt reservoir, run the
programme without dishes. The
first time you do this, add approx. 1litre
of water to the salt reservoir.
▪ Never fill the rinse agent reservoir or
the regeneration salt reservoir with de-
tergent. If this were to happen, however,
do not operate the appliance under any
circumstances, as this could cause ex-
pensive damage to it. Call Customer
Services.
▪ Never operate the appliance without the
filter system in place.
1 Safety warnings
7
▪ Only use soft materials for cleaning be-
neath the filter system. Never use metal
objects.
Caution: Risk of burns!
▪ Do not wash objects that are soiled with
inflammable or corrosive solvent, paint,
wax, chemicals (acids or bases) or iron
chippings or that can shed fibres in the
appliance.
▪ Avoid opening the appliance door unne-
cessarily during operation. The dishes
and water may be hot – scalding haz-
ard! The steam that escapes could
damage wooden combination fascias.
Spectacles can steam up, impairing
your vision.
Caution: Risk of injury!
▪ Do not lean on any part of the appli-
ance – risk of accident!
▪ Keep pets away from the appliance.
Caution: Risk to life!
▪ Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren. Danger of suffocation! Keep pack-
aging material away from children.
▪ When carrying out maintenance work
on the appliance, including replacing
light bulbs, cut off the electricity supply
to the appliance: remove the screw fuse
from the holder or switch the circuit
breaker off, or unplug from the mains
socket.
How to avoid damaging the appliance
▪ Turn off the water tap during longer ab-
sences.
▪ Do not exceed the maximum loading
weight for the lower basket, upper bas-
ket and cutlery drawer.
▪ Please note: The appliance must always
be connected to the mains supply to
ensure appliance protection (overflow
protection, among other things).
▪ Transport the appliance in an upright
position only! Transporting it in any
other position will result in damage to
the appliance! When carried carefully
without being shaken, the appliance
may be tilted a maximum of 90° to the
right (viewed from the front).
Front
2 Using for the first time
The appliance must be installed and connected to the electricity supply by a quali-
fied fitter/electrician in accordance with the separate installation instructions.
2.1 Before using for the first time
Before operating the newly installed appliance for the first time, the following steps
should be taken:
▸Switch on the power and turn on the water tap.
▸Set the water hardness
in the user settings (see page 44).
▸Fill the salt reservoir with approx. 1.0l water before adding 1kg standard regenera-
tion salt.
▸Wipe away any excess salt around the edge of the salt reservoir.
▸Fill the rinse agent reservoir with rinse agent.
▸Run «Pre-rinsing»
without dishes to protect the appliance from corrosion from any
excess salt.
▸Select (see page 30) and add (see page 31) the detergent.
▸Run the «Intensive»
programme without dishes to remove traces of grease left be-
hind from the manufacturing process.
▸Close the appliance door to start the programme.
The refill indicator can flash during the first few wash cycles. goes out when
the salt concentration in the reservoir is evenly distributed.
2.2 Setting the door weight

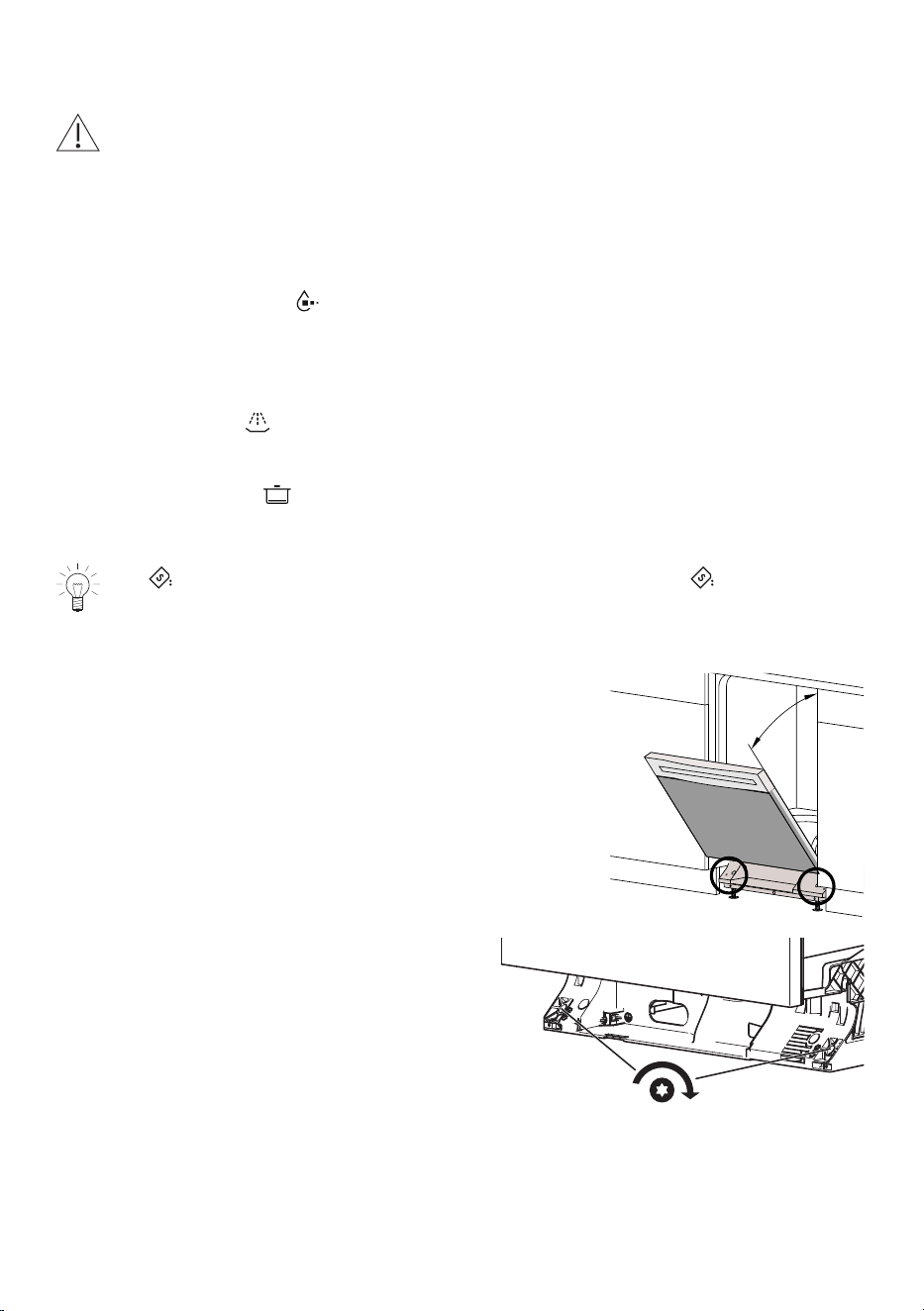

▸Open the appliance door approx. 30°
and check that it stays in this position.
30˚
▸If the appliance door opens further:
close the appliance door, tighten the
screws slightly and check the adjust-
ment again.
T25
8
2 Using for the first time

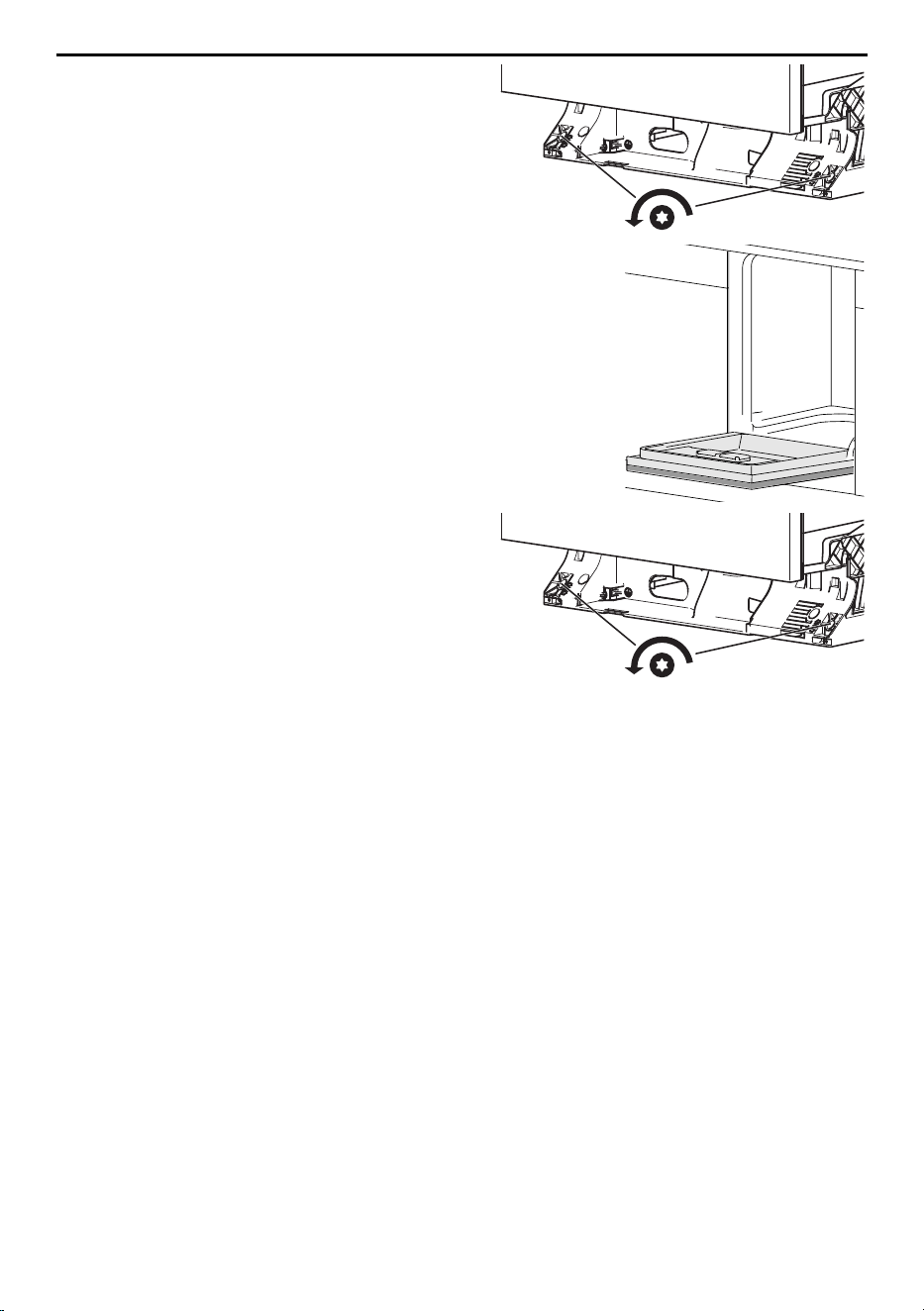

▸If the appliance door closes further:
close the appliance door, loosen the
screws slightly and check the adjust-
ment again.
T25
▸Open the appliance door as far as it will
go and check that it stays in this posi-
tion.
▸If the appliance door closes further:
close the appliance door, loosen the
screws slightly and check the adjust-
ment again.
T25
If no satisfactory adjustment can be achieved after performing these steps, the springs
must be changed.
▸Contact Customer Services.
9
3 Appliance description
3 Appliance description

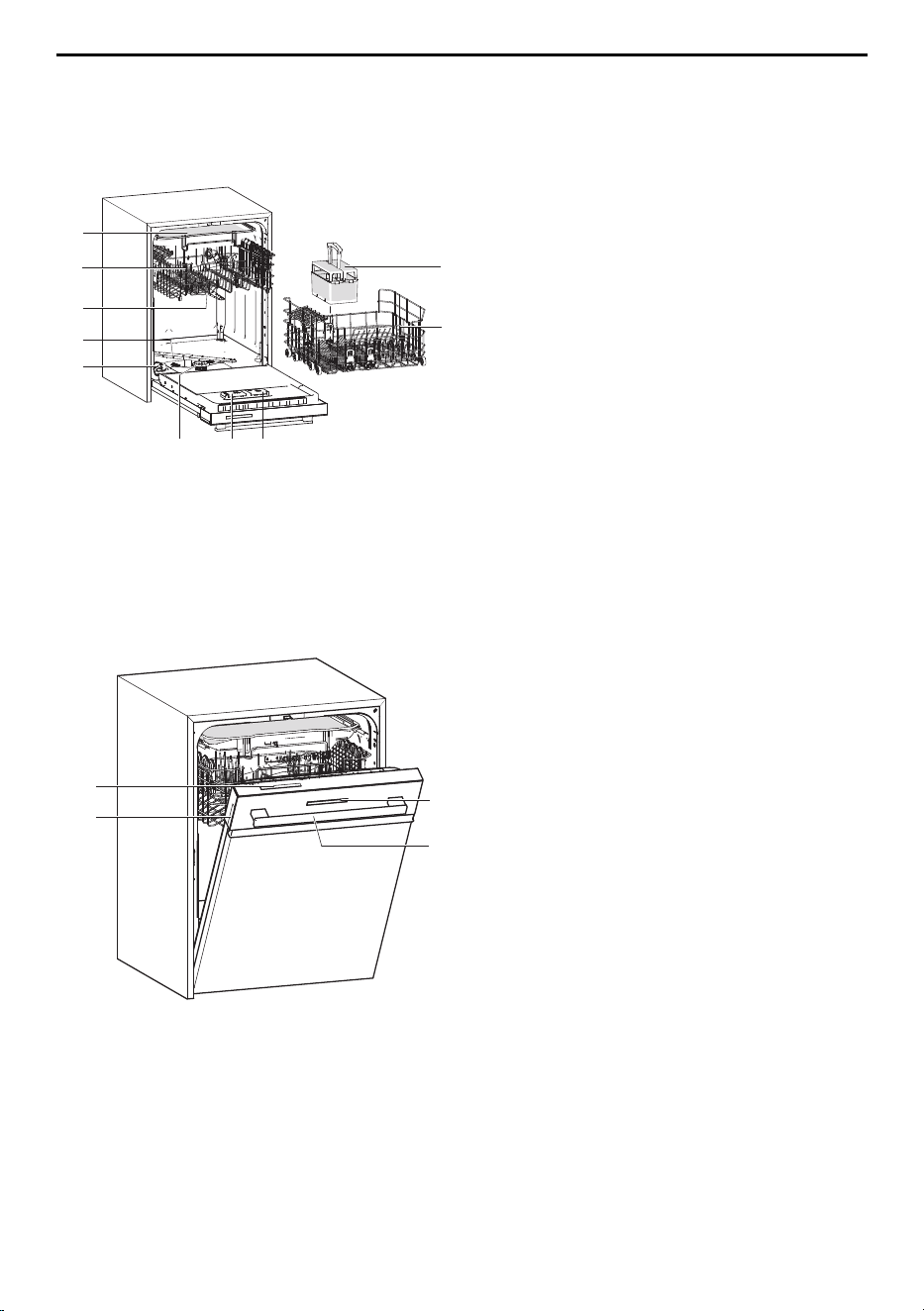

3.1 Construction
Interior
9
3
4
5
6
7
8
2
2
1
1
Upper basket
2
Spray arms
3
Lower basket
4
«Large» cutlery basket *
5
Rinse agent reservoir
6
Detergent dispenser
7
Salt reservoir
8
Filter system
9
Cutlery drawer *
* Depending on model
Appliance door
For fully integrated models, the operating and display elements are located on the top of
the appliance door.
For design integrated models, the operating and display elements are located on the
top and a plain text display on the outside of the appliance door.
11
12
13
14
11
Plain text display on glass panel *
12
Door handle
13
FunctionLight *
14
Operating and display elements
* Depending on model
10
3 Appliance description
3.2 Operating and display elements
Main menu
2
5
2
1
A
3
4
ButtonsDisplay
1
Programmes (see page 14)
A
V-ZUG-Home
2
Navigation elements
3
EcoManagement (see page 16)
4
Frequently used user settings (see page 16)
5
Other user settings (see page 44)
Programme selected
Intensive
1h45
60°
e
C
E
A B
1
2D
ButtonsDisplays
1
Back arrow button
A
Programme symbol
2
Setting options (see page 15)
B
Programme name
C
Programme time
D
Temperature
E
Selected setting options
11
3 Appliance description
Button state
C
A
B
D
A
Non-selectable functions
B
Function selected
C
Selectable functions
D
Non-selectable navigation elements
Action elements
Increase value
Decrease value
User setting activated
User setting deactivated
Cancel entry, confirm message
Start permanent mode programme, empty storage tank
Navigation elements
Go back to the previous menu
Display other functions in the menu
Display other functions in the menu
Display other selection options in the menu
3.3 FunctionLight *
* Depending on model
Colour of LED displays
DarkOrangeWhite
Dimmed orangeDimmed white
12
3 Appliance description
Programmes

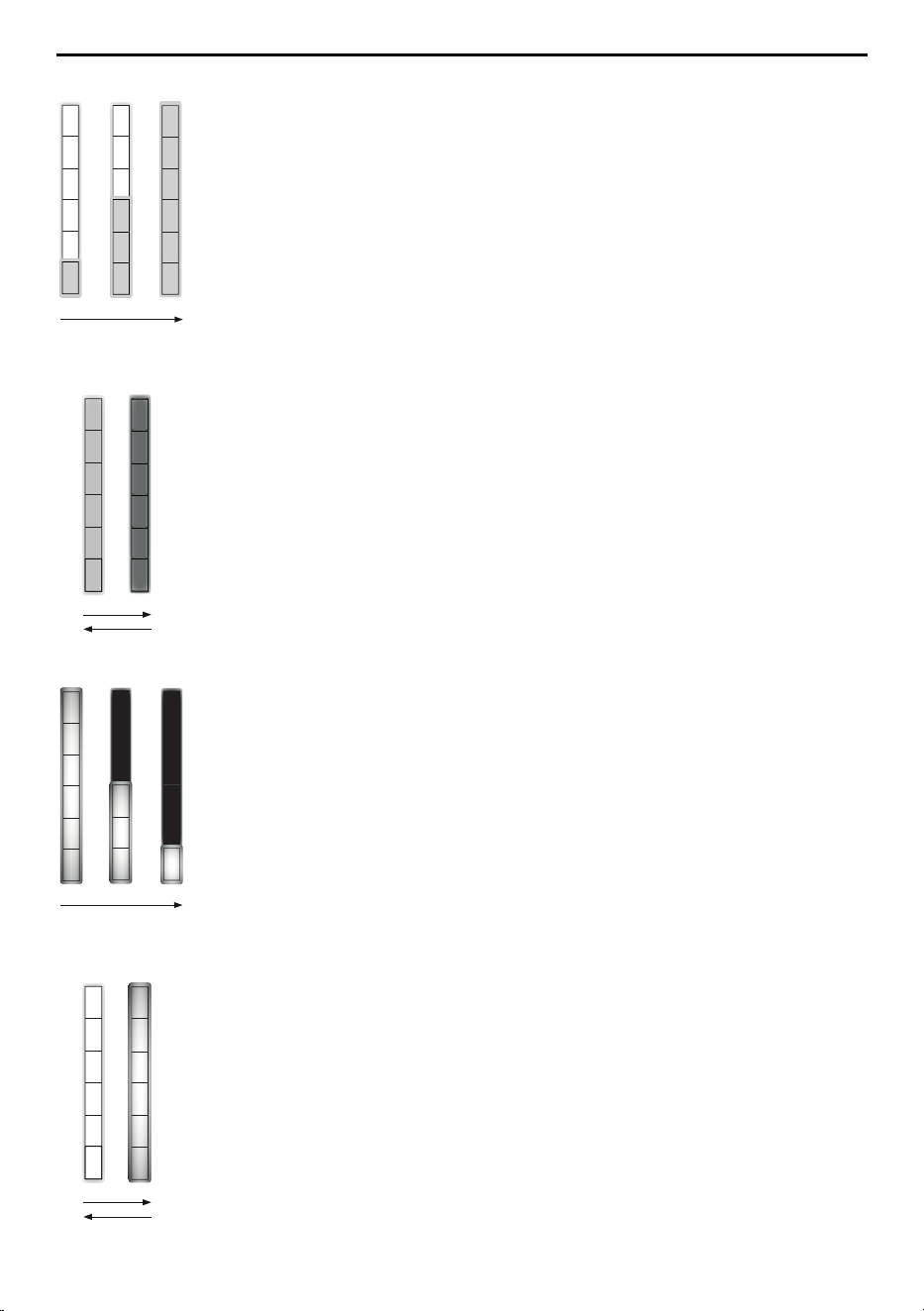

The progress display provides information about the progress of a pro-
gramme. The more LEDs illuminate orange, the less remaining time is
left. All 6 LEDs illuminate orange when a programme ends.
Final drying phase
During the final drying phase, all 6 LEDs illuminate orange and pulsate
between dimmed and undimmed.
Delayed start
When the appliance door is closed and a delayed start is started, all 6
LEDs illuminate dimmed white.
Programme-independent appliance reactions
In the case of the following appliance reactions, all 6 LEDs illuminate
white and pulsate between dimmed and undimmed:
▪ Aborting programmes, delayed start
▪ Pumping off
13
4 Functions
Error messages
In the event of A/F/U messages, the bottom 3 white LEDs and the top
3 white LEDs flash alternately.
4 Functions
4.1 Programmes
Consumption values
The programme time (h), water consumption (l) and energy consumption (kWh) are in-
dicative values. The values can also vary according to the selection of additional func-
tions, the load, the degree of soiling of the load, the type and amount of detergent, the
water inlet temperature, the electrical connection and specific programme sequences
(e.g. regeneration).
The programme time, water consumption and energy consumption can be re-
duced by selecting the «Energy saving»
setting option.
Programme times
The stated values exclude the final drying time.
EcoProgramme phasesConsumption values
The most efficient programme in
terms of water and energy con-
sumption for washing normally
soiled dishes (declaration pro-
gramme).
▪ Cleaning: 45°C
▪ Intermediate rinsing
▪ Rinsing with rinse
agent: 40°C
▪ Drying
▪ 2h20
▪ 11.4l
▪ 0.58kWh
AutomaticProgramme phasesConsumption values
Optimum cleaning results with min-
imal water and energy consump-
tion. For normal soiling. Not suit-
able for burned-on or heavily dried-
on soiling.
▪ Pre-rinsing (if required):
cold
▪ Cleaning: 50–60°C
▪ Intermediate rinsing (if
required)
▪ Rinsing with rinse
agent: 55 °C
▪ Drying
▪ 1h00–1h50
▪ 8–20 l
▪ 0.7–1.25 kWh
14
4 Functions
QuickProgramme phasesConsumption values
For lightly soiled dishes. ▪ Cleaning: 45°C
▪ Intermediate rinsing
▪ Rinsing with rinse
agent: 55 °C
▪ Drying: Quick
▪ 0h39
▪ 11l
▪ 0.8 kWh
IntensiveProgramme phasesConsumption values
For heavy soiling. Particularly suit-
able for starchy soiling (e.g.
mashed potato, rice).
▪ Pre-rinsing: cold
▪ Pre-rinsing (if required):
35 °C
▪ Cleaning: 65 °C
▪ Intermediate rinsing
▪ Rinsing with rinse
agent: 60 °C
▪ Drying
▪ 1h37–1h50
▪ 18–23 l
▪ 1.3–1.5 kWh
GlassProgramme phasesConsumption values
Gentle programme for glasses. ▪ Cleaning: 45 °C
▪ Intermediate rinsing
▪ Rinsing with rinse
agent: 55 °C
▪ Drying
▪ 0h44–0h50
▪ 11l
▪ 0.8 kWh
Machine careProgramme phasesConsumption values
Appliance is rinsed hygienically
clean. Before starting the pro-
gramme, empty the appliance,
clean the filter system and add
standard dishwasher cleaner as per
the instructions on the packaging.
▪ Cleaning: 70 °C
▪ Intermediate rinsing
▪ Rinsing with rinse
agent: 60 °C
▪ Drying
▪ 1h17–1h47
▪ 15l
▪ 1.35 kWh
Pre-rinsingProgramme phasesConsumption values
Prevents soiling drying on if intend-
ing to start a programme later.
▪ Pre-rinsing: cold▪ 0h07–0h09
▪ 4l
▪ 0.05 kWh
4.2 Setting options
Energy saving
The wash temperature is reduced by 5 °C, lowering energy consumption by approx. 10
%. The programme time is shortened slightly. «Energy saving» is also gentle on glasses.
Partial load
For a small load of dishes. The amount of water used is reduced by up to 6l and the
programme time is shortened by up to 36minutes.
15
5 Loading
Delayed start
The delayed start allows you to wash during off-peak hours (e.g. at off-peak electricity
rates). A delayed start of between 30 minutes and 24 hours can be set.
RinsePlus
The cleaning effect is improved through additional rinsing cycles and an extended clean-
ing phase. If RinsePlus is turned on, the amount of water used with each programme is
increased. This extends the programme time.
DryPlus
The temperature of both the final rinse and the SteamFinish are increased and the dry-
ing time is extended.
4.3 Frequently used user settings
Childproof lock
The «Childproof lock» user setting prevents a programme from being started accident-
ally. The code is set at the factory and cannot be changed.
All in 1
The «All in 1» user setting adapts the programme ideally for use with detergent with in-
tegrated salt and rinse agent function. Combination cleaning agents are not suitable for
all degrees of water hardness (see page 31).
Wipe protection
The operating panel is locked briefly, e.g. for cleaning purposes.
4.4 EcoManagement
EcoManagement
Only active if «EcoManagement» is turned on in the user settings (see page 44).
EcoManagement provides information on the energy consumption
and water con-
sumption
of the appliance and supports the sustainable use of energy. The following
consumption information can only be retrieved when no programme is running:
▪ Energy and water consumption of the last programme
▪ Average energy and water consumption of the last 25 programmes
▪ Total energy and water consumption
The energy and water consumption of a programme is displayed during programme se-
lection. At the end of a programme, the energy and water consumption of the last pro-
gramme run is displayed.
The values can vary according to programme, load, additional functions and user set-
tings.
5 Loading
16
5 Loading
Check that the spray arms can rotate freely.
Moving parts
All light-coloured parts trigger a movement.
5.1 Loading tips for the lower basket
Overloading the basket can damage the appliance!
Do not exceed the maximum loading weight for the lower basket of 21kg.
Large items
▸Load deep plates and lids on the right.
Rack use
The racks can be folded down to create more loading area.
17
5 Loading

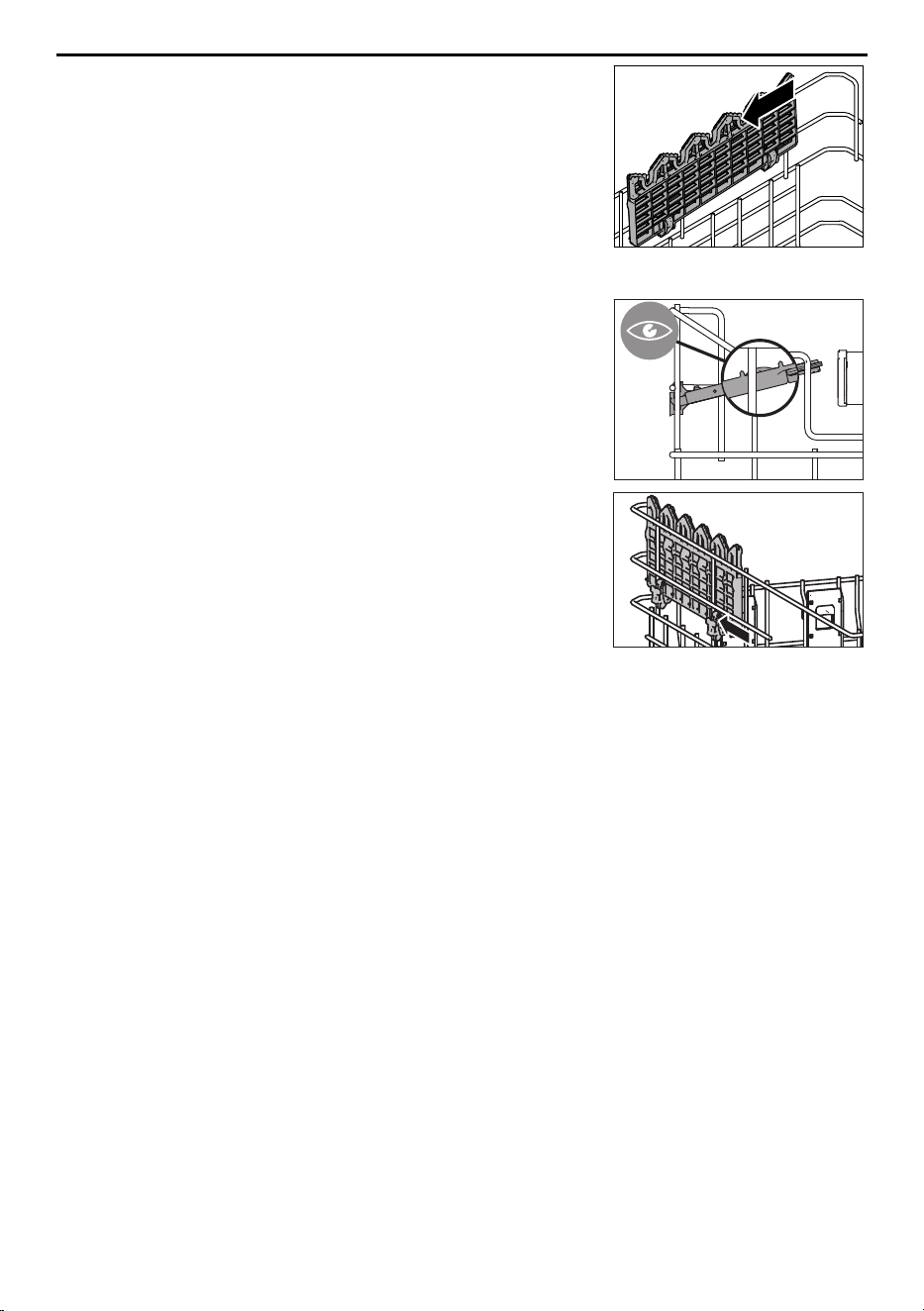

Tall and long-stemmed glasses
Load tall and long-stemmed glasses on the left-hand side of the basket.

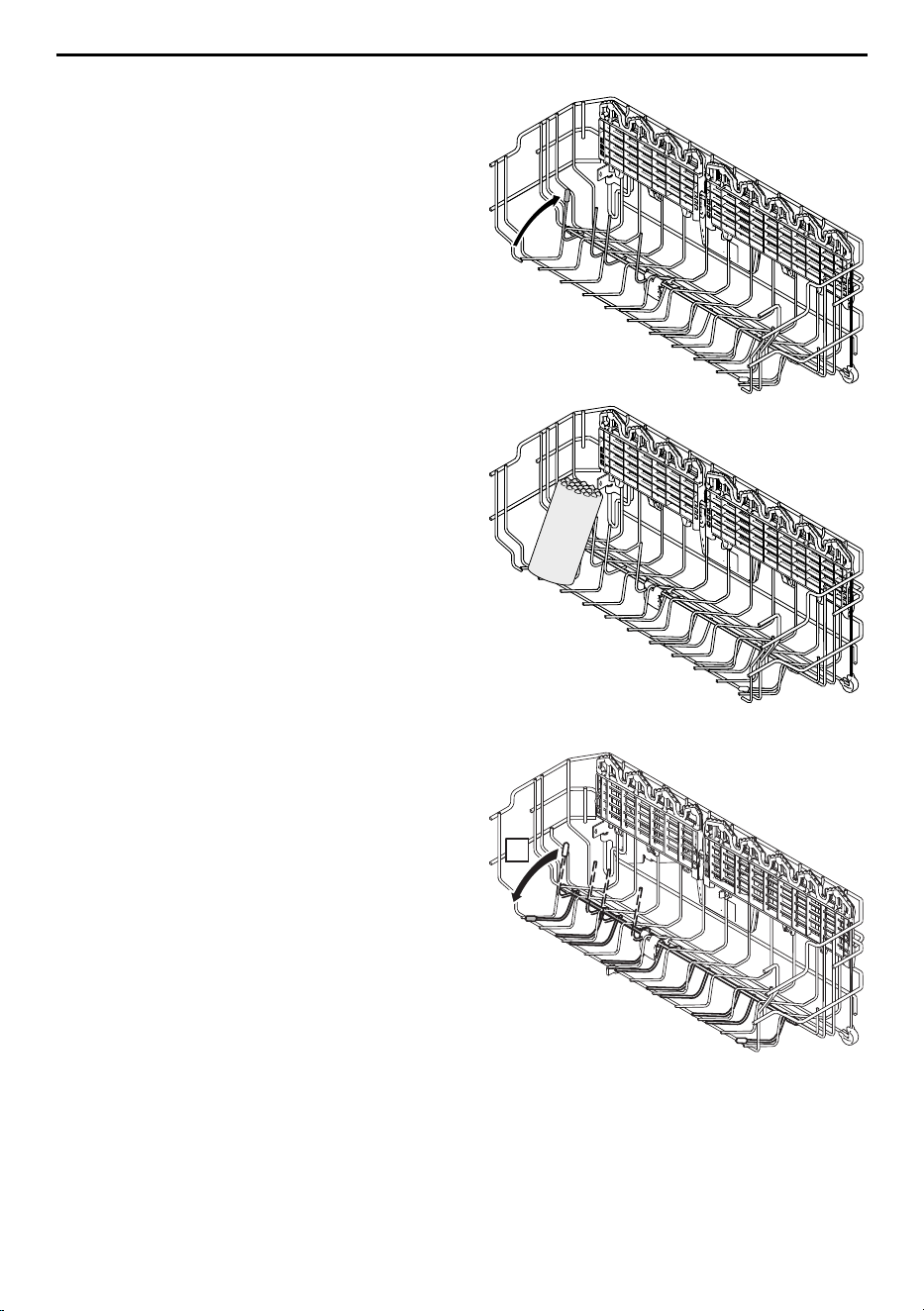

▸Pull up the button at the side for the fold-
down tines 1.
▸The row of fold-down tines folds down at
an angle.
1
▸Fold the rack down.

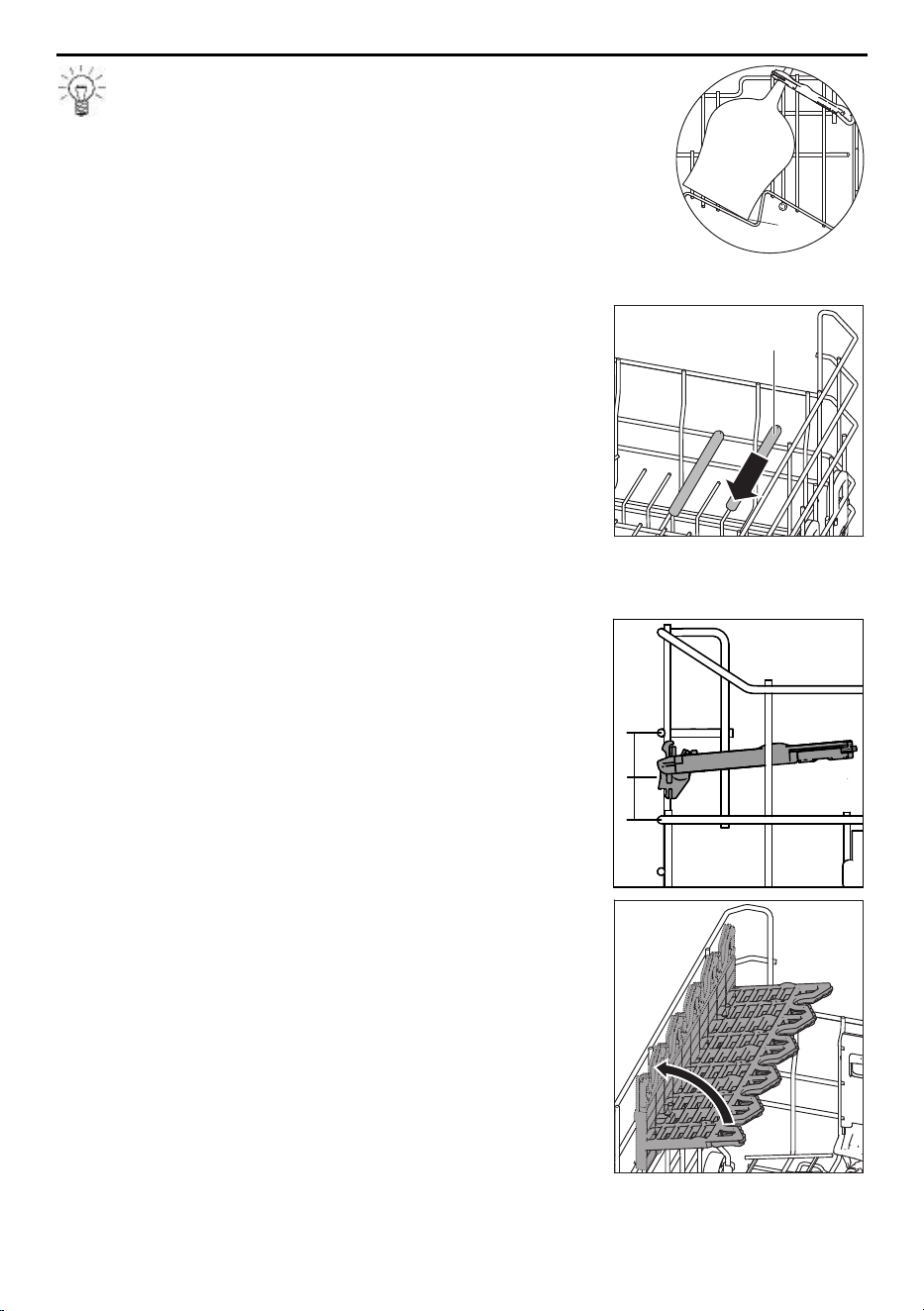

▸Adjust the height of the rack:
▸lower position: press the white tabs on
the rack holder and push the rack down-
wards until it engages.
▸upper position: push the rack upwards
until it engages.
18
5 Loading

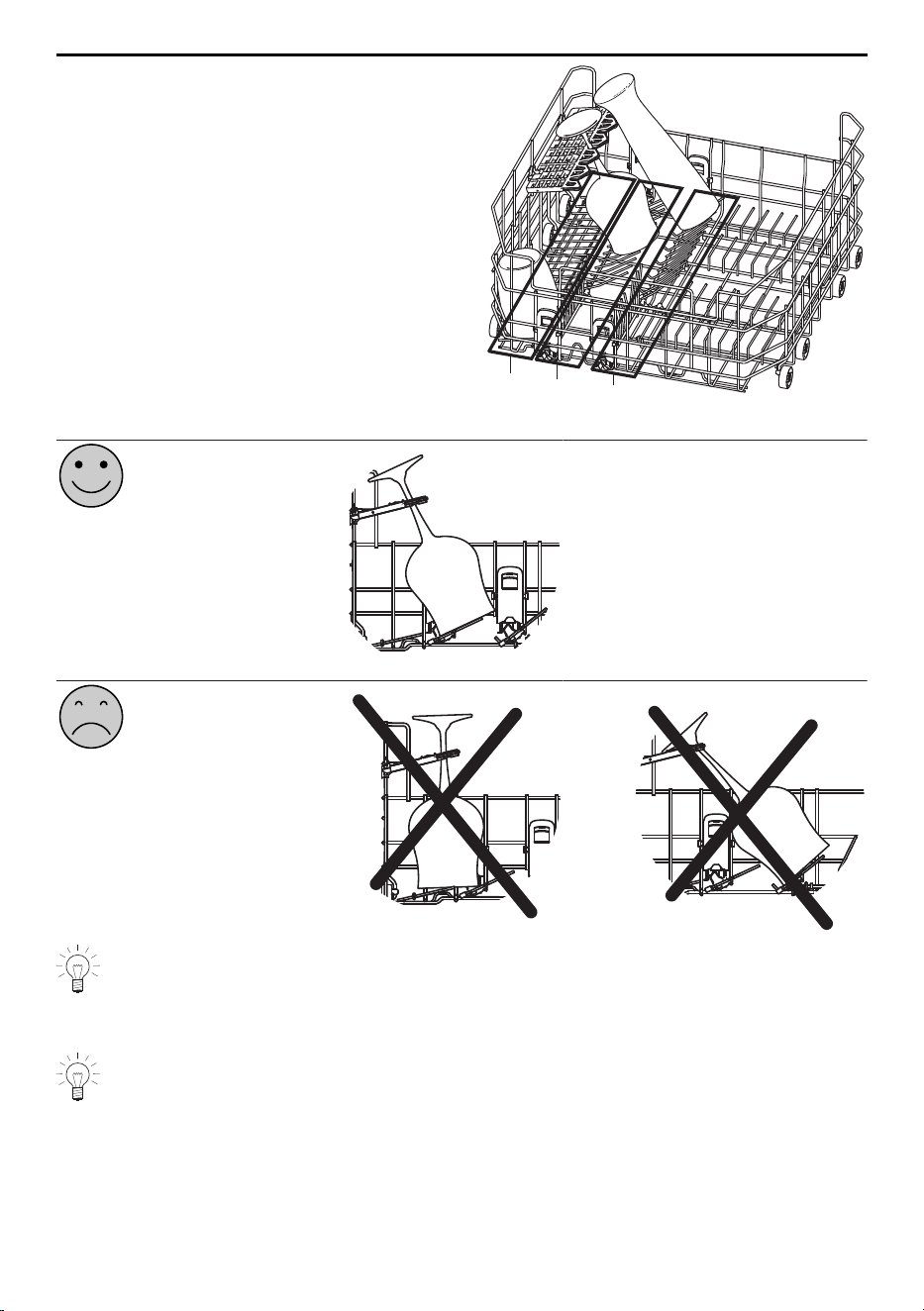

▸Place wine and sparkling wine glasses
(stemmed glasses) on the first row of
tines 2 and secure them in the V-shape
of the rack. Place beer glasses, tall
glasses and vases on the second row of
tines 3 and rest against the rack.
▸Glasses and cups can be placed on the
mat 1 below the racks.
1
2
3
Thin glass is very vulnerable to damage.
Place stemmed glasses carefully in the basket.
Ensure the glasses are standing securely and not touching each other or other
items.
Standing glasses securely on the second row of fold-down tines
To stand glasses securely on the second row of fold-down tines, fold the first row
of fold-down tines down at an angle.
19
5 Loading
To prevent water spots, load glasses so that at their lowest
point they touch the basket shelf 2.
2
Stabilizing drinking vessels with easy prongs
▸Put easy prongs 1 over basket prongs.
▸Arrange drinking glasses, baby bottles,
vases and carafes.
▸Use two easy prongs for wider vessels.
1
Removing the rack

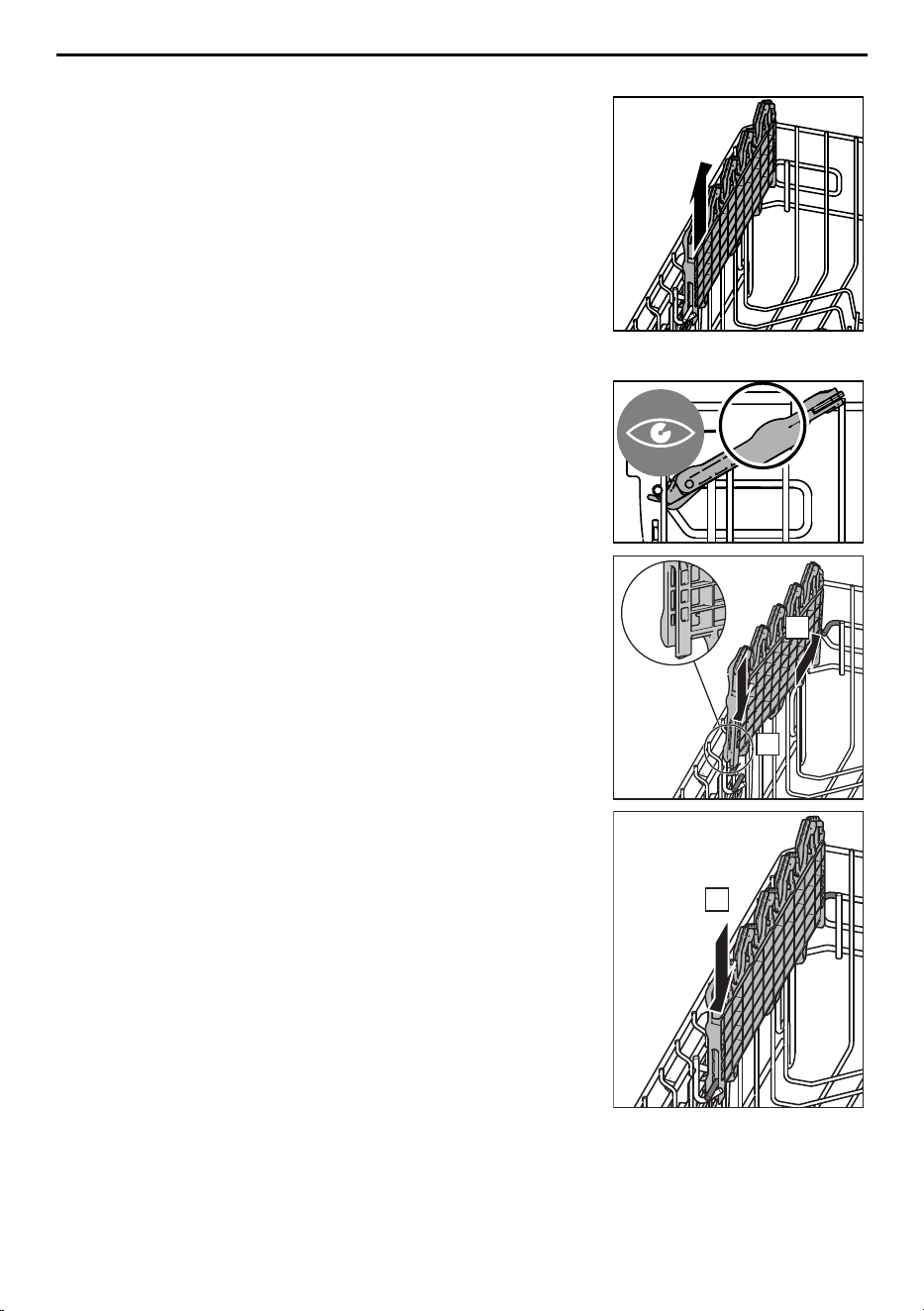

The racks can be removed.
▸Move the rack roughly into the middle of
the two height positions.
~= ~=
▸Fold up the rack.
20
5 Loading
▸Pull the rack holder away from the front.
Attaching the rack
▸Before attaching the rack:
the rack cams must face upwards when
it is attached.
▸Hold the rack upright roughly in the
middle of the two height positions.
▸Place the rack holder on the wires.
21
5 Loading

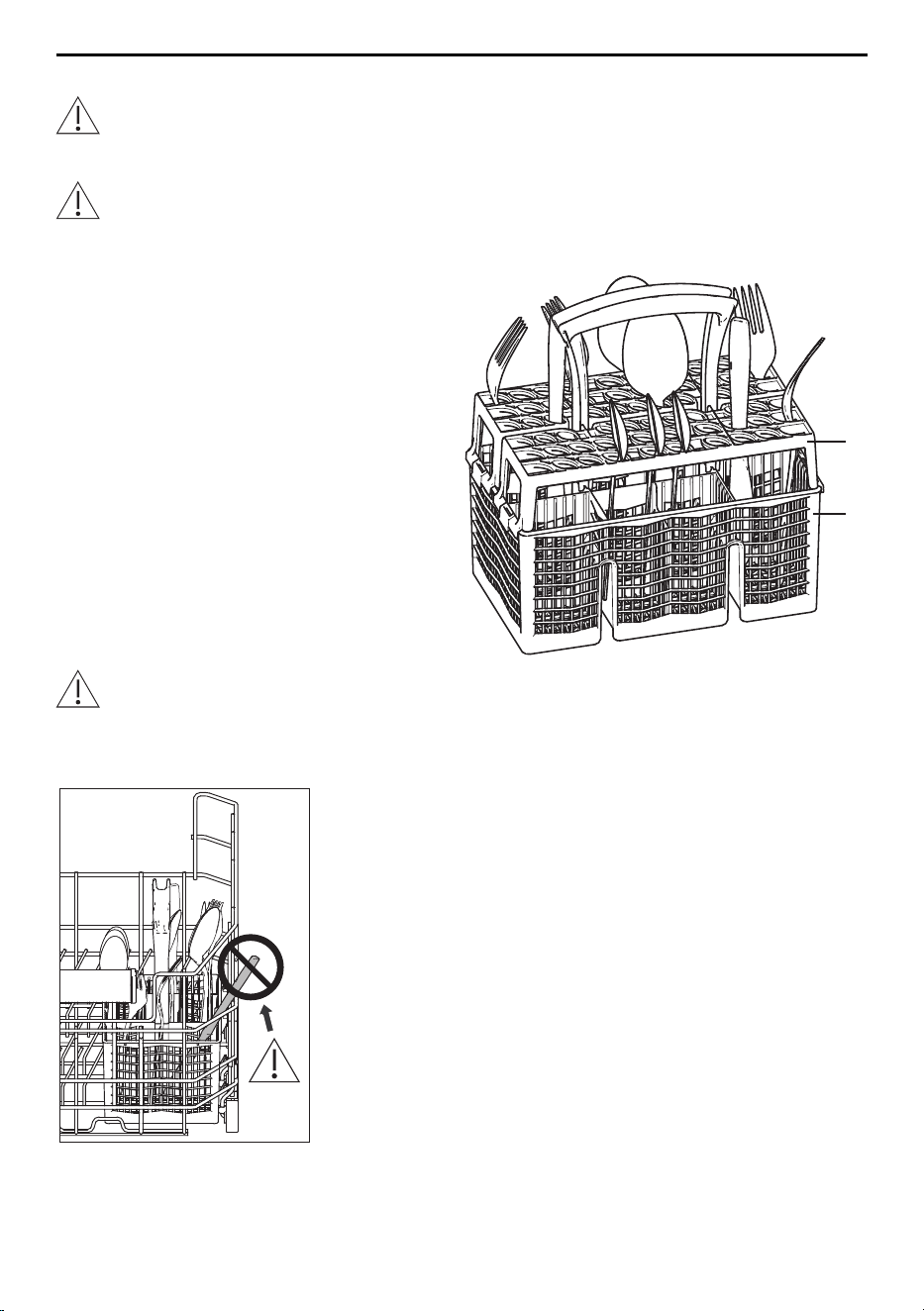

Loading the cutlery basket
Risk of injury from being loaded incorrectly!
Place knives and cutlery with sharp edges or points into the cutlery basket with the
points facing downwards. Place cutlery upright in the cutlery basket.
Sharp objects can damage the appliance!
Do not insert any knives, forks or other pointed objects into the opening of the
door lock.
▸Raise the basket prongs.
▸Place the cutlery basket over the raised
prongs anywhere in the basket.
▸Distribute knives and the like among the
compartments, with the points facing
downwards.
▸Distribute the rest of the cutlery loosely
among the compartments, with handles
pointing down.
▸Spoons should not be stuck together.
▸To prevent items of cutlery sticking to-
gether, water spots during drying, and
smaller items slipping through the bas-
ket, put the inserts 1 supplied on the cut-
lery basket 2.
1
2
Risk of water leakage!
When closing the appliance door, ensure no items of cutlery are sticking out of the
tub or are trapped. The leak tightness of the appliance cannot otherwise be as-
sured.
22
5 Loading

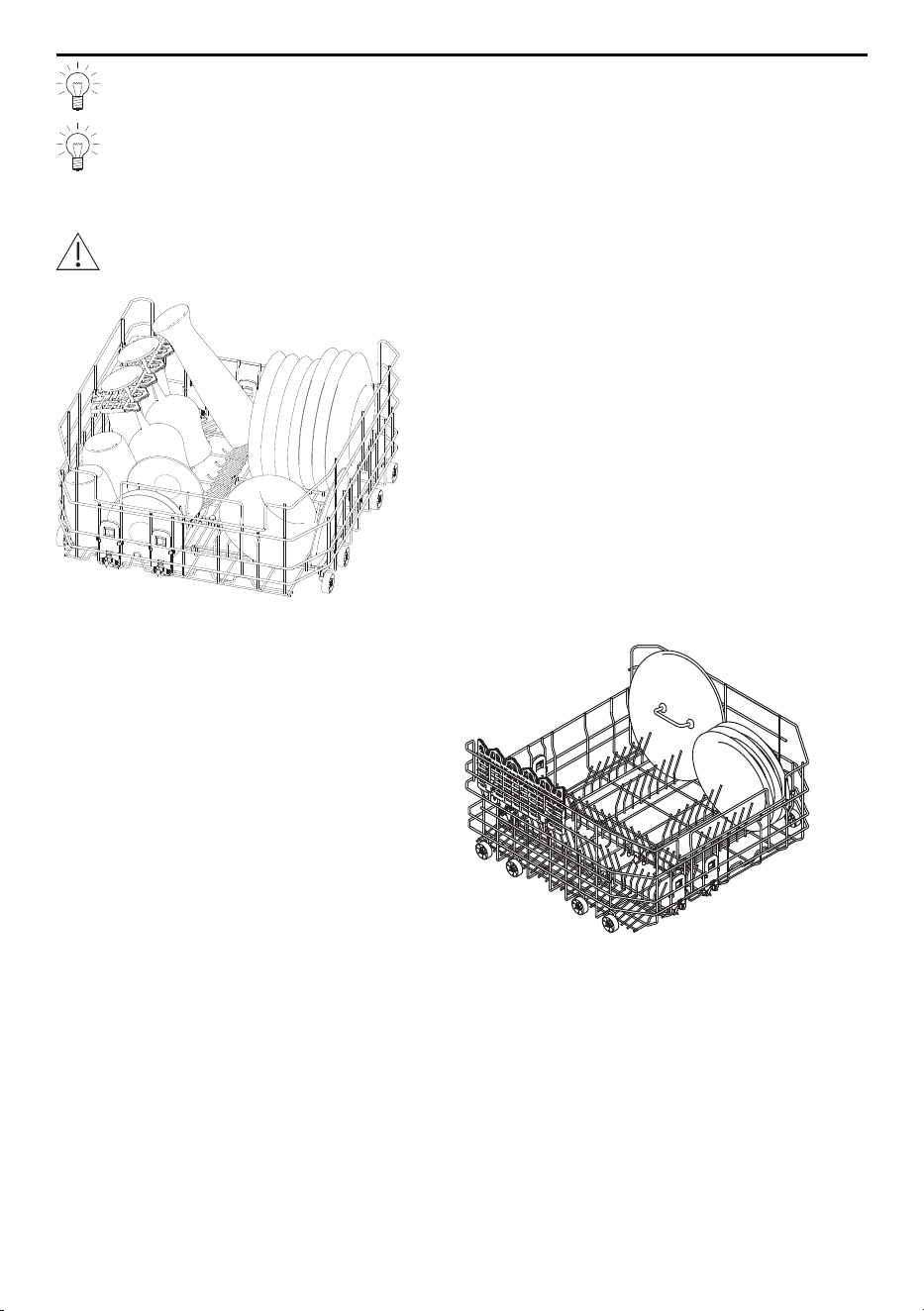

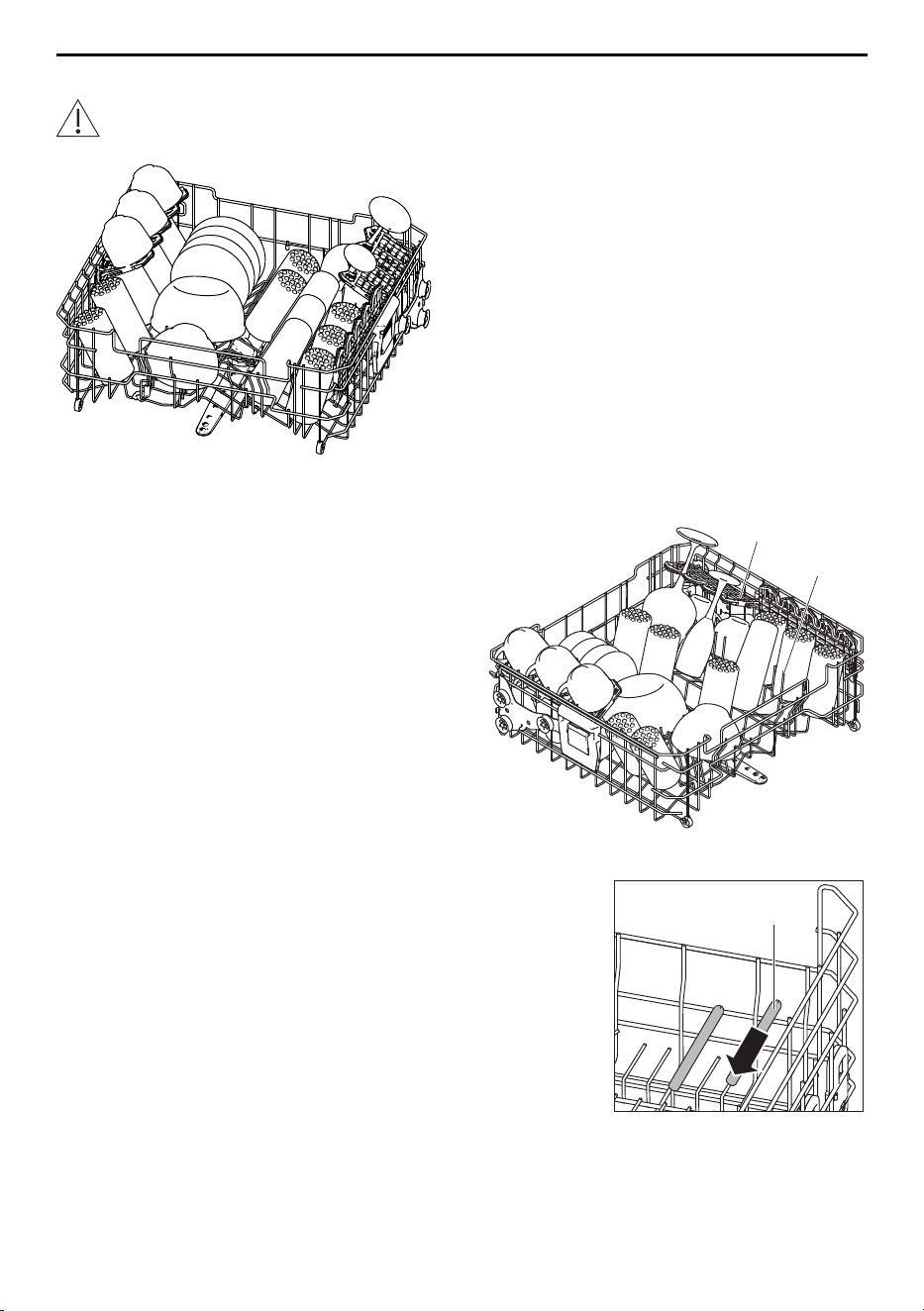

5.2 Loading tips for the upper basket
Overloading the basket can damage the appliance!
Do not exceed the maximum loading weight for the upper basket of 9kg.
Loading smaller items
▸Arrange smaller items such as saucers,
glasses, cups and dishes.
▸If using the fold-down racks 1, stagger
the items.
▸Rest glasses on the fold-down glass
holders 2.
1
2
Stabilizing drinking vessels with easy prongs
▸Put easy prongs 1 over basket prongs.
▸Arrange drinking glasses, baby bottles,
vases and carafes.
▸Use two easy prongs for wider vessels.
1
Loading tall glasses
For tall glasses, use glass holders and racks for greater stability.
23
5 Loading

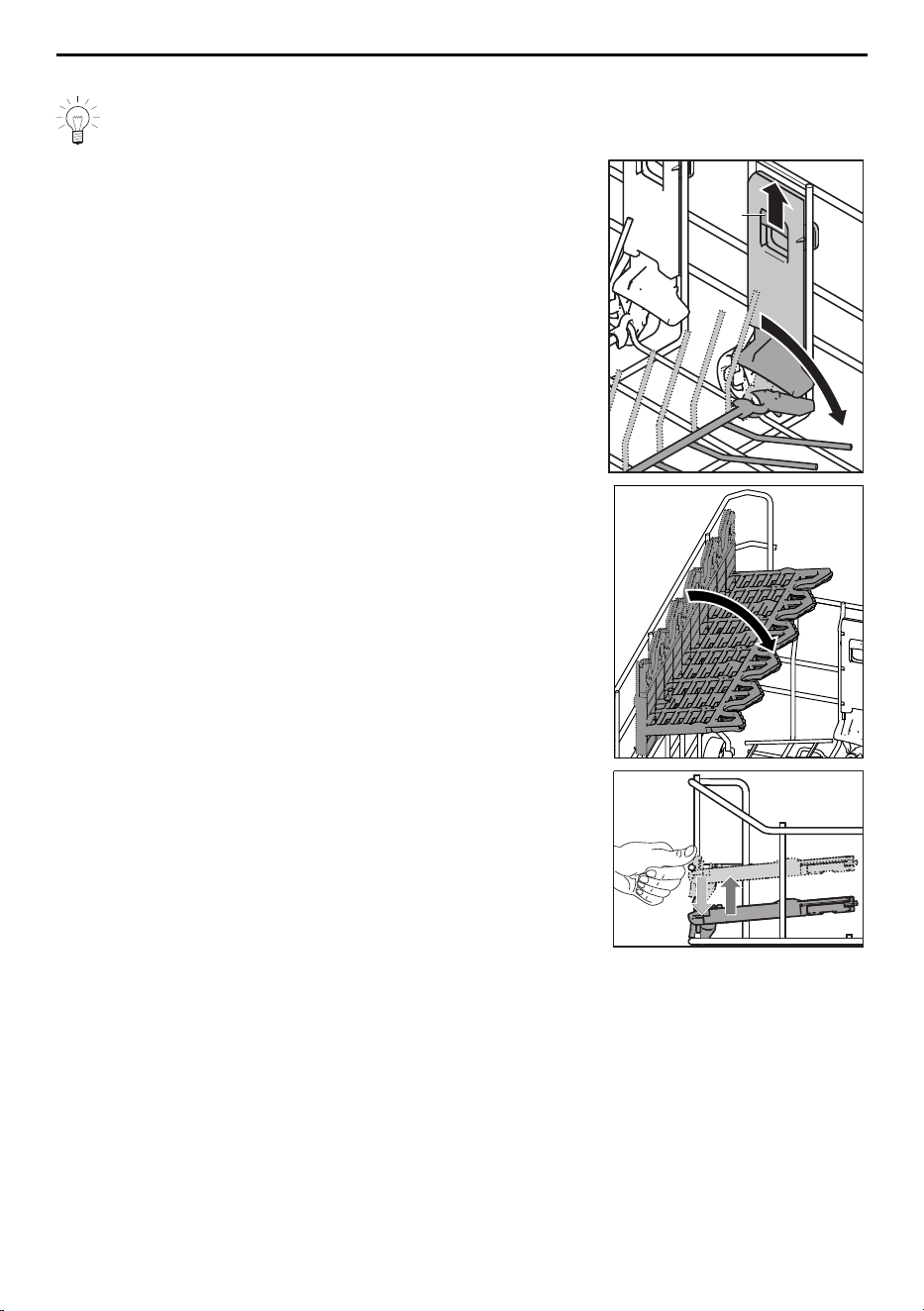

Glass holder

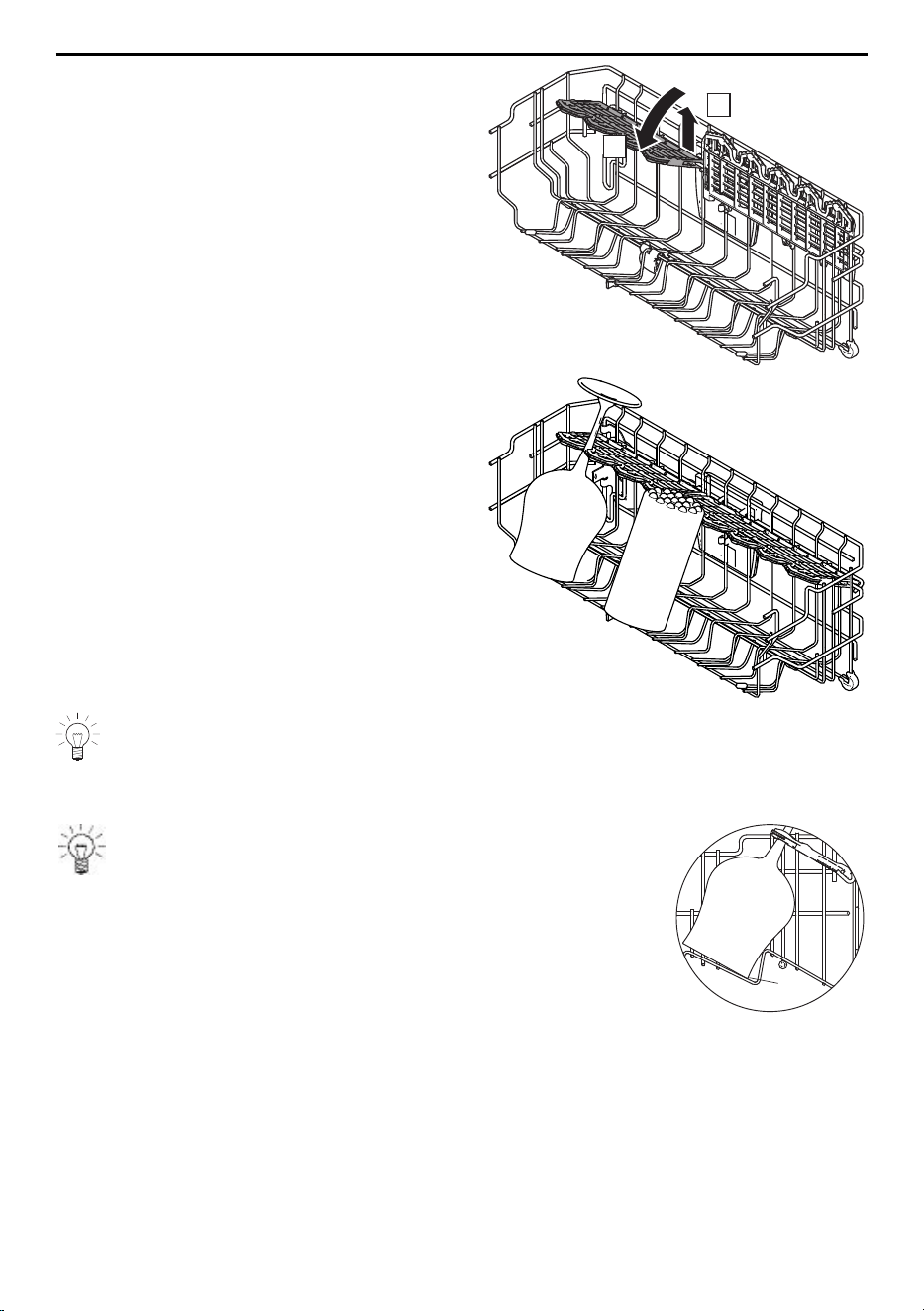

▸Pull the row of tines up until it engages.
▸Rest glasses against the row of tines.
Rack
▸Fold the row of tines 1 down.
1
24
5 Loading
▸Pull the rack up 2 and fold down 3.
2
3
▸Secure stemmed glasses in the V-shape
of the rack. Rest tall glasses against the
rack.
Thin glass is very vulnerable to damage.
Place stemmed glasses carefully in the basket.
Ensure the glasses are standing securely and not touching each other or other
items.
To prevent water spots, load glasses so that at their lowest
point they touch the basket shelf 2.
2
25
5 Loading
Removing the rack
▸Pull the rack up as far as it will go.
▸Remove the rack by pulling it upwards at
the holder in the middle of the upper
basket.
Attaching the rack
▸Before attaching the rack:
the rack cams must face upwards when
attached.
▸Push the rack in at the wire holder 1 at
the back or at the front of the basket and
then press down at the holder in the
middle 2.
1
2
▸Holding the rack upright, push down
firmly 3.
3
26
5 Loading
Adjusting the upper basket

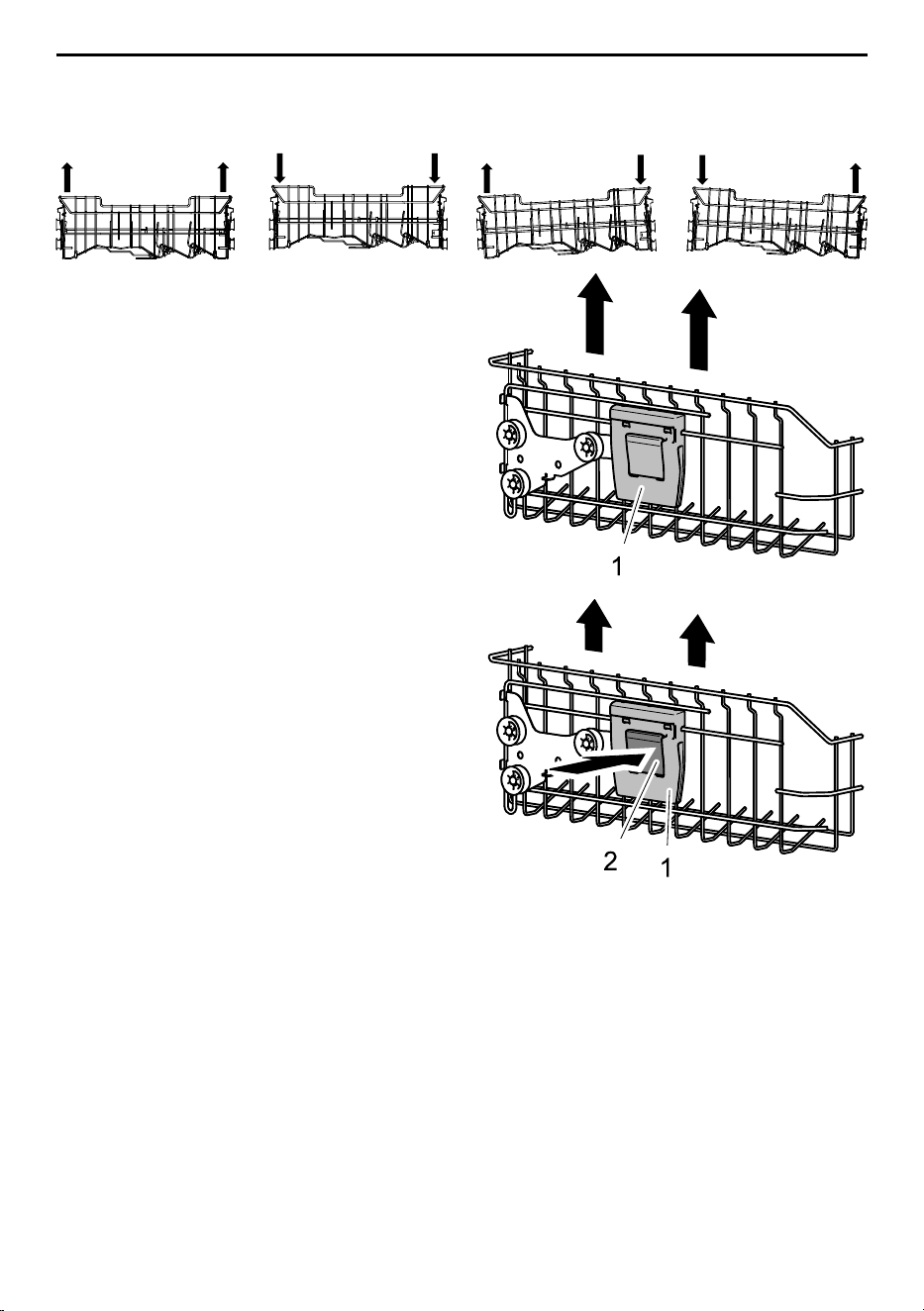

Depending on the model, the height of the upper basket can be adjusted by around 2–4
cm. It can be inclined in various ways.
▸Hold the upper basket at the sides by
the grips 1 and raise it into the desired
engaged position.
– The upper basket is raised.
▸Hold the upper basket at the sides by
the grips 1.
▸Raise the upper basket slightly and
press the button 2 at the same time.
– The locking device is released.
▸Lower the upper basket into the desired
position, release the button and engage
in position.
– The upper basket is lowered.
27
5 Loading
Removing the upper basket

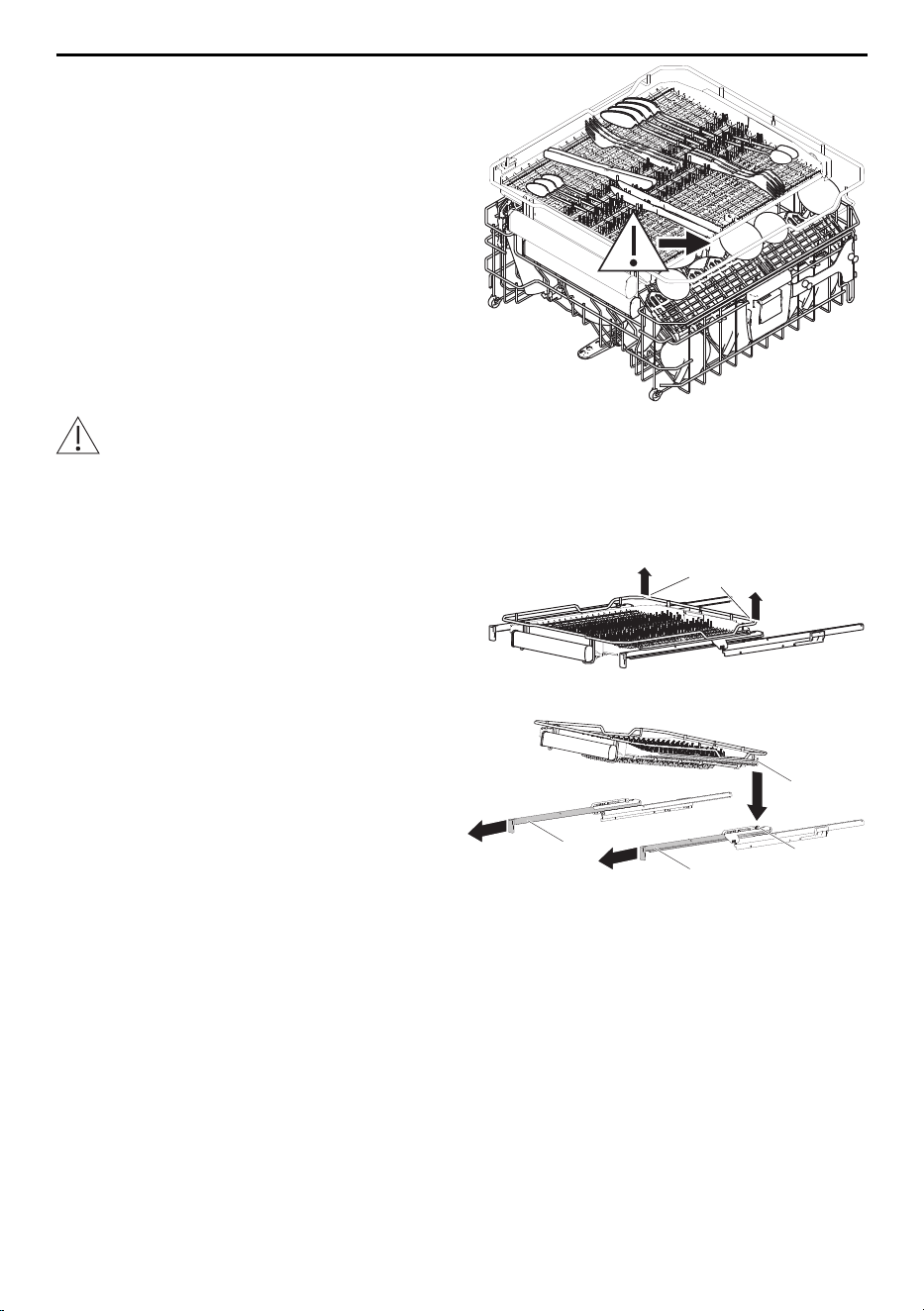

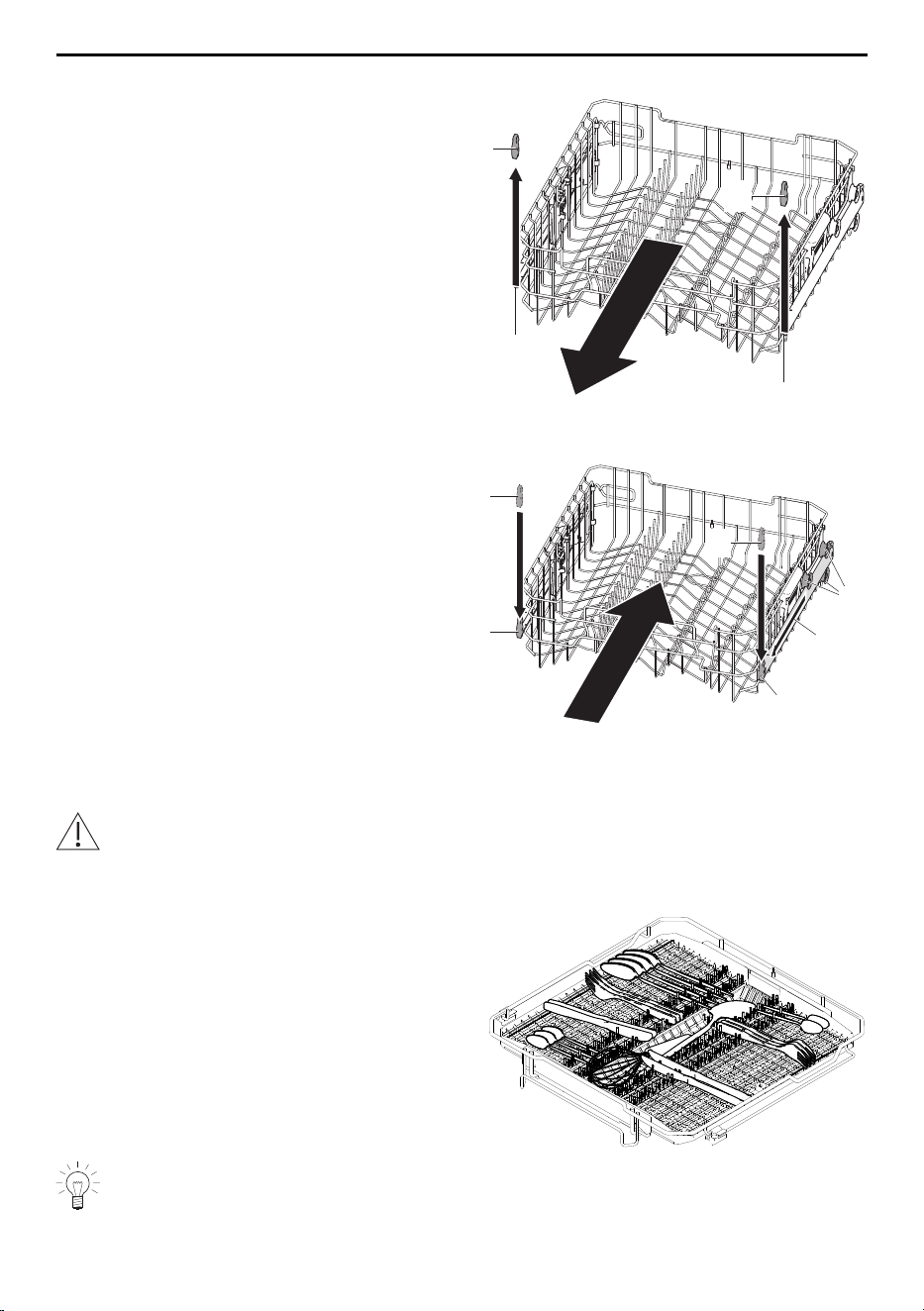

▸Pull the upper basket out almost as far
as it will go.
▸Holding the rail ends 1 from below,
press the basket stoppers 2 upwards
with your index fingers and thumbs.
▸Remove the basket stoppers 2.
▸Slide the upper basket out.
1
1
2
2
Inserting the upper basket
▸Extend the rails 1 as far as they will go.
▸Slide the upper basket on to the rails 1
in such a way that the rollers 2 of the up-
per basket come to rest on the rails.
▸Push the basket stoppers 3 on to the rail
ends 4 and press tight.
1
2
3
3
4
4
5.3 Hints on loading the cutlery drawer *
* Depending on model
Overloading the basket can damage the appliance!
Do not exceed the maximum loading weight for the cutlery drawer of 5kg.
Loading cutlery
▸Where possible, load cutlery with
handles between the tines.
▸With thick-handled cutlery or if the mov-
able right side of the cutlery drawer is
raised, place the mouthpiece or blade
between the tines.
If the cutlery does not sit firmly, rearrange it with handles facing out and at a slight
angle.
28
5 Loading
▸Tall glasses: Raise the movable right
side by 2cm or push it into the middle.
Risk of damage to tall glasses!
If tall glasses hit the cutlery drawer frame, they could get damaged.
Removing the cutlery drawer
The cutlery drawer can be removed from the appliance for loading and unloading.
▸Raise the back corners 1 of the cutlery
drawer frame and click out of the fixture.
▸Remove the cutlery drawer.
1
Inserting the cutlery drawer
▸Extend the rails 1 as far as they will go.
▸Position the back corners 2 of the cutlery
drawer frame in the fixture 3 and press
down gently until they click into place.
1
1
2
3
29
6 Operation
6 Operation
6.1 Dish washing tips
General note
▪ Do not overload the baskets.
▪ Dishes, pots and pans with heavily burned-on food debris stuck to them should be
soaked in water first.
▪ Load beverage and food containers such as cups, glasses, pots, etc. with the opening
facing downwards so that the water can drain off.
▪ When loading, ensure glasses do not touch so as to prevent damage and water
spots.
▪ When cleaning range hood grease filters, select the «Intensive»
programme and
use the maximum amount of detergent.
Energy and water economy
▪ Load to the maximum capacity of the appliance.
▪ Do not pre-rinse the dishes manually. This leads to increased water and energy con-
sumption.
▪ If the dishes are cleaned in the dishwasher following the operating instructions, then,
as a rule, less water and energy are consumed than with manual washing.
Dishes
Not all table- and kitchenware are dishwasher safe.
▪ Clean wooden or plastic parts that are sensitive to damage from heat and detergent
suds by hand.
▪ Pottery has a tendency to crack or chip.
▪ The printing on glass and porcelain is hard-wearing only to a point and eventually over
time can wear off.
▪ Glassware, depending on the type and the detergent being used, can become cloudy.
Check with your glassware supplier as to whether your glassware is dishwasher safe.
▪ Stress and tension in thick cut crystal glasses and dishes can cause cracking.
▪ Do not wash dishes with adhesive labels on them. Adhesive labels can come off and
clog up the filter system.
▪ Objects made of silver, copper and tin tend to discolour, turning brown or black.
▪ Spots tend to form on aluminium. Wash aluminium separately or by hand.
6.2 Selecting detergent
General note
Do not use washing-up liquid! Strong foaming can cause the appliance to malfunc-
tion. Follow the dosage instructions printed on the detergent packaging exactly.
Should you have any questions, please contact the detergent manufacturer. Using
too high or too low a dosage can cause damage to the appliance.
▸Only use detergent suitable for dishwashers (tabs, powder, gel, combination cleaning
products).
30
6 Operation
Tabs
Tabs are suitable for programmes with wash temperatures of over 55°C. Tabs may not
dissolve properly in short programmes with wash temperatures of below 55°C, affecting
the cleaning performance of the appliance.
Combination cleaning products (tabs/powder)
If using combination cleaning products, which should render the use of rinse agent and
regeneration salt superfluous, please observe the following tips:
▸Check that the water hardness range indicated by the detergent manufacturer on the
product packaging matches the hardness of your local water supply.
▸Activate the «All in 1»
user setting (see page 41).
– The programmes and displays are adapted to suit the combination cleaning
product.
▸If the
refill indicator flashes, refill the salt reservoir with regeneration salt.
▸If the
refill indicator flashes, refill the rinse agent reservoir with rinse agent.
If, after washing and drying, the results are not satisfactory:
▸use conventional cleaning products.
▸Deactivate the «All in 1»
user setting (see page 41).
For complaints, contact the detergent manufacturer.

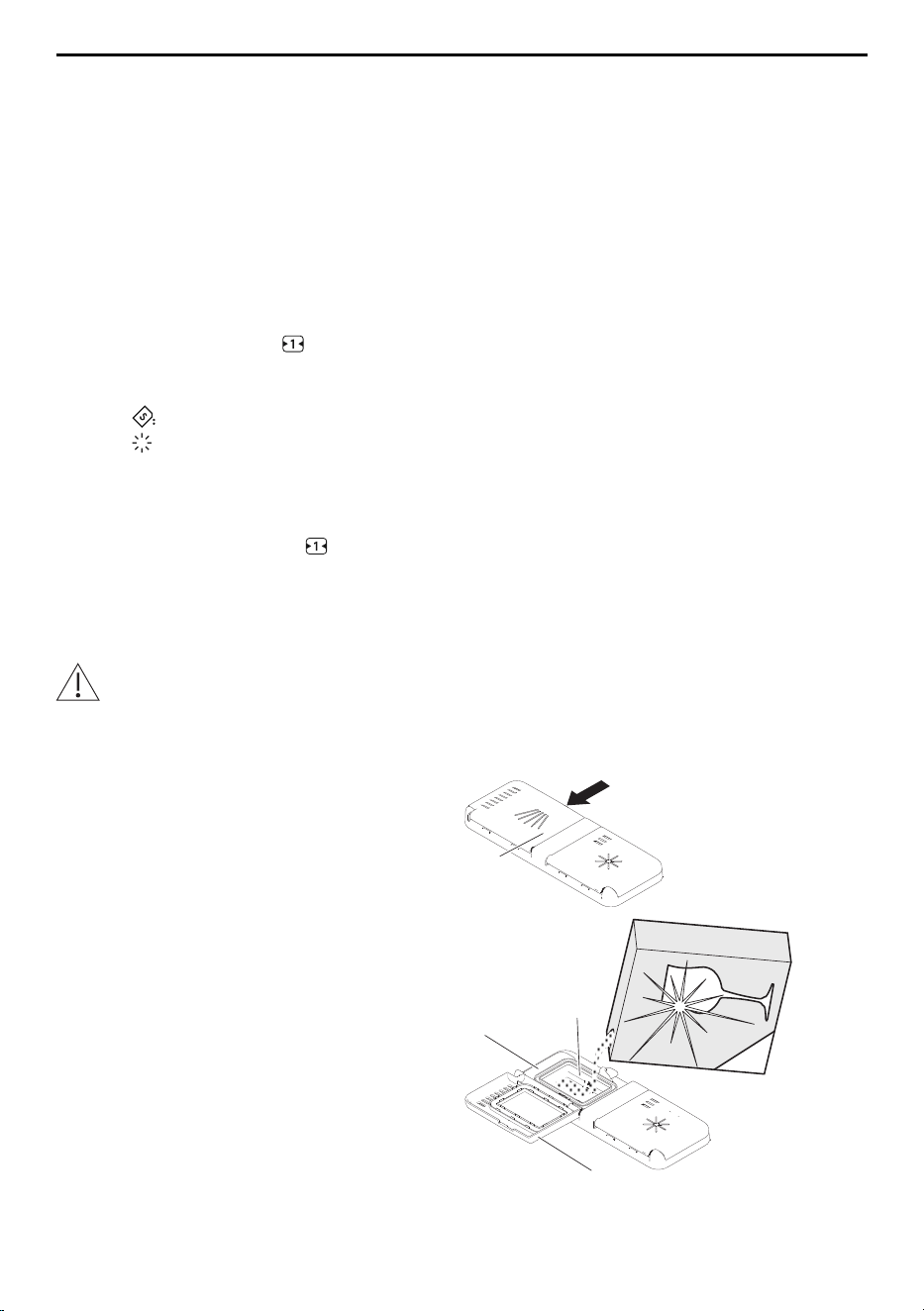

6.3 Adding the detergent
Ensure no cleaning agent gets into the opening of the door lock. This can cause
the door lock to malfunction.
Powder

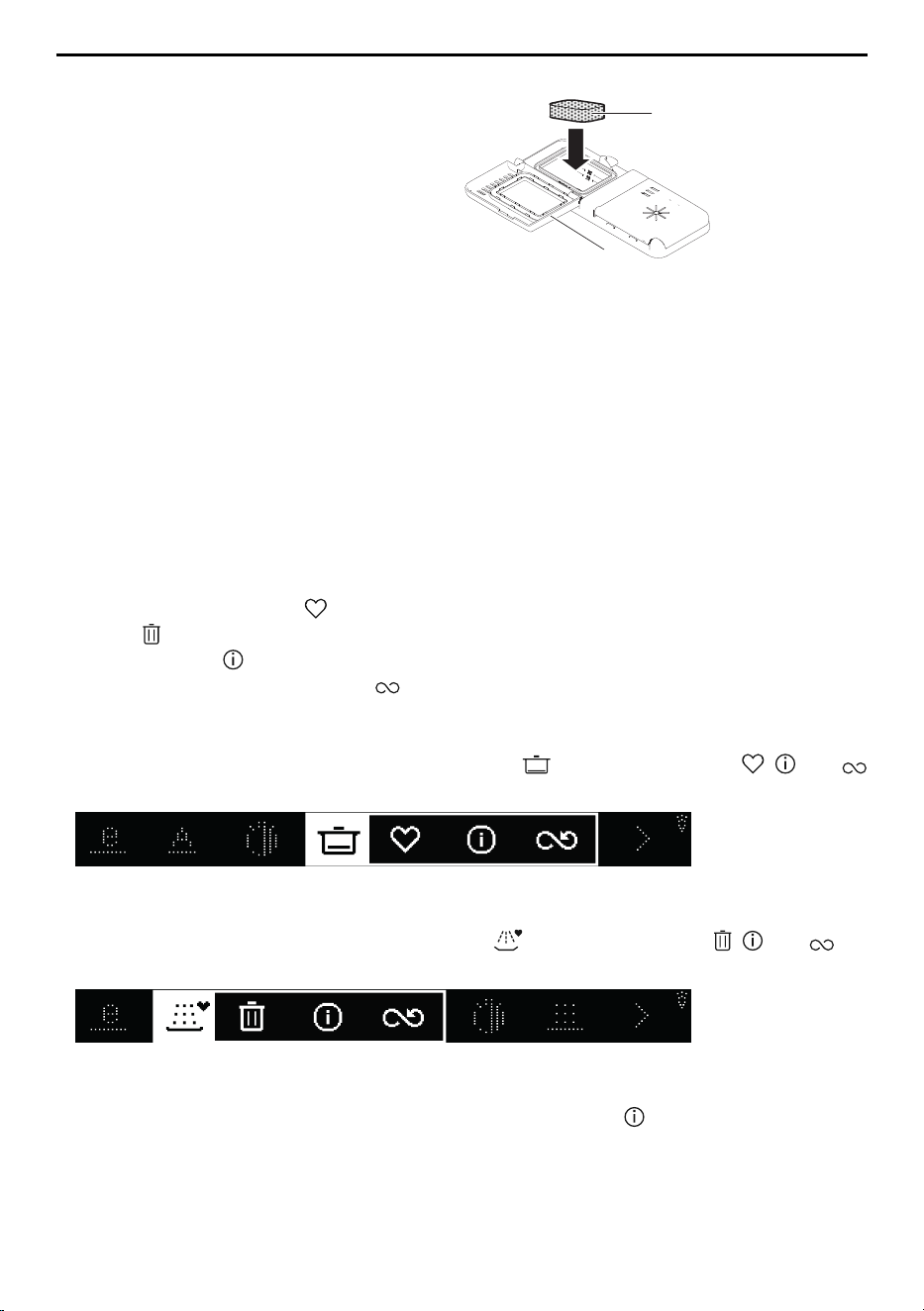

▸Open the detergent dispenser 2 by push-
ing the release catch 1 in the direction of
the arrow.
2
1
▸Observe the «20 and 30 ml» level marks
3.
▸Add the detergent to the detergent dis-
penser. For dosage, follow the detergent
manufacturer’s instructions.
▸For heavier soiling, add approx. 1 tea-
spoon of detergent to the pre-rinsing
compartment 4.
▸Close the cover 5.
3
4
5
31
6 Operation
Tabs
▸Place the tab 6 flat in the detergent com-
partment.
▸Close the cover 5.
6
5
6.4 Operating the display
Programmes, setting options, user settings, permanent mode and favourites can be se-
lected by touching or depressing and holding the relevant buttons.
Touching a button
Briefly touching a selectable or selected button enables the user to
▪ change from one menu into the next highest level.
▪ display other functions in the same menu.
▪ activate selectable functions.
▪ deactivate selected functions.
Holding a button depressed
Holding a button depressed enables the user to easily
▪ save a programme as a
favourite (see page 38).
▪ delete
a favourite (see page 39).
▪ get information
about a function (see page 42).
▪ use a programme in permanent
mode (see page 37).
For programmes
▸Hold the button for the desired programme, e.g.
, depressed until the , and
buttons appear in the display next to the programme selected.
For favourites
▸Hold the button for the desired favourite, e.g.
, depressed until the , and
buttons appear in the display next to the favourite selected.
For setting options and all user settings
▸Hold the button for the desired function depressed until the button appears in the
display next to the desired function.
32
6 Operation
6.5 Selecting and starting a programme
Selecting a programme
▸Touch the dark display.
– The start screen appears.
▸On the start screen, touch the
button repeatedly until the desired programme ap-
pears.
▸Touch the desired programme, e.g.
.
– The programme selected appears in the display.
Intensive
1h15
65°
▸Touch the button to add setting options.
– A selection of setting options appears in the display.
▸Touch the desired setting option, e.g. .
▸Use the programme in permanent mode (see page 37) or save it as a favourite (see
page 38), as required.
Changing programme selection
▸Touch the
button repeatedly until the start screen appears.
– The selection made has been discarded.
▸Make a new selection.
Cancelling programme selection
▸Touch the
button repeatedly until the start screen appears.
▸Close the appliance door.
– The display goes dark.
Starting a programme
▸Once all the necessary settings for the programme have been made, close the appli-
ance door.
– The programme starts immediately.
– Depending on the model, the FunctionLight illuminates.
If the appliance door is not closed within 30 seconds, all entries, symbols and the
display are cleared; an acoustic signal is also emitted. The programme must be
selected again.
33
6 Operation
6.6 Adding extra dishes
The dishes and water may be hot. Scalding hazard!
▸Open the appliance door carefully.
– This interrupts the programme.
– The interrupted programme alternates in the display with the «Close the door» mes-
sage.
Intensive
1h42
Pre-rinsing
▸Load the dishes.
▸Close the appliance door.
– The programme is resumed.
6.7 Aborting a programme before time
The dishes and water may be hot. Scalding hazard!
▸Open the appliance door carefully.
– This interrupts the programme.
– The interrupted programme alternates in the display with the «Close the door» mes-
sage.
Intensive
1h42
Pre-rinsing
▸Touch the button.
– The following message appears in the display:
Do you want to abort the programme?
NO
YES
▸Touch «YES».
– In the display appears: «The programme is aborted…»
– The water is pumped off.
– A 5× acoustic signal is emitted.
– The display goes out.
– The programme is aborted.
34
6 Operation
6.8 Unloading dishes
The dishes can be unloaded either at the end of the programme or when the final drying
phase finishes. For optimum drying results, it is recommended that the appliance only be
unloaded after the final drying phase has finished.
End of programme and final drying phase
When the programme has finished,
– a 5× acoustic signal is emitted.
Then the final drying phase begins:
– Depending on the model, either the display illuminates or the FunctionLight flashes.
– The appliance door opens automatically.
Closing the appliance door can damage the appliance!
The appliance door must not be closed after opening automatically. The door
opener could otherwise get damaged!
When the final drying phase has finished,
– 3 long acoustic signals are emitted.
– the energy and water consumption of the programme appears in the display for
about 10 seconds.
– the display goes out.
– the appliance enters the energy-saving «EcoStandby» mode.
Unloading the appliance
▸Remove the dishes. Unload the lower basket first.
▸Periodically check the filter system and clean if necessary.
35
7 Programme options
7 Programme options
7.1 Delayed start
The delayed start allows you to wash during off-peak hours (e.g. at off-peak electricity
rates). It can be set briefly after selecting a programme.
A delayed start of between 30 minutes and 24hours can be set.
Setting the delayed start duration
▸On the start screen, touch the
button repeatedly until the desired programme ap-
pears.
▸Select the desired programme and any desired setting options (see page 33).
▸Touch the
button.
▸Touch the
button.
– The delayed start menu appears in the display.
0h30Delayed start
▸Touch the or button repeatedly until the desired duration appears.
▸Touch the
button.
– The setting options menu appears in the display.
– The duration selected is saved.
▸Close the appliance door.
– Depending on the model, the display goes dark.
– The set duration counts down.
– When the delayed start duration is up, the programme selected starts automatically.
– No acoustic signal is emitted at the end of the programme.
Dishes can be loaded at any time during the delayed start.
Cancelling a delayed start and programme
▸Open the appliance door.
▸Touch the
button.
▸Touch «Yes».
– The delayed start and programme are cancelled.
36
7 Programme options
7.2 Programme in permanent mode
Only one programme can be used in permanent mode. When the appliance door is
opened, the programme appears on the start screen and can be started immediately. A
programme used in permanent mode can be deleted at any time.
Saving a programme as permanent mode
▸On the start screen, touch the
button repeatedly until the desired programme ap-
pears.
▸Hold the button for the desired programme, e.g.
, depressed until the , and
buttons appear in the display next to the programme selected.
▸Touch the button and confirm the prompt with «YES».
– The programme used in permanent mode appears in the display.
Intensive
1h15
65°
Starting a permanent mode programme
▸Open the appliance door.
– The programme used as permanent mode appears in the display.
▸Touch the
button.
▸Close the appliance door.
– The programme starts.
Ending permanent mode
▸Open the appliance door.
– The programme used as permanent mode appears in the display.
▸Touch the
button and confirm the prompt with «YES».
– The start screen appears in the display.
– The permanent mode is ended.
37
7 Programme options
7.3 Favourites
Up to 5 programmes with or without setting options can be saved as favourites. Pro-
grammes saved as favourites appear on the start screen after the «Eco»
programme
and can be deleted at any time.
Creating favourites without setting options
This function is suitable for displaying programmes on the start screen that are not
displayed on it by default.
▸On the start screen, touch the
button repeatedly until the desired programme ap-
pears.
▸Hold the button for the desired programme, e.g.
, depressed until the , and
buttons appear in the display next to the programme selected.
▸Touch the button and confirm the prompt with «YES».
– The programme selected appears in the display with a heart, e.g.
.
Creating favourites with setting options
▸Select a programme along with setting options (see page 33).
▸Touch the button and confirm the prompt with «YES».
– The programme selected appears in the display with a heart, e.g.
.
Starting favourites
▸On the start screen, touch the
button repeatedly until the desired favourite appears.
▸Touch the button for the desired favourite, e.g.
.
▸Adjust the setting options as required (see page 33).
▸Once all the necessary settings for the programme have been made, close the appli-
ance door.
– The programme starts immediately.
– Depending on the model, the FunctionLight illuminates.
38
7 Programme options
Using favourites in permanent mode
▸On the start screen, touch the
button repeatedly until the desired favourite appears.
▸Hold the button for the desired favourite, e.g.
, depressed until the , and
buttons appear in the display next to the favourite selected.
▸Touch the button and confirm the prompt with «YES».
– The programme used in permanent mode appears in the display.
Pre-rinsing
1h15
10°
Deleting favourites
▸On the start screen, touch the
button repeatedly until the desired favourite appears.
▸Hold the button for the desired favourite, e.g.
, depressed until the , and
buttons appear in the display next to the favourite selected.
▸Touch the button and confirm the prompt with «YES».
– The favourite is deleted.
7.4 Permanently selecting setting options
Assigning setting option to each programme
▸On the start screen, touch the
button repeatedly until «User settings» appears.
▸Select the «Setting options Permanent selection»
user setting.
– The «Setting options Permanent selection»
user setting appears.
Setting options
Permanent selection
▸Touch the desired setting option, e.g. .
– The setting option selected appears in the display with a drawing pin, e.g.
.
Setting options
Permanent selection
– The next time a programme is selected, the setting option selected is automatically
assigned to each programme.
▸Permanently select other setting options as required.
▸Touch the
button to access the main user settings menu.
39
7 Programme options
Temporarily turning off a permanent setting option
▸Touch the desired programme, e.g.
.
– The programme selected appears in the display.
Intensive
1h15
65°
▸Touch the button.
– A selection of setting options appears in the display.
▸Touch the permanently selected setting option, e.g. .
– The «Energy saving»
setting option is temporarily turned off for the «Intensive»
programme.
▸Select other setting options as required.
▸Start the programme (see page 33).
When the «Intensive» programme is selected in the future, all permanently se-
lected setting options appear again.
7.5 Childproof lock
Activating
▸On the start screen, touch the
button repeatedly until the user setting «Childproof
lock»
appears.
▸Touch the
button.
▸Touch the
button.
– The following appears in the display: «To activate the childproof lock, please enter
the code 3221 backwards.»
▸Touch the
button to confirm the message.
– The input field for the code appears in the display.
1 2 3 4
▸Enter the code as given in the «Frequently used user settings» section (see page 16).
– The childproof lock is activated.
Operation with the childproof lock activated
The childproof lock has to be overridden before a programme can be selected.
▸Open the appliance door.
– The input field for the code appears in the display.
▸Enter the code 1223 (see page 16).
– The appliance is unlocked.
– The appliance can be operated as usual.
40
7 Programme options
Deactivating
▸On the start screen, touch the
button repeatedly until the user setting «Childproof
lock»
appears.
▸Touch the
button.
▸Touch the
button.
– The childproof lock is deactivated.
7.6 All in 1
Activating
▸On the start screen, touch the
button repeatedly until the user setting used «All in 1»
appears.
▸Touch the
button.
– «All in 1» is activated.
▸Touch the
button repeatedly to access the start screen.
▸Add the combination cleaning agent (see page 31).
▸Select a programme (see page 33).
Deactivating
▸On the start screen, touch the
button repeatedly until the user setting used «All in 1»
appears.
▸Touch the
button.
– «All in 1» is deactivated.
▸Touch the
button repeatedly to access the start screen.
7.7 Wipe protection
▸On the start screen, touch the
button repeatedly until the user setting «Wipe protec-
tion»
appears.
▸Touch the
button.
– The display is locked for 10seconds.
– The display can now be cleaned.
– The countdown to the unlocking of the display is shown.
– The start screen appears as soon as the display is unlocked.
41
8 V-ZUG-Home
7.8 EcoManagement
▸Touch the
button.
– The energy and water consumption of the last programme appears in the display.
Consumption of last programme
8l
0.8 kWh
▸Touch the button.
– The average energy and water consumption of the last 25 programmes appears in
the display.
Average consumption
9l
1.1 kWh
▸Touch the button again.
– The total energy and water consumption of the last 25 programmes appears in the
display.
Total consumption
126l
35.5 kWh
7.9 Information
▸Hold the button for the desired function depressed until the
button appears in the
display next to the desired function.
▸Touch the
button.
– A description of the function appears in the display.
Energy saving: Wash temperature is reduced by 5 °C.
Energy consumption is reduced by 10%.
▸Touch the button to close the information.
8 V-ZUG-Home
Download updates and special programmes to your appliance via V-ZUG-Home so
that you are always up to date.
You can download special programmes to your dishwasher. For more information,
visit https://www.vzug.com/ch/en/service/devices/v-upgrade
Hereby, V-ZUG Ltd declares that the radio equipment type is in compliance with Directive
2014/53/EU. The full text of the EU declaration of conformity is available at the following
internet address: https://www.vzug.com/nl/nl/guidance-for-testing-institutes
42
8 V-ZUG-Home
8.1 Conditions
The following conditions must be met for full use of V-ZUG-Home:
▪ Access to the internet and to Google Play
TM
Store / App Store
®
▪ Smartphone or tablet that is connected to the home network
▪ WLAN/Wi-Fi that meets one of the following standards: 2.4GHz 802.11 b/g/n
Google Play
TM
is a trademark of Google Inc.
Apple and the Apple logo are trademarks of Apple Inc., registered
in the U.S. and other countries. App Store
®
is a service mark of
Apple Inc.
8.2 Initial set-up
When establishing a connection, stay close to your household appliance and have
the password for your wireless network at the ready.
Installing the app
▸Enable bluetooth and location determination on the smartphone or tablet.
▸Search the Google Play
TM
Store or the App Store® for «V-ZUG».
▸Install and open the V-ZUG App.
Enabling the V-ZUG-Home mode on the appliance
▸Set to the «Display» or «Operate and display» mode under «V-ZUG-Home» in the user
settings.
Connecting the appliance to the home network
▸In the V-ZUG App, add the household appliance.
– A bluetooth pairing request appears in the V-ZUG App.
– A 6-digit PIN appears in the display of the household appliance.
▸Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request.
– The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are
prompted to enter the WLAN/Wi-Fi password.
▸Enter the WLAN/Wi-Fi password.
– The household appliance is connected to the active WLAN/Wi-Fi connection.
Further information on V-ZUG-Home and its availability can be found at
home.vzug.com.
43
9 User settings
9 User settings
9.1 Changing the user settings
The user settings can be changed at any time.
▸On the start screen, touch the
button repeatedly until «User settings» appears.
▸Touch the
button.
– The user settings menu appears in the display.
▸Touch the button repeatedly until the desired user setting appears.
▸Touch the desired user setting.
– The user setting selected appears white.
▸Make the desired setting.
▸Touch the
button to access the main user settings menu.
9.2 Overview of user settings
LanguageSelection
The language in the display can be changed.
Different languages are available for selection.
▪ English
▪ (…)
BrightnessSelection
The brightness of the display can be changed
using the
and buttons. Five different levels
of brightness are available for selection.
▪ Level 1: very dark
▪ Level 2: dark
▪ Level 3: medium (factory setting)
▪ Level 4: bright
▪ Level 5: very bright
Signals and tonesSelection
There are 2 types of signal or tone: button
tones
and acoustic signals. Button tones
are emitted when buttons are touched. Acous-
tic signals are emitted when a programme
ends, when the final drying phase finishes and
in the event of a malfunction. The loudness of
both signals and tones can be changed or
turned off. Two different levels of loudness are
available for selection.
▪ : Off
▪
: Low (factory setting)
▪
: High
Setting options Permanent selectionSelection
Touch a setting option to assign it automatic-
ally to each programme (see page 39). The
«Energy saving» setting option is not activ-
ated for the «Pre-rinsing»
programme.
▪ : Energy saving
▪
: Delayed start
▪ : RinsePlus
▪
DryPlus
44
9 User settings
Rinse agent dosageSelection
The rinse agent dosage is automatically ad-
justed to the load and the water hardness. If
the drying result is unsatisfactory, the dosage
can be set manually
to one of 12 levels.
The rinse agent dosage can be turned off
.
▪ Automatic (factory setting)
▪ Level 1–12
▪
Off
Water hardnessSelection
The unit of water hardness can be set to «°fH»
or «°dH» . The water hardness setting can be
changed to suit local conditions. Contact your
local water authority for the relevant informa-
tion.
▪ °fH: French degree of hardness
(factory setting: 26–30)
▪ °dH: German degree of hardness
SoftMediumHardVery hard
°fH
1–56–1011–
15
16–
20
21–
25
26–
30
31–
35
36–
40
41–
50
51–
60
61–
70
71–
80
81–
120
°dH
1–34–67–910–
12
13–
14
15–
16
17–
19
20–
22
23–
27
28–
32
33–
38
39–
45
45–
65
Temperature unitSelection
The temperature unit can be displayed in «°C»
or «°F».
▪ °C: Degrees Celsius
▪ °F: Degrees Fahrenheit (factory set-
ting)
Interior illuminationSelection
If the user setting is activated, from a certain
door opening angle the interior is illuminated
for the set duration. Five different durations are
available for selection.
▪ : Activated (factory setting: 10
minutes)
▪
: Deactivated
FunctionLight *Selection
The brightness of the illumination of the door
gap can be changed or deactivated using the
and buttons. Three different levels of
brightness are available for selection.
▪ : Activated (factory setting: Level
2)
▪
: Deactivated
* Depending on model
Automatic door openerSelection
If the user setting is activated, the appliance
door opens slightly automatically during the
drying and final drying phase to save energy. If
the user setting is deactivated, the programme
time is extended by 10minutes.
▪ : Activated (factory setting)
▪
: Deactivated
45
9 User settings
Automatic stand-bySelection
If the user setting is activated, the information
in the display goes out at the end of the pro-
gramme. If the user setting is deactivated, the
information can be displayed by operating the
appliance door. Press any button and the dis-
play then goes out.
▪ : Activated (factory setting)
▪
: Deactivated
V-ZUG-HomeSelection
With V-ZUG-Home, you can access your appli-
ances over the V-ZUG App to, for instance, re-
trieve and change the user settings or retrieve
various statistics about your household appli-
ances.
▪ : Off (factory setting)
▪
: Display
▪ : Operate
Further information on V-ZUG-Home and its availability can be found at
home.vzug.com.
EcoManagementSelection
If the user setting is activated, EcoManage-
ment provides information on the energy and
water consumption of the appliance. With «De-
lete»
, all consumption values are reset to
«0».
▪ : Activated (factory setting)
▪
: Delete
▪
: Deactivated
Hot water connectionSelection
If the appliance has a hot water connection
and the setting is activated, optimum use is
made of the hot water available.
For the «No heating»
setting: only enable if
the inlet water is 60°C. The dishes may not
be completely dry by the end of the pro-
gramme. Leave the dishes in the appliance
(e.g. overnight) to dry.
▪ : Activated
▪
: No heating
▪
: Deactivated (factory setting)
Deleting favouritesSelection
Touch «Delete» and confirm the prompt to
delete all the favourites.
▪ : Deleting
Factory settingSelection
With «YES», all user settings are reset to the
factory settings.
▪ YES
▪ NO
Service settings
The service settings are only available for use
by service staff.
46
10 Demo mode

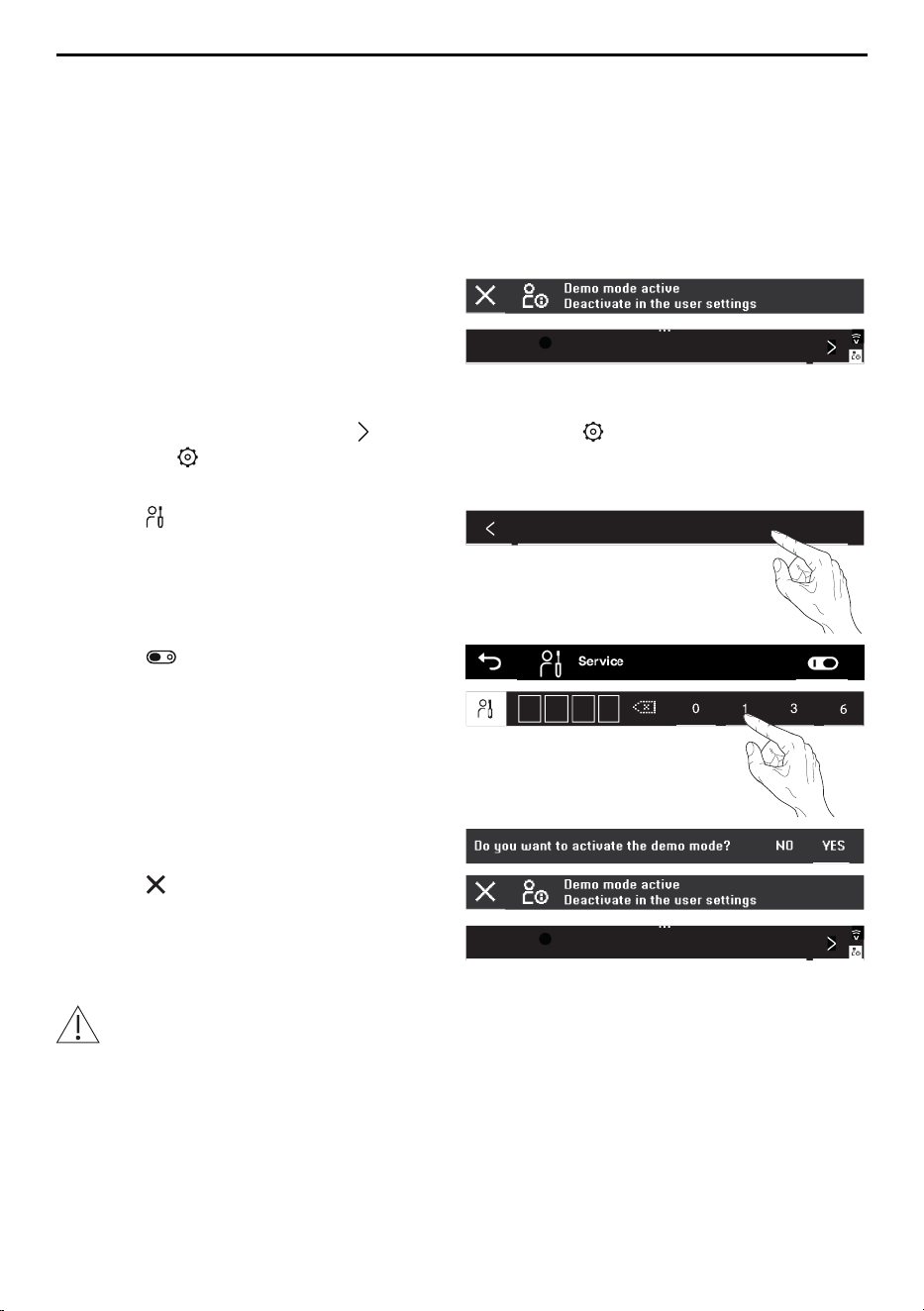

10 Demo mode
10.1 General information
The demo mode is a simulation programme where all programmes are carried out
without water or heating.
The appliance can be fully operated in the demo mode, but it will not wash.
Service settings may only be made by qualified personnel.
When the demo mode is on, the following messages appear:
▸When the appliance wakes up
▸In the user guidance
10.2 Switching on
▸On the start screen, touch the
button repeatedly until «User settings» appears.
▸Touch the
button.
– The user settings menu appears in the display.
▸Touch .
▸Touch to activate.
▸Enter 6301.
▸Confirm.
▸Touch .
▸Display symbol bottom right
Do not make any other changes to the service settings as otherwise this can affect
the appliance and display functions.
47
11 Care and maintenance

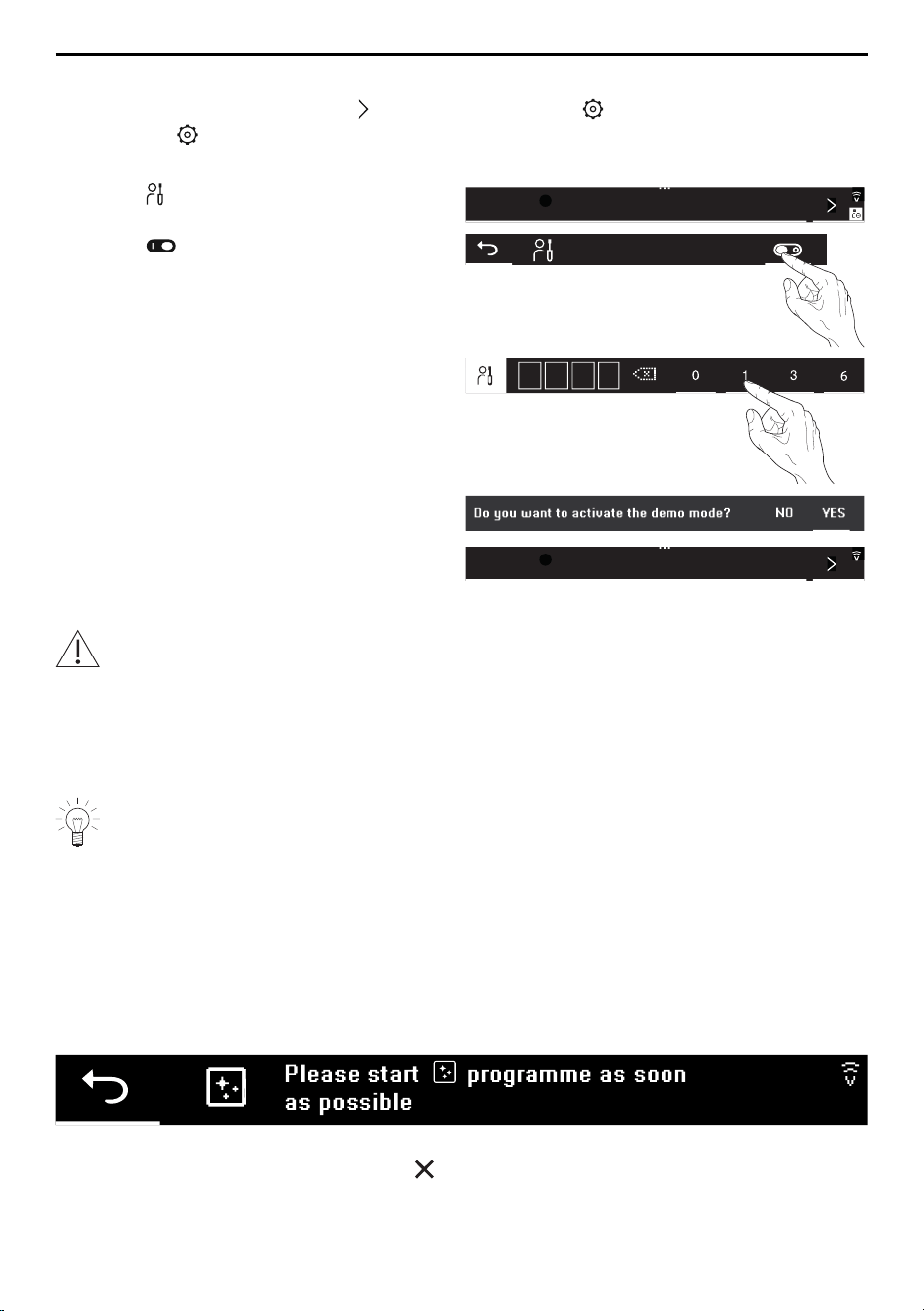

10.3 Switching off
▸On the start screen, touch the
button repeatedly until «User settings» appears.
▸Touch the
button.
– The user settings menu appears in the display.
▸Touch .
▸Touch to deactivate.
Service
▸Enter 6301.
▸Confirm.
▸Display symbol bottom right is re-
moved.
Do not make any other changes to the service settings as otherwise this can affect
the appliance and display functions.
11 Care and maintenance
11.1 Cleaning the interior and exterior
With frequent use of programmes with low temperatures (under 55°C) such as
the Eco programme make sure to run the Machine care programme every now
and again.
Cleaning the interior
Using the correct dosage of detergent will automatically clean the interior of the appli-
ance.
A message indicating it is time to run the Machine care programme appears periodically:
▸The message can be cancelled with . After cancelling it three times, the message
will appear again periodically.
48
11 Care and maintenance

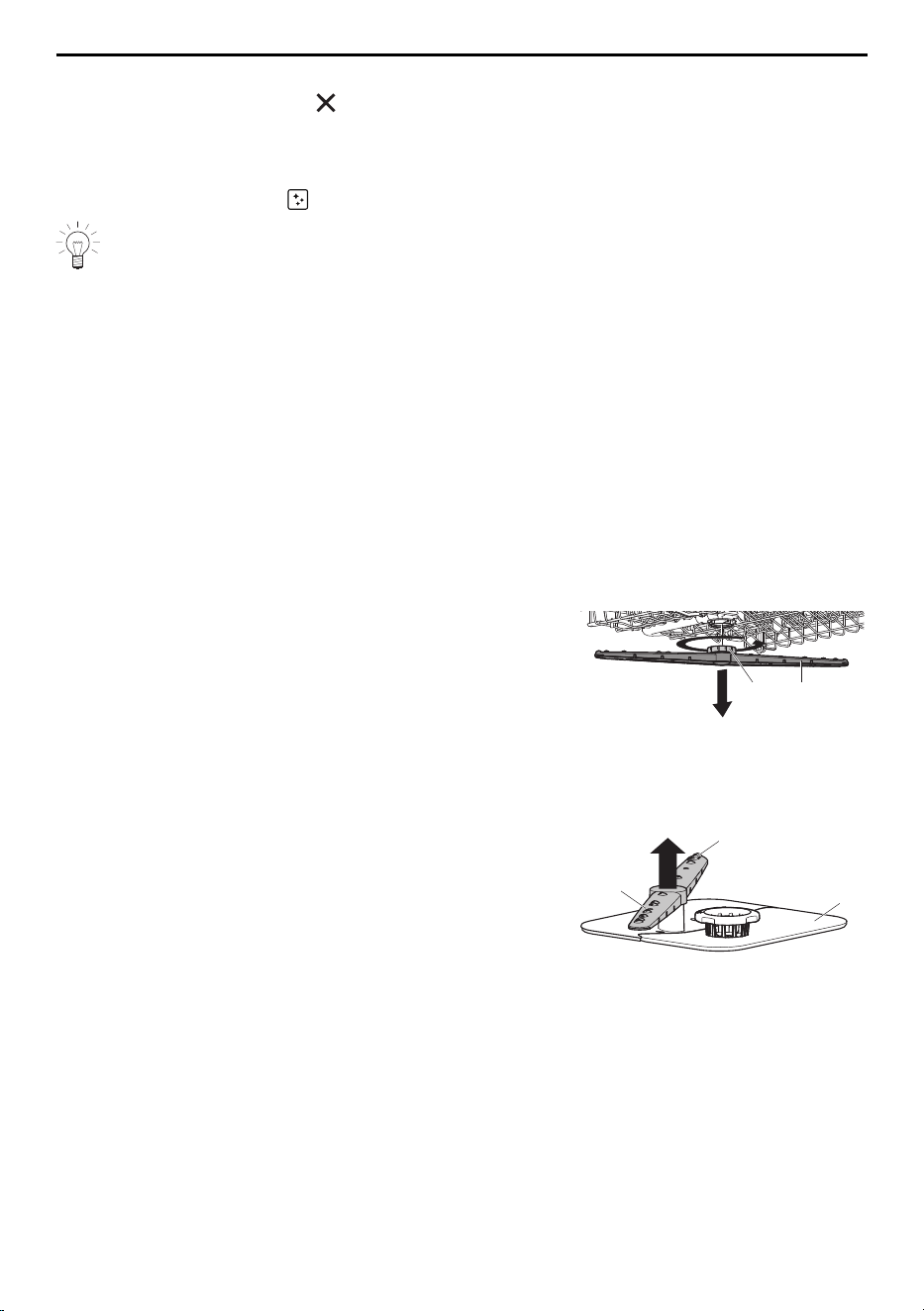

Running the Machine care programme
▸Cancel the message with
.
▸Empty the appliance (so that there are no dishes in the baskets).
▸Clean the filter system.
▸Add standard dishwasher cleaner as per the instructions on the packaging.
▸Run the Machine care
programme.
Use a standard dishwasher cleaner on a regular basis to ensure perfect results
and a long appliance life.
Cleaning the exterior
▸Do not use abrasive or caustic cleaning agents.
▸Do not use scouring pads, steel wool, etc. as they can damage the surface.
▸Remove any soiling or residues of cleaning agent immediately. Only use washing-up
liquid or glass cleaner.
▸Clean the surfaces with a soft, damp cloth only – for metal surfaces rub in the direc-
tion of the polish lines.
▸Clean the operating panel with a damp cloth and then wipe dry. Only use washing-up
liquid or glass cleaner.
▸Regularly clean the door seal and edges with a soft, damp cloth.
11.2 Cleaning the spray arms
Upper spray arm
▸Remove the upper basket.
1
2
▸Release the bayonet fastener 1 in an anti-clockwise
direction and remove.
▸Remove the spray arm 2 from the shaft and rinse well
under running water.
▸Check the nozzles.
Lower spray arm
▸Hold the spray arm 3 in the middle and pull hard up-
wards.
3
4
5
▸Rinse the spray arm well under running water.
▸Check the nozzles 4.
▸Clean the filter system 5 and the coarse filter (see
page 50).
49
11 Care and maintenance

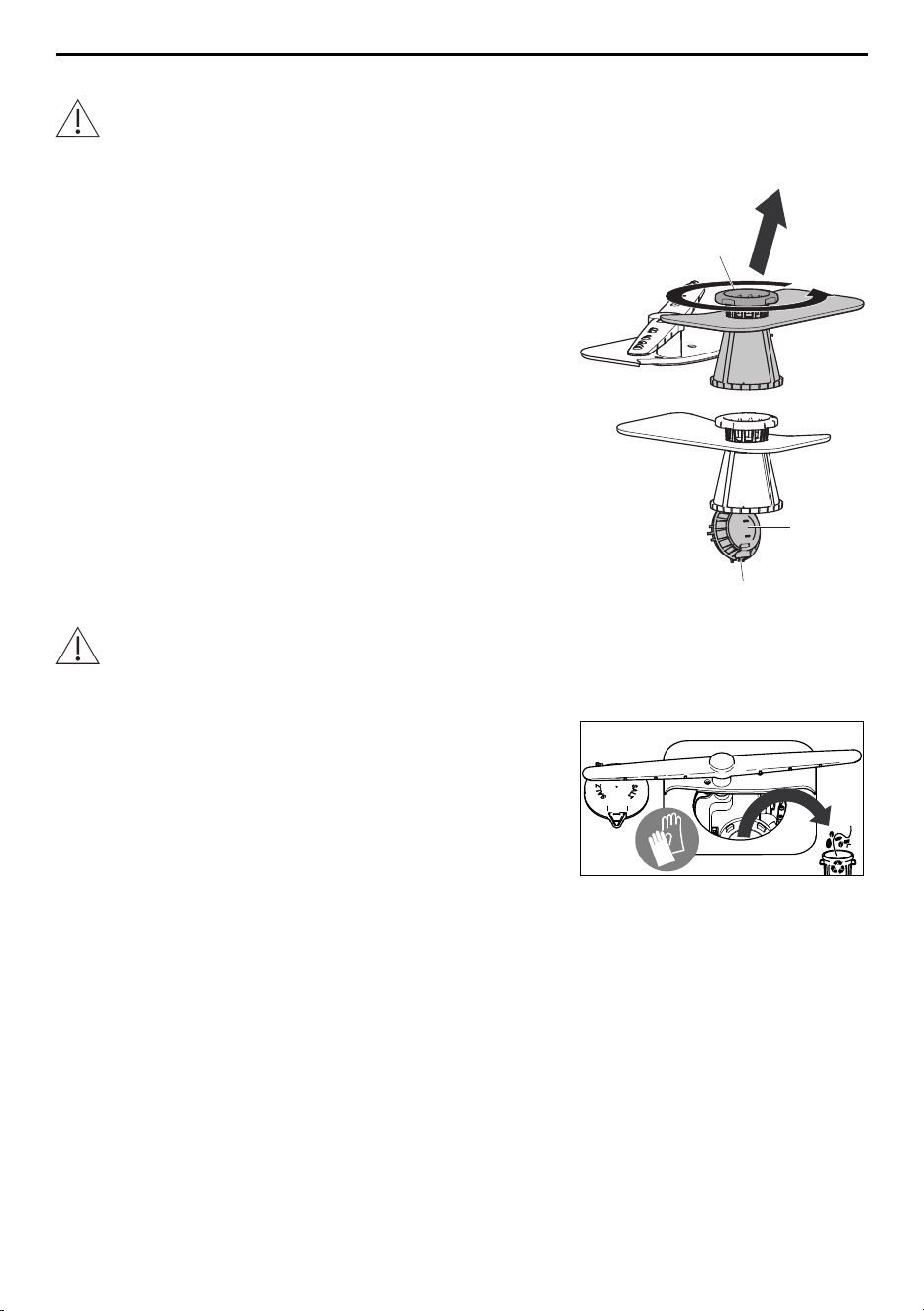

11.3 Cleaning the filter system
Only use soft materials for cleaning beneath the filter system. Never use metal ob-
jects.
An incorrectly assembled filter system can cause the appliance to malfunction.
▸Open the appliance door and pull out the lower bas-
ket.
1
2
3
▸Release the filter system in fine filter 1 in an anti-
clockwise direction and remove.
▸Open the coarse filter 2 by pressing on closing lug 3
and clean the filter system under running water using
a brush.
Risk of cuts to hands
Splinters of glass and very sharp bits can get deposited in the pump sump. Wear
cut-resistant gloves when cleaning the pump sump.
▸Remove coarse detritus from the pump sump.
▸Replace the filter system and turn the fine filter 1 as
far as it will go in a clockwise direction.
50
11 Care and maintenance

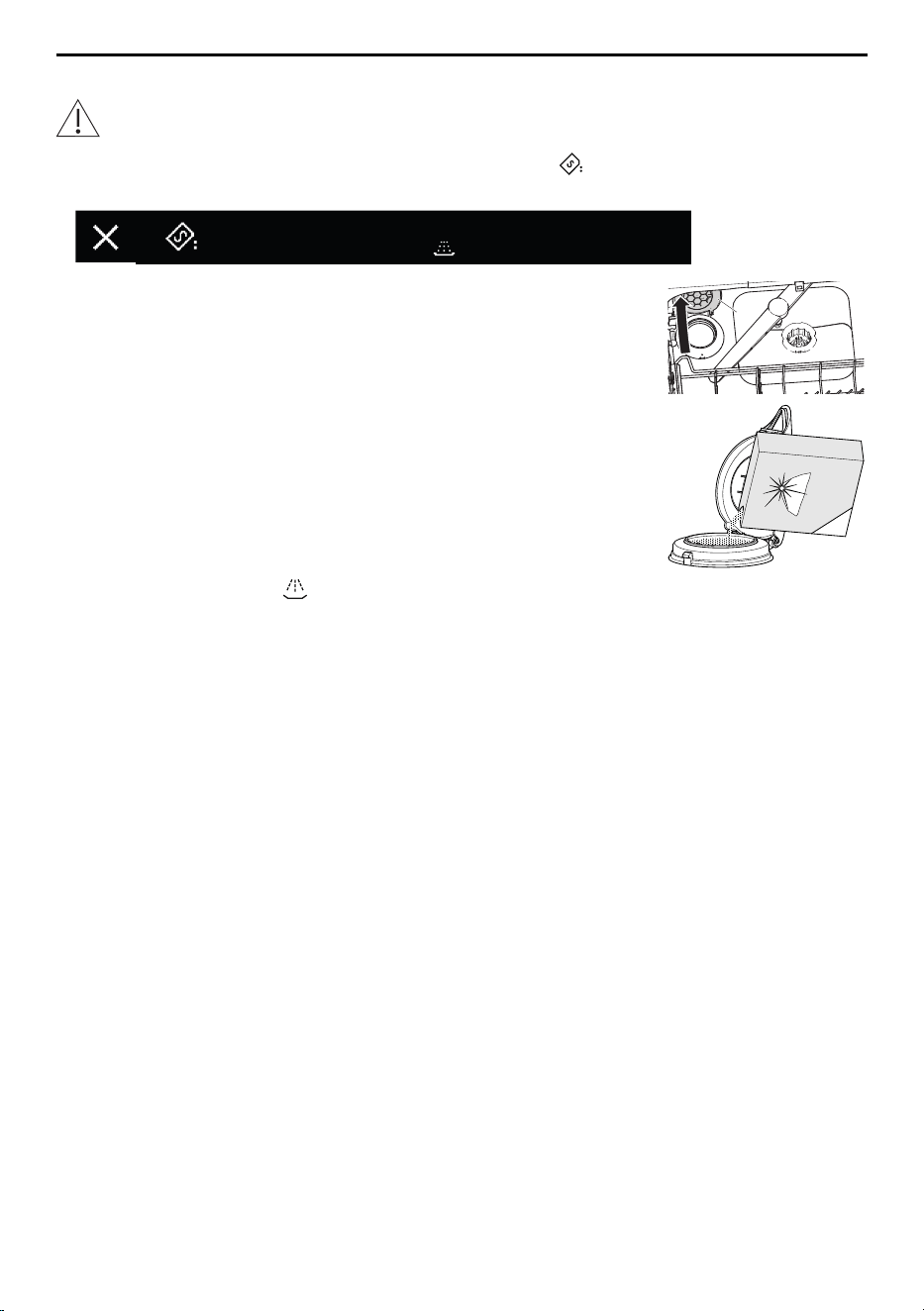

11.4 Refilling with regeneration salt
Never fill the salt reservoir with detergent!
When the supply of regeneration salt is exhausted, the refill indicator flashes and the
following appears in the display:
Refill regeneration salt.
Then run the Pre-rinsing programme.
▸Open the box of regeneration salt.
▸Open the appliance door and remove the lower basket.
▸Open the cover 3 on the salt reservoir by lifting up the grip.
3
▸For initial set-up only: add 1l water.
▸Fill with 1 kg standard regeneration salt.
▸Wipe away any excess salt around the edge of the salt
reservoir.
▸Close the cover 3 on the salt reservoir and engage the
latch.
▸Run the «Pre-rinsing»
programme without dishes to pro-
tect the appliance from corrosion from any excess salt.
51
11 Care and maintenance
Approximate consumption of regeneration salt
The consumption of regeneration salt depends on the hardness of the water supply. The
lower the water hardness, the greater the number of wash cycles per kg of regeneration
salt.
Wash cycles per kg salt°fH
1
°dH
2
∞
1–51–3
680
6–104–6
360
11–157–9
250
16–2010–12
150
21–2513–14
125
26–3015–16
100
31–3517–19
85
36–4020–22
60
41–5023–27
45
51–6028–32
35
61–7033–38
28
71–8039–45
20
81–12045–65
1
French degree of water hardness
2
German degree of water hardness
52
12 Trouble-shooting
11.5 Filling with rinse agent
Never put detergent in the rinse agent reservoir! Wipe away any spilt rinse agent.
Risk of foaming. Follow the manufacturer’s safety instructions and warnings.
Rinse agent prevents water spotting after final rinsing (rinsing with rinse agent).
When the supply of rinse agent is exhausted, the refill indicator flashes and the fol-
lowing appears in the display:
Please refill rinse agent.
▸Open the rinse agent reservoir 2 by pushing the release
catch 1 in the direction of the arrow.
2
1
3
4
▸Fill with rinse agent up to the «max» mark 3
(with factory setting: 1.3dl = approx. 35 wash cycles).
▸Close the cover 4.
▸Wipe away any spilt rinse agent.
12 Trouble-shooting
You may be able to trouble-shoot the following errors yourself. If not, note down the error
message in full and the serial number (SN), which can be found on the identification
plate, and call Customer Services.
12.1 Error messages
In the event of error messages follow the instructions on the operating panel. After
trouble-shooting a problem, touch . The appliance can be operated as usual again.
▪ In the event of a malfunction, an acoustic signal is emitted for 1 minute.
DisplayPossible causeSolution
A0
Foaming?
▪ High-foaming detergent
was used.
▪ Spilt rinse agent.
▪ Washing-up liquid was
used.
▸Wipe away spilt rinse agent with a
cloth.
▸Get rid of the foam with approx. 1dl
edible oil.
▸Cancel the error message by press-
ing the
button.
▸Run the «Pre-rinsing»
pro-
gramme.
53
12 Trouble-shooting
DisplayPossible causeSolution
A1
Check filter sys-
tem
▪ Filter system is not in-
serted.
▪ Filter system is not fully
locked in place.
▸Clean filter system and re-insert cor-
rectly.
▸Turn the fine filter as far as it will go
in a clockwise direction.
A2
Check water outlet
▪ Filter system is clogged
up.
▪ Drain hose is bent or
kinked.
▪ Drain pump or drain
trap is blocked.
▪ Excessive foaming due
to rinse agent spillage.
▸Clean the filter system.
▸Fix the problem.
▸Cancel the error message by press-
ing the
button.
▸Restart the programme.
A9
Check water inlet
▪ Water tap is turned off.
▪ Water inlet filter is
blocked.
▪ Interruption in the water
supply.
▪ Water pressure is too
low.
▸Fix problem or wait until water sup-
ply is restored.
▸Cancel the error message by press-
ing the
button.
▸Restart the programme.
F8 / E18
Water temperature
sensor
▪ Water intake is hotter
than 79 °C (hot water
connection).
▸Have a plumber reduce the temper-
ature of the water intake.
F… / E…
▪ Various situations can
lead to an «F» mes-
sage.
▸Cancel the error message by press-
ing the
button.
If the error message persists:
▸Switch the power supply off for
about 1 minute.
▸Switch the power supply back on
again.
▸Cancel the error message by press-
ing the
button.
▸Restart the programme.
▸If the error appears again, note
down the error message and SN
(see page 67).
▸Turn off the water tap and the power
supply.
▸Call Customer Services.
54
12 Trouble-shooting
DisplayPossible causeSolution
U… / E…
▪ Faulty electrical connec-
tion.
▪ Overvoltage.
▸Cancel the error message by press-
ing the
button.
If the error message persists:
▸Switch the power supply off for
about 1 minute.
▸Switch the power supply back on
again.
▸Cancel the error message by press-
ing the
button.
▸Restart the programme.
▸If the error appears again, note
down the error message and SN
(see page 67).
▸Disconnect the power supply to the
appliance.
▸Have the electrical installation
checked by an expert.
12.2 Other possible problems
ProblemPossible causeSolution
The appliance will
not start.
▪ There could be several
reasons for this.
▸Close the appliance door.
▸Insert plug into mains socket.
▸Check the fuse or circuit breaker.
▸See the «Operation with the child-
proof lock activated» section (see
page 40).
▸If the appliance will still not start: Call
Customer Services.
An unpleasant
smell tends to
come from the ap-
pliance.
▪ There could be several
reasons for this.
▸Clean the filter system.
▸Select a more powerful programme.
▸Refill the salt reservoir with enough
regeneration salt.
The time display
freezes for up to 4
minutes at the be-
ginning of the pro-
gramme or during
the wash cycle.
▪ Water softener is being
flushed through after
the regeneration pro-
cess.
▪ The duration of the pro-
gramme and the time
display are being adjus-
ted to the degree of
soiling of the load.
▸No action required.
55
12 Trouble-shooting
12.3 Unsatisfactory washing results
ProblemSolution
The dishes are not
clean.
▸Select a more powerful programme.
▸Load the baskets differently, avoiding blind spots.
▸Clean the filter system and re-insert correctly.
▸Check whether the spray arms are clogged or dirty.
▸Use the correct amount of detergent or use a different kind of
detergent (see page 30).
▸Set to the right water hardness
in the user settings (see page
44).
▸Refill the salt reservoir with regeneration salt.
There is a white
film on the dishes.
▸Clean the appliance with dishwasher cleaner.
▸Refill the salt reservoir with regeneration salt and run the «Pre-
rinsing»
programme without dishes.
▸Use the correct amount of detergent or use a different kind of
detergent (see page 30).
▸Refill the rinse agent reservoir with rinse agent.
▸Increase the rinse agent dosage
in the user settings (see
page 44).
▸Set to the right water hardness
in the user settings (see page
44).
▸If not using «All in 1» detergent, turn «All in 1»
off in the user
settings (see page 41).
Glassware be-
comes cloudy or
streaky. The
residue cannot be
wiped off.
▸The glassware is not dishwasher safe. Use glassware that is
dishwasher safe.
There are streaks
and lines on the
dishes.
▸Reduce the rinse agent dosage in the user settings (see page
44).
The dishes are
wet and dull or
have water marks
on them.
▸Refill the rinse agent reservoir with rinse agent.
▸Increase the rinse agent dosage
in the user settings (see
page 44).
▸Use a different rinse agent.
▸Do not open the appliance door until the end of the programme
when a 3× acoustic signal is emitted and the display or the
FunctionLight goes out (depending on model).
There are rust
spots on the items
being washed.
The rust stems from another source e.g. the cutlery, pans, water
pipe. The appliance is made of rust-free steel.
▸Refill the salt reservoir with regeneration salt and run the «Pre-
rinsing»
programme without dishes.
56
12 Trouble-shooting
ProblemSolution
The detergent is
not fully dissolved.
▸Check whether the spray arms are clogged or dirty.
▸Use a different kind of detergent.
▸Check the detergent dispenser cover.
▸Check whether the filter system is clogged and clean if neces-
sary.
There is discolour-
ing of the baskets
and plastic parts
inside the appli-
ance.
Dishes that still had discolouring food leftovers (e.g. tomato or
curry sauce) on them or silver cutlery were washed. The discoloura-
tion may fade after a few wash cycles.
12.4 In the event of a power failure
▪ Any programme that is running will be interrupted. After the cause of the power supply
failure has been resolved, the programme is resumed.
▪ The fault indication system is interrupted.
57

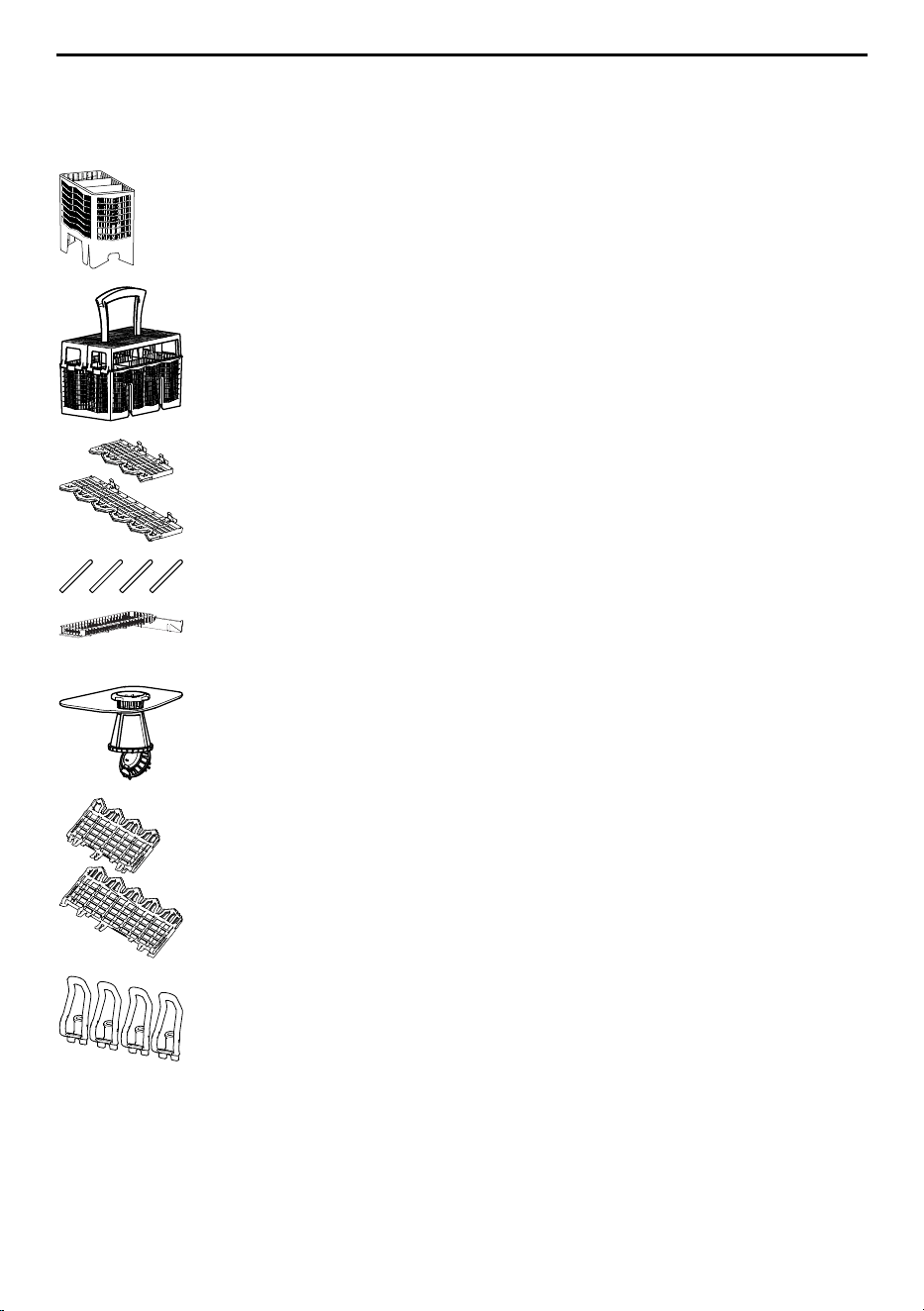

13 Accessories and spare parts
13 Accessories and spare parts
Please give model designation, model number and type of appliance when ordering
parts.
«Small» cutlery basket
«Large» cutlery basket
Rack set for lower basket
Set of 4 easy prongs
Vario cutlery basket insert set
Filter system
Racks for upper basket
Set of 4 clips for small parts
The minimum period during which spare parts are available: 10 years after the making
available on the market of the last appliance with this type designation
58
14 Technical data
14 Technical data
DimensionsSMS 55SMS 55
Extra height
EURO 60EURO 60
Extra height
Appliance height
(up to panel)
756 mm821 mm756 mm821 mm
Appliance height
(incl. adjustable plinth)
–845–893 mm780–828 mm845–893 mm
Appliance width546 mm546 mm596 mm596 mm
Appliance depth572 mm572 mm572 mm572 mm
Appliance weight43–46 kg43–46 kg43–48 kg44–51 kg
Plumbing in
Cold or hot water up to 60 °C:G¾"
Permitted pressure of water supply:0.1–1.0MPa (1–10bar)
Max. pumping height:1.2m
Electrical connection
The electrical connection data can be
found on the identification plate:
▸Open the appliance door.
– The identification plate is located on
the left-hand side on the edge of the
tub.
Ambient conditions
Minimum ambient temperature+10°C
Warranty claim
The manufacturer’s warranty is valid for 24 months starting from when the appliance is
first put into service.
14.1 Safety concept
Provided power is going to the appliance, the electronic control unit monitors the appli-
ance. Any malfunctions are indicated by error messages.
14.2 Overflow protection
The overflow protection system does not function during a power failure. Turn off
the water tap during longer periods of inactivity.
The electronic control unit monitors the water level in the appliance. In the event of
a malfunction, the drain pump turns on, stopping the supply of water to the appli-
ance.
59
15 Disposal
14.3 Note for testing institutes
The note for testing institutes can be obtained from the internet:
www.vzug.com/testinstitute.
14.4 Noise measurement
See the 'Note for testing institutes' section.
15 Disposal
15.1 Packaging
Never allow children to play with packaging material due to the danger of injury or
suffocation. Store the packaging material in a safe location or dispose of it in an
environmentally-friendly way.
15.2 Safety
Render the appliance unusable to prevent accidents caused by improper use (e.g.
through children playing):
▸Disconnect the appliance from the mains. With a fixed appliance, this is to be carried
out by a qualified electrician. Then cut the mains cable off flush with the appliance.
▸Remove or disable the lock on the appliance door.
15.3 Disposal
▪
The «crossed‐out wheeled bin» symbol requires the separate collection of waste
electrical and electronic equipment (WEEE). Such equipment can contain hazardous,
environmentally harmful materials.
▪ These appliances are to be handed over to a designated collection point for the recyc-
ling of electrical and electronic equipment and must not be disposed of with unsorted
household waste. And in this way, you will be helping to protect resources and the en-
vironment.
▪ For more information, please contact the local authorities.
60
Addresses of the importers
Addresses of the importers
AU/NZ
V-ZUG Australia Pty. Ltd.
2/796 High Street
Kew East, Victoria 3102,
AUSTRALIA
LB
Kitchen Avenue SAL
Mirna El Chalouhi Highway
Wakim Bldg, Jdeiheh
Beirut
LEBANON
CN
V-ZUG (Shanghai)
Domestic Appliance Co. Ltd.
Raffles City Changning Office
Tower 3
No. 1139 Changning Road
200051 Shanghai
CHINA
RU
OOO Hometek
Dubininskaya Street 57 building 1
113054 Moscow
RUSSIA
AT/BE/
DK/DE/
ES/FR/
NO/NL/
LU/SE
V-ZUG Europe BV
Evolis 102
8530 Harelbeke
BELGIUM
SG
V-ZUG Singapore Pte. Ltd.
6 Scotts Road
Scotts Square #03-11/12/13
228209 Singapore
SINGAPORE
GB/IE
V-ZUG UK Ltd.
27 Wigmore Street
London W1U 1PN
GREAT BRITAIN
TH
V-ZUG (Thailand) Ltd.
140/36, 17th Floor ITF Tower,
Silom Road
Suriyawong Sub-district
Bangrak District
Bangkok 10500
THAILAND
HK/MO
V-ZUG Hong Kong Co. Ltd.
12/F, 8 Russell Street
Causeway Bay
HONG KONG
TR
GÜRELLER
Anchor Sit.3A/1-2 Çayyolu
06690 ÇANKAYA/ANKARA
TURKEY
IT
Frigo 2000 S.p.A
Viale Fulvio Testi 125
20092 Cinisello Balsamo (Milano)
ITALY
UA
Private enterprise “Stirion” (MIRS
corp.)
Osipova Street 37
65012 Odessa
UKRAINE
IL
Digital Kitchen
Hataarucha 3
6350903 Tel Aviv
ISRAEL
VN
V-ZUG VIETNAM COMPANY LTD.
21st Floor, Saigon Centre, 67 Le
Loi
Ben Nghe Ward, District 1
Ho Chi Minh City, 700000
VIETNAM
61
16 Index
A
A messages............................................... 53, 54
Aborting
Programme...................................................34
Acoustic signal................................................. 44
Addresses of the importers........................... 61
All in 1......................................................... 16, 31
Activating.......................................................41
Deactivating..................................................41
Appliance
Disposal.........................................................60
Appliance door................................................. 10
Adjusting the door weight.............................8
Cleaning........................................................49
Appliance hygiene........................................... 15
Automatic.......................................................... 14
Automatic door opener................................... 45
Automatic stand-by.......................................... 46
Average consumption..................................... 16
Displaying......................................................42
B
Brightness......................................................... 44
Button tone........................................................ 44
C
Cancelling
Button.............................................................12
Delayed start................................................36
Celsius............................................................... 45
Childproof lock................................................. 16
Activating.......................................................40
Deactivating..................................................41
Unlocking......................................................40
Combination cleaning products.................... 31
All in 1............................................................16
Consumption values........................................ 14
Displaying......................................................42
Resetting.......................................................46
Cutlery
Cutlery drawer..............................................10
Large cutlery basket.............................10, 58
Loading...................................................22, 28
Small cutlery basket....................................58
Vario cutlery basket insert.........................58
D
Declaration programme.................................. 14
Delayed start..................................................... 16
Cancelling.....................................................36
Setting duration............................................36
Detergent
Adding...........................................................31
Combination.................................................16
Selecting........................................................30
Detergent dispenser................................. 10, 31
Display............................................................... 10
Operating......................................................32
Unlocking......................................................40
Wipe protection............................................16
Disposal............................................................. 60
Door handle...................................................... 10
DryPlus............................................................... 16
E
Easy care
Energy saving...............................................15
Glass..............................................................15
Easy prongs........................................ 20, 23, 58
Eco..................................................................... 14
EcoManagement....................................... 11, 16
Activating.......................................................46
Deactivating..................................................46
Displaying......................................................42
Energy and water consumption.................... 16
Displaying......................................................42
Energy saving................................................... 15
F
F and E messages.......................................... 54
Factory settings................................................ 46
Fahrenheit......................................................... 45
Favourites.......................................................... 38
Creating.........................................................38
Deleting all....................................................46
Deleting individual................................32, 39
Saving............................................................32
Starting..........................................................38
Using in permanent mode.........................39
Filter system............................................... 10, 58
Cleaning........................................................50
Fold-down tine rack......................................... 18
French degree of water hardness................ 45
FunctionLight............................................. 10, 12
Activating.......................................................45
Deactivating..................................................45
G
German degree of water hardness.............. 45
Glasses
Energy saving...............................................15
Glass..............................................................15
Glass holder.................................................24
Loading...................................................20, 23
62
16 Index
H
Hot water connection...................................... 46
I
Identification plate............................................ 67
Information................................................. 32, 42
Intensive............................................................. 15
Interior................................................................ 10
Illumination....................................................45
L
Language........................................................... 44
LED..................................................................... 12
Loudness........................................................... 44
Low temperature.............................................. 48
Lower basket.................................................... 10
Loading..........................................................17
M
Machine care.................................................... 15
Model designation.............................................. 2
N
Notes.................................................................. 65
O
Operating and display elements................... 10
P
Partial load........................................................ 15
Permanent mode...................................... 32, 37
Plain text display.............................................. 10
Powder............................................................... 31
Pre-rinsing......................................................... 15
Programme................................................ 11, 14
Aborting.........................................................34
Duration.........................................................14
End.................................................................35
Interrupting....................................................34
Selecting........................................................33
Starting....................................................33, 38
Using in permanent mode.........................37
Q
Quick programmes
Partial load....................................................15
Quick..............................................................15
R
Rack..................................................... 18, 25, 26
Racks................................................................. 58
Regeneration salt
Consumption................................................52
Refilling..........................................................51
Rinse agent
Adding...........................................................53
Dosing...........................................................45
Rinse agent reservoir............................... 10, 53
RinsePlus........................................................... 16
S
Safety precautions
General.............................................................4
Salt reservoir.............................................. 10, 51
Serial number (SN).......................................... 67
Service & Support............................................ 67
Service settings................................................ 46
Setting options.......................................... 11, 15
Adding to favourites....................................38
Selecting permanent............................39, 44
Turning off temporarily................................40
Small-parts holder............................................ 58
Soiling, heavy
Automatic......................................................14
Intensive........................................................15
Soiling, light
Automatic......................................................14
Quick..............................................................15
Soiling, normal
Automatic......................................................14
Eco.................................................................14
Spray arms........................................................ 10
Cleaning........................................................49
Symbols................................................................ 4
T
Tabs............................................................. 31, 32
Technical questions......................................... 67
Temperature unit.............................................. 45
Tone................................................................... 44
Total consumption........................................... 16
Displaying......................................................42
Type....................................................................... 2
U
U and E messages.......................................... 55
Upper basket.................................................... 10
User settings.............................................. 11, 44
Adjusting.......................................................44
Using for the first time....................................... 8
V
Validity................................................................... 2
Vario cutlery basket insert.............................. 58
V-ZUG App........................................................ 43
V-ZUG-Home..................................................... 42
Activating.......................................................46
63
W
Warranty claim.................................................. 59
Warranty extensions........................................ 67
Water hardness................................................ 45
Regeneration salt.........................................52
Wipe protection................................................ 16
Activating.......................................................41
WLAN connection............................................ 43
64
65
Notes
66
17 Service & Support
The «Trouble-shooting» section gives you valuable tips on how to deal with minor
malfunctions yourself, saving you the time and trouble of calling out a service tech-
nician and any cost that goes along with it.
Information on the V-ZUG warranty can be found at www.vzug.com →Service
→Warranty information. Please read this information carefully.
Please register your appliance straightaway online at www.vzug.com →Service
→Warranty registration. This will allow you to take advantage of the best possible support
in the event of a fault in the appliance during the guarantee period. You will require the
serial number (SN) and appliance designation to register your appliance. You will find
them on the identification plate of your appliance.
My appliance information:
SN: __________________________Appliance: ________________________________
Please have this appliance information to hand when contacting V-ZUG. Thank you.
▸Open the appliance door.
– The identification plate is located on the
left-hand side on edge of the tub.
Your repair order
At www.vzug.com →Service→Service number you will find the telephone number of your
nearest V‑ZUG service centre.
Technical questions, accessories, warranty extensions
V-ZUG is happy to help you with any general administrative or technical queries, to take
your orders for accessories and spare parts and to inform you about our progressive
service agreements.
67

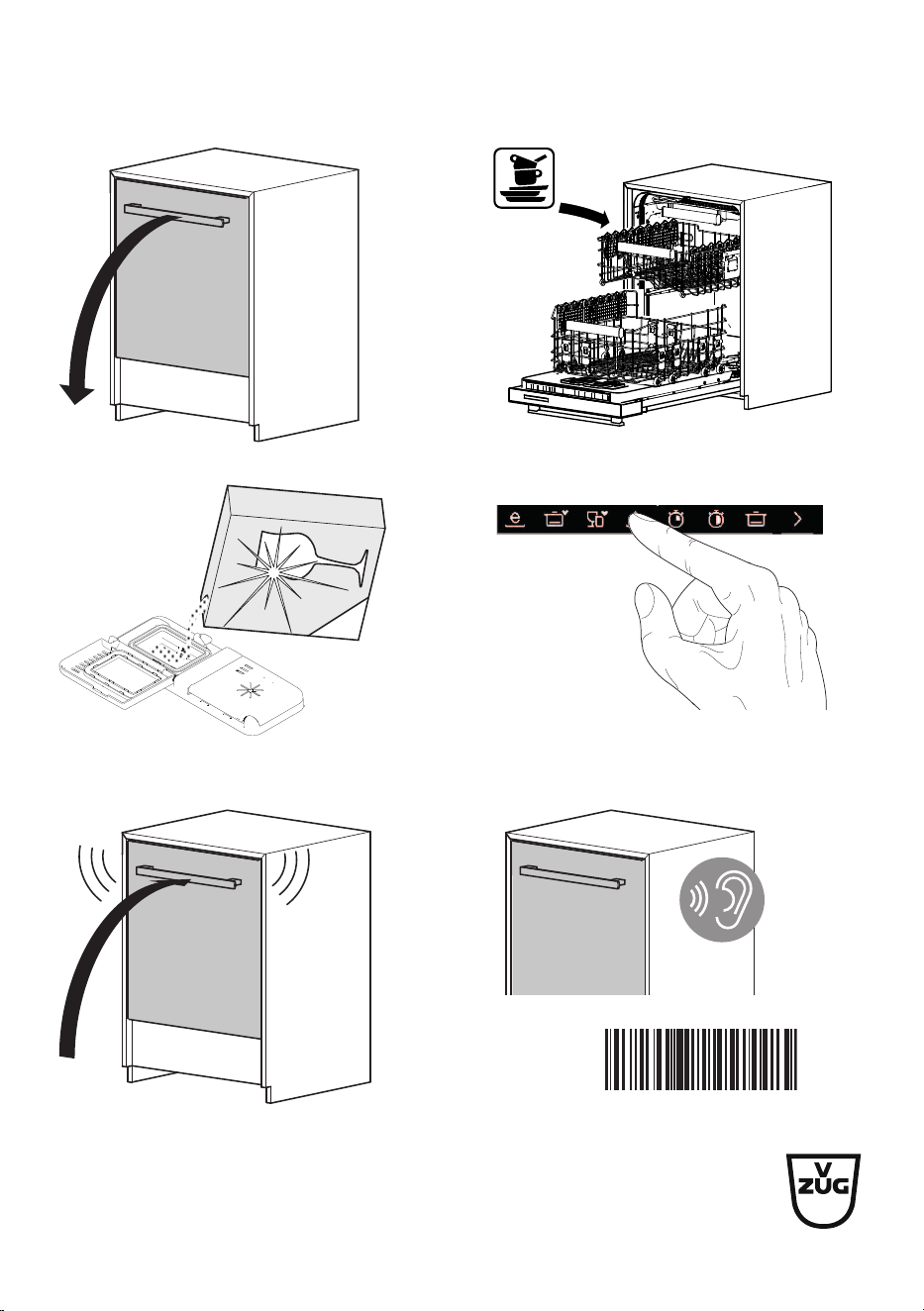

Quick start guide
1.Open appliance door2.Load dishes
3.Add detergent4.Select programme
5.Close appliance door:6.At end of final drying:
programme startsunload dishes
V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug
[email protected], www.vzug.com
1158594-03
