Operating instructions
Adora S fully and design integrated
Dishwasher
Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarize yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make tech-
nical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Model Type Product family Size system
Adora 55 S GS55Sdi 41014 SMS 55
Adora 55 S GS55SVi 41025 SMS 55
Adora 55 S GS55SGdi 41028 SMS 55
Adora 55 S GS55SGVi 41027 SMS 55
Adora 60 S GS60Sdi 41010 EURO 60
Adora 60 S GS60SVi 41035 EURO 60
Adora 60 S GS60SGdi 41037 EURO 60
Adora 60 S GS60SGVi 41036 EURO 60
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2015
2
Contents
1 Safety precautions 5
1.1
Symbols used .............................................................................................5
1.2
General safety precautions ......................................................................6
1.4
Instructions for use ....................................................................................8
2 Disposal 12
3 Your appliance 13
3.1
Appliance description............................................................................. 13
3.2
Construction ............................................................................................. 14
3.3
Operating and display elements .......................................................... 15
4 Programme overview 17
4.1
Programmes............................................................................................. 17
4.2
Additional functions ................................................................................ 19
5 User settings 20
5.1
Adjusting user settings........................................................................... 20
5.2
Acoustic signal ........................................................................................ 22
5.3
«All in 1» detergent ................................................................................. 22
5.4
Childproof lock ........................................................................................ 22
5.5
Water hardness ....................................................................................... 23
5.6
Rinse agent dosage ............................................................................... 24
5.7
Drying Plus ............................................................................................... 24
5.8
Hot water connection.............................................................................. 25
5.9
Temperature unit ..................................................................................... 25
5.10
Automatic door opening ........................................................................ 25
5.11
Factory settings ....................................................................................... 25
6 Operation 26
6.1
Preparing the appliance......................................................................... 26
6.2
Dishwashing tips ..................................................................................... 27
6.3
Loading the baskets ............................................................................... 28
6.4
Loading tips for the upper basket........................................................ 29
6.5
Loading tips for the lower basket......................................................... 33
6.6
Adding the detergent.............................................................................. 37
6.7
Selecting a programme ......................................................................... 39
6.8
Selecting the economy programme .................................................... 39
6.9
Selecting additional functions............................................................... 40
3
6.10
Saving additional functions ................................................................... 40
6.11
Delayed start ............................................................................................ 41
6.12
Interrupting a programme .................................................................... 42
6.13
Aborting a programme ......................................................................... 42
6.14
End of programme.................................................................................. 43
6.15
Operation with childproof lock activated ............................................ 44
7 Care and maintenance 45
7.1
Cleaning the interior ............................................................................... 45
7.2
Cleaning the exterior .............................................................................. 45
7.3
Cleaning the filter system ...................................................................... 46
7.4
Cleaning the spray arms........................................................................ 46
7.5
Filling with regeneration salt ................................................................. 47
7.6
Filling with rinse agent............................................................................ 48
7.7
Water inlet filter, cleaning ...................................................................... 49
8 Trouble-shooting 50
8.1
What to do if … ........................................................................................ 50
8.2
Power failure ............................................................................................ 56
9 Accessories and spare parts 57
10 Technical data 59
10.1
Overview ................................................................................................... 59
10.2
Consumption data................................................................................... 60
10.3
Note for testing institutes ....................................................................... 61
10.4
Noise measurement................................................................................ 61
11 Index 62
12 Notes 64
13 Service & Support 67
4
1 Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in dam-
age to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
▸ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
▪ Indicates a list.
5
1 Safety precautions
1.2 General safety precautions
▪ Read the operating instructions before using the appliance for
the first time!
▪ This appliance can be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack
of experience and/or knowledge, provided they are super-
vised or have been instructed on the safe use of the appli-
ance and have understood the hazards involved. Children
shall not play with the appliance. Cleaning and user mainten-
ance shall not be undertaken by children without supervision.
▪ If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a con-
tact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
▪ If the mains cable of this appliance is damaged, it must be re-
placed by the manufacturer or its Customer Services or a sim-
ilarly qualified person in order to avoid hazard.
6
1 Safety precautions
1.3 Appliance-specific safety precautions
▪ The appliance is only suitable for washing household dishes
and cutlery with water and standard dishwasher detergent.
The appliance is for use in the home and for the intended pur-
pose only. No liability is assumed for any damage caused by
improper or incorrect use.
▪ Children under 3 years of age must be kept away from the
appliance unless they are constantly supervised.
▪ Under no circumstances use a steam cleaner to clean this ap-
pliance.
▪ Ensure that any ventilation openings in the base of the appli-
ance are not obstructed by carpet.
▪ Only leave the appliance door open in the at-rest position. An
open appliance door poses a danger of tripping or injury! Do
not sit or rest on the appliance door or use it as a storage
surface.
▪ CAUTION: Knives and other objects with sharp points must be
placed into the basket with the points facing downwards or be
laid down horizontally in the basket.
▪ CAUTION: Do not drop or insert any knives, forks or other
pointed objects into the door lock opening.
▪ Ensure no cleaning agent gets into the door lock opening.
This can cause the door lock to malfunction.
7
1 Safety precautions
1.4 Instructions for use
Before using for the first time
▪ The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
The appliance was tested with water before being shipped. There may
therefore still be traces of water left in the appliance.
Correct use
▪ Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Cus-
tomer Services or a similarly qualified person. Repairs if carried out incor-
rectly may cause serious injury, damage to the appliance and fittings, as
well as affect the functioning of the appliance. If the appliance is not work-
ing properly or in case of a repair order, follow the instructions given in the
«Service & Support» section. Please contact our Customer Services if ne-
cessary.
▪ Use original spare parts only.
▪ Retain these operating instructions for future reference.
Children in the home
▪ The water in the appliance is not to be used as drinking water. Detergent
residue in the appliance could cause eye or skin irritation! Keep children
away from the open appliance.
Note on use
Switching off the power to the appliance disables the built-in over-
flow protection system.
Dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and
keep children away from the dishwasher when the door is open.
Check that the detergent receptable is empty after completion of the
wash cycle.
▪ Use the childproof locking facility.
8
1 Safety precautions
▪ If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
▪ If the appliance is not operating properly, disconnect it from the power sup-
ply immediately.
▪ Before closing the appliance door and starting a programme ensure that
there are no foreign objects or pets in the appliance. Foreign objects, such
as nails and paper clips, can damage parts of the appliance as well as the
dishes.
▪ Only use detergent, rinse agent and regeneration salt explicitly recommen-
ded for use with your appliance by the manufacturer in its instructions for
use. Follow the corresponding instructions for use carefully.
▪ Do not use the appliance without any or too little detergent – risk of causing
damage to the appliance!
▪ Do not use washing-up liquid as it can cause excessive foaming, causing
your appliance to malfunction.
▪ After filling the salt reservoir, run the programme without dishes.
▪ Never fill the rinse agent reservoir or the regeneration salt reservoir with de-
tergent. If this were to happen, however, do not operate the appliance under
any circumstances, as this could cause expensive damage to it. Call Cus-
tomer Services.
▪ Never operate the appliance without the filter system in place.
▪ Only use soft materials for cleaning beneath the filter system. Never use
metal objects for cleaning.
Caution: Risk of burns!
▪ Do not wash objects that are soiled with inflammable or corrosive solvent,
paint, wax, chemicals (acids or bases) or iron chippings or that can shed
fibres in the appliance.
▪ Avoid opening the appliance door unnecessarily during operation. The
dishes and water may be hot – scalding hazard! The steam that escapes
can damage wood combination fascias. Spectacles can steam up, impair-
ing your vision.
Caution: Risk of injury!
▪ Do not lean on any part of the appliance – risk of accident!
▪ Keep pets away from the appliance.
9
1 Safety precautions
Caution: Risk to life!
▪ Packaging material, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from chil-
dren.
How to avoid damaging the appliance
▪ Turn off the water tap during longer absences.
▪ Please note: The appliance must be connected to the mains supply to en-
sure appliance protection (overflow protection, among other things).
The door must not be closed when appears in the display,
otherwise the door opener can get damaged.
Refill the salt reservoir with regeneration salt when the refill in-
dicator illuminates, even if using detergent.

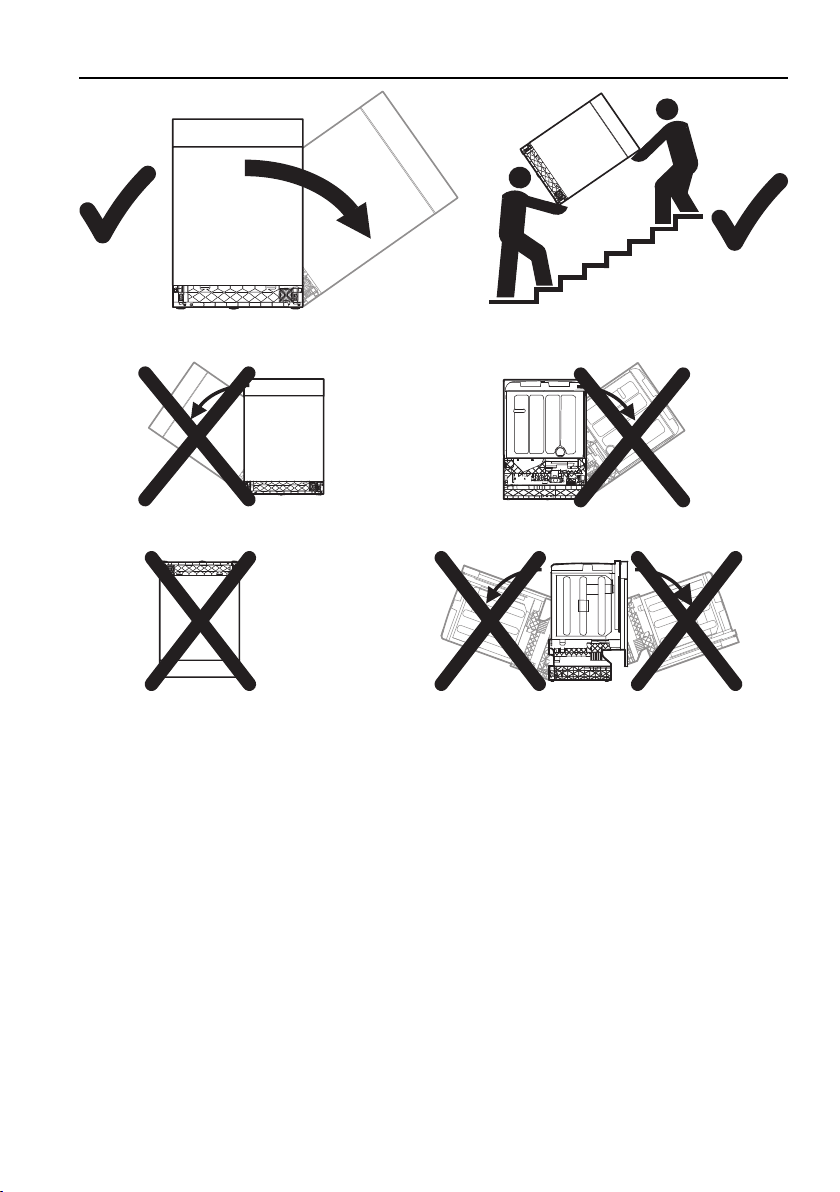

▪ Transport the appliance in an upright position only! Transporting it in any
other position will result in damage to the appliance! When carried carefully
without being shaken, the appliance may be tilted a maximum of 90° to the
left (viewed from the front).
10
1 Safety precautions
Front
Front Back
Front,
upside down Side
Front
11
2 Disposal
Packaging
▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
▪ Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
▪ Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
▪ Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
▪ Remove or disable the lock on the appliance door.
Disposal
▪ The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
▪ The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
▪ The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recyc-
ling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
12
3 Your appliance
3.1 Appliance description
▪ Load capacity
– 12 international place settings (SMS 55)
– 13 international place settings (EURO 60)
▪ 8 programmes
– «Automatic»
– «Quick»
– «Glass»
– «Intensive»
– «Fondue/Raclette»
– «Hygiene»
– «Pre-rinsing»
– «Economy programme»
▪ Additional functions
– «Energy saving»
– «Partial load»
– «Delayed start»
– «Drying Plus»
▪ «All in 1» detergent
▪ Childproof lock
▪ Automatic water softener with limescale sensor
▪ Automatic rinse agent dosage
▪ Hot water connection
▪ Soil sensor
▪ Acoustic signal
13
3 Your appliance
3.2 Construction
1
3
2
4
8
7
6
9
5
10
1
Spray arm
11
12
* Depending on model
2
Basket
3
Cutlery basket
4
Rinse agent reservoir
5
Operating and display elements
6
Quick operating instructions
7
Detergent dispenser
8
Salt reservoir
9
Filter system
10
«Small» cutlery basket
11
Digital display on glass panel *
12
Function light *
14
3 Your appliance
3.3 Operating and display elements
Programme buttons
Programme selection
Economy programme
End of programme
Additional functions (buttons)
Energy saving
Partial load
Delayed start
Programme symbols
Automatic Fondue/Raclette
Quick Hygiene
Glass Pre-rinsing
Intensive
Additional functions/indicators (symbols)
Energy saving «All in 1» detergent
Partial load Rinse agent refill indicator
Drying Plus Salt refill indicator
15
3 Your appliance
Display (digital display)
Various information appears in the display during the pro-
gramme selection and the programme sequence:
▪ Programme duration
▪ Programme duration remaining
▪ Delayed start
▪ Childproof lock
▪ Wash temperature during the «Cleaning» phase
▪ Hints and trouble-shooting
Acoustic signal
An acoustic signal is emitted at the end of the programme and in the event of
a malfunction.
Function light *
▪ illuminates during the programme sequence
▪ flashes during the final drying phase
* Depending on model
16
4 Programme overview
4.1 Programmes
Automatic
Optimum cleaning results with minimal water and energy consump-
tion. For normal soiling. Not suitable for burned-on or heavily dried-on
soiling.
Quick
Quick programme for light soiling (aperitif dishware and tea and cof-
fee cups and saucers).
Glass
Gentle programme for glasses.
Intensive
For heavy soiling. Particularly suitable for starchy soiling (mashed
potato, rice...).
17
4 Programme overview
Fondue/Raclette
For heavy soiling. Particularly suitable for burned-on soiling (fondue
and raclette pans, gratin dishes...). Only use dishwasher-safe fondue
pans. Add detergent to the pre-rinsing compartment to improve the
cleaning results.
Hygiene
Where hygiene requirements are high (baby bottles, cutting
boards...), items can be cleaned at a higher temperature. Clean the
filter system before starting the programme. For cleaning the appli-
ance and the water outlet thoroughly.
Pre-rinsing
To prevent soiling drying on if intending to start a programme later.
Economy programme
Most efficient programme in terms of water and energy consumption
for normally soiled tableware (declaration programme).
18
4 Programme overview
4.2 Additional functions
Energy saving
Reduces the wash temperature during cleaning by 5°C, providing
energy savings of about 10% and gentle washing for glassware.
Partial load
With partial load, the programme is adapted to the smaller load. The
quantity of water is reduced significantly, saving between 1and6l of
water.
With the additional «Partial load» function, the programme duration is
shortened by up to 30minutes.
Delayed start
The delayed start allows you to wash during off-peak hours (e.g. at
off-peak electricity rates). A delayed start of between 1 and 24 hours
can be set. The delayed start duration last entered is shown as a
suggestion.
19
5 User settings
5.1 Adjusting user settings
User settings can only be changed when no programme is running. The pro-
cedure is generally the same for all settings.
Changing user settings
▸ Hold the button depressed for 5 seconds.
– Display:
▸ Press the button repeatedly until the required setting appears in the dis-
play.
– Display: (example)
▸ To change, press the button.
– Display: (example)
– The setting is accepted.
Exiting user settings
▸ Press the button repeatedly until the display goes out.
If no button is pressed within about 15 seconds, the user settings are
saved and the display goes out.
20
5 User settings
Possible settings
The following diagram gives an overview of the possible user settings.
Hold the button depressed for 5 seconds
* Factory setting
All in 1
Off *
On
Off *
On
French degree of water hardness *
German degree of water hardness
Automatic *
0–5 °fH
6–10 °fH
Automatic *
Off
Level 1
81–120 °fH
Level 12
Off *
On
Off *
On
°C *
°F
Childproof lock
Water hardness unit
Water hardness
Acoustic signal
Rinse agent dosage
Automatic *
0–3 °dH
4–6 °dH
46–65 °dH
Hot water connection
Temperature unit
No *
Yes
Factory settings
Off
Low *
High
Drying Plus
Off
On *
Automatic door opening
21
5 User settings
5.2 Acoustic signal
An acoustic signal is emitted at the end of a
programme and if the appliance malfunctions.
It can be set at one of three levels («Off», «Low», «High»).
In the event of a malfunction, an acoustic signal is emitted even if it is set
to off.
If a delayed start has been set, no acoustic signal is emitted at the
end of the programme.
Changing the loudness (see page 20)
5.3 «All in 1» detergent
The «All in 1» setting adapts the programme
for use with detergent with integrated salt and
rinse agent function in an optimal way.
If the or refill indicators illuminate, still refill with regenera-
tion salt or rinse agent.
▪ products can only be used up to a certain water hardness.
▪ The duration of very short programmes is extended because detergent
takes longer to dissolve.
Setting for «All in 1» detergent (see page 20)
5.4 Childproof lock
The childproof lock prevents a programme
from being started accidentally.
When the childproof lock is on, a programme can only be started by pressing
two buttons simultaneously.
Setting the childproof lock (see page 20)
22
5 User settings
5.5 Water hardness
The built-in water softener removes limescale from the water, enabling prob-
lem-free cleaning. Automatic regeneration occurs at regular intervals, thus
guaranteeing its effectiveness.
Your appliance is equipped with an automatic limescale sensor. Configuring
the level of water hardness is therefore not necessary. The appliance automat-
ically starts the regeneration process at the right time.
After regeneration, the next programme starts by rinsing out the water softener
by pumping water through it and draining simultaneously.
For hygiene reasons, regeneration salt is also recommended for use with low
water hardness and detergents.
For information on the level of water hardness in your area, contact
your local water authority.
The unit of water hardness can be set to the
French degree of water hardness (°fH) or the
German degree of water hardness (°dH).
Setting the water hardness unit (see page 20)
The water hardness setting can be changed to
suit local conditions.
Setting the water hardness (see page 20)
The water softener is deactivated at level 0‑5 °fH or 0‑3 °dH.
Levels of water hardness
Possible settings in °fH (French degree of water hardness)
Level Auto 5 10 15 20 25 30 35 40 50 60 70 80 99
°fH Auto-
matic
0
–
5
6
–
10
11
–
15
16
–
20
21
–
25
26
–
30
31
–
35
36
–
40
41
–
50
51
–
60
61
–
70
71
–
80
81
–
99*
23
5 User settings
Possible settings in °dH (German degree of water hardness)
Level Auto 3 6 9 12 14 16 19 22 27 32 38 45 65
°dH Auto-
matic
0
–
3
4
–
6
7
–
9
10
–
12
13
–
14
15
–
16
17
–
19
20
–
22
23
–
27
28
–
32
33
–
38
39
–
45
46
–
65
* 99 corresponds to the maximum level of water hardness of 120°fH.
Settings for external ion exchanger (water softener)
The appliance must be set up for a 0-5 °fH level of hardness if:
▪ the hardness of the water intake is 40 °fH or above before passing through
the ion exchanger.
Ensure that the water used in the appliance passes through the ion
exchanger. Otherwise no settings have to be made. The appliance
automatically adjusts to the water hardness.
5.6 Rinse agent dosage
The rinse agent dosage is automatically adjus-
ted to the load level and the water hardness.
If the drying result is unsatisfactory, then the dosage can be switched off
manually («Off» setting) or set to one of 12 levels.
▪ If the dishes are still wet or there are water spots, set the dosage to level 6
or higher.
▪ If the dishes are streaky, set the dosage to level 3.
Setting the rinse agent dosage (see page 20)
5.7 Drying Plus
The temperature is increased during the drying
phase. This extends the duration of the drying
phase.
24
5 User settings
Setting Drying Plus (see page 20)
5.8 Hot water connection
The available hot water is used optimally.
If the water intake is still too cold, a short pre-rinse is carried out. The clean-
ing phase with hot water follows. If the additional energy saving function is se-
lected, the water is heated up further electrically to only a minimum temperat-
ure, reducing energy consumption further.
Setting the hot water (see page 20)
5.9 Temperature unit
The unit of temperature can be set to degrees
Celsius [°C] or degrees Fahrenheit [°F].
Changing the unit of temperature (see page 20)
5.10 Automatic door opening
The automatic door opening provides optimum
drying results with low energy consumption.
The appliance door automatically opens slightly during the drying or final dry-
ing phases. The automatic door opening can be switched off, which extends
the duration of the programme by around 10 minutes.
Setting the automatic door opening (see page 20)
5.11 Factory settings
The factory settings can be restored.
Restoring factory settings (see page 20)
25
6 Operation
6.1 Preparing the appliance
Opening the appliance door
▸ Pull the door handle forwards.
– Any programme that is running will be automatic-
ally interrupted.
Before using for the first time
▸ Switch the power on.
▸ Turn on the water tap.
▸ Fill the salt reservoir with approximately 1.0l water and 1kg regeneration
salt.
For hygiene reasons, regeneration salt is also recommended for use with
low water hardness and detergents.
▸ Wipe away excess salt on the edge of the salt reservoir.
▸ Fill the rinse agent reservoir with rinse agent.
▸ Run the programme without dishes to protect the appliance from corro-
sion from any excess salt and to remove factory-related grease deposits.
On initial use, the refill indicator can remain illuminated for several
wash cycles.
goes out when the salt concentration in the reservoir is evenly dis-
tributed (after about 10 wash cycles).
26
6 Operation
6.2 Dishwashing tips
Tableware
Not all table- and kitchenware are dishwasher safe.
▪ Handcrafted objects and wooden or plastic parts that are sensitive to heat
or detergent suds should be cleaned by hand.
▪ The printing on glass and porcelain is hard-wearing only to a point and
eventually over time can wear off.
▪ Pottery has a tendency to crack or chip.
▪ Objects made of silver, copper and tin have a tendency to discolour, turning
brown or black.
▪ Stress and tension in thick cut crystal glasses and dishes can cause crack-
ing.
▪ Depending on the type of glassware and the detergent being used, perman-
ent clouding may result. Check with your glassware supplier as to whether
your glassware is dishwasher safe.
▪ Spots tend to form on aluminium. This can affect other items being washed
(spots on porcelain). Aluminium should therefore ideally be washed separ-
ately.
▪ Tableware with adhesive labels should not be washed in the dishwasher.
The adhesive labels can clog up the filter system.
General note
▪ To prevent damage to glass and water spots, arrange glasses in such a
way that they do not touch.
▪ Do not overload the baskets.
▪ Load beverage and food containers such as cups, glasses, pots, etc. with
the opening facing downwards so that the water can drain off.
▪ Save energy, water and detergent by loading the appliance to capacity.
▪ When washing range hood grease filters use the maximum amount of deter-
gent.
▸ Select the programme.
27
6 Operation
6.3 Loading the baskets
Not all table- and kitchenware are dishwasher safe. Follow the tips
and advice in the 'Dishwashing tips' section.
▸ Remove any coarse or hard pieces of food or foreign objects left on the
dishes.
▸ Make sure no toothpicks get into the appliance. Toothpicks can cause the
filter system to become clogged up.
▸ Dishes, pots and pans with heavily burned-on food debris stuck to them
should be soaked in water first.
▸ After loading the dishes, check that the spray arms can turn freely.
In the following you will find some loading tips to help you get the best results
from your appliance.
28
6 Operation
6.4 Loading tips for the upper basket
▸ Pull the upper basket out as far as it will go and load. Arrange smaller items
such as saucers, glasses, cups and dishes.
▸ If using the fold-down racks 1, stagger the items so that the water can reach
the dirty surfaces better.
▸ Rest glasses on the adjustable glass holder 2.
1
2
Glass holder
The glass holders 1 are particularly suitable for
tall glasses. They can be folded down or up.
▸ Push the glass holders gently down or, altern-
atively, pull them up until they engage.
1
29
6 Operation
Racks
The racks 1 can be used as glass holders.
1
Remove the racks to accommodate tall glasses.
Dismantling/adjusting the height of the racks
The height of the racks is adjustable.
1. Push the rack 1 up by the hooks 2.
2. Push the rack inwards and then out.
▸ Hook the rack in the higher position 3, if re-
quired.
1
2.
1.
3
2
Easy prongs
The easy prongs 1 can be placed over the
prongs anywhere in the basket.
By using the easy prongs, drinking glasses, baby
bottles, sports bottles, vases and carafes can be
placed anywhere in the basket.
Use 2 easy prongs for wider vessels.
1
30
6 Operation
Fold-down tines
Swing the fold-down tines 1 to the right to create
an additional loading area for cups and glasses.
1
Adjustable upper basket
The height of the upper basket can be adjusted to 2 or 3 levels by a total of
approximately 2-4cm.* It can be inclined in various ways.
* Depending on model
Raising the upper basket
▸ Hold the upper basket at the sides by the grips
1 and raise it into the position required.
1
31
6 Operation
Lowering the upper basket
▸ Hold the upper basket at the sides by the grips
1.
▸ Raise the upper basket slightly and press the
button 2 at the same time.
– The locking device is released.
▸ Lower the upper basket into the position re-
quired, release the button and engage the bas-
ket.
1
2
32
6 Operation
6.5 Loading tips for the lower basket
▸ Pull the lower basket out as far as it will go and load.
▸ Load larger items such as plates, bowls, platters, pots and pans.
▸ Load wide dishes (soup plates, lids, etc.) at the back on the right.
Put plastic bowls in the upper basket. If loaded into the lower basket,
they could be lifted by the pressure of the water and could come into
contact with the revolving spray arm.
33
6 Operation
Fold-down tines
The tines 1 can be folded down to create a larger
area for loading e.g. large plates, pans, dishes or
a number of cups and glasses.
Cooking trays can be placed between the prongs.
Easy prongs give optimal stability.
1
In order to fold the tines down, the locking grip 2
at the side must be pulled up.
2
Easy prongs
The easy prongs 1 can be placed over the
prongs anywhere in the basket.
By using the easy prongs,
drinking glasses, baby bottles, vases and carafes
can be placed anywhere in the basket.
Use 2 easy prongs for wider vessels.
1
34
6 Operation
Cleaning baking trays
The upper basket has to be removed for larger
baking trays.
▸ Slide the upper basket out as far as possible.
▸ Remove the basket safety lock 2 by pushing it
upwards.
▸ Pull the upper basket out of its guides.
2
When the upper basket is put back, the basket safety lock 2 must be re-
turned to the locking position.
▸ Load the baking trays.
– The easy prongs act as a stable prop.
Cutlery basket *
* Depending on model
To avoid injury, place knives and cutlery with sharp edges or
points into the cutlery basket in such a way that they do not stick
out (points facing downwards).
Do not insert any knives, forks or other pointed objects into the
door lock opening or drop them into the opening. Risk of damage
to the appliance.
Knives and cutlery with sharp edges or points may also be placed hori-
zontally in the upper basket.
The cutlery basket may be placed over the easy prongs anywhere in the lower
basket.
35
6 Operation
▸ Put cutlery loosely in the cutlery basket, with
handles pointing down. Make sure no spoons
are sticking together.
The inserts 1 supplied prevent items of cutlery
sticking together, water spots during drying, and
smaller items (e.g. mocha spoons) slipping
through the basket.
▸ Fit the inserts to the cutlery basket.
1
When closing the appliance door, ensure no items of cutlery are sticking
out of the tub or are trapped. The leak tightness of the appliance cannot
otherwise be assured.
36
6 Operation
6.6 Adding the detergent
Ensure no cleaning agent gets into the door lock opening.
This can cause the door lock to malfunction.
Powder
▸ Open the detergent dispenser by pushing the re-
lease catch in the direction of the arrow.
▸ Add the detergent to the detergent compart-
ment.
▪ For dosage, follow the detergent manufacturer’s
instructions.
▪ Observe the «20 and 30ml» level marks 1.
▪ For heavier soiling, add approximately 1 table-
spoon of detergent to the pre-rinsing compart-
ment 2.
1
2
▸ Close the cover.
37
6 Operation
Tabs
▸ Place the tab 3 flat in the detergent compart-
ment.
3
Choice of detergent
Do not use washing-up liquid. It can cause excessive foaming,
causing your appliance to malfunction.
Follow the dosage instructions printed on the detergent package care-
fully. Using too high a dosage can cause damage to the appliance.
▸ Only use detergent specially formulated for dishwashers.
▪ The detergent manufacturer’s advice centre will gladly help with any prob-
lems (e.g. detergent dosage).
▪ Tabs may not dissolve properly at a wash temperature of below 55°C, af-
fecting the cleaning performance of the appliance.
Using combination cleaning products ( tabs/powder)
If using combination cleaning products, which should render the use of rinse
agent and regeneration salt superfluous, please observe the following tips:
▪ Use the user settings to adapt the programmes and displays to suit
the detergent.
If the or refill indicators illuminate, the regeneration salt or
rinse agent should still be refilled.
▪ If, after washing and drying, the results are not satisfactory, use conven-
tional cleaning products. Refill the regeneration salt and rinse agent reser-
voirs. Change the user settings to . For complaints, please contact
the detergent manufacturer.
38
6 Operation
6.7 Selecting a programme
▸ Press the button repeatedly until the required programme symbol
flashes.
If appears in the display, the childproof lock is activated. For
next steps, see 'Operation with childproof lock activated' (see page
44).
▸ Close the appliance door.
– The programme starts immediately.
– The function light illuminates. *
If the appliance door is not closed within 15 seconds of selecting a pro-
gramme, all entries, symbols and the display are cleared. A 2×acoustic
signal is also emitted. It is necessary to make a new programme selec-
tion.
Press the button at any time to cancel the programme selected.
6.8 Selecting the economy programme
▸ With the appliance switched off, press the button.
– flashes.
▸ Close the appliance door.
– The programme starts immediately.
– The function light illuminates. *
* Depending on model
39
6 Operation
6.9 Selecting additional functions
After selecting a programme, it is possible – within 15 seconds and while the
programme symbol is flashing – to select additional functions.
▸ Press the additional function button.
– illuminates (example).
▸ Close the appliance door.
– The programme starts immediately.
It is not possible to select the additional function together with the
and programmes.
6.10 Saving additional functions
When an additional function is saved, it is automatically active during pro-
gramme selection.
▸ Select programme.
▸ Hold the additional function button depressed for 5 seconds.
– The selection is saved.
▸ Depress the button again for 5 seconds to clear the saved function.
The corresponding symbol flashes briefly and an acoustic signal is
emitted to confirm that the additional function has been saved or
deselected.
40
6 Operation
6.11 Delayed start
The delayed start allows you to wash during off-peak hours (e.g. at off-peak
electricity rates). The setting range lies between 1 and 24 hours. The delayed
start duration last entered is shown as a suggestion.
Setting
▸ Select a programme and the additional «Delayed start» function.
▸ Press the button repeatedly until the required delayed start period ap-
pears in the display, e.g. .
▸ Close the appliance door.
– The display goes dark. *
– The countdown to the set delayed start begins.
Dishes can be loaded at any time during the delayed start.
When the set delayed start period is up, the programme selected starts auto-
matically.
No acoustic signal is emitted at the end of the programme.
* Depending on model
Clearing
▸ Open the appliance door.
▸ Repeatedly press or hold down the button until the delayed start is
cleared and the programme phase is displayed.
▸ Close the appliance door.
– The programme selected starts.
41
6 Operation
6.12 Interrupting a programme
The dishes and water may be hot – scalding hazard!
▸ Open the appliance door carefully.
– The programme is interrupted.
– The programme symbol flashes.
When the appliance door is closed – in the case of higher water tem-
peratures – noise from the pump switching on and off up to 5times
with short pauses in between may be heard. During this phase, tem-
perature equalization takes place.
6.13 Aborting a programme
The dishes and water may be hot – scalding hazard!
▸ Open the appliance door carefully.
– The programme is interrupted.
– The programme symbol flashes.
▸ Hold the button depressed for 2 seconds.
– The water is pumped off.
– Display:
– A 5× acoustic signal is emitted.
– The display and symbols go out.
42
6 Operation
6.14 End of programme
The door must not be closed when appears in the display,
otherwise the door opener can get damaged.
– A 5× acoustic signal is emitted at the end of the programme.
– If the appliance door remains closed, final drying starts:
– The display illuminates or the function light flashes for up to
90minutes.*
– Three long acoustic signals are emitted at the end of the final drying
phase.
The appliance door opens automatically during the drying or final drying
phases. For optimal drying results, the tableware should not be unloaded
until the displays go out. After the final drying phase, the appliance
enters the energy-saving stand-by mode.
* Depending on model
Unloading
▸ Unload the appliance.
Unload the lower basket first.
▸ Periodically check the filter system and clean if necessary.
43
6 Operation
6.15 Operation with childproof lock activated
When the childproof lock is activated, before a programme can be selected
the childproof lock has to be overridden by pressing two buttons at the same
time. After 'Accessing programme selection', the next steps (as described in
the previous sections) can be carried out.
Accessing programme selection
▸ Open the appliance door.
– Display:
▸ Hold the button (the button for the economy programme) depressed
and at the same time press the button.
– The childproof lock has been overridden.
The appliance can now be operated without further regard to the child-
proof lock.
44
7 Care and maintenance
7.1 Cleaning the interior
Using the correct dosage of detergent will automatically clean the interior of
the appliance. We recommend cleaning the appliance twice a year with dish-
washer cleaner.
Follow the directions for use for dishwasher cleaner carefully. Most dish-
washer cleaners work more effectively at higher temperatures. We there-
fore recommend using the programme.
7.2 Cleaning the exterior
▸ Do not use abrasive or caustic cleaning agents.
▸ Do not use scouring pads, wire wool, etc. - damage to the surface.
▸ Remove any soiling or excess cleaning solution immediately.
▪ Detergent: washing-up liquid, glass cleaner
▸ Clean the surfaces with a soft, damp cloth only – for metal surfaces rub in
the direction of the polish lines. Wipe dry with a soft cloth.
▸ Clean the operating panel with a damp cloth and then wipe dry.
▪ Detergent: washing-up liquid, glass cleaner
▸ From time to time, clean the seal and edges of the appliance door with a
soft, damp cloth.
45
7 Care and maintenance
7.3 Cleaning the filter system
Only use soft materials for cleaning beneath the filter system. Never
use metal objects for cleaning.
If inserted incorrectly, the filter system can cause the appliance to
malfunction.
A dirty filter system can cause unsatisfactory cleaning results and affect the
water outlet. Therefore, periodically check and clean the filter system.
▸ Open the appliance door and pull out the lower
basket.
▸ Release the filter system by turning fine filter
grip 1 in an anti-clockwise direction and re-
move.
▸ Open the coarse filer 2 by pressing on closing
lug 3 and clean the filter system under running
water using a brush.
▸ Remove any coarse debris.
▸ Replace the filter system and turn the fine filter
1 as far as it will go in a clockwise direction.
2
1
3
1
7.4 Cleaning the spray arms
If the cleaning performance is unsatisfactory or if dishwasher detergent is be-
ing left behind, then the nozzles in the spray arms may be clogged.
Upper spray arm
▸ Remove the upper basket.
▸ Release bayonet fastener 1 in an anti-clockwise
direction and remove.
▸ Remove the spray arm 2 from the shaft and
rinse well under running water.
▸ Check the nozzles.
1
2
46
7 Care and maintenance
Lower spray arm
▸ Hold the spray arm 3 in the middle and pull
hard upwards.
▸ Rinse the spray arm well under running water.
▸ Check the nozzles.
3
Clean the filter system and the coarse filter at the same time. See 'Clean-
ing the filter system'.
7.5 Filling with regeneration salt
Never fill the salt reservoir with detergent!
When the supply of rinse agent is exhausted, the refill indicator illuminates
during programme selection and at the end of the programme.
▸ Open the appliance door and pull out or re-
move the lower basket.
▸ Open the cover on the salt reservoir by lifting
up the grip.
▸ When using for the first time, fill with approxim-
ately 1.0l water. Then fill with 1kg standard re-
generation salt. The drain pump may come on
briefly.
▸ Wipe away any excess salt around the edge of
the salt reservoir.
▸ Close the cover by firmly pressing down until it
engages.
▸ Run the programme without dishes to
protect the appliance from corrosion from
any excess salt.
On initial use, the refill indicator can remain illuminated for several
wash cycles. goes out when the salt concentration in the reservoir is
evenly distributed (after approximately 10 wash cycles).
47
7 Care and maintenance
Approximate consumption of regeneration salt
A = Hardness of the water supply
B = Number of wash cycles per kg of salt
A °fH
0
–
5
6
–
10
11
–
15
16
–
20
21
–
25
26
–
30
31
–
35
36
–
40
41
–
50
51
–
60
61
–
70
71
–
80
81
–
99
°dH
0
–
3
4
–
6
7
–
9
10
–
12
13
–
14
15
–
16
17
–
19
20
–
22
23
–
27
28
–
32
33
–
38
39
–
45
46
–
65
B
∞ 680 360 250 150 125 100 85 60 45 35 28 20
7.6 Filling with rinse agent
Never fill the rinse agent reservoir with detergent.
Wipe away any spilt rinse agent (risk of foaming and error mes-
sages , ).
Follow the manufacturer’s safety instructions and warnings.
Rinse agent prevents water spotting after final rinsing (rinsing with rinse
agent). The rinse agent is dosed automatically from the reservoir in the appli-
ance door.
When the supply of rinse agent is exhausted, the refill indicator illuminates
during programme selection and at the end of the programme.
▸ Open the rinse agent reservoir by pushing the
release catch in the direction of the arrow.
▸ Fill with rinse agent up to the «max.» mark
(1.3dl suffices for about 35 wash cycles).
▸ Close the cover.
▸ Wipe away any spilt rinse agent.
48
7 Care and maintenance
7.7 Water inlet filter, cleaning
Have the water inlet filter cleaned by experts only. If carried out in-
correctly, there is a risk of flooding!
The built-in water inlet filter can become blocked by limescale deposits, rust or
foreign objects.
This can lead to a error message.
▸ Turn off the water tap.
▸ Loosen the connection 1.
▸ Remove the water inlet filter 2 using pointed
pliers and then clean or replace.
▸ Clean the seal 3.
▸ Replace the water inlet filter 2 and seal 3.
Tighten the connection 1 on the water tap.
▸ Turn on the water tap and check for leaks.
1
2
3
49
8 Trouble-shooting
8.1 What to do if …
This section lists faults that can be solved simply by following the instructions
given. If another fault is displayed or the fault cannot be remedied, please call
Customer Services.
Please note down the error message and the serial number (FN) before
calling Customer Services.
Malfunction warning indicated by acoustic signal
▪ In the event of a malfunction, an acoustic signal is emitted for 1minute.
▪ Malfunction warnings are indicated by an acoustic signal even if the acous-
tic signal is switched off in the 'User settings'.
▪ Detailed information on any current malfunction appears in the display.
... in the display appears
Possible cause Solution
▪ High-foaming detergent
was used.
▪ Spilt rinse agent.
▪ Washing-up liquid was
used.
▸ Wipe away spilt rinse agent with a cloth.
▸ Get rid of the foam with approximately 1dl
vinegar.
▸ Cancel the error message by pressing the
button.
▸ Select the programme.
50
8 Trouble-shooting
... in the display appears
Possible cause Solution
▪ Filter system is blocked.
▪ Drain hose is bent or
kinked.
▪ Drain pump or siphon is
blocked.
▪ Excessive foaming due to
rinse agent spillage.
▸ Clean the filter system.
▸ Fix the problem.
▸ Cancel the error message by pressing the
button.
▸ Restart the programme.
... in the display appears
Possible cause Solution
▪ Water tap is turned off.
▪ Water inlet filter is
blocked.
▪ Interruption in water sup-
ply.
▪ Water pressure is too low.
▸ Fix problem or wait until water supply is re-
stored.
▸ Cancel the error message by pressing the
button.
▸ Restart the programme.
… / alternate
Possible cause Solution
▪ Water intake is hotter than
79°C (hot water connec-
tion).
▸ Have a plumber reduce the temperature of
the water intake.
51
8 Trouble-shooting
… / alternate
Possible cause Solution
▪ Various situations can
lead to a «F...» message.
▸ Cancel the error message by pressing the
button.
If the error message persists:
▸ Switch the power supply off for about 1
minute.
▸ Switch the power supply back on again.
▸ Cancel the error message by pressing the
button.
▸ Restart the programme.
▸ If the error appears again, note down the er-
ror message and FN number.
▸ Turn off the water tap and the power supply.
▸ Call Customer Services.
52
8 Trouble-shooting
… / alternate
Possible cause Solution
▪ Faulty electrical connec-
tion.
▪ Overvoltage.
▸ Cancel the error message by pressing the
button.
If the error message persists:
▸ Switch the power supply off for about 1
minute.
▸ Switch the power supply back on again.
▸ Cancel the error message by pressing the
button.
▸ Restart the programme.
▸ If the error appears again, note down the er-
ror message and FN number.
▸ Switch the power supply off.
▸ Have the electrical installation checked by
an expert.
... in the display appears
Possible cause Solution
▪ Childproof lock is activ-
ated.
▸ For next steps, see 'Operation with child-
proof lock activated'.
or
▸ To switch the childproof lock off, see 'User
settings'.
53
8 Trouble-shooting
... the appliance does not start
▸ Close the appliance door.
▸ Insert the plug into the mains socket.
▸ Check the fuse or circuit breaker.
▸ See the 'Operation with childproof lock activated' section.
Possible cause Solution
▪ «Demo mode» is switched
on.
▸ Open the appliance door.
▸ Hold the and buttons depressed.
▸ Simultaneously press the button.
▸ appears in the display.
▸ Press the button.
– appears in the display.
▸ Press the button.
… the dishes are not clean
▸ Select a more powerful programme.
▸ Load the baskets differently, avoiding blind spots.
▸ Clean the filter system and re-insert correctly.
▸ Check to see whether the spray arms are clogged or dirty.
▸ Use the correct amount of detergent or use a different kind of detergent.
▸ Check the water hardness setting.
▸ Refill the salt reservoir with regeneration salt.
… there is a white film on the dishes
▸ Refill the salt reservoir with regeneration salt and then start the pro-
gramme without any dishes.
▸ Use the correct amount of detergent or use a different kind of detergent.
▸ Refill the rinse agent.
▸ Increase the rinse agent dosage setting.
54
8 Trouble-shooting
▸ If not using detergent, must be set in the 'User settings'.
… there are streaks or milky spots on the dishes
▸ Reduce the rinse agent dosage setting.
▸ If not using detergent, must be set in the 'User settings'.
... the dishes are wet and dull or have water marks on them
▸ Refill the rinse agent.
▸ Increase the rinse agent dosage setting.
▸ Do not open the appliance door until the end of the programme when a
long acoustic signal is emitted and the display or function light * goes out.
* Depending on model
▸ If not using detergent, must be set in the 'User settings'.
… there are rust stains on the items being washed
The rust stems from another source e.g. the cutlery, pans, water pipe. The ap-
pliance is made of rust-free steel.
▸ After topping up with regeneration salt, select the programme without
dishes.
… the detergent is not fully dissolved
▸ Check to see whether the spray arms are clogged or dirty.
▸ Use a different kind of detergent.
▸ Check the detergent dispenser cover.
... the time display freezes for up to 4minutes at the beginning of the
programme or during the wash cycle
▪ The water softener is being rinsed through after the regeneration process.
▪ The duration of the programme and the time display are being automatically
adjusted to the degree of soiling of the load being washed.
... there is discolouring of the baskets and plastic parts inside the
appliance
Dishes were washed that still had discolouring food leftovers on them (e.g. to-
mato or curry sauce). The discolouration may fade after a few wash cycles.
55
8 Trouble-shooting
… an unpleasant smell tends to come from the appliance
▸ Clean the filter system.
▸ Add detergent and run the programme.
▸ Select a more powerful programme.
▸ Add enough regeneration salt.
8.2 Power failure
A power failure causes:
▪ the programme that is currently running to stop. After the cause of the
power supply failure has been resolved, the programme is resumed.
▪ The fault indication system to be interrupted.
56
9 Accessories and spare parts
Please give product family of the appliance and exact description of the ac-
cessory or spare part when ordering parts.
Accessories
«Small» cutlery basket
«Large» cutlery basket
Vario cutlery basket insert
Lower basket for glasses
57
9 Accessories and spare parts
Cup support
Racks
Set of 4 easy prongs
Spare parts
Seal / water inlet filter for Aquastop
Filter system
58
10 Technical data
10.1 Overview
External dimensions
SMS 55 SMS 55 Ex-
tra height
EURO 60 EURO 60
Extra height
Height (with slide
plate) [cm]:
75.9 82.4 75.9 82.4
Height (with adjustable
plinth) [cm]:
– 84.5–89.0 78.0–89.8 84.5–96.3
Width [cm]: 54.6 54.6 59.6 59.6
Depth [cm]: 57.2 57.2 57.2 57.2
Weight [kg]: 42 44 42 44
Ambient temperature
Minimum ambient temperature: +10°C
Plumbing
Cold or hot water up to 60°C: G¾"
Permitted pressure of water supply: 0.1–1.0MPa (1–10bar)
Max. pumping height: 1.2m
If the water pressure is too high, a pressure reducer valve must be
fitted.
Electrical connection
▸ See identification plate
Safety concept
Provided power is going to the appliance, the electronic control unit monitors
the appliance. Any malfunction is indicated by error messages.
Overflow protection
In the event of a power failure, the overflow protection system is
rendered ineffective. Hence, the water tap should be turned off dur-
ing longer periods of non-use.
59
10 Technical data
The electronic control unit monitors the water level in the appliance. In the
event of a malfunction, the drain pump turns on, stopping the supply of water
to the appliance.
10.2 Consumption data
V = Pre-rinsing T = Drying
R = Cleaning D = Duration
Z = Intermediate rinsing W = Water
G = Rinsing with agent E = Energy
Programme V
[° C]
R
[° C]
Z G
[° C]
T D * W
[l]
E
[kWh]
Automatic If re-
quired
50-60 If re-
quired
55 Yes 0h45
-
1h55
7
-
17
0.60
-
1.15
Quick No 50 Yes 55 Quick 0h29 11 0.75
Glass No 45 Yes 55 Yes 0h45 12 0.80
Intensive If re-
quired
65 Yes 55 Yes 1h40 16
-
21
1.20
-
1.35
Fondue/
Raclette
Soaking 65 Yes 55 Yes 2h15 14
-
18
1.35
-
1.45
Hygiene 50 70 Yes 70 Yes 1h40 14 1.60
Pre-rinsing Yes No No No No 0h06 4 0.05
Economy
programme
Yes 50 No 40 Yes 2h15 11 0.60
* Duration without final drying time.
60
10 Technical data
10.3 Note for testing institutes
The note for testing institutes can be obtained from the internet:
www.vzug.com/testinstitute.
10.4 Noise measurement
See the 'Note for testing institutes' section.
61
11 Index
A
Accessories .............................................. 57
Acoustic signal .................................. 16, 22
Additional function
Delayed start ...................................... 41
Saving.................................................. 40
Selecting ............................................. 40
Additional functions ................................. 15
All in 1 cleaning products ..................... 38
Appliance construction ........................... 14
Appliance description ............................. 13
C
Care............................................................ 45
Childproof lock ......................................... 22
Accessing programme selection ... 44
Cleaning
Exterior ................................................ 45
Filter system ....................................... 46
Interior ................................................. 45
Spray arms ......................................... 46
Water inlet filter.................................. 49
Cutlery basket........................................... 35
D
Delayed start............................................. 41
Demo mode .............................................. 54
Disconnection........................................... 12
Dishes
Loading ............................................... 28
Unloading............................................ 43
Dishwashing tips...................................... 27
Display
A0......................................................... 50
A2......................................................... 51
A9......................................................... 51
Disposal..................................................... 12
E
Easy prongs....................................... 30, 34
Economy programme
Selecting ............................................. 39
Electrical connection ............................... 59
End of programme .................................. 43
Extended warranty ................................... 67
External dimensions ................................ 59
F
Factory settings
Restoring............................................. 25
Filter system
Cleaning.............................................. 46
FN (serial number)................................... 67
Fold-down tines ................................. 31, 34
Function light ............................................ 16
G
Glass holder.............................................. 29
H
Height adjustable ..................................... 31
Hot water ................................................... 25
L
Loading ............................................... 29, 33
Loading tips for the lower basket
Cutlery basket .................................... 35
Fold-down tines ................................. 34
Lower basket, loading ...................... 33
Loading tips for the upper basket
Easy prongs ....................................... 30
Fold-down tines ................................. 31
Glass holder....................................... 29
Height adjustable .............................. 31
Racks................................................... 30
Upper basket, loading...................... 29
M
Maintenance ............................................. 45
Malfunctions.............................................. 50
Model no. ..................................................... 2
N
Notes.......................................................... 64
O
Overflow protection ................................. 60
62
11 Index
P
Packaging ................................................. 12
Plumbing.................................................... 59
Power failure ............................................. 56
Product family.............................................. 2
Programme
Aborting............................................... 42
Interrupting ......................................... 42
Selecting ............................................. 39
Programme buttons................................. 15
Programme symbols ............................... 15
Q
Quick instructions .................................... 68
R
Racks ......................................................... 30
Regeneration salt
Refilling................................................ 47
Rinse agent
Refilling................................................ 48
Rinse agent dosage ................................ 24
S
Safety ......................................................... 12
Safety concept.......................................... 59
Safety precautions
General...................................................6
Serial number (FN) .................................. 67
Service & Support.................................... 67
Spare parts ............................................... 58
Spray arms
Cleaning.............................................. 46
Symbols ........................................................ 5
T
Technical enquiries.................................. 67
Temperature unit...................................... 25
Type............................................................... 2
U
Unloading .................................................. 43
User settings...................................... 20, 21
V
Validity........................................................... 2
W
Wash programme .................................... 39
Water hardness ........................................ 23
63
64
12 Notes
65
66
13 Service & Support
The «Troubleshooting» chapter provides valuable information for dealing with
minor operating faults. This saves you the time, effort and potential cost of having
to call out a service technician.
Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty in-
formation. Please read this information carefully.
Please register your V-ZUG appliance online immediately at www.vzug.com→Service→War-
ranty registration. This will allow you to take advantage of the best possible support in the
event of an fault in the appliance during the warranty period. You will require the serial
number (FN) and appliance designation to complete the registration process. This informa-
tion can be found on the identification plate for your appliance.
My appliance information:
FN: ___________________ Appliance: _____________________
Always have this appliance information to hand when you contact V-ZUG. Thank you.
▸ Open the appliance door.
– The identification plate is located on the left-hand side on edge of the tub.
Requesting repairs
You can find the telephone number for your nearest V-ZUG service centre at
www.vzug.com→Service→Service hotline.
Technical enquiries, accessories, extended warranty
V-ZUG is happy to help with your general administrative and technical enquiries, orders for
accessories and spare parts, or information relating to advanced service agreements.
67
Quick instructions
Please first read the safety precautions in the operating instructions!
▸ Open the appliance door.
▸ Load the dishes.
▸ Add the detergent.
▸ Select a programme.
▸ Select any additional function(s), if required.
▸ Close the appliance door.
▸ The programme starts immediately.
▸ When a long acoustic signal is emitted, open the appliance door and unload
the dishes.
V-ZUG Ltd
Industriestrasse 66, P.O. Box 59, CH-6301 Zug
[email protected], www.vzug.com
J41010360-R03
