S30 Wearable Bluetooth Speaker
User Manual
Enjoy Music Anytime, Anywhere
Introduction: Appearance: Operation Instructions:
Thanks for choosing our wearable Bluetooth speaker
S30. This is a multifunctional Bluetooth speaker with
professional-quality for music playing. If you want to
have a better experience, please read this instruction
carefully.
Important:
Your speaker is shipped from the factory in a deep sleep
mode to conserve battery. Activate your speaker by
connecting the USB cable to a power source before
first use.
What’s in the Box:
User Manual x 1
USB-Charging Cable x 1
Specifications:
Waterproof Level: IPX5
Bluetooth Version: 5.3
Chipset: AC6956C4
Bluetooth Profile: A2DP, AVRCP, HFP
Audio Format: SBC
Speaker: 2W
Battery Type: Lithium battery
Battery Capacity: 3.7V/600mAh
Battery Life: Up to 5 hours(under max volume)
Charging Time: 2H
Product Size: 73x42x28mm
Product Weight: 64g
Introduction: Appearance: Operation Instructions:
Precautions:
Please read all the safety instruction warnings carefully
before using this product. Improper use of this product
may result in damage to it or attached products.
To ensure the product works well, please DO NOT use
this in the following conditions:
1. Moisture or underwater;
2. Near heater or high-temperature areas;
3. Under direct and strong sunshine;
4. Please note that unauthorized dismantle is
prohibited as this will nullify
Features:
Travel and outdoor friendly: small enough to fit in
your pocket;
Slim and compact size, easy to carry;
Attachable to your shirt, backpack or jacket
via spring clamp or magnetic clip;
Crystal clear phone calls with active noise suppression;
Up to 5 hours of battery life;
Dust-proof and waterproof materials;
Delicate mesh design better prevents dust from
entering.
Introduction: Appearance: Operation Instructions:

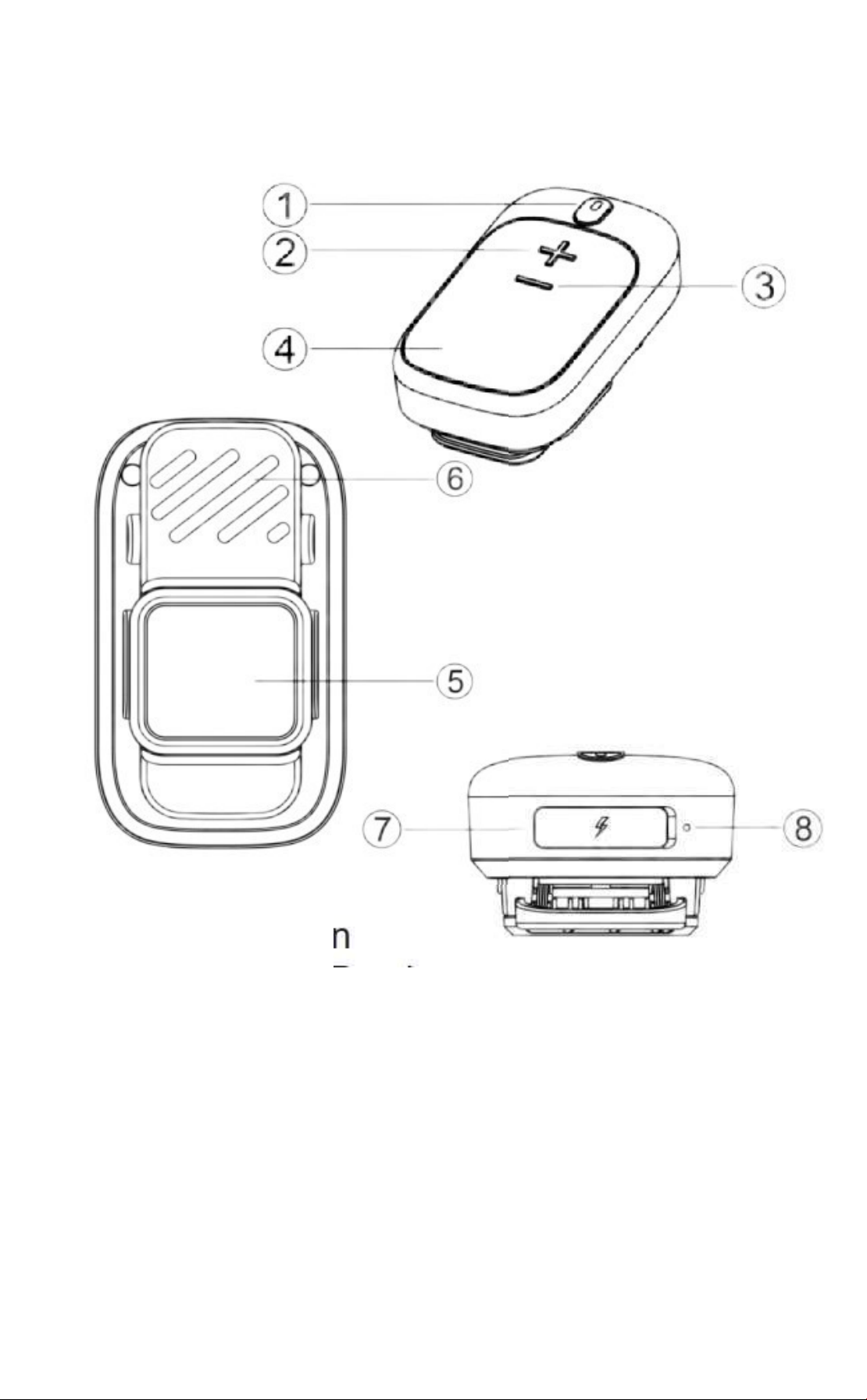

1. Power button
2. Volume up/ Previous song
3. Volume down/ Next song
4. Fabric mesh
5. Magnetic clip
6. Spring clamp
7. Charging port
8. Microphone
Introduction: Appearance: Operation Instructions:
Press and hold for 3 seconds to
power on/power off
Calling mode:
Press to answer a call, press again to
hang off the call.
Press and hold for 2 seconds to reject a call.
Music mode:
Press to play / pause music.
Calling mode:
Press to increase volume.
Music mode:
Press to increase volume.
Press and hold to previous song.
Calling mode:
Press to decrease volume.
Music mode:
Press to decrease volume.
Press and hold to next song.
Bluetooth Function:
For first-time paring, you need to activate the Bluetooth
function of you mobile phone, then search for a new
device. Connect "S30" when the mobile phone detects
the unit.
Restore Factory Settings
Under the power-on state,
click 5 times consecutively to clear the
matching MAC address in the device and
restore it to the initial state.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. lf this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/
TV technician for help
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
FCC STATEMENT:
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
RF Exposure Warning Statements:
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
This equipment shall be installed and operated with
minimum distance 20cm between the radiator & body.
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature,
indicates that it should not be disposed of with other
household wastes at the end of its working life.
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
please separate this from other types of wastes
and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer
where they purchased this product or their local
government office for details of where and how
they can take this item for environmentally safe
recycling. Business users should contact their
supplier and check the terms and conditions of the
purchase contract. This product should not be mixed
with other commercial wastes for disposal.
CORRECT DISPOSAL OF THIS PRODUCT
