Aroma Diffuser
User Manual

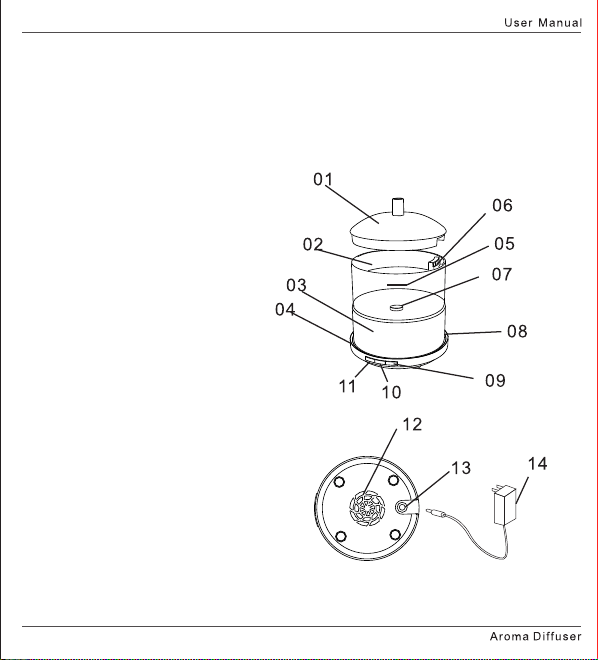

01.Waterproof cover
02.Storage tank
03.LED lights(built-in)
04.Base
05.Highest water level line
06.The outlet
07.Mist shock tablets
08.Seal ring
09.Mist mode button
10.ON/OFF button
11.Light control button
12.Inlet
13.DC power jack
14.Power Adapter
PRODUCT DESCRIPTON
OPERATION ATTENTION
PRECAUTIONS
TROUBLESHOOTING
SPECIFICATIONS
MAINTENANCE
ACCIDENTAL LEAKAGE
This Aroma Diffuser uses Ultrasonic waves to instantly vaporize water and essential oil in the tank,
to produce a cool, dry fragrant mist.
01. Please to straighten products,vertical take off on
the outside cover, then remove the inside cover.Fig 1
02. Please connect the AC adapter DC plug by AC
plug slot to the main DC socket. Fig 2
03. Please use a measuring cup to the tank water,
do not exceed the maximum water level of 260 ml.
In using, please do not add water.(water with high
temperature shall not be used)
04.Tank filled with water, after vertical drip into the
essential oil.Fig3
05.Put the cover back,fall in vertical direction,
rotate to adjust spray nozzle to the desired location.
Important: before use must cover up.
06.Put the AC adapter plug household outlet.
07.Press“ " button and choose to use the time as
required,(1)press the first,continuous spray,(2)press the
second,intermittent spray,spray30 seconds,stop 30 seconds,
(3)press the third,spray the timer for 1H (the device will shut
down automatically after 1 hour),(4)press the fourth,spray
the timer for 2H (the device will shut down automatically after
2 hour) Fig 4
08.Press“ ”,(1)press the first,to spray heavily,(2)press the
second,to spray lightly Fig 5
09.Press“ ”，(1)press the first,to spart lighting and the light
color will be automatically converted(2)press the second,to select
the light color,(3)press the third,to turn off the light. Fig 6
10. lf long time not to use,should be poured the water and
placed in a dry place.
11.When power on, aromatherapy machine initial status to closed.
12. lf the water inside cistern,even open the switch,
aromatherapy machine will automatically shut down
If accidentally knock over when using,please click the following methods:
INLET
Outlet
Every use of 5 to 6 times or 3-5days, please click the following method to clear the product:
Make sure the following matters,to avoid damage to the product:
Please refer to the table below in the event of product operating abnormally:
Power(Input/Output)
Length of Cord
Power
Time Mode
Tank Capacity
LED Light
Materials
Accessories
Method of mist production
AC100-240V 50-60Hz 0.35A
DC24V 600mA
Approx 170CM
Approx 12W
Continuous/Intermittent(30S ON/30S OFF)/1H/2H
260ML
6PCS
PP/ABS
AC Adaptor and manual
2.4MHz
Turn off the power and unplug the power cord, and open the cover.
The rest of the water tank water from drainage side poured out completely.
Asmall amount of the kitchen with detergent in warm water first diluted,
reoccupy dishcloth this product.
If you have dirt found inside of the air supply outlet, please clean up the lid off the container again.
Maintenance,do not use medical dilution phenylethyl alcohol, otherwise may damage the product or
erase the various logo products.
do not intentionally hurt, twisted, stretching the electric wires to the power adapter, do not put
wires at high temperature.Do not use heavy pressure wire, also don't use cllip clip or repair
electrical wiring
if the line is damaged, on the adapter socket is loose, please stop using it.
in order to ensure the health, after each use must pour the water in the tank from drainage side,
with cloth to wipe clean.
do not put the adapter in the water or water use. Nor will adapters stored in damp places, such
as the bathroom, changingroom,greenhouse,etc.
if there is a peculiar smell, noise, abnormal heat, is the product or adapter has failed.
Please quickly pull out the adapter plug from the outlet, and stop using it.
non-technical staff not to rob the transformation, remove or servicing the product. lf you need
repair, please contact the product sales office.
please confirm whether there is water inside the container?Or the amount
of water is enough?
-container to add water, please.
AC adapter with this product after completed?
- please confirm that this product has been with the adapter connected.
To confirm whether has been switched on, please send the DC plug again pull
down from the ontology, reconnect the retry.
whether too little of the water in the container?Or too much?
-container to add water please. if more than 260ml of the water in the
container,spray may also appear abnormal.
ultrasonic atomization piece be defiled?
- please clean containers.(see"maintenance method")
at the bottom of the suction mouth is full of dust?
- if the base of the air inlet sticky dust, the pumping air volume will be greatly
reduced, resulting in not enough wind to the mist.
Already cover?
-heavy install cover.
low temperature or humidity is too high?
-if the temperature is too low or too high humidity, the surface of the mist is
easy to gather together and from water droplets.
If you feel what’s wrong with this product may,please send us your request in the maintenance
before confirmation:
As long as a turn on
the swiech,less than
a second time,
aromatherapy
machine will
automatically shut
down immediately.
No abnormal spray
Water leakage from
product
aromatherapy oil or lead to dyeing, if accidentally splashed out, should clean immediately by dishcloth.
should use the cups of water into the sprayer, please do not direct water tap water.
never let spray directly to the furniture, clothes or wall, etc.
avoid placed in direct sunlight, near the air conditioner, fan or high temperature,etc
should be placed in the plane position, do not put in carpet, cushion, or not smooth.
avoid on appliances such as TV, sound box next to the equipment.
should not cover the product, damage may lead to water accumulation in the body.
product use time limit for 360 minutes(6 hours)
is only applicable to tap water, pure water.
use should not be in the mobile products.
When I wet hands, don't touch the product, so as to avoid leakage.
should be placed effects reached less.And properly teach children should not play with the product.
the product is not suitable for children or lack of understanding and experience of using the products.
working long hours, should be closed after 60 minutes again, avoid the ultrasonic board damaged
Turn off the power and unplug the power cord, and open the cover.
The rest of the water tank water from drainage side poured out completely
Gently shake the fuselage, let water accumulation in the body from the drain discharge
placed in the safe place 24 hours dry naturally.
Product use time limit for 360 minutes(6 hours)
If l pay attention to the concentration of the spray slightly difference is normal
phenomenon.
the different types of water, humidity,temperature and wind directon will affect the
mist effect.
Aromatherapy machine can not be used without water.
Apply aromatherapy essential oils. If impurities may cause damage to the product,
please follow the maintenance steps before replacing another aromatherapy essential oil.
