No
1
2
3
4
5
6
Button
ON/OFF
Intermittent
Continuous
Light
Big/small
Timing
Function
ON/OFF
High Mist/Low Mist
Press it to turn on the LED light,
seven light color option
To select 1H/3H/6H or ON mode
To continuous spray
Press to enter intermittent mode
WARNING
THIS PRODUCT CONTAINS A BUTTON BATTERY
If swallowed, a lithium button battery can cause severe or
fatal injuries within 2 hours.
Keep batteries out of reach of children.
If you think batteries may have been swallowed or placed
inside
any part of the body, seek immediate medical attention.
product maintenance
No power
1.Open the cover in the direction
shown by the arrow
3.Close the cover in the direction
Yurn off the power supply,remove the cover,and add the aromatherapy oil you
choose to the atomizing chamber, them add a suitable amount of water.Close
the cover and turn on the power supply.
When adding water,use the scale mark to add the right amount of water to the
tank. If the amount of added water is over or under the highest scale, there will
be less or more mist sprayed out.
Do not dump the host in use,and keep it far away from places children can
access.
Model:DIFF-50A-LW
Colr:White
Input Voltage:DC24V 650mA
Power:12W
Aerosonic amout:Level 2
Ultrasonic Frequency:2.4MHz
Size:160x160x120mm
Volume:Max 500 700ml
If there is too much water on the first time of adding it,there will be less steam;
after water reduction,there will be more steam.
Be sure to read this manual in order to ensure proper use
This aroma diffuser combines modern science and technology and a simple
novel design.The principle is to use ultrasonic vibration plant aromatherapy
essential oil and water and spray superfine particles with 5 microns,creating
a large number of negative ions,which is more likely to be inhaled by the
human body.This provides access to the essence of natural aromatherapy’s
effect,which helps you relax in a stressful work environment,release healthy
nerves,and increase the skin’s moisturizing effect.
Warm prompt:
The effect is best when used in the bedromm,with the yse if
aromatherapy oil,which can effectively improve sleep quality.

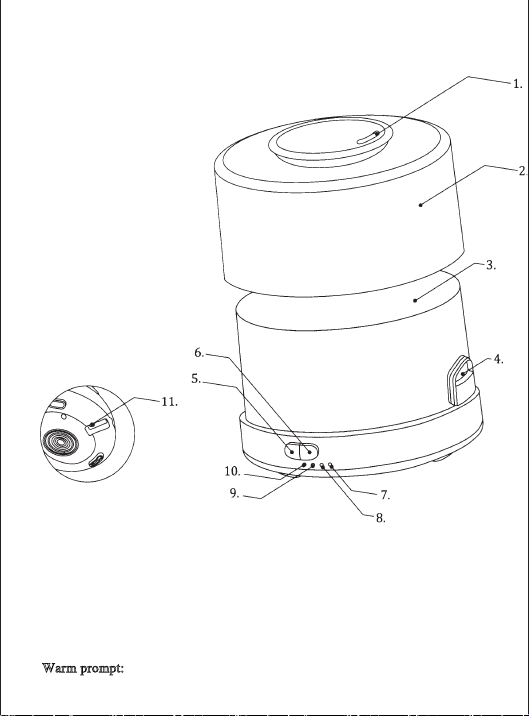

Product Structure and Function
1.Mist
2.Cover
3.Atomizing chamber
4.Outlet
5.Spray switch
6.Light switch
7.4 Hours timing Light
8.2Hours timing Light
9.10 seconds intermittent Light
10.Continuous fog Light
11.Power sdspter socket
4.Connect the power supply shown by
the arrow
Tip:When you press the “MIST/TIME”switch for the first time, the
aromatherapy machine will work in fog mode by default.If you press the
“MIST/TIME”switch for 10 seconds,the MID/GONT LED will flash with its
lights,and the aromatherapy machine will change into little fog mode.
1.Press “MIST/TIME”switch for the first time; the aromatherapy lamp
lights and the mist spray out.
2.Press “MIST/TIME”switch a second time;the aromatherapy machine will
work in a 10-second spray and stop for 10 seconds mode.with “10-second
intermittent signals”lights.
3.Press the “MIST/TIME”switch a third time; the aromatherapy machine
works in a 2-hour timer mode,with the “2 hours timing signals”lights.
4.Press the “MIST/TIME”switch a fourth time;the aromstherapy machine
works in a 4-hour timer moed,with the “4 hours timing signals”lights.
5.Press ‘MIST/TIME”switch a fifth time;the aromatherapy machine stop
working.
1.Wheb the aromatherapy machine starts working,the will change into
an automatic colorful cycle mode.
2.When the light is in the process of circulation,pressing the “LIGHT”switch
will set the system to the current light color.
3.Press the “LIGHT”switch again to choose your lighting;yo can then press
the switch to change to a color you want each time(with sven kinds of clor;
each color has two levels).
4.After browsing all colors,press the “LIGHT”switch again to close the light
5.Press the “LIGHT”switch again to return to seven color automatic cycle
mode.
2.Add water to the atomizing
chamber
Connect the power supply,
press the “MIST/TIME”switch
Add water to the atomzing
chamber
Pour out water from the
atomizing chamber
Cleam the scale on the oscillator
Stick to cotton cleaning and
keepin clean
No
steam
No enough water
Too much water
Oscillator is covered by scale
Cover or water retaining cover
out of the fog on membrane or
other foreign bodies covered
Common faults
Using Steps
Using Guide
MIST/TIME SPRAY SWITCH
LIGHT SWITCH
How to add aromatherapy oil:
Specifications:
Note:
Faults
Use requirements
Cause Processing method
1.Close the function switch and the power supply.
2.Remove the cover and pour out the water in the atomizing chamber from
the annotation
“MIST”position of direction.
3.Wipe the host shell and water tank inside the cavity with a soft cotton cloth.
4.Wipe gently with cotton buds the center of the tank oscillator.This is
suggested once every 7 to 14 days.
1.This product is suitable for use with clean water or pure water;it is not
suitable for use with corrosive liquid.
2.If the product is not carefully operated,the water may leak into the host
internally,If so,please unplug the power supply immediately,pour out the
water,clean the body and let stand for about 3 days in a ventilated place,Let
it dry naturally after use.If there is any ither abnormal occurrence,please
contact your local dealer or contact us directly.
ON/OFF
timing Big/small Light
Inter-
mittent
Con-
tinuous
2
3
4
5
1
6
DIFF-50A-LW
INSTRYCTION MANUAL
LIFE OF LEISURE
