A complete range in infra-red and white light illuminators for CCTV, the visible
and Invisible range feature state of the art technology and installation friendly
design.
• Energy efcient, low voltage operation for quick and easy installation
• Dual Core LED™ technology with advanced electronic control circuitry
deliver improved thermal management, long life and low cost of
ownership.
• CleanLITE
®
Self cleaning lens coating technology
• Semi covert, covert and visible white light versions.
• Built in photo cell
• Easy integration with day/night cameras with relay contacts indicating if
the built in photo cell has activated the illuminator
• Remote telemetry input
• Easy access to power and photo cell adjust
• Pressure equalisation vent prevents thermal expansion and pressure
cycling
• Interchangeable lens diffuser technology
Note:
• Only to be installed outside of arms reach
• Installation should be done by skilled personnel or under supervision of
such personnel
• The illuminator is PoE+.
• Only to be installed in restricted Access Areas
• Terminal block not included. Installation may require advice from a
qualied person
Optimum results are achieved by setting up at night and viewing the results
on a monitor.

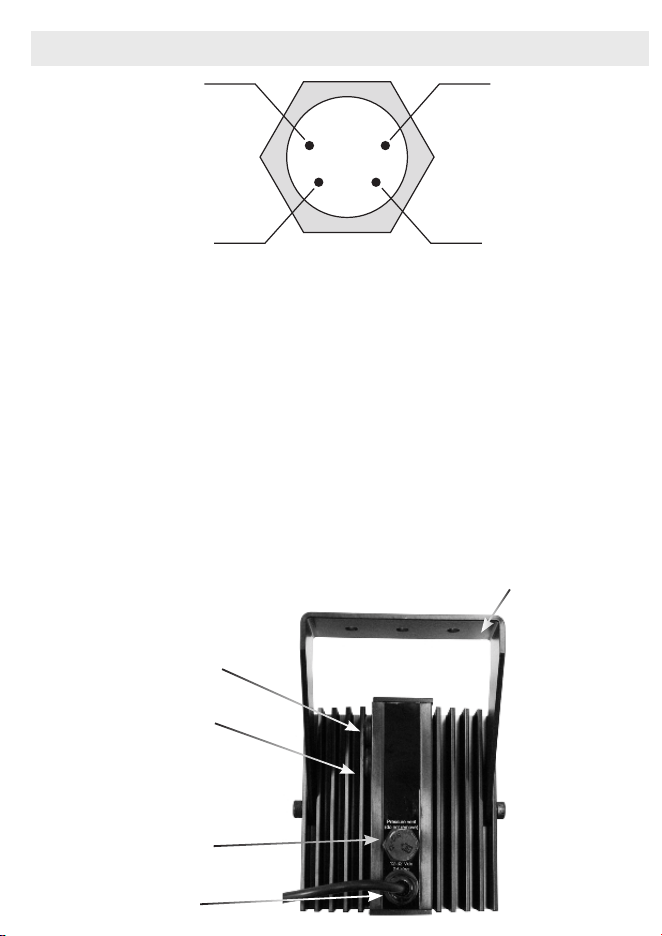

1. Attach the illuminator mount to pan/tilt unit, wall or camera housing.
Using stainless steel xings suitable for the relevant application.
2. Connect the lamp to a suitable (SELV) power supply.
3. Commission the mains supply, camera and monitoring equipment.
4. Select the diffuser angle sheet required from the Clarius box (if required).

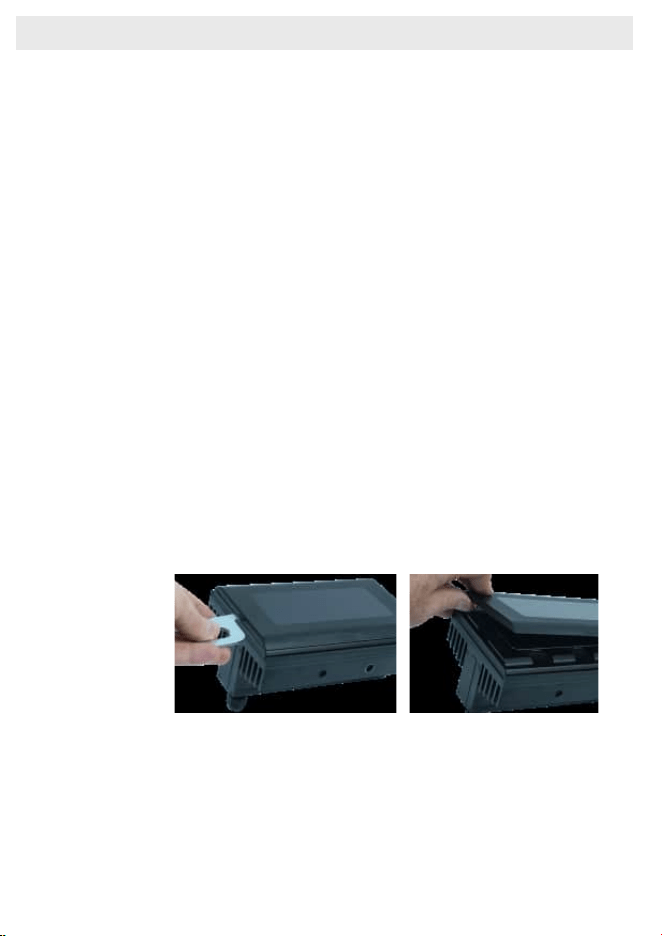

To position the required diffuser sheet, insert the tool included
in the slot at the bottom of the cover and prise upwards slowly.
Repeat at opposite end and carefully remove cover. Remove
backing sheet from the two adhesive discs and secure required
diffuser in position. Finally rmly clip the lens cover back into place.
5. Adjust the pan angle of the illuminator to match the camera eld of view.
6. Adjust the vertical alignment by loosening the side bolts (one on each
side of the main body) to maximise the results.
7. Tilt the lamp downwards until the rear part if the required eld of view is
saturated with light, as viewed on the monitor.
8. SLOWLY and GRADUALLY tilt the lamp upwards until the for part of the
required eld of view is illuminated correctly on the monitor.
RISK
GROUP 2
CAUTION
IR emitted
from this
product
Clarius
®
PLUS IP
Infrared & White Light LED Illuminators
Quick Installation Guide
IM-8-IP
IM-9-IP
VM-CW-IP
Electronics High efciency surface mount high power LEDs with
advanced current limited integral control circuitry
Beam Angles 10º, 30°, 60° & 95°
Lens/Beam Pattern The illuminator should be matched to the scene and
the camera lens focal length
Wavelength 850nm,940nm and visible white light
Expected Life 10 years
Consumption Clarius IM / Clarius VM 26W
Input Voltage PoE+ (IEEE802.3at)
Operating Temp -50° to 50° (-58° to 122°F)
Environmental IP66. Suitable for indoor and outdoor use
Construction Robust high quality aluminium extrusion
Front Window Polycarbonate high transmittance protection (vandal-
proof) with CleanLITE
®
technology
Dimensions Clarius IM / Clarius VM 114 x 110 x 78mm
Weight Clarius IM / Clarius VM 1.05kg (2.3lbs)
Power Cable 1m. With IP68 connector
Mount Black power coated stainless steel wall mount.
Adjustable via M6 Allen Key (included)
Unit 2, Birch Business Park, Whittle Lane, Heywood, Greater Manchester, OL10 2SX, UK
w:
www.gjd.co.uk
t:
+44 (0) 1706 363 998
f:
+44 (0) 1706 363 991
SPECIFICATION
