Escalator Cleaner
English 02
From Serial Number (Ref No1**) **See
Serial Number Page or call
manufacturer
2 8.645-788.0 Manual Operator Escalator Cleaner
Machine Data Label
Overview
The new BR 52/11 ESC was designed with simplicity in mind. Maintaining escalators and travelators in any environ-
ment can be accomplished ergonomically and efficiently with a single operator. Down time is kept to a minimum,
utilizing proper solution flow along with excellent recovery. Universal brushes ensure quick, simple cleaning off all
manufacturers of equipment.
MODEL:
1.310-112.0 BR 52/11 ESC
Warranty Registration
Thank you for purchasing a Kärcher North America product. Warranty registration is quick
and easy. Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to :
https://www.kaercher.com/us/support/professional-services/professional-warranty-registration.html
For customer assistance:
1-800-444-7654
3
Table of Contents
Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . .2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety
Grounding Instructions . . . . . . . . . . . . . . . . . . . . . . .5
Important Safety Instructions . . . . . . . . . . . . . . . . . .6
Hazard Intensity Level . . . . . . . . . . . . . . . . . . . . . . . 7
Operation
How the Machine Works . . . . . . . . . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . . . . . . . . . . . . . . .8
Unpacking the Machine . . . . . . . . . . . . . . . . . . . . .10
Packaging Material Disposal. . . . . . . . . . . . . . . . . . 10
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before Operating: . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating the Machine . . . . . . . . . . . . . . . . . . . . . .13
Post-operation Maintenance . . . . . . . . . . . . . . . . . . 13
After 100 hours in Service. . . . . . . . . . . . . . . . . . . .13
Cleaning Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Maintenance
Cleaning or replacing the brushes . . . . . . . . . . . . . 16
Water Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Chemicals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Nozzles & Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Brake Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .19
8.645-788.0 Manual Operator Escalator Cleaner
4
How To Use This Manual
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, you will need to provide the
machine model and machine serial number. Refer to
the MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.

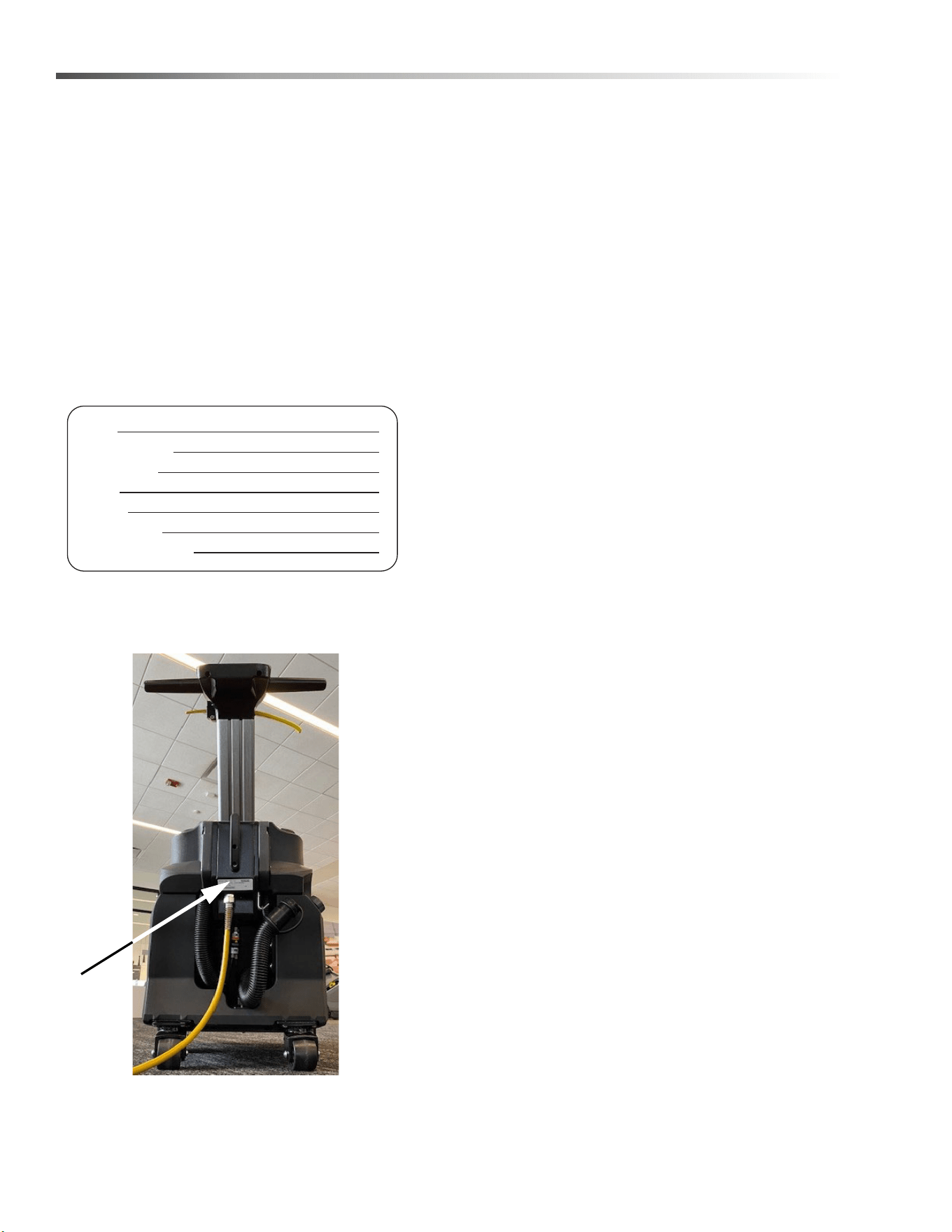

The model and serial number of your machine are
located on rear of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Maintenance
• Troubleshooting
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower right corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
8.645-788.0 Manual Operator Escalator Cleaner
5
Safety
Grounding Instructions
THIS PRODUCT IS FOR COMMERCIAL
USE ONLY.
Electrical:
In the USA this machine operates on a standard 15
amp 120V, 60 hz, A.C. power circuit. The amp, hertz,
and voltage are listed on the data label found on each
machine. Using voltages above or below those
indicated on the data label will cause serious damage
to the motors.
Extension Cords:
If an extension cord is used, the wire size must be at
least one size larger than the power cord on the
machine, and must be limited to 50 feet (15.5m) in
length.
Grounding Instructions:
This appliance must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of
electric shock. This appliance is equipped with a cord
having an equipment-grounding conductor and
grounding plug. The plug must be inserted into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordi-
nances.
120 Volt Models:
This appliance is for use on a nominal 120-volt circuit,

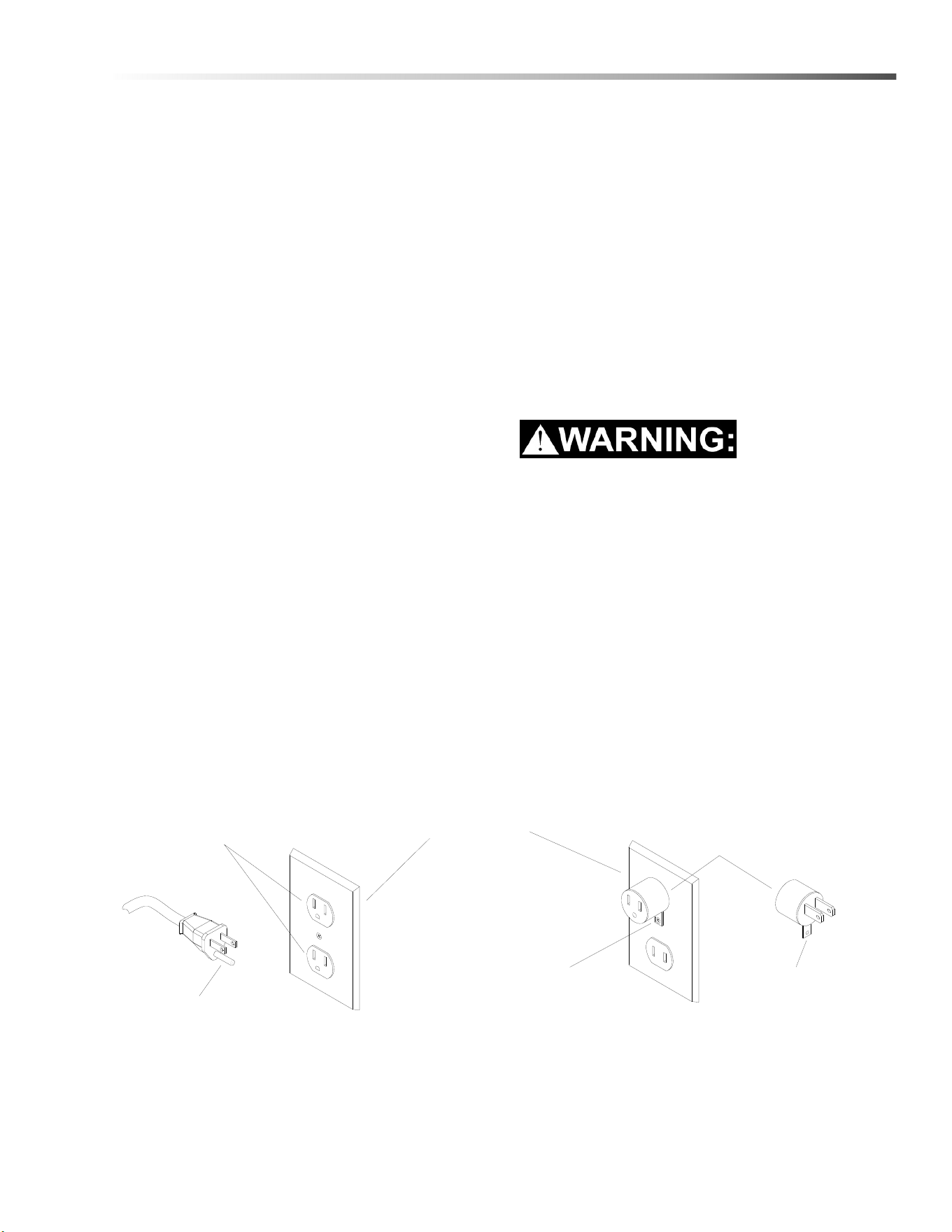

and has a grounded plug that looks like the plug in "Fig.
A". A temporary adapter that looks like the adapter in
"Fig. C" may be used to connect this plug to a 2-pole
receptacle as shown in "Fig. B", if a properly grounded
outlet is not available. The temporary adapter should
be used only until a properly grounded outlet (Fig. A)
can be installed by a qualified electrician. The green
colored rigid ear, lug, or wire extending from the
adapter must be connected to a permanent ground
such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place
by a metal screw.
NOTE: Adaptors are not allowed in Canada.
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service person
if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug
provided with the appliance - if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.
8.645-788.0 Manual Operator Escalator Cleaner
GROUNDING
PIN
GROUNDED
OUTLET
ADAPTER
METAL SCREW
TAB FOR
GROUNDING SCREW
GROUNDED
OUTLET BOX
(A) (B)
(C)
6
Safety
Important Safety Instructions
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Connect to a properly grounded outlet. See Grounding Instructions.
Use only as described in this manual.
Do not leave the machine unattended. Unplug machine from outlet when not in use and before maintenance or
service.
The machine cleaner can be used on both indoor and outdoor escalators, moving sidewalks, and travelators. When
planned for outdoor use, the machine must not be used in the rain or in extreme temperature conditions (higher
than 115F, lower than 35F).
Do not allow machine to be used as a toy. Close attention is necessary when used by or near children.
Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding the
machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water,
return it to an authorized service center.
Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord around sharp
edges or corners.
Do not allow the supply cord to come into contact with the rotating brushes. Keep cord away from heated surfaces.
Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.
Do not handle the electrical plug or machine with wet hands.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up health endangering dust or anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
Turn off all controls before unplugging.
Do not operate this machine near flammable fluids, dust or vapors.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
READ AND SAVE THESE INSTRUCTIONS
8.645-788.0 Manual Operator Escalator Cleaner
7
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
Hazard Intensity Level
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY.
The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equip-
ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
manufacturer approved replacement parts.
8.645-788.0 Manual Operator Escalator Cleaner
8
Operation
How the Machine Works
Once the machine enters the cleaning position with power switched on, turn on the start switch in the middle of the
control panel to choose one of two cleaning options, “Regular” and “Deep Cleaning”. The Brush Deck starts
lowering until the two cylindrical brushes touch the moving treads. The Pump Button is turned on to start spraying
solution to the treads. Solution is recovered through the vacuum shoe in between the two cylindrical brushes. See
‘Operating the Machine’ section.
Technical Specifications
ITEM DIMENSION/CAPACITY
Weight 115 kg
Recovery Tank Capacity 15 L
Solution Tank Capacity 11 L
Brush Width 520 mm
DC power input 110V 60Hz
Brush RPM 1200 RPM
Vac Pump 800W
Water Flow Rate 650 mL/min
Recovery Rate >75%
Brush Motor 300W X 2
8.645-788.0 Manual Operator Escalator Cleaner
9
Operation
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.

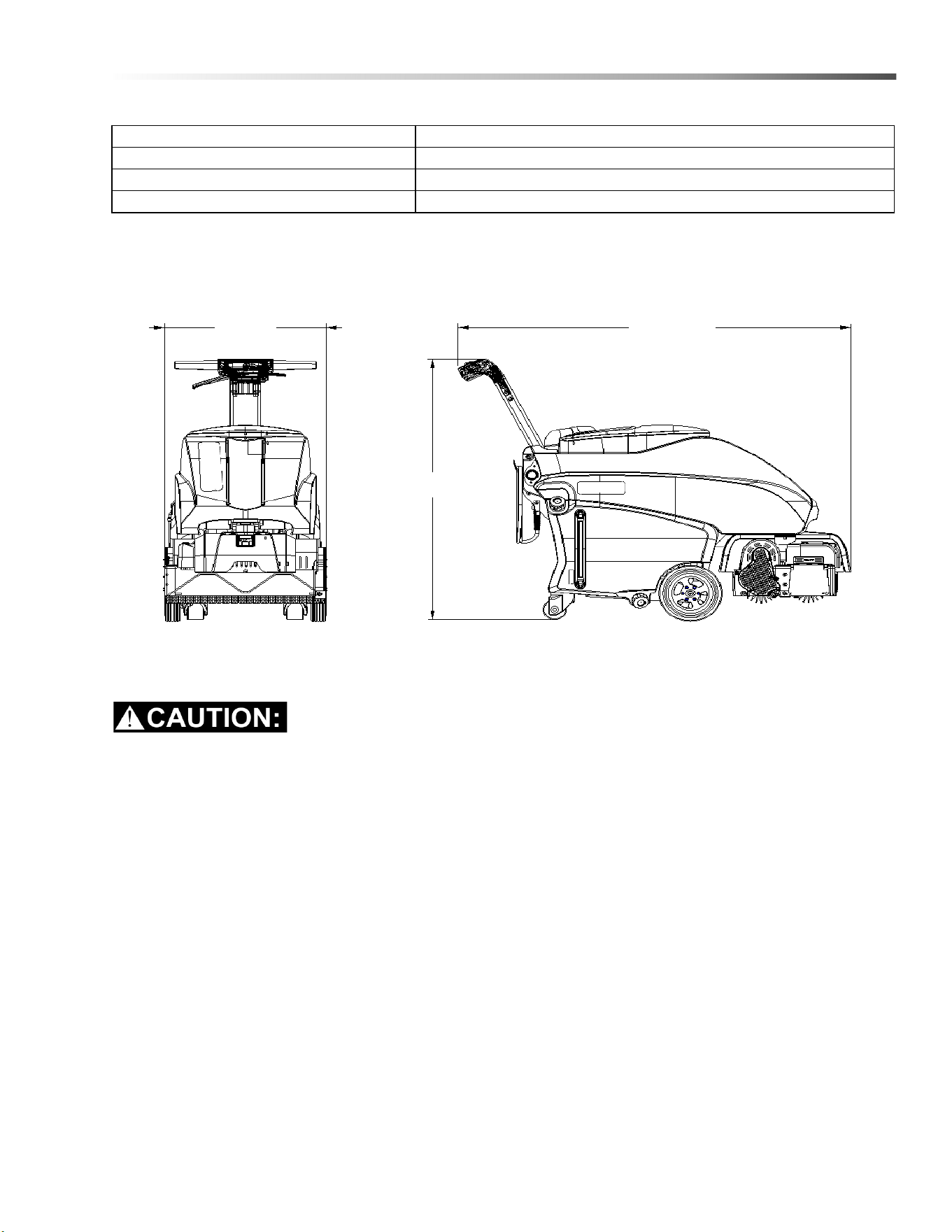

ITEM MEASURE
Height 952.5 mm
Length 1275.5 mm
Width 523 mm
Height
LengthWidth
8.645-788.0 Manual Operator Escalator Cleaner
10
Operations
Unpacking the Machine

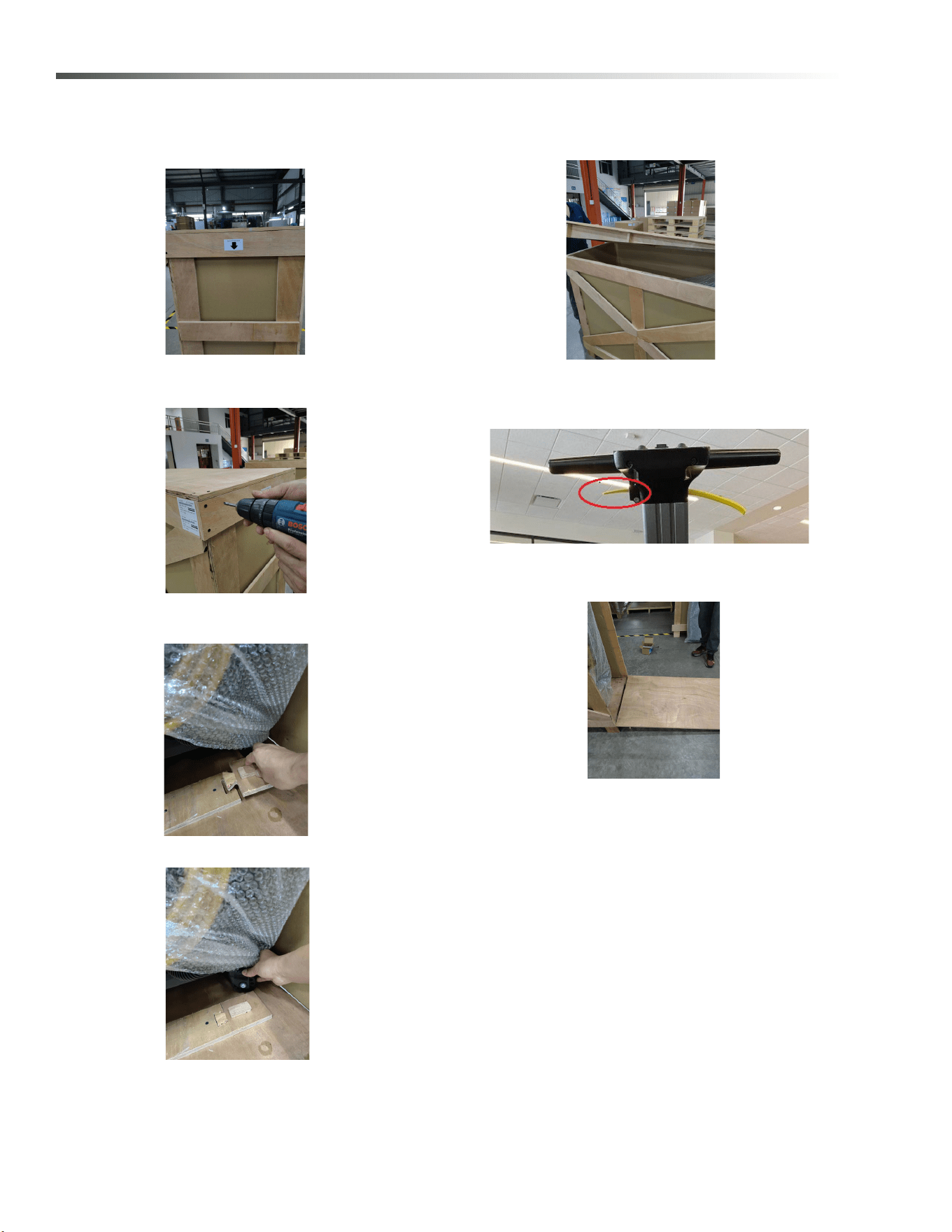

1. The crate is marked with a label "Open from this
side".
2. Remove the screws securing this panel of the crate
to the remainder of the crate.
3. Move packaging material to reveal the rear wheel
casters and the wheel chocks.
4. Lift out the wheel chocks.
5. Remove the lid from the crate. The lid will be used
as a ramp to safely maneuver the machine off the
pallet.
6. Squeeze the left-side handle bar to release the
brake.
7. Slowly back the machine off the pallet and down
the ramp.
Packaging Material Disposal
To protect our environment, please follow your local
trash disposal rules.
8.645-788.0 Manual Operator Escalator Cleaner
11
Operations

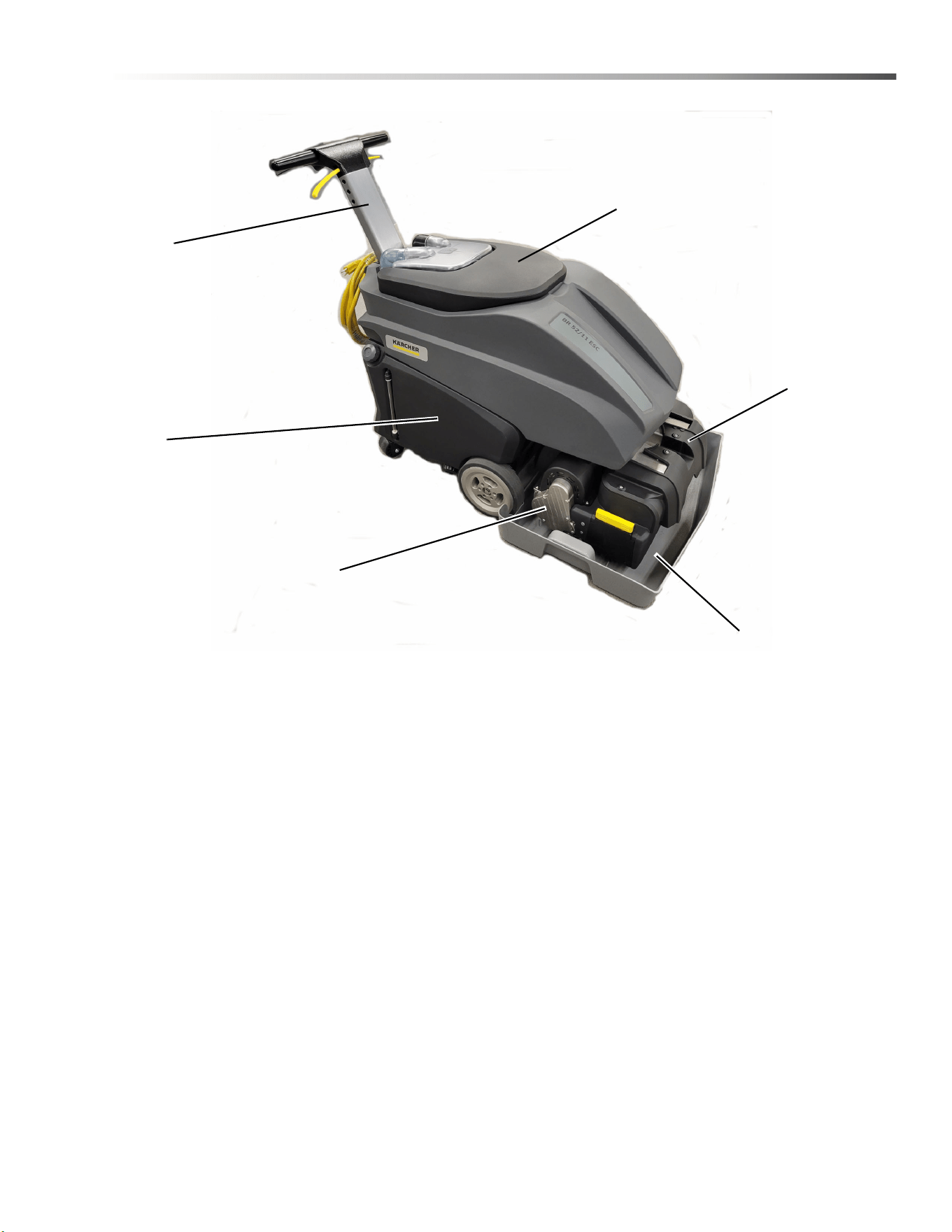

Components
1. Deck: Dual Brushes, dual motors, dual gearboxes
2. Solution Tank
3. Handle and Control Panel
4. Gear boxes
5. Recovery Tank
6. On-site brush deck cleaning tray
3
6
5
1
4
2
8.645-788.0 Manual Operator Escalator Cleaner
12
Operation
Important:
• Before operating the machine, the operator must Read All Instructions Before Using This Machine.

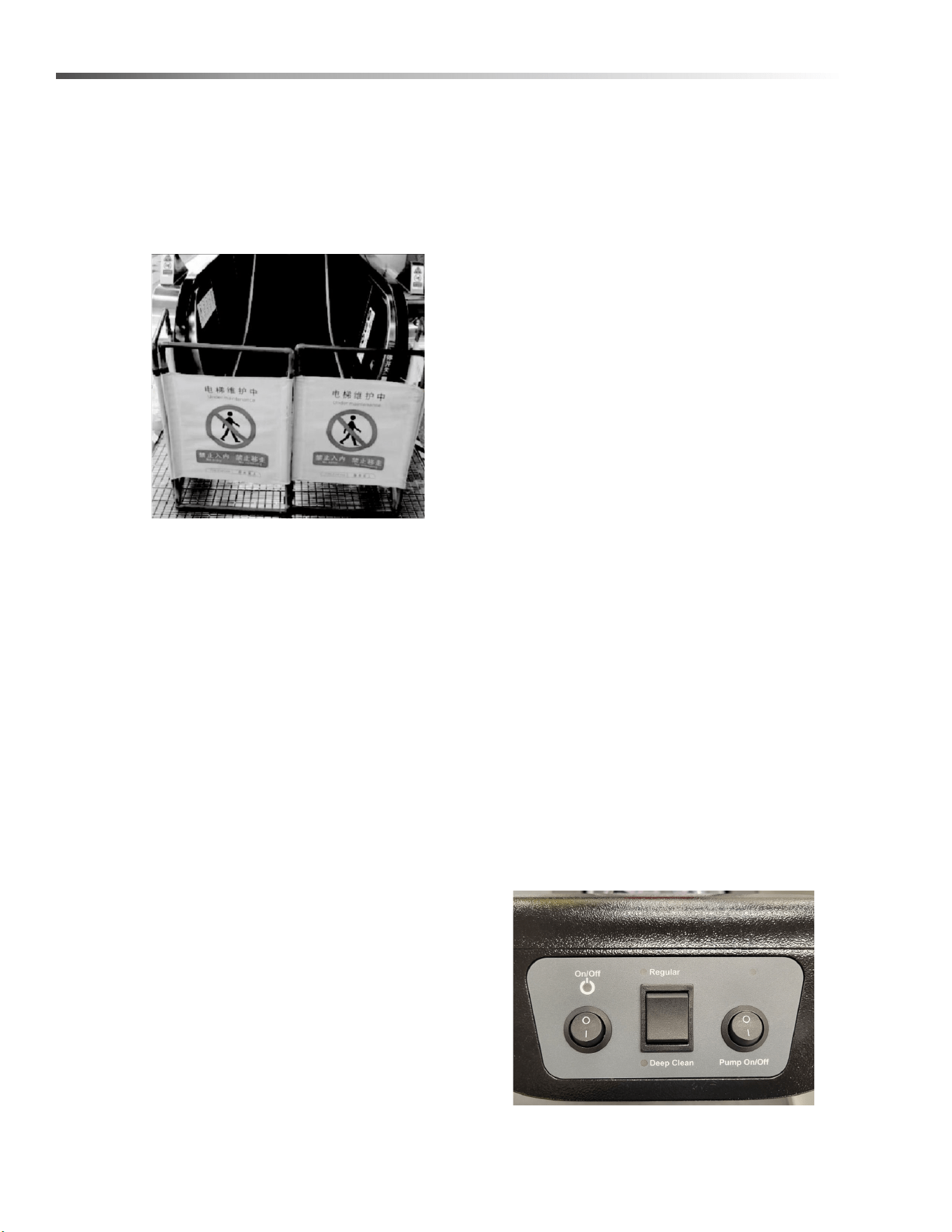

• A “Maintenance in Progress” perimeter sign must be set up at both ends of the escalator.
• The operator must know where the Emergency Stop Button is located.
• The “Maintenance in Progress” signs must not be removed until the escalator treads and both upper and lower
landing areas are completely dry.
Before Operating:
• Fill up the solution tank with clean water mixed with the chemical. The mixing ratio and the type of chemical for
the application will be introduced during the training sessions provided by the manufacturer and your local distrib-
utors.
• For the best cleaning results and environment protection, please choose only the chemicals from or recom-
mended by the distributors.
• Make sure the brushes are securely installed.
• Check the condition of the brushes. If the bristles are worn, bent, or broken, the brush will need to be replaced.
Use of a damaged brush will significantly reduce cleaning performance
• Check the recovery tank and make sure it is empty, clean and the drainage is not clogged.
• Inspect the nozzles at the front of the machine. All nozzles should be clear of debris or blockage. Use of blocked
or partially blocked nozzles will prevent uniform application of cleaning solution, resulting in reduced cleaning
performance.
• Check that the brake is working correctly. Fully engage the brake using the brake handle, and attempt to push
and pull the machine. The machine should remain firmly in place. If the machine rolls, or starts to turn in either
direction, the brakes will need adjustment prior to operation. Refer to the Brake Adjustment section in this
manual.
Control Panel
Left: Power On/Off Switch
Middle: Switch for Regular Daily Maintenance and Deep Cleaning
Right: Pump On/Off Switch
8.645-788.0 Manual Operator Escalator Cleaner
13
Operation
Operating the Machine
• The operator must be able to use the brake so the machine can be positioned accurately for the best cleaning result
and avoiding accidental bumping against the steps.
• The treads on the escalator must be moving toward the escalator cleaner. Do not operate the machine with the treads
moving away from the machine.
• The machine must be attended all the time while it is in operation.
• While the machine is operating, monitor for leaks and unusual noise. The machine must be stopped immediately when
a malfunction occurs during operation
1. Correctly positioning the machine. It should be as close as possible to the edge of the tread, without contacting the
stationary wall of the escalator. For best cleaning results, it is recommended to temporarily remove the skirt brushes on
both sides of the escalator landing. See Cleaning Tips on next page.
2. With the deck above the moving treads fully past the edge of comb plate, set the brakes firmly. Confirm that the front edge
of the deck is not above the tread section that is not yet level with the landing.
3. Push On/Off button to turn on the vacuum.
4. Push the Cleaning Mode button up or down to chose the ideal cleaning mode. Regular and Deep Clean use the same
amount of vacuum suction and solution spray, but Deep Clean uses more brush
down pressure and is intended for cleaning heavy soils.
5. Check that when the brushes make contact with the tread that they rest smoothly
while scrubbing. If an excessive vibration or chatter is observed, press Cleaning
Mode button to the center position raising the deck and then carefully release the
brake to adjust the machine position.
6. Press the Pump On/Off button to begin spraying cleaning solution.
7. In case of cleaning the escalator with heavily built up dirt and soil, it’s strongly
recommended to clean up the brush deck in every 5 minutes after the machine
was being operated to avoid the possible clogging and brush motor overloading.
8. Turn off all the switches before moving the machine from its cleaning position.
9. When finished cleaning, press the Pump on/off button to turn off solution spray and continue to operate the machine for 5
minutes to remove excess solution residue from the treads
10. When the solution tank runs empty, stop the machine and rinse the brushes to avoid messy drips off the deck while trans-
porting the machine to dump the recovery tank and refill the solution tank.
Post-operation Maintenance

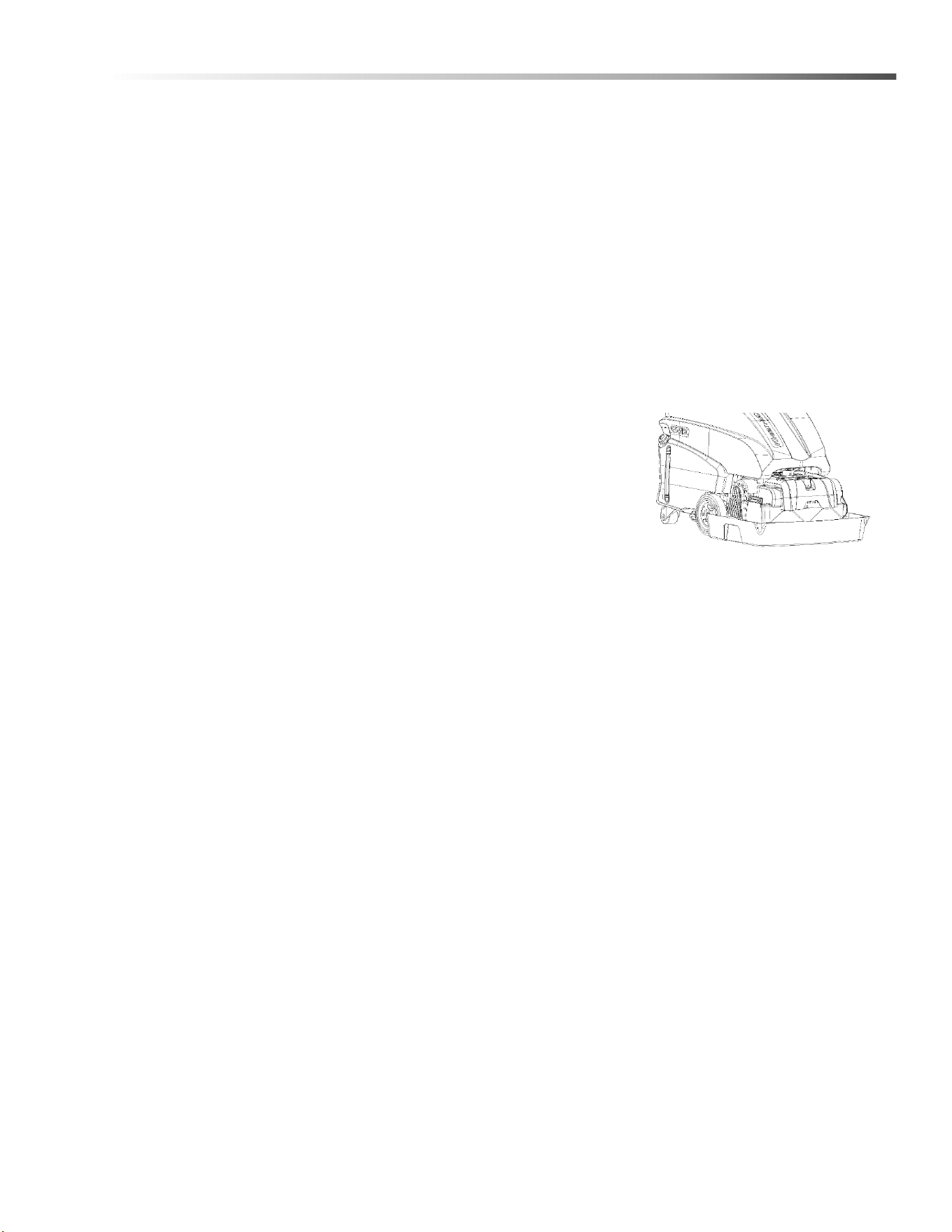

1. Using the cleaning tray filled with clean water, lower the brush deck into the cleaning tray 2-3 times to remove debris from
the bristles.
2. Remove the debris tray below the vacuum shoe. Wipe off any large debris and rinse the debris tray in clean water. Reinstall
the debris tray.
3. Empty the recovery tank using the drain hose. Rinse the recovery tank using clean water, and drain again using the drain
hose.
4. Empty the solution tank by removing the drain cap at the bottom of the machine. Reinstall the drain cap. Remove the fill
cap, fill with fresh water, and drain again by removing the drain cap.
5. Remove the nozzles from the front of the machine and rinse in clean water. Inspect to ensure no blockages or debris build-
up.
After 100 hours in Service
Check for:
• loose components;
• dirt/soil built up inside the recovery tank;
• dirt/soil built up in the tray underneath the vac-shoe;
• dirt/soil built up inside the brush deck housing;
• clogged hoses;
• necessary brake adjustment for the braking effectiveness.
8.645-788.0 Manual Operator Escalator Cleaner
14
Operation
Cleaning Tips

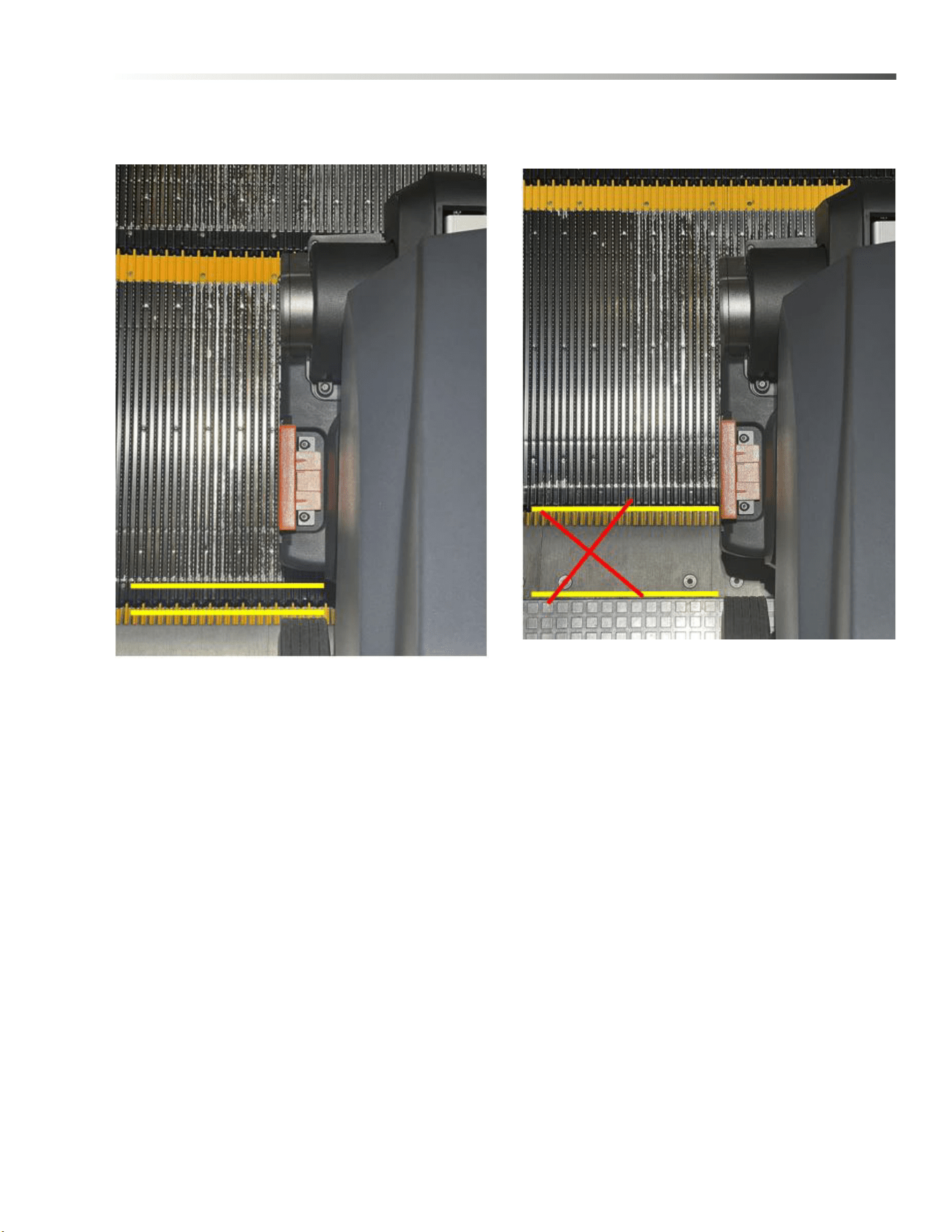

Correct
Machine positioned parallel with escalator/moving
sidewalk.
Brush fully engaged in brush housing.
Wrong
Machine positioned at angle with escalator / moving
sidewalk. Decreased cleaning performance, increased
likelihood of damage to brushes and machine.
Brush not fully engaged in brush housing. Decreased
cleaning performance
8.645-788.0 Manual Operator Escalator Cleaner
15
Operation
Cleaning Tips - continued:

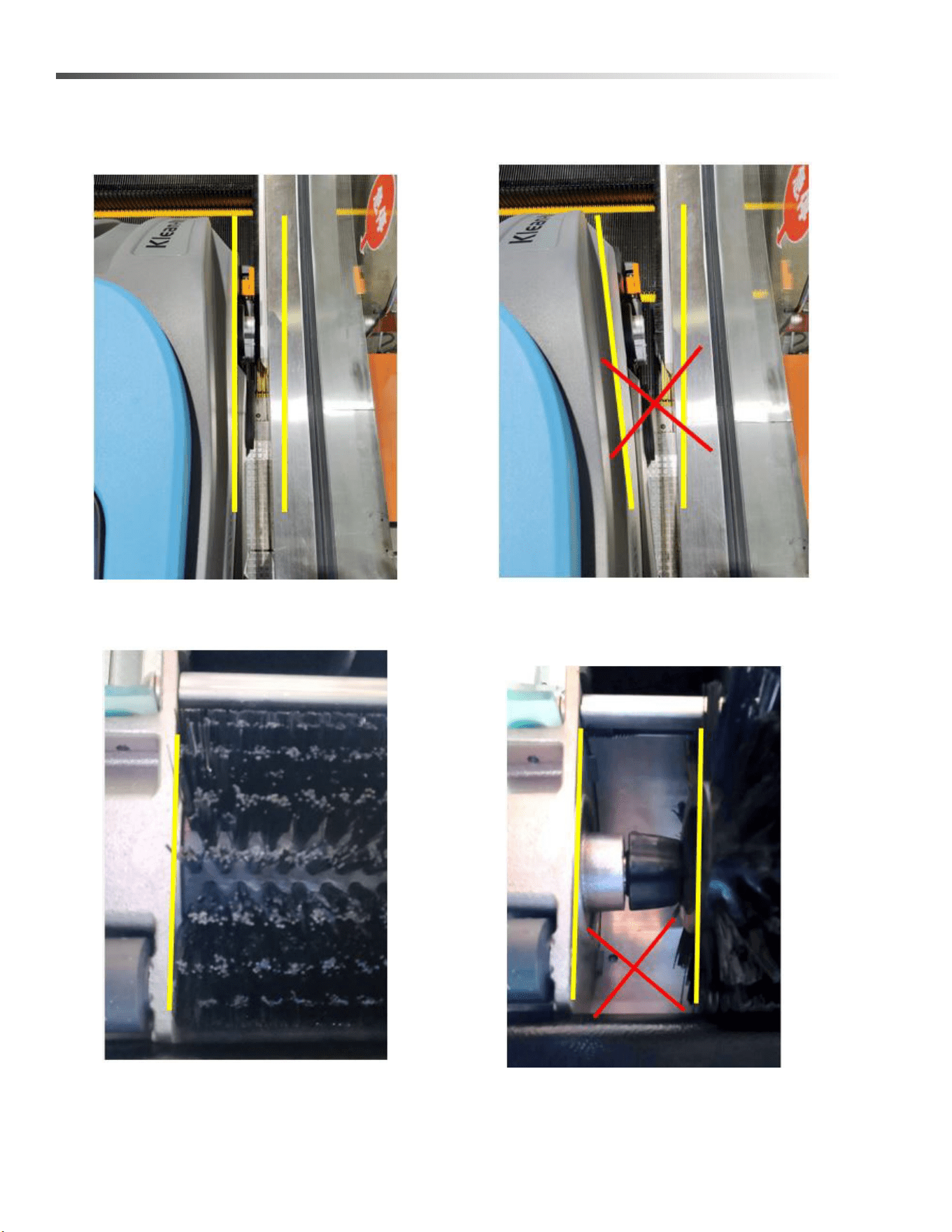

Correct
Rear edge of brushes and brush housing positioned
beyond escalator/moving sidewalk comb, fully over
escalator/moving sidewalk landing.
Wrong
Rear edge of brushes and brush housing positioned
partially over escalator/moving sidewalk comb.
Decreased cleaning performance, higher likelihood of
brush damage.
8.645-788.0 Manual Operator Escalator Cleaner
16
Maintenance

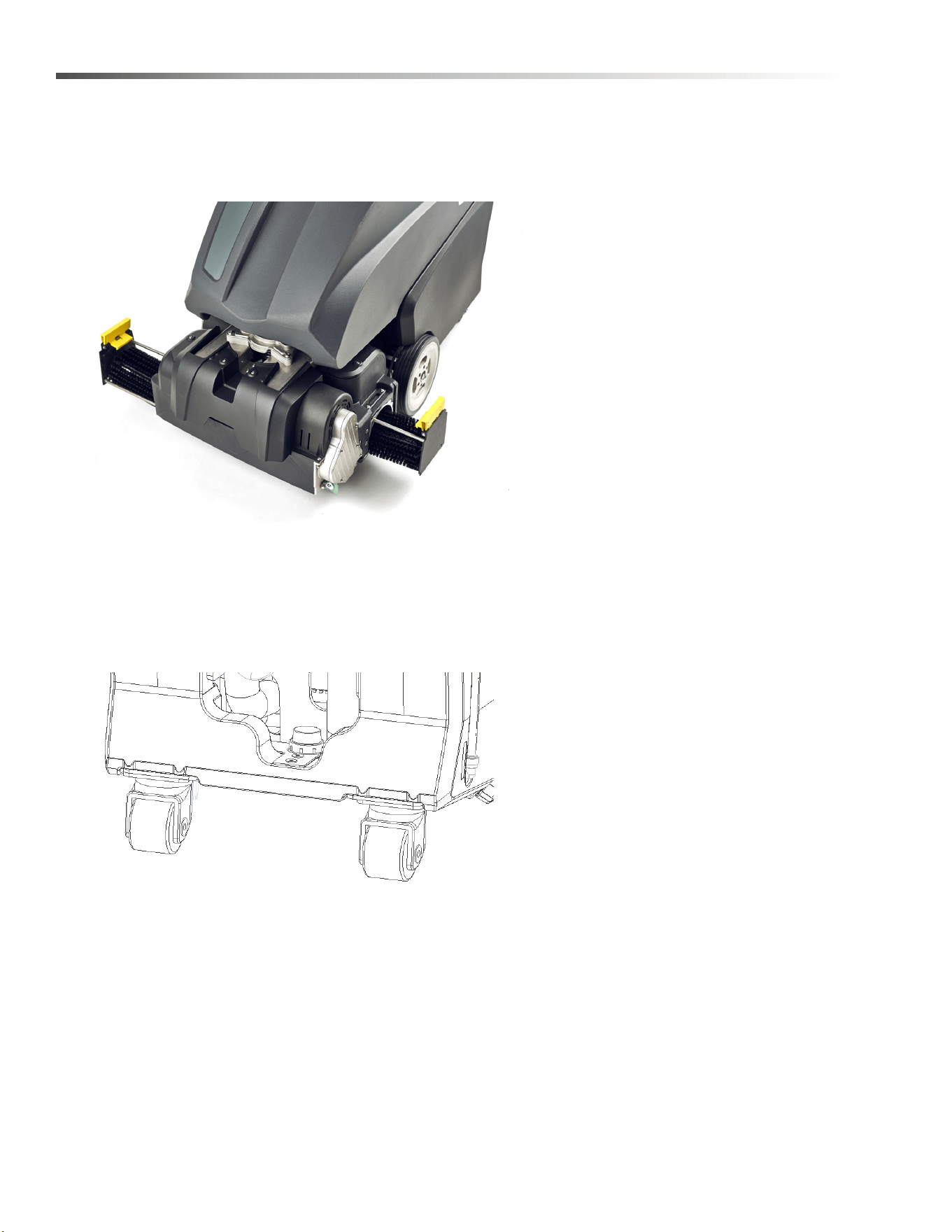

Cleaning or replacing the brushes
• Lift the yellow colored latch and slide out the brushes for cleaning or replacing.
• With the brushes removed, inspect the brush cavity and remove dirt/debris.
Water Filter
• Unscrew the transparent cap, and remove the filter. Thoroughly clean and rinse to remove accumulated dirt
and debris.
Chemicals
• Must use chemicals recommended by the manufacturer or your local distributor.
• Rinse the solution tank and the hose connecting to the nozzles every time after the operation or the
chemicals may build up inside to cause clogging.
8.645-788.0 Manual Operator Escalator Cleaner
17
Maintenance
Nozzles & Tray
• Turn the nozzles counterclockwise to remove the nozzles for cleaning.
• For cleaning the tray, push the quick lock on the right side while holding the other end of the tray to slide it
out
8.645-788.0 Manual Operator Escalator Cleaner
18
Maintenance

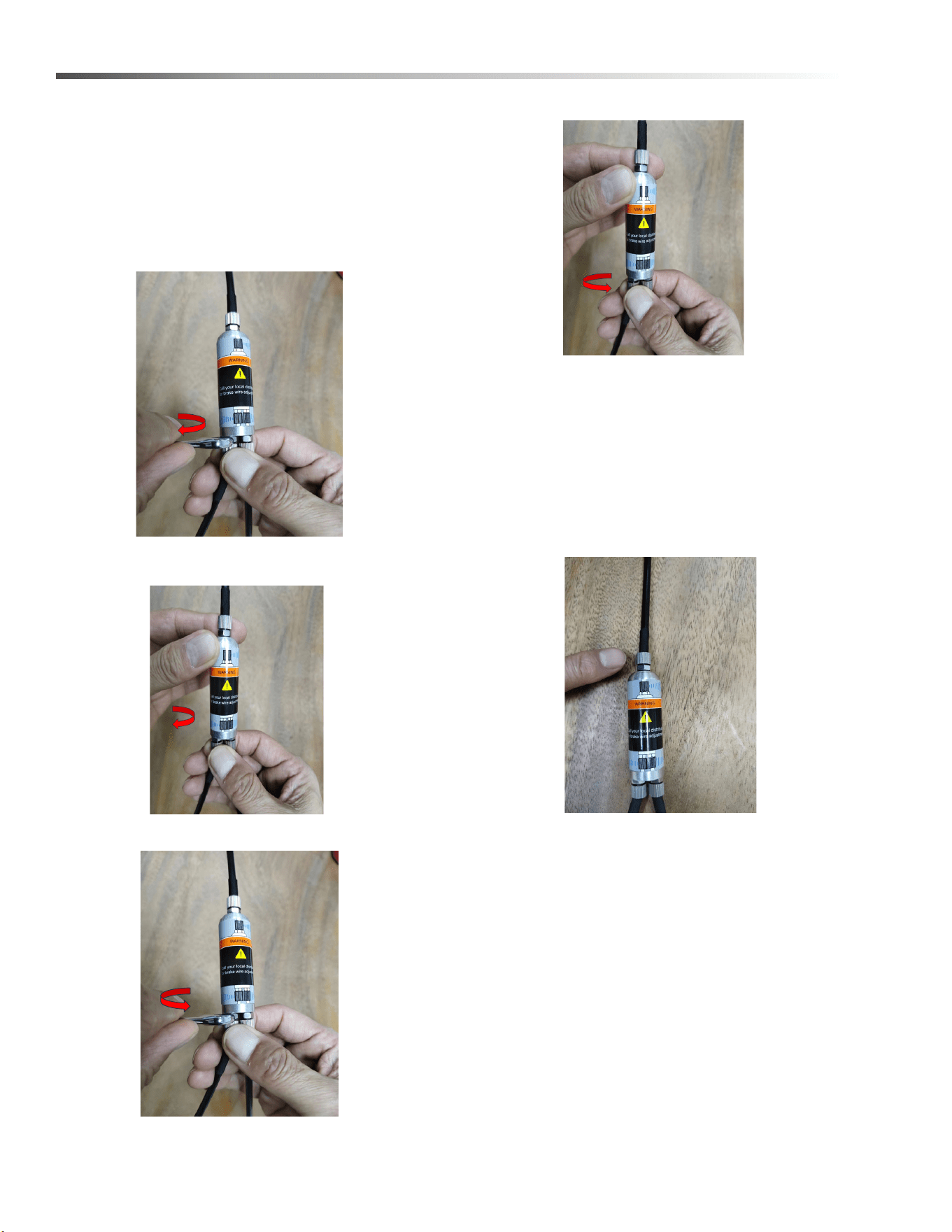

Brake Adjustment
The brake adjustment cylinder is located at the rear of
the machine, just behind the power cord. The same
procedure applies for adjusting both left and right
brakes:
Left Brake Adjusting shown:
1. Loosen the hex nut
2. Loosen the knurled screw 2-3 turns.
3. Tighten the hex nut until firm braking is achieved.
4. Tighten the knurled screw
When the brake is applied, the machine should remain
firmly in place. Neither side should start drifting or
turning when the handle is pushed or pulled.
Main Adjustor:
Used to adjust the left and right brakes simultaneously
Turn Right To Tighten Up (counterclockwise, view from
top)
8.645-788.0 Manual Operator Escalator Cleaner
19
Maintenance
Troubleshooting
PROBLEM CAUSE AND SOLUTION
Vacuum, pump or brush motor stop
working
Inspect the brushes and brush housing. Any dirt and soil built up may
trigger the overloading protection of the pump or brush motor.
Too Much residual solution on the
treads
Inspect the brushes for signs of wearing or damage to the bristles.
Replace worn or damaged brushes.
Check the slots at the bottom of the vacuum shoe. All slots should be
clear of debris.
Unsatisfactory cleaning results
Make sure the correct chemicals were used.
Inspect the nozzles. Inspect the vacuum shoe.
Inspect the brushes for signs of wearing or damage to the bristles.
Replace worn or damaged brushes.
8.645-788.0 Manual Operator Escalator Cleaner
