8 DRAWER 915MM HEAVY-DUTY TOPCHEST &
6 DRAWER 930MM HEAVY-DUTY ROLLCAB
MODEL NO: PTB91508 & PTB93006
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using these units.
9 Locate the units in a suitable work area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Use the units on level and solid ground, preferably concrete.
9 Keep the units clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the work area.
8 DO NOT use these units for any purpose other than that for which they are designed.
8 DO NOT use the units outdoors.
8 DO NOT place the units in a damp or wet location or an area where there is condensation.
8 DO NOT clean the units with any solvents which may damage the surfaces or the protective coating.
8 DO NOT move the units with the drawers out. To avoid tipping, open one drawer at a time and close and secure all drawers whilst
moving.
8 DO NOT step on the drawers.
2. INTRODUCTION
TOPCHEST: Heavy-duty welded steel construction for strength and durability. Textured powder coat nish. Ball-bearing drawer slides provide
superior performance and carry heavier loads, double sets on large drawers. All drawers have full width sand blasted aluminium ‘Lift & Latch’
drawer pulls, making easy-access while preventing inadvertent opening when box is being moved. Heavy-duty exterior handles. Non-slip
drawer liners supplied for all drawers. Gas struts tted to lid for easy-opening. Integral locking system locks all drawers with the turn of a key.
Supplied with two keys. Use with Model No. PTB93006 Rollcab or can be a standalone unit.
ROLLCAB: Heavy-duty welded steel construction for strength and durability. Textured powder coat nish. Ball-bearing drawer slides provide
superior performance and carry heavier loads, double sets on large drawers. All drawers have full width sand blasted aluminium ‘Lift & Latch’
drawer pulls, making easy-access while preventing inadvertent opening when box is being moved. Tubular chrome plated exterior side handle.
Supplied with non-slip drawer liners tted to each drawer. Heavy-duty Ø125mm Mag style castors, two swivel with toe brakes and two xed.
Integral locking system locks all drawers with the turn of a key. Supplied with two keys. Supplied with 12mm PVC coated MDF worktop for use
as a workbench when not used with a topchest. Use with Model No. PTB91508 Topchest or can be a standalone unit.
3. SPECIFICATION
Model No: ..........................................................................PTB91508
Overall Size: ........................................................ 915 x 450 x 565mm
Medium 1/2 Drawer (x6): ....................................... 385 x 385 x 60mm
Medium Drawer (x2): ............................................. 825 x 385 x 60mm
Model No: .........................................................................PTB93006
Overall Size: ...................................................... 930 x 460 x 1050mm
Medium Drawer (x3): ............................................. 825 x 385 x 60mm
Large Drawer (x2): .............................................. 825 x 385 x 135mm
X-Large Drawer (x1): ........................................... 825 x 385 x 210mm
Refer to
instructions
Wear protective
gloves
PTB91508, PTB93006 Issue 2 (H,2,3,F) 16/05/23
Original Language Version
© Jack Sealey Limited
TOPCHEST
(PTB91508)
ROLLCAB
(PTB93006)
4. ASSEMBLY
WARNING! These units are heavy, obtain the help of at least one other person before attempting to unpack them.

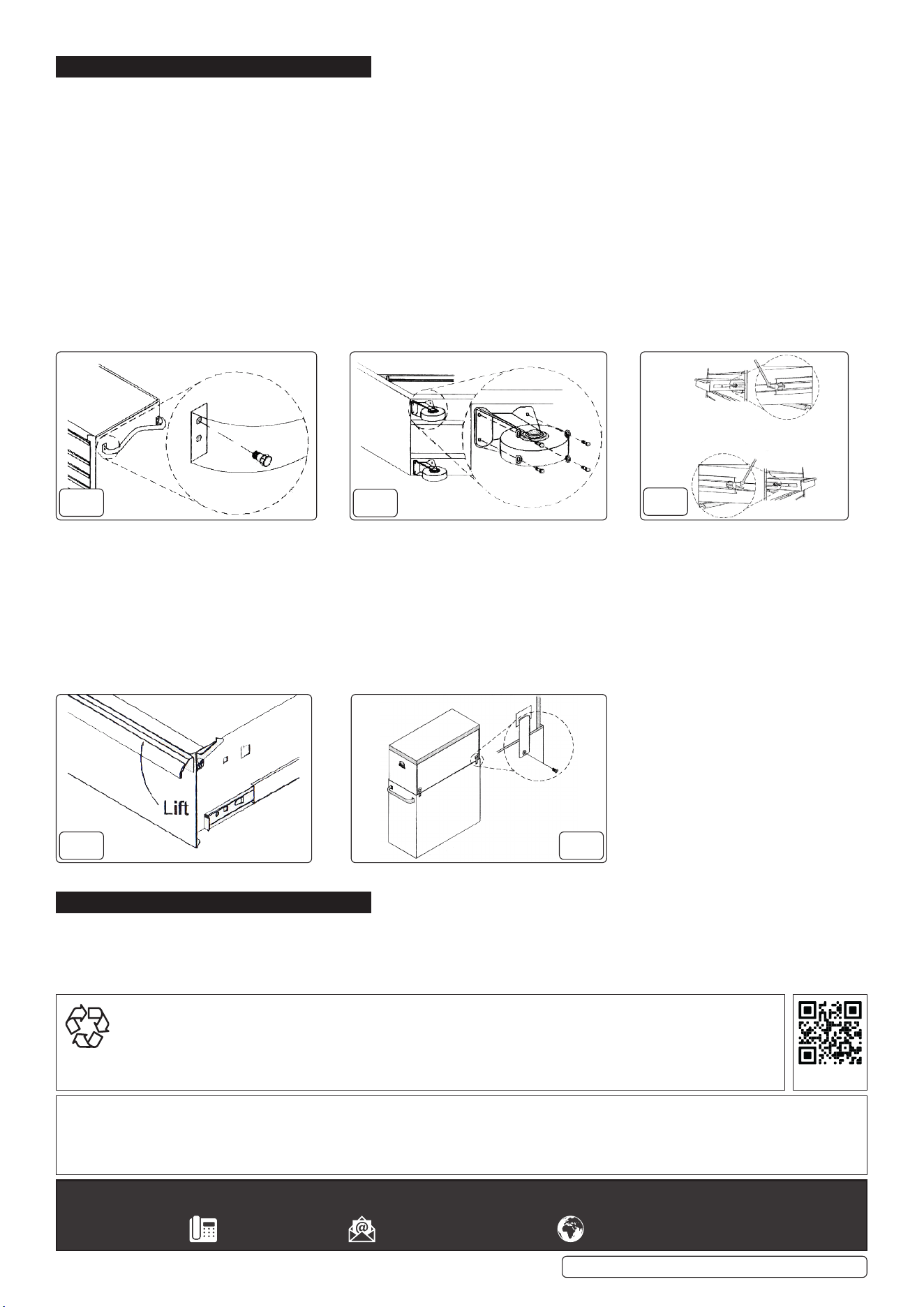

4.1. INSTALL HANDLE (REFER TO FIG.1).
4.1.1. Position the holes and attach with the bolts provided. Tighten securely.
4.2. INSTALL WHEELS (ROLLCABS) (REFER TO FIG.2).
4.2.1. Carefully lay rollcab on its back, with a soft mat underneath for protection.
4.2.2. Install the two braked casters on the same end as the handle.
4.2.3. Insert the carriage bolts through washers, then through the casters and into the bottom of the cabinet. Tighten securely.
4.2.4. Install the xed wheels on the opposite end to the handle.
4.3. REMOVE DRAWERS (REFER TO FIG.3).
4.3.1. Pull drawer out until it is almost fully extended.
4.3.2. Push up one black release lever, while pulling down the other hand black release lever.
4.3.3. Whilst holding the levers in these positions pull the drawer out until it is released from the drawer slide.
4.4. REPLACE DRAWERS (REFER TO FIG.3).
4.4.1. Extend the drawer slides from the tool chest/cabinet.
4.4.2. Insert the brackets on each side of the drawer into the slots in the chest/cabinet slides, being careful that they are properly positioned.
4.4.3. Once properly inserted, completely close the drawer to set the slides in their proper positions.
4.5. RAISE AND RELEASE DRAWER HANDLES (REFER TO FIG.4)
4.5.1. These units are equipped with raise and release drawer handles.
4.5.2. To open, lift up the drawer handle, whilst pulling it towards you. To close, shut the drawer rmly, until the latch engages.
4.5.3. If the drawer does not stay closed, the hook may be bent or it may rub against the drawer slides. To x lightly bend the hook until the
drawer will engage in the slide.
4.6. CHEST AND CABINET CONNECTION (REFER TO FIG.5) (OPTION PTB91508 OR PTB915TR)
4.6.1. Take out the work top from on top of the cabinet.
4.6.2. Place the chest on the cabinet.
4.6.3. Attach the connectors and make sure the hook head snaps into the square hole on the back of the chest. Fasten the screws to the
cabinet.
5. MAINTENANCE
5.1. Lubricate the casters annually with bearing grease.
5.2. Lubricate the slides twice a year.
5.3. Periodically the drawer fronts, drawer trim and other surfaces should be cleaned with mild detergent and water.
PTB91508, PTB93006 Issue 2 (H,2,3,F) 16/05/23
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
REGISTER YOUR
PURCHASE HERE
