Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using these units.
9 Locate the units in a suitable work area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Use the units on level and solid ground, preferably concrete.
9 Keep the units clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the work area.
8 DO NOT use these units for any purpose other than that for which they are designed.
8 DO NOT use the units outdoors.
8 DO NOT place the units in a damp or wet location or an area where there is condensation.
8 DO NOT clean the units with any solvents which may damage the surfaces or the protective coating.
88 88 DO NOT move the units with the drawers out. To avoid tipping, open one drawer at a time and close and secure all drawers whilst
moving.
88 88 DO NOT step on the drawers.
2. INTRODucTION
• Heavy-duty welded steel construction for strength and durability.
• Choice of nish; textured powder coat or anti-nger-print stainless steel, both solvent and rust resistant.
• Ball bearing drawer runners (double sets on large drawers), provide superior performance and carry heavier loads.
• All drawers have full width sand blasted aluminium lift latch drawer pulls, making easy access while preventing inadvertent opening when being moved.
• Non-slip drawer liners supplied for all drawers.
• Heavy-duty Ø125mm castors on rollcabs; 2 swivel with toe brakes and 2 xed.
• Heavy-duty exterior handles on chest and cabinets.
• Topchests feature gas struts on lids for easy opening.
• Rollcabs (except for stainless steel versions) supplied with 12mm PVC coated MDF worktop for use as a workbench when not used with a topchest.
• Integral locking system locks all drawers in each unit with the turn of a key; all supplied with 2 keys.
• Manufactured to the highest levels of construction to withstand the toughest of workshop/garage conditions.
3. SpEcIFIcATION
Model No: pTB66004 Model No: pTB67506
Overall Size WxDxH (mm): 660 x 450 x 565 Overall Size WxDxH (mm): 675 x 460 x 1050
Medium Drawer (x3): 570 x 385 x 60 Medium Drawer (x3): 570 x 385 x 60
Large Drawer (x1): 570 x 385 x 135 Large Drawer (x2): 570 x 385 x 135
X-Large Drawer (x1): 570 x 385 x 210
4. ASSEMBlY
4.1. These units are heavy, obtain the help of at least one other person before attempting to unpack them.

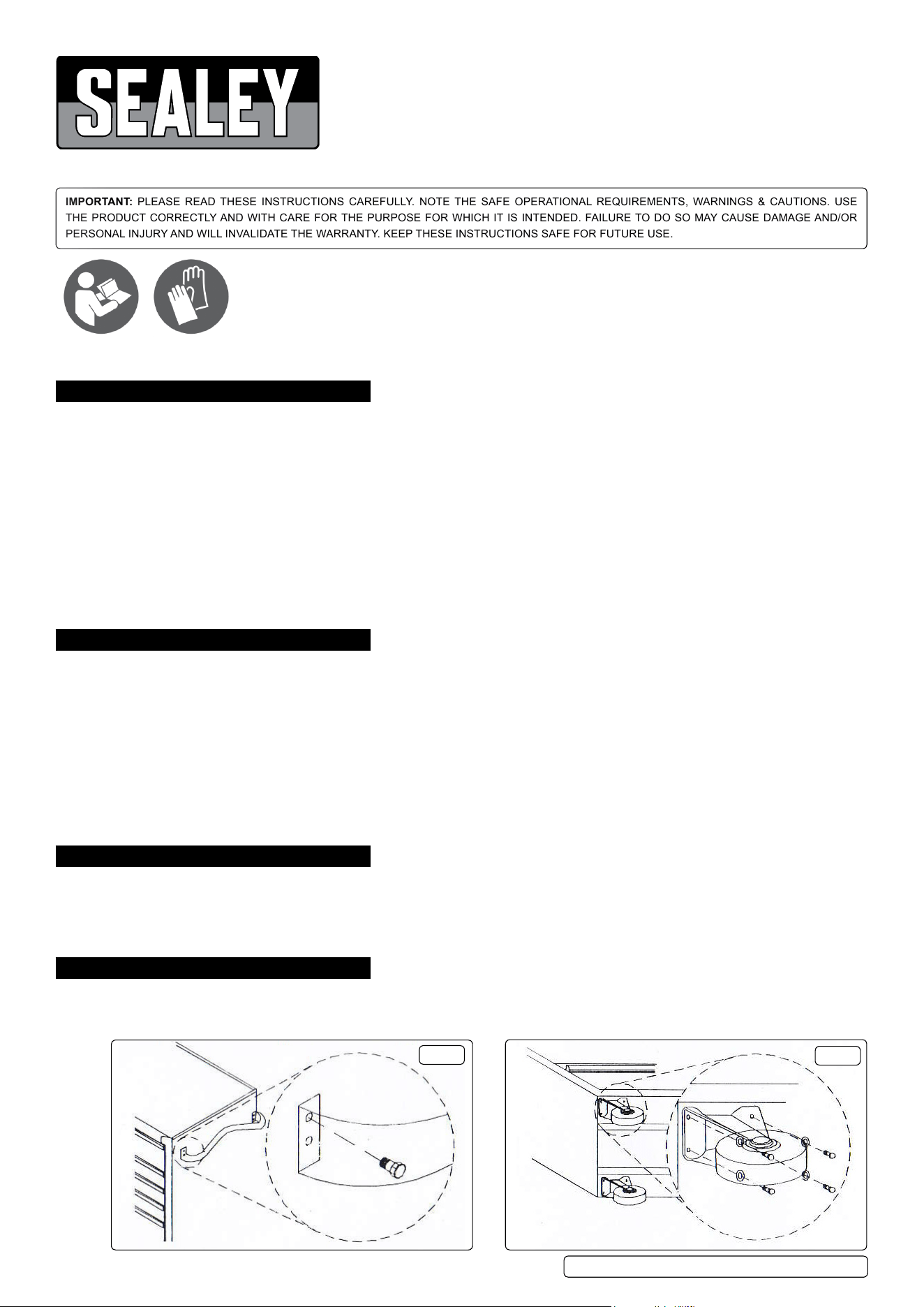

4.2. Install Handle (refer to g.1).
4.2.1. Position the holes on the rollcab and attach with the bolts provided. Tighten securely.
INSTRuCTIONS FOR:
TOpcHEST 4 DRAWER 660MM HEAvY-DuTY/
ROllcAB 6 DRAWER 675MM HEAvY-DuTY
MODEL No's: pTB66004, pTB67506
Refer to
instruction
manual
Wear
protective
gloves
Fig.1
Fig.2
PTB66004, PTB67506| Issue: 2 (L) 29/08/17
Original Language Version
© Jack Sealey Limited
4.3. Install Wheels (Rollcabs) (refer to g.2).
4.3.1. Carefully lay rollcab on its back, with a soft mat underneath for protection. Install the two braked casters on the same end as the
handle.
4.3.2. Insert the carriage bolts through washers, then through the casters and into the bottom of the cabinet. Tighten securely.
4.3.3. Install the xed wheels on the opposite end to the handle.

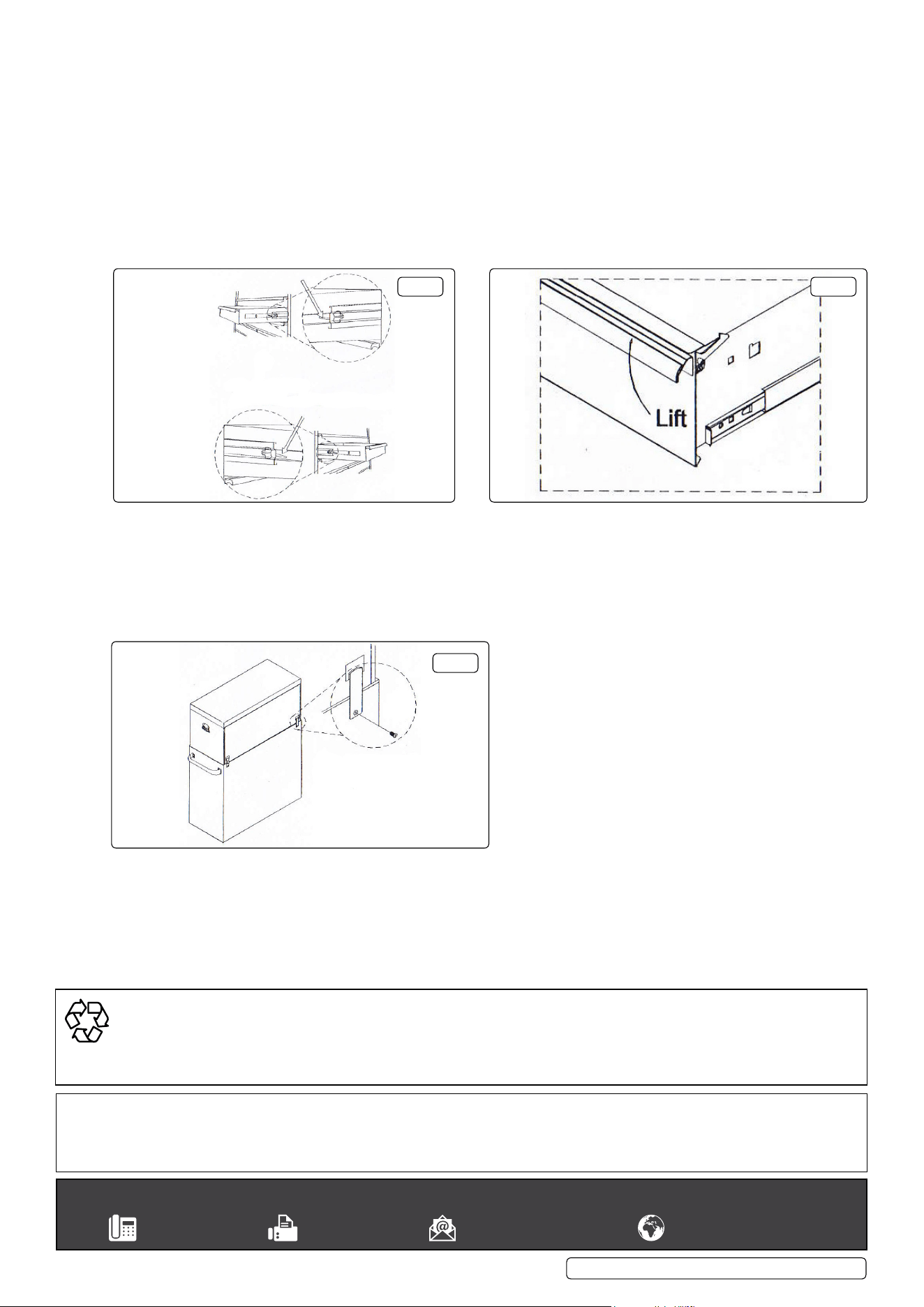

4.4. Remove Drawers (refer to g.3).
4.4.1. Pull drawer out until it is almost fully extended. Push up one black release handle, while pulling down the other hand black release
lever.
4.4.2. Whilst holding the levers in these positions pull the drawer out until it is released from the drawer slide.
4.5. Replace Drawers
4.5.1. Extend the drawer slides from the tool chest/cabinet.
4.5.2. Insert the brackets on each side of the drawer into the slots in the chest/cabinet slides, being careful that they are properly positioned.
4.5.3. Once properly inserted, completely close the drawer to set the slides in their proper positions.
4.6. Raise and Release Drawer Handles (refer to g.4)
4.6.1. These units are equipped with raise and release drawer handles.
4.6.2. To open, lift up the drawer handle, whilst pulling it towards you. To close, shut the drawer rmly, until the latch engages.
4.6.3. If the drawer does not stay closed, the hook may be bent or it may rub against the drawer slides. To x lightly bend the hook until the
drawer will engage in the slide.
4.7. chest and Rollcab connection (refer to g.5) Rollcab PTB67506 can be tted with Topchest PTB66004 or PTB660TR.
4.7.1. Place the chest on the rollcab.
4.7.2. Attach the connectors, as shown, to both ends. Ensure that the clip fully engages in the back of the topchest.
PTB66004, PTB67506| Issue: 2 (L) 29/08/17
Original Language Version
© Jack Sealey Limited
Fig.3 Fig.4
Fig.5
Sealey Group, Kempson Way, Suffolk Business park, Bury St Edmunds, Suffolk. Ip32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENvIRONMENT pROTEcTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
