TOPCHEST, 4 DRAWER RETRO STYLE
ROLLCAB 4 DRAWER RETRO STYLE
mODEL NO’S: AP28104, AP28204
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this product.
WARNING! Use caution when handling and assembling the metal components. The metal may have sharp edges or corners, the use of
protective gloves is recommended.
8 DO NOT open more than one drawer at a time.
8 DO NOT step on the drawers.
8 DO NOT let children play with the rollcab or topchest.
9 Ensure all drawers are fully closed and the locking catch is activated, before moving the toolbox.
9 Secure the brakes when rollcab is in the desired position.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the mounting frame clean and tidy in accordance with good workshop practice.
8 DO NOT use in damp work areas.
WARNING! The warnings, cautions and instructions referred to in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but
must be applied by the operator.
2. INTRODuCTION
AP28104:
Retro styled topchest with modern day functionality. Features 4 drawers with ball bearing slides and ‘lift & latch drawer’ pulls preventing
inadvertent opening. Topchest is further enhanced with opening clam shell top providing additional storage. Retro theme is continued with
chrome plated top lid stays and side handles. Drawers and top lid are tted with drawer liners and lock on one key turn. For use as stand alone
unit or with AP28204 Rollcab to make a complete retro style stack unit.
AP28204:
Retro styled rollcab with modern day functionality. Features 4 drawers with ball bearing slides and ‘lift & latch’ drawer pulls preventing
inadvertent opening. Retro theme is continued with stainless steel handle and stylish heavy duty castors, two with brakes. All drawers are tted
with drawer liners and lock on one key turn. For use as stand alone or with AP28104 Topchest and model No. AP28102 mid-Box to make a
complete retro style stack unit.
3. SPECIFICATION
model no ................................................................. AP28104
Dimensions (W x D x H) .......................... 700 x 450 x 495mm
medium drawer x 4 ....................................570 x 400 x 60mm
Clam shell top .........................590 x 430 x 80mm (restricted)
4. ASSEMBLY

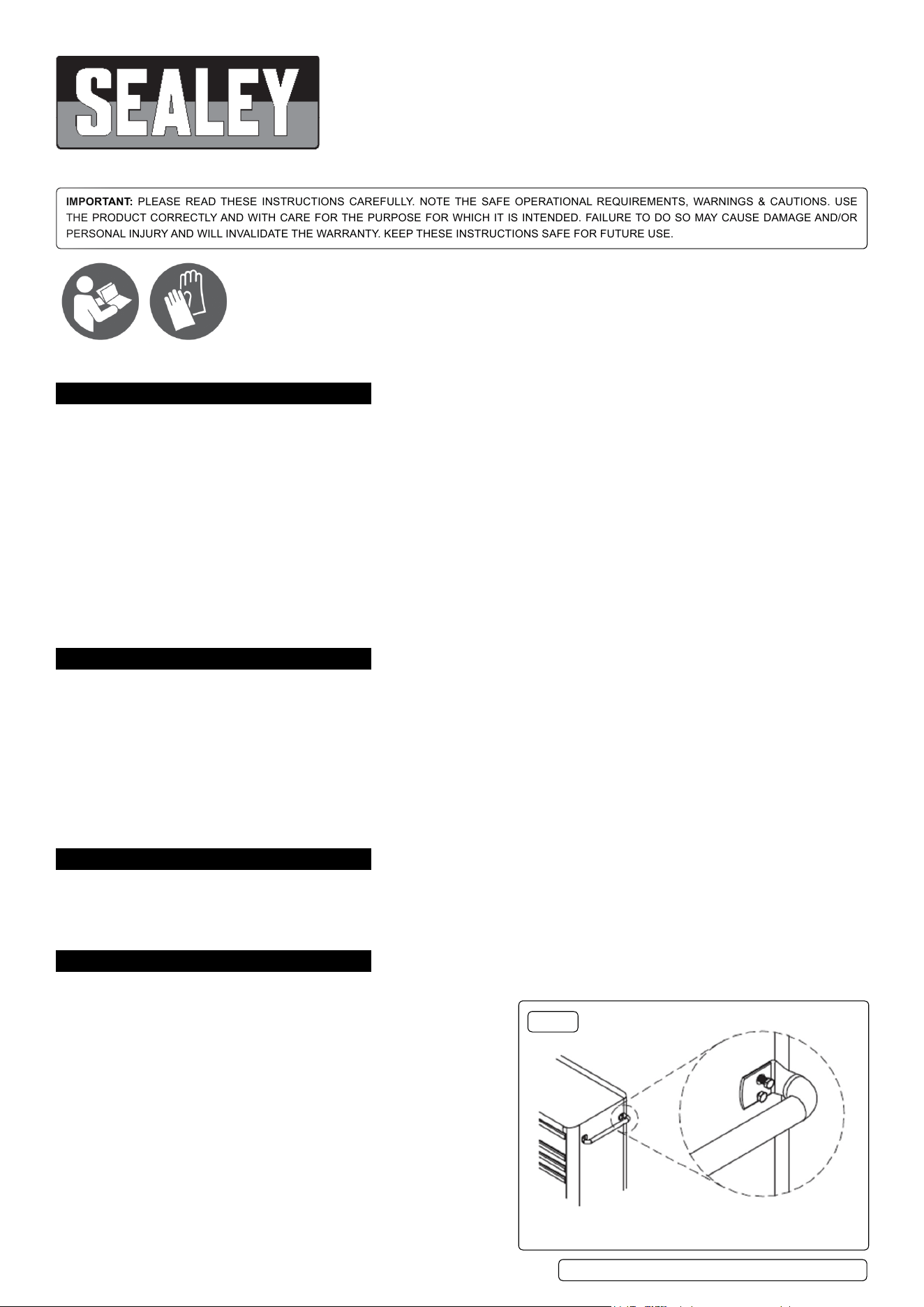

4.1. FIT ROLLCAB HANDLE g.1
4.1.1. Position the handle over the holes in the roll cab, attach using the
m6 x 12mm hex bolts and tighten securely. Assembling the
handle rst will make it easier to handle the roll cab.
Refer to
instruction
manual
Wear
protective
gloves
AP28104, AP28204 | Issue:3 19/09/18
Original Language Version
© Jack Sealey Limited
model no ................................................................. AP28204
Dimensions (W x D x H) .......................... 715 x 460 x 825mm
Large drawer x 1 .....................................570 x 400 x 105mm
Large drawer x 3 .....................................570 x 400 x 135mm
g.1
Original Language Version
© Jack Sealey Limited

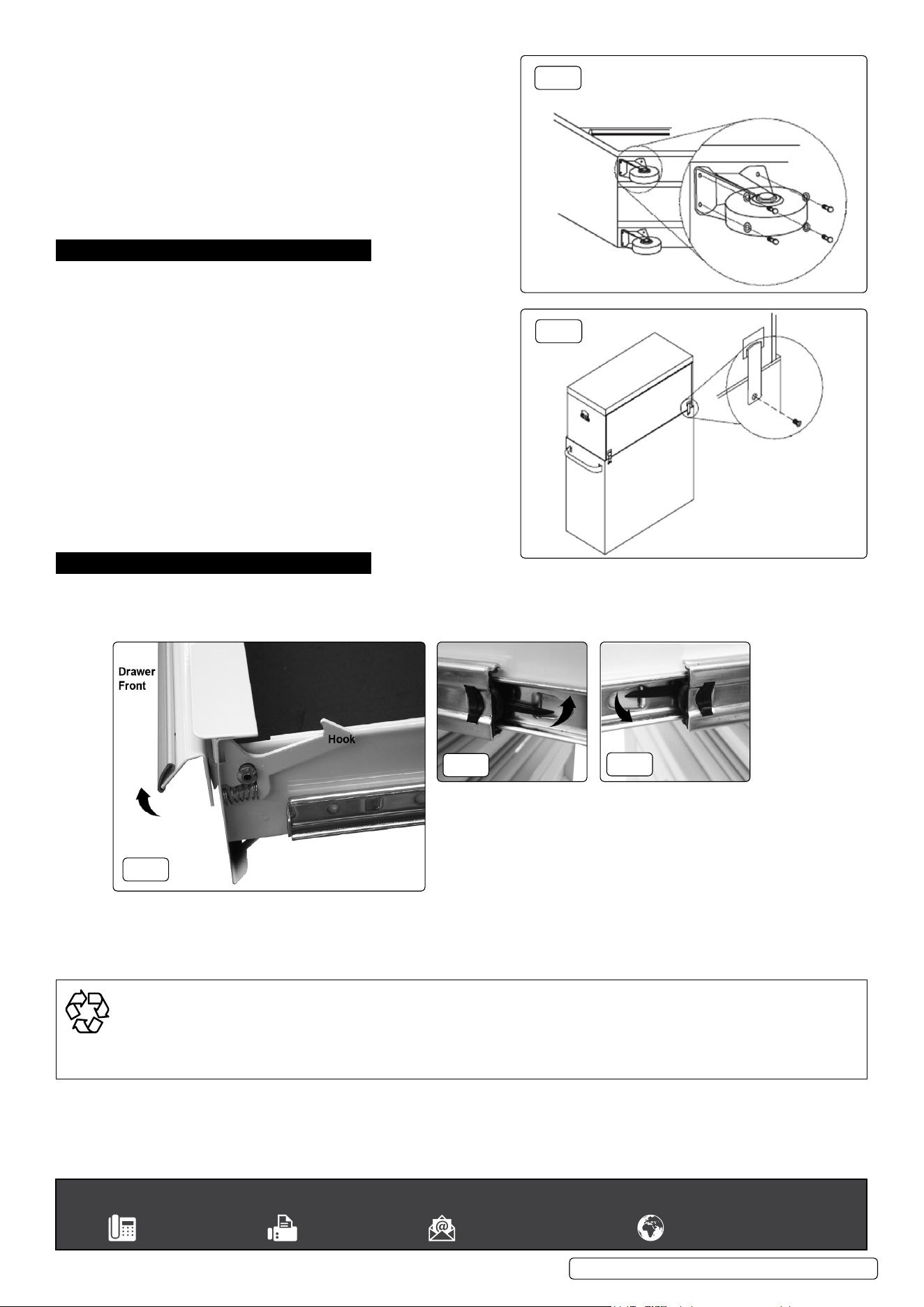

4.2. FIT CASTORS g.2
4.2.1. Lay the rollcab carefully on its back, protecting it with a soft mat placed
on the oor.
4.2.2. Position the two rigid castors at the end opposite the handle.
4.2.3. Insert the m8 x 20mm hex bolts through the washers, then through the
castors and into the base of the roll cab, tightening securely.
4.2.4. Repeat with the two swivel castors on the opposite (handle) end.
4.3. ROLLCAB AND TOPCHEST CONNECTION g.3
4.3.1. Place the top chest onto the rollcab.
4.3.2. Snap the connectors into the square holes on the back of the top chest.
4.3.3. Fasten the connectors with the screws provided.
5. OPERATION
5.1. RAISE AND RELEASE DRAWERS g.4
5.1.1. To open: lift the drawer front whilst pulling it out.
5.1.2. To close: shut the drawer rmly until the latch engages.
5.1.3. If the drawer does not latch, the hook may be misaligned or binding.
Bend the hook gently until it is parallel to the drawer edge and
engages when closed.
5.2. REMOVE DRAWERS g’s 5 & 6
5.2.1. Pull drawer out almost fully.
5.2.2. Locate the black locking levers.
5.2.3. Facing the drawer; lift one lever up (g.5), and push the other lever
down (g.6).
5.2.4. With both levers deployed, the drawer can be pulled out from the slides.
5.3. TO REPLACE DRAWERS g’s 5 & 6
5.3.1. Extend the drawer runners from the cabinet.
5.3.2. Engage the slides on either side of the drawer carefully into the runners.
5.3.3. Push the drawer closed squarely until the drawer is closed fully,
engaging the locking levers as it goes.
6. MAINTENANCE.
6.1. Lubricate the drawer slides sparingly every six months.
6.2. Clean the metalwork periodically with warm water and a mild detergent.
6.3. Stubborn grease and oil marks can be removed by using a non-abrasive cleaner.
.
g.2
g.4
g.5
g.6
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENvIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
g.3
AP28104, AP28204 | Issue:3 19/09/18
