Chapter 1 Preventive and Cautionary
Tips
To guarantee the card reader works properly, please read and
obey the notes below.
If the card reader is powered by the controller, the power
supply distance is recommended to be no longer than 100m.
If the distance is longer than 100m, you are advised to power
the card reader by external 12 V (range: -%10 ~ +%10) DC
power supply, which is nonswitched and linear.
To guarantee the communication between the controller and
the card reader, you must use RVVP cable above 0.5 to
connect them.
If the card reader is installed outside or in environment easy
to permeable, it is advisable to install a waterproof shield.
If you need to install several card readers, the distance
among them must over 30 cm.
To reduce the noise in long distance transmission, the shield
of cable should connect to the GND of both controller and
card reader terminal.
DS-K1801 Series Card Reader
2
Chapter 2 Introduction

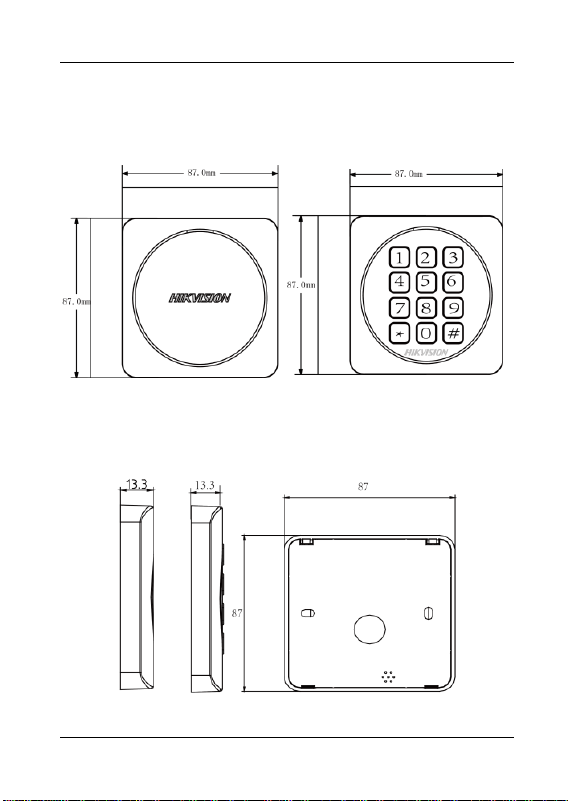

2.1 Front View
The front view of DS-K1801 series card reader is shown below:
Without Keypad With Keypad
2.2 Side View and Rear View
The side view of card reader is shown below:
Side View Rear View
DS-K1801 Series Card Reader
3
Chapter 3 Wiring and Installation
3.1 Terminal Description
The description of 8 cables is shown below.
Table 3-1 Description of Cable
Color
Description
Red
PWR (12 VDC)
Black
GND
Purple
Beep Control
Brown
OK
Orange
ERR
Green
Wiegand W0
White
Wiegand W1
Blue
Wiegand 26/ 34
3.2 Wiring Cables
Purpose:
Wire the cables between controller and card reader, thus to
establish the communication between them.

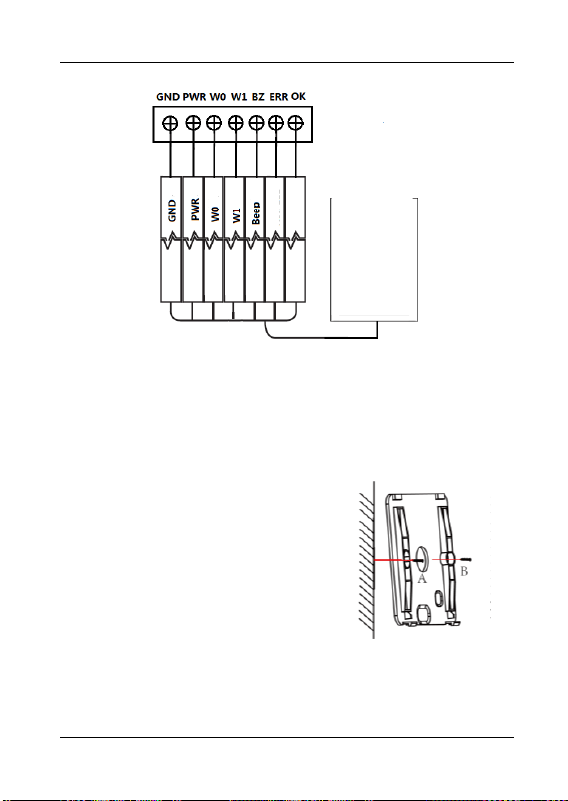

Steps for Wiegand communication mode:
Wiring the cable between controller and card reader as shown
below.
1. Set the Wiegand mode before power-on:
Cable
Wiring Method
Wiegand Mode
Blue Wiegand Cable
Grounded
Wiegand 26
Not Grounded
Wiegand 34
2. Wiring the cable between controller and card reader as shown
DS-K1801 Series Card Reader
4
below.
Yellow
Blue
Black
Red
Black
Red
Green
White
Purple
Orange
Brown
Controller
Card Reader
Yellow
Blue
Black
Red
Black
Red
Green
White
Purple
Orange
Brown
Controller
Card Reader
Card Reader
Card Reader
ERR
OK
Figure 3-1 Wiring for Wiegand Communication Mode
3.3 Installing Card Reader
Steps:
1. Fix the plate on the wall with
screws (A and B) or other place
with flat surface.
2. Connect the cables between
controller and card reader. For
DS-K1801 Series Card Reader
5
details, refer to 3.2 Wiring Cables.
3. Buckle the card reader up to the
plate with aligning C point and the
corresponded slot on the upper
side of card reader .
4. Press the lower side of the card
reader to fasten the card reader on
D point of the plate.
Chapter 4 Sound Prompt and Indicator
After the card reader is powered on, LED status indicator will turn
green and blink for 1 time. Then it will turn red and blink for 3
times. At last the buzzer will send out a beep sound indicating the
starting up process is completed.
During using the card reader, it will send out different sounds
prompt and the LED indicator on it have different statuses. You
can refer to tables below for detailed information.
Table 4-1 Description of Prompt Sound
Sound Prompt
Description
One beep
Swiping card prompt
Pressing keys prompt
Prompt for too long card No. input by
pressing keys.
Time out prompt for pressing keys or
swiping card.
For Card + Password authentication:
prompt for entering the password after
swiping the card.
DS-K1801 Series Card Reader
6
Sound Prompt
Description
Two rapid beeps
The operation of pressing keys or swiping
card is valid.
Three slow beeps
The operation of pressing keys or swiping
card is invalid.
Rapidly
continuous beeps
Prompt for tamper-proof alarm.
Prompt for buzzer alarm.
Slowly continuous
beeps
The card reader is unencrypted.
Table 4-2 Description of LED Indicator
LED Indicator Status
Description
Green (blink for 1
time), and red (blink
for 3 times)
The card reader is power on.
Green and slow
blinking
For Card + Password authentication:
prompt for entering the password after
swiping the card.
Solid green for 3s
The operation of pressing keys or swiping
card is valid.
Green and
Intermittent blinking
Card reader is working normally.
Solid red for 3s
The operation of pressing keys or swiping
card is invalid.
0200001080912
DS-K1801 Series Card Reader
7
UD05259B-D
