3 DRAWER HEAVY-DUTY HANG-ON LOCKER
MODEL NO: PTB39003.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this locker.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the locker clean and tidy in accordance with good workshop practice.
8 DO NOT use the locker for any purpose other than that for which it is designed.
8 DO NOT step on the shelves or drawers.
8 DO NOT overload the locker.
8 DO NOT clean the locker with any solvents which may damage the surfaces or protective coating.
2. INTRODUCTION
Heavy duty welded steel construction for strength and durability. Textured powder coat finish. Ball-bearing drawer slides provide superior
performance and carry heavier loads. All drawers have full width sand blasted aluminium ‘Lift & Latch’ drawer pulls, making easy-access while
preventing inadvertent opening when being moved. Non-slip drawer liners supplied for all drawers. Integral locking system, supplied with 2 keys.
Hang-On locker suitable for heavy duty Premier rollcabs.
3. SPECIFICATION
Model No. .............................................................PTB39003
Overall size (W x D x H) ........................390 x 460 x 1390mm
No. of Drawers ..................................................................... 3
No. of Shelves......................................................................2
4. CONTENTS
PTB39003.V2 Issue 2 (2,F) 25/04/23
Original Language Version
© Jack Sealey Limited
Refer to
instruction
manual
Wear protective
gloves
fig.
1

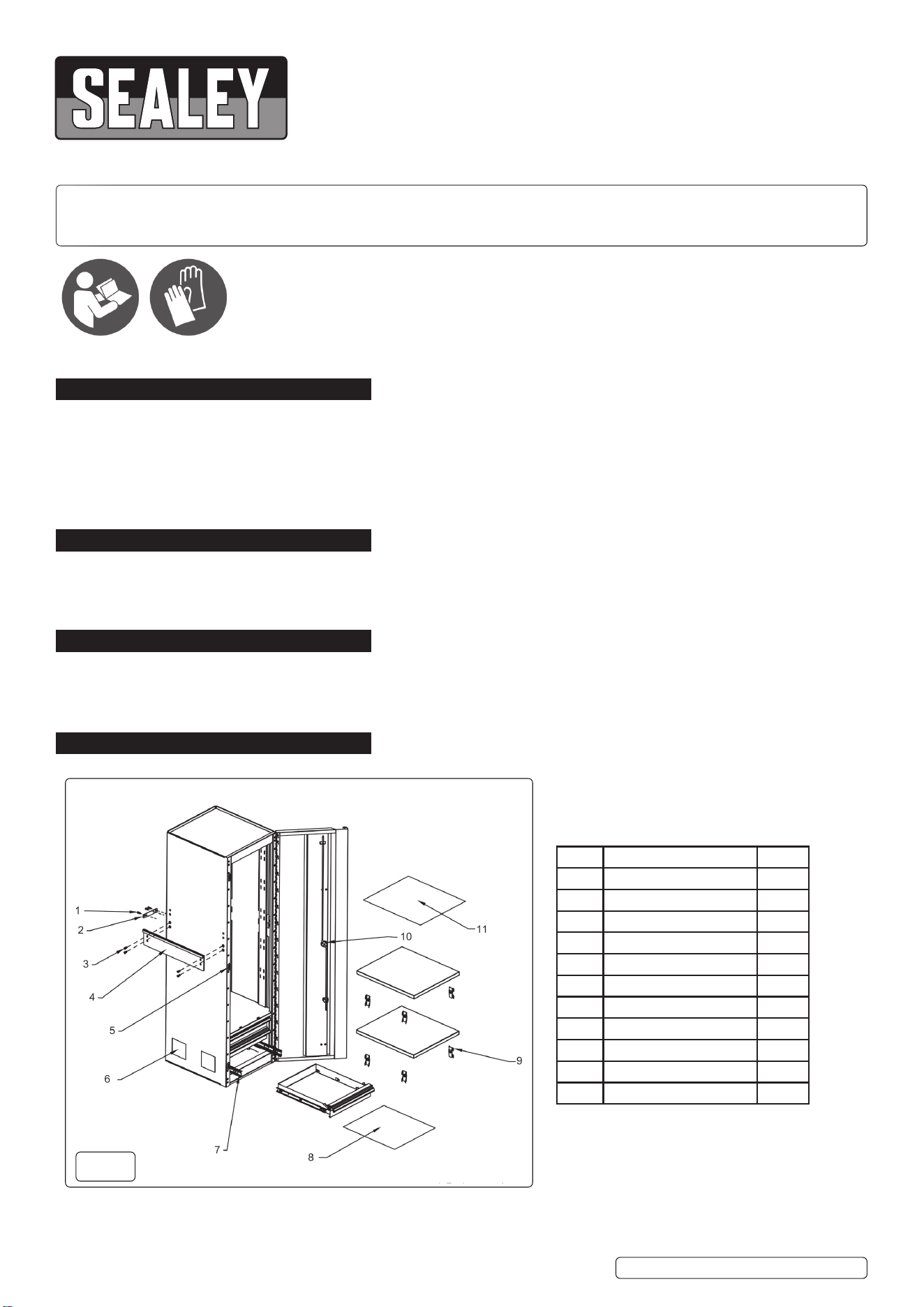

ITEM DESCRIPTION QTY
1 M6 x 16 Hex bolt 3
2 Connecting piece 1
3 M6 x 16 c/sink screw 4
4 Hangar 1
5 Magnet 3
6 EVA Pad 2
7 Slide set 3 sets
8 Drawer liner 3
9 Shelf support 8
10 Lock 1
11 Shelf liner 3
5. ASSEMBLY
NOTE: Heavy item - get assistance to assemble.

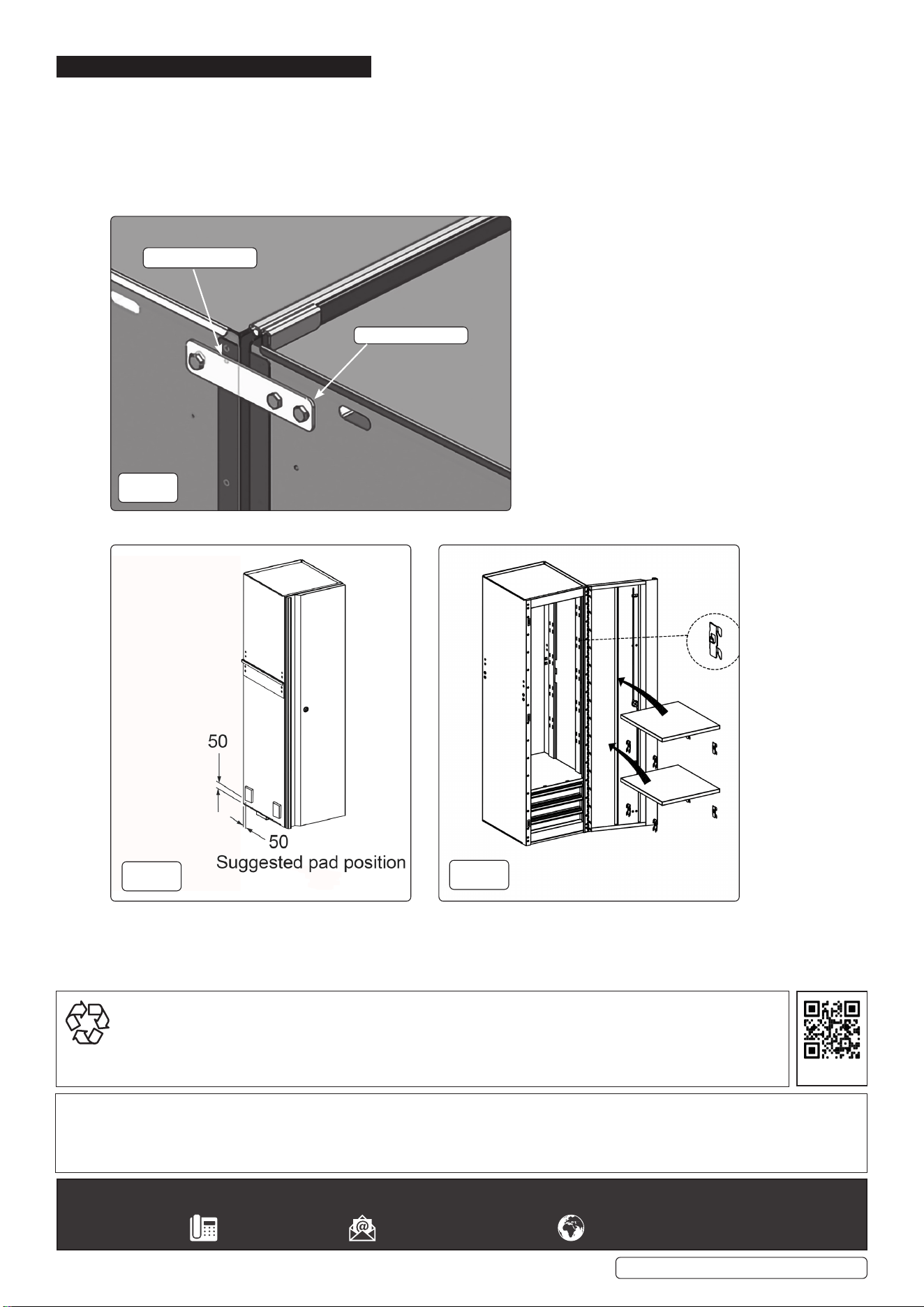

5.1. Securelyattachhanger(g.1-item4)usingscrews(g.1-item3).
5.2. Placeneoprenepadspacers(g.1-item6)(5x40x80)nearloweredgeoflocker.(seeg.3).Thespacerpadshaveadhesivebacks
toenablexing.Seeg.3.
5.3. Hang the locker onto the side of the cabinet.
5.4. Attachconnector(g.1-item2)tothesideofthelockerusingthebolts(g.1-item1).Seeg.2.
5.5. Tosupportshelves,insertshelfsupports(g.1-item9)atthedesiredheightmakingsurethatallpairsareatthesamelevel.Seeg.4.
fig.
3
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
fig.
4
fig.
2
Connecting piece
M6 x 16 Hex bolt
