5” Digital Slim TFT/LCD Monitor
MON-50-DM
2

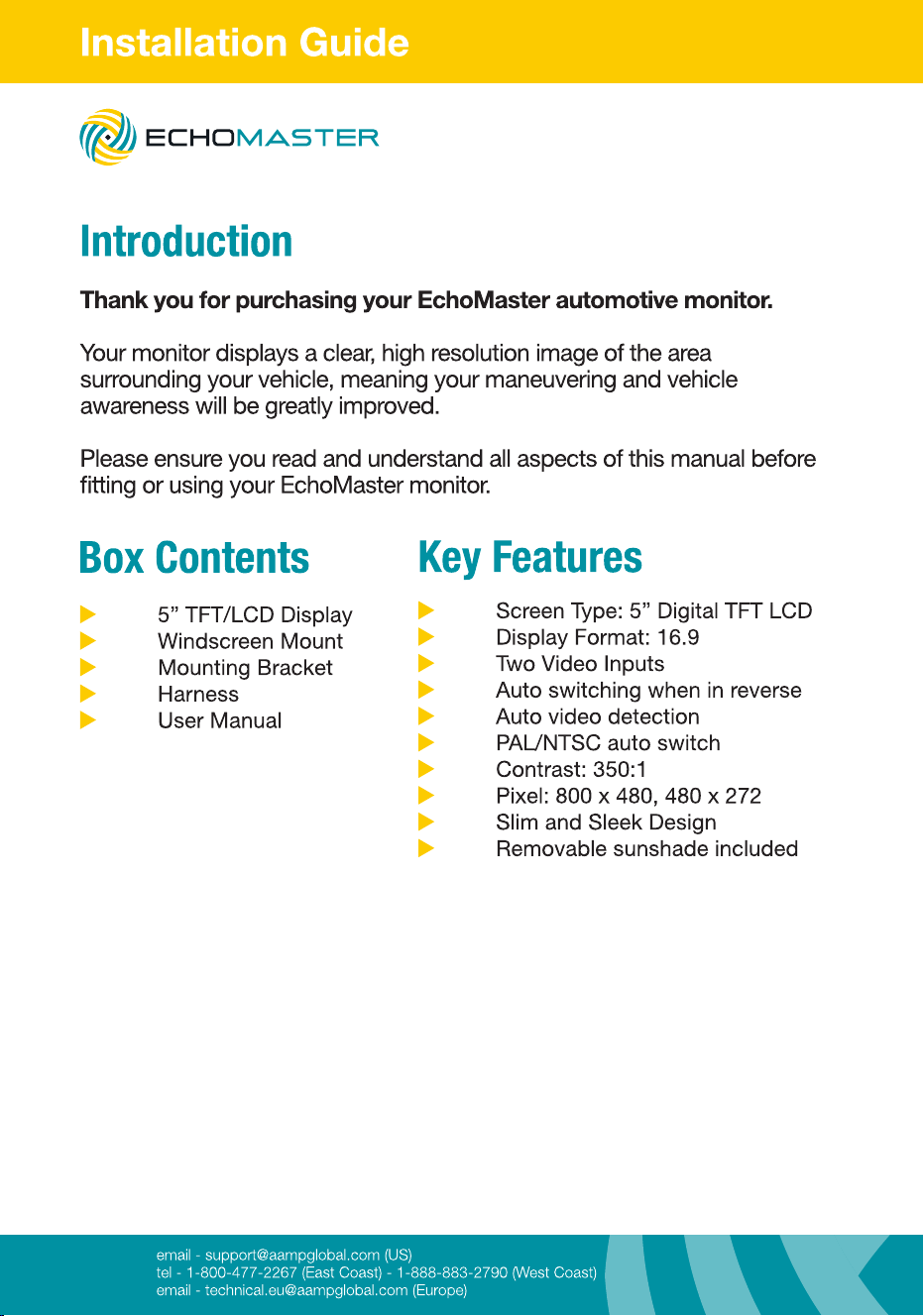

MON-50-DM
5” Digital Slim TFT/LCD Monitor
3

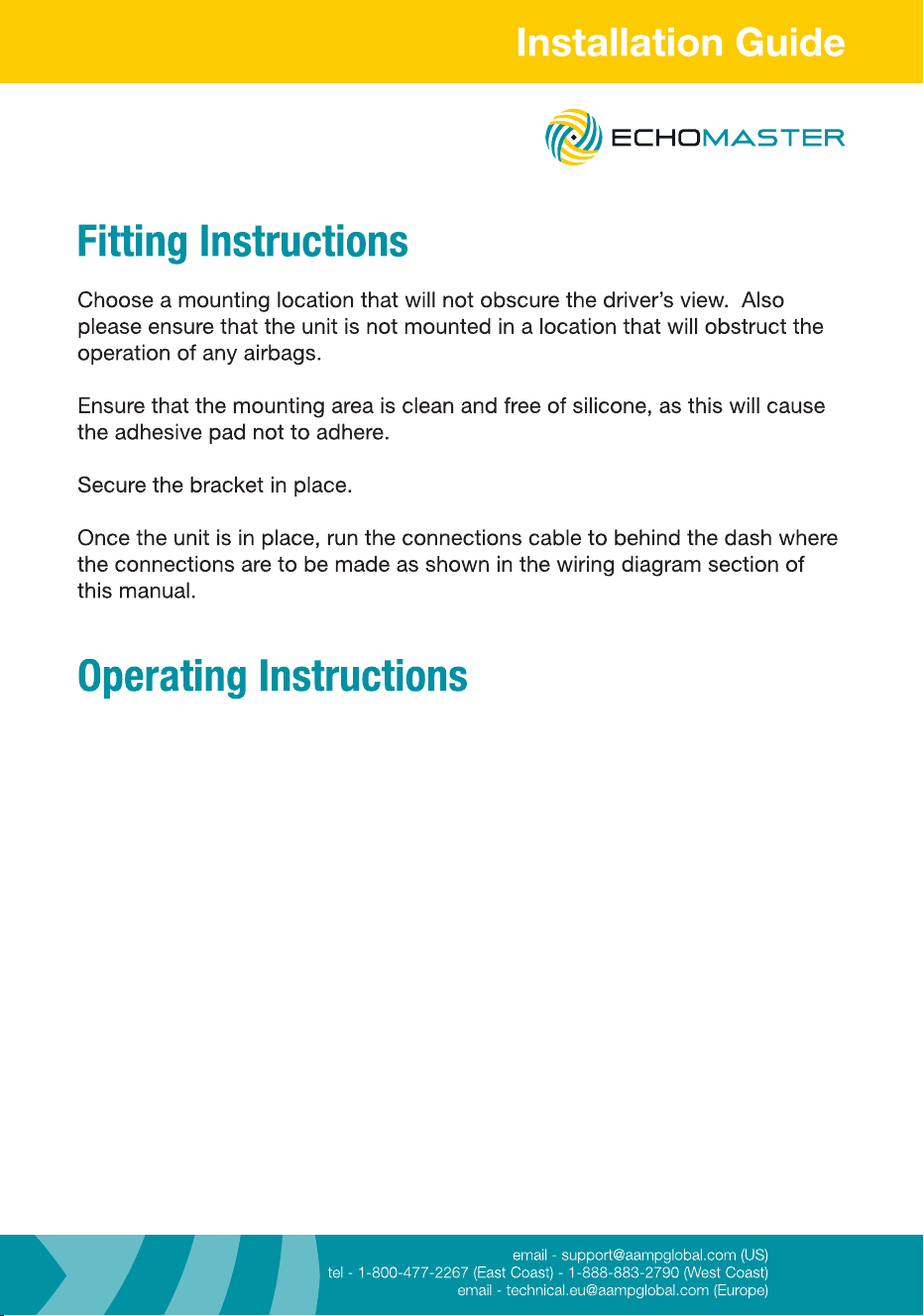

MON-50-DM
5” Digital Slim TFT/LCD Monitor

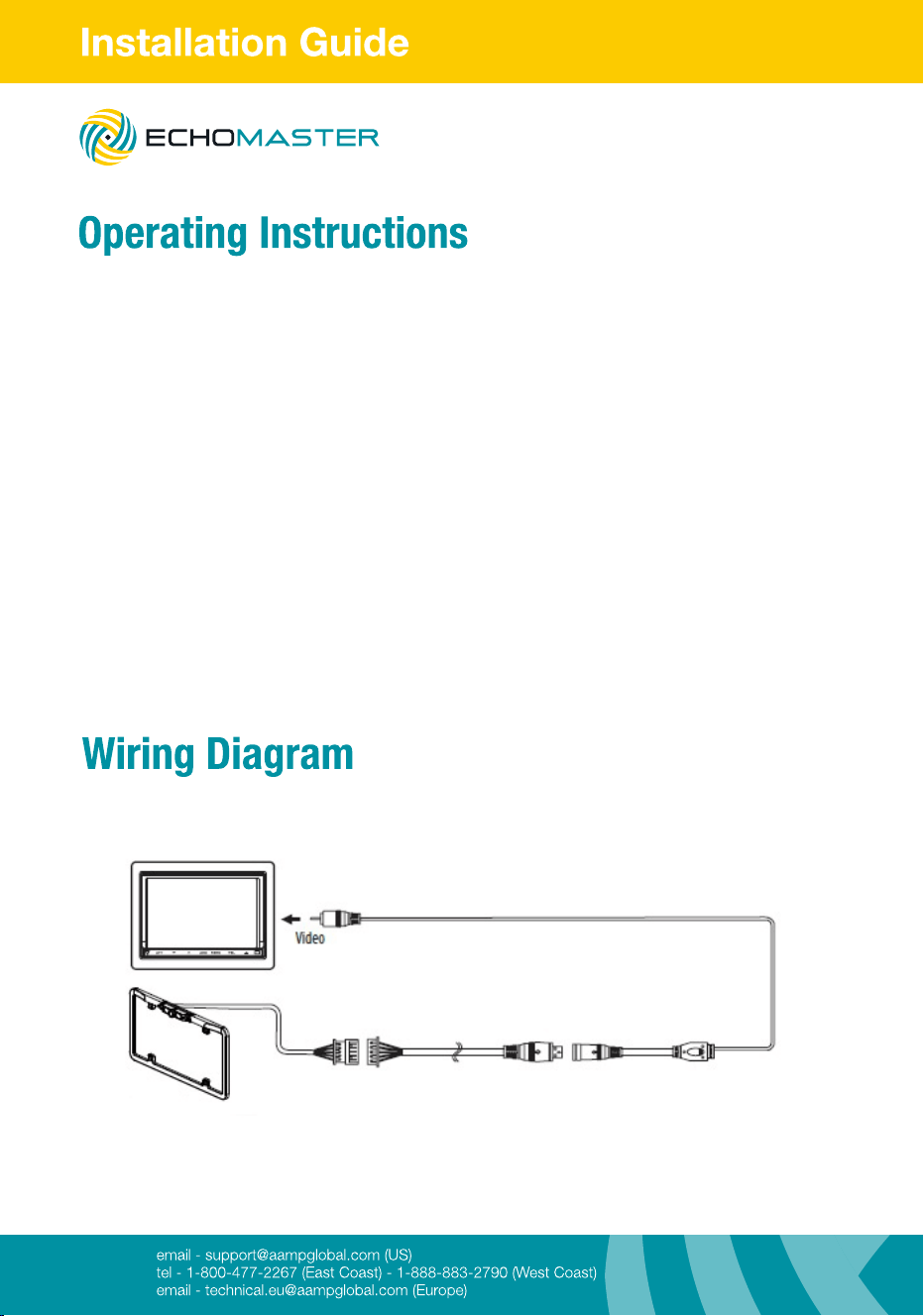

To turn on the unit the vehicle ignition should be ON
The monitor will only turn on when there is a video signal present.
Press the POWER button to turn the screen on.
To switch between the 2 video inputs use the MODE select button.
Pressing the MENU button will allow you to adjust the various menu settings
available.
When a 12V input is detected on the blue wire, the unit will automatically
switch to Camera input. If the unit is currently turned off when this trigger is
detected it will automatically turn on and switch to Camera input.
4
MON-50-DM
5” Digital Slim TFT/LCD Monitor
Menu
The Menu functions can be adjusted using the + and – buttons on the
monitor.
Brightness: Adjust the brightness level of the screen between
0 and 100.
Contrast: Adjust the contrast of the screen between 0 and 100.
Colour: Adjust the colour of the screen between 0 and 100.
Hue: Adjust the hue of the screen between 0 and 100.
Language: English / Chinese
Reset: Resets the unit to factory settings
5
MON-50-DM
5” Digital Slim TFT/LCD Monitor

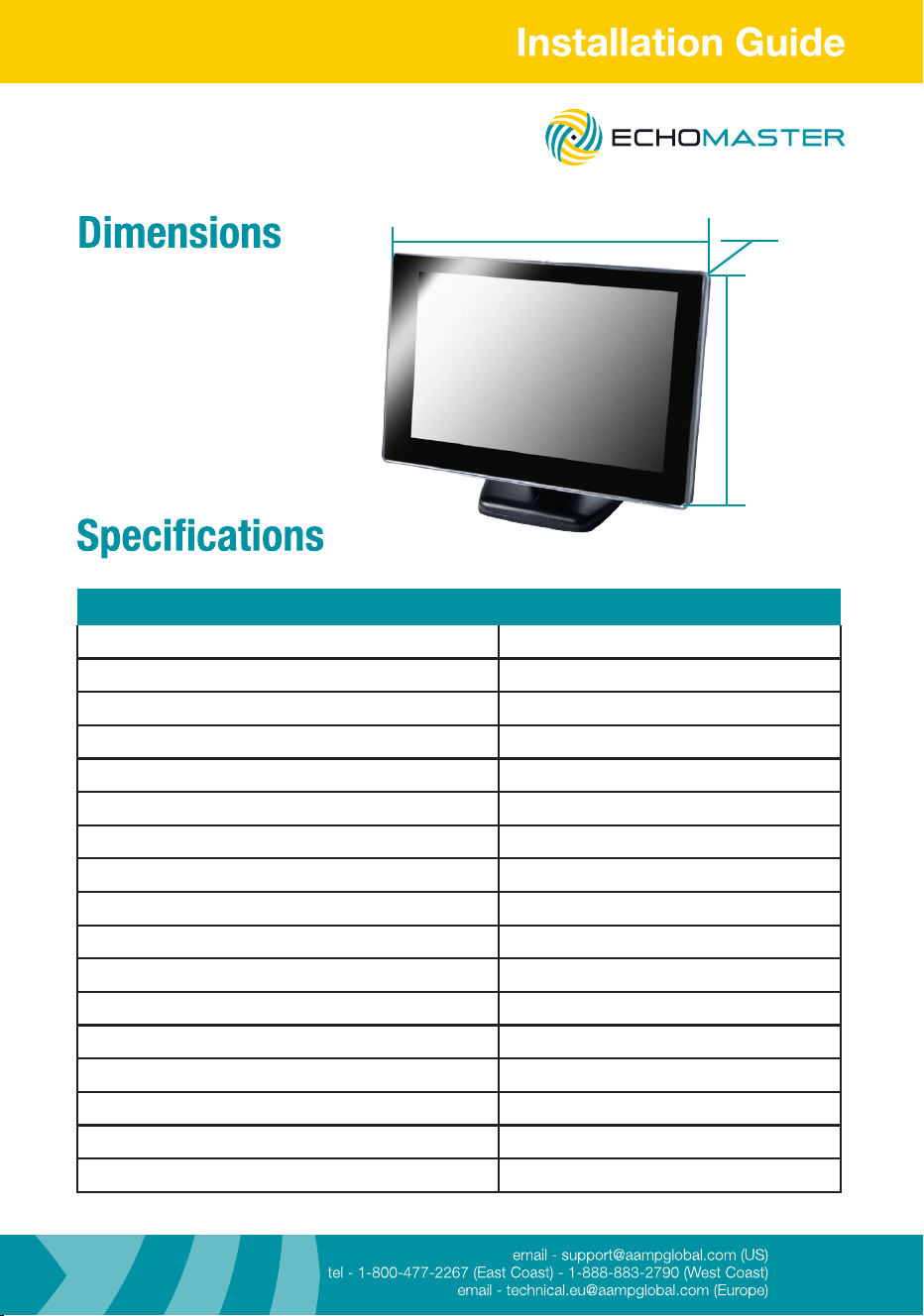

104.8mm / 4.125”
95.3mm / 3.75”
12.7mm/0.5”
MON-50-DM
Screen Size 5” Digital TFT/LCD
Aspect Ratio 16:9
Power Supply 12v DC
Resolution 800 x 480
Luminance 350
Contrast 350:1
TV Format PAL/NTSC
OSD Languages Multi
Video Inputs 2
Audio Inputs --
Triggers 1
Current Draw 3W
Operating Temperature -20oC - +70oC
IP Rating 30
Parking Guidelines NO
Dimensions (mm) 104.8 (W) x 95.3 (H) x 12.7 (D)
Connection Type RCA
6
MON-50-DM
5” Digital Slim TFT/LCD Monitor

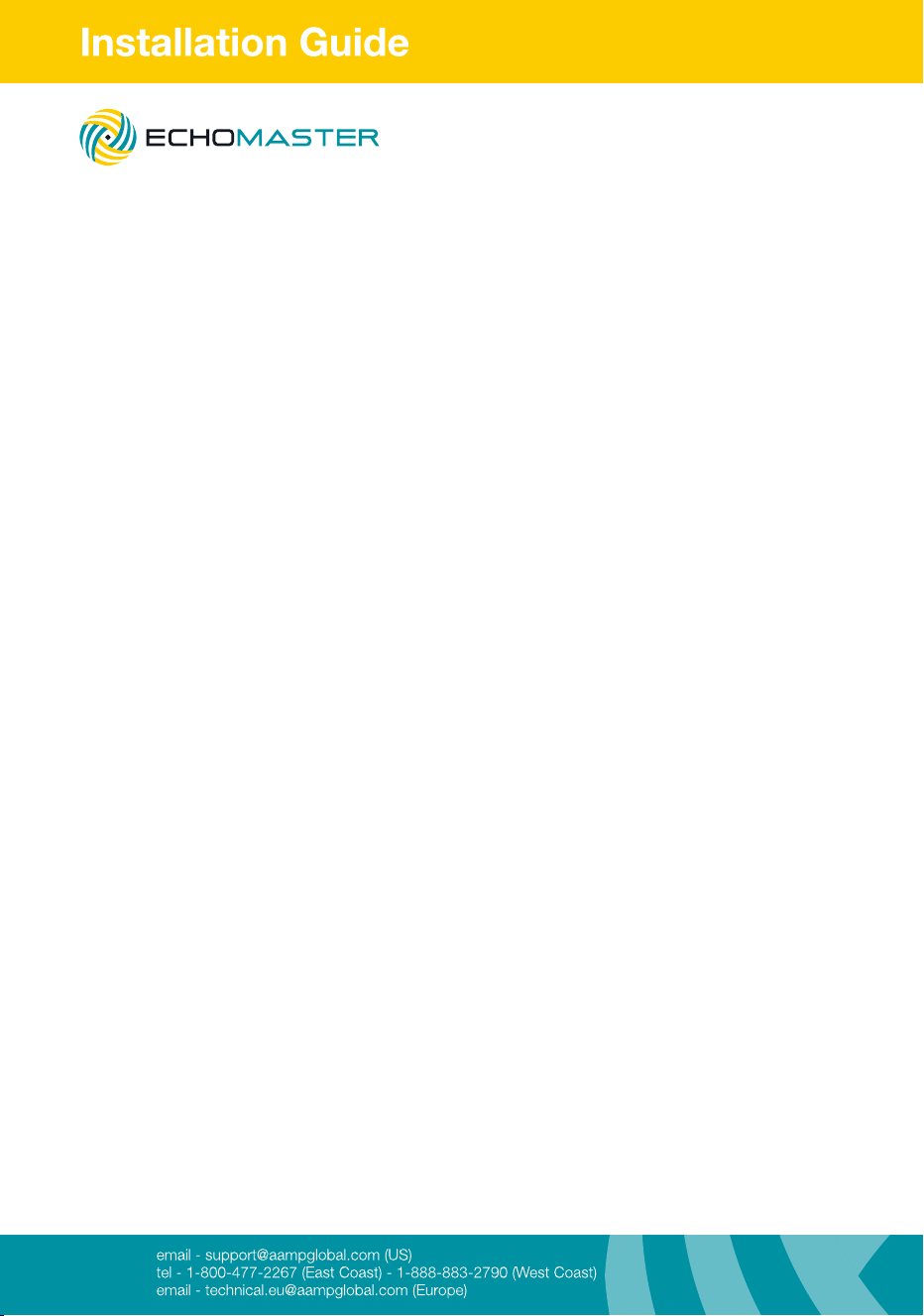

NOTES:
7
MON-50-DM
5” Digital Slim TFT/LCD Monitor

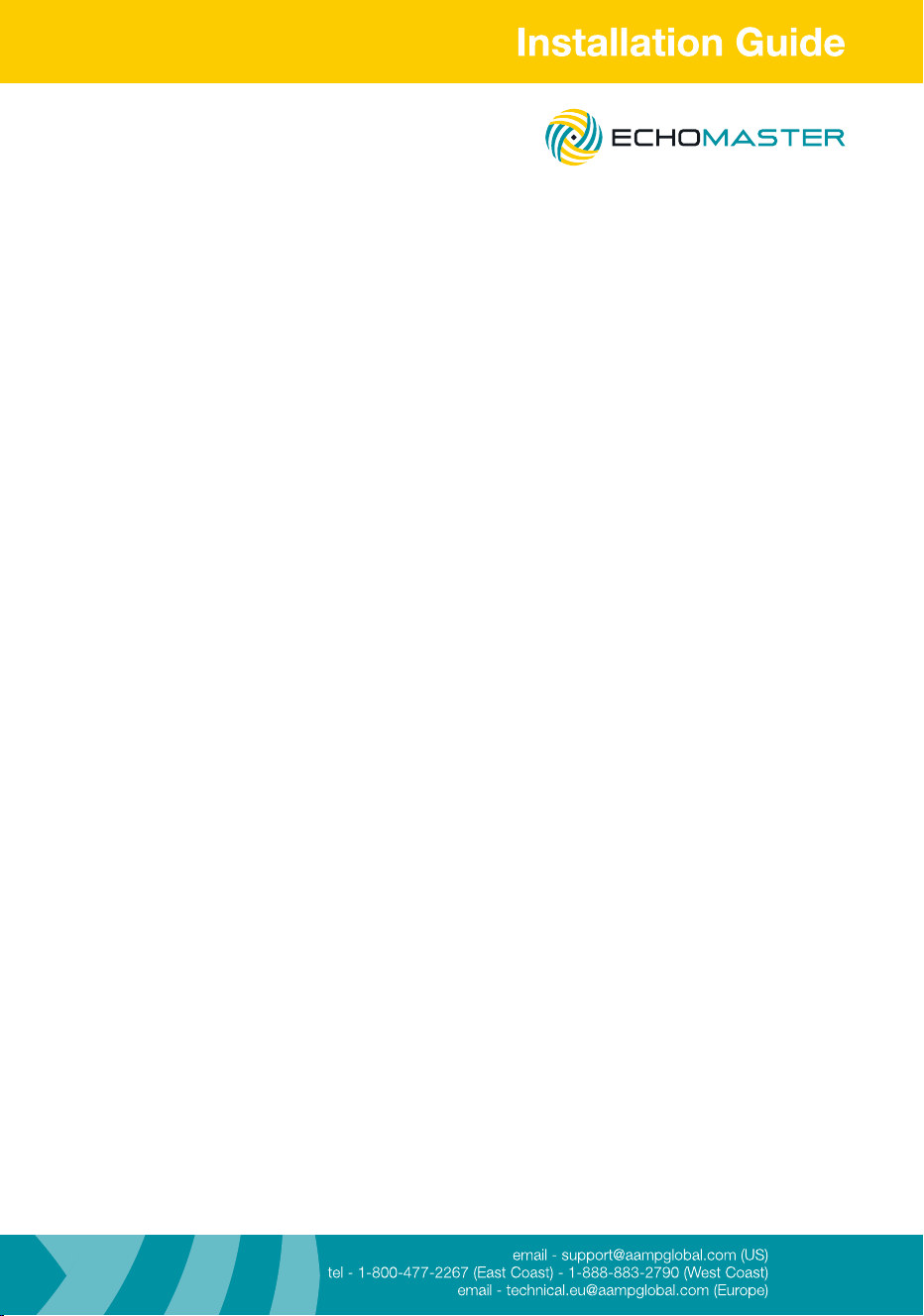

NOTES:
