12V/5A
CTEK MXS 5.0
ADVANCED CHARGING WITH
TEMPERATURE COMPENSATION

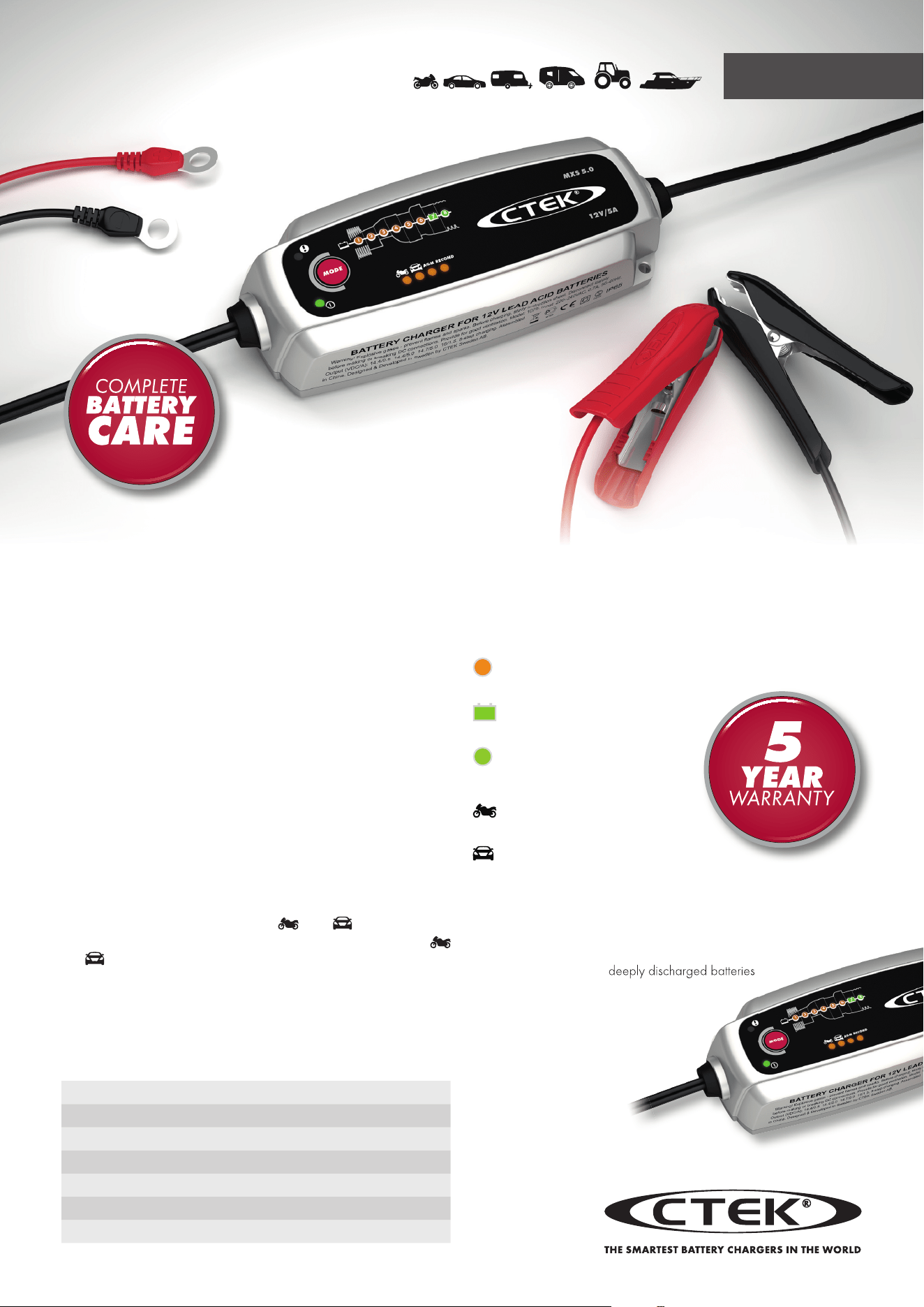

The MXS 5.0 is an advanced microprocessor controlled battery charger
with automatic temperature compensation built in providing unrivalled
performance on lead-acid batteries from 1.2Ah up to 110Ah. The MXS 5.0
solves a broad range of battery problems and is the ideal charger for the
user with high demands. Features of the MXS 5.0 include diagnosis of
battery condition to establish if it can receive and retain charge, patented
automatic desulphation step and a special reconditioning step that will
revive and restore deeply discharged and stratified batteries. AGM option
is perfect for maximising performance and life of most Stop-Start batteries.
The built in temperature compensation ensures ideal charging performance
even in the most extreme conditions. Patented Float/Pulse maintenance
makes the MXS 5.0 ideal for long-term maintenance. The entire process of
battery testing, charging and maintenance is easily followed on the clear
LED display.
The MXS 5.0 is a fully automatic "connect and forget" 12V charger with
8 charging steps and offers selectable
, and programmes. The
RECOND and A
GM options operate individually or together in both
and programmes providing great flexibility for the user. Wide charging
range on all lead-acid battery types from 1.2Ah up to110Ah with additional
maintenance capability to 160Ah. Splash proof and dust proof (IP65). The
MXS 5.0 is easy and safe to use, protects vehicle electronics, is spark-free,
reverse polarity protected and short circuit proof. The MXS 5.0 features a
5-year warranty.
TECHNICAL DATA
CHARGING VOLTAGE 14.4/14.7/15.8V
CHARGING CURRENT Max 5A
TYPE OF CHARGER 8 step, fully automatic charging cycle
TYPE OF BATTERY 12V lead-acid batteries
BATTERY CAPACITY 1.2–110Ah, up to 160Ah for maintenance
INSULATION IP65 (splash and dust proof)
TEMPERATURE COMP. Built In
4
Step 4 - Battery ready to use
7
Step 7 - Battery fully charged
8
Step 8 - Maintenance charging
Program for charging small batteries
Program for charging normal batteries
AGM
Option for charging AGM and Stop-Start batteries
RECOND
Option for reconditioning deeply discharged batteries
Option for reconditioning deeply discharged batteries
www.ctek.com
12V/5A
CTEK MXS 5.0

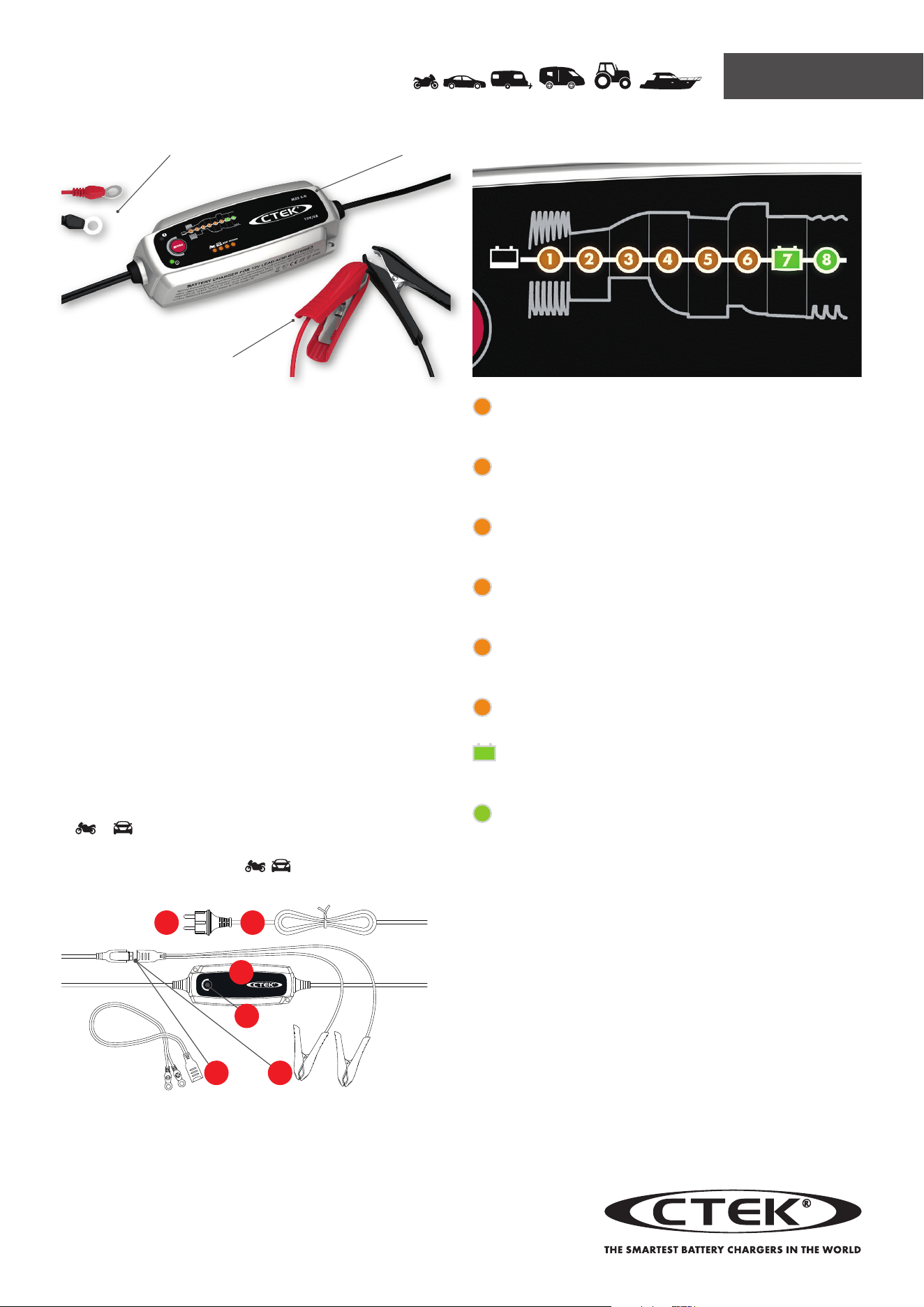

1
STEP 1 DESULPHATION
Pulsing voltage removes sulphates from the lead plates of the battery
restoring the battery capacity.
2
STEP 2 SOFT START
Tests if the battery can accept charge. Charging begins if the battery
is OK.
3
STEP 3 BULK
Charging with maximum current until approximately 80% battery
capacity.
4
STEP 4 ABSORPTION, BATTERY READY TO USE
Charging with declining current to maximize up to 100% battery
capacity.
5
STEP 5 ANALYSE
Tests if the battery can hold charge. Batteries that cannot hold charge
may need to be replaced.
6
STEP 6 RECOND
Reconditioning function for deeply discharged batteries.
7
STEP 7 FLOAT, BATTERY FULLY CHARGED
Maintaining the battery voltage at maximum level by providing a
constant voltage charge.
8
STEP 8 PULSE, MAINTENANCE CHARGING
Maintaining the battery at 95–100% capacity. The charger monitors
the battery voltage and gives a pulse when necessary to keep the
battery fully charged.
20018201B 56-928 EN
Complete battery care — unique and patented system to recover,
charge and maintain all lead-acid battery types to maximise performance
and extend life.
Safe and easy to use — user safety through spark free operation and
reverse polarity protection. Vehicle electrical safety through exceptionally
clean voltage and current delivery with no surges or spikes. No need to
disconnect battery from the vehicle when charging.
"Connect and forget" — simple plug and play operation. Select the
program and mode and leave the charger to do the rest.
Unique 8 step charging — the patented 8 step programme tests
battery condition and revives, charges and maintains to ensure maximum
battery life and performance. RECOND recovers deep discharged and
stratified batteries. FLOAT/PULSE maintenance ensures ideal battery care
during periods of inactivity.
Temperature compensation — built in automatic charge voltage
compensation depending on ambient temperature ensures ideal charging
in extreme cold or hot weather conditions.
Extends battery life — the unique features of CTEK chargers combine
to ensure maximum battery reliability, performance and life.
Multiple charging programs and options
1. Connect the charger to the battery.
2. Connect the charger to the wall socket.
3. Press the MODE-button to combine charging program
or with options AGM and/or RECOND.
Press and release the MODE button several times until the desired
combination of charging program (
, ) and options (AGM,
RECOND) is lit.
4. Follow the 8-step display through the charging process. The battery is
ready to start the engine when STEP 4 is lit. The battery is fully charged
when STEP 7 is lit.
5. Stop charging at any time by disconnecting the mains cable from the
wall socket.
UNIQUE 8 STEP CHARGING FROM CTEK
GUARANTEED QUALITY WITH CTEK
CTEK customer support is available to answer any questions related to
charging and CTEK chargers. Safety, simplicity and flexibility characte-
rizes all products and solutions developed and sold by CTEK. CTEK
supply chargers to more than 60 countries throughout the world. CTEK is
also a reliable OEM supplier to many of the world’s most prestigious car
and motorcycle manufacturers.
Contact customer support: [email protected]
5 2
4
3
11
CTEK COMFORT CONNECT–clamp
CTEK COMFORT CONNECT–eyelet M6 CTEK MXS 5.0
