CTEK
LITHIUM XS
12V/5A
EFFECTIVE LiFePO
4
BATTERY
CHARGING AND MAINTENANCE
The LITHIUM XS is an advanced microprocessor controlled charger
specially designed to recharge and maintain Lithium-Ion Phosphate
(LiFePO
4
) batteries — maximising their performance and lifespan. With up
to 5A of charge current available the LITHIUM XS is extremely flexible and
will charge LiFePO
4
batteries from 5Ah to 60Ah and maintain up to 120Ah.
Operation is simple and charging will commence upon connection. With
no need to disconnect the battery from the vehicle, at charge start the
LITHIUMXS will automatically reset any low voltage protection electronics
(Battery Management System) fitted. Charging can be restarted manually
at any time using the "Reset" button.
The LITHIUM XS is a fully automatic "connect and forget" charger with
8 charging steps including a testing sequence to show if the LiFePO
4
battery can take and retain charge, a unique maximisation step to restore
full capacity, and patented maintenance charging to ensure maximum
performance even after months of inactivity. Splash proof and dust proof
(IP65) the LITHIUMXS is easy and safe to use, protects vehicle electronics,
spark-free, reverse polarity protected and short circuit proof. The LITHIUMXS
features a 5-year warranty.
TECHNICAL DATA
CHARGING VOLTAGE 13.8/14.4 VDC
CHARGE CURRENT Max 5A
TYPE OF CHARGER 8-step, fully automatic charging cycle
TYPE OF BATTERY 12V Lithium Ion Phosphate (LiFePO
4
)
BATTERY CAPACITY 5–60Ah, maintenance charging
up to 120Ah
PROTECTION RATING IP 65 (splash and dust proof)
3
Step 3 - Battery ready to use
7
Step 7 - Fully charged battery
8
Step 8 - Maintenance charging
AUTO
Fully automatic for optimal charging
For Lithium-Ion Phosphate LiFePO
4
batteries
20018386C 56-908-EU. LiFe LITHIUM XS, All languages, 004.indd 1 2013-08-12 11:17:37
www.ctek.com
CTEK COMFORT CONNECT–clamp
CTEK COMFORT CONNECT–eyelet M6 CTEK LITHIUM XS
CTEK
LITHIUM XS
12V/5A
Complete LiFePO
4
battery care — unique and patented system to
recover, charge and maintain LiFePO
4
batteries to maximise performance
and extend life.
Safe to use — user safety through spark free operation and reverse
polarity protection. Vehicle electrical safety through exceptionally clean
voltage and current delivery with no surges or spikes. No need to discon-
nect battery from the vehicle when charging.
Connect and forget — simple plug and play operation. Manual Reset
available.
Unique 8 step charging — the patented 8 step programme tests
battery condition and, charges and maintains to ensure maximum LiFePO
4
battery life and performance. FLOAT/PULSE maintenance ensures ideal
battery care during periods of inactivity.
Extends battery life — the unique features of CTEK chargers combine
to maximise performance and extend LiFePO
4
battery life.
20018386C 56–908 EN

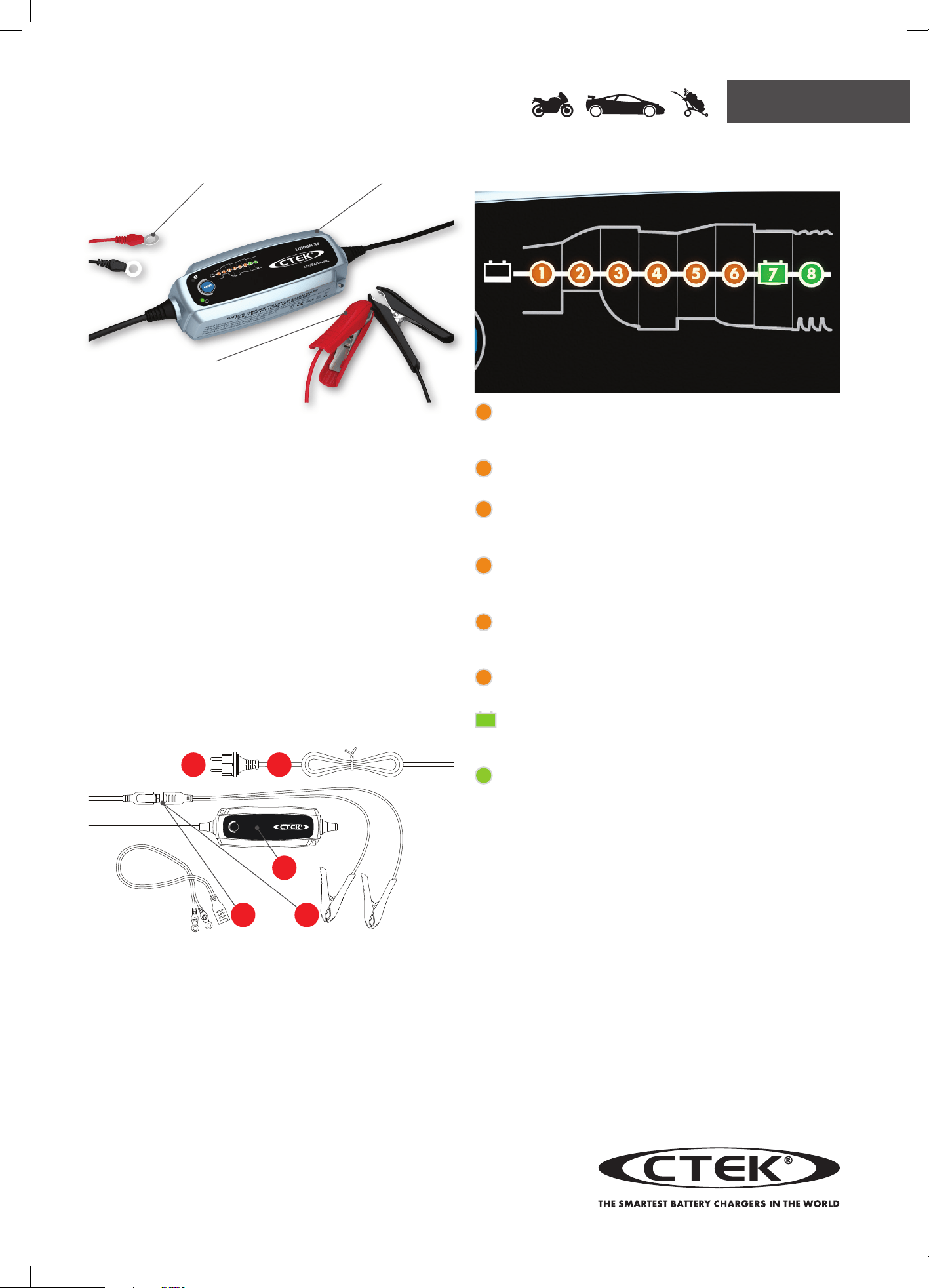

UNIQUE 8 STEP CHARGING FROM CTEK
1
STEP 1 ACCEPT
Tests if the battery can accept charge. This step prevents charging from
proceeding on a defective battery.
2
STEP 2 BULK
Charging with maximum current until approximately 90% battery capacity.
3
STEP 3 ABSORPTION
Charging with declining current to maximize up to 95% battery
capacity.
4
STEP 4 ANALYZE
Tests if the battery can hold charge. Batteries that can not hold charge
may need to be replaced.
5
STEP 5 COMPLETION
Final charge with reduced current up to approximately 98% battery
capacity.
6
STEP 6 MAXIMIZATION
Final charge with maximum voltage up to 100% battery capacity.
7
STEP 7 FLOAT
Maintaining the battery voltage at maximum level by providing a constant
voltage charge.
8
STEP 8 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the
battery voltage and gives a pulse when necessary to keep the battery fully
charged.
CONNECT AND FORGET
4 2
3
11
1. Connect the charger to the battery.
2. Connect the power cord to the power outlet. The power-on lamp is lit.
3. Charging starts.
4. Stop charging at any time by disconnecting the mains cable from the
wall socket.
GUARANTEED QUALITY WITH CTEK
CTEK customer support is available to answer any questions related to
charging and CTEK chargers. Safety, simplicity and fl exibility characte-rizes
all products and solutions developed and sold by CTEK. CTEKsupply charg-
ers to more than 60 countries throughout the world. CTEK is also a reliable
OEM supplier to many of the world’s most prestigious car and motorcycle
manufacturers.
Contact customer support: [email protected]
20018386C 56-908-EU. LiFe LITHIUM XS, All languages, 004.indd 2 2013-08-12 11:17:40
