DS-QAZ1MP7G1
Network Paging Microphone
7-inch color IPS touch screen, resolution: 1024 × 600
Support real-time broadcasting, speaking, or playing media library files on specified partitions or terminals
One or more terminals can be selected, and shortcut keys can be set to broadcast, up to 6 shortcut options (F1 to F6) can
be defined
1-channel gooseneck microphone audio input, 1-channel 4-segment 3.5 mm audio input
1-channel local speaker audio output, 1-channel 3.5 mm audio output
Support logging in through an account and password
Support parameter setting, account management, system maintenance, and other operations
Support long press (for 3 seconds) one-key emergency call to emergency call designated terminals or all terminals
Specification
Protocol
Network Protocol
ISAPI, ISUP
Function
Audio Bit Rate
G.711U, 64 Kbps
Echo Cancellation
Yes
Network
Client
HikCentral Professional
Interface
Network Interface
1
Local Storage
Support TF card
Button
Physical buttons and on-screen buttons
Display Screen
IPS, 7 inches, 1024 × 600, touch screen
General
Power
12 VDC, max.10 W
System Requirement
Embedded operating system
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)
Operating Humidity
10% to 90%

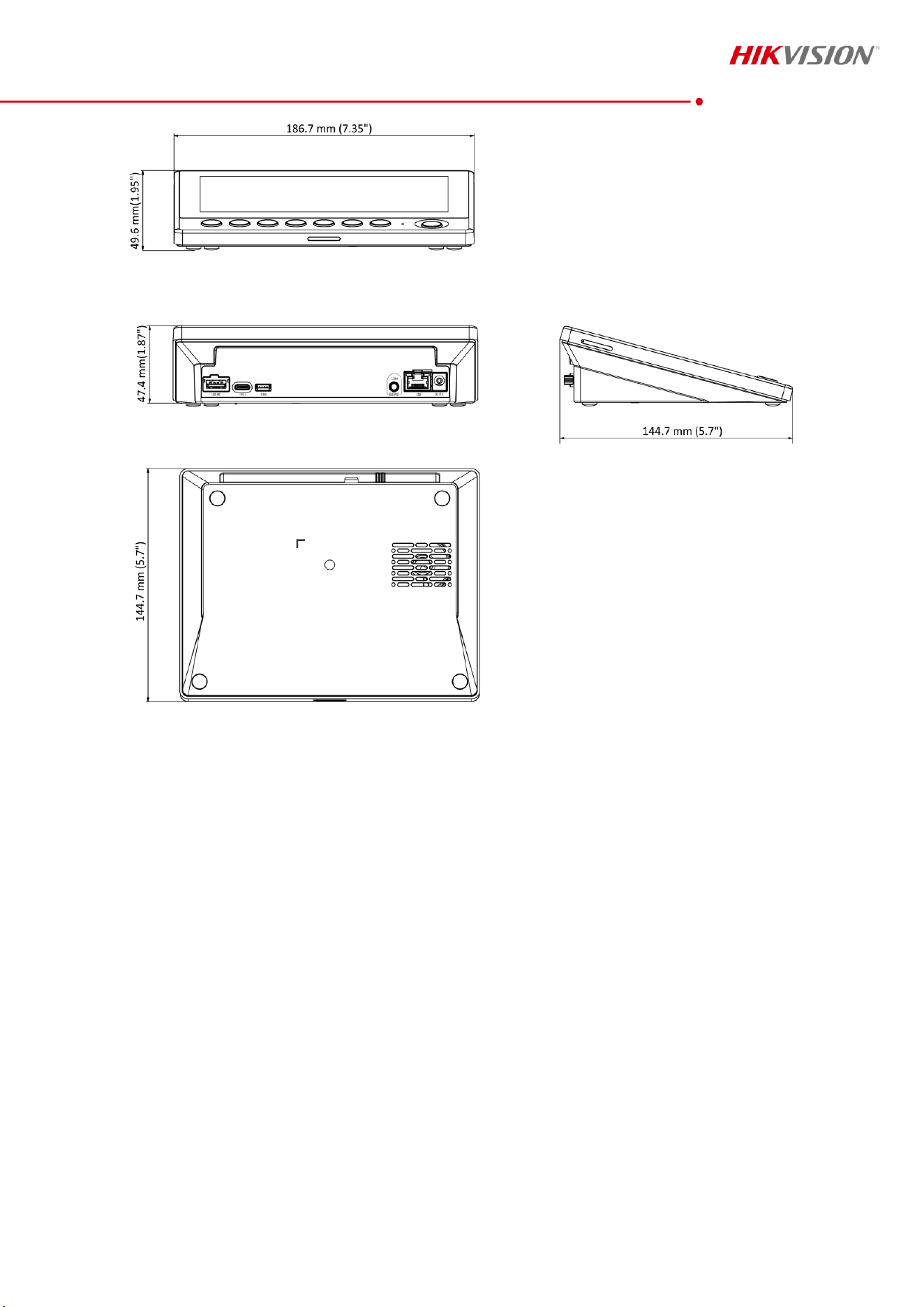

Dimension
Available Model
DS-QAZ1MP7G1
